MC65 MOBILE COMPUTER

USER GUIDE

MC65 MOBILE COMPUTER

USER GUIDE

72E-133769-03

Rev. A

February 2015

ii MC65 User Guide

No part of this publication may be reproduced or used in any form, or by any electrical or mechanical means, without permission in writing from Zebra. This includes electronic or mechanical means, such as photocopying, recording, or information storage and retrieval systems. The material in this manual is subject to change without notice.

The software is provided strictly on an “as is” basis. All software, including firmware, furnished to the user is on a licensed basis. Zebra grants to the user a non-transferable and non-exclusive license to use each software or firmware program delivered hereunder (licensed program). Except as noted below, such license may not be assigned, sublicensed, or otherwise transferred by the user without prior written consent of Zebra. No right to copy a licensed program in whole or in part is granted, except as permitted under copyright law. The user shall not modify, merge, or incorporate any form or portion of a licensed program with other program material, create a derivative work from a licensed program, or use a licensed program in a network without written permission from Zebra. The user agrees to maintain Zebra copyright notice on the licensed programs delivered hereunder, and to include the same on any authorized copies it makes, in whole or in part. The user agrees not to decompile, disassemble, decode, or reverse engineer any licensed program delivered to the user or any portion thereof.

Zebra reserves the right to make changes to any software or product to improve reliability, function, or design.

Zebra does not assume any product liability arising out of, or in connection with, the application or use of any product, circuit, or application described herein.

No license is granted, either expressly or by implication, estoppel, or otherwise under any Zebra intellectual property rights. An implied license only exists for equipment, circuits, and subsystems contained in Zebra products.

Revision History

Changes to the original guide are listed below:

Change Date Description

-01 Rev A 9/2010 Initial release.

-01 Rev. B 3/2011 Remove unsupported Voice Commander features. Add Speed Dialing setup

-02 Rev. A 10/2011 Update due to latest software OEM version 02.31.00XX.

-02 Rev. B 06/30/12 Add Power off procedure, update keypad functionality and add PIM keypad reset

-03 Rev. A 02/2015 Zebra Rebranding

iii

instructions.

sequence.

iv MC65 User Guide

Revision History .............................................................................................................................. iii

About This Guide

Introduction ..................................................................................................................................... xiii

Documentation Set ................................................................................................................... xiii

Configurations................................................................................................................................. xiii

Software Versions..................................................................................................................... xiv

Chapter Descriptions ...................................................................................................................... xiv

Notational Conventions................................................................................................................... xv

Related Documents ........................................................................................................................ xv

Service Information ......................................................................................................................... xvi

Chapter 1: Getting Started

Introduction .................................................................................................................................... 1-1

Unpacking ...................................................................................................................................... 1-1

Getting Started ............................................................................................................................... 1-2

Installing a microSD Card ........................................................................................................ 1-2

Installing the SIM Card ............................................................................................................. 1-3

Installing the Battery ................................................................................................................ 1-4

Charging the Battery ................................................................................................................ 1-5

Charging the Main Battery ................................................................................................. 1-5

Charging Spare Batteries ................................................................................................... 1-6

Charging Temperature ....................................................................................................... 1-6

Powering On the MC65 ............................................................................................................ 1-6

Calibrating the Screen ........................................................................................................ 1-6

First-time Network Activation ......................................................................................................... 1-7

GSM/UMTS Activation ............................................................................................................. 1-7

Network Activation ............................................................................................................. 1-7

Checking Battery Status ................................................................................................................ 1-7

Replacing the Battery ..................................................................................................................... 1-8

Replacing the microSD Card ......................................................................................................... 1-8

Replacing the SIM Card ................................................................................................................. 1-9

Battery Management ...................................................................................................................... 1-10

vi MC65 User Guide

Changing the Power Settings .................................................................................................. 1-10

Changing the Backlight Settings .............................................................................................. 1-10

Changing the Keypad Backlight Settings ................................................................................. 1-10

Turning Off the Radios ............................................................................................................. 1-10

Handstrap Replacement ................................................................................................................ 1-11

Removal ................................................................................................................................... 1-11

Installation ................................................................................................................................ 1-12

Chapter 2: Using the MC65

Introduction .................................................................................................................................... 2-1

Features ......................................................................................................................................... 2-1

Function Buttons ............................................................................................................................ 2-3

Keypads ......................................................................................................................................... 2-4

Finger Scrolling .............................................................................................................................. 2-4

Zebra Home Screen ...................................................................................................................... 2-5

Cards ....................................................................................................................................... 2-7

Simple Home Card ............................................................................................................. 2-7

Full Home Card .................................................................................................................. 2-7

Weather Card ..................................................................................................................... 2-9

Time Tracker Card ............................................................................................................. 2-9

Card Configuration ............................................................................................................. 2-9

Program Shortcuts ............................................................................................................. 2-9

My Apps Window ............................................................................................................... 2-10

Tile Bar ..................................................................................................................................... 2-10

Device Management ................................................................................................................ 2-12

Programs ........................................................................................................................... 2-13

Memory Manager ............................................................................................................... 2-13

Sound Profiles .................................................................................................................... 2-14

Power & Radio ................................................................................................................... 2-15

Alarms ................................................................................................................................ 2-16

Fusion ................................................................................................................................ 2-16

Status ................................................................................................................................. 2-17

Settings .............................................................................................................................. 2-17

Adjusting Volume ........................................................................................................................... 2-18

Battery Status Indications .............................................................................................................. 2-18

LED Indicators ............................................................................................................................... 2-18

Powering Off the MC65 ................................................................................................................. 2-19

Resetting the MC65 ....................................................................................................................... 2-19

Locking the MC65 .......................................................................................................................... 2-20

Stylus ............................................................................................................................................. 2-21

Entering Data ................................................................................................................................. 2-21

Data Capture ................................................................................................................................. 2-23

Imaging .................................................................................................................................... 2-23

Operational Modes ............................................................................................................. 2-23

Digital Camera ......................................................................................................................... 2-23

Scanning Considerations ......................................................................................................... 2-24

Imager Scanning ...................................................................................................................... 2-24

Digital Camera Scanning ......................................................................................................... 2-26

Using Voice-Over-IP ...................................................................................................................... 2-26

Table of Contents vii

Chapter 3: Making Calls

Introduction .................................................................................................................................... 3-1

Making a Call ................................................................................................................................. 3-1

Using the Phone Keypad ......................................................................................................... 3-1

Smart Dialing ........................................................................................................................... 3-2

Using Contacts ......................................................................................................................... 3-3

Using Call Log .......................................................................................................................... 3-4

Using Speed Dialing ................................................................................................................ 3-4

Last Call Dialing ....................................................................................................................... 3-5

Answering a Call ............................................................................................................................ 3-5

Incoming Call Features ............................................................................................................ 3-5

Missed Call Notification .................................................................................................................. 3-5

Emergency Calling ......................................................................................................................... 3-5

Audio Modes .................................................................................................................................. 3-6

Using a Bluetooth Headset ...................................................................................................... 3-6

Adjusting Audio Volume ........................................................................................................... 3-6

Muting a Call .................................................................................................................................. 3-6

Using Call Log ................................................................................................................................ 3-6

Managing Call Log ................................................................................................................... 3-7

Using the Call Log Menu .................................................................................................... 3-7

Conference Calling ........................................................................................................................ 3-8

Making a 3-Way Call ...................................................................................................................... 3-11

Speed Dial Setup ........................................................................................................................... 3-11

Adding a Speed Dial Entry ....................................................................................................... 3-11

Editing a Speed Dial Entry ....................................................................................................... 3-11

Deleting a Speed Dial Entry ..................................................................................................... 3-12

Voice Commander ......................................................................................................................... 3-12

Call ........................................................................................................................................... 3-13

Find .......................................................................................................................................... 3-13

Redial ....................................................................................................................................... 3-14

Callback ................................................................................................................................... 3-14

Start ......................................................................................................................................... 3-14

Appointments ........................................................................................................................... 3-14

Read ........................................................................................................................................ 3-15

What time is it .......................................................................................................................... 3-15

Call History ............................................................................................................................... 3-15

Voice Play Music ...................................................................................................................... 3-15

What can I say ......................................................................................................................... 3-16

Goodbye .................................................................................................................................. 3-16

Chapter 4: Using WLAN

Introduction .................................................................................................................................... 4-1

Fusion Overview ............................................................................................................................ 4-1

Connecting to the Internet ........................................................................................................ 4-2

Wireless Zero Config Overview ..................................................................................................... 4-2

Switching Between Fusion and WZC ............................................................................................. 4-2

Supported Applications .................................................................................................................. 4-3

Fusion Setup .................................................................................................................................. 4-4

Wireless Zero Config Setup ........................................................................................................... 4-6

More Information on WZC ........................................................................................................ 4-8

viii MC65 User Guide

Chapter 5: Messaging

Introduction .................................................................................................................................... 5-1

Email .............................................................................................................................................. 5-1

Creating an Email Message ..................................................................................................... 5-1

Viewing an Email Message ...................................................................................................... 5-1

Replying to or Forwarding a Message ..................................................................................... 5-2

SMS Messaging ............................................................................................................................. 5-2

Sending a Text Message ......................................................................................................... 5-2

Viewing Text Messages ........................................................................................................... 5-3

Replying to an SMS Message .................................................................................................. 5-4

MMS Messaging ............................................................................................................................ 5-4

Creating and Sending MMS Messages ................................................................................... 5-4

Viewing an MMS Message ...................................................................................................... 5-5

Replying to an MMS Message ................................................................................................. 5-5

Blocking Incoming SMS Messages .......................................................................................... 5-6

Chapter 6: Using the Camera

Introduction .................................................................................................................................... 6-1

Taking Pictures .............................................................................................................................. 6-1

Burst Mode ............................................................................................................................... 6-2

Timer Mode .............................................................................................................................. 6-2

Editing Pictures ........................................................................................................................ 6-2

Setting a Picture as Wallpaper ................................................................................................. 6-2

Camera Configuration .............................................................................................................. 6-3

Recording a Video ......................................................................................................................... 6-3

Video Configuration ................................................................................................................. 6-4

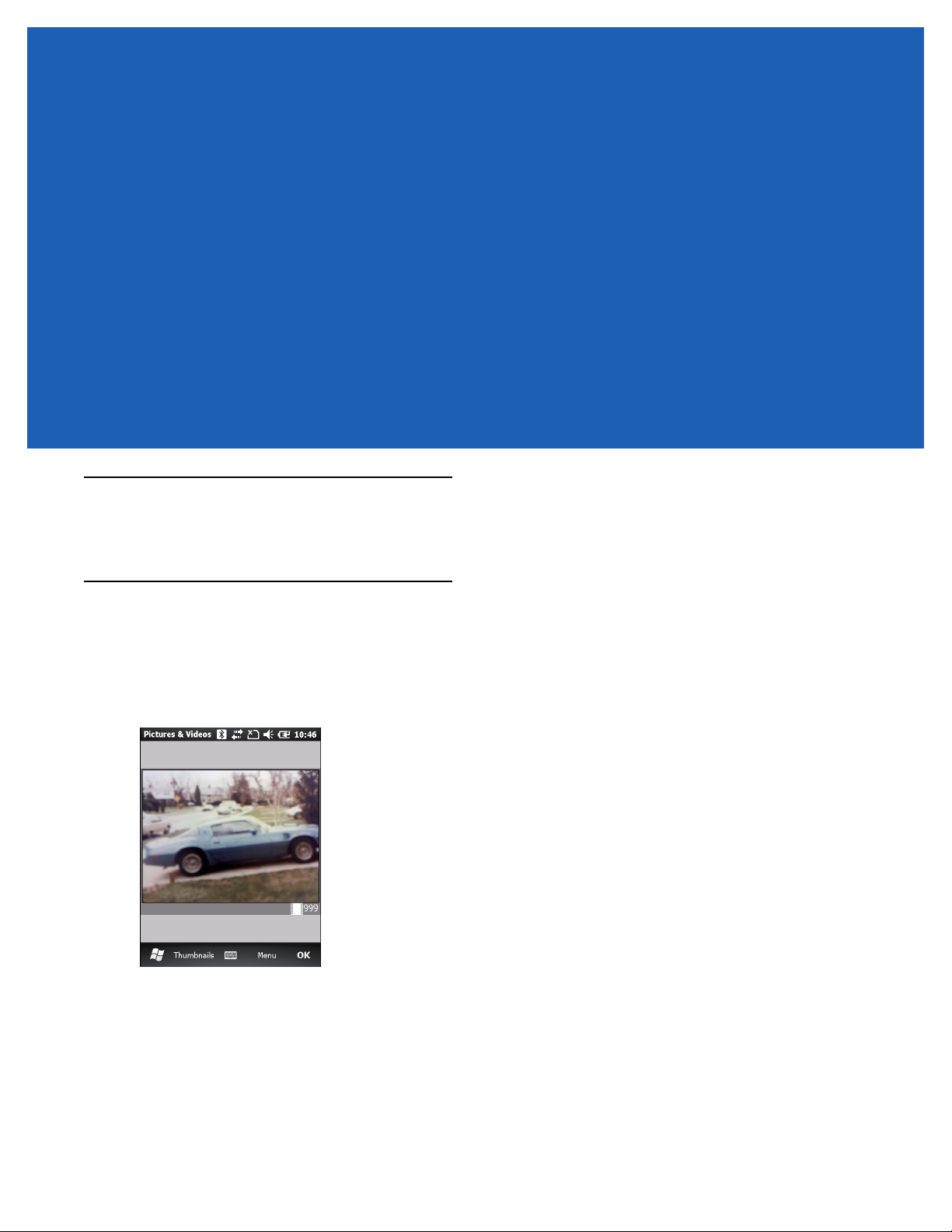

Viewing Pictures and Videos ......................................................................................................... 6-4

Customizing Pictures & Videos ...................................................................................................... 6-5

................................................................................................................................................. 6-5

Chapter 7: Using Bluetooth

Introduction .................................................................................................................................... 7-1

Adaptive Frequency Hopping ........................................................................................................ 7-1

Security .......................................................................................................................................... 7-2

Bluetooth Configuration ................................................................................................................. 7-3

Bluetooth Power States ................................................................................................................. 7-3

Suspend ............................................................................................................................. 7-3

Resume .............................................................................................................................. 7-3

Turning Bluetooth On and Off ........................................................................................................ 7-4

Enabling Bluetooth ................................................................................................................... 7-4

Disabling Bluetooth .................................................................................................................. 7-4

Discovering Bluetooth Device(s) .................................................................................................... 7-4

Available Services ......................................................................................................................... 7-7

Object Push Services via Beam ............................................................................................... 7-7

Internet Sharing ....................................................................................................................... 7-8

Hands-free Services ................................................................................................................ 7-9

Serial Port Services ................................................................................................................. 7-9

ActiveSync Using Bluetooth ..................................................................................................... 7-10

Phone Book Access Profile Services ....................................................................................... 7-11

Table of Contents ix

Dial-Up Networking Services ................................................................................................... 7-12

Connect to a HID Device ......................................................................................................... 7-12

A2DP/AVRCP Services ........................................................................................................... 7-12

Chapter 8: Using GPS Navigation

Introduction .................................................................................................................................... 8-1

Software Installation ....................................................................................................................... 8-1

MC65 GPS Setup .......................................................................................................................... 8-1

Operation ....................................................................................................................................... 8-2

GPS Maps on microSD Cards ................................................................................................. 8-2

Answering a Phone Call While Using GPS .............................................................................. 8-2

Losing the GPS Signal While in a Vehicle ............................................................................... 8-2

Assisted GPS ................................................................................................................................. 8-2

GPS Reset ............................................................................................................................... 8-3

Chapter 9: Settings

Introduction .................................................................................................................................... 9-1

Settings Folder ............................................................................................................................... 9-1

Locking the MC65 .......................................................................................................................... 9-4

Switching the Dialer ....................................................................................................................... 9-4

Device Management ...................................................................................................................... 9-5

Sound Profiles .......................................................................................................................... 9-5

Power Profiles .......................................................................................................................... 9-6

Alarms ...................................................................................................................................... 9-7

Backlight and Keylight Settings ...................................................................................................... 9-7

Accelerometer ................................................................................................................................ 9-8

Display Tab .............................................................................................................................. 9-8

About Tab ................................................................................................................................ 9-8

Program Shortcuts Setup ............................................................................................................... 9-8

My Apps Window Setup ................................................................................................................. 9-9

Card Setup ..................................................................................................................................... 9-10

Re-Order Cards ....................................................................................................................... 9-10

Configure Cards ....................................................................................................................... 9-10

Time Tracker Card ................................................................................................................... 9-11

Weather Card ........................................................................................................................... 9-12

Add a New Location ........................................................................................................... 9-12

Change Location ................................................................................................................ 9-13

Delete a Location ............................................................................................................... 9-13

Email Setup .................................................................................................................................... 9-13

Setting Up an IMAP or POP Account ....................................................................................... 9-13

Automatic Email Setup ....................................................................................................... 9-13

Manual Email Setup ........................................................................................................... 9-14

Entering Email Settings Manually ...................................................................................... 9-14

Editing an Email Account ......................................................................................................... 9-16

Setting Email Signatures .......................................................................................................... 9-17

MMS Messaging Setup .................................................................................................................. 9-17

Voice Commander ......................................................................................................................... 9-18

Contacts Settings ..................................................................................................................... 9-18

Play .................................................................................................................................... 9-18

x MC65 User Guide

Application Settings ................................................................................................................. 9-18

Play .................................................................................................................................... 9-18

Music Settings .......................................................................................................................... 9-18

Play .................................................................................................................................... 9-19

Digit Trainer Settings ............................................................................................................... 9-19

Digit Setting Settings ................................................................................................................ 9-19

Advanced Settings ................................................................................................................... 9-19

Chapter 10: Accessories

Introduction .................................................................................................................................... 10-1

Accessories ................................................................................................................................... 10-1

Single Slot USB Cradle .................................................................................................................. 10-3

Charging the MC65 Battery ..................................................................................................... 10-3

Charging the Spare Battery ..................................................................................................... 10-4

Battery Charging Indicators ..................................................................................................... 10-4

Charging Temperature ....................................................................................................... 10-4

Single-slot Ethernet/Modem/USB Cradle ...................................................................................... 10-5

Country Settings ...................................................................................................................... 10-5

Connection Setup .................................................................................................................... 10-5

Indicators ................................................................................................................................. 10-6

Operation ................................................................................................................................. 10-6

Ethernet Connection .......................................................................................................... 10-6

Modem Connection ............................................................................................................ 10-6

Four Slot Charge Only Cradle ....................................................................................................... 10-7

Charging .................................................................................................................................. 10-7

Battery Charging Indicators ..................................................................................................... 10-7

Charging Temperature ....................................................................................................... 10-7

Four Slot Ethernet Cradle .............................................................................................................. 10-8

Charging .................................................................................................................................. 10-8

Battery Charging Indicators ..................................................................................................... 10-8

Charging Temperature ....................................................................................................... 10-8

LED Indicators (CRD5500-4000ER) ........................................................................................ 10-9

LED Indicators (CRD5501-4000ER) ........................................................................................ 10-9

VCD5000 Vehicle Cradle ............................................................................................................... 10-10

Charging the MC65 Battery ..................................................................................................... 10-10

Removing the MC65 .......................................................................................................... 10-10

Battery Charging Indicators ..................................................................................................... 10-11

Charging Temperature ....................................................................................................... 10-11

Four Slot Battery Charger .............................................................................................................. 10-12

Battery Charging ..................................................................................................................... 10-12

Battery Charging Indicators ..................................................................................................... 10-12

Charging Temperature ....................................................................................................... 10-12

Cables ............................................................................................................................................ 10-13

Battery Charging and Operating Power ................................................................................... 10-13

LED Charge Indications ........................................................................................................... 10-14

Charging Temperature ....................................................................................................... 10-14

Vehicle Holder ............................................................................................................................... 10-15

Installation Reminders ............................................................................................................. 10-15

Device Mounting Precautions .................................................................................................. 10-15

Installation ................................................................................................................................ 10-15

Table of Contents xi

Assembly ............................................................................................................................ 10-16

Windshield Installation ....................................................................................................... 10-16

Flat Surface Installation ...................................................................................................... 10-17

Chapter 11: Maintenance & Troubleshooting

Introduction .................................................................................................................................... 11-1

Maintaining the MC65 .................................................................................................................... 11-1

Removing the Screen Protector ..................................................................................................... 11-2

Battery Safety Guidelines .............................................................................................................. 11-2

Cleaning ......................................................................................................................................... 11-3

Materials Required ................................................................................................................... 11-3

Cleaning the MC65 .................................................................................................................. 11-4

Housing .............................................................................................................................. 11-4

Display ............................................................................................................................... 11-4

Scanner Exit Window ......................................................................................................... 11-4

Connector ........................................................................................................................... 11-4

Cleaning Cradle Connectors .................................................................................................... 11-4

Cleaning Frequency ................................................................................................................. 11-5

Troubleshooting ............................................................................................................................. 11-5

MC65 ....................................................................................................................................... 11-5

Bluetooth Connection ............................................................................................................... 11-7

Single Slot USB Cradle ............................................................................................................ 11-8

Four Slot Ethernet Cradle ........................................................................................................ 11-9

Vehicle Cradle .......................................................................................................................... 11-9

Four Slot Battery Charger ........................................................................................................ 11-10

Cables ...................................................................................................................................... 11-10

Magnetic Stripe Reader ........................................................................................................... 11-11

Appendix A: Technical Specifications

MC65 Technical Specifications ...................................................................................................... A-1

MC65 ....................................................................................................................................... A-1

MC65 Accessory Specifications ..................................................................................................... A-5

Single Slot USB Cradle ............................................................................................................ A-5

Four Slot Battery Charger ........................................................................................................ A-6

Four Slot Charge Only Cradle .................................................................................................. A-6

Four Slot Ethernet Cradle ........................................................................................................ A-7

Magstripe Reader .................................................................................................................... A-7

Vehicle Cradle .......................................................................................................................... A-8

Cables ...................................................................................................................................... A-8

Appendix B: Keypads

Introduction .................................................................................................................................... B-1

Numeric Keypad Configuration ................................................................................................ B-1

Alpha-numeric Keypad Configurations .................................................................................... B-5

PIM Keypad Configuration ....................................................................................................... B-13

DSD Keypad Configuration ...................................................................................................... B-15

Special Character Key ............................................................................................................. B-18

xii MC65 User Guide

Appendix C: Windows Mobile Home Screen and Dialer

Introduction .................................................................................................................................... C-1

Windows Mobile Home Screen ...................................................................................................... C-1

Classic Today Screen ........................................................................................................ C-3

Start Screen ............................................................................................................................. C-4

Windows Mobile Dialer .................................................................................................................. C-4

Making a Call ................................................................................................................................. C-4

Using the Phone Keypad ......................................................................................................... C-4

Smart Dialing ........................................................................................................................... C-5

Using Contacts ......................................................................................................................... C-6

Using Call History .................................................................................................................... C-6

Making a Speed Dial Call ......................................................................................................... C-7

Answering a Call ............................................................................................................................ C-7

Incoming Call Features ............................................................................................................ C-8

Missed Call Notification ................................................................................................................. C-8

Emergency Calling ......................................................................................................................... C-8

Audio Modes .................................................................................................................................. C-9

Using a Wired Headset ............................................................................................................ C-9

Using a Bluetooth Headset ...................................................................................................... C-9

Adjusting Audio Volume ........................................................................................................... C-9

Muting a Call .................................................................................................................................. C-10

Using Call History .......................................................................................................................... C-10

Managing Call History .............................................................................................................. C-10

Changing the Call History View ......................................................................................... C-11

Resetting the Recent Calls Counter ................................................................................... C-11

Deleting All Call History Items ............................................................................................ C-11

Viewing Call Status ............................................................................................................ C-12

Using the Call History Menu .............................................................................................. C-12

Swapping Calls (GSM) .................................................................................................................. C-13

Swapping Calls (CDMA) ................................................................................................................ C-13

Conference Calling (GSM) ............................................................................................................. C-14

Three-way Calling (CDMA) ............................................................................................................ C-15

Glossary

Index

About This Guide

Introduction

This guide provides information about using the MC65 Enterprise Digital Assistant (EDA) and accessories.

NOTE Screens and windows pictured in this guide are samples and can differ from actual screens. This guide

provides instructions for using the Enterprise Home screen and Dialer. See Appendix C, Windows Mobile

Home Screen and Dialer for information on using the Microsoft Home screen and Dialer.

Documentation Set

The documentation set for the MC65 provides information for specific user needs, and includes:

•

MC65 Quick Start Guide - describes how to get the MC65 EDA up and running.

•

MC65 User Guide - describes how to use the MC65 EDA.

•

MC65 Integrator Guide - describes how to set up the MC65 EDA and accessories.

•

Enterprise Mobility Developer Kit (EMDK) Help File - provides API information for writing applications.

Configurations

This guide covers the following configurations:

Configuration Radios Display Memory

MC659B WLAN: 802.11 a/b/g

WPAN: Bluetooth

v2.0 EDR

WWAN: CDMA or

GSM/UMTS

GPS: Stand-alone

GPS or A-GPS

3.5” VGA Color

128 MB RAM/ 1 GB Flash or 512 MB RAM/ 1 GB Flash

Data Capture

Options

2D imager or 2D imager and camera

Operating

System

Windows Mobile 6.5 Professional

Keypads

Numeric, QWERTY, QWERTZ, AZERTY, PIM or DSD

xiv MC65 User Guide

Software Versions

This guide covers various software configurations and references are made to operating system or software versions for:

•

Adaptation Kit Update (AKU) version

•

OEM version

•

Fusion software

•

Phone software.

AKU Version

To determine the Adaptation Kit Update (AKU) version:

Tap Start > Settings > System > About > Version.

The second line lists the operating system version and the build number. The last part of the build number represents the AKU number. For example, Build 23121.5.3.6 indicates that the device is running AKU version

5.3.6.

OEM Version

To determine the OEM software version:

Tap Start > Settings > System > System Info > System.

Fusion Software

To determine the Fusion software version:

Tap Status Bar > > Wireless Status > Versions.

Phone Software

To determine the Phone software version:

Press > > Phone information.

Chapter Descriptions

Topics covered in this guide are as follows:

•

Chapter 1, Getting Started provides information on getting the MC65 up and running for the first time.

•

Chapter 2, Using the MC65 provides basic instructions for using the MC65, including powering on and

resetting the MC65, and entering and capturing data.

•

Chapter 3, Making Calls provides setup instructions for the MC65 phone.

•

Chapter 4, Using WLAN provides information for connection the MC65 to a WLAN.

•

Chapter 5, Messaging provides information for using Email, SMS and MMS messaging.

•

Chapter 6, Using the Camera provides instructions for taking pictures and capturing video.

•

Chapter 7, Using Bluetooth explains Bluetooth functionality on the MC65.

•

Chapter 8, Using GPS Navigation provides information about GPS navigation with the MC65.

•

Chapter 9, Settings provides basic instructions for using the MC65 phone.

•

Chapter 10, Accessories describes the available accessories and how to use them with the MC65.

•

Chapter 11, Maintenance & Troubleshooting includes instructions on cleaning and storing the MC65, and

provides troubleshooting solutions for potential problems during MC65 operation.

•

Appendix A, Technical Specifications provides the technical specifications for the MC65.

•

Appendix B, Keypads Provides information on the various keypad configuration.

•

Appendix C, Windows Mobile Home Screen and Dialer provides information for using the Windows

Mobile Home screen and Windows Mobile dialer.

Notational Conventions

The following conventions are used in this document:

•

“EDA” refers to the Zebra MC65 series of hand-held computers.

•

Italics are used to highlight the following:

• Chapters and sections in this and related documents

• Icons on a screen.

About This Guide xv

•

Bold text is used to highlight the following:

• Dialog box, window, and screen names

• Drop-down list and list box names

• Check box and radio button names

• Key names on a keypad

• Button names on a screen.

•

bullets (•) indicate:

• Action items

• Lists of alternatives

• Lists of required steps that are not necessarily sequential

•

Sequential lists (e.g., those that describe step-by-step procedures) appear as numbered lists.

Service Information

If you have a problem with your equipment, contact Zebra Global Customer Support for your region. Contact information is available at: http://www.zebra.com/support.

When contacting Enterprise Solutions support, please have the following information available:

•

Serial number of the unit (found on manufacturing label)

•

Model number or product name (found on manufacturing label)

•

Software type and version number.

Manufacturing label

Zebra responds to calls by email, telephone or fax within the time limits set forth in support agreements.

If your problem cannot be solved by Zebra Global Customer Support, you may need to return your equipment for servicing and will be given specific directions. Zebra is not responsible for any damages incurred during shipment if the approved shipping container is not used. Shipping the units improperly can possibly void the warranty. Remove the SIM card and/or microSD card from the MC65 before shipping for service.

If you purchased your Zebra business product from a Zebra business partner, contact that business partner for support.

CHAPTER 1 GETTING STARTED

Introduction

This chapter lists the parts and accessories for the MC65 and explains how to set up the MC65 for the first

time.

Unpacking

Carefully remove all protective material from the MC65 and save the shipping container for later storage and

shipping.

Verify that you received the following:

•

MC65 EDA

•

3600 mAh Lithium-ion battery

•

stylus with tether (installed)

•

screen protector, installed on display window

•

Regulatory Guide

•

Quick Start Guide.

Inspect the equipment for damage. If any equipment is missing or damaged, contact the Zebra Global

Customer Support center immediately. See page xvi for contact information.

Prior to using the MC65 for the first time, remove the protective shipping film that covers the scan window,

display and camera window.

1 - 2 MC65 User Guide

Getting Started

To start using the MC65 for the first time:

•

Install a microSD card (optional)

•

Install the SIM card (GSM only)

•

Install the main battery pack.

•

Charge the MC65.

•

Power on the MC65.

Installing a microSD Card

The microSD card slot provides secondary non-volatile storage. The slot is located under the battery pack. Refer to the documentation provided with the card for more information, and follow the manufacturer’s recommendations for use.

CAUTION Follow proper ESD precautions to avoid damaging the SD card. Proper ESD precautions include, but

are not limited to, working on an ESD mat and ensuring that the operator is properly grounded.

To install the microSD card:

1. Remove the handstrap.

2. Lift the rubber access door.

3. Slide the SIM card holder door up to unlock.

4. Lift the SIM card holder door.

Rubber access door

SIM card holder door

microSD card holder door

Figure 1-1

5. Lift the microSD card holder door.

Lift SIM Slot Holder Door

6. Insert the microSD card into the card holder door ensuring that the card slides into the holding tabs on

each side of the door.

microSD card

Holding tab

Getting Started 1 - 3

Figure 1-2

7. Close the card holder door and push down until it is securely in place.

8. If installing a SIM card, proceed to Installing the SIM Card.

9. Close the SIM card holder door and slide down until it locks into place.

10. Close the rubber access door.

Insert microSD Card in Holder

Installing the SIM Card

NOTE GSMs only.

The MC65 does not support copying multiple contacts to some SIM cards. If an error message appears, see Chapter 11, Maintenance & Troubleshooting for more information.

GSM phone service requires a Subscriber Identification Module (SIM) card. Obtain the card from the your

service provider. The card fits into the MC65 and can contain the following information:

•

Mobile phone service provider account details.

•

Information regarding service access and preferences.

•

Contact information, which can be moved to Contacts on the MC65.

•

Any additional services to which you have subscribed.

NOTE For more information about SIM cards, refer to the service provider's documentation.

To install the SIM card:

1. Lift rubber access door.

2. Slide the SIM card holder up to unlock.

3. Lift the SIM card holder door.

1 - 4 MC65 User Guide

Figure 1-3

4. Insert the SIM card, as shown in Figure 1-4 ensuring that the card slides into the holding tabs on each side

Lifting the SIM Cover

of the door.

Figure 1-4

5. Close the SIM card holder door and slide down to lock into place.

6. Close the rubber access door.

7. Install the battery.

Inserting the SIM Card

NOTE For detailed information about WWAN activation, see First-time Network Activation on page 1-7.

Installing the Battery

To install the battery.

1. Insert the battery, bottom first, into the battery compartment in the back of the MC65.

2. Press the battery down into the battery compartment until the battery release latch snaps into place.

3. Replace the handstrap.

Battery Release Latch

Getting Started 1 - 5

Battery

Figure 1-5

Inserting the Battery

Charging the Battery

CAUTION Ensure that you follow the guidelines for battery safety described in Battery Safety Guidelines on page

11-2.

Charging the Main Battery

Before using the MC65 for the first time, charge the main battery until the amber Charging/Battery Status LED

remains lit (see Table 1-1 on page 1-6 for charge status indications). To charge the MC65, use a cable or a

cradle with the appropriate power supply. For information about the accessories available for the MC65, see

Chapter 10, Accessories.

The MC65 is equipped with a memory backup battery which automatically charges from the fully-charged main

battery. When using the MC65 for the first time, the backup battery requires approximately 40 hours to fully

charge. This is also true any time the backup battery is discharged, which occurs when the main battery is

removed for several hours. The backup battery retains RAM data in memory for at least 15 minutes (at room

temperature) when the MC65’s main battery is removed. When the MC65 reaches a very low battery state, the

combination of main battery and backup battery retains RAM data in memory for at least 36 hours.

For cable and cradle setup and charging procedures refer to the MC65 Integrator Guide.

•

USB Charging Cable

•

Charge Only Cable

•

Single Slot USB Cradle

•

Four Slot Charge Only Cradle

•

Four Slot Ethernet Cradle.

To charge the main battery:

1. Connect the charging accessory to the appropriate power source.

1 - 6 MC65 User Guide

2. Insert the MC65 into a cradle or attach to a cable. The MC65 begins charging. The Charging/Battery Status

LED blinks amber while charging, then turns solid amber when fully charged. See Table 1-1 for charging

indications.

The 3600 mAh battery charges in less than six hours.

Table 1-1

Off MC65 is not charging.

Slow Blinking Amber (1 blink every 2 seconds)

Solid Amber Charging complete.

Fast Blinking Amber (2 blinks/second)

LED Charge Indicators

Charging/Battery

Status LED

Indication

MC65 is not inserted correctly in the cradle or connected to a power source. Charger/cradle is not powered.

MC65 is charging.

Note: When the battery is initially inserted in the MC65, the amber LED flashes once if the battery power is low or the battery is not fully inserted.

Charging error, e.g.:

•

Temperature is too low or too high.

•

Charging has gone on too long without completion (typically eight hours).

Charging Spare Batteries

See Chapter 10, Accessories for information on using accessories to change spare batteries.

Charging Temperature

Charge batteries in temperatures from 0°C to 40°C (32°F to 104°F). Note that charging is intelligently controlled by the MC65.

To accomplish this, for small periods of time, the MC65 or accessory alternately enables and disables battery charging to keep the battery at acceptable temperatures. The MC65 or accessory indicates when charging is disabled due to abnormal temperatures via its LED. See Table 1-1.

Powering On the MC65

Press the Power button to turn on the MC65. The splash screen displays for about a minute as the MC65 initializes its flash file system, then the calibration window appears.

Calibrating the Screen

NOTE The Calibration screen can be accessed by pressing Blue key then Backspace key.

To calibrate the screen so the cursor on the touch screen aligns with the tip of the stylus:

1. Remove the stylus from its holder on the side of the MC65.

2. Carefully press and briefly hold the tip of stylus on the center of each target that appears on the screen.

3. Repeat as the target moves around the screen, then tap the screen to continue.

First-time Network Activation

GSM/UMTS Activation

Network Activation

To activate on a GSM/UMTS network:

1. If an active SIM card was installed in the MC65, the MC65 performs the activation process.

2. The Phone Network - GSM/UMTS Setup dialog box displays.

3. Tap Yes and then OK. For some carriers, the MC65 resets.

4. If during start-up, no update connection settings message appears, tap Start > Settings > Connection >

Phone Network Setup and tap Update Connection Settings button.

5. If the network is unsupported, a message appears with links for manually setting the data connection and

MMS settings.

To activate on a CDMA network:

Getting Started 1 - 7

1. If a SIM card was not installed, a No SIM card found dialog box displays.

2. Tap OK. The Phone Network - CDMA Activation dialog box displays.

3. Tap Yes to activate on a CDMA network.

4. On the CDMA Setup tab, tap the Preferred network option and select a network.

5. Tap Yes.

6. Tap the Start Activation button.

7. Tap Yes to activate.

8. Call the carrier from an existing phone to request over-the-air activation.

9. When instructed by the operator press Activate Now button.

For detailed information for configuring the phone and activating on a different network, refer to the MC65

Integrator Guide.

Checking Battery Status

To check the charge status of the main battery in the MC65, tap Start > Settings > Power to display the

Power window or tap Status Bar > .

1 - 8 MC65 User Guide

Replacing the Battery

CAUTION The MC65 backup battery retains data for up to 15 minutes. Replace the battery within 15 minutes to

ensure that application states are maintained and that data is not lost.

1. If the MC65 is in suspend mode, press the red Power button to wake the device.

2. Press and hold the red Power button for approximately 5 seconds.

3. Release the Power button. On OEM version 02.31.002 and above, tap Battery Swap. The Data Capture

LED lights red.

4. When the LED turns off, remove the handstrap.

5. Slide the battery latch to the right. The battery ejects slightly.

Battery Latch

Figure 1-6

6. Lift the battery from the MC65.

7. Insert the replacement battery, bottom first, into the battery compartment in the back of the MC65.

8. Press the battery down until the battery release latch snaps into place.

9. Replace the handstrap.

Removing the Battery

Replacing the microSD Card

CAUTION The MC65 backup battery retains data for up to 15 minutes. Replace the battery within 15 minutes to

ensure that application states are maintained and that data is not lost.

To replace an microSD card:

1. If the MC65 is in suspend mode, press the red Power button to wake the device.

2. Press and hold the red Power button for approximately 5 seconds.

3. Release the Power button. On OEM version 02.31.002 and above, tap Battery Swap. The Data Capture

LED lights red.

4. When the LED turns off, remove the handstrap.

5. Remove the battery.

6. Lift the rubber access door.

7. Slide SIM card holder door up to unlock.

8. Lift SIM Card holder door.

9. Lift the microSD card holder door.

10. Remove microSD card from holder.

11. Close microSD card holder door.

12. Close SIM card holder door.

13. Slide SIM card holder door down to lock into place.

14. Close the rubber access door.

15. Replace the battery.

16. Replace the handstrap.

17. If a SIM card is installed, reset the MC65. See Resetting the MC65 on page 2-19.

Getting Started 1 - 9

Replacing the SIM Card

To replace a SIM card:

1. If the MC65 is in suspend mode, press the red Power button to wake the device.

2. Press and hold the red Power button for approximately 5 seconds.

3. Release the Power button. On OEM version 02.31.002 and above, tap Battery Swap. The Data Capture

LED lights red.

4. When the LED turns off, remove the handstrap.

5. Remove the battery.

6. Lift the rubber access door.

7. Slide SIM card holder door up to unlock.

8. Lift the SIM Card holder door.

9. Remove SIM card from holder.

10. Close SIM card holder door.

11. Slide SIM card holder door down to lock into place.

12. Close the rubber access door.

CAUTION The MC65 backup battery retains data for up to 15 minutes. Replace the battery within 15 minutes to

ensure that application states are maintained and that data is not lost.

13. Replace the battery.

14. Replace the handstrap.

15. Reset the MC65. See Resetting the MC65 on page 2-19.

1 - 10 MC65 User Guide

Battery Management

Observe the following battery saving tips:

•

Leave the MC65 connected to AC power at all times when not in use.

•

Set the MC65 to turn off after a short period of non-use.

•

Set the backlight to turn off after a short period of non-use.

•

Turn off all wireless activities when not in use.

Changing the Power Settings

To set the MC65 to turn off after a short period of non-use:

1. Tap Status Bar > .

2. Select the Device timeout option.

3. Select a value from the list.

Changing the Backlight Settings

To change the backlight settings in order to conserve more battery power:

1. Tap Start > Status Bar > .

2. Select the Backlight option.

3. Select a value from the list.

4. Select the Brightness option.

5. Tap the Manual option and use the slider to select a low value.

6. Tap Back.

Changing the Keypad Backlight Settings

To change the keypad backlight settings in order to conserve more battery power:

1. Tap Start > Settings > System > Backlight & Keylight > Battery Power.

2. Tap the Keylight option.

3. Select a value from the list.

4. Tap the Keylight option.

5. Select a low value from the list.

6. Tap OK.

Turning Off the Radios

To turn off the radios:

1. Tap Status Bar > .

2. Tap Phone radio to toggle the phone radio on and off.

3. Tap Wi-Fi to toggle the WLAN radio on and off.

4. Tap Bluetooth to toggle the Bluetooth radio on and off.

Handstrap Replacement

Removal

To remove a handstrap from the MC65:

CAUTION Close all running applications prior to replacing the handstrap. The backup battery maintains data for

up to 15 minutes. If replacement takes longer than 15 minutes data may be lost.

1. If the MC65 is in suspend mode, press the red Power button to wake the device.

2. Press and hold the red Power button for approximately 5 seconds.

Getting Started 1 - 11

3. Release the Power button. The Data Capture LED lights red.

4. When the LED turns off, remove the handstrap.

Figure 1-7

5. Remove the battery.

Handstrap Clip Removal

CAUTION When removing handstrap pin, be careful not to damage handstrap mounting area.

6. Using a small flat screwdriver, push the head of the screwdriver between the handstrap pin and the bottom

of the housing as shown below.

7. Pry the handstrap and pin up and out of the handstrap mount area.

1 - 12 MC65 User Guide

Figure 1-8

8. Repeat for the other side of the handstrap.

9. Remove pin from the handstrap.

Figure 1-9

10. Pull handstrap through handstrap slot.

Handstrap and Pin Removal

Pin Removal

Installation

To install a new handstrap:

1. Feed bottom end of handstrap into handstrap slot on the bottom of the MC65.

Getting Started 1 - 13

Figure 1-10

2. Slide pin into bottom of handstrap.

3. Center the pin in the handstrap loop.

4. Pull handstrap so that the pin and bottom of handstrap slide into position in the mounting area.

Figure 1-11

Feed handstrap into Handstrap Slot

NOTE Handstrap and pin should fit securely into the handstrap mounting area. When pulling on handstrap use

enough force to engage pin into place.

Pin and Handstrap in Mounting Area

Figure 1-12

5. Slide tether loop over handstrap.

6. Insert the handstrap clip into the slot on the device. Ensure that it is securely in place.

Slide Handstrap and Tether Over Handstrap Mount

1 - 14 MC65 User Guide

CHAPTER 2 USING THE MC65

Introduction

This chapter explains the buttons, status icons, and controls on the MC65, and provides basic instructions for

using the MC65, including resetting the MC65 and entering and capturing data.

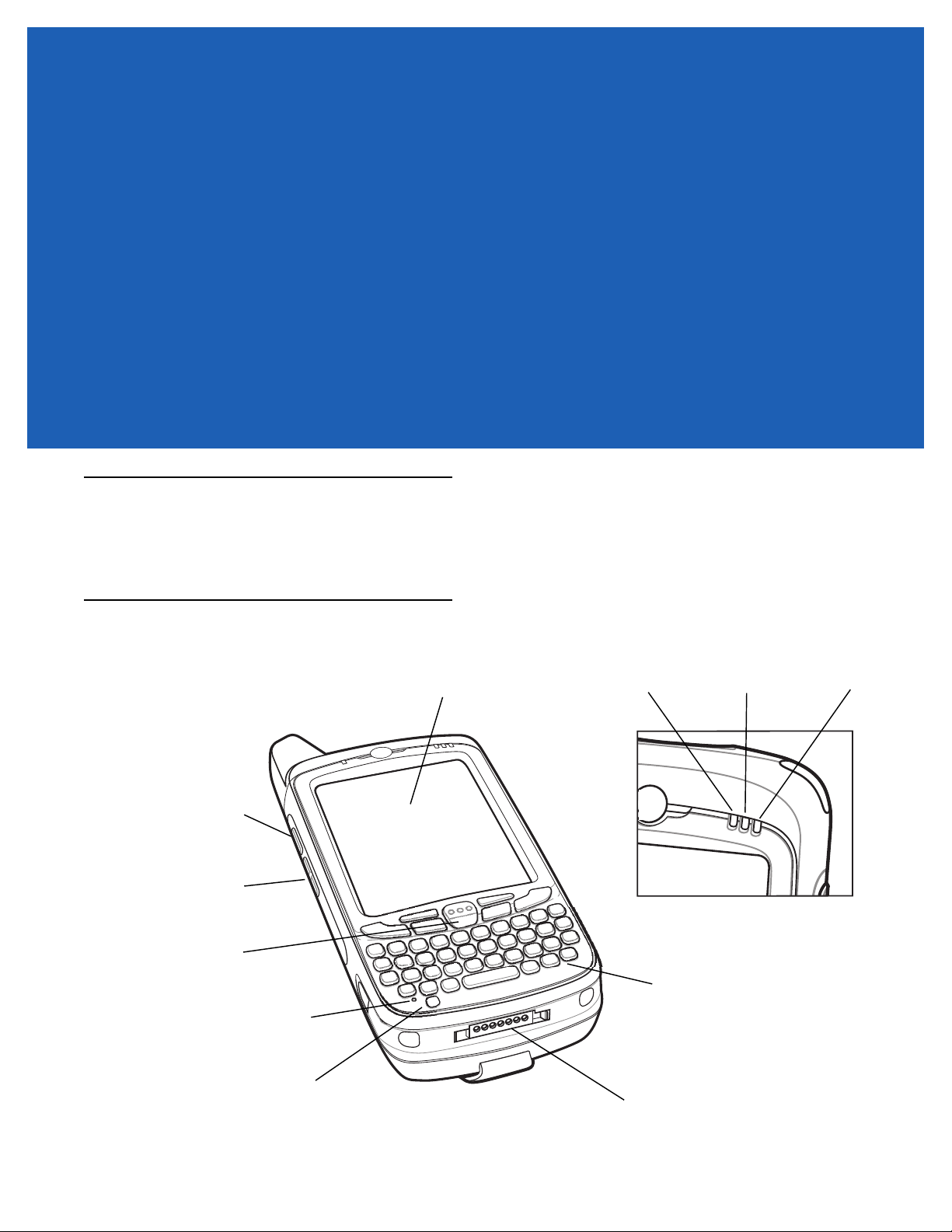

Features

Scan/Action

Button

Volume

Up/Down Button

Scan Button

Power Button

Microphone

Touch Screen with Protective Overlay

Data Capture

LED

Keypad (Alpha-Numeric Keypad Shown)

I/O Connector

Charging/Battery

Status LED

WAN Radio Status LED

Figure 2-1

MC65 Front View

2 - 2 MC65 User Guide

Camera Flash

Battery

Battery Latch

Speaker

Exit Window

Figure 2-2

Camera

Handstrap

Stylus

Stylus Clip

Action Button

Scan/Action Button

MC65 Rear View

Function Buttons

The MC65’s buttons perform the following functions.

Scan/Action

Button

Volume

Up/Down

Button

Using the MC65 2 - 3

Action Button

Scan/Action

Button

Power Button

Figure 2-3

•

Function Buttons

Power: Press the red Power button to turn the MC65 screen on and off. The MC65 is in suspend mode when the screen is off. For more information, see Powering On the MC65 on page 1-6. Also use the Power button to reset the MC65. See Resetting the MC65 on page 2-19.

On OEM version 02.31.002 and above, press the Power button for five seconds. The option menu appears.

• Select Power Off to turn off the MC65.

• Select Lock device to lock the MC65.

• Select Battery Swap when replacing the battery.

• Select Suspend to place the MC65 in suspend mode.

Scan/Action: Press to scan bar codes or capture images. See Data Capture on page 2-23.

Or, press to open an application or perform a function. See the Microsoft® Applications for Mobile 6 User Guide to set an application to open.

Volume Up/Down: Press to increase or decrease the MC65’s volume.

Action: Press to open an application or perform a function. See the Microsoft® Applications for Windows

Mobile 6 User Guide to set an application to open.

2 - 4 MC65 User Guide

Keypads

The MC65 offers six keypad configurations: Numeric, QWERTY, AZERTY, QWERTZ, DSD and PIM.

Figure 2-4

Refer to Appendix B, Keypads for detailed information on the keypad configurations.

MC65 Numeric Keypad

Finger Scrolling

Finger scrolling can be used to scroll up and down web pages, documents, and lists such as the contacts list, file list, message list, calendar appointments list, and more.

When finger scrolling, swipe or flick your finger on the screen.

To scroll down, swipe your finger upward on the screen. To scroll up, swipe your finger downward on the screen.

To auto-scroll, flick your finger upward or downward on the screen. Touch the screen to stop scrolling.

Zebra Home Screen

The customizable Zebra Home screen provides faster and easier access to features and applications, and

allows users to tailor the interface to improve their unique workflow and maximize on-the-job efficiency.

Status Bar

Program Shortcuts

Tap to Open Start Window

Tap to Open Programs Window

Tap to Lock the Device

Tap to Open the Contacts

Using the MC65 2 - 5

Cards

Tile Bar

Figure 2-5

Zebra Home Screen

The Status Bar at the top of the screen displays the status icons listed in Table 2-1. Tap anywhere on the

Status Bar to open the Device Management window. Refer to Device Management on page 2-12 for more

information.

Notifications Connectivity

Signal Strength

Audio Battery

Battery Clock

Figure 2-6

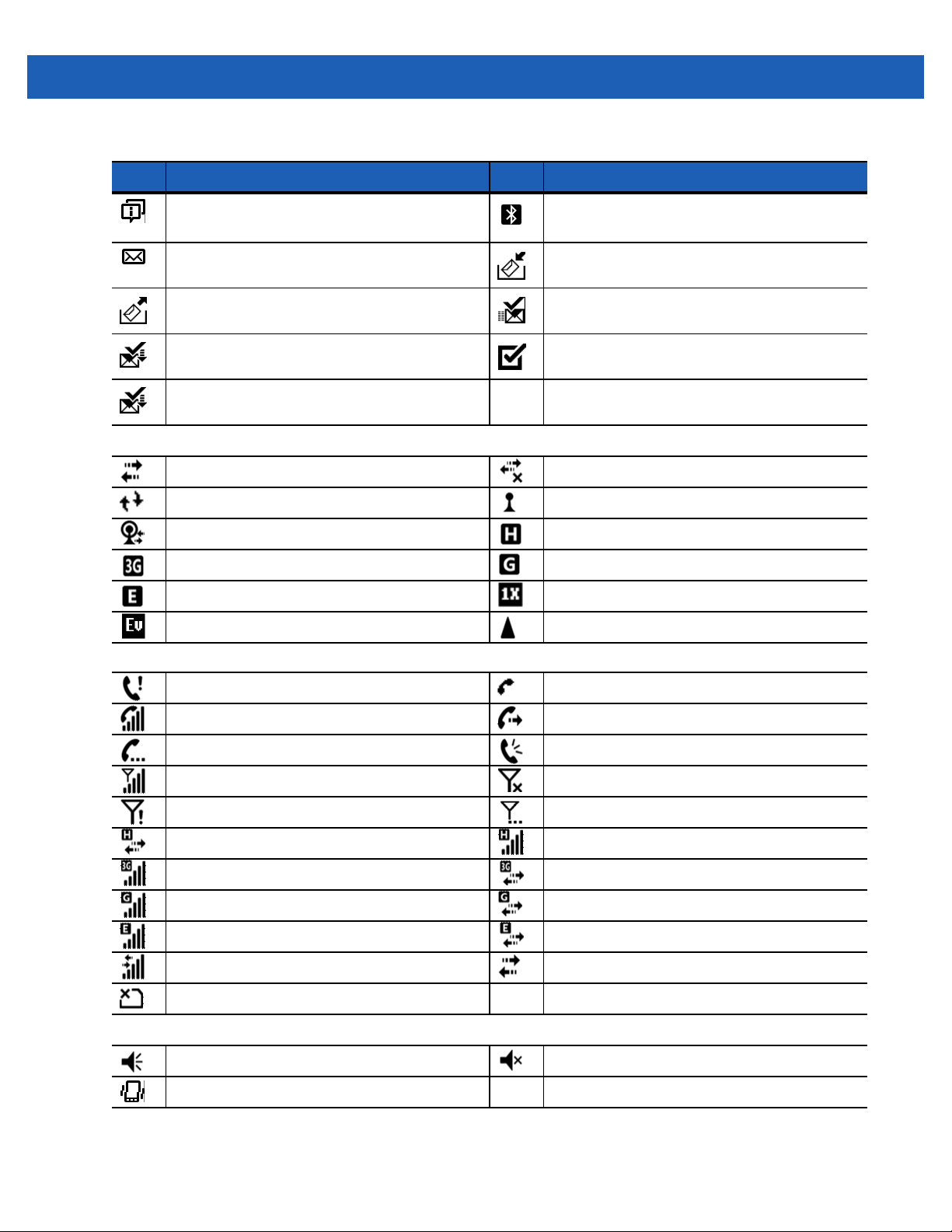

Table 2-1

Status Bar Icons

Icon Description Icon Description

Notifications

Reminder of an upcoming calendar event. One or more instant messages were received.

One or more text messages were received.

One or more voice messages were received.

2 - 6 MC65 User Guide

Table 2-1

Icon Description Icon Description

Connectivity

Status Bar Icons (Continued)

There are more notification icons than can be displayed.

One or more Email messages were received. Receiving MMS message.

Sending MMS message. MMS message sent successfully.

MMS message received successfully. Microsoft customer feedback alert.

MMS message received successfully.

Connection is active. Connection is not active.

Synchronization is occurring. Wi-Fi available.

Wi-Fi in use. HSDPA available. (GSM only)

3G available. (GSM only) GPRS available. (GSM only)

EGPRS available. (GSM only) 1xRTT available. (CDMA only)

Bluetooth radio is on.

WAN

Audio

EVDO Rev. 0 available. (CDMA only) Roaming.

Call missed. Dialing while no SIM card is installed.

Call in progress. Calls are forwarded.

Call on hold. Speakerphone is on.

Phone on/good signal. Phone off.

No WAN service. Searching for WAN service.

HSDPA connecting. (GSM only) HSDPA in use. (GSM only)

3G in use. (GSM only) 3G connecting. (GSM only)

GPRS in use. (GSM only) GPRS connecting. (GSM only)

EGPRS in use. (GSM only) EGPRS connecting. (GSM only)

EVDO in use. (CDMA only) EVDO connecting. (CDMA only)

SIM Card not installed. (GSM only)

All sounds are on. All sounds are off.

Vibrate is on.

Using the MC65 2 - 7

Table 2-1

Icon Description Icon Description

Battery

Status Bar Icons (Continued)

Battery is charging. Battery has a full charge.

Battery has a high charge. Battery has a medium charge.

Battery has a low charge. Battery has a very low charge.

Cards

Cards provide quick access to completing common tasks. The number and type of cards available to an end

user are configurable by the system administrator or the end user. By default, the MC65 ships with four cards.

Swipe finger left or right on the screen to view adjacent cards.

Cards can be rearranged, deleted or added to the Home screen. See Chapter 9, Settings for more information.

Simple Home Card

The Simple Home card displays the current date and time and notifications.

Tap to Open Date and Time

Tap to Configure

Active Card

Carrier Name

Figure 2-7

Owner’s Name

Simple Home Card

Owner’s Company Name

Full Home Card

The Full Home card displays the current date and time and notifications with expanded information.

2 - 8 MC65 User Guide

Tap to Open Date and Time

Tap to Configure

Active Card

Owner’s Name

Figure 2-8

Full Home Card

Table 2-2 lists the Home card shortcut icons.

Table 2-2

Home Card Icons

Icon Description

Calendar: Indicates the next appointment in the calendar. Tap to open the Calendar application.

Carrier Name

Tap to Configure Cards

Owner’s Company Name

Outlook Email: Indicates the number of unread emails in Outlook email. Tap to open the Email application.

Tasks: Indicates the number of unfinished tasks. Tap to open the Task application.

Messages: Indicates the number of unread SMS and MMS messages. Tap to open the Messaging application.

Voicemail: Indicates the number of voice messages in the voicemail box.

Missed Calls: Indicates the number of missed call.

Home Email: Indicates the number of unread emails in a personal email account. tap to open the Email application.

In Call Status: Indicates call status.

Weather Card

The Weather card display the weather for a selected city.

Using the MC65 2 - 9

Figure 2-9

See Weather Card on page 9-12 for information on configuring the Weather card.

Weather Card

Time Tracker Card

The Time Tracker card provide a easy way for a worker to log hours spend at a job and output this information

in a easy to use format.

Figure 2-10

See Weather Card on page 9-12 for information on configuring the Weather card.

Time Tracker Card

Card Configuration

Cards can be rearranged, deleted or added to the Home screen. See Chapter 9, Settings for more information.

Program Shortcuts

The Program Shortcut buttons provides easy access for four often used applications. Just tap the icon to

launch the application. To configure the Program Shortcuts refer to Program Shortcuts Setup on page 9-8.

Program Shortcut Buttons

Figure 2-11

My Apps Window

2 - 10 MC65 User Guide

My Apps Window

The My Apps window provides access to all the applications on the MC65. The window is configurable so that it can display favorite applications. To configure the My Apps window refer to My Apps Window Setup on page

9-9.

Figure 2-12

My Apps screen is configurable. See My Apps Window Setup on page 9-9 for more information.

My Apps Window

Tile Bar

The Tile Bar, located at the bottom of the screen, contains the Start tile to open the Start Menu. It also displays tiles that vary depending upon the open application.

Figure 2-13

Table 2-3

Icon Description Icon Description

Tile Bar Examples

Programs Available on the Start Menu

ActiveSync - Synchronize information between the MC65 and a host computer or the Exchange Server.

Alarms - Set the clock to the date and time of your locale. Alarms can also be set at specified days and times of a week.

AirBEAM Client - Allows legacy customers to deploy AirBEAM Smart™ packages to devices.

Bing - Search the internet.

Calculator - Perform basic arithmetic and

calculations, such as addition, subtraction, multiplication, and division.

Contacts - Keep track of friends and colleagues.

File Explorer - Organize and manage files on the device.

Calendar - Keep track of appointments and create meeting requests.

E-mail - Send an Email.

Games - Play games.

Using the MC65 2 - 11

Table 2-3

Icon Description Icon Description

Programs Available on the Start Menu (Continued)

Getting Started - Launch the Getting Started application.

Internet Explorer - Browse Web and WAP sites as well as download new programs and files from the Internet.

Marketplace - Purchase applications from the Marketplace.

Microsoft My Phone - Synchronizes the MC65’s contacts, calendar, tasks, text messages, music, photos videos and documents with a Microsoft My Phone account.

MSN Weather - Check the local weather. MSP Agent - Enables management of the

Help - Access on-line Help topics.

Internet Sharing - Connect a notebook

computer to the Internet using the MC65's data connection.

Messenger - Use the mobile version of Windows Live Messenger.

MSN Money - Keep track of finances.

MC65 from an MSP Server. Requires the purchase of an appropriate MSP client license per device to suit the level of management functionality required.

Notes - Create handwritten or typed notes, drawings, and voice recordings.

Phone - Make calls. Pictures & Videos - View and manage

Rapid Deployment Client - Allows the

MC65 user to stage a device for initial use by initiating the deployment of settings, firmware, and software. Requires the purchase of an MSP client license per device.

Search Phone - Search contacts, data, and other information on the MC65. Refer to the Microsoft Applications for Windows Mobile 6 User Guide for more information.

SMS Staging - Receives and processes SMS

messages from an MSP Server and allows the user to stage an MC65 based on them. Requires the purchase of an MSP client license per device.

Office Mobile 2010 - Provides access to Excel Mobile, PowerPoint Mobile, OneNote Mobile, SharePoint WorkSpace Mobile and Word Mobile applications.

pictures, animated GIFs, and video files.

Remote Desktop Mobile - Log onto Windows NT server type computers and use all of the programs that are available on that computer from the MC65.

Settings - Opens the Settings folder. See

Chapter 9, Settings

Task Manager - Enables viewing of memory and CPU allocations and stops running processes.

for more information.

Tasks - Keep track of tasks. Text - Send an SMS or MMS message.

2 - 12 MC65 User Guide

Table 2-3

Icon Description Icon Description

Programs Available on the Start Menu (Continued)

Toolbox - Contains the Adobe Reader, StreamingPlayer and Voice Commander applications.

Windows Live - Use the mobile version of Windows Live™ to find information on the web.

DEMO - Provides a link to Zebra’s featured demos.

Wireless Companion - Opens the Wireless Companion folder.

Windows Media - Play back audio and video files.

Debug - Contains RIL Logger and RTLogExport applications. Use when

instructed to by Zebra support personnel.

Device Management

The Device Management window provides quick access to information and settings for the MC65.

Tap anywhere on the Status Bar to open the Device Management window.

Figure 2-14

The navigation bar consists of eight tabs:

•

Device Management Window

Programs

Memory Manager

Sound Profiles

Power & Radio

Alarms

Fusion

Status

Using the MC65 2 - 13

•

Settings .

Tap an icon to open the associated tab. Scroll left or right to view more icons.

Programs

The Programs tab lists the programs that are currently running on the MC65 and allows for easy program

switching, and a quick way to end processes.

Figure 2-15

•

Programs Tab

To switch to a program, tap the name of the program.

To end a running program, tap the X next to the program name.

To close all running programs, tap Close All.

To go to the Task Manager application, tap Task Manager.

Memory Manager

The Memory Manager tab displays an overview of memory utilization, and a quick way to free up space.

Figure 2-16

•

Memory Manager Tab

Device Storage - Lists the total available Flash and the amount of Flash that is currently being used.

SD Card - Lists the total available memory and the amount of memory that is currently being used.

RAM - Lists the total available RAM and the amount of RAM that is currently being used.

2 - 14 MC65 User Guide

Tap View Large Files to display files on the MC65 that are above a specific byte size.

Sound Profiles

The Sound Profiles tab provides direct access to sound-related profiles.

Figure 2-17

To select a profile, tap the profile name.

•

The Temporary profile is created when changes are made by the system, for example: the user adjust the volume using the volume buttons.

Refer to Sound Profiles on page 9-5 for information on creating new sound profiles.

Sound Profiles Tab

Vibrate - Ring type, reminder and notifications are set to vibrate. Ring and system volumes are set to 0 (off).

Silent - Ring type, reminder and notifications are set to None. Ring and system volumes are set to 0 (off).

Schedule - Ring type, reminder and notifications are set to vibrate when Calendar meeting is in session.

Normal - Ring type is set to Ring, Reminder is set to Vibrate & Sound, Notification is set to Play Sound.

Ring and system volumes are set to level 4.

Loud - Ring type is set to Vibrate & Ring, Reminder is set to Vibrate & Sound, Notification is set to Vibrate & Sound. Ring and system volumes are set to level 5.

Ambient - Profile settings are set based on the surrounding environment’s sound level.

Using the MC65 2 - 15

Power & Radio

The Power & Radio tab displays the current battery status and direct access to power profiles and

power/radio-related options.

Figure 2-18

The Battery remaining graphic displays the amount of battery power remaining in the form of a bar graph and

also as a percentage.

The Profile row displays the current profile that is being used. To set a defined profile, tap Profile. A list of

profiles appear. Select a profile from the list. A radio button appears next to the selected profile. To view the

properties of a profile in the list, tap next to the profile.

Figure 2-19

Tap Back to return to the Profiles tab.

Power & Radio Tab

Profiles Page

The user can manually change the following settings (slide the display up to view more options).

•

Phone radio - Turns the phone radio on or off.

•

Wi-Fi - Turns the Wi-Fi radio on or off.

•

Bluetooth - Turns the Bluetooth radio on or off.

•

Device timeout - Sets the amount of time after inactivity that the MC65 goes into suspend mode.

•

Backlight - Sets the amount of time after inactivity that the MC65 goes into suspend mode.

•

Brightness - Sets the display brightness.

2 - 16 MC65 User Guide

•

ActiveSync Peak time - Set the interval between which the MC65 checks for email and calendar events.

•

ActiveSync Off-peak time - Set the interval between which the MC65 checks for email and calendar

events.

Refer to Power Profiles on page 9-6 for information on creating new profiles.

Alarms

The Alarms tab controls the Windows Mobile enabled alarms.

Tap Status Bar > .

Figure 2-20

To turn an alarm on or off tap the alarm name.

To change an alarm setting, tap Edit Alarm.

Refer to Alarms on page 9-7 for information on configuring alarms.

Alarms Tab

Fusion

The Fusion tab provides access to the Fusion interface.

Figure 2-21

Refer to Chapter 4, Using WLAN for information on using and setting up a WLAN.

Fusion Tab

Status

The Status tab displays all system notifications.

Using the MC65 2 - 17

Figure 2-22

Tap a notification to read the associated information.

Status Tab

Settings

The Settings tab lists the settings applications on the MC65. Tap an item in the list to open the associated

setting application or folder. Slide the list up to view more settings icons.

Figure 2-23

Settings Tab

Refer to Table 9-1 on page 9-1 for a list of setting application icons and their descriptions.

2 - 18 MC65 User Guide

Adjusting Volume

To adjust the system volume:

1. Press the volume buttons on the right side of the MC65 to increase and decrease the system volume. The

Volume dialog box appears.

2. As you increase or decrease the volume, the slider moves accordingly. You can also move the slider to

adjust the volume.

3. Select the Vibrate radio button to turn off the system audio and enable the MC65 to vibrate upon system

notifications.

4. Select Off radio button to turn off all system audio notifications.

Battery Status Indications

Battery icons appear on the Status Bar indicating the battery power level. When the battery power falls below a predetermined level the icon indicates the status and a battery dialog box appears indicating the status of the battery.

The message displays until the user taps Dismiss. Alternately tap the Status Bar to display the Device Management window. Tap .

LED Indicators

The MC65 has three LED indicators. The Data Capture LED indicates status for scanning. The Charging/Battery Status LED indicates battery charging and status.The Radio Status LED indicates WWAN radio status. Table 2-4 describes the LED indications.

Figure 2-24

Table 2-4

LED Indications

Data Capture

LED Indicators

LED State Indication

LED

Charging/Battery

Status LED

WAN Radio Status LED

Data Capture LED

Solid Green Successful decode/capture.

Solid Red Laser enabled, scanning/imaging in process.

Flashing Green Software initiated notification.

Solid Red (after Power button press) MC65 is shutting down for battery replacement.

Using the MC65 2 - 19

Table 2-4

LED Indications (Continued)

LED State Indication

Off Data capture not enabled.

Charging/Battery Status LED

Slow Blinking Amber Main battery in MC65 is charging.

Solid Amber Main battery in MC65 is fully charged.

Fast Blinking Amber Charging error.

Off Not charging.

WAN Radio Status LED

Slow Blinking Green RF (WWAN) radio is on.

Off RF (WWAN) radio is off.

NOTE For information about scanning/decoding, see Data Capture on page 2-23. For information about WWAN

radio status and settings, see Chapter 3, Making Calls, or refer to the MC65 Integrator Guide.

Powering Off the MC65

NOTE Only available on OEM version 02.31.002 and above.

To power off the MC65, press the Power button for five seconds. Tap Power Off.

Figure 2-25

Power key Menu

Resetting the MC65

A reset restarts the MC65 by closing all running programs. Data saved in flash memory or a memory card is

not lost.

To perform a reset:

2 - 20 MC65 User Guide

•

On a numeric keypad, simultaneously press the red Power button and the and keys.

•

On an alphanumeric keypad, simultaneously press the red Power button and the and keys.

•

On a PIM keypad, simultaneously press the red Power button and the and keys.

Locking the MC65

The user can lock the MC65 to disable key presses and screen tap or by requiring a password to keep your data secure. Refer to Locking the MC65 on page 9-4 for information on setting up device locking.

NOTE The user can make emergency calls even when the MC65 is locked.

The lock screen displays whenever the MC65 is locked. When the MC65 is locked, you still receive notifications of new messages, missed calls and upcoming appointments. You can also receive a call when the MC65 is locked. The MC65 locks when a time out has occurred or you lock the MC65 manually.

To manually lock the MC65 tap the lock icon in the center of the Home screen Tile bar or press the Power button for five seconds and select Lock Device (on OEM version 02.31.002 and above).

Figure 2-26

Drag to either the right or left side of the screen.

If a password is set up, enter the password and then tap to unlock and display the Home screen, tap

Lock Screen

to unlock and display the Contacts window, tap to unlock and display the Messaging window.

Using the MC65 2 - 21

Figure 2-27

Stylus

Use the MC65 stylus to select items and enter information. The stylus functions as a mouse.

•

Tap: Touch the screen once with the stylus to press option buttons and open menu items.

•

Tap and Hold: Tap and hold the stylus on an item to see a list of actions available for that item. On the pop-up menu that appears, tap the action to perform.

•

Drag: Hold the stylus on the screen and drag across the screen to select text and images. Drag in a list to select multiple items.

CAUTION To prevent damage to the screen, do not use any device other than the Zebra-provided stylus.

Entering Data

When entering data on the keypad, use either the single-hand method or the two-hand method as shown in

Figure 2-28.

Password Window

2 - 22 MC65 User Guide

Figure 2-28

Single-hand Method

Entering Data on the Keypad

Two-hand Method

Data Capture

The MC65 offers two types of data capture options:

•

Imaging

•

Digital camera.

NOTE To perform data capture a scanning enabled application must be installed on the MC65. A sample

Imaging

The MC65 with an integrated imager has the following features:

•

Omnidirectional reading of a variety of bar code symbologies, including the most popular linear, postal, PDF417, and 2D matrix code types.

•

The ability to capture and download images to a host for a variety of imaging applications.

•

Advanced intuitive laser aiming cross-hair and dot aiming) for easy point-and-shoot operation.

Using the MC65 2 - 23

scanning application can be downloaded from the Zebra Support site at http://www.zebra.com/support.

The imager uses digital camera technology to take a digital picture of a bar code, stores the resulting image in

its memory, and executes state-of-the-art software decoding algorithms to extract the data from the image.

Operational Modes

The MC65 with an integrated imager supports three modes of operation, listed below. Activate each mode by

pressing the Scan button.

•

Decode Mode: In this mode, the MC65 attempts to locate and decode enabled bar codes within its field

of view. The imager remains in this mode as long as you hold the scan button, or until it decodes a bar code.

NOTE To enable Pick List Mode, download the Control Panel applet from the Support Central web site at

http://www.zebra.com/support. Pick List can also be set in an application using a API command.

•

Pick List Mode: This mode allows you to selectively decode a bar code when more than one bar code is

in the MC65’s field of view. To accomplish this, move the aiming crosshair or dot over the required bar code to decode only this bar code. This feature is ideal for pick lists containing multiple bar codes and manufacturing or transport labels containing more than one bar code type (either 1D or 2D).

•

Image Capture Mode: Use this mode to capture an image within the MC65’s field of view. This is useful

for capturing signatures or images of items like damaged boxes.

Digital Camera

The MC65 with an integrated digital camera has the following features:

•

Omnidirectional reading of a variety of bar code symbologies, including the most popular linear, postal, PDF417, and 2D matrix code types.

•

Advanced intuitive aiming for easy point-and-shoot operation.

The camera uses digital camera technology to take a digital picture of a bar code, stores the resulting image in

its memory, and executes state-of-the-art software decoding algorithms to extract the data from the image.

2 - 24 MC65 User Guide

Scanning Considerations

Typically, scanning is a simple matter of aim, scan, and decode and a few quick trial efforts master it. However, consider the following to optimize scanning performance:

•

Range

Any scanning device decodes well over a particular working range — minimum and maximum distances

from the bar code. This range varies according to bar code density and scanning device optics.

Scanning within range brings quick and constant decodes; scanning too close or too far away prevents decodes. Move the scanner closer and further away to find the right working range for the bar codes being scanned.

•

Angle

Scanning angle is important for promoting quick decodes. When laser beams reflect directly back into the scanner from the bar code, this specular reflection can “blind” the scanner.

To avoid this, scan the bar code so that the beam does not bounce directly back. But don’t scan at too

sharp an angle; the scanner needs to collect scattered reflections from the scan to make a successful decode. Practice quickly shows what tolerances to work within.

•

Hold the MC65 farther away for larger symbols.

•

Move the MC65 closer for symbols with bars that are close together.

NOTE Scanning procedures depend on the application and MC65 configuration. An application may use

different scanning procedures from the one listed above.

Imager Scanning

To read a bar code, a scan-enabled application is required. The MC65 contains the DataWedge application that allows the user to enable the imager, decode the bar code data and display the bar code content.

1. Enable DataWedge.

a. Tap Start > Settings > System > DataWedge.

b. Tap Basic configuration > 1. Barcode input > 1. Block Buster Imager.

c. Tap 1. Enabled.

d. Tap 0. Back.

e. Tap 0. Back and then tap OK.

f. Tap Running to start the DataWedge process. The DataWedge Status changes to Ready.

g. Tap OK.

2. Launch an application that supports text inputs, such as Word Mobile 2010 or Excel Mobile 2010.

3. Point the exit window on the top of the MC65 at a bar code.

Using the MC65 2 - 25

Figure 2-29

4. Press and hold the scan button.

Imager Scanning

The red laser aiming pattern turns on to assist in aiming. Ensure the bar code is within the area formed by the brackets in the aiming pattern. The aiming dot is used for increased visibility in bright lighting conditions.

The Scan/Decode LED lights red to indicate that scanning is in process, then lights green and a beep sounds, by default, to indicate the bar code was decoded successfully. Note that when the MC65 is in Pick List Mode, the imager does not decode the bar code until the crosshair or aiming dot touches the bar code.

Figure 2-30

Imager Aiming Pattern: Bar Code Centered

Correct

Figure 2-31

Decoded Not Decoded

Figure 2-32

5. Release the scan button.

6. Disable DataWedge.

Imager Aiming Pattern: Bar Code Not Centered

Pick List Mode with Multiple Bar Codes in Aiming Pattern

NOTE Imager decoding usually occurs instantaneously. The MC65 repeats the steps required to take a digital

picture (image) of a poor or difficult bar code as long as the scan button remains pressed.

Incorrect

2 - 26 MC65 User Guide

a. Tap Start > Settings > System > DataWedge.

b. Tap the Running option to end the DataWedge process. The DataWedge Status changes to Stopped.

c. Tap OK.

Digital Camera Scanning

To read a bar code, a scan-enabled application is required. The MC65 contains the DataWedge application that allows the user to enable the camera, decode the bar code data and display the bar code content.

1. Enable DataWedge.

a. Tap Start > Settings > System > DataWedge.

b. Tap Basic configuration > 1. Barcode input > 2. Camera Scanner Driver.

c. Tap 1. Enabled.

d. Tap 0. Back.

e. Tap 0. Back and then tap OK.

f. Tap Running to start the DataWedge process. The DataWedge Status changes to Ready.

g. Tap OK.

2. Launch an application that supports text inputs, such as Word Mobile 2010 or Excel Mobile 2010.

3. Point the camera lens on the back of the MC65 at a bar code.

4. Press and hold . A preview window appears on the display window and a red aiming line emits from the

MC65. The LED lights red indicating that the data capture is in process.

5. Move the MC65 until the red aiming line is across the bar code.

Figure 2-33

6. The LED lights green and a beep sounds, by default, to indicate the bar code was decoded successfully.

7. The bar code content data displays in the text field.

8. Disable DataWedge.

a. Tap Start > Settings > System > DataWedge.

b. Tap the Running option to end the DataWedge process. The DataWedge Status changes to Stopped.

Sample Bar Code

c. Tap OK.

Using Voice-Over-IP

The MC65 supports Voice over IP over WLAN (VoWLAN) using Zebra or third party voice clients. The MC65 can communicate using VoIP either using the MC65 supports several audio outputs, including back speaker phone, front receiver or handset, and Bluetooth headset.

Using the MC65 2 - 27

It is recommended that the wireless network use the 802.11a (5 GHz) band for voice applications. Using the 5

GHz band avoids some noise sources that may occur on the 802.11b/g (2.4 GHz) band due to wireless

interference.

When using a Bluetooth headset with the MC65 and VoWLAN, it is required to use the Bluetooth Headset

profile instead of Hands-free profile. Use the buttons on the MC65 to answer and end calls. See Chapter 7,

Using Bluetooth for information on setting up a Bluetooth Headset Profile.

2 - 28 MC65 User Guide

CHAPTER 3 MAKING CALLS

Introduction

NOTE If using the Windows Mobile Dialer, refer to Windows Mobile Dialer on page C-4 for information on using

the dialer.

Use the MC65 to make phone calls, keep track of calls, and send text messages. Your wireless service

provider may also provide other services such as voice mail, call forwarding, and caller ID.

Also use the phone to connect to an ISP or work network in order to browse the Web and read e-mail over

High-Speed Packet Access (HSPA) or Evolution Data-Optimized (EvDO) using Cellular Line.

Making a Call

NOTE The user can make emergency calls even when the MC65 is locked or when it is not activated. See

Emergency Calling on page 3-5 for more information.

With the MC65, the user can make a call from the phone, contacts, and Call Log.

Using the Phone Keypad

To make a call:

1. Press .

3 - 2 MC65 User Guide

Call Line

CDMAGSM/UMTS

Figure 3-1

2. Enter the phone number on the dialer or keypad. The number appears in the Call Line.

3. Tap the green Call Line or press .

4. Tap Cancel to cancel the call or tap Speaker to place the MC65 in speakerphone mode.

5. When the call connects, the name or number appears in the Call Line. To place the call on hold

Enterprise Dialer

NOTE If the user taps a wrong number, tap the Delete key to erase each subsequent digit. To erase the entire

number, tap and hold the Delete key.

(GSM/UMTS only), press . To return to the call press again.

NOTE Placing a call on hold using the Call Line can be enabled. To enable, press > > Enable

Hold. The toggle icon changes to On.

6. Tap or press to end the call.

Table 3-1 lists the Phone dialer icons that appear below the Status bar and above the Call Line. Icons vary

depending upon carrier and network.

Table 3-1

Phone Dialer Status Icons

Icon Description Icon Description

Bluetooth headset connected. Location disabled.

Call Forwarding enabled. Phone unlocked.

Phone audio muted.

Smart Dialing

Smart Dialing makes it easy to dial a phone number. When the user starts entering numbers or characters, Smart Dialing automatically searches and sorts the contact entries on the SIM card, in Contacts, and the phone numbers in Call Log (including incoming, outgoing, and missed calls). You can then select the desired number or contact from the filtered list to dial.

Making Calls 3 - 3

Press keys on the MC65 keypad that correspond to the phone number or contact to call. The contact panel lists

contacts that match the sequence entered.

Smart Dialing starts looking for numbers or contacts that match the sequence entered.

To find a phone number:

•

Enter the first one or two digits to find a phone number in Call History.

•

Enter the first three digits or more to find a phone number from the saved Contacts and SIM card.

To find a contact name:

• Enter the first letter of a contact’s first name or last name. Smart Dialing searches for the letter starting from the first character of a contact name as well as from any character that appears after a space, dash, or underscore in a contact name.

• If the matching list is long, narrow down the search further by entering another letter.

Figure 3-2

Finding a Contact

To make a call or send a message using Smart Dialing:

1. Begin entering the first few numbers or characters.

2. In the Smart Dialing panel, use the navigation keys on the keypad to navigate to the desired contact or

phone number.

3. When the correct contact is selected, press to make a voice call.

4. To send a message to the selected contact, tap > Send Text Message to send a text message or >

Send MMS to send an MMS message.

5. To call a different phone number associated with the selected contact, tap the contact name and select the

phone number to call.

Using Contacts

Use Contacts to make a call without looking up or entering the phone number.

To make a call from Contacts:

1. Press .

2. From the Phone shortcut, tap .

3 - 4 MC65 User Guide

3. From the contact list, tap and hold the contact name.

4. Tap Call Work, Call Home or Call Mobile.

Using Call Log

To make a call using Call Log:

1. Press .

2. From the Phone shortcut, tap .

3. Tap the contact or phone number.

4. Tap SEND or press .

5. Tap Cancel or press to stop dialing or end the call.

Using Speed Dialing

To make a call using Speed Dialing:

NOTE To set up speed dialing see Speed Dial Setup on page 3-11.

1. Press .

2. On the dialpad, press and hold a number associated with the speed dial number set up in Contacts.

3. Tap Cancel or press to stop dialing or end the call.

Last Call Dialing

To call the last received or sent phone number, press twice.

NOTE To disable last call dialing press > > Last call dialing. The toggle icon changes to Off.

Answering a Call

When the MC65 receives an incoming call a dialog box appears. If the phone is set to ring, a ring tone sounds. Answer or ignore the incoming call.

To answer an incoming call tap Answer or press .

To ignore the incoming call, tap Ignore. This sends the caller to voice mail, depending on the service provider. Otherwise, this presents a busy signal to the calling party.

Making Calls 3 - 5

Tap or press to end the call.

Incoming Call Features

•

The user can use other programs on the MC65 during a call. To switch back to the phone, press .

Press to end the call.

•

To hold the current call and answer a waiting call, tap Answer to place the current call on hold and answer the incoming call.

•

On GSM/UMTS, tap the Call Line or press to put a call on hold to call another number.

•

On CDMA, enter a phone number and then press to put a call on hold to call another number.

•

To move from one call to another, tap the Call Line or press .

Missed Call Notification

When the user does not answer an incoming call, the Home screen displays a Missed Call indication.

To view a missed call entry, tap the on the Home screen.

Emergency Calling

The service provider programs one or more emergency phone numbers, such as 911 or 999, that the user can call under any circumstances, even when the phone is locked, a SIM card is not inserted or the phone is not activated. Your service provider can program additional emergency numbers into the SIM card. However, the SIM card must be inserted in the MC65 in order to use the numbers stored on it. See the service provider for additional information.

When the keypad is locked, press the orange key twice to set the keypad to numeric mode and then enter the emergency number.

3 - 6 MC65 User Guide

Audio Modes

The MC65 offers three audio modes for use during phone calls:

•

Handset Mode: Switches audio to the receiver at the top front of the MC65, so the user can use the

MC65 as a handset. This is the default mode.

•

Speaker Mode: Use the MC65 as if on speaker phone. Tap Speaker to activate this mode. Tap Speaker

again to switch back to handset mode.

•

Headset Mode: Connect a Bluetooth headset to automatically switch audio to the headset.

The MC65 defaults to handset mode. When a Bluetooth headset is configured for use with the MC65, the earpiece and speakerphone are muted and audio is heard through the headset.

Using a Bluetooth Headset

You can use a Bluetooth headset for audio communication when using an audio-enabled application. See

Chapter 7, Using Bluetooth for information on connecting a Bluetooth headset to the MC65. Set the MC65’s

volume appropriately before putting the headset on. When a Bluetooth headset is connected the speakerphone is muted.

Adjusting Audio Volume

Use the Volume buttons to adjust the volume of the ringer when not in a call and the audio volume when in a call.

NOTE Adjust the conversation phone volume during a call. Adjusting the volume while not in a call affects the

ring and notification sound levels.

Muting a Call

During a call, the caller can mute the microphone so they can hear the person on the line but he or she cannot hear the caller. This is useful when there is conversation or background noise.

To mute or unmute a call tap Mute on the dialer to mute the audio. The Mute button becomes yellow.

Using Call Log

Use Call Log to call someone who was recently called, or recently called in. The Call Log provides the time of all incoming, outgoing, and missed calls. Table 4-1 lists the call Log icons that appear in the Call Log window.

Press and then tap to open the Call Log window.

Making Calls 3 - 7

Figure 3-3

Table 3-2

Call Log Window

Call Log Icons

Icon Description

This icon appears next to the contact information for all outgoing calls.

This icon appears next to the contact information for all incoming calls.

This icon appears next to the contact information for all unconnected outgoing calls.

This icon appears next to the contact information for all missed incoming calls.

Managing Call Log

Change views, reset the call timer, and delete calls to manage the calls stored in Call Log.

Using the Call Log Menu

Use the Call Log menu to make a call, send an SMS, add to contacts and remove item from the log.

1. Press and then tap .

3 - 8 MC65 User Guide

Figure 3-4

2. Tap an item to call the number or tap to open the Options window for that item.

3. Select an applicable option from the menu.

4. Depending on the option selected, the appropriate window displays. For example, select SMS to display

Call Log Window

the Text Messages window.

5. Tap to close the Options window.

Conference Calling

NOTE For use on GSM/UMTS networks.

Conference Calling and the number of conference calls allowed may not be available on all services. Please check with the service provider for Conference Calling availability.

To create a conference phone session with multiple people:

1. Press to display the dialer.

2. Enter the first phone number and tap the Call Line area. When the call connects, the name or number

appears in the Call Line.

3. Tap .

4. Tap . The dialer re-appears.

5. Enter the second number and tap Send.

6. When the call connects, the first call is placed on hold and the second call is active.

Making Calls 3 - 9

Figure 3-5

7. Tap the Call Line 1 to make that call active. The second call go on hold.

8. Tap to create a conference call (three callers).

Figure 3-6

9. To add a third caller tap . The dialer appears. When the call connects the new call is active and the

Two Calls

Two Merged Calls

conference is on hold.

Figure 3-7

Adding a Third Call

3 - 10 MC65 User Guide

10. To add the new caller to the conference tap .

Figure 3-8

Three Merged Calls

11. Tap to view all callers.

Figure 3-9

12. To remove a caller from the conference, tap the caller and then tap next to the caller or press

13. To end the conference call, tap next to the Call Line or press .

Un-Merge Calls

Call Completed screen appears and then the dialer displays.

NOTE To speak privately with one party during a conference call, tap and then tap next to the

caller. To include all parties again, tap.

Making a 3-Way Call

NOTE For use on CDMA networks.

3-way Calling may not be available on all services. Please check with the service provider for availability.

With 3-Way Calling, you can talk to two people at the same time. When using this feature, the normal airtime rates will be charged for each of the two calls.

1. Enter a number and press .

2. Once you have established the connection, enter or select a number and tap Flash.

3. When you’re connected to the second party, tap Flash to begin your 3-way call.

If one of the people you called hangs up during your call, you and the remaining caller stay connected. If you initiated the call and are the first to hang up, all callers are disconnected.

Speed Dial Setup

Making Calls 3 - 11

Create speed dial numbers to dial frequently called numbers with a single tap. Before creating a speed dial entry, ensure the phone number exists in Contacts.

Adding a Speed Dial Entry

To add a speed dial entry from the phone keypad:

1. Ensure the contact and phone number are in Contacts.

2. Press > .

3. Tap the desired contact name in the list.

4. Tap > Add to Speed Dial.

5. In the Location drop-down list, select an available location to assign as the new speed dial entry. The first

speed dial location is reserved for voice mail.

6. Tap OK to add the contact to the speed dial list.

7. Tap OK to exit the Edit Contacts window.

8. Tap OK to exit the Contacts window.

Editing a Speed Dial Entry

To change a speed dial entry:

1. Press > .

2. Tap the desired contact name in the list.

3. Tap > Edit Speed Dial.

3 - 12 MC65 User Guide

4. In the Location drop-down list, select a different available location to assign as the new speed dial entry.

The first speed dial location is reserved for voice mail.

5. Tap OK to change the speed dial list.

6. Tap OK to exit the Edit Contacts window.

7. Tap OK to exit the Contacts window.

Deleting a Speed Dial Entry

To delete a speed dial entry:

1. Press > .

2. Tap the desired contact name in the list.

3. Tap > Edit Speed Dial.

4. Tap .

5. Tap Yes to confirm permanently deleting the speed dial entry.

NOTE Deleting names and phone numbers in Speed Dial does not delete the contact information in Contacts

(Start > Contacts).

6. Tap OK to exit the Edit Contacts window.

7. Tap OK to exit the Contacts window.

Voice Commander

Voice Commander is a speech dialog system that provides natural human interface for users to communicate seamlessly with the MC65. Users can make phone calls, look up contact information, launch programs or check calendars. Voice Commander contains the following features:

•

Eyes-free and hands-free voice command and control.

•

Speaker-independent speech recognition technology, no training is required.

•

Ease of use conversational user interface.

•

Personal Voice Tag and Digit Model Adaptation to enhance the usability.

To initiate Voice Commander tap Start > Toolbox > Voice Commander or press the call button on a Bluetooth headset. The system says, “Say a Command.” The user says one of the following commands:

•

Call

•

Find

•

Redial/Callback

•

Play Music

•

Play

•

Next/Previous

•

Start

•

Appointments

•

Read/Call History

•

What time is it?

•

What can I say?

•

Goodbye

Call

To call a person by name:

1. Initiate Voice Commander. The MC65 responds with “Say command.”

2. Say “Call Michael Archer.” System responds with “Call Michael Archer work, is it correct?”

3. Say “Yes.” MC65 responds with “Dialing.”

To call a person at a location:

Making Calls 3 - 13

1. Initiate Voice Commander. The MC65 responds with “Say command.”

2. Say “Call Mary Smith at home.” The MC65 responds with “Call Mary Smith home, is it correct?”

3. Say “Yes.” The MC65 responds with “Dialing.”

To call a person with more that one phone number:

1. Initiate Voice Commander. The MC65 responds with “Say command.”

2. Say “Call Alex Jordan.” The MC65 responds with “Call Alex Jordan, home, work, mobile or cancel?”

3. Say “Home.” The MC65 responds with “Dialing.”

If two people have similar names:

1. Initiate Voice Commander. The MC65 responds with “Say command.”

2. Say “Call Halley Johnson.” The MC65 responds with “More than one Halley Johnson, please select.”

3. Select the contact intended to call.

NOTE Voice Commander automatically maintains a maximum of 2000 contacts in the recognition database. To

change this setting, see Contacts Settings on page 9-18.

If the command can not be recognized, Voice Commander prompts “Please say again.” This situation could happen under the noisy environment, or when user says command before Voice Commander starts recording. After hearing the prompt “Say Command”, user should wait one to two seconds to speak the command.

The recognizable contact length is 48 characters. Contacts exceeding 48 characters will be ignored.

Find

To look up contact information:

1. Initiate Voice Commander. The MC65 responds with “Say command.”

3 - 14 MC65 User Guide

2. Say “Find Mary Smith.” The MC65 responds with “Mary Smith home 5555551212."

To look up a specific number:

1. Initiate Voice Commander. The MC65 responds with “Say command.”

2. Say “Find Michael Archer at work.” The MC65 responds with “Michael Archer, work, 5555551212."

If two contacts have similar names:

1. Initiate Voice Commander. The MC65 responds with “Say command.”

2. Say “Find John Smith at work.” The MC65 responds with “More than one John Smith, please select.” Voice

Commander displays a window with the two contacts. (System will show both Halley Johnson and Haley Johnson for user to select.)

If a contact is not found:

1. Initiate Voice Commander. The MC65 responds with “Say command.”

2. Say “Find Michael Archer at home.”

3. MC65 responds with “Michael Archer has no home number.”

Redial

To re-dial a previous number:

1. Initiate Voice Commander. The MC65 responds with “Say command.”

2. Say “Redial.” The MC65 responds with “Call Mary Smith at home, is it correct?”

3. Say “Yes.” The MC65 responds with “Dialing.”

Callback

1. Initiate Voice Commander. The MC65 responds with “Say command.”

2. Say “Callback.” The MC65 responds with “Call Mary Smith at home, is it correct?”

3. Say “Yes.” The MC65 responds with “Dialing.”

Start

To launch an application:

1. Initiate Voice Commander. The MC65 responds with “Say command.”

2. Say “Start calendar.” The MC65 responds with “Go to Calendar.” The Calendar application launches.

Appointments

To read today’s, tomorrow’s or this week’s appointments:

1. Initiate Voice Commander. The MC65 responds with “Say command.”

2. Say “Today's appointment.” The MC65 responds with “You have 3 appointments” and reads the

appointments.

Making Calls 3 - 15

NOTE User can say Previous, Next, Repeat, or Abort to control calendar reading. Voice Commander only plays

the new appointments. Older appointments are ignored.

Read

To read a text message or an email message:

1. Initiate Voice Commander. The MC65 responds with “Say command.”

2. Say “Read SMS.” The MC65 responds with “You have 3 SMS” and reads the SMS messages.

What time is it

To find out the time of day:

1. Initiate Voice Commander. The MC65 responds with “Say command.”

2. Say “What time is it?” The MC65 responds with “The time is 3 p.m.”

Call History

To view the call history window:

1. Initiate Voice Commander. The MC65 responds with “Say command.”

2. Say “Call History.”The MC65 responds with “Call history.”

3. The Call history page displays.

Voice Play Music

To play a specific music file:

1. Initiate Voice Commander. The MC65 responds with “Say command.”

2. Say “Play The Moment.” The MC65 responds with “The Moment.”

3. Windows Media starts to play “The Moment.”

To play all music files:

1. Initiate Voice Commander. The MC65 responds with “Say command.”

2. Say “Play music.” The MC65 responds with “Play music.”

3. Windows Media starts to play all music files.

To play a different music file during playing of another:

1. Initiate Voice Commander. The MC65 responds with “Say command.”

2. Say “Next.” The MC65 responds with “Next.”

3. Windows Media starts to play next music file.

To pause or resume a playing music file:

1. Initiate Voice Commander. The MC65 responds with “Say command.”

3 - 16 MC65 User Guide

2. Say “Pause” or “Resume.” The MC65 pauses or resumes the playing music.

NOTE User can say “Pause” or “Resume” to control music playing. The command “Resume” only works when

Windows Media is running. The commands “Previous” and “Next” only work when playing all music files.

Voice Commander only supports media files with .mp3 and .wma format. Voice Commander supports the music files in Playlists or Media files synched by Active Sync, in My Documents and its subfolder or on the microSD card and its subfolders.

What can I say

To view the help information:

1. Initiate Voice Commander. The MC65 responds with “Say command.”

2. Say “What can I say.” The help file displays.

Alternately tap Menu > Help to open the help file.

Goodbye

To exit the Voice Commander application, Say “Goodbye.” The MC65 responds with “Goodbye” and the application terminates.

Voice Commander can be also terminated manually by tapping Menu > Exit. Note that goodbye will not be accepted during voice digit dialing operation.

NOTE Voice Commander automatically terminates after 10 seconds of silence.

CHAPTER 4 USING WLAN

Introduction

WLANs allow the MC65 to communicate wirelessly inside a building. Before using the MC65 on a WLAN, the facility must be set up with the required hardware to run the WLAN (sometimes known as infrastructure). The infrastructure and the MC65 must both be properly configured to enable this communication.

Refer to the documentation provided with the infrastructure (access points (APs), access ports, switches, Radius servers, etc.) for instructions on how to set up the infrastructure.

Once you have set up the infrastructure to enforce your chosen WLAN security scheme, use the Fusion or Wireless Zero Config (WZC) software to configure the MC65 to match.

Fusion Overview

The Fusion software contains applications with which to create wireless profiles. Each profile specifies the security parameters to use for connecting to a particular WLAN as identified by its ESSID. The Fusion software also allows the user to control which profile out of a set of profiles is used to connect. Other Fusion applications allow the user to monitor the status of the current WLAN connection and to invoke diagnostic tools for troubleshooting.

To access Fusion, tap the Status Bar > .

4 - 2 MC65 User Guide

Figure 4-1

Refer to the Wireless Fusion Enterprise Mobility Suite User Guide for Version 3.20 for detailed information on using and configuring Fusion.

To access the on-device Fusion Help tap Status Bar > > Help.

Status - Fusion Tab

Connecting to the Internet

To connect to the Internet on a WLAN when using Fusion, ensure that the network card settings is set to Internet:

1. Ensure Fusion is enabled and a profile is configured.

2. Tap Start > Settings > Connections > Wi-Fi.

3. In the My network card Connects to drop-down list, select The Internet.

4. Tap OK.

Wireless Zero Config Overview

WZC is a Microsoft wireless connection management utility that dynamically selects a wireless network to connect to based on a user's preferences and various default settings.

Switching Between Fusion and WZC

To switch from Fusion to WZC:

1. Tap the Status Bar > > Options.

2. Select WLAN Management from the drop-down list.

3. Select Microsoft Manages WLAN radio button.

4. Tap Save.

5. Tap OK.

6. Perform a reboot.

To switch from WZC to Fusion:

1. Tap the Status Bar > > Options.

2. Select WLAN Management from the drop-down list.

3. Select Fusion Manages WLAN radio button.

4. Tap Save.

5. Tap OK.

6. Perform a reboot.

Supported Applications

The Fusion menu items and their corresponding applications are summarized in Table 4-1.

Using WLAN 4 - 3

Table 4-1

Supported Applications

Application Description Fusion Support WZC Support

Find WLANs Invokes the Find WLANs application which displays

Manage Profiles Invokes the Manage Profiles application (which

Wireless Zero Config Invokes the Wireless Zero Config application to

Manage Certs Invokes the Certificate Manager application which

Manage PACs Invokes the PAC Manager application which helps

Options Invokes the Options application which allows you to

Wireless Status Invokes the Wireless Status application which

Wireless Diagnostics Invokes the Wireless Diagnostics application which

a list of the WLANs active in your area.

includes the Profile Editor Wizard) to manage and edit your list of WLAN profiles.

configure the WLAN.

allows you to manage certificates used for authentication.

you manage the list of Protected Access Credentials used with EAP-FAST authentication.

configure the Fusion option settings.

allows you to view the status of the current wireless connection.

provides tools with which to diagnose problems with the wireless connection.

Yes N o

No Yes

Yes Yes

Yes N o

Yes Yes

Log On/Off Invokes the Network Login dialog which allows you

to log on to a particular profile or to log off from the currently active profile

Yes N o

4 - 4 MC65 User Guide

Fusion Setup

To detailed setup WLAN using Fusion refer to the Wireless Fusion Enterprise Mobility Suite User Guide for Version 3.20 for detailed information on using and configuring Fusion.

To setup WLAN using Fusion:

NOTE Obtain the proper WLAN configuration information from your system administrator prior to performing the

Fusion setup procedures.

The following setup procedure example shows setup of a WLAN using WEP encryption.

1. Tap the Status Bar > > Manage Profiles. The Manage Profiles window appears.

2. Tap and hold in the window and select Add from the pop-up menu. The Wireless LAN Profile Entry

window appears.

3. In the Profile Name text box enter a name for the profile.

4. In the ESSID text box enter the ESSID.

Figure 4-2

5. Tap Next. The Operating Mode dialog box displays.

6. In the Operating Mode drop-down list, select Infrastructure or Ad-hoc.

Figure 4-3

7. Tap Next. The Security Mode dialog box displays.

8. In the Security Mode drop-down list, select Legacy (Pre-WPA).

Profile ID Dialog Box

Operating Mode Dialog Box

Using WLAN 4 - 5

Figure 4-4

9. In the Authentication drop-down list, select None.

10. Tap Next. The Encryption dialog box displays.

11. In the Encryption Type drop-down list, select WEP-40 (40/24).

Figure 4-5

12. Select the Pass-phrase or Hexadecimal Keys radio button to indicate whether a pass-phrase or

Security/Authentication Dialog Box

Encryption Dialog Box

hexadecimal keys will be entered on the next page.

13. Select the For added security - Mask characters entered check box to hide characters entered.

Deselect this to show characters entered.

14. Tap Next.

Figure 4-6

15. In the Edit Key drop-down list, select the key to enter.

16. In the Key field, enter 10 hexadecimal characters.

17. In the Confirm field, re-enter the key. When the keys match, a message appears indicating that the keys

WEP-40 WEP Keys Dialog Box

match.

18. Repeat for each WEP key.

19. In the Transmit Key drop-down list, select the key to transmit.

20. Tap Next. The IPv4 Address Entry dialog box displays.

4 - 6 MC65 User Guide

Figure 4-7

21. Ensure that all three check boxes are selected.

22. Tap Next. The Battery Usage dialog box appears.

23. In the Battery Usage Mode dialog box select a power consumption option.

Figure 4-8

24. Tap Save.

IP Address Entry Dialog Box

Battery Usage Dialog Box

Wireless Zero Config Setup

To setup WLAN using WZC:

NOTE Obtain the proper WLAN configuration information from your system administrator prior to performing the

WZC setup procedures.

The following setup procedure example shows setup of a WLAN using WEP encryption.

1. Tap Status Bar > > Wireless Zero Config.

Using WLAN 4 - 7

Figure 4-9

2. The MC65 searches for wireless networks in the area and displays them in the window.

3. Tap a network name.

Figure 4-10

4. In the Connects to drop-own list, select either The Internet or Work.

5. Check the This is a hidden network checkbox if the network is a hidden network.

6. Tap Next.

Wireless Zero Config Window

Configure Wireless Network Window

Figure 4-11

7. In the Authentication drop-down list, select the authentication type.

Configure Network Authentication Window

4 - 8 MC65 User Guide

8. In the Data Encryption drop-down list, select the data encryption type.

9. If WEP encryption is selected, enter an encryption key in the Network key text box.

10. Tap Next.

Figure 4-12

11. If required, select Use IEEE 802.1x network access control check box.

12. In the EAP type drop-down list box, select the EAP type.

13. Tap Finish.

Configure Network Authentication Window

More Information on WZC

For more information on Microsoft Wireless Zero Config, see the Microsoft Software Developer Network (MSDN) at http://msdn.microsoft.com.

CHAPTER 5 MESSAGING

Introduction

This chapter describes how to use Email, SMS Messaging and MMS Messaging.

Email

Use email to send messages to other users.

Creating an Email Message

To create an email message:

1. Press Start > E-mail.

2. Select an email account.

3. Tap > New.

4. To add recipients, enter their email addresses, separating them with a semicolon ( ; ). Tap To to add email

addresses stored in Contacts.

5. Enter a subject and compose the message.

6. To add an attachment to the message, tap > Insert and tap the item you want to attach: Picture, Voice

Note, or File.

7. Tap .

Viewing an Email Message

To view an email message:

1. On the Home screen, tap for an Outlook email or for a personal email account.

5 - 2 MC65 User Guide

2. Tap an email to open it.

Replying to or Forwarding a Message

1. On the Home screen, tap for an Outlook email or for a personal email account.

2. Tap an email to open it.

3. Tap .

4. Enter your reply message, and then tap .

SMS Messaging

Text messages allow the user to send and receive short text messages (SMS) to and from other mobile devices. The text can contain words, numbers, or an alphanumeric combination no longer than 160 characters.

Sending a Text Message

To send a text message:

1. Press Start > Text.

2. Tap > New > SMS.

Address Area

Message Area

Figure 5-1

3. Tap To to select a recipient from Contacts or enter a phone number in the address area.

4. Compose a message.

Create Text Message

• The auto-correct feature automatically fixes common spelling errors as the user types so that messages are more accurate.

• The character counter, in the Status Bar, indicates the size of the message being composed.

• Tap > Message Options, then select the Request message delivery notification check box to

request notification when the text messages is received.

5. Tap to send the message.

Messaging 5 - 3

If the MC65 phone feature is on, the text message is sent. If it’s off, a prompt displays to turn on the phone feature. The message is saved in the Drafts folder and sent when the MC65 phone feature is turned on.

When outside of coverage area, the message is saved in the Drafts folder and sent when back in a coverage area.

Viewing Text Messages

When an incoming text message arrives, the text notification icon appears in the Status Bar and the dialog box displays.

Text Message Notification Icon

Figure 5-2

The Caller Identification feature matches incoming text message numbers with those stored in Contacts indicating who is sending the message. The user can act on the text message right away or read it later. Tap

to reply to the message. The New Text Message dialog box provides the option to call the sender, or save, dismiss or delete the message. Tap Menu > Delete to delete the text message. Tap Menu > Call sender to call the sender. Tap Menu > Save as read to close the dialog box and read the text message at a later time.

To view previously received text messages:

1. Tap Start > Text.

New Text Message Notification

Figure 5-3

2. In the message list, tap a text message. The window displays previous text conversations.

Text Messages Window

5 - 4 MC65 User Guide

Figure 5-4

Text Message - Conversation

Replying to an SMS Message

To reply to a text message:

1. Tap Start > Text.

2. In the message list, tap a text message. The window displays previous text conversations.

3. Enter text in the reply field.

4. Tap .

MMS Messaging

MMS Messaging allows the user to send a pictures, videos, audio files and other file types to another mobile computer.

Creating and Sending MMS Messages

To send an MMS message:

1. Tap Start > Text.

2. Tap > New > MMS.

Figure 5-5

MMS Window

Messaging 5 - 5

3. To add a contact, tap . A window appears with a list of contacts. Select one or more contacts and then

tap Done.

4. Tap to add a subject for the message. Enter the subject text in the window and then tap Done.

5. Tap in the text window to enter a text message. A window appears allowing you to add a text message plus

emoticons, favorite web addresses, pre-defined text, contact information and calendar information. Tap Done after adding information.

6. Tap to attach a picture or video stored on the MC65 to the message.

7. Tap to attach a sound file stored on the MC65 to the message.

8. Tap to take a picture and attach it to the message.

9. Tap to capture video and attach it to the message.

10. Tap to record a message and attach it to the message.

11. Tap to add a file stored on the MC65 to the message.

12. After all of the items are attached to the message, tap Send.

Viewing an MMS Message

To view an MMS message:

1. Tap Start > Text.

2. Tap the MMS message.

3. In the threaded message, tap the MMS icon to view the message.

4. Tap Contents to view a list of files included in the message.

On the Message Contents screen:

1. Tap Menu > Save to save a file.

2. Tap Menu > Save into My Text to save the contents of a text file to the My Text list.

3. Tap Menu > Assign to Contact to associate a photo to a contact.

4. Tap Menu > Set as Ringtone to associate a audio file as a ringtone.

Replying to an MMS Message

To reply to an MMS message

1. Tap Start > Text.

2. Tap the MMS message.

3. In the threaded message, tap the MMS message to open and view an MMS message.

4. After viewing the MMS message, tap Menu > Reply > via MMS to reply with an MMS message or tap

Menu > Reply > via SMS to reply with a text message.

5 - 6 MC65 User Guide

Blocking Incoming SMS Messages

To block incoming MMS messages from a specific sender:

1. Open and view the MMS message.

2. Tap Menu > Show > Contact Details.

3. Tap Menu > Save to Blacklist.

4. Tap Done.

To unblock a sender:

1. Tap Start > Text.

2. Tap Menu > MMS Options > Blacklist.

3. Tap and hold the phone number.

4. Select Delete from the pop up menu.

5. Tap OK.

CHAPTER 6 USING THE CAMERA

Introduction

Use Pictures & Videos to take pictures and record videos and to view them on the MC65.

Taking Pictures

To take a picture:

1. Tap Start > Pictures & Videos.

2. Tap Camera.

Figure 6-1

The Camera window displays the view finder. Information about the current settings or the remaining number of pictures that can be saved to the MC65 are displayed on the lower right corner of the screen.

3. Check the image on the view finder, adjust if necessary.

4. Press the Enter key to take the picture.

Camera Window

6 - 2 MC65 User Guide

Burst Mode

Burst mode is a way to take a series of quick pictures.

1. Tap Start > Pictures & Videos.

2. Tap Camera.

3. Tap Menu > Mode > Burst.

4. Check the image on the view finder, adjust if necessary.

5. Press the Enter key to take the picture.

To stop a burst of pictures before all pictures have been taken tap OK.

Timer Mode

To take pictures using the timer:

1. Tap Start > Pictures & Videos.

2. Tap Camera.

3. Tap Menu > Mode > Timer.

NOTE By default, the self timer delay is set at five seconds.

4. Check the image on the view finder, adjust if necessary.

5. Press the Enter key to take the picture.

Editing Pictures

Rotate, crop, zoom, and adjust the brightness and color contrast pictures.

1. Tap Start > Pictures & Videos.

2. Tap the thumbnail of the picture to view.

3. Tap Menu > Zoom to display the Zoom panel, used to zoom in or out of a picture. Tap Menu > Zoom again

to close the Zoom panel.

4. To rotate a picture 90 degrees counter-clockwise, tap Menu > Edit, then tap Rotate.

5. To crop a picture, tap Menu > Edit, then tap Menu > Crop. Drag the stylus across the screen to select the

crop area. Tap inside the area to crop the picture, or outside of the area to cancel cropping.

Setting a Picture as Wallpaper

To add a custom look to the Home screen of the MC65 (using the Windows Home screen); apply a wallpaper of your choice using any image. To set an image as a Home wallpaper:

1. Tap and hold a thumbnail, then select Set as Home Background.

2. Tap the up or down arrows to set the transparency level.

3. Tap OK.

Camera Configuration

To configure the camera settings:

1. Tap Start > Pictures & Videos.

2. Tap Menu, then configure the device settings.

•

Video - Tap to switch to video mode.

•

Mode - Select from the following modes to take the picture:

• Normal - Takes picture using the default settings.

• Burst - Takes picture consecutively in continuous mode.

• Timer - Takes picture five seconds after pressing the Enter key.

•

Brightness - Set the camera brightness level.

•

Resolution - Set the camera resolution level. Note that selecting a high resolution picture increases the

size of the file significantly.

•

Flash - Turns flash on and off.

•

Auto Focus - Turns auto focus on and off.

Using the Camera 6 - 3

•

Full Screen - Toggles the viewfinder between full screen and window modes.

•

Options - Displays the camera options window.

3. Tap OK to exit.

Recording a Video

To record a video:

1. Tap Start > Pictures & Videos.

2. Tap Camera.

3. Tap Menu > Video.

Figure 6-2

The available recording time displays on the screen.

Video Window

6 - 4 MC65 User Guide

NOTE By default, the time limit for recording videos is set to 30 seconds.

4. Press the Enter key to begin recording.

5. Press the Enter key to stop recording.

Video Configuration

To configure the video settings:

1. Launch the Video application.

2. Tap Menu, then configure the device settings.

•

Still - Tap to switch to still (camera) mode.

•

Brightness - Set the video brightness level.

•

Quality - Set the quality (video resolution and sound fidelity) and size of the video clips you record. Video clips of higher quality require more memory.

•

Full Screen - Toggles the viewfinder between full screen and window modes.

•

Options - Displays the video options window.

3. Tap OK to exit.

Viewing Pictures and Videos

To view a picture or video:

1. Tap Start > Pictures & Videos.

2. Tap the thumbnail of the picture or video:

•

Tap the Show drop-down list to browse folders.

•

Tap the Sort By drop-down list to sort the files by name, date or size.

Figure 6-3

Pictures & Videos

Customizing Pictures & Videos

Using the Options command you can set preference settings on how to use Pictures & Videos.

To customize Pictures & Videos:

1. On either thumbnail or full screen mode, tap Menu > Options.

2. On the General tab, set the following options:

•

Select the size of the pictures you want to send through e-mail. Only pictures sent through an e-mail message is resized, the original picture remains unchanged.

•

Resize pictures for faster e-mail transfer.

•

Rotate pictures towards left or right.

3. On the Slide Show tab, set the following options:

•

Select the Portrait pictures or Landscape pictures radio button to set slide show orientation.

•

Select the Play a screen saver when connected to my PC and idle for 2 minutes check box to set the image files in the My Pictures folder as a screen saver whenever your device is connected to the USB sync cable and is idle for 2 minutes.

Using the Camera 6 - 5

4. On the Camera tab, set the following options:

•

In the Type filename prefix text box, enter the prefix to be used as a default title for the image file.

•

In the Save files to drop-down list, select to save image files to onboard memory or built-in storage.

•

In the Still image compression level drop-down list, set a compression level when saving the image. The high quality setting provides the best image quality but more memory is required.

5. On the Video tab, set the following options:

•

Select the Include audio when recording video files check box to record audio along with video.

•

In the Time limit for videos drop-down list, set the amount of time for recording video.

6 - 6 MC65 User Guide

CHAPTER 7 USING BLUETOOTH

Introduction

Bluetooth-equipped devices can communicate without wires, using frequency-hopping spread spectrum (FHSS) radio frequency (RF) to transmit and receive data in the 2.4 GHz Industry Scientific and Medical (ISM) band (802.15.1). Bluetooth wireless technology is specifically designed for short-range (10 meters (32.8 feet)) communication and low power consumption.

MC65s with Bluetooth capabilities can exchange information (e.g., files, appointments, and tasks) with other Bluetooth enabled devices such as printers, access points, and other Enterprise Smart Phones. To use the MC65 as a modem, create a dial-up modem connection between a computer and MC65.

Adaptive Frequency Hopping

Adaptive Frequency Hopping (AFH) is a method of avoiding fixed frequency interferers, and can be used with Bluetooth voice. All devices in the piconet (Bluetooth network) must be AFH-capable in order for AFH to work. There is no AFH when connecting and discovering devices. Avoid making Bluetooth connections and discoveries during critical 802.11b communications. AFH for Bluetooth consists of four main sections:

•

Channel Classification - A method of detecting an interference on a channel-by-channel basis, or pre-defined channel mask.

•

Link Management - Coordinates and distributes the AFH information to the rest of the Bluetooth network.

•

Hop Sequence Modification - Avoids interference by selectively reducing the number of hopping channels.

•

Channel Maintenance - A method for periodically re-evaluating the channels.

When AFH is enabled, the Bluetooth radio “hops around” (instead of through) the 802.11b high-rate channels. AFH coexistence allows Zebra Smart Phones to operate in any infrastructure.

The Bluetooth radio in this MC65 operates as a Class 2 device power class. The maximum output power is 2.5 mW and the expected range is 10 meters (32.8 feet). A definition of ranges based on power class is difficult to obtain due to power and device differences, and whether one measures open space or closed office space.

NOTE It is not recommended to perform Bluetooth wireless technology inquiry when high rate 802.11b

operation is required.

7 - 2 MC65 User Guide

Security

The current Bluetooth specification defines security at the link level. Application-level security is not specified. This allows application developers to define security mechanisms tailored to their specific need. Link-level security occurs between devices, not users, while application-level security can be implemented on a per-user basis. The Bluetooth specification defines security algorithms and procedures needed to authenticate devices, and if needed, encrypt the data flowing on the link between the devices. Device authentication is a mandatory feature of Bluetooth while link encryption is optional.

Pairing of Bluetooth devices is accomplished by creating an initialization key that is used to authenticate the devices and create a link key for them. Entering a common PIN number in the devices being paired generates the initialization key. The PIN number is never sent over the air. By default, the Bluetooth stack responds with no key when a key is requested (it is up to user to respond to the key request event). Authentication of Bluetooth devices is based-upon a challenge-response transaction. Bluetooth allows for a PIN number or passkey that is used to create other 128-bit keys used for security and encryption. The encryption key is derived from the link key used to authenticate the pairing devices. Also worthy of note is the limited range and fast frequency hopping of the Bluetooth radios that makes long-distance eavesdropping difficult.

Recommendations are:

•

Perform pairing in a secure environment

•

Keep PIN codes private and don't store the PIN codes in the MC65

•

Implement application-level security.

The Microsoft stack supports Smart-pairing. For detailed information, refer to the Microsoft MSDN.

Bluetooth Configuration

The following services are supported:

•

OBEX Object Push Services

•

Hands-Free Audio Gateway Services

•

Serial Port Services

•

Personal Area Networking Services

•

PBAP Services

•

Dial-Up Networking Services

•

HID Client Services

•

A2DP/AVRCP Services

•

File Transfer profile

•

General Audio/Video Distribution Profile

Using Bluetooth 7 - 3

•

SIM Access Profile

•

Headset Profile

•

Generic Object Exchange Profile

•

Service Discovery Access profile

•

Generic Access Profile.

COM ports COM2, COM3, COM4, and COM7 are available unless being used by another service (MSR uses COM2).

Bluetooth Power States

Suspend

When there is an active Bluetooth connection, the Bluetooth radio goes into low power mode maintaining the active connection.

NOTE If there is an active Bluetooth connection between the MC65 and another Bluetooth device and there is

no data activity, the MC65 will timeout. However, if the user presses the Power button on the MC65, the MC65 will suspend (except when on a call) and upon receiving data from a remote Bluetooth device, the MC65 will wake from suspend mode. For example, headset redial or Bluetooth scanner sending data to the MC65.

Resume

When the MC65 resumes, Bluetooth turns on if it was on prior to suspend.

7 - 4 MC65 User Guide

Turning Bluetooth On and Off

Turn off the Bluetooth radio to save power or if entering an area with radio restrictions (e.g., an airplane). When the radio is off, other Bluetooth devices cannot see or connect to the MC65. Turn on the Bluetooth radio to exchange information with other Bluetooth devices (within range). Communicate only with Bluetooth radios in close proximity.

NOTE To achieve the best battery life turn off radios not in use.

Enabling Bluetooth

To enable Bluetooth:

1. Tap Status Bar > > Bluetooth > Mode.

Figure 7-1

2. Check the Turn On Bluetooth checkbox.

3. Tap OK.

Bluetooth Mode Tab

Disabling Bluetooth

To disable Bluetooth:

1. Tap Status Bar > > Bluetooth > Mode.

2. Un-check the Turn On Bluetooth checkbox.

3. Tap OK.

Discovering Bluetooth Device(s)

The MC65 can receive information from discovered devices without pairing. However, once bonded, the MC65 and a paired device exchange information automatically when the Bluetooth radio is on.

To find Bluetooth devices in the area:

1. Ensure that Bluetooth is enabled on both devices.
