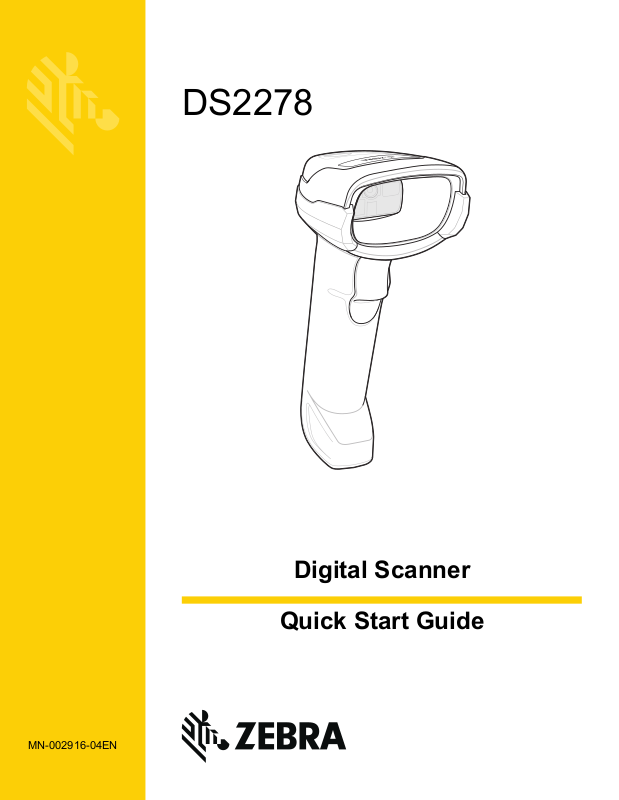

Zebra DS2278 Quick Start Guide

DS2278

MN-002916-04EN

Digital Scanner

Quick Start Guide

2 DS2278 Digital Scanner Quick Start Guide

No part of this publication may be reproduced or used in any form, or by any electrical or mechanical means,
without permission in writing from Zebra. This includes electronic or mechanical means, such as photocopying,
recording, or information storage and retrieval systems. The material in this manual is subject to change without
notice.

The software is provided strictly on an “as is” basis. All software, including firmware, furnished to the user is on a
licensed basis. Zebra grants to the user a non-transferable and non-exclusive license to use each software or
firmware program delivered hereunder (licensed program). Except as noted below, such license may not be
assigned, sublicensed, or otherwise transferred by the user without prior written consent of Zebra. No right to copy
a licensed program in whole or in part is granted, except as permitted under copyright law. The user shall not
modify, merge, or incorporate any form or portion of a licensed program with other program material, create a
derivative work from a licensed program, or use a licensed program in a network without written permission from
Zebra. The user agrees to maintain Zebra’s copyright notice on the licensed programs delivered hereunder, and to
include the same on any authorized copies it makes, in whole or in part. The user agrees not to decompile,
disassemble, decode, or reverse engineer any licensed program delivered to the user or any portion thereof.

Zebra reserves the right to make changes to any software or product to improve reliability, function, or design.
Zebra does not assume any product liability arising out of, or in connection with, the application or use of any

product, circuit, or application described herein.
No license is granted, either expressly or by implication, estoppel, or otherwise under any Zebra Technologies

Corporation, intellectual property rights. An implied license only exists for equipment, circuits, and subsystems
contained in Zebra products.

Warranty

For the complete Zebra hardware product warranty statement, go to: http://www.zebra.com/warranty.

For Australia Only

For Australia Only. This warranty is given by Zebra Technologies Asia Pacific Pte. Ltd., 71 Robinson Road,
#05-02/03, Singapore 068895, Singapore. Our goods come with guarantees that cannot be excluded under the
Australia Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any
other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the
goods fail to be of acceptable quality and the failure does not amount to a major failure.

Zebra Technologies Corporation Australia’s limited warranty above is in addition to any rights and remedies you
may have under the Australian Consumer Law. If you have any queries, please call Zebra Technologies
Corporation at [phone]. You may also visit our website: http://www.zebra.com
warranty terms.

for the most updated

Service Information

If you have a problem using the equipment, contact your facility’s Technical or Systems Support. If there is a
problem with the equipment, they will contact the Zebra Global Customer Support Center at:

http://www.zebra.com/support

For the latest version of this guide go to:

.

http://www.zebra.com/support.

Scanner Features

Scan Window

Scan LEDs

Scan Trigger

Beeper

Host Port

DS2278 Digital Scanner Quick Start Guide 3

Connecting the Cradle Cable

4 DS2278 Digital Scanner Quick Start Guide

1

2

Inserting Scanner in Cradle

Removing Battery

NOTE It is recommended to fully charge the battery before use.

Inserting Battery

1

3

2

DS2278 Digital Scanner Quick Start Guide 5

Connecting the Micro USB Cable

NOTE The Micro USB cable can be used for charging the digital scanner.

Micro USB HID Conversion

When charging the scanner with a Micro USB cable instead of the presentation cradle, the scanner enumerates
over USB as a CDC device. If your host does not have a CDC driver, a delay occurs between connecting the
scanner to the host and the start of charging. To eliminate the delay scan HID Device Conversion below to
enumerate as an HID device. This allows the scanner to begin charging sooner.

HID Device Conversion

6 DS2278 Digital Scanner Quick Start Guide

Connecting Host Interfaces

NOTE Cables may vary depending on configuration.

USB

Scan ONE of the bar codes below. The interface cable automatically detects the host interface type and uses the
default setting. If the default (*) does not meet your requirements, scan another host bar code below.

*

USB Keyboard (HID)

IBM Hand-Held USB

OPOS

(IBM Hand-Held with Full Disable)

Symbol Native API (SNAPI) with Imaging

DS2278 Digital Scanner Quick Start Guide 7

RS-232

Scan ONE of the bar codes below. The interface cable automatically detects the host interface type and uses the
default setting. If the default (*) does not meet your requirements, scan another host bar code below.

*Standard RS-232

Wincor-Nixdorf RS-232 Mode A

OPOS/JPOS

ICL RS-232

Wincor-Nixdorf RS-232 Mode B

Fujitsu RS-232

8 DS2278 Digital Scanner Quick Start Guide

Keyboard Wedge

Scan a bar code below. The Auto-Host Detect Cable feature automatically detects the host interface type and uses
the default setting. If the default (*) does not meet your requirements, scan the IBM PC/AT and IBM PC
Compatibles bar code below.

IBM PC/AT & IBM PC Compatibles

*IBM AT Notebook

DS2278 Digital Scanner Quick Start Guide 9

IBM 46XX

Scan ONE of the bar codes below. The Auto-Host Detect Cable feature automatically detects the host interface
type, but there is no default setting. Scan one of the bar codes below to select the appropriate port.

Hand-Held Scanner Emulation (Port 9B)

Table-Top Scanner Emulation (Port 17)

Non-IBM Scanner Emulation (Port 5B)

10 DS2278 Digital Scanner Quick Start Guide

Useful Bar Codes

Set Defaults

Return to Factory Defaults

Add a Tab Key

To add a Tab key after scanned data, scan the bar code below.

Tab Key

Add an Enter Key

To add an Enter key after scanned data, scan the bar code below.

Add Enter Key (Carriage Return/Line Feed)

USB Caps Lock Override

USB-Override Caps Lock Key

(Enable)

*USB-Do Not Override Caps Lock Key

(Disable)

Pairing

To pair directly with your PC, tablet, or phone, scan HID Bluetooth Classic below. You must then discover and
connect to the scanner from your device.

For the best experience on Windows and Android™ devices download the app/utility noted below:

DS2278 Digital Scanner Quick Start Guide 11

HID Bluetooth Classic

•

Windows: Go to www.zebra.com/support; search for Scan-To-Connect; select the Scan-To-Connect link;
select the Scan-To-Connect for Windows Download and Support link.

•

Android: Go to the Google Play Store at play.google.com/store and download the Zebra Scan-To-Connect
(STC) utility.

User Indications (By Default)

Scanner

Table 1 Scanner Beeper Indications

Indication Beeper Sequence

Power up Low/medium/high beeps

Bar code decoded Medium beep

Transmission error detected; data is ignored 4 long low beeps

Successful parameter setting High/low/high/low beeps

Correct programming sequence performed High/low beeps

Incorrect programming sequence, or Cancel bar code scanned Long low/long high beeps

Low battery indication (on trigger release) 4 short high beeps

Table 2 Scanner LED Indications

Indication LED Indicator

Hand-Held Scanning

Digital scanner is on and ready to scan, or no power to scanner Off

Bar code is successfully decoded Green flash

Transmission error Red

Hands-Free (Presentation) Scanning

12 DS2278 Digital Scanner Quick Start Guide

Table 2 Scanner LED Indications (Continued)

Indication LED Indicator

No power to scanner Off

Scanner dock in cradle Single green flash

Digital scanner is ready to scan Green

Bar code is successfully decoded Off momentarily

Transmission error Red

Charging with Micro USB Connection

Digital scanner is charging Green flash (fast continuous)

Digital scanner is fully charged Green (solid)

Initial connection Single green flash

Charge error Red (solid)

Cradle

Table 3 Cradles LED Indications

Indication LED Indicator

Standard Use

Power Up Green (stays on)

Radio Indications

Bluetooth connection established Green (off, then on)

Battery Indications

Charging Amber blinking

Fully charged Green (solid)

Charging error Amber fast blinking

123Scan

123Scan is an easy-to-use, PC-based software tool that enables rapid and easy customized setup of a scanner via
a bar code or USB cable. For more information, visit: http://www.zebra.com/123Scan

Utility Functionality

•

•

•

•

•

•

•

.

Device configuration
Electronic programming (USB cable)
Programming bar code(s)
Data view - scan log (display scanned bar code data)
Access asset tracking information
Upgrade firmware and view release notes
Remote management (SMS package generation).

DS2278 Digital Scanner Quick Start Guide 13

Troubleshooting

Table 4 Troubleshooting Possible Solutions

Problem Possible Solution

Digital scanner not working

No power to scanner Check system power; ensure battery is charged

Digital scanner is disabled Ensure that correct host interface cable is used

Digital scanner decoding bar code, but data not transmitting to host

Host interface not configured properly Scan appropriate host parameter bar codes

Interface cable is loose Ensure all cable connections are secure

Invalid ADF Rule Program the correct ADF rules

Digital scanner not paired to cradle Scan cradle pairing bar code

Digital scanner not decoding bar code

Digital scanner not programmed for bar code
type

Bar code unreadable Ensure bar code is not defaced; try scanning test bar code of same bar

Distance between scanner and bar code
incorrect

Scanned data incorrectly displayed on host

Host interface not configured properly Scan appropriate host parameter bar codes

Region improperly configured Select appropriate country and language encoding scheme

Ensure scanner is programmed to read type of bar code being
scanned

code type

Move scanner closer to, or further from bar code

14 DS2278 Digital Scanner Quick Start Guide

AVOID BENDING

Avoid Extreme Wrist Angles

Avoid Bending

Avoid Reaching

AVOID EXTREME

WRIST ANGLES

AVOID REACHING

RECOMMENDED USAGE GUIDE - OPTIMUM BODY POSTURE

Health and Safety Recommendations

Ergonomic Recommendations

Caution: In order to avoid or minimize the potential risk of ergonomic injury follow the recommendations below.

Consult with your local Health & Safety Manager to ensure that you are adhering to your company's safety
programs to prevent employee injury.

•

Reduce or eliminate repetitive motion

•

Maintain a natural position

•

Reduce or eliminate excessive force

•

Keep objects that are used frequently within easy reach

•

Perform tasks at correct heights

•

Reduce or eliminate vibration

•

Reduce or eliminate direct pressure

•

Provide adjustable workstations

•

Provide adequate clearance

•

Provide a suitable working environment

•

Improve work procedures.

Regulatory Information

This device is approved under Zebra Technologies Corporation.
This guide applies to Model Number DS2278.
All Zebra devices are designed to be compliant with the rules and regulations in the locations they are sold and will

be labeled as required.
Local language translations are available at the following website: www.zebra.com/support.
Any changes or modifications to Zebra equipment not expressly approved by Zebra could void the user's authority

to operate the equipment.

CAUTION Only use Zebra approved and UL Listed accessories, battery packs, and battery chargers.

Do NOT attempt to charge damp/wet mobile computers or batteries. All components must
be dry before connecting to an external power source.
Declared maximum operating temperature: 50°C

DS2278 Digital Scanner Quick Start Guide 15

Bluetooth® Wireless Technology

This is an approved Bluetooth® product. For more information or to view the End Product Listing, please visit

https://www.bluetooth.org/tpg/listings.cfm

.

Wireless Device Country Approvals

Regulatory markings subject to certification are applied to the device signifying the radio(s) is/are approved for use
in the following countries and continents: United States, Canada, Japan, China, South Korea, Australia, and
Europe.

Please refer to the Declaration of Conformity (DoC) for details of other country markings. This is available at:

http://www.zebra.com/doc

Note: Europe includes Austria, Belgium, Bulgaria, Croatia, Czech Republic, Cyprus, Denmark, Estonia, Finland,
France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Liechtenstein, Lithuania, Luxembourg, Malta,
Netherlands, Norway, Poland, Portugal, Romania, Slovak Republic, Slovenia, Spain, Sweden, Switzerland, and
the United Kingdom.

CAUTION Operation of the device without regulatory approval is illegal.

.

Warnings for Use of Wireless Devices

CAUTION Please observe all warning notices with regard to the usage of wireless devices.

Safety in Hospitals

Wireless devices transmit radio frequency energy and may affect medical electrical equipment.
Wireless devices should be switched off wherever you are requested to do so in hospitals, clinics or healthcare

facilities. These requests are designed to prevent possible interference with sensitive medical equipment.

Pacemakers

Pacemaker manufacturers recommended that a minimum of 15cm (6 inches) be maintained between a hand-held
wireless device and a pacemaker to avoid potential interference with the pacemaker. These recommendations are
consistent with independent research and recommendations by Wireless Technology Research.

16 DS2278 Digital Scanner Quick Start Guide

Persons with Pacemakers:

• Should ALWAYS keep the device more than 15cm (6 inches) from their pacemaker when turned ON.

• Should not carry the device in a breast pocket.

• Should use the ear furthest from the pacemaker to minimize the potential for interference.

• If you have any reason to suspect that interference is taking place, turn OFF your device.

Other Medical Devices

Please consult your physician or the manufacturer of the medical device, to determine if the operation of your
wireless product may interfere with the medical device.

RF Exposure Guidelines

Safety Information

• Reducing RF Exposure – Use Properly
Only operate the device in accordance with the instructions supplied.

• International

The device complies with internationally recognized standards covering human exposure to electromagnetic
fields from radio devices. For information on “International” human exposure to electromagnetic fields refer to
the Zebra Declaration of Conformity (DoC) at
For further information on the safety of RF energy from wireless devices, see

https://www.zebra.com/us/en/about-zebra/company-information/corporate-responsibility.html

Corporate Responsibility.

• Europe

• Hand-held Devices

To comply with EU RF exposure requirements, this device must be operated in the hand with a minimum separation
distance of 0 cm or more from a person's body. Other operating configurations should be avoided.

• US and Canada

• Co-located Statement

To comply with FCC RF exposure compliance requirement, the antenna used for this transmitter must not be co-located or
operating in conjunction with any other transmitter/antenna except those already approved in this filling.

• Hand-held Devices

This device was tested for typical body worn or hand-held operation. Use only Zebra tested and approved belt-clips,
holsters, and similar accessories to ensure FCC Compliance. The use of third-party belt clips, holsters, and similar
accessories may not comply with FCC RF exposure compliance requirements, and should be avoided.

http:www.zebra.com/doc.

located under

To satisfy US and Canadian RF exposure requirements, a transmitting device must operate with a minimum separation
distance of 0 cm or more from a person's body.

Pour satisfaire aux exigences Américaines et Canadiennes d'exposition aux radio fréquences, un dispositif de
transmission doit fonctionner avec une distance de séparation minimale de XX cm ou plus de corps d'une personne.

LED Devices

For LED devices which have been evaluated to IEC 62471 and comply with the Exempt Risk Group, no product
labeling requirements apply. However, the following statement is required to comply with US and international
regulations:

LED Compliance Statement:

Classified as 'EXEMPT RISK GROUP' according to IEC 62471:2006 and EN 62471:2008.
Pulse duration: 9 ms.

DS2278 Digital Scanner Quick Start Guide 17

Batteries

Taiwan - Recycling

EPA (Environmental Protection Administration) requires dry battery producing or importing firms in accordance
with Article 15 of the Waste Disposal Act are required to indicate the recycling marks on the batteries used in sales,
giveaway, or promotion. Contact a qualified Taiwanese recycler for proper battery disposal.

Battery Information

CAUTION Risk of explosion if battery is replaced by an incorrect type. Dispose of batteries according

to instructions.

Use only Zebra approved batteries. Accessories which have battery charging capability are approved for use with
the following battery models:

Part Number BT-000317-01 (4.2 Vdc, 2400 mAh).
Zebra approved rechargeable battery packs are designed and constructed to the highest standards within the

industry.
However, there are limitations as to how long a battery can operate or be stored before needing replacement.

Many factors affect the actual life cycle of a battery pack such as heat, cold, harsh environmental conditions, and
severe drops.

When batteries are stored over six months, some irreversible deterioration in overall battery quality may occur.
Store batteries at half of full charge in a dry, cool place, removed from the equipment to prevent loss of capacity,
rusting of metallic parts, and electrolyte leakage. When storing batteries for one year or longer, the charge level
should be verified at least once a year and charged to half of full charge.

Replace the battery when a significant loss of run time is detected.
Standard warranty period for all Zebra batteries is one year, regardless if the battery was purchased separately or

included as part of the mobile computer or bar code scanner. For more information on Zebra batteries, please visit:

http://www.zebra.com/batterybasics

.

Battery Safety Guidelines

The area in which the units are charged should be clear of debris and combustible materials or chemicals.
Particular care should be taken where the device is charged in a non-commercial environment.

• Follow battery usage, storage, and charging guidelines found in the user's guide.

• Improper battery use may result in a fire, explosion, or other hazard.

• To charge the mobile device battery, the battery and charger temperatures must be between +32 ºF and +104 ºF
(0 ºC and 40 ºC).

• Do not use incompatible batteries and chargers. Use of an incompatible battery or charger may present a risk of fire,
explosion, leakage, or other hazard. If you have any questions about the compatibility of a battery or a charger, contact Zebra
support.

• For devices that utilize a USB port as a charging source, the device shall only be connected to products that bear the USB-IF
logo or have completed the USB-IF compliance program.

• Do not disassemble or open, crush, bend or deform, puncture, or shred.

• Severe impact from dropping any battery-operated device on a hard surface could cause the battery to overheat.

18 DS2278 Digital Scanner Quick Start Guide

• Do not short circuit a battery or allow metallic or conductive objects to contact the battery terminals.

• Do not modify or remanufacture, attempt to insert foreign objects into the battery, immerse or expose to water or other
liquids, or expose to fire, explosion, or other hazard.

• Do not leave or store the equipment in or near areas that might get very hot, such as in a parked vehicle or near a radiator or
other heat source. Do not place battery into a microwave oven or dryer.

• Battery usage by children should be supervised.

• Please follow local regulations to promptly dispose of used re-chargeable batteries.

• Do not dispose of batteries in fire.

• Seek medical advice immediately if a battery has been swallowed.

• In the event of a battery leak, do not allow the liquid to come in contact with the skin or eyes. If contact has been made, wash
the affected area with large amounts of water and seek medical advice.

• If you suspect damage to your equipment or battery, contact Zebra support to arrange for inspection.

Radio Frequency Interference Requirements - FCC

Tested to comply
with FCC Standards

FOR HOME OR OFFICE USE

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference
in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or more of the following measures:

•

Reorient or relocate the receiving antenna

•

Increase the separation between the equipment and receiver

•

Connect the equipment into an outlet on a circuit different from that to which the receiver is connected

•

Consult the dealer or an experienced radio/TV technician for help.

Radio Transmitters (Part 15)

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this
device may not cause harmful interference, and (2) this device must accept any interference received including
interference that may cause undesired operation.

Radio Frequency Interference Requirements- Canada

CAN ICES-3 (B)/NMB-3(B)

Radio Transmitters

This device complies with Industry Canada's licence-exempt RSSs. Operation is subject to the following two
conditions: (1) This device may not cause interference; and (2) This device must accept any interference, including
interference that may cause undesired operation of the device.

Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence.
L'exploitation est autorisée aux deux conditions suivantes: (1) l'appareil ne doit pas produire de brouillage, et (2)
l'utilisateur de l'appareil doit accepter tout brouillage radio électrique subi même si le brouillage est susceptible d'en
compromettre le fonctionnement.

DS2278 Digital Scanner Quick Start Guide 19

VCCI - B

Marking and European Economic Area (EEA)

Bluetooth® Wireless Technology for use through the EEA has the following restrictions:

• Maximum radiated transmit power of 100mW EIRP in the frequency range 2.400 -2.4835 GHz.

Statement of Compliance

Zebra hereby declares that this device is in compliance with directive 2011/65/EU and 1999/5/EC or 2014/53/EU
(2014/53/EU supersedes 1999/5/EC from 13th of June 2017). The full text of the EU Declaration of Conformity is
available at the following Internet address: http://www.zebra.com/doc.

Japan (VCCI) - Voluntary Control Council for Interference

Class B ITE

Korea Warning Statement for Class B ITE

Other Countries

Brazil (UNWANTED EMISSIONS - ALL PRODUCTS)

Declarações Regulamentares para DS2278 - Brazil

Nota: A marca de certificação se aplica ao Transceptor, modelo DS2278. Este equipamento opera em caráter
secundário, isto é, não tem direito a proteção contra interferência prejudicial, mesmo de estações do mesmo tipo,
e não pode causar interferência a sistemas operando em caráter primário.

Para maiores informações sobre ANATEL consulte o site: www.anatel.gov.br

Chile

Este equipo cumple con la Resolución No 403 de 2008, de la Subsecretaria de telecomunicaciones, relativa a
radiaciones electromagnéticas.

China

.

http://www.zebra.com/contact

锂电池安全警示语 :
警告：请勿拆装，短路，撞击，挤压或者投入火中及水中；

20 DS2278 Digital Scanner Quick Start Guide

注意：如果电池被不正确型号替换，或出现鼓胀，会存在爆炸及其他危险
请按说明处置使用过的电池
电池浸水后严禁使用

合格证：

Eurasian Customs Union

Евразийский Таможенный Союз

Данный продукт соответствует требованиям знака EAC.

Mexico

Restrict Frequency Range to: 2.450 – 2.4835 GHz.

La operación de este equipo está sujeta a las siguientes dos condiciones: (1) es posible que este equipo o dispositivo no cause
interferencia perjudicial y (2) este equipo o dispositivo debe aceptar cualquier interferencia, incluyendo la que pueda causar su
operación no deseada.

South Korea

For a radio equipment using 2400~2483.5MHz or 5725~5825MHz, the following two expression should be displayed;
해당 무선설비는 운용 중 전파혼신 가능성이 있음

해당 무선설비는 전파혼신 가능성이 있으므로 인명안전과 관련된 서비스는 할 수 없습니다

Taiwan

臺灣

低功率電波輻射性電機管理辦法
第十二條
經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用者均不得擅自變更頻率、加大功率或變更原設計之特性及功

能。
第十四條
低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象時，應立即停用，並改善至無干擾時方得繼續使

用。

前項合法通信，指依電信規定作業之無線電通信。

(Parts)

(Pb) (Hg)

(Cd)

(PBB) (PBDE)

(Metal Parts)

(Circuit Modules)

(Cables and Cable Assemblies)

(Plastic and Polymeric Parts)

(Optics and Optical Components)

(Batteries)

OO O O O

OO O O

OOO O

OO O O OO

O

OO O O O

OO O O O

OO

ᴿᇩ⢟䍞

(Cr (VI))

ᵢ㺞Ṳדᦤ6-7Ⲻ㿺ᇐ㕌࡬Ⱦ

2 㺞⽰䈛ᴿᇩ⢟䍞൞䈛䜞Ԭᡶᴿൽ䍞ᶆᯏѣⲺ䠅ൽ൞6-7㿺ᇐ

Ⲻ䲆䠅㾷≸ԛсȾ

; 㺞⽰䈛ᴿᇩ⢟䍞㠩ቇ൞䈛䜞ԬⲺḆжൽ䍞ᶆᯏѣⲺ䠅䎻࠰6-7

㿺ᇐⲺ䲆䠅㾷≸ȾԷѐ൞↚༺θṯᦤᇔ䱻᛻߫ሯр㺞ѣᢉćhĈⲺᢶᵥ৕
ഖ䘑㺂䘑ж↛䈪᱄Ⱦε

25

X

O

X

X

低功率射頻電機須忍受合法通信或工業、科學及醫療用電波輻射性電機設備之干擾。

Ukraine

Дане обладнання відповідає вимогам технічного регламенту №1057, № 2008 на обмеження щодо

використання деяких небезпечних речовин в електричних та електронних пристроях.

Thailand

เครื่องโทรคมนาคมและอุปกรณนี้ มีความสอดคลองตามขอกําหนดของ กทช.

TURKISH WEEE Statement of Compliance

EEE Yönetmeliğine Uygundur

CMM Disclosure

DS2278 Digital Scanner Quick Start Guide 21

This table was created to comply with China RoHS requirements.

Waste Electrical and Electronic Equipment (WEEE)

English: For EU Customers: All products at the end of their life must be returned to Zebra for recycling. For information on how

to return product, please go to: http://www.zebra.com/weee.
Français: Clients de l'Union Européenne: Tous les produits en fin de cycle de vie doivent être retournés à Zebra pour

recyclage. Pour de plus amples informations sur le retour de produits, consultez : http://www.zebra.com/weee.
Español: Para clientes en la Unión Europea: todos los productos deberán entregarse a Zebra al final de su ciclo de vida para

que sean reciclados. Si desea más información sobre cómo devolver un producto, visite: http://www.zebra.com/weee.

22 DS2278 Digital Scanner Quick Start Guide

Български: За клиенти от ЕС: След края на полезния им живот всички продукти трябва да се връщат на Zebra за
рециклиране. За информация относно връщането на продукти, моля отидете на адрес: http://www.zebra.com/weee.

Deutsch: Für Kunden innerhalb der EU: Alle Produkte müssen am Ende ihrer Lebensdauer zum Recycling an Zebra
zurückgesandt werden. Informationen zur Rücksendung von Produkten finden Sie unter http://www.zebra.com/weee.

Italiano: per i clienti dell'UE: tutti i prodotti che sono giunti al termine del rispettivo ciclo di vita devono essere restituiti a Zebra
al fine di consentirne il riciclaggio. Per informazioni sulle modalità di restituzione, visitare il seguente sito Web:
http://www.zebra.com/weee.

Português: Para clientes da UE: todos os produtos no fim de vida devem ser devolvidos à Zebra para reciclagem. Para obter
informações sobre como devolver o produto, visite: http://www.zebra.com/weee.

Nederlands: Voor klanten in de EU: alle producten dienen aan het einde van hun levensduur naar Zebra te worden
teruggezonden voor recycling. Raadpleeg http://www.zebra.com/weee voor meer informatie over het terugzenden van
producten.

Polski: Klienci z obszaru Unii Europejskiej: Produkty wycofane z eksploatacji naleźy zwrócić do firmy Zebra w celu ich
utylizacji. Informacje na temat zwrotu produktów znajdują się na stronie internetowej http://www.zebra.com/weee.

Čeština: Pro zákazníky z EU: Všechny produkty je nutné po skonèení jejich životnosti vrátit spoleènosti Zebra k recyklaci.
Informace o zpùsobu vrácení produktu najdete na webové stránce: http://www.zebra.com/weee.

Eesti: EL klientidele: kõik tooted tuleb nende eluea lõppedes tagastada taaskasutamise eesmärgil Zebra'ile. Lisainformatsiooni
saamiseks toote tagastamise kohta külastage palun aadressi: http://www.zebra.com/weee.

Magyar: Az EU-ban vásárlóknak: Minden tönkrement terméket a Zebra vállalathoz kell eljuttatni újrahasznosítás céljából. A
termék visszajuttatásának módjával kapcsolatos tudnivalókért látogasson el a http://www.zebra.com/weee weboldalra.

Svenska: För kunder inom EU: Alla produkter som uppnått sin livslängd måste returneras till Zebra för återvinning. Information
om hur du returnerar produkten finns på http://www.zebra.com/weee.

Suomi: Asiakkaat Euroopan unionin alueella: Kaikki tuotteet on palautettava kierrätettäväksi Zebra-yhtiöön, kun tuotetta ei
enää käytetä. Lisätietoja tuotteen palauttamisesta on osoitteessa http://www.zebra.com/weee.

Dansk: Til kunder i EU: Alle produkter skal returneres til Zebra til recirkulering, når de er udtjent. Læs oplysningerne om
returnering af produkter på: http://www.zebra.com/weee.

Ελληνικά: Για πελάτες στην Ε.Ε.: Όλα τα προϊόντα, στο τέλος της διάρκειας ζωής τους, πρέπει να επιστρέφονται στην Zebra για
ανακύκλωση. Για περισσότερες πληροφορίες σχετικά με την επιστροφή ενός προϊόντος, επισκεφθείτε τη διεύθυνση
http://www.zebra.com/weee στο Διαδίκτυο.

Malti: Għal klijenti fl-UE: il-prodotti kollha li jkunu waslu fl-aħħar tal-ħajja ta' l-użu tagħhom, iridu jiġu rritornati għand Zebra
għar-riċiklaġġ. Għal aktar tagħrif dwar kif għandek tirritorna l-prodott, jekk jogħġbok żur: http://www.zebra.com/weee.

Românesc: Pentru clienţii din UE: Toate produsele, la sfârşitul duratei lor de funcţionare, trebuie returnate la Zebra pentru
reciclare. Pentru informaţii despre returnarea produsului, accesaţi: http://www.zebra.com/weee.

Slovenski: Za kupce v EU: vsi izdelki se morajo po poteku življenjske dobe vrniti podjetju Zebra za reciklažo. Za informacije o
vračilu izdelka obiščite: http://www.zebra.com/weee.

Slovenčina: Pre zákazníkov z krajín EU: Všetky výrobky musia byť po uplynutí doby ich životnosti vrátené spoločnosti Zebra
na recykláciu. Bližšie informácie o vrátení výrobkov nájdete na: http://www.zebra.com/weee.

Lietuvių: ES vartotojams: visi gaminiai, pasibaigus jų eksploatacijos laikui, turi būti grąžinti utilizuoti į kompaniją „Zebra“.
Daugiau informacijos, kaip grąžinti gaminį, rasite: http://www.zebra.com/weee.

Latviešu: ES klientiem: visi produkti pēc to kalpošanas mūža beigām ir jānogādā atpakaļ Zebra otrreizējai pārstrādei. Lai iegūtu
informāciju par produktu nogādāšanu Zebra, lūdzu, skatiet: http://www.zebra.com/weee.

Türkçe: AB Müşterileri için: Kullanım süresi dolan tüm ürünler geri dönüştürme için Zebra'ya iade edilmelidir. Ürünlerin nasıl
iade edileceği hakkında bilgi için lütfen şu adresi ziyaret edin: http://www.zebra.com/weee.

Hrvatski: Za kupce u Europskoj uniji: Svi se proizvodi po isteku vijeka trajanja moraju vratiti tvrtki Zebra na recikliranje.
Informacije o načinu vraćanja proizvoda potražite na web-stranici: http://www.zebra.com/weee.

Zebra Technologies Corporation, Inc.
Lincolnshire, IL 60069, U.S.A.

http://www.zebra.com

© 2018 ZIH Corp and/or its affiliates. All rights reserved. ZEBRA and the stylized Zebra
head are trademarks of ZIH Corp, registered in many jurisdictions worldwide. All other
trademarks are the property of their respective owners.

MN-002916-04EN Revision A - August 2018
