CHS 8000-4000C/B
Charging Cradle
CHS 8000-4000C/B
2002-2003 SYMBOL TECHNOLOGIES, INC. All rights reserved.
Symbol reserves the right to make changes to any product to improve reliability,
function, or design.
Symbol does not assume any product liability arising out of, or in connection with, the
application or use of any product, circuit, or application described herein.
No license is granted, either expressly or by implication, estoppel, or otherwise under
any patent right or patent, covering or relating to any combination, system,
apparatus, machine, material, method, or process in which Symbol products might
be used. An implied license only exists for equipment, circuits, and subsystems
contained in Symbol products.
Symbol and the Symbol logo are registered trademarks of Symbol T echnologies, Inc.
Other product names mentioned in this manual may be trademarks or registered
trademarks of their respective companies and are hereby acknowledged.
Symbol Te chnologies, Inc.
One Symbol Plaza
Holtsville, N.Y. 11742-1300
http://www.symbol.com
Patents
This product is covered by one or more of the following U.S. and foreign Patents:
U.S. Patent No. 4,593,186; 4,603,262; 4,607,156; 4,652,750; 4,673,805; 4,736,095;
4,758,717; 4,760,248; 4,806,742; 4,816,660; 4,845,350; 4,896,026; 4,897,532; 4,923,281;
4,933,538; 4,992,717; 5,015,833; 5,017,765; 5,021,641; 5,029,183; 5,047,617; 5,103,461;
5,113,445; 5,130,520; 5,140,144; 5,142,550; 5,149,950; 5,157,687; 5,168,148; 5,168,149;
5,180,904; 5,216,232; 5,229,591; 5,230,088; 5,235,167; 5,243,655; 5,247,162; 5,250,791;
5,250,792; 5,260,553; 5,262,627; 5,262,628; 5,266,787; 5,278,398; 5,280,162; 5,280,163;
5,280,164; 5,280,498; 5,304,786; 5,304,788; 5,306,900; 5,324,924; 5,337,361; 5,367,151;
5,373,148; 5,378,882; 5,396,053; 5,396,055; 5,399,846; 5,408,081; 5,410,139; 5,410,140;
5,412,198; 5,418,812; 5,420,411; 5,436,440; 5,444,231; 5,449,891; 5,449,893; 5,468,949;
5,471,042; 5,478,998; 5,479,000; 5,479,002; 5,479,441; 5,504,322; 5,519,577; 5,528,621;
5,532,469; 5,543,610; 5,545,889; 5,552,592; 5,557,093; 5,578,810; 5,581,070; 5,589,679;
5,589,680; 5,608,202; 5,612,531; 5,619,028; 5,627,359; 5,637,852; 5,664,229; 5,668,803;
5,675,139; 5,693,929; 5,698,835; 5,705,800; 5,714,746; 5,723,851; 5,734,152; 5,734,153;
5,742,043; 5,745,794; 5,754,587; 5,762,516; 5,763,863; 5,767,500; 5,789,728; 5,789,731;
5,808,287; 5,811,785; 5,811,787; 5,815,81 1; 5,821,519; 5,821,520; 5,823,812; 5,828,050;
5,848,064; 5,850,078; 5,861,615; 5,874,720; 5,875,415; 5,900,617; 5,902,989; 5,907,146;
5,912,450; 5,914,478; 5,917,173; 5,920,059; 5,923,025; 5,929,420; 5,945,658; 5,945,659;
5,946,194; 5,959,285; 6,002,918; 6,021,947; 6,029,894; 6,031,830; 6,036,098; 6,047,892;
6,050,491; 6,053,413; 6,056,200; 6,065,678; 6,067,297; 6,082,621; 6,084,528; 6,088,482;
6,092,725; 6,101,483; 6,102,293; 6,104,620; 6,114,712; 6,1 15, 678; 6,119,944; 6,123,265;
6,131,814; 6,138,180; 6,142,379; 6,172,478; 6,176,428; 6,178,426; 6,186,400; 6,188,681;
6,209,788; 6,209,789; 6,216,951; 6,220,514; 6,243,447; 6,244,513; 6,247,647; 6,308,061;
6,250,551; 6,295,031; 6,308,061; 6,308,892; 6,321,990; 6,328,213; 6,330,244; 6,336,587;
6,340,114; 6,340,115; 6,340,119; 6,348,773; 6,380,949; 6,394,355; D305,885; D341,584;
D344,501; D359,483; D362,453; D363,700; D363,918; D370,478; D383,124; D391,250;
D405,077; D406,581; D414,171; D414,172; D418,500; D419,548; D423,468; D424,035;
D430,158; D430,159; D431,562; D436,104.
Invention No. 55,358; 62,539; 69,060; 69,187, NI-068564 (T aiwan); No. 1,601,796; 1,907,875;
1,955,269 (Japan); European Patent 367,299; 414,281; 367,300; 367,298; UK 2,072,832;
France 81/03938; Italy 1,138,713
rev. 06/02
Quick Reference
Introduction
This guide describes how to set up and us e a CHS 800 0 four-sl ot
charging cradle with Symbol PDT 8000 Series terminals. The
cradles:
• provide power for operating the terminal
• simultaneously re-charge up to four terminal batteries
• simultaneously re-charge up to four spare batteries (CHS
8000-4000B only).
The cradle requires a 12VDC p ower suppl y, and p rovide s 12VDC
power to an inserted PDT 8000 terminal.
About This Guide
Specific topics in this guide include:
• Requirements on page 2
• Parts on page 2
• Power Connection on page 3
• Terminal Battery Charging on page 4
• Spare Battery Charging on page 5
• LED Indicat ors on page 6
• Troubleshooting on page 7
• Regulatory Information on page 7
• Service Information on backcover.
For detailed information o n any PDT 8 000 Series terminal, refer to
the PDT 8000 Seri es Quick Refer ence Guid e, p/n 72-58168-x x or
PDT 8000 Series Product Reference Guide, p/n 72-58169-xx.
1
CHS 8000-4000C/B
Requirements
• for power connection
For U.S Customers CBL-8000-400U
For International Customers Power Supply, p/n 50-14001-004
DC Cable, p/n 50-16002-029
AC Cord, appropriate for your country
Parts
FRONT
LED not
functional
Terminal Slot
Spare Battery Charging Slot
(for CHS 8000-4000B only)
Spare Battery Charging LED
(functional for CHS8000-
4000B only)
BACK
Power Port
2
Quick Reference
There is one connec tio n p ort on the rear of the CHS 80 00- 400 0C
and CHS 8000-4000B:
Ports Function
Power Used for connecting to the power supply.

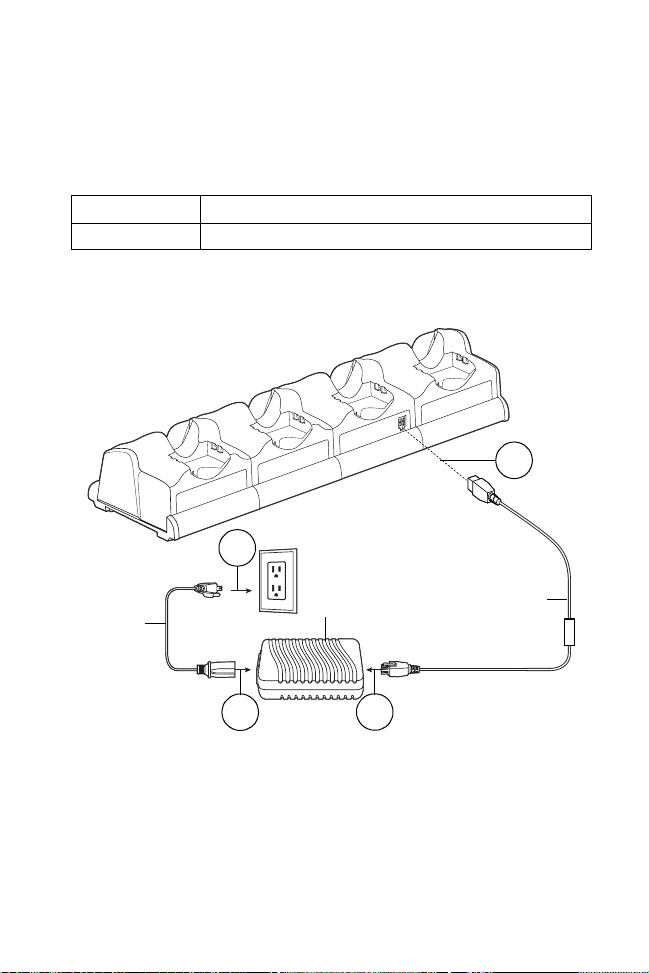

Power Connection
To connect the cradle to a power source:
3
4
AC line
Cord
Power
Supply
DC Cable
1 2
To see if the cradle has power, insert the terminal. The terminal’s
charging LED blinks amber to indicate that the battery is charging
and turns solid amber when battery is completely charged. See
LED Indicators on page 6 for other indications.
3
CHS 8000-4000C/B
Terminal Battery Charging
1. Ensure the cradle is connected to a power source. See
Power Connection on page 3.
2. Insert the terminal into the cradle. The terminal starts to
charge automatically.
Terminal
Charging LED
The terminal’s charging LED blinks amber to indicate that the
battery is charging and turns solid amber when battery is
completely charged. The battery fully charges in less than four
hours. See LED Indicators on page 6 for other indications.
4
Quick Reference
Spare Battery Charging
A spare battery can only be charged using the CHS 8000-4000B
four-slot charging cradle.
1. Ensure the cradle is conne cted to a power sourc e. See Pow-
er Connection on page 3.
2. Slide the latches on both sides of the battery up, to ensure
they are in the unlock position.
UNLOCK
3. Insert the battery int o the S pare Battery C harging slot on the
back of the cradle. Position it with the c harg ing contact s fa cing down (over char ging p ins) and g ently press down on the
battery to ensure proper contact.
4. Lock the battery into place by sliding the latches on the battery down.
LOCK
5
CHS 8000-4000C/B
The spare battery charging LED blinks amber to indicate that the
terminal battery is charging and turns solid amber when the
battery is completely charged. The battery fully charges in less
than four hours. See LE D Ind ica tors on page 6 for other
indications.
LED Indicators
LED Indication
Terminal Charging (LED is on terminal)
Off T erminal not in cradle; terminal not placed correctly;
Fast Blinking Amber Error in charging; check placement of terminal.
Slow Blinking Amber Terminal is charging.
Solid Amber Charging complete.
Spare Battery Charging (LED is on cradle)
Off No spare battery in slot; spare battery not placed
Fast Blinking Amber Error in charging; check placement of battery.
Slow Blinking Amber Spare battery is charging.
Solid Amber Charging complete.
cradle is not powered.
correctly; cradle is not powered.
6
Quick Reference
Troubleshooting
Symptom Cause Suggested Action
Battery is not
charging.
Terminal charging
LED does not light
when the terminal
is inserted.
Spare battery
charging LED
does not light
when the spare
battery is placed in
the slot.
T e rmin al ( or s par e ba ttery) was removed
from the cradle too
soon.
Battery is faulty. Replace the battery.
T e rmin al ( or s par e ba t-
tery) is not inserted
correctly into the cradle.
T e rminal is not seated
firmly in the cradle, or
the battery is not properly installed in the terminal.
The cradle is not receiving power.
Spare battery i s not
placed correctly.
The cradle is not receiving power.
Replace the terminal or spare battery
in the cradle. It can take up to four
hours to recharge a completely depleted battery pack.
Remove the terminal (or spare battery) and re-insert it correctly. If the
battery still does not charge, contact
Customer Support.
If the terminal is properly inserted, the
terminal’ s charg ing LED bli nks amber
to indicate that the battery is charging
and turns solid amber when battery is
completely charged.
If a spare battery has been inserted
properly, the spare battery charging
LED blinks amber to indicate that the
battery is charging and turns solid
amber when battery is completely
charged.
Ensure the battery is properly installed in the terminal, and
re-insert the terminal in the cradle.
Ensure the power supply cable is securely connected on both ends.
Remove the battery, wait two minutes, and re-insert the battery.
Ensure the power supply cable is securely connected on both ends.
Regulatory Information
All Symbol devices are designed to be compliant with rules and regulations in locations
they are sold and will be labeled as required.
7
CHS 8000-4000C/B
Any changes or modifications to Symbol Technologies equipment, not expressly
approved by Symbol Technologies, could void the user’s authority to operate the
equipment.
Power Supply
Note: Use only a Symbol-approved power supply 50- 14001-004, output rated
Hinweis: Benutzen Sie nur eine Symbol Technologies genehmigt Stromversor-
12VDC and minimum 9A. The power supply is certified to EN60950 with
SELV outputs.
gung 50-14001-004 in den Ausgabe : 12V DC und m inimum 9A. Die
Stromversorgung ist bescheinigt nach EN60950 mit SELV Ausgaben.
Radio Frequency Interference Requirements
Note: This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the FCC
rules. These limits are designed to provide reasonable protection
equipment generates, uses, and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause har m ful interference to radio
communications. However there is no gu ar ant ee th at int erfer ence will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determ in ed by tu rni ng t he equi pm ent off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna
• Increase the separation between the equi pm ent and r eceiver
• Connect the equipment into an outlet on a cir cuit different from that to which the
receiver is connected
• Consult the dealer or an experienced ra dio /T V te chnician for help.
against harmful interference in a residential installation. This
Radio Frequency Interference Requirements - FCC
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
Radio Frequency Interference Requirements - Canada
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
Marking and European Economic Area (EEA)
Statement of Compliance
Symbol Technologies, Inc., hereby declares that this device is in compliance
with all the applicable Directives, 89/336/EEC, 73/23/EEC. A Declaration of
Conformity may be obtained from http://ww w2 .symbol.com/doc/
8
Quick Reference
Warranty
(A) Warranty Symbol Technologies (hereafte r “Seller”) hardware Pro duc ts are warranted agains t de f ec ts in
workmanship and materials for a period of t hree (3) months from the date of shipment, unless ot herwise
provided by Seller in writing, provided the Product remains unm odified and is operated under normal and
proper conditions. Warranty provisions and durations on software, integrated installed syste m s , P roduct
modified or designed to meet specific customer specifications (“Custom Products”), remanufactured
products, and recondit ioned or upgraded products, shall be as provid ed in the applicable Prod uct
specification in effect at th e t im e of purchase or in the acco m panying software license .
(B) Spare Parts Spare parts (i.e. parts, components, or subassemblies sold by Seller for use in the service
and maintenance of Products) are warranted against defects in workmanship and materials for a period of
thirty (30) days from th e date of shipment. Spare parts may be new or originate from ret urned units under
the conditions set fort h in subsection D below.
(C) Repair of Symbol-branded hardware For repairs on Symbol-branded hardw are Products under this
Agreement, includ ing repairs covered by wa rranty, the repair services provided ar e w arranted against
defects in workmanship and materials on the repaired component of th e Product for a period of th irt y (30)
days from the shipment date of the repaired Product, or until the end o f the original warranty pe riod,
whichever is longer.
(D) Product Service Products may be serviced or manufactured with parts, components, or subassemblies
that origi nate from retu rned products and that have been te s t ed as meeting app licable specificatio ns f or
equivalent new material and Products. The sole obligation of Seller for defective hardware Products is limited
to repair or replacement (at Seller’s option) on a “return to service depot” basis with prior Seller authorization.
Customer is responsible for shipment to the Seller and assumes all costs and risks associated with this
transportation; return shipment to the Cust om er will be at Seller's exp ens e. Customer shall be responsible
for return shipment charges for product returned where Seller determines there is no defect (“No Defect
Found”), or for produc t ret urned that Seller dete rm ines is not eligible for warranty repair. No charge will be
made to Buyer for replacement parts for warranty repairs. Seller is not responsible for any damage to or loss
of any software progra m s, data or removable data storage media, or the rest oration or reinstallation of any
software programs or data other than the softwar e, if a ny, installed by S eller during manufacture of the
Product.
(E) Original Warranty Period Except for the warranty applying solely to the repaired component arising from
a repair service as provided in Section C above, th e aforementioned pr ov is ions do not extend the o riginal
warranty period of an y Pr oduct that had either been repaired or replaced by Seller.
(F) Warranty Provisions The above warrant y provisions shall not apply to any Product (i) whic h has been
repaired , t amper ed wi th, alt ered or modi fied , exce pt b y Sel ler’ s au thor ized ser vice per sonne l; (ii) in w hich the
defects or damage to the Product result from norm al wear and tear, misuse, neglige nc e, im proper storage,
water or other liquids , b at te ry leakage, use of parts or acc es s ories not approved or su pplied by Symbol, or
failure to perform ope rator handling and sch eduled maintenance ins t ructions supplied by Seller; (iii) which
has been subjected to unusual physical or electrical stress, abuse, or accident, or forces or exposure beyond
normal use within the specified operational and environmental parameters set forth in the applicable Product
specification; nor shall the above warranty provisions apply to any expendable or consumable items, such
as batteries, supplied with the Product.
EXCEPT FOR THE WARR AN T Y OF TITLE AND THE EXPRESS WARRANTIE S STATED ABOVE,
SELLER DISCLAIMS ALL WARRANTIES ON PRODUCTS FURNISHED HEREUNDER INCLUDING ALL
IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR USE. ANY
IMPLIED WARRANTIES THAT MA Y BE IMPOSED BY LAW ARE LIMITED IN DURA TION TO THE LIMITED
WARRANTY PERIOD. SOME ST ATES OR COUNTRIES DO NOT ALLOW A LIMIT ATION ON HOW LONG
AN IMPLIED WARRANTY LASTS OR THE EXCLUSION OR LIMITATION OF INCIDENTAL OR
CONSEQUENTIAL DAMAGES FOR CONSUMER PRODUCTS. IN SUCH STATES OR COUNTRIES, FOR
SUCH PRODUCTS, SOME EXCLUSIONS OR LIMITATIONS OF THIS LIMITED WARRANTY MAY NOT
APPLY.
The stated express wa rranties are in lieu of all obl igations or liabilities on t he part of Seller for damages,
including but not limited to, special, indirect or consequential damages arising out of or in connection with
the use or performan c e of th e Product or service. Seller’s liability for dam ages to Buyer or others res ulting
from the us e of any P roduc t or ser vice furn ishe d he reunde r sh all i n no way ex cee d the purc hase pric e of said
Product or the fair market value of said service, except in instances of injury to persons or property.
Service Information
Before you use the unit, it must be configured to operate in your facility’s network and
run your applications.
If you have a problem running your unit or using your equipment, contact your facility’s
Technical or Systems Support. If there is a problem with the equipment, they will
contact the Symbol Support Center:
United States
United Kingdom 0800 328 2424 Asia/Pacific +65-6796-9600
Australia 1-800-672-906 Austria/Österreich 1-505-5794-0
Denmark/Danmark 7020-1718 Finland/Suomi 9 5407 580
France 01-40-96-52-21 Germany/Deutchland 6074-49020
Italy/Italia 2-484441 Mexico/México 5-520-1835
Netherlands/Nederland 315-271700 Norway/Norge +47 2232 4375
South Africa 11-8095311 Spain/España 91 324 40 00
Sweden/Sverige 84452900 +34 91 324 40 00
Latin America
Sales Support
Europe/Mid-East
Distributor Operations
1
Customer support is available 24 hours a day, 7 days a week.
For the latest version of this guide go to: http://www.symbol.com/manuals.
1
1-800-653-5350
1-631-738-2400
1-800-347-0178 Inside US
+1-954-255-2610 Outside US
Contact local distributor or call
+44 118 945 7360
Canada 905-629-7226
Inside Spain
Outside Spain
72-58172-02
Revision A — March 2003
Symbol T echnologies, Inc. One Symbol Plaza, Holtsville, N.Y. 11742-1300
Loading...
