Zebra CC600-5-3200LNWW Quick Start Guide

CC600/CC6000

Customer Concierge

Quick Start Guide

for Android ™ 8.1.0 Oreo

MN-003315-01

Copyright

ZEBRA and the stylized Zebra head are trademarks of Zebra Technologies Corporation, registered in many
jurisdictions worldwide. All other trademarks are the property of their respective owners.

©2019 Zebra Technologies Corporation and/or its affiliates. All rights reserved. Google ™ , Android, Google
Play ™ and other marks are trademarks of Google LLC; Oreo is a trademark of Mondelez International, Inc.
group. All other trademarks are the property of their respective owners.

COPYRIGHTS & TRADEMARKS: For complete copyright and trademark information, go to www.zebra.com/
copyright.

WARRANTY: For complete warranty information, go to www.zebra.com/warranty.

END USER LICENSE AGREEMENT: For complete EULA information, go to www.zebra.com/eula.

Terms of Use

• Proprietary Statement

This manual contains proprietary information of Zebra Technologies Corporation and its subsidiaries
(“Zebra Technologies”). It is intended solely for the information and use of parties operating and maintaining
the equipment described herein. Such proprietary information may not be used, reproduced, or disclosed to
any other parties for any other purpose without the express, written permission of Zebra Technologies.

• Product Improvements

Continuous improvement of products is a policy of Zebra Technologies. All specifications and designs are
subject to change without notice.

• Liability Disclaimer

Zebra Technologies takes steps to ensure that its published Engineering specifications and manuals are
correct; however, errors do occur. Zebra Technologies reserves the right to correct any such errors and
disclaims liability resulting therefrom.

• Limitation of Liability

In no event shall Zebra Technologies or anyone else involved in the creation, production, or delivery of the
accompanying product (including hardware and software) be liable for any damages whatsoever (including,
without limitation, consequential damages including loss of business profits, business interruption, or loss of
business information) arising out of the use of, the results of use of, or inability to use such product, even if
Zebra Technologies has been advised of the possibility of such damages. Some jurisdictions do not allow
the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may
not apply to you.

Revision History

Changes to the original guide are listed below:

Change Date Description

-01 Rev A 5/2019 Initial Release

2

Introduction

Front

Facing

Camera

Touch

Screen and

Display

Speaker

NFC
Antenna

Speaker

Exit Window (Scanner)

Microphone

This guide provides information regarding unpacking the device, features, setup, mounting, barcode capture, and resetting the device.

Unpacking

1. Carefully remove all protective material from the device and save the shipping container for later storage and

shipping.

2. Verify that the following are included:

• CC600 or CC6000 interactive kiosk.

• Regulatory Guide.

• CC600 only: Ferrite bead for EMI. Attaches to the DC power module.

3. Inspect the equipment for damage. If any equipment is missing or damaged, contact the Global Customer

Support center immediately.

4. Prior to using the device for the first time, remove the protective shipping film that covers the display.

CC600/CC6000 Customer Concierge Quick Start Guide

Features

NOTE: Although the orientations differ, the features on the CC6000 landscape and portrait devices are the same.

Figure 1 CC6000 Front View

1

CC600/CC6000 Customer Concierge Quick Start Guide

Mounting
Bracket
Screw
Holders

Micro SD
Card Slot

Audio

Adjustment/

Programmable

Buttons

Reset Button

USB C Port

(Used for

External

display or

OTG)

Power

Port

Audio

Port

USB A

Port

USB A

Port

Ethernet with POE

Figure 2 CC6000 Back View

Figure 3 CC6000 Power and Cable Ports

2

CC600/CC6000 Customer Concierge Quick Start Guide

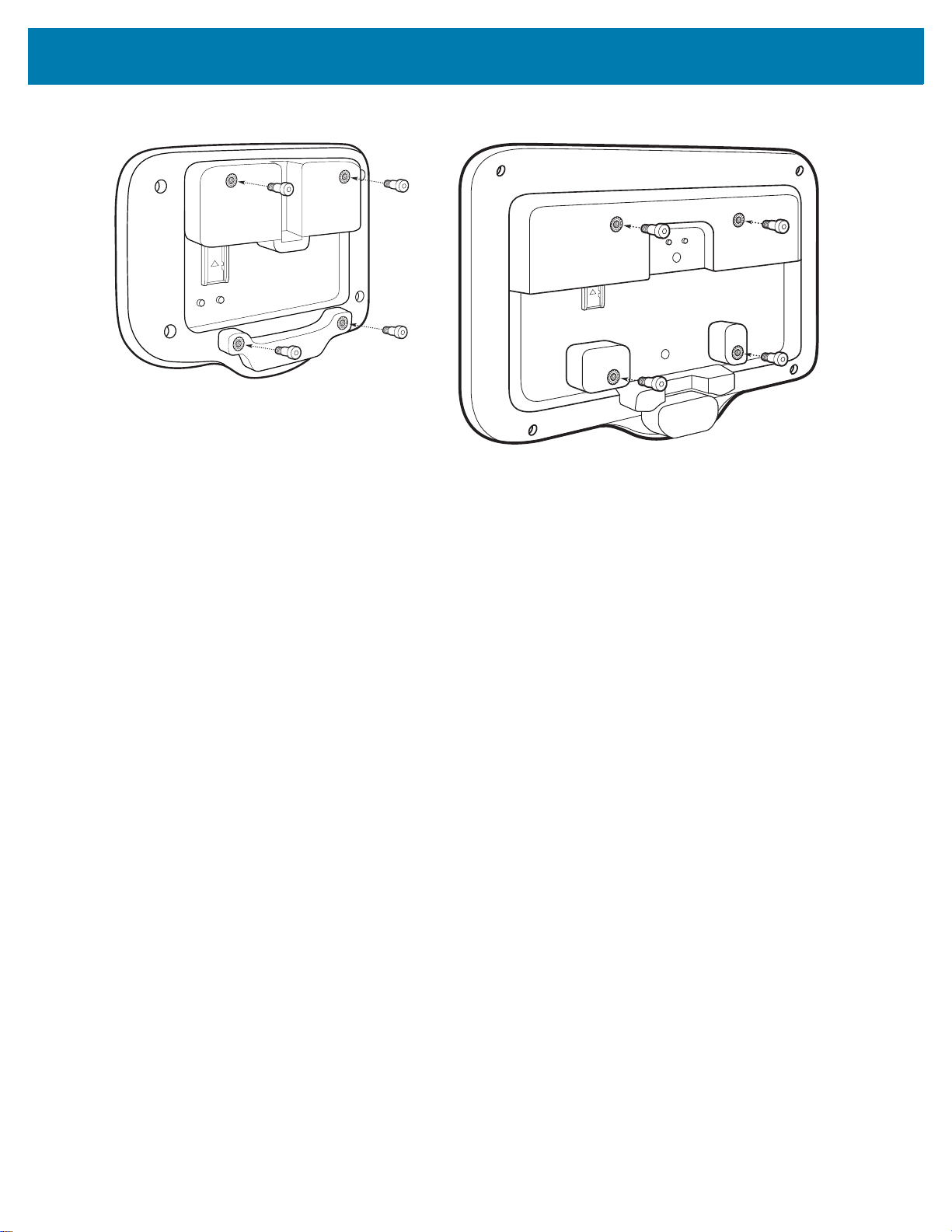

Mounting

Bracket

Mounting

Bracket Screw

Holders

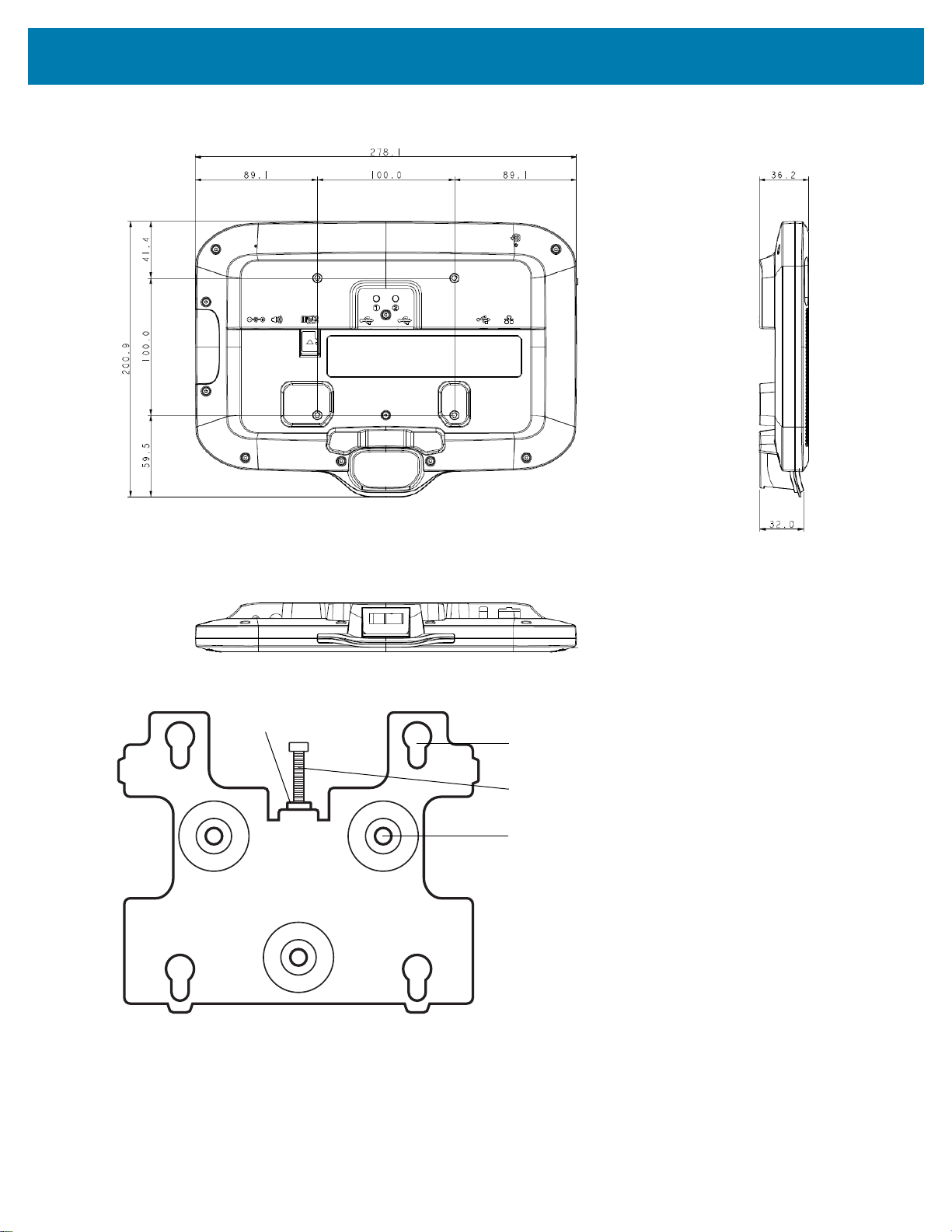

Mounting

Bracket
Locking

Screw

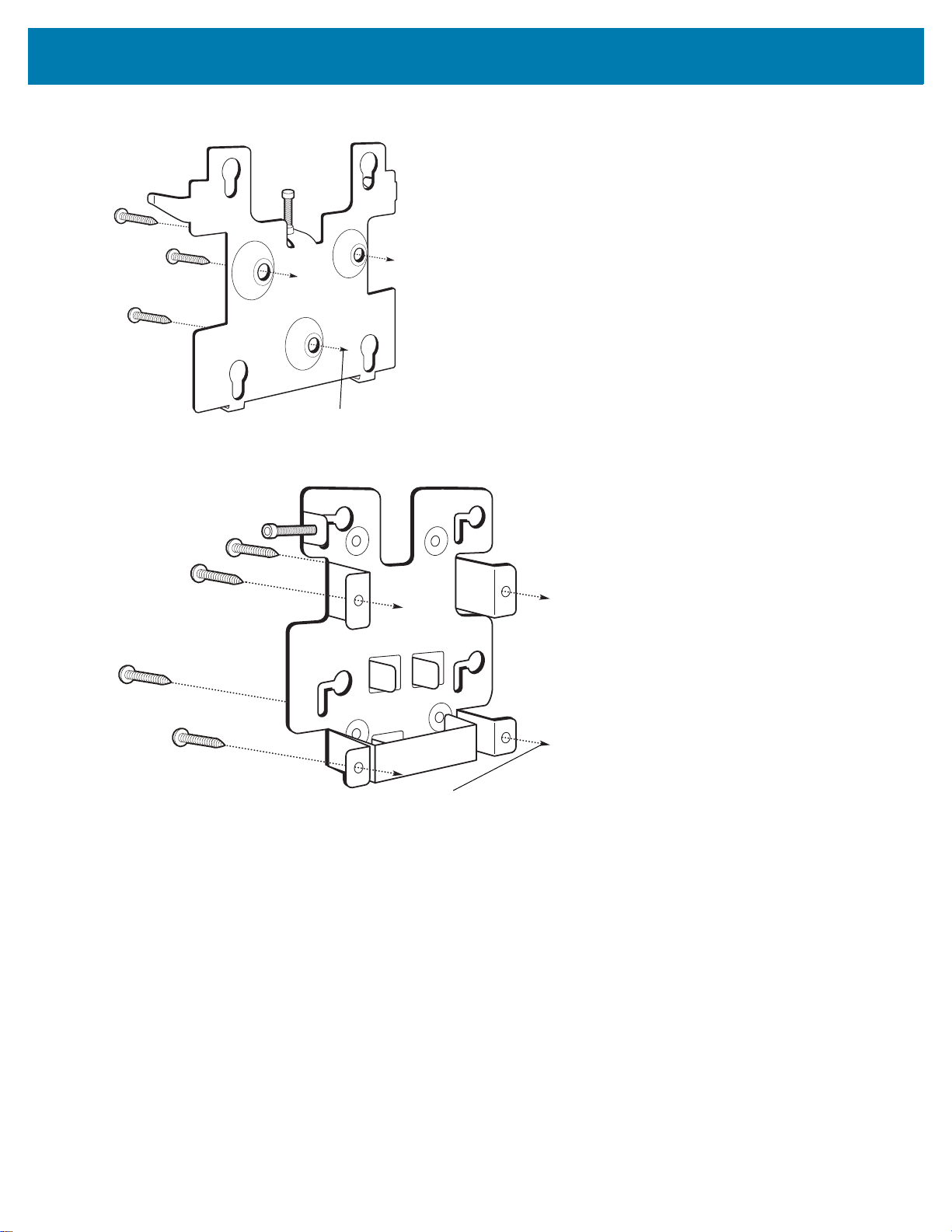

Wall Mount
Screw
Holes

Speaker

Exit Window

(Scanner)

Proximity Sensor

Microphone

Touch
Screen and
Display

Figure 4 CC6000 Back With Bracket View

Figure 5 CC600 Front Views

3

CC600/CC6000 Customer Concierge Quick Start Guide

Reset Button

Mounting

Bracket

Screw

Holders

(4)

Micro SD
Card Slot

Audio

Adjustment/Programmable

Buttons

x

USB C Port

(Used for

External

display or

OTG and other

USB-2

peripherals)

Power

Port

Micro SD
Card Slot

Ethernet with POE

Figure 6 CC600 Back View

21

Figure 7 CC600 Power and Cable Ports

4
