MC45
USER GUIDE
b
MC45
User Guide
72E-164159-01
Rev. A
December 2012
ii MC45 User Guide
No part of this publication may be reproduced or used in any form, or by any electrical or mechanical means,
without permission in writing from Motorola. This includes electronic or mechanical means, such as
photocopying, recording, or information storage and retrieval systems. The material in this manual is subject to
change without notice.
The software is provided strictly on an “as is” basis. All software, including firmware, furnished to the user is on
a licensed basis. Motorola grants to the user a non-transferable and non-exclusive license to use each
software or firmware program delivered hereunder (licensed program). Except as noted below, such license
may not be assigned, sublicensed, or otherwise transferred by the user without prior written consent of
Motorola. No right to copy a licensed program in whole or in part is granted, except as permitted under
copyright law. The user shall not modify, merge, or incorporate any form or portion of a licensed program with
other program material, create a derivative work from a licensed program, or use a licensed program in a
network without written permission from Motorola. The user agrees to maintain Motorola’s copyright notice on
the licensed programs delivered hereunder, and to include the same on any authorized copies it makes, in
whole or in part. The user agrees not to decompile, disassemble, decode, or reverse engineer any licensed
program delivered to the user or any portion thereof.
Motorola reserves the right to make changes to any software or product to improve reliability, function, or
design.
Motorola does not assume any product liability arising out of, or in connection with, the application or use of
any product, circuit, or application described herein.
No license is granted, either expressly or by implication, estoppel, or otherwise under any Motorola, Inc.,
intellectual property rights. An implied license only exists for equipment, circuits, and subsystems contained in
Motorola products.
Motorola Solutions, Inc.
1301 E. Algonquin Rd.
Schaumburg, IL 60196-1078, U.S.A.
http://www.motorolasolutions.com
Revision History
Changes to the original manual are listed below:
Change Date Description
-01 Rev. A 12/2012 Initial release.
iii
iv MC45 User Guide
Table of Contents
Revision History.................................................................................................................................... iii
About This Guide
Introduction........................................................................................................................................... xi
Documentation Set ......................................................................................................................... xi
Configurations ............................................................................................................................................ xii
Software Versions........................................................................................................................... xii
Chapter Descriptions ............................................................................................................................ xiv
Notational Conventions .............................................................................................................................. xv
Related Documents .............................................................................................................................. xv
Service Information .................................................................................................................................... xvi
Chapter 1: Getting Started
Introduction .......................................................................................................................................... 1-1
Unpacking ............................................................................................................................................ 1-2
Getting Started ..................................................................................................................................... 1-2
Installing the Micro Secure Digital (microSD) Card ........................................................................ 1-3
Installing the mini-SIM Card ........................................................................................................... 1-4
Installing the Battery ...................................................................................................................... 1-5
Charging the Battery ...................................................................................................................... 1-6
Charging the Battery ................................................................................................................ 1-6
Charging Spare Batteries ......................................................................................................... 1-7
Charging Temperature ............................................................................................................. 1-7
Powering On the MC45 .................................................................................................................. 1-8
Calibrating the Screen ................................................................................................................... 1-8
Checking Battery Status ................................................................................................................ 1-8
Replacing the Battery ......................................................................................................................... 1-8
First-time Network Activation ............................................................................................................... 1-9
GSM/UMTS Activation ................................................................................................................... 1-9
Network Activation ................................................................................................................... 1-9
Battery Management ........................................................................................................................... 1-10
Changing the Power Settings ........................................................................................................ 1-10
Changing the Backlight & Keylight Settings ................................................................................... 1-10
Table of Contents vi
Turning Off the Radios ................................................................................................................... 1-10
Chapter 2: Using the MC45
Introduction .......................................................................................................................................... 2-1
Home Screen ....................................................................................................................................... 2-1
Status Bar ...................................................................................................................................... 2-2
Icon Bar .......................................................................................................................................... 2-4
Today Screen ................................................................................................................................. 2-5
Classic Today Screen .................................................................................................................... 2-6
Soft Keys Bar ................................................................................................................................. 2-8
Start Screen ................................................................................................................................... 2-8
Settings Folder ............................................................................................................................... 2-11
Adjusting Volume ....................................................................................................................................... 2-14
Battery Status Indications .......................................................................................................................... 2-15
LED Indicators ........................................................................................................................................... 2-16
Resetting the MC45 ................................................................................................................................... 2-17
Waking the MC45 ................................................................................................................................ 2-17
Locking the MC45 ................................................................................................................................ 2-17
Password Locking .......................................................................................................................... 2-18
Function Buttons ........................................................................................................................................ 2-20
Stylus ......................................................................................................................................................... 2-21
Entering Data ....................................................................................................................................... 2-21
Display Orientation .................................................................................................................................... 2-22
Taking Photos ............................................................................................................................................ 2-23
Recording Video .................................................................................................................................. 2-23
Viewing Photos and Videos ................................................................................................................. 2-23
Chapter 3: Data Capture
Introduction .......................................................................................................................................... 3-1
Laser Scanning .................................................................................................................................... 3-1
Scanning Considerations ............................................................................................................... 3-1
Bar Code Scanning ........................................................................................................................ 3-2
Adaptive Scanning ............................................................................................................................... 3-2
Color Digital Camera ........................................................................................................................... 3-3
Digital Camera Scanning ............................................................................................................... 3-3
DataWedge .......................................................................................................................................... 3-4
Chapter 4: Using the Phone
Introduction .......................................................................................................................................... 4-1
Accessing the Phone Dialer ................................................................................................................. 4-1
Turning the Phone On and Off ............................................................................................................. 4-2
Using a Bluetooth Headset ............................................................................................................ 4-3
Adjusting Audio Volume ................................................................................................................. 4-4
Using the Phone Keypad ............................................................................................................... 4-5
Using Contacts ............................................................................................................................... 4-5
Using Call Log ................................................................................................................................ 4-6
Making a Speed Dial Call ............................................................................................................... 4-7
Making an Emergency Call .................................................................................................................. 4-7
Table of Contents vii
Answering a Call .................................................................................................................................. 4-7
Incoming Call Features .................................................................................................................. 4-8
Smart Dialing ....................................................................................................................................... 4-8
Muting a Call ........................................................................................................................................ 4-9
Using Speed Dial ................................................................................................................................. 4-10
Adding a Speed Dial Entry ............................................................................................................. 4-10
Editing a Speed Dial Entry ............................................................................................................. 4-12
Deleting a Speed Dial Entry ........................................................................................................... 4-12
Using Call Log ..................................................................................................................................... 4-13
Managing Call Log ......................................................................................................................... 4-13
Changing the Call Log View ..................................................................................................... 4-13
Deleting All Call Log Items ....................................................................................................... 4-14
Viewing Call Status .................................................................................................................. 4-15
Using the Call Log Options ...................................................................................................... 4-16
SMS Messaging ................................................................................................................................... 4-20
Sending a Text Message ............................................................................................................... 4-20
Viewing Text Messages ................................................................................................................. 4-21
Replying to a Text Message .......................................................................................................... 4-22
MMS Messaging .................................................................................................................................. 4-22
Creating and Sending MMS Messages ......................................................................................... 4-23
Viewing an MMS Message ............................................................................................................ 4-23
Replying to an MMS Message ....................................................................................................... 4-24
Blocking Incoming MMS Messages ............................................................................................... 4-24
Voice Commander ............................................................................................................................... 4-24
Call ................................................................................................................................................. 4-25
Find ................................................................................................................................................ 4-26
Redial ............................................................................................................................................. 4-26
Callback ......................................................................................................................................... 4-26
Start ............................................................................................................................................... 4-27
Appointments ................................................................................................................................. 4-27
Read .............................................................................................................................................. 4-27
What time is it ................................................................................................................................ 4-27
Call History ..................................................................................................................................... 4-27
Voice Play Music ............................................................................................................................ 4-27
What can I say ............................................................................................................................... 4-28
Goodbye ........................................................................................................................................ 4-28
Chapter 5: Using WLAN
Introduction .......................................................................................................................................... 5-1
Fusion Overview .................................................................................................................................. 5-1
Connecting to the Internet .............................................................................................................. 5-2
Wireless Zero Config Overview ........................................................................................................... 5-2
Switching Between Fusion and WZC .................................................................................................. 5-2
Supported Applications ........................................................................................................................ 5-3
Wireless Zero Config Setup ................................................................................................................. 5-6
More Information on WZC .............................................................................................................. 5-8
Chapter 6: Using GPS Navigation
Introduction .......................................................................................................................................... 6-1
Table of Contents viii
Software Installation ............................................................................................................................ 6-1
MC45 GPS Setup ................................................................................................................................ 6-1
Operation ............................................................................................................................................. 6-2
GPS Maps on microSD Cards ....................................................................................................... 6-2
Answering a Phone Call While Using GPS .................................................................................... 6-2
Losing the GPS Signal While in a Vehicle ..................................................................................... 6-2
GPS Reset ..................................................................................................................................... 6-3
Chapter 7: Using Bluetooth
Introduction .......................................................................................................................................... 7-1
Adaptive Frequency Hopping .............................................................................................................. 7-1
Security ................................................................................................................................................ 7-2
Bluetooth Power States ....................................................................................................................... 7-3
Suspend ................................................................................................................................... 7-3
Resume .................................................................................................................................... 7-3
Turning Bluetooth On and Off .............................................................................................................. 7-4
Enabling Bluetooth ................................................................................................................... 7-4
Discovering Bluetooth Device(s) .................................................................................................... 7-5
Available Services .......................................................................................................................... 7-8
Object Push Services via Beam ............................................................................................... 7-8
Internet Sharing ....................................................................................................................... 7-9
Hands-free Services ................................................................................................................ 7-10
Serial Port Services ................................................................................................................. 7-11
ActiveSync Using Serial Port Services .................................................................................... 7-11
Phone Book Access Profile Services ....................................................................................... 7-13
Dial-Up Networking Services ................................................................................................... 7-13
Connect to a HID Device ......................................................................................................... 7-14
A2DP/AVRCP Services ........................................................................................................... 7-14
Chapter 8: Accessories
Introduction .......................................................................................................................................... 8-1
Communication with Host Computer ............................................................................................. 8-3
Charging the MC45 Battery ........................................................................................................... 8-4
Charging Temperature ............................................................................................................. 8-5
Vehicle Charge Cradle ......................................................................................................................... 8-6
Windshield Installation ................................................................................................................... 8-6
Install the MC45 ............................................................................................................................. 8-7
Connect Power .............................................................................................................................. 8-8
Remove the MC45 ......................................................................................................................... 8-9
Battery Charging Indicators ........................................................................................................... 8-10
Charging Temperature ............................................................................................................. 8-10
micro USB Adapter .............................................................................................................................. 8-11
Handstrap ............................................................................................................................................ 8-12
Installing ActiveSync ...................................................................................................................... 8-13
MC45 Setup ................................................................................................................................... 8-13
Setting Up an ActiveSync Connection on the Host Computer ....................................................... 8-14
Synchronization with the MC45 ..................................................................................................... 8-14
Table of Contents ix
Chapter 9: Maintenance & Troubleshooting
Introduction .......................................................................................................................................... 9-1
Maintaining the MC45 .......................................................................................................................... 9-1
Removing the Screen Protector ........................................................................................................... 9-2
Battery Safety Guidelines .................................................................................................................... 9-3
Cleaning ............................................................................................................................................... 9-3
Materials Required ......................................................................................................................... 9-3
Cleaning the MC45 ........................................................................................................................ 9-4
Housing .................................................................................................................................... 9-4
Display ..................................................................................................................................... 9-4
Scanner Exit Window ............................................................................................................... 9-4
Connector ................................................................................................................................ 9-4
Cleaning Cradle Connectors .......................................................................................................... 9-4
Cleaning Frequency ....................................................................................................................... 9-5
Troubleshooting ................................................................................................................................... 9-5
MC45 ............................................................................................................................................. 9-5
Single Slot Charge Cradle ............................................................................................................. 9-8
Multi Slot Universal Charge Only Cradle ....................................................................................... 9-9
Vehicle Charge Cradle ................................................................................................................... 9-9
Four Slot Battery Charger .............................................................................................................. 9-10
Cables ............................................................................................................................................ 9-11
Appendix A: Technical Specifications
MC45 Technical Specifications ............................................................................................................ A-1
MC45 Accessory Specifications .......................................................................................................... A-4
Single Slot Charge Cradle ............................................................................................................. A-4
Multi Slot Universal Charge Only Cradle ....................................................................................... A-5
Four Slot Battery Charger .............................................................................................................. A-6
Appendix B: Keypads
Numeric Keypad Configuration ............................................................................................................ B-1
Special Character Key ......................................................................................................................... B-4
Glossary
Index
x MC45 User Guide
About This Guide
Introduction
This guide provides information about using the MC45 and accessories.
NOTE Screens and windows pictured in this guide are samples and can differ from actual screens.
Documentation Set
The documentation set for the MC45 provides information for specific user needs, and includes:
•
MC45 Quick Start Guide - describes how to get the MC45 up and running.
•
MC45 User Guide - describes how to use the MC45.
•
MC45 Integrator Guide - describes how to set up the MC45 and accessories.
•
MC45 Regulatory Guide - provides all regulatory, service and EULA information for the MC45.
•
Enterprise Mobility Developer Kit (EMDK) Help File - provides API information for writing applications.
xii MC45 User Guide
Configurations
This guide covers the following configurations:
Configuration Radios Display Memory
MC4587 WWAN:
GSM/HSDPA
MC4597 WLAN: 802.11a/b/g
WWAN:
GSM/HSDPA
3.2”
QVGA16 Bit
Color
3.2”
QVGA16 Bit
Color
256 MB RAM/
1 GB Flash
256 MB RAM/
1 GB Flash
Data
Capture
Camera Microsoft
1-D laser
scanner or
camera
Operating
System
Windows
Embedded
Handheld
6.5.3,
Professional
Edition
Microsoft
Windows
Embedded
Handheld
6.5.3,
Professional
Edition
Keypads
Numeric
Numeric
Software Versions
This guide covers various software configurations and references are made to operating system or software
versions for:
•
Adaptation Kit Update (AKU) version
•
OEM version
•
Phone version
•
Fusion version
AKU Version
To determine the Adaptation Kit Update (AKU) version:
Ta p
Start > Settings > System folder > About icon > Version tab.
The second line lists the operating system version and the build number. The last part of the build number
represents the AKU number. Build 29102.5.3.12.13 indicates that the device is running AKU version 5.3.12.13.
OEM Version
To determine the OEM software version:
Ta p
Start > Settings > System folder > System Info icon > System tab.
About This Guide xiii
Fusion Software
To determine the Fusion software version:
Ta p Start > Wireless Companion icon > Wireless Status icon >
Versions.
xiv MC45 User Guide
Phone Software
To determine the Phone software version:
Ta p
Start > Phone > > Phone information.
Chapter Descriptions
Topics covered in this guide are as follows:
•
Chapter 1, Getting Started provides information on getting the MC45 up and running for the first time.
•
Chapter 2, Using the MC45 provides basic instructions for using the MC45, including powering on and
resetting the MC45, and entering and capturing data.
•
Chapter 3, Data Capture provides information for using the MC45 to capture data using the laser scanner or
camera.
•
Chapter 4, Using the Phone provides basic instructions for using the MC45 phone.
•
Chapter 5, Using WLAN explains the WLAN functionality on the MC45.
•
Chapter 6, Using GPS Navigation provides information about GPS navigation with the MC45.
•
Chapter 7, Using Bluetooth explains Bluetooth functionality on the MC45.
•
Chapter 8, Accessories describes the available accessories and how to use them with the MC45.
•
Chapter 9, Maintenance & Troubleshooting includes instructions on cleaning and storing the MC45, and
provides troubleshooting solutions for potential problems during MC45 operation.
•
Appendix A, Technical Specifications provides the technical specifications for the MC45.
•
Appendix B, Keypads provides keypad layouts and operation.
Notational Conventions
The following conventions are used in this document:
•
“Mobile Computer” refers to the Motorola MC45 series of handheld computers.
•
Italics are used to highlight the following:
• Chapters and sections in this and related documents
• Icons on a screen.
•
Bold text is used to highlight the following:
• Dialog box, window, and screen names
• Drop-down list and list box names
• Check box and radio button names
• Key names on a keypad
• Button names on a screen.
•
Bullets (•) indicate:
• Action items
• Lists of alternatives
• Lists of required steps that are not necessarily sequential
About This Guide xv
•
Sequential lists (e.g., those that describe step-by-step procedures) appear as numbered lists.
Related Documents
•
MC45 Quick Start Guide, p/n 72-164157-xx.
•
MC45 Regulatory Guide, p/n 72-164158-xx.
•
MC45 Integrator Guide, p/n 72E-164160-xx.
•
Enterprise Mobility Developer Kits (EMDKs), available at: http://supportcentral.motorola.com.
•
Latest ActiveSync software, available at: http://www.microsoft.com.
For the latest version of this guide and all guides, go to: http://supportcentral.motorola.com
.
xvi MC45 User Guide
Service Information
If you have a problem with your equipment, contact Motorola Solutions Global Customer Support for your region.
Contact information is available at: http://www.motorolasolutions.com/support
When contacting Motorola Solutions Global Customer Support, please have the following information available:
•
Serial number of the unit
•
Model number or product name
•
Software type and version number
Motorola responds to calls by email, telephone or fax within the time limits set forth in support agreements.
If your problem cannot be solved by Motorola Solutions Global Customer Support, you may need to return your
equipment for servicing and will be given specific directions. Motorola is not responsible for any damages incurred
during shipment if the approved shipping container is not used. Shipping the units improperly can possibly void the
warranty.
If you purchased your Motorola business product from a Motorola business partner, contact that business partner
for support.
.
Chapter 1 Getting Started
Introduction
This chapter lists the parts for the MC45 and explains how to install and charge the batteries, replace the strap, and
power on the MC45 for the first time.
Receiver
Charging/Battery
Ambient Light
Sensor
Proximity
Sensor
Programmable
Button (Scan)
Status LED
Touch Screen
with Screen
Protective Film
Micro USB port
Scan Button
Power Button
Figure 1-1
Up/Down Button
Keypad
Microphone
Charging Connector
MC45 Front View
1 - 2 MC45 User Guide
Scan Window
Battery Cover Latch
Battery Cover
Handstrap Mount
Programmable
Button (Camera)
Stylus
Volume Buttons
Camera Flash
Camera
Figure 1-2
Unpacking
Carefully remove all protective material from the MC45 and save the shipping container for later storage and
shipping.
Verify that you received the following:
•
MC45
•
Lithium-ion battery
•
Battery cover
•
Tethered stylus
•
Screen Protector
•
Regulatory Guide
•
Quick Start Guide.
Inspect the equipment for damage. If any equipment is missing or damaged, contact the Motorola Solutions Global
Customer Support center immediately. See page xvi for contact information.
Tether Point
MC45 Rear View
Getting Started
To start using the MC45 for the first time:
•
Install microSD card (optional)
Getting Started 1 - 3
•
Install the mini-SIM card
•
Install the battery.
•
Charge the MC45
•
Power on the MC45
•
Configure the MC45.
Installing the Micro Secure Digital (microSD) Card
The microSD card slot provides secondary non-volatile storage. The slot is located under the battery (see Figure
1-3). Refer to the documentation provided with the card for more information, and follow the manufacturer’s
recommendations for use.
CAUTION Follow proper ESD precautions to avoid damaging the microSD card. Proper ESD precautions include,
but are not limited to, working on an ESD mat and ensuring that the operator is properly grounded.
To install the microSD card:
1. Slide the mini-SIM card holder to the right to unlock.
2. Lift the mini-SIM card holder.
Figure 1-3
microSD Card Installation
3. Slide the microSD card holder down to unlock.
4. Lift up the microSD card holder.
5. Insert the card with the card contacts facing down and lower the microSD card holder.
6. Slide the microSD card holder up to lock.
7. Lower the mini-SIM card holder.
8. Slide the mini-SIM card holder to the left to lock.
1 - 4 MC45 User Guide
To remove the microSD card:
1. Slide the microSD card holder down to unlock.
2. Lift the microSD card holder.
Figure 1-4
3. Remove the card from the card holder.
4. Lower the microSD card holder.
5. Slide the microSD card holder up to lock.
Card Removal
Installing the mini-SIM Card
NOTE The MC45 does not support copying multiple contacts to some SIM cards. If an error message appears, see
Chapter 9, Maintenance & Troubleshooting for more information.
GSM phone service requires a Subscriber Identification Module (SIM) card, or smart card. Obtain this card from the
your service provider. The card fits into the MC45 and can contain the following information:
•
Mobile phone service provider account details.
•
Information regarding service access and preferences.
•
Contact information, which can be moved to Contacts on the MC45.
•
Any additional services to which you have subscribed.
NOTE For more information about SIM cards, refer to the service provider's documentation.
To install the mini-SIM card:
1. Slide the mini-SIM card holder to the right to unlock.
2. Lift the mini-SIM card holder.
Figure 1-5
Lifting the mini-SIM Card Cover
Getting Started 1 - 5
3. Insert the mini-SIM card, as shown in Figure 1-6, with the cut edge of the card facing out and the contacts
facing down.
Figure 1-6
4. Lower the mini-SIM card holder and slide it to the left to lock.
5. Install the battery. See Installing the Battery on page 1-5 for more information.
6. After completing initial MC45 setup or after replacing a mini-SIM card:
a. Press the red Power button.
b. Ensure Phone is on.
c. Make a call to verify cellular connection.
Inserting the mini-SIM Card
NOTE For detailed information about WWAN activation and settings, refer to the MC45 Integrator Guide.
Installing the Battery
NOTE When installing the battery for the first time out of the box, the back cover and battery are not installed.
To install the battery:
1. Insert the battery, bottom first, into the battery compartment in the back of the MC45.
NOTE Position the battery correctly, with the battery gold charging contacts positioned on top of the gold charging
pins in the MC45 battery compartment.
2. Press the battery down into the battery compartment.
1 - 6 MC45 User Guide
Figure 1-7
3. With the battery cover latch open, insert the cover, top first, then press down on the bottom of the cover.
4. Slide the battery cover latch to the right until the red dot is not visible.
Figure 1-8
5. Power up the MC45 by pressing the red Power button.
Inserting the Battery
Locking the Battery Cover Latch
Charging the Battery
CAUTION Ensure that you follow the guidelines for battery safety described in Battery Safety Guidelines on page 9-3.
Charging the Battery
Before using the MC45 for the first time, charge the main battery until the green Charging/Battery Status LED
remains lit (see Table 1-1 on page 1-7 for charge status indications). To charge the MC45, use the USB Rapid
Charge Cable or a cradle with the appropriate power supply. For information about the accessories available for
the MC45, see Chapter 8, Accessories.
To charge the battery, use either a USB Rapid Charge Cable or a cradle. For USB Rapid Charge Cable or cradle
setup and charging procedures refer to the MC45 Integrator Guide.
•
Single Slot Charge Cradle
•
Multi Slot Universal Charge Only Cradle
•
Vehicle Charge Cradle.
To charge the battery:
Getting Started 1 - 7
1. Connect the charging accessory to the appropriate power source.
2. Insert the MC45 into a cradle or attach to the USB Rapid Charge Cable and Power Supply. The MC45 begins
charging. The Charging/Battery Status LED blinks green while charging, then turns solid green when fully
charged. See Table 1-1 for charging indications.
3. The 3080mAh battery fully charges in less than six hours at room temperature of approximately 25 °C (77°F).
Charging time may vary at different temperatures.
NOTE The MC45 Battery Cover must be in place and closed properly for the MC45 to power on and charge the
battery.
Charging/Battery
Status LED
Figure 1-9
Table 1-1
Charging/Battery
LED Indicators
LED Charge Indications
Status LED
Indication
Off MC45 is not charging.
MC45 is not inserted correctly in the cradle or connected to a power source.
Cradle is not powered.
Slow Blinking Green
MC45 is charging.
(1 blink every 2 seconds)
Solid Green Charging complete.
Fast Blinking Red
(2 blinks / second)
Charging error, e.g.:
•
Temperature is too low or too high.
•
Charging has gone on too long without completion (typically eight hours).
Charging Spare Batteries
See Chapter 8, Accessories for information on using accessories to charge spare batteries.
Charging Temperature
Charge batteries in temperatures from 0°C to 40°C (32°F to 104°F). Charging is intelligently controlled by the
MC45.
To accomplish this, for small periods of time, the MC45 or accessory alternately enables and disables battery
charging to keep the battery at acceptable temperatures. The MC45 or accessory indicates when charging is
disabled due to abnormal temperatures via its LED. See Table 1-1.
1 - 8 MC45 User Guide
Powering On the MC45
Press the Power button to turn on the MC45. If the MC45 does not power on perform a reset. See Resetting the
MC45 on page 2-17.
When turning the MC45 on for the first time, the splash screen displays for about a minute as the MC45 initializes
its flash file system, then the calibration window appears. Note that these windows also appear upon reset.
Calibrating the Screen
NOTE The Calibration screen can be accessed by pressing Blue key - BKSP key or tapping Start > Settings >
System > Screen > General > Align Screen button.
To calibrate the screen so the cursor on the touch screen aligns with the tip of the stylus:
1. Remove the stylus from its holder on the back of the MC45.
2. Tap the screen to begin calibration.
3. Carefully press and briefly hold the tip of stylus on the center of each target that appears on the screen.
4. Repeat as the target moves around the screen.
Checking Battery Status
To check the charge status of the main battery or backup battery in the MC45, tap Start > Settings > Power icon
to display the Power window.
Replacing the Battery
To replace the battery:
1. Press the red Power button to wake the device.
2. Hold down the red Power button for 3 seconds and release. A screen appears. Tap the Power Off to turn off
the MC45.
3. Slide the battery cover latch to the left until the green indicators align with the eject icon and the red dot is
visible. The battery cover ejects slightly.
Eject icon
Green indicators
Red dot
Figure 1-10
4. Lift the bottom of the battery cover and remove.
5. Lift the battery, top first, out of the well.
Unlocking the Battery Cover Latch
Getting Started 1 - 9
CAUTION Do not attempt to remove the battery using a screwdriver or sharp instrument.
6. Insert the replacement battery, bottom first, into the battery compartment in the back of the MC45.
NOTE Position the battery correctly, with the battery gold charging contacts positioned on top of the gold charging
pins in the MC45 battery compartment.
7. With the battery cover latch open, insert the cover, top first, then press down on the bottom of the cover.
Battery Cover
Battery
Figure 1-11
8. Slide the battery cover latch to the right until the red dot is not visible.
9. Press the red Power button to power on the MC45.
Replacing the Battery
First-time Network Activation
GSM/UMTS Activation
Network Activation
To activate on a GSM/UMTS network:
1. If an active SIM card was installed in the MC45, the MC45 performs the activation process.
2. The Phone Network - GSM/UMTS Setup dialog box displays.
3. Ta p Yes and then OK. For some carriers, the MC45 resets.
4. If during start-up, no update connection settings message appears, tap Start > Settings > Connections >
Phone Network Setup and tap Update Connection Settings button.
5. If the network is unsupported, a message appears with links for manually setting the data connection and MMS
settings.
1 - 10 MC45 User Guide
For detailed information for configuring the phone and activating on a different network, refer to the MC45
Integrator Guide.
Battery Management
Observe the following battery saving tips:
NOTE The MC45 factory default settings for the WLAN radio is set to OFF.
•
Leave the MC45 connected to AC power at all times when not in use.
•
Set the MC45 to turn off after a short period of non-use.
•
Set the backlight to turn off after a short period of non-use.
•
Turn off all wireless activities when not in use.
•
Power off the MC45 when charging to charge at a faster rate.
Changing the Power Settings
To set the MC45 to turn off after a short period of non-use:
1. Ta p Start > Settings > Power icon > Advanced tab.
2. Select the On battery power: Turn off screen if not used for check box and select a value from the
drop-down list.
3. Select ok.
Changing the Backlight & Keylight Settings
To change the backlight settings in order to conserve more battery power:
1. Ta p Start > Settings > System tab > Backlight & Keylight icon > Battery Power tab.
2. Select the Disable backlight if device is not used for check box and select a value from the drop-down list.
3. Select the Brightness tab.
4. Tap the Disable backlight check box to turn off the display backlight, or use the slider to set a low value for the
backlight.
5. Select ok.
Turning Off the Radios
Windows Embedded Handheld 6.5 devices include Wireless Manager, which provides a simple method of
enabling, disabling, and configuring all the device’s wireless capabilities in one place.
To open Wireless Manager, tap Status Bar > Connectivity icon > Wireless Manager on the Today screen.
Status bar
Getting Started 1 - 11

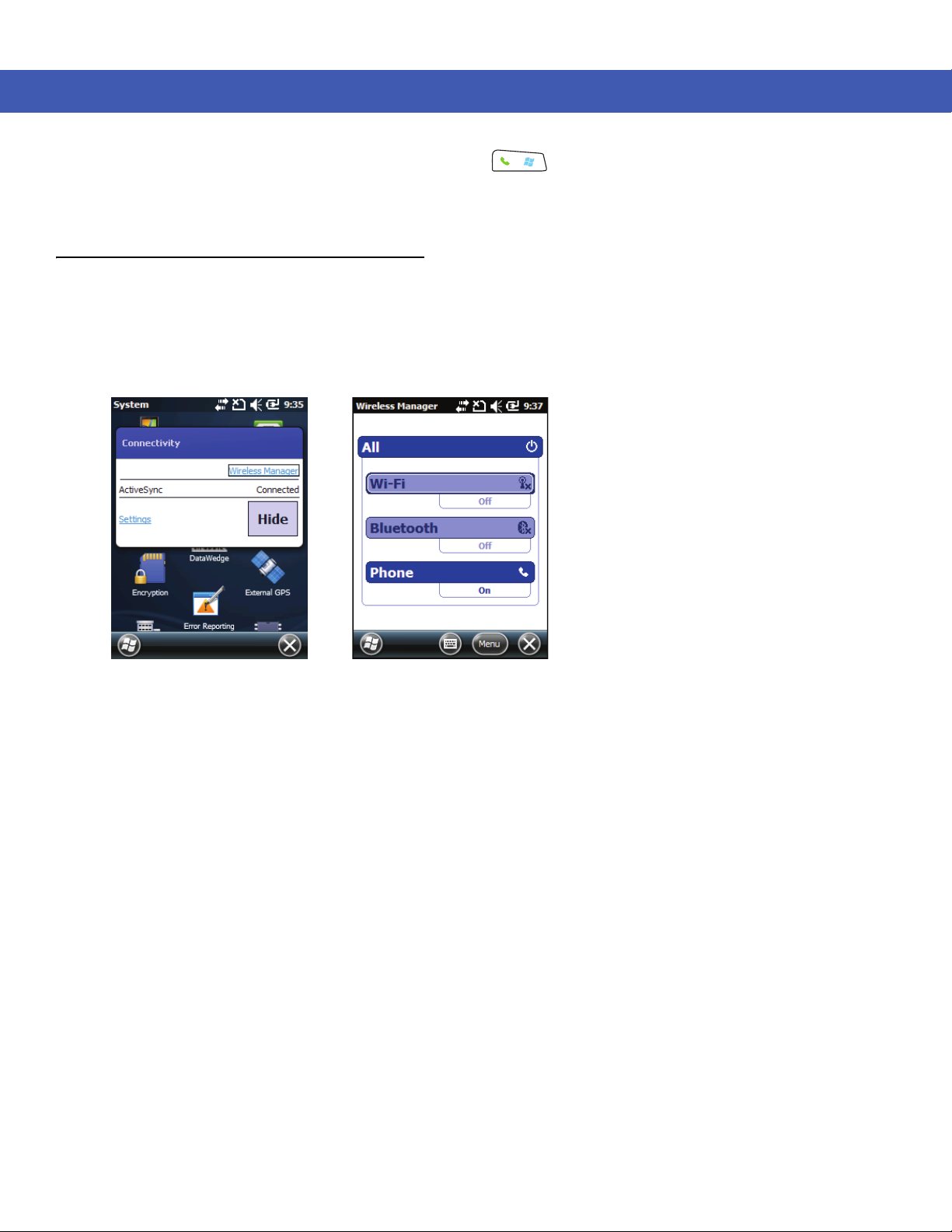

Figure 1-12
Figure 1-13
Select Wireless Manager.
Tapping the Connectivity Icon
Opening Wireless Manager
1 - 12 MC45 User Guide
Figure 1-14
Wireless Manager Window
NOTE Wireless connection options vary depending upon configurations.
To enable or disable a wireless connection, tap the specific button.
To enable or disable all wireless connections, tap the All button.
To configure settings for a connection, tap Menu.
Figure 1-15
Wireless Manager Menu
Chapter 2 Using the MC45
Introduction
NOTE The WLAN feature is only applicable for the MC4597.
This chapter explains the buttons, status icons, and controls on the MC45, and provides basic instructions for using
the MC45, including powering on and resetting the MC45, and entering and capturing data.
The MC45 factory default radio states are:
•
WLAN - OFF
•
Bluetooth - OFF
•
Phone - ON.
Home Screen
The Home contains the Status Bar at the top of the screen, the Today screen in the center and the Soft Keys at the
bottom of the screen.
Each of these are described below.
2 - 2 MC45 User Guide
Status Bar
Applications
Figure 2-1
Home Screen
Today Screen
Soft Key Bar
Status Bar
The Status Bar at the top of the screen can contain the status icons listed in Table 2-1.
Notifications
Connectivity
WAN
Audio
Battery
Clock
Table 2-1
Status Icons
Icon Description
Notifications
Notification that one or more instant messages were received.
Notification that one or more e-mail/text messages were received.
Notification that one or more voice messages were received.
Speakerphone is on.
There are more notification icons than can be displayed. Tap to display remaining icons.
Indicates a reminder of an upcoming calendar event.
One or more Email messages were received.
Receiving MMS message.
Sending MMS message.
MMS message sent successfully.
Using the MC45 2 - 3
Table 2-1
Icon Description
Connectivity
Status Icons (Continued)
MMS message received sucessfully.
Bluetooth is on.
TTY Headset enabled.
TTY HCO enabled.
TTY VCO enabled.
Microsoft customer feedback alert.
Connection is active.
Connection is not active.
Synchronization is occurring.
WLAN available.
WLAN in use.
HSDPA available.
WAN
3G available.
GPRS available.
EGPRS available.
Call missed.
Dialing while no SIM card is installed.
Voice call in progress.
Calls are forwarded.
Call on hold.
Antenna/signal icon: wireless on/good signal.
Antenna/signal icon: wireless off.
Antenna/signal icon: no service or searching.
HSDPA connecting.
HSDPA in use.
3G connecting.
3G in use.
GPRS connecting.
GPRS in use.
2 - 4 MC45 User Guide
Table 2-1
Icon Description
Audio
Battery
Status Icons (Continued)
EGPRS connecting.
EGPRS in use.
Roaming.
SIM Card not installed.
All sounds are on.
All sounds are off.
Vibrate is on.
Battery is charging.
Battery has a full charge.
Battery has a high charge.
Battery has a medium charge.
Battery has a low charge.
Battery has a very low charge.
Icon Bar
Tap the Status Bar to display the icon bar. Tap an icon to get additional notification or status information.
Figure 2-2
Icon Bar
Using the MC45 2 - 5
Table 2-2
Icon Name Description
Bar Icons
Magnify Enlarges the screen.
Bluetooth Displays the Bluetooth dialog box.
WLAN Displays the Network Detection dialog box.
Voicemail Dials Voicemail.
Notifications Indicates that notifications are available.
Headset Indicates that a wireless stereo headset is connected to the MC45.
Connectivity Displays the Connectivity dialog box.
Phone Data Displays the Phone dialog box.
Volume Displays the Volume dialog box.
Power Displays the Power window.
Clock & Alarms Opens the Clock & Alarms window.
Today Screen
The Today screen is scrollable and contains a list of applications and an Information Status bar. The Information
Status bar highlights the application that is under it and provides additional information.
Touch and hold the screen with your finger and move the Today screen up and down. As the application names
move under the Information Status bar, information relevant to that application appears in the bar.
Figure 2-3
You can also touch and hold the Information Status bar and move it up and down over an application name.
Remove your finger and the Information Status bar and application name center in the screen.
Moving Today Screen
2 - 6 MC45 User Guide
Figure 2-4
Figure 2-5
To customize the Today screen, tap Start > Settings > Today icon. Use the Appearance tab to customize the
background and the Items tab to change the display format.
Moving Information Status Bar
Application Icon
Application Information
Information Bar Example
Classic Today Screen
The user can change the Today screen to the classic layout that is used in Windows Mobile 6.5.3.
Status Bar
Today Screen
Task Tray
Soft Key Bar
Using the MC45 2 - 7
Figure 2-6
Classic Today Screen
To change to the classic view tap Start > Settings > Home icon > Items tab.
Figure 2-7
Today Screen Settings
Deselect the Windows Default checkbox and select any of the other checkboxes.
Ta p OK.
NOTE The task bar is only visible in the classic view.
The task bar at the bottom of the screen can contain the task tray icons listed in Table 2-3.
Table 2-3
Task Tray Icons
Icon Name Description
Wireless connection
Indicates WLAN signal strength.
status
ActiveSync Active serial connection between the MC45 and the host computer.
DataWedge Provides access to the DataWedge interface.
2 - 8 MC45 User Guide
Soft Keys Bar
The Soft Key bar is located at the bottom of the screen and contains two soft key buttons. These buttons display an
action and a menu to the user that are context sensitive and can be changed dynamically by an application. For
example, in the Contacts list view, the soft keys are New and Menu. As the user begins creating a new contact in
edit view, the soft keys change to Done and Menu.
Start Screen
The Start screen lists applications and folders available to the user. Table 2-4 lists the default programs and folders
listed on the Start screen.
Figure 2-8
Table 2-4
Icon Name Description Icon Name Description
Start Screen
Programs and Folders on the Start Screen
Today
Text Send an SMS text message. Contacts Keep track of friends and
Calendar Keep track of appointments
Settings Open the Settings folder.
Getting
Started
Close the Start menu and
display the Today screen.
and create meeting
requests.
See Settings Folder on page
2-11.
Launch the Getting Started
application.
E-mail Send an Email.
colleagues.
Internet
Explorer
Pictures &
Videos
Windows
Media
Browse Web and WAP sites
as well as download new
programs and files from the
Internet.
View and manage pictures,
animated GIFs, and video
files.
Play back audio and video
files.
Using the MC45 2 - 9
Table 2-4
Programs and Folders on the Start Screen (Continued)
Icon Name Description Icon Name Description
Messenger Use this mobile version of
Windows Live Messenger.
Phone Make and receive calls,
switch between calls, and
Marketplace Purchase applications from
the Marketplace.
MSN
Check the local weather.
Weather
set up conference calling.
Windows Live Use this mobile version of
MSN Money Keep track of your finances.
Windows Live™ to find
information on the web.
Games Play games.
Remote
Desktop
Log onto Windows NT server
type computers and use all of
the programs that are
available on that computer
from the MC45.
Notes Create handwritten or typed
notes, drawings, and voice
recordings.
Calculator Perform basic arithmetic and
calculations, such as
addition, subtraction,
multiplication, and division.
Tasks Keep track of your tasks. File Explorer Organize and manage files
on your device.
ActiveSync Synchronize information
between the MC45 and a
host computer or the
Exchange Server.
Office Mobile Use the complete suite of
Microsoft
®
Office
applications for your mobile
device.
Excel Mobile
OneNote Mobile
PowerPoint Mobile
Word Mobile
Internet
Sharing
Connect a notebook
computer to the Internet
using the MC45's data
connection.
Tas k
Manager
Enables viewing of memory
and CPU allocations and
stops running processes.
Refer to the Microsoft
Applications for Windows
Embedded Handheld 6.5.3
User Guide for more
information.
Search
Phone
Search contacts, data, and
other information on the
Wireless
Companion
Open the Wireless
Companion folder.
MC45. Refer to the Microsoft
Applications for Windows
Embedded Handheld 6.5.3
User Guide for more
information.
2 - 10 MC45 User Guide
Table 2-4
Icon Name Description Icon Name Description
Programs and Folders on the Start Screen (Continued)
Help See Help topics for the
current screen or program.
SMS Staging Intercepts SMS Staging
messages and reassembles
them into the original
Staging Profile.
Rapid
Deployment
Client
Facilitates software
downloads from a Mobility
Services Platform Console
FTP server to the MC45.
Refer to the MC45 Integrator
Guide for more information.
AirBEAM
Client
MSP Agent Interacts with MSP agents to
DEMO Launches the DEMO
Allows specially designed
software packages to be
transferred between a host
server and the MC45. Refer
to the MC45 Integrator
Guide for more information.
collect monitoring and asset
information to enable the
configuration, provisioning,
monitoring and
troubleshooting of the
MC45. Refer to the MC45
Integrator Guide for more
information.
applications. This icon
appears after the DEMO
applications have been
installed.
Alarms Sets the clock to the date and
time of your locale. Alarms
can also be set at specified
days and times of a week.
Debug Contains the
RTLogExport
Use when instructed to by
Motorola support personnel.
RIL Logger
applications.
and
Toolbox Contains the Adobe
Reader, Streaming Player
and Voice Commander
applications.
Using the MC45 2 - 11
Settings Folder
Table 2-5 lists the setting applications pre-installed on the MC45. Tap Start > Settings to open the Settings folder.
Table 2-5
Icon Name Description Icon Name Description
Setting Applications in the Setting Folder
Clock &
Alarms
Lock Set a password for the
Connections
Folder
Personal
Folder
Set the device clock to the
date and time of your locale
or to a visiting time zone
when you’re traveling.
Alarms can also be set at
specified days and times of
a week.
MC45.
Contains connection
applications (see below).
Contains personal
applications (see below).
Power Check battery power and set
the time-out for turning off
the display to conserve
battery power.
Sounds &
Notifications
Home
Bluetooth Open the Bluetooth
Enable sounds for events,
notifications, and more, and
set the type of notification for
different events.
Customize the appearance
of the Today screen and the
information to display on it.
application, set the MC45 to
visible mode and scan for
other Bluetooth devices in
the area.
System
Folder
Connections Folder
Beam Set the MC45 to receive
Domain
Enroll
Phone
Network
Setup
Contains system
applications (see below).
incoming IrDA beams.
Make your device an AD
domain member for device
management and security.
Refer to the Microsoft
Applications for Windows
Mobile 6 User Guide for
more information.
Activate the phone and
setup the network.
Connections Set up one or more types of
modem connections for your
device, such as phone
dial-up, GPRS, Bluetooth,
and more, so that your
device can connect to the
Internet or a private local
network.
GPS Assist Helps to find your MC45
location faster.
USB Connect Enables or disables the
enhanced network
connectivity.
2 - 12 MC45 User Guide
Table 2-5
Setting Applications in the Setting Folder (Continued)
Icon Name Description Icon Name Description
WLAN Setup wireless network
connection and customize
settings.
Wireless
Manager
Enables or disables the
MC45’s wireless radios and
customizes WLAN, and
Bluetooth settings.
Personal Folder
Buttons Assign a program to a
button.
Input Set options for each of the
Owner
Information
Enter personal information
on the MC45.
Phone Configure phone settings.
input methods.
KeyRemap Remap the keys in the hard
keypad.
Voice
Commander
Enable user to use speech
commands on the MC45.
Settings
System Folder
About View basic information such
®
as the Windows Mobile
version and type of
Certificates See information about
certificates installed on the
MC45.
processor used on the
MC45.
Backlight &
Keylight
Set the display backlight and
keylight time-out and adjust
brightness.
Error
Reporting
Enable or disable the
device's error reporting
function. When this function
is enabled and a program
error occurs, technical data
about the state of the
program and your computer
is logged in a text file and
delivered to Microsoft's
technical support if you
choose to send it.
DataWedge Enable or disable the
barcode scanning function.
Customer
Feedback
Submit feedback on the
Windows Mobile 6 software.
Encryption Allow files on a storage card
to be encrypted. Encrypted
files are readable only on
your device.
Device
Information
Display the MC45 hardware
information.
Using the MC45 2 - 13
Table 2-5
Icon Name Description Icon Name Description
Setting Applications in the Setting Folder (Continued)
External GPS Set the appropriate GPS
communication ports, if
required. You may need to
do this when there are
programs on the device that
access GPS data or you
have connected a GPS
receiver to the device.
Task
Manager
Regional
Settings
Stop running programs. Memory Check the device memory
Set the regional
configuration to use,
including the format for
displaying numbers,
currency, date, and time on
the MC45.
Managed
Programs
Remove
Programs
Displays the programs that
were installed on the MC45
using Mobile Device
Manager.
allocation status and
memory card information
and stop currently running
programs.
Remove programs that you
installed on the MC45.
System Info Displays the MC45’s
software and hardware
information.
Screen Change the screen
orientation, re-calibrate the
screen, and change the
screen text size.
2 - 14 MC45 User Guide
Adjusting Volume
To adjust the system volume using the Speaker icon in the navigation bar:
1. Tap the Speaker icon. The Vo lume dialog box appears.
Figure 2-9
2. Tap and move the slide bar to adjust the volume.
3. Select the On or Off radio button to turn the volume on or off.
You can also adjust the system volume using the Sounds & Notifications window, or use the Up/Down button on
the side of the MC45.
Volume Dialog Box
Battery Status Indications
Battery icons appear on the navigation bar indicating the battery power level. When the battery power falls below a
predetermined level the icon indicates the status and a battery dialog box appears indicating the status of the
battery.
The Battery icon always appears in the navigation bar when the Today screen is visible. The icon indicates the
battery power level. The message displays until the Dismiss button is pressed.
Using the MC45 2 - 15
Figure 2-10
Also view the battery status using the Power window.
Figure 2-11
Battery Icon on the Title Bar
Battery Status.
2 - 16 MC45 User Guide
LED Indicators
The MC45 has one LED indicator. The Charging/Battery Status LED indicates battery charging and status.
Charging/Battery
Status LED
Figure 2-12
Table 2-6
LED Indicators
LED Indications
LED State Indication
Charging/Battery Status LED
Slow Blinking Green Battery in MC45 is charging.
Solid Green Battery in MC45 is fully charged.
Fast Blinking Red Charging error.
Off Not charging.
Single Blink Green (when Power button pressed) Start-up commenced.
NOTE During an over temperature error condition, the Charging Error indication will only appear if the condition
exists for more than 30 minutes.
NOTE For information about scanning/decoding, see Chapter 3, Data Capture. For information about WAN radio
status and settings, see Chapter 4, Using the Phone, or refer to the MC45 Integrator Guide.
Resetting the MC45
To perform a reset simultaneously press the Power button and the 1 and 9 keys.
Waking the MC45
The wake-up conditions define what actions wake up the mobile computer after it has gone into suspend mode.
The mobile computer can go into suspend mode by either pressing the Power button or automatically by Control
Panel time-out settings. These settings are configurable and the factory default settings are shown in are subject to
change/update. To change the wake-up conditions, tap Start > Settings > Power > Wakeup.
Using the MC45 2 - 17
Figure 2-13
Wake-up Device Window
Locking the MC45
NOTE You can make emergency calls even when the MC45 is locked.
Use the Device Lock feature to prevent use of the device. Note that when locked, the MC45 does not respond to
screen or keypad input.
To lock the MC45, tap Start > Lock or press the Power button for three seconds and then tap Lock Device. The
Lock screen appears.
To unlock the MC45, side the Lock button to the left or right.
2 - 18 MC45 User Guide
Figure 2-14
Unlock Device Window
If the MC45 was locked with a password, a prompt appears for the password.
Password Locking
Use the Password window to set a password to disable unauthorized access to the MC45.
NOTE If the device is configured to connect to a network, use a strong (difficult to figure out) password
to help protect network security. Password cracking tools continue to improve and the
computers used to crack passwords are more powerful than ever.
1. Ta p Start > Settings > Lock icon > Password tab.
Figure 2-15
2. Select Prompt if device unused for check box to enable password protection.
3. From the drop-down list, select a time value for the protection to take affect after non-use.
4. From the Password type: drop-down list, select either Simple PIN or Strong alphanumeric.
5. For a simple password, enter a four-digit password in the Password field.
Password Window - Password Tab
For a stronger password:
Using the MC45 2 - 19
a. Enter a seven character password in the Password: field. A strong password must contain at least seven
characters and contain at least three of the following: uppercase and lowercase letters, numerals, and
punctuation.
b. Re-enter the password in the Confirm: field.
6. Ta p OK.
7. To set a hint to remember the password, tap the Hint tab.
8. In the text box, enter a hint for a password reminder.
9. Ta p OK.
NOTE You can make emergency calls even when the MC45 is password locked.
When the MC45 is not used for a period of time and the user tries to access the device, the Password window
appears. This also appears when the MC45 is connected to a host computer with either a cradle or communication
cable.
Figure 2-16
Enter Password Windows
Enter the password to un-lock the device.
Tap the Unlock button to unlock the device and go to the Today screen, or tap the Contact button to unlock the
device and go to the Contacts window or tap the Email button to unlock the device and go to the Messaging
window.
2 - 20 MC45 User Guide
Function Buttons
The MC45’s buttons perform certain functions.
Programmable
Button (Scan)
Volume Buttons
Scan Button
Up/Down Button
Power Button
Figure 2-17
•
Power: Press the red Power button to turn the MC45 screen on and off. The MC45 is in suspend mode when
the screen is off. For more information, see Powering On the MC45 on page 1-8. Also use the Power button
to reset the MC45 by performing a warm or cold boot. See Resetting the MC45 on page 2-17.
•
Scan: Press to scan bar codes or capture images. See Chapter 3, Data Capture.
Or, press to open an application or perform a function. See the Microsoft
Embedded Handheld 6.5 User Guide to set an application to open.
•
Up/Down: Press to increase or decrease the MC45’s volume.
Function Buttons
®
Applications for Windows
Programmable
Button (Camera)
Stylus
Use the MC45 stylus to select items and enter information. The stylus functions as a mouse.
•
Tap: Touch the screen once with the stylus to press option buttons and open menu items.
•
Tap and Hold: Tap and hold the stylus on an item to see a list of actions available for that item. On the pop-up
menu that appears, tap the action to perform.
•
Drag: Hold the stylus on the screen and drag across the screen to select text and images. Drag in a list to
select multiple items.
CAUTION To prevent damage to the screen, do not use any device other than the Motorola-provided stylus.
Entering Data
When entering data on the keypad, use either the single-hand method or the two-hand method as shown in Figure
2-18.
Using the MC45 2 - 21
Figure 2-18
Single-hand Method
Entering Data on the Keypad
Two-hand Method
2 - 22 MC45 User Guide
Display Orientation
The screen can be rotated between portrait and landscape modes manually. To change the orientation of the
screen, tap Start > Settings > System > Screen > General tab and select between three different types of
orientations:
•
Potrait
•
Landscape (right-handed)
•
Landscape (left-handed).
Figure 2-19
Display Orientation Window
Taking Photos
To take a photo:
1. Press the side Camera button or tap Start > Pictures & Videos and then tap Camera on the Command bar.
2. Check the image on the view finder, adjust if necessary.
3. Press the side Camera button or the ENTER key to take the picture. Hold the MC45 still until the camera flash
occurs or the shutter sound is heard.
Recording Video
To record a video clip:
1. Press the side Camera button or tap Start > Pictures & Videos and then tap Camera on the Command bar.
2. Ta p Camera on the command bar.
3. Ta p Menu > Video to set shooting mode to video.
Using the MC45 2 - 23
The available recording time displays on the screen.
NOTE By default, the time limit for recording videos is set to 30 seconds.
4. Press the OK key or the side Camera Button to begin recording.
Recording stops when you press the OK key or the side Camera Button again.
Viewing Photos and Videos
To view photos and video clips:
1. Ta p Start > Pictures & Videos icon.
2. Tap the picture or video clip to view.
2 - 24 MC45 User Guide
Chapter 3 Data Capture
Introduction
The MC45 offers two types of data capture options:
•
Laser scanning
•
Color digital camera.
The MC45 contains the DataWedge application that allows user to enable the camera, decode the bar code data
and display the bar code content. To enable DataWedge, see DataWedge on page 3-4.
Laser Scanning
An MC45 with an integrated laser scanner has the following features:
•
Reading of a variety of bar code symbologies, including the most popular 1-D code types.
•
Intuitive aiming for easy point-and-shoot operation.
•
Adaptive Scanning.
Scanning Considerations
Typically, scanning is a simple matter of aim, scan, and decode and a few quick trial efforts master it. However,
consider the following to optimize scanning performance:
•
Range
Any scanning device decodes well over a particular working range — minimum and maximum distances from
the bar code. This range varies according to bar code density and scanning device optics.
Scanning within range brings quick and dependable decodes; scanning too close or too far away prevents
decodes. Move the scanner closer or further away to find the right working range for the bar codes being
scanned.
•
Angle
Scanning angle is important for promoting quick decodes.
3 - 2 MC45 User Guide
•
Hold the MC45 farther away for larger symbols.
•
Move the MC45 closer for symbols with bars that are close together.
NOTE Scanning procedures depend on the application and MC45 configuration. An application may use different
scanning procedures from the one listed above.
Bar Code Scanning
CAUTION Do not aim the scan beam at your eyes and others.
1. Ensure that a scan-enabled application is loaded on the MC45.
Figure 3-1
2. Press and hold the scan button. The laser beam exits from the end of the MC45. Ensure the red scan beam
covers the entire bar code. The Scan/Decode LED lights red to indicate that scanning is in process, then lights
green and a beep sounds, by default, to indicate the bar code was decoded successfully.
Figure 3-2
3. Release the scan button.
Linear Scanning
Correct
Linear Scanner Aiming Pattern
Adaptive Scanning
The MC45 contains the adaptive scanning feature that automatically adjusts the scan beam width for rapid and
easy scanning of bar codes from near contact to more than 200 inches away.
By default the MC45 is set to wide scan beam width. When the user presses the scan button, the MC45 determines
the distance from the bar code. For close bar codes the MC45 sets a wide beam width and for far bar codes it sets
a narrow beam width. The MC45 uses distance, bar code type and material to determine the correct scan beam
width.
Incorrect
Data Capture 3 - 3
Figure 3-3
Adaptive Scanning
Color Digital Camera
MC45 with an integrated color digital camera have the following features:
•
Omnidirectional reading of a variety of bar code symbologies, including the most popular linear, postal,
PDF417, and 2D matrix code types.
•
Advanced intuitive aiming for easy point-and-shoot operation.
Digital Camera Scanning
1. Ensure that a scan-enabled application is loaded on the MC45.
2. Aim the camera lens on the back of the MC45 at a bar code.
3. Press and hold the scan button. In the image window, align the camera over the barcode.
Figure 3-4
4. The Scan/Decode LED lights green and a beep sounds, by default, to indicate the bar code was decoded
successfully. Release the scan button.
Digital Camera Scanning
3 - 4 MC45 User Guide
NOTE The camera decode feature is set by default to automatically decode the bar code when read. This feature
can be programmed to display a red aiming reticle that turns green upon good decode indicating that the bar
code has been successfully decoded and to that the scan button may be released.
DataWedge
DataWedge allows the user to input captured bar code data into a text field of an application.
To enable DataWedge:
1. Ta p Start > Settings > System > DataWedge.
2. Ta p Basic Configuration.
3. Ta p 1. Barcode input.
4. Select one of the following
a. Ta p 1. SSI Scanner Driver for the laser scanner.
b. Ta p 2. Camera Scanner Driver for the camera.
5. Ta p 1. Enabled.
6. Ta p 0. Back.
7. Ta p 0. Back.
8. Ta p 0. Exit.
9. Ta p OK.
10. Tap the Running option to start the DataWedge prcoess. The DataWedge Status changes to Ready.
11. Ta p OK.
To disable DataWedge:
1. Ta p Start > Settings > System > DataWedge.
2. Tap the Running option to end the DataWedge process. The DataWedge Status changes to Stopped.
3. Ta p OK.
Chapter 4 Using the Phone
Introduction
Use the MC45 to make phone calls, set up speed dials, keep track of calls, and send text messages. Your wireless
service provider may also provide other services such as voice mail, call forwarding, and caller ID.
Also use the integrated phone to connect to an ISP or work network in order to browse the Web and read e-mail.
Connect to the Internet or work network over High-Speed Downlink Packet Access (HSDPA) using Cellular Line, or
using the modem specified by the mobile operator. For more information, or to customize the MC45 phone by
changing phone settings, see the MC45 Integrator Guide.
Accessing the Phone Dialer
NOTE Dialers vary depending on the carrier, services and the state of the phone. For example, place calls on hold
and use to create conference calls. (See Conference Calling on an MC45 on page 4-17.)
Access the dialer regardless of the program in use. Applications on the MC45 can be in use during a call.
Antenna Signal
Call Line
Figure 4-1
Phone Dialer
4 - 2 MC45 User Guide
To access the phone dialer tap Start > Phone or press .
To receive calls when the MC45 is suspended, leave the phone radio turned on and ensure the MC45 is set to
wake with any key.
Turning the Phone On and Off
Windows Embedded Handheld 6.5 devices include Wireless Manager, which provides a simple method of
enabling and disabling the phone.
To open Wireless Manager, tap the Connectivity icon.
Figure 4-2
Select Wireless Manager. The Wireless Manager window appears.
To toggle on or off the phone, tap blue Phone bar.
To configure settings for a connection, tap Menu > Phone Settings.
Opening Wireless Manager
Audio Modes
The MC45 offers three audio modes for use during phone calls:
•
Handset Mode: Switches audio to the speaker at the top front of the MC45, so you can use the MC45 as a
handset. This is the default mode.
•
Speaker Mode: Use the MC45 as if on speaker phone. Tap the Speaker On button to activate this mode.
Tap the Speaker Off button to switch back to handset mode.
•
Headset Mode: Connect a Bluetooth headset to automatically switch audio to the headset.
The MC45 defaults to handset mode. When a Bluetooth headset is configured for use with the MC45, the earpiece
and speakerphone are muted and audio is heard through the headset.
NOTE While using a Bluetooth headset during a call, the mobile computer will not go into suspend mode.
Using the Phone 4 - 3
Headset ModeHandset Mode Speaker Mode
Figure 4-3
Audio Modes
Using a Bluetooth Headset
You can use a Bluetooth headset for audio communication when using an audio-enabled application. See Chapter
7, Using Bluetooth for information on connecting a Bluetooth headset to the MC45. Set the MC45’s volume
appropriately before putting the headset on. When a Bluetooth headset is connected the speakerphone is muted.
It is recommended for phone conversations to use the Bluetooth Hands-free profile instead of the Headset profile.
See Chapter 7, Using Bluetooth for more information.
NOTE When using a Bluetooth headset during a call, the MC45 power button is disabled and the MC45 will not go
into suspend mode. Once the call is completed, the power button functionality is enabled.
The following dialog box displays when a Bluetooth headset connection is established.
4 - 4 MC45 User Guide
Figure 4-4
WWAN Bluetooth Audio Notification Dialog Box
Adjusting Audio Volume
Use the Volume Control Slider or the keypad keys to adjust the volume of the ringer when not in a call and the
audio volume when in a call.
Phone Volume Slider
Ringer Volume Slider
Figure 4-5
Phone Volume Slider
To adjust the volume tap the Speaker icon in the Title bar. Move the slider up or down to adjust the volume.
NOTE Adjust the conversation phone volume during a call. Adjusting the volume while not in a call affects the ring
and notification sound levels.
Making a Call
NOTE You can make emergency calls even when the MC45 is locked or when a SIM card is not installed. See
Making an Emergency Call on page 4-7 for more information.
With the MC45, you can make a call from the phone dialer, contacts, speed dial and call history.
Using the Phone Keypad
To make a call using the phone keypad:
1. Ta p Start > Phone or press .
2. Enter the phone number on the dialer or keypad. The number appears in the Call Line.
3. Tap the green Call Line or press .
4. Tap to cancel the call or tap to place the MC45 in speakerphone mode.
Using the Phone 4 - 5
5. When the call connects, the name or number appears in the Call Line. To place the call on hold, press .
To return to the call, press again.
NOTE Placing a call on hold using the Call Line can be enabled. To enable, press > > Enable Hold.
The toggle icon changes to On.
6. Tap or press to end the call.
Using Contacts
Use Contacts to make a call without looking up or entering the phone number.
To make a call from Contacts:
1. Ta p Start > Contacts.
2. From the contact list, tap and hold the contact name.
4 - 6 MC45 User Guide
Figure 4-6
3. Ta p Call Work, Call Home or Call Mobile.
Contacts Menu
NOTE To make a call from an open contact, tap the number to call. See On-Device Help for more information about
Contacts.
Using Call Log
To make a call using Call Log:
1. Ta p Start > Phone or press .
2. From the Phone dialer, tap .
Call Log
Figure 4-7
3. Tap on the desired Contacts name to begin dialing and return to the phone dialer.
4. Press to stop dialing or end the call.
Call Log Window
Making a Speed Dial Call
Use Speed Dial to call someone saved in the speed dial directory.
To make a speed dial call:
1. Ta p Start > Phone or press .
2. From the Phone keypad, tap the speed dial location number assigned to a contact.
Speed Dial
Location Number
Using the Phone 4 - 7
Figure 4-8
3. Press to stop dialing or end the call.
Speed Dial Contact List
Making an Emergency Call
Your service provider programs one or more emergency phone numbers, such as 911, 999 or 112 that you can call
under any circumstances, even when your phone is locked or the SIM card is not inserted. Your service provider
can program additional emergency numbers into your SIM card. However, your SIM card must be inserted in your
phone in order to use the numbers stored on it. See your service provider for additional information. See Installing
the mini-SIM Card on page 1-4 for SIM card installation procedures.
When the alpha-numeric keypad phone is locked, press the Orange key twice to set the keypad to numeric mode
and then enter the emergency number.
NOTE Emergency numbers vary by country. Your phone’s pre-programmed emergency number(s) may not work in
all locations, and sometimes an emergency call cannot be placed due to network, environmental, or
interference issues.
Answering a Call
A dialog box appears on the MC45 when it receives an incoming call. If the phone is set to ring, a ring tone sounds.
Answer or ignore the incoming call.
To answer an incoming call tap on the Phone - Incoming dialog or press .
4 - 8 MC45 User Guide
Figure 4-9
To ignore the incoming call tap or press . This may send the caller to voice mail, depending on the
service provider. Otherwise, this presents busy signal to the calling party.
Press to stop dialing or end the call..
Incoming Call
Incoming Call Features
•
You can use other programs on the MC45 during a call. To switch back to Phone, press or tap Start
> Phone. Tap End to end the call.
•
If a caller isn't in your contact list, create a contact during the call or from Call History by tapping Menu >
Save to Contacts.
•
To hold the current call and answer a waiting call, tap on the Phone - Incoming dialog or press
.to place the current call on hold and answer the incoming call.
•
To put a call on hold to call another number, press or tap the green Call Line.
•
To move from one call to another, press on the MC45 or tap the green Call Line.
Smart Dialing
Smart Dialing makes it easy to dial a phone number. When you start entering numbers or characters, Smart Dialing
automatically searches and sorts the contact entries on the SIM card, in Contacts, and the phone numbers in Call
History (including incoming, outgoing, and missed calls). You can then select the desired number or contact from
the filtered list to dial.
Open the Phone screen, then tap the keys on the Phone keypad that correspond to the phone number or contact to
call. The contact panel lists contacts that match the sequence that you entered.
Smart Dialing starts looking for numbers or contacts that match the sequence entered.
To find a phone number:
•
Enter the first one or two digits to find a phone number in Call History.
Using the Phone 4 - 9
•
Enter the first three digits or more to find a phone number from the saved Contacts and SIM card.
To find a contact name:
• Enter the first letter of a contact’s first name or last name. Smart Dialing searches for the letter starting
from the first character of a contact name as well as from the character that appears after a space, dash,
or underscore in a contact name. For example, if you tap number “2” which is associated with [a, b, c] on
the Phone keypad, contact names such as the following will be considered matches: “Smith, Bernard”,
“Adams, John”, “Carlson, Eileen”, “Dillon, Albert”, “Childs, Larry”, “Cooper, Robert” and “Parks, Celine”.
• If the matching list is long narrow down the search further by entering another letter. Using the same
example above, tap “3” which is associated with (d, e, f), the matching list is narrowed down to the
following names: “Smith, Bernard”, “Adams, John”, and “Parks, Celine”.
Figure 4-10
To make a call or send a text message using Smart Dialing:
1. Begin entering the first few numbers or characters.
2. In the Smart Dialing panel, use the up and down arrows on the keypad to navigate to the desired contact or
phone number.
3. When the correct contact is selected, press to make a voice call.
4. To send a text message to the selected contact, tap Menu > Send Text Message.
5. To call a different phone number associated with the selected contact, tap the contact name and select the
phone number to call.
Muting a Call
During a call, you can mute the microphone so you can hear the person on the line but he or she cannot hear
conversation from the microphone. This is useful when there is conversation or background noise on your end.
To mute or unmute a call:
1. Ta p Start > Phone or press .
Finding a Contact
2. Make a call.
4 - 10 MC45 User Guide
3. Tap on the display to mute the audio. The Mute button becomes yellow.
Using Speed Dial
Create speed dial numbers to dial frequently called numbers with a single tap. Before creating a speed dial entry,
ensure the phone number exists in Contacts.
Adding a Speed Dial Entry
To add a speed dial entry from the phone keypad:
1. Ensure the contact and phone number are in the Contacts list.
2. Ta p Start > Phone or press .
3. Tap .
Figure 4-11
4. Tap the desired contact name and number in the list.
5. Ta p > Add to Speed Dial.
Contacts
Using the Phone 4 - 11
Figure 4-12
6. In the Location field, tap the up/down arrows to select an available location to assign as the new speed dial
Speed Dial Contact Location
entry. The first speed dial location is reserved for voice mail.
7. Ta p OK to add the contact to the speed dial list.

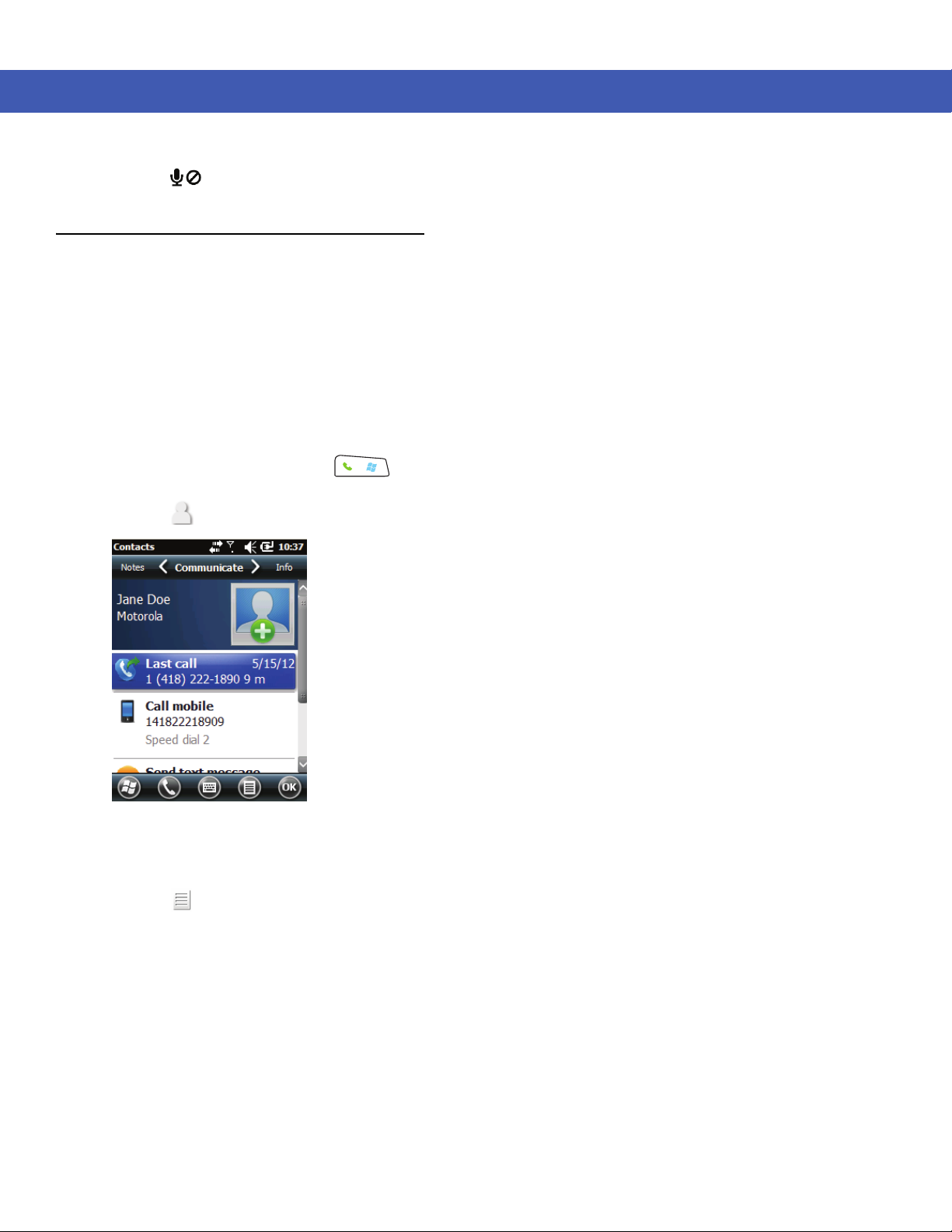

To add a speed dial entry from the Contacts window:
1. Ta p Start > Contacts.
Figure 4-13
2. Tap a contact name.
3. Ta p Menu > Add to Speed Dial.
Contacts
4 - 12 MC45 User Guide
Figure 4-14
4. In the Location drop-down list, select a different available location to assign as the new speed dial entry. The
Speed Dial Contact Location
first speed dial location is reserved for voice mail.
5. Ta p OK.
Editing a Speed Dial Entry
To change a speed dial entry:
1. Ta p Start > Phone or press .
2. Tap .
3. Tap the desired contact name in the list.
4. Tap > Edit Speed Dial.
5. In the Location drop-down list, select a different available location to assign as the new speed dial entry. The
first speed dial location is reserved for voice mail.
6. Ta p OK to change the speed dial list.
7. Ta p OK to exit the Edit Contacts window.
8. Ta p X to exit the Contacts window.

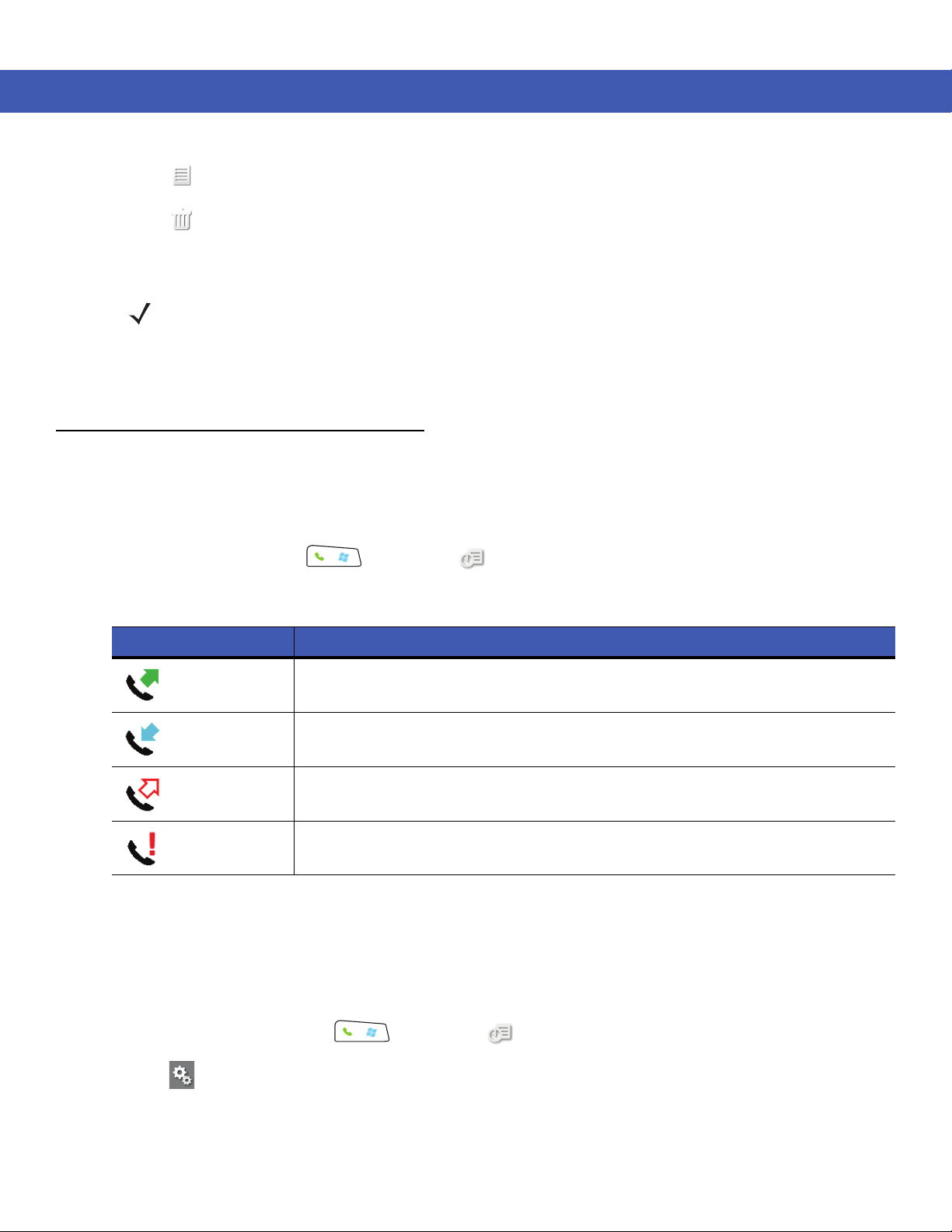

Deleting a Speed Dial Entry
To delete a speed dial entry:
1. Ta p Start > Phone or press .
2. Tap .
3. Tap the desired contact name in the list.
4. Tap > Edit Speed Dial.
5. Tap .
6. Ta p Yes to confirm permanently deleting the speed dial entry.
NOTE Deleting names and phone numbers in Speed Dial does not delete the contact information in Contacts (Start
7. Ta p OK to exit the Edit Contacts window.
8. Ta p X to exit the Contacts window.
Using Call Log
Use Call Log to call someone who was recently called, or recently called in. Call Log provides the time and duration
of all incoming, outgoing, and missed calls. It also provides a summary of total calls and easy access to notes
taken during a call. Table 4-1 lists the call history icons that appear in the Call Log window.
Using the Phone 4 - 13
> Contacts).
Ta p Start > Phone or press and then tap to open the Call Log window
Table 4-1
Call Log Icons
Icon Description
This icon appears next to the contact information for all outgoing calls.
This icon appears next to the contact information for all incoming calls.
This icon appears next to the contact information for all unconnected outgoing calls.
This icon appears next to the contact information for all missed calls.
Managing Call Log
Change views, reset the call timer, and delete calls to manage the calls stored in Call Log.
Changing the Call Log View
1. Ta p Start > Phone or press and then tap to open the Call Log window.
2. Tap on the top right corner to show the Call Log menu.
3. Ta p Filters and select a view type from the menu to display only received calls, outgoing calls, incomplete calls
or missed calls.
4 - 14 MC45 User Guide
Call Log
Figure 4-15
4. Ta p to exit the Call Log window.
Call Log Window
Deleting All Call Log Items
1. Ta p Start > Phone or press to display the Phone dialer.
2. From the Phone dialer, tap .
3. Ta p > Delete call logs.
Figure 4-16
4. Select All call logs.
Call Log - Delete Call Logs Menu
Using the Phone 4 - 15
Figure 4-17
5. Ta p Delete.
6. Ta p OK to exit the Call History window.
Call Log - Deleting all call logs
Viewing Call Status
1. Ta p Start > Phone or press to display the Phone dialer.
2. From the Phone dialer, tap .
3. Tap an item to call the number or tap to open the Options window for that item. The Call Log Options
window appears.
Figure 4-18
4. Select an applicable option from the list.
5. Tap to exit the Options window.
6. Tap to close the Call Log window.
Viewing Call Status
4 - 16 MC45 User Guide
NOTE When more than one call is on the phone line, only the duration of the first call is recorded.
Using the Call Log Options
Use the Call Log Options to dial voice mail, save to contacts, view a note, delete a listing, send a text message,
and make a call.
1. Ta p Start > Phone or press to display the Phone dialer.
2. From the Phone dialer, tap .
3. Tap an item to call the number or tap to open the Options window for that item. The Call Log Options
window appears.
Send text message
icon
Figure 4-19
4. Select an applicable item from the menu, as needed.
5. Depending on the item selected, the appropriate window displays. For example, select Send Text Message to
Call Log Option
display the Inbox window.
6. Tap to exit the Options window.
7. Tap to close the Call Log window.
Conference Calling on an MC45
NOTE Conference Calling and the number of conference calls allowed may not be available on all services. Please
check with your service provider for Conference Calling availability.
To create a conference phone session with multiple people:
1. Ta p Start > Phone or press to display the Phone dialer.
2. Enter the first phone number and tap the Call Line area or press . When the call connects, the name
or number appears in the Call Line
3. Tap .
4. Tap . The dialer re-appears.
5. Enter the second number and tap Send.
Using the Phone 4 - 17
6. When the call connects, the first call is placed on hold and the second call is active.
Figure 4-20
7. Tap call Line 1 to make that call active. The second call goes on hold.
8. Tap to create a conference call (three callers).
Creating a Conference Call
4 - 18 MC45 User Guide
Figure 4-21
9. To add a third caller, tap . The dialer appers. When the call connects, the new call is active and the
Two Merged Calls
conference is on hold.
Figure 4-22
Adding a Third Call
10. To add the new caller to the conference, tap .
Using the Phone 4 - 19
Figure 4-23
11. Tap to view all callers.
Figure 4-24
Three Merged Calls
Un-Merge Calls
12. To remove a caller from the conference, tap the caller and then tap next to the caller or press .
13. To end the conference call, tap next to the Call Line or press .
Call Completed screen appears and then the dialer displays.
NOTE To speak privately with one party during a conference call, tap and then tap next to the caller. To
include all parties again, tap .
4 - 20 MC45 User Guide
SMS Messaging
Text messages allow the user to send and receive short text messages (SMS) to and from other mobile devices.
The text can contain words, numbers or an alphanumberic combination no longer than 160 characters.
Sending a Text Message
To send a text message:
1. Ta p Start > Tex t.
2. Tap > New > SMS.
Address Area
Message Area
Figure 4-25
3. Ta p To to select a recipient from Contacts.
4. Compose your message.
• The auto-correct feature automatically fixes common spelling errors as you type so your messages are
• The character counter lets you see and control the size of the message as you compose.
• If you want to know if your text message was received, tap > Message Options, then select the
5. Tap to send the message.
If the phone is turned on, your text message is sent. If it’s off, you are prompted to turn on the phone. If you do
so, the message is sent; otherwise when you tap OK, the message is saved in the Drafts folder and sent when
the phone is turned on.
If you are out of coverage area, the message is saved in the Drafts folder and sent when you return to a
coverage area.
Create Text Message
more accurate.
Request message delivery notification check box.
NOTE On MC45 devices, the message remains in the Drafts folder and has to be manually re-sent when you return
to a coverage area.
Using the Phone 4 - 21
Viewing Text Messages
To view a text message:
You can view a text message whether the phone is on or off. When the phone is on, you can view a text message
from its notification callout. Tap the text message notification icon on the navigation bar to display the message.
Text Message Notification Icon
Figure 4-26
The Caller Identification feature matches incoming text message numbers with those stored in Contacts so you
know who is sending you a message. Furthermore, the New Text Message dialog box gives you the option to call
the sender or save, dismiss, or delete the message.
Figure 4-27
When the phone function is off, you can still view received text message in Messaging:
New Text Message Notification
New Text Message Options
1. Ta p Start > Text or on the Today screen, tap the text message on the Information Bar.
4 - 22 MC45 User Guide
Tap to View Text Messages.
Figure 4-28
2. The Text Messages window appears.
3. In the message list, tap the text message.
Figure 4-29
Text Messaging on Today Screen
Enter reply here.
Text Messages List
Replying to a Text Message
To reply to a text message:
1. Ta p Start > Text.
2. In the message list, tap a text message. The window displays previous text conversations.
3. Enter text in the reply field.
4. Tap to send the reply.
MMS Messaging
MMS Messaging allows the user to send a pictures, videos, audio files and other file types to another mobile
computer.
Creating and Sending MMS Messages
To send an MMS message:
1. Ta p Start > Tex t.
2. Tap > New > MMS.
Using the Phone 4 - 23
Figure 4-30
3. To add a contact, tap . A window appears with a list of contacts. Select one or more contacts and then tap
MMS Window
Done.
4. Tap to add a subject for the message. Enter the subject text in the window and then tap Done.
5. Tap in the text window to enter a text message. A window appears allowing you to add a text message plus
emoticons, favorite web addresses, pre-defined text, contact information and calendar information. Tap Done
after adding information.
6. Tap to attach a picture or video stored on the MC45 to the message.
7. Tap to attach a sound file stored on the MC45 to the message.
8. Tap to take a picture and attach it to the message.
9. Tap to capture video and attach it to the message.
10. Tap to record a message and attach it to the message.
11. Tap to add a file stored on the MC45 to the message.
12. After all of the items are attached to the message, tap Send.
Viewing an MMS Message
To view an MMS message:
1. Ta p Start > Tex t.
2. Tap the MMS message.
3. In the threaded message, tap the MMS icon to view the message.
4 - 24 MC45 User Guide
4. Ta p Contents to view a list of files included in the message.
On the Message Contents screen:
1. Ta p Menu > Save to save a file.
2. Ta p Menu > Save into My Text to save the contents of a text file to the My Text list.
3. Ta p Menu > Assign to Contact to associate a photo to a contact.
4. Ta p Menu > Set as Ringtone to associate a audio file as a ringtone.
Replying to an MMS Message
To reply to an MMS message
1. Ta p Start > Tex t.
2. Tap the MMS message.
3. In the threaded message, tap the MMS message to open and view an MMS message.
4. After viewing the MMS message, tap Menu > Reply > via MMS to reply with an MMS message or tap Menu >
Reply > via SMS to reply with a text message.
Blocking Incoming MMS Messages
To block incoming MMS messages from a specific sender:
1. Open and view the MMS message.
2. Tap Menu > Show > Contact Details.
3. Tap Menu > Save to Blacklist.
4. Tap Done.
To unblock a sender:
1. Ta p Start > Tex t.
2. Ta p Menu > MMS Options > Blacklist.
3. Tap and hold the phone number.
4. Select Delete from the pop up menu.
5. Ta p OK.
Voice Commander
Voice Commander is a speech dialog system that provides natural human interface for users to communicate
seamlessly with the MC45. Users can make phone calls, look up contact information, launch programs or check
calendars. Voice Commander contains the following features:
•
Eyes-free and hands-free voice command and control.
•
Speaker-independent speech recognition technology, no training is required.
Using the Phone 4 - 25
•
Ease of use conversational user interface.
•
Personal Voice Tag and Digit Model Adaptation to enhance the usability.
To initiate Voice Commander tap Start > Toolbox > Voice Commander or press the call button on a Bluetooth
headset. The system says, “Say a Command.” The user says one of the following commands:
•
Call
•
Find
•
Redial / Callback
•
Play Music
•
Play
•
Next / Previous
•
Start
•
Appointments
•
Read / Call History
•
What time is it?
•
What can I say?
•
Goodbye
Call
To call a person by name:
1. Initiate Voice Commander. The MC45 responds with “Say command.”
2. Say “Call Michael Archer.” System responds with “Call Michael Archer work, is it correct?”
3. Say “Yes.” MC45 responds with “Dialing.”
To call a person at a location:
1. Initiate Voice Commander. The MC45 responds with “Say command.”
2. Say “Call Mary Smith at home.” The MC45 responds with “Call Mary Smith home, is it correct?”
3. Say “Yes.” The MC45 responds with “Dialing.”
To call a person with more that one phone number:
1. Initiate Voice Commander. The MC45 responds with “Say command.”
2. Say “Call Alex Jordan.” The MC45 responds with “Call Alex Jordan, home, work, mobile or cancel?”
3. Say “Home.” The MC45 responds with “Dialing.”
If two people have similar names:
1. Initiate Voice Commander. The MC45 responds with “Say command.”
2. Say “Call Halley Johnson.” The MC45 responds with “More than one Halley Johnson, please select.”
3. Select the contact intended to call.
4 - 26 MC45 User Guide
NOTE Voice Commander automatically maintains a maximum of 2000 contacts in the recognition database.
If the command can not be recognized, Voice Commander prompts “Please say again.” This situation
could happen under the noisy environment, or when user says command before Voice Commander
starts recording. After hearing the prompt “Say Command”, user should wait one to two seconds to speak
the command.
The recognizable contact length is 48 characters. Contacts exceeding 48 characters will be ignored.
Find
To look up contact information:
1. Initiate Voice Commander. The MC45 responds with “Say command.”
2. Say “Find Mary Smith.” The MC45 responds with “Mary Smith home 5555551212."
To look up a specific number:
1. Initiate Voice Commander. The MC45 responds with “Say command.”
2. Say “Find Michael Archer at work.” The MC45 responds with “Michael Archer, work, 5555551212."
If two contacts have similar names:
1. Initiate Voice Commander. The MC45 responds with “Say command.”
2. Say “Find Haley Johnson at work.” The MC45 responds with “More than one Haley Johnson, please select.”
Voice Commander displays a window with the two contacts. (System will show both Halley Johnson and Haley
Johnson for user to select.)
If a contact is not found:
1. Initiate Voice Commander. The MC45 responds with “Say command.”
2. Say “Find Michael Archer at home.”
3. MC45 responds with “Michael Archer has no home number.”
Redial
To redial a previous number:
1. Initiate Voice Commander. The MC45 responds with “Say command.”
2. Say “Redial.” The MC45 responds with “Call Mary Smith at home, is it correct?”
3. Say “Yes.” The MC45 responds with “Dialing.”
Callback
1. Initiate Voice Commander. The MC45 responds with “Say command.”
2. Say “Callback.” The MC45 responds with “Call Mary Smith at home, is it correct?”
3. Say “Yes.” The MC45 responds with “Dialing.”
Using the Phone 4 - 27
Start
To launch an application:
1. Initiate Voice Commander. The MC45 responds with “Say command.”
2. Say “Start calendar.” The MC45 responds with “Go to Calendar.” The Calendar application launches.
Appointments
To read today’s, tomorrow’s or this week’s appointments:
1. Initiate Voice Commander. The MC45 responds with “Say command.”
2. Say “Today's appointment.” The MC45 responds with “You have 3 appointments” and reads the appointments.
NOTE User can say Previous, Next, Repeat, or Abort to control calendar reading. Voice Commander only plays the
new appointments. Older appointments are ignored.
Read
To read a text message or an email message:
1. Initiate Voice Commander. The MC45 responds with “Say command.”
2. Say “Read SMS.” The MC45 responds with “You have 3 SMS” and reads the SMS messages.
What time is it
To find out the time of day:
1. Initiate Voice Commander. The MC45 responds with “Say command.”
2. Say “What time is it?” The MC45 responds with “The time is 3 p.m.”
Call History
To view the call history window:
1. Initiate Voice Commander. The MC45 responds with “Say command.”
2. Say “Call History.” The MC45 responds with “Call history.”
3. The Call History page displays.
Voice Play Music
To play a specific music file:
1. Initiate Voice Commander. The MC45 responds with “Say command.”
2. Say “Play The Moment.” The MC45 responds with “The Moment.”
3. Windows Media starts to play “The Moment.”
To play all music files:
4 - 28 MC45 User Guide
1. Initiate Voice Commander. The MC45 responds with “Say command.”
2. Say “Play music.” The MC45 responds with “Play music.”
3. Windows Media starts to play all music files.
To play a different music file during playing of another:
1. Initiate Voice Commander. The MC45 responds with “Say command.”
2. Say “Next.” The MC45 responds with “Next.”
3. Windows Media starts to play next music file.
To pause or resume a playing music file:
1. Initiate Voice Commander. The MC45 responds with “Say command.”
2. Say “Pause” or “Resume.” The MC45 pauses or resumes the playing music.
NOTE User can say “Pause” or “Resume” to control music playing. The command “Resume” only works when
Windows Media is running. The commands “Previous” and “Next” only work when playing all music files.
Voice Commander only supports media files with .mp3 and .wma format. Voice Commander supports the
music files in Playlists or Media files synched by Active Sync, in My Documents and its subfolder or on the
microSD card and its subfolders.
What can I say
To view the help information:
1. Initiate Voice Commander. The MC45 responds with “Say command.”
2. Say “What can I say.” The help file displays.
Alternatively tap Menu > Help to open the help file.
Goodbye
To exit the Voice Commander application, Say “Goodbye.” The MC45 responds with “Goodbye” and the
application terminates.
Voice Commander can be also terminated manually by tapping Menu > Exit. Note that goodbye will not be
accepted during voice digit dialing operation.
NOTE Voice Commander automatically terminates after 10 seconds of silence.
CHAPTER 5 USING WLAN
Introduction
NOTE The WLAN feature is only applicable for the MC4597.
The WLAN feature supports the 802.11 a/b/g networking mode.
WLANs allow the MC45 to communicate wirelessly inside a building. Before using the MC45 on a WLAN, the
facility must be set up with the required hardware to run the WLAN (sometimes known as infrastructure). The
infrastructure and the MC45 must both be properly configured to enable this communication.
Refer to the documentation provided with the infrastructure (access points (APs), access ports, switches,
Radius servers, etc.) for instructions on how to set up the infrastructure.
Once you have set up the infrastructure to enforce your chosen WLAN security scheme, use the Fusion or
Wireless Zero Config (WZC) software to configure the MC45 to match.
Fusion Overview
The Fusion software contains applications with which to create wireless profiles. Each profile specifies the
security parameters to use for connecting to a particular WLAN as identified by its ESSID. The Fusion software
also allows the user to control which profile out of a set of profiles is used to connect. Other Fusion applications
allow the user to monitor the status of the current WLAN connection and to invoke diagnostic tools for
troubleshooting.
To access Fusion, tap the Start > > Wireless Launcher.
5 - 2 MC45 User Guide
Figure 5-1
Refer to the Wireless Fusion Enterprise Mobility Suite User Guide for Version 3.xx for detailed information on
using and configuring Fusion.
To access the on-device Fusion Help tap Start > > Fusion Help.
Fusion Launcher Window
Connecting to the Internet
To connect to the Internet on a WLAN when using Fusion, ensure that the network card settings is set to
Internet:
1. Ensure Fusion is enabled and a profile is configured.
2. Ta p Start > Settings > Connections > WLAN.
3. In the My network card Connects to drop-down list, select The Internet.
4. Ta p OK.
Wireless Zero Config Overview
WZC is a Microsoft wireless connection management utility that dynamically selects a wireless network to
connect to based on a user's preferences and various default settings.
Switching Between Fusion and WZC
To switch from Fusion to WZC:
1. Tap the Start > > Wireless Launcher > Options.
2. Select WLAN Management from the drop-down list.
3. Select Microsoft Manages WLAN radio button.
4. Ta p Save.
5. Ta p OK.
6. Perform a reset.
To switch from WZC to Fusion:
1. Tap the Start > > Wireless Launcher > Options.
2. Select WLAN Management from the drop-down list.
3. Select Fusion Manages WLAN radio button.
4. Ta p Save.
5. Ta p OK.
6. Perform a reset.
Supported Applications
The Fusion menu items and their corresponding applications are summarized in Table 5-1.
Using WLAN 5 - 3
Table 5-1
Supported Applications
Application Description
Find WLANs Invokes the Find WLANs application which
Manage Profiles Invokes the Manage Profiles application
Wireless Zero Config Invokes the Wireless Zero Config application to
Manage Certs Invokes the Certificate Manager application
Manage PACs Invokes the PAC Manager application which
Options Invokes the Options application which allows
Wireless Status Invokes the Wireless Status application which
Wireless Diagnostics Invokes the Wireless Diagnostics application
displays a list of the WLANs active in your area.
(which includes the Profile Editor Wizard) to
manage and edit your list of WLAN profiles.
configure the WLAN.
which allows you to manage certificates used
for authentication.
helps you manage the list of Protected Access
Credentials used with EAP-FAST
authentication.
you to configure the Fusion option settings.
allows you to view the status of the current
wireless connection.
which provides tools with which to diagnose
problems with the wireless connection.
Fusion
Support
Yes No
Yes No
No Yes
Yes Yes
Yes No
Yes Yes
Yes Yes
Yes Yes
WZC
Support
Log On/Off Invokes the Network Login dialog which
allows you to log on to a particular profile or to
log off from the currently active profile
Fusion Help Invokes the Fusion Help application which
provides detailed explanations on all the
available Fusion applications
Yes No
Yes No
5 - 4 MC45 User Guide
Fusion Setup
To setup WLAN using Fusion refer to the Wireless Fusion Enterprise Mobility Suite User Guide for Version
H3.40 for detailed information on using and configuring Fusion.
To setup WLAN using Fusion:
NOTE Obtain the proper WLAN configuration information from your system administrator prior to performing the
Fusion setup procedures.
The following setup procedure example shows setup of a WLAN using WEP encryption.
1. Tap the Start > > Wireless Configuration Editor > Manage Profiles. The Manage Profiles window
appears.
2. Tap and hold in the window and select Add from the pop-up menu. The Wireless LAN Profile Entry
window appears.
3. In the Profile Name text box enter a name for the profile.
4. In the ESSID text box enter the ESSID.
Figure 5-2
5. Ta p Next. The Operating Mode dialog box displays.
6. In the Operating Mode drop-down list, select Infrastructure or Ad-hoc.
Figure 5-3
7. Ta p Next. The Security Mode dialog box displays.
8. In the Security Mode drop-down list, select Legacy (Pre-WPA).
Profile ID Dialog Box
Operating Mode Dialog Box
Using WLAN 5 - 5
Figure 5-4
9. In the Authentication drop-down list, select None.
10. Ta p Next. The Encryption dialog box displays.
11. In the Encryption Type drop-down list, select WEP-40 (40/24).
Figure 5-5
12. Select the Pass-phrase or Hexadecimal Keys radio button to indicate whether a pass-phrase or
Security/Authentication Dialog Box
Encryption Dialog Box
hexadecimal keys will be entered on the next page.
13. Select the For added security - Mask characters entered check box to hide characters entered.
Deselect this to show characters entered.
14. Ta p Next.
Figure 5-6
15. In the Edit Key drop-down list, select the key to enter.
16. In the Key field, enter 10 hexadecimal characters.
17. In the Confirm field, re-enter the key. When the keys match, a message appears indicating that the keys
WEP-40 WEP Keys Dialog Box
match.
18. Repeat for each WEP key.
5 - 6 MC45 User Guide
19. In the Transmit Key drop-down list, select the key to transmit.
20. Ta p Next. The IPv4 Address Entry dialog box displays.
Figure 5-7
21. Ensure that all three check boxes are selected.
22. Ta p Next. The Battery Usage dialog box appears.
23. In the Battery Usage Mode dialog box select a power consumption option.
Figure 5-8
24. Ta p Save.
IP Address Entry Dialog Box
Battery Usage Dialog Box
Wireless Zero Config Setup
To setup WLAN using WZC:
NOTE Obtain the proper WLAN configuration information from your system administrator prior to performing the
WZC setup procedures.
The following setup procedure example shows setup of a WLAN using WEP encryption.
1. Ta p Start > > Wireless Launcher > Wireless Zero Config.
Using WLAN 5 - 7
Figure 5-9
2. The MC45 searches for wireless networks in the area and displays them in the window.
3. Tap a network name.
Figure 5-10
4. In the Connects to drop-own list, select either The Internet or Work.
5. Check the This is a hidden network checkbox if the network is a hidden network.
Wireless Zero Config Window
Configure Wireless Network Window
6. Ta p Next.
5 - 8 MC45 User Guide
Figure 5-11
7. In the Authentication drop-down list, select the authentication type.
8. In the Data Encryption drop-down list, select the data encryption type.
9. If WEP encryption is selected, enter an encryption key in the Network key text box.
10. Ta p Next.
Figure 5-12
Configure Network Authentication Window
Configure Network Authentication Window
11. If required, select Use IEEE 802.1x network access control check box.
12. In the EAP type drop-down list box, select the EAP type.
13. Ta p Finish.
More Information on WZC
For more information on Microsoft Wireless Zero Config, see the Microsoft Software Developer Network
(MSDN) at http://msdn.microsoft.com.
Chapter 6 Using GPS Navigation
Introduction
The MC45 includes Global Positioning System (GPS) technology using the QC Modem Solution chipset. GPS
technology is based on a worldwide system of GPS satellites orbiting the earth that continuously transmit digital
radio signals. These radio signals contain data on the satellites’ locations and their exact clock time and are used
to determine your location on the earth.
WARNING! When using the MC45 in a vehicle, it is the user’s responsibility to place, secure and use in a
manner that will not cause accidents, personal injury or property damage or obstruct their view. It
is the responsibility of the driver to operate the vehicle in a safe manner, maintain observation of
all driving conditions at all times, and not become distracted by the device to the exclusion of safe
driving practices. It is unsafe to operate the controls of the device while driving.
Software Installation
Third-party GPS navigation software is required. Evaluation software is available from various suppliers. For
example; VisualGPS, visit: http://www.visualgps.net/VisualGPSce/
If interested in purchasing GPS navigation software check with the GPS software vendor (before purchasing,
downloading, or installing any software) to determine that the application is compatible with the MC45. Refer to the
application’s user guide for application installation and setup information.
MC45 GPS Setup
By default, the MC45 has the following settings:
1. Tap Start > Settings > System > External GPS icon.
2. In the Programs tab, the GPS program port is set to COM6.
3. In the Hardware tab, the GPS hardware port is set to None.
Multiple programs can simultaneously access GPS data. Each program must use Microsoft GPS API or COM8 to
access the GPS data.
6 - 2 MC45 User Guide
Operation
Acquiring satellite signals may take several seconds to a few minutes. It is best to be outside and have a clear,
unobstructed view of the sky. Without a clear view, acquisition takes much longer and could result in the MC45
being unable to compute the initial position quickly. When operating the device indoors access to the GPS signals
may be limited or unavailable.
NOTE When using a GPS navigation application, ensure that the MC45 does not go into suspend mode. If the MC45
suspends then the power to the GPS radio is removed. Upon resume the GPS receiver must reacquire a valid GPS
signal, resulting in a a delay of positional information.
GPS Maps on microSD Cards
GPS navigation software vendors may sell maps on microSD cards. If using a microSD card with the GPS
navigation software:
1. Slide the mini-SIM card holder to the right to unlock.
2. Lift the mini-SIM card holder.
3. Slide the microSD card holder down to unlock.
4. Lift up the microSD card holder.
5. Insert the card with the card contacts facing down and lower the microSD card holder.
6. Slide the microSD card holder up to lock.
7. Lower the mini-SIM card holder.
8. Slide the mini-SIM card holder to the left to lock.
Answering a Phone Call While Using GPS
If you receive a phone call while using your GPS navigation software:
1. Answer the phone call by pressing the Answer button.
2. Once you end the phone call, press the End Call button to resume the audio on the GPS software.
NOTE Anytime you are using GPS on the MC45 and you receive a phone call, the audio on the GPS navigation software
is muted until you finish the call.
Losing the GPS Signal While in a Vehicle
GPS performance on the MC45 may be affected if the vehicle has thermal glass windows and windshields, which
can block the MC45 from receiving a GPS signal from satellites. To improve GPS signal strength, place the MC45
where there is a clear view of the sky. A direct line of sight is required between the MC45 and the GPS satellites to
access information from the satellites.
Assisted GPS
GPS can be used in stand-alone or Assisted GPS (A-GPS) modes. A Stand-alone GPS receiver downloads data
from GPS satellites. It can take several minutes to get a fix. By using GPS Location servers, A-GPS dramatically
improves the performance of the Time To First Fix (TTFF) of GPS receivers by providing them with data that they
would ordinarily have to download from the GPS satellites and other aiding data that helps the acquisition. With the
A-GPS data, GPS receivers can operate faster and more reliably.
The GPS Assist application provides the ability to modify the settings associated with obtaining GPS data.
Ta p Start > Connections > GPS Assist icon.
Using GPS Navigation 6 - 3
Figure 6-1
To set the source of the data tap Source and select one of the options: Any (default), None.
To set the frequency of updating the data tap Update Frequency and select one of the options: On Demand
(default), 1 Day, 2 Days, 4 Days, 7 Days.
To manually update the data tap the Update Now button.
GPS Assistance Window
GPS Reset
To perform a factory reset of the GPS function:
1. Close all applications that are using GPS.
2. Tap the Reset GPS Hardware button. The Reset GPS Hardware dialog box appears indicating that the GPS
chip has been reset.
3. Ta p OK.
6 - 4 MC45 User Guide
Chapter 7 Using Bluetooth
Introduction
Bluetooth-equipped devices can communicate without wires, using frequency-hopping spread spectrum (FHSS)
radio frequency (RF) to transmit and receive data in the 2.4 GHz Industry Scientific and Medical (ISM) band
(802.15.4). Bluetooth wireless technology is specifically designed for short-range (30 feet/10 meters)
communication and low power consumption.
MC45 with Bluetooth capabilities can exchange information (e.g., files, appointments, and tasks) with other
Bluetooth enabled devices such as phones, printers, access points, and other mobile computers. To use the MC45
as a modem, create a dial-up modem connection between a computer and MC45.
The MC45 with Bluetooth technology uses the Microsoft Bluetooth stack. To write an application that uses the
Microsoft Bluetooth stack APIs, refer to the Enterprise Mobility Developer Kit (EMDK) Help.
Adaptive Frequency Hopping
Adaptive Frequency Hopping (AFH) is a method of avoiding fixed frequency interferers, and can be used with
Bluetooth voice. All devices in the piconet (Bluetooth network) must be AFH-capable in order for AFH to work.
There is no AFH when connecting and discovering devices. Avoid making Bluetooth connections and discoveries
during critical 802.11b communications. AFH for Bluetooth consists of four main sections:
•
Channel Classification - A method of detecting an interference on a channel-by-channel basis, or pre-defined
channel mask.
•
Link Management - Coordinates and distributes the AFH information to the rest of the Bluetooth network.
•
Hop Sequence Modification - Avoids interference by selectively reducing the number of hopping channels.
•
Channel Maintenance - A method for periodically re-evaluating the channels.
When AFH is enabled, the Bluetooth radio “hops around” (instead of through) the 802.11b high-rate channels. AFH
coexistence allows Motorola mobile computers to operate in any infrastructure.
7 - 2 MC45 User Guide
The Bluetooth radio in this MC45 operates as a Class 2 device power class. The maximum output power is 2.5mW
and the expected range is 32.8 feet (10 meters). A definition of ranges based on power class is difficult to obtain
due to power and device differences, and whether one measures open space or closed office space.
NOTE It is not recommended to perform Bluetooth wireless technology inquiry when high rate 802.11b operation is
required.
Security
The current Bluetooth specification defines security at the link level. Application-level security is not specified. This
allows application developers to define security mechanisms tailored to their specific need. Link-level security
occurs between devices, not users, while application-level security can be implemented on a per-user basis. The
Bluetooth specification defines security algorithms and procedures needed to authenticate devices, and if needed,
encrypt the data flowing on the link between the devices. Device authentication is a mandatory feature of Bluetooth
while link encryption is optional.
Pairing of Bluetooth devices is accomplished by creating an initialization key that is used to authenticate the
devices and create a link key for them. Entering a common PIN number in the devices being paired generates the
initialization key. The PIN number is never sent over the air. By default, the Bluetooth stack responds with no key
when a key is requested (it is up to user to respond to the key request event). Authentication of Bluetooth devices
is based-upon a challenge-response transaction. Bluetooth allows for a PIN number or passkey that is used to
create other 128-bit keys used for security and encryption. The encryption key is derived from the link key used to
authenticate the pairing devices. Also worthy of note is the limited range and fast frequency hopping of the
Bluetooth radios that makes long-distance eavesdropping difficult.
Recommendations are:
•
Perform pairing in a secure environment
•
Keep PIN codes private and don't store the PIN codes in the mobile computer
•
Implement application-level security.
The Microsoft stack supports Smart-pairing. For detailed information, refer to the Microsoft MSDN.
