About This Guide
Introduction
This guide provides assembly and installation instructions for the AN720 RFID antennas.
Service Information
If you have a problem with your equipment, contact Zebra Support for your region. Contact information is available
at: http://www.zebra.com/support.
When contacting Solutions Support, please have the following information available:
•
Serial number of the unit
• Scanner serial numbers are located on the label under the top of the scanner
• Cradles serial numbers are located on the label on the bottom of the cradle
•
Model number or product name
• Scanner model numbers are located on the label under the top of the scanner
• Cradle model numbers are located on the label on the bottom of the cradle
•
Software type and version number
Zebra responds to calls by E-mail, telephone or fax within the time limits set forth in support agreements.
If your problem cannot be solved by Zebra Support, you may need to return your equipment for servicing and will
be given specific directions. Zebra is not responsible for any damages incurred during shipment if the approved
shipping container is not used. Shipping the units improperly can possibly void the warranty.
If you purchased your Zebra business product from a Zebra business partner, contact that business partner for
support.
viii AN720 RFID Antennas Assembly and Installation Instructions
Chapter 1 AN720 RFID Antennas Diagrams
and Technical Specifications
Introduction
Read all instructions carefully before attempting to install and use this product.
Safety
The antennas should be mounted permanently and securely on a mounting panel in accordance with all installation
instructions.
Location
For best results, point the antenna towards the center of the coverage area. A line-of-sight path between the
antenna and active floor locations works best. Although signals in these bands penetrate interior walls with little
attenuation, reinforced block walls, banks of metal cabinets, or steel shelving may attenuate signals or cause
multipath, a condition where reflected signals interfere with the primary signal path. Avoid mounting next to a
column or vertical support that could create a “shadow zone” of reduced coverage.
Mounting
The AN720 antennas radiate a circularly polarized signal in a directional pattern. Securely mount the antenna to a
metal plate using the appropriate size nuts and locking hardware.
1 - 2 AN720 RFID Antennas Assembly and Installation Instructions
Polycarbonate
Radome
Antenna Diagrams
Antenna Front View
Figure 1-1
Antenna Front View
Antenna Side View
10-32 UNC-2A
Mounting Studs
2x, Stainless Steel
#10 Split-Lock Washer
2x, Stainless Steel
#10 Flat Washer
2x, Stainless Steel
10-32 UNC-2B
Hex Nut
2x, Stainless Steel
Aluminum
Housing
Polycarbonate
Radome
AN720 RFID Antennas 1 - 3
Figure 1-2
Antenna Side View
1 - 4 AN720 RFID Antennas Assembly and Installation Instructions
Aluminum Housing
Bottom View
Figure 1-3
Antenna Bottom View
Wall Mount Configuration
AN720 RFID Antennas 1 - 5
Figure 1-4

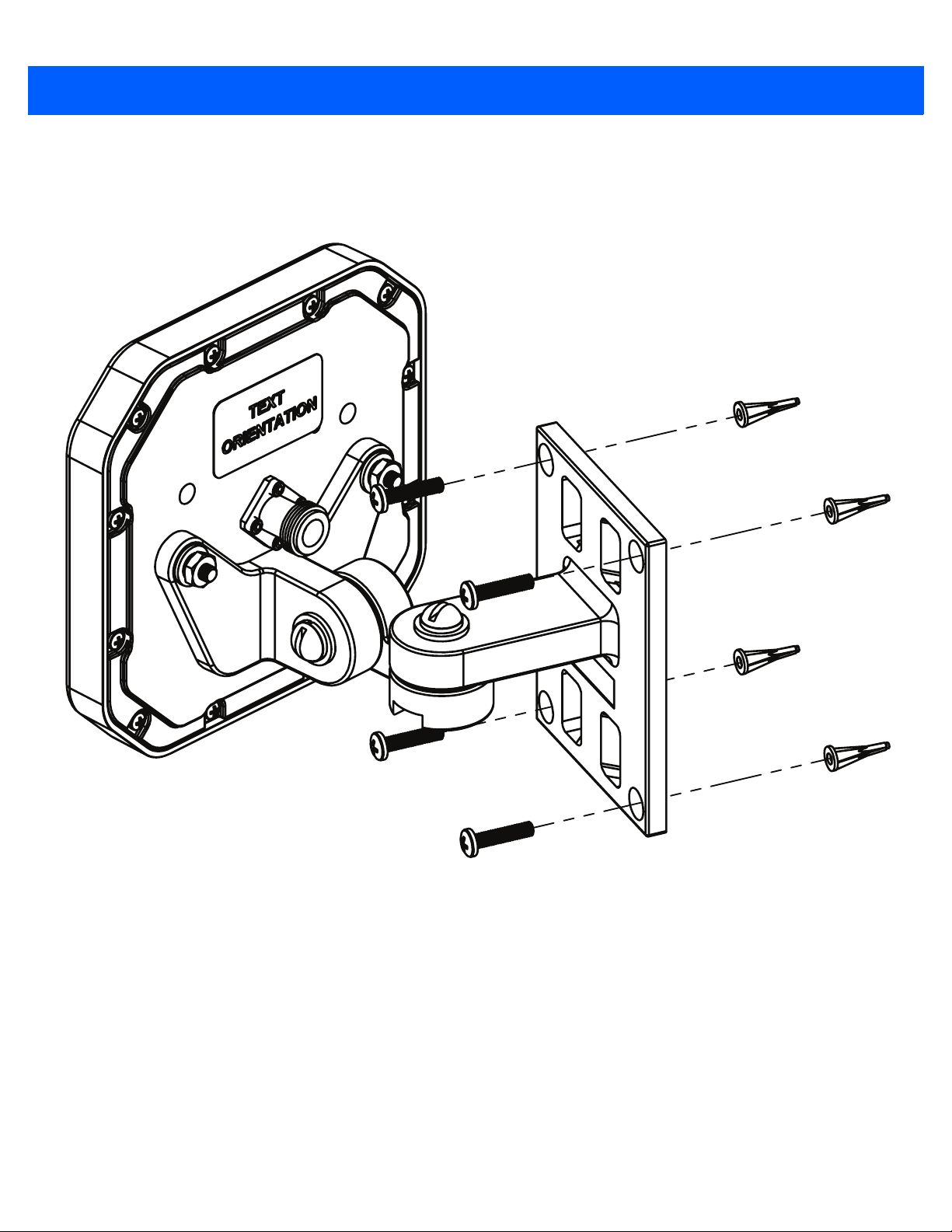

Wall Mount Configuration
1 - 6 AN720 RFID Antennas Assembly and Installation Instructions
Pole Mount Configuration
Figure 1-5

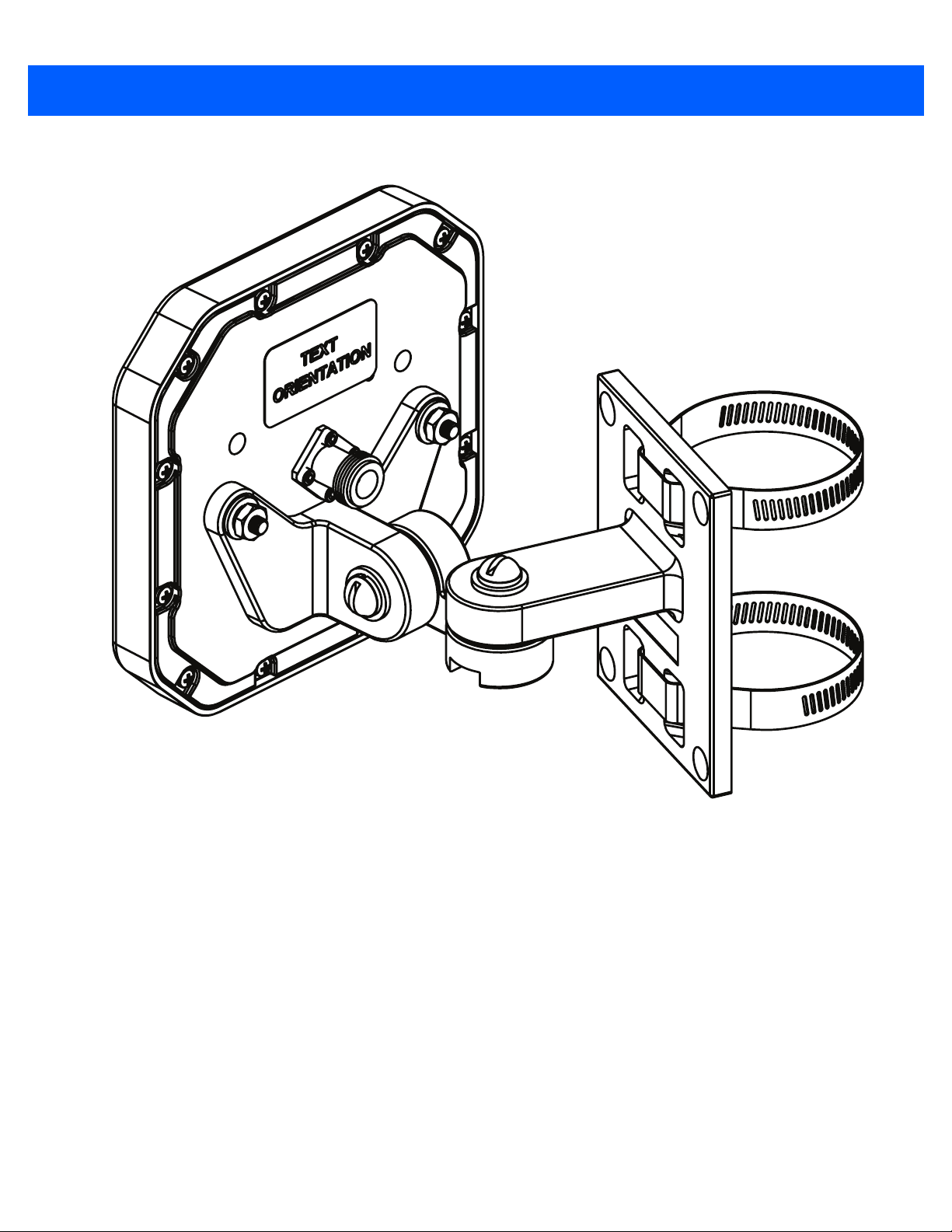

Pole Mount Configuration
Technical Specifications
AN720-L51NF00WUS
AN720 RFID Antennas 1 - 7
Table 1-1
Model AN720
Zebra Part Number AN720-L51NF00WUS
Connector N-Type, female
Frequency, MHz 902-928
Gain 5.5 dBic typical, 6 dBic max
VSWR 1.5:1
F/B 8 dB
Normal Impedance 50 Ω
Beam width 100°
Polarization Circular (L) left
Antenna Weight 0.37kg (S/B .8 lbs)
Power, watts 10
Axial Ratio 2 dB
Mounting 2 threaded studs (rack mount)
Dimensions, mm (in) 132.8 mm x 132.8 mm x 18.1 mm (5.2 in x 5.2 in x 0.7 in)
AN720-L51NF00WUS Product Specifications
Item Description
Temperature Operational -30°C to +70°C (-22°F to 158°F)
Storage Temperature 40°C to 85°C (104°F to 185°F)
Impact Resistance 0.46kg (1 lb.) Ball Drop, 24 in
Vibration MIL-STD-810
Shock IEC 68-2-27
Humidity lEC 68-2-30
Lightning Protection DC Grounded
Enclosure Rating IP 67
1 - 8 AN720 RFID Antennas Assembly and Installation Instructions
Figure 1-6

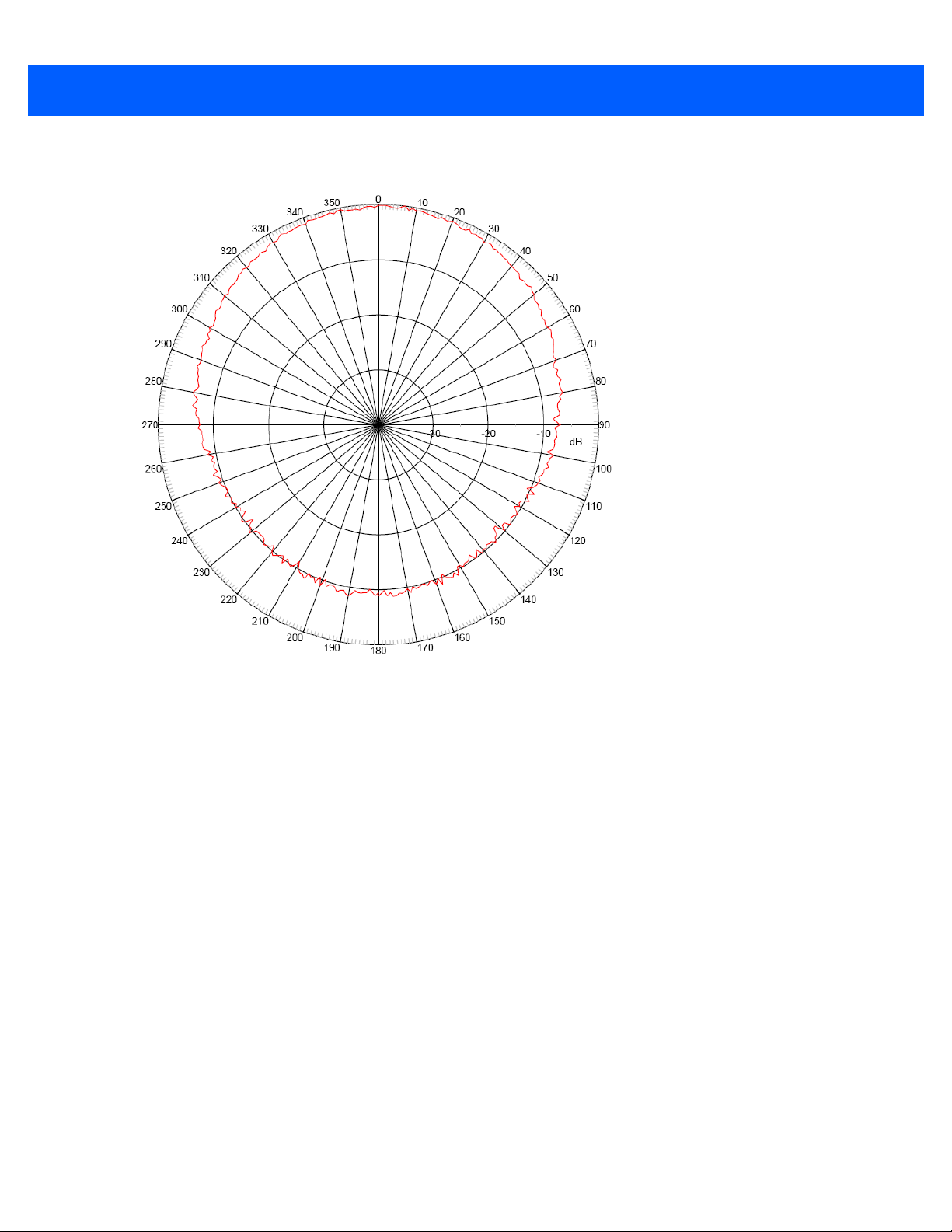

AN720 US Radiation Plots - 915MHz
AN720-L51NF00WEU
AN720 RFID Antennas 1 - 9
Table 1-2
Model AN720
Zebra Part Number AN720-L51NF00WEU
Connector N-Type, female
Frequency, MHz 865-868
Gain 5.5 dBic typical, 6 dBic max
VSWR 1.5:1
F/B 8 dB
Normal Impedance 50 Ω
Beam width 100°
Polarization Circular (L) left
Antenna Weight 0.37kg (S/B .8 lbs)
Power, watts 10
Axial Ratio 2 dB
Mounting 2 threaded studs (rack mount)
Dimensions, mm (in) 132.8 mm x 132.8 mm x 18.1 mm (5.2 in x 5.2 in x 0.7 in)
AN720-L51NF00WEU Product Specifications
Item Description
Temperature Operational -30°C to +70°C (-22°F to 158°F)
Storage Temperature 40°C to 85°C (104°F to 185°F)
lmpact Resistance 0.46kg (1 lb.) Ball Drop, 24 in
Vibration MIL-STD-810
Shock IEC 68-2-27
Humidity lEC 68-2-30
Lightning Protection DC Grounded
Enclosure Rating IP 67
1 - 10 AN720 RFID Antennas Assembly and Installation Instructions
Figure 1-7
AN720 EU Radiation Plots - 867.5MHz
AN720 RFID Antennas 1 - 11
Waste Electrical and Electronic Equipment (WEEE)
Bulgarish: За клиенти от ЕС: След края на полезния им живот всички продукти трябва да се връщ ат на Zebra за
рециклиране. За информация относно връщането на продукти, моля отидете на адрес http://www.zebra.com/weee.
Čeština: Pro zákazníky z EU: Všechny produkty je nutné po skončení jejich životnosti vrátit společnosti Zebra k recyklaci.
Informace o způsobu vrácení produktu najdete na webové stránce: http://www.zebra.com/weee.
Dansk: Til kunder i EU: Alle produkter skal returneres til Zebra til recirkulering, når de er udtjent. Læs oplysningerne om returnering
af produkter på: http://www.zebra.com/weee.
Deutsch: Für Kunden innerhalb der EU: Alle Produkte müssen am Ende ihrer Lebensdauer zum Recycling an Zebra
zurückgesandt werden. Informationen zur Rücksendung von Produkten finden Sie unter http://www.zebra.com/weee.
Ελληνικά: Για πελάτες στην Ε.Ε.: Όλα τα προϊόντα, στο τέλος της διάρκειας ζωής τους, πρέπει να επιστρ έφονται στην Zebra για
ανακύκλωση. Για περισσότερες πληροφορίες σχετικά με την επιστροφή ενός προϊόντος, επισκεφθείτε τη διεύθυνση
http://www.zebra.com/weee στο Διαδίκτυο.
English: For EU Customers: All products at the end of their life must be returned to Zebra for recycling. For information on how to
return product, please go to: http://www.zebra.com/weee.
Español: Para clientes en la Unión Europea: todos los productos deberán entregarse a Zebra al final de su ciclo de vida para que
sean reciclados. Si desea más información sobre cómo devolver un producto, visite: http://www.zebra.com/weee.
Eesti: EL klientidele: kõik tooted tuleb nende eluea lõppedes tagastada taaskasutamise eesmärgil Zebra'ile. Lisainformatsiooni
saamiseks toote tagastamise kohta külastage palun aadressi: http://www.zebra.com/weee.
Suomi: Asiakkaat Euroopan unionin alueella: Kaikki tuotteet on palautettava kierrätettäväksi Zebra-yhtiöön, kun tuotetta ei enää
käytetä. Lisätietoja tuotteen palauttamisesta on osoitteessa http://www.zebra.com/weee.
Français : Clients de l'Union Européenne : Tous les produits en fin de cycle de vie doivent être retournés à Zebra pour recyclage.
Pour de plus amples informations sur le retour de produits, consultez : http://www.zebra.com/weee.
Magyar: Az EU-ban vásárlóknak: Minden tönkrement terméket a Zebra vállalathoz kell eljuttatni újrahasznosítás céljából. A termék
visszajuttatásának módjával kapcsolatos tudnivalókért látogasson el a http://www.zebra.com/weee.
Italiano: per i clienti dell'UE: tutti i prodotti che sono giunti al termine del rispettivo ciclo di vita devono essere restituiti a Zebra al
fine di consentirne il riciclaggio. Per informazioni sulle modalità di restituzione, visitare il seguente sito Web:
http://www.zebra.com/weee.
Lietuvių: ES vartotojams: visi gaminiai, pasibaigus jų eksploatacijos laikui, turi būti grąžinti utilizuoti į kompaniją „Zebra“. Daugiau
informacijos, kaip grąžinti gaminį, rasite: http://www.zebra.com/weee.
Latviešu: ES klientiem: visi produkti pēc to kalpošanas mūža beigām ir jānogādā atpakaļ Zebra otrreizējai pārstrādei. Lai iegūtu
informāciju par produktu nogādāšanu Zebra, lūdzu, skatiet: http://www.zebra.com/weee.
Malti: Għal klijenti fl-UE: il-prodotti kollha li jkunu waslu fl-aħħar tal-ħajja ta' l-użu tagħhom, iridu jiġu rritornati għand Zebra
għar-riċiklaġġ. Għal aktar tagħrif dwar kif għandek tirritorna l-prodott, jekk jogħġbok żur: http://www.zebra.com/weee.
Nederlands: Voor klanten in de EU: alle producten dienen aan het einde van hun levensduur naar Zebra te worden teruggezonden
voor recycling. Raadpleeg http://www.zebra.com/weee voor meer informatie over het terugzenden van producten.
Polski: Klienci z obszaru Unii Europejskiej: Produkty wycofane z eksploatacji naleźy zwrócić do firmy Zebra w celu ich utylizacji.
Informacje na temat zwrotu produktów znajdują się na stronie internetowej http://www.zebra.com/weee.
Português: Para clientes da UE: todos os produtos no fim de vida devem ser devolvidos à Zebra para reciclagem. Para obter
informações sobre como devolver o produto, visite: http://www.zebra.com/weee.
Românesc: Pentru clienţii din UE: Toate produsele, la sfârşitul duratei lor de funcţionare, trebuie returnate la Zebra pentru
reciclare. Pentru informaţii despre returnarea produsului, accesaţi: http://www.zebra.com/weee.
Slovenčina: Pre zákazníkov z krajín EU: Všetky výrobky musia byť po uplynutí doby ich životnosti vrátené spoločnosti Zebra na
recykláciu. Bližšie informácie o vrátení výrobkov nájdete na: http://www.zebra.com/weee.
Slovenski: Za kupce v EU: vsi izdelki se morajo po poteku življenjske dobe vrniti podjetju Zebra za reciklažo. Za informacije o
vračilu izdelka obiščite:http://www.zebra.com/weee.
Svenska: För kunder inom EU: Alla produkter som uppnått sin livslängd måste returneras till Zebra för återvinning. Information om
hur du returnerar produkten finns på http://www.zebra.com/weee.
Türkçe: AB Müşterileri için: Kullanım süresi dolan tüm ürünler geri dönüştürme için Zebra'ya iade edilmelidir. Ürünlerin nasıl iade
edileceği hakkında bilgi için lütfen şu adresi ziyaret edin: http://www.zebra.com/weee.
