User
Manual
Tumble
Dryer
ZTK123
Thank you for selecting our appliance
We wish you lots of enjoyment with your new appliance and we hope that you will consider our brand again when purchasing household appliances.
Please read this user manual carefully and keep it throughout the product life cycle as a reference document. The user manual should be passed on to any future owner of the appliance.
The symbols you will see on some paragraphs of this booklet have the following meaning:
The warning triangle emphasize information that is particularly important for your safety or correct functioning of the appliance.
The information marked with this symbol provides additional instructions and practical tips on the use ofthe appliance.
Tips and information about economical and ecological use of the machine are marked with this symbol.
Contents
Important safety information . . . . . . . . . . 3 Description of the appliance . . . . . . . . . . 5 The control panel. . . . . . . . . . . . . . . . . . . 6 Drying programmes . . . . . . . . . . . . . . . . . 7 Before the first use . . . . . . . . . . . . . . . . . 8 Drying hints . . . . . . . . . . . . . . . . . . . . . . . 8 Operating sequence . . . . . . . . . . . . . . . 10 Care and cleaning . . . . . . . . . . . . . . . . . 13
Something not working . . . . . . . . . . . . . 16 Technical data . . . . . . . . . . . . . . . . . . . . 18 Consumption values . . . . . . . . . . . . . . . 19 Disposal . . . . . . . . . . . . . . . . . . . . . . . . . 20 Installation . . . . . . . . . . . . . . . . . . . . . . . 21
2
Important safety information
In the interest of your safety and to ensure the correct use, before installing and first using the appliance, read this user manual carefully, including its hints and warnings. To avoid unnecessary mistakes and accidents, it is important to ensure that all people using the appliance are thoroughly familiar with its operation and safety features.
Save these instructions and make sure that they remain with the appliance if it is moved or sold, so that everyone using it through its life will be properly informed on appliance use and safety.
General safety
•It is dangerous to alter the specifications or attempt to modify this product in any way.
•This appliance is not intended for use by persons (including children) with reduced physical, sensory or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
•Make sure that small pets do not climb into the drum. To avoid this, please check into the drum before using.
•Any objects such as coins, safety pins, nails, screws, stones or any other hard, sharp material can cause extensive damage and must not be placed into the machine.
•In order to avoid danger of fires caused by excessive drying, do not use appliance to dry the following items: Cushions, quilts and the like (these items accumulate heat).
•Items such as foam rubber (latex foam), shower caps, waterproof textiles, rubber backed articles and clothes or pillows fitted with foam rubber pads should not be dried in the tumble dryer.
•Always unplug the appliance after use, clean and maintenance.
•Under no circumstances should you attempt to repair the machine yourself. Repairs car-
ried out by inexperienced persons may cause injury or serious malfunctioning. Contact your local Service Centre. Always insist on genuine spare parts.
•Items that have been soiled with substances such as cooking oil acetone, petrol, kerosene, spot removers, turpentine, waxes and wax removers should be washed in hot water with an extra amount of detergent before being dried in the tumble dryer.
•Danger of explosion: Never tumble dry items that have been in contact with inflammable solvents (petrol, methylated spirits, dry cleaning fluid and the like). As these substance are volatile, they could cause an explosion. Only tumble dry items washed with water.
•Risk of fire: items that have been spotted or soaked with vegetable or cooking oil constitute a fire hazard and should not be placed in the tumble dryer.
•If you have washed your laundry with stain remover you must execute an extra rinse cycle before loading your tumble dryer.
•Please make sure that no gas lighters or matches have accidentally been left in pockets of garments to be loaded into appliance
3
WARNING!
Never stop a tumble dry before the end of the drying cycle unless all items are quickly removed and spread out so that the heat is dissipated.
RISK OF FIRE! Installation
•This appliance is heavy. Care should be taken when moving it.
•When unpacking the appliance, check that it is not damaged. If in doubt, do not use it and contact the Service Centre.
•All packing and transit bolts must be removed before use. Serious damage can occur to the product and to property if this is not adhered to. See relevant section in the user manual.
•The final part of a tumble dryer cycle occurs without heat ( cool down cycle ) to ensure that the items are left at a temperature that ensures that items will not be damaged.
•Any electrical work required to install this appliance should be carried out by a qualified electrician or competent person.
•Care must be taken to ensure that the appliance does not stand on the electrical supply cable.
•If the machine is situated on a carpeted floor, please adjust the feet in order to allow air to circulate freely.
•After having installed the appliance, check that it is not pressing or standing on its electrical supply cable.

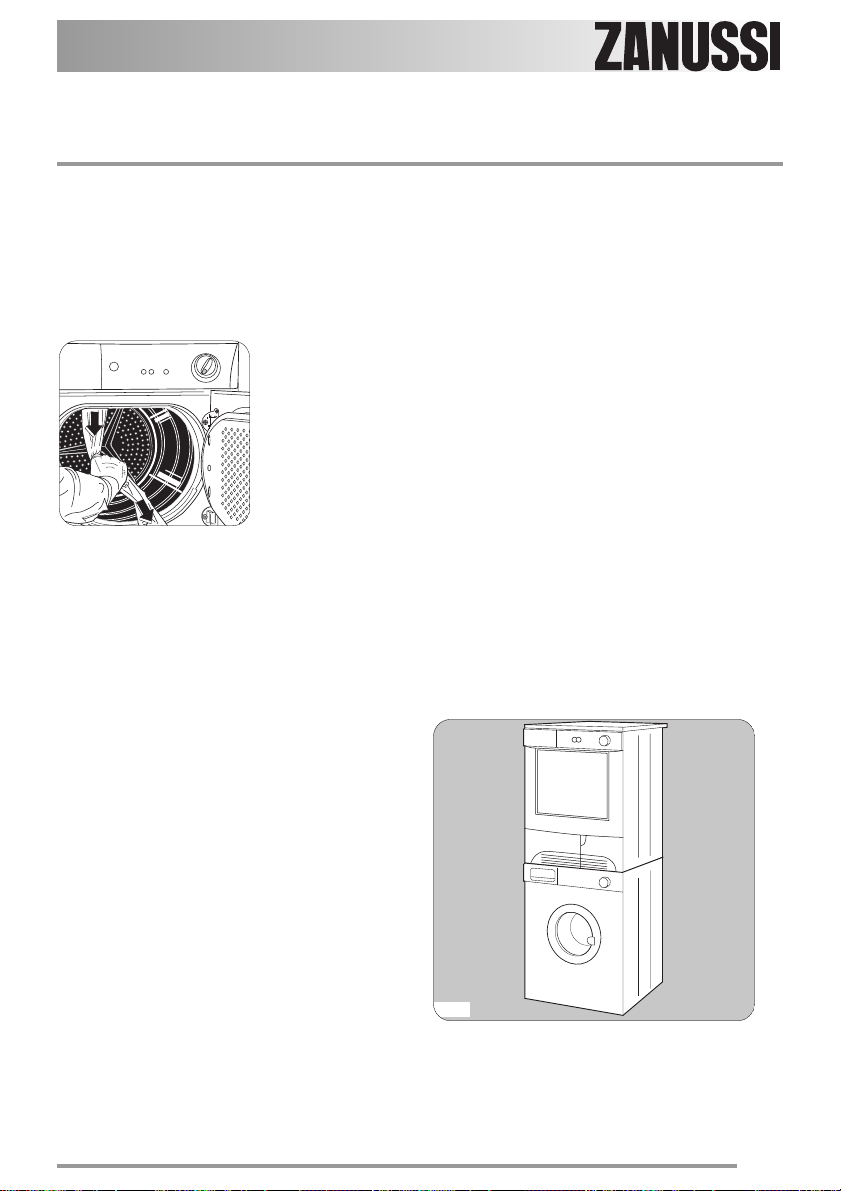

•If the tumble dryer is placed on top of a washing machine, it is compulsory touse the stacking kit (optional accessory).
Use
•This appliance is designed for domestic use. It must not be used for purposes other
than those for which it was designed.
•Only wash fabrics which are designed to be machine dried. Follow the instructions on each garment label.
•Do not dry unwashed items in the tumble dryer.
•Do not overload the appliance. See the relevant section in the user manual.
•Clothes which are dripping wet should not be placed in the dryer.
•Garments which have been in contact with volatile petroleum products should not be machine dried. If volatile cleaning fluids are used, care should be taken to ensure that the fluid is removed from the garment before placing in the machine.
•Never pull the power supply cable to remove the plug from the socket; always take hold of the plug itself.
•Never use the tumble dryer if the power supply cable, the control panel, the working surface or the base are damaged so that the inside of the tumble dryer is accessible.
•Fabric softeners, or similar products should be used as specified by the fabric softener instructions.
Child safety
•This machine is not intended for use by young children or infirm persons without supervision.
•Children should be supervised to ensure that they do not play with the appliance.
•The packaging components (e.g. plastic film, polystyrene) can be dangerous to children - danger of suffocation! Keep them out of children’s reach.
•Keep all detergents in a safe place out of children’s reach.
•Make sure that children or pets do not climb into the drum.
4
Description of the appliance
1 Control panel
2 Fluff filters
3 Rating Plate
4 Consenser Unit
5 Water reservoir
6 Adjustable feet
1
2
3
4
5
6
5
The control panel
Time selector dial
Start/Pause button
Programme/Time |
Textile button |
Indicator |
Start/Pause |
selector dial |
Low temperature |
lights |
button |
|
|
|
|
|
button |
|
|
Allows you to select time controlled drying. Turn the dial to the required time.
Pressing this button allows drying to be performed at a lower temperature, for delicate items.
can select 2 different options:
-Cotton Cycle: to be used for cotton,
-Synthetics to be used for synthetic or delicate items.
• Drying |
|
|
|
|
• Filter cleaning light |
|
|
|
|
|
|
|
|
||||||
• End of programme |
|
|
|
• Water reservoir fullt |
|
|
|||
• Condenser cleaning |
|
|
|
|
|
|
|||
|
|
|
|
|
|
||||
Press this button to start the dryer after having selected the programme and the options.
6
Drying programmes
Programme |
Max load |
Type of |
Options |
Description of programme |
|
kg |
laundry |
||||
|
|
|
|||
|
|
|
|
|
|
|
7 |
Cotton |
Textile |
If the TIME programme has been |
|
|
|
|
selected, programme duration time of |
||
|
|
|
• Synthetics |
15 minutes up to 150 minutes can be |
|
Time |
|
|
• Cotton |
set by intervals of 5 minutes or 10 |
|
|
|
• Delicate |
minutes. Drying thick or multi-layered |
||
|
3 |
Synthetics |
|
textiles, e.g. terry towelling items. |
|
|
|
|
|
|
|
Programme |
Time (min) |
|
|
|
|
|
(7 kg) |
Extra dry |
140 |
|
Cupboard |
125 |
||
Cotton |
Iron dry |
95 |
|
|
|
||
(3kg) |
Extra dry |
45 |
|
Cupboard |
35 |
||
Synthetics |
|||
Iron dry |
25 |
||
|
|
||
|
|
|
7
Before the first use
Ensure that the electrical connections comply with the installation instructions.
•Remove the polystryrene block and any material from the drum.
•Before using your tumble dryer for the first time, we recommend that you place a few damp cloths inside the appliance and dry for 30 minutes.
There may be dust inside a brand new tumble dryer.
Drying hints
Before loading the laundry
Never tumble dry the following: Particularly delicate items such as net curtains, woollen, silk, fabrics with metal trim, nylon tights, bulky materials such as anoraks, blankets, eiderdowns, sleeping bags, feather quilts and any items containing rubber foam or materials similar to rubber foam.
•Always follow the instructions on garment labels:
may be tumble dried
normal drying (high temperature)
delicate drying (low temperature)
do not tumble dry
•Close pillowcases and covers with fasteners to prevent small laundry items getting tangled inside them. Close press studs, zips and hooks and tie belts and apron strings.
•Sort laundry according to type and degree on drying required.
•Do not over-dry laundry, this avoids creasing and saves energy.
•Avoid drying dark clothes with light coloured fluffy items such as towels as they could attract the fluff.
•The laundry must be thoroughly spun before tumble drying.
•Easy-care items, too, e.g. shirts, should be briefly pre-spun before drying (depending on crease resistance approx. 30 seconds or using the special brief spin programme on your washing machine).
•Knitted textiles (knitted underwear) may shrink a little during drying. Please do not overdry items of this type. It is advisable to allow for shrinkage when choosing the size of new purchases.
•You can also put starched items into your dryer. However, to achieve the desired starched effect, choose the programme “iron dry”. To remove any starch residues, wipe out the internal drum after drying with a moist cloth and then rub it dry.
•To avoid a static charge when drying is completed, use either a fabric softener when you are washing the laundry or a fabric conditioner specifically for tumble dryers.
•Remove the laundry when the dryer has finished drying.
•If individual items are still damp after drying, set a brief post-drying time, but at least 30 minutes. This will be necessary particularly for multilayered items (e.g. collars, pockets, etc.).
8
