Zanussi ZFT 13JC USER MANUAL

GEBRAUCHSANLEITUNG

MODE D`EMPLOI

LIBRETTO D'ISTRUZIONI

INSRUCTION BOOK

GEFRIERSCHRANK

CONGÉLATEUR CONGELATORE

FREEZER

ZFT 13 JC

ZANUSSI

200380297 SV/Za/14. (06.)

Important safety information ...............................33

General safety precautions .................................33

Precautions for child safety .................................33

Safety precautions for installation .........................33

Safety precautions for isobutane ..........................33

Instructions for the User......................................34

General information ...........................................34

Description of the appliance, main parts ................34

Instructions for the Installer ................................35

Technical data ...................................................35

Transportation, unpacking ...............................35

Cleaning .......................................................35

Placement .....................................................35

Switch and indicators ......................................36

Operation and use ..........................................36

Installation .....................................................36

Adjusting the temperature ................................36

Freezing ........................................................36

Storing ..........................................................37

How to make ice cubes ...................................37

Some useful information and advice .....................37

Hints and ideas .................................................37

How to save energy ........................................37

The appliance and environment ........................37

Maintenance .....................................................37

Defrosting ......................................................37

Regular cleaning ............................................38

When the refrigerator is not in use .....................38

Trouble shooting ...............................................38

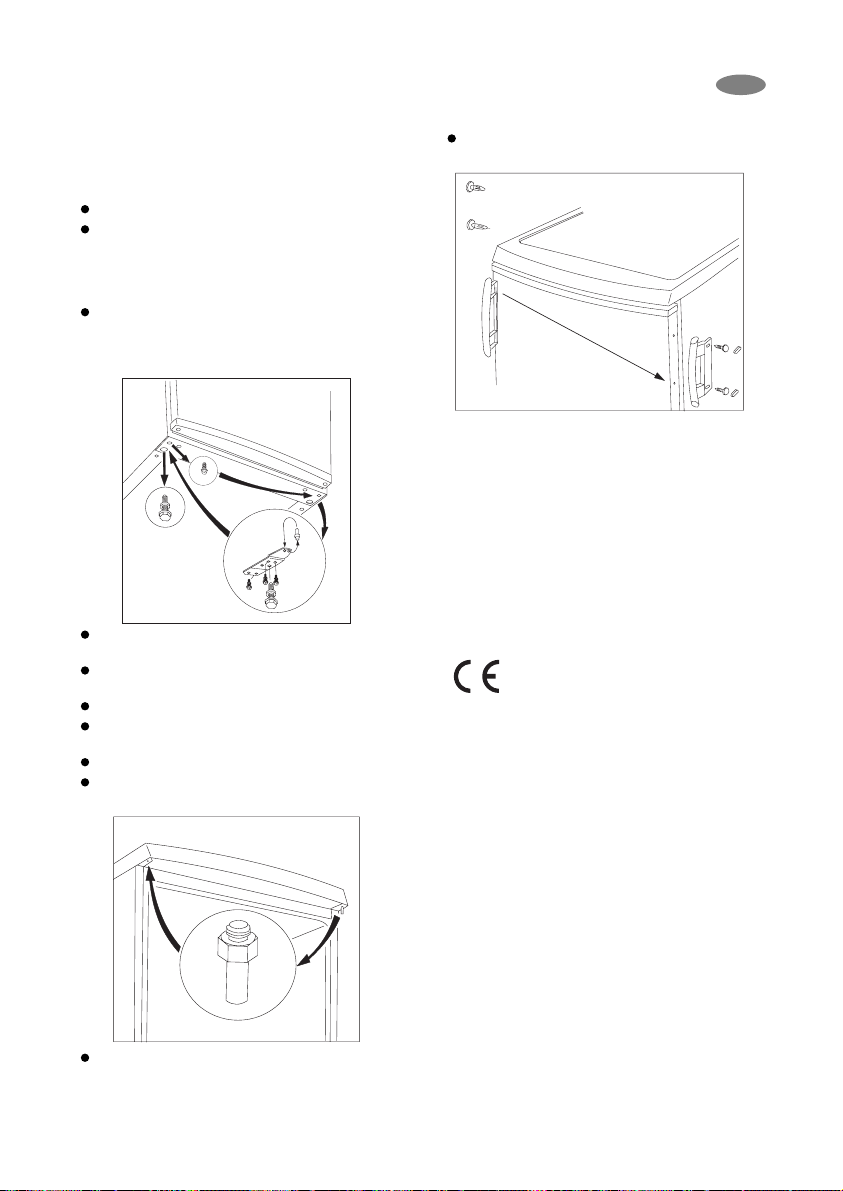

Change of door opening direction .....................39

Electrical connection ......................................39

Storage time chart..............................................40

Warranty and service ..........................................40

Guarantee conditions .........................................40

Service and spare parts .....................................40

Contents

Before installing and using the appliance read this user's instruction book carefully. It contains safety precautions, hints, information and ideas. If the refrigerator is used in compliance with the instructions written, it will operate properly and provide you with greatest satisfaction.

The symbols below help you to find things more easily:

Safety precautions

Warnings and information at this symbol serve safety for you and your appliance.

Hints, useful information

Environmental information

Symbol for ideas

At this symbol ideas can be found according to food and its storing.

The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

From the Electrolux Group. The world’s No.1 choice.

The Electrolux Group is the world's largest producer of powered appliances for kitchen, cleaning and outdoor use. More than 55 million Electrolux Group products (such as refrigerators, cookers, washing machines, vacuum cleaners, chain saws and lawn mowers) are sold each year to a value of approx. USD 14 billion in more than 150 countries around the world.

General safety precautions

Keep these instructions and they should remain at the appliance when moving away or changing owner.

This appliance is designed for storing and freezing food, domestic use according to these instructions only.

Specialised companies that are qualified to do so by the manufacturer must carry out service and repairs including repairing and changing the power cord. Accessory parts supplied by them should be used only for repairing. Otherwise the appliance can be damaged or can cause other damage or injury.

The appliance is out of circuit only in that case if the plug is removed from the socket. Before cleaning and maintenance always unplug it (do not get it by the cable). If the socket is difficult to reach, switch off the appliance by cutting off the current.

Power cord must not be lengthened.

Make sure that the power plug is not squashed or damaged by the back of the fridge/freezer.

- A damaged power plug may overheat and cause

a fire.

Do not place heavy articles or the fridge/freezer itself on the power cord.

- There is a risk of a short circuit and fire.

Do not remove the power cord by pulling on its lead, particularly when the fridge/freezer is being pulled out of its niche.

- Damage to the cord may cause a short-circuit,

fire and/or electric shock.

- If the power cord is damaged, it must be

replaced by a certified service agent or qualified service personnel.

If the power plug socket is loose, do not insert the power plug.

- There is a risk of electric shock or fire. When cleaning, defrosting, taking out frozen food

or ice tray do not use sharp, pointed or hard devices, as they can cause damage to the appliance.

Be careful not to allow liquids to the temperature control, switch gear and indicator respectively.

Ice and ice-cream can cause hurt if they are eaten immediately after removal from the frozen food compartment.

After dissolving frozen food must not be refrozen, it must be used up as soon as possible.

Store pre-packed frozen food in accordance with the frozen food manufacturer's instructions.

You must not make defrosting faster with any electric heating appliance or chemicals.

Do not make hot pot touch the plastic parts of the freezer.

Warning: if you place frozen foods on top of the product, the interaction of cold and vapor may produce water condensate in the space below the

top. If such water condensate drips on the electric components placed in that space, a short-circuit may occur and damage the product. Therefore it is forbidden to place frozen foods on top of the product.

Do not store flammable gas and liquid in the appliance because they may explode.

Do not put carbonated drinks, bottled drinks and bottled fruits into the freezer.

Precautions for child safety

Do not allow children to play with the packaging of the appliance. Plastic foil can cause suffocation.

Adults must handle the appliance. Do not allow children to play with it or its controlling parts.

If you are discarding the appliance pull the plug out of the socket, cut the connection cable (as close to the appliance as you can) and remove the door to prevent playing children to suffer electric shock or to close themselves into it.

Safety precautions for installation

Put the appliance to the wall to avoid touching or catching warm parts (compressor, condenser) to prevent possible burn.

When moving the appliance take care of the plug not to be in the socket.

When placing the appliance take care not to stand it on the power cord.

Adequate air circulation should be around the appliance, lacking this leads to overheating. To achieve sufficient ventilation follow the instructions relevant to installation.

Safety precautions for isobutane

Warning

The refrigerant of the appliance is isobutane (R600a) that is inflammable and explosive to a greater extent.

Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

Do not damage the refrigerant circuit. Do not use electrical appliances inside the food

storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

For the safety of life and property keep the precautions of these user's instructions as the manufacturer is not responsible for

damages caused by omission.

Important safety information

General information

The official designation of the appliance is home freezer. According to this the appliance is suitable for storing frozen and deep-frozen food, freezing products in quantity given in the user's instructions at home and making ice.

The appliance can meet the requirements of standards between different temperature limits according to the climate class. The letter symbol for climate class can be found on the data plate.

Instructions for the User

Description of the appliance, main parts

1. Freezer tray

2. Freezer (basket)

3. Storage boxes (baskets)

4. Data plate

5. Switches and indicators

6. Defrost water drain

7. Adjustable feet

8. Door sealing gasket

9. Ventilation grid

10. Condenser

11. Airflow direction

12. Compressor

Technical data

Instructions for the Installer

Model

Gross capacity (l) Net capacity (l) Width (mm) Height (mm) Depth (mm) Energy consumption (kWh/day)

(kWh/year) Energy class, according to EU Standards Freezing capacity (kg/24h) Rising time (h) Rated current (A) Weight (kg)

ZFT 13 JC

115

98 595 850 635

0,578

211

A 15 20

0,5

Transportation, unpacking

It is recommended to deliver the appliance in original packaging, in vertical position

considering the protective warning on packaging. After each transportation the appliance must not be

switched on for approx. 2 hours. Unpack the appliance and check if there are

damages on it. Report possible damages immediately to the place you bought it. In that case retain packaging.

Cleaning

Remove every adhesive tape, which ensure the parts not to move in the appliance.

Wash the inside of the appliance using lukewarm water and mild detergent. Use soft cloth.

After cleaning wipe out the inside of the appliance.

Placement

The ambient temperature has an effect on the energy consumption and proper operation of the appliance. When placing, take into consideration that it is practical to operate the appliance between ambient temperature limits according to the climate class that is given in the chart below and can be found in the data label.

Class of climate Ambient temperature

SN +10 ... +32 °C

N +16 ... +32 °C

ST +18 ... + 38 °C

If the ambient temperature goes below the lower data the temperature of the cooling compartment can go beyond the prescribed temperature.

If the ambient temperature goes beyond the upper data this means longer operating time of the compressor, increasing temperature in the freezer or increasing energy consumption.

When placing the appliance ensure that it stands level. This can be achieved by two adjustable feet (1) at the bottom in front. 1-1 piece of distance washers (2) are accessories of the adjustable feet. If levelling the appliance requires, these washers can be removed.

Do not stand the appliance on a sunny place or close to a radiator or cooker.

If it is unavoidable because of furnishing and the appliance has to be stood near a cooker take these minimum distances into consideration:

In case of gas or electric cooker 3 cm must be left, when it is less put a 0,5 - 1 cm non-flam insulation between the two appliances.

In case of oil or coal-fired stove the distance must be 30 cm since they give off more heat.

The refrigerator is designed to operate when it is totally pushed to the wall.

When placing the refrigerator keep minimal distances recommended in figure.

A : placing it under a wall-cupboard B : placing it freely
