RADIO GATE CONTROLLER ROB-01/12-24V
ZAMEL Sp. z o.o.
ul. Zielona 27, 43-200 Pszczyna, Poland
tel. +48 (32) 210 46 65, fax +48 (32) 210 80 04
www.zamelcet.com, e-mail: marketing@zamel.pl
TECHNICAL DATADESCRIPTION
MANUAL INSTRUCTION
Radio gate controller ROB-01/1224V is a universal (any gate manufacturer) operation controller of garage gates
and similar electric drives that enables
to control their operation by means of
EXTA FREE transmitters. It is possible to
control few things using one remote control - entry gate, garage gate, room lighting, etc. The device can be connected to
a suitable wire terminal used as an external antenna.
FEATURES
● cooperation with wireless EXTA FREE
system transmitters,
● operation control of entry gates, garage
gates, and other electric drives,
● universal low-voltage power supply
(12-24V ~/ ),
● 1 remote control can be used for differ-
ent drives (entry gate, garage) where
ROB-01/12-24V device is mounted,
● connection possibility of external wired
antenna,
● wide range of operation (up to 250 m),
● possibility of increasing operation range
by means of RTN-01 retransmitter.
ROB-01/12-24V
Input (supply) terminals: A1, A2
Input rated voltage: 12 ÷ 24 V ~/
Nominal power consumption: 0,2 W
Number of operation modes: 1
Number of channels: 1
Transmission: radio 868,32 MHz
Coding way: unidirectional
Coding: addressing transmission
Maximum number of transmitters: 32
Range: up to 250 m in the open area
Optic signalling of device operation: LED red diode
Additional antenna terminals: ANT
Relay output terminals: 11, 14
Relay parameters: 1NO 2 A / 250 V~ AC3 500 VA (dry contact)
Number of terminal clamps: 5
Section of connecting cables: up to 2,5 mm
Ambient temperature range: -10 ÷ +55 oC
Operating position: free
Casing mounting: installation cable box Ø60 mm
Casing protection degree: IP20 (EN 60529)
Protection level: III
Overvoltage category: II
Pollution degree: 2
Surge voltage: 1 kV (EN 61000-4-5)
Dimensions: 47,5 x 47,5 x 20 mm
Weight: 0,04 kg
Reference standard: EN 60669, EN 60950, EN 6091000
2
The device is designed for
single-phase installation and
must be installed in accordance with standards valid in a
particular country. The device
CAUTION!
this operating manual. Installation, connection
and control should be carried out by a qualied
electrician staff, who act in accordance with the
service manual and the device functions.
In case of casing dismantling an electric shock
may occur, and the guarantee is lost then.
Before installation make sure the connection
cables are not under voltage. The cruciform
head screwdriver 3,5 mm should be used to
instal the device. Improper transport, storage,
and use of the device inuence its wrong functioning. It is not advisable to instal the device in
the following cases: if any device par t is missing
or the device is damaged or deformed. In case
of improper functioning of the device contact
the producer.
should be connected according to the details included in
The symbol means selective
collecting of electrical and electronic
equipment.
It is forbidden to put the used
equipment together with other waste.

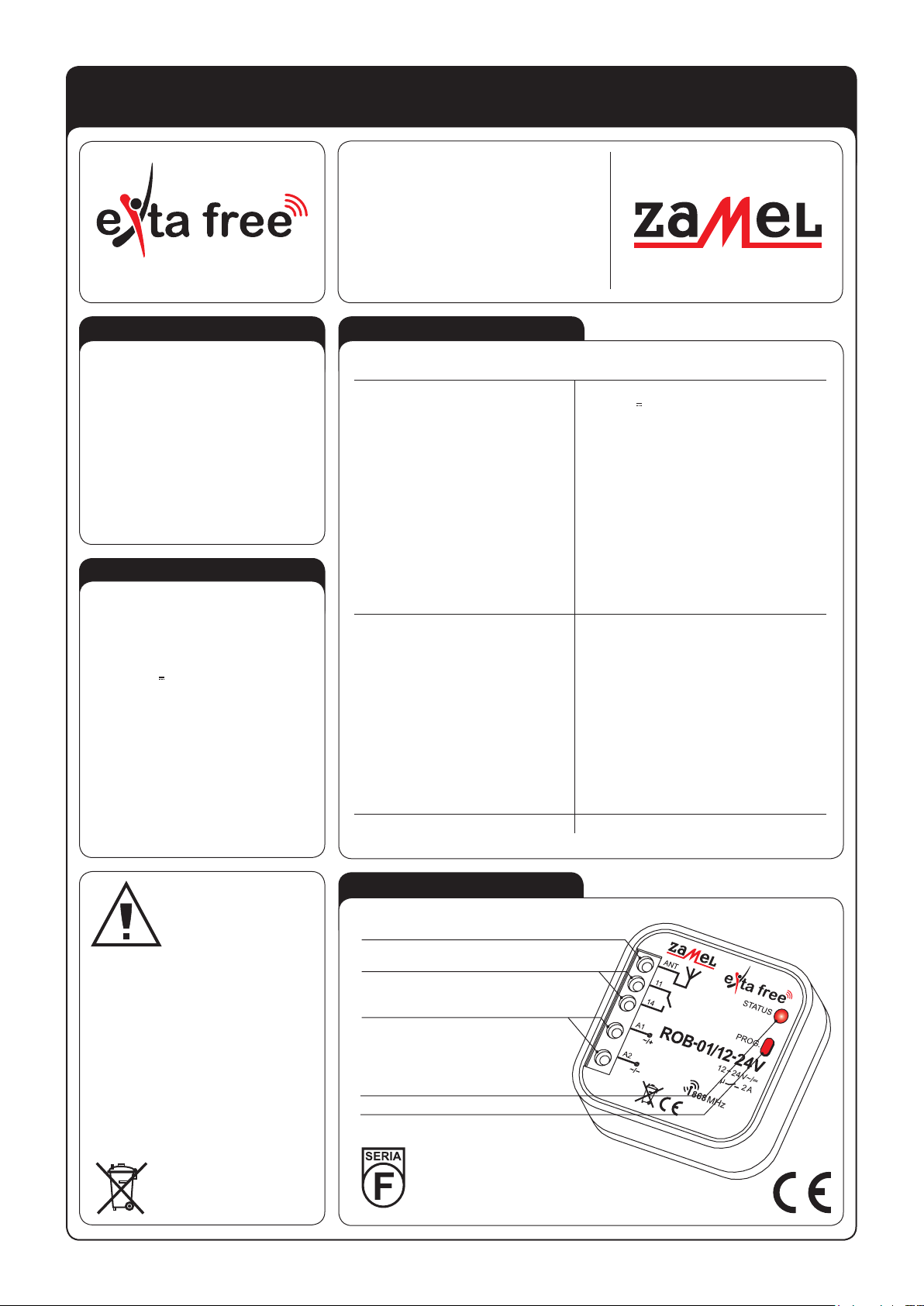

APPEARANCE
Antenna terminals (ANT)
Relay output terminals (11, 14)
Input (supply) terminals (A1, A2)
Optic signalling of receiver’s operation
Programming push-button
The ZAMEL company devices
which are characterised
with this sign can cooperate
with each other.
VER. 003_20.05.2011
CONNECTION MOUNTING, FUNCTIONING
~/+
12 ÷ 24 V ~/
–
~/
EXISTING
GATE
CONTROLLER
1. Disconnect power supply by the phase fuse, the circuit-breaker or the
switch-disconnector combined to the proper circuit.
2. Check if there is no voltage on connection cables by means of
a special measure equipment.
3. Connect the cables to ROB-01/12-24V device terminals in accordance
with the installing diagram.
4. Switch on the power supply from the mains.
The ROB-01/12-24V device should be mounted in the connection place
of manual gate drive release. The receiver operates in impulse mode - after receiving a signal from a programmed transmitter it short circuits relay
output terminals (11-14) for about 0,5 seconds.
To improve device operation range it is possi-
ble to connect an additional external antenna to
ANT terminal. A connecting cable of maximum
section 2,5 mm
2
can be the antenna.
REMOTE CONTROLS PROGRAMMING
Press PROG push-button of ROB-01 device
for a longer time till LED red diode switches on
(constant signal). Next release PROG push-button.
Press the transmitter’s push-button
for a longer time. LED red diode switches on
(rst signal pulsates, next the signal is constant).
Release the transmitter’s push-button.
LED red diode switches on (signal
pulsates) and then switches off
- THE TRANSMITTER IS ADDED.
An exemplary programming procedure with the use of P-257/2 remote controller. The procedure for the rest of radio EXTA FREE transmitters
is analogous. CAUTION: Every transmitter can cooperate with ROB-01 in a different mode, depending on how they were added to
the device. One transmitter can be added during one programming cycle. Full memory is signalled with pulsating LED red diode.
REMOTE CONTROL DELETION
Press PROG push-button of ROB-01 device
for a longer time.
APPLICATION
After 5 seconds LED red diode switches on
(signal pulsates) and then it switches off.
COOPERATION AND OPERATING RANGE
ROB-01/12-24V device
can be controlled by
means of any transmitter
of EXTA FREE system.
In this application
P-256/8 remote control
was used which can
control external lighting
(ROP-01), roller blinds
and a garage gate
(SRP-02).
Transmitter
RNK-02 200
RNK-04 200
P-256/8 250
P-257/4 (2) 200
RNM-10 250
RNP-01 180
CAUTION! The given range concerns open area - an ide-
al condition without any natural or articial obstacles.
If there are some obstacles between a transmitter and a receiver, it is advisable to decrease the range according to:
wood and plaster: from 5 to 20 %, bricks: from 10 to 40 %,
reinforced concrete: from 40 to 80 %,
metal: from 90 to 100%, glass: from 10 to 20 %
Over- and underground medium and high electrical power lines, radio and television transmitters, GSM transmitters set close to a device system have also a negative
inuence on the range.
Release the push-button in ROB-01
- MEMORY IS DELETED.
ROB-01/12-24V
m
m
m
m
m
m
Transmitter
ROB-01/12-24V
RNP-02 180
RNL-01 180
RTN-01 200
RCR-01 180
RTI-01 180
RXM-01 250
m
m
m
m
m
m
