Features:
➲ Compact Powered Subwoofer
➲ Integrated 600 Watt Amplifier
(200 Watts Program)
➲ 10-inch High Efficiency Woofer
➲ Max SPL 130dB Peak (125dB Continuous)
➲ Handles Line and Speaker Level Input
➲ Delivers Solid 50 – 100Hz bottom End
➲ Solid Plywood Cabinet Construction
➲ Perforated All-Metal Grille
➲ Integrated Handle and Standmount adaptor

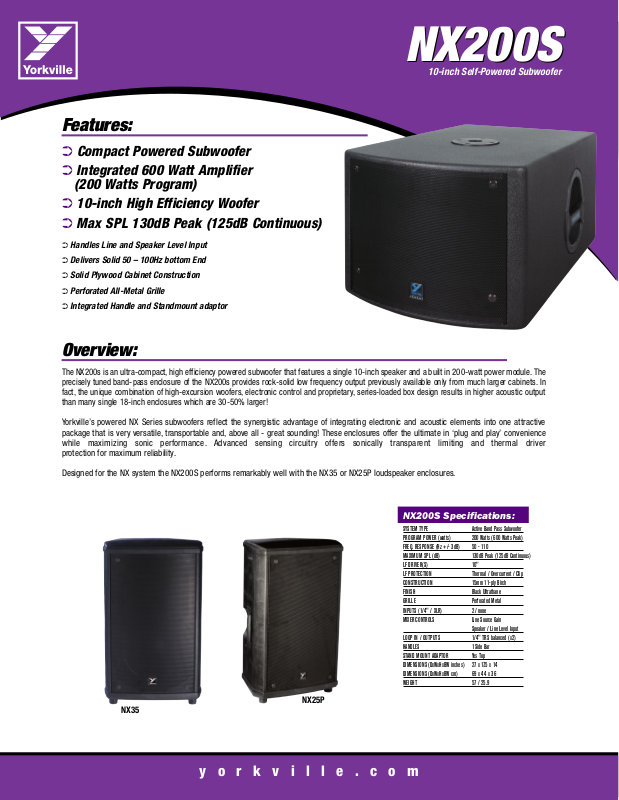

NX200S
NX200S
10-inch Self-Powered Subwoofer
Overview:
The NX200s is an ultra-compact, high efficiency powered subwoofer that features a single 10-inch speaker and a built in 200-watt power module. The
precisely tuned band-pass enclosure of the NX200s provides rock-solid low frequency output previously available only from much larger cabinets. In
fact, the unique combination of high-excursion woofers, electronic control and proprietary, series-loaded box design results in higher acoustic output
than many single 18-inch enclosures which are 30-50% larger!
Yorkville’s powered NX Series subwoofers reflect the synergistic advantage of integrating electronic and acoustic elements into one attractive
package that is very versatile, transportable and, above all - great sounding! These enclosures offer the ultimate in ‘plug and play’ convenience
while maximizing sonic performance. Advanced sensing circuitry offers sonically transparent limiting and thermal driver
protection for maximum reliability.
Designed for the NX system the NX200S performs remarkably well with the NX35 or NX25P loudspeaker enclosures.
NX200S Specifications:
SYSTEM TYPE Active Band Pass Subwoofer
PROGRAM POWER (watts) 200 Watts (600 Watts Peak)
FREQ. RESPONSE (Hz +/- 3dB) 50 - 110
MAXIMUM S PL (dB) 130dB Peak (125dB Continuous)
LF DRI VER(S) 10"
LF PROTE CTION Thermal / Overcurrent / Clip
CONSTR UCTION 15mm 11-ply Birch
FINISH Black Ultrathane
GRILLE Perforated Metal
INP UTS (1/4" / XLR) 2 / none
MIXER CONTROLS Line Source Gain
LOOP I N / OUTPUTS 1/4" TRS balanced (x2)
HAN DLES 1 Side Bar
STAND MOUNT ADAPTOR Yes Top
DIMENS IONS (DxWxHxBW inches) 27 x 17.5 x 14
DIMENS IONS (DxWxHxBW cm) 69 x 44 x 36
WEIGHT 57 / 25.9
Speaker / Line Level Input
NX35
NX25P
