SINGLE PACKAGE AIR CONDITIONER / GAS HEAT

16 SEER – R-410A – 1 PHASE 2 THRU 5 NOMINAL TONS - 208/230V

50 - 125 MBH HEAT INPUT

MODELS: PCG6*24 THRU 60

Due to continuous product improvement, specific ations are subject to change without notice.

Visit us on the web at

www.upgnet.com

Additional rating information can be found at:

www.ahridirectory.org

WARRANTY SUMMARY*

Extended 10-Years limited parts and compressor warranty Lifetime gas heat exchanger warranty with registration.

* Extended warranty requires online registration within 90 days of purchase for replacement or closing for new home purchase. See limited warranty certificate in User’s Information Manual for details.

TECHNICAL GUIDE

5219967-UTG-A-0716

DESCRIPTION

These packaged cooling/heating air condition ers are designed for outdoor installation. Only utility and duct connections are required at the point of installation.

FEATURES

• Operating Efficiency - All PCG6 model gas units provide a minimum AFUE of 81.0% in heating and 16.0 SEER, 12.0 EER rating for cooling operation. All models meet California Low-Nox requirements of 40 ng/joule emission level for Air Quality Management Districts.

• On Site Flexibility - All model sizes use a compact design cabinet in one of two footprints. This provides installer flexibility for placing the proper capacity unit on curbs or pads with the smallest footprint after the internal load has been determined. Field convertible duct connections from side flow to downflow allows the installer to have greater flexibility with less inventory.

• Lower Installation Cost - Installation time and costs are reduced by easy power and control wiring connections. The small base dimension means less space is required on the ground or roof. All units are completely wired, charged with R-410A and tested prior to shipment. Test stations using a state-of-the-art computerized process system are used to ensure product quality. Refrigerant charge and component part numbers are verified via computers during assembly. Vital run test statistics such as system pressure, motor currents, air velocity and temperature, unit vibration, and gas system safeties are monitored and recorded by the system to ensure unit performance. Equal size side supply and return duct connections allow easy connection of ducts to match low crawl spaces without transition pieces.

• Utility Connections Made Easy - Gas and electric utility access provided through the bottom or the side of the unit. Utility connections can be made quickly and with a mini mum amount of field labor. A field supplied and field installed electrical disconnect switch must be installed.

• Convertible Airflow Design - The bottom duct openings are covered when they leave the factory, ready to be used for a side supply/side return application. If a bottom supply/bottom return application is desired, simply remove the two panels from the bottom of the unit and place them in the side supply/ side return duct openings. No panel cutting is required and no accessory panel is necessary. Convertible airflow design allows maximum field flexibility and minimum inventory.

• Condensate Pan - A corrosion-resistant, long-lasting, watertight pan is positioned below the evaporator coil to collect and drain all condensate, preventing build-up of stagnant condensate. The condensate pan conforms to ASHRAE 6289 standards (Ventilation for Acceptable Indoor Air Quality).

• Condensate Drain - The 3/4 inch NPT female connection i s rigidly mounted to assure proper fit and leak tight seal.

• Durable Finish - The cabinet is made of G90 galvanized steel with a powder paint coating for appearance and protection. The pre-treated galvanized steel provides a better paintto-steel bond, which resists corrosion and rust creep. Powder paint finish ensure less fading when exposed to sunlight, and provides superior corrosion resistance (1000 hour salt spray tested).

Continued on next page.

FOR DISTRIBUTION USE ONLY - NOT TO BE USED AT POINT OF RETAIL SALE

Page 2

5219967-UTG-A-0716

• Full Perimeter Base Rails - The easily removable base rails provide a solid foundation for the entire unit and protects the unit during shipment. The rails provide fork lift access from all sides, and rigging holes are also provided so that an overhead crane can be used to place the units on a roof. On applications where the unit is placed on a pad, the base will keep the unit off the pad to deter corrosion. On applications where height is limited, the base rails may be removed by removing 2 screws in each corner.

• More Attractive Appearance - A single-piece top cover containing a top-discharge outdoor fan arrangement requires less square footage on installation and provides a wider variety of installations. The one-piece design adds greater water integrity. Rounded corners with water drip edges add to the attractive appearance.

• Top Discharge - The top-discharge outdoor fan does not disrupt neighboring areas or dry out vegetation surrounding the unit. The warm air from the top mounted fan is blown up and away from the structure and any landscaping. This allows compact location on multi-unit applications.

• Outdoor Coil Grille - All models utilize a stamped slotted design which provides superior impact protection against small objects during transit and after installation.

• Low Operating Sound Level - The upward air flow ca rries the normal operating noise up and away from the living area. The rigid top panel effectively isolates noise. Isolator mounted compressor and the rippled fins of the outdoor coil muffle the normal fan motor and compressor operating sounds. The uniquely formed base pan also aids in sound attenuation with its structural design. This design strategically places embossments in the pan for optimum strength and rigidity.

• Fan System - All models operate over a wide range of design conditions with an enhanced ECM indoor fan motor. These units easily match all types of applications and provide greater on-site flexibility to match comfort requirements. The cooling speed is factory-set and can be field-adjusted to a second speed. The heating speed is factory set to maintain mid point rise at the units heating input, but can be field adjusted. This allows maximum comfort conditions.

• Simple Control Circuit - A low voltage gas heat printed cir- cuit board contains a status/diagnostic indicator light. Field thermostat wiring connects to color coded leads using twist on wire connections. Cooling controls use contactor and relays for simple application and troubleshooting. Mate-nlock plug connectors are used. The electrical control box is not located in the compressor compartment. The controls are mounted to allow the separate access panel to be removed for trouble shooting and maintenance without affecting the normal system operating pressures. All wiring internal to the unit is color/number coded.

• Protected Compressor - The compressor is internally protected against high pressure and temperature. This is accomplished by the simultaneous operation of high pressure relief valve and a temperature sensor which protect the compressor if undesirable operating conditions occur.

• Pressure Switches - A high pressure switch is standard in all units. It is an automatic reset switch. When discharge pressure reaches 650 psi, the compressor de-energizes until pressure reaches 450 psi.

• Exclusive Coil Design - Grooved copper tubes and enhanced aluminum fin construction improves heat transfer for maximum efficiency and durability for long-lasting durability and efficient operation. Indoor coils use tin-coated copper tubing with aluminum fins for effective heat transfer.

• Heat Exchangers - Gas heat exchangers use corrosionresistant, stainless-steel tubular construction to provide longlife, trouble-free operation. Gas heat exchangers are offered with lifetime warranties as standard with registration.

• Post Purge Induced Draft Combustion - Exhausts combustion products from the heat exchanger upon completion of the heating cycle to prolong the heat exchanger life.

park To Burner Ignition - No pilot assembly required,

• S which provides more consistent ignition in gas heating mode. This ignition is highly reliable, durable and eliminates nuisance lockouts.

• Multi Port In-shot Burners - No field adjustment is required to mix the air and gas for natural gas or propane use. These burners are constructed of high-grade corrosion-resistant, aluminized steel.

• Low Maintenance - Long life, permanently lubricated outdoor and evaporator fan motor bearings need no annual maintenance, adding greater reliability to the unit. Slide-out blower assembly can be easily removed for cleaning.

• Easy Service Access - Individual access panels covering the electrical and gas controls makes servicing easy. Removing this panel will allow easy removal of the blower assembly for maintenance and ease of troubleshooting.

• Replacement Parts - The installer requires no special training to replace any of the components of these units and the number of new components have been reduced to minimize the inventory of unique parts.

• Loss of Charge Sensor (S1-2LC00024) - Kit provides Loss of Charge sensor and wiring to provide safe shutdown of compressor.

• Transition Curb Kits (S1-1TC01*) - Adapter kits to allow field use of pre-existing installed roof curbs to match PH*6 footprint to Affinity roof curbs, Carrier, Trane, or Goodman curb footprints. Curb adapters are optional for current generation Carrier replacements but are recommended for previous generation applications. Refer to the PC*6 price pages for more details.

2 Johnson Controls Unitary Products

Page 3

5219967-UTG-A-0716

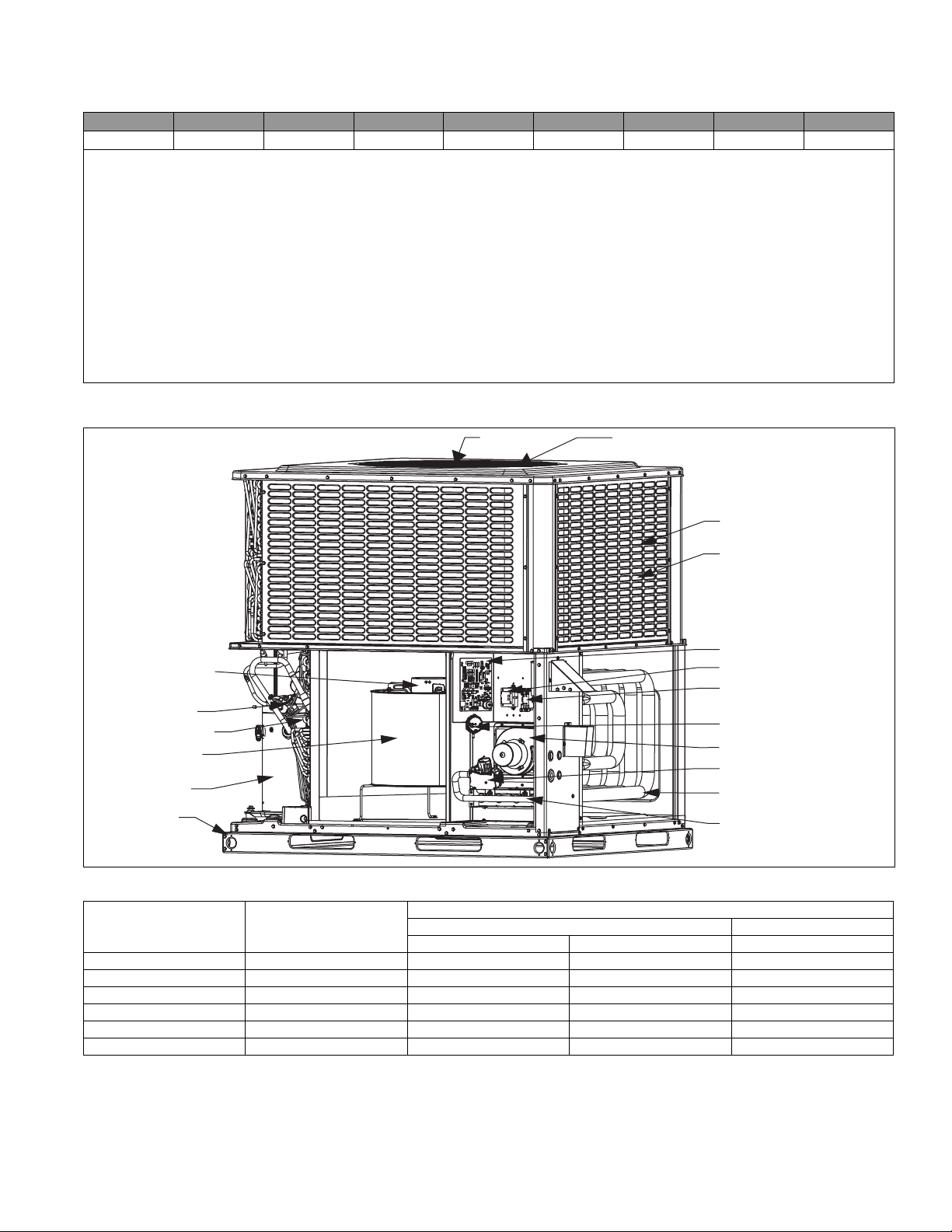

FAN MOTOR

OUTDOOR FAN

COIL GUARD PANEL

OUTDOOR COIL (Behind Panel)

CONTROL BOARD

TRANSFORMER

HIGH VOLTAGE CONTACTOR

PRESSURE SWITCH

DRAFT INDUCER BLOWER

GAS VALVE

BURNER ASSEMBLY

GAS HEAT EXCHANGER

BLOWER MOTOR

TXV

INDOOR COIL

INDOOR BLOWER

COMPRESSOR

REMOVABLE BASE RAILS

A0297-001

NOMENCLATURE

PCG 4 A 24 50 2 X 1 A

123456789

1. Model Family

PCG - packaged A/C with gas heat, PHG - packaged heat pump with gas heat, PCE - packaged A/C with electric heat, PHE - packaged heat pump with electric heat

2. Nominal Cooling Efficiency 4 = 14 SEER, 6 = 16 SEER, etc.

3. Cabinet Size

A = small 35 x 51, B = large 45 x 51

4. Nominal Air Conditioning Cooling Capacity BTUx1000

24 = 24,000 BTU, etc.

Examples:

PCG4B421002X1A is a packaged A/C with gas heat, 14 SEER, 3-1/2 ton, large cabinet, single-stage heat, 100,000 BTU gas heat, 230 volt, single phase, low-NOx model (first generation, first release)

5. Gas Heating Input BTU/Hr x 1000

050 = 50,000 BTU/Hr. input, blank = electric heat

6. Voltage-Phase-Frequency

2 = 208/230-1-60, 3=208/230-3-60, 4 = 460-3-60

7. NOx Approval

X = low-NOx, blank = not low-Nox

8. Generation Level

1 = first generation

9. Revision Level

A = original release, B = second release

COMPONENT LOCATION

UNIT LIMITATIONS

Johnson Controls Unitary Products 3

Model Unit Voltage

Min Max Max (°F)

PCG6A24 208/230-1-60 187 252 125 PCG6A30 208/230-1-60 187 252 125 PCG6B36 208/230-1-60 187 252 125 PCG6B42 208/230-1-60 187 252 125 PCG6B48 208/230-1-60 187 252 125 PCG6B60 208/230-1-60 187 252 125

Unit Limitations

Applied Voltage Outdoor DB Temp

Page 4

5219967-UTG-A-0716

ACCESSORIES

• Propane Conversion Kit (S1-1NP0704, S1-1NP0703) - Kit includes burner orifices, gas valve conversion and installation instructions necessary to field convert uni t from natural gas to propane.

• Economizer for Downflow Applications (S1-2EE04708424, S1-2EE04708524) - Modulating integrated economizer provides simultaneous operation between the mechanical cooling and economizer operation. Independent blade design ensures proper control and less than 1% leak rate. Includes hood and mesh bird screen filter integrated into the hood, dry bulb sensor and relief damper. Separate field accessories of single enthalpy and dual enthalpy are also available.

• Economizer for Horizontal Applications (S1-2EE04708624, S1-2EE04708724) - Modulating integrated economizer provides simultaneous operation between the mechanical cooling and economizer operation. Independent blade design ensures proper control and less than 1% leak rate. Includes hood and mesh bird screen filter integrated into the hood, dry bulb sensor and relief damper. Separate field accessories of single enthalpy and dual enthalpy are also available.

• Single/Dual Enthalpy Sensor (S1-2EC04700624) - Sensor replaces dry bulb sensor standard in economizer kit. Provides improved economizer operation by sensing the dry bulb temperature from outdoors plus the enthalpy content of the outdoor air.

• CO2 Sensor Kit (S1-2AQ04700824) - Sensor kit detects CO2 levels automatically and overrides the economizer when CO2 levels rise above the preset limits.

• Outdoor Temp. Sensor Kit (S1-2EC04700724S1-2EC04700724V) - Additional outdoor air temp sensor kit used with economizers.

• Filter/Frame Kit (Single Phase Only) (S1-1FF0602, S1-1FF0601) - Kit contains the necessary hardware to field install return air filters into the base unit. The filter rack is suitable for either 1" or 2" filters. (filters not supplied) This kit is available for single phase horizontal or vertical duct applications.

• Motorized Fresh Air Damper (S1-2MD04705224, S1-2MD04705124) - Designed for duct mounted side supply/return and unit mounted down supply/ return applications. Damper capable of providing 0% through 50% of outdoor air (field supplied). Closes on power loss, includes hood and screen assembly.

• Rectangle to Round (Horizontal) Adapter (S1-1AK0110, S1-1AK0111) - Kit includes one supply and one return air rectangle to round duct adapter. Adapters are preformed and designed to fit over current horizontal duct openings on the base unit. Transition is from rectangle to 12" round for the 1AK0110 kit and from rectangle to 14" round for the 1AK0111 kit.

• Rectangle to Round (Downflow) Adap ter (S1-1AK0108, S1-1AK0109) - Kit includes one supply and one return air rectangle to round duct adapter. Adapters are preformed and designed to fit into current downflow duct openings on the roof curb. Transition is from rectangle to 16" round for the 1AK0108 kit and from rectangle to 18" round for the 1AK0109 kit.

• Roof Curbs (S1-1RC0503, S1-1RC0501) - NRCA approved curbs provide proper fit to base unit for rooftop installations. Curbs are designed to be assembled through hi nge pins in each corner. Kit also provides seal strip to assure an air tight seal. These are 8 inch high roof curbs.

• Roof Curbs (S1-1RC0504, S1-1RC0502) - NRCA approved curbs provide proper fit to base unit for rooftop installations. Curbs are designed to be assembled through hi nge pins in each corner. Kit also provides seal strip to assure an air tight seal. These are 14 inch high roof curbs.

• Manual Outdoor Damper (S1-1FA0502, S1-1FA0501) - Provides 0% through 50% outdoor air capability (field adjustable). Designed for duct mounted side supply/return applications. Includes hood and screen assembly.

• Wall Thermostat - The units are designed to operate with

andard, 24-volt electronic and electro-mechanical thermo-

st stats. All units can operate with single stage heat/single stage cool thermostats - with or without the economizer.

• Low Ambient Kit (S1-2LA04700824) - Kit provides necessary hardware to convert unit to operate in cooling cycle down to 0º F. Standard unit operation 45º F.

• Transformer Kit (S1-2EC06700124) - Kit provides necessary hardware to provide single phase models from factory furnished 40 VA transformer capability to 75 VA transformer capability. (Required on installations with economizer or motorized damper).

• Base Rail Hole Cover Kit (S1-1HC0101) - Kit provides necessary hardware to close off openings in base rails to block off openings, i.e. prevent animal entrance.

4 Johnson Controls Unitary Products

Page 5

5219967-UTG-A-0716

GUIDE SPECIFICATIONS

GENERAL

Units shall be manufactured by Unitary Products in an ISO 9001 certified facility. Package units give you the flexibility and choices you need in today’s market. These packaged cooling/ heating air conditioners are designed for outdoor installation. Only utility and duct connections are required at the point of installation. The single-stage gas fired heaters have stainless steel tubular heat exchangers and spark to burner ignition. They are available in natural gas with field conversion to propane.

DESCRIPTION

Units shall be factory-assembled, single packaged, Electric Cooling/Gas Heating units, designed for outdoor installation. For SEER ratings, refer to technical literature. They shall have built in, equal size, field convertible duct connections for supply/ return or horizontal supply/return. The units shall be factory wired, piped, charged with R-410A Refrigerant and factory tested prior to shipment. All unit wiring shall be both numbered and color coded. All models shall be rated in accordance with DOE and AHRI test procedures for both heating and cooling operation. Units shall be CSA listed and classified to ANSI Z21.47/CAN/ CSA 2.3 standards and UL 1995/CAN/CSA No. 236-M90 standards.

UNIT CABINET

Unit cabinet shall be constructed of G-90 galvanized, powderpainted steel, certified at 1000 hours salt spray test per ASTMB117 standards. The unit top shall be a single piece design, with drip edges and no-seam corners to provide optimum water integrity. Unit shall have a rigidly mounted outdoor coil guard to provide protection from objects and personnel after installation. Indoor blower section shall be insulated with foil-faced or foam insulation, fastened to prevent insulation from entering the air stream. Cabinet panels shall be separate, easily removable for servicing and maintenance. Unit shall be built on a formed, design base pan, with embossments at critical points to add strength and rigidity and to aid in minimizing sound. Full perimeter base rails shall be provided to assure reliable transit of equipment, overhead rigging, for truck access and proper sealing on roof curb applications. Base rails shall be easily removable, when required to lower unit height. Filters shall be field installed, furnished and be accessible through a removable access door, sealed airtight. Units vertical discharge and return duct configuration shall be designed to fit between standard 24” O.C. beams without modification to building structure, duct work and base unit. Condensate pan shall be internally sloped and conform to ASHRAE 62-89 self-draining standards, with 3/4” NPT female ridged mount connection.

Indoor Blower Assembly - Fan shall be direct drive design. Fan wheel shall be double-inlet type with forward-curved blades, dynamically balanced to operate smoothly throu ghout the entire range of operation. Airflow design shall be constant air volume. Bearings shall be sealed and permanently lubricated for longer life and no maintenance. Fan assembly shall be a slide-out design for easy removal and cleaning. Indoor blower motors shall be equipped with a standard high efficiency brushless DC motor (constant torque) also known as a standard ECM motor.

Outdoor Fan Assembly - The outdoor fan shall be of the direct-driven propeller type, discharge air vertically, have aluminum blades riveted to corrosion resistant steel spider bracket and shall be statically balanced for smooth operation. The outdoor fan motor shall be totally enclosed with permanently lubricated bearings and internally protected against overload conditions.

REFRIGERANT COMPONENTS Compressors:

a. Shall be fully hermetic type, direct drive, internally pro-

tected with internal high-pressure relief and over temperature protection. The hermetic motor shall be suction gas cooled and have a voltage range of +/- 10% of the unit nameplate voltage.

b. Shall have internal isolation and sound muffling to mini-

mize vibration and noise, and be externally isolated on a dedicated, independent mounting.

Coils:

a. Indoor coils shall have aluminum plate fins mechanically

bonded to seamless internally enhanced tin-coated copper tubes with all joints brazed.

b. Indoor coil shall be of the direct expansion, draw through

design.

c. Outdoor coils shall have aluminum plate fins mechanically

bonded to seamless internally enhanced copper tubes with all joints brazed.

d. Outdoor coil shall be draw through design.

Refrigerant Circuit and Refrigerant Safety Components shall include:

a. Thermal expansion devices (TXVs) shall be factory

mounted and provided.

b. Filter/strainer to eliminate any foreign matter.

GAS HEATING SECTION (If Equipped)

Heat exchanger and exhaust system shall be constructed of corrosion-resistant materials and shall be designed with induced draft combustion with post purge logic and redundant main gas valve. The heat exchanger shall be of the tubular type, constructed of stainless steel for corrosion resistance and allowing minimum mixed air entering temperature of 40 ºF. Burners shall be of the in-shot type, constructed of aluminumized steel. All gas piping shall enter the unit cabinet at a single location through either the side or bo ttom, without any field modifications. An integrated control board shall provide timed control of indoor fan functioning and burner ignition. Heating section shall be provided with the following minimum protection:

a. Primary high-temperature limit switch. b. Induced draft pressure switch. c. Flame roll out switch(s) (manual reset).

d. Flame proving controls. All gas heat models will meet the California requirement for emissions of less than 40 nanograms per Joule (California

requirement on single phase models only).

Johnson Controls Unitary Products 5

Page 6

5219967-UTG-A-0716

PHYSICAL DAT A

MODELS

NOMINAL TONNAGE

AHRI Cooling Performance

Gross Capacity @ AHRI A point (MBH) 24.6 30.7 36.5 43.3 49.1 60.0 AHRI net capacity (MBH) 24.0 30.0 36.0 42.5 48.0 58.0 EER 12.5 12.5 12.5 12.5 12.5 12.0 SEER 16.0 16.0 16.0 16.0 16.0 16.0 Nominal CFM 800 1000 1200 1400 1600 2000 System power (KW) 2.0 2.4 3.0 3.4 3.6 4.6 Refrigerant type R410A R410A R410A R410A R410A R410A Refrigerant charge (lb-oz) 6-8 8-2 11-8 11-2 14-8 14-10

AHRI Gas Heat Performance

Heating model 50 75 50 75 65 100 65 100 65 100 125 65 100 125 Heat input - High Fire (KBtu) 50 75 50 75 65 100 65 100 65 100 125 65 100 125 Heat output - High Fire (KBtu) 40 60 40 60 52 80 52 80 52 80 101 52 80 101 Heat input - Low Fire (KBtu) 32 49 32 49 42 65 42 65 42 65 81 42 65 81 Heat output - Low Fire (KBtu) 26 39 26 39 34 53 34 53 34 53 66 34 53 66 AFUE% 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 81.0 No. burners 2 3 2 3 2 3 2 3 2 3 4 2 3 4 No. stages 2 2 2 2 2 2 2 2 2 2 2 2 2 2 Temperature Rise Range - High Fire (°F) 40-70 40-70 40-70 40-70 40-70 40-70 Temperature Rise Range - Low Fire (°F) 20-50 20-50 25-55 25-55 25-55 25-55 Max. Static Pressure w.c. 0.5 0.5 0.5 0.5 0.5 0.5 Max. Outlet Air Temp. (°F) 180 180 180 180 180 180 Gas piping connection (in.) 1/2 1/2 1/2 1/2 1/2 1/2

Dimensions (inches)

Length 51-1/4 51-1/4 51-1/4 51-1/4 51-1/4 51-1/4 Width 35-3/4 35-3/4 45-3/4 45-3/4 45-3/4 45-3/4 Height 47 47 49 49 53 55

Compressor

Type Scroll Scroll Scroll Scroll Scroll Scroll

Condenser Coil Data

Face area (Sq. Ft.) 15.1 15.1 19.5 19.5 23.8 25.9 Rows 1 2 2 2 2 2 Fins per inch 22 22 22 22 22 22 Tube diameter 3/8 3/8 3/8 3/8 3/8 3/8 Circuitry Type Interlaced Interlaced Interlaced Interlaced Interlaced Interlaced

Evaporator Coil Data

Face area (Sq. Ft.) 4.6 4.6 6.3 6.3 6.3 6.3 Rows 3 3 3 3 3 4 Fins per inch 16 16 16 16 16 16 Tube diameter 3/8 3/8 3/8 3/8 3/8 3/8 Circuitry Type Interlaced Interlaced Interlaced Interlaced Interlaced Interlaced Refrigerant control TXV TXV TXV TXV TXV TXV

Condenser Fan Data

Fan diameter (Inch) 24 24 26 26 26 26 Type Prop Prop Prop Prop Prop Prop Drive type Direct Direct Direct Direct Direct Direct No. speeds 1 1 1 1 1 1 Motor HP each 1/10 1/8 1/3 1/3 1/3 1/3 RPM 850 850 850 850 850 850 Nominal total CFM 2400 2400 3200 3200 3200 3200

Direct Drive Evaporator Fan Data

Fan Size (Inch) 11 x 8 11 x 8 11 x 10 11 x 10 11 x 10 11 x 10 Type Centrifugal Centrifugal Centrifugal Centrifugal Centrifugal Centrifugal Motor HP each 1/3 1/2 1/3 1/2 1/2 3/4 3/4 3/4 1 RPM 1200 Max 1200 Max 1200 Max 1200 Max 1200 Max 1200 Max Frame size 48 48 48 48 48 48

Filters

Quantity - Size

PCG6A24 PCG6A30 PCG6B36 PCG6B42 PCG6B48 PCG6B60

2.0 2.5 3.0 3.5 4.0 5.0

Field-supplied external filters must be sized so as not to exceed 300 fpm air velocity through disposable filters. For internal filter use, a filter rack kit is available. Consult the instructions supplied with that kit for replacement filter sizes. Filter sizes: A=20x20, B=20x30.

6 Johnson Controls Unitary Products

Page 7

COOLING PERFORMANCE DATA - 2 TON (LOW SPEED)

PACKAGED UNIT MODEL NO. PCG6A24

CONDENSER

ENTERING AIR

TEMPERATURE

55 / 45

65 / 55

75 / 63

85 / 69

95 / 75

105 / 83

115 / 89

125 / 95

ID CFM 400 550 700

IDDB 80 80 75 80 80 80 80 75 80 80 80 80 75 80 80

IDWB 57 62 62 67 72 57 62 62 67 72 57 62 62 67 72

T.C. 16.4 19.6 18.7 21.6 23.6 18.8 21.6 20.9 23.5 25.4 21.3 23.6 23.1 25.5 27.1 S.C. 16.3 14.8 12.9 12.9 10.7 18.8 18.0 15.3 15.1 12.1 21.2 21.2 17.7 17.3 13.5

K.W. 0.66 0.64 0.65 0.63 0.63 0.62 0.61 0.61 0.60 0.60 0.57 0.57 0.57 0.57 0.57

T.C. 15.7 18.5 17.8 20.3 22.6 17.9 20.2 19.6 22.2 24.4 20.1 21.9 21.5 24.1 26.2

S.C. 15.7 14.3 12.3 12.3 10.2 17.9 17.3 14.6 14.5 11.7 20.1 20.3 16.9 16.7 13.1

K.W. 0.75 0.74 0.74 0.73 0.72 0.71 0.70 0.70 0.69 0.68 0.67 0.67 0.67 0.66 0.65

T.C. 15.1 17.3 16.9 19.0 21.6 17.0 18.7 18.4 20.9 23.4 19.0 20.1 19.8 22.7 25.3 S.C. 15.0 13.8 11.8 11.7 9.8 17.0 16.6 14.0 14.0 11.2 19.0 19.4 16.2 16.2 12.7

K.W. 0.84 0.83 0.83 0.82 0.81 0.80 0.80 0.79 0.78 0.77 0.76 0.76 0.76 0.75 0.73

T.C. 14.1 16.0 15.6 17.5 19.6 15.9 17.3 16.9 19.0 21.2 17.8 18.6 18.2 20.5 22.8 S.C. 14.0 13.1 11.1 11.1 9.0 15.9 15.7 13.2 13.3 10.4 17.7 18.2 15.4 15.4 11.8

K.W. 0.96 0.95 0.95 0.94 0.94 0.92 0.92 0.91 0.90 0.90 0.88 0.88 0.88 0.86 0.86

T.C. 13.0 14.7 14.4 16.0 17.7 14.8 15.9 15.4 17.2 19.0 16.5 17.1 16.5 18.4 20.2 S.C. 13.0 12.4 10.4 10.6 8.1 14.7 14.7 12.4 12.6 9.6 16.4 17.1 14.5 14.6 11.0

K.W. 1.08 1.08 1.08 1.06 1.07 1.04 1.04 1.04 1.02 1.03 1.00 1.00 1.00 0.98 1.00

T.C. 12.0 13.1 12.8 14.6 15.8 13.5 14.3 13.7 15.6 17.0 15.0 15.5 14.5 16.5 18.1 S.C. 12.0 11.4 9.6 9.8 7.3 13.5 13.3 11.4 11.8 8.7 15.0 15.1 13.2 13.8 10.0

K.W. 1.26 1.25 1.25 1.23 1.23 1.21 1.20 1.21 1.19 1.20 1.17 1.16 1.17 1.15 1.17

T.C. 11.0 11.6 11.4 13.3 14.0 12.3 12.8 12.0 14.0 15.0 13.6 13.9 12.6 14.7 16.0 S.C. 11.0 10.5 8.8 9.1 6.5 12.3 11.8 10.4 11.0 7.8 13.5 13.2 11.9 12.9 9.0

K.W. 1.42 1.41 1.41 1.39 1.40 1.37 1.37 1.37 1.35 1.37 1.33 1.32 1.33 1.32 1.33

T.C. 10.0 10.1 9.9 11.9 12.1 11.1 11.2 10.3 12.4 13.0 12.1 12.3 10.7 12.8 14.0 S.C. 10.0 9.6 8.0 8.4 5.7 11.0 10.4 9.4 10.2 6.9 12.1 11.3 10.7 12.1 8.1

K.W. 1.59 1.58 1.58 1.55 1.56 1.54 1.53 1.54 1.52 1.53 1.49 1.48 1.50 1.48 1.50

5219967-UTG-A-0716

COOLING PERFORMANCE DATA - 2 TON (HIGH SPEED)

PACKAGED UNIT MODEL NO. PCG6A24

CONDENSER

ENTERING AIR

TEMPERATURE

55 / 45

65 / 55

75 / 63

85 / 69

95 / 75

105 / 83

115 / 89

125 / 95

Johnson Controls Unitary Products 7

ID CFM 600 800 1000

IDDB 80 80 75 80 80 80 80 75 80 80 80 80 75 80 80

IDWB 57 62 62 67 72 57 62 62 67 72 57 62 62 67 72

T.C. 26.0 28.6 28.4 30.0 31.7 28.0 29.9 29.7 31.2 33.3 30.1 31.2 30.9 32.5 34.9

S.C. 25.3 22.1 18.7 18.3 14.8 27.3 24.9 21.1 20.5 16.2 29.3 27.8 23.5 22.6 17.6

K.W. 1.27 1.29 1.29 1.30 1.32 1.25 1.26 1.26 1.28 1.30 1.24 1.24 1.24 1.25 1.27

T.C. 24.5 26.7 27.1 28.5 30.4 26.5 28.1 28.3 29.9 31.8 28.5 29.5 29.5 31.4 33.2

S.C. 23.9 21.2 18.1 17.7 14.3 26.0 24.3 20.5 19.9 15.7 28.1 27.4 22.9 22.2 17.2

K.W. 1.41 1.43 1.42 1.44 1.47 1.40 1.40 1.40 1.42 1.44 1.38 1.38 1.38 1.40 1.42

T.C. 23.0 24.7 25.8 27.1 29.2 24.9 26.2 26.9 28.7 30.3 26.9 27.7 28.1 30.3 31.5

S.C. 22.4 20.3 17.6 17.1 13.8 24.6 23.7 20.0 19.4 15.2 26.8 27.0 22.4 21.7 16.7

K.W. 1.56 1.57 1.56 1.58 1.61 1.55 1.55 1.54 1.56 1.59 1.53 1.52 1.52 1.54 1.57

T.C. 21.5 23.1 23.7 25.6 27.2 23.4 24.6 25.0 27.0 28.5 25.3 26.0 26.2 28.4 29.8

S.C. 21.0 19.6 16.6 16.5 13.1 23.0 22.5 19.2 18.8 14.5 25.0 25.4 21.8 21.1 15.9

K.W. 1.75 1.76 1.75 1.77 1.80 1.73 1.74 1.73 1.75 1.78 1.72 1.71 1.70 1.73 1.76

T.C. 20.1 21.5 21.6 24.2 25.3 21.9 22.9 23.0 25.4 26.7 23.7 24.3 24.4 26.6 28.2

S.C. 19.6 18.8 15.6 15.8 12.5 21.4 21.2 18.4 18.2 13.8 23.1 23.7 21.1 20.6 15.1

K.W. 1.94 1.95 1.94 1.96 2.00 1.92 1.93 1.91 1.94 1.98 1.91 1.91 1.88 1.92 1.96

T.C. 18.5 19.7 19.4 21.9 23.2 19.7 20.7 20.4 22.6 24.3 21.0 21.7 21.4 23.3 25.5

S.C. 18.1 17.8 14.5 14.8 11.6 19.3 19.5 16.8 17.0 12.8 20.4 21.1 19.1 19.2 14.0

K.W. 2.22 2.22 2.21 2.23 2.27 2.20 2.20 2.18 2.21 2.25 2.18 2.18 2.16 2.19 2.23

T.C. 17.0 18.0 17.3 19.7 21.1 17.6 18.6 17.9 19.9 22.0 18.3 19.1 18.5 20.0 22.9

S.C. 16.6 16.9 13.5 13.8 10.6 17.2 17.8 15.3 15.8 11.8 17.8 18.6 17.1 17.8 13.1

K.W. 2.49 2.48 2.47 2.50 2.53 2.46 2.46 2.45 2.47 2.52 2.44 2.44 2.42 2.45 2.50

T.C. 15.5 16.3 15.2 17.5 19.1 15.5 16.5 15.4 17.1 19.7 15.5 16.6 15.5 16.8 20.4

S.C. 15.1 15.9 12.4 12.8 9.7 15.1 16.0 13.8 14.6 10.9 15.2 16.2 15.2 16.4 12.1

K.W. 2.76 2.75 2.74 2.76 2.80 2.73 2.73 2.71 2.73 2.78 2.70 2.71 2.68 2.71 2.77

Page 8

5219967-UTG-A-0716

COOLING PERFORMANCE DATA - 2.5 TON (LOW SPEED)

PACKAGED UNIT MODEL NO. PCG6A30

CONDENSER

ENTERING AIR

TEMPERATURE

55 / 45

65 / 55

75 / 63

85 / 69

95 / 75

105 / 83

115 / 89

125 / 95

ID CFM 550 750 950

IDDB 80 80 75 80 80 80 80 75 80 80 80 80 75 80 80

IDWB 57 62 62 67 72 57 62 62 67 72 57 62 62 67 72

T.C. 21.3 24.1 24.3 26.9 28.5 24.0 26.2 26.1 28.7 30.6 26.7 28.3 27.9 30.6 32.6 S.C. 21.1 19.0 16.2 16.5 13.2 23.7 22.5 18.9 19.0 14.7 26.4 26.0 21.6 21.4 16.1

K.W. 1.12 1.10 1.10 1.09 1.08 1.10 1.10 1.10 1.08 1.08 1.09 1.09 1.09 1.08 1.08

T.C. 19.6 22.2 22.5 24.9 27.1 21.9 24.0 24.1 26.7 29.2 24.3 25.9 25.7 28.5 31.4 S.C. 19.4 17.9 15.3 15.6 12.6 21.7 21.2 17.8 18.1 14.1 24.0 24.6 20.4 20.5 15.7

K.W. 1.28 1.27 1.27 1.25 1.24 1.26 1.26 1.26 1.24 1.24 1.24 1.24 1.24 1.23 1.23

T.C. 17.9 20.3 20.6 23.0 25.6 19.9 21.9 22.0 24.7 27.8 21.9 23.4 23.4 26.4 30.1 S.C. 17.7 16.7 14.3 14.7 12.0 19.6 19.9 16.8 17.2 13.6 21.6 23.2 19.2 19.6 15.3

K.W. 1.44 1.43 1.43 1.40 1.40 1.42 1.41 1.41 1.40 1.40 1.40 1.40 1.40 1.39 1.39

T.C. 17.1 18.8 19.0 21.5 23.6 18.5 19.9 20.3 22.9 25.8 19.9 21.0 21.5 24.2 27.9 S.C. 16.9 16.0 13.6 13.8 11.1 18.3 18.4 15.9 16.1 12.6 19.7 20.8 18.1 18.3 14.1

K.W. 1.64 1.63 1.63 1.61 1.62 1.62 1.62 1.62 1.60 1.62 1.60 1.61 1.61 1.59 1.61

T.C. 16.3 17.3 17.5 19.9 21.7 17.1 17.9 18.5 21.0 23.8 18.0 18.6 19.6 22.1 25.8 S.C. 16.1 15.3 12.9 12.9 10.2 17.0 16.9 15.0 15.0 11.6 17.8 18.4 17.0 17.1 12.9

K.W. 1.85 1.84 1.84 1.82 1.84 1.83 1.83 1.83 1.81 1.83 1.81 1.82 1.82 1.80 1.83

T.C. 14.3 15.2 15.4 17.5 19.7 14.9 15.7 16.2 18.3 21.3 15.5 16.2 17.0 19.0 22.9 S.C. 14.1 13.8 11.9 11.9 9.3 14.7 14.9 13.6 13.8 10.6 15.3 16.0 15.2 15.7 11.9

K.W. 2.14 2.13 2.13 2.12 2.13 2.12 2.12 2.12 2.10 2.13 2.10 2.11 2.11 2.09 2.13

T.C. 12.3 13.1 13.4 15.2 17.7 12.7 13.5 13.9 15.6 18.8 13.0 13.9 14.4 16.0 20.0 S.C. 12.2 12.4 11.0 11.0 8.5 12.5 13.1 12.2 12.7 9.7 12.9 13.7 13.5 14.3 10.9

K.W. 2.43 2.42 2.41 2.40 2.42 2.40 2.40 2.40 2.39 2.42 2.38 2.38 2.39 2.37 2.41

T.C. 10.4 11.0 11.3 12.8 15.7 10.5 11.3 11.6 12.9 16.4 10.6 11.6 11.9 13.1 17.1 S.C. 10.2 10.9 10.0 10.1 7.6 10.4 11.2 10.9 11.5 8.7 10.5 11.5 11.7 12.9 9.9

K.W. 2.71 2.71 2.70 2.69 2.71 2.69 2.69 2.69 2.67 2.70 2.66 2.66 2.67 2.66 2.70

COOLING PERFORMANCE DATA - 2.5 TON (HIGH SPEED)

PACKAGED UNIT MODEL NO. PCG6A30

CONDENSER

ENTERING AIR

TEMPERATURE

55 / 45

65 / 55

75 / 63

85 / 69

95 / 75

105 / 83

115 / 89

125 / 95

ID CFM 750 950 1150

IDDB 80 80 75 80 80 80 80 75 80 80 80 80 75 80 80

IDWB 57 62 62 67 72 57 62 62 67 72 57 62 62 67 72

T.C. 31.5 35.1 34.4 39.1 42.4 34.1 37.4 36.7 40.7 44.1 36.8 39.7 38.9 42.3 45.7

S.C. 31.2 27.4 24.0 24.4 19.6 33.8 31.2 26.8 26.6 20.8 36.4 34.9 29.5 28.9 21.9

K.W. 1.63 1.64 1.64 1.68 1.69 1.73 1.74 1.73 1.76 1.78 1.82 1.84 1.82 1.85 1.86

T.C. 29.3 33.1 32.4 36.7 40.8 31.7 35.0 34.4 38.4 42.6 34.2 36.9 36.4 40.0 44.4

S.C. 29.0 26.1 22.7 23.0 18.7 31.4 29.6 25.2 25.3 20.1 33.9 33.0 27.7 27.6 21.5

K.W. 1.81 1.83 1.83 1.86 1.88 1.91 1.92 1.91 1.94 1.97 2.00 2.01 2.00 2.03 2.06

T.C. 27.1 31.0 30.4 34.4 39.2 29.3 32.6 32.1 36.0 41.2 31.6 34.1 33.9 37.6 43.1

S.C. 26.8 24.8 21.3 21.6 17.9 29.1 27.9 23.6 23.9 19.4 31.3 31.1 26.0 26.3 21.0

K.W. 1.98 2.01 2.01 2.03 2.07 2.08 2.10 2.10 2.12 2.16 2.18 2.18 2.18 2.21 2.26

T.C. 25.8 28.8 28.4 32.0 36.6 27.5 30.0 29.8 33.4 38.4 29.3 31.1 31.1 34.8 40.2

S.C. 25.5 23.6 20.2 20.4 16.9 27.2 26.6 22.4 22.7 18.3 29.0 29.5 24.6 25.0 19.7

K.W. 2.22 2.25 2.24 2.27 2.31 2.32 2.33 2.33 2.36 2.40 2.42 2.42 2.42 2.45 2.49

T.C. 24.5 26.6 26.4 29.7 34.1 25.7 27.4 27.4 30.8 35.6 26.9 28.2 28.3 31.9 37.2

S.C. 24.2 22.4 19.1 19.2 15.8 25.4 25.2 21.2 21.5 17.1 26.6 27.9 23.2 23.8 18.3

K.W. 2.46 2.49 2.47 2.51 2.55 2.56 2.57 2.56 2.60 2.64 2.65 2.65 2.65 2.69 2.73

T.C. 22.3 23.9 23.8 26.7 30.7 23.1 24.3 24.4 27.5 31.8 23.8 24.8 24.9 28.3 33.0

S.C. 22.1 21.0 17.9 18.0 14.5 22.8 22.8 19.7 20.2 15.7 23.6 24.6 21.5 22.3 16.8

K.W. 2.81 2.83 2.82 2.85 2.89 2.91 2.92 2.91 2.94 2.98 3.01 3.01 3.00 3.03 3.07

T.C. 20.2 21.2 21.3 23.7 27.4 20.5 21.4 21.5 24.2 28.1 20.8 21.6 21.6 24.7 28.9

S.C. 20.0 19.7 16.6 16.8 13.2 20.3 20.5 18.2 18.9 14.3 20.6 21.3 19.8 21.0 15.4

K.W. 3.16 3.17 3.16 3.19 3.22 3.25 3.26 3.24 3.27 3.31 3.35 3.35 3.33 3.36 3.40

T.C. 18.0 18.5 18.8 20.8 24.1 18.0 18.4 18.5 21.0 24.5 17.9 18.3 18.3 21.1 24.9

S.C. 17.9 18.3 15.4 15.5 11.9 17.8 18.2 16.8 17.6 12.9 17.7 18.1 18.1 19.6 14.0

K.W. 3.50 3.51 3.50 3.52 3.56 3.59 3.60 3.58 3.60 3.65 3.69 3.69 3.66 3.69 3.74

8 Johnson Controls Unitary Products

Page 9

COOLING PERFORMANCE DATA - 3 TON (LOW SPEED)

PACKAGED UNIT MODEL NO. PCG6B36

CONDENSER

ENTERING AIR

TEMPERATURE

55 / 45

65 / 55

75 / 63

85 / 69

95 / 75

105 / 83

115 / 89

125 / 95

ID CFM 600 800 1000

IDDB 80 80 75 80 80 80 80 75 80 80 80 80 75 80 80

IDWB 57 62 62 67 72 57 62 62 67 72 57 62 62 67 72

T.C. 44.8 53.4 53.8 59.3 63.3 48.0 53.1 53.5 57.4 60.9 51.2 52.9 53.1 55.6 58.6 S.C. 43.0 36.3 31.6 32.1 25.9 46.3 40.5 35.1 33.7 26.5 49.7 44.7 38.6 35.3 27.1

K.W. 3.11 2.90 2.90 2.86 2.82 3.05 2.86 2.86 2.82 2.79 2.98 2.82 2.82 2.79 2.76

T.C. 42.7 50.3 50.5 56.2 61.0 45.6 50.0 50.0 54.9 59.0 48.4 49.7 49.5 53.7 56.9 S.C. 40.9 34.8 29.8 30.5 24.6 43.9 38.7 33.2 32.6 25.6 47.0 42.7 36.5 34.8 26.7 K.W. 3.39 3.18 3.16 3.13 3.08 3.32 3.13 3.12 3.09 3.05 3.25 3.08 3.09 3.05 3.02

T.C. 40.6 47.2 47.3 53.1 58.7 43.2 46.8 46.6 52.4 57.0 45.7 46.4 45.9 51.8 55.3 S.C. 38.8 33.2 28.0 28.8 23.2 41.5 37.0 31.2 31.6 24.8 44.3 40.8 34.4 34.3 26.3 K.W. 3.66 3.45 3.42 3.39 3.34 3.59 3.40 3.39 3.36 3.31 3.52 3.35 3.35 3.32 3.28

T.C. 38.9 44.7 43.9 50.1 54.6 40.7 43.8 43.0 49.4 53.1 42.5 43.0 42.1 48.7 51.5 S.C. 36.6 31.7 26.5 27.3 21.5 38.9 35.6 29.6 30.3 22.9 41.2 39.6 32.7 33.3 24.4 K.W. 4.01 3.84 3.78 3.75 3.68 3.94 3.77 3.74 3.71 3.65 3.87 3.70 3.70 3.67 3.62

T.C. 37.1 42.2 40.6 47.2 50.5 38.2 40.8 39.5 46.4 49.1 39.3 39.5 38.4 45.6 47.8 S.C. 34.5 30.1 24.9 25.7 19.7 36.3 34.2 27.9 29.0 21.1 38.1 38.3 30.9 32.3 22.5 K.W. 4.35 4.23 4.13 4.11 4.03 4.28 4.14 4.09 4.06 3.99 4.22 4.05 4.05 4.01 3.96

T.C. 33.0 36.8 35.8 42.3 45.5 33.6 35.7 34.5 40.8 43.7 34.2 34.7 33.2 39.3 41.8 S.C. 29.9 27.1 22.0 23.3 17.5 31.5 30.3 25.0 26.3 18.7 33.2 33.6 28.0 29.3 19.9 K.W. 4.77 4.69 4.61 4.60 4.52 4.70 4.61 4.58 4.55 4.48 4.63 4.53 4.55 4.50 4.44

T.C. 29.0 31.5 31.2 37.6 40.7 29.2 30.7 29.7 35.4 38.4 29.3 30.0 28.1 33.2 36.0 S.C. 25.4 24.1 19.2 20.9 15.3 26.9 26.6 22.2 23.6 16.3 28.4 29.1 25.2 26.3 17.3 K.W. 5.19 5.14 5.08 5.07 4.99 5.11 5.07 5.06 5.02 4.95 5.04 5.00 5.03 4.97 4.91

T.C. 25.0 26.3 26.6 32.8 35.9 24.7 25.8 24.8 30.0 33.1 24.4 25.3 23.1 27.1 30.2 S.C. 20.9 21.2 16.4 18.6 13.1 22.2 22.8 19.4 21.0 13.9 23.6 24.5 22.4 23.4 14.7 K.W. 5.60 5.58 5.55 5.54 5.46 5.52 5.53 5.53 5.49 5.42 5.44 5.48 5.51 5.44 5.38

COOLING PERFORMANCE DATA - 3 TON (HIGH SPEED)

PACKAGED UNIT MODEL NO. PCG6B36

CONDENSER

ENTERING AIR

TEMPERATURE

55 / 45

65 / 55

75 / 63

85 / 69

95 / 75

105 / 83

115 / 89

125 / 95

ID CFM 1000 1200 1400

IDDB 80 80 75 80 80 80 80 75 80 80 80 80 75 80 80

IDWB 57 62 62 67 72 57 62 62 67 72 57 62 62 67 72

T.C. 45.0 53.3 52.6 55.8 57.3 47.0 52.5 51.1 55.3 58.2 47.7 50.3 48.4 53.5 57.8 S.C. 43.4 37.3 32.3 31.7 24.7 45.7 38.9 33.9 30.2 25.0 46.6 39.2 34.2 27.4 23.8 K.W. 3.40 3.44 3.43 3.44 3.41 2.89 2.90 2.89 2.90 2.86 2.91 2.91 2.89 2.90 2.87

T.C. 43.8 51.2 50.1 54.9 57.1 46.1 51.0 49.3 54.5 57.7 47.0 49.5 47.1 52.8 57.0 S.C. 43.0 36.6 31.1 30.9 24.3 44.8 39.0 33.0 31.3 25.0 45.3 40.2 33.7 30.5 24.3 K.W. 3.64 3.68 3.67 3.69 3.69 3.13 3.15 3.14 3.16 3.15 3.16 3.17 3.15 3.17 3.15

T.C. 42.7 49.1 47.7 54.0 56.9 45.2 49.6 47.4 53.7 57.2 46.3 48.8 45.7 52.0 56.2 S.C. 42.7 35.9 29.9 30.1 23.8 44.0 39.2 32.1 32.5 25.0 43.9 41.2 33.1 33.5 24.8 K.W. 3.88 3.93 3.92 3.95 3.97 3.38 3.41 3.40 3.43 3.43 3.42 3.43 3.42 3.45 3.43

T.C. 41.4 46.1 44.5 50.6 54.1 43.0 46.1 44.2 50.0 53.9 43.2 44.8 42.5 48.1 52.4 S.C. 40.5 34.1 28.1 28.7 22.3 41.6 37.3 30.4 31.0 23.9 41.4 39.1 31.3 32.0 24.1 K.W. 4.20 4.24 4.23 4.26 4.28 3.69 3.72 3.71 3.74 3.75 3.73 3.74 3.73 3.77 3.75

T.C. 40.2 43.0 41.4 47.2 51.3 40.8 42.6 40.9 46.4 50.6 40.1 40.8 39.2 44.3 48.7 S.C. 38.2 32.4 26.2 27.2 20.7 39.2 35.3 28.6 29.5 22.7 38.8 36.9 29.6 30.4 23.4 K.W. 4.52 4.55 4.54 4.58 4.60 4.01 4.02 4.02 4.06 4.07 4.04 4.04 4.04 4.08 4.08

T.C. 34.6 38.6 37.0 42.6 46.4 36.0 38.3 36.5 41.8 45.5 36.2 36.6 34.6 39.7 43.3 S.C. 33.2 30.1 23.9 25.1 18.3 34.9 32.7 26.3 27.4 20.2 35.2 34.0 27.4 28.4 20.7 K.W. 5.00 5.02 5.00 5.04 5.05 4.48 4.49 4.48 4.51 4.52 4.51 4.51 4.50 4.53 4.53

T.C. 29.1 34.3 32.8 38.1 41.7 31.4 34.1 32.1 37.3 40.6 32.3 32.5 30.2 35.2 38.1 S.C. 28.4 27.9 21.7 23.0 16.0 30.7 30.2 24.2 25.4 17.7 31.7 31.1 25.3 26.5 18.1 K.W. 5.47 5.47 5.45 5.48 5.50 4.95 4.95 4.93 4.95 4.96 4.97 4.97 4.95 4.97 4.97

T.C. 23.7 30.1 28.5 33.6 37.1 26.7 29.9 27.8 32.9 35.6 28.4 28.4 25.7 30.8 32.8 S.C. 23.5 25.7 19.5 20.8 13.7 26.5 27.6 22.0 23.3 15.2 28.2 28.2 23.2 24.5 15.4 K.W. 5.94 5.93 5.90 5.92 5.94 5.41 5.40 5.38 5.39 5.41 5.43 5.42 5.40 5.41 5.41

5219967-UTG-A-0716

Johnson Controls Unitary Products 9

Page 10

5219967-UTG-A-0716

COOLING PERFORMANCE DATA - 3.5 TON (LOW SPEED)

PACKAGED UNIT MODEL NO. PCG6B42

CONDENSER

ENTERING AIR

TEMPERATURE

55 / 45

65 / 55

75 / 63

85 / 69

95 / 75

105 / 83

115 / 89

125 / 95

ID CFM 800 1000 1200

IDDB 80 80 75 80 80 80 80 75 80 80 80 80 75 80 80

IDWB 57 62 62 67 72 57 62 62 67 72 57 62 62 67 72

T.C. 30.2 33.8 24.4 36.3 39.4 33.3 36.0 26.3 37.9 40.4 36.4 38.2 28.1 39.5 41.3 S.C. 29.7 26.3 23.9 21.8 18.2 32.0 29.6 25.8 23.8 19.3 34.4 32.8 27.6 25.9 20.4

K.W. 0.97 0.96 0.93 0.98 0.98 0.97 0.97 0.94 1.00 1.00 0.97 0.97 0.94 1.01 1.01

T.C. 27.7 32.0 23.2 34.8 37.3 30.3 34.0 25.4 36.6 38.9 32.8 36.0 27.6 38.4 40.6 S.C. 27.3 25.4 22.6 21.3 17.5 29.5 28.7 24.7 23.6 19.0 31.7 31.9 26.8 25.9 20.5

K.W. 1.13 1.11 1.09 1.14 1.10 1.13 1.12 1.09 1.15 1.11 1.12 1.13 1.09 1.15 1.13

T.C. 25.2 30.1 22.1 33.3 35.1 27.2 32.0 24.6 35.3 37.5 29.2 33.9 27.1 37.3 40.0 S.C. 25.0 24.5 21.2 20.9 16.9 27.0 27.8 23.6 23.5 18.7 29.0 31.1 26.0 26.0 20.5

K.W. 1.29 1.26 1.25 1.29 1.22 1.28 1.27 1.24 1.30 1.23 1.27 1.28 1.24 1.30 1.25

T.C. 22.4 27.0 21.1 31.1 34.4 24.1 29.0 23.5 33.0 35.8 25.9 31.0 26.0 34.9 37.2 S.C. 22.2 22.4 20.2 19.6 16.0 23.9 25.8 22.5 22.2 17.6 25.7 29.1 24.8 24.8 19.3

K.W. 1.48 1.47 1.45 1.49 1.43 1.48 1.48 1.45 1.49 1.44 1.48 1.49 1.45 1.50 1.45

T.C. 19.6 23.9 20.1 28.9 33.8 21.0 26.0 22.5 30.7 34.1 22.5 28.2 24.8 32.5 34.4 S.C. 19.4 20.3 19.2 18.3 15.0 20.9 23.7 21.4 21.0 16.5 22.3 27.1 23.6 23.7 18.0

K.W. 1.67 1.68 1.66 1.68 1.63 1.69 1.69 1.66 1.69 1.64 1.70 1.70 1.66 1.70 1.65

T.C. 17.0 20.4 18.8 25.0 29.8 18.6 22.2 21.1 27.0 31.3 20.2 23.9 23.4 29.0 32.9 S.C. 16.8 18.0 17.9 17.6 13.4 18.4 20.6 20.0 20.2 14.9 20.0 23.2 22.1 22.7 16.3

K.W. 1.94 1.94 1.92 1.94 1.90 1.95 1.95 1.92 1.95 1.91 1.96 1.96 1.93 1.95 1.92

T.C. 14.5 17.0 17.5 21.2 25.8 16.2 18.4 19.8 23.4 28.7 18.0 19.8 22.0 25.6 31.5 S.C. 14.4 15.8 16.6 17.0 11.9 16.1 17.6 18.6 19.3 13.3 17.8 19.4 20.7 21.7 14.7

K.W. 2.19 2.20 2.17 2.19 2.16 2.20 2.20 2.18 2.20 2.17 2.21 2.21 2.19 2.20 2.18

T.C. 12.0 13.6 16.2 17.4 21.9 13.9 14.7 18.5 19.8 26.0 15.8 15.8 20.7 22.1 30.1 S.C. 11.9 13.5 15.3 16.3 10.3 13.7 14.6 17.3 18.5 11.7 15.6 15.6 19.3 20.8 13.1

K.W. 2.45 2.45 2.42 2.44 2.42 2.46 2.46 2.44 2.45 2.43 2.47 2.47 2.46 2.45 2.44

COOLING PERFORMANCE DATA - HIGH - 3.5 TON (HIGH SPEED)

PACKAGED UNIT MODEL NO. PCG6B42

CONDENSER

ENTERING AIR

TEMPERATURE

55 / 45

65 / 55

75 / 63

85 / 69

95 / 75

105 / 83

115 / 89

125 / 95

ID CFM 1120 1320 1520

IDDB 80 80 75 80 80 80 80 75 80 80 80 80 75 80 80 IDWB 57 62 62 67 72 57 62 62 67 72 57 62 62 67 72

T.C. 43.6 47.7 30.8 50.0 55.0 45.8 49.6 31.8 51.4 55.8 48.1 51.4 32.8 52.8 56.7 S.C. 41.7 36.8 29.9 30.0 23.2 43.7 39.6 30.9 31.2 23.8 45.8 42.4 31.9 32.3 24.5

K.W. 2.19 2.22 2.17 2.16 2.16 2.29 2.30 2.26 2.22 2.21 2.39 2.39 2.36 2.27 2.26

T.C. 39.9 45.2 31.1 49.1 53.4 41.9 47.2 32.4 50.5 55.0 44.0 49.3 33.6 51.8 56.7 S.C. 38.6 35.7 29.9 29.6 23.2 40.5 38.8 31.2 31.1 24.3 42.5 41.8 32.4 32.6 25.4

K.W. 2.44 2.46 2.43 2.42 2.46 2.54 2.56 2.53 2.48 2.54 2.64 2.65 2.64 2.54 2.61

T.C. 36.1 42.7 31.4 48.3 51.8 38.0 44.9 33.0 49.6 54.2 39.9 47.1 34.5 50.8 56.6 S.C. 35.5 34.6 29.9 29.2 23.2 37.3 37.9 31.4 31.1 24.8 39.2 41.2 33.0 32.9 26.4

K.W. 2.68 2.71 2.69 2.67 2.77 2.79 2.81 2.80 2.74 2.86 2.90 2.91 2.91 2.80 2.95

T.C. 33.3 39.4 30.5 45.2 49.9 35.2 41.2 32.4 46.2 52.0 37.0 42.9 34.3 47.3 54.0 S.C. 32.8 33.0 29.0 27.8 22.0 34.5 35.3 30.8 30.0 23.4 36.3 37.6 32.7 32.2 24.8

K.W. 3.02 3.03 3.05 3.04 3.09 3.12 3.13 3.16 3.12 3.18 3.22 3.22 3.26 3.20 3.28

T.C. 30.5 36.0 29.7 42.0 48.0 32.3 37.4 31.9 42.9 49.7 34.1 38.8 34.1 43.8 51.4 S.C. 30.0 31.4 28.1 26.4 20.9 31.7 32.7 30.2 29.0 22.1 33.5 34.0 32.4 31.6 23.3

K.W. 3.35 3.35 3.40 3.41 3.41 3.45 3.45 3.51 3.50 3.51 3.54 3.54 3.61 3.59 3.60

T.C. 27.9 32.6 28.2 38.0 44.3 29.5 33.5 30.4 38.7 45.5 31.0 34.4 32.5 39.4 46.8 S.C. 27.5 29.1 26.6 24.7 19.2 29.0 30.1 28.7 27.1 20.3 30.5 31.0 30.7 29.5 21.5

K.W. 3.81 3.81 3.87 3.82 3.86 3.90 3.90 3.97 3.90 3.96 4.00 4.00 4.07 3.97 4.05

T.C. 25.4 29.3 26.8 34.1 40.6 26.7 29.7 28.9 34.7 41.5 28.0 30.1 31.0 35.2 42.4 S.C. 25.0 26.9 25.1 23.0 17.6 26.3 27.6 27.2 25.2 18.6 27.5 28.2 29.2 27.4 19.7

K.W. 4.25 4.25 4.32 4.21 4.30 4.35 4.34 4.42 4.28 4.39 4.44 4.44 4.52 4.35 4.49

T.C. 22.9 25.9 25.4 30.3 37.0 24.0 25.9 27.4 30.6 37.5 25.1 25.8 29.5 30.9 37.9 S.C. 22.5 24.7 23.7 21.3 15.9 23.6 25.1 25.6 23.4 17.0 24.6 25.4 27.6 25.4 18.0

K.W. 4.69 4.69 4.78 4.61 4.74 4.79 4.78 4.87 4.67 4.83 4.89 4.88 4.97 4.73 4.93

10 Johnson Controls Unitary Products

Page 11

COOLING PERFORMANCE DATA - 4 TON (LOW SPEED)

PACKAGED UNIT MODEL NO. PCG6B48

CONDENSER

ENTERING AIR

TEMPERATURE

55 / 45

65 / 55

75 / 63

85 / 69

95 / 75

105 / 83

115 / 89

125 / 95

ID CFM 900 1100 1300

IDDB 80 80 75 80 80 80 80 75 80 80 80 80 75 80 80

IDWB 57 62 62 67 72 57 62 62 67 72 57 62 62 67 72

T.C. 34.3 37.4 36.3 41.1 45.6 37.5 39.7 38.7 43.6 48.0 40.6 42.1 41.1 46.2 50.3

S.C. 32.3 28.7 24.7 24.9 20.0 34.8 32.1 27.2 27.2 21.8 37.4 35.5 29.8 29.6 23.6

K.W. 1.67 1.64 1.65 1.63 1.49 1.63 1.61 1.62 1.59 1.52 1.58 1.58 1.58 1.56 1.55

T.C. 32.4 34.5 34.1 38.7 43.8 35.2 36.8 36.6 41.0 46.2 38.1 39.1 39.1 43.3 48.7 S.C. 30.4 27.4 21.0 23.5 18.9 32.8 30.2 23.2 25.8 20.7 35.1 33.0 25.3 28.1 22.5

K.W. 1.86 1.83 1.85 1.79 1.73 1.85 1.83 1.84 1.82 1.76 1.84 1.82 1.83 1.84 1.79

T.C. 30.4 31.6 32.0 36.3 42.0 33.0 33.9 34.5 38.4 44.5 35.5 36.2 37.1 40.4 47.0 S.C. 28.6 26.0 17.4 22.1 17.8 30.7 28.2 19.1 24.4 19.6 32.9 30.5 20.8 26.6 21.5

K.W. 2.05 2.03 2.04 1.96 1.97 2.07 2.05 2.06 2.05 2.01 2.10 2.06 2.08 2.13 2.04

T.C. 27.3 29.1 28.2 34.0 39.1 29.4 31.1 29.9 35.7 41.2 31.4 33.0 31.6 37.5 43.4 S.C. 26.2 23.9 18.1 20.8 16.5 28.0 26.6 19.9 22.9 18.0 29.9 29.3 21.8 25.1 19.5

K.W. 2.39 2.36 2.43 2.37 2.30 2.41 2.38 2.42 2.39 2.33 2.43 2.41 2.41 2.42 2.36

T.C. 24.2 26.7 24.5 31.6 36.1 25.8 28.2 25.3 33.1 37.9 27.4 29.7 26.2 34.6 39.7 S.C. 23.8 21.8 18.8 19.4 15.1 25.4 25.0 20.8 21.5 16.4 26.9 28.2 22.8 23.6 17.6

K.W. 2.72 2.68 2.82 2.78 2.63 2.74 2.72 2.78 2.74 2.65 2.76 2.75 2.74 2.70 2.68

T.C. 21.9 23.6 20.8 27.3 32.6 23.1 24.7 21.1 29.0 33.9 24.2 25.7 21.3 30.6 35.3 S.C. 21.5 20.3 17.0 19.1 13.6 22.7 22.5 18.0 21.1 14.7 23.9 24.6 19.0 23.2 15.7

K.W. 3.15 3.16 3.22 3.16 3.06 3.17 3.17 3.20 3.14 3.09 3.18 3.18 3.18 3.12 3.12

T.C. 19.6 20.6 17.1 23.2 29.2 20.4 21.2 16.9 25.0 30.1 21.2 21.8 16.6 26.8 31.1 S.C. 19.3 18.8 15.1 18.8 12.2 20.1 20.0 15.3 20.8 13.0 20.9 21.1 15.4 22.7 13.9

K.W. 3.56 3.63 3.60 3.53 3.47 3.58 3.61 3.60 3.53 3.51 3.59 3.60 3.60 3.53 3.54

T.C. 17.3 17.6 13.5 19.1 25.7 17.7 17.8 12.7 21.0 26.3 18.2 17.9 11.9 22.9 26.8 S.C. 17.0 17.4 13.3 18.6 10.7 17.4 17.5 12.5 20.4 11.4 17.9 17.6 11.8 22.3 12.1

K.W. 3.98 4.10 3.98 3.91 3.89 3.99 4.05 4.00 3.92 3.93 4.00 4.01 4.02 3.93 3.97

5219967-UTG-A-0716

COOLING PERFORMANCE DATA - HIGH - 4 TON (HIGH SPEED)

PACKAGED UNIT MODEL NO. PCG6B48

CONDENSER

ENTERING AIR

TEMPERATURE

55 / 45

65 / 55

75 / 63

85 / 69

95 / 75

105 / 83

115 / 89

125 / 95

ID CFM 1400 1600 1800

IDDB 80 80 75 80 80 80 80 75 80 80 80 80 75 80 80

IDWB 57 62 62 67 72 57 62 62 67 72 57 62 62 67 72

T.C. 46.5 54.3 55.5 56.6 59.6 47.9 54.3 55.6 56.8 59.9 49.2 54.3 55.6 56.9 60.1 S.C. 45.7 41.3 35.4 35.0 27.8 47.2 43.3 36.8 35.0 28.0 48.7 45.2 38.2 35.0 28.1

K.W. 2.66 2.72 2.72 2.93 2.75 2.76 2.80 2.80 2.92 2.82 2.86 2.88 2.87 2.90 2.89

T.C. 43.8 51.2 52.2 54.8 58.3 44.9 51.7 52.7 54.8 58.7 46.1 52.1 53.3 54.9 59.1 S.C. 43.3 40.2 34.1 33.8 27.0 44.3 35.9 37.0 34.7 31.7 45.3 31.7 40.0 35.5 36.5

K.W. 2.93 3.06 2.98 3.11 3.13 3.03 3.06 3.06 3.15 3.16 3.13 3.06 3.14 3.19 3.20

T.C. 41.1 48.2 48.8 52.9 56.9 42.0 49.1 49.9 52.9 57.5 43.0 49.9 51.0 52.8 58.1 S.C. 41.0 39.1 32.9 32.6 26.1 41.5 28.6 37.3 34.3 35.5 41.9 18.2 41.8 36.0 44.9

K.W. 3.19 3.39 3.24 3.29 3.51 3.29 3.32 3.33 3.38 3.51 3.39 3.25 3.41 3.47 3.50

T.C. 40.3 45.2 46.3 49.4 53.8 40.1 45.6 46.8 49.2 54.0 39.9 46.1 47.2 48.9 54.2 S.C. 39.8 37.3 31.1 31.2 24.6 39.4 33.1 34.1 32.8 29.8 39.1 28.9 37.2 34.4 34.9

K.W. 3.55 3.66 3.58 3.72 3.77 3.64 3.67 3.66 3.77 3.81 3.74 3.67 3.75 3.81 3.85

T.C. 39.4 42.2 43.8 45.9 50.7 38.1 42.2 43.6 45.5 50.5 36.8 42.3 43.4 45.1 50.3 S.C. 38.6 35.5 29.3 29.7 23.1 37.4 37.6 30.9 31.2 24.1 36.2 39.7 32.6 32.7 25.0

K.W. 3.91 3.93 3.92 4.15 4.03 4.00 4.01 4.00 4.15 4.11 4.09 4.09 4.08 4.15 4.19

T.C. 34.6 37.5 39.1 41.7 46.5 34.0 37.9 39.0 41.3 46.1 33.4 38.3 38.9 40.9 45.7 S.C. 34.0 33.1 27.4 27.8 21.2 33.4 34.8 26.2 29.3 22.0 32.9 36.5 25.1 30.9 22.9

K.W. 4.42 4.49 4.43 4.65 4.58 4.51 4.54 4.47 4.65 4.63 4.59 4.60 4.52 4.65 4.68

T.C. 29.9 33.0 34.6 37.7 42.4 30.0 33.8 34.5 37.2 41.8 30.1 34.5 34.5 36.8 41.2 S.C. 29.5 30.7 25.5 26.0 19.3 29.6 32.1 21.7 27.6 20.1 29.8 33.5 17.9 29.1 20.8

K.W. 4.91 5.03 4.92 5.14 5.12 5.00 5.06 4.94 5.13 5.14 5.09 5.09 4.95 5.13 5.17

T.C. 25.2 28.4 30.1 33.6 38.2 26.0 29.6 30.1 33.2 37.5 26.8 30.7 30.1 32.7 36.7 S.C. 25.0 28.4 23.6 24.2 17.5 25.8 29.4 17.1 25.8 18.1 26.6 30.4 10.6 27.3 18.8

K.W. 5.41 5.58 5.41 5.62 5.66 5.50 5.58 5.40 5.62 5.66 5.58 5.58 5.39 5.62 5.65

Johnson Controls Unitary Products 11

Page 12

5219967-UTG-A-0716

COOLING PERFORMANCE DATA - 5 TON (LOW SPEED)

PACKAGED UNIT MODEL NO. PCG6B60

CONDENSER

ENTERING AIR

TEMPERATURE

55 / 45

65 / 55

75 / 63

85 / 69

95 / 75

105 / 83

115 / 89

125 / 95

ID CFM 1100 1300 1500

IDDB 80 80 75 80 80 80 80 75 80 80 80 80 75 80 80

IDWB 57 62 62 67 72 57 62 62 67 72 57 62 62 67 72

T.C. 44.6 51.1 50.5 55.7 59.9 47.1 53.0 51.7 57.4 61.8 49.5 54.9 53.0 59.2 63.8 S.C. 44.6 43.1 36.8 36.5 30.0 47.1 47.5 40.0 39.4 31.6 49.5 51.8 43.3 42.4 33.3

K.W. 1.77 1.77 1.77 1.74 1.90 1.87 1.87 1.88 1.84 1.92 1.98 1.98 1.99 1.94 1.94

T.C. 42.1 47.6 46.8 52.1 57.3 44.3 49.4 48.4 53.9 59.6 46.6 51.2 50.1 55.7 61.9 S.C. 42.1 41.4 35.0 34.9 28.5 44.3 45.6 38.1 37.8 30.2 46.6 49.9 41.2 40.8 31.9

K.W. 2.05 2.05 2.14 2.11 2.08 2.15 2.15 2.20 2.16 2.14 2.25 2.24 2.25 2.22 2.20

T.C. 39.6 44.2 43.1 48.5 54.8 41.6 45.8 45.1 50.3 57.4 43.7 47.4 47.1 52.1 60.1 S.C. 39.6 39.6 33.3 33.3 26.9 41.6 43.8 36.2 36.2 28.7 43.7 47.4 39.1 39.2 30.4

K.W. 2.34 2.33 2.51 2.48 2.26 2.43 2.42 2.51 2.48 2.36 2.52 2.51 2.52 2.49 2.45

T.C. 36.5 40.6 39.8 44.8 50.8 38.3 41.8 41.5 46.3 53.0 40.1 43.0 43.2 47.9 55.1 S.C. 36.5 37.6 31.4 31.4 25.1 38.3 40.9 34.2 34.3 26.8 40.1 43.0 37.0 37.2 28.6

K.W. 2.69 2.67 2.87 2.74 2.61 2.78 2.77 2.87 2.79 2.71 2.87 2.88 2.88 2.84 2.81

T.C. 33.4 37.0 36.4 41.0 46.9 35.0 37.8 37.8 42.3 48.5 36.5 38.6 39.3 43.6 50.2 S.C. 33.4 35.5 29.5 29.5 23.2 35.0 37.8 32.2 32.3 25.0 36.5 38.6 34.9 35.1 26.7

K.W. 3.04 3.02 3.23 3.00 2.96 3.13 3.13 3.23 3.10 3.07 3.22 3.25 3.24 3.20 3.17

T.C. 30.0 34.0 32.7 36.5 42.1 31.3 34.3 33.6 37.3 43.3 32.7 34.6 34.5 38.1 44.6 S.C. 30.0 32.8 27.2 27.4 21.2 31.3 34.3 29.6 30.1 22.7 32.7 34.6 32.0 32.9 24.3

K.W. 3.56 3.48 3.62 3.46 3.43 3.62 3.59 3.66 3.56 3.53 3.69 3.70 3.70 3.66 3.63

T.C. 26.7 31.1 29.0 32.1 37.4 27.8 30.9 29.4 32.5 38.3 28.9 30.6 29.9 32.8 39.1 S.C. 26.7 30.3 25.0 25.4 19.2 27.8 30.9 27.1 28.0 20.6 28.9 30.6 29.2 30.7 21.9

K.W. 4.07 3.93 4.00 3.91 3.87 4.10 4.03 4.07 4.01 3.98 4.13 4.13 4.14 4.11 4.09

T.C. 23.4 28.3 25.3 27.7 32.7 24.3 27.5 25.3 27.6 33.2 25.1 26.7 25.2 27.5 33.7 S.C. 23.4 27.7 22.8 23.4 17.2 24.3 27.5 24.6 25.9 18.4 25.1 26.7 25.2 27.5 19.6

K.W. 4.57 4.38 4.39 4.35 4.32 4.58 4.47 4.49 4.46 4.43 4.58 4.57 4.59 4.56 4.54

COOLING PERFORMANCE DATA - 5 TON (HIGH SPEED)

PACKAGED UNIT MODEL NO. PCG6B60

CONDENSER

ENTERING AIR

TEMPERATURE

55 / 45

65 / 55

75 / 63

85 / 69

95 / 75

105 / 83

115 / 89

125 / 95

ID CFM 1600 1800 2000

IDDB 80 80 75 80 80 80 80 75 80 80 80 80 75 80 80

IDWB 57 62 62 67 72 57 62 62 67 72 57 62 62 67 72

T.C. 59.2 68.9 66.5 71.8 77.1 61.3 70.6 67.6 73.5 77.7 63.5 72.3 68.8 75.1 78.3

S.C. 59.2 55.8 47.0 46.7 37.2 61.3 59.6 49.6 49.1 38.2 63.5 63.4 52.2 51.5 39.1

K.W. 2.80 2.86 2.87 3.21 2.93 3.03 3.08 3.08 3.28 3.14 3.26 3.30 3.30 3.34 3.35

T.C. 54.3 64.1 61.7 68.4 74.2 55.7 66.1 63.2 69.9 75.5 57.2 68.1 64.7 71.3 76.9

S.C. 54.3 53.9 45.4 44.9 35.7 55.7 42.9 51.1 47.3 46.7 57.2 31.9 56.8 49.8 57.8

K.W. 3.07 3.25 3.13 3.34 3.37 3.30 3.34 3.35 3.48 3.51 3.53 3.42 3.56 3.62 3.66

T.C. 49.3 59.2 57.0 65.1 71.3 50.1 61.6 58.8 66.3 73.4 50.9 64.0 60.6 67.4 75.4

S.C. 49.3 52.0 43.7 43.0 34.2 50.1 26.2 52.5 45.5 55.3 50.9 0.3 60.6 48.0 75.4

K.W. 3.33 3.65 3.39 3.47 3.81 3.57 3.60 3.61 3.68 3.89 3.80 3.55 3.83 3.90 3.97

T.C. 48.7 55.4 53.9 60.5 67.1 47.8 57.3 55.3 61.5 68.6 46.8 59.2 56.8 62.4 70.2

S.C. 48.7 49.6 41.4 41.0 32.2 47.8 38.2 47.0 43.3 43.3 46.8 26.7 52.7 45.7 54.5

K.W. 3.71 3.87 3.74 3.95 4.02 3.94 3.96 3.96 4.10 4.17 4.16 4.04 4.17 4.25 4.32

T.C. 48.0 51.6 50.7 55.9 62.8 45.4 53.0 51.8 56.7 63.9 42.8 54.3 53.0 57.4 64.9

S.C. 48.0 47.2 39.1 39.1 30.3 45.4 50.1 41.5 41.2 31.4 42.8 53.0 43.9 43.3 32.6

K.W. 4.09 4.10 4.09 4.44 4.23 4.30 4.31 4.30 4.52 4.44 4.52 4.53 4.51 4.60 4.66

T.C. 42.5 46.6 45.9 50.9 57.9 40.7 48.1 47.1 51.6 58.7 38.9 49.5 48.3 52.3 59.6

S.C. 42.5 43.9 36.8 36.9 28.2 40.7 46.3 33.0 39.0 29.3 38.9 48.7 29.1 41.1 30.4

K.W. 4.60 4.71 4.61 4.96 4.84 4.82 4.87 4.77 5.04 5.00 5.03 5.04 4.92 5.11 5.17

T.C. 37.0 41.8 41.3 46.0 53.1 36.1 43.4 42.5 46.7 53.8 35.1 44.9 43.8 47.4 54.4

S.C. 37.0 40.7 34.7 34.7 26.2 36.1 42.6 24.7 36.9 27.2 35.1 44.5 14.7 39.0 28.2

K.W. 5.10 5.29 5.12 5.46 5.43 5.32 5.42 5.23 5.54 5.54 5.54 5.54 5.33 5.61 5.66

T.C. 31.6 37.0 36.6 41.1 48.2 31.5 38.6 37.9 41.8 48.8 31.4 40.2 39.3 42.5 49.3

S.C. 31.6 37.0 32.5 32.6 24.2 31.5 38.6 16.4 34.7 25.1 31.4 40.2 0.3 36.8 26.1

K.W. 5.60 5.88 5.63 5.96 6.01 5.82 5.96 5.68 6.04 6.09 6.04 6.04 5.74 6.11 6.16

12 Johnson Controls Unitary Products

Page 13

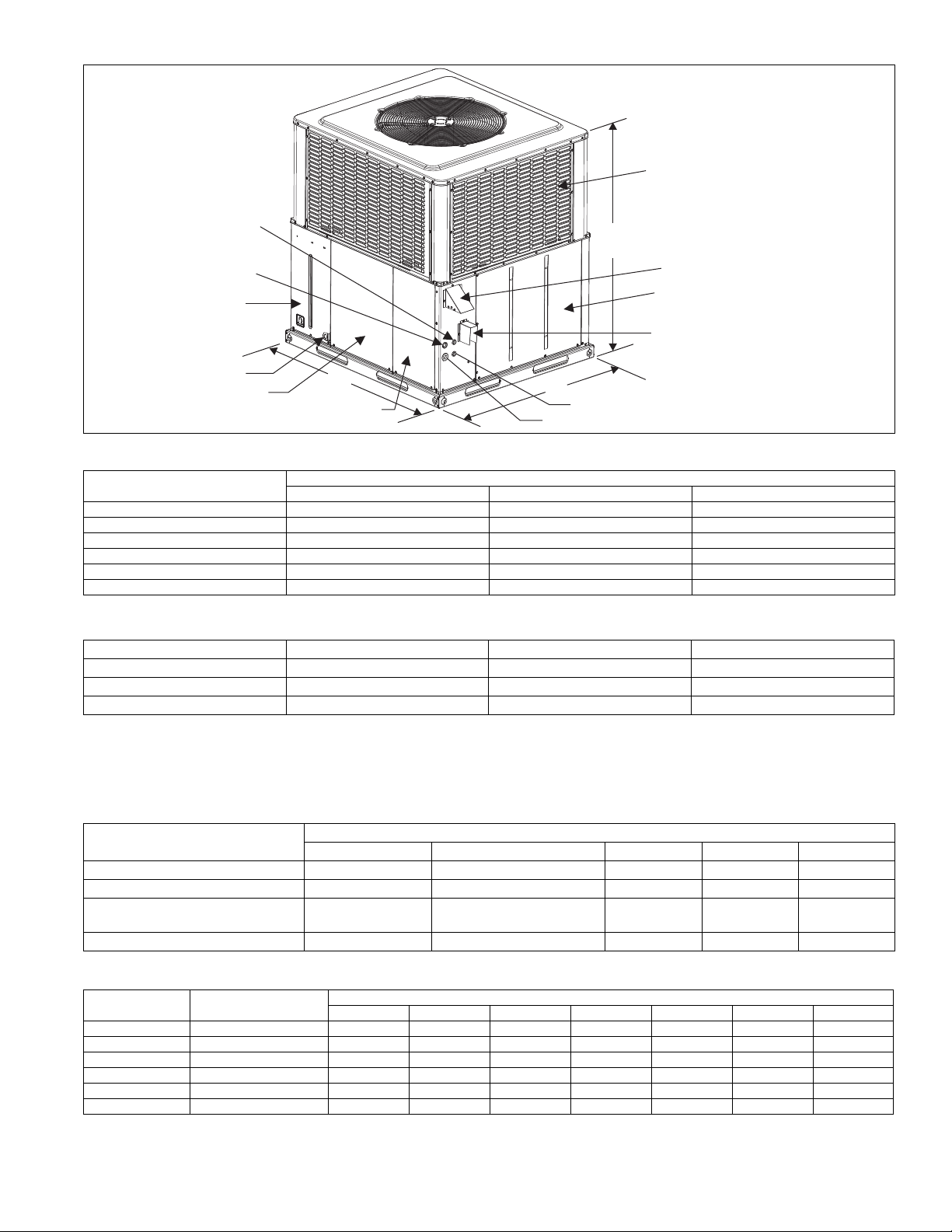

UNIT DIMENSIONS

HIGH VOLTAGE CONNECTION 7/8”

HIGH VOLTAGE CONNECTION 1-3/32”

COMPRESSOR ACCESS PANEL

CONDENSATE DRAIN

BLOWER ACCESS PANEL

CONTROL ACCESS PANEL

LOW VOLTAGE CONNECTION

GAS SUPPLY

EXHAUST HOOD

COMBUSTION AIR INTAKE

HEAT EXCHANGER ACCESS PANEL

A0296-001

COIL GUARD

Model

24 51-1/4 35-3/4 47 30 51-1/4 35-3/4 47 36 51-1/4 45-3/4 49 42 51-1/4 45-3/4 49 48 51-1/4 45-3/4 53 60 51-1/4 45-3/4 55

5219967-UTG-A-0716

Dimensions

ABC

UNIT CLEARANCES1

Direction Distance (in.) Direction Distance (in.)

Top

36 Power Entry (Right Side) 36

Side Opposite Ducts 36 Left Side 24

Duct Panel 0 Bottom

1. A 1" clearance must be provided between any combustible material and the supply air duct work.

2. The products of combustion must not be allowed to accumula te within a confined space and recirculate.

3. Units must be installed outdoors. Over hanging structure or shrubs should not obstruct condenser air discharge outlet.

4. Units may be installed on combustible materials made from wood or class A, B or C roof covering materials only if factory base rails are left in place as shipped.

INDOOR BLOWER SPECIFICATIONS

Model

HP RPM EFF. SF Frame

24050, 30050 1/3 Variable 0.8 1.0 48 24075, 30075, 36065 1/2 Variable 0.8 1.0 48 36100, 42065. 42100,

48065, 48100, 48125

3/4 Variable 0.8 1.0 48

60065, 60100, 60125 1 Variable 0.8 1.0 48

SOUND PERFORMANCE

Model (Tons)

24 30 36 42 48 60

1. Rated in accordance with AHRI Standard 270.

Sound Rating

dB (A)

Octave Band Centerline Frequency (Hz)

125 250 500 1000 2000 4000 8000

75 62.4 61.5 64.2 67 61 57.3 49.6 75 60.5 61.6 64.8 66.9 60.9 56.0 49.7 74 58.5 61.8 65.4 66.5 60.7 54.8 49.8 74 63.5 63.9 62.3 65 64 54.1 46.6 74 63.5 63.9 62.3 65 64 54.1 46.6 76 72.3 65.0 63.9 64 60 55.5 49.0

Johnson Controls Unitary Products 13

Motor

Page 14

5219967-UTG-A-0716

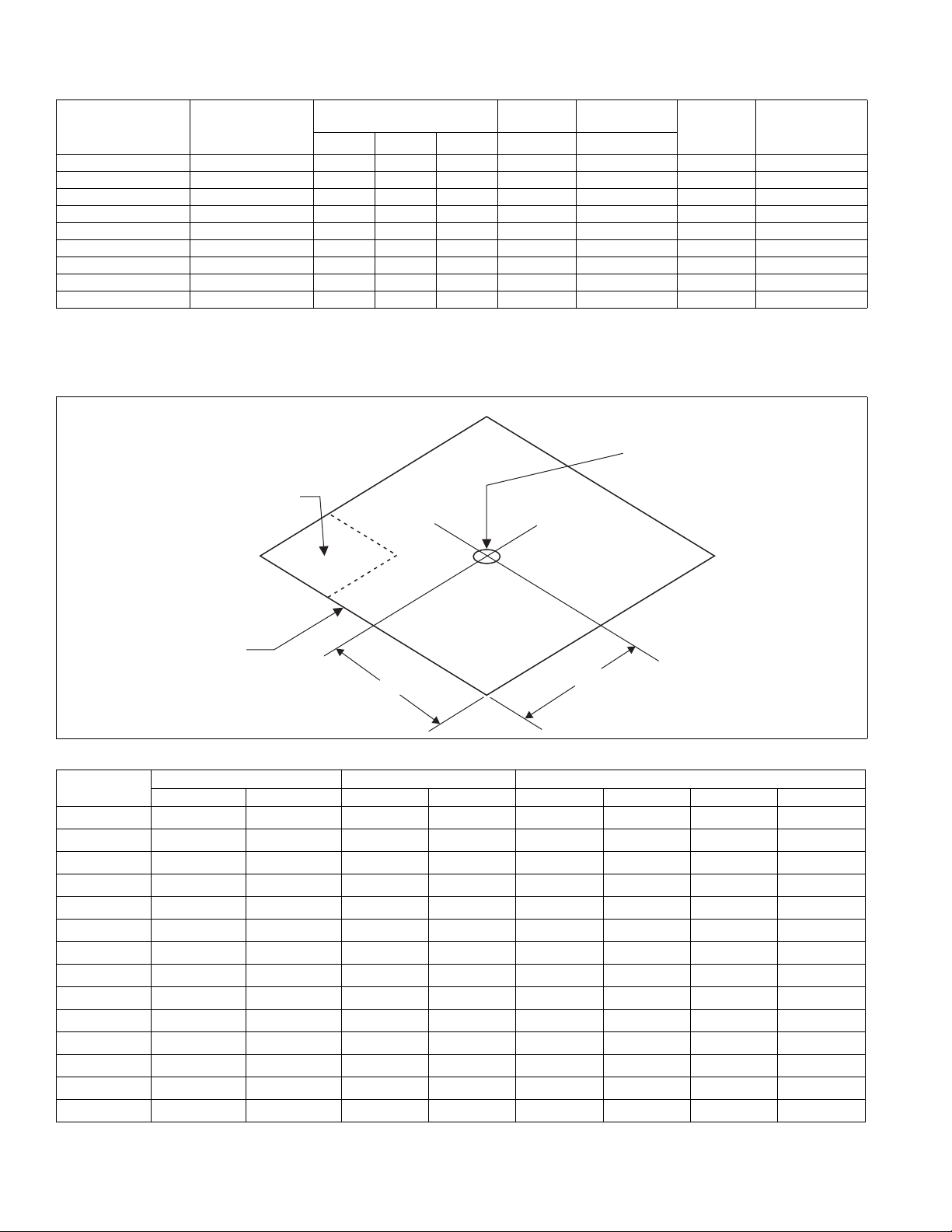

CENTER OF GRAVITY

FRONT OF UNIT

"D"

"C"

"B"

"A"

A0295-001-TG

COMPRESSOR

ELECTRICAL DATA

OD Fan

Motor

Model Voltage

Compressor

RLA LRA MCC FLA FLA

24050 208/230-1-60 11.7 58.3 18.2 0.7 2.6 17.9 25 24075 208/230-1-60 11.7 58.3 18.2 0.7 3.8 19.1 30 30050 208/230-1-60 13.1 73.0 20.4 0.8 2.6 19.8 30 30075 208/230-1-60 13.1 73.0 20.4 0.8 3.8 21.0 30 36065 208/230-1-60 15.6 83.0 24.4 1.7 3.8 25.0 40 36100 208/230-1-60 15.6 83.0 24.4 1.7 5.4 26.6 40

42065, 42100 208/230-1-60 17.9 96.0 28.0 1.7 5.4 29.5 45 48065, 48100, 48125 208/230-1-60 21.2 104.0 33.0 1.7 5.4 33.6 50 60065, 60100, 60125 208/230-1-60 26.9 152.9 42.0 1.7 7.0 42.3 60

1. Minimum Circuit Ampacity.

2. Maximum Over Current Protection per standard UL 1995.

3. Fuse or HACR cir cuit breaker size installed at factory or field installed.

Supply

Blower Motor

MCA

(Amps)

Max Fuse

Breaker

(Amps)

Size

WEIGHTS & DIMENSIONS

Model

24050 372 367 28 15 120 95 81 71

24075 382 377 28 15 124 96 81 76

30050 417 412 28 15 139 99 90 84

30075 421 416 28 15 146 93 82 95

36065 466 461 28 15 161 113 96 91

36100 473 468 28 15 163 114 101 90

42065 500 495 28 15 175 123 104 93

42100 502 497 28 15 176 124 101 96

48065 520 515 28 15 189 116 93 117

48100 528 523 28 15 169 139 115 100

48125 533 528 28 15 164 145 124 95

60065 537 532 29 15 174 142 124 92

60100 541 536 28 15 177 140 117 102

60125 548 543 27 15 151 167 141 84

14 Johnson Controls Unitary Products

Weight (lbs.) Center of Gravity 4 Point Load Location (lbs.)

ShippingOperatingXYABCD

Page 15

AIRFLOW PERFORMANCE - SIDE DUCT APPLICATION

Model Jumper Position

A 902 858 809 753 703 659 615 570 513 496 B 853 806 750 693 645 597 561 513 456 442 C 817 770 709 655 606 561 521 466 427 409 D 756 708 640 591 539 498 456 402 373 347 A 991 957 913 863 809 768 717 662 630 598 B 902 858 809 753 703 659 615 570 513 496 C 826 779 719 664 616 570 531 478 434 417 D 693 642 571 529 466 430 390 357 309 275 A 808 761 699 645 597 552 512 455 420 401 B 718 668 599 554 495 457 416 375 334 304 C 615 556 489 450 390 358 311 281 221 181 D 562 494 436 395 348 317 259 217 155 113 A 862 815 761 702 655 607 571 524 463 450 B 768 721 654 604 553 511 469 411 386 362 C 680 628 557 516 451 416 376 348 296 261 D 655 602 530 491 422 389 350 330 271 232 A 862 815 761 702 655 607 571 524 463 450 B 756 708 640 591 539 498 456 402 373 347 C 628 571 503 464 400 368 324 298 238 198 D 602 540 476 436 379 348 298 265 204 164 A 918 852 796 745 701 649 594 545 509 470 B 894 807 748 697 653 594 539 497 466 420 C 870 761 699 649 605 539 484 449 422 370 D 834 692 626 562 521 463 411 372 330 281 A 982 946 899 849 801 761 710 656 609 581 B 927 867 813 761 717 667 612 561 524 487 C 870 761 699 649 605 539 484 449 422 370 D 799 623 552 475 436 387 338 294 237 192 A 902 822 764 713 669 612 557 513 480 437 B 855 734 669 615 572 509 454 418 385 334 C 827 678 611 545 504 448 396 356 311 263 D 675 546 466 404 347 277 205 160 126 80 A 1184 1161 1124 1084 1041 994 954 913 872 822 B 1076 1047 1011 967 912 875 833 790 734 707 C 992 957 912 863 813 774 724 672 622 596 D 927 867 813 761 717 667 612 561 524 487 A 1205 1182 1145 1107 1065 1019 979 938 896 845 B 1076 1047 1011 967 912 875 833 790 734 707 C 992 957 912 863 813 774 724 672 622 596 D 902 822 764 713 669 612 557 513 480 437 A 1078 1047 1007 962 906 859 816 769 722 693 B 982 947 904 853 799 759 707 654 620 589 C 902 858 809 753 703 659 615 570 513 496 D 817 770 709 655 606 561 521 466 427 409 A 1148 1117 1081 1039 991 945 901 862 821 764 B 1078 1047 1007 962 906 859 816 769 722 693 C 1026 994 951 903 846 803 757 696 673 635 D 871 824 771 712 664 616 580 536 470 458 A 982 947 904 853 799 759 707 654 620 589 B 910 867 819 763 713 670 624 578 524 505 C 808 761 699 645 597 552 512 455 420 401 D 781 734 668 617 568 525 482 420 398 376 A 862 815 761 702 655 607 571 524 463 450 B 768 721 654 604 553 511 469 411 386 362 C 680 628 557 516 451 416 376 348 296 261 D 655 602 530 491 422 389 350 330 271 232 A 862 815 761 702 655 607 571 524 463 450 B 756 708 640 591 539 498 456 402 373 347 C 628 571 503 464 400 368 324 298 238 198 D 602 540 476 436 379 348 298 265 204 164

24050

24075

30050

Continuous

Fan

High Cool

Low Cool

High Heat

Low Heat

Continuous

Fan

High Cool

Low Cool

High Heat

Low Heat

Continuous

Fan

High Cool

Low Cool

High Heat

Low Heat

0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0

SCFM SCFM SCFM SCFM SCFM SCFM SCFM SCFM SCFM SCFM

External Static Pressure (Inches WC)

5219967-UTG-A-0716

Johnson Controls Unitary Products 15

Page 16

5219967-UTG-A-0716

AIRFLOW PERFORMANCE - SIDE DUCT APPLICATION (Continued)

Model Jumper Position

A 1076 1047 1011 967 912 875 833 790 734 707 B 992 957 912 863 813 774 724 672 622 596 C 918 852 796 745 701 649 594 545 509 470 D 870 761 699 649 605 539 484 449 422 370 A 1152 1128 1090 1049 1005 958 917 876 834 788 B 1076 1047 1011 967 912 875 833 790 734 707 C 1023 991 950 903 850 813 767 719 664 640 D 910 837 780 729 685 631 576 529 495 453 A 982 946 899 849 801 761 710 656 609 581 B 927 867 813 761 717 667 612 561 524 487 C 870 761 699 649 605 539 484 449 422 370 D 813 650 582 510 470 417 367 325 274 227 A 1184 1161 1124 1084 1041 994 954 913 872 822 B 1076 1047 1011 967 912 875 833 790 734 707 C 992 957 912 863 813 774 724 672 622 596 D 927 867 813 761 717 667 612 561 524 487 A 1205 1182 1145 1107 1065 1019 979 938 896 845 B 1076 1047 1011 967 912 875 833 790 734 707 C 992 957 912 863 813 774 724 672 622 596 D 902 822 764 713 669 612 557 513 480 437 A 1293 1246 1206 1152 1098 1028 938 865 813 767 B 1112 1054 991 928 840 760 701 648 591 532 C 940 869 805 701 626 568 490 434 371 304 D 779 689 609 490 397 334 254 209 159 81 A 1371 1354 1303 1257 1209 1148 1084 1008 934 878 B 1293 1246 1206 1152 1098 1028 938 865 813 767 C 1232 1178 1131 1077 1012 929 853 790 738 690 D 1058 999 931 859 762 694 635 582 523 459 A 1153 1095 1036 979 899 810 751 697 643 588 B 1015 952 884 802 709 646 582 528 467 402 C 882 805 741 625 556 501 415 359 297 228 D 805 718 642 523 436 376 294 247 193 118 A 1126 1067 1006 945 860 777 718 664 608 551 B 1015 952 884 802 709 646 582 528 467 402 C 955 886 821 721 642 584 508 453 391 324 D 910 836 774 661 592 537 453 396 333 265 A 970 902 837 742 659 599 527 472 410 343 B 818 732 659 540 456 397 314 265 211 136 C 766 674 593 473 377 314 234 190 142 63 D 721 625 540 413 314 251 172 131 102 53 A 1304 1260 1218 1170 1116 1055 1007 953 896 834 B 1120 1067 1004 944 882 813 758 707 635 569 C 964 900 816 742 672 596 534 485 398 329 D 800 724 614 523 444 361 288 244 170 100 A 1374 1333 1298 1255 1204 1145 1100 1044 993 933 B 1304 1260 1218 1170 1116 1055 1007 953 896 834 C 1233 1186 1137 1085 1029 965 915 861 799 736 D 1063 1006 937 871 806 735 678 628 550 484 A 1120 1067 1004 944 882 813 758 707 635 569 B 1025 966 892 823 756 684 625 575 494 427 C 882 812 716 633 559 480 412 366 270 199 D 821 746 641 552 475 392 321 276 174 101 A 1704 1667 1645 1612 1572 1520 1477 1419 1384 1327 B 1506 1468 1441 1404 1358 1302 1259 1203 1159 1101 C 1322 1278 1238 1191 1138 1077 1030 975 920 859 D 1251 1205 1157 1107 1051 987 938 884 824 761 A 1392 1352 1318 1276 1226 1168 1123 1067 1017 957 B 1251 1205 1157 1107 1051 987 938 884 824 761 C 1139 1087 1027 968 907 839 785 733 663 598 D 984 922 841 769 700 625 564 515 430 361

30075

36065

36100

Continuous

Fan

High Cool

Low Cool

High Heat

Low Heat

Continuous

Fan

High Cool

Low Cool

High Heat

Low Heat

Continuous

Fan

High Cool

Low Cool

High Heat

Low Heat

0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0

SCFM SCFM SCFM SCFM SCFM SCFM SCFM SCFM SCFM SCFM

External Static Pressure (Inches WC)

16 Johnson Controls Unitary Products

Page 17

AIRFLOW PERFORMANCE - SIDE DUCT APPLICATION (Continued)

Model Jumper Position

A 1473 1435 1406 1368 1320 1264 1220 1164 1119 1060 B 1304 1260 1218 1170 1116 1055 1007 953 896 834 C 1101 1047 982 919 857 787 732 680 606 541 D 964 900 816 742 672 596 534 485 398 329 A 1555 1518 1494 1459 1414 1360 1318 1261 1220 1162 B 1473 1435 1406 1368 1320 1264 1220 1164 1119 1060 C 1374 1333 1298 1255 1204 1145 1100 1044 993 933 D 1216 1168 1117 1064 1007 942 892 838 775 712 A 1233 1186 1137 1085 1029 965 915 861 799 736 B 1139 1087 1027 968 907 839 785 733 663 598 C 1025 966 892 823 756 684 625 575 494 427 D 964 900 816 742 672 596 534 485 398 329 A 1120 1067 1004 944 882 813 758 707 635 569 B 1063 1006 937 871 806 735 678 628 550 484 C 964 900 816 742 672 596 534 485 398 329 D 882 812 716 633 559 480 412 366 270 199 A 1101 1047 982 919 857 787 732 680 606 541 B 923 856 766 688 616 538 473 426 334 264 C 821 746 641 552 475 392 321 276 174 101 D 735 655 533 435 353 266 189 147 100 85 A 1473 1435 1406 1368 1320 1264 1220 1164 1119 1060 B 1304 1260 1218 1170 1116 1055 1007 953 896 834 C 1101 1047 982 919 857 787 732 680 606 541 D 964 900 816 742 672 596 534 485 398 329 A 1555 1518 1494 1459 1414 1360 1318 1261 1220 1162 B 1473 1435 1406 1368 1320 1264 1220 1164 1119 1060 C 1374 1333 1298 1255 1204 1145 1100 1044 993 933 D 1216 1168 1117 1064 1007 942 892 838 775 712 A 1233 1186 1137 1085 1029 965 915 861 799 736 B 1139 1087 1027 968 907 839 785 733 663 598 C 1025 966 892 823 756 684 625 575 494 427 D 964 900 816 742 672 596 534 485 398 329 A 1704 1667 1645 1612 1572 1520 1477 1419 1384 1327 B 1506 1468 1441 1404 1358 1302 1259 1203 1159 1101 C 1322 1278 1238 1191 1138 1077 1030 975 920 859 D 1251 1205 1157 1107 1051 987 938 884 824 761 A 1392 1352 1318 1276 1226 1168 1123 1067 1017 957 B 1251 1205 1157 1107 1051 987 938 884 824 761 C 1139 1087 1027 968 907 839 785 733 663 598 D 984 922 841 769 700 625 564 515 430 361 A 1674 1637 1615 1582 1540 1488 1445 1388 1351 1294 B 1473 1435 1406 1368 1320 1264 1220 1164 1119 1060 C 1304 1260 1218 1170 1116 1055 1007 953 896 834 D 1120 1067 1004 944 882 813 758 707 635 569 A 1851 1809 1781 1746 1707 1656 1609 1552 1518 1460 B 1689 1652 1630 1597 1556 1504 1461 1404 1368 1310 C 1614 1578 1554 1520 1477 1424 1382 1324 1286 1228 D 1374 1333 1298 1255 1204 1145 1100 1044 993 933 A 1473 1435 1406 1368 1320 1264 1220 1164 1119 1060 B 1374 1333 1298 1255 1204 1145 1100 1044 993 933 C 1322 1278 1238 1191 1138 1077 1030 975 920 859 D 1286 1241 1197 1149 1095 1032 984 930 872 810 A 1120 1067 1004 944 882 813 758 707 635 569 B 1063 1006 937 871 806 735 678 628 550 484 C 964 900 816 742 672 596 534 485 398 329 D 882 812 716 633 559 480 412 366 270 199 A 1101 1047 982 919 857 787 732 680 606 541 B 923 856 766 688 616 538 473 426 334 264 C 821 746 641 552 475 392 321 276 174 101 D 735 655 533 435 353 266 189 147 100 85

42065

42100

48065

Continuous

Fan

High Cool

Low Cool

High Heat

Low Heat

Continuous

Fan

High Cool

Low Cool

High Heat

Low Heat

Continuous

Fan

High Cool

Low Cool

High Heat

Low Heat

0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0

SCFM SCFM SCFM SCFM SCFM SCFM SCFM SCFM SCFM SCFM

External Static Pressure (Inches WC)

5219967-UTG-A-0716

Johnson Controls Unitary Products 17

Page 18

5219967-UTG-A-0716

AIRFLOW PERFORMANCE - SIDE DUCT APPLICATION (Continued)

Model Jumper Position

A 1674 1637 1615 1582 1540 1488 1445 1388 1351 1294 B 1473 1435 1406 1368 1320 1264 1220 1164 1119 1060 C 1304 1260 1218 1170 1116 1055 1007 953 896 834 D 1120 1067 1004 944 882 813 758 707 635 569 A 1851 1809 1781 1746 1707 1656 1609 1552 1518 1460 B 1689 1652 1630 1597 1556 1504 1461 1404 1368 1310 C 1614 1578 1554 1520 1477 1424 1382 1324 1286 1228 D 1374 1333 1298 1255 1204 1145 1100 1044 993 933 A 1473 1435 1406 1368 1320 1264 1220 1164 1119 1060 B 1374 1333 1298 1255 1204 1145 1100 1044 993 933 C 1322 1278 1238 1191 1138 1077 1030 975 920 859 D 1286 1241 1197 1149 1095 1032 984 930 872 810 A 1704 1667 1645 1612 1572 1520 1477 1419 1384 1327 B 1506 1468 1441 1404 1358 1302 1259 1203 1159 1101 C 1322 1278 1238 1191 1138 1077 1030 975 920 859 D 1251 1205 1157 1107 1051 987 938 884 824 761 A 1392 1352 1318 1276 1226 1168 1123 1067 1017 957 B 1251 1205 1157 1107 1051 987 938 884 824 761 C 1139 1087 1027 968 907 839 785 733 663 598 D 984 922 841 769 700 625 564 515 430 361 A 1674 1637 1615 1582 1540 1488 1445 1388 1351 1294 B 1473 1435 1406 1368 1320 1264 1220 1164 1119 1060 C 1304 1260 1218 1170 1116 1055 1007 953 896 834 D 1120 1067 1004 944 882 813 758 707 635 569 A 1851 1809 1781 1746 1707 1656 1609 1552 1518 1460 B 1689 1652 1630 1597 1556 1504 1461 1404 1368 1310 C 1614 1578 1554 1520 1477 1424 1382 1324 1286 1228 D 1374 1333 1298 1255 1204 1145 1100 1044 993 933 A 1473 1435 1406 1368 1320 1264 1220 1164 1119 1060 B 1374 1333 1298 1255 1204 1145 1100 1044 993 933 C 1322 1278 1238 1191 1138 1077 1030 975 920 859 D 1286 1241 1197 1149 1095 1032 984 930 872 810 A 2114 2046 1974 1914 1874 1815 1745 1696 1645 1582 B 1982 1930 1887 1844 1806 1752 1697 1643 1604 1545 C 1785 1746 1720 1687 1647 1596 1551 1494 1459 1402 D 1614 1578 1554 1520 1477 1424 1382 1324 1286 1228 A 2114 2046 1974 1914 1874 1815 1745 1696 1645 1582 B 1982 1930 1887 1844 1806 1752 1697 1643 1604 1545 C 1490 1452 1423 1386 1339 1283 1240 1183 1139 1080 D 1357 1315 1278 1234 1182 1123 1077 1021 969 908 A 2077 2043 2006 1961 1922 1880 1836 1789 1744 1696 B 1879 1843 1807 1763 1723 1679 1635 1590 1536 1493 C 1683 1648 1604 1560 1515 1468 1424 1377 1330 1284 D 1497 1451 1402 1354 1305 1258 1206 1156 1103 1055 A 2149 2114 2077 2030 1989 1948 1905 1859 1816 1768 B 2013 1977 1941 1898 1860 1816 1772 1726 1677 1630 C 1936 1900 1864 1822 1783 1739 1695 1649 1597 1551 D 1719 1685 1642 1600 1555 1508 1465 1418 1372 1327 A 1629 1591 1546 1502 1455 1409 1362 1315 1266 1220 B 1558 1516 1469 1423 1375 1329 1280 1232 1181 1135 C 1453 1406 1355 1305 1255 1207 1153 1100 1047 997 D 1410 1361 1307 1255 1204 1155 1100 1044 992 938 A 1276 1219 1158 1098 1040 987 927 869 818 761 B 1133 1068 995 922 849 793 730 680 634 579 C 1025 950 868 788 713 654 591 505 458 415 D 844 748 651 563 494 433 372 168 115 105 A 1228 1169 1104 1039 976 922 861 806 757 700 B 1086 1017 940 863 786 728 664 617 573 519 C 844 748 651 563 494 433 372 168 115 105 D 786 666 593 514 453 370 314 263 180 38

48100

48125

60065

Continuous

Fan

High Cool

Low Cool

High Heat

Low Heat

Continuous

Fan

High Cool

Low Cool

High Heat

Low Heat

Continuous

Fan

High Cool

Low Cool

High Heat

Low Heat

0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0

SCFM SCFM SCFM SCFM SCFM SCFM SCFM SCFM SCFM SCFM

External Static Pressure (Inches WC)

18 Johnson Controls Unitary Products

Page 19

AIRFLOW PERFORMANCE - SIDE DUCT APPLICATION (Continued)

Model Jumper Position

A 2077 2043 2006 1961 1922 1880 1836 1789 1744 1696

Continuous

Fan

B 1879 1843 1807 1763 1723 1679 1635 1590 1536 1493 C 1683 1648 1604 1560 1515 1468 1424 1377 1330 1284 D 1497 1451 1402 1354 1305 1258 1206 1156 1103 1055 A 2149 2114 2077 2030 1989 1948 1905 1859 1816 1768

High Cool

B 2013 1977 1941 1898 1860 1816 1772 1726 1677 1630 C 1936 1900 1864 1822 1783 1739 1695 1649 1597 1551 D 1719 1685 1642 1600 1555 1508 1465 1418 1372 1327 A 1629 1591 1546 1502 1455 1409 1362 1315 1266 1220

60100

Low Cool

B 1558 1516 1469 1423 1375 1329 1280 1232 1181 1135 C 1453 1406 1355 1305 1255 1207 1153 1100 1047 997 D 1410 1361 1307 1255 1204 1155 1100 1044 992 938 A 1739 1705 1664 1620 1577 1530 1487 1441 1393 1348

High Heat

B 1558 1516 1469 1423 1375 1329 1280 1232 1181 1135 C 1410 1361 1307 1255 1204 1155 1100 1044 992 938 D 1323 1270 1213 1156 1104 1052 993 933 880 821 A 1594 1553 1507 1462 1415 1369 1321 1274 1223 1178

Low Heat

B 1323 1270 1213 1156 1104 1052 993 933 880 821 C 1181 1118 1049 980 913 857 795 743 696 640 D 1025 950 868 788 713 654 591 505 458 415 A 2077 2043 2006 1961 1922 1880 1836 1789 1744 1696

Continuous

Fan

High Cool

60125

Low Cool

B 1558 1516 1469 1423 1375 1329 1280 1232 1181 1135 C 1453 1406 1355 1305 1255 1207 1153 1100 1047 997 D 1410 1361 1307 1255 1204 1155 1100 1044 992 938 A 2259 2221 2183 2142 2099 2060 2015 1975 1931 1882

High Heat

B 2093 2059 2023 1977 1938 1896 1852 1805 1760 1712 C 1908 1872 1835 1792 1753 1709 1665 1619 1566 1522 D 1760 1726 1685 1641 1598 1552 1510 1463 1413 1370 A 2259 2221 2183 2142 2099 2060 2015 1975 1931 1882

Low Heat

B 1965 1929 1893 1851 1813 1769 1724 1678 1628 1580 C 1701 1666 1623 1580 1535 1488 1445 1397 1351 1305 D 1683 1648 1604 1560 1515 1468 1424 1377 1330 1284

0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0

SCFM SCFM SCFM SCFM SCFM SCFM SCFM SCFM SCFM SCFM

External Static Pressure (Inches WC)

5219967-UTG-A-0716

1. Airflow tested with dry coil conditions, without air filters, at 230 volts

2. Applications above 0.8" w.c. external static pressure are not recommended.

3. Brushless DC high efficiency standard ECM blower motor used for all indoor blower assemblies.

4. Minimal variations in airflow performance data results from operating at 208 volts. Data above may be used in those cases.

5. Minimal variations in airflow performance data results from using downflow duct applications. Data above may be used in those cases.

Johnson Controls Unitary Products 19

Page 20

5219967-UTG-A-0716



$

6833/< $,5'8&7

5(7851 $,5'8&7

)

(



9,(:/22.,1*83 $7%277202)81,7





$



6833/< $,5'8&7

5(7851 $,5'8&7

ADDITIONAL STATIC RESISTANCE

Size (Tons) CFM Wet Indoor Coil Economizer

Filter/Frame Kit

500 0.01 0.00 0.01 600 0.01 0.00 0.02 700 0.01 0.00 0.04

024 (2.0)

800 0.02 0.01 0.06

900 0.03 0.01 0.08 1000 0.04 0.01 0.10 1100 0.05 0.01 0.13 1200 0.06 0.02 0.16

700 0.01 0.00 0.04

800 0.02 0.01 0.06

900 0.03 0.01 0.08

030 (2.5)

1000 0.04 0.01 0.10 1100 0.05 0.01 0.13 1200 0.06 0.02 0.16 1300 0.07 0.03 0.17

700 0.01 0.00 0.04

800 0.02 0.01 0.06

900 0.03 0.01 0.08

036 (3.0)

1000 0.04 0.01 0.10 1100 0.05 0.01 0.13 1200 0.06 0.02 0.16 1300 0.07 0.03 0.17 1400 0.08 0.04 0.18 1100 0.02 0.02 0.04 1200 0.03 0.02 0.04 1300 0.04 0.02 0.05 1400 0.05 0.03 0.05

042 (3.5)

1500 0.06 0.04 0.06 1600 0.07 0.04 0.07 1700 0.07 0.04 0.08 1800 0.08 0.04 0.09 1900 0.09 0.05 0.10 2000 0.09 0.05 0.11 1100 0.02 0.02 0.04 1200 0.03 0.02 0.04 1300 0.04 0.02 0.05 1400 0.05 0.03 0.05

048 (4.0)

1500 0.06 0.04 0.06 1600 0.07 0.04 0.07 1700 0.07 0.04 0.08 1800 0.08 0.04 0.09 1900 0.09 0.05 0.10 2000 0.09 0.05 0.11 1100 0.02 0.02 0.04 1200 0.03 0.02 0.04 1300 0.04 0.02 0.05 1400 0.05 0.03 0.05

060 (5.0)

1500 0.06 0.04 0.06 1600 0.07 0.04 0.07 1700 0.07 0.04 0.08 1800 0.08 0.04 0.09

1. The pressure drop through the economizer is greater for 100% outdoor air

2. Filter pr essure drop based on stan dard filter media te sted at velocities not to

than for 100% return air. If the resistance of the return air duct is less than

0.25 IWG, the unit will deliver less CFM during full economizer operation. exceed 300 ft/min.

1900 0.09 0.05 0.10 2000 0.09 0.05 0.11

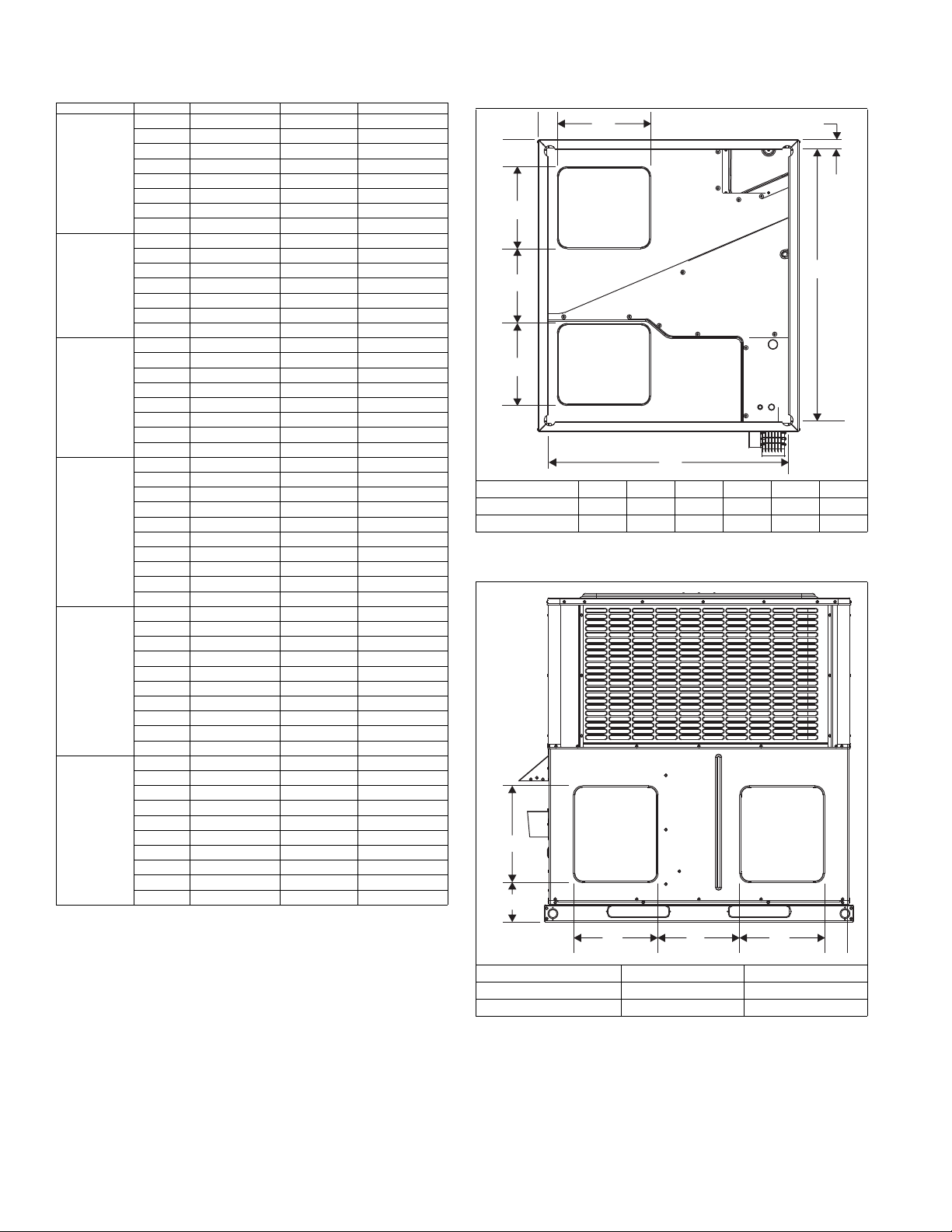

BOTTOM DUCT DIMENSIONS (Inches)

Model ABCDEF

24, 30 10 21.5 5 4.5 47.5 32

36, 42, 48, 60 14 13.5 5 3.5 47.5 42

REAR DUCT DIMENSIONS (Inches)

Model A B

24, 30 9.6 22

36, 42, 48, 60 13.6 14

20 Johnson Controls Unitary Products

Page 21

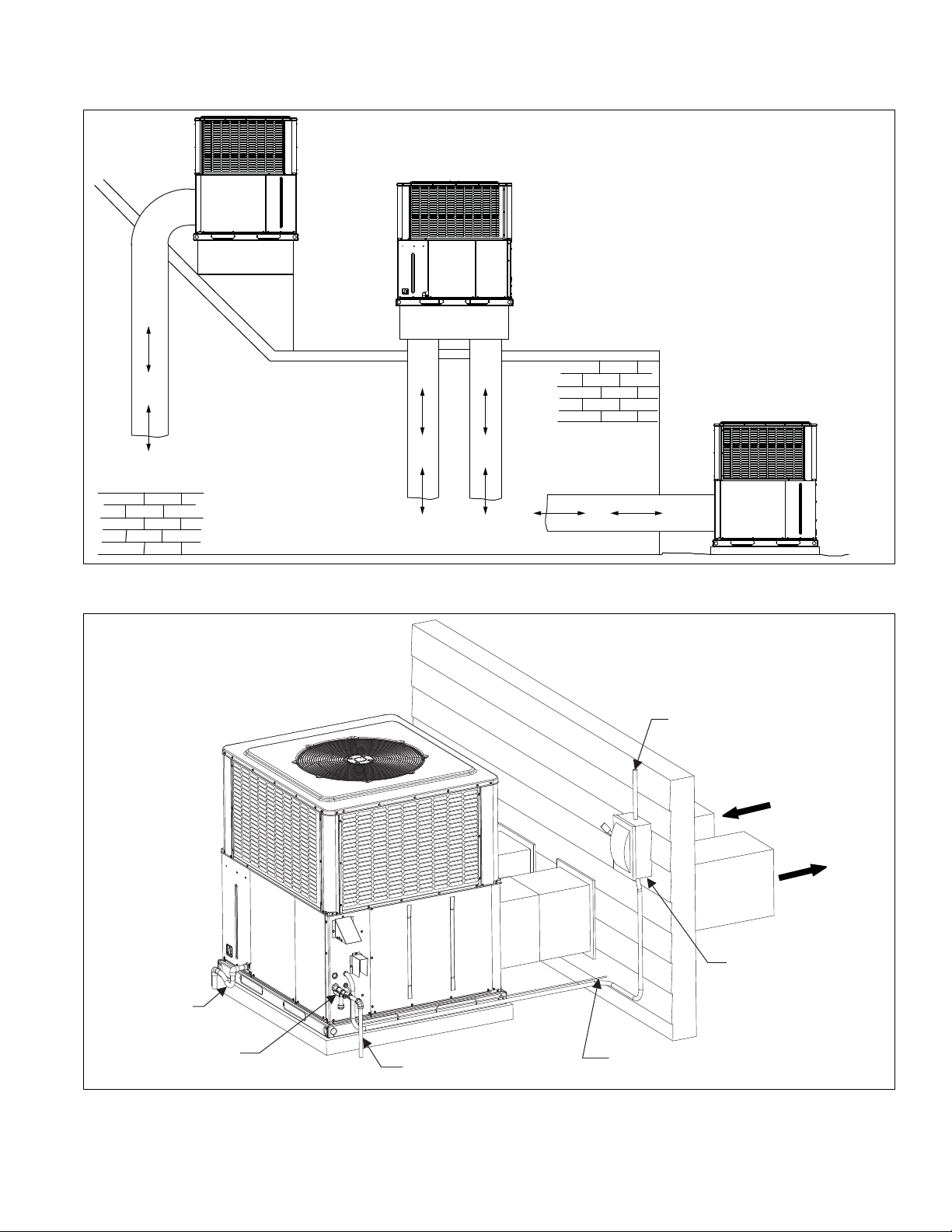

UNIT TYPICAL DUCT APPLICATIONS

ROOF CURB INSTALLATION REAR DUCT

ROOF CURB INSTALLATION BOTTOM DUCT

SLAB ON GROUND INSTALLATION

A0324-001

A0325-001

SUPPLY AIR DUCT

TO POWER SUPPLY

RETURN AIR DUCT

FIELD-SUPPLIED DISCONNECT SWITCH

CONTROL WIRING TO INDOOR THERMOSTAT

TO GAS SUPPLY LINE

MANUAL GAS SHUTOFF VAVLE

CONDENSATE DRAIN

5219967-UTG-A-0716

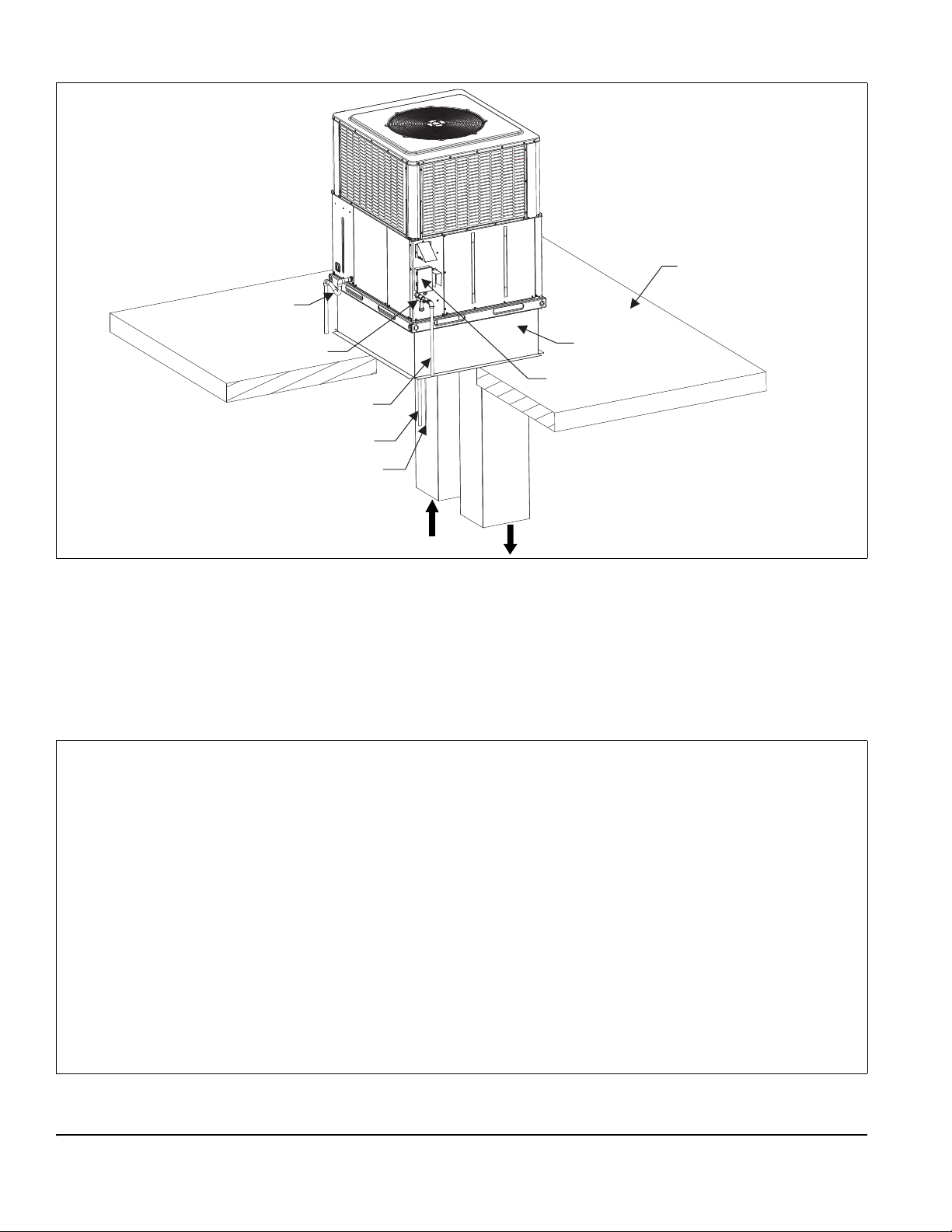

UNIT TYPICAL SLAB ON GROUND INSTALLATION

Johnson Controls Unitary Products 21

Page 22

UNIT TYPICAL ROOF CURB INSTALLATION

SUPPLY AIR DUCT

TO POWER SUPPLY

RETURN AIR DUCT

FIELD-SUPPLIED DISCONNECT SWITCH

CONTROL WIRING TO INDOOR THERMOSTAT

TO GAS SUPPLY LINE

MANUAL GAS SHUTOFF VAVLE

ROOF CURB

ROOF

CONDENSATE DRAIN

A0326-001

EXTERNAL STATIC PRESSURE SETUP

To measure external static pressure:

• Measure the supply air static pressure

• Record this positive number

• Measure the return air static pressure

• Record this negative number

• Treat the negative number as a positive and add the two numbers together

• This is total system static

York International Corp.

5005 York Drive

Norman, OK 73069
