Yokogawa EJX110A User Manual

User’s Manual

Differential Pressure and Pressure Transmitters EJ110, EJ120, EJ130, EJ310, EJ430, and EJ440

IM 01C25B01-01E

13th Edition

Differential Pressure and Pressure Transmitters EJ110, EJ120, EJ130,

i

EJ310, EJ430, and EJ440



IM 01C25B01-01E 13th Edition

Contents

1. Introduction ............................................................................................... 1-1

 Regarding This Manual ................................................................................................1-1

1.1 Safe Use of This Product .................................................................................1-2

1.2 Warranty .............................................................................................................1-3

1.3 ATEX Documentation .......................................................................................1-4

2. Handling Cautions .................................................................................... 2-1

2.1 Model and Specications Check .....................................................................2-1

2.2 Unpacking ..........................................................................................................2-1

2.3 Storage ...............................................................................................................2-1

2.4 Selecting the Installation Location ................................................................ 2-2

2.5 Pressure Connection ........................................................................................2-2

2.6 Waterproong of Cable Conduit Connections ..............................................2-2

2.7 Restrictions on Use of Radio Transceivers ...................................................2-2

2.8 Insulation Resistance and Dielectric Strength Test ......................................2-2

2.9 Installation of an Explosion-Protected Instrument .......................................2-3

2.9.1 FM Approval .......................................................................................2-4

2.9.2 CSA Certication ................................................................................2-6

2.9.3 ATEX Certication ..............................................................................2-8

2.9.4 IECEx Certication ........................................................................... 2-11

2.10 EMC Conformity Standards ...........................................................................2-12

2.11 Pressure Equipment Directive (PED) ...........................................................2-13

2.12 Low Voltage Directive .....................................................................................2-13

3. Component Names .................................................................................. 3-1

4. Installation ................................................................................................. 4-1

4.1 Precautions .......................................................................................................4-1

4.2 Mounting ........................................................................................................... 4-1

4.3 Changing the Process Connection .................................................................4-2

4.4 Swapping the High/Low-pressure Side Connection .....................................4-3

4.4.1 Rotating Pressure-detector Section 180° .........................................4-3

4.4.2 Using the Communicator ...................................................................4-3

4.5 Rotating Transmitter Section ........................................................................... 4-4

4.6 Changing the Direction of Integral Indicator ................................................. 4-4

IM 01C25B01-01E

5. Installing Impulse Piping ......................................................................... 5-1

5.1 Impulse Piping Installation Precautions ........................................................5-1

5.1.1 Connecting Impulse Piping to a Transmitter ......................................5-1

5.1.2 Routing the Impulse Piping ................................................................5-3

5.2 Impulse Piping Connection Examples ...........................................................5-4

6. Wiring ......................................................................................................... 6-1

6.1 Wiring Precautions ...........................................................................................6-1

6.2 Selecting the Wiring Materials .........................................................................6-1

6.3 Connections of External Wiring to Terminal Box ..........................................6-1

6.3.1 Power Supply Wiring Connection ......................................................6-1

6.3.2 External Indicator Connection............................................................6-1

6.3.3 Communicator Connection ................................................................6-1

6.3.4 Check Meter Connection ...................................................................6-2

6.3.5 Status Output Connection ..................................................................6-2

6.4 Wiring .................................................................................................................6-2

6.4.1 Loop Conguration ............................................................................6-2

6.4.2 Wiring Installation ...............................................................................6-2

6.5 Grounding ..........................................................................................................6-3

6.6 Power Supply Voltage and Load Resistance .................................................6-3

ii

7. Operation ................................................................................................... 7-1

7.1 Preparation for Starting Operation ................................................................. 7-1

7.2 Zero Point Adjustment ..................................................................................... 7-2

7.2.1 Adjusting Zero Point for Differential Pressure Transmitters ..............7-3

7.2.2 Adjusting Zero Point for Gauge/Absolute Pressure Transmitters ....7-3

7.3 Starting Operation ............................................................................................ 7-3

7.4 Shutting Down the Transmitter .......................................................................7-4

7.5 Venting or Draining Transmitter Pressure-detector Section .......................7-4

7.5.1 Draining Condensate .........................................................................7-4

7.5.2 Venting Gas........................................................................................7-5

7.6 Setting the Range Using the Range-setting Switch ......................................7-5

8. Maintenance .............................................................................................. 8-1

8.1 Overview ............................................................................................................ 8-1

8.2 Calibration Instruments Selection .................................................................. 8-1

8.3 Calibration .........................................................................................................8-1

8.4 Disassembly and Reassembly ........................................................................8-3

8.4.1 Replacing the Integral Indicator .........................................................8-3

8.4.2 Replacing the CPU Board Assembly .................................................8-4

8.4.3 Cleaning and Replacing the Capsule Assembly ...............................8-4

8.4.4 Replacing the Process Connector Gaskets .......................................8-6

IM 01C25B01-01E

8.5 Troubleshooting ................................................................................................8-6

8.5.1 Basic Troubleshooting .......................................................................8-6

8.5.2 Troubleshooting Flowcharts ...............................................................8-7

8.5.3 Alarms and Countermeasures ...........................................................8-9

9. General Specications ............................................................................ 9-1

9.1 Standard Specications ................................................................................... 9-1

9.2 Model and Sufx Codes ...................................................................................9-6

9.3 Optional Specications .................................................................................9-19

9.4 Dimensions ......................................................................................................9-22

Revision Information

iii

When using the Transmitters in a Safety Instrumented Systems(SIS) application, refer to Appendix A in either IM 01C25T01-06EN for the HART protocol or IM 01C25T03-01E for the BRAIN protocol.

IM 01C25B01-01E

<1. Introduction>

1. Introduction

Thank you for purchasing the DPharp Differential Pressure and pressure transmitter.

NOTE

1-1

Your transmitter was precisely calibrated at the factory before shipment. To ensure both safety and efciency, please read this manual carefully before you operate the instrument.

NOTE

This manual describes the hardware congurations of the transmitters listed in below. For information on the software conguration and operation, please refer to either IM 01C25T03-01E for the BRAIN communication type, or IM 01C25T01-06EN for the HART communication type.

For FOUNDATION Fieldbus protocol type, please refer to IM 01C25T02-01E. For PROFIBUS PA protocol type, please refer to IM 01C25T04-01EN.

Model Style code

EJX110A S3 EJX120A S1 EJX130A S2 EJX310A S2 EJX430A S2 EJX440A S2 EJA110E S1 EJA120E S1 EJA130E S1 EJA310E S1 EJA430E S1 EJA440E S1

To ensure correct use of this instrument, read both the hardware and software manuals thoroughly before use.

WARNING

When describing the model name like EJ110, it shows the applicability for both EJX110A and EJA110E. The same representations are used for the other models, too.

NOTE

Unless otherwise stated, the illustrations in this manual are of the EJ110 differential pressure transmitter. Users of the other models should bear in mind that certain features of their instrument will differ from those shown in the illustrations of the EJ110.

 Regarding This Manual

• This manual should be provided to the end user.

• The contents of this manual are subject to change without prior notice.

• Yokogawa makes no warranty of any kind with regard to this manual, including, but not limited to, implied warranty of merchantability and tness for a particular purpose.

• If any question arises or errors are found, or if any information is missing from this manual, please inform the nearest Yokogawa sales ofce.

• The specications covered by this manual are limited to those for the standard type under the specied model number break-down and do not cover custom-made instruments.

When using the transmitters in a Safety Instrumented Systems (SIS) application, refer to Appendix 1 in either IM 01C25T01-06EN for the HART protocol or IM 01C25T03-01E for the BRAIN protocol. The instructions and procedures in this section must be strictly followed in order to maintain the transmitter for this safety level.

• Please note that changes in the specications, construction, or component parts of the instrument may not immediately be reected in this manual at the time of change, provided that postponement of revisions will not cause difculty to the user from a functional or performance standpoint.

IM 01C25B01-01E

<1. Introduction>

1-2

• Yokogawa assumes no responsibilities for this product except as stated in the warranty.

• If the customer or any third party is harmed by the use of this product, Yokogawa assumes no responsibility for any such harm owing to any defects in the product which were not predictable, or for any indirect damages.

• The following safety symbols are used in this manual:

WARNING

Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.

CAUTION

Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury. It may also be used to alert against unsafe practices.

IMPORTANT

Indicates that operating the hardware or software in this manner may damage it or lead to system failure.

NOTE

Draws attention to information essential for understanding the operation and features.

1.1 Safe Use of This Product

For the safety of the operator and to protect the instrument and the system, please be sure to follow this manual’s safety instructions when handling this instrument. If these instructions are not heeded, the protection provided by this instrument may be impaired. In this case, Yokogawa cannot guarantee that the instrument can be safely operated. Please pay special attention to the following points:

(a) Installation

• This instrument may only be installed by an engineer or technician who has an expert knowledge of this device. Operators are not allowed to carry out installation unless they meet this condition.

• With high process temperatures, care must be taken not to burn yourself by touching the instrument or its casing.

• Never loosen the process connector nuts when the instrument is installed in a process. This can lead to a sudden, explosive release of process uids.

• When draining condensate from the pressure detector section, take appropriate precautions to prevent the inhalation of harmful vapors and the contact of toxic process uids with the skin or eyes.

• When removing the instrument from a hazardous process, avoid contact with the uid and the interior of the meter.

• All installation shall comply with local installation requirements and the local electrical code.

(b) Wiring

Direct current

• The instrument must be installed by an engineer or technician who has an expert knowledge of this instrument. Operators are not permitted to carry out wiring unless they meet this condition.

• Before connecting the power cables, please conrm that there is no current owing through the cables and that the power supply to the instrument is switched off.

IM 01C25B01-01E

<1. Introduction>

1-3

(c) Operation

• Wait 5 min. after the power is turned off, before opening the covers.

(d) Maintenance

• Please carry out only the maintenance procedures described in this manual. If you require further assistance, please contact the nearest Yokogawa ofce.

• Care should be taken to prevent the build up of dust or other materials on the display glass and the name plate. To clean these surfaces, use a soft, dry cloth.

(e) Explosion Protected Type Instrument

• Users of explosion proof instruments should refer rst to section 2.9 (Installation of an Explosion Protected Instrument) of this manual.

• The use of this instrument is restricted to those who have received appropriate training in the device.

• Take care not to create sparks when accessing the instrument or peripheral devices in a hazardous location.

(f) Modication

1.2 Warranty

• The warranty shall cover the period noted on the quotation presented to the purchaser at the time of purchase. Problems occurring during the warranty period shall basically be repaired free of charge.

• If any problems are experienced with this instrument, the customer should contact the Yokogawa representative from which this instrument was purchased or the nearest Yokogawa ofce.

• If a problem arises with this instrument, please inform us of the nature of the problem and the circumstances under which it developed, including the model specication and serial number. Any diagrams, data and other information you can include in your communication will also be helpful.

• The party responsible for the cost of xing the problem shall be determined by Yokogawa following an investigation conducted by Yokogawa.

• The purchaser shall bear the responsibility for repair costs, even during the warranty period, if the malfunction is due to:

• Yokogawa will not be liable for malfunctions or damage resulting from any modication made to this instrument by the customer.

- Improper and/or inadequate maintenance by the purchaser.

- Malfunction or damage due to a failure to handle, use, or store the instrument in accordance with the design specications.

- Use of the product in question in a location not conforming to the standards specied by Yokogawa, or due to improper maintenance of the installation location.

- Failure or damage due to modication or repair by any party except Yokogawa or an approved representative of Yokogawa.

- Malfunction or damage from improper relocation of the product in question after delivery.

- Reason of force majeure such as res, earthquakes, storms/oods, thunder/ lightening, or other natural disasters, or disturbances, riots, warfare, or radioactive contamination.

IM 01C25B01-01E

<1. Introduction>

1.3 ATEX Documentation

This is only applicable to the countries in European Union.

1-4

GB

DK

E

NL

SK

CZ

I

LT

LV

EST

PL

SF

P

F

D

S

SLO

H

BG

RO

M

GR

IM 01C25B01-01E

<2. Handling Cautions>

2. Handling Cautions

2-1

This chapter provides important information on how to handle the transmitter. Read this carefully before using the transmitter.

The transmitters are thoroughly tested at the factory before shipment. When taking delivery of an instrument, visually check them to make sure that no damage occurred during shipment.

Also check that all transmitter mounting hardware shown in gure 2.1 is included. If the transmitter is ordered without the mounting bracket and the process connector, the transmitter mounting hardware will not be included. After checking the transmitter, carefully repack it in its box and keep it there until you are ready to install it.

Bolt

Process connector

Process connector Gasket

U-bolt

(Note 1)

2.1 Model and Specications Check

The model name and specications are written on the name plate attached to the case.

F0202.ai

Figure 2.2 Name Plate (EJX110A)

2.2 Unpacking

Keep the transmitter in its original packaging to prevent it from being damaged during shipment. Do not unpack the transmitter until it reaches the installation site.

2.3 Storage

Mounting bracket (L type)

U-bolt nut

Figure 2.1 Transmitter Mounting Hardware

Transmitter mounting bolt

Mounting bracket (Flat type)

F0201.ai

The following precautions must be observed when storing the instrument, especially for a long period.

(a) Select a storage area which meets the following

conditions:

• It is not exposed to rain or subject to water seepage/leaks.

• Vibration and shock are kept to a minimum.

• It has an ambient temperature and relative humidity within the following ranges.

Ambient temperature: –40* to 85°C without integral indicator –30* to 80°C with integral indicator

* –15°C when /HE is specied.

Relative humidity: 0% to 100% R.H. Preferred temperature and humidity: approx. 25°C and 65% R.H.

(b) When storing the transmitter, repack it carefully

in the packaging that it was originally shipped with.

(c) If the transmitter has been used, thoroughly

clean the chambers inside the cover anges, so that there is no process uid remaining inside. Before placing it in storage, also make sure that the pressure-detector is securely connected to the transmitter section.

IM 01C25B01-01E

<2. Handling Cautions>

2-2

2.4 Selecting the Installation Location

The transmitter is designed to withstand severe environmental conditions. However, to ensure that it will provide years of stable and accurate performance, take the following precautions when selecting the installation location.

(a) Ambient Temperature

Avoid locations subject to wide temperature variations or a signicant temperature gradient. If the location is exposed to radiant heat from plant equipment, provide adequate thermal insulation and/or ventilation.

(b) Ambient Atmosphere

Do not install the transmitter in a corrosive atmosphere. If this cannot be avoided, there must be adequate ventilation as well as measures to prevent the leaking of rain water and the presence of standing water in the conduits.

(c) Shock and Vibration

Although the transmitter is designed to be relatively resistant to shock and vibration, an installation site should be selected where this is kept to a minimum.

(d) Installation of Explosion-protected Transmitters

An explosion-protected transmitters is certied for installation in a hazardous area containing specic gas types. See subsection

2.9 “Installation of an Explosion-Protected Transmitters.”

The following precautions must be observed in order to safely operate the transmitter under pressure.

(a) Make sure that all the process connector bolts

are tightened rmly.

(b) Make sure that there are no leaks in the impulse

piping.

(c) Never apply a pressure higher than the

specied maximum working pressure.

2.6 Waterproong of Cable Conduit Connections

Apply a non-hardening sealant to the threads to waterproof the transmitter cable conduit connections. (See gure 6.8, 6.9 and 6.10.)

2.7 Restrictions on Use of Radio Transceivers

IMPORTANT

Although the transmitter has been designed to resist high frequency electrical noise, if a radio transceiver is used near the transmitter or its external wiring, the transmitter may be affected by high frequency noise pickup. To test this, start out from a distance of several meters and slowly approach the transmitter with the transceiver while observing the measurement loop for noise effects. Thereafter use the transceiver outside the range where the noise effects were rst observed.

2.5 Pressure Connection

WARNING

• Never loosen the process connector bolts when an instrument is installed in a process. The device is under pressure, and a loss of seal can result in a sudden and uncontrolled release of process uid.

• When draining toxic process uids that have condensed inside the pressure detector, take appropriate steps to prevent the contact of such uids with the skin or eyes and the inhalation of vapors from these uids.

2.8 Insulation Resistance and Dielectric Strength Test

Since the transmitter has undergone insulation resistance and dielectric strength tests at the factory before shipment, normally these tests are not required. If the need arises to conduct these tests, heed the following:

(a) Do not perform such tests more frequently than

is absolutely necessary. Even test voltages that do not cause visible damage to the insulation may degrade the insulation and reduce safety margins.

IM 01C25B01-01E

<2. Handling Cautions>

2-3

(b) Never apply a voltage exceeding 500 V DC

(100 V DC with an internal lightning protector) for the insulation resistance test, nor a voltage exceeding 500 V AC (100 V AC with an internal lightning protector) for the dielectric strength test.

(c) Before conducting these tests, disconnect

all signal lines from the transmitter terminals. The procedure for conducting these tests is as follows:

• Insulation Resistance Test

1) Short-circuit the + and – SUPPLY terminals in the terminal box.

2) Turn OFF the insulation tester. Then connect the insulation tester plus (+) lead wire to the shorted SUPPLY terminals and the minus (–) leadwire to the grounding terminal.

3) Turn ON the insulation tester power and measure the insulation resistance. The voltage should be applied as briey as possible to verify that the insulation resistance is at least 20 MΩ.

4) After completing the test and being very careful not to touch exposed conductors disconnect the insulation tester and connect a 100 kΩ resistor between the grounding terminal and the shortcircuiting SUPPLY terminals. Leave this resistor connected at least one second to discharge any static potential. Do not touch the terminals while it is discharging.

2.9 Installation of an ExplosionProtected Instrument

NOTE

For FOUNDATION Fieldbus explosion protected type, please refer to IM 01C22T02-01E. For PROFIBUS PA explosion protected type, please refer to IM 01C25T04-01EN.

If a customer makes a repair or modication to an intrinsically safe or explosionproof instrument and the instrument is not restored to its original condition, its intrinsically safe or explosionproof construction may be compromised and the instrument may be hazardous to operate. Please contact Yokogawa before making any repair or modication to an instrument.

CAUTION

This instrument has been tested and certied as being intrinsically safe or explosionproof. Please note that severe restrictions apply to this instrument’s construction, installation, external wiring, maintenance and repair. A failure to abide by these restrictions could make the instrument a hazard to operate.

• Dielectric Strength Test

1) Short-circuit the + and – SUPPLY terminals in the terminal box.

2) Turn OFF the dielectric strength tester. Then connect the tester between the shorted SUPPLY terminals and the grounding terminal. Be sure to connect the grounding lead of the dielectric strength tester to the ground terminal.

3) Set the current limit on the dielectric strength tester to 10 mA, then turn ON the power and gradually increase the test voltage from ‘0’ to the specied voltage.

4) When the specied voltage is reached, hold it for one minute.

5) After completing this test, slowly decrease the voltage to avoid any voltage surges.

WARNING

Maintaining the safety of explosionproof equipment requires great care during mounting, wiring, and piping. Safety requirements also place restrictions on maintenance and repair. Please read the following sections very carefully.

WARNING

The range setting switch must not be used in a hazardous area.

IM 01C25B01-01E

<2. Handling Cautions>

2-4

IMPORTANT

For combined approval types Once a device of multiple approval type is installed, it should not be re-installed using any other approval types. Apply a permanent mark in the check box of the selected approval type on the certication label on the transmitter to distinguish it from unused approval types.

IMPORTANT

All the blind plugs which accompany the EJX/ EJA-E transmitters upon shipment from the factory are certied by the applicable agency in combination with those transmitters. The plugs which are marked with the symbols “◊ Ex” on their surfaces are certied only in combination with the EJX/EJA-E series transmitters.

2.9.1 FM Approval

Note 2. Entity Parameters

• Intrinsically Safe Apparatus Parameters [Groups A, B, C, D, E, F and G]

Vmax = 30 V Ci = 6 nF Imax = 200 mA Li = 0 µH Pmax = 1 W

* Associated Apparatus Parameters (FM approved barriers)

Voc ≤ 30 V Ca > 6 nF Isc ≤ 200 mA La > 0 µH Pmax ≤ 1W

• Intrinsically Safe Apparatus Parameters [Groups C, D, E, F and G]

Vmax = 30 V Ci = 6 nF Imax = 225 mA Li = 0 µH Pmax = 1 W

* Associated Apparatus Parameters (FM approved barriers)

Voc ≤ 30 V Ca > 6 nF Isc ≤ 225 mA La > 0 µH Pmax ≤ 1 W

a. FM Intrinsically Safe Type

Caution for FM intrinsically safe type. (Following contents refer “DOC. No. IFM022-A12”)

Note 1. Model EJX/EJA-E Series Differential,

gauge and absolute pressure transmitters with optional code /FS1 are applicable for use in hazardous locations.

• Applicable Standard: FM3600, FM3610,

FM3611, FM3810

• Intrinsically Safe for Class I, Division 1,

Groups A, B, C & D. Class II, Division 1, Groups E, F & G and Class III, Division 1, Class I, Zone 0 in Hazardous Locations, AEx ia IIC

• Nonincendive for Class I, Division 2, Groups

A, B, C & D. Class II, Division 2, Groups F & G, Class I, Zone 2, Groups IIC, in Hazardous Locations.

• Outdoor hazardous locations, NEMA TYPE

4X.

• Temperature Class: T4

• Ambient temperature: –60 to 60°C

• Entity Installation Requirements Vmax ≥ Voc or Uo or Vt, Imax ≥ Isc or Io or It, Pmax (or Po) ≤ Pi, Ca or Co ≥ Ci + Ccable, La or Lo ≥ Li + Lcable

Note 3. Installation

• Barrier must be installed in an enclosure that meets the requirements of ANSI/ISA S82.01.

• Control equipment connected to barrier must not use or generate more than 250 V rms or V dc.

• Installation should be in accordance with ANSI/ISA RP12.6 “Installation of Intrinsically Safe Systems for Hazardous (Classied) Locations” and the National Electric Code (ANSI/NFPA 70).

• The conguration of associated apparatus must be FMRC Approved.

• Dust-tight conduit seal must be used when installed in a Class II, III, Group E, F and G environments.

• Associated apparatus manufacturer’s installation drawing must be followed when installing this apparatus.

• The maximum power delivered from the barrier must not exceed 1 W.

• Note a warning label worded “SUBSTITUTION OF COMPONENTS MAY IMPAIR INTRINSIC SAFETY,” and “INSTALL IN ACCORDANCE WITH DOC. No. IFM022A12”

IM 01C25B01-01E

<2. Handling Cautions>

2-5

Note 4. Maintenance and Repair

• The instrument modication or parts replacement by other than authorized representative of Yokogawa Electric Corporation is prohibited and will void Factory Mutual Intrinsically safe and Nonincendive Approval.

[Intrinsically Safe]

Hazardous Location Nonhazardous Location

Class I, II, III, Division 1, Groups A, B, C, D, E, F, G Class 1, Zone 0 in Hazardous (Classified) Locations AEx ia IIC

Pressure Transmitters

+

Supply

Hazardous Location Nonhazardous Location

Class I, II, Division 2, Groups A, B, C, D, F, G Class 1, Zone 2, Group IIC, in Hazardous (Classified) Locations

Pressure Transmitters

Supply

–

[Nonincendive]

+ –

Safety Barrier

+

–

Not Use Safety Barrier

b. FM Explosionproof Type

Caution for FM explosionproof type.

Note 1. Model EJX/EJA-E Series pressure

transmitters with optional code /FF1 are applicable for use in hazardous locations.

• Applicable Standard: FM3600, FM3615, FM3810, ANSI/NEMA 250

• Explosionproof for Class I, Division 1, Groups B, C and D.

• Dust-ignitionproof for Class II/III, Division 1, Groups E, F and G.

• Enclosure rating: NEMA TYPE 4X.

• Temperature Class: T6

• Ambient Temperature: –40 to 60°C

• Supply Voltage: 42 V dc max.

• Output signal: 4 to 20 mA

General Purpose Equipment

+ –

F0203-1.ai

General Purpose Equipment

+ –

F0203-2.ai

Note 2. Wiring

• All wiring shall comply with National Electrical Code ANSI/NFPA70 and Local Electrical Codes.

• When installed in Division 1, “FACTORY SEALED, CONDUIT SEAL NOT REQUIRED.”

Note 3. Operation

• Keep the “WARNING” nameplate attached to the transmitter.

WARNING: OPEN CIRCUIT BEFORE

REMOVING COVER. FACTORY SEALED, CONDUIT SEAL NOT REQUIRED. INSTALL IN ACCORDANCE WITH THE USERS MANUAL IM 01C25.

• Take care not to generate mechanical sparking when accessing to the instrument and peripheral devices in a hazardous location.

Note 4. Maintenance and Repair

• The instrument modication or parts replacement by other than authorized representative of Yokogawa Electric Corporation is prohibited and will void Factory Mutual Explosionproof Approval.

c. FM Intrinsically Safe Type/FM

Explosionproof Type

Model EJX/EJA-E Series pressure transmitters with optional code /FU1 or /V1U1 can be selected the type of protection (FM Intrinsically Safe or FM Explosionproof) for use in hazardous locations.

Note 1. For the installation of this transmitter,

once a particular type of protection is selected, any other type of protection cannot be used. The installation must be in accordance with the description about the type of protection in this instruction manual.

Note 2. In order to avoid confusion, unnecessary

marking is crossed out on the label other than the selected type of protection when the transmitter is installed.

IM 01C25B01-01E

<2. Handling Cautions>

2-6

2.9.2 CSA Certication

a. CSA Intrinsically Safe Type

Caution for CSA Intrinsically safe and nonincendive type. (Following contents refer to “DOC No. ICS013-A13”)

Note 1. Model EJX/EJA-E Series differential,

gauge, and absolute pressure transmitters with optional code /CS1 are applicable for

use in hazardous locations Certicate: 1606623 [For CSA C22.2]

• Applicable Standard: C22.2 No.0, C22.2

No.0.4, C22.2 No.25, C22.2 No.94, C22.2 No.157, C22.2 No.213, C22.2 No.61010-1, C22.2 No.60079-0

• Intrinsically Safe for Class I, Division 1,

Groups A, B, C & D, Class II, Division 1, Groups E, F & G, Class III, Division 1

• Nonincendive for Class I, Division 2, Groups

A, B, C & D, Class II, Division 2, Groups E, F & G, Class III, Division 1

• Enclosure: NEMA TYPE 4X

• Temp. Code: T4

• Amb. Temp.:–50* to 60°C

* –15°C when /HE is specied.

• Process Temperature: 120°C max. [For CSA E60079]

• Applicable Standard: CAN/CSA E60079-11,

CAN/CSA E60079-15, IEC 60529:2001

• Ex ia IIC T4, Ex nL IIC T4

• Ambient Temperature: –50* to 60°C

* –15°C when /HE is specied.

• Max. Process Temp.: 120°C

• Enclosure: IP66/IP67

Note 2. Entity Parameters

• Intrinsically safe ratings are as follows: Maximum Input Voltage (Vmax/Ui) = 30 V Maximum Input Current (Imax/Ii) = 200 mA Maximum Input Power (Pmax/Pi) = 0.9 W Maximum Internal Capacitance (Ci) = 10 nF Maximum Internal Inductance (Li) = 0 µH

• Type "n" or Nonincendive ratings are as

follows: Maximum Input Voltage (Vmax/Ui) = 30 V Maximum Internal Capacitance (Ci) = 10 nF Maximum Internal Inductance (Li) = 0 µH

• Installation Requirements Uo ≤ Ui, Io ≤ Ii, Po ≤ Pi, Co ≥ Ci + Ccable, Lo ≥ Li + Lcable Voc ≤ Vmax, Isc ≤ Imax, Ca ≥ Ci + Ccable, La ≥ Li + Lcable Uo, Io, Po, Co, Lo, Voc, Isc, Ca and La are

parameters of barrier.

Note 3. Installation

• In any safety barreir used output current must be limited by a resistor 'R' such that Io=Uo/R or Isc=Voc/R.

• The safety barrier must be CSA certied.

• Input voltage of the safety barrier must be less than 250 Vrms/Vdc.

• Installation should be in accordance with Canadian Electrical Code Part I and Local Electrical Code.

• Dust-tight conduit seal must be used when installed in Class II and III environments.

• The instrument modication or parts replacement by other than authorized representative of Yokogawa Electric Corporation and Yokogawa Corporation of America is prohibited and will void Canadian Standards Intrinsically safe and nonincendive Certication.

[Intrinsically Safe]

Hazardous Location Nonhazardous Location

Group IIC, Zone 0 Class I, II, III, Division 1, Groups A, B, C, D, E, F, G

Pressure Transmitters

+

Supply

Hazardous Location Nonhazardous Location

Group IIC, Zone 2 Class I, II, Division 2, Groups A, B, C, D, F, G Class III, Division 1.

Pressure Transmitters

Supply

–

[Nonincendive]

+ –

Safety Barrier

+ –

Not Use Safety Barrier

+ –

b. CSA Explosionproof Type

Caution for CSA explosionproof type.

Note 1. Model EJX/EJA-E Series pressure

transmitters with optional code /CF1 are applicable for use in hazardous locations:

• Certicate: 2014354

• Applicable Standard: C22.2 No.0, C22.2 No.0.4, C22.2 No.0.5, C22.2 No.25, C22.2 No.30, C22.2 No.94, C22.2 No.61010-1, C22.2 No.60079-0, C22.2 No.60079-1

General Purpose Equipment

+ –

F0204-1.ai

CSA Certified Equipment ([nL] or nonincendive)

+ –

F0204-2.ai

IM 01C25B01-01E

<2. Handling Cautions>

2-7

• Explosion-proof for Class I, Groups B, C and D.

• Dustignition-proof for Class II/III, Groups E, F and G.

• Enclosure: NEMA TYPE 4X

• Temperature Code: T6...T4

• Ex d IIC T6...T4

• Enclosure: IP66/IP67

• Maximum Process Temperature: 120°C (T4), 100°C (T5), 85°C (T6)

• Ambient Temperature: –50* to 75°C (T4), –50* to 80°C (T5), –50* to 75°C (T6)

* –15°C when /HE is specied.

• Supply Voltage: 42 V dc max.

• Output Signal: 4 to 20 mA dc

Note 2. Wiring

• All wiring shall comply with Canadian Electrical Code Part I and Local Electrical Codes.

• In hazardous location, wiring shall be in conduit as shown in the gure.

• WARNING:

A SEAL SHALL BE INSTALLED WITHIN

50cm OF THE ENCLOSURE.

UN SCELLEMENT DOIT ÊTRE INSTALLÉ À

MOINS DE 50cm DU BOÎTIER.

• WARNING:

WHEN INSTALLED IN CL.I, DIV 2, SEAL

NOT REQUIRED.

UNE FOIS INSTALLÉ DANS CL I, DIV 2,

AUCUN JOINT N'EST REQUIS.

Non-Hazardous

Locations

Non-hazardous Location Equipment

42 V DC Max. 4 to 20 mA DC Signal

Non-Hazardous

Locations

Non-hazardous Location Equipment

42 V DC Max. 4 to 20 mA DC Signal

Hazardous Locations Division 1

50 cm Max.

Sealing Fitting

Hazardous Locations Division 2

Sealing Fitting

Conduit

Transmitter

PULSE

SUPPLY

CHECK ALARM

F0205-1.ai

PULSE

SUPPLY

CHECK ALARM

F0205-2.ai

• All wiring shall comply with local installation requirements and local electrical code.

• In hazardous locations, the cable entry devices shall be of a certied ameproof type, suitable for the conditions of use and correctly installed.

• Unused apertures shall be closed with suitable ameproof certied blanking elements. (The plug attached is ameproof certied.)

Note 3. Operation

• WARNING:

AFTER DE-ENERGIZING, DELAY 5

MINUTES BEFORE OPENING.

APRÉS POWER-OFF, ATTENDRE 5

MINUTES AVANT D'OUVRIR.

• WARNING:

WHEN AMBIENT TEMPERATURE ≥ 65°C,

USE THE HEAT-RESISTING CABLES ≥ 90°C.

QUAND LA TEMPÉRATURE AMBIANTE

≥ 65°C, UTILISEZ DES CÂBLES RÉSISTANTES Á LA CHALEUR ≥ 90°C.

• Take care not to generate mechanical sparking when accessing to the instrument and peripheral devices in a hazardous location.

Note 4. Maintenance and Repair

• The instrument modication or parts replacement by other than authorized representative of Yokogawa Electric Corporation and Yokogawa Corporation of America is prohibited and will void Canadian Standards Explosionproof Certication.

c CSA Intrinsically Safe Type/CSA

Explosionproof Type

Model EJX/EJA-E Series pressure transmitters with optional code /CU1 or /V1U1 can be selected the type of protection (CSA Intrinsically Safe or CSA Explosionproof) for use in hazardous locations.

Note 1. For the installation of this transmitter,

once a particular type of protection is selected, any other type of protection cannot be used. The installation must be in accordance with the description about the type of protection in this instruction manual.

Note 2. In order to avoid confusion, unnecessary

marking is crossed out on the label other than the selected type of protection when the transmitter is installed.

IM 01C25B01-01E

<2. Handling Cautions>

2-8

2.9.3 ATEX Certication

(1) Technical Data

a. ATEX Intrinsically Safe Ex ia

Caution for ATEX Intrinsically safe type.

Note 1. Model EJX/EJA-E Series pressure

transmitters with optional code /KS21 for potentially explosive atmospheres:

• No. DEKRA 11ATEX0228 X

• Applicable Standard: EN 60079-0:2009, EN 60079-11:2007, EN 60079-26:2007, EN 61241-11:2006

• Type of Protection and Marking code: Ex ia IIC T4 Ga

Ex ia IIIC T85 ºC T100 ºC T120 ºC Db

• Group: II

• Category: 1G, 2D

• Ambient Temperature for EPL Ga: –50 to 60°C

• Ambient Temperature for EPL Db: –30* to 60°C

* –15°C when /HE is specied.

• Process Temperature (Tp.): 120°C max.

• Maximum Surface Temperature for EPL Db: T85°C (Tp.: 80°C) T100°C (Tp.: 100°C) T120°C (Tp.: 120°C)

• Enclosure: IP66 / IP67

Note 2 Electrical Data

• In type of explosion protection intrinsic safety Ex ia IIC or Ex ia IIIC, only for connection to a certied intrinsically safe circuit with following maximum values:

Ui = 30 V Ii = 200 mA Pi = 0.9 W (Linear Source) Maximum internal capacitance; Ci = 27.6 nF Maximum internal inductance; Li = 0 µH

Note 3. Installation

• Refer to the control drawing. All wiring shall comply with local installation requirements.

[Control Drawing]

Hazardous Location

Transmitter

+

Supply

–

*1: In any safety barriers used the output current must be

limited by a resistor “R” such that Io=Uz/R.

Nonhazardous Location

+

Safety Barrier

–

F0206.ai

*1

Note 4. Maintenance and Repair

• The instrument modication or parts replacement by other than authorized representative of Yokogawa Electric Corporation is prohibited and will void DEKRA Intrinsically safe Certication.

Note 5. Special Conditions for Safe Use

WARNING

• In the case where the enclosure of the Pressure Transmitter is made of aluminium, if it is mounted in an area where the use of category 1 G apparatus is required, it must be installed such, that, even in the event of rare incidents, ignition sources due to impact and friction sparks are excluded.

• Electrostatic charge may cause an exlosion hazard. Avoid any actions that cause the gerenation of eletrostatic charge, such as rubbing with a dry cloth on coating face of the product.

• In case of the enclosure of the Pressure Transmitter with paint layers, if it is mounted in an area where the use of category 2D apparatus is required, it shall be installed in such a way that the risk from electrostatic discharges and propagating brush discharges caused by rapid ow of dust is avoided.

• To satisfy IP66 or IP67, apply waterproof glands to the electrical connection port.

• When the lightning protector option is specied, the apparatus is not capable of withstanding the 500V insulation test required by EN60079-11. This must be taken into account when installing the apparatus.

IM 01C25B01-01E

<2. Handling Cautions>

b. ATEX Flameproof Type

Caution for ATEX ameproof type.

WARNING

2-9

Note 1. Model EJX/EJA-E Series pressure

transmitters with optional code /KF22 for potentially explosive atmospheres:

• No. KEMA 07ATEX0109 X

• Applicable Standard: EN 60079-0:2009, EN 60079-1:2007, EN 60079-31:2009

• Type of Protection and Marking Code:

Ex d IIC T6...T4 Gb, Ex tb IIIC T85°C Db

• Group: II

• Category: 2G, 2D

• Enclosure: IP66 / IP67

• Temperature Class for gas-poof: T6, T5, and T4

• Ambient Temperature for gas-proof: –50 to 75°C (T6), –50 to 80°C (T5), and –50 to 75°C (T4)

• Maximum Process Temperature (Tp.) for gas-proof:

85°C (T6), 100°C (T5), and 120°C (T4)

• Maximum Surface Temperature for dustproof: T85°C (Tamb.: –30* to 75°C, Tp.: 85°C)

* –15°C when /HE is specied.

Note 2. Electrical Data

• Supply voltage: 42 V dc max.

• Output signal: 4 to 20 mA

Note 3. Installation

• All wiring shall comply with local installation requirement.

• The cable entry devices shall be of a certied ameproof type, suitable for the conditions of use.

Note 4. Operation

• Keep the “WARNING” label attached to the transmitter.

WARNING: AFTER DE-ENERGIZING,

DELAY 5 MINUTES BEFORE OPENING. WHEN THE AMBIENT TEMP.≥65°C, USE HEAT-RESISTING CABLE AND CABLE GLAND ≥90°C.

• Take care not to generate mechanical sparking when accessing to the instrument and peripheral devices in a hazardous location.

Note 5. Special Conditions for Safe Use

• Electrostatic charge may cause an exlosion hazard. Avoid any actions that cause the gerenation of eletrostatic charge, such as rubbing with a dry cloth on coating face of the product.

• In the case where the enclosure of the Pressure Transmitter is made of aluminium, if it is mounted in an area where the use of category 2D apparatus is required, it shall be installed in such a way that the risk from electrostatic discharges and propagating brush discharges caused by rapid ow of dust is avoided.

• The instrument modication or parts replacement by other than an authorized Representative of Yokogawa Electric Corporation is prohibited and will void the certication.

• To satisfy IP66 or IP67, apply waterproof glands to the electrical connection port.

c. ATEX Intrinsically Safe Type/ATEX

Flameproof Type

Model EJX/EJA-E Series pressure transmitters with optional code /KU22 or /V1U1 can be selected the type of protection ATEX Flameproof, Intrinsically Safe. Ex ia, or Ex ic for use in hazardous area.

Note 1. For the installation of this transmitter,

once a particular type of protection is selected, any other type of protection cannot be used. The installation must be in accordance with the description about the type of protection in this user’s manual.

Note 2. For combined approval types Once a

device of multiple approval type is installed, it should not be re-installed using any other approval types. Apply a permanent mark in the check box of the selected approval type on the certication label on the transmitter to distinguish it from unused approval types.

IM 01C25B01-01E

<2. Handling Cautions>

● ATEX Intrinsically Safe Ex ic

Caution for ATEX intrinsically safe Ex ic

• Applicable Standard: EN 60079-0:2009/EN 60079-0:2012, EN 60079-11:2012

• Type of Protection and Marking Code:

II 3G Ex ic IIC T4 Gc

• Ambient Temperature: –30* to +60°C

* –15°C when /HE is specied.

• Ambient Humidity: 0 to 100% (No condensation)

• Maximum Process Temperature: 120°C

• IP Code: IP66

WARNING

• Electrostatic charge may cause an explosion hazard. Avoid any actions that cause the gerenation of eletrostatic charge, such as rubbing with a dry cloth on coating face of the product.

• When the lightning protector option is specied, the apparatus is not capable of withstanding the 500V insulation test required by EN60079-11. This must be taken into account when installing the apparatus.

• Ambient pollution degree: 2

• Overvoltage category: I

Note 1. Electrical Data

Ui = 30 V Ci = 27.6 nF Li = 0 µH

(2) Electrical Connection

A mark indicating the electrical connection type is stamped near the electrical connection port. These marks are as followed.

Screw Size Marking

Note 2. Installation

• All wiring shall comply with local installation requirements. (refer to the control drawing)

ISO M20 × 1.5 female

ANSI 1/2 NPT female

• Cable glands, adapters and/or blanking elements shall be of Ex “n”, Ex “e” or Ex “d” and shall be installed so as to maintain the specied degree of protection (IP Code) of the transmitters.

Location of the mark

Note 3. Maintenance and Repair

• The instrument modication or parts replacement by other than authorized representative of Yokogawa Electric

(3) Installation

Corporation is prohibited and will void ATEX intrinsically safe.

Hazardous Area

Transmitter

[Control drawing]

+

–

Nonhazardous Area

Associated Apparatus

WARNING

• All wiring shall comply with local installation requirements and the local electrical code.

• There is no need for conduit seal in Division 1 and Division 2 hazardous locations because this product is sealed at the factory.

2-10

M

N or W

F0208.ai

Note 4. Specic Conditions of Use

F0207.ai

(4) Operation

WARNING

• OPEN CIRCUIT BEFORE REMOVING COVER. INSTALL IN ACCORDANCE WITH THIS USER’S MANUAL

• Take care not to generate mechanical sparking when access to the instrument and peripheral devices in a hazardous location.

IM 01C25B01-01E

<2. Handling Cautions>

2-11

(5) Maintenance and Repair

WARNING

The instrument modication or parts replacement by other than an authorized Representative of Yokogawa Electric Corporation is prohibited and will void the certication.

(6) Name Plate

 Name plate

 Tag plate for flameproof type

No. KEMA 07ATEX0109 X Ex d IIC T6...T4 Gb, Ex tb IIIC T85°C Db Enlcosure : IP66/IP67 TEMP. CLASS T6 T5 T4 MAX PROCESS TEMP.(Tp.) 85 100 120 °C Tamb. -50 to 75 80 75 °C T85°C(Tamb.:-30(-15) to 75°C, Tp.:85°C)(for Dust)

*3

WARNING

 Tag plate for intrinsically safe type

D

AFTER DE-ENERGIZING, DELAY 5 MINUTES BEFORE OPENING. WHEN THE AMBIENT TEMP. ≥ 65°C, USE THE HEAT-RESISTING CABLE & CABLE GLAND ≥ 90°C POTENTIAL ELECTROSTATIC CHARGING HAZARD

No. DEKRA 11ATEX 0228 X Ex ia IIC T4 Ga Ta: -50 TO 60°C Ex ia IIIC T85°C T100°C T120°C Db Ta:-30(-15) TO 60°C IP66/IP67 MAX. PROCESS TEMP.(Tp.) 120°C T85°C(Tp.:80°C), T100°C(Tp.:100°C), T120°C(Tp.:120°C) Ui=30V, Ii=200mA , Pi=0.9W, Ci=27.6nF, Li=0µH

*1: The rst digit in the three numbers next to the nine

letters of the serial number appearing after “NO.” on the nameplate indicates the year of production. The following is an example of a serial number for a product that was produced in 2010:

91K819857 032

The year 2010

*2: “180-8750” is a zip code which represents the

following address.

2-9-32 Nakacho, Musashino-shi, Tokyo Japan

*3: The identication number of Notied Body.

2.9.4 IECEx Certication

Model EJX Series pressure transmitters with optional code /SU2 can be selected the type of protection (IECEx Intrinsically Safe/type n or ameproof) for use in hazardous locations.

Note 1. For the installation of this transmitter,

once a particular type of protection is selected, any other type of protection cannot be used. The installation must be in accordance with the description about the type of protection in this instruction manual.

Note 2. In order to avoid confusion, unnecessary

marking is crossed out on the label other than the selected type of protection when the transmitter is installed.

a. IECEx Intrinsically Safe Type / type n

Caution for IECEx Intrinsically safe and type n.

*3

WARNING

D

POTENTIAL ELECTROSTATIC CHARGING HAZARD

- SEE USER’S MANUAL

 Tag plate for intrinsically safe Ex ic

Ex ic IIC T4 Gc IP66 Tamb -30(-15) TO 60°C MAX. PROCESS TEMP. 120°C Ui=30V, Ci=27.6nF, Li=0µH

WARNING

POTENTIAL ELECTROSTATIC CHARGING HAZARD

- SEE USER’S MANUAL

MODEL: Specied model code. STYLE: Style code. SUFFIX: Specied sufx code. SUPPLY: Supply voltage. OUTPUT: Output signal. MWP: Maximum working pressure. CAL RNG: Specied calibration range. NO.: Serial number and year of production*1. TOKYO 180-8750 JAPAN: The manufacturer name and the address*2.

F0209.ai

Note 1. Model EJX Series differential, gauge,

and absolute pressure transmitters with optional code /SU2 are applicable for use in hazardous locations

• No. IECEx CSA 05.0005

• Applicable Standard: IEC 60079-0:2000, IEC 60079-11:1999, IEC 60079-15:2001

• Ex ia IIC T4, Ex nL IIC T4

• Ambient Temperature: –50 to 60°C

• Max. Process Temp.: 120°C

• Enclosure: IP66/IP67

Note 2. Entity Parameters

• Intrinsically safe ratings are as follows: Maximum Input Voltage (Vmax/Ui) = 30 V Maximum Input Current (Imax/Ii) = 200 mA Maximum Input Power (Pmax/Pi) = 0.9 W Maximum Internal Capacitance (Ci) = 10 nF Maximum Internal Inductance (Li) = 0 µH

• Type "n" ratings are as follows: Maximum Input Voltage (Vmax/Ui) = 30 V Maximum Internal Capacitance (Ci) = 10 nF Maximum Internal Inductance (Li) = 0 µH

IM 01C25B01-01E

<2. Handling Cautions>

2-12

• Installation Requirements Uo ≤ Ui, Io ≤ Ii, Po ≤ Pi, Co ≥ Ci + Ccable, Lo ≥ Li + Lcable Voc ≤ Vmax, Isc ≤ Imax, Ca ≥ Ci + Ccable, La ≥ Li + Lcable Uo, Io, Po, Co, Lo, Voc, Isc, Ca and La are parameters of barrier.

Note 3. Installation

• In any safety barrier used output current must be limited by a resistor 'R' such that Io=Uo/R.

• The safety barrier must be IECEx certied.

• Input voltage of the safety barrier must be less than 250 Vrms/Vdc.

• The instrument modication or parts replacement by other than authorized representative of Yokogawa Electric Corporation and will void IECEx Intrinsically safe and type n certication.

[Intrinsically Safe]

Hazardous Location Nonhazardous Location

Group IIC, Zone 0

[type n]

IECEx certified Safety Barrier

+

–

Not Use Safety Barrier

IECEx Certified Equipment [nL]

Pressure Transmitters

+

Supply

Hazardous Location Nonhazardous Location

Group IIC, Zone 2

Pressure Transmitters

Supply

–

+ –

b. IECEx Flameproof Type

Caution for IECEx ameproof type.

General Purpose Equipment

+ –

F0210-1.ai

+ –

F0210-2.ai

• Maximum Process Temperature: 120°C (T4), 100°C (T5), 85°C (T6)

• Ambient Temperature: –50 to 75°C (T4), –50 to 80°C (T5), –50 to 75°C (T6)

• Supply Voltage: 42 V dc max.

• Output Signal: 4 to 20 mA dc

Note 2. Wiring

• In hazardous locations, the cable entry devices shall be of a certied ameproof type, suitable for the conditions of use and correctly installed.

• Unused apertures shall be closed with suitable ameproof certied blanking elements.

Note 3. Operation

• WARNING: AFTER DE-ENERGIZING, DELAY 5 MINUTES BEFORE OPENING.

• WARNING:

WHEN AMBIENT TEMPERATURE ≥ 65°C,

USE THE HEAT-RESISTING CABLES ≥ 90°C.

• Take care not to generate mechanical sparking when accessing to the instrument and peripheral devices in a hazardous location.

Note 4. Maintenance and Repair

• The instrument modication or parts replacement by other than authorized representative of Yokogawa Electric Corporation is prohibited and will void IECEx Certication.

2.10 EMC Conformity Standards

EN61326-1 Class A, Table2 (For use in industrial locations) EN61326-2-3

CAUTION

Note 1. Model EJX/EJA-E Series pressure

transmitters with optional code /SF2 or /SU2 are applicable for use in hazardous locations:

• No. IECEx CSA 07.0008

• Applicable Standard: IEC60079-0:2004, IEC60079-1:2003

• Flameproof for Zone 1, Ex d IIC T6...T4

• Enclosure: IP66/IP67

To meet EMC regulations, Yokogawa recommends that customers run signal wiring through metal conduits or use shielded twistedpair cabling when installing EJX/EJA-E series transmitters in a plant.

IM 01C25B01-01E

<2. Handling Cautions>

2-13

2.11 Pressure Equipment Directive (PED)

(1) General

• EJX/EJA-E Series pressure transmitters are categorized as piping under the pressure accessories section of directive 97/23/EC, which corresponds to Article 3, Paragraph 3 of PED, denoted as Sound Engineering Practice (SEP).

• EJX110A-MS, EJX110A-HS, EJX110A-VS, EJ130, EJ440, and EJA110E with /HG can be used above 200 bar and therefore considered as a part of a pressure retaining vessel where category III, Module H applies. These models with option code /PE3 conform to that category.

(2) Technical Data

• Models without /PE3 Article 3, Paragraph 3 of PED, denoted as Sound Engineering Practice (SEP).

• Models with /PE3

Module: H Type of Equipment: Pressure Accessory-Vessel Type of uid: Liquid and Gas Group of uid: 1 and 2

Model

EJA110E M, H, V

EJ110

EJX110A EJA110E

with code

/HG

EJ110

with code

/PE3

EJ130

with code

/PE3

EJ310

EJ430

EJ440

with code

/PE3

Capsule

code

F, L

M, H, V 250 0.01 2.5

M, H, V 250 0.01 2.5 III

M, H 500 0.01 5.0

M, H 500 0.01 5.0 III

L, M, A, B 160 0.01 1.6

H, A, B 160 0.01 1.6

C, D 500 0.1 5.0

C, D 500 0.1 5.0 III

1

PS* (bar)

160 0.01 1.6

V(L)

PS.V

(bar.L)

Category*

Article 3,

Paragraph 3

(SEP)

Article 3,

Paragraph 3

(SEP)

Article 3,

Paragraph 3

(SEP)

Article 3,

Paragraph 3

(SEP)

Article 3,

Paragraph 3

(SEP)

*1: PS is maximum pressure for vessel itself based on

Pressure Equipment Directive 97/23/EC. Refer to General Specication for maximum working pressure of a transmitter.

*2: Referred to Table 1 covered by ANNEX II of EC Directive

on Pressure Equipment Directive 97/23/EC

(3) Operation

CAUTION

• The temperature and pressure of uid should be maintained at levels that are consistent with normal operating conditions.

• The ambient temperature should be maintained at a level that is consistent with normal operating conditions.

• Please take care to prevent water hammer and the like from inducing excessive pressures in pipes and valves. If phenomena are likely, install a safety valve or take some other appropriate measure to prevent pressure from exceeding PS.

• Take appropriate measures at the device or system level to protect transmitters if they are to be operated near an external heat source.

2.12 Low Voltage Directive

2

Applicable standard: EN61010-1

(1) Pollution Degree 2

"Pollution degree" describes the degree to which a solid, liquid, or gas which deteriorates dielectric strength or surface resistivity is adhering. " 2 " applies to normal indoor atmosphere. Normally, only non-conductive pollution occurs. Occasionally, however, temporary conductivity caused by condensation must be expected.

(2) Installation Category I

"Overvoltage category (Installation category)" describes a number which denes a transient overvoltage condition. It implies the regulation for impulse withstand voltage. " I " applies to electrical equipment which is supplied from the circuit when appropriate transient overvoltage control means (interfaces) are provided.

IM 01C25B01-01E

<3. Component Names>

3. Component Names

Vertical impulse piping type

Pressure-detector section

Terminal box cover

3-1

Cover flange

Integral indicator

Mounting screw

Amplifier Cover

(Note 2)

Slide switch

(Note 1)

Range-setting

(Note 1)

switch (See section 7.6)

Transmitter section

Burnout direction switch (BO)

Vent plug

CPU assembly

Burnout direction switch

BO H L

WR E D

Write protection switch

Horizontal impulse piping type

External indicator conduit connection

Drain plug

Process connector (Note 1)

Hardware write protection switch (WR)

(Note 1)

Conduit connection

Zeroadjustment screw

Process connection

Burnout Direction

Switch Position

Burnout Direction

H L H L

HIGH LOW

Write Protection

Switch Position

Write Protection

H L

E D

NO

(Write enabled)

H L

E D

YES

(Write disabled)

F0301.ai

Note 1: See subsection 9.2, “Model and Sufx Codes,” for details. A process connector will not be applied for lower side of EJ310,

EJ430, and EJ440.

Note 2: Applicable for BRAIN/HART communication type. Set the switches as shown in the gure above to set the burn-out direction

and write protection. The Burnout switch is set to the H side for delivery (unless option code /C1 or /C2 is specied in the order), and the hardware write protection switch is set to E side. The setting of the switches can be conrmed via communication. An external zero adjustment screw can only be disabled by communication. To disable the screw, set a parameter before activating the hardware write protect function. See each communication manual.

Figure 3.1 Component Names

Table 3.1 Display Symbol

Display Symbol Meaning of Display Symbol

Display mode is ‘square root’. (Display is not lit when ‘linear’ mode.)

The output signal being zero-adjusted is increasing.

The output signal being zero-adjusted is decreasing.

Write protect function is enabled.

IM 01C25B01-01E

F0302.ai

<4. Installation>

4. Installation

4.1 Precautions

Before installing the transmitter, read the cautionary notes in section 2.4, “Selecting the Installation Location.” For additional information on the ambient conditions allowed at the installation location, refer to subsection 9.1 “Standard Specications.”

IMPORTANT

57 mm 54 mm 51 mm

Figure 4.1 Process Connector Impulse Piping

Connection Distances for Differential Pressure Transmitters

4-1

F0401.ai

• When welding piping during construction, take care not to allow welding currents to ow through the transmitter.

• Do not step on this instrument after installation.

• For the EJ430 and EJ440, the atmospheric opening is located on the low pressure side cover ange. The opening must not face upward. See section 9.4, “Dimensions,” for the location of the opening.

4.2 Mounting

■ The transmitter is shipped with the process connection, according to the ordering specications. To change the orientation of the process connections, refer to section 4.3.

■ With differential pressure transmitters, the distance between the impulse piping connection ports is usually 54 mm (gure 4.1). By changing the orientation of the process connector, the dimension can be changed to 51 mm or 57 mm.

■ The transmitter can be mounted on a nominal 50 mm (2-inch) pipe using the mounting bracket supplied, as shown in gure 4.2 and

4.3 The transmitter can be mounted on either a horizontal or a vertical pipe.

■ When mounting the bracket on the transmitter, tighten the (four) bolts that hold the transmitter with a torque of approximately 39 N·m {4kgf·m}.

Figure 4.1 and 4.2 shows the mounting of the transmitter for horizontal piping and vertical piping with using the mounting bracket. The transmitters with the installation code -U (Universal ange) can be used for either type of mounting.

Vertical pipe mounting

Transmitter mounting bolt

U-bolt nut

Mounting bracket

Horizontal pipe mounting

U-bolt nut

U-bolt

50 mm(2-inch) pipe

Transmitter mounting bolt

Mounting bracket

50 mm(2-inch) pipe

Figure 4.2 Transmitter Mounting (Horizontal

Impulse Piping Type)

U-bolt

IM 01C25B01-01E

F0402.ai

<4. Installation>

4-2

Vertical pipe mounting (Process connector downside)

U-bolt nut

Vertical pipe mounting (Process connector upside)

U-bolt nut

Transmitter mounting bolt

Mounting bracket

50 mm(2-inch) pipe

Mounting bracket

50 mm(2-inch) pipe

U-bolt

4.3 Changing the Process Connection

The transmitter is shipped with the process connection specied at the time of ordering. To change the process connection, the drain (vent) plug must be repositioned.

To reposition a drain (vent) plug, use a wrench to slowly and gently unscrew it. Then, remove and remount it on the opposite side. Wrap sealing tape around the drain (vent) plug threads (*1 in the gure below), and apply a lubricant to the threads of the drain (vent) screw(s) (*2 below). To tighten the drain (vent) plugs, apply a torque of 34 to 39 N·m (3.5 to 4 kgf·m). Process connector bolts are to be tightened uniformly to a torque shown in table 4.1.

Table 4.1 Torque

EJ110 EJ120

Model

EJ130 EJ310 EJ430

Torque(N·m)

{kgf·m}

Vertical impulse piping type Horizontal impulse piping type

39 to 49 {4 to 5}

EJ440

C capsule D capsule

49 to 59

{5 to 6}

Transmitter mounting bolt

F0403.ai

Figure 4.3 Transmitter Mounting (Vertical Impulse

Piping Type)

Bolt

Process

connector

Drain/vent plug

gasket

*

1

*

Note: For a horizontal impulse

2

piping type, moving the process connectors from the front side to the back cannot be made.

Figure 4.4 Changing Process Connection

F0404.ai

IM 01C25B01-01E

<4. Installation>

4-3

4.4 Swapping the High/Lowpressure Side Connection

IMPORTANT

This section is applicable only for EJ110, EJ120, and EJ130 differential transmitters, and not applicable for gauge or absolute pressure transmitters.

4.4.1 Rotating Pressure-detector Section 180°

This procedure can be applied only to a transmitter with a vertical impulse piping type.

The procedure below can be used to turn the pressure detector assembly 180°. Perform this operation in a maintenance shop with the necessary tools laid out and ready for use, and then install the transmitter in the eld after making the change.

1) Use an Allen wrench (JIS B4648, nominal 2.5 mm) to remove the two setscrews at the joint between the pressure-detector section and transmitter section.

2) Leaving the transmitter section in position, rotate the pressure-detector section 180°.

3) Tighten the two setscrews to x the pressuredetector section and transmitter section together (at a torque of 1.5 N·m).

Reposition the process connector and drain

(vent) plugs to the opposite side as described in subsection 4.3.

Process connector

4.4.2 Using the Communicator

This method is applicable only to the Model EJ110, EJ120, and EJ130.

With a communicator, you can change which process connection is used as the high-pressure side without mechanically rotating the pressuredetector section 180 as described in subsection

4.4.1. To change, call parameter ‘D15: H/L SWAP’ for BRAIN Communication or ‘H/L swap’ for HART Communication and select REVERSE (right side: low pressure; left side: high pressure) or select NORMAL to change back to normal (right side: high pressure; left side: low pressure).

NORMAL

Output

Input

REVERSE

Figure 4.6 Input/Output Relationship

F0406.ai

IMPORTANT

Since the H/L label plate on the capsule assembly will remain unchanged, use this function only when you cannot switch the impulse piping. If the ‘H/L SWAP’ parameter setting is changed, the input/output relationship is reversed as shown in gure 4.6; be sure this is understood by all.

Setscrew

Before

Figure 4.5 Before and After Modication

After rotating 180°

F0405.ai

IM 01C25B01-01E

<4. Installation>

4-4

4.5 Rotating Transmitter Section

The transmitter section can be rotated approximately 360° (180° to either direction or 360° to one direction from the original position at shipment, depending on the conguration of the instrument.) It can be xed at any angle within above range.

1) Remove the two setscrews that fasten the transmitter section and capsule assembly, using the Allen wrench.

2) Rotate the transmitter section slowly and stop it at designated position.

3) Tighten the two setscrews to a torque of 1.5 N·m.

IMPORTANT

Do not rotate the transmitter section more than the above limit.

Vertical impulse piping type

Pressure-detector section

Stopper

Rotate 0 to ±180° segments

4.6 Changing the Direction of Integral Indicator

IMPORTANT

Always turn OFF power, release pressure and remove a transmitter to non-hazardous area before disassembling and reassmbling an indicator.

An integral indicator can be installed in the following three directions. Follow the instructions in section 8.4 for removing and attaching the integral indicator.

F0408.ai

Figure 4.8 Integral Indicator Direction

Conduit connection

Transmitter section

Horizontal impulse piping type

Transmitter section

Rotate 0 to ±180° segments

Conduit connection Zero-adjustment screw

Pressure-detector section

F0407.ai

Figure 4.7 Rotating Transmitter Section (Left Side

High Pressure Type)

IM 01C25B01-01E

<5. Installing Impulse Piping>

5. Installing Impulse Piping

5-1

5.1 Impulse Piping Installation Precautions

The impulse piping that connects the process outputs to the transmitter must convey the process pressure accurately. If, for example, gas collects in a liquid-lled impulse line, or the drain for a gas-lled impulse line becomes plugged, it will not convey the pressure accurately. Since this will cause errors in the measurement output, select the proper piping method for the process uid (gas, liquid, or steam). Pay careful attention to the following points when routing the impulse piping and connecting the impulse piping to a transmitter.

5.1.1 Connecting Impulse Piping to a Transmitter

(1) Check the High and Low Pressure

Connections on the Transmitter (Figure 5.1)

Symbols “H” and “L” have been placed on the capsule assembly to indicate high and low pressure side. With differential pressure transmitters, connect the high pressure side impulse line to the “H” side, and the low pressure side impulse line to the “L” side.

With gauge/absolute pressure transmitters, connect the impulse line to the ‘H’ side.

Differential Pressure Transmitter

“H” and “L” are shown

Pressure

connection

Gauge/Absolute Pressure Transmitters

Process connection

Process connector

Bolt

“H” and “L” are shown

Process connection

(2) Changing the Process Connector Piping

Connections (Figure 4.1) (for differential pressure transmitters)

The impulse piping connection distances can be changed between 51 mm, 54 mm and 57 mm by changing the orientation of the process connectors. This is convenient for aligning an impulse line with a process connectors.

(3) Tightening the Process Connector Mounting

Bolts

After connecting an impulse line, tighten the process connector mounting bolts uniformly.

(4) Removing the Impulse Piping Connecting

Port Dustproof Cap

The impulse piping connecting port on the transmitter is covered with a plastic cap to keep out dust. This cap must be removed before connecting the line. (Be careful not to damage the threads when removing this cap. Never insert a screwdriver or other tool between the cap and port threads to remove the cap.)

(5) Connecting the Transmitter and 3-

Valve Manifold (for differential pressure transmitters)

A 3-valve manifold consists of two stop valves to block process pressure and an equalizing valve to equalize the pressures on the high and low pressure sides of the transmitter. Such a manifold makes it easier to disconnect the transmitter from the impulse piping, and is convenient when adjusting the transmitter zero point.

There are two 3-valve manifold types: the pipemounting type and the direct-mounting type; care should be taken with respect to the following points when connecting the manifold to the transmitter.

Process connector

Bolt

Figure 5.1 “H” and “L” Symbols on a Capsule

Assembly

F0501.ai

IM 01C25B01-01E

<5. Installing Impulse Piping>

5-2

 Pipe-Mounting Type 3-Valve Manifold

(Figure 5.2)

1) Screw nipples into the connection ports on the

transmitter side of the 3-valve manifold, and into the impulse piping connecting ports on the process connectors. (To maintain proper sealing, wind sealing tape around the nipple threads.)

2) Mount the 3-valve manifold on the 50 mm (2-

inch) pipe by fastening a U-bolt to its mounting bracket. Tighten the U-bolt nuts only lightly at this time.

3) Install the pipe assemblies between the 3-valve

manifold and the process connectors and lightly tighten the ball head lock nuts. (The ball-shaped ends of the pipes must be handled carefully, since they will not seal properly if the ball surface is scratched or otherwise damaged.)

4) Now tighten the nuts and bolts securely in the

following sequence:

Process connector bolts → transmitter-end ball

head lock nuts → 3-valve manifold ball head lock nuts → 3-valve manifold mounting bracket U-bolt nuts

Impulse piping

Vent plug (optional)

Stop valve (low pressure side)

Equalizing valve (balancing)

Stop valve (high pressure side)

50 mm(2-inch) pipe

Process connector bolts

3-valve manifold

Pipes

Figure 5.2 3-Valve Manifold (Pipe-Mounting Type)

Nipple

Ball head lock nut

Pipe

Ball head lock nut

Nipple

Process connector

F0502.ai

 Direct-Mounting Type 3-Valve Manifold

(Figure 5.3)

1) Mount the 3-valve manifold on the transmitter. (When mounting, use the two gaskets and the

four bolts provided with the 3-valve manifold. Tighten the bolts evenly.)

2) Mount the process connectors and gaskets on the top of the 3-valve manifold (the side on which the impulse piping will be connected).

Bolts

Process

connector

Gasket

Process

connector

Stop valve

Equalizing

valve

Bolts

Stop valve

3-valve manifold

Figure 5.3 3-Valve Manifold (Direct-Mounting

Type)

Impulse

piping

3-valve

manifold

Stop valve

Equalizing valve

Stop valve

Impulse

piping

F0503.ai

NOTE

After completing the connection of the transmitter and 3-valve manifold, be sure to CLOSE the low pressure and high pressure stop valves, OPEN the equalizing valve, and leave the manifold with the equalizing valve OPEN. You must do this in order to avoid overloading the transmitter from either the high or the low pressure side when beginning operation. This instruction must also be followed as part of the startup procedure (chapter 7.)

IM 01C25B01-01E

<5. Installing Impulse Piping>

5-3

5.1.2 Routing the Impulse Piping

(1) Process Pressure Tap Angles

If condensate, gas, sediment or other extraneous material in the process piping gets into the impulse piping, pressure measurement errors may result. To prevent such problems, the process pressure taps must be angled as shown in gure 5.4 according to the kind of uid being measured.

NOTE

• If the process uid is a gas, the taps must be vertical or within 45° either side of vertical.

• If the process uid is a liquid, the taps must be horizontal or below horizontal, but not more than 45° below horizontal.

• If the process uid is steam or other condensing vapor, the taps must be horizontal or above horizontal, but not more than 45° above horizontal.

[Gas]

45°

Pressure

taps

Process

piping

Figure 5.4 Process Pressure Tap Angle

45°

45° 45°

(For Horizontal Piping)

(2) Position of Process Pressure Taps and

Transmitter

If condensate (or gas) accumulates in the impulse piping, it should be removed periodically by opening the drain (or vent) plugs. However, this will generate a transient disturbance in the pressure measurement, and therefore it is necessary to position the taps and route the impulse piping so that any extraneous liquid or gas generated in the leadlines returns naturally to the process piping.

• If the process uid is a gas, then as a rule the transmitter must be located higher than the process pressure taps.

• If the process uid is a liquid or steam, then as a rule the transmitter must be located lower than the process pressure taps.

45°

[Steam][Liquid]

45°

F0504.ai

(3) Impulse Piping Slope

The impulse piping must be routed with only an upward or downward slope. Even for horizontal routing, the impulse piping should have a slope of at least 1/10 to prevent condensate (or gases) from accumulating in the pipes.

(4) Temperature Difference Between Impulse

Lines (for differential pressure transmitters)

If there is a temperature difference between the high and low impulse lines, the density difference of the uids in the two lines will cause an error in the measurement pressure. When measuring ow, impulse lines must be routed together so that there is no temperature difference between them.

(5) Condensate Pots for Steam Flow

Measurement (for differential pressure transmitters)

If the liquid in the impulse piping repeatedly condenses or vaporizes as a result of changes in the ambient or process temperature, this will cause a difference in the uid head between the high pressure and low pressure sides. To prevent measurement errors due to these head differences, condensate pots are used when measuring steam ow.

(6) Preventing Wind Speed Effects in Very Low

Differential Pressure Measurement (for differential pressure transmitters)

IMPORTANT

When using a differential pressure transmitter to measure very low pressures (draft pressure), the low pressure connection port is left open to atmospheric pressure (the reference pressure). Any wind around the differential pressure transmitter will therefore cause errors in the measurement. To prevent this, it will be necessary either to enclose the transmitter in a box, or to connect an impulse line to the low pressure side and insert its end into a windexcluding pot (cylindrical with a base plate).

IM 01C25B01-01E

<5. Installing Impulse Piping>

5-4

(7) Preventing Freezing

If there is any risk that the process uid in the impulse piping or transmitter could freeze, use a steam jacket or heater to maintain the temperature of the uid.

NOTE

After completing the connections, close the valves on the process pressure taps (main valves), the valves at the transmitter (stop valves), and the impulse piping drain valves, so that condensate, sediment, dust and other extraneous material cannot enter the impulse piping.

5.2 Impulse Piping Connection Examples

Figure 5.5 and 5.6 show examples of typical impulse piping connections. Before connecting the transmitter to the process, study the transmitter installation location, the process piping layout, and the characteristics of the process uid (corrosiveness, toxicity, ammability, etc.), in order to make appropriate changes and additions to the connection congurations.

Liguid Gas

Tap

valve

Union

or flange

Tee

3-valve

manifold

Drain valve

Figure 5.5 Impulse Piping Connection Examples

Liquid Gas Steam

Tap valve

Union or

flange

Orifice

Drain

plug

for Differential Pressure Transmitters

Union or flange

Drain plug

Drain valve

Tee

Steam

Condensate pot

F0505.ai

Tap valve

Tee

Note the following points when referring to these piping examples.

• The high pressure connecting port on the transmitter is shown on the right (as viewed from the front).

• The transmitter impulse piping connection is shown for a vertical impulse piping connection conguration in which the direction of connection is either upwards or downwards.

• If the impulse line is long, bracing or supports should be provided to prevent vibration.

• The impulse piping material used must be compatible with the process pressure, temperature, and other conditions.

• A variety of process pressure tap valves (main valves) are available according to the type of connection (anged, screwed, welded), construction (globe, gate, or ball valve), temperature and pressure. Select the type of valve most appropriate for the application.

Union or flange

Tap valve

Drain valve

Drain plug

Figure 5.6 Impulse Piping Connection Examples

for Gauge/absolute Pressure Transmitters

Drain valve

Drain plug

F0506.ai

IM 01C25B01-01E

<6. Wiring>

6. Wiring

6-1

6.1 Wiring Precautions

IMPORTANT

• Lay wiring as far as possible from electrical noise sources such as large capacity transformers, motors, and power supplies.

• Remove the electrical connection dust cap before wiring.

• All threaded parts must be treated with waterproong sealant. (A non-hardening silicone group sealant is recommended.)

• To prevent noise pickup, do not pass signal and power cables through the same ducts.

• Explosion-protected instruments must be wired in accordance with specic requirements (and, in certain countries, legal regulations) in order to preserve the effectiveness of their explosion-protected features.

• The terminal box cover is locked by an Allen head bolt (a shrouding bolt) on ATEX ameproof type transmitters. When the shrouding bolt is driven clockwise using an Allen wrench, it goes in. The cover lock can then be released and the cover can be opened by hand. See subsection 8.4 “Disassembly and Reassembly” for details.

• Plug and seal an unused conduit connection.

6.2 Selecting the Wiring

6.3 Connections of External Wiring to Terminal Box

6.3.1 Power Supply Wiring Connection

Connect the power supply wiring to the SUPPLY + and – terminals. When /AL is specied, also refer to subsection 6.3.5.

Power supply

+

–

Figure 6.1 Power Supply Wiring Connection

6.3.2 External Indicator Connection

Available only when /AL is not specied.

Connect wiring for external indicators to the CHECK + and – terminals.

(Note) Use a external indicator whose internal resistance is 10 Ω

or less.

Power supply

+

–

Transmitter terminal box

Figure 6.2 External Indicator Connection

Transmitter terminal box

External indicator

PULSE

SUPPLY

CHECK ALARM

PULSE

SUPPLY

CHECK ALARM

F0601.ai

F0602.ai

Materials

(a) Use stranded leadwires or cables which are

the same as or better than 600 V grade PVC insulated wire (JIS C3307) or its equivalent.

(b) Use shielded wires in areas that are susceptible

to electrical noise.

(c) In areas with higher or lower ambient

temperatures, use appropriate wires or cables.

(d) In environment where oils, solvents, corrosive

gases or liquids may be present, use wires or cables that are resistant to such substances.

(e) It is recommended that crimp-on solderless

terminal lugs (for 4 mm screws) with insulating sleeves be used for leadwire ends.

6.3.3 Communicator Connection

Connect the BT200 or HART Communicator to the SUPPLY + and – terminals. (Use hooks.)

Transmitter terminal box

PULSE

SUPPLY

CHECK ALARM

Ignore the polarity since the BT200 is AC-coupled to the terminal box.

BT200

Figure 6.3 BT200 Connection

Power supply

+

–

F0603.ai

IM 01C25B01-01E

<6. Wiring>

6-2

6.3.4 Check Meter Connection

Available only when /AL is not specied.

Connect the check meter to the CHECK + and – terminals. (Use hooks.)

• A 4 to 20 mA DC output signal from the CHECK + and – terminals.

(Note) Use a check meter whose internal resistance is 10 Ω or

less.

Check meter

Figure 6.4 Check Meter Connection

Transmitter terminal box

PULSE

SUPPLY

CHECK ALARM

Power supply

+

–

F0604.ai

6.3.5 Status Output Connection

When option code /AL is specied, connect the external wiring as shown in Figure 6.5.

To congure and activate the process alarm function and status output, it is necessary to set some parameters. Refer to each communication manual for procedures.

Transmitter

terminal box

SUPPLY

Use two-wire separately shielded cables.

PULSE

CHECK

ALARM

Shielded cable

External power supply 30V DC, 120mA max

Figure 6.5 Status Output Connection

24V DC

+

250

Ω

Distributor

AC power supply

Magnetic

valve

F0605.ai

–

(1) General-use Type and Flameproof Type

Hazardous Location Nonhazardous Location

Transmitter terminal box

Distributor (Power supply unit)

PULSE

SUPPLY

CHECK ALARM

Receiver instrument

F0606.ai

Figure 6.6 Connection between Transmitter and

Distributor

(2) Intrinsically Safe Type

With the intrinsically safe type, a safety barrier must be included in the loop.

Hazardous Location Nonhazardous Location

Transmitter terminal box

Distributor (Power supply unit)

PULSE

SUPPLY

CHECK ALARM

Receiver instrument

Safety barrier

F0607.ai

Figure 6.7 Connection between Transmitter and

Distributor

6.4.2 Wiring Installation

(1) General-use Type and Intrinsically Safe

Type

With the cable wiring, use a metallic conduit or waterproof glands.

• Apply a non-hardening sealant to the terminal box connection port and to the threads on the exible metal conduit for waterproong.

6.4 Wiring

6.4.1 Loop Conguration

Since the DPharp uses a two-wire transmission system, signal wiring is also used as power wiring.

DC power is required for the transmitter loop. The transmitter and distributor are connected as shown below.

For details of the power supply voltage and load resistance, see section 6.6; for communications line requirements, see section 9.1.

Flexible metal conduit

Wiring metal conduit

Apply a non-hardening sealant to the threads for waterproofing.

Tee

Drain plug

Figure 6.8 Typical Wiring Using Flexible Metal

Conduit

IM 01C25B01-01E

F0608.ai

<6. Wiring>

6-3

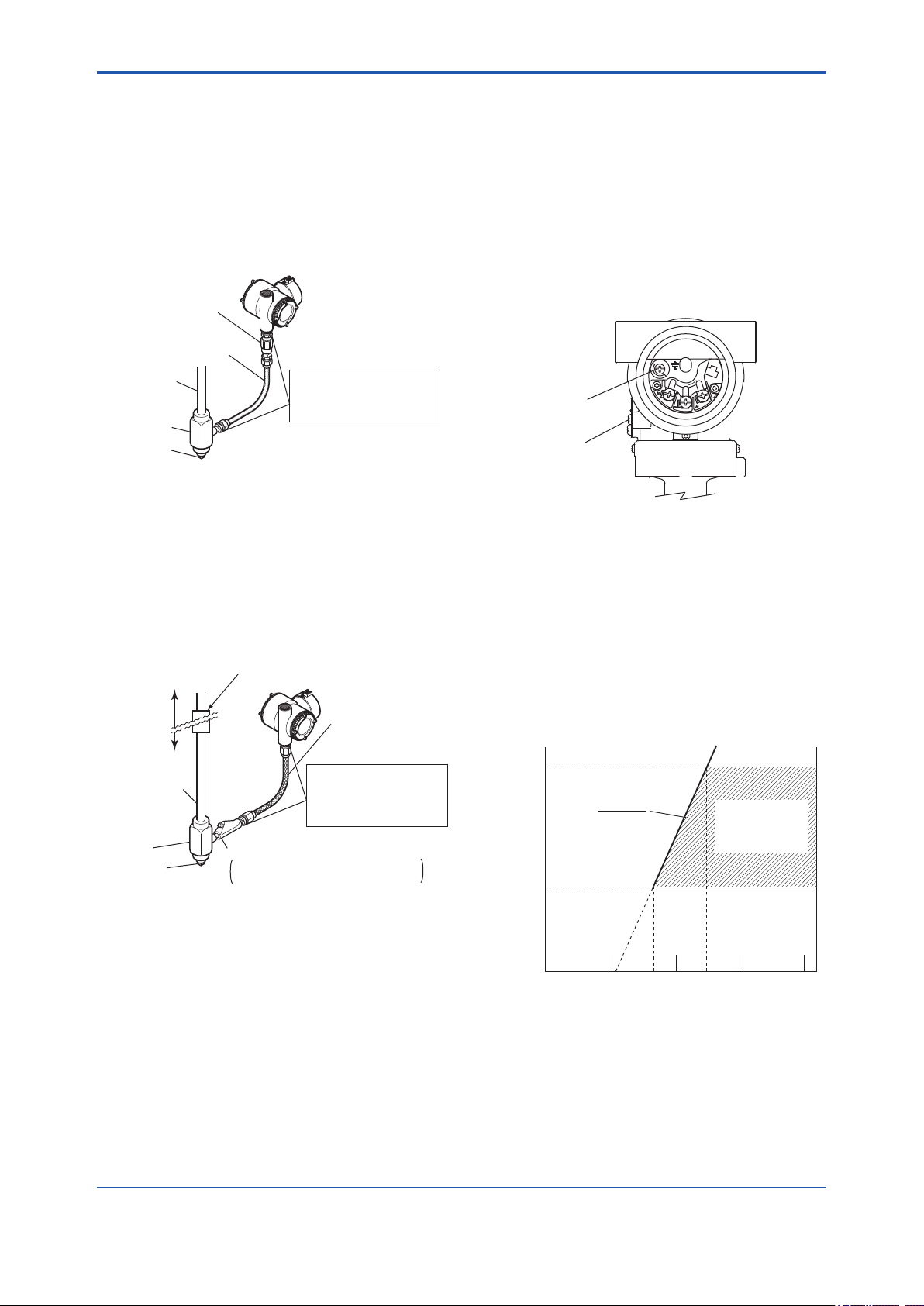

(2) Flameproof Type

Wire cables through a ameproof packing adapter, or use a ameproof metal conduit.

■ Wiring cable through ameproof packing adapter.

• Apply a non-hardening sealant to the terminal box connection port and to the threads on the ameproof packing adapter for waterproong.

Flameproof packing adapter

Flexible metal conduit

Wiring metal conduit

Tee

Drain plug

Apply a non-hardening sealant to the threads for waterproofing.

F0609.ai

Figure 6.9 Typical Cable Wiring Using Flameproof

Packing Adapter

■ Flameproof metal conduit wiring

• A seal tting must be installed near the terminal box connection port for a sealed construction.

• Apply a non-hardening sealant to the threads of the terminal box connection port, exible metal conduit and seal tting for waterproong.

Non-hazardous area

Hazardous area

Flameproof heavy-gauge steel conduit

Tee

Drain plug

Figure 6.10 Typical Wiring Using Flameproof Metal

Conduit

Gas sealing device

Flameproof flexible metal conduit

Apply a non-hardening sealant to the threads of these fittings for waterproofing

Seal fitting

After wiring, impregnate the fitting with a compound to seal tubing.

F0610.ai

6.5 Grounding

Grounding is always required for the proper operation of transmitters. Follow the domestic electrical requirements as regulated in each country. For a transmitter with a built-in lightning protector, grounding should satisfy ground resistance of 10Ω or less.

Ground terminals are located on the inside and outside of the terminal box. Either of these terminals may be used.

PULSE

SUPPLY

CHECK

Ground terminal (inside)

Ground terminal (outside)

Figure 6.11 Ground Terminals

ALARM

F0611.ai

6.6 Power Supply Voltage and Load Resistance

When conguring the loop, make sure that the external load resistance is within the range in the gure below.

(Note) In case of an intrinsically safe transmitter, external load

resistance includes safety barrier resistance.

600

External

load

resistance

R (Ω)

250

R=

E–10.5

0.0244

Communication

applicable range

BRAIN and HART

0 10.5 16.6 25.2 42

Power supply voltage E (V DC)

Figure 6.12 Relationship between Power Supply

Voltage and External Load Resistance

IM 01C25B01-01E

F0612.ai

<7. Operation>

7. Operation

7-1

7.1 Preparation for Starting Operation

This section describes the operation procedure for the EJ110, EJ120 and EJ130 as shown in gure 7.1a (vertical impulse piping type, highpressure connection: right side) when measuring the liquid ow rate, and EJ430, EJ440 and EJ310 as shown in gure 7.1b when measuring pressure.

NOTE

Check that the process pressure tap valves, drain valves, and 3-valve manifold stop valves on both the low pressure and high pressure sides are closed, and that the 3-valve manifold equalizing valve is opened.

(a) Follow the procedures below to introduce

process pressure into the impulse piping and transmitter.

■ Differential Pressure Transmitters

1) Open the low pressure and high pressure tap valves to ll the impulse piping with process liquid.

2) Slowly open the high pressure stop valve to ll the transmitter pressure-detector section with process liquid.

3) Close the high pressure stop valve.

4) Gradually open the low pressure stop valve and completely ll the transmitter pressure-detector section with process liquid.

5) Close the low pressure stop valve.

6) Gradually open the high pressure stop valve. At this time, equal pressure is applied to the low and high pressure sides of the transmitter.

7) Check that there are no liquid leaks in the impulse piping, 3-valve manifold, transmitter, or other components.

■ Gauge/Absolute Pressure Transmitters

1) Open the tap valve (main valve) to ll the impulse piping with process uid.

2) Gradually open the stop valve to introduce process uid into the transmitter pressuredetector section.

3) Conrm that there is no pressure leak in the impulse piping, transmitter, or other components.

Venting Gas from the Transmitter Pressure-

detector Section

• Since the piping in the example of gure 7.1 is constructed to be self-venting, no venting operation is required. If it is not possible to make the piping self-venting, refer to subsection

7.5 for instructions. Leave the equalizing valve open even after venting gas.

(b) Turn ON power and connect the communicator. Open the terminal box cover, and connect

the communicator to the SUPPLY + and – terminals.

(c) Using the communicator, conrm that the

transmitter is operating properly. Check parameter values or change the setpoints as necessary. See IM 01C25T03-01E (BRAIN communication) or IM 01C25T01-06EN (HART communication) for communicator operation.

If the transmitter is equipped with an integral

indicator, its indication can be used to conrm that the transmitter is operating properly.

Orifice

Tap valve

Tap valve (low pressure)

Stop valve (low pressure)

Equalizing valve

Stop valve (high pressure)

Figure 7.1a Liquid Flow Measurement

3-valve manifold

Drain valve (high pressure)

(high pressure)

F0701.ai

IM 01C25B01-01E

<7. Operation>

NOTE

Vent plug (Fill plug)

Tap valve

Stop valve

Drain valve

F0702.ai

Figure 7.1b Liquid Pressure Measurement

■ Conrming that Transmitter is Operating Properly

Using the BT200

• If the wiring system is faulty, ‘communication error’ appears on the display.

• If the transmitter is faulty, ‘SELF CHECK ERROR’ appears on the display.

PARAM C60:SELF CHECK ERROR

communication error

DATA DIAG PRNT ESC

Communication error (Faulty wiring)

Figure 7.2 BT200 Display

Self-diagnostic error (Faulty transmitter)

F0703.ai

If any of the above errors are indicated on the display of the integral indicator or the communicator, refer to subsection 8.5.3 for the corrective action.

■ Verify and Change Transmitter Parameter Setting and Values

The parameters related to the following items are set at factory as specied in order.

• Calibration range

• Integral indicator display

• Output mode

• Software damping (optional) Other parameters like following are shipped with the default setting.

• Low-cut

• Process alarm setting

• Static pressure range

• Signal characterizer

• Write protection To conrm or change the values, see IM 01C25T0106EN or 01C25T03-01E.

7.2 Zero Point Adjustment

After completing preparations for operating the transmitter, adjust the zero point.

Zero point adjustment can be done by turning the transmitter’s zero-adjustment screw or by using the communicator. This section describes the procedure for the zero-adjustment screw. For the communicator procedure, see the communication manual.

IMPORTANT

7-2

Using the integral indicator

• If the wiring system is faulty, the display stays blank.

• If the transmitter is faulty, an error code is displayed.

Self-diagnostic error on the integral indicator (Faulty transmitter)

Figure 7.3 Integral Indicator with Error Code

F0704.ai

Do not turn off the power to the transmitter immediately after performing a zero point adjustment. Powering off within 30 seconds of performing this procedure will return the zero point to its previous setting.

NOTE

Before performing this adjustment, make sure that the external zero adjustment function has NOT been disabled by a parameter setting.

To check the output signal, use a digital multimeter, calibrator, or communicator.

IM 01C25B01-01E

<7. Operation>

7-3

7.2.1 Adjusting Zero Point for Differential Pressure Transmitters

Before adjusting zero point, make sure that the equalizing valve is open.

Zero-adjustment screw cover

F0705.ai

Figure 7.4 External Zero Adjustment Screw

The zero-adjustment screw is located inside the cover. Use a slotted screwdriver to turn the zeroadjustment screw. Equalize the transmitter, then turn the screw clockwise to increase the output or counterclockwise to decrease the output. The zero point adjustment can be made with a resolution of 0.01% of the setting range. The degree of zero adjustments varies with the screw turning speed; turn the screw slowly to make a ne adjustment, quickly to make a rough adjustment.

When using differential pressure transmitters for level measurement and if you cannot obtain the lower range value from the actual measurement value of 0%, refer to subsection 7.2.2(2).

7.2.2 Adjusting Zero Point for Gauge/ Absolute Pressure Transmitters

Use a slotted screwdriver to turn the zeroadjustment screw. Turn the screw clockwise to increase the output or counterclockwise to decrease the output. The zero point adjustment can be made with a resolution of 0.01% of the setting range. Since the degree of the zero adjustment varies with the screw turning speed, turn the screw slowly to make a ne adjustment and quickly to make a rough adjustment.

(2) When you cannot obtain the Low Range

Value from the actual measured value of 0%;

Adjust the transmitter output to the actual measured value obtained by a digital manometer or a glass gauge.

[Example]

The measuring range of 50 to 250 kPa; the actual measured value of 130 kPa.

Actual measured value=

130–50 250–50

x100=40.0%

(=10.4mA)

Turn the screw to match the output signal to the actual measured value.

7.3 Starting Operation

After completing the zero point adjustment, follow the procedures below to start operation. Steps

1) and 2) are specic to the differential pressure transmitters.

(1) When you can obtain the Low Range Value

from the actual measured value of 0% (0 kPa, atmospheric pressure);

For pressure measurement using gauge pressure transmitters, follow the steps below before performing zero point adjustment.

1) Close the tap valve (main valve).

2) Loosen the ll plug so that the pressure applied

to the transmitter is only the head of the seal liquid.

3) Adjust the zero point at this status.

4) After the adjustment, close the ll plug and then

gradually open the tap valve.

1) Close the equalizing valve.

2) Gradually open the low pressure stop valve. This places the transmitter in an operational

condition.

3) Conrm the operating status. If the output signal exhibits wide uctuations (hunting) due to periodic variation in the process pressure, use the communicator to dampen the transmitter output signal. Conrm the hunting using a receiving instrument or the integral indicator, and set the optimum damping time constant.

4) After conrming the operating status, perform the following.

IM 01C25B01-01E

<7. Operation>

7-4

IMPORTANT

• Remove the communicator from the terminal box, and conrm that none of the terminal screws are loose.

• Close the terminal box cover and the amplier cover. Screw each cover in tightly until it will not turn further.

• There are two covers that must be locked on the ATEX Flameproof type transmitters. An Allen head bolt (shrouding bolt) under the edge of each cover is used to lock the cover. When the shrouding bolt is driven counterclockwise with an Allen wrench, the bolt rotates upward and locks the cover. (See section 8.4.) After locking the covers, conrm that they are secure and cannot be opened by hand. Tighten the zero-adjustment cover mounting screw to secure the cover.

• Tighten the zero-adjustment cover mounting screw to secure the cover.

7.5 Venting or Draining Transmitter Pressuredetector Section

Since this transmitter is designed to be selfdraining and self-venting with vertical impulse piping connections, neither draining nor venting will be required if the impulse piping is congured appropriately for self-draining or self-venting operation.

If condensate (or gas) collects in the transmitter pressure-detector section, the measured pressure may be in error. If it is not possible to congure the piping for self-draining (or self-venting) operation, you will need to loosen the drain (vent) screw on the transmitter to completely drain (vent) any stagnated liquid (gas.)

However, since draining condensate or bleeding off gas disturbs the pressure measurement, this should not be done when the loop is in operation.

WARNING

7.4 Shutting Down the Transmitter

Shut down the transmitter as follows. Steps 2) and 3) are specic to the differential pressure transmitters.

1) Turn off the power.

2) Close the low pressure stop valve.

3) Open the equalizing valve.

4) Close the high pressure stop valve.

5) Close the high pressure and low pressure tap valves.

NOTE

• Whenever shutting down the transmitter for a long period, remove any process uid that is in the transmitter pressure-detector section.

• The equalizing valve must be left OPEN.

Since the accumulated liquid (or gas) may be toxic or otherwise harmful, take appropriate care to avoid contact with the body, or inhalation of vapors.

7.5.1 Draining Condensate

1) Gradually open the drain screw or drain plug and drain the transmitter pressure-detector section. (See gure 7.5.)

2) When all accumulated liquid is completely removed, close the drain screw or drain plug.

3) Tighten the drain screw to a torque of 10 N·m, and the drain plug to a torque of 34 to 39 N·m.

Drain plug

Drain screw

When you loosen the drain screw or drain plug, the accumulated liquid will be expelled in the direction of the arrow.

Figure 7.5 Draining the Transmitter

F0706.ai

IM 01C25B01-01E

<7. Operation>

7-5

7.5.2 Venting Gas

1) Gradually open the vent screw to vent gas from the transmitter pressure-detector section. (See gure 7.6.)

2) When the transmitter is completely vented, close the vent screw.

3) Tighten the vent screw to a torque of 10 N·m.

Vent screw

When you loosen the vent screw, the gas escpes in the direction of the arrow.

Figure 7.6 Venting the Transmitter

F0707.ai

7.6 Setting the Range Using the

Range-setting Switch

WARNING

The range setting switch must not be used in the hazardous area. When it is necessary to use the switch, operate it in a non-hazardous location.

When pressure is applied to the transmitter, the lowand high-limit values for the measurement range (LRV and URV) can be changed (re-ranged) using the range-setting switch (push-button) located on the optional integral indicator plate and the external zero adjustment screw. This procedure does not require use of the communicator. However, changes in the scale range and engineering unit display settings for the integral indicator require use of the communicator.

[Example]

Rerange LRV to 0 and URV to 3 MPa.

1) Connect the transmitter and apparatus as shown in Figure 8.1 and warm it up for at least ve minutes.

2) Press the range-setting push-button. The integral indicator then displays “LRV.SET.”

3) Apply a pressure of 0 kPa (atmospheric pressure) to the transmitter.

(Note 1)

4) Turn the external zero-adjustment screw in the desired direction. The integral indicator displays the output signal in %.

(Note 2)

5) Adjust the output signal to 0% (1 V DC) by rotating the external zero-adjustment screw. Doing so completes the LRV setting.

6) Press the range-setting push-button. The integral indicator then displays “URV.SET.”

7) Apply a pressure of 3 MPa to the transmitter.

(Note 1)

8) Turn the external zero-adjustment screw in the desired direction. The integral indicator displays the output signal in %.

(Note 2)

9) Adjust the output signal to 100% (5 V DC) by rotating the external zero-adjustment screw. Doing so completes the URV setting.

10) Press the range-setting push-button. The transmitter then switches back to the normal operation mode with the measurement range of 0 to 3 MPa.

Note 1: Wait until the pressure inside the pressure-detector

Note 2: If the pressure applied to the transmitter exceeds the

section has stabilized before proceeding to the next step.

previous LRV (or URV), the integral indicator may display error number “AL.30” (In this case, the output signal percent and “AL.30” are displayed alternately every two seconds). Although “AL.30” is displayed, you may proceed to the next step. However, should any other error number be displayed, take the appropriate measure in reference to , “Errors and Countermeasures” in each communication manual.

Follow the procedure below to change the LRV and URV settings.

IM 01C25B01-01E

<7. Operation>

IMPORTANT

• Do not turn off the power to the transmitter immediately after completion of the change in the LRV and/or URV setting(s). Note that powering off within thirty seconds after setting will cause a return to the previous settings.

• Changing LRV automatically changes URV to the following value.

URV=previous URV+(new LRV–previous LRV)

• If the range-setting push-button and external zero-adjustment screw are not touched during a range-change operation, the transmitter automatically switches back to the normal operation mode.

7-6

Integral indicator

Figure 7.7 Range-setting Switch

Note 1: Use a thin bar which has a

blunt tip, e.g., a hexagonal wrench, to press the range-setting push-button.

Note 2: The push-button is located

in either lower right or lower left portion of the LCD indicator.

Range-setting switch (Push-button)

F0708.ai

IM 01C25B01-01E

<8. Maintenance>

8. Maintenance

8-1

8.1 Overview

WARNING

Since the accumulated process uid may be toxic or otherwise harmful, take appropriate care to avoid contact with the body or inhalation of vapors when draining condensate or venting gas from the transmitter pressure-detector section and even after dismounting the instrument from the process line for maintenance.

Maintenance of the transmitter is easy due to its modular construction. This chapter describes the procedures for calibration, adjustment, and the disassembly and reassembly procedures required for component replacement.

Transmitters are precision instruments. Please carefully and thoroughly read the following sections for information on how to properly handle them while performing maintenance.

IMPORTANT

• As a rule, maintenance of this transmitter should be done in a shop that has all the necessary tools.

• The CPU assembly contains sensitive parts that can be damaged by static electricity. Take precautions such as using a grounded wrist strap when handling electronic parts or touching the board circuit patterns. Also be sure to place the removed CPU assembly into a bag with an antistatic coating.

8.3 Calibration

Use the procedure below to check instrument operation and accuracy during periodic maintenance or troubleshooting.

1) Connect the instruments as shown in gure 8.1 and warm up the instruments for at least ve minutes (ten minutes for EJ310.)

IMPORTANT

• To adjust the transmitter for highest accuracy, make adjustments with the power supply voltage and load resistance including leadwire resistances set close to the conditions under which the transmitter is installed.

• If the measurement range 0% point is 0 kPa or shifted in the positive direction (suppressed zero), the reference pressure should be applied as shown in the gure. If the measurement range 0% point is shifted in the negative direction (elevated zero), the reference pressure should be applied using a vacuum pump.

2) Apply reference pressures of 0%, 50%, and 100% of the measurement range to the transmitter. Calculate the errors (differences between digital voltmeter readings and reference pressures) as the pressure is increased from 0% to 100% and is decreased from 100% to 0%, and conrm that the errors are within the required accuracy.

8.2 Calibration Instruments Selection

Table 8.1 lists the instruments that can be used to calibrate a transmitter. When selecting an instrument, consider the required accuracy level. Exercise care when handling these instruments to ensure they maintain the specied accuracy.

IM 01C25B01-01E

<8. Maintenance>

Table 8.1 Instruments Required for Calibration

Name Yokogawa-recommended Instrument Remarks

Power supply Model SDBT or SDBS distributor 4 to 20 mA DC signal Load resistor Model 2792 standard resistor [250 Ω ±0.005%, 3 W]

Load adjustment resistor [100 Ω ±1%, 1 W]

Voltmeter Model 2501 A digital multimeter

Accuracy (10V DC range): ±(0.002% of rdg + 1 dgt)

Digital manometer

Model MT220 precision digital manometer

1) For 10 kPa class

Accuracy: ±(0.015% of rdg + 0.015% of F.S.). . . . for 0 to 10 kPa

Select a manometer having a pressure range close to that of the transmitter.

±(0.2% of rdg + 0.1% of F.S.). . . . . . . . for -10 to 0 kPa

2) For 130 kPa class

Accuracy: ±0.02% of rdg. . . . . . . . . . . . . . . . . . . . for 25 to 130 kPa

±5digits. . . . . . . . . . . . . . . . . . . . . . . . . for 0 to 25 kPa

±(0.2% of rdg + 0.1% of F.S.). . . . . . . . for -80 to 0 kPa

3) For 700 kPa class

Accuracy: ±(0.02% of rdg + 3digits) . . . . . . . . . . . for 100 to 700 kPa

±5 digits . . . . . . . . . . . . . . . . . . . . . . . . for 0 to 100 kPa

±(0.2% of rdg + 0.1% of F.S.). . . . . . . . for -80 to 0 kPa

4) For 3000 kPa class

Accuracy: ±(0.02% of rdg + 10 digits). . . . . . . . . . for 0 to 3000 kPa

±(0.2% of rdg + 0.1% of F.S.). . . . . . . . for -80 to 0 kPa

5) For 130 kPa abs class

Accuracy: ±(0.03% of rdg + 6 digits). . . . . . . . . . . for 0 to 130 kPa abs

Pressure generator

Model 7674 pneumatic pressure standard for 200 kPa {2 kgf/cm2}, 25 kPa {2500 mmH2O}

Requires air pressure supply.

Accuracy: ±0.05% of F.S.

Dead weight gauge tester 25 kPa {2500 mmH2O}

Accuracy: ±0.03% of setting

Select the one having a pressure range close to that of the transmitter.

Pressure source

Model 6919 pressure regulator (pressure pump)

Pressure range: 0 to 133 kPa {1000 mmHg}

Prepare the vacuum pump for negative pressure ranges.

Note: The above table contains the instruments capable of performing calibration to the 0.2% level. Since special maintenance and

management procedures involving traceability of each instrument to higher-level standards are required for calibration to the 0.1% or higher level, there may be difculties in calibration to this level in the eld. For calibration to the 0.1% level, contact Yokogawa representatives from which the instrument was purchased or the nearest Yokogawa ofce.

8-2

Using pressure generator

Low pressure side open to atmosphere

Supply pressure

Pressure generator

P

Reference pressure

High pressure side High pressure side

Load resistance,

Load adjusting resistance,

100Ω

250Ω

RRc

V

Digital voltmeter

Figure 8.1 Instrument Connections (EJX110A)

Using pressure source with manometer

Low pressure side open to atmosphere

Power supply E

Pressure source

Model MT220

P

precision digital manometer

Reference pressure

Load resistance,

Load adjusting resistance,

100Ω

Digital voltmeter

250Ω

RRc

V

Power supply E

F0801.ai

IM 01C25B01-01E

<8. Maintenance>

8-3

8.4 Disassembly and Reassembly

This section describes procedures for disassembly and reassembly for maintenance and component replacement.

Always turn OFF power and shut off and release pressures before disassembly. Use proper tools for all operations. Table 8.2 shows the tools required.

Table 8.2 Tools for Disassembly and Reassembly

Tool Quantity Remarks

Phillips screwdriver

Slotted screwdriver

Allen wrenches 3 JIS B4648

Wrench 1 Width across ats, 17 mm Torque wrench 1 Adjustable

wrench Socket wrench 1 Width across ats, 16 mm Socket driver 1 Width across ats, 5.5 mm Tweezers 1

1 JIS B4633, No. 2

1

One each, nominal 3, 4 and

2.5 mm Allen wrenches

1

CAUTION

Precautions for ATEX Flameproof Type Transmitters

• Flameproof type transmitters must be, as a rule, removed to a non-hazardous area for maintenance and be disassembled and reassembled to the original state.

• On the ameproof type transmitters the two covers are locked, each by an Allen head bolt (shrouding bolt). When a shrouding bolt is driven clockwise by an Allen wrench, it is going in and cover lock is released, and then the cover can be opened.

When a cover is closed it should be locked

by a shrouding bolt without fail. Tighten the shrouding bolt to a torque of 0.7 N·m.

8.4.1 Replacing the Integral Indicator

CAUTION

Cautions for Flameproof Type Transmitters

Users are prohibited by law from modifying the construction of a ameproof type transmitter. This would invalidate the agency approval for the use of the transmitter in a rated area. It follows that the user is prohibited from using a ameproof type transmitter with its integral indicator removed, or from adding an integral indicator to a transmitter. If such modication is absolutely required, contact Yokogawa.

This subsection describes the procedure for replacing an integral indicator. (See gure 8.3)

■ Removing the Integral Indicator

1) Remove the cover.

2) While supporting the integral indicator with one hand, loosen its two mounting screws.

3) Dismount the LCD board assembly from the CPU assembly.

When doing this, carefully pull the LCD board

assembly straight forward so as not to damage the connector pins between it and the CPU assembly.

■ Attaching the Integral Indicator

1) Align both the LCD board assembly and CPU assembly connectors and engage them.

2) Insert and tighten the two mounting screws.

3) Replace the cover.

Output terminal cable

Press forward

Slide switch

Integral indicator

Boss

CPU assembly

Bracket (for zero-adjustment screw pin)

LCD board assembly

Mounting screw

Amplifier Cover

Zeroadjustment screw

Zero-adjustment screw pin

Shrouding Bolt

Figure 8.2 Shrouding Bolts

Shrouding Bolt

F0802.ai

F0803.ai

Figure 8.3 Removing and Attaching LCD Board

Assembly and CPU Assembly

IM 01C25B01-01E

<8. Maintenance>

8-4

8.4.2 Replacing the CPU Board Assembly

This subsection describes the procedure for replacing the CPU assembly. (See gure 8.3)

■ Removing the CPU Assembly

1) Remove the cover. If an integral indicator is mounted, refer to subsection 8.4.1 and remove the indicator.

2) Turn the zero-adjustment screw to the position (where the screw head slot is horizontal) as shown in gure 8.3.

3) Disconnect the output terminal cable (cable with brown connector at the end). When doing this, lightly press the side of the CPU assembly connector and pull the cable connector to disengage.

4) Use a socket driver (width across ats, 5.5mm) to loosen the two bosses.

5) Carefully pull the CPU assembly straight forward to remove it.

6) Disconnect the at cable (cable with white connector at the end) that connects the CPU assembly and the capsule.

NOTE

Be careful not to apply excessive force to the CPU assembly when removing it.

■ Mounting the CPU Assembly

1) Connect the at cable (with white connector) between the CPU assembly and the capsule.

2) Connect the output terminal cable (with brown connector).

NOTE

Make certain that the cables do not get pinched between the case and the edge of the CPU assembly.

NOTE

Conrm that the zero-adjustment screw pin is placed properly in the groove on the bracket prior to tightening the two bosses. If it is not, the zeroadjustment mechanism will be damaged.

5) Replace the cover.

8.4.3 Cleaning and Replacing the Capsule Assembly

This subsection describes the procedures for cleaning and replacing the capsule assembly. (See gure 8.4.)

CAUTION

Cautions for Flameproof Type Transmitters

Users are prohibited by law from modifying the construction of a ameproof type transmitter. If you wish to replace the capsule assembly with one of a different measurement range, contact Yokogawa. The user is permitted, however, to replace a capsule assembly with another of the same measurement range. When doing so, be sure to observe the following.

• The replacement capsule assembly must have the same part number as the one being replaced.

• The section connecting the transmitter and capsule assembly is a critical element in preservation of ameproof performance, and must be checked to verify that it is free of dents, scratches, and other defects.

• After completing maintenance, be sure to securely tighten the setscrews that fasten the transmitter section and pressure-detector section together.

3) Align and engage the zero-adjustment screw pin with the groove on the bracket on the CPU assembly. Then insert the CPU board assembly straight onto the post in the amplier case.

4) Tighten the two bosses. If the transmitter is equipped with an integral indicator, refer to subsection 8.4.1 to mount the indicator.

IM 01C25B01-01E

<8. Maintenance>

8-5

■ Removing the Capsule Assembly

IMPORTANT

Exercise care as follows when cleaning the capsule assembly.

• Handle the capsule assembly with care, and be especially careful not to damage or distort the diaphragms that contact the process uid.

• Do not use a chlorinated or acidic solution for cleaning.

• Rinse thoroughly with clean water after cleaning.

1) Remove the CPU assembly as shown in subsection 8.4.2.

2) Remove the two setscrews that connect the transmitter section and pressure-detector section.

3) Remove the hexagon-head screw and the stopper.

4) Separate the transmitter section and pressuredetector section.

5) Remove the nuts from the four ange bolts.

6) While supporting the capsule assembly with one hand, remove the cover ange.

7) Remove the capsule assembly.

8) Clean the capsule assembly or replace with a new one.

3) After the pressure-detector section has been reassembled, a leak test must be performed to verify that there are no pressure leaks.

4) Reattach the transmitter section to the pressure-detector section. Reattach the stopper with the hexagon-head screw.

5) Tighten the two setscrews. (Tighten the screws to a torque of 1.5 N·m)

6) Install the CPU assembly according to subsection 8.4.2.

7) After completing reassembly, adjust the zero point and recheck the parameters.

Transmitter section

Setscrew

Nut

Capsule gasket

Flange bolt

■ Reassembling the Capsule Assembly

1) Insert the capsule assembly between the ange bolts, paying close attention to the relative positions of the H (high pressure side) and L (low pressure side) marks on the capsule assembly.

Replace the two capsule gaskets with new

gaskets.

2) Install the cover ange on the high pressure side, and use a torque wrench to tighten the four nuts uniformly to a torque shown below.

EJ110, EJ310, EJ430

Model

Torque(N·m)

{kgf·m}

*: 40 for measurement span code F.

Model

Torque(N·m)

{kgf·m}

Wetted parts material code

S H,M,T,A,D,B

17*

{1.7}

EJ130 EJ440

Bolts & nuts material code

G, C J G, C J

90

{9.2}

{11.2}

40

{4.1}

110

EJ120

70

{7.1}

40

{4.1}

100

{10.2}

Cover flange

Figure 8.4 Removing and Mounting the Pressure-

detector Section

Pressure-detector section

F0804.ai

IMPORTANT

If you remove the drain/vent plugs when disassembling EJ130 and EJ440 transmitters, install the plugs again before reassembling the cover anges with the capsule assmbly.

IM 01C25B01-01E

<8. Maintenance>

8-6

8.4.4 Replacing the Process Connector

Gaskets

This subsection describes process connector gasket replacement. (See gure 8.5.)

(a) Loosen the two bolts, and remove the process

connectors.

(b) Replace the process connector gaskets. (c) Remount the process connectors. Tighten the

bolts securely and uniformly to a torque shown below, and verify that there are no pressure leaks.

EJ110 EJ120

Model

EJ130 EJ310 EJ430

Torque(N·m)

{kgf·m}

Process connector

Process connector gasket

39 to 49

{4 to 5}

Bolt

EJ440

C capsule D capsule

49 to 59

{5 to 6}

8.5.1 Basic Troubleshooting

First determine whether the process variable is actually abnormal or a problem exists in the measurement system.

If the problem is in the measurement system, isolate the problem and decide what corrective action to take.

This transmitter is equipped with a self-diagnostic function which will be useful in troubleshooting, and the transmitter equipped with an integral indicator will show an alarm code as a result of selfdiagnosis. See subsection 8.5.3 for the list of alarms. See also each communication manual.

: Areas where self-diagnostic offers support

Abnormalities appear in measurement.

YES

Inspect the

process system.

Is process variable

itself abnormal?

NO

Measurement system problem

F0805.ai

Figure 8.5 Removing and Mounting the Process

Connector

8.5 Troubleshooting

If any abnormality appears in the measured values, use the troubleshooting ow chart below to isolate and remedy the problem. Since some problems have complex causes, these ow charts may not identify all. If you have difculty isolating or correcting a problem, contact Yokogawa service personnel.

Isolate problem in

measurement system.

YES

Inspect receiver.

Environmental conditions

Check/correct

environmental conditions.

Does problem exist in receiving instrument?

NO

Transmitter itself

Check transmitter.

Operating conditions

Check/correct operating

conditions.

Figure 8.6 Basic Flow and Self-Diagnostics

F0806.ai

IM 01C25B01-01E

<8. Maintenance>

F0808.ai

8-7

8.5.2 Troubleshooting Flowcharts

The following sorts of symptoms indicate that transmitter may not be operating properly. Example : • There is no output signal.

• Output signal does not change even though process variable is known to be varying.

• Output value is inconsistent with value inferred for process variable.

Connect communicator and check self-diagnostics.

Does the self-diagnostic

indicate problem location?

NO

Is power supply

polarity correct?

YES

Are power

supply voltage and load

resistance correct?

YES

Are valves opened or

closed correctly?

YES

Is there any pressure leak?

NO

Refer to error message summary in Subsection 8.5.3 or in each communication manual to take actions.

Refer to Section 6.3 to check/correct polarity at each terminal from power supply to the terminal box.

Refer to Section 6.6 for rated voltage and load resistance.

Fully close equalizing valve, and fully open high pressure and low pressure valves.

Fix pressure leaks, paying particular attention to connections for impulse piping,pressure-detector section, etc.

YES

NO

YES

Output travels beyond 0% or 100%.

Connect a communicator and check self-diagnostics.

Does the self-

diagnostic indicate problem

location?

NO

Is power supply

polarity correct?

YES

Are valves opened or

closed correctly?

YES

Is there any pressure leak?

NO

Is impulse piping

to high pressure and low

pressure side correct?

YES

Is zero point

adjusted correctly?

YES

Refer to error message summary in each communication manual to take actions.

Refer to Section 6.3 to check/correct polarity at each terminal from power supply to the terminal box.

Fully close equalizing valve, and fully open high pressure and low pressure valves.

Fix pressure leaks, paying particular attention to connections for impulse piping, pressure-detector section, etc.

Refer to individual model user manuals and connect piping as appropriate for the measurement purpose.

Adjust the zero point.

YES

NO

YES

NO

Is there

continuity through the

transmitter loop wiring?

Do the loop numbers

match?

YES

Contact Yokogawa service personnel.

Find/correct broken conductor or wiring error.

NO

Contact Yokogawa service personnel.

F0807.ai

IM 01C25B01-01E

<8. Maintenance>

Large output error.

Connect a communicator and check self-diagnostics.

8-8

Does the self-

diagnostic indicate problem

location?

NO

Are valves opened or

closed correctly?

YES

Is impulse piping

connected correctly?

YES

Are power supply

voltage and load resistance

correct?

Refer to error message summary in each communication manual to take actions.

Fully close equalizing valve, and fully open high pressure and low pressure valves.

Refer to individual model user manuals and connect piping as appropriate for the measurement purpose.

YES

NO

YES

Is transmitter

installed where there is

marked variation in

temperature?

NO

Were appropriate

instruments used for

calibration?

YES

Is output adjusted correctly?

YES

Contact Yokogawa service personnel.

Refer to Section 6.6 for rated voltage and load resistance.

Provide lagging and/or cooling, or allow adequate ventilation.

Refer to Section 8.2 when selecting instruments for calibration.

Adjust the output.

YES

NO

F0809.ai

IM 01C25B01-01E

<8. Maintenance>

8.5.3 Alarms and Countermeasures

Table 8.3 Alarm Message Summary

Indicator Cause

None AL. 01

CAP. ERR

Sensor problem. Outputs the signal (Hold, High, or Capsule temperature sensor

problem. Capsule EEPROM problem.

AL. 02 AMP. ERR

Amplier temperature sensor problem.

Amplier EEPROM problem. Amplier problem.

AL. 10 PRESS

AL. 11

Input is outside measurement range limit of capsule.

Static pressure exceeds limit. Continues to operate and output.

ST. PRSS AL. 12

CAP. TMP AL. 13

AMP. TMP AL. 30

RANGE AL. 31

SP. RNG AL. 35 *

P. HI AL. 36 *

Capsule temperature is outside range (–50 to 130°C).

Amplier temperature is outside range (–50 to 95°C)

Output is outside upper or lower range limit value.

Static pressure exceeds specied range.

1

Input pressure exceeds specied threshold.

1

P. LO

1

AL. 37 * SP. HI

AL. 38 *

Input static pressure exceeds specied threshold.

1

SP. LO

1

AL. 39 * TMP. HI

AL. 40 *

Detected temperature exceeds specied threshold.

1

TMP. LO AL. 50

P. LRV

Specied value is outside of setting range.

AL. 51 P. URV

AL. 52 P. SPN

AL. 53 P. ADJ

AL. 54 SP. RNG

AL. 55 SP. ADJ

AL. 60 SC. CFG

Specied values or settings to dene signal characterizer function do not satisfy the condition.

AL. 79

Displayed value exceeds limit.

OV. DISP

Output Operation

during Error

Countermeasure

Replace capsule when error

Low) set with parameter.

keeps appearing even after restart.

Outputs the signal (Hold, High, or

Replace amplier.

Low) set with parameter.

Outputs high range limit value or low range limit value.

Check input or replace capsule when necessary.

Use heat insulation or make lagging to keep temperature within range.

Outputs high range limit value or low range limit value.

Check input and range setting, and change them as needed.

Holds output immediately before error occurred.

Continues to operate and

Check input.

output.

Holds output immediately before error occurred.

Check setting and change them as needed.

Continues to operate and output. Check input.

Continues to operate and output holding static pressure in %.

Check setting and change them as needed.

Continues to operate and output. Check input.

Check setting and change them as needed.

8-9

*1: These alarms may appear only when process alarm function is activated.

IM 01C25B01-01E

<9. General Specications>

9. General Specications

9-1

9.1 Standard Specications

Refer to IM 01C25T02-01E for FOUNDATION Fieldbus communication type and IM 01C25T0401EN for PROFIBUS PA communication type for the items marked with “◊”.

 Performance Specications

See General Specications sheet of each model.

 Functional Specications

Span & Range Limits

EJX110A

Measurement

Span/Range

Span 0.1 to 5 0.4 to 20 1 to 50 10 to 500

F*

Range -5 to 5 -20 to 20 -50 to 50 -500 to 500

Span 0.1 to 10 0.4 to 40 1 to 100 10 to 1000

L*

Range -10 to 10 -40 to 40 -100 to 100 -1000 to 1000

Span 0.5 to 100 2 to 400 5 to 1000 50 to 10000

M

Range -100 to 100 -400 to 400 -1000 to 1000

Span 2.5 to 500 10 to 2000 25 to 5000

H

Range -500 to 500 -2000 to 2000 -5000 to 5000

Span

V

Range

*: F capsule is applicable for wetted parts material code S. L capsule is applicable for wetted parts material code

other than S.

EJX120A

Measurement

Span/Range

Span 0.025 to 1 0.1 to 4 0.25 to 10 2.5 to 100

E

Range -1 to 1 -4 to 4 -10 to 10 -100 to 100

EJX130A

Measurement

Span/Range

Span 1 to 100 4 to 400 10 to 1000 100 to 10000

M

Range -100 to 100 -400 to 400 -1000 to 1000 -10000 to 10000

Span 5 to 500 20 to 2000 50 to 5000 0.05 to 5 kgf/cm

H

Range -500 to 500 -2000 to 2000 -5000 to 5000 -5 to 5 kgf/cm

kPa inH2O(/D1) mbar(/D3) mmH2O(/D4)

-10000 to 10000

0.025 to 5 kgf/cm

-5 to 5

kgf/cm

0.07 to 14

-0.5 to 14

10 to 2000 psi 0.7 to 140 bar

MPa

-71 to 2000

MPa

kPa inH2O(/D1) mbar(/D3) mmH2O(/D4)

psi

-5 to 140 bar

0.7 to140 kgf/cm

-5 to 140 kgf/cm

EJX310A

Measurement

Span/Range

Span 0.5 to 10

L

Range 0 to 10 0 to 2.95 inHg 0 to 100 0 to 75

Span 1.3 to 130

M

Range 0 to 130 0 to 38 inHg 0 to 1300 0 to 970

Span

A

Range 0 to 3.5 MPa 0 to 500 0 to 35 bar 0 to 35 kgf/cm

Span

B

Range 0 to 16 MPa 0 to 2300 0 to 160 bar 0 to 160 kgf/cm

kPa abs

0.0175 to 3.5 MPa

0.08 to 16 MPa

psi abs

(/D1)

0.15 to 2.95 inHg

0.39 to 38 inHg

2.5 to 500

12 to 2300

mbar abs

(/D3)

5 to 100 3.8 to 75

13 to 1300 9.8 to 970

0.175 to 35 bar

0.8 to 160 bar

mmHg abs

(/D4)

0.175 to 35 kgf/cm

0.8 to 160 kgf/cm

2

EJX430A

Measurement

Span/Range

Span

H

Range

Span 0.0175 to 3.5 2.5 to 500 0.175 to 35 0.175 to 35

A

Range -0.1 to 3.5 -15 to 500 -1 to 35 -1 to 35

Span 0.08 to 16 12 to 2300 0.8 to 160 0.8 to 160

B

Range -0.1 to 16 -14.7 to 2300 -1 to 160 -1 to 160

2

MPa psi (/D1) bar(/D3)

2.5 to 500 kPa

-100 to 500 kPa

10 to 2000

inH2O

-400 to 2000 inH2O

0.025 to 5 0.025 to 5

-1 to 5 -1 to 5

kgf/cm

(/D4)

2

EJX440A

2

Measurement

Span/Range

Span 0.25 to 32 36 to 4500 2.5 to 320 2.5 to 320

C

Range -0.1 to 32 -14.5 to 4500 -1 to 320 -1 to 320

Span 0.25 to 50 36 to 7200 2.5 to 500 2.5 to 500

D

Range -0.1 to 50 -14.5 to 7200 -1 to 500 -1 to 500

MPa psi (/D1) bar(/D3) kgf/cm2(/D4)

EJA110E

Measurement

Span/Range

Span 0.5 to 5 2.0 to 20 5 to 50 50 to 500

F*

Range -5 to 5 -20 to 20 -50 to 50 -500 to 500

Span 0.5 to 10 2.0 to 40 5 to 100 50 to 1000

L*

Range -10 to 10 -40 to 40 -100 to 100 -1000 to 1000

Span 1 to 100 4 to 400 10 to 1000 100 to 10000

M

Range -100 to 100 -400 to 400 -1000 to 1000

Span 5 to 500 20 to 2000 50 to 5000

2

H

Range -500 to 500 -2000 to 2000 -5000 to 5000

Span

V

Range

*: F capsule is applicable for wetted parts material code S. L capsule is applicable for wetted parts material code

other than S.

kPa inH2O(/D1) mbar(/D3) mmH2O(/D4)

-10000 to 10000

0.05 to 5 kgf/cm

-5 to 5

kgf/cm

0.14 to 14 MPa

-0.5 to 14 MPa

20 to 2000 psi 1.4 to 140 bar

-71 to 2000 psi

-5 to 140 bar

1.4 to140 kgf/cm

-5 to 140 kgf/cm

2

IM 01C25B01-01E

<9. General Specications>

9-2

EJA120E

Measurement

Span/Range

Span 0.1 to 1 0.4 to 4 1 to 10 10 to 100

E

Range -1 to 1 -4 to 4 -10 to 10 -100 to 100

kPa inH2O(/D1) mbar(/D3) mmH2O(/D4)

EJA130E

Measurement

Span/Range

Span 1 to 100 4 to 400 10 to 1000 100 to 10000

M

Range -100 to 100 -400 to 400 -1000 to 1000 -10000 to 10000

Span 5 to 500 20 to 2000 50 to 5000 0.05 to 5 kgf/cm

H

Range -500 to 500 -2000 to 2000 -5000 to 5000 -5 to 5 kgf/cm

kPa inH2O(/D1) mbar(/D3) mmH2O(/D4)

EJA310E

Measurement

Span/Range

Span 0.67 to 10

L

Range 0 to 10 0 to 2.95 inHg 0 to 100 0 to 75

Span 1.3 to 130

M

Range 0 to 130 0 to 38 inHg 0 to 1300 0 to 970

Span

A

Range 0 to 3.5 MPa 0 to 500 0 to 35 bar 0 to 35 kgf/cm

Span

B

Range 0 to 16 MPa 0 to 2300 0 to 160 bar 0 to 160 kgf/cm

kPa abs

0.03 to 3.5 MPa

0.14 to 16 MPa

psi abs

(/D1)

0.2 to 2.95 inHg

0.39 to 38 inHg

4.3 to 500

20 to 2300

mbar abs

(/D3)

6.7 to 100 5 to 75

13 to 1300 9.8 to 970

0.3 to 35

1.4 to 160

bar

0.3 to 35 kgf/cm

mmHg abs

(/D4)

1.4 to 160

2

kgf/cm

Output “◊”

Two wire 4 to 20 mA DC output with digital communications, linear or square root programmable. BRAIN or HART FSK protocol are superimposed on the 4 to 20 mA signal. Output range: 3.6 mA to 21.6 mA Output limits conform to NAMUR NE43 can be pre-set by option C2 or C3.

Failure Alarm “◊”

2

Output status at CPU failure and hardware error;

Up-scale: 110%, 21.6 mA DC or more (standard) Down-scale: –5%, 3.2 mA DC or less

Note: Applicable for Output signal code D and E

Damping Time Constant (1st order)

Amplier damping time constant is adjustable from 0 to 100.00 seconds and added to response time.

2

Note: For BRAIN protocol type, when amplier damping

is set to less than 0.5 seconds, communication may occasionally be unavailable during the operation, especially while output changes dynamically. The default setting of damping ensures stable communication.

EJA430E

Measurement

Span/Range

Span 5 to 500 kPa

H

Range

Span 0.03 to 3.5 4.3 to 500 0.3 to 35 0.3 to 35

A

Range -0.1 to 3.5 -14.5 to 500 -1 to 35 -1 to 35

Span 0.14 to 16 20 to 2300 1.4 to 160 1.4 to 160

B

Range -0.1 to 16 -14.5 to 2300 -1 to 160 -1 to 160

MPa psi (/D1) bar(/D3)

20 to 2000

inH2O

-100 to 500 kPa

-400 to 2000 inH2O

0.05 to 5 0.05 to 5

-1 to 5 -1 to 5

EJA440E

Measurement

Span/Range

Span 5 to 32 720 to 4500 50 to 320 50 to 320

C

Range -0.1 to 32 -14.5 to 4500 -1 to 320 -1 to 320

Span 5 to 50 720 to 7200 50 to 500 50 to 500

D

Range -0.1 to 50 -14.5 to 7200 -1 to 500 -1 to 500

MPa psi (/D1) bar(/D3) kgf/cm2(/D4)

kgf/cm

(/D4)

Update Period “◊”

2

Differential Pressure: 45 ms Static Pressure: 360 ms

Zero Adjustment Limits

Zero can be fully elevated or suppressed, within the lower and upper range limits of the capsule.

External Zero Adjustment “◊”

External Zero is continuously adjustable with

0.01% incremental resolution of span. Re-range can be done locally using the digital indicator with range-setting switch.

Integral Indicator (LCD display)

5-digit Numerical Display, 6-digit Unit Display and Bar graph. The indicator is congurable to display one or up to four of the following variables periodically.; Differential pressure in %, Scaled Differential pressure, Differential Pressure in Engineering unit, Static Pressure in Engineering unit. See “Setting When Shipped” for factory setting.

Burst Pressure Limits

[EJ110, EJ310, EJ430]

69 MPa (10000 psi)

[EJ130, EJ440]

132 MPa (19100 psi)

IM 01C25B01-01E

<9. General Specications>

9-3

 Normal Operating Condition

(Selected features may affect limits.)

Ambient Temperature Limits

–40 to 85°C (–40 to 185°F) –30 to 80°C (–22 to 176°F) with LCD display –25 to 80°C (–40 to 176°F) for EJ120

Process Temperature Limits

–40 to 120°C (–40 to 248°F) –25 to 80°C (–40 to 176°F) for EJ120 –40 to 100°C (–40 to 212°F) for EJ310

L capsule

Ambient Humidity Limits

0 to 100% RH

Working Pressure Limits (Silicone oil)

EJ120 -50 to 50 kPa

Maximum Pressure Limits

EJX110A

Capsule Pressure

F, L 16 MPa (2300 psi) M, H, V 25 MPa (3600 psi)*

* 16 MPa for wetted parts material code H, M, T, A, D,

and B.

Minimum Pressure Limit

See graph below

EJ110, EJ130, EJ430, EJ440

100(14.5)

Working pressure kPa abs

(psi abs)

10(1.4)

2.7(0.38)

1(0.14)

Applicable range

-40 (-40)

0

40

(32)

(104)

Process temperature °C (°F)

80 (176)

120 (248)

EJ310

100(750)

M,A and B capsule

10(75)

L capsule

Atmospheric pressure

F0901.ai

EJA110E

Capsule Pressure

F, L, M, H, V 16 MPa (2300 psi)*

* 25 MPa (3600 psi) when /HG is specied.

EJ130

Capsule Pressure

M, H 32 MPa (4500 psi)

EJ310

Capsule Pressure

L 10 kPa abs (2.95 inHg abs) M 130 kPa abs (38 inHg abs) A 3.5 MPa abs (500 psia) B 16 MPa abs (2300 psia)

EJ430

Capsule Pressure

H 500 kPa (2000 inH2O) A 3.5 MPa (500 psi) B 16 MPa (2300 psi)

EJ440

Capsule Pressure

C 32 MPa (4500 psi) D 50 MPa (7200 psi)

2.7(20)

Working pressure kPa abs

(mmHg abs)

0.1(0.75)

0.013(0.1)

0.01(0.075)

1(7.5)

0.13(1)

Applicable range

-40 (-40)0(32)40(104)80(176)

Process temperature °C (°F)

Figure 9.1 Working Pressure and Process

Temperature

0.46

(3.45)

120 (248)

85 (185)

F0902.ai

IM 01C25B01-01E

<9. General Specications>

9-4

Maximum Over Pressure EJ310

Capsule Pressure

L, M 500 kPa abs (72 psia) A 16 MPa abs (2300 psia) B 25 MPa abs (3600 psia)

EJ430

Capsule Pressure

H, A 16 MPa (2300 psi) B 25 MPa (3600 psi)*

* 24 MPa for wetted parts material code H, M, T, A, D, and

B.

EJ440

Capsule Pressure

C 48 MPa (6750 psi) D 75 MPa (10800 psi)*

* 60 MPa (8700 psi) for EJA440E.

Supply & Load Requirements “◊” (Optional

features or approval codes may affect electrical requirements.)

With 24 V DC supply, up to a 550 Ω load can be used. See graph below.

Supply Voltage

10.5 to 42 V DC for general use and ameproof type.

10.5 to 32 V DC for lightning protector (Option code /A).

10.5 to 30 V DC for intrinsically safe, type n or non-incendive type.

Minimum voltage limited at 16.6 V DC for digital

communications, BRAIN and HART

Load (Output signal code D, E and J)

0 to 1290 Ω for operation 250 to 600 Ω for digital communication

Communication Requirements “◊”

(Safety approvals may affect electrical requirements.)

BRAIN

Communication Distance

Up to 2 km (1.25 miles) when using CEV polyethylene-insulated PVC-sheathed cables. Communication distance varies depending on type of cable used.

600

E-10.5

R=

External load resistance

250

(Ω)

R

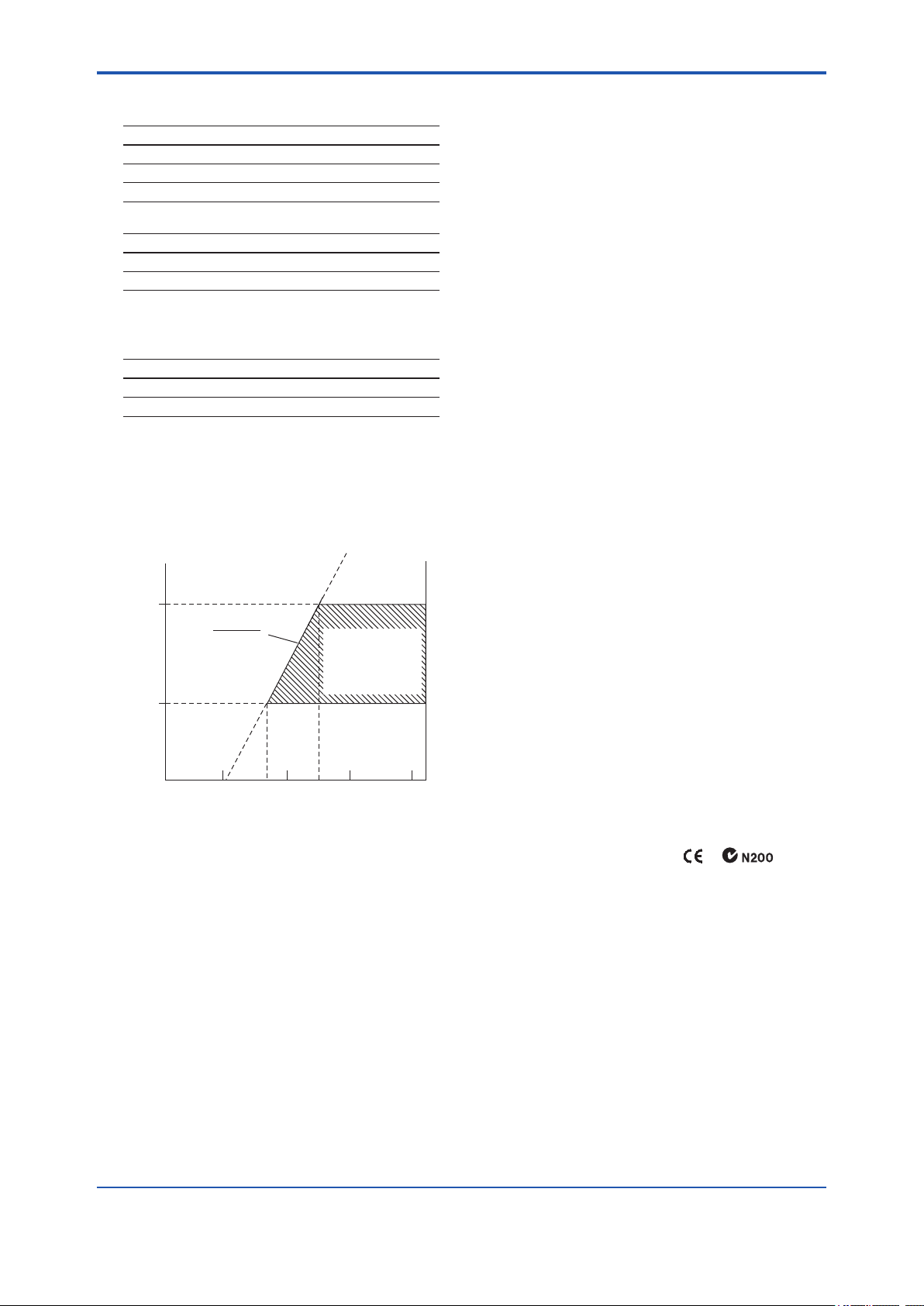

Figure 9.2 Relationship Between Power Supply

0.0244

10.5 16.6 25.2 42

Power supply voltage E (V DC)

Voltage and External Load Resistance

Digital

Communication

range

BRAIN and HART

F0903.ai

Load Capacitance

0.22 μF or less

Load Inductance

3.3 mH or less

Input Impedance of communicating device

10 kΩ or more at 2.4 kHz.

HART

Communication Distance

Up to 1.5 km (1 mile) when using multiple twisted pair cables. Communication distance varies depending on type of cable used.

EMC Conformity Standards ,

EN61326-1 Class A, Table2 (For use in industrial locations) EN61326-2-3

IM 01C25B01-01E

<9. General Specications>

9-5

 Physical Specications

Wetted Parts Materials

Diaphragm, Cover Flange, Process Connector, Capsule Gasket, and Vent/Drain Plug

Refer to “Model and Sufx Code.”

Process Connector Gasket/o-ring

[EJ110, EJ120, EJ430, EJ310] PTFE Teon Fluorinated rubber for Option code /N2 and /N3 [EJ130] Fluorinated rubber (O-ring) [EJ440] Fluorinated rubber (O-ring) for C capsule Glass reinforced Teon (gasket) for D capsule

Non-wetted Parts Materials

Bolting

ASTM-B7 carbon steel, 316L SST stainless steel, or ASTM grade 660 stainless steel

Housing

Low copper cast aluminum alloy with polyurethane paint or ASTM CF-8M stainless steel

Weight

[Installation code 7, 8, and 9 and wetted parts material code S for EJ110, EJ310, and EJ430 (Except for measurement span code F)]

2.8 kg (6.2 lb) without integral indicator,

mounting bracket, and process connector. [Installation code 7, 8, and 9 for EJ120]

3.7 kg (8.2 lb) without integral indicator,

mounting bracket, and process connector. [Installation code 7, 8, and 9 for EJ130]

6.8 kg (14.3 lb) without integral indicator,

mounting bracket, and process connector. [Installation code 7, 8, and 9 for EJ440]

4.9 kg (10.8 lb) without integral indicator,

mounting bracket, and process connector.

Add 1.5 kg(3.3lb) for amplier housing code 2.

Connections

Refer to “Model and Sufx Code.”

Process Connection of Cover Flange (models except for EJ440-D): IEC61518

Degrees of Protection

IP66/IP67, NEMA TYPE 4X

Cover O-rings

Buna-N, uoro-rubber (option)

Nameplate and tag

316SST (including /N4 wired tag)

Fill Fluid

Silicone, Fluorinated oil (option)

IM 01C25B01-01E

<9. General Specications>

9-6

9.2 Model and Sufx Codes

Model EJX110A

Model Sufx Codes Description

EJX110A . . . . . . . . . . . . . . . . . . . . . . Differential pressure transmitter

Output signal

Measurement span (capsule)

Wetted parts material *

Process connections

Bolts and nuts material

Installation

Amplier housing 1 . . . . . . . . . .

Electrical connection

Integral indicator

Mounting bracket ► B. . . . .

Optional codes

The “►” marks indicate the most typical selection for each specication. *1: Users must consider the characteristics of selected wetted parts material and inuence of process uids. Specifying inappropriate

materials has the potential to cause serious damage to human body and plant facilities resulted from an unexpected leak of the corrosive process uids.

-D . . . . . . . . . . . . . . . . . . . .

-E . . . . . . . . . . . . . . . . . . . .

-J . . . . . . . . . . . . . . . . . . . .

-F . . . . . . . . . . . . . . . . . . . .

-G . . . . . . . . . . . . . . . . . . . .

F . . . . . . . . . . . . . . . . . . .

L . . . . . . . . . . . . . . . . . . .

M . . . . . . . . . . . . . . . . . .

H. . . . . . . . . . . . . . . . . . .

V . . . . . . . . . . . . . . . . . . .

1

 . . . . . . . . . . . . . . . . .

0 . . . . . . . . . . . . . . . .

1 . . . . . . . . . . . . . . . .

2 . . . . . . . . . . . . . . . .

3 . . . . . . . . . . . . . . . .

4 . . . . . . . . . . . . . . . .

►

5 . . . . . . . . . . . . . . . .

J . . . . . . . . . . . . . .

G. . . . . . . . . . . . . .

C. . . . . . . . . . . . . .

-2 . . . . . . . . . . .

-3 . . . . . . . . . . .

-6 . . . . . . . . . . .

-7 . . . . . . . . . . .

-8 . . . . . . . . . . .

►

-9 . . . . . . . . . . .

-B . . . . . . . . . . .

-U . . . . . . . . . . .

2 . . . . . . . . . .

3 . . . . . . . . . .

►

0 . . . . . . . . .

2 . . . . . . . . .

4 . . . . . . . . .

5 . . . . . . . . .

7 . . . . . . . . .

9 . . . . . . . . .

A. . . . . . . . .

C. . . . . . . . .

D. . . . . . . . .

D. . . . . . .

E . . . . . . .

N. . . . . . .

D. . . . .

G. . . . .

J . . . . .

K. . . . .

M . . . .

N. . . . .

4 to 20 mA DC with digital communication (BRAIN protocol) 4 to 20 mA DC with digital communication (HART protocol) 4 to 20 mA DC with digital communication (HART 5/HART 7 protocol) Digital communication (FOUNDATION Fieldbus protocol,

refer to IM 01C25T02-01E)

Digital communication

0.1 to 5 kPa (0.4 to 20 inH2O) (For Wetted parts material code S)

0.1 to 10 kPa (0.4 to 40 inH2O) (For Wetted parts material code M, H, T, A, D and B)

0.5 to 100 kPa (2 to 400 inH2O)

2.5 to 500 kPa (10 to 2000 inH2O)

0.07 to 14 MPa (10 to 2000 psi)

Refer to Table. 1 Wetted Parts Materials on Page 9-18.

without process connector (Rc1/4 female on the cover anges) with Rc1/4 female process connector with Rc1/2 female process connector with 1/4 NPT female process connector with 1/2 NPT female process connector without process connector (1/4 NPT female on the cover anges)

ASTM-B7 carbon steel 316L SST stainless steel ASTM grade 660 stainless steel

Vertical piping, right side high pressure, and process connection upside Vertical piping, right side high pressure, and process connection downside Vertical piping, left side high pressure, and process connection upside Vertical piping, left side high pressure, and process connection downside Horizontal piping and right side high pressure Horizontal piping and left side high pressure Bottom Process Connection, left side high pressure Universal ange

Cast aluminum alloy ASTM CF-8M stainless steel Cast aluminum alloy with corrosion resistance properties

G1/2 female, one electrical connection without blind plugs 1/2 NPT female, two electrical connections without blind plugs M20 female, two electrical connections without blind plugs G1/2 female, two electrical connections and a blind plug 1/2 NPT female, two electrical connections and a blind plug M20 female, two electrical connections and a blind plug G1/2 female, two electrical connections and a 316 SST blind plug 1/2 NPT female, two electrical connections and a 316 SST blind plug M20 female, two electrical connections and a 316 SST blind plug

Digital indicator Digital indicator with the range setting switch None

304 SST 2-inch pipe mounting, at type (for horizontal piping) 304 SST 2-inch pipe mounting, L type (for vertical piping) 304 SST 2-inch pipe mounting (for bottom process connection type) 316 SST 2-inch pipe mounting, at type (for horizontal piping) 316 SST 2-inch pipe mounting, L type (for vertical piping) 316 SST 2-inch pipe mounting (for bottom process connection type) None

/  Optional specication

(PROFIBUS PA protocol, refer to IM 01C25T04-01EN)

IM 01C25B01-01E

<9. General Specications>

9-7

Model EJX120A

Model Sufx Codes Description

EJX120A . . . . . . . . . . . . . . . . . . . . . .

Output signal

-D . . . . . . . . . . . . . . . . . . . .

-E . . . . . . . . . . . . . . . . . . . .

-J . . . . . . . . . . . . . . . . . . . .

-F . . . . . . . . . . . . . . . . . . . .

-G . . . . . . . . . . . . . . . . . . . .

Measurement

E . . . . . . . . . . . . . . . . . . .

span (capsule) Wetted parts

material *

1

Process connections

S . . . . . . . . . . . . . . . . . . Refer to Table. 1 Wetted Parts Materials on Page 9-18

0 . . . . . . . . . . . . . . . .

1 . . . . . . . . . . . . . . . .

2 . . . . . . . . . . . . . . . .

3 . . . . . . . . . . . . . . . .

4 . . . . . . . . . . . . . . . .

►

5 . . . . . . . . . . . . . . . .

Bolts and nuts material

J . . . . . . . . . . . . . .

G. . . . . . . . . . . . . .

C. . . . . . . . . . . . . .

Installation

-2 . . . . . . . . . . .

-3 . . . . . . . . . . .

-6 . . . . . . . . . . .

-7 . . . . . . . . . . .

-8 . . . . . . . . . . .

-9 . . . . . . . . . . .

►

-U . . . . . . . . . . .

Amplier housing

1 . . . . . . . . . .

2 . . . . . . . . . .

3 . . . . . . . . . .

Electrical connection

0 . . . . . . . . .

2 . . . . . . . . .

►

4 . . . . . . . . .

5 . . . . . . . . .

7 . . . . . . . . .

9 . . . . . . . . .

A. . . . . . . . .

C. . . . . . . . .

D. . . . . . . . .

Integral indicator

D. . . . . . .

E . . . . . . .

N. . . . . . .

►

Mounting bracket ►

B. . . . .

D. . . . .

G. . . . .

J . . . . .

K. . . . .

N. . . . .

Optional codes

The “►” marks indicate the most typical selection for each specication. *1: Users must consider the characteristics of selected wetted parts material and inuence of process uids. Specifying inappropriate

materials has the potential to cause serious damage to human body and plant facilities resulted from an unexpected leak of the corrosive process uids.

Differential pressure transmitter 4 to 20 mA DC with digital communication (BRAIN protocol)

4 to 20 mA DC with digital communication (HART protocol) 4 to 20 mA DC with digital communication (HART 5/HART 7 protocol) Digital communication (FOUNDATION Fieldbus protocol,

refer to IM 01C25T02-01E)

Digital communication

(PROFIBUS PA protocol, refer to IM 01C25T04-01EN)

0.025 to 1 kPa (0.1 to 4 inH2O)

without process connector (Rc1/4 female on the cover anges) with Rc1/4 female process connector with Rc1/2 female process connector with 1/4 NPT female process connector with 1/2 NPT female process connector without process connector (1/4 NPT female on the cover anges)

ASTM-B7 carbon steel 316L SST stainless steel ASTM grade 660 stainless steel

Vertical piping, right side high pressure, and process connection upside Vertical piping, right side high pressure, and process connection downside Vertical piping, left side high pressure, and process connection upside Vertical piping, left side high pressure, and process connection downside Horizontal piping and right side high pressure Horizontal piping and left side high pressure Universal ange

Cast aluminum alloy ASTM CF-8M stainless steel Cast aluminum alloy with corrosion resistance properties

G1/2 female, one electrical connection without blind plugs 1/2 NPT female, two electrical connections without blind plugs M20 female, two electrical connections without blind plugs G1/2 female, two electrical connections and a blind plug 1/2 NPT female, two electrical connections and a blind plug M20 female, two electrical connections and a blind plug G1/2 female, two electrical connections and a 316 SST blind plug 1/2 NPT female, two electrical connections and a 316 SST blind plug M20 female, two electrical connections and a 316 SST blind plug

Digital indicator Digital indicator with the range setting switch None

304 SST 2-inch pipe mounting, at type (for horizontal piping) 304 SST 2-inch pipe mounting, L type (for vertical piping) 304 SST 2-inch pipe mounting (for bottom process connection type) 316 SST 2-inch pipe mounting, at type (for horizontal piping) 316 SST 2-inch pipe mounting, L type (for vertical piping) None

/  Optional specication

IM 01C25B01-01E

<9. General Specications>

9-8

Model EJX130A

Model Sufx Codes Description

EJX130A . . . . . . . . . . . . . . . . . . . . . .

Output signal

-D . . . . . . . . . . . . . . . . . . . .

-E . . . . . . . . . . . . . . . . . . . .

-J . . . . . . . . . . . . . . . . . . . .

-F . . . . . . . . . . . . . . . . . . . .

-G . . . . . . . . . . . . . . . . . . . .

Measurement span (capsule)

Wetted parts material *

Process connections

Bolts and nuts material

M . . . . . . . . . . . . . . . . . .

H. . . . . . . . . . . . . . . . . . .

S . . . . . . . . . . . . . . . . . .

1

3 . . . . . . . . . . . . . . . .

4 . . . . . . . . . . . . . . . .

►

5 . . . . . . . . . . . . . . . .

J . . . . . . . . . . . . . .

G. . . . . . . . . . . . . .

C. . . . . . . . . . . . . .

Installation

-2 . . . . . . . . . . .

-3 . . . . . . . . . . .

-6 . . . . . . . . . . .

-7 . . . . . . . . . . .

-8 . . . . . . . . . . .

-9 . . . . . . . . . . .

►

-U . . . . . . . . . . .

Amplier housing

1 . . . . . . . . . .

2 . . . . . . . . . .

3 . . . . . . . . . .

Electrical connection

0 . . . . . . . . .

2 . . . . . . . . .

►

4 . . . . . . . . .

5 . . . . . . . . .

7 . . . . . . . . .

9 . . . . . . . . .

A. . . . . . . . .

C. . . . . . . . .

D. . . . . . . . .

Integral indicator

D. . . . . . .

E . . . . . . .

N. . . . . . .

►

Mounting bracket ►

B. . . . .

D. . . . .

J . . . . .

K. . . . .

N. . . . .

Optional codes

The “►” marks indicate the most typical selection for each specication. *1: Users must consider the characteristics of selected wetted parts material and inuence of process uids. Specifying inappropriate

materials has the potential to cause serious damage to human body and plant facilities resulted from an unexpected leak of the corrosive process uids.

*2: Lower limit of ambient and process temperature is -15˚C.

Differential pressure transmitter 4 to 20 mA DC with digital communication (BRAIN protocol)

4 to 20 mA DC with digital communication (HART protocol) 4 to 20 mA DC with digital communication (HART 5/HART 7 protocol) Digital communication (FOUNDATION Fieldbus protocol,

refer to IM 01C25T02-01E)

Digital communication

(PROFIBUS PA protocol, refer to IM 01C25T04-01EN)

1 to 100 kPa (4 to 400 inH2O) 5 to 500 kPa (20 to 2000 inH2O)

Refer to Table. 2 Wetted Parts Materials on Page 9-18

with 1/4 NPT female process connector * with 1/2 NPT female process connector *

2 2

without process connector (1/4 NPT female on the cover anges) ASTM-B7 carbon steel

316L SST stainless steel ASTM grade 660 stainless steel

Vertical piping, right side high pressure, and process connection upside Vertical piping, right side high pressure, and process connection downside Vertical piping, left side high pressure, and process connection upside Vertical piping, left side high pressure, and process connection downside Horizontal piping and right side high pressure Horizontal piping and left side high pressure Universal ange

Cast aluminum alloy ASTM CF-8M stainless steel Cast aluminum alloy with corrosion resistance properties

G1/2 female, one electrical connection without blind plugs 1/2 NPT female, two electrical connections without blind plugs M20 female, two electrical connections without blind plugs G1/2 female, two electrical connections and a blind plug 1/2 NPT female, two electrical connections and a blind plug M20 female, two electrical connections and a blind plug G1/2 female, two electrical connections and a 316 SST blind plug 1/2 NPT female, two electrical connections and a 316 SST blind plug M20 female, two electrical connections and a 316 SST blind plug

Digital indicator Digital indicator with the range setting switch None

304 SST 2-inch pipe mounting, at type (for horizontal piping) 304 SST 2-inch pipe mounting, L type (for vertical piping) 316 SST 2-inch pipe mounting, at type (for horizontal piping) 316 SST 2-inch pipe mounting, L type (for vertical piping) None

/  Optional specication

IM 01C25B01-01E

<9. General Specications>

9-9

Model EJX310A

Model Sufx Codes Description

EJX310A . . . . . . . . . . . . . . . . . . . . . .

Output signal

-D . . . . . . . . . . . . . . . . . . . .

-E . . . . . . . . . . . . . . . . . . . .

-J . . . . . . . . . . . . . . . . . . . .

-F . . . . . . . . . . . . . . . . . . . .

-G . . . . . . . . . . . . . . . . . . . .

Measurement span (capsule)

L . . . . . . . . . . . . . . . . . . .

M . . . . . . . . . . . . . . . . . .

A. . . . . . . . . . . . . . . . . . .

B. . . . . . . . . . . . . . . . . . .

Wetted parts material *

1

Process connections

S . . . . . . . . . . . . . . . . . .

0 . . . . . . . . . . . . . . . .

1 . . . . . . . . . . . . . . . .

2 . . . . . . . . . . . . . . . .

3 . . . . . . . . . . . . . . . .

4 . . . . . . . . . . . . . . . .

►

5 . . . . . . . . . . . . . . . .

Bolts and nuts material

J . . . . . . . . . . . . . .

G. . . . . . . . . . . . . .

C. . . . . . . . . . . . . .

Installation

-2 . . . . . . . . . . .

-3 . . . . . . . . . . .

-6 . . . . . . . . . . .

-7 . . . . . . . . . . .

-8 . . . . . . . . . . .

-9 . . . . . . . . . . .

►

-B . . . . . . . . . . .

-U . . . . . . . . . . .

Amplier housing

1 . . . . . . . . . .

2 . . . . . . . . . .

3 . . . . . . . . . .

Electrical connection

0 . . . . . . . . .

2 . . . . . . . . .

►

4 . . . . . . . . .

5 . . . . . . . . .

7 . . . . . . . . .

9 . . . . . . . . .

A. . . . . . . . .

C. . . . . . . . .

D. . . . . . . . .

Integral indicator

D. . . . . . .

E . . . . . . .

N. . . . . . .

►

Mounting bracket ►

B. . . . .

D. . . . .

G. . . . .

J . . . . .

K. . . . .

M . . . .

N. . . . .

Optional codes

The “►” marks indicate the most typical selection for each specication. *1: Users must consider the characteristics of selected wetted parts material and inuence of process uids. Specifying inappropriate

materials has the potential to cause serious damage to human body and plant facilities resulted from an unexpected leak of the corrosive process uids.

Absolute pressure transmitter 4 to 20 mA DC with digital communication (BRAIN protocol)

4 to 20 mA DC with digital communication (HART protocol) 4 to 20 mA DC with digital communication (HART 5/HART 7 protocol) Digital communication (FOUNDATION Fieldbus protocol,

refer to IM 01C25T02-01E)

Digital communication

(PROFIBUS PA protocol, refer to IM 01C25T04-01EN)

0.5 to 10 kPa abs (0.15 to 2.95 inHg abs)

1.3 to 130 kPa abs (0.39 to 38 inHg abs)

0.0175 to 3.5 MPa abs (2.5 to 500 psia)

0.08 to 16 MPa abs (12 to 2300 psia)

Refer to Table. 1 Wetted Parts Materials on Page 9-18.

without process connector (Rc1/4 female on the cover anges) with Rc1/4 female process connector with Rc1/2 female process connector with 1/4 NPT female process connector with 1/2 NPT female process connector without process connector (1/4 NPT female on the cover anges)

ASTM-B7 carbon steel 316L SST stainless steel ASTM grade 660 stainless steel

Vertical piping, right side high pressure, and process connection upside Vertical piping, right side high pressure, and process connection downside Vertical piping, left side high pressure, and process connection upside Vertical piping, left side high pressure, and process connection downside Horizontal piping and right side high pressure Horizontal piping and left side high pressure Bottom process connection, left side high pressure Universal ange

Cast aluminum alloy ASTM CF-8M stainless steel Cast aluminum alloy with corrosion resistance properties

G1/2 female, one electrical connection without blind plugs 1/2 NPT female, two electrical connections without blind plugs M20 female, two electrical connections without blind plugs G1/2 female, two electrical connections and a blind plug 1/2 NPT female, two electrical connections and a blind plug M20 female, two electrical connections and a blind plug G1/2 female, two electrical connections and a 316 SST blind plug 1/2 NPT female, two electrical connections and a 316 SST blind plug M20 female, two electrical connections and a 316 SST blind plug

Digital indicator Digital indicator with the range setting switch None

304 SST 2-inch pipe mounting, at type (for horizontal piping) 304 SST 2-inch pipe mounting, L type (for vertical piping) 304 SST 2-inch pipe mounting (for bottom process connection type) 316 SST 2-inch pipe mounting, at type (for horizontal piping) 316 SST 2-inch pipe mounting, L type (for vertical piping) 316 SST 2-inch pipe mounting (for bottom process connection type) None

/  Optional specication

IM 01C25B01-01E

<9. General Specications>

9-10

Model EJX430A

Model Sufx Codes Description

EJX430A . . . . . . . . . . . . . . . . . . . . . .

Output signal

-D . . . . . . . . . . . . . . . . . . . .

-E . . . . . . . . . . . . . . . . . . . .

-J . . . . . . . . . . . . . . . . . . . .

-F . . . . . . . . . . . . . . . . . . . .

-G . . . . . . . . . . . . . . . . . . . .

Measurement span (capsule)

H. . . . . . . . . . . . . . . . . . .

A. . . . . . . . . . . . . . . . . . .

B. . . . . . . . . . . . . . . . . . .

Wetted parts material *

1

Process connections

. . . . . . . . . . . . . . . . .



0 . . . . . . . . . . . . . . . .

1 . . . . . . . . . . . . . . . .

2 . . . . . . . . . . . . . . . .

3 . . . . . . . . . . . . . . . .

4 . . . . . . . . . . . . . . . .

►

5 . . . . . . . . . . . . . . . .

Bolts and nuts material

J . . . . . . . . . . . . . .

G. . . . . . . . . . . . . .

C. . . . . . . . . . . . . .

Installation

-2 . . . . . . . . . . .

-3 . . . . . . . . . . .

-6 . . . . . . . . . . .

-7 . . . . . . . . . . .

-8 . . . . . . . . . . .

-9 . . . . . . . . . . .

►

-B . . . . . . . . . . .

-U . . . . . . . . . . .

Amplier housing

1 . . . . . . . . . .

2 . . . . . . . . . .

3 . . . . . . . . . .

Electrical connection

0 . . . . . . . . .

2 . . . . . . . . .

►

4 . . . . . . . . .

5 . . . . . . . . .

7 . . . . . . . . .

9 . . . . . . . . .

A. . . . . . . . .

C. . . . . . . . .

D. . . . . . . . .

Integral indicator

D. . . . . . .

E . . . . . . .

N. . . . . . .

►

Mounting bracket ►

B. . . . .

D. . . . .

G. . . . .

J . . . . .

K. . . . .

M . . . .

N. . . . .

Optional codes

The “►” marks indicate the most typical selection for each specication. *1: Users must consider the characteristics of selected wetted parts material and inuence of process uids. Specifying inappropriate

materials has the potential to cause serious damage to human body and plant facilities resulted from an unexpected leak of the corrosive process uids.

Gauge pressure transmitter 4 to 20 mA DC with digital communication (BRAIN protocol)

4 to 20 mA DC with digital communication (HART protocol) 4 to 20 mA DC with digital communication (HART 5/HART 7 protocol) Digital communication (FOUNDATION Fieldbus protocol,

refer to IM 01C25T02-01E)

Digital communication

(PROFIBUS PA protocol, refer to IM 01C25T04-01EN)

2.5 to 500 kPa (10 to 2000 inH2O)

0.0175 to 3.5 MPa (2.5 to 500 psi)

0.08 to 16 MPa (12 to 2300 psi)

Refer to Table. 1 Wetted Parts Materials on Page 9-18

without process connector (Rc1/4 female on the cover anges) with Rc1/4 female process connector with Rc1/2 female process connector with 1/4 NPT female process connector with 1/2 NPT female process connector without process connector (1/4 NPT female on the cover anges)

ASTM-B7 carbon steel 316L SST stainless steel ASTM grade 660 stainless steel

Vertical piping, right side high pressure, and process connection upside Vertical piping, right side high pressure, and process connection downside Vertical piping, left side high pressure, and process connection upside Vertical piping, left side high pressure, and process connection downside Horizontal piping and right side high pressure Horizontal piping and left side high pressure Bottom Process Connection, left side high pressure Universal ange

Cast aluminum alloy ASTM CF-8M stainless steel Cast aluminum alloy with corrosion resistance properties

G1/2 female, one electrical connection without blind plugs 1/2 NPT female, two electrical connections without blind plugs M20 female, two electrical connections without blind plugs G1/2 female, two electrical connections and a blind plug 1/2 NPT female, two electrical connections and a blind plug M20 female, two electrical connections and a blind plug G1/2 female, two electrical connections and a 316 SST blind plug 1/2 NPT female, two electrical connections and a 316 SST blind plug M20 female, two electrical connections and a 316 SST blind plug

Digital indicator Digital indicator with the range setting switch None

304 SST 2-inch pipe mounting, at type (for horizontal piping) 304 SST 2-inch pipe mounting, L type (for vertical piping) 304 SST 2-inch pipe mounting (for bottom process connection type) 316 SST 2-inch pipe mounting, at type (for horizontal piping) 316 SST 2-inch pipe mounting, L type (for vertical piping) 316 SST 2-inch pipe mounting (for bottom process connection type) None

/  Optional specication

IM 01C25B01-01E

<9. General Specications>

9-11

Model EJX440A

Model Sufx Codes Description

EJX440A . . . . . . . . . . . . . . . . . . . . . .

Output signal

-D . . . . . . . . . . . . . . . . . . . .

-E . . . . . . . . . . . . . . . . . . . .

-J . . . . . . . . . . . . . . . . . . . .

-F . . . . . . . . . . . . . . . . . . . .

-G . . . . . . . . . . . . . . . . . . . .

Measurement span (capsule)

Wetted parts material *

Process connections

Bolts and nuts material

C. . . . . . . . . . . . . . . . . . .

D. . . . . . . . . . . . . . . . . . .

S . . . . . . . . . . . . . . . . . .

1

3 . . . . . . . . . . . . . . . .

4 . . . . . . . . . . . . . . . .

►

5 . . . . . . . . . . . . . . . .

J . . . . . . . . . . . . . .

G. . . . . . . . . . . . . .

C. . . . . . . . . . . . . .

Installation

-2 . . . . . . . . . . .

-3 . . . . . . . . . . .

-6 . . . . . . . . . . .

-7 . . . . . . . . . . .

-8 . . . . . . . . . . .

-9 . . . . . . . . . . .

►

-U . . . . . . . . . . .

Amplier housing

1 . . . . . . . . . .

2 . . . . . . . . . .

3 . . . . . . . . . .

Electrical connection

0 . . . . . . . . .

2 . . . . . . . . .

►

4 . . . . . . . . .

5 . . . . . . . . .

7 . . . . . . . . .

9 . . . . . . . . .

A. . . . . . . . .

C. . . . . . . . .

D. . . . . . . . .

Integral indicator

D. . . . . . .

E . . . . . . .

N. . . . . . .

►

Mounting bracket ►

B. . . . .

D. . . . .

J . . . . .

K. . . . .

N. . . . .

Optional codes

The “►” marks indicate the most typical selection for each specication. *1: Users must consider the characteristics of selected wetted parts material and inuence of process uids. Specifying inappropriate

materials has the potential to cause serious damage to human body and plant facilities resulted from an unexpected leak of the

corrosive process uids. *2: Lower limit of ambient and process temperature is -15°C for capsule code C. *3: Specify the process connections code 3 or 4, when using the process connector for D capsule. Without the process connector, use

the 1/4 NPT male piping to directly connect to the cover ange.

Gauge pressure transmitter 4 to 20 mA DC with digital communication (BRAIN protocol)

4 to 20 mA DC with digital communication (HART protocol) 4 to 20 mA DC with digital communication (HART 5/HART 7 protocol) Digital communication (FOUNDATION Fieldbus protocol,

refer to IM 01C25T02-01E)

Digital communication

(PROFIBUS PA protocol, refer to IM 01C25T04-01EN)

0.25 to 32 MPa (36 to 4500 psi)

0.25 to 50 MPa (36 to 7200 psi) Refer to Table. 3 Wetted Parts Materials on Page 9-18.

with 1/4 NPT female process connector *2* with 1/2 NPT female process connector *2*

3 3

without process connector (1/4 NPT female on the cover anges) ASTM-B7 carbon steel

316L SST stainless steel ASTM grade 660 stainless steel

Vertical piping, right side high pressure, and process connection upside Vertical piping, right side high pressure, and process connection downside Vertical piping, left side high pressure, and process connection upside Vertical piping, left side high pressure, and process connection downside Horizontal piping and right side high pressure Horizontal piping and left side high pressure Universal ange

Cast aluminum alloy ASTM CF-8M stainless steel Cast aluminum alloy with corrosion resistance properties

G1/2 female, one electrical connection without blind plugs 1/2 NPT female, two electrical connections without blind plugs M20 female, two electrical connections without blind plugs G1/2 female, two electrical connections and a blind plug 1/2 NPT female, two electrical connections and a blind plug M20 female, two electrical connections and a blind plug G1/2 female, two electrical connections and a 316 SST blind plug 1/2 NPT female, two electrical connections and a 316 SST blind plug M20 female, two electrical connections and a 316 SST blind plug

Digital indicator Digital indicator with the range setting switch None

304 SST 2-inch pipe mounting, at type (for horizontal piping) 304 SST 2-inch pipe mounting, L type (for vertical piping) 316 SST 2-inch pipe mounting, at type (for horizontal piping) 316 SST 2-inch pipe mounting, L type (for vertical piping) (None)

/  Optional specication

IM 01C25B01-01E

<9. General Specications>

Model EJA110E

Model Sufx Codes Description

EJA110E . . . . . . . . . . . . . . . . . . . . . . . . . . . . Differential pressure transmitter

Output signal

Measurement span (capsule)

Wetted parts material

Process connections►0 . . . . . . . . . . . . . . . . . . . .

Bolts and nuts materia J . . . . . . . . . . . . . . . . .

Installation

Amplier housing 1 . . . . . . . . . . . . .

Electrical connection

Integral indicator

Mounting bracket ► B. . . . .

Optional Codes

-D . . . . . . . . . . . . . . . . . . . . . . . . . .

-J . . . . . . . . . . . . . . . . . . . . . . . . . .

-F . . . . . . . . . . . . . . . . . . . . . . . . . .

-G . . . . . . . . . . . . . . . . . . . . . . . . . .

F . . . . . . . . . . . . . . . . . . . . . . . . .

L . . . . . . . . . . . . . . . . . . . . . . . . .

M . . . . . . . . . . . . . . . . . . . . . . . .

H. . . . . . . . . . . . . . . . . . . . . . . . .

V . . . . . . . . . . . . . . . . . . . . . . . . .

*1

 . . . . . . . . . . . . . . . . . . . . .

1 . . . . . . . . . . . . . . . . . . . .

2 . . . . . . . . . . . . . . . . . . . .

3 . . . . . . . . . . . . . . . . . . . .

4 . . . . . . . . . . . . . . . . . . . .

5 . . . . . . . . . . . . . . . . . . . .

G. . . . . . . . . . . . . . . . .

C. . . . . . . . . . . . . . . . .

-2 . . . . . . . . . . . . . .

-3 . . . . . . . . . . . . . .

-6 . . . . . . . . . . . . . .

-7 . . . . . . . . . . . . . .

-8 . . . . . . . . . . . . . .

►

-9 . . . . . . . . . . . . . .

-B . . . . . . . . . . . . . .

-U . . . . . . . . . . . . . .

3 . . . . . . . . . . . . .

2 . . . . . . . . . . . . .

►

0 . . . . . . . . . .

2 . . . . . . . . . .

4 . . . . . . . . . .

5 . . . . . . . . . .

7 . . . . . . . . . .

9 . . . . . . . . . .

A. . . . . . . . . .

C. . . . . . . . . .

D. . . . . . . . . .

D. . . . . . . .

E . . . . . . . .

N. . . . . . . .

D. . . . .

J . . . . .

K. . . . .

M . . . .

N. . . . .

4 to 20 mA DC with digital communication (BRAIN protocol) 4 to 20 mA DC with digital communication

(HART 5/HART 7 protocol)

Digital communication (FOUNDATION Fieldbus protocol,

refer to IM 01C25T02-01E)

Digital communication (PROFIBUS PA protocol, refer to

IM 01C25T04-01EN)

0.5 to 5 kPa (2.0 to 20 inH2O) (For Wetted parts material code S)

0.5 to 10 kPa (2.0 to 40 inH2O) (For Wetted parts material code M, H, T, A, D and B)

1 to 100 kPa (4 to 400 inH2O) 5 to 500 kPa (20 to 2000 inH2O)

0.14 to 14 MPa (20 to 2000 psi)

Refer to Table.1 Wetted Parts Material on Page 9-18

without process connector (Rc1/4 female on the cover anges) with Rc1/4 female process connector with Rc1/2 female process connector with 1/4 NPT female process connector with 1/2 NPT female process connector without process connector (1/4 NPT female on the cover anges)

B7 carbon steel 316L SST 660 SST

Vertical piping, right side high pressure, and process connection

upside

Vertical piping, right side high pressure, and process connection

downside

Vertical piping, left side high pressure, and process connection

upside

Vertical piping, left side high pressure, and process connection

downside

Horizontal piping and right side high pressure Horizontal piping and left side high pressure Bottom Process Connection, left side high pressure Universal ange

Cast aluminum alloy Cast aluminum alloy with corrosion resistance properties ASTM CF-8M stainless steel

G1/2 female, one electrical connection without blind plugs 1/2 NPT female, two electrical connections without blind plugs M20 female, two electrical connections without blind plugs G1/2 female, two electrical connections and a blind plug 1/2 NPT female, two electrical connections and a blind plug M20 female, two electrical connections and a blind plug G1/2 female, two electrical connections and a SUS316 blind plug 1/2 NPT female, two electrical connections and a SUS316 blind plug M20 female, two electrical connections and a SUS316 blind plug

Digital indicator Digital indicator with the range setting switch None

304 SST 2-inch pipe mounting, at type (for horizontal piping) 304 SST 2-inch pipe mounting, L type (for vertical piping) 316 SST 2-inch pipe mounting, at type (for horizontal piping) 316 SST 2-inch pipe mounting, L type (for vertical piping) 316 SST 2-inch pipe mounting (for bottom process connection type) None

/  Optional specication

9-12

The “►” marks indicate the most typical selection for each specication. *1: Users must consider the characteristics of selected wetted parts material and inuence of process uids. Specifying inappropriate

materials has the potential to cause serious damage to human body and plant facilities resulted from an unexpected leak of the corrosive process uids.

IM 01C25B01-01E

<9. General Specications>

9-13

Model EJA120E

Model Sufx Codes Description

EJA120E . . . . . . . . . . . . . . . . . . . . . . . . . . . . Differential pressure transmitter

Output signal

Measurement span (capsule)

Wetted parts material

Process connections►0 . . . . . . . . . . . . . . . . . . . .

Bolts and nuts materia J . . . . . . . . . . . . . . . . .

Installation

Amplier housing 1 . . . . . . . . . . . . .

Electrical connection

Integral indicator

Mounting bracket ► B. . . . .

Optional Codes

The “►” marks indicate the most typical selection for each specication. *1: Users must consider the characteristics of selected wetted parts material and inuence of process uids. Specifying inappropriate

materials has the potential to cause serious damage to human body and plant facilities resulted from an unexpected leak of the corrosive process uids.

-D . . . . . . . . . . . . . . . . . . . . . . . . . .

-J . . . . . . . . . . . . . . . . . . . . . . . . . .

-F . . . . . . . . . . . . . . . . . . . . . . . . . .

-G . . . . . . . . . . . . . . . . . . . . . . . . . .

E . . . . . . . . . . . . . . . . . . . . . . . . . 0.1 to 1 kPa (0.4 to 4 inH2O)

*1

 . . . . . . . . . . . . . . . . . . . . .

1 . . . . . . . . . . . . . . . . . . . .

2 . . . . . . . . . . . . . . . . . . . .

3 . . . . . . . . . . . . . . . . . . . .

4 . . . . . . . . . . . . . . . . . . . .

5 . . . . . . . . . . . . . . . . . . . .

G. . . . . . . . . . . . . . . . .

C. . . . . . . . . . . . . . . . .

-2 . . . . . . . . . . . . . .

-3 . . . . . . . . . . . . . .

-6 . . . . . . . . . . . . . .

-7 . . . . . . . . . . . . . .

-8 . . . . . . . . . . . . . .

►

-9 . . . . . . . . . . . . . .

-U . . . . . . . . . . . . . .

3 . . . . . . . . . . . . .

2 . . . . . . . . . . . . .

►

0 . . . . . . . . . .

2 . . . . . . . . . .

4 . . . . . . . . . .

5 . . . . . . . . . .

7 . . . . . . . . . .

9 . . . . . . . . . .

A. . . . . . . . . .

C. . . . . . . . . .

D. . . . . . . . . .

D. . . . . . . .

E . . . . . . . .

N. . . . . . . .

D. . . . .

J . . . . .

K. . . . .

N. . . . .

4 to 20 mA DC with digital communication (BRAIN protocol) 4 to 20 mA DC with digital communication

(HART 5/HART 7 protocol)

Digital communication (FOUNDATION Fieldbus protocol,

refer to IM 01C25T02-01E)

Digital communication (PROFIBUS PA protocol, refer to

IM 01C25T04-01EN)

Refer to Table.1 Wetted Parts Material on Page 9-18

without process connector (Rc1/4 female on the cover anges) with Rc1/4 female process connector with Rc1/2 female process connector with 1/4 NPT female process connector with 1/2 NPT female process connector without process connector (1/4 NPT female on the cover anges)

B7 carbon steel 316L SST 660 SST

Vertical piping, right side high pressure, and process connection

upside

Vertical piping, right side high pressure, and process connection

downside

Vertical piping, left side high pressure, and process connection

upside

Vertical piping, left side high pressure, and process connection

downside

Horizontal piping and right side high pressure Horizontal piping and left side high pressure Universal ange

Cast aluminum alloy Cast aluminum alloy with corrosion resistance properties ASTM CF-8M stainless steel

G1/2 female, one electrical connection without blind plugs 1/2 NPT female, two electrical connections without blind plugs M20 female, two electrical connections without blind plugs G1/2 female, two electrical connections and a blind plug 1/2 NPT female, two electrical connections and a blind plug M20 female, two electrical connections and a blind plug G1/2 female, two electrical connections and a SUS316 blind plug 1/2 NPT female, two electrical connections and a SUS316 blind plug M20 female, two electrical connections and a SUS316 blind plug

Digital indicator Digital indicator with the range setting switch None

304 SST 2-inch pipe mounting, at type (for horizontal piping) 304 SST 2-inch pipe mounting, L type (for vertical piping) 316 SST 2-inch pipe mounting, at type (for horizontal piping) 316 SST 2-inch pipe mounting, L type (for vertical piping) None

/  Optional specication

IM 01C25B01-01E

<9. General Specications>

Model EJA130E

Model Sufx Codes Description

EJA130E . . . . . . . . . . . . . . . . . . . . . . . . . . . . Differential pressure transmitter

Output signal

Measurement span (capsule)

Wetted parts material

Process connections►3 . . . . . . . . . . . . . . . . . . . .

Bolts and nuts materia J . . . . . . . . . . . . . . . . .

Installation

Amplier housing 1 . . . . . . . . . . . . .

Electrical connection

Integral indicator

Mounting bracket ► B. . . . .

Optional Codes

-D . . . . . . . . . . . . . . . . . . . . . . . . . .

-J . . . . . . . . . . . . . . . . . . . . . . . . . .

-F . . . . . . . . . . . . . . . . . . . . . . . . . .

-G . . . . . . . . . . . . . . . . . . . . . . . . . .

M . . . . . . . . . . . . . . . . . . . . . . . .

H. . . . . . . . . . . . . . . . . . . . . . . . .

S . . . . . . . . . . . . . . . . . . . . . . Refer to Table.1 Wetted Parts Material on Page 9-18

*1

4 . . . . . . . . . . . . . . . . . . . .

5 . . . . . . . . . . . . . . . . . . . .

G. . . . . . . . . . . . . . . . .

C. . . . . . . . . . . . . . . . .

-2 . . . . . . . . . . . . . .

-3 . . . . . . . . . . . . . .

-6 . . . . . . . . . . . . . .

-7 . . . . . . . . . . . . . .

-8 . . . . . . . . . . . . . .

►

-9 . . . . . . . . . . . . . .

-U . . . . . . . . . . . . . .

3 . . . . . . . . . . . . .

2 . . . . . . . . . . . . .

►

0 . . . . . . . . . .

2 . . . . . . . . . .

4 . . . . . . . . . .

5 . . . . . . . . . .

7 . . . . . . . . . .

9 . . . . . . . . . .

A. . . . . . . . . .

C. . . . . . . . . .

D. . . . . . . . . .

D. . . . . . . .

E . . . . . . . .

N. . . . . . . .

D. . . . .

J . . . . .

K. . . . .

N. . . . .

4 to 20 mA DC with digital communication (BRAIN protocol) 4 to 20 mA DC with digital communication

(HART 5/HART 7 protocol)

Digital communication (FOUNDATION Fieldbus protocol,

refer to IM 01C25T02-01E)

Digital communication (PROFIBUS PA protocol, refer to

IM 01C25T04-01EN)

1 to 100 kPa (4 to 400 inH2O) 5 to 500 kPa (20 to 2000 inH2O)

with 1/4 NPT female process connector with 1/2 NPT female process connector

*2 *2

without process connector (1/4 NPT female on the cover anges) B7 carbon steel

316L SST 660 SST

Vertical piping, right side high pressure, and process connection

upside

Vertical piping, right side high pressure, and process connection

downside

Vertical piping, left side high pressure, and process connection

upside

Vertical piping, left side high pressure, and process connection

downside

Horizontal piping and right side high pressure Horizontal piping and left side high pressure Universal ange

Cast aluminum alloy Cast aluminum alloy with corrosion resistance properties ASTM CF-8M stainless steel

G1/2 female, one electrical connection without blind plugs 1/2 NPT female, two electrical connections without blind plugs M20 female, two electrical connections without blind plugs G1/2 female, two electrical connections and a blind plug 1/2 NPT female, two electrical connections and a blind plug M20 female, two electrical connections and a blind plug G1/2 female, two electrical connections and a SUS316 blind plug 1/2 NPT female, two electrical connections and a SUS316 blind plug M20 female, two electrical connections and a SUS316 blind plug

Digital indicator Digital indicator with the range setting switch

*7

None 304 SST 2-inch pipe mounting, at type (for horizontal piping)

304 SST 2-inch pipe mounting, L type (for vertical piping) 316 SST 2-inch pipe mounting, at type (for horizontal piping) 316 SST 2-inch pipe mounting, L type (for vertical piping) None

/  Optional specication

9-14

The “►” marks indicate the most typical selection for each specication. *1: Users must consider the characteristics of selected wetted parts material and inuence of process uids. Specifying inappropriate

materials has the potential to cause serious damage to human body and plant facilities resulted from an unexpected leak of the corrosive process uids.

*2: Lower limit of ambient and process temperature is -15°C.

IM 01C25B01-01E

<9. General Specications>

9-15

Model EJA310E

Model Sufx Codes Description

EJA310E . . . . . . . . . . . . . . . . . . . . . . . . . . . . Absolute pressure transmitter

Output signal

Measurement span (capsule)

Wetted parts material

Process connections►0 . . . . . . . . . . . . . . . . . . . .

Bolts and nuts materia J . . . . . . . . . . . . . . . . .

Installation

Amplier housing 1 . . . . . . . . . . . . .

Electrical connection

Integral indicator

Mounting bracket ► B. . . . .

Optional Codes

The “►” marks indicate the most typical selection for each specication. *1: Users must consider the characteristics of selected wetted parts material and inuence of process uids. Specifying inappropriate

materials has the potential to cause serious damage to human body and plant facilities resulted from an unexpected leak of the corrosive process uids.

-D . . . . . . . . . . . . . . . . . . . . . . . . . .

-J . . . . . . . . . . . . . . . . . . . . . . . . . .

-F . . . . . . . . . . . . . . . . . . . . . . . . . .

-G . . . . . . . . . . . . . . . . . . . . . . . . . .

L . . . . . . . . . . . . . . . . . . . . . . . . .

M . . . . . . . . . . . . . . . . . . . . . . . .

A. . . . . . . . . . . . . . . . . . . . . . . . .

B. . . . . . . . . . . . . . . . . . . . . . . . .

S . . . . . . . . . . . . . . . . . . . . . . Refer to Table.1 Wetted Parts Material on Page 9-18

*1

1 . . . . . . . . . . . . . . . . . . . .

2 . . . . . . . . . . . . . . . . . . . .

3 . . . . . . . . . . . . . . . . . . . .

4 . . . . . . . . . . . . . . . . . . . .

5 . . . . . . . . . . . . . . . . . . . .

G. . . . . . . . . . . . . . . . .

C. . . . . . . . . . . . . . . . .

-2 . . . . . . . . . . . . . .

-3 . . . . . . . . . . . . . .

-6 . . . . . . . . . . . . . .

-7 . . . . . . . . . . . . . .

-8 . . . . . . . . . . . . . .

►

-9 . . . . . . . . . . . . . .

-B . . . . . . . . . . . . . .

-U . . . . . . . . . . . . . .

3 . . . . . . . . . . . . .

2 . . . . . . . . . . . . .

►

0 . . . . . . . . . .

2 . . . . . . . . . .

4 . . . . . . . . . .

5 . . . . . . . . . .

7 . . . . . . . . . .

9 . . . . . . . . . .

A. . . . . . . . . .

C. . . . . . . . . .

D. . . . . . . . . .

D. . . . . . . .

E . . . . . . . .

N. . . . . . . .

D. . . . .

J . . . . .

K. . . . .

M . . . .

N. . . . .

4 to 20 mA DC with digital communication (BRAIN protocol) 4 to 20 mA DC with digital communication

(HART 5/HART 7 protocol)

Digital communication (FOUNDATION Fieldbus protocol,

refer to IM 01C25T02-01E)

Digital communication (PROFIBUS PA protocol, refer to

IM 01C25T04-01EN)

0.67 to 10 kPa abs (0.2 to 2.95 inHg abs)

1.3 to 130 kPa abs (0.39 to 38 inHg abs)

0.03 to 3.5 MPa abs (4.3 to 500 psia)

0.14 to 16 MPa abs (20 to 2300 psia)

without process connector (Rc1/4 female on the cover anges) with Rc1/4 female process connector with Rc1/2 female process connector with 1/4 NPT female process connector with 1/2 NPT female process connector without process connector (1/4 NPT female on the cover anges)

B7 carbon steel 316L SST 660 SST

Vertical piping, right side high pressure, and process connection

upside

Vertical piping, right side high pressure, and process connection

downside

Vertical piping, left side high pressure, and process connection

upside

Vertical piping, left side high pressure, and process connection

downside

Horizontal piping and right side high pressure Horizontal piping and left side high pressure Bottom Process Connection, left side high pressure: Universal ange

Cast aluminum alloy Cast aluminum alloy with corrosion resistance properties ASTM CF-8M stainless steel

G1/2 female, one electrical connection without blind plugs 1/2 NPT female, two electrical connections without blind plugs M20 female, two electrical connections without blind plugs G1/2 female, two electrical connections and a blind plug 1/2 NPT female, two electrical connections and a blind plug M20 female, two electrical connections and a blind plug G1/2 female, two electrical connections and a 316 SST blind plug 1/2 NPT female, two electrical connections and a 316 SST blind plug M20 female, two electrical connections and a 316 SST blind plug

Digital indicator Digital indicator with the range setting switch (None)

304 SST 2-inch pipe mounting, at type (for horizontal piping) 304 SST 2-inch pipe mounting, L type (for vertical piping) 316 SST 2-inch pipe mounting, at type (for horizontal piping) 316 SST 2-inch pipe mounting, L type (for vertical piping) 316 SST 2-inch pipe mounting (for bottom process connection type) (None)

/  Optional specication

IM 01C25B01-01E

<9. General Specications>

Model EJA430E

Model Sufx Codes Description

EJA430E . . . . . . . . . . . . . . . . . . . . . . . . . . . . Gauge pressure transmitter

Output signal

Measurement span (capsule)

Wetted parts material

Process connections►0 . . . . . . . . . . . . . . . . . . . .

Bolts and nuts materia J . . . . . . . . . . . . . . . . .

Installation

Amplier housing 1 . . . . . . . . . . . . .

Electrical connection

Integral indicator

Mounting bracket ► B. . . . .

Optional Codes

-D . . . . . . . . . . . . . . . . . . . . . . . . . .

-J . . . . . . . . . . . . . . . . . . . . . . . . . .

-F . . . . . . . . . . . . . . . . . . . . . . . . . .

-G . . . . . . . . . . . . . . . . . . . . . . . . . .

H. . . . . . . . . . . . . . . . . . . . . . . . .

A. . . . . . . . . . . . . . . . . . . . . . . . .

B. . . . . . . . . . . . . . . . . . . . . . . . .

*1

 . . . . . . . . . . . . . . . . . . . . .

1 . . . . . . . . . . . . . . . . . . . .

2 . . . . . . . . . . . . . . . . . . . .

3 . . . . . . . . . . . . . . . . . . . .

4 . . . . . . . . . . . . . . . . . . . .

5 . . . . . . . . . . . . . . . . . . . .

G. . . . . . . . . . . . . . . . .

C. . . . . . . . . . . . . . . . .

-2 . . . . . . . . . . . . . .

-3 . . . . . . . . . . . . . .

-6 . . . . . . . . . . . . . .

-7 . . . . . . . . . . . . . .

-8 . . . . . . . . . . . . . .

►

-9 . . . . . . . . . . . . . .

-B . . . . . . . . . . . . . .

-U . . . . . . . . . . . . . .

3 . . . . . . . . . . . . .

2 . . . . . . . . . . . . .

►

0 . . . . . . . . . .

2 . . . . . . . . . .

4 . . . . . . . . . .

5 . . . . . . . . . .

7 . . . . . . . . . .

9 . . . . . . . . . .

A. . . . . . . . . .

C. . . . . . . . . .

D. . . . . . . . . .

D. . . . . . . .

E . . . . . . . .

N. . . . . . . .

D. . . . .

J . . . . .

K. . . . .

M . . . .

N. . . . .

4 to 20 mA DC with digital communication (BRAIN protocol) 4 to 20 mA DC with digital communication

(HART 5/HART 7 protocol)

Digital communication (FOUNDATION Fieldbus protocol,

refer to IM 01C25T02-01E)

Digital communication (PROFIBUS PA protocol, refer to

IM 01C25T04-01EN)

5 to 500 kPa (20 to 2000 inH2O)

0.03 to 3.5 MPa (4.3 to 500 psi)

0.14 to 16 MPa (20 to 2300 psi)

Refer to Table.1 Wetted Parts Material on Page 9-18

without process connector (Rc1/4 female on the cover anges) with Rc1/4 female process connector with Rc1/2 female process connector with 1/4 NPT female process connector with 1/2 NPT female process connector without process connector (1/4 NPT female on the cover anges)

B7 carbon steel 316L SST 660 SST

Vertical piping, right side high pressure, and process connection

upside

Vertical piping, right side high pressure, and process connection

downside

Vertical piping, left side high pressure, and process connection

upside

Vertical piping, left side high pressure, and process connection

downside

Horizontal piping and right side high pressure Horizontal piping and left side high pressure Bottom Process Connection, left side high pressure Universal ange

Cast aluminum alloy Cast aluminum alloy with corrosion resistance properties ASTM CF-8M stainless steel

G1/2 female, one electrical connection without blind plugs 1/2 NPT female, two electrical connections without blind plugs M20 female, two electrical connections without blind plugs G1/2 female, two electrical connections and a blind plug 1/2 NPT female, two electrical connections and a blind plug M20 female, two electrical connections and a blind plug G1/2 female, two electrical connections and a 316 SST blind plug 1/2 NPT female, two electrical connections and a 316 SST blind plug M20 female, two electrical connections and a 316 SST blind plug

Digital indicator Digital indicator with the range setting switch (None)

304 SST 2-inch pipe mounting, at type (for horizontal piping) 304 SST 2-inch pipe mounting, L type (for vertical piping) 316 SST 2-inch pipe mounting, at type (for horizontal piping) 316 SST 2-inch pipe mounting, L type (for vertical piping) 316 SST 2-inch pipe mounting (for bottom process connection type) (None)

/  Optional specication

9-16

The “►” marks indicate the most typical selection for each specication. *1: Users must consider the characteristics of selected wetted parts material and inuence of process uids. Specifying inappropriate

materials has the potential to cause serious damage to human body and plant facilities resulted from an unexpected leak of the corrosive process uids.

IM 01C25B01-01E

<9. General Specications>

Model EJA440E

Model Sufx Codes Description

EJA440E . . . . . . . . . . . . . . . . . . . . . . . . . . . . Gauge pressure transmitter

Output signal

Measurement span (capsule)

Wetted parts material

Process connections►3 . . . . . . . . . . . . . . . . . . . .

Bolts and nuts materia J . . . . . . . . . . . . . . . . .

Installation

Amplier housing ► 1 . . . . . . . . . . . . .

Electrical connection

Integral indicator

Mounting bracket ► B . . . . .

Optional Codes

-D . . . . . . . . . . . . . . . . . . . . . . . . . .

-J . . . . . . . . . . . . . . . . . . . . . . . . . .

-F . . . . . . . . . . . . . . . . . . . . . . . . . .

-G . . . . . . . . . . . . . . . . . . . . . . . . . .

C. . . . . . . . . . . . . . . . . . . . . . . . .

D. . . . . . . . . . . . . . . . . . . . . . . . .

S . . . . . . . . . . . . . . . . . . . . . . Refer to Table.1 Wetted Parts Material on Page 9-18

*1

4 . . . . . . . . . . . . . . . . . . . .

5 . . . . . . . . . . . . . . . . . . . .

G. . . . . . . . . . . . . . . . .

C. . . . . . . . . . . . . . . . .

-2 . . . . . . . . . . . . . .

-3 . . . . . . . . . . . . . .

-6 . . . . . . . . . . . . . .

-7 . . . . . . . . . . . . . .

-8 . . . . . . . . . . . . . .

►

-9 . . . . . . . . . . . . . .

-U . . . . . . . . . . . . . .

3 . . . . . . . . . . . . .

2 . . . . . . . . . . . . .

►

0 . . . . . . . . . .

2 . . . . . . . . . .

4 . . . . . . . . . .

5 . . . . . . . . . .

7 . . . . . . . . . .

9 . . . . . . . . . .

A. . . . . . . . . .

C. . . . . . . . . .

D. . . . . . . . . .

D. . . . . . . .

E . . . . . . . .

N. . . . . . . .

D. . . . .

J . . . . .

K. . . . .

N. . . . .

4 to 20 mA DC with digital communication (BRAIN protocol) 4 to 20 mA DC with digital communication

(HART 5/HART 7 protocol)

*1

Digital communication (FOUNDATION Fieldbus protocol,

refer to IM 01C25T02-01E)

Digital communication (PROFIBUS PA protocol, refer to

IM 01C25T04-01EN)

5 to 32 MPa (720 to 4500 psi) 5 to 50 MPa (720 to 7200 psi)

with 1/4 NPT female process connector with 1/2 NPT female process connector

*2*3 *2*3

without process connector (1/4 NPT female on the cover anges) B7 carbon steel

316L SST 660 SST

Vertical piping, right side high pressure, and process connection

upside

Vertical piping, right side high pressure, and process connection

downside

Vertical piping, left side high pressure, and process connection

upside

Vertical piping, left side high pressure, and process connection

downside

Horizontal piping and right side high pressure Horizontal piping and left side high pressure Universal ange

Cast aluminum alloy Cast aluminum alloy with corrosion resistance properties ASTM CF-8M stainless steel

G1/2 female, one electrical connection without blind plugs 1/2 NPT female, two electrical connections without blind plugs M20 female, two electrical connections without blind plugs G1/2 female, two electrical connections and a blind plug 1/2 NPT female, two electrical connections and a blind plug M20 female, two electrical connections and a blind plug G1/2 female, two electrical connections and a 316 SST blind plug 1/2 NPT female, two electrical connections and a 316 SST blind plug M20 female, two electrical connections and a 316 SST blind plug

Digital indicator Digital indicator with the range setting switch (None)

304 SST 2-inch pipe mounting, at type (for horizontal piping) 304 SST 2-inch pipe mounting, L type (for vertical piping) 316 SST 2-inch pipe mounting, at type (for horizontal piping) 316 SST 2-inch pipe mounting, L type (for vertical piping) (None)

/  Optional specication

9-17

The “►” marks indicate the most typical selection for each specication. *1: Users must consider the characteristics of selected wetted parts material and inuence of process uids. Specifying inappropriate

materials has the potential to cause serious damage to human body and plant facilities resulted from an unexpected leak of the corrosive process uids.

*2: Specify the process connections code 3 or 4, when using the process connector for D capsule. Without the process connector, use

the 1/4 NPT male piping to directly connect to the cover ange.

*3: Lower limit of ambient and process temperature is -15°C for capsule code C.

IM 01C25B01-01E

<9. General Specications>

9-18

Table. 1 Wetted Parts Materials for EJ110, EJ120, EJ310, and EJ430

Wetted parts

material code

#

S

Cover ange and

process connector

ASTM CF-8M

Capsule Capsule gasket Drain/Vent plug

Hastelloy C-276 (Diaphragm)

F316L SST*1 (Others)

Teon-coated 316L SST

PTFE for EJX120A



316 SST

H ASTM CF-8M Hastelloy C-276 PTFE (Teon) 316 SST M ASTM CF-8M Monel PTFE (Teon) 316 SST

T ASTM CF-8M Tantalum PTFE (Teon) 316 SST

A Hastelloy C-276 equivalent Hastelloy C-276 PTFE (Teon) Hastelloy C-276 D Hastelloy C-276 equivalent Tantalum PTFE (Teon) Hastelloy C-276 B Monel equivalent Monel PTFE (Teon) Monel

*1: 316L SST, F316 SST for EJX120A and EJX110A with measurement span code F. The ‘#’marks indicate the construction materials conform to NACE material recommendations per MR01-75. For the use of 316 SST

material, there may be certain limitations for pressure and temperature. Please refer to NACE standards for details.

Table. 2 Wetted Parts Materials for EJ130

Wetted parts

material code

#

S

*1: Cast version of 316 SST. Equivalent to SCS14A. *2: Hastelloy C-276 or ASTM N10276. The ‘#’marks indicate the construction materials conform to NACE material recommendations per MR01-75. For the use of 316 SST material, there may be certain limitations for pressure and temperature. Please refer to NACE standards for details.

Cover ange

process connector Capsule Capsule gasket Drain/Vent plug

F316 SST ASTM CF-8M *



1

Hastelloy C-276*2

(Diaphragm)

F316L SST, 316L SST (Others)

Teon-coated

316L SST

316 SST

Table. 3 Wetted Parts Materials for EJ440

Wetted parts

material code

#

S

*1: Cast version of 316 SST. Equivalent to SCS14A. *2: Hastelloy C-276 or ASTM N10276. The ‘#’marks indicate the construction materials conform to NACE material recommendations per MR01-75. For the use of 316 SST material, there may be certain limitations for pressure and temperature. Please refer to NACE standards for details.

Cover

ange

F316 SST

process connector Capsule Capsule gasket

ASTM CF-8M *1 (C-capsule)

F316L SST (D-capsule)

Hastelloy C-276 *2 (Diaphragm)

F316L SST (Others)

Teon-coated

316L SST

Drain/

Vent plug

316 SST

IM 01C25B01-01E

<9. General Specications>

9-19

9.3 Optional Specications

Item Description Code

Factory Mutual (FM) FM Explosionproof *

Explosionproof for Class I, Division 1, Groups B, C and D Dust-ignitionproof for Class II/III, Division 1, Groups E, F and G Hazardous (classied) locations, indoors and outdoors (NEMA 4X)

FM Intrinsically safe *1*

Intrinsically Safe for Class I, Division 1, Groups A, B, C and D, Class II, Division 1,Groups E, F and G and Class III, Division 1 Hazardous Locations. Nonincendive for Class I, Division 2, Groups A, B, C and D, Class II, Division 2, Groups F and G, Hazardous Locations.

Combined FF1 and FS1 *1*

ATEX ATEX Flameproof *

II 2G, 2D Ex d IIC T6...T4 Gb, Ex tb IIIC T85°C Db Special fastener: ClassA2-50(A4-50) or more

ATEX Intrinsically safe Ex ia *1*

II 1G, 2D Ex ia IIC T4 Ga, Ex ia IIIC T85°C T100°C T120°C Db

Combined KF22, KS21 and ATEX Intrinsically safe Ex ic

Ex ic: II 3G Ex ic IIC T4 Gc

Canadian Standards Association (CSA)

CSA Explosionproof *

Explosionproof for Class I, Groups B, C and D Dustignitionproof for Class II/III, Groups E, F and G Enclosure TYPE 4X, Temp.Code:T6...T4 Ex d IIC T6...T4 Enclosure IP66/IP67

Process Sealing Certication

Dual Seal Certied by CSA to the requirement of ANSI/ISA 12.27.01 No additional sealing required Primary seal failure annuniciation: at the zero adjustment screw

CSA Intrinsically safe *1 *

[For CSA C22.2] Intrinsically safe for Class I, Division 1, Groups A, B, C and D, Class II, Division 1, Groups E, F and G, Class III, Division 1 Nonincendive for Class I, Division 2, Groups A, B, C and D, Class II, Division 2, Groups F and G, Class III, Division 1 [For CSA E60079] Ex ia IIC T4, Ex nL IIC T4

Process Sealing Certication

Dual Seal Certied by CSA to the requirement of ANSI/ISA 12.27.01 No additional sealing required Primary seal failure annuniciation: at the zero adjustment screw

Combined CF1 and CS1 *1*

IECEx IECEx ameproof *

Flameproof for Zone1, Ex d IIC T6...T4

IECEx Intrinsically safe, type n and ameproof *1*

Intrinsically safe and type n Ex ia IIC T4, Ex nL IIC T4 Flameproof

Flameproof for Zone1, Ex d IIC T6...T4 Combination of Approval Combination of KU22, FU1 and CU1 V1U1 Painting Color change Terminal cover only

Both sides of amplier covers, Munsell 7.5 R4/14 PR

Coating change Anti-corrosion coating X2 316 SST exterior parts 316 SST name plate, tag plate and zero adjustment screw HC Fluoro-rubber O-ring All O-rings of amplier housing. Lower limit of ambient temperature: –15°C(5°F) HE Lightning protector Transmitter power supply voltage:

10.5 to 32 V DC (10.5 to 30 V DC for intrinsically safe type.) Allowable current: Max. 6000 A (1×40 μs), Repeating 1000 A (1×40 μs) 100 times Applicable Standards: IEC 61000-4-4, IEC 61000-4-5

Status output *

11

Transistor output (sink type) Contact rating: 10.5 to 30 VDC, 120 mA DC(max) Low level: 0 to 2 VDC

Oil-prohibited use *

4

Degrease cleansing treatment. K1 Degrease cleansing treatment and with uorinated oillled capsule.

Operating temperature –20 to 80°C( –4 to 176°F)

1

FF1

3

FS1

3

1

FU1

KF22

3

*1*3

1

KS21

KU22

CF1

3

CS1

3

1

3

CU1

SF2

SU2

P

A

AL

K2

IM 01C25B01-01E

<9. General Specications>

9-20

Item Description Code

Oil-prohibited use with dehydrating treatment *

Capsule ll uid Fluorinated oil lled in capsule

Calibration units *

Long vent *

5

6

Gold-plated capsule gasket

13

*

Degrease cleansing treatment and dehydrating treatment.

4

Degrease cleansing treatment and dehydrating treatment with uorinated oillled capsule. Operating temperature –20 to 80°C( –4 to 176°F)

Operating temperature –20 to 80°C( –4 to 176°F) P calibration (psi unit) bar calibration (bar unit) D3 M calibration (kgf/cm2 unit) D4

(See Table for Span and

Range Limits.)

Total length: 119 mm (standard: 34 mm); Total length when combining with Optional code K1, K2, K5, and K6: 130 mm. Material: 316SST.

Gold-plated 316L SST capsule gasket. No PTFE is used for wetted parts.

K5

K6

K3

D1

U1

GS

Gold-plated diaphragm *14Surface of isolating diaphragm is gold plated, effective for hydrogen permeation. A1 130 Pa abs calibration * Output limits and failure

operation *

Body option *

7

8

12

Minimum input puressure at calibration testing: 130 Pa abs (1 mmHg abs) S1 Failure alarm down-scale: Output status at CPU failure and hardware error is

–5%, 3.2 mA DC or less. NAMUR NE43 Compliant

Output signal limits:

3.8 mA to 20.5 mA

Failure alarm down-scale: Output status at CPU failure and hardware error is –5%, 3.2 mA DC or less.

Failure alarm up-scale: Output status at CPU

failure and hardware error is 110%, 21.6 mA or more. Without drain and vent plugs N1 N1 and Process connection, based on IEC61518 with female thread on both sides

of cover ange, with blind kidney anges on back. N2 and Material certicate for cover ange, diaphragm, capsule body, and blind

kidney ange

C1

C2

C3

N2

N3

Stainless steel tag plate 304SST tag plate wired onto transmitter N4 Data conguration at

factory *

9

European Pressure Directive *

10

Data conguration for HART

Software damping, Descriptor, Message

communication type Data conguration for BRAIN

Software damping

communication type PED 97/23/EC

Category: III, Module: H, Type of Equipment; Pressure Accessory-Vessel, Type of Fluid; Liquid and gas, Group of Fluid: 1 and 2

CA

CB

PE3

Lower limit of Process and Ambient temperature for EJX110A : –29°C

Advanced diagnostics *

27

Multi-sensing process monitoring

• Impulse line blockage detection *

28

DG6

• Heat trace monitoring

Material certicate *

Pressure test/ Leak test certicate

15

Cover ange * Cover ange, Process connector * Test Pressure: 16 MPa (2300 psi) * Test Pressure: 25 MPa (3600 psi) *

Test Pressure: 3.5 MPa (500 psi)* Test Pressure: 500 kPa (2000 inH2O) * Test Pressure: 50 kPa (200 inH2O) * Test Pressure: 32 MPa (4500 psi) * Test Pressure: 50 MPa (7200 psi) *

16

17

18 19

20

21

22

23

24

Nitrogen(N2) Gas * Retention time: one minute

Nitrogen(N2) Gas or water * Retention time: one minute

25

26

M01 M11

T12 T13

T01

T11

T04

T09 T08

High accuracy type High accuracy HAC High pressure-proof

Maximum working pressure for differential pressure measurement: 25MPa*

structure

Contact Yokogawa representative for the codes indicated as ‘-’. *1: Applicable for Electrical connection code 2, 4, 7, and 9. *2: Applicable for Electrical connection code 2 and 7. *3: Not applicable for option code /AL. *4: Applicable for Wetted parts material code S, H, M, and T. *5: The unit of MWP (Max. working pressure) on the name plate of the housing is the same unit as specied by Option code D1, D3,

and D4. *6: Applicable for vertical impulse piping type (Installation code 7) and Wetted parts material code S, H, M, and T. *7: Applicable for output signal code D, E and J. The hardware error indicates faulty amplier or capsule. *8: Applicable for Wetted parts material code S, H, M, and T; Process connection code 3, 4, and 5; Installation code 9; and Mounting

bracket code N. Process connection faces on the other side of zero adjustment screw.

29

HG

IM 01C25B01-01E

<9. General Specications>

*9: Also see ‘Ordering Instructions’. *10: Applicable for M, H and V capsules of EJX110A with wetted parts material code S, and all the ranges of EJ130 and EJ440.

Applicable also for EJA110E with option code /HG. *11: Not applicable for output signal code F. *12: Applicable only for EJ310 M and A capsules whose upper range value is set as smaller than 53.3 kPa abs. *13: Applicable for wetted parts material code S; process connection code 0 and 5; and installation code 8 and 9. Not applicable for

option code U1, N2, N3 and M11. Not applicable for EJ120. *14: Applicable for wetted parts material code S. *15: Material traceability certication, per EN 10204 3.1B. *16: Applicable for Process connections code 0 and 5. *17: Applicable for Process connections code 1, 2, 3, and 4. *18: Applicable for EJA110E, Capsule code F and L of EJX110A, Capsule code B of EJ430 and EJX310A, and all the capsules of

EJX110A with wetted parts maerial code H, M, T, A, D, and B. *19: Applicable for Capsule code M, H and V of EJX110A with wetted parts material code S. *20: Applicable for Capsule code A of EJ430 and EJ310. *21: Applicable for Capsule code H of EJ430. *22: Applicable for EJ120 and Capsule code L and M of EJ310. *23: Applicable for EJ130 and Capsule code C of EJ440. *24: Applicable for Capsule code D of EJ440. *25: Pure nitrogen gas is used for oil-prohibited use (Option code K1, K2, K5, and K6). *26: Pure nitrogen gas or pure water is used for oil-prohibited use (Option code K1, K2, K5, and K6). *27: Applicable only for output signal code -E and -J. *28: The change of pressure uctuation is monitored and then detects the impulse line blockage. See TI 01C25A31-01E for detailed

technical information required for using this function. The detection is for one side only. *29: Applicable for EJA110E, Measurement span code M, H, and, V; and wetted parts material code S. The URL of static pressure range

is also extended to 25 MPa.

9-21

IM 01C25B01-01E

<9. General Specications>

9.4 Dimensions

Model EJ110

Unit: mm (approx. inch)

● Vertical Impulse Piping Type

Process connector downside

(Installation code 7)

242(9.53)

175(6.89)

97

129(5.08)

(3.82)

Mounting bracket (L-type,optional)

52

(2.05)

Integral indicator

(optional)

97(3.82)

223(8.78)

41

(1.61)

67(2.64)

Process connection

Shrouding bolt*

Zero adjustment

5

Ground terminal

● Horizontal Impulse Piping Type (Installation code 9)

External indicator Conduit connection

(optional)

54

(2.13)

6

(0.24)

145(5.71)124(4.88)

Electrical connection for code 5, 9, A, and D.

47

*1: When Installation code 2, 3, or 8 is selected, high and low pressure side on the above figure

are reversed. (i.e. High pressure side is on the right side.)

*2: When Option code K1, K2, K5, or K6 is selected, add 15 mm(0.59 inch) to the value in the figure. *3: When Option code K1, K2, K5, or K6 is selected, add 30 mm(1.18 inch) to the value in the figure. *4: Not available when option code GS is specified.

*5: Available only when specifying the option code including ATEX, IECEx or TIIS flameproof type.

89(3.50)

(1.85)

Electrical connection for code 5, 9, A, and D.

External indicator Conduit connection

(optional)

95(3.74)

Conduit connection

67

(2.64)

95(3.74)

41

(1.61)

115(4.53)

Mounting bracket (Flat-type,optional)

6

(0.24)

54

(2.13)

ø78(3.07)

Process connector

(optional)

High

pressure side

Conduit connection

Integral indicator

(optional)

Shrouding bolt*

Vent plug, Drain plug*

175(6.89)

Process connection

Process connector (optional)

110(4.33)

12

(0.47)

*1

39

(1.54)

54

Low

(2.13)

pressure side

Zero adjustment

5

4

Vent plug*

Drain plug*

2-inch pipe

(O.D. 60.5 mm)

2-inch pipe

(O.D. 60.5 mm)

Vent/Drain plugs

2

ø70(2.76)

*1

Ground terminal

4

High

pressure

*1

side

138(5.43)*

223(8.78)

(0.47)

ø78(3.07)

Process connector upside

(Installation code 6)

41

67(2.64)

(1.61)

97(3.82)

52

(2.05)

110(4.33)

12

39

(1.54)

ø70

54(2.13)

117(4.61)*

Low pressure side

3

Process connection

(2.76)

129(5.08)

Drain plug*

*1

Vent plug*

9-22

4

F0904.ai

IM 01C25B01-01E

<9. General Specications>

234(9.21)

Unit: mm (approx. inch)

● Vertical Impulse Piping Type

Process connector downside

(Installation code 7)

256(10.10)

97

(3.82)

Mounting bracket

52

(2.05)

(L-type,optional)

194(7.64)

143(5.63)

Integral indicator

(optional)

Electrical connection for code 5, 9, A, and D.

6

(0.24)

54

(2.13)

External indicator Conduit connection

(optional)

110(4.33)

*4

9

(0.35)

39

(1.54)

2-inch pipe

(O.D. 60.5 mm)

Vent/Drain plugs

Process connection

Process connector upside

(Installation code 6)

9-23

95

46

(1.81)

72(2.83) 102(4.02)

Process connection

Shrouding bolt*

5

Ground terminal

Conduit

connection

Zero adjustment

(3.74)

● Horizontal Impulse Piping Type (Installation code 9)

External indicator Conduit connection

(optional)

54

(2.13)

6

(0.24)

Electrical connection for code 5, 9, A, and D.

159(6.26)

124(4.88)

47

(1.85)

94(3.70)

72(2.83)

95(3.75)

46

(1.81)

125(4.92)

Mounting bracket (Flat-type,optional)

ø78(3.07)

Process connector (optional)

High

pressure

*1

side

Conduit connection

Integral indicator

(optional)

Shrouding bolt*

194(7.64)

Process connection

Process connector (optional)

54

(2.13)

5

2-inch pipe

(O.D. 60.5 mm)

*2

ø70

(2.76)

148(5.83)

Low pressure

*1

side

Zero

adjustment

Ground terminal

Vent plug

Drain plug

High

pressure

*1

side

72(2.83)

234(9.21)

102(4.02)

ø78(3.07)

54

(2.13)

52

46

(1.81)

(2.05)

110(4.33)

*4

9

(0.35)

39

(1.54)

ø70

(2.76)

143(5.63)

Vent plug

Drain plug

Low pressure side

*1

*1: When Installation code 2, 3, or 8 is selected, high and low pressure side on the above figure are reversed. (i.e. High pressure side is on the right side.) *2: When Option code K1, K2, K5, or K6 is selected, add 15 mm(0.59 inch) to the value in the figure. *3: When Option code K1, K2, K5, or K6 is selected, add 30 mm(1.18 inch) to the value in the figure. *4: 15 mm(0.59 inch) for right side high pressure. *5: Available only when specifying the option code including ATEX, IECEx or TIIS flameproof type.

128

(5.04)

*3

F0905.ai

IM 01C25B01-01E

<9. General Specications>

Unit: mm (approx. inch)

● Bottom Process Connection (Installation code -B)

54

(2.13)

6

(0.23)

Electrical connection for code 5, 9, A and D.

Extenal indicator Conduit connection

(optional)

Mounting bracket (optional)

95(3.74)

79

(3.11)

Integral indicator (optional)

Conduit connection

Shrouding bolt*

219(8.62)

Process connector (optional)

Zero adjustment

2

Ground terminal

Vent plug

ø78(3.07)

110(4.33)

12

(0.47)

188(7.40)

39

(1.54)

ø70

(2.76)

9-24

109(4.29)

2-inch pipe (O.D. 60.5 mm)

Process connection

High pressure side

● Universal Flange (Installation code -U), Measurement Span code M, H and V

External indicator Conduit connection

(optional)

54

(2.13)

6

(0.24)

Electrical connection for code 5, 9, A, and D.

Drain plug

Vent plug

Drain plug

145(5.71)

58

(2.28)67(2.64)

95(3.74)

41

(1.61)

115(4.53)

Conduit connection

Integral indicator (optional)

175(6.89)

Shrouding bolt*

Process connection

Process connector (optional)

Zero adjustment

Ground terminal

2

● Universal Flange (Installation code -U), Measurement Span code F

72

External indicator Conduit connection

(optional)

54

(2.13)

6

63

(2.48)

(2.83)

95(3.74)

Conduit connection

Integral indicator (optional)

(0.24)

Electrical connection for code 5, 9, A, and D.

Drain plug

Vent plug

159(6.26)

46

(1.81)

125(4.92)

194(7.64)

Shrouding bolt*

Process connection

Process connector (optional)

*1: When Option code K1, K2, K5, or K6 is selected, add 30 mm(1.18 inch) to the value. *2: Available only when specifying the option code including ATEX, IECEx or TIIS flameproof type.

Zero adjustment

Ground terminal

2

ø78(3.07)

High pressure side

ø78(3.07)

High pressure side

54

(2.13)

117(4.61)*

110(4.33)

12

(0.47)

54

(2.13) 117*

(4.61)

110(4.33)

9

(0.35)

54

(2.13)

128(5.04)*

Low pressure

1

side

129(5.08)

39

(1.54)

1

39

(1.54)

1

ø70

(2.76)

Low pressure side

ø70

(2.76)

Low pressure side

F0906.ai

129(5.08)

Vent plug

Drain plug

143(5.63)

Vent plug

Drain plug

F0907.ai

IM 01C25B01-01E

<9. General Specications>

Electrical connection for code 5, 9, A, and D.

234(9.21)

Model EJ120

Unit: mm (approx. inch)

9-25

Process connector downside

(Installation code 7)

97

(3.82)

52

(2.05)

46

(1.81)

72(2.83) 102(4.02)

Process connection

Shrouding bolt*

Extenal indicator Conduit connection

(optional)

54

(2.13)

6

(0.24)

159(6.26)

124(4.88)

47

(1.85)

256(10.10)

194(7.64)

143(5.63)

Mounting bracket (L-type,optional)

Integral indicator (optional)

4

Ground terminal

94(3.70)

Electrical connection for code 5, 9, A, and D.

Extenal indicator Conduit connection

(optional)

95

Conduit

connection

Zero adjustment

(Installation code 9)

72(2.83)

95(3.75)

46

(1.81)

125(4.92)

Mounting bracket (Flat-type,optional)

6

(0.24)

54

(3.74)

ø78(3.07)

Process connector

(optional)

High pressure

side

Conduit connection

Integral indicator (optional)

Shrouding bolt*

194(7.64)

Process connection

Process connector

(optional)

(2.13)

*1

110(4.33)

12

(0.47)

39

(1.54)

54

Low

(2.13)

pressure

side

4

2-inch pipe (O.D. 60.5 mm)

Vent/Drain plugs

*2

ø70

(2.76)

148(5.83)

234(9.21)

*1

Zero

adjustment

Ground terminal

Vent plug

Drain plug

High

(2.13)

pressure

*1

side

Process connector upside

Process connection

46

72(2.83)

(1.81)

102(4.02)

52

(2.05)

110(4.33)

12

(1.54)

(0.47)

ø78(3.07)

54

(Installation code 6)

39

ø70

(2.76)

143(5.63)

Vent plug

Drain plug Low

pressure

*1

side

*1: When Installation code 2, 3, or 8 is selected, high and low pressure side on the above figure are reversed. (i.e. High pressure side is on the right side.) *2: When Option code K1, K2, K5, or K6 is selected, add 15 mm(0.59 inch) to the value in the figure. *3: When Option code K1, K2, K5, or K6 is selected, add 30 mm(1.18 inch) to the value in the figure. *4: Available only when specifying the option code including ATEX, IECEx or TIIS flameproof type.

128 (5.04)

*3

F0908.ai

IM 01C25B01-01E

<9. General Specications>

Unit: mm (approx. inch)

● Universal Flange (Installation code -U)

External indicator Conduit connection

(optional)

54

(2.13)

6

63

(2.48)

(2.83)

95(3.74)

72

Conduit connection

Integral indicator (optional)

Zero adjustment

(0.24)

Ground terminal

2

High pressure side

Electrical connection for code 5, 9, A, and D.

Drain plug

Vent plug

159(6.26)

46

(1.81)

125(4.92)

194(7.64)

Shrouding bolt*

Process connection Process connector

(optional)

*1: When Option code K1, K2, K5, or K6 is selected, add 30 mm(1.18 inch) to the value. *2: Available only when specifying the option code including ATEX, IECEx or TIIS flameproof type.

12

(0.47)

ø78(3.07)

110(4.33)

(1.54)

54

(2.13)

128(5.04)*

39

1

ø70

Low pressure side

9-26

(2.76)

143(5.63)

Vent plug

Drain plug

F0909.ai

IM 01C25B01-01E

277(10.9)

<9. General Specications>

Model EJ130

Unit: mm (approx. inch)

● Vertical Impulse Piping Type

Process connector downside

(Installation code 7)

256(10.1)

197(7.76)

97

(3.82)

143(5.63)

Mounting bracket

52

(2.05)

(L-type,optional)

Integral indicator

(optional)

124

(4.88)

93

(3.66)

Process connection

Shrouding bolt*

6

Ground terminal

Zero adjustment

● Horizontal Impulse Piping Type (Installation code 9)

External indicator Conduit connection

(optional)

54

(2.13)

6

(0.24)

Electrical connection for code 5, 9, A, and D.

159(6.26)

124(4.88)

116(4.57)

Electrical connection for code

External indicator Conduit connection

(optional)

95

Conduit connection

93(3.66)

95(3.74)

68

(2.68)

169(6.65)

5, 9, A, and D.

6

(0.24)

54

(2.13)

(3.74)

ø78(3.07)

Process connector

(optional)

High pressure side

Conduit connection

Integral indicator

197(7.76)

132(5.2)

110(4.33)

9

(0.35)

39

(1.54)

54

(2.13)

*1

(optional)

Shrouding bolt*

Vent plug,

Drain plug

Process connection

6

*5

Process connector (optional)

2-inch pipe (O.D. 60.5 mm)

Vent/Drain plugs

*2

ø70(2.76)

192(7.56)

Low pressure

*1

side

Zero adjustment

Ground terminal

*5

Vent plug

Drain plug

*5

High pressure side

Process connection

93

(3.66)

277(10.9)

124

(4.88)

52

(2.05)

110(4.33)

*4

9

(0.35)

ø78(3.07)

54(2.13)

*1

Process connector upside

39

(1.54)

9-27

(Installation code 6)

ø70

(2.76)

Vent plug

143(5.63)

Drain plug

Low pressure

*1

side

*5

47

(1.85)

*1: When Installation code 2, 3, or 8 is selected, high and low pressure side on the above figure are reversed. (i.e. High pressure side is on the right side.) *2: When Option code K1, K2, K5, or K6 is selected, add 15 mm(0.59 inch) to the value in the figure. *3: When Option code K1, K2, K5, or K6 is selected, add 30 mm(1.18 inch) to the value in the figure. *4: 15 mm(0.59 inch) for right side high pressure. *5: Not available when Option code GS is specified.

*6: Available only when specifying the option code including ATEX, IECEx or TIIS flameproof type.

Mounting bracket (Flat-type,optional)

2-inch pipe

(O.D. 60.5 mm)

154(6.06)

*3

F0910.ai

IM 01C25B01-01E

<9. General Specications>

Unit: mm (approx. inch)

● Universal Flange (Installation code -U)

External indicator Conduit connection

(optional)

54

(2.13)

6

(0.24)

Electrical connection for code 5, 9, A, and D.

Drain plug

Vent plug

Drain plug

85(3.35) 93(3.66)

95(3.74)

Conduit connection

Integral indicator

Zero adjustment

(optional)

159(6.26)

Ground terminal

197(7.76)

68

(2.68)

169(6.65)

Shrouding bolt*

Process connection

2

High pressure side

Process connector (optional)

*1: When Option code K1, K2, K5, or K6 is selected, add 30 mm(1.18 inch) to the value. *2: Available only when specifying the option code including ATEX, IECEx or TIIS flameproof type.

(0.35)

ø78(3.07)

110(4.33)

9

54

(2.13)

154(6.06)*

(1.54)

1

39

ø70

Low pressure side

9-28

(2.76)

143(5.63)

Vent plug

Drain plug

F0911.ai

IM 01C25B01-01E

<9. General Specications>

Model EJ310

Unit: mm (approx. inch)

● Vertical Impulse Piping Type

Process connector downside

(Installation code 7)

242(9.53)

175(6.89)

97

129(5.08)

(3.82)

Mounting bracket (L-type,optional)

52

(2.05)

Integral indicator

(optional)

97(3.82)

223(8.78)

41

(1.61)

67(2.64)

Process connection

Shrouding bolt*

Zero adjustment

4

Ground terminal

● Horizontal Impulse Piping Type (Installation code 9)

Extenal indicator Conduit connection

(optional)

54

(2.13)

6

(0.24)

Electrical connection for code 5, 9, A, and D.

145(5.71)124(4.88)

89(3.50)

Electrical connection for code 5, 9, A, and D.

6

Extenal indicator Conduit connection

(optional)

95(3.74)

Conduit connection

Process connector

(optional)

High

pressure side

67

(2.64)

95(3.74)

41

(1.61)

115(4.53)

110(4.33)

(0.24)

12

(0.47)

54

(2.13)

ø78(3.07)

*1

Conduit connection

Integral indicator

(optional)

Shrouding bolt*

Vent plug,

Drain plug

175(6.89)

Process connection

Process connector

(optional)

39

(1.54)

27

(1.06)

*3

2-inch pipe

(O.D. 60.5 mm)

Vent/Drain plugs

*2

ø70(2.76)

138(5.43)

Low pressure

*1

side

Zero adjustment

4

Ground terminal

Vent plug

Drain plug

Process connector upside

Process connection

41

67(2.64)

(1.61)

223(8.78)

97(3.82)

52

(2.05)

(0.47)

ø78(3.07)

*3

27(1.06)

High

pressure

*1

side

(Installation code 6)

110(4.33)

12

39

(1.54)

ø70

(2.76)

Low pressure

*1

side

9-29

129(5.08)

47

(1.85)

Mounting bracket (Flat-type,optional)

2-inch pipe

(O.D. 60.5 mm)

*1: When Installation code 2, 3, or 8 is selected, high and low pressure side on the above figure

are reversed. (i.e. High pressure side is on the right side.)

*2: When Option code K1, K2, K5, or K6 is selected, add 15 mm(0.59 inch) to the value in the figure. *3: Not available when Option code GS is specified.

*4: Available only when specifying the option code including ATEX, IECEx or TIIS flameproof type.

*2

59

(2.32)

F0912.ai

IM 01C25B01-01E

<9. General Specications>

Unit: mm (approx. inch)

● Bottom Process Connection (Installation code -B)

9-30

54

(0.24)

(2.13)

6

95(3.74)

79

(3.11)

Integral indicator (optional)

Zero adjustment

Conduit connection

Electrical connection for code 5, 9, A, and D.

Extenal indicator Conduit connection

(optional)

Mounting bracket (optional)

Shrouding bolt*

219(8.62)

Process connector (optional)

2

Ground terminal

High pressure side

Vent plug

2-inch pipe (O.D. 60.5 mm)

Process connection

● Universal Flange (Installation code -U)

58

(2.28)67(2.64)

95(3.74)

Conduit connection

Integral indicator (optional)

54

(2.13)

6

External indicator Conduit connection

(optional)

(0.24)

Electrical connection for code 5, 9, A, and D.

145(5.71)

175(6.89)

Drain plug

Vent plug

Drain plug

41

(1.61)

115(4.53)

Shrouding bolt*

Process connection Process connector

(optional)

*1: When Option code K1, K2, K5, or K6 is selected, add 15 mm(0.59 inch) to the value. *2: Available only when specifying the option code including ATEX, IECEx or TIIS flameproof type.

Zero adjustment

Ground terminal

2

ø78(3.07)

High pressure side

110(4.33)

12

(0.47)

1

59*

(2.32)

110(4.33)

12

(0.47)

59*

(2.32)

188(7.40)

39

(1.54)

27

(1.06)

39

(1.54)

1

Low pressure side

129

(5.08)

ø70

(2.76)

ø70

(2.76)

Low pressure side

F0914.ai

109(4.29)

F0913.ai

129(5.08)

IM 01C25B01-01E

<9. General Specications>

Model EJ430

Unit: mm (approx. inch)

● Vertical Impulse Piping Type

Process connector downside

(Installation code 7)

242(9.53)

175(6.89)

97

129(5.08)

(3.82)

Mounting bracket (L-type,optional)

52

(2.05)

Integral indicator

(optional)

97(3.82)

223(8.78)

41

(1.61)

67(2.64)

Process connection

Zero adjustment

Shrouding bolt*

4

Ground terminal

● Horizontal Impulse Piping Type (Installation code 9)

External indicator Conduit connection

(optional)

54

(2.13)

6

(0.24)

145(5.71)124(4.88)

Electrical connection for code 5, 9, A, and D.

47

*1: When Installation code 2, 3, or 8 is selected, high and low pressure side on the above figure

are reversed. (i.e. High pressure side is on the right side.)

*2: When option code K1, K2, K5, or K6 is selected, add 15 mm(0.59 inch) to the value in the figure. *3: Not available when option code GS is specified.

*4: Available only when specifying the option code including ATEX, IECEx or TIIS flameproof type.

89(3.50)

(1.85)

Electrical connection for code 5, 9, A, and D.

External indicator Conduit connection

(optional)

95(3.74)

Process Conduit connection

connector

(optional)

67

(2.64)

95(3.74)

41

(1.61)

115(4.53)

Mounting bracket (Flat-type,optional)

110(4.33)

6(0.24)

12

(0.47)

54

(2.13)

ø78(3.07)

High

pressure side

27

(1.06)

*1

Open to atmosphere

ø10(0.39)

Conduit connection

Integral indicator

(optional)

Shrouding bolt*

Vent plug, Dran plug

175(6.89)

Process connection

Process connector (optional)

39

(1.54)

4

*3

Vent plug

Drain plug

(O.D. 60.5 mm)

2-inch pipe

(O.D. 60.5 mm)

Vent/Drain plugs

*2

ø70(2.76)

138(5.43)

223(8.78)

Low pressure

*1

side

Zero adjustment

Ground terminal

*3

27(1.06)

High

pressure

*1

side

2-inch pipe

Process connector upside

(Installation code 6)

Process connection

41

67(2.64)

(1.61)

97(3.82)

52

(2.05)

110(4.33)

12

(0.47)

39

(1.54)

ø78(3.07)

*2

59

(2.32)

9-31

ø70

(2.76)

129(5.08)

Open to atmosphere ø5(0.20)

Low pressure

*1

side

F0915.ai

IM 01C25B01-01E

<9. General Specications>

Unit: mm (approx. inch)

● Vertical Impulse Piping Type

Process connector downside

(Installation code 7)

256(10.10)

97

(3.82)

52

(2.05)

194(7.64)

143(5.63)

Mounting bracket (L-type,optional)

Integral indicator (optional)

Electrical connection for code 5, 9, A, and D.

6(0.24)

54

(2.13)

External indicator Conduit connection

(optional)

110(4.33)

12

(0.47)

39

(1.54)

2-inch pipe (O.D. 60.5 mm)

Vent/Drain plugs

Process connection

Process connector upside

9-32

(Installation code 6)

234(9.21)

46

(1.81)

72(2.83) 102(4.02)

Process connection

Shrouding bolt*

3

Ground terminal

Conduit

connection

Zero adjustment

Process connector

(optional)

95

(3.74)

*2

148(5.83)

High pressure

side

ø78(3.07)

27

*1

(1.06)

Open to atmosphere

ø70

Low pressure

*1

side

(2.76)

ø10(0.39)

● Horizontal Impulse Piping Type (Installation code 9)

External indicator Conduit connection

94(3.70)

(optional)

54

(2.13)

6

(0.24)

159(6.26)

Electrical connection for code 5, 9, A, and D.

124(4.88)

47

(1.85)

*1: When Installation code 2, 3, or 8 is selected, high and low pressure side on the above figure are reversed. (i.e. High pressure side is on the right side.) *2: When Option code K1, K2, K5, or K6 is selected, add 15 mm(0.59 inch) to the value in the figure. *3: Available only when specifying the option code including ATEX, IECEx or TIIS flameproof type.

72(2.83)

95(3.75)

46

(1.81)

125(4.92)

Mounting bracket (Flat-type,optional)

Conduit connection

Integral indicator (optional)

Shrouding bolt*

194(7.64)

Process connection

Process connector

(optional)

Zero

adjustment

3

Ground terminal

Vent plug

Drain plug

High pressure

side

2-inch pipe (O.D. 60.5 mm)

234(9.21)

*1

72(2.83)102(4.02)

52

ø78(3.07)

54

(2.13)

46

(2.05)

(1.81)

110(4.33)

12

(0.47)

39

(1.54)

*2

64

(2.52)

ø70

(2.76)

143(5.63)

Open to atmosphere

ø5(0.20)

Low pressure

*1

side

F0916.ai

IM 01C25B01-01E

<9. General Specications>

Unit: mm (approx. inch)

● Bottom Process Connection (Installation code -B)

54

(2.13)

6

(0.24)

Electrical connection for code 5, 9, A, and D.

Extenal indicator Conduit connection

(optional)

95(3.74)

79

(3.11)

Integral indicator (optional)

Conduit connection

Shrouding bolt*

Zero adjustment

2

Ground terminal

ø78(3.07)

110(4.33)

12

(0.47)

188(7.40)

39

(1.54)

ø70

(2.76)

219(8.62)

27

(1.06)

Low pressure side

129

(5.08)

Mounting bracket (optional)

2-inch pipe (O.D. 60.5 mm)

Process connector (optional)

Process connection

High pressure side

Vent plug

59*

(2.32)

1

● Universal Flange (Installation code -U)

9-33

109(4.29)

Open to atmosphere

ø10(0.39)

F0917.ai

External indicator Conduit connection

(optional)

54

(2.13)

6

(0.24)

Electrical connection for code 5, 9, A, and D.

*1: When Option code K1, K2, K5, or K6 is selected, add 15 mm(0.59 inch) to the value. *2: Available only when specifying the option code including ATEX, IECEx or TIIS flameproof type.

Drain plug

Vent plug

Drain plug

145(5.71)

58

(2.28)67(2.64)

95(3.74)

41

(1.61)

115(4.53)

Conduit connection

Integral indicator (optional)

175(6.89)

Shrouding bolt*

Process connection Process connector

(optional)

Zero adjustment

Ground terminal

2

High pressure side

(0.47)

ø78(3.07)

59*

(2.32)

110(4.33)

12

1

39

(1.54)

Low pressure side

ø70

(2.76)

129(5.08)

Open to atmosphere (ø5)

F0918.ai

IM 01C25B01-01E

<9. General Specications>

Model EJ440

Unit: mm (approx. inch)

● Vertical Impulse Piping Type

Process connector downside

(Installation code 7)

242(9.53)

97

(3.82)

Mounting bracket

52

(2.05)

(L-type,optional)

Integral indicator

175(6.89)

129(5.08)

(optional)

Electrical connection for code 5, 9, A, and D.

6(0.24)

54

(2.13)

Extenal indicator Conduit connection

(optional)

120(4.72)

110(4.33)

12

(0.47)

39

(1.54)

2-inch pipe (O.D. 60.5 mm)

Vent/Drain plugs

Process connector upside

(Installation code 6)

Process connection

*4

9-34

119(4.69)88(3.46)

*4

267(10.5) [C capsule]

265(10.4) [D capsule]

63

(2.48)

Process connection

Shrouding bolt

Zero adjustment

Ground terminal

*6

95

Conduit connection

(3.74)

ø78(3.07)

High pressure side

Process connector

(optional)

*1

27

(1.06)

● Horizontal Impulse Piping Type (Installation code 9)

*4

Extenal indicator Conduit connection

111(4.37)

(optional)

54

(2.13)

6

(0.24)

Electrical connection for code 5, 9, A, and D.

Vent plug

*3

124(4.88) 145(5.71)

47

(1.85)

*1: When Installation code 2, 3, or 8 is selected, high and low pressure side on the above figure are reversed. (i.e. High pressure side is on the right side.) *2: When Option code K1, K2, K5, or K6 is selected, add 15 mm(0.59 inch) to the value in the figure. *3: Not available when Option code GS is specified. *4: 87 mm(3.43 inch) for capsule code D. *5: 157 mm(6.18 inch) for capsule code D.

*6: Available only when specifying the option code including ATEX, IECEx or TIIS flameproof type.

88(3.46)

95(3.74)

63

(2.48)

*5

159(6.26)

Drain plug

*3

Mounting bracket (Flat-type,optional)

Conduit connection

Integral indicator (optional)

Shrouding bolt

175(6.89)

Process connection

Process connector (optional)

Zero adjustment

*6

Vent plug Drain plug

High pressure side

2-inch pipe (O.D. 60.5 mm)

[C capsule]

[D capsule]

ø70

*2

(2.76)

182(7.17)

177(6.97)

Open to atmospher ø9(0.35)

ø78(3.07)

*3

*1

63

(2.48)

119(4.69) 88(3.46)

267(10.5) [C capsule]

265(10.4) [D capsule]

52

(2.05)

110(4.33)

39

12

(1.54)

(0.47)

ø70

27(1.06)

*2

70

(2.76)

129(5.08)

Ground terminal

Open to atmosphere ø5(0.20)

Low pressure

*1

side

F0919.ai

IM 01C25B01-01E

<9. General Specications>

Unit: mm (approx. inch)

● Universal Flange (Installation code -U)

External indicator Conduit connection

(optional)

54

(2.13)

6

(0.24)

Electrical connection for code 5, 9, A, and D.

Drain plug

Vent plug

Drain plug

80

(3.15)88(3.46)

95(3.74)

145(5.71)

63

(2.48)

159(6.26)

*1: When Option code K1, K2, K5, or K6 is selected, add 15 mm(0.59 inch) to the value. *2: Available only when specifying the option code including ATEX, IECEx or TIIS flameproof type.

Conduit connection

Integral indicator (optional)

175(6.89)

Shrouding bolt*

Process connection Process connector

(optional)

Zero adjustment

Ground terminal

2

High pressure side

110(4.33)

(0.47)

ø78(3.07)

70*

(2.76)

12

39

(1.54)

ø70

(2.76)

Open to atmosphere

27

(1.06)

1

Low pressure side

9-35

129(5.08)

(ø5)

F0920.ai

● Terminal Configuration

Communication terminals (BT200 etc.) connection hook

SUPPLY +

SUPPLY –

Check meter connection hook*1*

CHECK + or ALARM +

CHECK – or ALARM –

● Terminal Wiring

+

SUPPLY

2

CHECK

or

ALARM

*1: When using an external indicator or check meter, the internal resistance must be 10 Ω or less. A check meter or indicator cannot be connected when /AL option is specified. *2: Not available for fieldbus and PROFIBUS communication types.

Power supply and output terminal

– +

External indicator (ammeter) terminal*1*

–

or Status contact output terminal*

+ –

(when /AL is specified)

Ground terminal

2

F0921.ai

IM 01C25B01-01E

Revision Information

 Title : Differential Pressure and Pressure Transmitters

EJ110, EJ120, EJ130, EJ310, EJ430, and EJ440

 Manual No. : IM 01C25B01-01E

Edition Date Page Revised Item

1st Mar. 2004 — New publication

2nd Apr. 2004 — Revise words and phrases.

2-6 2.9.3 • Correct Ambient temperature –60 → –50 4-4 4.5 • Change the description of rotation angle. 8-3 8.4 • Add Allen wrench nominal 3mm to Table 8.4.1.

3rd Feb. 2005 — Re-number gure and table title.

i Add subsection 6.3.5.

ii Add note for Safety Transmitter. 1-1 1. • Add note for Fieldbus communication type. 1-3 1.1 • Add (f) Modication. 2-3 2.9 • Add NOTE for eldbus communication type. 2-5 2.9.2 • Modify descriptions and instructions for CSA certication 2-7

2-8

3-1 3. • Correct label of the switch in the gure. N → E, Y → D

4-3 4.4.1 • Add description about process connector in 3). 4-4 4.6 • Add section 4.6. 6-1 6.3.1, 6.3.2 • Add limitation/note when /AL is specied. 6-2 6.3.4 • Add limitation when /AL is specied. 6-2 6.3.5 • Add subsection 6.3.5. 7-3 7.2.1 • Add descriptions about zero adjustment.

9-1, 9-2 9.1 • Add notes for FOUNDATION eldbus communication type.

9-4, 9-5 9.2 • Add output signal code -F and capsule code H.

9-6 9.3 • Add CSA approvals and note *2 and *3 9-8 9.4 • Add note *3.

9-10 9.4 • Add notes for /AL and FOUNDATION Fieldbus.

4th Sep. 2005 1-1 1. • Add model names to the manual coverage.

2-3 to 2-8 2. • Add applicable standard and certicate number for each

2-11 2.10 • Change australian reference standard. 2-11 2.11 • Add descriptions for PED. 2-12 2.11 • Add section 2.12.

4-1 4.1 • Add model name. 4-2 4.3 • Add table 4.1. 8-5 8.4.3 • Add table for torque.

9-1 to 9-18 9. • Add specications, codes, and dimensions for EJX130A,

5th July 2006 2-8- 2.9.3 • Change applicable standards for ATEX type n.— 6th Nov. 2007 1-1 1. • Add model code table.

2-3 2.9 • Add note for EJX130A.

9-10 9.3 • Add note for EJX130A. 9-15 9.4 • Modify dimensions of EJX130A.

A-1 APPENDIX 1. Add "EJX130A ADDITIONAL INFORMATION."

2.9.3 • Correct number in Note 4. 10 MINUTES → 5 MINUTES

• Delete WARNING on non-incendive power supply.

• Correct number for Electrical data Ci. 6 nF → 10 nF

• Add descriptions in Note 2.

• Add capsule code H.

approval.

Add notes for reassembling EJX130A and EJX440A.

8.4.4 • Add table for torque.

EJX310A and EJX440A.

i

IM 01C25B01-01E

Edition Date Page Revised Item

7th Feb. 2008 — Change of the style code, add EJX120A.

General • Change the gure of amplier housing.

1-1 1 • Add style code table. 2-1 2.1 • Update the Figure 2.2. 2-5 2.9.1 • Add code /V1U. 2-6 2.9.2 • Revise information for CSA Explosionproof type. 2-7 2.9.2 • Add code /V1U. 2-8 2.9.3 • Revise information for KEMA ameproof type. Add code /V1U. 2-9 2.9.3 • Revise Figure in (2) Electrical connection and (6) Nameplate.

2-10 2.9.4 • Revise information for IECEx ameproof type.

9-1 to 9-3 9.1 • Add information for EJX120A.

9-5 to 9-10 9.2 • Add new sufx codes for 316 SST blind plugs and brackets.

Add EJX120A. 9-11 9.3 • Remove /KF2 and /KU2. Add /KF21, /KU21, /SF2 and /V1U. 9-12 • Add /HC.

9-14 to 9-20 9.4 • Revise external dimensions.Add EJX120A.

— • Remove Appendix 1 'Additional Information for EJX130A.'

8th June 2008 2-6 2.9.2 • Correct certication number.

2-8 2.9.3 • Revise applicabble standards for ATEX Type n.

2-11 2.11 • Add EJX110A V capsule, wetted parts matterial code S and

EJX310A L capsule.

4-1 4.2 • Add information of Universal ange. 8-5 8.4.3 • Add wetted parts material code in the torque table.

9-1 to 9-27 9. • Add EJX110A V capsule, EJX110A/EJX430A wetted parts

material code H, M, T, A, D, and B, EJX310A L capsule and

option code /S1, and universal ange. 9-10 9.3 • Add statement of sealing certication for CSA approval.

9th Aug. 2009 2-1 2.1 • Replace a name plate.

2-11 2.10 • Revise standards.

2.11 • Revise information of PED.

9-4 to 9-9 9.2 • Modify descriptions of materials. 9-11 to 9-12 9.3 • Add /GS, /A1,and /DG6. 9-13 to 9-26 9.4 • Correct errors. Add note for /GS.

10th Apr. 2010 2-4 to 2-11

8-1 9-4

9-12

11th Mar. 2012 2-3

9-4

9-5 to 9-10

12th June 2012 —

1-1

2.3 to 2.12 2-7 to 2-10

8-5

9.1 to end

13th June 2013 — Add note for PROFIBUS PA communication type.

2-3 Add note for multiple approval type.

2-6, 2-7 2.9.2 • Correct CSA applicable standards.

2-8 to 2-11 2.9.3 • Replace ATEX type n by ATEX Intrinsically safe Ex ic.

2-13 2.11 • Add EJA110E with /HG.

9-3 9.1 • Add MWP for EJA110E with /HG.

9-6 to 9-17 9.2 • Add PROFIBUS PA communication type.

9-19 to 9-20 9.3 • Replace ATEX type n by ATEX Intrinsically safe Ex ic.

9-22 to 9-35 9.4 • Add process connection codes 2, 3 and 6. Correct drawing of

2.9

8.3

9.1

9.3

2.9

9.1

9.2

1.

2.9

2.9.3

• Add limitation of ambient temperature for /HE.

• Add description for warm up time.

• Add O-ring material.

• Add /HE.

• Add note for blind plugs.

• Change description for a plate material.

• Add amplier housing code 3.

• Add EJA-E series. Add measurement span code F for EJX110A.

• Add Note. Add model name of EJA-E series.

• Delete /V1U.

• Delete /KS2, /KF21, and /KU21. Add /KS21, /KF22, and /KU22.

• Add note for measurement span code F.

• Add information for EJA-E series. Add output signal code –J and measurement span code F.

• Add note for CE marking notied body number.

• Add process connection code 2, 3 and 6.

• Add /V1U1. Add /HG.

EJ430 universal ange type. Add note for shrouding bolt.

ii

IM 01C25B01-01E

Yokogawa EJX110A User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

1. Introduction

 Regarding This Manual

1.1 Safe Use of This Product

1.2 Warranty

1.3 ATEX Documentation

2. Handling Cautions

2.2 Unpacking

2.3 Storage

2.4 Selecting the Installation Location

2.7 Restrictions on Use of Radio Transceivers

2.5 Pressure Connection

2.8 Insulation Resistance and Dielectric Strength Test

2.9.1 FM Approval

2.10 EMC Conformity Standards

2.11 Pressure Equipment Directive (PED)

2.12 Low Voltage Directive

3. Component Names

4. Installation

4.1 Precautions

4.2 Mounting

4.3 Changing the Process Connection

4.4.1 Rotating Pressure-detector Section 180°

4.4.2 Using the Communicator

4.5 Rotating Transmitter Section

4.6 Changing the Direction of Integral Indicator

5. Installing Impulse Piping

5.1 Impulse Piping Installation Precautions

5.1.1 Connecting Impulse Piping to a Transmitter

5.1.2 Routing the Impulse Piping

5.2 Impulse Piping Connection Examples

6. Wiring

6.1 Wiring Precautions

6.3 Connections of External Wiring to Terminal Box

6.3.1 Power Supply Wiring Connection

6.3.2 External Indicator Connection

6.3.3 Communicator Connection

6.3.4 Check Meter Connection

6.3.5 Status Output Connection

6.4.2 Wiring Installation

6.4 Wiring

6.5 Grounding

6.6 Power Supply Voltage and Load Resistance

7. Operation

7.1 Preparation for Starting Operation

7.2 Zero Point Adjustment

7.2.1 Adjusting Zero Point for Differential Pressure Transmitters

7.2.2 Adjusting Zero Point for Gauge/ Absolute Pressure Transmitters

7.3 Starting Operation

7.4 Shutting Down the Transmitter

7.5.1 Draining Condensate

7.5.2 Venting Gas

8. Maintenance

8.1 Overview

8.3 Calibration

8.2 Calibration Instruments Selection

8.4 Disassembly and Reassembly

8.4.1 Replacing the Integral Indicator

8.4.2 Replacing the CPU Board Assembly

8.4.3 Cleaning and Replacing the Capsule Assembly

8.5.1 Basic Troubleshooting

8.5 Troubleshooting

8.5.2 Troubleshooting Flowcharts

8.5.3 Alarms and Countermeasures

9.4 Dimensions

Revision Information
