User’s Manual

Differential Pressure and Pressure Transmitters EJ110, EJ120, EJ130, EJ310, EJ430, and EJ440

IM 01C25B01-01E

13th Edition

Differential Pressure and Pressure Transmitters EJ110, EJ120, EJ130,

EJ310, EJ430, and EJ440



IM 01C25B01-01E 13th Edition

Contents

1. Introduction ............................................................................................... 1-1

 Regarding This Manual ................................................................................................1-1

1.1 Safe Use of This Product .................................................................................1-2

1.2 Warranty .............................................................................................................1-3

1.3 ATEX Documentation .......................................................................................1-4

2. Handling Cautions .................................................................................... 2-1

2.1 Model and Specications Check .....................................................................2-1

2.2 Unpacking ..........................................................................................................2-1

2.3 Storage ...............................................................................................................2-1

2.4 Selecting the Installation Location ................................................................ 2-2

2.5 Pressure Connection ........................................................................................2-2

2.6 Waterproong of Cable Conduit Connections ..............................................2-2

2.7 Restrictions on Use of Radio Transceivers ...................................................2-2

2.8 Insulation Resistance and Dielectric Strength Test ......................................2-2

2.9 Installation of an Explosion-Protected Instrument .......................................2-3

2.9.1 FM Approval .......................................................................................2-4

2.9.2 CSA Certication ................................................................................2-6

2.9.3 ATEX Certication ..............................................................................2-8

2.9.4 IECEx Certication ........................................................................... 2-11

2.10 EMC Conformity Standards ...........................................................................2-12

2.11 Pressure Equipment Directive (PED) ...........................................................2-13

2.12 Low Voltage Directive .....................................................................................2-13

3. Component Names .................................................................................. 3-1

4. Installation ................................................................................................. 4-1

4.1 Precautions .......................................................................................................4-1

4.2 Mounting ........................................................................................................... 4-1

4.3 Changing the Process Connection .................................................................4-2

4.4 Swapping the High/Low-pressure Side Connection .....................................4-3

4.4.1 Rotating Pressure-detector Section 180° .........................................4-3

4.4.2 Using the Communicator ...................................................................4-3

4.5 Rotating Transmitter Section ........................................................................... 4-4

4.6 Changing the Direction of Integral Indicator ................................................. 4-4

IM 01C25B01-01E

5. Installing Impulse Piping ......................................................................... 5-1

5.1 Impulse Piping Installation Precautions ........................................................5-1

5.1.1 Connecting Impulse Piping to a Transmitter ......................................5-1

5.1.2 Routing the Impulse Piping ................................................................5-3

5.2 Impulse Piping Connection Examples ...........................................................5-4

6. Wiring ......................................................................................................... 6-1

6.1 Wiring Precautions ...........................................................................................6-1

6.2 Selecting the Wiring Materials .........................................................................6-1

6.3 Connections of External Wiring to Terminal Box ..........................................6-1

6.3.1 Power Supply Wiring Connection ......................................................6-1

6.3.2 External Indicator Connection............................................................6-1

6.3.3 Communicator Connection ................................................................6-1

6.3.4 Check Meter Connection ...................................................................6-2

6.3.5 Status Output Connection ..................................................................6-2

6.4 Wiring .................................................................................................................6-2

6.4.1 Loop Conguration ............................................................................6-2

6.4.2 Wiring Installation ...............................................................................6-2

6.5 Grounding ..........................................................................................................6-3

6.6 Power Supply Voltage and Load Resistance .................................................6-3

7. Operation ................................................................................................... 7-1

7.1 Preparation for Starting Operation ................................................................. 7-1

7.2 Zero Point Adjustment ..................................................................................... 7-2

7.2.1 Adjusting Zero Point for Differential Pressure Transmitters ..............7-3

7.2.2 Adjusting Zero Point for Gauge/Absolute Pressure Transmitters ....7-3

7.3 Starting Operation ............................................................................................ 7-3

7.4 Shutting Down the Transmitter .......................................................................7-4

7.5 Venting or Draining Transmitter Pressure-detector Section .......................7-4

7.5.1 Draining Condensate .........................................................................7-4

7.5.2 Venting Gas........................................................................................7-5

7.6 Setting the Range Using the Range-setting Switch ......................................7-5

8. Maintenance .............................................................................................. 8-1

8.1 Overview ............................................................................................................ 8-1

8.2 Calibration Instruments Selection .................................................................. 8-1

8.3 Calibration .........................................................................................................8-1

8.4 Disassembly and Reassembly ........................................................................8-3

8.4.1 Replacing the Integral Indicator .........................................................8-3

8.4.2 Replacing the CPU Board Assembly .................................................8-4

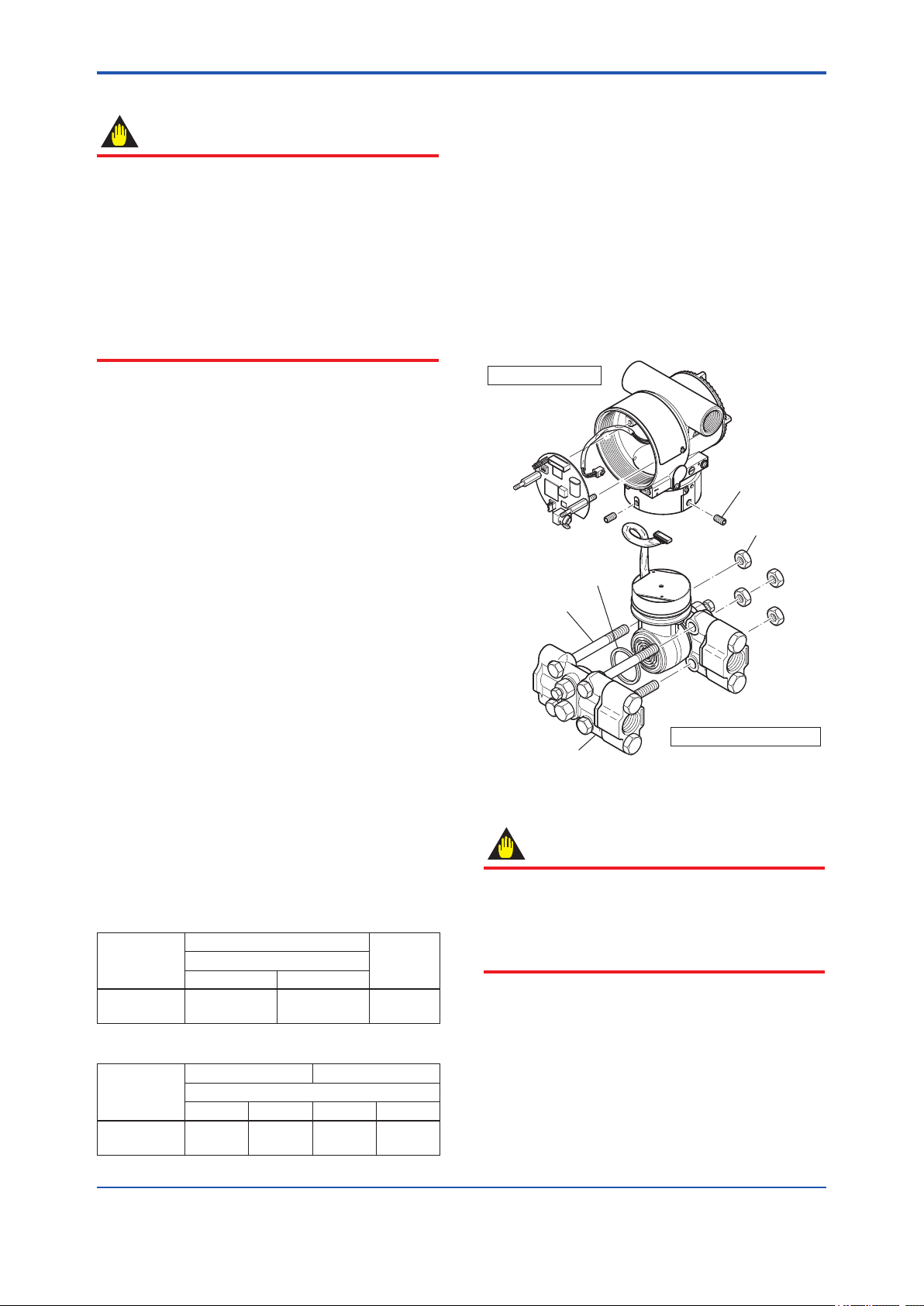

8.4.3 Cleaning and Replacing the Capsule Assembly ...............................8-4

8.4.4 Replacing the Process Connector Gaskets .......................................8-6

IM 01C25B01-01E

8.5 Troubleshooting ................................................................................................8-6

8.5.1 Basic Troubleshooting .......................................................................8-6

8.5.2 Troubleshooting Flowcharts ...............................................................8-7

8.5.3 Alarms and Countermeasures ...........................................................8-9

9. General Specications ............................................................................ 9-1

9.1 Standard Specications ................................................................................... 9-1

9.2 Model and Sufx Codes ...................................................................................9-6

9.3 Optional Specications .................................................................................9-19

9.4 Dimensions ......................................................................................................9-22

Revision Information

iii

When using the Transmitters in a Safety Instrumented Systems(SIS) application, refer to Appendix A in either IM 01C25T01-06EN for the HART protocol or IM 01C25T03-01E for the BRAIN protocol.

IM 01C25B01-01E

<1. Introduction>

1. Introduction

Thank you for purchasing the DPharp Differential Pressure and pressure transmitter.

NOTE

1-1

Your transmitter was precisely calibrated at the factory before shipment. To ensure both safety and efciency, please read this manual carefully before you operate the instrument.

NOTE

This manual describes the hardware congurations of the transmitters listed in below. For information on the software conguration and operation, please refer to either IM 01C25T03-01E for the BRAIN communication type, or IM 01C25T01-06EN for the HART communication type.

For FOUNDATION Fieldbus protocol type, please refer to IM 01C25T02-01E. For PROFIBUS PA protocol type, please refer to IM 01C25T04-01EN.

Model Style code

EJX110A S3 EJX120A S1 EJX130A S2 EJX310A S2 EJX430A S2 EJX440A S2 EJA110E S1 EJA120E S1 EJA130E S1 EJA310E S1 EJA430E S1 EJA440E S1

To ensure correct use of this instrument, read both the hardware and software manuals thoroughly before use.

WARNING

When describing the model name like EJ110, it shows the applicability for both EJX110A and EJA110E. The same representations are used for the other models, too.

NOTE

Unless otherwise stated, the illustrations in this manual are of the EJ110 differential pressure transmitter. Users of the other models should bear in mind that certain features of their instrument will differ from those shown in the illustrations of the EJ110.

 Regarding This Manual

• This manual should be provided to the end user.

• The contents of this manual are subject to change without prior notice.

• Yokogawa makes no warranty of any kind with regard to this manual, including, but not limited to, implied warranty of merchantability and tness for a particular purpose.

• If any question arises or errors are found, or if any information is missing from this manual, please inform the nearest Yokogawa sales ofce.

• The specications covered by this manual are limited to those for the standard type under the specied model number break-down and do not cover custom-made instruments.

When using the transmitters in a Safety Instrumented Systems (SIS) application, refer to Appendix 1 in either IM 01C25T01-06EN for the HART protocol or IM 01C25T03-01E for the BRAIN protocol. The instructions and procedures in this section must be strictly followed in order to maintain the transmitter for this safety level.

• Please note that changes in the specications, construction, or component parts of the instrument may not immediately be reected in this manual at the time of change, provided that postponement of revisions will not cause difculty to the user from a functional or performance standpoint.

IM 01C25B01-01E

<1. Introduction>

1-2

• Yokogawa assumes no responsibilities for this product except as stated in the warranty.

• If the customer or any third party is harmed by the use of this product, Yokogawa assumes no responsibility for any such harm owing to any defects in the product which were not predictable, or for any indirect damages.

• The following safety symbols are used in this manual:

WARNING

Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.

CAUTION

Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury. It may also be used to alert against unsafe practices.

IMPORTANT

Indicates that operating the hardware or software in this manner may damage it or lead to system failure.

NOTE

Draws attention to information essential for understanding the operation and features.

1.1 Safe Use of This Product

For the safety of the operator and to protect the instrument and the system, please be sure to follow this manual’s safety instructions when handling this instrument. If these instructions are not heeded, the protection provided by this instrument may be impaired. In this case, Yokogawa cannot guarantee that the instrument can be safely operated. Please pay special attention to the following points:

(a) Installation

• This instrument may only be installed by an engineer or technician who has an expert knowledge of this device. Operators are not allowed to carry out installation unless they meet this condition.

• With high process temperatures, care must be taken not to burn yourself by touching the instrument or its casing.

• Never loosen the process connector nuts when the instrument is installed in a process. This can lead to a sudden, explosive release of process uids.

• When draining condensate from the pressure detector section, take appropriate precautions to prevent the inhalation of harmful vapors and the contact of toxic process uids with the skin or eyes.

• When removing the instrument from a hazardous process, avoid contact with the uid and the interior of the meter.

• All installation shall comply with local installation requirements and the local electrical code.

(b) Wiring

Direct current

• The instrument must be installed by an engineer or technician who has an expert knowledge of this instrument. Operators are not permitted to carry out wiring unless they meet this condition.

• Before connecting the power cables, please conrm that there is no current owing through the cables and that the power supply to the instrument is switched off.

IM 01C25B01-01E

<1. Introduction>

1-3

• Wait 5 min. after the power is turned off, before opening the covers.

(d) Maintenance

• Please carry out only the maintenance procedures described in this manual. If you require further assistance, please contact the nearest Yokogawa ofce.

• Care should be taken to prevent the build up of dust or other materials on the display glass and the name plate. To clean these surfaces, use a soft, dry cloth.

(e) Explosion Protected Type Instrument

• Users of explosion proof instruments should refer rst to section 2.9 (Installation of an Explosion Protected Instrument) of this manual.

• The use of this instrument is restricted to those who have received appropriate training in the device.

• Take care not to create sparks when accessing the instrument or peripheral devices in a hazardous location.

(f) Modication

1.2 Warranty

• The warranty shall cover the period noted on the quotation presented to the purchaser at the time of purchase. Problems occurring during the warranty period shall basically be repaired free of charge.

• If any problems are experienced with this instrument, the customer should contact the Yokogawa representative from which this instrument was purchased or the nearest Yokogawa ofce.

• If a problem arises with this instrument, please inform us of the nature of the problem and the circumstances under which it developed, including the model specication and serial number. Any diagrams, data and other information you can include in your communication will also be helpful.

• The party responsible for the cost of xing the problem shall be determined by Yokogawa following an investigation conducted by Yokogawa.

• The purchaser shall bear the responsibility for repair costs, even during the warranty period, if the malfunction is due to:

• Yokogawa will not be liable for malfunctions or damage resulting from any modication made to this instrument by the customer.

- Improper and/or inadequate maintenance by the purchaser.

- Malfunction or damage due to a failure to handle, use, or store the instrument in accordance with the design specications.

- Use of the product in question in a location not conforming to the standards specied by Yokogawa, or due to improper maintenance of the installation location.

- Failure or damage due to modication or repair by any party except Yokogawa or an approved representative of Yokogawa.

- Malfunction or damage from improper relocation of the product in question after delivery.

- Reason of force majeure such as res, earthquakes, storms/oods, thunder/ lightening, or other natural disasters, or disturbances, riots, warfare, or radioactive contamination.

IM 01C25B01-01E

<1. Introduction>

1.3 ATEX Documentation

This is only applicable to the countries in European Union.

1-4

EST

SLO

IM 01C25B01-01E

<2. Handling Cautions>

2. Handling Cautions

2-1

This chapter provides important information on how to handle the transmitter. Read this carefully before using the transmitter.

The transmitters are thoroughly tested at the factory before shipment. When taking delivery of an instrument, visually check them to make sure that no damage occurred during shipment.

Also check that all transmitter mounting hardware shown in gure 2.1 is included. If the transmitter is ordered without the mounting bracket and the process connector, the transmitter mounting hardware will not be included. After checking the transmitter, carefully repack it in its box and keep it there until you are ready to install it.

Bolt

Process connector

Process connector Gasket

U-bolt

(Note 1)

2.1 Model and Specications Check

The model name and specications are written on the name plate attached to the case.

F0202.ai

Figure 2.2 Name Plate (EJX110A)

2.2 Unpacking

Keep the transmitter in its original packaging to prevent it from being damaged during shipment. Do not unpack the transmitter until it reaches the installation site.

2.3 Storage

Mounting bracket (L type)

U-bolt nut

Figure 2.1 Transmitter Mounting Hardware

Transmitter mounting bolt

Mounting bracket (Flat type)

F0201.ai

The following precautions must be observed when storing the instrument, especially for a long period.

(a) Select a storage area which meets the following

conditions:

• It is not exposed to rain or subject to water seepage/leaks.

• Vibration and shock are kept to a minimum.

• It has an ambient temperature and relative humidity within the following ranges.

Ambient temperature: –40* to 85°C without integral indicator –30* to 80°C with integral indicator

* –15°C when /HE is specied.

Relative humidity: 0% to 100% R.H. Preferred temperature and humidity: approx. 25°C and 65% R.H.

(b) When storing the transmitter, repack it carefully

in the packaging that it was originally shipped with.

clean the chambers inside the cover anges, so that there is no process uid remaining inside. Before placing it in storage, also make sure that the pressure-detector is securely connected to the transmitter section.

IM 01C25B01-01E

<2. Handling Cautions>

2-2

2.4 Selecting the Installation Location

The transmitter is designed to withstand severe environmental conditions. However, to ensure that it will provide years of stable and accurate performance, take the following precautions when selecting the installation location.

(a) Ambient Temperature

Avoid locations subject to wide temperature variations or a signicant temperature gradient. If the location is exposed to radiant heat from plant equipment, provide adequate thermal insulation and/or ventilation.

(b) Ambient Atmosphere

Do not install the transmitter in a corrosive atmosphere. If this cannot be avoided, there must be adequate ventilation as well as measures to prevent the leaking of rain water and the presence of standing water in the conduits.

Although the transmitter is designed to be relatively resistant to shock and vibration, an installation site should be selected where this is kept to a minimum.

(d) Installation of Explosion-protected Transmitters

An explosion-protected transmitters is certied for installation in a hazardous area containing specic gas types. See subsection

2.9 “Installation of an Explosion-Protected Transmitters.”

The following precautions must be observed in order to safely operate the transmitter under pressure.

(a) Make sure that all the process connector bolts

are tightened rmly.

(b) Make sure that there are no leaks in the impulse

piping.

specied maximum working pressure.

2.6 Waterproong of Cable Conduit Connections

Apply a non-hardening sealant to the threads to waterproof the transmitter cable conduit connections. (See gure 6.8, 6.9 and 6.10.)

2.7 Restrictions on Use of Radio Transceivers

IMPORTANT

Although the transmitter has been designed to resist high frequency electrical noise, if a radio transceiver is used near the transmitter or its external wiring, the transmitter may be affected by high frequency noise pickup. To test this, start out from a distance of several meters and slowly approach the transmitter with the transceiver while observing the measurement loop for noise effects. Thereafter use the transceiver outside the range where the noise effects were rst observed.

2.5 Pressure Connection

WARNING

• Never loosen the process connector bolts when an instrument is installed in a process. The device is under pressure, and a loss of seal can result in a sudden and uncontrolled release of process uid.

• When draining toxic process uids that have condensed inside the pressure detector, take appropriate steps to prevent the contact of such uids with the skin or eyes and the inhalation of vapors from these uids.

2.8 Insulation Resistance and Dielectric Strength Test

Since the transmitter has undergone insulation resistance and dielectric strength tests at the factory before shipment, normally these tests are not required. If the need arises to conduct these tests, heed the following:

(a) Do not perform such tests more frequently than

is absolutely necessary. Even test voltages that do not cause visible damage to the insulation may degrade the insulation and reduce safety margins.

IM 01C25B01-01E

<2. Handling Cautions>

2-3

(b) Never apply a voltage exceeding 500 V DC

(100 V DC with an internal lightning protector) for the insulation resistance test, nor a voltage exceeding 500 V AC (100 V AC with an internal lightning protector) for the dielectric strength test.

all signal lines from the transmitter terminals. The procedure for conducting these tests is as follows:

• Insulation Resistance Test

1) Short-circuit the + and – SUPPLY terminals in the terminal box.

2) Turn OFF the insulation tester. Then connect the insulation tester plus (+) lead wire to the shorted SUPPLY terminals and the minus (–) leadwire to the grounding terminal.

3) Turn ON the insulation tester power and measure the insulation resistance. The voltage should be applied as briey as possible to verify that the insulation resistance is at least 20 MΩ.

4) After completing the test and being very careful not to touch exposed conductors disconnect the insulation tester and connect a 100 kΩ resistor between the grounding terminal and the shortcircuiting SUPPLY terminals. Leave this resistor connected at least one second to discharge any static potential. Do not touch the terminals while it is discharging.

2.9 Installation of an ExplosionProtected Instrument

NOTE

For FOUNDATION Fieldbus explosion protected type, please refer to IM 01C22T02-01E. For PROFIBUS PA explosion protected type, please refer to IM 01C25T04-01EN.

If a customer makes a repair or modication to an intrinsically safe or explosionproof instrument and the instrument is not restored to its original condition, its intrinsically safe or explosionproof construction may be compromised and the instrument may be hazardous to operate. Please contact Yokogawa before making any repair or modication to an instrument.

CAUTION

This instrument has been tested and certied as being intrinsically safe or explosionproof. Please note that severe restrictions apply to this instrument’s construction, installation, external wiring, maintenance and repair. A failure to abide by these restrictions could make the instrument a hazard to operate.

• Dielectric Strength Test

1) Short-circuit the + and – SUPPLY terminals in the terminal box.

2) Turn OFF the dielectric strength tester. Then connect the tester between the shorted SUPPLY terminals and the grounding terminal. Be sure to connect the grounding lead of the dielectric strength tester to the ground terminal.

3) Set the current limit on the dielectric strength tester to 10 mA, then turn ON the power and gradually increase the test voltage from ‘0’ to the specied voltage.

4) When the specied voltage is reached, hold it for one minute.

5) After completing this test, slowly decrease the voltage to avoid any voltage surges.

WARNING

Maintaining the safety of explosionproof equipment requires great care during mounting, wiring, and piping. Safety requirements also place restrictions on maintenance and repair. Please read the following sections very carefully.

WARNING

The range setting switch must not be used in a hazardous area.

IM 01C25B01-01E

<2. Handling Cautions>

2-4

IMPORTANT

For combined approval types Once a device of multiple approval type is installed, it should not be re-installed using any other approval types. Apply a permanent mark in the check box of the selected approval type on the certication label on the transmitter to distinguish it from unused approval types.

IMPORTANT

All the blind plugs which accompany the EJX/ EJA-E transmitters upon shipment from the factory are certied by the applicable agency in combination with those transmitters. The plugs which are marked with the symbols “◊ Ex” on their surfaces are certied only in combination with the EJX/EJA-E series transmitters.

2.9.1 FM Approval

Note 2. Entity Parameters

• Intrinsically Safe Apparatus Parameters [Groups A, B, C, D, E, F and G]

Vmax = 30 V Ci = 6 nF Imax = 200 mA Li = 0 µH Pmax = 1 W

* Associated Apparatus Parameters (FM approved barriers)

Voc ≤ 30 V Ca > 6 nF Isc ≤ 200 mA La > 0 µH Pmax ≤ 1W

• Intrinsically Safe Apparatus Parameters [Groups C, D, E, F and G]

Vmax = 30 V Ci = 6 nF Imax = 225 mA Li = 0 µH Pmax = 1 W

* Associated Apparatus Parameters (FM approved barriers)

Voc ≤ 30 V Ca > 6 nF Isc ≤ 225 mA La > 0 µH Pmax ≤ 1 W

a. FM Intrinsically Safe Type

Caution for FM intrinsically safe type. (Following contents refer “DOC. No. IFM022-A12”)

Note 1. Model EJX/EJA-E Series Differential,

gauge and absolute pressure transmitters with optional code /FS1 are applicable for use in hazardous locations.

• Applicable Standard: FM3600, FM3610,

FM3611, FM3810

• Intrinsically Safe for Class I, Division 1,

Groups A, B, C & D. Class II, Division 1, Groups E, F & G and Class III, Division 1, Class I, Zone 0 in Hazardous Locations, AEx ia IIC

• Nonincendive for Class I, Division 2, Groups

A, B, C & D. Class II, Division 2, Groups F & G, Class I, Zone 2, Groups IIC, in Hazardous Locations.

• Outdoor hazardous locations, NEMA TYPE

4X.

• Temperature Class: T4

• Ambient temperature: –60 to 60°C

• Entity Installation Requirements Vmax ≥ Voc or Uo or Vt, Imax ≥ Isc or Io or It, Pmax (or Po) ≤ Pi, Ca or Co ≥ Ci + Ccable, La or Lo ≥ Li + Lcable

Note 3. Installation

• Barrier must be installed in an enclosure that meets the requirements of ANSI/ISA S82.01.

• Control equipment connected to barrier must not use or generate more than 250 V rms or V dc.

• Installation should be in accordance with ANSI/ISA RP12.6 “Installation of Intrinsically Safe Systems for Hazardous (Classied) Locations” and the National Electric Code (ANSI/NFPA 70).

• The conguration of associated apparatus must be FMRC Approved.

• Dust-tight conduit seal must be used when installed in a Class II, III, Group E, F and G environments.

• Associated apparatus manufacturer’s installation drawing must be followed when installing this apparatus.

• The maximum power delivered from the barrier must not exceed 1 W.

• Note a warning label worded “SUBSTITUTION OF COMPONENTS MAY IMPAIR INTRINSIC SAFETY,” and “INSTALL IN ACCORDANCE WITH DOC. No. IFM022A12”

IM 01C25B01-01E

<2. Handling Cautions>

2-5

Note 4. Maintenance and Repair

• The instrument modication or parts replacement by other than authorized representative of Yokogawa Electric Corporation is prohibited and will void Factory Mutual Intrinsically safe and Nonincendive Approval.

[Intrinsically Safe]

Hazardous Location Nonhazardous Location

Class I, II, III, Division 1, Groups A, B, C, D, E, F, G Class 1, Zone 0 in Hazardous (Classified) Locations AEx ia IIC

Pressure Transmitters

Supply

Hazardous Location Nonhazardous Location

Class I, II, Division 2, Groups A, B, C, D, F, G Class 1, Zone 2, Group IIC, in Hazardous (Classified) Locations

Pressure Transmitters

Supply

–

[Nonincendive]

+ –

Safety Barrier

–

Not Use Safety Barrier

b. FM Explosionproof Type

Caution for FM explosionproof type.

Note 1. Model EJX/EJA-E Series pressure

transmitters with optional code /FF1 are applicable for use in hazardous locations.

• Applicable Standard: FM3600, FM3615, FM3810, ANSI/NEMA 250

• Explosionproof for Class I, Division 1, Groups B, C and D.

• Dust-ignitionproof for Class II/III, Division 1, Groups E, F and G.

• Enclosure rating: NEMA TYPE 4X.

• Temperature Class: T6

• Ambient Temperature: –40 to 60°C

• Supply Voltage: 42 V dc max.

• Output signal: 4 to 20 mA

General Purpose Equipment

+ –

F0203-1.ai

General Purpose Equipment

+ –

F0203-2.ai

Note 2. Wiring

• All wiring shall comply with National Electrical Code ANSI/NFPA70 and Local Electrical Codes.

• When installed in Division 1, “FACTORY SEALED, CONDUIT SEAL NOT REQUIRED.”

Note 3. Operation

• Keep the “WARNING” nameplate attached to the transmitter.

WARNING: OPEN CIRCUIT BEFORE

REMOVING COVER. FACTORY SEALED, CONDUIT SEAL NOT REQUIRED. INSTALL IN ACCORDANCE WITH THE USERS MANUAL IM 01C25.

• Take care not to generate mechanical sparking when accessing to the instrument and peripheral devices in a hazardous location.

Note 4. Maintenance and Repair

• The instrument modication or parts replacement by other than authorized representative of Yokogawa Electric Corporation is prohibited and will void Factory Mutual Explosionproof Approval.

c. FM Intrinsically Safe Type/FM

Explosionproof Type

Model EJX/EJA-E Series pressure transmitters with optional code /FU1 or /V1U1 can be selected the type of protection (FM Intrinsically Safe or FM Explosionproof) for use in hazardous locations.

Note 1. For the installation of this transmitter,

once a particular type of protection is selected, any other type of protection cannot be used. The installation must be in accordance with the description about the type of protection in this instruction manual.

Note 2. In order to avoid confusion, unnecessary

marking is crossed out on the label other than the selected type of protection when the transmitter is installed.

IM 01C25B01-01E

<2. Handling Cautions>

2-6

2.9.2 CSA Certication

a. CSA Intrinsically Safe Type

Caution for CSA Intrinsically safe and nonincendive type. (Following contents refer to “DOC No. ICS013-A13”)

Note 1. Model EJX/EJA-E Series differential,

gauge, and absolute pressure transmitters with optional code /CS1 are applicable for

use in hazardous locations Certicate: 1606623 [For CSA C22.2]

• Applicable Standard: C22.2 No.0, C22.2

No.0.4, C22.2 No.25, C22.2 No.94, C22.2 No.157, C22.2 No.213, C22.2 No.61010-1, C22.2 No.60079-0

• Intrinsically Safe for Class I, Division 1,

Groups A, B, C & D, Class II, Division 1, Groups E, F & G, Class III, Division 1

• Nonincendive for Class I, Division 2, Groups

A, B, C & D, Class II, Division 2, Groups E, F & G, Class III, Division 1

• Enclosure: NEMA TYPE 4X

• Temp. Code: T4

• Amb. Temp.:–50* to 60°C

* –15°C when /HE is specied.

• Process Temperature: 120°C max. [For CSA E60079]

• Applicable Standard: CAN/CSA E60079-11,

CAN/CSA E60079-15, IEC 60529:2001

• Ex ia IIC T4, Ex nL IIC T4

• Ambient Temperature: –50* to 60°C

* –15°C when /HE is specied.

• Max. Process Temp.: 120°C

• Enclosure: IP66/IP67

Note 2. Entity Parameters

• Intrinsically safe ratings are as follows: Maximum Input Voltage (Vmax/Ui) = 30 V Maximum Input Current (Imax/Ii) = 200 mA Maximum Input Power (Pmax/Pi) = 0.9 W Maximum Internal Capacitance (Ci) = 10 nF Maximum Internal Inductance (Li) = 0 µH

• Type "n" or Nonincendive ratings are as

follows: Maximum Input Voltage (Vmax/Ui) = 30 V Maximum Internal Capacitance (Ci) = 10 nF Maximum Internal Inductance (Li) = 0 µH

• Installation Requirements Uo ≤ Ui, Io ≤ Ii, Po ≤ Pi, Co ≥ Ci + Ccable, Lo ≥ Li + Lcable Voc ≤ Vmax, Isc ≤ Imax, Ca ≥ Ci + Ccable, La ≥ Li + Lcable Uo, Io, Po, Co, Lo, Voc, Isc, Ca and La are

parameters of barrier.

Note 3. Installation

• In any safety barreir used output current must be limited by a resistor 'R' such that Io=Uo/R or Isc=Voc/R.

• The safety barrier must be CSA certied.

• Input voltage of the safety barrier must be less than 250 Vrms/Vdc.

• Installation should be in accordance with Canadian Electrical Code Part I and Local Electrical Code.

• Dust-tight conduit seal must be used when installed in Class II and III environments.

• The instrument modication or parts replacement by other than authorized representative of Yokogawa Electric Corporation and Yokogawa Corporation of America is prohibited and will void Canadian Standards Intrinsically safe and nonincendive Certication.

[Intrinsically Safe]

Hazardous Location Nonhazardous Location

Group IIC, Zone 0 Class I, II, III, Division 1, Groups A, B, C, D, E, F, G

Pressure Transmitters

Supply

Hazardous Location Nonhazardous Location

Group IIC, Zone 2 Class I, II, Division 2, Groups A, B, C, D, F, G Class III, Division 1.

Pressure Transmitters

Supply

–

[Nonincendive]

+ –

Safety Barrier

+ –

Not Use Safety Barrier

+ –

b. CSA Explosionproof Type

Caution for CSA explosionproof type.

Note 1. Model EJX/EJA-E Series pressure

transmitters with optional code /CF1 are applicable for use in hazardous locations:

• Certicate: 2014354

• Applicable Standard: C22.2 No.0, C22.2 No.0.4, C22.2 No.0.5, C22.2 No.25, C22.2 No.30, C22.2 No.94, C22.2 No.61010-1, C22.2 No.60079-0, C22.2 No.60079-1

General Purpose Equipment

+ –

F0204-1.ai

CSA Certified Equipment ([nL] or nonincendive)

+ –

F0204-2.ai

IM 01C25B01-01E

<2. Handling Cautions>

2-7

• Explosion-proof for Class I, Groups B, C and D.

• Dustignition-proof for Class II/III, Groups E, F and G.

• Enclosure: NEMA TYPE 4X

• Temperature Code: T6...T4

• Ex d IIC T6...T4

• Enclosure: IP66/IP67

• Maximum Process Temperature: 120°C (T4), 100°C (T5), 85°C (T6)

• Ambient Temperature: –50* to 75°C (T4), –50* to 80°C (T5), –50* to 75°C (T6)

* –15°C when /HE is specied.

• Supply Voltage: 42 V dc max.

• Output Signal: 4 to 20 mA dc

Note 2. Wiring

• All wiring shall comply with Canadian Electrical Code Part I and Local Electrical Codes.

• In hazardous location, wiring shall be in conduit as shown in the gure.

• WARNING:

A SEAL SHALL BE INSTALLED WITHIN

50cm OF THE ENCLOSURE.

UN SCELLEMENT DOIT ÊTRE INSTALLÉ À

MOINS DE 50cm DU BOÎTIER.

• WARNING:

WHEN INSTALLED IN CL.I, DIV 2, SEAL

NOT REQUIRED.

UNE FOIS INSTALLÉ DANS CL I, DIV 2,

AUCUN JOINT N'EST REQUIS.

Non-Hazardous

Locations

Non-hazardous Location Equipment

42 V DC Max. 4 to 20 mA DC Signal

Non-Hazardous

Locations

Non-hazardous Location Equipment

42 V DC Max. 4 to 20 mA DC Signal

Hazardous Locations Division 1

50 cm Max.

Sealing Fitting

Hazardous Locations Division 2

Sealing Fitting

Conduit

Transmitter

PULSE

SUPPLY

CHECK ALARM

F0205-1.ai

PULSE

SUPPLY

CHECK ALARM

F0205-2.ai

• All wiring shall comply with local installation requirements and local electrical code.

• In hazardous locations, the cable entry devices shall be of a certied ameproof type, suitable for the conditions of use and correctly installed.

• Unused apertures shall be closed with suitable ameproof certied blanking elements. (The plug attached is ameproof certied.)

Note 3. Operation

• WARNING:

AFTER DE-ENERGIZING, DELAY 5

MINUTES BEFORE OPENING.

APRÉS POWER-OFF, ATTENDRE 5

MINUTES AVANT D'OUVRIR.

• WARNING:

WHEN AMBIENT TEMPERATURE ≥ 65°C,

USE THE HEAT-RESISTING CABLES ≥ 90°C.

QUAND LA TEMPÉRATURE AMBIANTE

≥ 65°C, UTILISEZ DES CÂBLES RÉSISTANTES Á LA CHALEUR ≥ 90°C.

• Take care not to generate mechanical sparking when accessing to the instrument and peripheral devices in a hazardous location.

Note 4. Maintenance and Repair

c CSA Intrinsically Safe Type/CSA

Explosionproof Type

Model EJX/EJA-E Series pressure transmitters with optional code /CU1 or /V1U1 can be selected the type of protection (CSA Intrinsically Safe or CSA Explosionproof) for use in hazardous locations.

Note 1. For the installation of this transmitter,

Note 2. In order to avoid confusion, unnecessary

marking is crossed out on the label other than the selected type of protection when the transmitter is installed.

IM 01C25B01-01E

<2. Handling Cautions>

2-8

2.9.3 ATEX Certication

(1) Technical Data

a. ATEX Intrinsically Safe Ex ia

Caution for ATEX Intrinsically safe type.

Note 1. Model EJX/EJA-E Series pressure

transmitters with optional code /KS21 for potentially explosive atmospheres:

• No. DEKRA 11ATEX0228 X

• Applicable Standard: EN 60079-0:2009, EN 60079-11:2007, EN 60079-26:2007, EN 61241-11:2006

• Type of Protection and Marking code: Ex ia IIC T4 Ga

Ex ia IIIC T85 ºC T100 ºC T120 ºC Db

• Group: II

• Category: 1G, 2D

• Ambient Temperature for EPL Ga: –50 to 60°C

• Ambient Temperature for EPL Db: –30* to 60°C

* –15°C when /HE is specied.

• Process Temperature (Tp.): 120°C max.

• Maximum Surface Temperature for EPL Db: T85°C (Tp.: 80°C) T100°C (Tp.: 100°C) T120°C (Tp.: 120°C)

• Enclosure: IP66 / IP67

Note 2 Electrical Data

• In type of explosion protection intrinsic safety Ex ia IIC or Ex ia IIIC, only for connection to a certied intrinsically safe circuit with following maximum values:

Ui = 30 V Ii = 200 mA Pi = 0.9 W (Linear Source) Maximum internal capacitance; Ci = 27.6 nF Maximum internal inductance; Li = 0 µH

Note 3. Installation

• Refer to the control drawing. All wiring shall comply with local installation requirements.

[Control Drawing]

Hazardous Location

Transmitter

Supply

–

*1: In any safety barriers used the output current must be

limited by a resistor “R” such that Io=Uz/R.

Nonhazardous Location

Safety Barrier

–

F0206.ai

Note 4. Maintenance and Repair

• The instrument modication or parts replacement by other than authorized representative of Yokogawa Electric Corporation is prohibited and will void DEKRA Intrinsically safe Certication.

Note 5. Special Conditions for Safe Use

WARNING

• In the case where the enclosure of the Pressure Transmitter is made of aluminium, if it is mounted in an area where the use of category 1 G apparatus is required, it must be installed such, that, even in the event of rare incidents, ignition sources due to impact and friction sparks are excluded.

• Electrostatic charge may cause an exlosion hazard. Avoid any actions that cause the gerenation of eletrostatic charge, such as rubbing with a dry cloth on coating face of the product.

• In case of the enclosure of the Pressure Transmitter with paint layers, if it is mounted in an area where the use of category 2D apparatus is required, it shall be installed in such a way that the risk from electrostatic discharges and propagating brush discharges caused by rapid ow of dust is avoided.

• To satisfy IP66 or IP67, apply waterproof glands to the electrical connection port.

• When the lightning protector option is specied, the apparatus is not capable of withstanding the 500V insulation test required by EN60079-11. This must be taken into account when installing the apparatus.

IM 01C25B01-01E

<2. Handling Cautions>

b. ATEX Flameproof Type

Caution for ATEX ameproof type.

WARNING

2-9

Note 1. Model EJX/EJA-E Series pressure

transmitters with optional code /KF22 for potentially explosive atmospheres:

• No. KEMA 07ATEX0109 X

• Applicable Standard: EN 60079-0:2009, EN 60079-1:2007, EN 60079-31:2009

• Type of Protection and Marking Code:

Ex d IIC T6...T4 Gb, Ex tb IIIC T85°C Db

• Group: II

• Category: 2G, 2D

• Enclosure: IP66 / IP67

• Temperature Class for gas-poof: T6, T5, and T4

• Ambient Temperature for gas-proof: –50 to 75°C (T6), –50 to 80°C (T5), and –50 to 75°C (T4)

• Maximum Process Temperature (Tp.) for gas-proof:

85°C (T6), 100°C (T5), and 120°C (T4)

• Maximum Surface Temperature for dustproof: T85°C (Tamb.: –30* to 75°C, Tp.: 85°C)

* –15°C when /HE is specied.

Note 2. Electrical Data

• Supply voltage: 42 V dc max.

• Output signal: 4 to 20 mA

Note 3. Installation

• All wiring shall comply with local installation requirement.

• The cable entry devices shall be of a certied ameproof type, suitable for the conditions of use.

Note 4. Operation

• Keep the “WARNING” label attached to the transmitter.

WARNING: AFTER DE-ENERGIZING,

DELAY 5 MINUTES BEFORE OPENING. WHEN THE AMBIENT TEMP.≥65°C, USE HEAT-RESISTING CABLE AND CABLE GLAND ≥90°C.

• Take care not to generate mechanical sparking when accessing to the instrument and peripheral devices in a hazardous location.

Note 5. Special Conditions for Safe Use

• Electrostatic charge may cause an exlosion hazard. Avoid any actions that cause the gerenation of eletrostatic charge, such as rubbing with a dry cloth on coating face of the product.

• In the case where the enclosure of the Pressure Transmitter is made of aluminium, if it is mounted in an area where the use of category 2D apparatus is required, it shall be installed in such a way that the risk from electrostatic discharges and propagating brush discharges caused by rapid ow of dust is avoided.

• The instrument modication or parts replacement by other than an authorized Representative of Yokogawa Electric Corporation is prohibited and will void the certication.

• To satisfy IP66 or IP67, apply waterproof glands to the electrical connection port.

c. ATEX Intrinsically Safe Type/ATEX

Flameproof Type

Model EJX/EJA-E Series pressure transmitters with optional code /KU22 or /V1U1 can be selected the type of protection ATEX Flameproof, Intrinsically Safe. Ex ia, or Ex ic for use in hazardous area.

Note 1. For the installation of this transmitter,

Note 2. For combined approval types Once a

device of multiple approval type is installed, it should not be re-installed using any other approval types. Apply a permanent mark in the check box of the selected approval type on the certication label on the transmitter to distinguish it from unused approval types.

IM 01C25B01-01E

<2. Handling Cautions>

● ATEX Intrinsically Safe Ex ic

Caution for ATEX intrinsically safe Ex ic

• Applicable Standard: EN 60079-0:2009/EN 60079-0:2012, EN 60079-11:2012

• Type of Protection and Marking Code:

II 3G Ex ic IIC T4 Gc

• Ambient Temperature: –30* to +60°C

* –15°C when /HE is specied.

• Ambient Humidity: 0 to 100% (No condensation)

• Maximum Process Temperature: 120°C

• IP Code: IP66

WARNING

• Electrostatic charge may cause an explosion hazard. Avoid any actions that cause the gerenation of eletrostatic charge, such as rubbing with a dry cloth on coating face of the product.

• Ambient pollution degree: 2

• Overvoltage category: I

Note 1. Electrical Data

Ui = 30 V Ci = 27.6 nF Li = 0 µH

(2) Electrical Connection

A mark indicating the electrical connection type is stamped near the electrical connection port. These marks are as followed.

Screw Size Marking

Note 2. Installation

• All wiring shall comply with local installation requirements. (refer to the control drawing)

ISO M20 × 1.5 female

ANSI 1/2 NPT female

• Cable glands, adapters and/or blanking elements shall be of Ex “n”, Ex “e” or Ex “d” and shall be installed so as to maintain the specied degree of protection (IP Code) of the transmitters.

Location of the mark

Note 3. Maintenance and Repair

• The instrument modication or parts replacement by other than authorized representative of Yokogawa Electric

(3) Installation

Corporation is prohibited and will void ATEX intrinsically safe.

Hazardous Area

Transmitter

[Control drawing]

–

Nonhazardous Area

Associated Apparatus

WARNING

• All wiring shall comply with local installation requirements and the local electrical code.

• There is no need for conduit seal in Division 1 and Division 2 hazardous locations because this product is sealed at the factory.

2-10

N or W

F0208.ai

Note 4. Specic Conditions of Use

F0207.ai

(4) Operation

WARNING

• OPEN CIRCUIT BEFORE REMOVING COVER. INSTALL IN ACCORDANCE WITH THIS USER’S MANUAL

• Take care not to generate mechanical sparking when access to the instrument and peripheral devices in a hazardous location.

IM 01C25B01-01E

<2. Handling Cautions>

2-11

(5) Maintenance and Repair

WARNING

The instrument modication or parts replacement by other than an authorized Representative of Yokogawa Electric Corporation is prohibited and will void the certication.

(6) Name Plate

 Name plate

 Tag plate for flameproof type

No. KEMA 07ATEX0109 X Ex d IIC T6...T4 Gb, Ex tb IIIC T85°C Db Enlcosure : IP66/IP67 TEMP. CLASS T6 T5 T4 MAX PROCESS TEMP.(Tp.) 85 100 120 °C Tamb. -50 to 75 80 75 °C T85°C(Tamb.:-30(-15) to 75°C, Tp.:85°C)(for Dust)

WARNING

 Tag plate for intrinsically safe type

AFTER DE-ENERGIZING, DELAY 5 MINUTES BEFORE OPENING. WHEN THE AMBIENT TEMP. ≥ 65°C, USE THE HEAT-RESISTING CABLE & CABLE GLAND ≥ 90°C POTENTIAL ELECTROSTATIC CHARGING HAZARD

No. DEKRA 11ATEX 0228 X Ex ia IIC T4 Ga Ta: -50 TO 60°C Ex ia IIIC T85°C T100°C T120°C Db Ta:-30(-15) TO 60°C IP66/IP67 MAX. PROCESS TEMP.(Tp.) 120°C T85°C(Tp.:80°C), T100°C(Tp.:100°C), T120°C(Tp.:120°C) Ui=30V, Ii=200mA , Pi=0.9W, Ci=27.6nF, Li=0µH

*1: The rst digit in the three numbers next to the nine

letters of the serial number appearing after “NO.” on the nameplate indicates the year of production. The following is an example of a serial number for a product that was produced in 2010:

91K819857 032

The year 2010

*2: “180-8750” is a zip code which represents the

following address.

2-9-32 Nakacho, Musashino-shi, Tokyo Japan

*3: The identication number of Notied Body.

2.9.4 IECEx Certication

Model EJX Series pressure transmitters with optional code /SU2 can be selected the type of protection (IECEx Intrinsically Safe/type n or ameproof) for use in hazardous locations.

Note 1. For the installation of this transmitter,

Note 2. In order to avoid confusion, unnecessary

marking is crossed out on the label other than the selected type of protection when the transmitter is installed.

a. IECEx Intrinsically Safe Type / type n

Caution for IECEx Intrinsically safe and type n.

WARNING

POTENTIAL ELECTROSTATIC CHARGING HAZARD

- SEE USER’S MANUAL

 Tag plate for intrinsically safe Ex ic

Ex ic IIC T4 Gc IP66 Tamb -30(-15) TO 60°C MAX. PROCESS TEMP. 120°C Ui=30V, Ci=27.6nF, Li=0µH

WARNING

POTENTIAL ELECTROSTATIC CHARGING HAZARD

- SEE USER’S MANUAL

MODEL: Specied model code. STYLE: Style code. SUFFIX: Specied sufx code. SUPPLY: Supply voltage. OUTPUT: Output signal. MWP: Maximum working pressure. CAL RNG: Specied calibration range. NO.: Serial number and year of production*1. TOKYO 180-8750 JAPAN: The manufacturer name and the address*2.

F0209.ai

Note 1. Model EJX Series differential, gauge,

and absolute pressure transmitters with optional code /SU2 are applicable for use in hazardous locations

• No. IECEx CSA 05.0005

• Applicable Standard: IEC 60079-0:2000, IEC 60079-11:1999, IEC 60079-15:2001

• Ex ia IIC T4, Ex nL IIC T4

• Ambient Temperature: –50 to 60°C

• Max. Process Temp.: 120°C

• Enclosure: IP66/IP67

Note 2. Entity Parameters

• Type "n" ratings are as follows: Maximum Input Voltage (Vmax/Ui) = 30 V Maximum Internal Capacitance (Ci) = 10 nF Maximum Internal Inductance (Li) = 0 µH

IM 01C25B01-01E

<2. Handling Cautions>

2-12

• Installation Requirements Uo ≤ Ui, Io ≤ Ii, Po ≤ Pi, Co ≥ Ci + Ccable, Lo ≥ Li + Lcable Voc ≤ Vmax, Isc ≤ Imax, Ca ≥ Ci + Ccable, La ≥ Li + Lcable Uo, Io, Po, Co, Lo, Voc, Isc, Ca and La are parameters of barrier.

Note 3. Installation

• In any safety barrier used output current must be limited by a resistor 'R' such that Io=Uo/R.

• The safety barrier must be IECEx certied.

• Input voltage of the safety barrier must be less than 250 Vrms/Vdc.

• The instrument modication or parts replacement by other than authorized representative of Yokogawa Electric Corporation and will void IECEx Intrinsically safe and type n certication.

[Intrinsically Safe]

Hazardous Location Nonhazardous Location

Group IIC, Zone 0

[type n]

IECEx certified Safety Barrier

–

Not Use Safety Barrier

IECEx Certified Equipment [nL]

Pressure Transmitters

Supply

Hazardous Location Nonhazardous Location

Group IIC, Zone 2

Pressure Transmitters

Supply

–

+ –

b. IECEx Flameproof Type

Caution for IECEx ameproof type.

General Purpose Equipment

+ –

F0210-1.ai

+ –

F0210-2.ai

• Maximum Process Temperature: 120°C (T4), 100°C (T5), 85°C (T6)

• Ambient Temperature: –50 to 75°C (T4), –50 to 80°C (T5), –50 to 75°C (T6)

• Supply Voltage: 42 V dc max.

• Output Signal: 4 to 20 mA dc

Note 2. Wiring

• In hazardous locations, the cable entry devices shall be of a certied ameproof type, suitable for the conditions of use and correctly installed.

• Unused apertures shall be closed with suitable ameproof certied blanking elements.

Note 3. Operation

• WARNING: AFTER DE-ENERGIZING, DELAY 5 MINUTES BEFORE OPENING.

• WARNING:

WHEN AMBIENT TEMPERATURE ≥ 65°C,

USE THE HEAT-RESISTING CABLES ≥ 90°C.

• Take care not to generate mechanical sparking when accessing to the instrument and peripheral devices in a hazardous location.

Note 4. Maintenance and Repair

• The instrument modication or parts replacement by other than authorized representative of Yokogawa Electric Corporation is prohibited and will void IECEx Certication.

2.10 EMC Conformity Standards

EN61326-1 Class A, Table2 (For use in industrial locations) EN61326-2-3

CAUTION

Note 1. Model EJX/EJA-E Series pressure

transmitters with optional code /SF2 or /SU2 are applicable for use in hazardous locations:

• No. IECEx CSA 07.0008

• Applicable Standard: IEC60079-0:2004, IEC60079-1:2003

• Flameproof for Zone 1, Ex d IIC T6...T4

• Enclosure: IP66/IP67

To meet EMC regulations, Yokogawa recommends that customers run signal wiring through metal conduits or use shielded twistedpair cabling when installing EJX/EJA-E series transmitters in a plant.

IM 01C25B01-01E

<2. Handling Cautions>

2-13

2.11 Pressure Equipment Directive (PED)

(1) General

• EJX/EJA-E Series pressure transmitters are categorized as piping under the pressure accessories section of directive 97/23/EC, which corresponds to Article 3, Paragraph 3 of PED, denoted as Sound Engineering Practice (SEP).

• EJX110A-MS, EJX110A-HS, EJX110A-VS, EJ130, EJ440, and EJA110E with /HG can be used above 200 bar and therefore considered as a part of a pressure retaining vessel where category III, Module H applies. These models with option code /PE3 conform to that category.

(2) Technical Data

• Models without /PE3 Article 3, Paragraph 3 of PED, denoted as Sound Engineering Practice (SEP).

• Models with /PE3

Module: H Type of Equipment: Pressure Accessory-Vessel Type of uid: Liquid and Gas Group of uid: 1 and 2

Model

EJA110E M, H, V

EJ110

EJX110A EJA110E

with code

/HG

EJ110

with code

/PE3

EJ130

with code

/PE3

EJ310

EJ430

EJ440

with code

/PE3

Capsule

code

F, L

M, H, V 250 0.01 2.5

M, H, V 250 0.01 2.5 III

M, H 500 0.01 5.0

M, H 500 0.01 5.0 III

L, M, A, B 160 0.01 1.6

H, A, B 160 0.01 1.6

C, D 500 0.1 5.0

C, D 500 0.1 5.0 III

PS* (bar)

160 0.01 1.6

V(L)

PS.V

(bar.L)

Category*

Article 3,

Paragraph 3

(SEP)

Article 3,

Paragraph 3

(SEP)

Article 3,

Paragraph 3

(SEP)

Article 3,

Paragraph 3

(SEP)

Article 3,

Paragraph 3

(SEP)

*1: PS is maximum pressure for vessel itself based on

Pressure Equipment Directive 97/23/EC. Refer to General Specication for maximum working pressure of a transmitter.

*2: Referred to Table 1 covered by ANNEX II of EC Directive

on Pressure Equipment Directive 97/23/EC

(3) Operation

CAUTION

• The temperature and pressure of uid should be maintained at levels that are consistent with normal operating conditions.

• The ambient temperature should be maintained at a level that is consistent with normal operating conditions.

• Please take care to prevent water hammer and the like from inducing excessive pressures in pipes and valves. If phenomena are likely, install a safety valve or take some other appropriate measure to prevent pressure from exceeding PS.

• Take appropriate measures at the device or system level to protect transmitters if they are to be operated near an external heat source.

2.12 Low Voltage Directive

Applicable standard: EN61010-1

(1) Pollution Degree 2

"Pollution degree" describes the degree to which a solid, liquid, or gas which deteriorates dielectric strength or surface resistivity is adhering. " 2 " applies to normal indoor atmosphere. Normally, only non-conductive pollution occurs. Occasionally, however, temporary conductivity caused by condensation must be expected.

(2) Installation Category I

"Overvoltage category (Installation category)" describes a number which denes a transient overvoltage condition. It implies the regulation for impulse withstand voltage. " I " applies to electrical equipment which is supplied from the circuit when appropriate transient overvoltage control means (interfaces) are provided.

IM 01C25B01-01E

<3. Component Names>

3. Component Names

Vertical impulse piping type

Pressure-detector section

Terminal box cover

3-1

Cover flange

Integral indicator

Mounting screw

Amplifier Cover

(Note 2)

Slide switch

(Note 1)

Range-setting

(Note 1)

switch (See section 7.6)

Transmitter section

Burnout direction switch (BO)

Vent plug

CPU assembly

Burnout direction switch

BO H L

WR E D

Write protection switch

Horizontal impulse piping type

External indicator conduit connection

Drain plug

Process connector (Note 1)

Hardware write protection switch (WR)

(Note 1)

Conduit connection

Zeroadjustment screw

Process connection

Burnout Direction

Switch Position

Burnout Direction

H L H L

HIGH LOW

Write Protection

Switch Position

Write Protection

H L

E D

(Write enabled)

H L

E D

YES

(Write disabled)

F0301.ai

Note 1: See subsection 9.2, “Model and Sufx Codes,” for details. A process connector will not be applied for lower side of EJ310,

EJ430, and EJ440.

Note 2: Applicable for BRAIN/HART communication type. Set the switches as shown in the gure above to set the burn-out direction

and write protection. The Burnout switch is set to the H side for delivery (unless option code /C1 or /C2 is specied in the order), and the hardware write protection switch is set to E side. The setting of the switches can be conrmed via communication. An external zero adjustment screw can only be disabled by communication. To disable the screw, set a parameter before activating the hardware write protect function. See each communication manual.

Figure 3.1 Component Names

Table 3.1 Display Symbol

Display Symbol Meaning of Display Symbol

Display mode is ‘square root’. (Display is not lit when ‘linear’ mode.)

The output signal being zero-adjusted is increasing.

The output signal being zero-adjusted is decreasing.

Write protect function is enabled.

IM 01C25B01-01E

F0302.ai

<4. Installation>

4. Installation

4.1 Precautions

Before installing the transmitter, read the cautionary notes in section 2.4, “Selecting the Installation Location.” For additional information on the ambient conditions allowed at the installation location, refer to subsection 9.1 “Standard Specications.”

IMPORTANT

57 mm 54 mm 51 mm

Figure 4.1 Process Connector Impulse Piping

Connection Distances for Differential Pressure Transmitters

4-1

F0401.ai

• When welding piping during construction, take care not to allow welding currents to ow through the transmitter.

• Do not step on this instrument after installation.

• For the EJ430 and EJ440, the atmospheric opening is located on the low pressure side cover ange. The opening must not face upward. See section 9.4, “Dimensions,” for the location of the opening.

4.2 Mounting

■ The transmitter is shipped with the process connection, according to the ordering specications. To change the orientation of the process connections, refer to section 4.3.

■ With differential pressure transmitters, the distance between the impulse piping connection ports is usually 54 mm (gure 4.1). By changing the orientation of the process connector, the dimension can be changed to 51 mm or 57 mm.

■ The transmitter can be mounted on a nominal 50 mm (2-inch) pipe using the mounting bracket supplied, as shown in gure 4.2 and

4.3 The transmitter can be mounted on either a horizontal or a vertical pipe.

■ When mounting the bracket on the transmitter, tighten the (four) bolts that hold the transmitter with a torque of approximately 39 N·m {4kgf·m}.

Figure 4.1 and 4.2 shows the mounting of the transmitter for horizontal piping and vertical piping with using the mounting bracket. The transmitters with the installation code -U (Universal ange) can be used for either type of mounting.

Vertical pipe mounting

Transmitter mounting bolt

U-bolt nut

Mounting bracket

Horizontal pipe mounting

U-bolt nut

U-bolt

50 mm(2-inch) pipe

Transmitter mounting bolt

Mounting bracket

50 mm(2-inch) pipe

Figure 4.2 Transmitter Mounting (Horizontal

Impulse Piping Type)

U-bolt

IM 01C25B01-01E

F0402.ai

<4. Installation>

4-2

Vertical pipe mounting (Process connector downside)

U-bolt nut

Vertical pipe mounting (Process connector upside)

U-bolt nut

Transmitter mounting bolt

Mounting bracket

50 mm(2-inch) pipe

Mounting bracket

50 mm(2-inch) pipe

U-bolt

4.3 Changing the Process Connection

The transmitter is shipped with the process connection specied at the time of ordering. To change the process connection, the drain (vent) plug must be repositioned.

To reposition a drain (vent) plug, use a wrench to slowly and gently unscrew it. Then, remove and remount it on the opposite side. Wrap sealing tape around the drain (vent) plug threads (*1 in the gure below), and apply a lubricant to the threads of the drain (vent) screw(s) (*2 below). To tighten the drain (vent) plugs, apply a torque of 34 to 39 N·m (3.5 to 4 kgf·m). Process connector bolts are to be tightened uniformly to a torque shown in table 4.1.

Table 4.1 Torque

EJ110 EJ120

Model

EJ130 EJ310 EJ430

Torque(N·m)

{kgf·m}

Vertical impulse piping type Horizontal impulse piping type

39 to 49 {4 to 5}

EJ440

C capsule D capsule

49 to 59

{5 to 6}

Transmitter mounting bolt

F0403.ai

Figure 4.3 Transmitter Mounting (Vertical Impulse

Piping Type)

Bolt

Process

connector

Drain/vent plug

gasket

Note: For a horizontal impulse

piping type, moving the process connectors from the front side to the back cannot be made.

Figure 4.4 Changing Process Connection

F0404.ai

IM 01C25B01-01E

<4. Installation>

4-3

4.4 Swapping the High/Lowpressure Side Connection

IMPORTANT

This section is applicable only for EJ110, EJ120, and EJ130 differential transmitters, and not applicable for gauge or absolute pressure transmitters.

4.4.1 Rotating Pressure-detector Section 180°

This procedure can be applied only to a transmitter with a vertical impulse piping type.

The procedure below can be used to turn the pressure detector assembly 180°. Perform this operation in a maintenance shop with the necessary tools laid out and ready for use, and then install the transmitter in the eld after making the change.

1) Use an Allen wrench (JIS B4648, nominal 2.5 mm) to remove the two setscrews at the joint between the pressure-detector section and transmitter section.

2) Leaving the transmitter section in position, rotate the pressure-detector section 180°.

3) Tighten the two setscrews to x the pressuredetector section and transmitter section together (at a torque of 1.5 N·m).

Reposition the process connector and drain

(vent) plugs to the opposite side as described in subsection 4.3.

Process connector

4.4.2 Using the Communicator

This method is applicable only to the Model EJ110, EJ120, and EJ130.

With a communicator, you can change which process connection is used as the high-pressure side without mechanically rotating the pressuredetector section 180 as described in subsection

4.4.1. To change, call parameter ‘D15: H/L SWAP’ for BRAIN Communication or ‘H/L swap’ for HART Communication and select REVERSE (right side: low pressure; left side: high pressure) or select NORMAL to change back to normal (right side: high pressure; left side: low pressure).

NORMAL

Output

Input

REVERSE

Figure 4.6 Input/Output Relationship

F0406.ai

IMPORTANT

Since the H/L label plate on the capsule assembly will remain unchanged, use this function only when you cannot switch the impulse piping. If the ‘H/L SWAP’ parameter setting is changed, the input/output relationship is reversed as shown in gure 4.6; be sure this is understood by all.

Setscrew

Before

Figure 4.5 Before and After Modication

After rotating 180°

F0405.ai

IM 01C25B01-01E

<4. Installation>

4-4

4.5 Rotating Transmitter Section

The transmitter section can be rotated approximately 360° (180° to either direction or 360° to one direction from the original position at shipment, depending on the conguration of the instrument.) It can be xed at any angle within above range.

1) Remove the two setscrews that fasten the transmitter section and capsule assembly, using the Allen wrench.

2) Rotate the transmitter section slowly and stop it at designated position.

3) Tighten the two setscrews to a torque of 1.5 N·m.

IMPORTANT

Do not rotate the transmitter section more than the above limit.

Vertical impulse piping type

Pressure-detector section

Stopper

Rotate 0 to ±180° segments

4.6 Changing the Direction of Integral Indicator

IMPORTANT

Always turn OFF power, release pressure and remove a transmitter to non-hazardous area before disassembling and reassmbling an indicator.

An integral indicator can be installed in the following three directions. Follow the instructions in section 8.4 for removing and attaching the integral indicator.

F0408.ai

Figure 4.8 Integral Indicator Direction

Conduit connection

Transmitter section

Horizontal impulse piping type

Transmitter section

Rotate 0 to ±180° segments

Conduit connection Zero-adjustment screw

Pressure-detector section

F0407.ai

Figure 4.7 Rotating Transmitter Section (Left Side

High Pressure Type)

IM 01C25B01-01E

+ 59 hidden pages
