YOKOGAWA EJA310A, EJA430A, EJA440A User's Manual

User’s Manual
IM 01C21D01-01E
okogawa Electric Corporation
IM 01C21D01-01E
10th Edition
CONTENTS
CONTENTS
1. INTRODUCTION............................................................................................ 1-1
Regarding This Manual ................................................................................. 1-1
1.1 For Safe Use of Product........................................................................ 1-1
1.2 Warranty ................................................................................................ 1-2
1.3 ATEX Documentation ............................................................................ 1-3
2. HANDLING CAUTIONS ................................................................................ 2-1
2.1 Model and Specifications Check ......................................................... 2-1
2.2 Unpacking ........................................................................................... 2-1
2.3 Storage ................................................................................................ 2-1
2.4 Selecting the Installation Location ...................................................... 2-1
2.5 Pressure Connection ........................................................................... 2-2
2.6 Waterproofing of Cable Conduit Connections .................................... 2-2
2.7 Restrictions on Use of Radio Transceiver .......................................... 2-2
2.8 Insulation Resistance and Dielectric Strength Test ............................ 2-2
2.9 Installation of Explosion Protected Type ............................................ 2-3
2.9.1 FM Approval ................................................................................. 2-3
2.9.2 CSA Certification .......................................................................... 2-5
2.9.3 IECEx Certification ....................................................................... 2-6
2.9.4 CENELEC ATEX (KEMA) Certification ........................................ 2-7
2.10 EMC Conformity Standards .............................................................. 2-10
2.11 PED (Pressure Equipment Directive) ............................................... 2-10
2.12 Low Voltage Directive ....................................................................... 2-11
3. COMPONENT NAMES.................................................................................. 3-1
4. INSTALLATION ............................................................................................. 4-1
4.1 Precautions ......................................................................................... 4-1
4.2 Mounting .............................................................................................. 4-1
4.3 Changing the Process Connection ..................................................... 4-2
4.4 Rotating Transmitter Section .............................................................. 4-3
4.5 Changing the Direction of Integral Indicator ....................................... 4-3
5. INSTALLING IMPULSE PIPING ................................................................... 5-1
5.1 Impulse Piping Installation Precautions .............................................. 5-1
5.1.1 Connecting Impulse Piping to the Transmitter............................. 5-1
5.1.2 Routing the Impulse Piping .......................................................... 5-1
5.2 Impulse Piping Connection Examples ................................................ 5-2
6. WIRING .......................................................................................................... 6-1
6.1 Wiring Precautions .............................................................................. 6-1
6.2 Selecting the Wiring Materials ............................................................ 6-1
6.3 Connections of External Wiring to Terminal Box................................ 6-1
6.3.1 Power Supply Wiring Connection ................................................ 6-1
6.3.2 External Indicator Connection ...................................................... 6-1
6.3.3 BRAIN TERMINAL BT200 Connection ........................................ 6-1
6.3.4 Check Meter Connection.............................................................. 6-2
FD No. IM 01C21D01-01E 10th Edition: Jan. 2008(KP) All Rights Reserved, Copyright © 1997, Yokogawa Electric Corporation
i
IM 01C21D01-01E
CONTENTS
6.4 Wiring .................................................................................................. 6-2
6.4.1 Loop Configuration ....................................................................... 6-2
(1) General-use Type and Flameproof Type ...................................... 6-2
(2) Intrinsically Safe Type................................................................... 6-2
6.4.2 Wiring Installation ......................................................................... 6-2
(1) General-use Type and Intrinsically Safe Type .............................. 6-2
(2) Flameproof Type........................................................................... 6-3
6.5 Grounding............................................................................................ 6-3
6.6 Power Supply Voltage and Load Resistance ..................................... 6-3
7. OPERATION .................................................................................................. 7-1
7.1 Preparation for Starting Operation ...................................................... 7-1
7.2 Zero Point Adjustment ........................................................................ 7-2
7.2.1 When you can obtain Low Range Value from actual
measured value of 0% (0 kPa, atmospheric pressure); .............. 7-3
7.2.2 When you cannot obtain Low Range Value from actual
measured value of 0%; ................................................................ 7-3
7.3 Starting Operation ............................................................................... 7-4
7.4 Shutting Down Operation .................................................................... 7-4
7.5 Venting or Draining Transmitter Pressure-detector Section ............... 7-4
7.5.1 Draining Condensate.................................................................... 7-4
7.5.2 Venting Gas.................................................................................. 7-5
7.6 Setting the Range Using the Range-setting Switch ........................... 7-5
8. BRAIN TERMINAL BT200 OPERATION ..................................................... 8-1
8.1 BT200 Operation Precautions ............................................................. 8-1
8.1.1 Connecting the BT200 ................................................................. 8-1
8.1.2 Conditions of Communication Line .............................................. 8-1
8.2 BT200 Operating Procedures ............................................................. 8-1

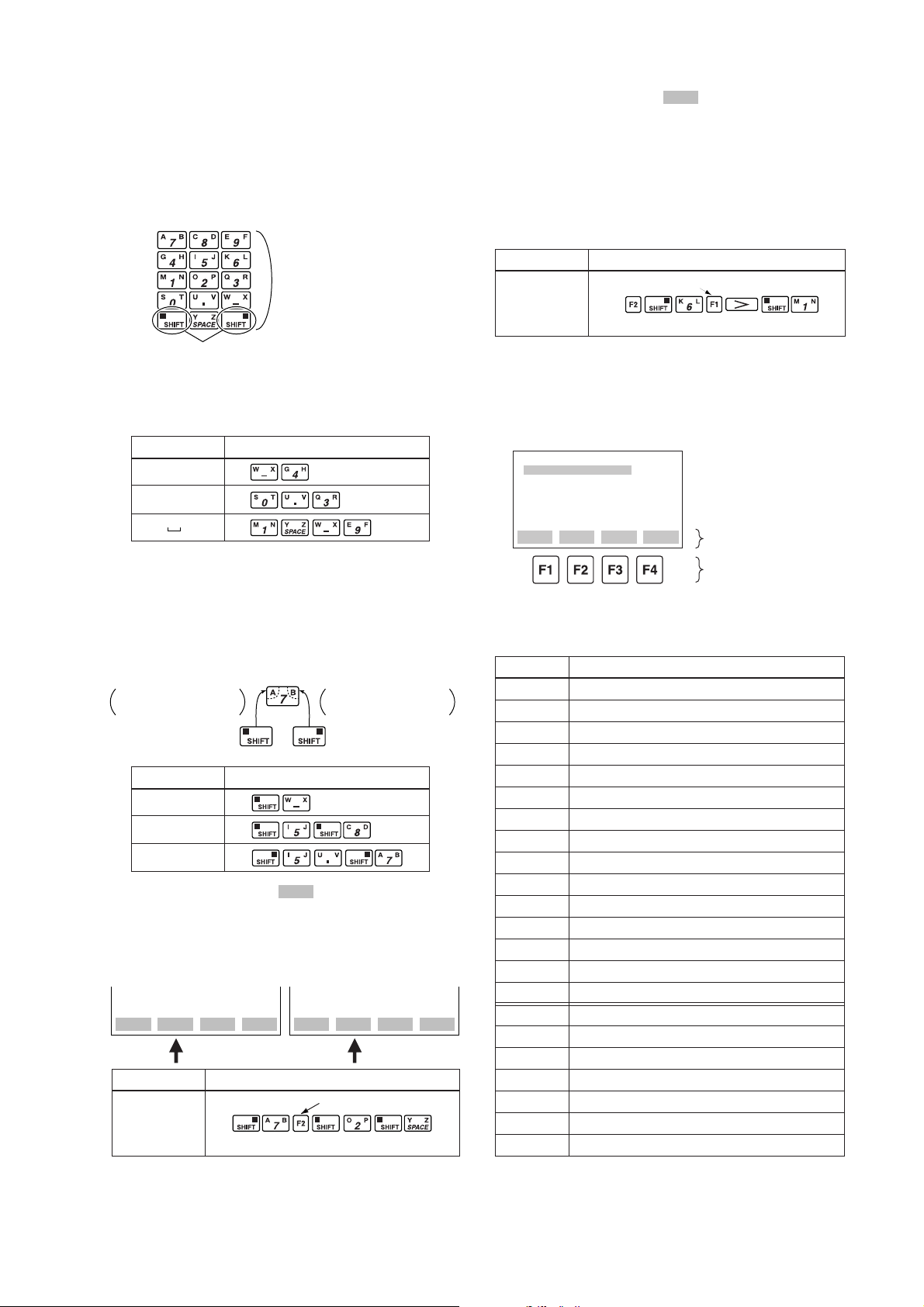

8.2.1 Key Layout and Screen Display................................................... 8-1
8.2.2 Operating Key Functions.............................................................. 8-2
(1) Alphanumeric Keys and Shift Keys .............................................. 8-2
(2) Function Keys ............................................................................... 8-2
8.2.3 Calling Up Menu Addresses Using the Operating Keys.............. 8-3
8.3 Setting Parameters Using the BT200 ................................................. 8-4
8.3.1 Parameter Summary .................................................................... 8-4
8.3.2 Parameter Usage and Selection .................................................. 8-6
8.3.3 Setting Parameters....................................................................... 8-7
(1) Tag No. Setup............................................................................... 8-7
(2) Calibration Range Setup .............................................................. 8-7
(3) Damping Time Constant Setup..................................................... 8-8
(4) Output Signal Low Cut Mode Setup ............................................. 8-9
(5) Integral Indicator Scale Setup ...................................................... 8-9
(6) Unit Setup for Displayed Temperature........................................ 8-11
(7) Operation Mode Setup ............................................................... 8-11
(8) Output Status Display/Setup when a CPU Failure ..................... 8-11
(9) Output Status Setup when a Hardware Error Occurs................. 8-11
(10)Range Change while Applying Actual Inputs .............................. 8-12
(11)Zero Point Adjustment ................................................................ 8-12
(12)Test Output Setup ....................................................................... 8-14
(13)User Memo Fields ...................................................................... 8-14
ii
IM 01C21D01-01E
CONTENTS
8.4 Displaying Data Using the BT200..................................................... 8-15
8.4.1 Displaying Measured Data ......................................................... 8-15
8.4.2 Display Transmitter Model and Specifications ........................... 8-15
8.5 Self-Diagnostics ................................................................................ 8-15
8.5.1 Checking for Problems ............................................................... 8-15
(1) Identifying Problems with BT200 ................................................ 8-15
(2) Checking with Integral Indicator ................................................. 8-16
8.5.2 Errors and Countermeasures ..................................................... 8-17
9. MAINTENANCE............................................................................................. 9-1
9.1 Overview ............................................................................................. 9-1
9.2 Calibration Instruments Selection ....................................................... 9-1
9.3 Calibration ........................................................................................... 9-1
9.4 Disassembly and Reassembly ............................................................ 9-3
9.4.1 Replacing the Integral Indicator ................................................... 9-3
9.4.2 Replacing the CPU Board Assembly ........................................... 9-4
9.4.3 Cleaning and Replacing the Capsule Assembly.......................... 9-5
9.4.4 Replacing the Process Connector Gaskets ................................. 9-6
9.5 Troubleshooting................................................................................... 9-6
9.5.1 Basic Troubleshooting .................................................................. 9-6
9.5.2 Troubleshooting Flow Charts ....................................................... 9-7
10. GENERAL SPECIFICATIONS .................................................................... 10-1
10.1 Standard Specifications .................................................................... 10-1
10.2 Model and Suffix Codes.................................................................... 10-3
10.3 Optional Specifications ...................................................................... 10-6
10.4 Dimensions ........................................................................................ 10-9
Customer Maintenance Parts List
DPharp EJA Series Transmitter Section ........................CMPL 01C21A01-02E
Model EJA310A, EJA430A and EJA440A
Absolute and Gauge Pressure Transmitter ................... CMPL 01C21D00-01E
REVISION RECORD
iii
IM 01C21D01-01E
1. INTRODUCTION

1. INTRODUCTION

Thank you for purchasing the DPharp electronic pressure transmitter.
The DPharp Pressure Transmitters are precisely calibrated at the factory before shipment. To ensure correct and efficient use of the instrument, please read this manual thoroughly and fully understand how to operate the instrument before operating it.

Regarding This Manual

• This manual should be passed on to the end user.
• The contents of this manual are subject to change without prior notice.
• All rights reserved. No part of this manual may be reproduced in any form without Yokogawa’s written permission.
• Yokogawa makes no warranty of any kind with regard to this manual, including, but not limited to, implied warranty of merchantability and fitness for a particular purpose.
• If any question arises or errors are found, or if any information is missing from this manual, please inform the nearest Yokogawa sales office.
• The specifications covered by this manual are limited to those for the standard type under the specified model number break-down and do not cover custom-made instruments.
• Please note that changes in the specifications, construction, or component parts of the instrument may not immediately be reflected in this manual at the time of change, provided that postponement of revisions will not cause difficulty to the user from a functional or performance standpoint.
• Yokogawa assumes no responsibilities for this product except as stated in the warranty.
• If the customer or any third party is harmed by the use of this product, Yokogawa assumes no responsi­bility for any such harm owing to any defects in the product which were not predictable, or for any indirect damages.
NOTE
For FOUNDATION FieldbusTM, PROFIBUS PA and HART protocol versions, please refer to IM 01C22T02-01E, IM 01C22T03-00E and IM 01C22T01-01E respectively, in addition to this manual.
• The following safety symbol marks are used in this manual:
WARNING
Indicates a potentially hazardous situation which, if not avoided, injury.
CAUTION
Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury. It may also be used to alert against
unsafe practices
IMPORTANT
Indicates that operating the hardware or software in this manner may damage it or lead to system failure.
could
result in death or serious
.
NOTE
Draws attention to information essential for understanding the operation and features.
Direct current

1.1 For Safe Use of Product

For the protection and safety of the operator and the instrument or the system including the instrument, please be sure to follow the instructions on safety described in this manual when handling this instru­ment. In case the instrument is handled in contradiction to these instructions, Yokogawa does not guarantee safety. Please give your attention to the followings.
(a) Installation
• The instrument must be installed by an expert engineer or a skilled personnel. The procedures described about INSTALLATION are not permitted for operators.
1-1
IM 01C21D01-01E
1. INTRODUCTION
• In case of high process temperature, care should be taken not to burn yourself because the surface of body and case reaches a high temperature.
• The instrument installed in the process is under pressure. Never loosen the process connector bolts to avoid the dangerous spouting of process fluid.
• During draining condensate from the pressure­detector section, take appropriate care to avoid contact with the skin, eyes or body, or inhalation of vapors, if the accumulated process fluid may be toxic or otherwise harmful.
• When removing the instrument from hazardous processes, avoid contact with the fluid and the interior of the meter.
• All installation shall comply with local installation requirement and local electrical code.
(b) Wiring
• The instrument must be installed by an expert engineer or a skilled personnel. The procedures described about WIRING are not permitted for operators.
• Please confirm that voltages between the power supply and the instrument before connecting the power cables and that the cables are not powered before connecting.
(c) Operation
• Wait 10 min. after power is turned off, before opening the covers.
(d) Maintenance
• Please do not carry out except being written to a maintenance descriptions. When these procedures are needed, please contact nearest YOKOGAWA office.
• Care should be taken to prevent the build up of drift, dust or other material on the display glass and name plate. In case of its maintenance, soft and dry cloth is used.
(e) Explosion Protected Type Instrument
• Users of explosion proof instruments should refer first to section 2.9 (Installation of an Explosion Protected Instrument) of this manual.
(f) Modification
• Yokogawa will not be liable for malfunctions or damage resulting from any modification made to this instrument by the customer.

1.2 Warranty

• The warranty shall cover the period noted on the quotation presented to the purchaser at the time of purchase. Problems occurred during the warranty period shall basically be repaired free of charge.
• In case of problems, the customer should contact the Yokogawa representative from which the instrument was purchased, or the nearest Yokogawa office.
• If a problem arises with this instrument, please inform us of the nature of the problem and the circumstances under which it developed, including the model specification and serial number. Any diagrams, data and other information you can include in your communication will also be helpful.
• Responsible party for repair cost for the problems shall be determined by Yokogawa based on our investigation.
• The Purchaser shall bear the responsibility for repair costs, even during the warranty period, if the malfunction is due to:
- Improper and/or inadequate maintenance by the
purchaser.
- Failure or damage due to improper handling, use or
storage which is out of design conditions.
- Use of the product in question in a location not
conforming to the standards specified by Yokogawa, or due to improper maintenance of the installation location.
- Failure or damage due to modification or repair by
any party except Yokogawa or an approved representative of Yokogawa.
- Malfunction or damage from improper relocation
of the product in question after delivery.
- Reason of force majeure such as fires, earthquakes,
storms/floods, thunder/lightening, or other natural disasters, or disturbances, riots, warfare, or radioactive contamination.
• The use of this instrument is restricted to those who have received appropriate training in the device.
• Take care not to create sparks when accessing the instrument or peripheral devices in a hazardous location.
1-2
IM 01C21D01-01E
1. INTRODUCTION

1.3 ATEX Documentation

This procedure is only applicable to the countries in European Union.
GB
All instruction manuals for ATEX Ex related products are available in English, German and French. Should you require Ex related instructions in your local language, you are to contact your nearest Yokogawa office or representative.
DK
Alle brugervejledninger for produkter relateret til ATEX Ex er tilgængelige på engelsk, tysk og fransk. Skulle De ønske yderligere oplysninger om håndtering af Ex produkter på eget sprog, kan De rette henvendelse herom til den nærmeste Yokogawa afdeling eller forhandler.
I
Tutti i manuali operativi di prodotti ATEX contrassegnati con Ex sono disponibili in inglese, tedesco e francese. Se si desidera ricevere i manuali operativi di prodotti Ex in lingua locale, mettersi in contatto con l’ufficio Yokogawa più vicino o con un rappresentante.
E
Todos los manuales de instrucciones para los productos antiexplosivos de ATEX están disponibles en inglés, alemán y francés. Si desea solicitar las instrucciones de estos artículos antiexplosivos en su idioma local, deberá ponerse en contacto con la oficina o el representante de Yokogawa más cercano.
NL
SF
Kaikkien ATEX Ex -tyyppisten tuotteiden käyttöhjeet ovat saatavilla englannin-, saksan- ja ranskankielisinä. Mikäli tarvitsette Ex -tyyppisten tuotteiden ohjeita omalla paikallisella kielellännne, ottakaa yhteyttä lähimpään Yokogawa-toimistoon tai -edustajaan.
P
Todos os manuais de instruções referentes aos produtos Ex da ATEX estão disponíveis em Inglês, Alemão e Francês. Se necessitar de instruções na sua língua relacionadas com produtos Ex, deverá entrar em contacto com a delegação mais próxima ou com um representante da Yokogawa.
F
Tous les manuels d’instruction des produits ATEX Ex sont disponibles en langue anglaise, allemande et française. Si vous nécessitez des instructions relatives aux produits Ex dans votre langue, veuillez bien contacter votre représentant Yokogawa le plus proche.
D
Alle Betriebsanleitungen für ATEX Ex bezogene Produkte stehen in den Sprachen Englisch, Deutsch und Französisch zur Verfügung. Sollten Sie die Betriebsanleitungen für Ex-Produkte in Ihrer Landessprache benötigen, setzen Sie sich bitte mit Ihrem örtlichen Yokogawa-Vertreter in Verbindung.
S
Alla instruktionsböcker för ATEX Ex (explosionssäkra) produkter är tillgängliga på engelska, tyska och franska. Om Ni behöver instruktioner för dessa explosionssäkra produkter på annat språk, skall Ni kontakta närmaste Yokogawakontor eller representant.
Alle handleidingen voor producten die te maken hebben met ATEX explosiebeveiliging (Ex) zijn verkrijgbaar in het Engels, Duits en Frans. Neem, indien u aanwijzingen op het gebied van explosiebeveiliging nodig hebt in uw eigen taal, contact op met de dichtstbijzijnde vestiging van Yokogawa of met een vertegenwoordiger.
GR
       ATEX Ex   ,   .        Ex           Yokogawa   .
1-3
IM 01C21D01-01E
1. INTRODUCTION
SK
CZ
LT
PL
SLO
H
LV
EST
BG
RO
M
1-4
IM 01C21D01-01E
2. HANDLING CAUTIONS
This chapter describes important cautions regarding how to handle the transmitter. Read carefully before using the transmitter.

2. HANDLING CAUTIONS

The EJA-A Series pressure transmitters are thoroughly tested at the factory before shipment. When the transmitter is delivered, visually check them to make sure that no damage occurred during shipment.
Also check that all transmitter mounting hardware shown in Figure 2.1 is included. If the transmitter was ordered without the mounting bracket or without the process connector, the transmitter mounting hardware is not included. After checking the transmitter, repack it in the way it was delivered until installation.
Bolt Process connector Process connector
Gasket
U-bolt
Mounting bracket (L type)
U-bolt nut
Transmitter mounting bolt
: Refer to USER'S MANUAL
F0202.EPS
Figure 2.2 Name Plate

2.2 Unpacking

When moving the transmitter to the installation site, keep it in its original packaging. Then, unpack the transmitter there to avoid damage on the way.

2.3 Storage

The following precautions must be observed when storing the instrument, especially for a long period.
(a) Select a storage area which meets the following
conditions:
• It is not exposed to rain or water.
• It suffers minimum vibration and shock.
• It has an ambient temperature and relative humidity within the following ranges.
Ambient temperature:
–40 to 85°C without integral indicator –30 to 80°C with integral indicator
Relative humidity:
5% to 100% R.H. (at 40°C)
Preferred temperature and humidity:
approx. 25°C and 65% R.H.
Mounting bracket (Flat type)
Figure 2.1 Transmitter Mounting Hardware
F0201.EPS

2.1 Model and Specifications Check

The model name and specifications are indicated on the name plate attached to the case. If the reverse operat- ing mode was ordered (reverse signal), ‘REVERSE’ will be inscribed in field *1.
(b) When storing the transmitter, repack it as nearly
as possible to the way it was packed when delivered from the factory.
(c) If storing a transmitter that has been used,
thoroughly clean the chambers inside the cover flanges, so that no measured fluid remains in it. Also make sure before storing that the pressure­detector and transmitter section are securely mounted.

2.4 Selecting the Installation Location

The transmitter is designed to withstand severe environmental conditions. However, to ensure stable and accurate operation for years, observe the follow­ing precautions when selecting an installation loca­tion.
2-1
IM 01C21D01-01E
2. HANDLING CAUTIONS
(a) Ambient Temperature
Avoid locations subject to wide temperature variations or a significant temperature gradient. If the location is exposed to radiant heat from plant equipments, provide adequate thermal insulation and/or ventilation.
(b) Ambient Atmosphere
Avoid installing the transmitter in a corrosive atmosphere. If the transmitter must be installed in a corrosive atmosphere, there must be adequate ventilation as well as measures to prevent intrusion or stagnation of rain water in conduits.
(c) Shock and Vibration
Select an installation site suffering minimum shock and vibration (although the transmitter is designed to be relatively resistant to shock and vibration).
(d) Installation of Explosion-protected Transmitters
Explosion-protected transmitters can be installed in hazardous areas according to the types of gases for which they are certified. See Subsection 2.9 “Installation of Explosion Protected Type Transmit­ters.”

2.5 Pressure Connection

WARNING
• Instrument installed in the process is under pressure. Never loosen the process connector bolts to avoid the dangerous spouting of process fluid.
• During draining condensate from the pressure­detector section, take appropriate care to avoid contact with the skin, eyes or body, or inhala­tion of vapors, if the accumulated process fluid may be toxic or otherwise harmful.
The following precautions must be observed in order to safely operate the transmitter under pressure.
(a) Make sure that the two process connector bolts are
tightened firmly.
(b) Make sure that there are no leaks in the impulse
piping.
(c) Never apply a pressure higher than the specified
maximum working pressure.

2.6 Waterproofing of Cable Conduit Connections

Apply a non-hardening sealant to the threads to waterproof the transmitter cable conduit connections. (See Figure 6.4.2a, 6.4.2b and 6.4.2c.)

2.7 Restrictions on Use of Radio Transceiver

IMPORTANT
Although the transmitter has been designed to resist high frequency electrical noise, if a radio transceiver is used near the transmitter or its external wiring, the transmitter may be affected by high frequency noise pickup. To test for such effects, bring the transceiver in use slowly from a distance of several meters from the transmitter, and observe the measurement loop for noise effects. Thereafter, always use the transceiver outside the area affected by noise.

2.8 Insulation Resistance and Dielectric Strength Test

Since the transmitter has undergone insulation resis­tance and dielectric strength tests at the factory before shipment, normally these tests are not required. However, if required, observe the following precau­tions in the test procedures.
(a) Do not perform such tests more frequently than is
absolutely necessary. Even test voltages that do not cause visible damage to the insulation may degrade the insulation and reduce safety margins.
(b) Never apply a voltage exceeding 500 V DC (100 V
DC with an internal lightning protector) for the insulation resistance test, nor a voltage exceeding 500 V AC (100 V AC with an internal lightning protector) for the dielectric strength test.
(c) Before conducting these tests, disconnect all signal
lines from the transmitter terminals. Perform the tests in the following procedure:
• Insulation Resistance Test
1) Short-circuit the + and – SUPPLY terminals in the
terminal box.
2) Turn OFF the insulation tester. Then connect the
insulation tester plus (+) lead wire to the shorted SUPPLY terminals and the minus (–) leadwire to the grounding terminal.
3) Turn ON the insulation tester power and measure
the insulation resistance. The voltage should be applied short as possible to verify that the insula­tion resistance is at least 20 M1.
4) After completing the test and being very careful not
to touch exposed conductors disconnect the insulation tester and connect a 100 k1 resistor between the grounding terminal and the short-
2-2
IM 01C21D01-01E
2. HANDLING CAUTIONS
circuiting SUPPLY terminals. Leave this resistor connected at least one second to discharge any static potential. Do not touch the terminals while it is discharging.
• Dielectric Strength Test
1) Short-circuit the + and – SUPPLY terminals in the terminal box.
2) Turn OFF the dielectric strength tester. Then connect the tester between the shorted SUPPLY terminals and the grounding terminal. Be sure to connect the grounding lead of the dielectric strength tester to the ground terminal.
3) Set the current limit on the dielectric strength tester to 10 mA, then turn ON the power and gradually increase the test voltage from ‘0’ to the specified voltage.
4) When the specified voltage is reached, hold it for one minute.
5) After completing this test, slowly decrease the voltage to avoid any voltage surges.
2.9 Installation of Explosion
Protected Type
In this section, further requirements and differences and for explosionproof type instrument are described. For explosionproof type instrument, the description in this chapter is prior to other description in this users manual.
For the intrinsically safe equipment and explosionproof equipment, in case the instrument is not restored to its original condition after any repair or modification undertaken by the customer, intrinsically safe construc­tion or explosionproof construction is damaged and may cause dangerous condition. Please contact Yokogawa for any repair or modification required to the instrument.
NOTE
For FOUNDATION Fieldbus and PROFIBUS PA explosion protected type, please refer to IM 01C22T02-01E and IM 01C22T03-00E respec­tively.
CAUTION
This instrument is tested and certified as intrinsi­cally safe type or explosionproof type. Please note that the construction of the instrument, installation, external wiring, maintenance or repair is strictly restricted, `Êå non-observance or negligence of this restriction would result in dangerous condition.
WARNING
To preserve the safety of explosionproof equip­ment requires great care during mounting, wiring, and piping. Safety requirements also place restrictions on maintenance and repair activitic¤¶ Please read the following sections very carefully.

2.9.1 FM Approval

a. FM Intrinsically Safe Type
Caution for FM intrinsically safe type. (Following contents refer “DOC. No. IFM012-A12 P.1 and 2.”)
Note 1. Model EJA Series pressure transmitters
with optional code /FS1 are applicable for use in hazardous locations.
• Applicable Standard: FM3600, FM3610, FM3611, FM3810, ANSI/NEMA250
• Intrinsically Safe for Class I, Division 1, Groups A, B, C & D. Class II, Division 1, Groups E, F & G and Class III, Division 1 Hazardous Locations.
• Nonincendive for Class I, Division 2, Groups A, B, C & D. Class II, Division 2, Groups E, F & G and Class III, Division 1 Hazardous Locations.
• Outdoor hazardous locations, NEMA 4X.
• Temperature Class: T4
• Ambient temperature: –40 to 60°C
Note 2. Entity Parameters
• Intrinsically Safe Apparatus Parameters [Groups A, B, C, D, E, F and G] Vmax = 30 V Ci = 22.5 nF Imax = 165 mA Li = 730 μH Pmax = 0.9 W
* Associated Apparatus Parameters
(FM approved barriers) Voc ) 30 V Ca > 22.5 nF Isc ) 165 mA La > 730 μH Pmax ) 0.9W
• Intrinsically Safe Apparatus Parameters [Groups C, D, E, F and G] Vmax = 30 V Ci = 22.5 nF Imax = 225 mA Li = 730 μH Pmax = 0.9 W
* Associated Apparatus Parameters
(FM approved barriers) Voc ) 30 V Ca > 22.5 nF Isc ) 225 mA La > 730 μH Pmax ) 0.9 W
• Entity Installation Requirements Vmax * Voc or Vt, Imax * Isc or It, Pmax (IS Apparatus) * Pmax (Barrier) Ca * Ci + Ccable, La * Li + Lcable
2-3
IM 01C21D01-01E
2. HANDLING CAUTIONS
Note 3. Installation
• Barrier must be installed in an enclosure that meets the requirements of ANSI/ISA S82.01.
• Control equipment connected to barrier must not use or generate more than 250 V rms or V dc.
• Installation should be in accordance with ANSI/ISA RP12.6 “Installation of Intrinsically Safe Systems for Hazardous (Classified) Locations” and the National Electric Code (ANSI/NFPA 70).
• The configuration of associated apparatus must be FMRC Approved.
• Dust-tight conduit seal must be used when installed in a Class II, III, Group E, F and G environments.
• Associated apparatus manufacturer’s installation drawing must be followed when installing this apparatus.
• The maximum power delivered from the barrier must not exceed 0.9 W.
• Note a warning label worded “SUBSTITUTION OF COMPONENTS MAY IMPAIR INTRINSIC SAFETY,” and “INSTALL IN ACCORDANCE WITH DOC. No. IFM012-A12 P.1 and 2.”
Note 4. Maintenance and Repair
• The instrument modification or parts replacement by other than authorized representative of Yokogawa Electric Corporation is prohibited and will void Factory Mutual Intrinsically safe and Nonincendive Approval.
[Intrinsically Safe]
Hazardous Location Nonhazardous Location
Class I, II, III, Division 1, Groups A, B, C, D, E, F, G
EJA Series Pressure Transmitters Safety Barrier
+
Supply
Hazardous Location Nonhazardous Location
Class I, II, Division 2, Groups A, B, C, D, E, F, G Class III, Division 1.
EJA Series Pressure Transmitters
Supply
[Nonincendive]
+
+
Not Use Safety Barrier
+
General Purpose Equipment
+
F0203-1.EPS
General Purpose Equipment
+
F0203-2.EPS
b. FM Explosionproof Type
Caution for FM explosionproof type.
Note 1. Model EJA Series differential, gauge, and
absolute pressure transmitters with optional code /FF1 are applicable for use in hazardous locations.
• Applicable Standard: FM3600, FM3615, FM3810, ANSI/NEMA250
• Explosionproof for Class I, Division 1, Groups B, C and D.
• Dust-ignitionproof for Class II/III, Division 1, Groups E, F and G.
• Outdoor hazardous locations, NEMA 4X.
• Temperature Class: T6
• Ambient Temperature: –40 to 60°C
• Supply Voltage: 42 V dc max.
• Output signal: 4 to 20 mA
Note 2. Wiring
• All wiring shall comply with National Electrical Code ANSI/NEPA70 and Local Electrical Codes.
• When installed in Division 1, “FACTORY SEALED, CONDUIT SEAL NOT REQUIRED.”
Note 3. Operation
• Keep the “CAUTION” nameplate attached to the transmitter. CAUTION: OPEN CIRCUIT BEFORE REMOV­ING COVER. SEAL ALL CONDUITS WITHIN 18 INCHES. WHEN INSTALLED IN DIV.1, “FACTORY SEALED, CONDUIT SEAL NOT REQUIRED.” INSTALL IN ACCORDANCE WITH THE INSTRUCTION MANUAL IM 1C22.
• Take care not to generate mechanical sparking when accessing to the instrument and peripheral devices in a hazardous location.
Note 4. Maintenance and Repair
• The instrument modification or parts replacement by other than authorized representative of Yokogawa Electric Corporation is prohibited and will void Factory Mutual Explosionproof Ap­proval.
c. FM Intrinsically Safe Type/FM
Explosionproof Type
Model EJA Series pressure transmitters with optional code /FU1 can be selected the type of protection (FM Intrinsically Safe or FM Explosionproof) for use in hazardous loca­tions.
Note 1. For the installation of this transmitter,
once a particular type of protection is selected, any other type of protection cannot be used. The installation must be in accordance with the description about the type of protection in this instruction manual.
Note 2. In order to avoid confusion, unnecessary
marking is crossed out on the label other than the selected type of protec­tion when the transmitter is installed.
2-4
IM 01C21D01-01E
2. HANDLING CAUTIONS

2.9.2 CSA Certification

a. CSA Intrinsically Safe Type
Caution for CSA Intrinsically safe type. (Following contents refer to “DOC No. ICS003-A12 P.1-1 and P.1-2.”)
Note 1. Model EJA Series differential, gauge, and
absolute pressure transmitters with optional code /CS1 are applicable for use in hazardous locations
Certificate: 1053843
• Applicable Standard: C22.2 No.0, No.0.4, No.25, No.30, No.94, No.142, No.157, No.213
• Intrinsically Safe for Class I, Division 1, Groups A, B, C & D. Class II, Division 1, Groups E, F & G and Class III, Division 1 Hazardous Locations.
• Nonincendive for Class I, Division 2, Groups A, B, C & D, Class II, Division 2, Groups F & G, and Class III, Hazardous Locations. (not use Safety Barrier)
• Encl. “Type 4X”
• Temperature Class: T4
• Ambient temperature: –40 to 60°C
• Process Temperature: 120°C max.
Note 2. Entity Parameters
• Intrinsically safe ratings are as follows:
Maximum Input Voltage (Vmax) = 30 V Maximum Input Current (Imax) = 165 mA Maximum Input Power (Pmax) = 0.9 W Maximum Internal Capacitance (Ci) = 22.5 nF Maximum Internal Inductance (Li) = 730 μH
* Associated apparatus (CSA certified barriers)
Maximum output voltage (Voc) ) 30 V Maximum output current (Isc) ) 165 mA Maximum output power (Pmax) ) 0.9 W
Note 3. Installation
• All wiring shall comply with Canadian Electrical Code Part I and Local Electrical Codes.
• The instrument modification or parts replacement by other than authorized representative of Yokogawa Electric Corporation and Yokogawa Corporation of America is prohibited and will void Canadian Standards Intrinsically safe and nonincendive Certification.
[Intrinsically Safe]
Hazardous Location Nonhazardous Location
Class I, II, III, Division 1, Groups A, B, C, D, E, F, G
EJA Series Pressure Transmitters Safety Barrier
+
+
Supply
+
General Purpose Equipment
+
F0204-1.EPS
[Nonincendive]
Hazardous Location Nonhazardous Location
Class I, II, Division 2, Groups A, B, C, D, E, F, G Class III, Division 1.
EJA Series Pressure Transmitters
+
Supply
Not Use Safety Barrier
General Purpose Equipment
+
F0204-2.EPS
b. CSA Explosionproof Type
Caution for CSA explosionproof type.
Note 1. Model EJA Series differential, gauge, and
absolute pressure transmitters with optional code /CF1 are applicable for use in hazardous locations:
Certificate: 1089598
• Applicable Standard: C22.2 No.0, No.0.4, No.25, No.30, No.94, No.142
• Explosionproof for Class I, Division 1, Groups B, C and D.
• Dust-ignitionproof for Class II/III, Division 1, Groups E, F and G.
• Encl “Type 4X”
• Temperature Class: T6, T5, and T4
• Process Temperature: 85°C (T6), 100°C (T5), and 120°C (T4)
• Ambient Temperature: –40 to 80°C
• Supply Voltage: 42 V dc max.
• Output Signal: 4 to 20 mA
Note 2. Wiring
• All wiring shall comply with Canadian Electrical Code Part I and Local Electrical Codes.
• In hazardous location, wiring shall be in conduit as shown in the figure.
CAUTION: SEAL ALL CONDUITS WITHIN 50 cm OF THE ENCLOSURE. UN SCELLEMENT DOIT ÊTRE INSTALLÉ À MOINS DE 50 cm DU BÎTIER.
• When installed in Division 2, “SEALS NOT REQUIRED.”
Note 3. Operation
• Keep the “CAUTION” label attached to the transmitter.
CAUTION: OPEN CIRCUIT BEFORE REMOVING COVER. OUVRIR LE CIRCUIT AVANT D´NLEVER LE COUVERCLE.
• Take care not to generate mechanical sparking when accessing to the instrument and peripheral devices in a hazardous location.
2-5
IM 01C21D01-01E
2. HANDLING CAUTIONS
Note 4. Maintenance and Repair
• The instrument modification or parts replacement by other than authorized representative of Yokogawa Electric Corporation and Yokogawa Corporation of America is prohibited and will void Canadian Standards Explosionproof Certification.
Non-Hazardous
Locations
Non-hazardous Location Equipment
42 V DC Max. 4 to 20 mA DC Signal
Non-Hazardous
Locations
Non-hazardous Location Equipment
42 V DC Max. 4 to 20 mA DC Signal
Hazardous Locations Division 1
50 cm Max.
Sealing Fitting
Hazardous Locations Division 2
Sealing Fitting
Conduit
EJA Series
EJA Series
F0205.EPS
c. CSA Intrinsically Safe Type/CSA
Explosionproof Type
Model EJA Series pressure transmitters with optional code /CU1 can be selected the type of protection (CSA Intrinsically Safe or CSA Explosionproof) for use in hazardous locations.
Note 1. For the installation of this transmitter,
once a particular type of protection is selected, any other type of protection cannot be used. The installation must be in accordance with the description about the type of protection in this instruction manual.
Note 2. In order to avoid confusion, unnecessary
marking is crossed out on the label other than the selected type of protection when the transmitter is installed.

2.9.3 IECEx Certification

Model EJA Series differential, gauge, and absolute pressure transmitters with optional code /SU2 can be selected the type of protection (IECEx Intrinsically Safe/type n or flameproof) for use in hazardous locations.
Note 1. For the installation of this transmitter,
once a particular type of protection is selected, any other type of protection cannot be used. The installation must be
in accordance with the description about the type of protection in this instruction manual.
Note 2. In order to avoid confusion, unnecessary
marking is crossed out on the label other than the selected type of protection when the transmitter is installed.
a. IECEx Intrinsically Safe Type / type n
Caution for IECEx Intrinsically safe and type n.
Note 1. Model EJA Series differential, gauge, and
absolute pressure transmitters with optional code /SU2 are applicable for use in hazardous locations.
• No. IECEx KEM 06.0007X
• Applicable Standard: IEC 60079-0:2004, IEC 60079-11:1999, IEC 60079-15:2005, IEC 60079-26:2004
• Type of Protection and Marking Code: Ex ia IIC T4, Ex nL IIC T4
• Ambient Temperature :–40 to 60°C
• Max. Process Temp.: 120°C
• Enclosure: IP67
Note 2. Entity Parameters
• Intrinsically safe ratings are as follows:
Maximum Input Voltage (Ui) = 30 V Maximum Input Current (Ii) = 165 mA Maximum Input Power (Pi) = 0.9 W Maximum Internal Capacitance (Ci) = 22.5 nF Maximum Internal Inductance (Li) = 730 μH
• Type "n" ratings are as follows:
Maximum Input Voltage (Ui) = 30 V Maximum Internal Capacitance (Ci) = 22.5 nF Maximum Internal Inductance (Li) = 730 μH
• Installation Requirements
Uo ) Ui, Io ) Ii, Po ) Pi, Co * Ci + Ccable, Lo * Li + Lcable Uo, Io, Po, Co, and Lo are parameters of barrier.
Note 3. Installation
• In any safety barreir used output current must be limited by a resistor 'R' such that Io=Uo/R.
• The safety barrier must be IECEx certified.
• Input voltage of the safety barrier must be less than 250 Vrms/Vdc.
• The instrument modification or parts replacement by other than authorized representative of Yokogawa Electric Corporation and will void IECEx Intrinsically safe and type n certification.
• The cable entry devices and blanking elements for type n shall be of a certified type providing a level of ingress protection of at least IP54, suitable for the conditions of use and correctly installed.
2-6
IM 01C21D01-01E
2. HANDLING CAUTIONS
• Electrical Connection: The type of electrical connection is stamped near the electrical connection port according to the following marking.
T0202.EPS
Location of the marking
F0210.EPS
Note 4. Operation
• WARNING: WHEN AMBIENT TEMPERATURE * 55°C, USE THE HEAT-RESISTING CABLES * 90°C.
Note 5. Special Conditions for Safe Use
• WARNING: IN THE CASE WHERE THE ENCLOSURE OF THE PRESSURE TRANSMITTER IS MADE OF ALUMINUM, IF IT IS MOUNTED IN AN AREA WHERE THE USE OF ZONE 0 IS REQUIRED, IT MUST BE INSTALLED SUCH, THAT, EVEN IN THE EVENT OF RARE INCIDENTS, IGNI­TION SOURCES DUE TO IMPACT AND FRICTION SPARKS ARE EXCLUDED.
[Intrinsically Safe]
Hazardous Location Nonhazardous Location
Group I/IIC, Zone 0
EJA Series Pressure Transmitters
+
Supply
Hazardous Location Nonhazardous Location
Group IIC, Zone 2
[type n]
IECEx certified Safety Barrier
+
+
General Purpose Equipment
+ –
F0211.EPS
b. IECEx Flameproof Type
Caution for IECEx flameproof type.
Note 1. Model EJA Series differential, gauge, and
absolute pressure transmitters with optional code /SU2 are applicable for use in hazardous locations:
• No. IECEx KEM 06.0005
• Applicable Standard: IEC60079-0:2004, IEC60079-1:2003
• Type of Protection and Marking Code: Ex d IIC T6...T4
• Enclosure: IP67
• Maximum Process Temperature: 120°C (T4), 100°C (T5), 85°C (T6)
• Ambient Temperature: –40 to 75°C (T4), –40 to 80°C (T5), –40 to 75°C (T6)
• Supply Voltage: 42 V dc max.
• Output Signal: 4 to 20 mA dc
Note 2. Wiring
• In hazardous locations, the cable entry devices shall be of a certified flameproof type, suitable for the conditions of use and correctly installed.
• Unused apertures shall be closed with suitable flameproof certified blanking elements. (The plug attached is certificated as the flame proof IP67 as a part of this apparatus.)
• In case of ANSI 1/2 NPT plug, ANSI hexagonal wrench should be applied to screw in.
Note 3. Operation
• WARNING: AFTER DE-ENERGIZING, DELAY 10 MINUTES BEFORE OPENING.
• WARNING: WHEN AMBIENT TEMPERATURE * 70°C, USE THE HEAT-RESISTING CABLES * 90°C.
• Take care not to generate mechanical sparking when accessing to the instrument and peripheral devices in a hazardous location.
Note 4. Maintenance and Repair
• The instrument modification or parts replacement by other than authorized representative of Yokogawa Electric Corporation is prohibited and will void IECEx Certification.
EJA Series Pressure Transmitters
+
Supply
Not Use Safety Barrier
IECEx Certified Equipment [nL]
+ –
F0212.EPS

2.9.4 CENELEC ATEX (KEMA) Certification

(1) Technical Data
a. CENELEC ATEX (KEMA) Intrinsically Safe
Type
Caution for CENELEC ATEX (KEMA) Intrinsi­cally safe type.
2-7
IM 01C21D01-01E
2. HANDLING CAUTIONS
Note 1. Model EJA Series differential, gauge, and
absolute pressure transmitters with optional code /KS2 for potentially explo­sive atmospheres:
• No. KEMA 02ATEX1030 X
• Applicable Standard: EN50014:1997, EN50020:1994, EN50284:1999
• Type of Protection and Marking code: EEx ia IIC T4
• Temperature Class: T4
• Enclosure: IP67
• Process Temperature: 120°C max.
• Ambient Temperature: –40 to 60°C
Note 2. Electrical Data
• In type of explosion protection intrinsic safety EEx ia IIC only for connection to a certified intrinsically safe circuit with following maximum values:
Ui = 30 V Ii = 165 mA Pi = 0.9 W Effective internal capacitance; Ci = 22.5 nF Effective internal inductance; Li = 730 μH
Note 3. Installation
• All wiring shall comply with local installation requirements. (Refer to the installation diagram)
Note 4. Maintenance and Repair
• The instrument modification or parts replacement by other than authorized representative of Yokogawa Electric Corporation is prohibited and will void KEMA Intrinsically safe Certification.
Note 5. Special Conditions for Safe Use
• In the case where the enclosure of the Pressure Transmitter is made of aluminium, if it is mounted in an area where the use of category 1 G apparatus is required, it must be installed such, that, even in the event of rare incidents, ignition sources due to impact and friction sparks are excluded.
[Installation Diagram]
Note 1. Model EJA Series differential, gauge, and
absolute pressure transmitters with optional code /KF2 for potentially explo­sive atmospheres:
• No. KEMA 02ATEX2148
• Applicable Standard: EN50014:1997, EN50018:2000
• Type of Protection and Marking Code: EEx d IIC T6···T4
• Temperature Class: T6, T5, and T4
• Enclosure: IP67
• Maximum Process Temperature: 85°C (T6), 100°C (T5), and 120°C (T4)
• Ambient Temperature: T4 and T6; –40 to 75°C, T5; –40 to 80°C
Note 2. Electrical Data
• Supply voltage: 42 V dc max.
• Output signal: 4 to 20 mA
Note 3. Installation
• All wiring shall comply with local installation requirement.
• The cable entry devices shall be of a certified flameproof type, suitable for the conditions of use.
Note 4. Operation
• Keep the “CAUTION” label to the transmitter.
CAUTION: AFTER DE-ENERGIZING, DELAY 10 MINUTES BEFORE OPEN­ING. WHEN THE AMBIENT TEMP.70°C, USE HEAT-RESISTING CABLES90°C.
• Take care not to generate mechanical sparking when accessing to the instrument and peripheral devices in a hazardous location.
Note 5. Maintenance and Repair
• The instrument modification or parts replacement by other than authorized representative of Yokogawa Electric Corporation is prohibited and will void KEMA Flameproof Certification.
Hazardous Location
Transmitter
+
Supply
*1: In any safety barriers used the output current must be limited
by a resistor “R” such that Imaxout-Uz/R.
Nonhazardous Location
+
Safety Barrier
F0208.EPS
b. CENELEC ATEX (KEMA) Flameproof Type
Caution for CENELEC ATEX (KEMA) flameproof type.
c. CENELEC ATEX (KEMA) Intrinsically Safe
Type/CENELEC ATEX (KEMA) Flameproof Type/ CENELEC ATEX Type n
*1
Model EJA-A Series pressure transmitters with optional code /KU2 can be selected the type of protection CENELEC ATEX (KEMA) Intrinsically Safe, Flameproof or CENELEC ATEX Type n for use in hazardous locations.
Note 1. For the installation of this transmitter,
once a particular type of protection is selected, any other type of protection cannot be used. The installation must be in accordance with the description about the type of protection in this user’s manual.
2-8
IM 01C21D01-01E
2. HANDLING CAUTIONS
Note 2. In order to avoid confusion, unnecessary
marking is crossed out on the label other than the selected type of protection when the transmitter is installed.
CENELEC ATEX Type of Protection “n”
WARNING
When using a power supply not having a non­incendive circuit, please pay attention not to ignite in the surrounding flammable atmosphere. In such a case, we recommend using wiring metal conduit in order to prevent the ignition.
• Applicable Standard: EN60079-15:2003
• Referential Standard: IEC60079-0:1998, IEC60079­11:1999
• Type of Protection and Marking Code: EEx nC IIL T4
• Temperature Class: T4
• Enclosure: IP67
• Process Temperature: 120°C max.
• Ambient Temperature: –40 to 60°C
Note 1. Electrical Data
Ui = 30 V Effective internal capacitance; Ci = 22.5 nF Effective internal inductance; Li = 730 μH
Note 2. Installation
• All wiring shall comply with local installation requirements. (refer to the installation diagram)
Note 3. Maintenance and Repair
• The instrument modification or parts replacement by other than authorized representative of Yokogawa Electric Corporation is prohibited and will void Type of Protection “n”.
[Installation Diagram]
Hazardous Location
(Zone 2 only)
Transmitter
Supply
+
Nonhazardous Location
+
Power Supply
Note 1. Installation instructions
The cable entry devices and blanking elements shall be of a certificated type providing a level of ingress protection of at least IP6x, suitable for the conditions of use and correctly installed.
(2) Electrical Connection
The type of electrical connection is stamped near the electrical connection port according to the following marking.
Location of the marking
F0200.EPS
(3) Installation
WARNING
• All wiring shall comply with local installation requirement and local electrical code.
• There is no need of the conduit seal for both of Division 1 and Division 2 hazardous locations because this product is sealed at factory.
• In case of ANSI 1/2 NPT plug, ANSI hexagonal wrench should be applied to screw in.
(4) Operation
WARNING
• OPEN CIRCUIT BEFORE REMOVING COVER. INSTALL IN ACCORDANCE WITH THIS USER’S MANUAL
• Take care not to generate mechanical sparking when access to the instrument and peripheral devices in hazardous locations.
F0209.EPS
Ratings of the Power Supply as follows;
Maximum Voltage: 30 V
CENELEC ATEX Type of Protection “Dust”
• Applicable Standard: EN50281-1-1:1997
• Type of Protection and Marking Code: II 1D
• Maximum Surface Temperature: T65°C (Tamb.: 40°C), T85°C (Tamb.: 60°C), and T105°C (Tamb.: 80°C)
(5) Maintenance and Repair
WARNING
The instrument modification or parts replacement by other than authorized Representative of Yokogawa Electric Corporation is prohibited and will void the certification.
2-9
IM 01C21D01-01E
2. HANDLING CAUTIONS
(6) Name Plate
Name plate
Tag plate for flameproof type
Tag plate for intrinsically safe type
Tag plate for type n protection
: Refer to USER'S MANUAL

2.10EMC Conformity Standards

EN61326, AS/NZS CISPR11
CAUTION
This instrument is a Class A product, and it is designed for use in the industrial environment. Please use this instrument in the industrial environment only.
NOTE
YOKOGAWA recommends customer to apply the Metal Conduit Wiring or to use the twisted pair Shield Cable for signal wiring to conform the requirement of EMC Regulation, when customer installs the EJA Series Transmitters to the plant.
2.11 PED (Pressure Equipment
Tag plate for flameproof, intrinsically safe type, type n protection, and Dust
T65C (Tamb.: 40C), T85C (Tamb.: 60C),
D
and T105C (Tamb.: 80C)
F0298.EPS
MODEL: Specified model code. STYLE: Style code. SUFFIX: Specified suffix code. SUPPLY: Supply voltage. OUTPUT: Output signal. MWP: Maximum working pressure. CAL RNG: Specified calibration range. DISP MODE: Specified display mode. OUTPUT MODE: Specified output mode. NO.: Serial number and year of production*1.
TOKYO 180-8750 JAPAN: The manufacturer name and the ad­dress*2.
*1: The third figure from the last shows the last one
figure of the year of production. For example, the production year of the product engraved in “NO.” column on the name plate as follows is 2001.
Directive)
(1) General
• EJA series of pressure transmitters are categorized as pressure accessories under the vessel section of this directive 97/23/EC, which corresponds to Article 3, Paragraph 3 of PED, denoted as Sound Engineering Practice (SEP).
• EJA130A, EJA440A, EJA510A, and EJA530A can be used above 200 bar and therefore considered as a part of a pressure retaining vessel where category lll, Module H applies. These models with option code /PE3 conform to that category.
(2) Technical Data
• Models without /PE3 Article 3, Paragraph 3 of PED, denoted as Sound Engineering Practice (SEP) .
• Models with /PE3 Module: H Type of Equipment: Pressure Accessory - Vessel Type of Fluid: Liquid and Gas Group of Fluid: 1 and 2
12A819857 132
The year 2001
*2: “180-8750” is a zip code which represents the
following address.
2-9-32 Nakacho, Musashino-shi, Tokyo Japan
2-10
IM 01C21D01-01E
2. HANDLING CAUTIONS
Model
EJA110A
EJA120A
EJA130A EJA130A
With code /PE3
EJA310A
EJA430A
EJA440A EJA440A
With code /PE3
EJA510A EJA510A
With code /PE3
EJA530A EJA530A
With code /PE3
*1: PS is maximum allowable pressure for vessel itself. *2: Referred to Table 1 covered by ANNEX II of EC Directive on Pressure Equipment Directive 97/23/EC
PS(bar)
160
0.5
420
420
160
160
500
500
500
500
500
500
*1
V(L)
0.01
0.01
0.01
0.01
0.01
0.01
0.01
0.01
0.01
0.01
0.01
0.01
PS-V(bar-L)
1.6
0.005
4.2
4.2
1.6
1.6
50
50
50
50
50
50
Category
Article 3, paragraph 3
(SEP)
Article 3, paragraph 3
(SEP)
Article 3, paragraph 3
(SEP)
III
Article 3, paragraph 3
(SEP)
Article 3, paragraph 3
(SEP)
Article 3, paragraph 3
(SEP)
III
Article 3, paragraph 3
(SEP)
III
Article 3, paragraph 3
(SEP)
III
T0299.EPS
*2
2.12 Low Voltage Directive
Applicable standard : EN61010-1
(1) Pollution Degree 2
"Pollution degree" describes the degree to which a soild, liquid, or gas which deteriorates dielectric strength or surface resistivity is adhering. " 2 " applies to normal indoor atmosphere. Normally, only non-conductive pollution occurs. Occasionally, however, temporary conductivity caused by condenstaion must be expected.
(2) Installation Category I
"Overvoltage category(Installation category)" describes a number which defines a transient overvoltage condition. It implies the regulattion for impulse withstand voltage. " I " applies to electrical equipment which is supplied from the circuit when appropriate transient overvoltage control means (interfaces) are provided.
(3) Operation
CAUTION
• The temperature and pressure of fluid should be applied under the normal operating condi­tion.
• The ambient temperature should be applied under the normal operating condition.
• Please pay attention to prevent the excessive pressure like water hammer, etc. When water hammer is to be occurred, please take mea­sures to prevent the pressure from exceeding PS by setting the safety valve, etc. at the system and the like.
• When external fire is to be occurred, please take safety measures at the device or system not to influence the transmitters.
2-11
IM 01C21D01-01E
3. COMPONENT NAMES
Vertical impulse piping type
Pressure-detector section
Cover flange
Process connection
Process connector
External indicator conduit connection
(Note 1)
(Note 1)

3. COMPONENT NAMES

Horizontal impulse piping type
External indicator conduit connection
(Note 1)
Integral indicator
(Note 1)
Mounting screw
Amplifier Cover
CPU assembly
Range-setting
(Note 1)
switch (See Subsection 7.6)
Setting pin (CN4) position
H
L H
L
(Note 2)
Transmitter section
Setting pin (CN4)
Burn - out direction
HIGH
LOW
Terminal box cover
Conduit connection
Cover flange
Open to atmosphere (5mm)
Output at burn - out
110% or
higher
-
5% or
lower
Conduit connection
Zero­adjustment screw
Process connection
Process connector
(Note 1)
F0301.EPS
Note 1: See Subsection 10.2, “Model and Suffix Codes,” for
details.
Note 2: Insert the pin (CN4) as shown in the figure above to
set the burn-out direction. The pin is set to the H side for delivery (unless option code /C1 is specified in the order). The setting can be confirmed by calling up parameter D52 using the BRAIN TERMINAL. Refer to Subsection
8.3.3 (8).
Figure 3.1 Component Names
Table 3.1 Display Symbol
Display Symbol
The output signal being zero-adjusted is increasing. The output signal being zero-adjusted is decreasing.
%, Pa, kPa, MPa, kgf/cm
atm, mmHg, mmH
2
2
, gf/cm2, mbar, bar,
O, inH2O, inHg, ftH2O, psi, Torr
Select one of these sixteen available engineering units for the display.
3-1
Meaning of Display Symbol
T0301.EPS
IM 01C21D01-01E
4. INSTALLATION

4. INSTALLATION

4.1 Precautions

Before installing the transmitter, read the cautionary notes in Section 2.4, “Selecting the Installation Location.” For additional information on the ambient conditions allowed at the installation location, refer to Section 10.1 “Standard Specifications.”
IMPORTANT
• When welding piping during construction, take care not to allow welding currents to flow through the transmitter.
• Do not step on this instrument after installation.
• For Model EJA430A, the atmospheric opening is located on the low pressure side cover flange. The opening must not face upward. See Section 10.4, “Dimensions,” for the location of the opening.
Vertical pipe mounting
U-bolt nut
Mounting bracket
Horizontal pipe mounting
Transmitter mounting bolt
U-bolt
50 mm(2-inch) pipe
Transmitter mounting bolt

4.2 Mounting

The transmitter is shipped with the process connec-
tion, according to the ordering specifications. To change the orientation of the process connections, refer to Section 4.3.
The transmitter can be mounted on a nominal 50
mm (2-inch) pipe using the mounting bracket supplied, as shown in Figure 4.2.1 and 4.2.2. The transmitter can be mounted on either a horizontal or a vertical pipe.
When mounting the bracket on the transmitter,
tighten the (four) bolts that hold the transmitter with a torque of approximately 39 N·m {4kgf·m}.
U-bolt nut
Mounting bracket
50 mm(2-inch) pipe
Figure 4.2.1 Transmitter Mounting (Horizontal Impulse
Piping Type)
U-bolt
F0401.EPS
4-1
IM 01C21D01-01E
4. INSTALLATION
Vertical pipe mounting (Process connector upside)
U-bolt nut
Transmitter mounting bolt
Vertical pipe mounting (Process connector downside)
U-bolt nut
Mounting bracket
U-bolt
Transmitter mounting bolt
Mounting bracket
50 mm(2-inch) pipe
50 mm(2-inch) pipe
U-bolt
4.3 Changing the Process Con­nection
The transmitter is shipped with the process connection specified at the time of ordering. To make a change such as modifying the drain (vent) plug(s) attached to the upside of the cover flange on shipment to be attached to the downside follow the procedure below.
To begin, use a wrench to slowly and gently unscrew the drain (vent) plug(s). Then, remove and remount them on the opposite side. Wrap sealing tape around the drain (vent) plug threads (*1 in the figure below), and apply a lubricant to the threads of the drain (vent) screw(s) (*2 below) to screw it (them) in. To tighten the drain (vent) plugs, apply a torque of 34 to 39 N·m {3.5 to 4 kgf·m}. Tighten the process connector bolts uniformly to a torque shown below.
Model EJA310A EJA430A
Torque(N·m)
{kgf·m} {5 to 6}
Vertical impulse piping type Horizontal impulse piping type
Bolt
Process
connector
39 to 49 {4 to 5}
gasket
EJA440A
C capsule D capsule
49 to 59
F0402.EPS
Figure 4.2.2 Transmitter Mounting (Vertical Impulse Piping
Type)
1
Note: For a horizontal impulse
Drain/vent plug
Figure 4.3 Changing Process Connection
2
piping type, moving the process connectors from the front side to the back is not allowed.
F0403.EPS
4-2
IM 01C21D01-01E
4. INSTALLATION

4.4 Rotating Transmitter Section

The DPharp transmitter section can be rotated in 90° segments.
1) Remove the two Allen screws that fasten the transmitter section and capsule assembly, using the Allen wrench.
2) Rotate the transmitter section slowly in 90° seg- ments.
3) Tighten the two Allen screws to a torque of 5 N·m.
IMPORTANT
Do not rotate the transmitter section more than 180°.
Vertical impulse piping type
Pressure-detector section
Rotate 90° or 180° segments

4.5 Changing the Direction of Integral Indicator

IMPORTANT
Always turn OFF power, release pressure and remove a transmitter to non-hazardous area before disassembling and reassmbling an indicator.
An integral indicator can be installed in the following three directions. Follow the instructions in section 9.4 for removing and attaching the integral indicator.
F0405.EPS
Figure 4.5 Integral Indicator Direction
Transmitter section
Horizontal impulse piping type
Transmitter section
Rotate 90° or 180° segments
Conduit connection Zero-adjustment screw
Pressure-detector section
Figure 4.4 Rotating Transmitter Section
Conduit connection
F0404.EPS
4-3
IM 01C21D01-01E

5. INSTALLING IMPULSE PIPING

5. INSTALLING IMPULSE PIPING

5.1 Impulse Piping Installation Precautions

The impulse piping that connects the process outputs to the transmitter must convey the process pressure accurately. If, for example, gas collects in a liquid­filled impulse piping, or the drain of a gas-filled impulse piping becomes plugged, the impulse piping will not convey the pressure accurately. Since this will cause errors in the measurement output, select the proper piping method for the process fluid (gas, liquid, or steam). Pay careful attention to the following points when routing the impulse piping and connecting the impulse piping to the transmitter.
5.1.1 Connecting Impulse Piping to the
Transmitter
(1) Connecting the Impulse Piping to the
Transmitter
Symbols “H” and “L” are shown on a capsule assem­bly to indicate high and low pressure side. Connect the impulse piping to the “H” side.
“H” and “L” are shown
Process connection
Process connector
Bolt
Figure 5.1.1 “H” and “L” Symbols on a Capsule Assembly
F0501.EPS

5.1.2 Routing the Impulse Piping

(1) Process Pressure Tap Angles
If condensate, gas, sediment or other extraneous material in the process piping gets into the impulse piping, pressure measurement errors may result. To prevent such problems, the process pressure taps must be angled as shown in Figure 5.1.2 according to the kind of fluid being measured.
NOTE
• If the process fluid is a gas, the taps must be vertical or within 45° either side of vertical.
• If the process fluid is a liquid, the taps must be horizontal or below horizontal, but not more than 45° below horizontal.
• If the process fluid is steam or other condens­ing vapor, the taps must be horizontal or above horizontal, but not more than 45° above hori­zontal.
[Gas]
45°
Pressure
taps
Process
piping
Figure 5.1.2 Process Pressure Tap Angle (For Horizontal
45°
45° 45°
Piping)
[Steam][Liquid]
45°
F0502.EPS
45°
(2) Tightening the Process Connector Mount-
ing Bolts
After connecting the impulse piping, tighten the process connector mounting bolts uniformly.
(2) Position of Process Pressure Taps and
Transmitter
If condensate (or gas) accumulates in the impulse piping, it should be removed periodically by opening the drain (or vent) plugs. However, this will generate a transient disturbance in the pressure measurement, and therefore it is necessary to position the taps and route the impulse piping so that any extraneous liquid or gas generated in the leadlines returns naturally to the process piping.
• If the process fluid is a gas, then as a rule the transmitter must be located higher than the process pressure taps.
• If the process fluid is a liquid or steam, then as a rule the transmitter must be located lower than the process pressure taps.
5-1
IM 01C21D01-01E
5. INSTALLING IMPULSE PIPING
(3) Impulse Piping Slope
The impulse piping must be routed with only an upward or downward slope. Even for horizontal routing, the impulse piping should have a slope of at least 1/10 to prevent condensate (or gases) from accumulating in the pipes.
(4) Preventing Freezing
If there is any risk that the process fluid in the impulse piping or transmitter could freeze, use a steam jacket or heater to maintain the temperature of the fluid.
NOTE
After completing the connections, close the valves on the process pressure taps ( valves at the transmitter (
main valves
stop valves
), the
), and the impulse piping drain valves, so that condensate, sediment, dust and other extraneous material cannot enter the impulse piping.

5.2 Impulse Piping Connection Examples

Figure 5.2 shows examples of typical impulse piping connections. Before connecting the transmitter to the process, study the transmitter installation location, the process piping layout, and the characteristics of the process fluid (corrosiveness, toxicity, flammability, etc.), in order to make appropriate changes and additions to the connection configurations.
Note the following points when referring to these piping examples.
• The transmitter impulse piping connection is shown for a vertical impulse piping connection configura­tion in which the direction of connection is either upwards or downwards.
• If the impulse piping is long, bracing or supports should be provided to prevent vibration.
• The impulse piping material used must be compat­ible with the process pressure, temperature, and other conditions.
• A variety of process pressure tap valves (main valves) are available according to the type of connection (flanged, screwed, welded), construction (globe, gate, or ball valve), temperature and pressure. Select the type of valve most appropriate for the application.
Liquid Gas Steam
Tap valve
Union or flange
Union or
flange
Te e
Union or flange
Tap valve
Drain valve
Drain plug
Figure 5.2 Impulse Piping Connection Examples
Union or flange
Drain plug
Drain valve
Te e
Tap valve
Te e
Drain valve
Drain plug
F0503.EPS
5-2
IM 01C21D01-01E
6. WIRING

6. WIRING

6.1 Wiring Precautions

IMPORTANT
• Lay wiring as far as possible from electrical noise sources such as large capacity transform­ers, motors, and power supplies.
• Remove electrical connection dust cap before wiring.
• All threaded parts must be treated with water­proofing sealant. (A non-hardening silicone group sealant is recommended.)
• To prevent noise pickup, do not pass signal and power cables through the same ducts.
• Explosion-protected instruments must be wired in accordance with specific requirements (and, in certain countries, legal regulations) in order to preserve the effectiveness of their explosion­protected features.
• The terminal box cover is locked by an Allen head bolt (a shrouding bolt) on CENELEC and IECEx flameproof type transmitters. When the shrouding bolt is driven clockwise by an Allen wrench, it is going in and cover lock is re­leased, and then the cover can be opened by hand. See Subsection 9.4 “Disassembly and Reassembly” for details.

6.3 Connections of External Wiring to Terminal Box

6.3.1 Power Supply Wiring Connection

Connect the power supply wiring to the SUPPLY + and – terminals.
+
Power supply
Figure 6.3.1 Power Supply Wiring Connection

6.3.2 External Indicator Connection

Connect wiring for external indicators to the CHECK + and – terminals.
(Note) Use a external indicator whose internal resistance is 10 1 or
less.
Power supply
+
Transmitter terminal box
Transmitter terminal box
F0601.EPS
External indicator
F0602.EPS
6.2 Selecting the Wiring Materi­als
(a) Use stranded leadwires or cables which are the
same as or better than 600 V grade PVC insulated wire (JIS C3307) or equivalent.
(b) Use shielded wires in areas that are susceptible to
electrical noise.
(c) In areas with higher or lower ambient temperatures,
use appropriate wires or cables.
(d) In environment where oils, solvents, corrosive gases
or liquids may be present, use wires or cables that are resistant to such substances.
(e) It is recommended that crimp-on solderless terminal
lugs (for 4 mm screws) with insulating sleeves be used for leadwire ends.
Figure 6.3.2 External Indicator Connection
6.3.3 BRAIN TERMINAL BT200 Connec­tion
Connect the BT200 to the SUPPLY + and – terminals (Use hooks). The communication line requires a reception resistor of 250 to 600 1 in series.
Transmitter terminal box
BT200
Figure 6.3.3 BT200 Connection
6-1
+
Power supply
Ignore the polarity since the BT200 is AC-coupled to the terminal box.
IM 01C21D01-01E
F0603.EPS
6. WIRING

6.3.4 Check Meter Connection

Connect the check meter to the CHECK + and – terminals (use hooks).
• A 4 to 20 mA DC output signal from the CHECK + and – terminals.
(Note) Use a check meter whose internal resistance is 10 1 or less.
Power supply
+
Check meter
Figure 6.3.4 Check Meter Connection
Transmitter terminal box
F0604.EPS

6.4 Wiring

6.4.1 Loop Configuration

Since the DPharp uses a two-wire transmission system, signal wiring is also used as power wiring.
DC power is required for the transmitter loop. The transmitter and distributor are connected as shown below.
For details of the power supply voltage and load resistance, see Section 6.6; for communications line requirements, see Subsection 8.1.2.
(2) Intrinsically Safe Type
For intrinsically safe type, a safety barrier must be included in the loop.
Hazardous Location Nonhazardous Location
Transmitter terminal box
Distributor (Power supply unit)
Receiver
+
Safety barrier
Figure 6.4.1b Connection between Transmitter and
Distributor
instrument

6.4.2 Wiring Installation

(1) General-use Type and Intrinsically Safe
Type
Make cable wiring using metallic conduit or water­proof glands.
• Apply a non-hardening sealant to the terminal box connection port and to the threads on the flexible metal conduit for waterproofing.
F0606.EPS
(1) General-use Type and Flameproof Type
Hazardous Location Nonhazardous Location
Transmitter terminal box
Figure 6.4.1a Connection between Transmitter and
Distributor
Distributor (Power supply unit)
+
Receiver instrument
F0605.EPS
Flexible metal conduit
Apply a non-hardening
Wiring metal conduit
Te e
Drain plug
Figure 6.4.2a Typical Wiring Using Flexible Metal Conduit
sealant to the threads for waterproofing.
F0607.EPS
6-2
IM 01C21D01-01E
6. WIRING
(2) Flameproof Type
Wire cables through a flameproof packing adapter, or using a flameproof metal conduit.
Wiring cable through flameproof packing adapter.
• Apply a nonhardening sealant to the terminal box connection port and to the threads on the flameproof packing adapter for waterproofing.
Flameproof packing adapter
Flexible metal conduit
Wiring metal conduit
Te e
Drain plug
Figure 6.4.2b Typical Cable Wiring Using Flameproof
Packing Adapter
Apply a non-hardening sealant to the threads for waterproofing.
F0608.EPS
Flameproof metal conduit wiring
• A seal fitting must be installed near the terminal box connection port for a sealed construction.
• Apply a non-hardening sealant to the threads of the terminal box connection port, flexible metal conduit and seal fitting for waterproofing.

6.5 Grounding

Grounding is always required for the proper operation of transmitters. Follow the domestic electrical require­ments as regulated in each country. For a transmitter with built-in lightning protector, grounding should satisfy ground resistance of 10or less.
Ground terminals are located on the inside and outside of the terminal box. Either of these terminals may be used.
Transmitter terminal box
Ground terminal (Inside)
Ground terminal (Outside)
F0610.EPS
Figure 6.5 Ground Terminals
Non-hazardous area
Hazardous area
Flameproof heavy-gauge steel conduit
Te e
Drain plug
Figure 6.4.2c Typical Wiring Using Flameproof Metal
Conduit
Gas sealing device
Flameproof flexible metal conduit
Apply a non-hardening sealant to the threads of these fittings for waterproofing
Seal fitting
After wiring, impregnate the fitting with a compound to seal tubing.
F0609.EPS

6.6 Power Supply Voltage and Load Resistance

When configuring the loop, make sure that the external load resistance is within the range in the figure below.
(Note) In case of an intrinsically safe transmitter, external load
resistance includes safety barrier resistance.
600
External
load
resistance
R (1)
250
0 10.5 16.4 24.7 42
Figure 6.6 Relationship between Power Supply Voltage
and External Load Resistance
E–10.5
R=
0.0236
Power supply voltage E (V DC)
Communication
applicable range
BRAIN and HART
F0611.EPS
6-3
IM 01C21D01-01E
7. OPERATION

7.1 Preparation for Starting Operation

7. OPERATION

The Model EJA310A, EJA430A and EJA440A pressure transmitter measures the pressure of liquids, gases, and steam. This section describes the operation procedure for the EJA430A as shown in Figure 7.1 (vertical impulse piping type, high-pressure connection: right side) when measuring a pressure.
NOTE
Confirm that the process pressure tap valve, drain valve, and stop valve are closed.
(a) Introduce a process fluid into the impulse piping
and then to the transmitter in the following proce­dure:
1) Open the tap valve (main valve) to fill the impulse
piping with process fluid.
2) Gradually open the stop valve to introduce process
fluid into the transmitter pressure-detector section.
3) Confirm that there is no pressure leak in the
impulse piping, transmitter, or other components.
Venting Gas from the Transmitter Pressure­detector Section
• Since the piping in the example of Figure 7.1 is
constructed to be self-venting, no venting operation is required. If it is not possible to make the piping self­venting, refer to Subsection 7.5 for instructions.
(b) Turn ON power and connect the BT200.
Open the terminal box cover, and connect the BT200 to the SUPPLY + and – terminals.
(c) Using the BT200, confirm that the transmitter is
operating properly. Check parameter values or change the setpoints as necessary. See Chapter 8 for BT200 operation. If the transmitter is equipped with an integral indicator, its indication can be used to confirm that the transmitter is operating properly.
Vent plug (Fill plug)
Tap valve
Stop valve
Drain valve
F0701.EPS
Figure 7.1 Liquid Flow Measurement
Confirming that Transmitter is Operating
Properly
Using the BT200
• If the wiring system is faulty, ‘communication error’ appears on the display.
• If the transmitter is faulty, ‘SELF CHECK ERROR’ appears on the display.
PARAM C60:SELF CHECK ERROR
communication error
DATA DIAG PRNT ESC
Communication error (Faulty wiring)
Self-diagnostic error (Faulty transmitter)
F0702.EPS
7-1
IM 01C21D01-01E
7. OPERATION
Using the integral indicator
• If the wiring system is faulty, the display stays blank.
• If the transmitter is faulty, an error code will appear on the display according to the nature of the error.
Self-diagnostic error on the integral indicator (Faulty transmitter)
F0703.EPS
NOTE
If any of the error indications above appears on the display of the integral indicator or BT200, refer to Subsection 8.5.2 for corrective action.
Verify and Change Transmitter Parameter
Setting and Values
The following parameters are the minimum settings required for operation. The transmitter has been shipped with these parameters. To confirm or change the values, see Subsection 8.3.3.

7.2 Zero Point Adjustment

Adjust the zero point after operating preparation is completed.
IMPORTANT
Do not turn off the power to the transmitter immediately after a zero adjustment. Powering off within 30 seconds after a zero adjustment will return the adjustment back to the previous settings.
The zero point adjustment can be made in either way: using the zero-adjustment screw of the transmitter or the BT200 operation.
For output signal checking, display the parameter A10: OUTPUT (%) in the BT200.
BT200
PARAM A10:OUTPUT(%)
0.0 % A11:ENGR OUTPUT
A20:AMP TEMP
Output signal (%) display
• Measuring range..........See Subsection 8.3.3 (2)
• Operation mode...........See Subsection 8.3.3 (7)
DATA DIAG PRNT ESC
Zero-adjustment Screw
Zero-adjustment screw
F0704.EPS
After reviewing this parameter you are prepared to adjust the zero point. When making the zero adjust­ment on a pressure transmitter, the process pressure value does not have to be set to the low limit of the measurement range (0%). In such case, adjust the transmitter output signal to the actual measured value obtained from a high-accuracy pressure measuring instrument.
7-2
IM 01C21D01-01E
7. OPERATION
7.2.1 When you can obtain Low Range
Value from actual measured value of 0% (0 kPa, atmospheric pres­sure);
For pressure measurement using gauge pressure transmitters, follow the step below before zero point adjustment.
1) Close the tap valve (main valve).
2) Loosen the fill plug so that the pressure applied to
the transmitter is only the head of the seal liquid.
3) Adjust the zero point at this status.
4) After the adjustment, close the fill plug and then
gradually open the tap valve.
Using the Transmitter Zero-adjustment
Screw
Before adjusting a screw, check that the parameter J20: EXT ZERO ADJ displays ENABLE. See Subsection 8.3.3 (11) for the setting procedure.
Use a slotted screwdriver to turn the zero-adjustment screw. Turn the screw clockwise to increase the output or counterclockwise to decrease the output. The zero point adjustment can be made with a resolution of
0.01% of the setting range. Since the degree of zero
adjustments varies with the screw turning speed, turn the screw slowly for fine adjustment and quickly for coarse adjustment.
7.2.2 When you cannot obtain Low Range Value from actual measured value of 0%;
Convert the actual measured value obtained by a digital manometer or a glass gauge into %.
[Example]
The measuring range of 50 to 250 kPa; the actual measured value of 130 kPa.
Actual measured value= x 100=40.0%
Using the Transmitter Zero-Adjustment Screw
Turn the screw to match the output signal to the actual measured value in %.
Using the BT200
Select the parameter J10: ZERO ADJ. Change the set point (%) displayed for the parameter to the actual measured value (%), and press the ENTER key twice. See Subsection 8.3.3 (11) for operation details.
SET J10:ZERO ADJ –0.0 % + 000.0
CLR ESC
130–50 250–50
A display at J10
Using the BT200
Zero point can be adjusted by simple key operation of the BT200.
Select parameter J10: ZERO ADJ, and press the ENTER key twice. The zero point will be adjusted automatically to the output signal 0% (4 mA DC). Confirm that the setting value displayed for the parameter is ‘0.0%’ before pressing the ENTER key. See Subsection 8.3.3 (11) for BT200 operating proce­dures.
SET J10:ZERO ADJ –0.0 % + 000.0
CLR ESC
A display when parameter J10 is selected. Press key twice for 0% output 4 mA DC.
F0705.EPS
SET J10:ZERO ADJ –0.0 % + 040.0
CLR ESC
Change setting to the actually measured value (40.0%). Press key twice for 40% output 10.4 mA DC.
F0706.EPS
7-3
IM 01C21D01-01E
7. OPERATION

7.3 Starting Operation

After completing the zero point adjustment, follow the procedure below to start operation.
1) Confirm the operating status. If the output signal exhibits wide fluctuations (hunting) due to periodic variation in the process pressure, use BT200 to dampen the transmitter output signal. Confirm the hunting using a receiving instrument or the integral indicator, and set the optimum damping time constant. See Subsection 8.3.3 (3), “Damping Time Constant Setup.”
2) After confirming the operating status, perform the following.
IMPORTANT
• Remove the BT200 from the terminal box, and confirm that none of the terminal screws are loosened.
• Close the terminal box cover and the amplifier cover. Screw each cover in tightly until it will not turn further.
• Two covers are required to be locked on the CENELEC and IECEx Flameproof type trans­mitters. An Allen head bolts (shrouding bolts) are provided under edge of the each cover for locking. When a shrouding bolts are driven counterclockwise by an Allen wrench, it is coming out and locks up a cover. (See page 9-
3) After locking, the covers should be con­firmed not to be opened by hand.
• Tighten the zero-adjustment cover mounting screw to fix the cover in position.

7.4 Shutting Down Operation

7.5 Venting or Draining Transmit­ter Pressure-detector Section
Since this transmitter is designed to be self-draining and self-venting with vertical impulse piping connec­tions, neither draining nor venting will be required if the impulse piping is configured appropriately for self­draining or self-venting operation.
If condensate (or gas) collects in the transmitter pressure-detector section, the measured pressure may be in error. If it is not possible to configure the piping for self-draining (or self-venting) operation, you will need to loosen the drain (vent) screw on the transmitter to completely drain (vent) any stagnated liquid (gas).
However, since draining condensate or bleeding off gas gives the pressure measurement disturbance, this should not be done when the loop is in operation.
WARNING
Since the accumulated liquid (or gas) may be toxic or otherwise harmful, take appropriate care to avoid contact with the body, or inhalation of vapors.

7.5.1 Draining Condensate

1) Gradually open the drain screw or drain plug and
drain the transmitter pressure-detector section. (See Figure 7.5.1.)
2) When all accumulated liquid is completely re-
moved, close the drain screw or drain plug.
3) Tighten the drain screw to a torque of 10 N·m, and
the drain plug to a torque of 34 to 39 N·m.
Shut down the transmitter operation as follows.
1) Turn off the power.
2) Close the stop valve.
3) Close the tap valve.
NOTE
Whenever shutting down the transmitter for a long period, remove any process fluid from the transmitter pressure-detector section.
Drain screw
When you loosen the drain screw or drain plug, the accumulated liquid will be expelled in the direction of the arrow.
Figure 7.5.1 Draining the Transmitter
7-4
Drain plug
F0707.EPS
IM 01C21D01-01E
7. OPERATION

7.5.2 Venting Gas

1) Gradually open the vent screw to vent gas from the transmitter pressur-detector section. (See Figure
7.5.2.)
2) When the transmitter is completely vented, close the vent screw.
3) Tighen the vent screw to a torque of 10 N·m.
Vent screw
Vent screw
When you loosen the vent screw, the gas escpes in the direction of the arrow.
Figure 7.5.2 Venting the Transmitter
F0708.EPS
7.6 Setting the Range Using the
Range-setting Switch
With actual pressure being applied to the transmitter, the range-setting switch (push-button) located on the optional integral indicator plate and the external zero­adjustment screw allow users to change (re-range) the low- and high-limit values for the measurement range (LRV and HRV) without using BT200. However, other changes in the display settings (scale range and engineering unit) for the integral indicator requires BT200.
Follow the procedure below to change the LRV and HRV settings.
[Example]
Rerange LRV to 0 and HRV to 3 MPa.
6) Press the range-setting push-button. The integral
indicator then displays “HSET.”
7) Apply a pressure of 3 MPa to the transmitter.
(Note 1)
8) Turn the external zero-adjustment screw in the desired direction. The integral indicator displays the output signal in %.
(Note 2)
9) Adjust the output signal to 100% (5 V DC) by rotating the external zero-adjustment screw. Doing so completes the HRV setting.
10) Press the range-setting push-button. The transmitter then switches back to the normal operation mode with the measurement range of 0 to 3 MPa.
Note 1: Wait until the pressure inside the pressure-detector section
has stabilized before proceeding to the next step.
Note 2: If the pressure applied to the transmitter exceeds the previous
LRV (or HRV), the integral indicator may display error number “Er.07” (In this case, the output signal percent and “Er.07” are displayed alternately every two seconds). Although “Er.07” is displayed, you may proceed to the next step. However, should any other error number be displayed, take the appropriate measure in reference to Subsection
8.5.2, “Errors and Countermeasures.”
IMPORTANT
• Do not turn off the power to the transmitter immediately after completion of the change in the LRV and/or HRV setting(s). Note that powering off within thirty seconds after setting will cause a return to the previous settings.
• Changing LRV automatically changes HRV to the following value.
HRV = previous HRV + (new LRV – previous LRV)
• If the range-setting push-button and external zero-adjustment screw are not touched during a range-change operation, the transmitter auto­matically switches back to the normal operation mode.
Integral indicator
1) Connect the transmitter and apparatus as shown in Figure 9.3.1 and warm up for at least five minutes.
2) Press the range-setting push-button. The integral indicator then displays “LSET.”
3) Apply a pressure of 0 kPa (atmospheric pressure) to the transmitter.
(Note 1)
4) Turn the external zero-adjustment screw in the
desired direction. The integral indicator displays the output signal in %.
(Note 2)
5) Adjust the output signal to 0% (1 V DC) by rotating the external zero-adjustment screw. Doing so completes the LRV setting.
Figure 7.6 Range-setting Switch
7-5
Note : Use a thin bar which
has a blunt tip, e.g., a hexagonal wrench, to press the range­setting push-button
Range-setting switch (Push-button)
IM 01C21D01-01E
F0709.EPS

8. BRAIN TERMINAL BT200 OPERATION

8. BRAIN TERMINAL BT200 OPERATION
The DPharp is equipped with BRAIN communica­tions capabilities, so that range changes, Tag No. setup, monitoring of self-diagnostic results, and zero point adjustment can be handled by remote control via BT200 BRAIN TERMINAL or CENTUM CS console. This section describes procedures for setting parameters using the BT200. For details concerning the BT200, see IM 01C00A11-01E, “BT200 User’s Manual.”
8.1 BT200 Operation Precau-
tions

8.1.1 Connecting the BT200

The transmitter and the BT200 can be connected either to the BT200 connection hooks in the transmit­ter terminal box or to a relaying terminal board.
Relaying
terminals
Control room
Terminal board
8.2

BT200 Operating Procedures

8.2.1 Key Layout and Screen Display

Figure 8.2.1a shows the arrangement of the operating keys on the BT200 keypad, and Figure 8.2.1b shows the BT200 screen component.
LCD (21 character × 8 lines)
Function keys
Movement keys
ENTER key
Power ON/OFF key
Alphanumeric keys
Distributor
F0801.EPS
Figure 8.1.1 Connecting the BT200

8.1.2 Conditions of Communication Line

Cable resistance Rc
Power supply
Load
resistance R
Loop resistance = R + 2Rc
= 250 to 600 1
Loop capacitance = 0.22 μF max.
Figure 8.1.2 Conditions of Communication Line
cc
Cable
resistance Rc
DPharp
BT200
F0802.EPS
Figure 8.2.1a BT200 Key Layout
MENU SCREEN
MENU A:DISPLAY B:SENSOR TYPE
Screen title
HOME SET ADJ ESC
PARAMETER SCREEN
PARAM A10:OUTPUT
100.0 %
Parameters
Figure 8.2.1b BT200 Screen Component
A11:ENGR. OUTPUT 1000 mmH20 A20:AMP TEMP 23 deg C
DATA DI AG PRNT
8-1
BATTERY
Shift keys
Messages
Menu choices
commands
IM 01C21D01-01E
F0803.EPS
Function
F0804.EPS
8. BRAIN TERMINAL BT200 OPERATION
( / )
Entry
l/m
Key-in Sequence
T0803.EPS
( m )( I )
symbol command

8.2.2 Operating Key Functions

(1) Alphanumeric Keys and Shift Keys
You can use the alphanumeric keys in conjunction with the shift keys to enter symbols, as well as alphanumeric keys.
Alphanumeric keys
Shift keys
a. Entering Digits, Symbols, and Spaces
Simply press the alphanumeric keys.
Entry Key-in Sequence
–4
0.3
1 –9
b. Entering Letters (A through Z)
Press an alphanumeric key following a shift key to enter the letter shown on that side which the shift key represents. You must press the shift key before entering each letter.
Left-side letter on the alphanumeric key
Entry Key-in Sequence
W
IC
J. B
Use the function key [F2]
Right-side letter on the alphanumeric key
CAPS
to select between uppercase and lowercase (for letters only). The case toggles between uppercase and lowercase each time you press [F2] CAPS.
Entering uppercase
CODE CAPS CLR ESC
Entry
Boy
( B ) ( y )( o )
Entering lowercase
CODE caps CLR ESC
Key-in Sequence
to lower case
F0805.EPS
T0801.EPS
F0806 .EPS
T0802.EPS
F0807.EPS
Use the function key [F1]
CODE
to enter symbols. The following symbols will appear in sequence, one at a time, at the cursor each time you press [F1] CODE:
/ . – , + * ) ( ’ & % $ # ” ! To enter characters next to these symbols, press [ > ] to move the cursor.
(2) Function Keys
The functions of the function keys depend on the function commands on display.
MENU A:DISPLAY B:SENSOR TYPE
HOME SET ADJ ESC
Function commands
Function keys
F0808.EPS
Function Command List
Command Function
ADJ Displays the ADJ menu
CAPS/caps
CODE
CLR
DATA
DEL
DIAG
ESC
HOME
NO OK
PARM
SET
SLOT
UTIL *COPY *FEED
*LIST
*PON/POFF
*PRNT
*GO *STOP
* Available on BT200-P00 (with printer).
Selects uppercase or lowercase Selects symbols Erases input data or deletes all data Updates parameter data Deletes one character Calls the self-check panel Returns to the most recent display Displays the menu panel Quits setup and returns to the previous display Proceeds to the next panel Enters the parameter number setup mode Displays the SET menu Returns to the slot selection panel Calls the utility panel Prints out parameters on display Paper feed Lists all parameters in the menu Automatic printout mode on or off Changes to the print mode Starts printing Cancels printing
T0804.EPS
8-2
IM 01C21D01-01E
8. BRAIN TERMINAL BT200 OPERATION

8.2.3 Calling Up Menu Addresses Using the Operating Keys

STARTUP SCREEN
INITIAL DATA SCREEN
MENU SCREEN
––WELCOME–– BRAIN TERMINAL ID: BT200
check connection push ENTER key
UTIL FEED
UTILITY
1.ID
2.SECURITY CODE
3.LANGUAGE SELECT
4.LCD CONTRAST
5.PRINTER ADJUST
The utility screen contains the following items.
1. BT200 ID settings
2. Security code settings
3. Switching language of messages (Japanese or English)
esc
4. LCD contrast setting
(UTIL)
PARAM 01:MODEL EJA430A-DA 02:TAG NO. YOKOGAWA 03:SELF CHECK GOOD
OK
(ESC)
(SET)
(HOME MENU SCREEN) (SET MENU SCREEN) (ADJ MENU SCREEN)
MENU A.DISPLAY B.SENSOR TYPE
HOME SET ADJ ESC
MENU C.SETTING D.AUX SET 1 E.AUX SET 2 H:AUTO SET
HOME SET ADJ ESC
5. Adjusting printout tone (BT200-P00 only)
FUNC
1.MENU
2.UPLOAD TO BT200
3.DOWNLOAD TO INST
4.PRINT ALL DATA
HOME SET ADJ ESC
(ADJ)
MENU J.ADJUST K.TEST M.MEMO P:RECORD
HOME SET ADJ ESC
PARA­METER SCREEN
SETUP SCREEN
PARAM A60:SELF CHECK GOOD
PARAM A21:CAPSULE TEMP
26.5 deg C DATA DIAG PRNT ESC
PARAM A10:OUTPUT(%)
50.0 % A11:ENGR, OUTPUT
20.0 M A20:AMP TEMP
24.5 deg C DATA DIAG PRNT ESC
SET C10:TAG NO. YOKOGAWA YOKOGAWA
CODE CAPS CLR ESC
PARAM C60:SELF CHECK GOOD
PARAM C22:HIGH RANGE 100 kPa
DATA DIAG PRNT ESC
PARAM C10:TAG NO. YOKOGAWA C20:PRESS UNIT kPa C21:LOW RANGE 0 kPa
DATA DIAG PRNT ESC
See “BT200 Instruction Manual” for details concerning uploading and downloading parameters and printouts (BT200-P00).
PARAM J60:SELF CHECK GOOD
PARAM J10:ZERO ADJ
0.0 % DATA DIAG PRNT ESCDATA DIAG PRNT ESC DATA DIAG PRNT ESC
J11:ZERO DEV
22.2 %
J20:EXT. ZERO ADJ ENABLE
DATA DIAG PRNT ESC
F0809.EPS
8-3
IM 01C21D01-01E
8. BRAIN TERMINAL BT200 OPERATION
No. Description
Model+capsule type Tag number
Applica-
bility
PLF
01 02
T0805.EPS
Rewrita-
bility
16 alphanumerics GOOD/ERROR
Remarks
Item
MODEL
TAG NO.
Self-diagnostic result
03 SELF CHECK
Measured data displayA
–5 to 110%*
3
Menu nameDISPLAY
Output (in %)A10 OUTPUT (%)
–19999 to 19999Output (in engineering
units)
A11 ENGR.
OUTPUT
Unit specified in D30Amplifier temperatureA20 AMP TEMP Unit specified in D30Capsule temperatureA21 CAPSULE
TEMP
Sensor typeB
16 uppercase alphanumerics
Menu nameSENSOR
TYPE
Model+spanB10 MODEL
Style numberB11 STYLE NO.
–32000 to 32000Lower range-limitB20 LRL –32000 to 32000
Upper range-limitB21 URL
–32000 to 32000Minimum spanB30 MIN SPAN
Unit specified in D31*
1
Static pressureA30 STATIC
PRESS
–32000 to 32000Input (indicated as the
value after zeroing)
A40 INPUT
GOOD/ERROR, CAP MODULE FAULT, AMP MODULE FAULT, OUT OF RANGE, OUT OF SP RANGE*
1
, OVER TEMP (CAP), OVER TEMP (AMP), OVER OUTPUT, OVER DISPLAY, ILLEGAL LRV, ILLEGAL HRV, ILLEGAL SPAN, and ZERO ADJ OVER
Self-diagnostic messages
A60 SELF CHECK
Maximum static pressure*
4
B40
Same as A60
MAX STAT.P.
Self-diagnostic messages
B60 SELF CHECK
Setting dataC
16 alphanumerics
Menu nameSETTING
Tag numberC10 TAG. NO.
Selected from mmH
2
O, mmAq, mmWG, mmHg, Torr, Pa, hPa, kPa, MPa, mbar, bar, gf/cm
2
, kgf/cm2,
inH
2
O, inHg, ftH2O, psi, or atm
Measurement range units
C20 PRESS UNIT
–32000 to 32000(but within measurement range)
Measurement range, lower range value
C21 LOW RANGE
Self-diagnostic messages
C60 Same as A60SELF CHECK
–32000 to 32000(but within measurement range)
Measurement range, higher range value
C22 HIGH
RANGE
Selected from 0.2*2, 0.5, 1.0, 2.0,
4.0, 8.0, 16.0, 32.0, or 64.0 sec.
Damping time constantC30 AMP
DAMPING
Selected from OUT:LIN; DSP:LIN, OUT:LIN; DSP:SQR, OUT:SQR; DSP:SQR
Output mode and integral indicator mode
C40 OUTPUT
MODE
0.0 to 20.0% LINEAR/ZERO
Low cutD10 LOW CUT Low cut modeD11 LOW CUT
MODE
NORMAL %/USER SET, USER & %/INP PRES, PRES & %
Display selectionD20 DISP SELECT
Auxiliary setting data 1D Menu nameAUX SET 1
Default Value
As specified when ordered. As specified when ordered.
As specified when ordered.
As specified when ordered.
2.0 s
As specified when ordered. If not specified, OUT: LIN; DSP: LIN.
8 uppercase alphanumerics
Engineering unit for display
D21 DISP UNIT
10.0% LINEAR
As specified when ordered.
–19999 to 19999Engineering range,
lower range value
D22 DISP LRV
–19999 to 19999Engineering range,
higher range value
D23 DISP HRV
As specified when ordered.
As specified when ordered.

8.3 Setting Parameters Using the BT200

8.3.1 Parameter Summary

Instruments to which applicable: F: Differential pressure transmitters EJA110A, EJA120A, and EJA130A P: Pressure transmitters EJA310A, EJA430A, EJA440A, EJA510A, and EJA530A L: Liquid level transmitters EJA210A and EJA220A
8-4
IM 01C21D01-01E
8. BRAIN TERMINAL BT200 OPERATION
No. Description RemarksItem
D30 TEMP UNIT
Rewrita-
bility
Auxiliary setting data 1D Menu nameAUX SET 1
deg C/deg FTemperature setting
Default Value
deg C
Applica-
bility
PLF
units
D31 STAT. P. UNIT
Static pressure setting units
Selected from mmH2O, mmAq, mmWG, mmHg, Torr, Pa, hPa, kPa,
As specified when ordered. If not specified, MPa.
MPa, mbar, bar, gf/cm2, kgf/cm2, inH2O, inHg, ftH2O, psi, or atm
If not specified, NORMAL. NORMAL
D45 H/L SWAP
Output reversalD40 REV OUTPUT Impulse piping
NORMAL/REVERSE NORMAL/REVERSE
accessing direction
ERROR OUT
D60 SELF CHECK
CPU errorD52 BURN OUT Hardware errorD53 Self-diagnostic
HIGH/LOW, –5 to 110%*
HOLD/HIGH/LOW, –5 to 110%*
Same as A60
3
HIGH
3
HIGH
messages Auxiliary setting data 2E Bidirectional modeE30 BI DIRE
Menu nameAUX SET 2
OFF/ON
OFF
MODE
E60 SELF CHECK
messages
H10 AUTO LRV
ment range lower
Same as A60Self-diagnostic
Menu nameAutomatic setupH AUTO SET
–32000 to 32000Automatic measure-
Displays the same data as C21.
range value setup
H11 AUTO HRV
measurement range
–32000 to 32000Automatic
Displays the same data as
C22. higher range value setup
H60 SELF CHECK
Same as A60Self-diagnostic
messages
J10 ZERO ADJ
Adjustment dataJ Automatic zero
Menu nameADJUST –5 to 110.0%*
3
adjustment
J11 ZERO DEV.
Manual zero adjustment
J20 EXT. ZERO
ADJ
adjustment screw
ENABLE/INHIBITExternal zero-
permission
J60 SELF CHECK
Same as A60Self-diagnostic
messages
Menu nameTestsK TEST
Test output % settingK10 OUTPUT in %
–5 to 110.0%*3 Displays ‘ACTIVE’ while executing
K60 SELF CHECK
messages
MEMO
Same as A60Self-diagnostic
Menu nameMemoM
8 uppercase alphanumericsMemoM10 MEMO 1 8 uppercase alphanumericsMemoM20 MEMO 2
MemoM30 MEMO 3
8 uppercase alphanumerics 8 uppercase alphanumericsMemoM40 MEMO 4 8 uppercase alphanumericsMemoM50 MEMO 5
M60 SELF CHECK
P
ERROR REC 1
P11
messages History of the errorsRECORD Last errorP10
Same as A60Self-diagnostic
Display the error
Display the errorOne time beforeERROR REC 2 P12 Display the errorTwo time beforeERROR REC 3 P13 Display the errorThree time beforeERROR REC 4 P60 Same as A60Self-diagnostic
SELF CHECK
messages
*1: In case of Model EJA120A, static pressure cannot be measured. The display is always 0 MPa, but this is not a measured value. *2: When Optional code /F1 is specified, substitute the value with 0.1. *3: When Optional code /F1 is specified, substitute the value –5 with –2.5. *4: See MWP(max. working pressure) on the nameplate. B40 shows an approximate value of maximum pressure for the capsule.
T0806.EPS
———
8-5
IM 01C21D01-01E
8. BRAIN TERMINAL BT200 OPERATION

8.3.2 Parameter Usage and Selection

Before describing the procedure for setting param­eters, we present the following table showing how the parameters are used and in what case.
Table 8.3.1 Parameter Usage and Selection
Setup Item Description
Tag No. setup P.8-7
Calibration range setup P.8-7
Damping time constant setup P.8-8
Output signal low cut mode setup P.8-9
Integral indicator scale range and unit setup P.8-9
Unit setup for displayed temperature P.8-11
Operation mode (normal/reverse signal) setup P.8-11
Output status display/setup when a CPU failure P.8-11
Output status setup when a hardware error occurs P.8-11
Range change (while applying actual inputs) P.8-12
Zero point adjustment P.8-12
Test output (fixed current output) setup P.8-14
User memo fields P.8-14
Sets the Tag No. (using 16 alphanumeric characters). Note: Up to 8 alphanumerics (upper case letters) can be used in the BT100.
Sets the calibration range for 4 to 20 mA DC. Sets three data items: range unit, input value at 4 mA DC (LRV), and input value at 20 mA DC (HRV).
Note: LRV and HRV can be specified with range value specifications up to 5 digits
(excluding any decimal point) within the range of –32000 to 32000.
Adjusts the output response speed for 4 to 20 mA DC. Can be set in 9 increments from 0.2 to 64 s.
Used mainly to stabilize output near 0% if output signal is the square root mode. Two modes are available: forcing output to 0% for input below a specific value, or changing to proportional output for input below a specific value.
Sets the following 5 types of integral indicator scale ranges and units:
% scale indicator, user set scale indicator, alternate indication of user set scale
and % scale, input pressure display, alternate indication of input pressure and % scale When using the user set scale, 4 types of data can be set: user set scale setting, unit (BT200 only), display value at 4 mA DC (LRV), and display value at 20 mA DC (HRV).
Note: LRV and HRV can be specified with range value specifications up to 5
digits (excluding any decimal point) within the range of –19999 to 19999.
Sets a unit for temperatures displayed on the BT200.
Reverses the direction for 4 to 20 mA DC output relative to input. Reverse mode is used for applications in which safety requires that output be driven toward 20 mA if input is lost.
Displays the status of 4 to 20 mA DC output when a CPU failure. The parameter of the standard unit is fixed to the high limit value.
Sets the status of the 4 to 20 mA DC output when an abnormal status is detected with the capsule or the amplifier as the result of self-diagnosis. One of the following statuses; last held, high limit, and low limit values, can be selected.
Range for 4 to 20 mA DC signal is set with actual input applied. Sets 20 mA DC output precisely with respect to user’s reference instrument output. Note that DPharp is calibrated with high accuracy before shipment, so span should be set using the normal range setup.
Adjusts zero point. This can be done either using the external zero-adjustment screw on the transmitteror using the BT200.
Used for loop checks. Output can be set freely from –5% to 110% in 1% steps.
Allows user to enter up to 5 items of any desired text in up to 8 uppercase alphanumeric characters per item.
IMPORTANT
If the transmitter is turned off within 30 seconds after parameters have been set, the set data will not be stored and the terminal returns to previous settings.
T0807.EPS
8-6
IM 01C21D01-01E
8. BRAIN TERMINAL BT200 OPERATION

8.3.3 Setting Parameters

Set or change the parameters as necessary. After completing these, do not fail to use the “DIAG” key to confirm that “GOOD” is displayed for the self­diagnostic result at _60: SELF CHECK.
(1) Tag No. Setup (C10: TAG NO)
Use the procedure below to change the Tag No. Up to 16 alphanumeric characters can be entered.
• Example: Set a Tag No. to FIC-1a
Press the key to turn on
<When power is off>
––WELCOME–– BRAIN TERMINAL ID: BT200
check connection push ENTER key
UTIL FEED
PARAM 01:MODEL EJA430A-DA 02:TAG NO. YOKOGAWA 03:SELF CHECK GOOD
MENU A:DISPLAY B:SENSOR TYPE
the BT200.
Connect DPharp and BT200 using a communication cable and press the key.
Displays the name of connected DPharp model, TAG NO. and diagnostics information. Press the (OK) key after confirmation.
OK
Press the (SET) key to display the SET menu panel.
SET C10:TAG NO. YOKOGAWA FIC-1a
PRINTER OFF F2:PRINTER ON
FEED POFF NO
This is the panel for confirming set data. The set data items flash. When all items have been confir­med, press the again. (To go back to the setting panel, press the (NO) key.
SET C10:TAG NO. FIC-1a
The DPharp TAG NO. was overwritten. Press the (OK) key to
FEED NO OK
PARAM C10:TAG NO. FIC-1a C20:PRESS UNIT kPa C21:LOW RANGE 0 kPa
DATA DIAG PRNT ESC
return to the parameter panel. Press the (NO) key to return to the setting panel.
F0811.EPS
(2) Calibration Range Setup
a. Setting Calibration Range Unit
(C20: PRESS UNIT)
The unit is set at the factory before shipment if specified at the time of order. Follow the procedure below to change the unit.
• Example: Change the unit from mmH2O to kPa.
HOME SET ADJ ESC
MENU C:SETTING D:AUX SET 1 E:AUX SET 2 H:AUTO SET
HOME SET ADJ ESC
MENU C10:TAG NO. YOKOGAWA C20:PRESS UNIT kPa C21:LOW RANGE 0 kPa
DATA DIAG PRNT ESC
SET C10:TAG NO. YOKOGAWA YOKOGAWA
CODE CAPS CLR ESC
SET C10:TAG NO. YOKOGAWA FIC-1a _
CODE caps CLE ESC
Select C: SETTING and press the key.
Select C10: TAG NO. and press the key.
Set the new TAG NO. (FIC-1a).
FOKOGAWA
FIKOGAWA
FICOGAWA
FIC-GAWA
FIC-1AWA
FIC-1aWA
FIC-1a
Set TAG NO. and press the key.
SET C20:PRESS UNIT mmH20 < mmWG > < mmHG > < Torr > < kPa >
SET C20:PRESS UNIT kPa
FEED NO OK
mmH2O
mmAq mmWG mmHg Torr
kPa
MPa mbar bar
2
gf/cm
2
kgf/cm inH2O inHg ftH
O
2
psi atm
Use the or key to select “kPa.” Press the key twice
ESC
to enter the setting.
Press the (OK) key.
F0812.EPS
When you have made an entry mistake, return the cursor using the key, then reenter.
F0810.EPS
8-7
IM 01C21D01-01E
8. BRAIN TERMINAL BT200 OPERATION
b. Setting Calibration Range Lower
Range Value and Higher Range Value (C21: LOW RANGE, C22: HIGH RANGE)
These range values are set as specified in the order before the instrument is shipped. Follow the proce­dure below to change the range.
• The measurement span is determined by the high and low range limit values. In this instrument, changing the low range value also automatically changes the high range value, keeping the span constant.
• Example 1: With present settings of 0 to 30 kPa, set the lower range value to 0.5 kPa.
SET C21:LOW RANGE 0 kPa + 0.5
DEL CLR ESC
SET C21:LOW RANGE
0.5 kPa
FEED NO OK
Set 0.5. Press the key twice to enter the setting.
Press the (OK) key.
• Example 2: With present settings of 0 to 30 kPa, set the Higher range value to10 kPa.
SET C22:HIGH RANGE 30 kPa + 10
DEL CLR ESC
SET C22:HIGH RANGE 10 kPa
FEED NO OK
PARAM C20:PRESS UNIT kPa C21:LOW RANGE 0 kPa C22:HIGH RANGE 10 kPa
DATA DIAG PRNT ESC
Set 10. Press the key twice to enter the setting.
Press the (OK) key.
The low range value is not changed, so the span changes.
F0814.EPS
(3) Damping Time Constant Setup
(C30: AMP DAMPING)
When the instrument is shipped, the damping time constant is set at 2.0 seconds. Follow the procedure below to change the time constant.
SET C20:PRESS UNIT kPa C21:LOW RANGE
0.5 kPa C22:HIGH RANGE
30.5 kPa DATA DIAG PRNT ESC
The higher range value is changed while the span remains constant.
Span = Higher range value – Lower range value
F0813.EPS
• Note, however, that changing the higher range value does not cause the lower range value to change. Thus, changing the higher range value also changes the span.
• Calibration range can be specified with range value specifications up to 5 digits (excluding any decimal point) for low or high range limits within the range of –32000 to 32000.
• Example: Change from 2.0 sec to 4.0 sec.
SET C30:AMP DAMPING
2.0 sec < 2.0 sec > < 4.0 sec > < 8.0 sec > < 16.0 sec >
SET C30:AMP DAMPING
4.0 sec
FEED NO OK
0.2sec
0.5sec
1.0sec
2.0sec
4.0sec
8.0sec
16.0sec
32.0sec
64.0sec
Note: The damping time constant set here is the damping time
constant for the amplifier assembly. The damping time constant for the entire transmitter is the sum of the values for the amplifier assembly and for the capsule assembly. For the capsule assembly damping time constant (fixed), see the “General Specifications” found at the end of this manual. (See Chapter 10.)
Use the or key to select 4.0 sec. Press the key twice to enter the setting.
ESC
Press the (OK) key.
F0815.EPS
8-8
IM 01C21D01-01E
8. BRAIN TERMINAL BT200 OPERATION
(4) Output Signal Low Cut Mode Setup
(D10: LOW CUT, D11: LOW CUT MODE)
Low cut mode can be used to stabilize the output signal near the zero point. The low cut point can be set in a range from 0 to 20% of output. (Hysteresis of cut point: ±1%)
Select “ZERO” as the low cut mode.
LOW CUT mode ZERO at 10%
50
(%)
Output
10
0
10
Input(%)
50
F0816.EPS
• Example: Change the low cut setting range from 5% to 10%, and the low cut mode from LINEAR to ZERO.
SET D10:LOW CUT
5.0 % + 10.0
CLR ESC
SET D10:LOW CUT
10.0 %
FEED NO OK
SET D11:LOW CUT MODE LINEAR < LINEAR > < ZERO >
SET D11:LOW CUT MODE ZERO
Set “10.” Press the key twice to enter the setting.
Press the (OK) key. Next, the [D11: LOW CUT MODE] setting panel is displayed.
Use the or key to select ZERO. Press the key twice to
ESC
enter the setting.
Press the (OK) key.
(5) Integral Indicator Scale Setup
The following 5 displays are available for integral indicators.
D20: DISP SELECT
and Display
NORMAL %
Indicates –5 to 110% range depending on the Measurement range (C21, C22).
USER SET
Indicates values depending on the Engineering range (D22, D23). Units set using Engineering unit (D21) are not indicated.
USER & %
Indicates user set and % alternately in 3 second intervals.
INP PRES
Indicates input pressure. Indication limits –19999 to 19999.
PRES & %
Indicates input pressure and % alternately in 3 second intervals.
(Note 1) Scale range can be specified with range limit specifications up
to 5 digits (excluding any decimal point) for low or high range limits within the range of –19999 to 19999. The range with decimals is available to the third decimal place.
(Note 2) It indicates the value after zeroing.
Description
and Related parameters
A10:OUTPUT (%)
45.6 %
A11:ENGR.OUTPUT
20.0 M
A10:OUTPUT (%)
45.6 %
A11:ENGR. OUTPUT
20.0 M
(
Note 2
A40:INPUT
456 kPa
A10:OUTPUT (%)
45.6 %
A40:INPUT
456 kPa
(
Note 1
)
T0808.EPS
See (a.) through (c.) for each setting procedure.
)
FEED NO OK
PARAM D10:LOW CUT
10.0 % D11:LOW CUT MODE ZERO D20:DISP SELECT NORMAL %
DATA DIAG PRNT ESC
F0817.EPS
8-9
IM 01C21D01-01E
8. BRAIN TERMINAL BT200 OPERATION
% indication and input pressure
User-set engineering unit display
indication
D20: DISP SELECT NORMAL % INP PRES PRES & %
Transmitter is set for “% display” when shipped.
D20: DISP SELECT USER SET USER & %
Set for user-set engineering unit display.
D21: DISP UNIT
Set a unit to be displayed on the BT200.
D22: DISP LRV
Set a numeric value for engineering unit for 4 mA output (LRV).
D23: DISP HRV
Set a numeric value for engineering unit for 20 mA output (HRV).
F0818.EPS
a. Display Selection (D20: DISP SELECT)
Follow the instructions given to the below to change the range of integral indication scales.
When USER SET is selected, the user set values of integral indication and A11: ENGR. OUTPUT parameter are indicated.
• Example: Set the integral indicator scale to engineering units display.
SET D20:DISP SELECT NORMAL % <NORMAL %> <USER SET> <USER & %> <INP PRES>
SET D20:DISP SELECT USER SET
FEED NO OK
Use the or key to select “USER SET.” Press the key twice to
ESC
enter the setting.
Press the (OK) key.
b. Setting User-set Engineering Unit
(D21: DISP UNIT)
This parameter allows entry of the engineering units to be displayed on the BT200. When the instrument is shipped, this is set as specified in the order.
Follow the procedure below to change this setting.
This parameter need not be set for % display.
• Example: Set an engineering unit M.
SET D21:DISP UNIT
M_
CODE CAPS CLR ESC
SET D21:DISP UNIT M
FEED NO OK
Set “M.” Press the key twice to enter the setting.
Press the (OK) key.
F0820.EPS
c. Lower and Higher Range Value Setup
in Engineering Unit (D22: DISP LRV, D23: DISP HRV)
These parameter items are used to set the lower and higher range values for the engineering unit display.
When the instrument is shipped, these are set as specified in the order. Follow the procedure below to change these settings. Note that these parameters need not be set for % display.
• Example: Set lower range value (LRV) to –50 and higher range value (HRV) to 50.
Setting LRV
SET D22:DISP LRV 0M
- 50
DEL CLR ESC
Setting HRV
SET D23:DISP HRV 100M + 50
DEL CLR ESC
SET D23:DISP HRV 50M
Set “–50.” Press the key twice to enter the setting.
Set “50.” Press the key twice to enter the setting.
Press the (OK) key.
The “%” disappears from the
integral indicator display.
F0819.EPS
8-10
FEED NO OK
PARAM D21:DISP UNT M D22:DISP LRV – 50M D23:DISP HRV 50M
DATA DIAG PRNT ESC
F0821.EPS
IM 01C21D01-01E
8. BRAIN TERMINAL BT200 OPERATION
(6) Unit Setup for Displayed Temperature
(D30: TEMP UNIT)
When the instrument is shipped, the temperature units are set to degC. Follow the procedure below to change this setting. Note that changing the unit here changes the unit for A20: AMP TEMP (amplifier temperature) and A21: CAPSULE TEMP (capsule temperature).
• Example: Change the unit for the temperature display.
SET D30:TEMP UNIT deg C < deg C > < deg F >
Use the or key to select “deg F.” Press the key twice to
ESC
enter the setting.
F0822.EPS
(7) Operation Mode Setup
(D40: REV OUTPUT)
This parameter allows the direction of the 4 to 20 mA output to be reversed with respect to input. Follow the procedure below to make this change.
(8) Output Status Display/Setup when a CPU
Failure (D52: BURN OUT)
This parameter displays the status of 4 to 20 mA DC output if a CPU failure occurs. In case of a failure, communication is disabled.
Setting of HIGH or LOW is enabled. This is done with the pin (CN4) on the CPU assembly. See Chapter 3 for details.
Standard specifications The parameter is set to HIGH. If a failure, the transmitter outputs the signal of 110% or higher. The parameter D53: ERROR OUT is set to HIGH from the factory.
Optional code/C1 The parameter is set to LOW. If a failure, output which is –5% or lower is generated. The parameter D53: ERROR OUT is set to LOW from the factory.
• Example: Standard specifications
D52: BURN OUT
HIGH
pin (CN4) position: H
• Example: Change 4 to 20 mA output to 20 to 4 mA output.
SET D40:REV OUTPUT NORMAL < NORMAL > < REVERSE>
Use the or key to select REVERSE. Press the key twice to
ESC
enter the setting.
F0823.EPS
• Example: Optional code/C1
D52: BURN OUT
LOW
pin (CN4) position: L
F0824.EPS
(9) Output Status Setup when a Hardware
Error Occurs (D53: ERROR OUT)
This parameter allows the setting of the output status when a hardware error occurs. The following three selections are available.
(a) HOLD; Outputs the last value held before the
error occurred.
(b) HIGH; Outputs an output of 110% when an error
has occurred.
(c) LOW; Outputs an output of –5% when an error
has occurred.
Note: A hardware error means CAP MODULE FAULT of Er.01 or
AMP MODULE FAULT of Er. 02 which are shown in 8.5.2 “Errors and Countermeasures.”)
• Example: Set the output status to LOW when a hardware error occurs.
SET D53:ERROR OUT HIGH < HIGH> < LOW> < HOLD>
Use the or key to select “LOW.” Press the key twice to
ESC
enter the setting.
F0825.EPS
8-11
IM 01C21D01-01E
8. BRAIN TERMINAL BT200 OPERATION
Adjustment Method Description
Using the BT200 Set the present input to 0%.
Using the external zero-adjustment screw P.8-14
Adjust zero point using the zero­adjustment screw on the transmitter. This permits zero adjustment without using the BT200. Accurately adjust the output current to 4 mA DC or other target output value using an ammeter that accuratly reads output currents.
Adjust output to the reference value obtained using other means.
Adjust for 0% output at input level of 0%.
If the input level cannot easily be made 0% (because of tank level, etc.), adjust output to the reference value obtained using other means, such as a sight glass.
T0809.EPS
(10) Range Change while Applying Actual
Inputs (H10: AUTO LRV, H11: AUTO
HRV)
This feature allows the lower and higher range values to be set up automatically with the actual input applied. If the lower and higher range values are set, C21: LOW RANGE and C22: HIGH RANGE are changed at this same time.
Follow the procedure in the figure below. The measurement span is determined by the higher and lower range values. Changing the lower range value results in the higher range value changing auto­matically, keeping the span constant.
• Example 1: When changing the lower range value to 0.5 kPa for the present
setting of 0 to 30 kPa, take the following action with input pressure of 0.5 kPa applied.
SET H10:AUTO LRV 0 kPa + 0
SET H10:AUTO LRV
0.5000 kPa
FEED NO OK
PARAM H10:AUTO LRV
0.5000 kPa H11:AUTO HRV
30.500 kPa H60:SELF CHEC GOOD
DATA DIAG PRNT ESC
Press the key twice. The lower range value is changed to 0.5 kPa.
ESC
Press the (OK) key.
The higher range value is changed keeping the span constant. Parameters C21 and C22 are changed at the same time.
F0826.EPS
Note that changing the higher range value does not cause the lower range value to change but does change the span.
• Example 2: When the higher range value is to be changed to 10 kPa with the
present setting of 0 to 30 kPa, take the following action with an input pressure of 10 kPa applied.
SET H11:AUTO HRV 30 kPa + 30
SET H11:AUTO HRV
10.000 kPa
FEED NO OK
PARAM H10:AUTO LRV 0 kPa H11:AUTO HRV
10.000 kPa H60:SELF CHECK GOOD
DATA DIAG PRNT ESC
Press the key twice. The higher range value is changed to 10 kPa.
ESC
Press the (OK) key.
The lower range value is not changed, so the span changes. Parameter C22 is changed at the same time.
F0827.EPS
(11) Zero Point Adjustment
(J10: ZERO ADJ, J11: ZERO DEV, J20: EXT ZERO ADJ)
The DPharp supports several adjustment methods. Select the method best suited for the conditions of your application. Note that output signal can be checked by displaying parameter A10:OUTPUT (%) on the BT200.
8-12
IM 01C21D01-01E
8. BRAIN TERMINAL BT200 OPERATION
(a) Follow the procedure below when setting the
present output to 0% (4 mA).
A10:OUTPUT (%)
0.5 %
SET J10:ZERO ADJ
0.0 % + 000.0
CLR ESC
SET J10:ZERO ADJ
0.0 %
FEED NO OK
A10:OUTPUT (%)
0.0 %
Output is 0.5%.
Press the key twice.
Zero adjustment is completed. Press the (OK) key.
Output is 0%.
(b) In tank level measurement, if the actual level
cannot be brought to zero for zero adjustment, then the output can be adjusted to correspond to the actual level obtained using another measuring instrument such as a glass gauge.
[Example]
F0828.EPS
(b)-2 Follow the procedure below to use J11: ZERO
DEV.
A10:OUTPUT (%)
41.0 %
SET J11:ZERO DEV.
2.50 % 0
SET J11:ZERO DEV.
2.50 %
1.50
A10:OUTPUT (%)
40.0 %
Present output is 41.0%. Output error = 40.0 – 41.0 = –1.0%.
Since “J11: ZERO DEV.” contains the previous correction, obtain the correction value by adding –1.0% to
ESC
it. 2.50% + (–1.0%) = 1.50%
Set the correction value, 1.50. Press the key twice.
ECS
The output is changed to 40%.
F0830.EPS
When the zero point is adjusted, the displayed value of A40 is as follows.
[Example]
When the zero point is shifted by 20 kPa for the actual pressure, the parameter of A40 indicates 50 kPa.
Measurement range: 50 to 250 kPa, Actual value: 130 kPa.
Actual value
x 100
Actual
value(%)
–Measurement range lower range value
=
Measurement range higher range value –Measurement range lower range value
130–50
= x 100=40.0%
250–50
(b)-1 Follow the procedure below to use J10: ZERO
ADJ.
A10:OUTPUT (%)
41.0 %
SET J10:ZERO ADJ
0.0 % + 040.0
A10:OUTPUT (%)
40.0 %
CLR ESC
Present output is 41.0%.
Enter the present actual level, 40%. Press the key twice.
The output is changed to 40%.
F0829.EPS
70 kPa
20 kPa
0 kPa
Zero adjustment
volume(J11)
Actual differential pressure/pressure
Zero adjustment
Input value of A40
50 kPa
0 kPa
F0839.EPS
8-13
IM 01C21D01-01E
8. BRAIN TERMINAL BT200 OPERATION
(c) Zero Point Adjustment Using the External Zero
Adjustment Screw
• Enabling/inhibiting of zero point adjustment using the external zero-adjustment screw on the transmitter (J20: EXT ZERO ADJ)
Follow the procedure below to enable or inhibit zero point adjustment from the zero-adjustment screw on the transmitter. This is set to “ENABLE” when the instrument is shipped.
• Example: Inhibiting zero adjustment by the external zero-adjustment screw
SET J20:EXIT ZERO ADJ ENABLE < ENABLE > < INHIBIT>
Use the or key to select “INHIBIT.” Press the key twice to
ESC
enter the setting.
F0831.EPS
• Zero point adjustment using external zero-adjust­ment screw on the transmitter
Turn the zero-adjustment screw on the outside of the transmitter case using a slotted screwdriver. Turn the screw to the right to increase the zero point or to the left to decrease the zero output; the zero adjusts in increments of 0.01% of the range setting. Note that the amount of adjustment to the zero point changes according to the speed at which the screw is turned. To make fine adjustments, turn the screw slowly; to make coarse adjustments, turn the screw quickly.
Note: When a zero point adjustment has been made, do not turn
off the transmitter less than 30 seconds after adjustment.
(12) Test Output Setup (K10: OUTPUT X%)
This feature can be used to output a fixed current from 3.2 mA (–5%) to 21.6 mA (110%) for loop checks.
• Example: Output 12 mA (50%) fixed current.
SET K10:OUTPUT X %
0.0 % + 050.0
SET K10:OUTPUT X %
50.0 % ACTIVE
FEED NO OK
Set “50.0%.” Press the key twice to output a fixed current at 50%.
ESC
“Active” is displayed while this is being executed. Press the (OK) key to cancel the fixed current output.
F0832.EPS
IMPORTANT
1. Test output is held for approximately 10 minutes, and then released automatically after the time has elapsed. Even if the BT200 power supply is turned off or the communica­tion cable is disconnected during test output, it is held for approximately 10 minutes.
2. Press the (OK) key to release test output immediately.
(13) User Memo Fields (M: MEMO)
This feature provides 5 user memo fields, each holding up to 8 alphanumeric characters. Up to 5 items such as inspection date, inspector, and other information can be saved in these fields.
• Example: Save an inspection date of January
30, 1995.
PARAM M10:MEMO 1
M20:MEMO 2
M30:MEMO 3
DATA DIAG PRNT ESC
SET M10:MEMO 1
95.1.30_
Set “95.1.30” in the order of year, month, and day. Press the key twice to enter the setting.
ESC
8-14
F0833.EPS
IM 01C21D01-01E
8. BRAIN TERMINAL BT200 OPERATION

8.4 Displaying Data Using the BT200

8.4.1 Displaying Measured Data

The BT200 can be used to display measured data.
The measured data is updated automatically every 7 seconds. In addition, the display can be updated to the present data value at any time by pressing the (DATA) key. For parameters associated with the display of measured data, see Subsection 8.3.1, “Parameter Summary.”
• Example: Display output.
MENU A:DISPLAY B:SENSOR TYPE
HOME SET ADJ ESC
PARAM A10:OUTPUT (%) XX.X % A11:ENGR.OUTPUT YY.Y % A20:AMP TEMP ZZ deg C
DATA DIAG PRNT ESC
PARAM A10:OUTPUT (%)
A11:ENGR.OUTPUT
A20:AMP TEMP
8.4.2 Display Transmitter Model and
Specifications
The BT200 can be used to display the model and specifications of the transmitter.
• Example: View transmitter model name.
MENU A:DISPLAY B:SENSOR TYPE
Display “A10: OUTPUT (%).”
Data is updated automatically
communi
at 7-second intervals.
Press .
F0834.EPS

8.5 Self-Diagnostics

8.5.1 Checking for Problems

(1) Identifying Problems with BT200
The following four areas can be checked.
(a) Whether connections are good. (b) Whether BT200 was properly operated. (c) Whether settings were properly entered. (d) History of the errors.
See examples below.
• Example 1: Connection errors
––WELCOME–– BRAIN TERMINAL ID: BT200
check connection push ENTER key
UTIL FEED
communication error
• Example 2: Setting entry errors
PARAM 01:MODEL EJA510A-DC 02:TAG NO. YOKOGAWA 03:SELF CHECK ERROR
PARAM C20:PRESS UNIT kPa C21:LOW RANGE 600 kPa C22:HIGH RANGE 600 kPa
DATA DIAG PRNT ESC
DIAG C60:SELF CHECK ERROR < ERROR > < ILLEGAL LRV >
FEED PRNT ESC
Press the key. When the panel shown on the left appears, press the key.
Since communications will be unsuccessful if there is a problem in the connection to the BT200, the
ESC
display at the left will appear. Recheck the connection. Press the (OK) key.
The initial data panel shows the result of current transmitter diagnostics.
OK
Press the (DIAG) key in the parameter panel to go to the diagnostics panel (C60: SELF CHECK). An error message is displayed when an error occurs in the diagnostics panel.
HOME SET ADJ ESC
PARAM B10:MODEL EJA430A-DA B11:STYLE NO. S1.01 B20:LRL – 98.07 kPa
DATA DIAG PRNT ESC
For the associated parameters, see Subsection
8.3.1, Parameter Summary.
F0835.EPS
8-15
F0836.EPS
IM 01C21D01-01E
8. BRAIN TERMINAL BT200 OPERATION
• Example 3: Checking the history of the errors
MENU J:ADJUST K:TEST M:MEMO P:RECORD
HOME SET ADJ ESC
PARAM P10:ERROR REC 1 ERROR P11:ERROR REC 2 ERROR P12:ERROR REC 3 GOOD
DATA DIAG PRNT ESC
P10: “ERROR REC 1” displays the last error. P11: “ERROR REC 2” displays the error one time before
the last error occurred.
P12: “ERROR REC 3” displays the error two times before
the last error occurred.
P13: “ERROR REC 4” displays the error three times before
the last error occurred.
The history of up to four errors can be stored. When the 5th error has occurred, it is stored in “P10”. The error stored in “P13” will be deleted, and then, the error in “P12” will be copied to “P13”. In this sequence, the history of the most previously occurred error will be removed from memory. “GOOD” will be displayed if there was no previous error.
SET P10:ERROR REC 1 ERROR < ERROR > < ILLEGAL LRV > < ILLEGAL HRV >
<(a) SETUP PANEL>
Connect the BT200 to the transmitter, and call item “P.”
Select P10: ERROR REC1 and press the key to display the error message.
ESC
(2) Checking with Integral Indicator
NOTE
If an error is detected in the self-diagnostic, an error number is displayed on the integral indicator. If there is more than one error, the error number changes at two-second intervals. See Table 8.5.1 regarding the error numbers.
F0838.EPS
Figure 8.5.1 Identifying Problems Using the Integral
Indicator
For the details of the messages listed below, see Table
8.5.1 Error Message Summary.
CAP MODULE FAULT AMP MODULE FAULT OUT OF RANGE OUT OF SP RANGE
OVER TEMP (CAP) OVER TEMP (AMP) OVER OUTPUT OVER DISPLAY
ILLEGAL LRV ILLEGAL HRV ILLEGAL SPAN ZERO ADJ OVER
Note 1: Press the key twice in the setting panel
(panel 1) to clear all error message (P10 to P13) information.
Note 2: After two hours from when an error occurs, the error
message of that error will be recorded. Therefore, if you switch off the transmitter within two hours from when the error occurs, there is no history of that error stored in the transmitter, and this function is meaningless.
F0837.EPS
8-16
IM 01C21D01-01E

8.5.2 Errors and Countermeasures

The table below shows a summary of error messages.
Table 8.5.1 Error Message Summary
8. BRAIN TERMINAL BT200 OPERATION
Integral
Indicator
Display
None
----
Er. 01
BT200 Display Cause Countermeasure
GOOD
ERROR
CAP MODULE
Capsule problem.
FAULT
Output Operation
during Error
*1
Outputs the signal (Hold, High, or Low)
Replace capsule.
*2
set with parameter D53.
Er. 02
AMP MODULE FAULT
Amplifier problem.
Outputs the signal (Hold, High, or Low)
Replace amplifier.
set with parameter D53.
Er. 03
Er. 04
Er. 05
OUT OF RANGE
OUT OF SP RANGE
OVER TEMP (CAP)
Input is outside measurement range limit of capsule.
Static pressure exceeds specified
*3
range. Capsule temperature
is outside range (–50 to 130°C).
Outputs high range limit value or low range limit value.
Displays present output.
Displays present output.
Check input.
Check line pressure (static pressure).
Use heat insulation or make lagging to keep temperature within range.
Er. 06
OVER TEMP (AMP)
Amplifier temperature is outside range (–50 to 95°C).
Displays present output.
Use heat insulation or make lagging to keep temperature within range.
Er. 07
Er. 08
OVER OUTPUT
OVER DISPLAY
Output is outside high or low range limit value.
Displayed value is outside high or low range limit value.
Outputs high or low range limit value.
Displays high or low range limit value.
Check input and range setting, and change them as needed.
Check input and display conditions and modify them as needed.
Er. 09
ILLEGAL LRV
LRV is outside setting range.
Holds output immediately before
Check LRV and modify as needed.
error occurrence.
Er. 10
ILLEGAL HRV
HRV is outside setting range.
Holds output immediately before
Check HRV and modify as needed.
error occurrence.
Er. 11
ILLEGAL SPAN
SPAN is outside setting range.
Holds output immediately before
Check SPAN and change as needed.
error occurrence.
Er. 12
ZERO ADJ OVER
Zero adjustment is too large.
Displays present output.
Readjust zero point.
*1: For Model EJA510A and EJA530A, this error code appears when an illegal overpressure is applied to the pressure sensor in addition to the capsule problem. The Er. 01 will remain even if the normal input pressure is regained. *2: For Model EJA510A and EJA530A, restart the power to the transmitter. Then if no error code appears, perform necessary adjustments such as zero-adjustment to continue the operation. If the error code still exists, replace the capsule assembly. *3: For Model EJA120A, static pressure cannot be measured. The display is always 0 MPa, but this is not a measured value.
T0810 .EPS
8-17
IM 01C21D01-01E
9. MAINTENANCE

9. MAINTENANCE

9.1 Overview

WARNING
Since the accumulated process fluid may be toxic or otherwise harmful, take appropriate care to avoid contact with the body, or inhalation of vapors during draining condensate or venting gas in transmitter pressure-detector section and even after dismounting the instrument from the process line for maintenance.
Maintenance of the transmitter is easy due to its modular construction. This chapter describes the procedures for calibration, adjustment, and the disas­sembly and reassembly procedures required for component replacement.
Since the transmitters are precision instruments, carefully and thoroughly read the following sections for proper handling during maintenance.
IMPORTANT
• As a rule, maintenance of this transmitter should be implemented in a maintenance service shop where the necessary tools are provided.
• The CPU assembly contains sensitive parts that may be damaged by static electricity. Exercise care so as not to directly touch the electronic parts or circuit patterns on the board, for example, by preventing static electrification by using grounded wrist straps when handling the assembly. Also take precautions such as placing a removed CPU assembly into a bag with an antistatic coating.
9.2 Calibration Instruments Se­lection
Table 9.2.1 shows the instruments required for calibra­tion. Select instruments that will enable the transmitter to be calibrated or adjusted to the required accuracy.
The calibration instruments should be handled carefully so as to maintain the specified accuracy.

9.3 Calibration

Use the procedure below to check instrument operation and accuracy during periodic maintenance or trouble­shooting.
1) Connect the instruments as shown in Figure 9.3.1
and warm up the instruments for at least five minutes.
IMPORTANT
• To adjust the transmitter for highest accuracy, make adjustments with the power supply voltage and load resistance including leadwire resistances set close to the conditions under which the transmitter is installed.
• If the measurement range 0% point is 0 kPa or shifted in the positive direction (suppressed zero), the reference pressure should be applied as shown in the figure. If the measurement range 0% point is shifted in the negative direction (elevated zero), the reference pressure should be applied using a vacuum pump.
2) Apply reference pressures of 0%, 50%, and 100% of the measurement range to the transmitter. Calculate the errors (differences between digital voltmeter readings and reference pressures) as the pressure is increased from 0% to 100% and is decreased from 100% to 0%, and confirm that the errors are within the required accuracy.
9-1
IM 01C21D01-01E
9. MAINTENANCE
Table 9.2.1 Instruments Required for Calibration
Name RemarksYokogawa-recommended Instrument
Power supply
Load
resistor
Voltmeter
Model SDBT or SDBS distributor
Model 2792 standard resistor [250 1 ±0.005%, 3 W] Load adjustment resistor [100 1 ±1%, 1 W] Model 2501 A digital multimeter
Accuracy (10V DC range): ±(0.002% of rdg + 1 dgt)
4 to 20 mA DC signal
Model MT220 precision digital manometer
1) For 10 kPa class for 0 to 10 kPa
Accuracy: ±(0.015% of rdg + 0.015% of F.S.)
±(0.2% of rdg + 0.1% of F.S.)
. . . . .
. . . . . . . . .
for -10 to 0 kPa
2) For 130 kPa class for 25 to 130 kPa for 0 to 25 kPa for -80 to 0 kPa
for 100 to 700 kPa for 0 to 100 kPa for -80 to 0 kPa
Select a manometer having a pressure range close to that of the transmitter.
Digital
manometer
Accuracy: ±0.02% of rdg
±5digits
. . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . .
±(0.2% of rdg + 0.1% of F.S.)
3) For 700 kPa class
Accuracy: ±(0.02% of rdg + 3digits)
±5 digits
. . . . . . . . . . . . . . . . . . . . . . . . .
±(0.2% of rdg + 0.1% of F.S.)
. . . . . . . . .
. . . . . . . . . . . . .
. . . . . . . . .
4) For 3000 kPa class
Accuracy: ±(0.02% of rdg + 10 digits)
±(0.2% of rdg + 0.1% of F.S.)
. . . . . . . . . . .
. . . . . . . . .
for 0 to 3000 kPa for -80 to 0 kPa
5) For 130 kPa abs class for 0 to 130 kPa abs
2
}, 25 kPa {2500 mmH2O}
Requires air pressure supply.
Select the one having a pressure range close to
Pressure generator
Accuracy: ±(0.03% of rdg + 6 digits)
. . . . . . . . . . . .
Model 7674 pneumatic pressure standard for 200 kPa {2 kgf/cm
Accuracy: ±0.05% of F.S.
Dead weight gauge tester 25 kPa {2500mmH2O} Accuracy: ±0.03% of setting
that of the transmitter.
Pressure
source
Model 6919 pressure regulator (pressure pump)
Pressure range: 0 to 133 kPa {1000 mmHg}
Prepare the vacuum pump for negative pressure ranges.
T0901.EPS
Note: The above table contains the instruments capable of performing calibration to the 0.2% level. Since special maintenance and management
procedures involving traceability of each instrument to higher-level standards are required for calibration to the 0.1% level, there are difficulties in calibration to this level in the field. For calibration to the 0.1% level, contact Yokogawa representatives from which the instrument was purchased or the nearest Yokogawa office.
Using pressure generator
P
Figure 9.3.1 Instrument Connections
Supply pressure
Pressure generator
Reference pressure
Load resistance,
250 1
Load adjusting resistance, 100 1
Digital voltmeter
Using pressure
Pressure source
source with manometer
Model MT220
P
precision digital manometer
Reference pressure
Power supply E
RRc
V
Load resistance,
Load adjusting resistance, 100 1
250 1
RRc
V
Digital voltmeter
9-2
Power supply E
F0901.EPS
IM 01C21D01-01E
9. MAINTENANCE
9.4 Disassembly and Reassem­bly
This section describes procedures for disassembly and reassembly for maintenance and component replace­ment.
Always turn OFF power and shut off and release pressures before disassembly. Use proper tools for all operations. Table 9.4.1 shows the tools required.
Table 9.4.1 Tools for Disassembly and Reassembly
Tool RemarksQuantity
Phillips screwdriver Slotted screwdriver
Allen wrenches JIS B4648
Wrench
Torque wrench
Adjustable wrench
Socket wrench
Socket driver
Tweezers
CAUTION
Precautions for CENELEC and IECEx Flame­proof Type Transmitters
• Flameproof type transmitters must be, as a rule, removed to a non-hazardous area for maintenance and be disassembled and reas­sembled to the original state.
• On the flameproof type transmitters the two covers are locked, each by an Allen head bolt (shrouding bolt). When a shrouding bolt is driven clockwise by an Allen wrench, it is going in and cover lock is released, and then the cover can be opened by hand.
When a cover is closed it should be locked by a shrouding bolt without fail. Tighten the shroud­ing bolt to a torque of 0.7 N·m.
1
JIS B4633, No. 2 1 2
One each, nominal 3 and
5 mm Allen wrenches 1
Width across flats, 17 mm 1 1 1
Width across flats, 16 mm 1
Width across flats, 5.5 mm 1
T0902.EPS

9.4.1 Replacing the Integral Indicator

CAUTION
Cautions for Flameproof Type Transmitters
Users are prohibited by law from modifying the construction of a flameproof type transmitter. This would invalidate the agency approval and the transmitter’s use in such rated area. Thus the user is prohibited from using a flame­proof type transmitter with its integral indicator removed, or from adding an integral indicator to a transmitter. If such modification is absolutely required, contact Yokogawa.
This subsection describes the procedure for replacing an integral indicator. (See Figure 9.4.2)
Removing the Integral Indicator
1) Remove the cover.
2) Supporting the integral indicator by hand, loosen its two mounting screws.
3) Dismount the LCD board assembly from the CPU assembly.
When doing this, carefully pull the LCD board assembly straight forward so as not to damage the connector pins between it and the CPU assembly.
Shrouding Bolt
Figure 9.4 Shrouding Bolts
Shrouding Bolt
9-3
IM 01C21D01-01E
9. MAINTENANCE
Attaching the Integral Indicator
Integral indicator can be installed in the following three directions.
F0910.EPS
Figure 9.4.1 Installation Direction of Indicator
1) Align both the LCD board assembly and CPU assembly connectors and engage them.
2) Insert and tighten the two mounting screws.
3) Replace the cover.
Output terminal cable
Press forward

9.4.2 Replacing the CPU Board Assembly

This subsection describes the procedure for replacing the CPU assembly. (See Figure 9.4.2)
Removing the CPU Assembly
1) Remove the cover. If an integral indicator is mounted, refer to Subsection 9.4.1 and remove the indicator.
2) Turn the zero-adjustment screw to the position (where the screw head slot is horizontal) as shown in Figure 9.4.2.
3) Disconnect the output terminal cable (cable with brown connector at the end). When doing this, lightly press the side of the CPU assembly connec­tor and pull the cable connector to disengage.
4) Use a socket driver (width across flats, 5.5mm) to loosen the two bosses.
5) Carefully pull the CPU assembly straight forward to remove it.
6) Disconnect the flat cable (cable with black connec­tor at the end) that connects the CPU assembly and the capsule.
LCD board assembly
Integral indicator
Boss
Bracket (for zero-adjustment screw pin)
Cover
Figure 9.4.2 Removing and Attaching LCD Board Assem-
Mounting screw
bly and CPU Assembly
CPU assembly
Flat cable
Zero-adjustment screw pin
F0903.EPS
NOTE
Be careful not to apply excessive force to the CPU assembly when removing it.
Mounting the CPU Assembly
1) Connect the flat cable (with black connector) between the CPU assembly and the capsule.
2) Connect the output terminal cable (with brown connector).
NOTE
Make certain that the cables are free of pinching between the case and the CPU assembly edge.
3) Align and engage the zero-adjustment screw pin with the groove on the bracket on the CPU assem­bly. Then insert the CPU board assembly straight onto the post in the amplifier case.
4) Tighten the two bosses. If the transmitter is equipped with an integral indicator, refer to Subsec­tion 9.4.1 to mount the indicator.
9-4
IM 01C21D01-01E
9. MAINTENANCE
NOTE
Confirm that the zero-adjustment screw pin is placed properly in the groove on the bracket prior to tightening the two bosses. If it is not, the zero-adjustment mechanism will be damaged.
5) Replace the cover.

9.4.3 Cleaning and Replacing the Capsule Assembly

This subsection describes the procedures for cleaning and replacing the capsule assembly. (See Figure 9.4.3.)
CAUTION
Cautions for Flameproof Type Transmitters
Users are prohibited by law from modifying the construction of a flameproof type transmitter. If you wish to replace the capsule assembly with one of a different measurement range, contact Yokogawa. The user is permitted, however, to replace a capsule assembly with another of the same measurement range. When doing so, be sure to observe the following.
• The replacement capsule assembly must have the same part number as the one being re­placed.
• The section connecting the transmitter and capsule assembly is a critical element in preservation of flameproof performance, and must be checked to verify that it is free of dents, scratches, and other defects.
• After completing maintenance, be sure to securely tighten the Allen screws that fasten the transmitter section and pressure-detector section together.
Removing the Capsule Assembly
IMPORTANT
Exercise care as follows when cleaning the capsule assembly.
• Handle the capsule assembly with care, and be especially careful not to damage or distort the diaphragms that contact the process fluid.
• Do not use a chlorinated or acidic solution for cleaning.
• Rinse thoroughly with clean water after clean­ing.
1) Remove the CPU assembly as shown in Subsection
9.4.2.
2) Remove the two Allen screws that connect the transmitter section and pressure-detector section.
3) Separate the transmitter section and pressure­detector section.
4) Remove the nuts from the four flange bolts.
5) Hold the capsule assembly by hand and remove the cover flange.
6) Remove the capsule assembly.
7) Clean the capsule assembly or replace with a new one.
Reassembling the Capsule Assembly
1) Insert the capsule assembly between the flange bolts, paying close attention to the relative positions of the H (high pressure side) and L (low pressure side) marks on the capsule assembly. Replace the two capsule gaskets with new gaskets.
2) Install the cover flange on the high pressure side, and use a torque wrench to tighten the four nuts uniformly to a torque shown below.
Model EJA310A EJA430A
Torque(N·m)
{kgf·m} {15} {21}
39{4}
EJA440A
C capsule D capsule
147 206
3) After the pressure-detector section has been reas­sembled, a leak test must be performed to verify that there are no pressure leaks.
4) Reattach the transmitter section to the pressure­detector section.
5) Tighten the two Allen screws. (Tighten the screws to a torque of 5 N·m)
6) Install the CPU assembly according to Subsection
9.4.2.
7) After completing reassembly, adjust the zero point and recheck the parameters.
9-5
IM 01C21D01-01E
9. MAINTENANCE
Pressure-detector section
Nut
Cover flange
Allen screw
Capsule gasket
Flange bolt
Transmitter section
F0904.EPS
Figure 9.4.3 Removing and Mounting the Pressure-
detector Section

9.4.4 Replacing the Process Connector Gaskets

This subsection describes process connector gasket replacement. (See Figure 9.4.4.)

9.5 Troubleshooting

If any abnormality appears in the measured values, use the troubleshooting flow chart below to isolate and remedy the problem. Since some problems have complex causes, these flow charts may not identify all. If you have difficulty isolating or correcting a problem, contact Yokogawa service personnel.

9.5.1 Basic Troubleshooting

First determine whether the process variable is actually abnormal or a problem exists in the measurement system.
If the problem is in the measurement system, isolate the problem and decide what corrective action to take.
This transmitter is equipped with a self-diagnostic function which will be useful in troubleshooting; see Section 8.5 for information on using this function.
: Areas where self-diagnostic offers support
Abnormalities appear in measurement.
(a) Loosen the two bolts, and remove the process
connectors. (b)Replace the process connector gaskets. (c) Remount the process connectors. Tighten the bolts
securely and uniformly to a torque shown below,
and verify that there are no pressure leaks.
Model EJA310A EJA430A
Torque(N·m)
{kgf·m} {5 to 6}
Process connector
Process connector gasket
39 to 49 {4 to 5}
Bolt
EJA440A
C capsule D capsule
49 to 59
YES
Inspect the
process system.
YES
Inspect receiver.
Environmental conditions
Check/correct
environmental conditions.
Is process variable
itself abnormal?
NO
Measurement system problem
Isolate problem in
measurement system.
Does problem exist in receiving instrument?
NO
Operating conditions
Transmitter itself
Check transmitter.
Figure 9.4.4 Removing and Mounting the Process
Connector
F0905.EPS
Check/correct operating
conditions.
Figure 9.5.1 Basic Flow and Self-Diagnostics
9-6
F0906.EPS
IM 01C21D01-01E
9. MAINTENANCE

9.5.2 Troubleshooting Flow Charts

The following sorts of symptoms indicate that transmitter may not be operating properly. Example : • There is no output signal.
• Output signal does not change even though process variable is known to be varying.
• Output value is inconsistent with value inferred for process variable.
Connect BRAIN TERMINAL and check self-diagnostics.
Does the self-diagnostic
indicate problem location?
NO
Is power supply
polarity correct?
YES
Refer to error message summary in Subsection 8.5.2 to take actions.
Refer to Section 6.3 to check/correct polarity at each terminal from power supply to the terminal box.
YES
NO
Output travels beyond 0% or 100%.
Connect BRAIN TERMINAL and check self-diagnostics.
Does the self-
diagnostic indicate problem
location?
NO
Is power supply
polarity correct?
YES
Are valves opened or
closed correctly?
YES
Refer to error message summary in Subsection 8.5.2 to take actions.
Refer to Section 6.3 to check/correct polarity at each terminal from power supply to the terminal box.
Fully open tap and stop valves, and fully close drain valve.
YES
NO
NO
Are power
supply voltage and load
resistance correct?
YES
Are valves opened or
closed correctly?
YES
Is there any pressure leak?
NO
Is there
continuity through the
transmitter loop wiring?
Do the loop numbers
match?
YES
NO
Refer to Section 6.6 for rated voltage and load resistance.
NO
Fully open tap and stop valves, and fully close drain valve.
YES
Fix pressure leaks, paying particular attention to connections for impulse piping,pressure-detector section, etc.
NO
Find/correct broken conductor or wiring error.
Is there any pressure leak?
NO
Is zero point
adjusted correctly?
YES
Contact Yokogawa service personnel.
Fix pressure leaks, paying particular attention to connections for impulse piping, pressure-detector section, etc.
Adjust the zero point.
YES
NO
F0908.EPS
Contact Yokogawa service personnel.
F0907.EPS
9-7
IM 01C21D01-01E
Large output error.
Connect BRAIN TERMINAL and check self-diagnostics.
9. MAINTENANCE
Does the self-
diagnostic indicate problem
location?
NO
Are valves opened or
closed correctly?
YES
Is impulse piping
connected correctly?
YES
Are power supply
voltage and load resistance
correct?
YES
Refer to error message summary in Subsection 8.5.2 to take actions.
NO
Fully open tap and stop valves, and fully close drain valve.
NO
Refer to individual model user manuals and connect piping as appropriate for the measurement purpose.
NO
YES
Is transmitter
installed where there is
marked variation in
temperature?
NO
Were appropriate
instruments used for
calibration?
YES
Is output adjusted correctly?
YES
Contact Yokogawa service personnel.
Refer to Section 6.6 for rated voltage and load resistance.
Provide lagging and/or cooling, or allow adequate ventilation.
Refer to Section 9.2 when selecting instruments for calibration.
Adjust the output.
YES
NO
NO
F0909.EPS
9-8
IM 01C21D01-01E

10. GENERAL SPECIFICATIONS

10. GENERAL SPECIFICATIONS

10.1 Standard Specifications

Refer to IM 01C22T02-01E for FOUNDATION Fieldbus communication type and IM 01C22T03­00E for PROFIBUS PA communication type marked with “”.
Performance Specifications
See General Specifications sheet, GS 01C21D01­00E, GS 01C21E01-00E, and GS 01C21E02-00E.
Functional Specifications
Span & Range Limits
EJA310A*:
Measurement
Span
and Range
Span
L
Range
Span
M
Range
Span
A
Range
MPa
0.67 to 10 kPa
0 to
10 kPa
1.3 to
130 kPa
0 to
130 kPa
0.03 to 3
0 to 3
psi
(/D1)
2.67 to
40 inH
0 to
40 inH
0.38 to
38 inHg
0 to
38 inHg
4.3 to 430
0 to 430
O
2
O
2
mbar (/D3)
6.7 to 100
0 to 100
13 to 1300
0 to 1300
0.3 to
30 bar
0 to 30 bar
* The above units are in absolute terms.
EJA430A:
Measurement
Span
and Range
Span
A
Range
Span
B
Range
MPa
0.03 to 3 –0.1 to 3
0.14 to 14 –0.1 to 14
psi
(/D1)
4.3 to 430 –15 to 430 20 to 2000
–15 to 2000
bar
(/D3)
0.3 to 30 –1 to 30
1.4 to 140 –1 to 140
EJA440A:
Measurement
Span
and Range
Span
C
Range
Span
D
Range
MPa
5 to 32
–0.1 to 32
5 to 50
–0.1 to 50
psi
(/D1)
720 to 4500 –15 to 4500 720 to 7200 –15 to 7200
bar
(/D3)
50 to 320 –1 to 320 50 to 500 –1 to 500
Zero Adjustment Limits:
Zero can be fully elevated or suppressed, within the Lower and Upper Range Limits of the capsule.
mmHg
(/D4)
5 to 75
0 to 75
9.6 to 960
0 to 960
0.3 to
30 kgf/cm
0 to
30 kgf/cm
T1001.EPS
kgf/cm
(/D4)
0.3 to 30 –1 to 30
1.4 to 140 –1 to 140
T1002.EPS
kgf/cm
(/D4)
50 to 320 –1 to 320 50 to 500 –1 to 500
T1003.EPS
2
External Zero Adjustment “”:
External zero is continuously adjustable with
0.01% incremental resolution of span. Span may be adjusted locally using the digital indicator with range switch.
Output “”:
Two wire 4 to 20 mA DC output with digital communications, linear or square root program­mable. BRAIN or HART FSK protocol are superim­posed on the 4 to 20 mA signal.
Failure Alarm:
Output status at CPU failure and hardware error;
Up-scale: 110%, 21.6 mA DC or more(standard) Down-scale: -5%, 3.2 mA DC or less
-2.5%, 3.6 mA DC or less(Optional code /F1)
Note: Applicable for Output signal code D and E
Damping Time Constant (1st order):
The sum of the amplifier and capsule damping time constant must be used for the overall time constant. Amp damping time constant is adjustable from 0.2 to 64 seconds.
Capsule (Silicone Oil)
Time Constant (approx. sec) 0.2
2
L, M, A, B, C, and D
T1004.EPS
Ambient Temperature Limits:
2
* Safety approval codes may affect limits.
–40 to 85°C (–40 to 185°F), –30 to 80°C (–22 to 176°F) with LCD Display
Process Temperature Limits:
2
* Safety approval codes may affect limits.
Capsule M, A, B, C and D –40 to 120°C (–40 to 248°F) Capsule L for EJA310A –40 to 100°C (–40 to 212°F)
Maximum Overpressure:
See General Specifications sheet.
Working Pressure Limits (Silicone Oil)
Maximum Pressure Limit:
See ‘Model and Suffix Codes.’
Minimum Pressure Limit:
Capsule Pressure L, M, A (EJA310A) See Figure 1. A, B (EJA430A) See GS 01C21E01-00E C, D (EJA440A) See GS 01C21E02-00E
Installation
Supply & Load Requirements “”:
* Safety approvals can affect electrical requirements.
See Section 6.6, ‘Power Supply Voltage and Load Resistance.’
10-1
IM 01C21D01-01E
10. GENERAL SPECIFICATIONS
(
)
Supply Voltage “”:
10.5 to 42 V DC for general use and flameproof type
10.5 to 32 V DC for lightning protector (Optional code /A)
10.5 to 30 V DC for intrinsically safe, Type n, nonincendive, or non-sparking type Minimum voltage limited at 16.4 V DC for digital communications, BRAIN and HART
EMC Conformity Standards:
,
EN61326, AS/NZS CISPR11
Communication Requirements “”:
BRAIN Communication Distance;
Up to 2 km (1.25 miles) when using CEV polyethyl­ene-insulated PVC-sheathed cables. Communication distance varies depending on type of cable used.
Load Capacitance;
0.22 μF or less (see note)
Load Inductance;
3.3 mH or less (see note)
Input Impedance of communicating device;
10 k1 or more at 2.4 kHz.
Note: For general-use and Flameproof type.
For Intrinsically safe type, please refer to ‘Optional Specifications.’
HART Communication Distance;
Up to 1.5 km (1 mile) when using multiple twisted pair cables. Communication distance varies depending on type of cable used. Use the following formula to determine cable length for specific applications:
6
65 x 10
L= -
R x C
100{750}
10{75}
Working pressure kPa abs
{mmHg abs}
Figure 1. Working Pressure and Process Temperature
2.7{20}
1{7.5}
0.13{1}
0.1{0.75}
0.013{0.1}
0.01{0.075}
(Cf + 10,000)
C
M and A capsule
L capsule
Applicable range
-40 (-40)
0 (32)40(104)80(176)
Process temperature °C(°F)
120 (248)
85 (185)
0.46
{3.45}
F1001.EPS
Where: L = length in meters or feet R = resistance in 1 (including barrier resistance) C = cable capacitance in pF/m or pF/ft Cf= maximum shunt capacitance of receiving
devices in pF/m or pF/ft
Physical Specifications
Wetted Parts Materials:
Diaphragm, Cover flange, Process connector and Drain/Vent Plug;
See ‘Model and Suffix Codes’
Capsule Gasket;
Teflon-coated SUS316L
Process Connector Gasket;
PTFE Teflon (EJA310A and EJA430A) Fluorinated Rubber (EJA310A and EJA430A with
Optional code /N2 and /N3 and EJA440A with Capsule code C)
Glass reinforced Teflon (EJA440A with Capsule
code D)
Non-wetted Parts Materials:
Bolting;
SCM435, SUS630, or SUH660
Housing;
Low copper cast-aluminum alloy with polyurethane paint (Munsell 0.6GY3.1/2.0)
Degrees of Protection
IP67, NEMA4X, JIS C0920 immersion proof
Cover O-rings;
Buna-N
Data plate and tag;
SUS304
Fill Fluid;
Silicone or Fluorinated oil (optional)
Weight:
3.9 kg (8.6 lb) without mounting bracket or process connector (EJA430A)
Connections:
Refer to the ‘Model and Suffix Codes’ to specify the process and electrical connection type.
< Settings When Shipped > “”
Tag Number Output Mode
Display Mode
Operation Mode
Damping Time
Constant
Calibration Range
Lower Range Value
Calibration Range
Higher Range Value
Calibration Range
Units
*1: Up to 16 alphanumeric characters (including - and
· ) will be entered in the amplifier memory.
*2: The units are in absolute terms for EJA310A, and
Torr, psia, or atm is also available.
As specified in order ‘Linear’
‘Linear’ ‘Normal’ unless otherwise specified in order
‘2 sec.’
As specified in order
As specified in order Selected from mmH
mmHg, Pa, hPa, kPa, MPa, mbar, bar,
*2
gf/cm2, kgf/cm2, inH2O, inHg, ftH2O, or psi. (Only one unit can be specified)
*1
O, mmAq, mmWG,
2
T1005.EPS
10-2
IM 01C21D01-01E

10.2 Model and Suffix Codes

Model EJA310A
Model
EJA310A
Output Signal
Measurement span (capsule)
Wetted parts material
Process connections
Bolts and nuts material
Installation
Electrical connection
Integral indicator
Mounting bracket
Optional codes
Suffix Codes
. . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . .
-D
. . . . . . . . . . . . .
-E
. . . . . . . . . . . . .
-F
. . . . . . . . . . . . .
-G
. . . . . . . . . . . . . . . . . .
L
. . . . . . . . . . . . . . . . . .
M
. . . . . . . . . . . . . . . . . .
A
(Note 1)
(Note 4)
(Note 5)
Absolute pressure transmitter 4 to 20 mA DC with digital communication (BRAIN protocol) 4 to 20 mA DC with digital communication (HART protocol) Digital communication (F Digital communication (PROFIBUS PA protocol)
0.67 to 10 kPa {5 to 75 mmHg}
1.3 to 130 kPa {9.6 to 960 mmHg}
0.03 to 3 MPa {0.3 to 30 kgf/cm [Body]
. . . . . . . . . . . . . . . . .
S
. . . . . . . . . . . . . . . .
0
. . . . . . . . . . . . . . . .
1
. . . . . . . . . . . . . . . .
2
. . . . . . . . . . . . . . . .
3
. . . . . . . . . . . . . . . .
4
. . . . . . . . . . . . . . . .
5
. . . . . . . . . . . . . .
A
SCS14A SUS316L without process connector (Rc1/4 female on the cover flanges) with Rc1/4 female process connector with Rc1/2 female process connector with 1/4 NPT female process connector with 1/2 NPT female process connector without process connector (1/4 NPT female on the cover flanges)
SCM435 10 kPa abs 130 kPa abs 3 MPa abs {75 mmHg abs} {960 mmHg abs} {30 kgf/cm
. . . . . . . . . . . . . .
B
SUS630 10 kPa abs 130 kPa abs 3 MPa abs {75 mmHg abs} {960 mmHg abs} {30 kgf/cm
. . . . . . . . . . . . . .
C
SUH660 10 kPa abs 130 kPa abs 3 MPa abs {75 mmHg abs} {960 mmHg abs} {30 kgf/cm
. . . . . . . . . . . . .
-2
. . . . . . . . . . . . .
-3
. . . . . . . . . . . . .
-6
. . . . . . . . . . . . .
-7
. . . . . . . . . . . . .
-8
. . . . . . . . . . . . .
-9
. . . . . . . . . . . .
0
. . . . . . . . . . . .
2
. . . . . . . . . . . .
3
. . . . . . . . . . . .
4
. . . . . . . . . . . .
5
. . . . . . . . . . . .
7
. . . . . . . . . . . .
8
. . . . . . . . . . . .
9
. . . . . . . . . . .
D
. . . . . . . . . . .
E
. . . . . . . . . . .
N
. . . . . . . . .
A
. . . . . . . . .
B
. . . . . . . . .
C
. . . . . . . . .
D
. . . . . . . . .
N
Vertical impulse piping type, right side high pressure, process connector upside Vertical impulse piping type, right side high pressure, process connector downside Vertical impulse piping type, left side high pressure, process connector upside Vertical impulse piping type, left side high pressure, process connector downside Horizontal impulse piping type, right side high pressure Horizontal impulse piping type, left side high pressure
G1/2 female, one electrical connection 1/2 NPT female, two electrical connections without blind plug Pg 13.5 female, two electrical connections without blind plug M20 female, two electrical connections without blind plug G1/2 female, two electrical connections and a blind plug 1/2 NPT female, two electrical connections and a blind plug Pg 13.5 female, two electrical connections and a blind plug M20 female, two electrical connections and a blind plug Digital indicator Digital indicator with the range setting switch (None) SECC Carbon steel 2-inch pipe mounting (flat type) SUS304 2-inch pipe mounting (flat type) SECC Carbon steel 2-inch pipe mounting (L type) SUS304 2-inch pipe mounting (L type)
(None) /
Example: EJA310A-DMS5A-92NN/ Note 1: Refer to IM 01C22T01-01E for HART Protocol version. Note 2: Diaphragm; Hastelloy C-276. Other wetted parts materials; SUS316L. Note 3: Body; Material of cover flanges and process connectors. Note 4: Refer to IM 01C22T02-01E for Fieldbus communication. Note 5: Refer to IM 01C22T03-00E for PROFIBUS PA communication.
Description
OUNDATION Fieldbus protocol)
2
(Note 3)
[Capsule] [Vent plug]
}
(Note 2)
[Maximum working pressure]
(L capsule) (M capsule) (A capsule)
Optional specification
10. GENERAL SPECIFICATIONS
SUS316
2
abs}
2
abs}
2
abs}
T1006.EPS
10-3
IM 01C21D01-01E
Model EJA430A
Model Description
EJA430A
Output Signal
Measurement span(capsule)
Wetted parts material
Process connection
Bolts and nuts material
Installation
Electrical connection
Integral indicator
Mounting bracket
Optional codes
Suffix Codes
. . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . .
-D
. . . . . . . . . . . . . . . . .
-E
. . . . . . . . . . . . . . . . .
-F
. . . . . . . . . . . . . . . . .
-G
. . . . . . . . . . . . . . . . . . . . .
A
. . . . . . . . . . . . . . . . . . . . .
B
. . . . . . . . . . . . . . . . . . . .
S
. . . . . . . . . . . . . . . . . . . .
H
. . . . . . . . . . . . . . . . . . . .
M
. . . . . . . . . . . . . . . . . . . .
T
. . . . . . . . . . . . . . . . . . . .
A
. . . . . . . . . . . . . . . . . . . .
D
. . . . . . . . . . . . . . . . . . . .
B
. . . . . . . . . . . . . . . . . . .
0
. . . . . . . . . . . . . . . . . . .
1
. . . . . . . . . . . . . . . . . . .
2
. . . . . . . . . . . . . . . . . . .
3
. . . . . . . . . . . . . . . . . . .
4
. . . . . . . . . . . . . . . . . . .
5
. . . . . . . . . . . . . . . . .
A
. . . . . . . . . . . . . . . . .
B
. . . . . . . . . . . . . . . . .
C
. . . . . . . . . . . . . . .
-2
. . . . . . . . . . . . . . .
-3
. . . . . . . . . . . . . . .
-6
. . . . . . . . . . . . . . .
-7
. . . . . . . . . . . . . . .
-8
. . . . . . . . . . . . . . .
-9
. . . . . . . . . . . . . . .
0
. . . . . . . . . . . . . . .
2
. . . . . . . . . . . . . . .
3
. . . . . . . . . . . . . . .
4
. . . . . . . . . . . . . . .
5
. . . . . . . . . . . . . . .
7
. . . . . . . . . . . . . . .
8
. . . . . . . . . . . . . . .
9
. . . . . . . . . . . . .
D
. . . . . . . . . . . . .
E
. . . . . . . . . . . . .
N
. . . . . . . . . . . .
A
. . . . . . . . . . . .
B
. . . . . . . . . . . .
C
. . . . . . . . . . . .
D
. . . . . . . . . . . .
N
(Note 1)
(Note 5)
(Note 8)
Example: EJA430A-DAS5A-92NN/ Note 1: Refer to IM 01C22T01-01E for HART Protocol version. Note 2: Diaphragm; Hastelloy C-276. Other wetted parts materials; SUS316L. Note 3: Diaphragm and other wetted parts. Note 4: Body; Material of cover flanges and process connectors. Material of cover to atmosphere;
SCS14A. Note 5: Refer to IM 01C22T02-01E for Fieldbus communication. Note 6: Indicated material is equivalent to ASTM CW-12MW. Note 7: Indicated material is equivalent to ASTM M35-2. Note 8: Refer to IM 01C22T03-00E for PROFIBUS PA communication.
Gauge pressure transmitter 4 to 20 mA DC with digital communication (BRAIN protocol) 4 to 20 mA DC with digital communication (HART protocol) Digital communication (F
OUNDATION Fieldbus protocol)
Digital communication (PROFIBUS PA protocol)
0.03 to 3 MPa{0.3 to 30 kgf/cm
0.14 to 14 MPa{1.4 to 140 kgf/cm
(Note 4)
[Body] SCS14A SUS316L SCS14A Hastelloy C-276 SCS14A Monel SCS14A Tantalum Hastelloy C-276 equivalent Hastelloy C-276 equivalent Monel equivalent
(Note 7)
(Note 6)
(Note 6)
without process connector (Rc1/4 female on the cover flanges) with Rc1/4 female process connector with Rc1/2 female process connector with 1/4 NPT female process connector with 1/2 NPT female process connector without process connector (1/4 NPT female on the cover flanges)
[Maximum working pressure]
(A capsule) (B capsule) SCM435 3 MPa {30 kgf/cm SUS630 3 MPa {30 kgf/cm SUH660 3 MPa {30 kgf/cm
Vertical impulse piping type, right side high pressure, process connector upside Vertical impulse piping type, right side high pressure, process connector downside Vertical impulse piping type, left side high pressure, process connector upside Vertical impulse piping type, left side high pressure, process connector downside Horizontal impulse piping type, right side high pressure Horizontal impulse piping type, left side high pressure
G1/2 female, one electrical connection 1/2 NPT female, two electrical connections without blind plug Pg 13.5 female, two electrical connections without blind plug M20 female, two electrical connections without blind plug G1/2 female, two electrical connections and a blind plug 1/2 NPT female, two electrical connections and a blind plug Pg 13.5 female, two electrical connections and a blind plug M20 female, two electrical connections and a blind plug Digital indicator Digital indicator with the range setting switch (None)
SECC Carbon steel 2-inch pipe mounting (flat type) SUS304 2-inch pipe mounting (flat type) SECC Carbon steel 2-inch pipe mounting (L type) SUS304 2-inch pipe mounting (L type) (None)
/
Optional specification
10. GENERAL SPECIFICATIONS
2
}
2
}
[Capsule] [Vent plug]
(Note 2)
(Note 3)
(Note 3)
(Note 3)
Hastelloy C-276 Tantalum
(Note 3)
(Note 3)
Monel Monel
2
} 14 MPa {140 kgf/cm2}
2
} 14 MPa {140 kgf/cm2}
2
} 14 MPa {140 kgf/cm2}
SUS316 SUS316 SUS316 SUS316 Hastelloy C-276 Hastelloy C-276
T1007.EPS
10-4
IM 01C21D01-01E
Model EJA440A
. . . . . . . . . . . . . . . . . . . . . . .
-D
. . . . . . . . . . . . . . . . . . . . .
-E
. . . . . . . . . . . . . . . .
(Note 1)
-F
. . . . . . . . . . . . . . . .
(Note 4)
-G
. . . . . . . . . . . . . . . .
(Note 6)
C
. . . . . . . . . . . . . . . . . . . .
D
. . . . . . . . . . . . . . . . . . . .
S
. . . . . . . . . . . . . . . . . . .
0
. . . . . . . . . . . . . . . . . .
1
. . . . . . . . . . . . . . . . . .
2
. . . . . . . . . . . . . . . . . .
3
. . . . . . . . . . . . . . . . . .
4
. . . . . . . . . . . . . . . . . .
5
. . . . . . . . . . . . . . . . . .
A
. . . . . . . . . . . . . . . .
B
. . . . . . . . . . . . . . . .
C
. . . . . . . . . . . . . . . .
-2
. . . . . . . . . . . . . .
-3
. . . . . . . . . . . . . .
-6
. . . . . . . . . . . . . .
-7
. . . . . . . . . . . . . .
-8
. . . . . . . . . . . . . .
-9
. . . . . . . . . . . . . .
0
. . . . . . . . . . . . . .
2
. . . . . . . . . . . . . .
3
. . . . . . . . . . . . . .
4
. . . . . . . . . . . . . .
5
. . . . . . . . . . . . . .
7
. . . . . . . . . . . . . .
8
. . . . . . . . . . . . . .
9
. . . . . . . . . . . . . .
D
. . . . . . . . . . . .
E
. . . . . . . . . . . .
N
. . . . . . . . . . . .
A
. . . . . . . . . . .
B
. . . . . . . . . . .
C
. . . . . . . . . . .
D
. . . . . . . . . . .
N
. . . . . . . . . . .
Model Description
EJA440A
Output Signal
Measurement span(capsule)
Wetted parts material
Process connection
Bolts and nuts material
Installation
Electrical connection
Integral indicator
Mounting bracket
Optional codes
Gauge pressure transmitter 4 to 20 mA DC with digital communication (BRAIN protocol) 4 to 20 mA DC with digital communication (HART protocol) Digital communication (F
OUNDATION
Fieldbus protocol) Digital communication (PROFIBUS PA protocol) 5 to 32 MPa {50 to 320 kgf/cm
2
}
5 to 50 MPa {50 to 500 kgf/cm
2
}
[Body]
(Note 3)
[Capsule] [Vent plug]
SUS316 SUS316L
(Note 2)
SUS316 without process connector (Rc1/4 female on the cover flange) with Rc1/4 female process connector with Rc1/2 female process connector with 1/4 NPT female process connector
(Note 5)
with 1/2 NPT female process connector
(Note 5)
without process connector (1/4 NPT female on the cover flanges)
[Maximum working pressure] [C Capsule] [D Capsule]
SCM435 32 MPa {320 kgf/cm
2
} 50 MPa {500 kgf/cm2}
SUS630 32 MPa {320 kgf/cm
2
} 50 MPa {500 kgf/cm2}
SUH660 32 MPa {320 kgf/cm
2
} 50 MPa {500 kgf/cm2}
Vertical impulse piping type, right side high pressure, process connector upside Vertical impulse piping type, right side high pressure, process connector downside Vertical impulse piping type, left side high pressure, process connector upside Vertical impulse piping type, left side high pressure, process connector downside Horizontal impulse piping type, right side high pressure Horizontal impulse piping type, left side high pressure
G1/2 female, one electrical connection 1/2 NPT female, two electrical connections without blind plug Pg 13.5 female, two electrical connections without blind plug M20 female, two electrical connections without blind plug G1/2 female, two electrical connections and a blind plug 1/2 NPT female, two electrical connections and a blind plug Pg 13.5 female, two electrical connections and a blind plug M20 female, two electrical connections and a blind plug
Digital indicator Digital indicator with the range setting switch (None)
SECC Carbon steel 2-inch pipe mounting (flat type) SUS304 2-inch pipe mounting (flat type) SECC Carbon steel 2-inch pipe mounting (L type) SUS304 2-inch pipe mounting (L type)
(None) /Optional specification
Suffix Codes
T1008.EPS
10. GENERAL SPECIFICATIONS
Example: EJA440A-DCS5A-92NN/ Note 1: Refer to IM 01C22T01-01E for HART Protocol version. Note 2: Diaphragm; Hastelloy C-276. Other wetted parts materials; SUS316L. Note 3: Body; Material of cover flanges and process connectors;
Capsule C: cover flanges; SUS316, process connectors; SCS14A
Capsule D: cover flanges; SUS316, process connectors; SUS316 Note 4: Refer to IM 01C22T02-01E for Fieldbus communication. Note 5: Lower limit of ambient and process temperature is –15°C. Note 6: Refer to IM 01C22T03-00E for PROFIBUS PA communication.
10-5
IM 01C21D01-01E

10.3 Optional Specifications

For FOUNDATION Fieldbus explosion protected type, see IM 01C22T02-01E.
For PROFIBUS PA explosion protected type, see IM 01C22T03-00E.
10. GENERAL SPECIFICATIONS
Item
Factory Mutual (FM)
CENELEC ATEX
Description
FM Explosionproof Approval
*1
Explosionproof for Class I, Division 1, Groups B, C and D Dust-ignitionproof for Class II/III, Division 1, Groups E, F and G Hazardous (classified) locations, indoors and outdoors (NEMA 4X) Temperature class: T6
Amb. Temp.: –40 to 60C (–40 to 140F)
FM Intrinsically safe Approval
*1
Intrinsically Safe for Class I, Division 1, Groups A, B, C & D, Class II, Division 1, Groups E, F & G and Class III, Division 1 Hazardous Locations. Nonincendive for Class I, Division 2, Groups A, B, C & D, Class II, Division. 2, Groups E, F & G, and Class III, Division 1 Hazardous Locations. Enclosure: “NEMA 4X”, Temp. Class: T4, Amb. Temp.: –40 to 60C (–40 to 140F) Intrinsically Safe Apparatus Parameters
[Groups A, B, C, D, E, F and G]
Vmax=30 V, Imax=165 mA, Pmax=0.9 W, Ci=22.5 nF, Li=730 H
[Groups C, D, E, F and G]
Vmax=30 V, Imax=225 mA, Pmax=0.9 W, Ci=22.5 nF, Li=730 H Combined FF1 and FS1 CENELEC ATEX (KEMA) Flameproof Approval
*1
*2
Certificate: KEMA 02ATEX2148 II 2G EExd IIC T4, T5, T6 Amb. Temp.: T5; –40 to 80C ( –40 to 176F), T4 and T6; –40 to 75C ( –40 to 167F) Max. process Temp.: T4; 120C (248F), T5; 100C (212F), T6; 85C (185F)
CENELEC ATEX (KEMA) Intrinsically safe Approval
*2
Certificate: KEMA 02ATEX1030X II 1G EEx ia IIC T4, Amb. Temp.: –40 to 60C (–40 to 140F) Ui=30 V, Ii=165 mA, Pi=0.9 W, Ci=22.5 nF, Li=730 H
Combined KF2, KS2 and Type n
*2
Type n II 3G Ex nL IIC T4, Amb. Temp.: –40 to 60°C (–40 to 140°F) Ui=30 V DC, Ci=22.5 nF, Li=730 μH Dust II 1D maximum surface temperature T65°C (149F) {Tamb.: 40°C (104F)}, T85°C (185F) {Tamb.: 60°C (140F)}, T105°C (221F) {Tamb.: 80°C (176F)}
*1: Applicable for Electrical connection code 2 and 7 (1/2 NPT female). *2: Applicable for Electrical connection code 2, 4, 7 and 9 (1/2 NPT and M20 female).
Code
FF1
FS1
FU1
KF2
KS2
KU2
T1009-1.EPS
10-6
IM 01C21D01-01E
10. GENERAL SPECIFICATIONS
Item
Canadian Standards Association (CSA)
IECEx Scheme
Description
CSA Explosionproof Approval
*1
Certificate: 1089598
Explosionproof for Class I, Division 1, Groups B, C and D
Dustignitionproof for Class II/III, Division 1, Groups E, F and G Division2 ‘SEALS NOT REQUIRED’ , Temp. Class: T4, T5, T6 Encl Type 4x Max. Process Temp.: T4; 120C (248F), T5; 100C (212F), T6; 85C (185F) Amb. Temp.: –40 to 80C (–40 to 176F)
CSA Intrinsically safe Approval
*1
Certificate: 1053843 Intrinsically Safe for Class I, Groups A, B, C and D Class II and III, Groups E, F and G Nonincendive for Class I, Division 2, Groups A, B, C and D Class II, Division 2, Groups F and G and Class III (not use Safety Barrier) Encl Type 4x, Temp. Class: T4, Amb. Temp.: –40 to 60C (–40 to 140F) Vmax=30 V, Imax=165 mA, Pmax=0.9 W, Ci=22.5 nF, Li=730 H
Combined CF1 and CS1 IECEx Intrinsically safe, type n and Flameproof Approval
*1
*2
Intrinsically safe and type n
Certificate: IECEx KEM 06.0007X Ex ia IIC T4, Ex nL IIC T4 Enclosure: IP67 Amb. Temp.: –40 to 60C (–40 to 140F), Max. Process Temp.: 120C (248F) Electrical Parameters: [Ex ia] Ui=30 V, Ii=165 mA, Pi=0.9 W, Ci=22.5 nF, Li=730 H
[Ex nL] Ui=30 V, Ci=22.5 nF, Li=730 H
Flameproof
Certificate: IECEx KEM 06.0005 Ex d IIC T6...T4 Enclosure: IP67 Max.Process Temp.: T4;120C (248F), T5;100C (212F), T6; 85C (185F) Amb.Temp.: –40 to 75C (–40 to 167F) for T4, –40 to 80C (–40 to 176F) for T5,
–40 to 75C (–40 to 167F) for T6
*1: Applicable for Electrical connection code 2 and 7 (1/2 NPT female). *2: Applicable for Electrical connection code 2, 4 and 7 (1/2 NPT and M20 female).
Code
CF1
CS1
CU1
SU2
T1009-2.EPS
10-7
IM 01C21D01-01E
10. GENERAL SPECIFICATIONS
Item
Painting
Color change
Coating change
Lightning protector
Oil-prohibited use
Oil-prohibited use with dehydrating treatment
Calibration units
Sealing treatment to SUS630 nuts
Long vent
Fast response *
Failure alarm down-scale *
NAMUR NE43 compliant *
4
1
1
Stainless steel amplifier housing
Gold-plate Configuration
Body option
Stainless steel tag plate
High Accuracy Type European Pressure Equipment
Directive
*2
Description Code
Amplifier cover only Amplifier cover and terminal cover, Munsell 7.5 R4/14 Epoxy resin-baked coating Transmitter power supply voltage: 10.5 to 32 V DC (10.5 to 30 V DC for intrinsically safe
type, 9 to 32 V DC for F
OUNDATION Fieldbus and PROFIBUS PA communication type.)
Allowable current: Max. 6000 A (140 μs), Repeating 1000 A, 100 times Degrease cleansing treatment
Degrease cleansing treatment with fluorinated oil filled capsule. Operating temperature –20 to 80 °C
Degrease cleansing and dehydrating treatment Degrease cleansing and dehydrating treatment with fluorinated oilfilled capsule.
Operating temperature –20 to 80 °C P calibration (psi unit) bar calibration (bar unit) M calibration (kgf/cm
2
unit)
(See Table for Span
and Range Limits)
Sealant (liquid silicone rubber) is coated on surfaces of SUS630 nuts used for cover flange mounting.
Total vent plug Length: 112 mm (standard, 32 mm), Material: SUS316
Updete time: 0.125 sec or less, see GS for response time
Output status at CPU failure and hardware error is –5%, 3.2 mA or less.
Failure alarm down-scale: output status at CPU failure and
Output signal limits:
3.8 mA to 20.5 mA
hardware error is –5%, 3.2 mA or less.
Failure alarm up-scale: output status at CPU failure and hardware error is 110%, 21.6 mA or more.
Amplifier housing material; SCS14A stainless steel (equivalent to SUS316 cast stainless steel or ASTM CF-8M)
Gold-plated diaphragm Custom software configuration
Without drain and vent plugs N1 and Process connection on both sides of cover flange with blind kidney flanges
on back N1, /N2, and Mill certificate for cover flange, diaphragm, capsule body, and blind
kidney flange JIS SUS 304 stainless steel tag plate wired onto transmitter High Accuracy (Applicable for Model EJA310A)
PED 97/23/EC (Applicable for Model EJA440A) CATEGORY: III, Module: H, Type of Equipment: Pressure Accessory - Vessel, Type of Fluid: Liquid and Gas, Group of Fluid: 1 and 2
P
PR
X1
A
K1
K2
K5
K6
D1
D3
D4
Y
U
F1
C1
C2
C3
E1
A1
R1
N1
N2
N3
N4
HAC
PE3
130 Pa abs {1 mmHg abs} S1
Mill Certificate
Pressure test/ Leak test Certificate
Minimum input pressure: 130 Pa abs{1 mmHg abs} at range calibrating testing
Cover flange Cover flange, Process connector
2
Test Pressure: 50 kPa{0.5 kgf/cm Test Pressure: 3 MPa{30 kgf/cm Test Pressure: 14 MPa{140 kgf/cm Test Pressure: 32 MPa{320 kgf/cm Test Pressure: 50 MPa{500 kgf/cm
} Capsule L, M
2
} Capsule A
2
} Capsule B
2
} Capsule C
2
} Capsule D
Nitrogen(N2) Gas Retention time: 10 minutes
*3
T1010.EPS
*1: Applicable for Output signal code D and E. The hardware error indicates faulty amplifier or
capsule. When combining with Optional code F1, output status for down-scale is –2.5%,
3.6 mA DC or less. *2: Lower limit of process temperature is –30C when Bolts and nuts material code A is selected. *3: Applicable for EJA310A and EJA430A. For EJA440A, the test fluid is water or Nitrogen (N
)
2
gas.
*4: Applicable for Output signal code D and E. Write protection switch is attached for Output code E.
10-8
IM 01C21D01-01E
M01
M11
T04
T03
T02
T09
T08

10.4 Dimensions

Model EJA310A and EJA430A
Vertical Impulse Piping Type Process connector upside (INSTALLATION CODE ‘6’) (For CODE ‘2’, ‘3’ or ‘7’,
refer to the notes below.)
10. GENERAL SPECIFICATIONS
External indicator conduit connection
Blind plug (Optional)
Process connector
72
(2.83)
102
(4.02)
234(9.21)
53
( 2.09)
(Optional)
259(10.20)
197 (7.76)
97
(3.82)
46
(1.81)
Ground terminal
Mounting bracket (L-type, Optional)
2-inch pipe (O.D. 60.5mm)
146 (5.75)
Process connections
Zero adjustment
Shrouding bolt (Note 4)
External indicator conduit connection
Blind plug (Optional)
Internal indicator
(Optional)
Conduit connection
High pressure side (Note 1)
Vent/Drain plugs
ø78
(3.07)
12
(0.47)
110 (4.33)
27
(1.06)
Low pressure side
148
Terminal side
(5.83)
Open to atmosphere (Note 3)
(ø9mm)
Horizontal Impulse Piping Type (INSTALLATION CODE ‘9’) (For CODE ‘8’, refer to the notes below.)
(3.07)
110 (4.33)
12
(0.47)
Zero adjustment
Terminal side
Ground terminal
Low pressure side
27 (1.06)
64 (2.52)
Mounting bracket (Flat-type, Optional)
Open to atmosphere (Note 3)
(ø5mm)
Conduit
94
(3.70)72(2.83)
connection
Internal indicator
(Optional)
ø78
197
162
124
47
(6.38)
(4.88)
(1.85)
46
(1.81)
125 (4.92)
2-inch pipe (O.D. 60.5mm)
(7.76)
Process connection
Process connector
(Optional)
High pressure side (Note 1)
Vent plugs
Drain plugs
Note 1: When INSTALLATION CODE ‘2’, ‘3’ or ‘8’ is selected, high and low pressure side on above
figure are reversed. (i. e. High pressure side is on the left side.)
Note 2: When INSTALLATION CODE ‘3’ or ‘7’ is selected, process connetion and mounting bracket on
above figure are reversed. Note 3: Applicable for EJA430A. Note 4: Applicable only for ATEX and IECEx Flameproof type.
146
F1002.EPS
(5.75)
F1003.EPS
10-9
IM 01C21D01-01E
Model EJA440A
10. GENERAL SPECIFICATIONS
The data in the drawing is basically common to C capsule and D capsule, except where the difference is noted.
Vertical Impulse Piping Type Process connector upside (INSTALLATION CODE ‘6’) (For CODE ‘2’, ‘3’ or ‘7’,
refer to the notes below.)
Unit: mm (approx. inch)
ø78
132(5.20) 154(6.06)
(3.07)
94(3.70)
279(10.98)
124(4.88)
53(2.09)
259(10.20)
97(3.82) 146(5.75)
68(2.68)
Mounting bracket (L-type)
200(7.87)
Ground terminal
Process connection
External indicator conduit connection Blind plug (Optional)
Internal indicator
(Optional)
Conduit connection
Zero adjustment
Shrouding bolt (Note 4)
High pressure side (Note 1)
Vent plug Drain plug
2B pipe(ø60.5)
Horizontal Impulse Piping Type (INSTALLATION CODE ‘9’) (For CODE ‘8’, refer to the notes below)
External indicator conduit connection Blind plug (Optional)
116(4.57) 94(3.70)
Conduit connection
Zero adjustment
110(4.33)
12
(0.47)
<C capsule> <D capsule>
27
(1.06)
Low pressure side
Terminal side
12(0.47)
192(7.56)
F1004.EPS
ø78
(3.07)
124(4.88) 162(6.38)
47
(1.85)
68(2.68)
169(6.65)
Mounting bracket (Flat-type)
200(7.87)
Process connection
High pressure side (Note 1)
Vent plug Drain plug
27(1.06)
2B pipe(ø60.5)
Ground
146(5.75)
terminal
Low pressure side
139(5.47) <C capsule>
158(6.22) <D capsule>
F1005.EPS
Note 1: When INSTALLATION CODE ‘2’, ‘3’ or ‘8’ is selected, high and low pressure side on above
figure are reversed.
(i. e. High pressure side is on the right side.) Note 2: When INSTALLATION CODE ‘3’ or ‘7’ is selected, process connection and mounting bracket on
above figure are reversed. Note 3: For D capsule, 158 (6.22) Note 4: Applicable only for ATEX and IECEx Flameproof type.
10-10
IM 01C21D01-01E

Customer Maintenance Parts List

DPharp EJA Series Transmitter Section

11
2
4
A
10
5
3
12
13
2
1
14
A
6
7-1
8
9
Item Part No. Description
1
2 3
4 5
6
7-1
7-2
8 9
10
11
12
13 14
(Note 1) Applicable for BRAIN and HART protocol versions (Output signal code D and E). For F
Bellow F9341RA F9341RJ F9341JP
Below
F9341AA F9341AC F9341AE F9341AH F9341AJ
F9341AR
Bellow F9300AG Y9303JU
F9341KL
Below F9342AB F9342AL F9342AF
F9342AM F9342BF F9342BG Y9406ZU Y9612YU
Below F9340NW F9340NX G9330DP G9612EB
Bellow F9341FM F9341FJ
Below F9342BL
F9342BM F9342MK F9300PB
version (Output signal code F), consult Yokogawa local office.
Qty
Cover
2
Cast-aluminum alloy SCS14A stainless steel O-ring
2
Case Assembly (Note 1)
1
Name Plate
1
Screw
4
Tag Plate
1
CPU Assembly
1
1
Cap Screw
2
Screw
2
Plug
1
Cover Assembly
1
LCD Board Assembly
1
Mounting Screw
2
Label
2
Cast-aluminum alloy for G1/2 Cast-aluminum alloy for G1/2 (two electrical connections) Cast-aluminum alloy for 1/2 NPT (two electrical connections) Cast-aluminum alloy for M20 (two electrical connections) Cast-aluminum alloy for Pg13.5 (two electrical connections)
SCS14A stainless steel for 1/2 NPT (two electrical connections)
For cast-aluminum alloy case assembly For SCS14A stainless steel case assembly
For BRAIN protocol version For HART protocol version For BRAIN protocol version(Optional code /F1)
For HART protocol version with write protection switch (Optional code /F1) For F
OUNDATION
For F
OUNDATION
For Pg13.5 For M20 For G1/2 For 1/2 NPT
Cast-aluminum alloy SCS14A stainless steel
Without range-setting switch
With range-setting switch
Fieldbus protocol version Fieldbus protocol version with PID/LM function (Optional code /LC1)
For integral indicator
5
OUNDATION
1
2
7-2
Fieldbus protocol
Yokogawa Electric Corporation
All Rights Reserved, Copyright © 1997, Yokogawa Electric Corporation.
Subject to change without notice. Printed in Japan.
CMPL 01C21A01-02E
10th Edition: Jan. 2008(KP)
Customer Maintenance Parts List
15
Model EJA310A, EJA430A and EJA440A Absolute and Gauge Pressure Transmitter (Pressure-detector Section)
Horizontal Impulse Piping Type
2
10–1
For EJA440A
10–2
18
11–1
Low pressure side
19
16
4–1
5
6
7
23
22
1
12–2
3
3
12–1
1413–1
11–2
21–3
13–3
For EJA310A low pressure side
cover flange
21–1
4–2
Yokogawa Electric Corporation
21–2
12–3
All Rights Reserved, Copyright © 1999, Yokogawa Electric Corporation.
13–2
CMPL 01C21D00-01E
5th Edition: July 2001(YK)
Vertical Impulse Piping Type
2
10–1
13–1
12–1
4–1
14
Low pressure side
3
1
21–1
11–1
3
8
9
22
23
2
4–2
12–3
10–2
18
17
13–3
20
For EJA440A
13–2
15
For EJA310A low pressure side
cover flange
11–2
21–3
21–2
July 2001 Subject to change without notice. Printed in Japan.
CMPL 01C21D00-01E
3
Item Part No.
4-1
4-2
10-1
10-2
11-1
1 2 3
5
6
7
8
9
F9300AJ
Below F9340GA F9340GC
F9340GE F9340GF F9300FD F9300FR
Below
F9340VA F9340VB F9340VC F9340VD F9340VP
F9340VR F9340VN F9340VQ F9340VS F9340VT
F9340VU F9340VV F9340TP F9340TR F9340TN
F9340TQ
Below F9340UA F9340UN F9340UC
F9340UQ F9340UH F9340UP F9340UJ F9340UR
Below F9340SA F9340SB F9340SE F9340SF
F9340SS F9340ST
Below D0114PB F9340SK
F9270HG
Below F9200CS D0114RZ F9340SL
F9340SM F9340SW D0117MS
Below F9340SC
F9340SD F9340SG F9340SH F9340SU F9340SV
Below F9270HE F9340SJ D0117MR
Below
F9340AB F9340AC F9340AQ
Below F9340AF
F9271FG F9340AG F9273DA F9340AS
Below
F9275KL F9275KH F9340BQ
Qty
Description
1
Capsule Assembly (see Table 1, Table 2 and Table 3 on page 5) (Note 1)
1
O-Ring
2
Gasket
Teflon-coated SUS316L Stainless Steel Teflon-coated SUS316L Stainless Steel (degreased)
PTFE Teflon PTFE Teflon (degreased) Teflon-coated SUS316L Stainless Steel
1
1
1
1
1
1
1
4
4
4
Teflon-coated SUS316L Stainless Steel (degreased)
Cover Flange for EJA310A and EJA430A (High Pressure Side) (Note 2)
Rc 1/4 1/4 NPT Rc 1/4 1/4 NPT Rc 1/4
1/4 NPT Rc 1/4 1/4 NPT Rc 1/4 1/4 NPT
Rc 1/4 1/4 NPT Rc 1/4 1/4 NPT Rc 1/4
1/4 NPT
Cover Flange for EJA440A (High Pressure Side) (Note 2)
Rc 1/4 (Capsule code C) Rc 1/4 (Capsule code D) Rc 1/4 (Capsule code C)
Rc 1/4 (Capsule code D) 1/4 NPT (Capsule code C) 1/4 NPT (Capsule code D) 1/4 NPT (Capsule code C) 1/4 NPT (Capsule code D)
Vent Plug
R 1/4 1/4 NPT R 1/4 1/4 NPT
R 1/4 1/4 NPT
Vent Screw
SUS316 Stainless Steel (for Models except EJA430A with Wetted Parts Material codes A, D and B) Hastelloy C-276 (for EJA430A with Wetted Parts Material code A and D)
Monel (for EJA430A with Wetted Parts Material code B)
Drain Plug (Note 2)
R 1/4 1/4 NPT R 1/4
1/4 NPT R 1/4 1/4 NPT
Drain/Vent Plug
R 1/4
1/4 NPT R 1/4 1/4 NPT R 1/4 1/4 NPT
Drain/Vent Screw
SUS316 Stainless Steel (for Models except EJA430A with Wetted Parts Material code A, D and B) Hastelloy C-276 (for EJA430A with Wetted Parts Material code A and D) Monel (for EJA430A with Wetted Parts Material code B)
Bolt (for EJA310A and EJA430A)
SCM435 Chrome Molybdenum Steel SUS630 Stainless Steel SUH660 Stainless Steel
Bolt (for EJA440A)
SCM435 Chrome Molybdenum Steel (for Capsule code C)
SCM435 Chrome Molybdenum Steel (for Capsule code D) SUS630 Stainless Steel (for Capsule code C) SUS630 Stainless Steel (for Capsule code D) SUH660 Stainless Steel (for Capsule code C)
Nut (for EJA310A and EJA430A)
SCM435 Chrome Molybdenum Steel SUS630 Stainless Steel SUH660 Stainless Steel
SCS14A Stainless Steel (for EJA310A and EJA430A with Wetted Parts Material code S) For Horizontal Impulse Piping Type SCS14A Stainless Steel (for EJA310A and EJA430A with Wetted Parts Material code S) For Vertical Impulse Piping Type
SCS14A Stainless Steel (for EJA430A with Wetted Parts Material code H, M and T) For Horizontal Impulse Piping Type
SCS14A Stainless Steel (for EJA430A with Wetted Parts Material code H, M and T) For Vertical Impulse Piping Type Hastelloy C-276 equivalent (for EJA430A with Wetted Parts Material code A and D) For Horizontal Impulse Piping Type
Hastelloy C-276 equivalent (for EJA430A with Wetted Parts Material code A and D) For Vertical Impulse Piping Type Monel equivalent (for EJA430A with Wetted Parts Material code B) For Horizontal Impulse Piping Type
Monel equivalent (for EJA430A with Wetted Parts Material code B) For Vertical Impulse Piping Type
SUS316 Stainless Steel (for EJA310A, EJA440A, and EJA430A with Wetted Parts Material code S, H, M and T)
Hastelloy C-276 (for EJA430A with Wetted Parts Material code A and D)
Monel (for EJA430A with Wetted Parts Material code B)
SUS316 Stainless Steel (for EJA310A, EJA440A, and EJA430A with Wetted Parts Material code S, H, M and T)
Hastelloy C-276 (for EJA430A with Wetted Parts Material code A and D)
Monel (for EJA430A with Wetted Parts Material code B)
SUS316 Stainless Steel (for EJA310A, EJA440A, and EJA430A with Wetted Parts Material code S, H, M and T)
Hastelloy C-276 (for EJA430A with Wetted Parts Material code A and D)
Monel (for EJA430A with Wetted Parts Material code B)
(for EJA430A with Wetted Parts Material code H, M, T, A, D and B)
SUS316 Stainless Steel (for Horizontal Impulse Piping Type)
SUS316 Stainless Steel (for Vertical Impulse Piping Type)
SUS316 Stainless Steel (for Horizontal Impulse Piping Type) SUS316 Stainless Steel (for Vertical Impulse Piping Type)
(for EJA310A and EJA430A with Wetted Parts Material code S)
(for EJA440A)
July 2001 Subject to change without notice. Printed in Japan.
CMPL 01C21D00-01E
Item Part No.
Qty
4
Description
11-2
12-1
12-2
12-3
13-1
13-2
13-3
21-1
21-2 21-3
(Note 1) In case of degrease cleansing treatment (Optional code/K1 or K5), consult YOKOGAWA local office.
(Note 2) In case of degrease cleansing treatment (Optional code/K1, K2, K5 or K6), consult YOKOGAWA local office. (Note 3) The Plug Qty is 1 for Vertical Impulse Piping Type.
Below F9300GB F9271FH F9300GD F9273DB
F9340BS
Below D0114RB U0102XC
Below
F9340GN F9340GP
Below F9340GN F9340GP
F9202FJ F9201HA
Below F9340XY F9340XW
F9340XZ F9340XX F9340WY F9340WW F9340WZ
F9340WX F9340TY F9340TW F9340TZ F9340TX
Below F9340XT F9340XS
Below F9271FD
F9271FC F9271FF F9271FE
14
Below X0100MN
F9273DZ F9340AZ
15
Below F9270AY F9273CZ
16
Below F9270AW F9300TJ F9300TA
17
Below
F9340EA F9340EB F9340EC
18
D0117XL-A
19
Below
F9270AX F9300TN F9300TE
20
Below F9340EF
F9340EG F9340EM Below F9340VE F9340VF
F9340RJ F9340RK F9340VK
Below F9340UE
F9340US
22
Below F9275EC F9275ED
23
F9275EE
(However, see Table 1, Table 2 and Table 3 in case of Optional code/K2 or K6)
Nut (for EJA440A)
4
1
2
1
1
1
1
2
4
1
1
1 1
1
1
1 1
1
1
SCM435 Chrome Molybdenum Steel (for Capsule code C) SCM435 Chrome Molybdenum Steel (for Capsule code D) SUS630 Stainless Steel (for Capsule code C) SUS630 Stainless Steel (for Capsule code D)
SUH660 Stainless Steel (for Capsule code C)
Gasket (for EJA310A and EJA430A)
PTFE Teflon PTFE Teflon (degreased)
Gasket (for EJA310A and EJA430A with Optional code /N2 and /N3)
Fluorinated Rubber Fluorinated Rubber (degreased)
Gasket (for EJA440A)
Fluorinated Rubber Fluorinated Rubber (degreased)
Glass Reinforced Teflon Glass Reinforced Teflon (degreased)
Process Connector (for EJA310A and EJA430A)(Note 2)
Rc 1/4 Rc 1/2
1/4 NPT 1/2 NPT Rc 1/4 Rc 1/2 1/4 NPT
1/2 NPT Rc 1/4 Rc 1/2 1/4 NPT 1/2 NPT
Process Connector (for EJA440A with Capsule code C)(Note 2)
1/4 NPT 1/2 NPT
Process Connector (for EJA440A)(Note 2)
Rc 1/4
Rc 1/2 1/4 NPT 1/2 NPT
Bolt
SCM435 Chrome Molybdenum Steel
SUS630 Stainless Steel SUH660 Stainless Steel
Bolt
S15C Carbon Steel SUS XM7 Stainless Steel
Bracket Assembly (Flat type)
SECC Carbon Steel SECC Carbon Steel (for Epoxy resin-baked coating) SUS304 Stainless Steel
Bracket Assembly (L type)
SECC Carbon Steel SECC Carbon Steel (for Epoxy resin-baked coating)
SUS304 Stainless Steel U-Bolt/Nut Assembly, SUS304 Stainless Steel Bracket (Flat type)
SECC Carbon Steel
SECC Carbon Steel (for Epoxy resin-baked coating)
SUS304 Stainless Steel Bracket (L type)
SECC Carbon Steel
SECC Carbon Steel (for Epoxy resin-baked coating)
SUS304 Stainless Steel Cover Flange for EJA430A (Low Pressure Side)
For Horizontal Impulse Piping Type
For Vertical Impulse Piping Type
For Horizontal Impulse Piping Type
For Vertical Impulse Piping Type Cover Flange for EJA310A, SCS14A Stainless Steel (Low Pressure Side) Cover Flange for EJA440A, SUS316 Stainless Steel (Low Pressure Side)
For Capsule code C
For Capsule code D Vent Plug (degreased), SUS316 Stainless Steel
R 1/4
1/4 NPT Needle Assembly (degreased), SUS316 Stainless Steel
SCS14A Stainless Steel (for EJA310A and EJA430A with Wetted Parts Material code S, H, M and T)
Hastelloy C-276 equivalent (for EJA430A with Wetted Parts Material code A and D)
Monel equivalent (for EJA430A with Wetted Parts Material code B)
SCS14A Stainless Steel
SUS316 Stainless Steel (for EJA440A with Capsule code C and D)
SUS316 Stainless Steel (for EJA440A with Capsule code D)
For Process connection code 3 and 4
For Process connection code 1 and 2
SCS14A Stainless Steel (for Wetted Parts Material code S)
SCS14A Stainless Steel (for Wetted Parts Material code H,M,T,A,D, and B)
July 2001 Subject to change without notice. Printed in Japan.
CMPL 01C21D00-01E
Capsule Assembly Part Number
EJA310A
Table 1. EJA310A Capsule Assembly Part Number (Item 1)
For General-use type, Flameproof type and Intrinsically safe type
Right
Left
Right
Left
High Pressure Side
Right
Left
Right
Left
Capsule
Code
A B A B A B A B
Capsule
F9349LA F9349MA F9349LB F9349MB F9349LC F9349MC F9349LD F9349MD
Installation of Transmitter
Horizontal Impulse Piping Type
Vertical Impulse Piping Type
EJA430A
Table 2. EJA430A Capsule Assembly Part Number (Item 1)
For General-use type, Flameproof type and Intrinsically safe type Installation of
Transmitter Horizontal
Impulse Piping Type
Vertical Impulse Piping Type
High Pressure Side
Code
L
M
A
L
M
A
L
M
A
L
M
A
S (*1)
Part No.
(*1)
F9349HA F9349JA F9349KA F9349HB F9349JB F9349KB F9349HC F9349JC F9349KC F9349HD F9349JD F9349KD
S (*2) F9352LA F9352MA F9352LB F9352MB F9352LC F9352MC F9352LD F9352MD
Part No.
F9352HA F9352JA F9352KA F9352HB F9352JB F9352KB F9352HC F9352JC F9352KC F9352HD F9352JD F9352KD
Wetted Parts Material Code
(*2)
H, A F9349LE F9349ME F9349LF F9349MF F9349LG F9349MG F9349LH F9349MH
T, D F9349LJ F9349MJ F9349LK F9349MK F9349LL F9349ML F9349LM F9349MM
5
M, B F9349LN F9349MN F9349LP F9349MP F9349LQ F9349MQ F9349LR F9349MR
EJA440A
Table 3. EJA440A Capsule Assembly Part Number (Item 1)
For General-use type, Flameproof type and Intrinsically safe type
Installation of Transmitter
Horizontal Impulse Piping Type
Vertical Impulse Piping Type
*1. Silicone oil filled capsule (Standard) *2. Fluorinated oil filled capsule (for oil-prohibited use: Optional code /K2 or K6)
High Pressure Side
Right
Left
Right
Left
Capsule
Code
Part No.
(*1)
F9359CA
C
F9359DA
D
F9359CB
C
F9359DB
D
F9359CC
C
F9359DC
D
F9359CD
C
F9359DD
D
Part No.
(*2)
F9359GA F9359HA F9359GB F9359HB F9359GC F9359HC F9359GD F9359HD
July 2001
July 2001 Subject to change without notice. Printed in Japan.
CMPL 01C21D00-01E

REVISION RECORD

Title: Model EJA310A, EJA430A and EJA440A Absolute Pressure and Gauge
Pressure Transmitter
Manual No.: IM 01C21D01-01E
Edition Date Page Revised Item
1st June 1997 New publication
2nd
3rd
4th
5th Sep. 2000 2-7 2.9.4b
Mar. 1998 CONTENTS
1-1
6-1 11-1 11-3
11-7 2-9+
CMPL
Sep. 1998
Oct. 1999
– 2-14 8-15 11-3 11-4
11-5
CMPL
-
2-8 8-4
10-4
CMPL
2-8 2.9.4b 8-5 8.3.1
9-5 9.4.3 10-2 10.1 10-3 10.2 10-4 10-5 10-6 10.3
Page 3 1
6.1
11.1
11.2
11.3
CMPL 1C21A1-02E 1st 2nd Page 2 CMPL 1C21D1-01E 1st 2nd Page 4 CMPL 1C21E1-01E 1st 2nd Page 2 Page 3 Page 4
Page 5 CMPL 1C21E2-01E 1st 2nd Page 4
Changed to Electronic File Format.
8.3.2(8)
11.2
CMPL 1C21A1-02E 2nd 3rd Page 2
CMPL 1C21E1-01E 2nd 3rd Page 5 CMPL 1C21E2-01E 2nd 3rd Page 3, 4
Revised a book in a new format.
2.10
8.3.1
10.2 CMPL 1C21A1-02E 3rd 4th
CMPL 1C21D0-01E 1st
• Add REVISION RECORD.
• Add ‘NOTE’ notice for F versions.
• Add Item to the Wiring Precautions.
• Add F
OUNDATION
• Add output signal code F and wetted parts material code A
and D.
• Add Optional code A1.
• Change the figure of terminal configuration.
• Add Item 7-2.
• Add Optional code K6.
• Add figure of low pressure side cover flange.
• Add Part No. to Item 3, 4, 5, 6, 7, 8, 9, and 13.
• Add Part No. to Item 21.
• Add Item 24 and 25.
• Add Optional code K6.
• Add Wetted parts material code A and D to Table1.
• Delete Optional code K5 and K6.
• Delete EMC Conformity Standards Tables and remove the page.
• Correction made in BURN OUT figure.
• Add Electrical connection code 7, 8, and 9.
• Add Wetted parts material code M.
• Add Elactrical connection code 7, 8, and 9.
• Add Process connections code 0, 1, and 2.
• Add Electrical connection code 7, 8, and 9.
• Add Part No. to Item 3 (For PG13.5 and M20).
• Add Part No. to Item 10 (For 1/2 NPT, Pg13.5, and M20).
• Add Wetted parts material code M to Table 1.
• Add Part No. to Item 13-2 (For Rc1/4 and Rc1/2).
• Add Part No. to Item 4, 5, 7, 8, and 22 (For Rc1/4).
(The location of contents and the associated page numbers may not coincide with the one in old editions.)
• Add AS/NZS 2064 1/2 to EMI, EMC Conformity Standards.
• Move Parameter Summary table to Chapter 8.
• Add Wetted parts material code B.
• Change a format.
• Combine CMPL 1C21D1-01E, 1C21E1-01E, and 1C21E2-01E.
Change contents of NOTE 1.
Change contents of NOTE 4.
Add footnote 2 and 3.
Add table for tightning torque for cover flange bolts.
Add calibration units of Pa and hPa.
Add Bolts and nuts material code C.
Add Bolts and nuts material code C.
Add Bolts and nuts material code C and footnote 5.
Add Amb. Temp. for T6: –40 to 75°C under /KF1.
Fieldbus protocol.
OUNDATION
Fieldbus and HART protcol
REVISION RECORD.EPS
IM 01C21D01-01E
Edition Date Page Revised Item
5th Sep. 2000 10-7
• Add Optional code /F1, /N1, /N2, /N3, /N4, and /R1.
(Continued) CMPL CMPL 1C21A1-02E 4th 5th(Manual Change)
• Add part numbers to 7-1 CPU Assembly. F9342AF and F9342AM
CMPL 1C21A1-02E 5th 6th
• Add part numbers to 7-2 CPU Assembly. F9342BG
• Change part number of 7-1 CPU Assembly. F9342BC F9342BB
• Change part number of 10 Plug.
G9330DK G9330DP CMPL 1C21D0-01E 1st 2nd Page 1 and 2
• Delete figure of low pressure side cover flange for
Wetted parts material code H, T, M, A, D, and B. Page 4
• Add part numbers to 21-1 Cover flange for EJA430A
low pressure side.
F9340RJ and F9340RK CMPL 1C21D0-01E 2nd 3rd(Manual Change) Page 3 and 4
• Add part number to 10-1 and 10-2 Bolt.
F9340AQ and F9340AS
• Add part number to 11-1 and 11-2 Nut.
F9340BQ and F9340BS CMPL 1C21D0-01E 3rd 4th Page 4
July 20016th
2-10
4-1
8-4, 8-5
2.10
4.1
8.3.1
• Add part number to 14 Bolt. F9340AZ
• Change EMC Conformity number.
• Add note for the atmospheric opening for EJA430A.
• Add footnote (*4) to B40, Maximum static pressure in Parameter Summary.
CMPL
CMPL 1C21A1-02E 6th 7th(Manual Change)
• Change Part No. of 7-1 CPU Assembly for BRAIN protocol. F9342BB F9342AB
CMPL 1C21A1-02E 7th 8th(Manual Change)
• Change Part No. of 7-1 CPU Assembly for HART protocol. F9342BH F9342AL
CMPL 1C21A1-02E 8th CMPL 01C21A01-02E 9th
• Delete Part No. of 4 Name Plate.
• Change Part No. of 5 Screw. F9303JU Y9303JU
CMPL 1C21D0-01E 4th CMPL 01C21D00-01E 5th
7th
8th
9th
10th
May 2002
Apr. 2003
Apr. 2006
Jan. 2008
1-2 2-7
10-6
2-8 2-10 10-6
1-2
1-3
2-6 2-11
10-6, 10-7
10-7 10-8
1-1
1-4 2-3+ 2-10
4-3 8-13
9-3
10-1+
10-6, -7
CMPL
1.1
2.9.4
10.3
2.9.4
2.11
10.3
1.1
1.3
2.9.3
2.12
10.3
• Add “1.1 For Safety Using.”
• Add descriptions based on ATEX directive.
• Add Optional code K2. • Add Optional code C2 and C3.
• Add Option code KU2.
• Add PED (Pressure Equipment Directive).
• Add Option code KU2. • Add Option code PE3.
• Add (e) Explosion Protected Type Instrument and (f) Modification
• Add “1.3 ATEX Document”
• Add “IECEx Certification” and delete “SAA Certification”
• Add Low Voltage Directive
• Add Certificate numbers and Applicable standards
• Add option code /SU2 and delete option code /SU1
• Add option code /PR
• Add direct current symbol.
• Add 11 European languages for ATEX documentation.
2.9.1
2.10
4.5
8.3.3 (11)
9.4.1
10.1, 10.2
10.3
• Add applicable standard and certificate number for appovals.
• Add EMC caution note.
• Add section of changing the direction of integral indicator.
• Add figure for A40.
• Add figure of integral indicator direction.
• Add PROFIBUS PA communication type.
• Delete applicable standard from the table.
CMPL 01C21A01-02E 9th . CMPL 01C21A01-02E 10th
• Delete logo from the tag plate.
REVISION RECORD2.EPS
IM 01C21D01-01E
Loading...
