1. Usage environment and conditions
Do not use YOKOGAWA panel meters in locations such
as the following:
• Locations where the ambient temperature is outside
the range of 0 to 40°C
• Locations where relative humidity is outside the range
of 25 to 80%
• Locations subject to vibrations or shock impact
• Locations subject to rain, dripping water, or direct
sunlight
• Locations exposed to large amounts of dust, salt, soot,
or corrosive gases
(sulfurous acid gas, ammonia gas, hydrogen sulfide
gas, or other gases that corrode metals or plastics)
• Locations subject to strong external noise or electromagnetic waves
• Locations subject to large amounts of static electricity
• Locations subject to large amounts of high frequencies
and waveform distortion (e.g., from inverters or
thyristor circuits)
2. Mounting method
Adhere to safety rules at the construction, maintenance and inspection
•Check the appearance of the packing box and panel
meters and confirm that there is no damage.
• Use the metal for mounting panel and ground it.
• If necessary, combine with washers and others and
fasten, in the case of panel boards and switchboards
are thin.
•Fasten nuts of mounting on boards to the proper
torque for the size of screw being used with the proper
tool.
Recommended tightening torque : M3 screws - 0.6N·m
M4 screws - 1.2N·m
M5 screws - 2.0N·m
3. Wiring
Adhere to the following rules when connecting the wires:
•When connecting an instrument with accessories, first
make sure none of the wires are live.
•When connecting main power directly, install and use
the proper fuse.
• The connector terminals on the wires should be
appropriate for the electricity load and terminal size.
• Connect the wires properly as illustrated in the wiring
diagrams of catalogs or on product labels.
• Attach to terminal cover for safety.
•Fasten terminal screws to the proper torque for the
size of screw being used with the proper tool.
Recommended tightening torque : M3 screws - 0.6N·m
M4 screws - 1.2N·m
M5 screws - 2.0N·m
• Instruments that are combined with current transformers (CT) should be properly connected to the secondary side of the CT. Improper connection may result in a
CT failure, burned components, or a fire. When the
secondary side of a CT is disconnected, especially
while the primary side is powered, the secondary side
terminal will carry a high voltage which could result in
electrical shock. Therefore, the secondary side should
be short-circuited before the instrument is disconnected.
4. Usage precautions
• Use the instruments at the front of mounting panel.
•Never touch the inside of mounting panel.
• Use the instrument within the rated specifications.
Failure to do so can cause the equipment to malfunction or result in a failure.
• While the power is on, do not touch any terminals or
open the cover or case.
• The current transformer emits heat while powered, so
do not touch it.
5. What to do if the equipment functions abnor-
mally or fails
• If you notice abnormal heating, or a strange odor,
noises, or smoking or if the equipment seems to have
failed, immediately take steps such as cutting off the
input. Next, contact your YOKOGAWA sales office.
6. Maintenance and inspection
To ensure that your instrument operates properly,
perform the following checks on a regular basis:
• Check for damage to the instrument or accessories
due to heating or other factors.
•Check for loose attachments or screws (always turn off
the power before doing this to ensure safety).
• The instrument covers have been coated with an
antistatic agent to block static electricity. Gently wipe
dirt off the cover surfaces with a soft, dry cloth. Do not
use a wet cloth as this will reduce the effects of the
antistatic coating. Do not allow cloths made from
synthetic materials to contact the cover for an extended period of time, and do not use benzene, paint
thinner, or similar substances. Doing so may cause the
cover to become deformed, discolor it, or cause
cracking.
• If the indicator reading becomes unstable due to static
electricity, coat the front and back of the cover with a
commercially available antistatic agent.
• Instrument service life will vary according to usage
conditions. In general, however, we recommend
replacing the instrument after about 10 years of use.
7. Disposal of product
•Panel meters do not contain batteries.
• Dispose of panel meters as general industrial waste.
8. For aluminum electrolytic capacitors
Frequency meters use aluminum electrolytic capacitors. The lifetime of aluminum electrolytic capacitors
are around 10 years when ambient temperatures are
23°C. If aluminum electrolytic capacitors run down and
meters are damaged, replace new frequency meters.
2
SWITCHBOARD INSTRUMENTS
Yokogawa offers a complete line of switchboard instruments to
meet your every needs.
Model are available 110 mm and 80 mm square siz e 250° to mea-
sure all electrical quantities.
All switchboard instruments in the series feature rugged, friction
free and shock resistant taut-band suspension elements.
All model of AC instruments except 80 mm size wattmeters and
varmeters are self-contained transducer needless external transducer boxes.
The built-in transducer system offer many advantages including
low cost, linear scales, greatly reduced volt-ampere loss.
Yokogawa switchboard instruments offer a variety Models, such
as from single phase to three phase four wire instruments, as well
as model for balanced and unbalanced circuits. All instr uments
except synchroscope are complied with JIS C 1102.
110 mm square size switchboard instruments Series. Plastic case with saf ety terminal protection cover .
Features
■ RMS rectifier type AC instruments
■ Platform scale --- No shadow on scale and readable, even
from sharp angles
■ Interchangeable scales save time
■ Easy to read linear scales and wide deflection angles
■ Taut-Band suspension --- eliminate friction and protects
against shock
■ Unti-framable case and terminal board
■ Provide terminal protect cover for safety
Specifications
In accordance with Japan Industrial Standard JIS C 1102: 2007
■ Accuracy --------------------------------- See next page
■ Full Scale Deflection Angle ---------- 250°(360° for Synchroscope)
■ Full Scale Length ---------------------- Approx. 196mm (7.7") for 110mm SQ
140mm (5.5") for 80mm SQ
■ Position of Use-------------------------- Vertical (Scale)
■ Pointer ------------------------------------ Lance type Pointer, Black
■ Operating Temperature Range ----- 0 to 40 °C
■ Operating Humidity Range ---------- 25 to 80 %RH
■ Storage Temperature Range -------- –10 to 50°C
■ Storage Humidity Range ------------- 25 to 80 %RH
■ Dielectric Strength --------------------- Between electrical circuit and the case: 3320V AC for 5 seconds
Between current circuit and voltage circuit: 2600V AC for 5 seconds
For Wattmeters, Varmeters and Power factormeters
(2000V AC for 2185A, 2186A and 2187A)
■ Insulation Resistance ----------------- More than 10 MΩ/500V DC between electrical circuit and the case,
current circuit and voltage circuit.
More than 5MΩ/500V DC between current circuit and voltage circuit.
For Wattmeters, Varmeters and Power factormeters
■ Safety Requirements------------------ Structural requirements are in accordance with JIS C 1010 for safety of
voltage test, insulation and other.
Reinforced insulation, between electrical circuit and case
Indoors, Altitudes up to 2000m, Pollution degree 2
Measurement category III
(Measurement category is not applied for non- JIS products.)
Maximum working voltage:600V
80 mm square size miniature switchboard instruments series high space utility.
Type 2101A to 2109A
Type 2181A to 2188A
Measurement Category
Measurement Category
CAT.I
CAT.II
CAT.III
CAT.IV
For measurements performed on circuits not
Description
directly connected to MAINS.
For measurements performed on circuits directly
connected to the low voltage installation.
For measurements performed in the building
where distribution panels and circuit breaker, etc
are installed.
For measurements performed at the source of
the low-voltage installation.
Remarks
Appliances, portable
equipments, etc.
Distribution board,
circuit breaker, etc.
and unit,VT ratio and CT ratio)
EX.: 2101A36-AHE-N-L-BL 0 to 250kPa
1set (Specify Model and suffix codes, and Blank scale)
EX.: 2101A36-AHE-N-L-BL Blank scale
1 pce
1 pce
1 pce (Set pointer is red)
1 pce (Set pointer is red)
1 pce
1 pce
1 pce (Set pointer is red)
1 pce (Set pointer is red)
10 sheets (up side)
10 sheets (down side)
10 sheets

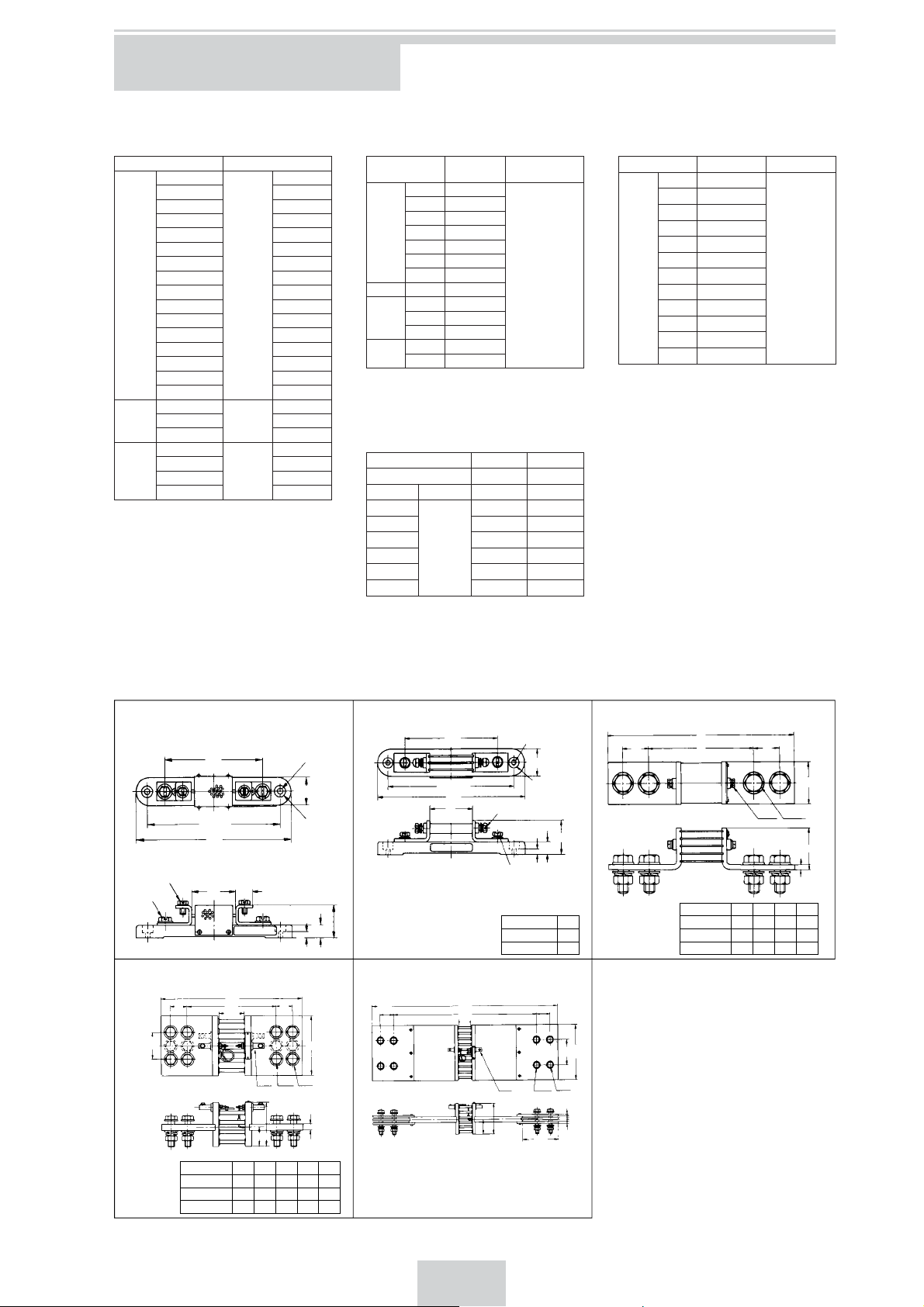

Round Resits 0.05Ω less, For M4 terminal, 1.5m 1set
Pointer
Lance type pointer
0 to 100A
Descriptions
Cover color and
Set pointer
Munsell N1.5
6
SCALE FORMS AND DIVISIONS
Maximum
scale
value
3.5
35
350
3500
7
70
700
7000
2
20
200
2000
±1
±10
±100
±1000
2.5
25
250
2500
3
30
300
3000
±1.5
±15
±150
±1500
Maximum
Divisions
scale
Divisions
value
35 Division
7.5
75
750
7500
40 Division B
4.5
45
450
4500
9
90
900
9000
50 Division B50 Division C60 Division A
±2.5
±25
±250
±2500
±5
±50
±500
±5000
60 Division B
1.5
15
150
1500
37.5 Division
45 Division
75 Division
For 210 A 110mm only
Maximum
scale
value
4
40
400
4000
8
80
800
8000
±2
±20
±200
±2000
±4
±40
±400
±4000
1
10
100
1000
5
50
500
5000
1.2
12
120
1200
6
60
600
6000
±3
±30
±300
±3000
±6
±60
±600
±6000
1.5
15
150
1500
Divisions
40 Division A
50 Division A
30 Division
For 218 A 80mm only
Note1. This standard scale divisions are applied to 2101A, 2102A, 2105A, 2106A, 2181A, 2182A, 2185A and 2186A.
2. Numerals are indicated to the major line (▼).
3. All scales divisions are linear distribution.
4. To be applied this standard scale division, when specify special maximum value.
•not standard maximum scale value(Ex.) 2300 --- 46 divisions
•minimum scale value are not zero(Ex.) 50 to 100 --- 50 divisions
7
SCALE FORMS AND DIVISIONS
For Suppressed meter
2101A, 2181A
For Expanded scale
2102A, 2182A voltmeter
Ex.
70 to 130V=245°
For Frequency meter
2108A, 2188A
Ex.
45 to 55Hz
1
80
46
0
70
48
45
90
Extended scale Ammeters
2
3
4
5
3
m
s
2102A, 2182A
(Ex.)100A 2 times
Red line and numerals for
extended portion
(Ex. 2 Times 150 and 200A)
3 Times -- 2 and 3 Times
5 Times -- 3 and 5 Times
100
110
For Power Factor meter
120
130
V
2107A, 2187A
60
40
20
0
A
1.0
.9
LEADLAG
.7
.5
COS
80
100
150
200
.9
.7
.5
50
52
For Synchroscope
2109A
SLOW
FAST
54
Hz
55
SYNCROSCOPE
Single division/Double
numerals
Ex. 0 to 5/0 to 10A (50 Div.)
All div.line and numerals
are black.
Size of numerals are
different high.
Apply same division only.
Kinds of division lines
1. Kinds of division lines
Medium line
Minor line
Major line (with numerals)
2. 3 characters, standard.
EX. (1) 1200V → 1.2kV
(2) 20000rpm → 20 × 1000rpm
4
2
2
1
0
6
3
8
4
10
A
5
Double division/Double
numerals
Ex.0 to 300/0 to 450 m/min
(60 Div./45 Div.)
Outer -- Black line and
numerals
Inner -- Red line and
numerals
10
5
0
20
10
m/min
15
30
20
30
45
25
40
8

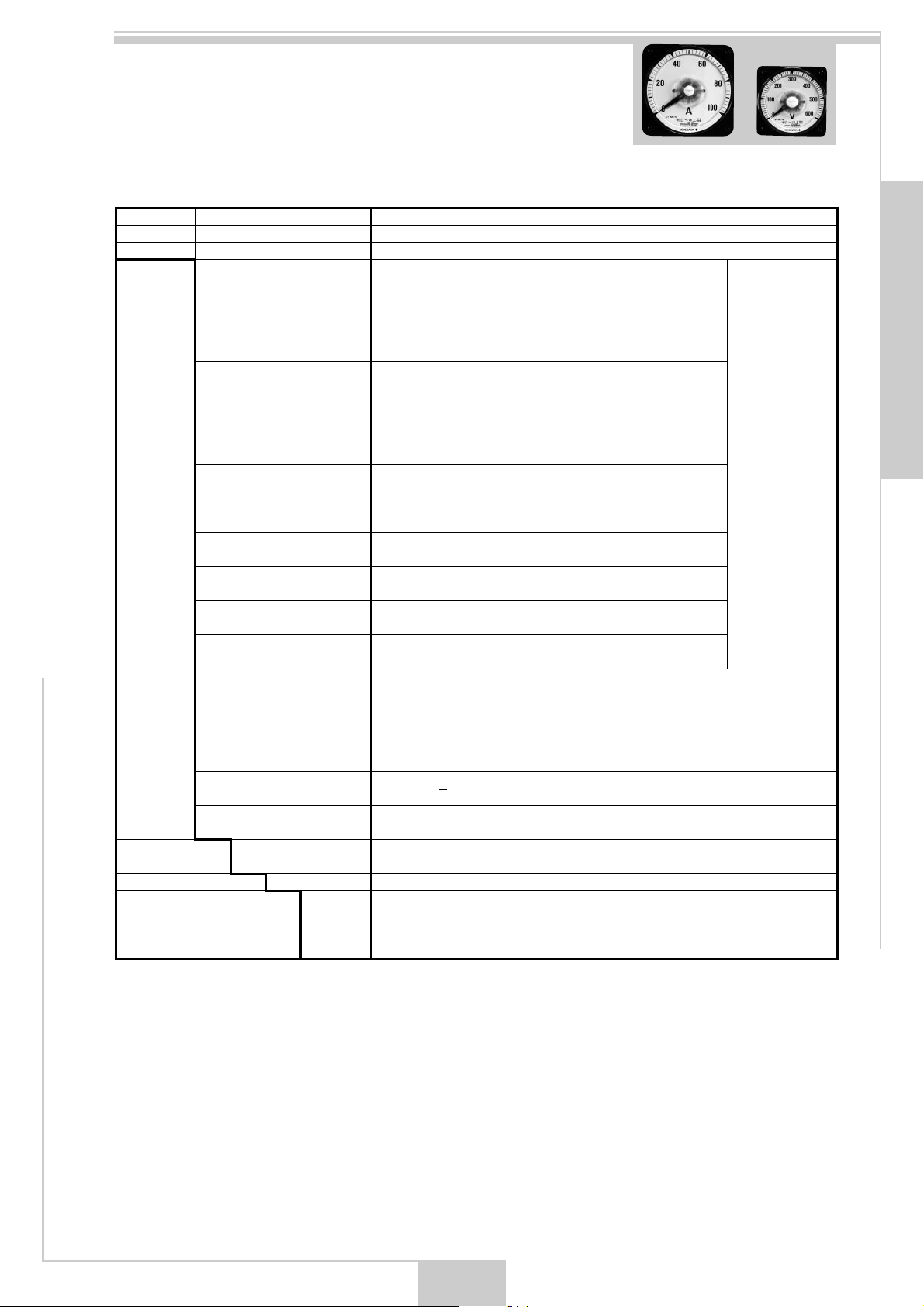

2101A/2181A
DC AMMETERS
-AEG
-AEM
-AFA
-AFN
-AFX
-AGZ
-AHM
-AHY
-AJR
-AKG
-AKM
-ALA
-ALC
-ALE
-ALJ
-ALS
-AMF
-AMT
-AND
-ANG
-ANL
-A00
-D00
-A01
-A04
-A05
-D00
-A06
Suffix Codes
-N
-L
-BL
-BG
-BS
-GS
110 SQUAREClass 1.5
80 SQUAREClass 1.5
0 to 300 microA(Approx. Internal Resistance : 1,050 ohm)
0 to 500 microA(Approx. Internal Resistance :630 ohm)
0 to 1mA(Approx. Internal Resistance :185 ohm)
0 to 3mA(Approx. Internal Resistance :17 ohm)
0 to 5mA(Approx. Internal Resistance :10 ohm)
0 to 10mA
0 to 30mA
0 to 50mA
0 to 100mA
0 to 300mA
0 to 500mA
0 to 1A
0 to 1.5A
0 to 2A
0 to 3A
0 to 5A
0 to 7.5A
0 to 10A
0 to 15A
0 to 20A
0 to 30A
0 to (300 microA to 1A),
Optional intermediate rating
-a to 0 to +b where a or less 72% × (a+b), a+b=1mA to 2A
For zero-center and similar scale meter
0 to 50mV, For external shunt use
0 to 60mVSpecify scale range
0 to 100mV(No shunt is manufactured)
-a to 0 to +b (b=50mV) where a or less 50mV,
For zero-center and similar scale meter
0 to 50mV, Meter with VR, 0 to 2 ohm Variable
Always "-N"
Lance type pointer (Black), Always "-L"
Munsell N1.5
Munsell 7.5BG4/1.5
Munsell N1.5 with Set pointer (red color)
Munsell 7.5BG4/1.5 with Set pointer (red color)
Model
2101A 30
2181A 00
Rating
Designation of
Frequency Used
Pointer
Cover color and Set pointer
SPECIFY THE FOLLOWING WHEN ORDERING
(1) Model and Suffix codes
(2) Full scale value and unit
(3) For suffix code A00 or D00, specifiy rating and full scale value.
Descriptions
(Voltage Drop : 50mV)
Notes :
(1) Scale other than Yokogawa' standard format will be special order.
(2) For each meter with the rating of 50mV,60mV or 100mV, one-pair(1.5m) of shunt leads are supplied.
(3) External shunts are not supplied.
9
DC V OL TMETERS
Model
2101A 30
2181A 00
Rating
Designation of
Frequency Used
Pointer
Cover color and Set pointer
SPECIFY THE FOLLOWING WHEN ORDERING
(1) Model and Suffix codes
(2) Full scale value and unit
(3) For suffix code E00,V00,V07,V08 or V11, specifiy rating and full scale value.
Notes :
(1) Scale other than Yokogawa' standard format will be special order.
(2) External multiplierare not supplied.
(3) *: For non- JIS products.
-VLA
-VLJ
-VLS
-VMT
-VNL
-VNT
-VPK
-VRX
-VSF
-VSJ
-V00
-V07
-V08
-E00
-E00*
-V01*
-V11
-N
Suffix Codes
-L
-BL
-BG
-BS
-GS
110 SQUAREClass 1.5
80 SQUAREClass 1.5
0 to 1V
0 to 3V
0 to 5V
0 to 10V
0 to 30V
0 to 50V
0 to 100V
0 to 300V
0 to 500V
0 to 600V
0 to (50mV to 600V),
Optional intermediate rating
0 to (1V to 300V), Current Consumption : 300 microA
Optional full scale valueCurrent Consumption : 500 microA
-a to 0 to +b where a or less 72% × (a+b), a+b=100mV to 600V
For zero-center and similar scale meter
-a to 0 to +b (b=1mA) where a or less 1mA, For zero-center and similar scale meter
0 to 1mA For external multiplier
0 to (10V to 300V) Optional intermediate rating, Voltmeter with VR,
(Current Consumption : 1mA), ±25% Variable
Always "-N"
Lance type pointer (Black), Always "-L"
Munsell N1.5
Munsell 7.5BG4/1.5
Munsell N1.5 with Set pointer (red color)
Munsell 7.5BG4/1.5 with Set pointer (red color)
Descriptions
(Current Consumption : 1mA),
Where less than 1V : 2mA
DC AMMETERS ,VOLTMETERS SUPPRESSED METER
Descriptions
-AHX
-AHE
-VLR
-N
Suffix Codes
-L
-BL
-BG
-BS
-GS
110 SQUAREClass 1.5
80 SQUAREClass 1.5
10 to 50mA DC, General type (Approx. Internal Resistance :13 ohm)
4 to 20mA DC, General type(Approx. Internal Resistance :6 ohm)
1to 5V DC, General type(Approx. Internal Resistance :4k ohm)
Always "-N"
Lance type pointer (Black), Always "-L"
Munsell N1.5
Munsell 7.5BG4/1.5
Munsell N1.5 with Set pointer (red color)
Munsell 7.5BG4/1.5 with Set pointer (red color)
Model
2101A
2181A
Rating 35
36
37
Designation of
Frequency Used
Pointer
Cover color and Set pointer
SPECIFY THE FOLLOWING WHEN ORDERING
(1) Model and Suffix codes
(2) Full scale value and unit
(3) Specifiy TagNO., if necessary.
Notes :
(1) Special unit symbol is available to suppressed meters.
Standard symbol is small letter.
Specify "Capital letter", if necessary.
EX.: M/MIN,TON,etc.
(2) Scale other than Yokogawa' standard format will be special order.
10
2102A/2182A
AC AMMETERS, VOLTMETERS
RMS rectifier type
-ALA
-ALJ
-ALS
-AMT
-ANL
-A00
-A41
-A42
-A21
-A22
-A25
-A26
-A32
-A34
-A35
-A36
-A52
-A55
-A43
-A44
-A45
-A46
-A47
-A48
-VNT
-VPK
-VPZ
-VRX
-VSJ
-V00
-V12
-V13
-V20
-V21
Suffix Codes
-N
-C
-L
-BL
-BG
-BS
-GS
110 SQUAREClass 1.5
80 SQUAREClass 1.5
0 to1A
0 to 3A
0 to 5A
0 to 10A
0 to 30A
0 to (1A to 30A) Optional intermediate rating
0 to 1A
0 to 5A
0 to 0.5 to 1 A
0 to 1 to 2 A
0 to 5 to 10A
0 to 10 to 20 A
0 to 1 to 3 A
0 to 3 to 9A
0 to 5 to 15 A
0 to 10 to 30A
0 to 1 to 5A
0 to 5 to 25A
0 to 1 to 2A
0 to 5 to 10A
0 to 1 to 3A
0 to 5 to 15A
0 to 1 to 5A
0 to 5 to 25A
0 to 50V(Power Consumption : 0.1VA)
0 to 100V(Power Consumption : 0.6VA)
0 to 150V(Power Consumption : 0.9VA)
0 to 300V(Power Consumption : 1.8VA)
0 to 600V(Power Consumption : 1.2VA)
0 to (50V to 600V), Optional intermediate rating
0 to 150VFor use with external VT (Power Consumption : 0.9VA)
0 to 150/ √3VFor use with external VT (Power Consumption : 0.2VA)
Expanded scale 70 to 130V(Power Consumption : 0.5VA)
Expanded scale 140 to 260V(Power Consumption : 1.0VA)
50/60Hz Common
400Hz
Lance type pointer (Black), Always "-L"
Munsell N1.5
Munsell 7.5BG4/1.5
Munsell N1.5 with Set pointer (red color)
Munsell 7.5BG4/1.5 with Set pointer (red color)
Two-fold extended (For external CT)
Three-fold extended (For external CT)
Five-fold extended (For external CT)
Model
2102A 30
2182A 00
Rating
Designation of
Frequency Used
Pointer
Cover color and Set pointer
SPECIFY THE FOLLOWING WHEN ORDERING
(1) Model and Suffix codes
(2) Full scale value and unit
(3) For suffix code A00 or V00, specifiy rating and full scale value.
(4) VT ratio and CT ratio
Notes :
VT and CT are not supplied.
Descriptions
(For external CT)
Two-fold extended
Three-fold extended
Five-fold extended
(Power
Consumption :
0.4VA)
11
AC AMMETERS, VOLTMETERS
Mean rectifier type
-AEG
-AEM
-AFA
-AFN
-AFX
-AGZ
-AHM
-AHY
-AJR
-AKG
-AKM
-A00
-VLJ
-VLS
-VMT
-VNL
-VNT
-VPK
-VPZ
-VRX
-VSJ
-V00
-V11
-V12
-V13
Suffix Codes
-N
-C
-L
-BL
-BG
-BS
-GS
110 SQUAREClass 2.5
80 SQUAREClass 2.5
300 microA
500 microA
0 to 1mA
0 to 3mA
0 to 5mA
0 to 10mA
0 to 30mA
0 to 50mA
0 to 100mA
0 to 300mA
0 to 500mA
0 to (300 microA to 500mA)
Optional intermediate rating
0 to 3V
0 to 5V
0 to 10V
0 to 30V
0 to 50V
0 to 100V
0 to 150V
0 to 300V
0 to 600V
0 to (3V to 600V)
Optional intermediate rating
0 to (10V to 300V)
Optiona intermediate rating,
Voltmeter with VR
0 to 150V
(For external VT use)
0 to 150 √3V
(For external VT use)
50/60Hz Common
400Hz
Lance type pointer (Black), Always "-L"
Munsell N1.5
Munsell 7.5BG4/1.5
Munsell N1.5 with Set pointer (red color)
Munsell 7.5BG4/1.5 with Set pointer (red color)
Model
2102A 31
2182A 01
Rating
Designation of
Frequency Used
Pointer
Cover color and Set pointer
SPECIFY THE FOLLOWING WHEN ORDERING
(1) Model and Suffix codes
(2) Full scale value and unit
(3) For suffix code A00, V00 or V11, specifiy rating and full scale value.
(4) VT ratio and CT ratio
Designation of
Frequency Used
Pointer
Cover color and Set pointer
SPECIFY THE FOLLOWING WHEN ORDERING
(1) Model and Suffi x codes
(2) Full scale value and unit
(3) In case of using external CT/or VT, calculate the possible full scale value
form the following page and be sure that is within the range shown avove.
(4) VT ratio and CT ratio
Notes :
VT and CT are not supplied.
-W13110V/1A
-W15220V/1A
-W16220V/5A
-W19110/220V 1A
-W20110/220V 5A
-W21220/440V 1A
-W22220/440V 5A
-W13110V/1A
-W14110V/5A
-W15220V/1A
-W16220V/5A
-W11110/
-W12110/
-W17220/
-W18220/
-W51100V/1A
-W52100V/5A
-W53115V/1A
-W54115V/5A
-W55120V/1A
-W56120V/5A
-W61200V/1A
-W62200V/5A
-W63230V/1A
-W64230V/5A
-W65240V/1A
-W66240V/5A
-S14110V/5A
-S15220V/1A
-S16220V/5A
-S13110V/1A
-S14110V/5A
-S15220V/1A
-S16220V/5A
-S53115V/1A
-S54115V/5A
-S11110/
-S12110/
-S17220/
-S18220/
-N50/60Hz Common
-C400Hz
-LLance type pointer (Black), Always "-L"
-BLMunsell N1.5
-BG Munsell 7.5BG4/1.5
-BS Munsell N1.5 with Set pointer (red color)
-GS Munsell 7.5BG4/1.5 with Set pointer (red color)
_
3V 1A
√
_
3V 5A
√
_
3V 1A
√
_
3V 5A
√
_
3V 1A
√
_
3V 5A
√
_
3V 1A
√
_
3V 5A
√
scale
Scale : -a W to 0 to +b
W where a
For calibration power
range : The "+b" side
is the same as its
standard power where a
b
b
110 SQUAREClass 1.5
80 SQUARE
With external
transducer
Single phase 2-wire
Single phase 3-wire
3-phase 3-wire
3-phase 4-wire
Semi-standard meters
For 21
Single phase 2-wire
3-phase 3-wire
3-phase 4-wire
5A31,35
Class 1.5
13
WATTMETERS
[Available Calibration Watts]
Standard RatingAvailable Calibration Watts
VOLTAGE
110/ √_3V
Operating
voltage range
52 to 75V
CURRENT
1A
5A
Single phase
2-wire
48 to 80W
240 to 400W
Single phase
3-wire
-
-
3-phase
3-wire
-
-
3-phase
4-wire
125 to 285W
625 to 1400W
110V
115V
120V
220/ √_3V
200V
220V
240V
(1) Calibration Watts are 65 to 150%. Standard Watts beyond the limits are not available.
Single phase 2-wire:Standard Watts = Voltage Rating × Current Rating
Single phase 3-wire:Standard Watts = 2 × Voltage Rating (P1-N) × Current Rating
3-phase 3-wire:Standard Watts = root3 × Line Voltage Rating × Current Rating
3-phase 4-wire:Standard Watts = 3 × Phase Voltage Rating × Current Rating
(2) When using VT and CT, Caribration watts will be as follows;
(1) Model and Suffi x codes
(2) Full scale value and unit
(3) In case of using external CT/or VT, calculate the possible full scale value form
the following page and be sure that is within the range shown avove.
(4) VT ratio and CT ratio
Notes :
VT and CT are not supplied.
-M13110V/1A
-M15220V/1A
-M16220V/5A
-M13110V/1A
-M14110V/5A
-M15220V/1A
-M16220V/5A
-M11
-M12
-M13110V/1A
-M14110V/5A
-M15220V/1A
-M16220V/5A
-M17
-M18
-M51100V/1A
-M52100V/5A
-M53115V/1A
-M54115V/5A
-M55120V/1A
-M56120V/5A
-M61200V/1A
-M62200V/5A
-M63230V/1A
-M64230V/5A
-M65240V/1A
-M66240V/5A
-P13110V/1A
-P14110V/5A
-P15220V/1A
-P16220V/5A
-P13110V/1A
-P14110V/5A
-P15220V/1A
-P16220V/5A
-P53115V/1A
-P54115V/5A
-P11
-P12
-P17
-P18
-N50/60Hz CommonFor 21
-A50Hz
-B60Hz
-C400Hz
-LLance type pointer (Black), Always "-L"
-BLMunsell N1.5
-BG Munsell 7.5BG4/1.5
-BS Munsell N1.5 with Set pointer (red color)
-GS Munsell 7.5BG4/1.5 with Set pointer (red color)
110/
110/
220/
220/
110V/
110V/
220V/
220V/
√
√
√
√
_
3
_
3
_
3
_
3
_
3
√
_
3
√
_
3
√
_
3
√
V 1A
V 5A
V 1A
V 5A
V 1A
V 5A
V 1A
V 5A
110 SQUAREClass 1.5
80 SQUARE
With external
transducer
Single phase 2-wire
3-phase 3-wire
3-phase 4-wire For 21
3-phase 4-wire For 21
3-phase 4-wire For 21
Semi-standard meters
For 21
Single phase 2-wire
3-phase 3-wire
For 21
3-phase 4-wire
For 21
For 21
6A31,33,35
6A34
6A36
6A33,34
6A31,35,36
Class 1.5
6A36
6A34
6A36
[Scale scope]
(1) Zero-center meter:
LEAD a to 0 to LAG b var where a=b
(2) Single defl ecting meter:
0 to LEAD var or 0 to LAG var
(3) Unbalanced scale meter:
LEAD a to 0 to LAG b var where a less than b
16
VARMETERS
[Available Calibration Vars]
Zero-center meter
Standard RatingAvailable Calibration Varmeters
VOLTAGE
110/ √_3V
110V
115V
120V
220/ √_3V
200V
220V
240V
Available Calibration Varmeters are 33 to 150%. Standard Vars beyond the limits are not available.
Single phase 2-wire : Standard Vars = Voltage Rating × Current Rating
3-phase 3-wire : Standard Vars = root3 × Line Voltage Rating × Current Rating
3-phase 4-wire : Standard Vars = 3 × Phase Voltage Rating × Current Rating
Operating
voltage range
52 to 75V
90 to 130V
104 to 150V
180 to 260V
CURRENT
1A
5A
1A
5A
1A
5A
1A
5A
Single phase 2-wire
LEAD
LAGLAG
LEAD
LAGLAG
LEAD
LAGLAG
LEAD
LAGLAG
LEAD
LAGLAG
LEAD
LAGLAG
24 to
120 to
36 to
180 to
72 to
360 to
LEAD
LEAD
LEAD
LEAD
—
—
LEAD
LEAD
80var
400var
164var
820var
328var
1640var
3-phase 3-wire
—
—
LEAD
LAGLAG
LEAD
LAGLAG
LEAD
LAGLAG
LEAD
LAGLAG
62 to
312 to
125 to
625 to
LEAD
LEAD
—
—
LEAD
LEAD
285var
1400var
570var
2850var
LEAD
LAGLAG
LEAD
LAGLAG
LEAD
LAGLAG
LEAD
LAGLAG
LEAD
LAGLAG
LEAD
LAGLAG
LEAD
LAGLAG
LEAD
LAGLAG
3-phase 4-wire
LEAD
62 to
LEAD
312 to
LEAD
109 to
LEAD
545 to
LEAD
125 to
LEAD
625 to
LEAD
218 to
LEAD
1090 to
285var
1400var
495var
2475var
570var
2850var
990var
4950var
Single deflecting meter and Unbalanced scale meter (on the "b"side)
Standard RatingAvailable Calibration Varmeters
VOLTAGE
110/ √_3V
110V
115V
120V
220/ √_3V
200V
220V
240V
Available Calibration Varmeters are 65 to 150%. Standard Vars beyond the limits are not available.
Single phase 2-wire:Standard Vars = Voltage Rating × Current Rating
3-phase 3-wire:Standard Vars = root3 × Line Voltage Rating × Current Rating
3-phase 4-wire:Standard Vars = 3 × Phase Voltage Rating × Current Rating
When using VT and CT, Caribration Varmeters will be as follows ;
Always "-N"
Lance type pointer (Black), Always "-L"
Munsell N1.5
Munsell 7.5BG4/1.5
Munsell N1.5 with Set pointer (red color)
Munsell 7.5BG4/1.5 with Set pointer (red color)
Model
2108A 30
2188A 30
Rating
Designation of
Frequency Used
Pointer
Cover color and Set pointer
SPECIFY THE FOLLOWING WHEN ORDERING
Model and Suffix codes
Descriptions
Class 0.5
Class 1.0
Class 0.5
Class 1.0
Class 0.5
Class 1.0
Class 0.5
Class 1.0
Class 0.5
Class 1.0
Class 0.5
Class 1.0
Notes :
VT is not supplied.
21
2109A
SYNCHROSCOPE
Model
Suffix Codes
Descriptions
2109A30
Rating
Designation of
Frequency Used
Cover color
and Set pointer
SPECIFY THE FOLLOWING WHEN ORDERING
Model and Suffix codes
Notes :
(1) Phase : Single phase and 3-phase common use.
(2) Scale : SLOW-FAST.
(3) Model 2109A is not complied with JIS standards.
(4) Pointer : Lance type pointer (Black)
2109A30
-VPM
-VRM
N
-C
-BL
-BG
RatingModel
110V
220V
Single phase / Three phase
110V
220V
50/60Hz Common
400Hz
Munsell N1.5
Munsell 7.5BG4/1.5
