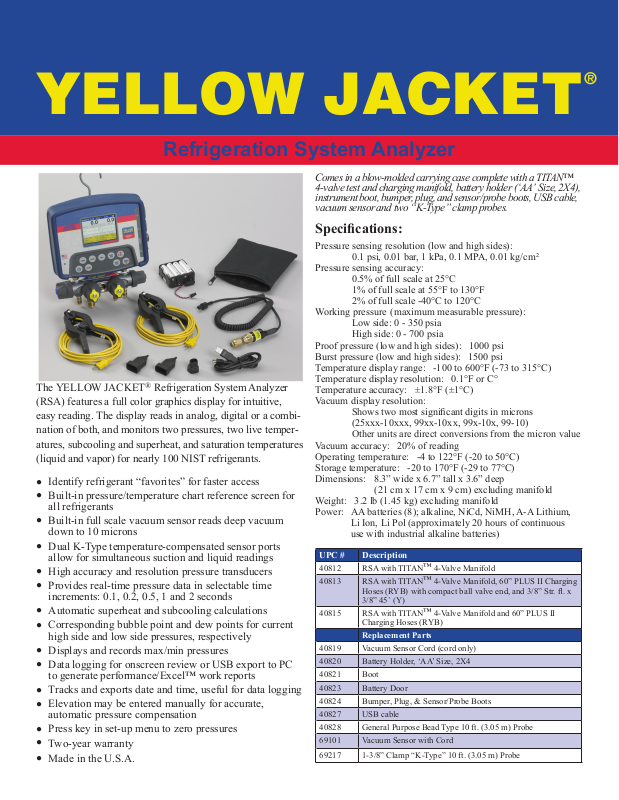

Yellow Jacket 40812 Specifications

YELLOW JACKET

Refrigeration System Analyzer

Comes in a blow-molded carrying case complete with a TITAN™
4-valve test and charging manifold, battery holder (‘AA’ Size, 2X4),
instrument boot, bumper, plug, and sensor/probe boots, USB cable,
vacuum sensor and two “K-Type” clamp probes.

Specications:

Pressure sensing resolution (low and high sides):

0.1 psi, 0.01 bar, 1 kPa, 0.1 MPA, 0.01 kg/cm²
Pressure sensing accuracy:

0.5% of full scale at 25°C
1% of full scale at 55°F to 130°F
2% of full scale -40°C to 120°C
Working pressure (maximum measurable pressure):
Low side: 0 - 350 psia
High side: 0 - 700 psia
Proof pressure (low and high sides): 1000 psi
Burst pressure (low and high sides): 1500 psi
Temperature display range: -100 to 600°F (-73 to 315°C)

The YELLOW JACKET® Refrigeration System Analyzer
(RSA) features a full color graphics display for intuitive,
easy reading. The display reads in analog, digital or a combi­nation of both, and monitors two pressures, two live temper­atures, subcooling and superheat, and saturation temperatures
(liquid and vapor) for nearly 100 NIST refrigerants.

Identify refrigerant “favorites” for faster access

●

●

Built-in pressure/temperature chart reference screen for
all refrigerants

●

Built-in full scale vacuum sensor reads deep vacuum
down to 10 microns

●

Dual K-Type temperature-compensated sensor ports
allow for simultaneous suction and liquid readings

●

High accuracy and resolution pressure transducers

●

Provides real-time pressure data in selectable time
increments: 0.1, 0.2, 0.5, 1 and 2 seconds

●

Automatic superheat and subcooling calculations

●

Corresponding bubble point and dew points for current
high side and low side pressures, respectively

●

Displays and records max/min pressures

●

Data logging for onscreen review or USB export to PC
to generate performance/Excel™ work reports

●

Tracks and exports date and time, useful for data logging

●

Elevation may be entered manually for accurate,
automatic pressure compensation

●

Press key in set-up menu to zero pressures

●

Two-year warranty

●

Made in the U.S.A.

Temperature display resolution: 0.1°F or C°
Temperature accuracy: ±1.8°F (±1°C)
Vacuum display resolution:

 Showstwomostsignicantdigitsinmicrons

(25xxx-10xxx, 99xx-10xx, 99x-10x, 99-10)
Other units are direct conversions from the micron value
Vacuum accuracy: 20% of reading
Operating temperature: -4 to 122°F (-20 to 50°C)
Storage temperature: -20 to 170°F (-29 to 77°C)
Dimensions: 8.3” wide x 6.7” tall x 3.6” deep
(21 cm x 17 cm x 9 cm) excluding manifold
Weight: 3.2 lb (1.45 kg) excluding manifold
Power: AA batteries (8); alkaline, NiCd, NiMH, A-A Lithium,
Li Ion, Li Pol (approximately 20 hours of continuous
use with industrial alkaline batteries)

UPC # Description

40812 RSA with TITAN™ 4-Valve Manifold

40813 RSA with TITAN™ 4-Valve Manifold, 60” PLUS II Charging

Hoses(RYB)withcompactballvalveend,and3/8”Str..x
3/8”45˚(Y)

40815 RSA with TITAN™ 4-Valve Manifold and 60” PLUS II

Charging Hoses (RYB)

Replacement Parts

40819 Vacuum Sensor Cord (cord only)

40820 Battery Holder, ‘AA’ Size, 2X4

40821 Boot

40823 Battery Door

40824 Bumper, Plug, & Sensor/Probe Boots

40827 USB cable

40828 General Purpose Bead Type 10 ft. (3.05 m) Probe

69101 Vacuum Sensor with Cord

69217 1-3/8” Clamp “K-Type” 10 ft. (3.05 m) Probe

®
