Yazoo/Kees ZKH52221, ZKH52251, ZKH61221, ZKH61251 User Manual
COMMERCIAL MOWERS
OPERATOR’S MANUAL FOR:
MODELS: ZKH52221
ZKH52251
ZKH61221
ZKH61251
FD KEES POWER EQUIPMENT L.L.C.
700-800 PARK AVE. BEATRICE, NEBRASKA U.S.A. 68310
PRINTED IN USA
1 MANUAL NO. 102936IR
REV . IR (9-1-97)
Congratulations on the purchase of your Kees mower. This manual has been prepared for
the owners and operators of the ZT MAX™ 52" and 61" commercial mowers. Read, understand and follow the saftey and operating instructions.
! W ARNING
Failure to follow cautious operating practices can result in serious injury to the operator or
other persons. The owner must understand these instructions, and must allow only trained
persons who understand these instructions to operate the mower . Each person operating the
mower must be of sound mind and body and must not be under the influence of any mind
altering substance.
If you have any questions pertaining to your mower contact your dealer.
! CAUTION
1. Keep all shields, guards and safety devices in place and in proper working condition.
2. Stop engine and remove spark plug wires or remove key before adjusting, servicing, or
performing maintenance.
! WARNING !
THE EXHAUST FROM THIS
PRODUCT CONTAINS CHEMICALS
KNOWN TO THE STATE OF
CALIFORNIA TO CAUSE CANCER,
BIRTH DEFECTS OR
OTHER REPRODUCTIVE HARM.
Continuous dedication to improve our products require that specifications and design are
subject to change without notice.
PRINTED IN USA 2 MANUAL NO. 102936IR
SAFETY:
1. Training
2. Preparation
3. Operation
4. Transportation
5. Maintenance
SETUP AND ADJUSTMENTS:
1. Park brake
2. Cutting height
3. Mower deck leveling
4. Mule drive belt tension
5.Throttle lever tension
6. Reverse spring detent adjustment
7. Motion control linkage adjustment
OPERATING INSTRUCTIONS:
1. Controls
2. Starting and operation
TABLE OF CONTENTS
MAINTENANCE:
1. Engine oil level
2. Pump drive belt compartment
3. Mower blades
4. Safety interlock system
5. Hardware
6. Air cleaner
7. Engine oil
8. Hydraulic oil
9. Tire presure
10. Battery
1 1. Belts
12. Lubrication
13. Fuel filter
14. Hydraulic filter and oil
15. Caster swivel nuts

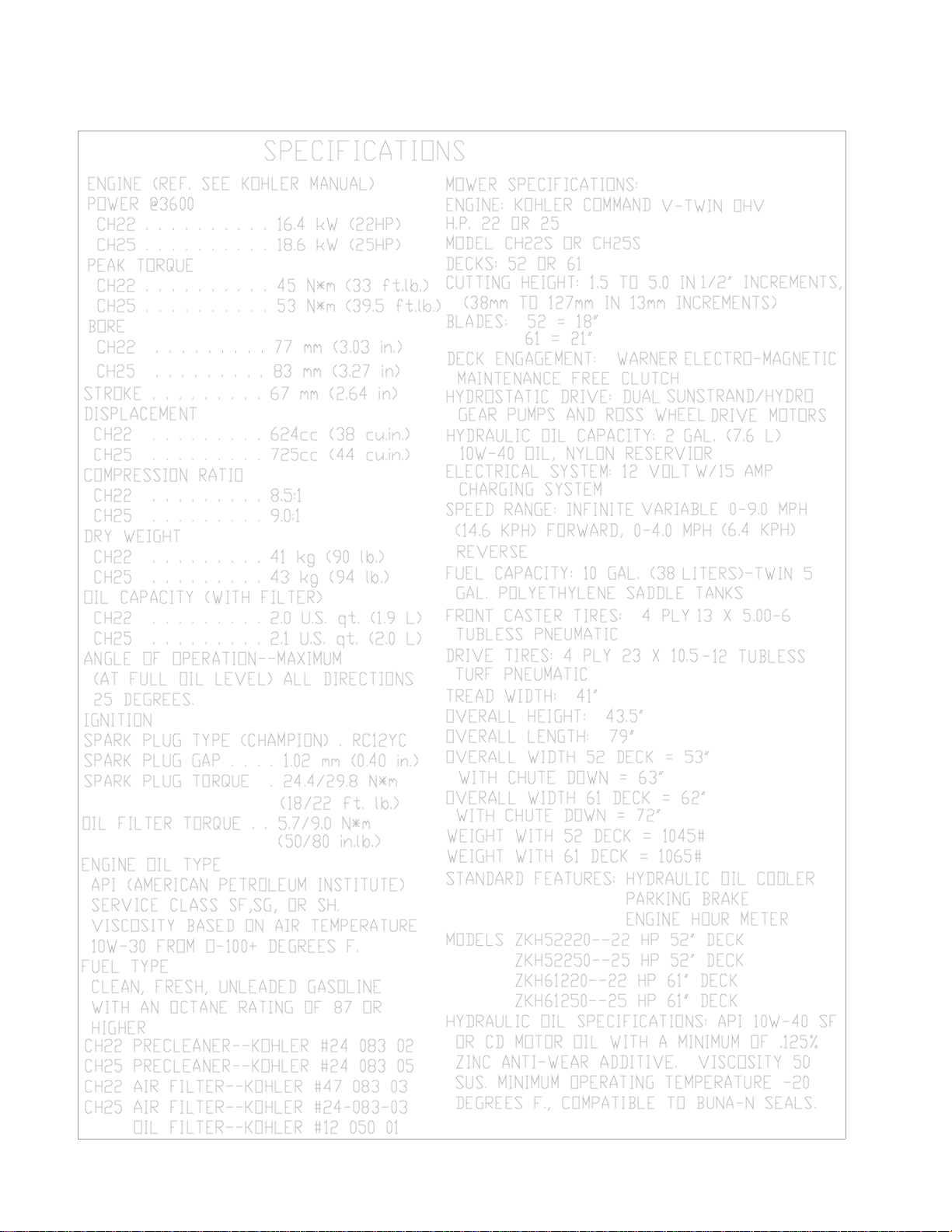

SPECIFICATIONS:
TROUBLE SHOOTING:
PRINTED IN USA
3 MANUAL NO. 102936IR
SAFETY
TRAINING:
1. Read this manual carefully and question your dealer if something is not clear.
2. Be thoroughly familiar with the controls and proper use of the equipment.
3. Never allow children, teenagers, or people unfamiliar with these instructions to use the
mower .
4. Do not mow while people, particularly children, or pets are nearby .
PREPARATION:
1. The use of personal protective equipment such as (but not limited to) protection for the eyes,
ears, feet and head is recommended.
2. Never operate the mower without proper guards, covers, safety switches and devices in
place and properly functioning. Inspect these items daily for their condition and proper operation. If the condition or operation of any of these devices is questionable they must be replaced
or repaired before using the mower .
3. Thoroughly inspect the area to be mowed and remove all stones, sticks, wire and other
debris that may be thrown by the mower . Also note or mark other obstacles such as holes,
stumps, etc..
4. Do not operate the mower when barefoot or wearing open shoes. Always wear substantial
footwear and long pants.
5. Fill gas tank(s) before starting mower . DO NOT SMOKE near gasoline containers. Do not fill
gas tank indoors or when engine is hot or running. Clean off any spilled gasoline before starting the mower .
OPERATION:
1. Mow only in daylight or good artificial light.
2. Do not operate the mower in wet grass if possible.
3. Mow up and down slopes. Use extreme caution when mowing or turning on slopes. Always
turn to the downhill side. Do not mow excessively steep slopes ( mower may tip over and
cause injury or death ).
4. Use caution when backing up.
5. Stop the blades when crossing surfaces other than grass; or when traveling to and from the
area to be mowed.
6. Never operate the mower with defective, broken or excessively worn parts. Keep all
guards, shields, and safety devices in place and in proper working order .
7. Do not change the engine governor settings or over speed the engine. Operating the
engine at excessive speeds will increase the hazard of injury and can severely damage your
machine.
8. Keep hands, feet and clothing away from rotating part s when operating mower.
9. Stop the blades and engine and set park brake before leaving the operators position for
any reason.
10. Never make adjustments to the mower while engine and/or blades are running.
1 1. Af ter striking a foreign object, stop mower and remove key . Inspect the mower for any
damage and repair it immediately before continuing to mow .
12. Never operate this equipment in an enclosed or confined area without proper ventilation of
the engine exhaust.
13. Do not allow any passengers to ride on the mower . It is designed for the operator only.
Keep others away from the mower when in operation.
PRINTED IN USA 4 MANUAL NO. 102936IR
TRANSPORTATION:
Use a heavy duty trailer to haul mower . Set park brake, turn off fuel valve and strap mower to
trailer. NOTE: Park brake will not hold mower in place when transporting. Be sure to tie down
the mower to the trailer . Always back onto the trailer to prevent possible tipover .
1. Keep all nuts, bolts and screws tight to keep mower in safe operating condition.
2. Engine maintenance should comply with engine manufactures specifications. See the
engine manual for specifications.
3. Never store the mower with gas in the tank inside a building where fumes can reach an
open flame or spark.
4. T o reduce the risk of fire, keep the mower free of grass, leaves and excessive grease or oil.
5. Have your mower inspected and serviced each year by an authorized KEES dealer .
6. Use only authentic KEES replacement parts to insure the safety and quality of your mower
is maintained.
7. Safety decals should be replaced if they are missing or illegible. Decals can be purchased
from your KEES dealer.
8. The hydraulic system including all hoses and fittings should be checked frequently for wear
or leaks. Never check for leaks with your hands, use a piece of cardboard or wood. Hydraulic
oil under pressure could be injected into your body and must be surgically removed within a
few hours.
SAFETY
EQUIPMENT SETUP AND ADJUSTMENTS
1. Uncrate mower
2. Mount drive wheels using the four lug nuts installed on the hub.
3. Check tire pressure in all four tires. Pressure for all four tires is 15 psi

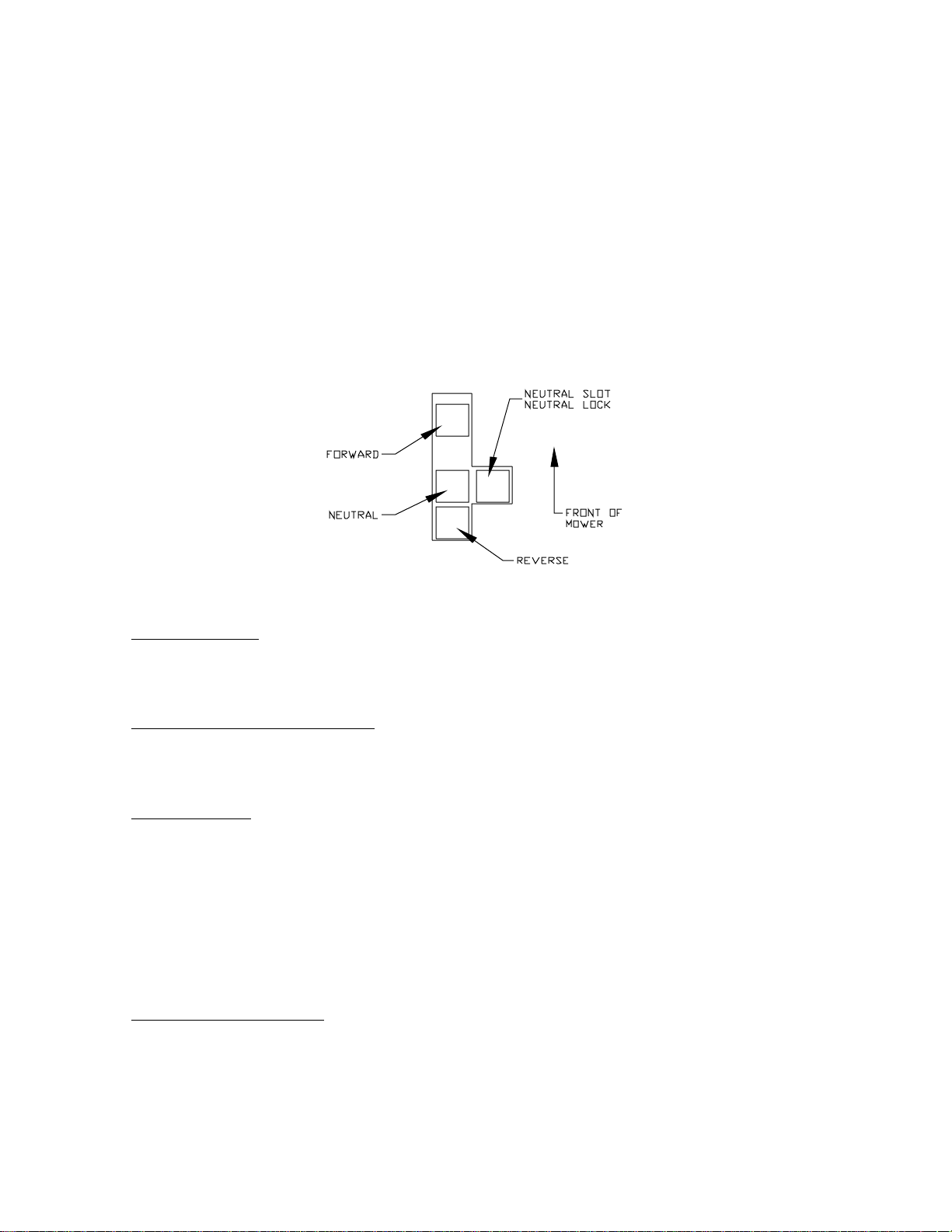

4. Remove the motion control levers and install on the outside of the control arms (See figure
1). Tabs on the motion control levers should be directed to the rear of the mower. Align the
levers so they are even in the neutral position. (See figure 6)
5. Install seat rod to the seat frame with 5/16" hardware. Seat rod is located under the seat in
the hydraulic pump area. Attach the rod to the tab on the seat frame.
6. Check engine oil with dip stick. Add if needed per engine manufactures specifications.
(See Kohler engine manual or page 14 of this manual for Kohler engine specifications.)
Normally filled with Quaker St ate 10W30 and ran in at the factory.
7. See enclosed literature for proper installation, care and charging of battery .
8. Loosen the discharge chute slightly and lower into position. Chute should be snug but still
pivot freely .
Figure 1
PRINTED IN USA
5 MANUAL NO. 102936IR
ADJUSTMENTS
PARK BRAKE:
1. Stop engine and remove key . Release p ark brake and measure the length of the spring.
The distance between the washers on each end of the spring should be 2-7/8" (See Fig 2 ).
2. If adjustment is needed, loosen the nut below the spring. Then rotate nut to desired position
so the proper distance between the washers is obtained. Check other side for proper adjustment.
3. Engage the brake lever and measure the distance between the trunnion pin and the collar
welded to the brake rod. Distance should be 3/16" to 1/4" (See Fig 2 ).
4. If adjustment is needed, loosen the lock nut directly below the yoke. Using a wrench, rotate
the rod by turning the double nuts using the nuts below the yoke and the nut you just loosened,
to obtain the 3/16" to 1/4" distance. Tighten nut against yoke and check other side for proper
adjustment.
FIGURE 2
CUTTING HEIGHT:
1. Stop the mower and disengage the blades.
2. Raise the deck height lever to the transport position.
3. Remove the height adjustment pin and place it in the desired cutting height hole. Move
deck height lever down onto the pin and mow. NOTE: anti-scalp rollers must be in the proper
position for maximum deck floatation. See the decal on the front deck.
MOWER DECK LEVELING:
1. Position mower on a flat surface and stop engine.
2. Check the tire pressure of all four tires. Inflation should be 15 psi.
3. Place two 2x4’s on edge under the cutting deck from front to rear and lower the deck down
onto the 2x4’s.
4. Adjust the four upper chain bolts to the center of the slot in the deck lift arms. NOTE: make
sure deck lift blocks are tightly bolted to the frame (See Fig 3).
5. Return the deck height lever to the transport position (5" cutting height) and check the
center to center distance of the swivels. Distance should be 19-1/2"
6. Check the distance between the washers on the deck lift springs. Distance should be
11-3/4" (See Fig 3).
7. Check chains for equal tension. If unequal, adjust upper chain bolt in slot.
8. Place deck in the 5" cutting height and measure from the cutting edge of the blade to a flat
surface to check deck cutting height.
PRINTED IN USA 6 MANUAL NO. 102936IR
