Yaskawa SI-EM3D User Manual

YASKAWA AC Drive 1000-Series Option

Modbus TCP/IP

Installation Manual

Type: SI-EM3D

To properly use the product, read this manual thoroughly and retain
for easy reference, inspection, and maintenance. Ensure the end
user receives this manual.

TM

MANUAL NO. TOEP YAICOM 18A

ダミー

Copyright © 2014 YASKAWA ELECTRIC CORPORATION. All rights reserved.

All rights reserved. No part of this publication may be reproduced, stored in a retrieval system,
or transmitted, in any form or by any means, mechanical, electronic, photocopying, recording,
or otherwise, without the prior written permission of Yaskawa. No patent liability is assumed
with respect to the use of the information contained herein. Moreover, because Yaskawa is
constantly striving to improve its high-quality products, the information contained in this
manual is subject to change without notice. Every precaution has been taken in the preparation
of this manual. Yaskawa assumes no responsibility for errors or omissions. Neither is any
liability assumed for damages resulting from the use of the information contained in this
publication.

Table of Contents

1 PREFACE AND SAFETY.....................................4

2 PRODUCT OVERVIEW........................................8

3 RECEIVING.........................................................9

4 OPTION COMPONENTS....................................10

5 INSTALLATION PROCEDURE...........................14

6 RELATED DRIVE PARAMETERS......................24

7 MODBUS TCP/IP MESSAGING..........................28

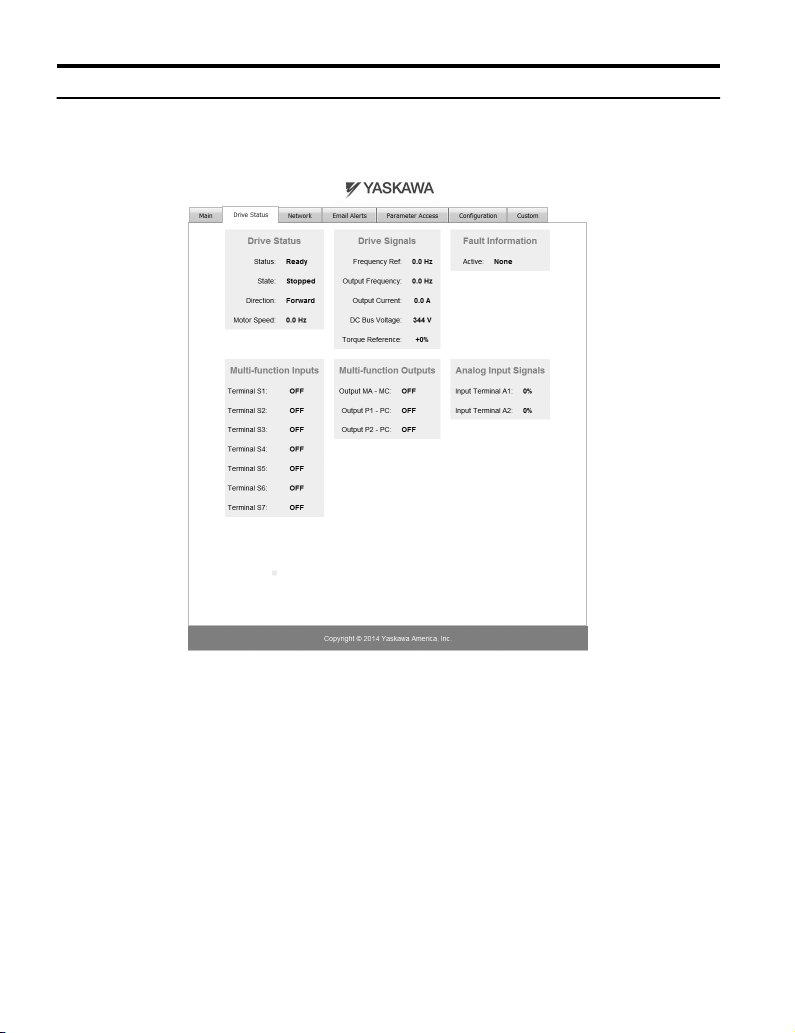

8 WEB INTERFACE..............................................34

9 RAPID SPANNING TREE PROTOCOL...............40

10 TROUBLESHOOTING........................................41

11 SPECIFICATIONS.............................................47

YASKAWA TOEP YAICOM 18A 1000-Series Option Dual-Port Modbus TCP/IP SI-EM3D Installation Manual

3

1 Preface and Safety

1 Preface and Safety

Yaskawa manufactures products used as components in a wide variety of industrial systems
and equipment. The selection and application of Yaskawa products remain the responsibility
of the equipment manufacturer or end user. Yaskawa accepts no responsibility for the way its
products are incorporated into the final system design. Under no circumstances should any
Yaskawa product be incorporated into any product or design as the exclusive or sole safety
control. Without exception, all controls should be designed to detect faults dynamically and
fail safely under all circumstances. All systems or equipment designed to incorporate a product
manufactured by Yaskawa must be supplied to the end user with appropriate warnings and
instructions as to the safe use and operation of that part. Any warnings provided by Yaskawa
must be promptly provided to the end user. Yaskawa offers an express warranty only as to the
quality of its products in conforming to standards and specifications published in the Yaskawa
manual. NO OTHER WARRANTY, EXPRESS OR IMPLIED, IS OFFERED. Yaskawa
assumes no liability for any personal injury, property damage, losses, or claims arising from
misapplication of its products.

u

Applicable Documentation

The following manuals are available for the SI-EM3D option:

Yaskawa AC Drive 1000-Series Option SI-EM3D Dual-Port Modbus TCP/IP Installation
Manual (TOEPYAICOM18)

The Installation Manual contains information required to install the option and set up
related drive parameters.

Yaskawa AC Drive 1000-Series Option SI-EM3D Dual-Port Modbus TCP/IP Technical
Manual (SIEPYAICOM18)

The Technical Manual contains detailed information about the option. In the U.S., access
http://www.yaskawa.com to obtain the Technical Manual. Customers in other areas should
contact a Yaskawa representative.

1000-Series AC Drive Safety Precautions

Read this manual first. This manual contains essential safety information and simplified
information for the drive. This document also provides basic instructions on mechanical
installation, a connection diagram, main circuit and control circuit connections, switch
and jumper configuration, basic troubleshooting, standards compliance and fusing, drive
specifications, and an abbreviated parameter list.

1000-Series AC Drive Quick Start Guide

This guide contains basic information required to install and wire the drive. It also gives
an overview of fault diagnostics, maintenance, and parameter settings. The purpose of this
guide is to prepare the drive for a trial run with an application and for basic operation. This
manual is available for download on our documentation website, www.yaskawa.com.

1000-Series AC Drive Technical Manual

This manual provides detailed information on parameter settings, drive functions, and
MEMOBUS/Modbus specifications. Use this manual to expand drive functionality and to
take advantage of higher performance features. This manual is available for download on
our documentation website, www.yaskawa.com.

4

YASKAWA TOEP YAICOM 18A 1000-Series Option Dual-Port Modbus TCP/IP SI-EM3D Installation Manual

1 Preface and Safety

u

Terms

Note: Indicates supplemental information that is not related to safety messages.

Drive: Yaskawa 1000-Series AC Drive

Option: Yaskawa AC Drive 1000-Series SI-EM3D Dual-Port Modbus TCP/IP Option

u

Registered Trademarks

• Modbus TCP/IP is a trademark of Modbus-IDA.

• All trademarks are the property of their respective owners.

u

Supplemental Safety Information

Read and understand this manual before installing, operating, or servicing this option. The
option must be installed according to this manual and local codes.

The following conventions are used to indicate safety messages in this manual. Failure to heed
these messages could result in serious or possibly even fatal injury or damage to the products
or to related equipment and systems.

DANGER

Indicates a hazardous situation, which, if not avoided, will result in death or serious
injury.

WARNING

Indicates a hazardous situation, which, if not avoided, could result in death or serious
injury.

WARNING! may also be indicated by a bold key word embedded in the text followed by an italicized safety
message.

CAUTION

Indicates a hazardous situation, which, if not avoided, could result in minor or
moderate injury.

CAUTION! may also be indicated by a bold key word embedded in the text followed by an italicized safety
message.

YASKAWA TOEP YAICOM 18A 1000-Series Option Dual-Port Modbus TCP/IP SI-EM3D Installation Manual

5

1 Preface and Safety

NOTICE

Indicates a property damage message.

NOTICE: may also be indicated by a bold key word embedded in the text followed by an italicized safety
message.

General Safety

n

General Precautions

• The diagrams in this manual may be indicated without covers or safety shields to show details. Replace
the covers or shields before operating the drive and run the drive according to the instructions
described in this manual.

• Any illustrations, photographs, or examples used in this manual are provided as examples only and
may not apply to all products to which this manual is applicable.

• The products and specifications described in this manual or the content and presentation of the manual
may be changed without notice to improve the product and/or the manual.

• When ordering a new copy of the manual due to damage or loss, contact your Yaskawa representative
or the nearest Yaskawa sales office and provide the manual number shown on the front cover.

• If nameplate becomes worn or damaged, order a replacement from your Yaskawa representative or
the nearest Yaskawa sales office.

DANGER

Heed the safety messages in this manual.

Failure to comply will result in death or serious injury.

The operating company is responsible for any injuries or equipment damage resulting from
failure to heed the warnings in this manual.

Electrical Shock Hazard

Do not connect or disconnect wiring while the power is on.

Failure to comply will result in death or serious injury.

Failure to comply will result in death or serious injury. Before servicing, disconnect all
power to the equipment. The internal capacitor remains charged even after the power supply
is turned off. The charge indicator LED will extinguish when the DC bus voltage is below
50 Vdc. To prevent electric shock, wait for at least the time specified on the warning label
once all indicators are OFF, and then measure the DC bus voltage level to confirm it has
reached a safe level.

6

YASKAWA TOEP YAICOM 18A 1000-Series Option Dual-Port Modbus TCP/IP SI-EM3D Installation Manual

1 Preface and Safety

NOTICE

Observe proper electrostatic discharge procedures (ESD) when handling the drive and
circuit boards.

Failure to comply may result in ESD damage to the drive circuitry.

Do not perform a withstand voltage test on any part of the drive.

Failure to comply could result in damage to the sensitive devices within the drive.

Do not operate damaged equipment.

Failure to comply could result in further damage to the equipment.

Do not connect or operate any equipment with visible damage or missing parts.

Do not expose the drive to halogen group disinfectants.

Failure to comply may cause damage to the electrical components in the drive.

Do not pack the drive in wooden materials that have been fumigated or sterilized.

Do not sterilize the entire package after the product is packed.

YASKAWA TOEP YAICOM 18A 1000-Series Option Dual-Port Modbus TCP/IP SI-EM3D Installation Manual

7

2 Product Overview

2 Product Overview

u

About this Product

This option provides a communications connection between the drive and a Modbus TCP/IP
network. The option connects the drive to a Modbus TCP/IP network and facilitates the
exchange of data.

This manual explains the handling, installation and specifications of this product.

The option is a communications link to connect industrial devices (such as smart motor
controllers, operator interfaces, and variable frequency drives) as well as control devices (such
as programmable controllers and computers) to a network. The option is a simple, networking
solution that reduces the cost and time to wire and install factory automation devices, while
providing interchangeability of like components from multiple vendors.

By installing the option to a drive, it is possible to do the following from a Modbus TCP/IP
master device:

• Operate the drive

• Monitor drive status

• Change drive parameter settings.

u

Applicable Models

The option can be used with the drive models in Table 1.

Table 1 Applicable Models

Drive Series

A1000

<1> See “PRG” on the drive nameplate for the software version number.

Drive Model Number

CIMR-Ao2Aoooo

CIMR-Ao4A0002o to 4A0675o

CIMR-Ao4A0930 and 4A1200 301o

CIMR-Ao5Aoooo 504o; 1017 and later

Software Version

1010 and later

<1>

8

YASKAWA TOEP YAICOM 18A 1000-Series Option Dual-Port Modbus TCP/IP SI-EM3D Installation Manual

NS MS

MANUAL

3 Receiving

3 Receiving

Please perform the following tasks upon receipt of the option:

• Inspect the option for damage. Contact the shipper immediately if the option appears
damaged upon receipt.

• Verify receipt of the correct model by checking the model number printed on the name
plate of the option package.

• Contact your supplier if you have received the wrong model or the option does not function
properly.

u

Option Package Contents

Description Option

–

Quantity 1 1 3 1 1

u

Tools Required for Installation

Ground

Wire

Screws (M3) LED Label

Installation

Manual

• A Phillips screwdriver (M3 metric or #1, #2 U.S. standard) is required to install the option
and remove drive front covers. Screw sizes vary by drive capacity. Select a screwdriver
appropriate for the drive capacity.

• Diagonal cutting pliers. (required for some drive models)

• A small file or medium grit sandpaper. (required for some drive models)

Note: Tools required to prepare the option cables for wiring are not listed in this manual.

YASKAWA TOEP YAICOM 18A 1000-Series Option Dual-Port Modbus TCP/IP SI-EM3D Installation Manual

9

M

A

I

H

G

E

B

D

F

C

J

K
L

Underside

4 Option Components

4 Option Components

u

SI-EM3D Dual-Port Modbus TCP/IP Option

A – Ground terminal and

installation hole

B –

Port 2 LED (10/100)
C – Port 2
D –

Port 2 LED (LINK/ACT)

<2>

E –

Port 1 LED (10/100)
F – Port 1
G –

Port 1 LED (LINK/ACT)

<2>

<1> The ground wire is packaged loose in the option shipping package. Connect this ground wire

during installation.

<2> Refer to Option LED Display on page 12 for details on the LEDs.

10

YASKAWA TOEP YAICOM 18A 1000-Series Option Dual-Port Modbus TCP/IP SI-EM3D Installation Manual

<1>

<2>

<2>

Figure 1 Option Components

H – Modbus TCP/IP cable

connector
I – Option connector
J – Installation hole
K –

LED (NS)
L –

LED (MS)
M – Modbus TCP/IP PCB

<2>

<2>

Latch release

1 2 3 4 5 6 7 8

4 Option Components

u

Communication Connector CN1

The communication connector on the option is a modular RJ45 female connector designated
CN1.

CN1 is the connection point for a customer-supplied male Modbus network communication
cable.

Table 2 Male, 8-Way Modular Connector (Customer-Supplied)

Male 8-Way Modular Connector Pin Description

1 (Pair 2) Transmit data (TXD) +

2 (Pair 2) Transmit data (TXD) -

3 (Pair 3) Receive data (RXD) +

4 (Pair 1)

5 (Pair 1)

6 (Pair 3) Receive data (RXD) -

7 (Pair 4)

8 (Pair 4)

<1> Not used for 10 Mbps and 100 Mbps networks.

Not used

Not used

Not used

Not used

<1>

<1>

<1>

<1>

YASKAWA TOEP YAICOM 18A 1000-Series Option Dual-Port Modbus TCP/IP SI-EM3D Installation Manual

11

4 Option Components

u

Option LED Display

The option has four LEDs.

Bi-color Status LEDs:

• Module status (MS) red/green

• Network status (NS) red/green

Ethernet LEDs:

• Network speed - 10/100 (MS) green

• Link status and network activity - LINK/ACT (NS) red/green
The operational states of the option LEDs after completion of the power-up diagnostic LED

sequence are described in Table 3. Wait at least 2 seconds for the power-up diagnostic process
to complete before verifying LED states.

Table 3 Option LED States

Name

MS

NS

Display

Color Status

– OFF Power supply OFF Power is not being supplied to the drive.

Green ON Normal operation

Green Flashing Standby/Initializing

Red Flashing Non-fatal error occurred

Red ON Fatal error occurred

– OFF

Green ON

Green Flashing

Red ON Major fault

Operating Status Remarks

The option is operating normally and
initialization is complete.

The option is in process of configuring or
waiting for configuration information.

The option has detected a recoverable
minor fault such as incomplete
configuration.

The option has detected an unrecoverable
major fault.

Power supply OFF or no
network connection
established.

Online communications
established

Control communications
established

The option is online and has established
connections.

The option is online with a control
connection.

The option detected a duplicate IP address
or the control connection timed out.

–

12

YASKAWA TOEP YAICOM 18A 1000-Series Option Dual-Port Modbus TCP/IP SI-EM3D Installation Manual

4 Option Components

Name

<1>

10/100

LINK/ACT

<1>

<1> Remove the cover to check the status of the LED. Be careful not to touch the main circuit terminals or the control

board in the drive.

Display

Color Status

Green OFF 10 Mbps is established

Green ON 100 Mbps is established

Green OFF LINK is not established

Green ON LINK is established

Green Flashing

Operating Status Remarks

LINK is established and
there is network activity.

–

YASKAWA TOEP YAICOM 18A 1000-Series Option Dual-Port Modbus TCP/IP SI-EM3D Installation Manual

13

5 Installation Procedure

5 Installation Procedure

u

Section Safety

DANGER

Electrical Shock Hazard

Do not connect or disconnect wiring while the power is on.

Failure to comply will result in death or serious injury.

Disconnect all power to the drive and wait at least the amount of time specified on the drive
front cover safety label. After all indicators are off, measure the DC bus voltage to confirm
safe level, and check for unsafe voltages before servicing. The internal capacitor remains
charged after the power supply is turned off.

WARNING

Electrical Shock Hazard

Do not remove the front covers of the drive while the power is on.

Failure to comply could result in death or serious injury.

The diagrams in this section may include options and drives without covers or safety shields
to show details. Be sure to reinstall covers or shields before operating any devices. The
option should be used according to the instructions described in this manual.

Do not allow unqualified personnel to use equipment.

Failure to comply could result in death or serious injury.

Maintenance, inspection, and replacement of parts must be performed only by authorized
personnel familiar with installation, adjustment, and maintenance of this product.

Do not touch circuit boards while the power is on.

Failure to comply could result in death or serious injury.

Do not use damaged wires, stress the wiring, or damage the wire insulation.

Failure to comply could result in death or serious injury.

Do not use damaged wires, place excessive stress on wiring, or damage the wire
insulation.

Failure to comply could result in death or serious injury.

14

YASKAWA TOEP YAICOM 18A 1000-Series Option Dual-Port Modbus TCP/IP SI-EM3D Installation Manual

5 Installation Procedure

WARNING

Fire Hazard

Tighten all terminal screws to the specified tightening torque.

Loose electrical connections could result in death or serious injury by fire due to overheating
of electrical connections.

NOTICE

Observe proper electrostatic discharge procedures (ESD) when handling the drive and
circuit boards.

Failure to comply may result in ESD damage to the drive circuitry.

Never shut the power off while the drive is outputting voltage.

Failure to comply may cause the application to operate incorrectly or damage the drive.

Do not operate damaged equipment.

Failure to comply may cause further damage to the equipment.

Do not connect or operate any equipment with visible damage or missing parts.

Do not use unshielded cable for control wiring.

Failure to comply may cause electrical interference resulting in poor system performance.

Use shielded twisted-pair wires and ground the shield to the ground terminal of the drive.

Properly connect all pins and connectors.

Failure to comply may prevent proper operation and possibly damage equipment.

Check wiring to ensure that all connections are correct after installing the option and
connecting any other devices.

Failure to comply could result in damage to the option.

YASKAWA TOEP YAICOM 18A 1000-Series Option Dual-Port Modbus TCP/IP SI-EM3D Installation Manual

15

I

J

K

M

A

L

D

F

G

C

E

B

H

NS MS

NS MS

5 Installation Procedure

u

Prior to Installing the Option

Prior to installing the option, wire the drive, make necessary connections to the drive terminals,
and verify that the drive functions normally without the option installed. Refer to the drive
Quick Start Guide for information on wiring and connecting the drive.

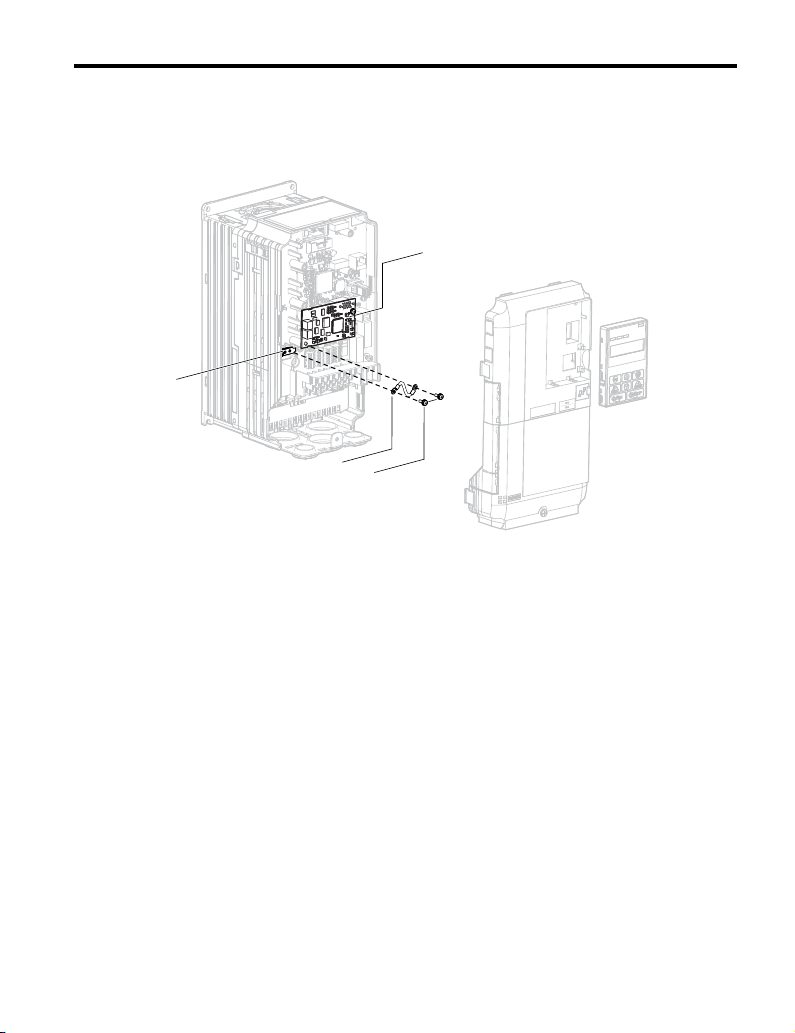

Figure 2 shows an exploded view of the drive with the option and related components for

reference.

A – Drive front cover
B – Digital operator
C – LED label
D – Drive terminal cover
E – Removable tabs for wire

routing
F – Included screws
G – Ground wire

16

YASKAWA TOEP YAICOM 18A 1000-Series Option Dual-Port Modbus TCP/IP SI-EM3D Installation Manual

Figure 2 Drive Components with Option

H – Drive grounding terminal

(FE)
I – Connector CN5-C
J – Connector CN5-B
K – Connector CN5-A
L – Insertion point for CN5

connector
M – Option

A

B

D

5 Installation Procedure

u

Installing the Option

Remove the front covers of the drive before installing the option. Refer to the drive Quick
Start Guide for directions on removing the front covers. Cover removal varies depending on
drive size. This option can only be inserted into the CN5-A connector located on the drive
control board.

DANGER! DANGER! Electrical Shock Hazard. Do not connect or disconnect wiring while the power is on.
Failure to comply could result in death or serious injury. Before installing the option, disconnect all power to
the drive and wait at least the amount of time specified on the drive front cover safety label. After all indicators
are off, measure the DC bus voltage to confirm safe level, and check for unsafe voltages before servicing.
The internal capacitor remains charged after the power supply is turned off.

Shut off power to the drive, wait the appropriate amount of time for voltage to

1.

dissipate, then remove the digital operator (B) and front covers (A, D). Front cover
removal varies by model.

NOTICE: Damage to Equipment. Observe proper electrostatic discharge procedures (ESD) when
handling the option, drive, and circuit boards. Failure to comply may result in ESD damage to
circuitry.

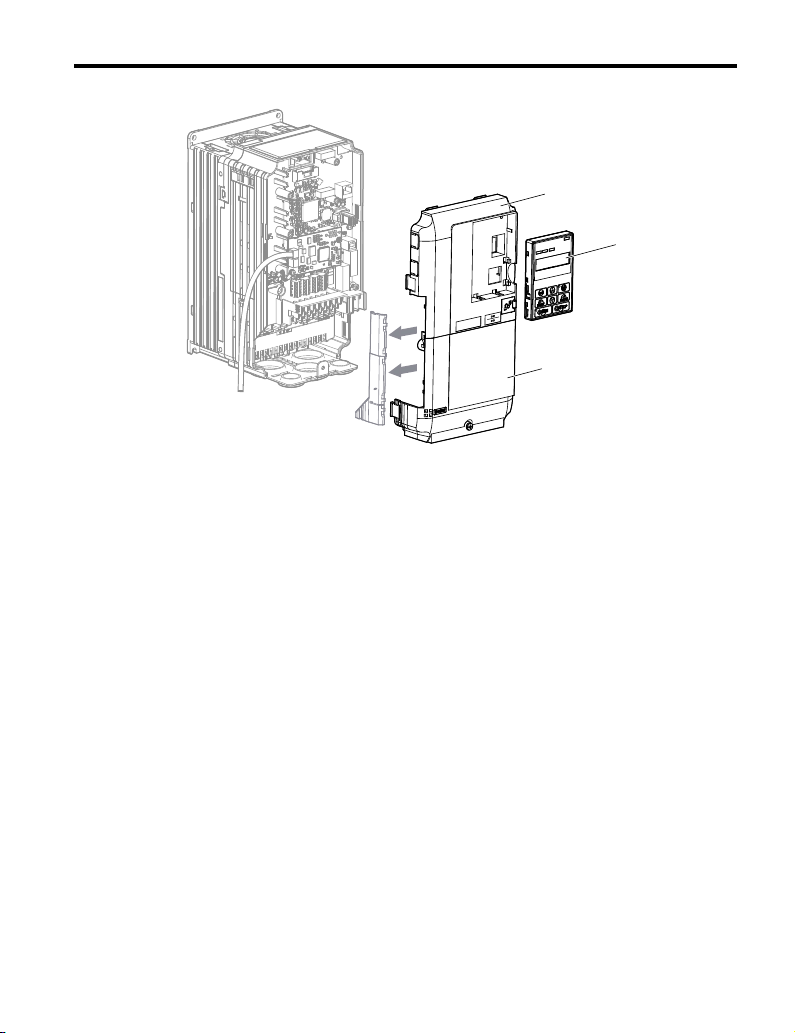

Figure 3 Remove the Front Covers and Digital Operator

With the front covers and digital operator removed, apply the LED label (C) in the

2.

appropriate position on the drive top front cover (A).

YASKAWA TOEP YAICOM 18A 1000-Series Option Dual-Port Modbus TCP/IP SI-EM3D Installation Manual

17

A

C

NS MS

NS MS

K

L

F

M

TX RX

5 Installation Procedure

Make sure the screws on the left and right sides of the option terminal block (J) are

3.

tightened with a tightening torque of 0.5 to 0.6 Nm (4.4 to 5.3 in lbs), then insert the
option (B) into the CN5-A connector (L) located on the drive and fasten it using one
of the included screws (H).

Figure 4 Apply the LED Label

18

YASKAWA TOEP YAICOM 18A 1000-Series Option Dual-Port Modbus TCP/IP SI-EM3D Installation Manual

Figure 5 Insert the Option

NS MS

F

G

M

H

TX RX

5 Installation Procedure

Connect the ground wire (I) to the ground terminal (K) using one of the remaining

4.

provided screws (H). Connect the other end of the ground wire (I) to the remaining
ground terminal and installation hole on the option (B) using the last remaining
provided screw (H) and tighten both screws to 0.5 to 0.6 N•m (4.4 to 5.3 in lbs).

Figure 6 Connect the Ground Wire

Note: There are two screw holes on the drive for use as ground terminals. When connecting three

options, two ground wires will need to share the same drive ground terminal.

Route the option wiring.

5.

Depending on the drive model, some drives may require routing the wiring through
the side of the front cover to the outside to provide adequate space for the wiring.
Refer to the Peripheral Devices & Options section of the drive Quick Start Guide or
Technical Manual for more information on wire routing of specific models.

Route the wiring through the side of the front cover to the outside. In these cases,
using diagonal cutting pliers, cut out the perforated openings on the left side of the
drive front cover as shown in Figure 7-A. Use a file or sandpaper to make the sharp
edges along the cutout smoother to prevent any damage to the wires. Route the wiring
inside the enclosure as shown in Figure 7-B for drives that do not require routing
through the front cover.

Note: Separate communication cables from main circuit wiring and other electrical lines.

YASKAWA TOEP YAICOM 18A 1000-Series Option Dual-Port Modbus TCP/IP SI-EM3D Installation Manual

19

A

B

5 Installation Procedure

A – Route wires through the

openings provided on the
left side of the front

<1>

cover.

Figure 7 Wire Routing Examples

<1> The drive will not meet NEMA Type 1 requirements if wiring is exposed outside the enclosure.

Connect the communication cable to the option modular connector (CN1) port 1.

6.

B – Use the open space

provided inside the drive

to route option wiring.

To connect the option to a network, firmly connect RJ45 8-pin shielded twisted pair
Cat5e cable(s) into the modular connector ports (see Figure 7).

Communication Cable Specifications

Only use cable recommended for Modbus TCP/IP. Using a cable not specifically
recommended may cause the option or drive to malfunction.

The dual RJ45 network ports on the option board act as a switch to allow for flexibility
in cabling topology. For example, a traditional star network topology may be employed
by using a single port on the option board. Alternatively, a daisy-chained approach
may be employed by using both RJ45 ports. The daisy-chained approach reduces
the requirements of central switch ports. A ring topology is also possible. When
implementing a ring topology, Rapid Spanning Tree Protocol (RSTP) must be enabled
to function correctly.

20

YASKAWA TOEP YAICOM 18A 1000-Series Option Dual-Port Modbus TCP/IP SI-EM3D Installation Manual

Yaskawa

Drive

Yaskawa

Drive

Yaskawa

Drive

Yaskawa

Drive

Yaskawa

Drive

Yaskawa

Drive

Yaskawa

Drive

Yaskawa

Drive

Yaskawa

Drive

Star Topology

Daisy-Chained Topology

Ring Topology

Figure 8 Topology Options

5 Installation Procedure

YASKAWA TOEP YAICOM 18A 1000-Series Option Dual-Port Modbus TCP/IP SI-EM3D Installation Manual

21

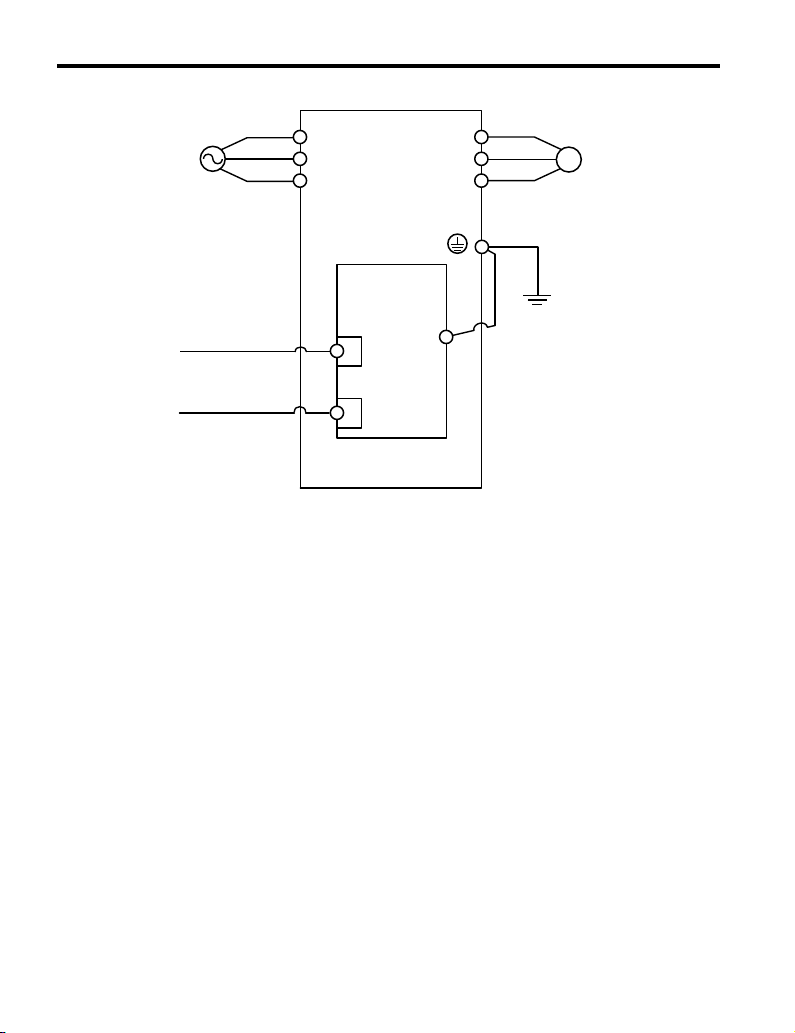

Drive

M

U/T1
V/T2
W/T3

R/L1
S/L2
T/L3

SI-EM3D

Modbus TCP/IP

Option

FE

<1>

MotorPower

Modbus
TCP/IP Cable

Modbus
TCP/IP Cable

5 Installation Procedure

Use the second communication cable port to daisy chain a series of drives where

7.

applicable.

Replace and secure the front covers of the drive (A, D) and replace the digital operator

8.

(B).

Figure 9 Option Connection Diagram

22

YASKAWA TOEP YAICOM 18A 1000-Series Option Dual-Port Modbus TCP/IP SI-EM3D Installation Manual

D

A

B

NS MS

TX RX

5 Installation Procedure

Figure 10 Replace the Front Covers and Digital Operator

Note: Take proper precautions when wiring the option so that the front covers will easily fit back onto

the drive. Make sure no cables are pinched between the front covers and the drive when
replacing the covers.

Set drive parameters in Table 4 for proper option performance.

9.

YASKAWA TOEP YAICOM 18A 1000-Series Option Dual-Port Modbus TCP/IP SI-EM3D Installation Manual

23

6 Related Drive Parameters

6 Related Drive Parameters

The following parameters are used to set up the drive for operation with the option. Parameter
setting instructions can be found in the drive manual.

Confirm proper setting of the parameters in Table 4 before starting network communications.
After changing parameter settings, cycle power to the drive for the new settings to take effect.

Table 4 Related Parameters

No.

(Addr.

Hex)

b1-01

(0180)

<1>

b1-02

(0181)

<1>

F6-01

(03A2)

F6-02

(03A3)

F6-03

(03A4)

F6-06

(03A7)

<4>

F6-07

(03A8)

Name Description Values

0: Digital operator

Frequency Reference
Selection 1

Run Command
Selection 1

Communications Error
Operation Selection

External Fault from
Comm. Option
Detection Selection

External Fault from
Comm. Option
Operation Selection

Torque Reference/
Torque Limit Selection
from Comm. Option

Multi-Step Speed
Enable/Disable
Selection when NefRef/
ComRef is Selected

1: Analog input terminals
2: MEMOBUS/Modbus communications
3: Option PCB
4: Pulse input (terminal RP)

0: Digital operator
1: Digital input terminals
2: MEMOBUS/Modbus communications
3: Option PCB

0: Ramp to stop. Decelerate to stop using the deceleration
time in C1-02.
1: Coast to stop
2: Fast Stop. Decelerate to stop using the deceleration time
in C1-09.

3: Alarm only
4: Alarm (d1-04)
5: Alarm Ramp to Stop

1: Detection during run only

0: Ramp to stop. Decelerate to stop using the deceleration
time in C1-02.
1: Coast to stop
2: Fast Stop. Decelerate to stop using the deceleration time
in C1-09.

3: Alarm only

0: Disabled. Torque reference/limit from option board
disabled.
1: Enabled. Torque reference/limit from option board

enabled.

0: Multi-step reference disabled (same as F7)
1: Multi-step reference enabled (same as V7)

<2>

<3>

<3>

<2>

<5>

Default: 1
Range: 0 to 4

Default: 1
Range: 0 to 3

Default: 1
Range: 0 to 3

Default: 0
Range: 0, 1

Default: 1
Range: 0 to 3

Default: 0
Range: 0, 1

Default: 0
Range: 0, 1

24

YASKAWA TOEP YAICOM 18A 1000-Series Option Dual-Port Modbus TCP/IP SI-EM3D Installation Manual

No.

(Addr.

Hex)

F6-08

(036A)

<6>

F6-14

(03BB)

F7-01

(03E5)

<7>

F7-02

(03E6)

<7>

F7-03

(03E7)

<7>

F7-04

(03E8)

<7>

F7-05

(03E9)

F7-06

(03EA)

F7-07

(03EB)

F7-08

(03EC)

F7-09

(03ED)

F7-10

(03EE)

F7-11

(03EF)

F7-12

(03E0)

F7-13

(03F1)

Name Description Values

0: Communication-related parameters (F6-oo/F7-oo)

Reset Communication
Parameters

bUS Error Auto Reset

IP Address 1 Sets the most significant octet of network static IP address.

IP Address 2

IP Address 3

IP Address 4

Subnet Mask 1

Subnet Mask 2

Subnet Mask 3

Subnet Mask 4

Gateway Address 1 Sets the most significant octet of network Gateway address.

Gateway Address 2

Gateway Address 3

Gateway Address 4

Address Mode at
Startup

are not reset when the drive is initialized using A1-03.
1: Reset all communication-related parameters
(F6-oo/F7-oo) when the drive is initialized using
A1-03.

0: Disabled
1: Enabled

Sets the second most significant octet of network static IP
address.

Sets the third most significant octet of network static IP
address.

Sets the fourth most significant octet of network static IP
address.

Sets the most significant octet of network static Subnet
Mask.

Sets the second most significant octet of network static
Subnet Mask.

Sets the third most significant octet of network static Subnet
Mask.

Sets the fourth most significant octet of network static
Subnet Mask.

Sets the second most significant octet of network Gateway
address.

Sets the third most significant octet of network Gateway
address.

Sets the fourth most significant octet of network Gateway
address.

Select the option address setting method

<8>

0: Static
1: BOOTP
2: DHCP

6 Related Drive Parameters

Default: 0
Range: 0, 1

Default: 0
Range: 0, 1

Default: 192
Range: 0 to 255

Default: 168
Range: 0 to 255

Default: 1
Range: 0 to 255

Default: 20
Range: 0 to 255

Default: 255
Range: 0 to 255

Default: 255
Range: 0 to 255

Default: 255
Range: 0 to 255

Default: 0
Range: 0 to 255

Default: 192
Range: 0 to 255

Default: 168
Range: 0 to 255

Default: 1
Range: 0 to 255

Default: 1
Range: 0 to 255

Default: 2
Range: 0 to 2

YASKAWA TOEP YAICOM 18A 1000-Series Option Dual-Port Modbus TCP/IP SI-EM3D Installation Manual

25

6 Related Drive Parameters

No.

(Addr.

Hex)

F7-14

(03F2)

F7-15

(03F3)

F7-16

(03F4)

F7-23 to

F7-32

(03FB to

0374)

F7-33 to

F7-42

(0375 to

037E)

H5-11

(043C)

<1> To start and stop the drive with the master device using serial communications, set b1-02 to 3. To control the

drive frequency reference of the drive via the master device, set b1-01 to 3.

<2> When set to 3, 4, or 5, the drive will continue to operate when a fault is detected. Take safety measures, such as

installing an emergency stop switch.

<3> Available in drive software versions PRG: 1021 and later.

<4> Enabled in CLV, AOLV/PM, and CLV/PM control modes (A1-02 = 3, 6, or 7). When enabled, d5-01 determines

whether the value is read as the Torque Limit value (d5-01 = 0) or read as the Torque Reference value (d5-01
= 1). In CLV/PM, this value is read as the Torque Limit.

Name Description Values

Duplex Mode Selection

Communication Speed
Selection

Communication Loss
Timeout

Dynamic Output
Assembly Parameters

Dynamic Input
Assembly Parameters

Communications
ENTER Function
Selection

Selects duplex mode setting.
0: Half duplex forced

1: Auto-negotiate duplex mode and communication speed
2: Full duplex forced

3: Half (port 1)/Auto (port 2)
4: Half (Port 1)/Full (port 2)
5: Auto (port 1)/Half (port 2)
6: Auto (port 1)/Full (port 2)
7: Full (port 1)/Half (port 2)
8: Full (port 1)/Auto (port 2)

Sets the communication speed
10: 10 Mbps
100: 100 Mbps
101: 10 (Port 1)/100 Mbps (port 2)
102: 100 (Port 1)/10 Mbps (port 2)

Sets the timeout value for communication loss detection in
tenths of a second. A value of 0 disables the connection
timeout.
Example: An entered value of 100 represents 10.0 seconds.

Parameters used in Output Assembly 116. Each parameter
contains a MEMOBUS/Modbus address. The value
received for Output Assembly 116 will be written to this
corresponding MEMOBUS/Modbus address. A
MEMOBUS/Modbus address value of 0 means that the
value received for Output Assembly 116 will not be written
to any MEMOBUS/Modbus register.

Parameters used in Input Assembly 166. Each parameter
contains a MEMOBUS/Modbus address. The value sent for
Input Assembly 166 will be read from this corresponding
MEMOBUS/Modbus address. A MEMOBUS/Modbus
address value of 0 means that the value sent for Input
Assembly 166 is not defined by the user, therefore the
option default register value will be returned.

Select the function for the ENTER command that saves
parameter data to the drive.
0: Drive requires an Enter command before accepting any
changes to parameter settings.
1: Parameter changes are activated immediately without the
Enter command.

<9>

<9>

Default: 1
Range: 0 to 8

Default: 10
Range: 10; 100 to

102

Default: 0.0
Min.: 0.0
Max.: 30.0

Default: 0

Default: 0

Default: 0
Range: 0, 1

<10>

<11>

26

YASKAWA TOEP YAICOM 18A 1000-Series Option Dual-Port Modbus TCP/IP SI-EM3D Installation Manual

6 Related Drive Parameters

<5> The setting specifies that the Torque Reference or Torque Limit is to be provided via network communications

(F6-06 = 1). The motor may rotate if no torque reference or Torque Limit is supplied from the PLC.

<6> Parameter setting value is not reset to the default value when the drive is initialized.

<7> Cycle power for setting changes to take effect.

<8> When F7-13 is set to 0, parameters F7-01 to F7-12 must be set, and all IP Addresses (as defined with parameters

F7-01 to F7-04) must be unique.

<9> When F7-14 is set to 0 or 2, parameter F7-15 must be set.

<10> Setting range differs depending on drive software version. PRG: 1020 and earlier, Range: 0 to 2

PRG: 1021 and later, Range: 0 to 8

<11> Setting range differs depending on drive software version. PRG: 1020 and earlier, Range: 10, 100

PRG: 1021 and later, Range: 10; 100 to 102

Table 5 Option Monitors

No. Name Description Value Range

U6-80

to

Online IP Address

U6-83

U6-84

to

Online Subnet Subnet currently available; U6-84 is the most significant octet 0 to 255

U6-87

U6-88

to

Online Gateway

U6-91

U6-92 Online Speed Link Speed

U6-93 Online Duplex Duplex Setting 0: Half, 1: Full

U6-94 Port 2 Speed Port 2 Link Speed 0: Half, 1: Full

U6-95 Port 2 Duplex Port 2 Duplex Setting

U6-96 RSTP RSTP Role and State 0000 to 9292

U6-98 First Fault First Option Fault –

U6-99 Current Fault Current Option Fault –

IP Address currently available; U6-80 is the most significant
octet

Gateway currently available; U6-88 is the most significant
octet

0 to 255

0 to 255

10: 10 Mbps
100: 100 Mbps

10: 10 Mbps
100: 100 Mbps

YASKAWA TOEP YAICOM 18A 1000-Series Option Dual-Port Modbus TCP/IP SI-EM3D Installation Manual

27

7 Modbus TCP/IP Messaging

7 Modbus TCP/IP Messaging

u

Modbus TCP/IP Overview

The Modbus TCP/IP protocol is essentially the Modbus protocol over an Modbus TCP/IP
network. A master controller (typically a PLC) sends commands to slave devices, which then
perform the specified functions and send a response to the master. The drive using the option
has slave functionality.

Supported Modbus TCP/IP Commands

n

Table 6 Supported Modbus TCP/IP Commands

Function Code Function Name

03H Read Multiple Registers

06H Write Single Register

10H Write Multiple Registers

17H Read/Write Multiple Registers

Drive Modbus TCP/IP Option Registers

n

All of the command registers, monitor registers, and parameters documented in the drive
Technical Manual are accessible via the option.

High Speed Access Drive Modbus TCP/IP Option Registers

n

Many of the registers required for control have been specially mapped to provide higher speed
access to increase network performance. Use these registers for the best response times.

All of the drive command registers have been mapped to this high speed access area (Modbus
TCP/IP registers 01H to 01FH). In addition, the monitors shown in Table 7 are mapped for
high speed access.

28

YASKAWA TOEP YAICOM 18A 1000-Series Option Dual-Port Modbus TCP/IP SI-EM3D Installation Manual

7 Modbus TCP/IP Messaging

Table 7 Drive Registers

Drive

Addre

Regist

ss

(hex)

2000 4B

2001 44 Motor Speed Monitor (U1-05)

2002 48 Torque Reference Monitor (U1-09)

2003 F0 PG Count Channel 1

2004 40 Frequency Reference Monitor (U1-01)

2005 41 Output Frequency Monitor (U1-02)

2006 26

2007 4F Terminal A2 Input Level Monitor (U1-14)

2008 46 DC Bus Voltage Monitor (U1-07)

er

(hex)

Description Bit Description

0 During Run

1 During Zero Speed

2 During Reverse Direction

3 During Fault Reset Signal Input

4 During Speed Agree

5 Drive Ready

6 Alarm

Status Word

(U1-12)

7 Fault

8 During Operation Error (oPEoo)

9 During Momentary Power Loss

A Motor 2 Selected

B Reserved

C Reserved

D Reserved

E ComRef Status, NetRef Status

F ComCtrl Status, NetCtrl Status

Output Current (U1-03)

0.1 A

YASKAWA TOEP YAICOM 18A 1000-Series Option Dual-Port Modbus TCP/IP SI-EM3D Installation Manual

29

7 Modbus TCP/IP Messaging

Drive

Addre

Regist

ss

(hex)

2009 C0 Error Signal 1

er

(hex)

Description Bit Description

0 Reserved

1 Undervoltage (Uv1)

2 Control Power Supply Undervoltage (Uv2)

3 Soft Charge Circuit Fault (Uv3)

4 Reserved

5 Ground Fault (GF)

6 Overcurrent (oC)

7 Overvoltage (ov)

8 Heatsink Overheat (oH)

9 Heatsink Overheat (oH1)

A Motor Overload (oL1)

B Drive Overload (oL2)

C Overtorque Detection 1 (oL3)

D Overtorque Detection 2 (oL4)

E Dynamic Braking Transistor Fault (rr)

F Braking Resister Overheat (rH)

30

YASKAWA TOEP YAICOM 18A 1000-Series Option Dual-Port Modbus TCP/IP SI-EM3D Installation Manual

Drive

Addre

Regist

ss

(hex)

200A C1 Error Signal 2

er

(hex)

Description Bit Description

7 Modbus TCP/IP Messaging

0 External Fault at input terminal S3 (EF3)

1 External Fault at input terminal S4 (EF4)

2 External Fault at input terminal S5 (EF5)

3 External Fault at input terminal S6 (EF6)

4 External Fault at input terminal S7 (EF7)

5 External Fault at input terminal S8 (EF8)

6 Cooling fan Error (FAn)

5 Reserved

6 Reserved

7 Overspeed (os)

8 Excessive Speed Deviation (dEv)

9 PG Disconnected (PGo)

A Input Phase Loss (PF)

B Output Phase Loss (LF)

C Motor Overheat (PTC input) (oH3)

D Digital Operator Connection Fault (oPr)

E EEPROM Write Error (Err)

F Motor Overheat Fault (PTC input) (oH4)

YASKAWA TOEP YAICOM 18A 1000-Series Option Dual-Port Modbus TCP/IP SI-EM3D Installation Manual

31

7 Modbus TCP/IP Messaging

Drive

Addre

Regist

ss

(hex)

200B C2 Error Signal 3

200C 4E Terminal A1 Input Level Monitor (U1-13)

200D 49 Digital Input Terminal Status (U1-10)

200E 50 Terminal A3 Input Level Monitor (U1-15)

200F F1 PG Count Channel 2

2010 4D Drive Software Number (Flash) (U1-25)

er

(hex)

Description Bit Description

0 MEMOBUS/Modbus Communication Error (CE)

1 Option Communication Error (bUS)

2 Reserved

3 Reserved

4 Control Fault (CF)

5 Zero Servo Fault (SvE)

5 Reserved

6 Option External Fault (EF0)

7 PID Feedback Loss (FbL)

8 Undertorque Detection 1 (UL3)

9 UL4 Undertorque Detection 2 (UL4)

A High Slip Braking Overload (oL7)

B Reserved

C Reserved

D Reserved

E Reserved

F Hardware Fault (includes oFo)

u

Enter Command Types

The drive supports two types of Enter commands as shown in Table 8. An Enter command is
enabled by writing 0 to register number 0900H or 0910H. These registers can be written to
only. An error will occur if the user attempts to read from these registers.

32

YASKAWA TOEP YAICOM 18A 1000-Series Option Dual-Port Modbus TCP/IP SI-EM3D Installation Manual

7 Modbus TCP/IP Messaging

Table 8 Enter Command Types

Register No. Description

0900H

0910H Writes data in the RAM only. Parameter changes are lost when the drive is shut off.

Note: 1. Because the EEPROM can be written to a maximum of 100,000 times, refrain from writing to the

u

Enter Command Settings when Upgrading the Drive

Writes data into the EEPROM (non-volatile memory) of the drive and enables the data in RAM at
the same time. Parameter changes remain even if the power supply is cycled.

EEPROM too often. The Enter command registers are write-only. Consequently, if these registers
are read, then the register address will be invalid (Error code: 02H). An Enter command is not required
if reference or broadcast data are sent to the drive.

2. Parameter data cannot be written to EEPROM during undervoltage, even using 0900H.

3. If undervoltage occurs when a making several parameter changes issued with a single ENTER

command, the writing process may be aborted before all of the new changes have been written.
Because all of the data has not yet been written, the EEPROM data error “CPF06” will be displayed
the next time power to the drive is cycled. To prevent this problem, wait approximately 5 seconds
after issuing the ENTER command before shutting off drive power.

When replacing earlier Yaskawa drive models with a V1000 and keeping the MEMOBUS/
Modbus communications settings, parameter H5-11 needs to be set in accordance with how
the Enter command functions in the older drive. H5-11 determines if an Enter command is
needed to activate parameter changes in the drive.

• Set parameter H5-11 to 0 when upgrading from a G7 or F7 series drive to V1000-Series
drive.

• Set parameter H5-11 to 1 when upgrading from a V7 series drive to V1000-Series drive.

H5-11 and the Enter Command

n

H5-11 Settings H5-11 = 0 H5-11 = 1

Drive being replaced G7, F7 V7

How parameter settings
are enabled

Upper/lower limit check

Default value of related
parameters

Error handling when
setting multiple
parameters

When the Enter command is received from
the master.

Upper/lower limit check is performed taking
the settings of related parameters into
account.

Not affected. The settings of related
parameters remain unchanged. They must
be changed manually if needed.

Data is accepted even if one setting is
invalid. The invalid setting will be
discarded. No error message occurs.

As soon as the value is changed.

The upper/lower limit of the changed
parameter is checked only.

The default settings of related parameters
are changed automatically.

Error occurs if only one setting is invalid.
All data sent are discarded.

YASKAWA TOEP YAICOM 18A 1000-Series Option Dual-Port Modbus TCP/IP SI-EM3D Installation Manual

33

8 Web Interface

8 Web Interface

The option contains a series of web pages that allow for viewing of status and diagnostic
information through a standard web browser.

The web page is accessed through a self-contained web server at port 80. Access the home
page by typing the IP address of the option in a web browser. Example: "http://192.168.1.20"

The IP address of the option can be read using monitors U6-80 to U6-83 on the digital operator
if it is unknown. Refer to Option Monitors on page 27 for details.

The home page is an HTML-based page providing basic drive and option data and a link to
an enhanced web page requiring a Java© enabled web browser.

Enhanced Web Page Notes:

• The Enhanced Web Pages use a series of Java© applets.

• PCs must have Java SE 6 Update 14 or later installed to view the enhanced web pages.

• The Java© applets require an internet connection to check the revocation status.

• When no internet connection is available, disable the revocation check by changing a Java
setting in the PC: All Programs / Java / Configure Java / Advanced Tab. Set "Perform
certificate checks on" to "Do not check".

Enhanced Web Page Tab Page

Main Tab 37

Drive Status Tab 38

Network Tab Refer to the option Technical Manual for details on this tab.

Email Alerts Tab Refer to the option Technical Manual for details on this tab.

Parameter Access Tab

Configuration Tab

Custom Tab 39

<1> Accessible after entering a valid password.

<1>

<1>

Refer to the option Technical Manual for details on this tab.

Refer to the option Technical Manual for details on this tab.

34

YASKAWA TOEP YAICOM 18A 1000-Series Option Dual-Port Modbus TCP/IP SI-EM3D Installation Manual

8 Web Interface

u

HTML Home Page

The main HTML home page provides basic drive and option data and a link to an enhanced
web page. The RSTP enabled home page provides Rapid Spanning Tree Protocol data.

Missing ID# section_Rapid_Spanning_Tree_Protocol1098742473 for details on RSTP.

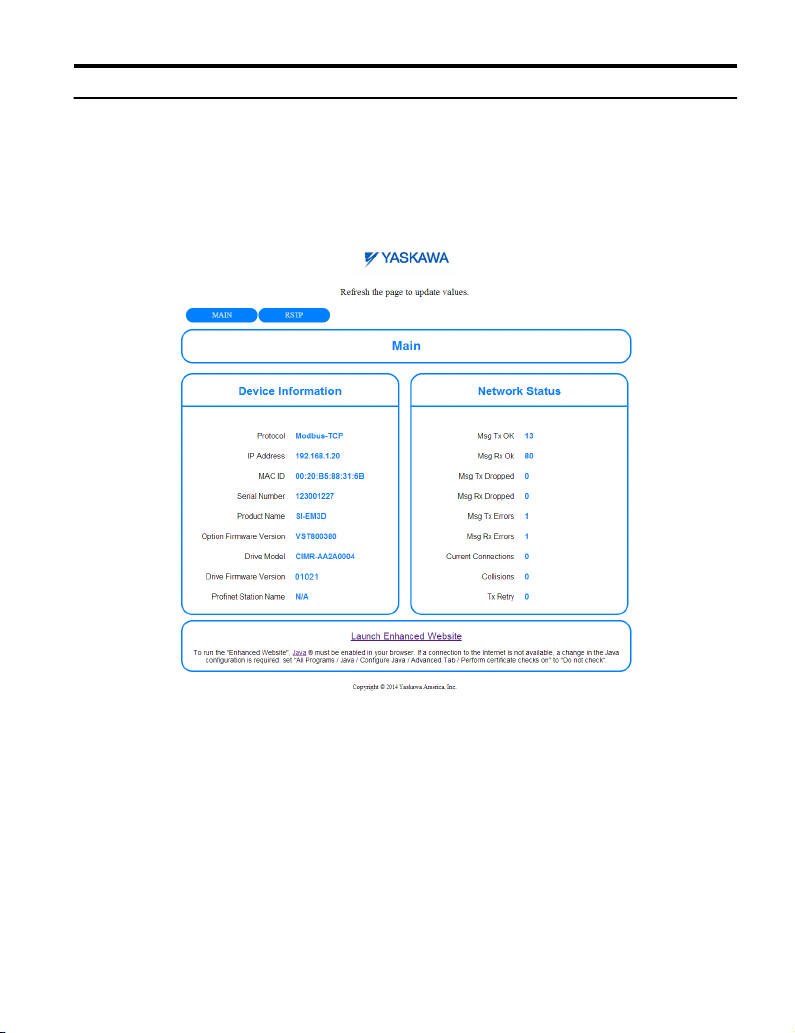

Main HTML Home Page

n

Figure 11 Main HTML Home Page

YASKAWA TOEP YAICOM 18A 1000-Series Option Dual-Port Modbus TCP/IP SI-EM3D Installation Manual

35

8 Web Interface

RSTP Enabled HTML Home Page

n

Figure 12 RSTP Enabled HTML Home Page

36

YASKAWA TOEP YAICOM 18A 1000-Series Option Dual-Port Modbus TCP/IP SI-EM3D Installation Manual

8 Web Interface

u

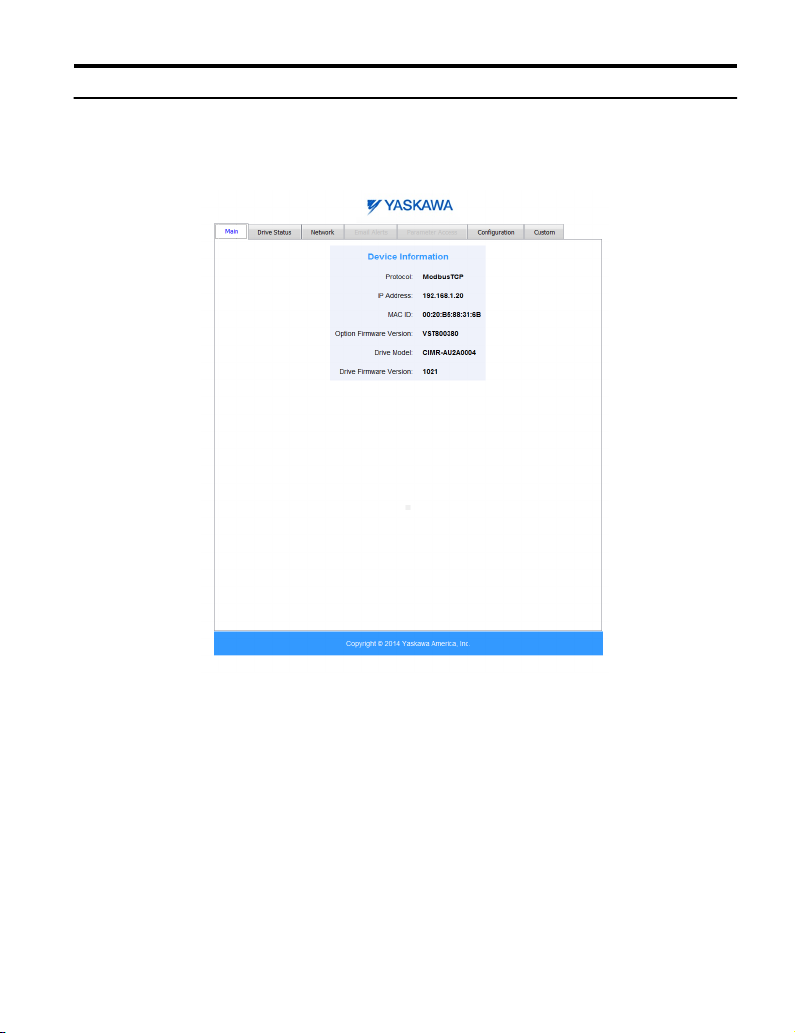

Main Tab

The Main tab shows basic option information such as IP address, MAC address, and firmware
version.

Figure 13 Main Tab View

YASKAWA TOEP YAICOM 18A 1000-Series Option Dual-Port Modbus TCP/IP SI-EM3D Installation Manual

37

8 Web Interface

u

Drive Status Tab

The Drive Status tab shows basic I/O information and drive state information.

Figure 14 Drive Status Tab View

38

YASKAWA TOEP YAICOM 18A 1000-Series Option Dual-Port Modbus TCP/IP SI-EM3D Installation Manual

u

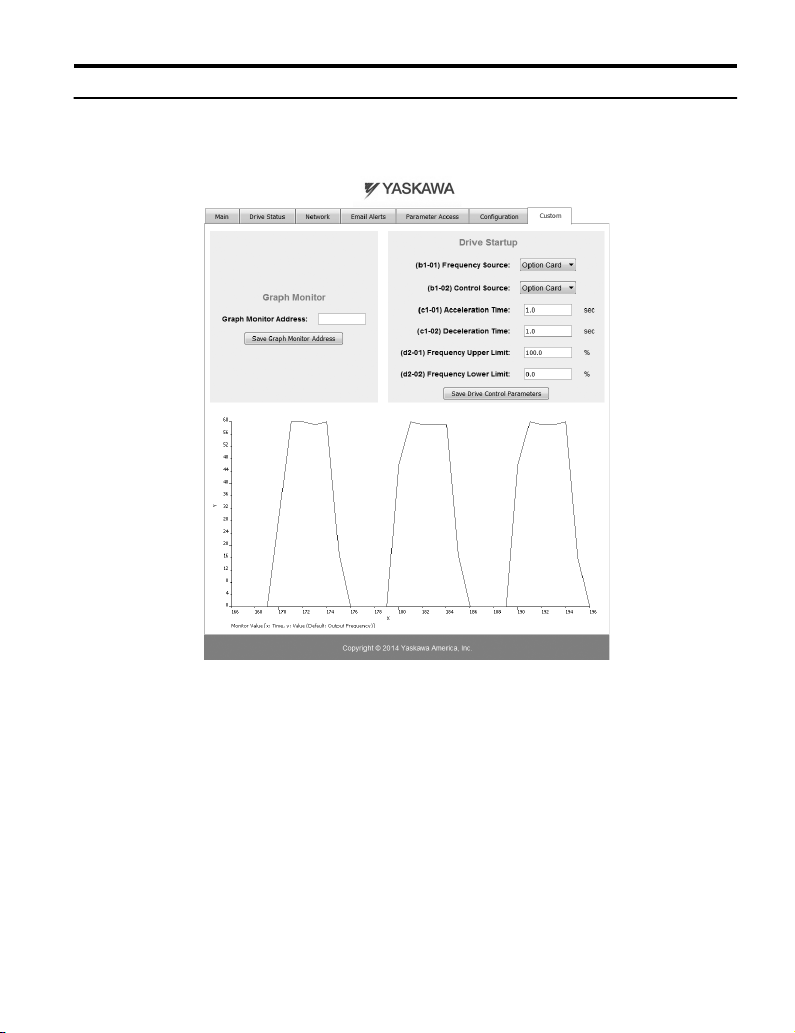

Custom Tab

The Custom tab displays a selection of quick setting parameters.

8 Web Interface

Figure 15 Custom Tab View

YASKAWA TOEP YAICOM 18A 1000-Series Option Dual-Port Modbus TCP/IP SI-EM3D Installation Manual

39

9 Rapid Spanning Tree Protocol

9 Rapid Spanning Tree Protocol

Rapid Spanning Tree Protocol (RSTP) is a mechanism that allows an Ethernet network to be
configured as a ring or other topology that may have more than one pathway to each node.
The RSTP protocol automatically determines the most efficient pathway to each node and
disables any redundant pathways.

Refer to the option Technical Manual for a full description of RSTP features and functions.

40

YASKAWA TOEP YAICOM 18A 1000-Series Option Dual-Port Modbus TCP/IP SI-EM3D Installation Manual

10 Troubleshooting

10 Troubleshooting

u

Drive-Side Error Codes

Drive-side error codes appear on the drive digital operator. Causes of the errors and corrective
actions are listed below. Refer to the drive manual for additional error codes that may appear
on the drive digital operator.

Faults

n

Both bUS (Option Communication Error) and EF0 (Option Card External Fault) can appear
as an alarm or as a fault. When a fault occurs, the digital operator ALM LED remains lit.
When an alarm occurs, the ALM LED flashes.

If communication stops while the drive is running, use the following questions as a guide to
help remedy the fault:

• Is the option properly installed?

• Are the communication lines properly connected to the option? Are the wires loose?

• Is the controller program working? Has the controller/PLC CPU stopped?

• Did a momentary power loss interrupt communications?

Digital Operator Display Fault Name

Option Communication Error

bUS

Cause Possible Solution

Master controller (PLC) has
stopped communicating

Communication cable is not
connected properly

A data error occurred due to noise

Option is damaged

• The connection was lost after establishing initial communication.

• Only detected when the Run command or frequency reference is assigned to
the option (b1-01 = 3 or b1-02 = 3).

• Check that power is supplied to the PLC

• Check that PLC is not in program mode

• Check for faulty wiring

• Correct any wiring problems

• Check the various options available to minimize the effects of noise

• Counteract noise in the control circuit, main circuit, and ground wiring

• If a magnetic contactor is identified as a source of noise, install a surge absorber
to the contactor coil

• Make sure the cable used meets requirements

• Make sure the option ground wire is connected between option FE terminal
and the drive ground terminal connected to earth ground

If there are no problems with the wiring and the error continues to occur, replace
the option.

YASKAWA TOEP YAICOM 18A 1000-Series Option Dual-Port Modbus TCP/IP SI-EM3D Installation Manual

41

10 Troubleshooting

Digital Operator Display Fault Name

EF0

Cause Possible Solutions

An external fault was received from
the PLC and F6-03 is set to a value
other than 3.

Problem with the PLC program Check the PLC program and correct problems.

Digital Operator Display Fault Name

oFA00

Cause Possible Solution

Digital Operator Display Fault Name

oFA01

Cause Possible Solution

The option card connection to port
CN5-A is faulty

Digital Operator Display Fault Name

to oFA03 to

,

oFA06

oFA10, oFA11

Option Card External Fault

The alarm function for an external device has been triggered.

• Remove the cause of the external fault.

• Remove the external fault input from the PLC.

Option Card Connection Error at Option Port CN5-A

Option compatibility error

Option Card Fault at Option Port CN5-A

Option not properly connected

• Turn off the power and reconnect the option card.

• Check if the option card is properly plugged into the option port. Make sure
the card is fixed properly.

• If the option is not a communication option card, try to use the card in a different
option port. If the option card works properly in a different option port, CN5­A is damaged, and the drive requires replacement. If the error persists (oFb01
or oFC01 occur), replace the option card.

Option Card Error Occurred at Option Port CN5-A

to oFA12 to

to

Cause Possible Solution

Option card or hardware is
damaged

42

YASKAWA TOEP YAICOM 18A 1000-Series Option Dual-Port Modbus TCP/IP SI-EM3D Installation Manual

oFA17

oFA30 to

oFA43

Option Card Connection Error (CN5-A)

Communication Option Card Connection Error (CN5-A)

• Cycle power to the drive.

• If the problem continues, replace the control board or the entire drive. Contact
Yaskawa or a Yaskawa representative for instructions on replacing the control
board.

Digital Operator Display Fault Name

oFb00

Cause Possible Solution

The option card installed into port
CN5-B is incompatible with the
drive

A communication option card has
been installed in option port
CN5-B

Digital Operator Display Fault Name

oFb02

Cause Possible Solution

An option card of the same type is
already installed in option port
CN5-A

An input option card is already
installed in option port CN5-A

Digital Operator Display Fault Name

oFC00

Cause Possible Solution

The option card installed into port
CN5-C is incompatible with the
drive

A communication option card has
been installed in option port
CN5-C

Option Card Fault at Option Port CN5-B

Option compatibility error

Confirm that the drive supports the option card to be installed.

Refer to Option Compatibility on page 46 for details. Contact Yaskawa for

assistance.

Communication option cards are only supported by option port CN5-A. It is not
possible to install more than one communication option.

Option Card Fault at Option Port CN5-B

Same type of option card is currently connected

Except for PG options, only one of each option card type can only be installed
simultaneously. Make sure only one type of option card is connected.

Refer to Option Compatibility on page 46 for details. Contact Yaskawa for

assistance.

Install a communication option, a digital input option, or an analog input option.
More than one of the same type of card cannot be installed simultaneously.

Option Card Connection Error at Option Port CN5-C

Option compatibility error

Confirm that the drive supports the option card to be installed.

Refer to Option Compatibility on page 46 for details. Contact Yaskawa for

assistance.

Communication option cards are only supported by option port CN5-A. It is not
possible to install more than one communication option.

10 Troubleshooting

Digital Operator Display Fault Name

oFC02

Cause Possible Solution

An option card of the same type is
already installed in option port
CN5-A or CN5-B.

An input option card is already
installed in option port CN5-A or
CN5-B.

YASKAWA TOEP YAICOM 18A 1000-Series Option Dual-Port Modbus TCP/IP SI-EM3D Installation Manual

Option Card Fault at Option Port CN5-C

Same type of option card is currently connected

Except for PG options, only one of each option card type can only be installed
simultaneously. Make sure only one type of option card is connected.

Install a communication option, a digital input option, or an analog input option.
More than one of the same type of card cannot be installed simultaneously.

43

10 Troubleshooting

Minor Faults and Alarms

n

Digital Operator Display Minor Fault Name

CALL

Cause Possible Solutions

Communications wiring is faulty,
there is a short circuit, the wiring
is incorrect, or the connections are
poor.

Programming error on the master
side.

Communications circuitry is
damaged.

Termination resistor setting is
incorrect.

bUS Fault Tolerance

n

Serial Communication Transmission Error

Communication has not yet been established.

• Check for wiring errors.

• Correct the wiring.

• Check for disconnected cables and short circuits. Repair as
needed.

Check communications at start-up and correct programming
errors.

• Perform a self-diagnostics check.

• If the problem continues, replace the control board or the
entire drive. Contact Yaskawa for instructions on replacing
the control board.

Install a termination resistor at both ends of a communication
line. Set the internal termination resistor switch correctly on
slave drives. Place DIP switch S1 to the ON position.

Minor Fault

(H2-oo = 10)

YES

bUS Fault Auto-Restart

Parameter F6-14, bUS Fault Auto Reset Select, will appear when the option is installed.

Setting F6-14 = 0 (Disabled) or F6-01 = 3 or greater (Alarm only) will not affect standard
default drive behavior.

Setting F6-14 = 1 (Enabled) AND F6-01 ≠ 3 (Fault) will cause the following operation: The
bUS fault occurs after the F7-16 delay and the Run command is removed from the drive. Then
the option throws a bUS fault to the drive. When the condition is removed, the option
commands a fault reset and returns control of the drive to the EtherNet/IP network.

Note: The option will only read parameter F6-01 and F6-14 from the drive during power-up.

bUS Fault Delay

Parameter F7-16, Communications Loss Detection Time Delay, will appear when the option
is installed.

The setting value of F7-16 is the length of time that the option will delay sending the bUS
fault to the drive.

The status LEDs on the option are not affected by the delay time set in F7-16; the LEDs will
indicate the bUS condition immediately.

Note: The option will only read parameter F7-16 from the drive during power-up.

44

YASKAWA TOEP YAICOM 18A 1000-Series Option Dual-Port Modbus TCP/IP SI-EM3D Installation Manual

10 Troubleshooting

u

Option Error Codes

Option Fault Monitors U6-98 and U6-99

n

The option can declare error/warning conditions via drive monitor parameters on the drive
digital operator as shown in Table 9.

Table 9 Option Fault Monitor Descriptions

Fault

Condition

No Fault n/a 0 No faults

Force Fault EF0 3

Connection

Timeout

Duplicate IP

Address

Default MAC

Address

Network Link

Down

Hardware Error BUS ERROR 1105

Fault Declared

BUS ERROR 1101 The control connection timed out.

BUS ERROR 1102

None 1103

BUS ERROR 1104 No network link to option.

Status Value

(U6-98/U6-99)

Description

Network sent a message to force this node
to the fault state.

This node and at least one other node have
the same IP Address.

Factory default MAC Address
programmed into the option. Return for
reprogramming.

Option card hardware has stopped
functioning. Cycle power to the drive.

Two drive monitor parameters, U6-98 and U6-99 assist the user in network troubleshooting.

• U6-98 displays the first declared fault since the last power cycle. U6-98 is only cleared
upon drive power-up.

• U6-99 displays the present option status. U6-99 is cleared upon a network-issued fault reset
and upon power-up.

If another fault occurs while the original fault is still active, parameter U6-98 retains the
original fault value and U6-99 stores the new fault status value.

YASKAWA TOEP YAICOM 18A 1000-Series Option Dual-Port Modbus TCP/IP SI-EM3D Installation Manual

45

10 Troubleshooting

u

Option Compatibility

A limited number of options may be simultaneously connected to the drive depending on the
type of option.

Table 10 below lists the number of options that can be connected to the drive and the drive

ports for connecting those options.

Table 10 Option Installation

Option Port/Connector

PG-B3, PG-X3 CN5-C

<2> <3>

PG-F3

AO-A3, DO-A3 CN5-A, B, C 1

<3>

SI-B3
SI-EM3D, SI-EP3
SI-P3, SI-S3, SI-T3, SI-W3

<4>

<1> When connecting two PG option cards, use both CN5-B and CN5-C. When connecting only one PG option card,

<2> Not available for the application with Motor 2 Selection.

<3> Not available with models 4A0930 and 4A1200.

<4> When using AI-A3 and DI-A3 as monitors, the card can be connected to any of CN5-A, CN5-B or CN5-C. The

, SI-C3, SI-EN3

use the CN5-C connector.

input status of AI-A3 can then be viewed using U1-21, U1-22, and U1-23, and the input status of DI-A3 can
then be viewed using U1-17.

, PG-RT3

<3>

, SI-ES3

<2> <3>

<3>

, SI-EN3D, SI-EM3

<3>

, SI-ET3

<3>

, AI-A3

<4>

<3>

, DI-A3

<3>

, SI-N3,

CN5-C 1

,

CN5-A 1

Number of Options

Possible

<1>

2

46

YASKAWA TOEP YAICOM 18A 1000-Series Option Dual-Port Modbus TCP/IP SI-EM3D Installation Manual

11 Specifications

11 Specifications

Table 11 Option Specifications

Item Specification

Model SI-EM3D

• Read Multiple Registers (03H)

• Write Single Register (06H)

Supported Messages

Option Conformance Modbus-IDA Passed

Connector Type RJ45 8-pin Shielded Twisted Pair Cat5e cable

Physical Layer Type Isolated Physical Layer

IP Address Setting Programmable from drive keypad or network

Communication Speed

Number of Connections

Duplex Mode Half-forced, Auto-negotiate, Full-forced

Address Startup Mode Static, BOOTP, DHCP

Ambient Temperature -10 °C to +50 °C (14 °F to 122 °F)

Humidity 95% RH or lower with no condensation

Storage Temperature -20 °C to +60 °C (-4 °F to +140 °F) allowed for short-term transport of the product

Area of Use Indoor (free of corrosive gas, airborne particles, etc.)

Altitude 1000 m (3280 ft.) or lower

• Write Multiple Registers (10H)

• Read and Write Registers (17H)

Commands that support multiple registers have a maximum Read and Write size
of 16 registers.

Programmable from drive keypad or network:
10/100 Mbps, auto-negotiate

Modbus TCP/IP: 10
Web Page Access: 2

YASKAWA TOEP YAICOM 18A 1000-Series Option Dual-Port Modbus TCP/IP SI-EM3D Installation Manual

47

11 Specifications

This Page Intentionally Blank

48

YASKAWA TOEP YAICOM 18A 1000-Series Option Dual-Port Modbus TCP/IP SI-EM3D Installation Manual

This Page Intentionally Blank

YASKAWA TOEP YAICOM 18A 1000-Series Option Dual-Port Modbus TCP/IP SI-EM3D Installation Manual

49

Revision History

MANUAL NO.

Example:

TOEP YAICOM 18A

Published in USA July 2014 14-7

Date of publication

Date of original publication

The revision dates and the numbers of the revised manuals appear on the bottom of the back cover.

Date of Publication

July 2014 - - First Edition

Revision

Number

Section Revised Content

50

YASKAWA TOEP YAICOM 18A 1000-Series Option Dual-Port Modbus TCP/IP SI-EM3D Installation Manual

YASKAWA AC Drive 1000-Series Option

Modbus TCP/IP

Installation Manual

YASKAWA AMERICA, INC.

2121 Norman Drive South, Waukegan, IL 60085, U.S.A.
Phone: (800) YASKAWA (927-5292) or 1-847-887-7000 Fax: [phone]
http://www.yaskawa.com

YASKAWA ELÉTRICO DO BRASIL LTDA.

Avenda Fagundes Filho, 620 Bairro Saude, São Paulo, SP04304-000, Brasil
Phone: [phone]
http://www.yaskawa.com.br

Fax: [phone]

TM

YASKAWA AMERICA, INC.

In th e event t hat the end use r of th is product is to b e the mil itary a nd said prod uct is to be employed i n any weapon s syste ms or t he manufa cture
thereof, t he export will fal l under th e relevant regul ations as stipul ated in the Foreig n Exchange and Foreig n Trade Regulations . Therefo re, be
sure to follow al l procedures a nd submit all relevan t documentat ion acc ording to a ny and all rules, regulations and law s that may apply.

Specifi cations are subje ct to chang e witho ut noti ce fo

© 2014 YASKAWA A MERICA, I NC. All rights reserved.

r ongoing product mod ificati ons and improvement s.

MANUAL NO. TOEP YAICOM 18A

Published in U.S.A. July 2014 14-7
