Yaskawa A1000 User Manual
YASKAWA AC Drive-A1000
High Performance Vector Control Drive
Manual Supplement
Supplement to: A1000 Quick Start Guide TOEPC71061641C <2>
Type: CIMR-AU
Models:
200 V Class: 0.4 to 110 kW (3/4 to 175 HP ND)
400 V Class: 0.4 to 630 kW (3/4 to 1000 HP ND)
600 V Class: 0.75 to 185 kW (1 to 250 HP ND)
A
YASKAWA AC Drive P1000
Industrial Fan and Pump Drive
Manual Supplement
Supplement to: P1000 Quick Start Guide TOEYAIP1U01A
Type: CIMR-PU A
Models:
To properly use the product, read this supplement thoroughly and
retain for easy reference, inspection, and maintenance. Ensure the
end user receives this supplement.
200 V Class: 3/4 to 175 HP ND
400 V Class: 3/4 to 500 HP ND
600 V Class: 2 to 250 HP ND
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
A
A
B
B
C
C
SUPPLEMENT NO. TOEP YEASUP 03B
D
D
E
E
2 YAS KA WA TOEP YEASUP 03B Yaskawa AC Drive - A1000 & P1000 Manual Supplement
1 Supplemental Information - Applicable Documents
1 Supplemental Information - Applicable Documents
Document Applicability
The contents of this supplement replace or add to the contents of the product manual sections listed in Ta b l e 1 .
Table 1 Affected Documents and Sections
Yaskawa
Product
AC Drive - A1000
AC Drive - P1000
Document Chapter Section
Quick Start Guide No.
TOEP C710616 41C <2> and prior
Technical Manual No.
SIEP C710616 41C <2> and prior
Quick Start Guide No.
TOEP YAIPIU 01A
Technical Manual No.
SIEP YAIP1U 01A
Preface & General Safety Safety Messages (revised)
Chapter 1 - Receiving Nameplate (revised)
Chapter 2 - Mechanical Installation
Appendix A - Specifications A.5 Drive Derating Data (added)
Appendix C - Standards Compliance UL and CSA Standards (revised)
Preface & General Safety Safety Messages (revised)
Chapter 1 - Receiving Nameplate (revised)
Chapter 2 - Mechanical Installation
Appendix A - Specifications A.5 Drive Derating Data (revised)
Appendix D - Standards Compliance UL and CSA Standards (revised)
Preface & General Safety Safety Messages (revised)
Chapter 1 - Receiving Nameplate (revised)
Chapter 2 - Mechanical Installation
Appendix A - Specifications A.5 Drive Derating Data (added)
Appendix C - Standards Compliance UL and CSA Standards (revised)
Preface & General Safety Safety Messages (revised)
Chapter 1 - Receiving Nameplate (revised)
Chapter 2 - Mechanical Installation
Appendix A - Specifications A.5 Drive Derating Data (revised)
Appendix D - Standards Compliance UL and CSA Standards (revised)
Installation Environment
(revised), Dimensions (added))
Installation Environment
(revised), Dimensions (added)
Installation Environment
(revised), Dimensions (added))
Installation Environment
(revised), Dimensions (added)
YAS KA WA TOEP YEASUP 03B Yaskawa AC Drive - A1000 & P1000 Manual Supplement 3
2 Supplemental Information - Preface - Safety Messages
W ARNING
2 Supplemental Information - Preface - Safety Messages
Fire Hazard - Drive Short-Circuit Current Rating
Install adequate branch circuit protection according to applicable local codes and this Installation Manual.
Failure to comply could result in fire and damage to the drive or injury to personnel.
The device is suitable for use on a circuit capable of delivering not more than 100,000 RMS symmetrical amperes, 240
Vac maximum (200 V class) and 480 Vac maximum (400 V class), and 600 Vac maximum (600 V class) when
protected by branch circuit protection devices specified in this supplement.
4YASKAWA TOEP YEASUP 03B Yaskawa AC Drive - A1000 & P1000 Manual Supplement
3 Supplemental Information - Receiving - Applicable Models
3 Supplemental Information - Receiving - Applicable Models
The A1000 and P1000 models listed in Ta b l e 2 are affected by this supplement.
Table 2 Applicable A1000 and P1000 Models
Voltage Class Model Number CIMR-U A
200 V
400 V
600 V
<1> Not available in P1000 series.
2A0004
2A0006
2A0008
2A0010
2A0012
2A0018
2A0021
4A0002
4A0004
4A0005
4A0007
4A0009
4A0011
4A0018
4A0023
4A0031
5A0003
5A0004
5A0006
5A0009
5A0011
5A0017
2A0030
2A0040
2A0056
2A0069
2A0081
2A0110
2A0138
4A0038
4A0044
4A0058
4A0072
4A0088
4A0103
4A0139
4A0165
4A0208
5A0022
5A0027
5A0032
5A0041
5A0052
5A0062
2A0169
2A0211
2A0250
2A0312
2A0360
2A0415
4A0250
4A0296
4A0362
4A0414
4A0515
4A0675
4A0930 <1>
4A1200 <1>
5A0077
5A0099
5A0125
5A0145
5A0192
5A0242
YAS KA WA TOEP YEASUP 03B Yaskawa AC Drive - A1000 & P1000 Manual Supplement 5
4 Supplemental Information - UL and CSA Standards
4 Supplemental Information - UL and CSA Standards
UL and CSA Standards Compliance
The UL/cUL mark applies to products in the United States and Canada. It indicates that UL has performed product testing
and evaluation, and determined that their stringent standards for product safety have been met. For a product to receive
UL certification, all components inside that product must also receive UL certification.
Figure 1
Figure 1 UL/cUL Mark
This drive is tested in accordance with UL Standard for Safety UL508C and complies with UL requirements. The
conditions described below must be met to maintain compliance when using this drive in combination with other
equipment.
A1000 & P1000 Factory Recommended Branch Circuit Protection
Yaskawa recommends installing one of the following types of branch circuit protection to maintain compliance with
UL508C. Semiconductor protective type fuses are preferred. Alternate branch circuit protection devices are also listed in
Ta b l e 3.
Table 3 A1000 & P1000 Factory Recommended AC Drive Branch Circuit Protection
A1000 and P1000 in Normal Duty Mode (Parameter C6-01 =1 <6>) A1000 in Heavy Duty Mode <7> (Parameter C6-01 =0)
Drive Model
20004 0.75 3.9 15 6.25 10 FWH-70B (70) 0.75 2.9 15 5 8 FWH-70B (70)
20006 1 - 1.5 7.3 15 12 20 FWH-70B (70) 1 5.8 15 10 15 FWH-70B (70)
20008 2 8.8 15 15 25 FWH-70B (70) 2 7 15 12 17.5 FWH-70B (70)
20010 3 10.8 20 17.5 30 FWH-70B (70) 2 7.5 15 12 20 FWH-70B (70)
20012 3 13.9 25 20 40 FWH-70B (70) 3 11 20 17.5 30 FWH-70B (70)
20018 5 18.5 35 30 50 FWH-90B(90) 3 15.6 25 25 40 FWH-90B(90)
20021 7.5 24 45 40 70 FWH-90B(90) 5 18.9 35 30 50 FWH-90B(90)
20030 10 37 60 60 110 FWH-100B (100) 7.5 28 50 40 75 FWH-100B (100)
20040 15 52 100 90 150 FWH-200B (200) 10 37 60 60 100 FWH-200B (200)
20056 20 68 125 110 200 FWH-200B (200) 15 52 100 90 150 FWH-200B (200)
20069 25 80 150 125 225 FWH-200B (200) 20 68 125 110 200 FWH-200B (200)
20081 30 96 175 150 275 FWH-300A (300) 25 80 150 125 225 FWH-300A (300)
20110 40 111 200 175 300 FWH-300A (300) 30 82 150 125 225 FWH-300A (300)
20138 50 136 250 225 400 FWH-350A (350) 40 111 200 175 250 FWH-350A (350)
20169 60 164 300 250 450 FWH-400A (400) 50 136 250 225 350 FWH-400A (400)
20211 75 200 400 350 600 FWH-400A (400) 60 164 300 250 450 FWH-400A (400)
20250 100 271 500 450 800 FWH-600A (600) 75 200 400 350 600 FWH-600A (600)
20312 125 324 600 500 800 FWH-700A (700) 100 271 500 450 800 FWH-700A (700)
20360 150 394 700 600 1000 <5> FWH-800A (800) 125 324 600 500 900 <5> FWH-800A (800)
20415 175 471 900 800 1400 <5> FWH-1000A (1000) 150 394 700 600 1100 <5> FWH-1000A (1000)
Nominal
Output
Power
HP
AC
Drive
Input
Amps
MCCB
Rating
Amps
<1>
Time Delay
Fuse Rating
Amps
<2>
Non-time
Delay Fuse
Rating
Amps
<3>
Bussman
Semi-conductor
Fuse Rating
(Fuse Ampere)
<4>
240 V Models
Nominal
Output
Power
HP
AC
Drive
Input
Amps
MCCB
Rating
Amps
<1>
Time Delay
Fuse Rating
Amps
<2>
Non-time
Delay Fuse
Rating
Amps
<3>
Bussman
Semi-conductor
Fuse Rating
(Fuse Ampere)
<4>
6YASKAWA TOEP YEASUP 03B Yaskawa AC Drive - A1000 & P1000 Manual Supplement
4 Supplemental Information - UL and CSA Standards
A1000 and P1000 in Normal Duty Mode (Parameter C6-01 =1 <6>) A1000 in Heavy Duty Mode <7> (Parameter C6-01 =0)
Drive Model
40002 1 2.1 15 3.5 6 FWH-40B (40) 0.75 1.8 15 3 5 FWH-40B (40)
40004 2 4.3 15 7.5 12 FWH-50B (50) 1 - 2 3.2 15 5 9 FWH-50B (50)
40005 3 5.9 15 10 17.5 FWH-70B (70) 3 4.4 15 7 12 FWH-70B (70)
40007 3 8.1 15 12 20 FWH-70B (70) 3 6 15 10 17.5 FWH-70B (70)
40009 5 9.4 15 15 25 FWH-90B (90) 5 8.2 15 12 20 FWH-90B (90)
40011 7.5 14 25 20 40 FWH-90B (90) 5 10.4 20 17.5 30 FWH-90B (90)
40018 10 20 40 35 60 FWH-80B (80) 7.5 - 10 15 30 25 40 FWH-80B (80)
40023 15 24 45 40 70 FWH-100B (100) 10 20 40 35 60 FWH-100B (100)
40031 20 38 75 60 110 FWH-125B (125) 15 29 50 50 80 FWH-125B (125)
40038 25 44 75 75 125 FWH-200B (200) 20 39 75 60 110 FWH-200B (200)
40044 30 52 100 90 150 FWH-250A (250) 25 - 30 47 75 75 125 FWH-250A (250)
40058 40 58 100 100 150 FWH-250A (250) 30 43 75 75 125 FWH-250A (250)
40072 50 71 125 110 200 FWH-250A (250) 40 58 100 100 150 FWH-250A (250)
40088 60 86 150 150 250 FWH-250A (250) 60 71 125 110 200 FWH-250A (250)
40103 75 105 200 175 300 FWH-250A (250) 60 86 150 150 250 FWH-250A (250)
40139 100 142 250 225 400 FWH-350A (350) 75 105 175 175 300 FWH-350A (350)
40165 125 170 300 250 500 FWH-400A (400) 100 142 225 225 400 FWH-400A (400)
40208 150 207 400 350 600 FWH-500A (500) 125 - 150 170 250 250 500 FWH-500A (500)
40250 200 248 450 400 700 FWH-600A (600) 150 207 350 350 600 FWH-600A (600)
40296 250 300 600 500 800 FWH-700A (700) 200 248 400 400 700 FWH-700A (700)
40362 300 346 600 600 1000 <5> FWH-800A (800) 250 300 500 500 800 FWH-800A (800)
40414 350 410 800 700 1200 <5> FWH-800A (800) 300 346 600 600 1000 <5> FWH-800A (800)
40515 400 - 450 465 900 800 1350 <5> FWH-1000A (1000) 350 410 700 700 1200 <5> FWH-1000A (1000)
40675 500 - 600 657 1200 1100 <5> 1800 <5> FWH-1200A (1200) 400 - 500 584 1000 1000 <5> 1600 <5> FWH-1200A (1200)
40930 <8> 700 - 800 922
41200 <8> 900 - 1000 1158 FWH-1600A (1600) 800 - 900 1031 FWH-1600A (1600)
50003 2 3.6 15 6.25 10 FWP-50B (50) 1 1.9 15 3 5 FWP-50B (50)
50004 3 5.1 15 8 15 FWP-50B (50) 2 3.6 15 6.25 10 FWP-50B (50)
50006 5 8.3 15 12 20 FWP-60B (60) 3 5.1 15 8 15 FWP-60B (60)
50009 7.5 12 20 20 35 FWP-60B (60) 5 8.3 15 12 20 FWP-60B (60)
50011 10 16 30 25 45 FWP-70B (70) 7.5 12 20 20 35 FWP-70B (70)
50017 15 23 40 40 60 FWP-100B (100) 10 16 30 25 45 FWP-100B (100)
50022 20 31 60 50 90 FWP-100B (100) 15 23 40 40 60 FWP-100B (100)
50027 25 38 75 60 110 FWP-125A (125) 20 31 60 50 90 FWP-125A (125)
50032 30 45 75 75 125 FWP-125A (125) 25 38 75 60 100 FWP-125A (125)
50041 40 44 75 75 125 FWP-175A (175) 30 33 60 50 90 FWP-175A (175)
50052 50 54 100 90 150 FWP-175A (175) 40 44 75 75 125 FWP-175A (175)
50062 60 66 125 110 175 FWP-250A (250) 50 54 100 90 150 FWP-250A (250)
50077 75 80 150 125 225 FWP-250A (250) 60 66 125 110 175 FWP-250A (250)
50099 100 108 175 175 300 FWP-250A (250) 75 80 150 125 225 FWP-250A (250)
50125 125 129 225 225 350 FWP-350A (350) 100 108 175 175 300 FWP-350A (350)
50145 150 158 300 275 450 FWP-350A (350) 125 129 250 225 350 FWP-350A (350)
50192 200 228 400 350 600 FWP-600A (600) 150 158 300 250 400 FWP-600A (600)
50242 250 263 500 450 700 FWP-600A (600) 200 228 400 350 600 FWP-600A (600)
<1> Maximum MCCB Rating is 15 A, or 200 % of drive input current rating, whichever is larger. MCCB voltage rating must be 600 VAC or greater.
<2> Maximum Time Delay fuse is 175% of drive input current rating. This covers any Class CC, J or T class fuse.
<3> Maximum Non-time Delay fuse is 300% of drive input current rating. This covers any CC, J or T class fuse.
<4> When using semiconductor fuses, Bussman FWH and FWP are required for UL compliance. Select FWH for 240 V and 480 V models and FWP fuses for 600 V models.
<5> Class L fuse is also approved for this rating.
<6> Duty Rating parameter C6-01 is only available for A1000 series drives.
<7> Heavy Duty rating and parameter C6-01 is not available for P1000 series drives.
<8> Not available in P1000 series.
Nominal
Output
Power
HP
AC
Drive
Input
Amps
MCCB
Rating
Amps
<1>
Time Delay
Fuse Rating
Amps
<2>
Not Applicable
Non-time
Delay Fuse
Rating
Amps
<3>
Bussman
Semi-conductor
Fuse Rating
(Fuse Ampere)
<4>
480 V Models
FWH-1200A (1200) 600 - 700 830
600 V Models
Nominal
Output
Power
HP
AC
Drive
Input
Amps
MCCB
Rating
Amps
<1>
Time Delay
Fuse Rating
Amps
<2>
Not Applicable
Non-time
Delay Fuse
Rating
Amps
<3>
Bussman
Semi-conductor
Fuse Rating
(Fuse Ampere)
<4>
FWH-1200A (1200)
YAS KA WA TOEP YEASUP 03B Yaskawa AC Drive - A1000 & P1000 Manual Supplement 7
5 Supplemental Information - Specifications - Drive Derating
5 Supplemental Information - Specifications - Drive Derating
A1000 & P1000 Single-Phase Derating
A1000 and P1000 drives are optimized and compatible for use with both three-phase and single-phase input power
supplies. The output to the motor is fixed at three-phase.
Output capacity to the motor is reduced or derated when single-phase input power is used.
Selection of larger models always results in greater output capacity to the motor when the drive supplied with three-phase
input power. Conversely, selection of larger models does not always yield greater output capacity when the drive used
with single-phase input power.
Several factors affect the amount of derated drive output capacity when single-phase input power is supplied to the drive,
such as:
• single-phase input voltage level
• motor voltage rating
• amount of input impedance
The tables in this section assist in model selection by considering factors that affect the amount of derating in single-phase
input power applications.
The Output Capacity-Motor FLA listed in the tables allows for a 120% overload for 60 seconds.
Contact Yaskawa if assistance is needed in selecting drive models for heavy duty/single-phase applications with higher
overload requirements.
Table 4 240 V Single Phase Input (-5% to +10%), 230 V Three Phase Motor
Without Additional Impedance With Additional Impedance (use either DC type or AC type)
Drive Model
2A0004 0.33 1.52 0.99 4.3 URX000043 URX000303 0.5 2.2 0.94 4.1
2A0006 0.5 2.2 1.3 5.7 URX000043 URX000303 0.75 3.2 1.3 5.7
2A0008 0.75 3.2 1.7 7.7 05P00620-0113 URX000307 1 4.2 1.6 7.2
2A0010 0.75 3.2 1.8 7.7 05P00620-0113 URX000311 1 4.2 1.8 7.8
2A0012 1 4.2 2.3 10 URX000048 URX000316 2 7.5 2.9 13
2A0018 2 6.8 4.3 19 05P00620-0120 URX000319 3 9.6 4.3 19
2A0021 2 6.8 4.3 19 05P00620-0120 URX000323 3 9.6 4.4 19
2A0030 2 6.8 4.5 20 05P00620-0120 URX000323 3 9.6 4.4 19
2A0040 3 9.6 6.2 27 05P00620-0124 URX000323 5 15.2 6.7 30
2A0056 5 15.2 9.9 43 URX000059 URX000326 7.5 22 9.6 42
2A0069 5 15.2 10 45 URX000063 URX000332 10 28 13 56
2A0081 10 28 18 79 URX000072 URX000338 15 42 19 84
2A0110 10 28 14 60
2A0138 15 42 20 87 15 42 20 87
2A0169 20 54 26 114 20 54 26 114
2A0211 20 54 26 116 20 54 26 116
2A0250 25 68 32 143 25 68 32 143
2A0312 30 80 39 170 30 80 39 170
2A0360 40 104 51 224 40 104 51 224
2A0415 50 130 63 275 50 130 63 275
Output Capacity Single Phase Input Load Yaskawa Reactor Part Number Output Capacity Single Phase Input Load
Motor Power
(HP)
Motor FLA Power (kVA) Current (A) DC Type AC Type
DC Reactor
Built-in
Do Not Use
AC Reactor
Motor Power
(HP)
10 28 14 60
Motor FLA Power (kVA) Current (A)
8YASKAWA TOEP YEASUP 03B Yaskawa AC Drive - A1000 & P1000 Manual Supplement
5 Supplemental Information - Specifications - Drive Derating
Table 5 240 V Single-Phase Input (-5% to +10%), 208 V Three-Phase Motor
Without Additional Impedance With Additional Impedance (use either DC type or AC type)
Drive Model
2A0004 0.33 1.7 0.99 4.3 URX000043 URX000303 0.5 2.4 0.94 4.1
2A0006 0.5 2.4 1.3 5.7 URX000043 URX000303 0.75 3.5 1.3 5.7
2A0008 0.75 3.5 1.7 7.7 05P00620-0113 URX000307 1 4.6 1.6 7.2
2A0010 0.75 3.5 1.8 7.7 05P00620-0113 URX000311 1 4.6 1.8 7.8
2A0012 1 4.6 2.3 10 05P00620-0115 URX000315 2 7.5 2.9 13
2A0018 2 7.5 4.3 19 05P00620-0120 URX000319 3 10.6 4.3 19
2A0021 2 7.5 4.3 19 05P00620-0120 URX000323 3 10.6 4.4 19
2A0030 2 7.5 4.5 20 05P00620-0120 URX000323 3 10.6 4.4 19
2A0040 3 10.6 6.2 27 05P00620-0124 URX000323 5 17 6.7 30
2A0056 5 17 9.9 43 URX000059 URX000326 7.5 24 9.6 42
2A0069 5 17 10 45 URX000063 URX000332 10 31 13 56
2A0081 10 31 18 79 URX000072 URX000339 15 46 19 84
2A0110 10 31 14 60
2A0138 15 46 20 87 URX000343 15 46 18 77
2A0169 20 59 26 114 URX000342 20 59 23 102
2A0211 20 59 26 116 URX000344 25 75 29 129
2A0250 25 75 32 143 URX000347 30 88 35 156
2A0312 30 88 39 170 URX000350 40 114 47 204
2A0360 40 114 51 224 URX000353 50 143 57 252
2A0415 50 143 63 275 URX000356 60 169 69 301
Output Capacity Single Phase Input Load Yaskawa Reactor Part Number Output Capacity Single Phase Input Load
Motor Power
(HP)
Motor FLA Power (kVA) Current (A) DC Type AC Type
URX000340 15 46 17 76
DC Reactor
Built-in
Motor Power
(HP)
Motor FLA Power (kVA) Current (A)
Table 6 480 V Single Phase Input (-5% to +10%), 460 V Three Phase Motor
Without Additional Impedance With Additional Impedance (use either DC type or AC type)
Drive Model
4A0002 0.33 0.76 1.1 2.4 URX000041 URX000295 0.5 1.1 0.98 2.1
4A0004 0.75 1.6 1.9 4.2 URX000041 URX000299 1 2.1 1.7 3.8
4A0005 1 2.1 2.3 5.1 05P00620-0110 URX000303 1.5 3 2.5 5.5
4A0007 1 2.1 2.5 5.6 05P00652-0213 URX000308 2 3.4 3 6.7
4A0009 2 3.4 4.6 10 URX000048 URX000312 3 4.8 4.3 9.5
4A0011 2 3.4 4.6 10 URX000053 URX000316 3 4.8 4.7 10
4A0018 2 3.4 4.4 9.7 URX000052 URX000316 3 4.8 4.6 10
4A0023 3 4.8 6.3 14 URX000052 URX000316 5 7.6 7 15
4A0031 5 7.6 10 22 URX000055 URX000324 7.5 11 9.9 22
4A0038 7.5 11 14 31 05P00620-0123 URX000327 10 14 14 31
4A0044 7.5 11 14 31 URX000061 URX000327 10 14 13 28
4A0058 10 14 14 30
4A0072 15 21 20 43
4A0088 15 21 20 44 15 21 20 44
4A0103 15 21 20 45 URX000335 20 27 25 54
4A0139 30 40 38 84 URX000341 30 40 36 80
4A0165 30 40 39 85 URX000341 30 40 37 81
4A0208 50 65 62 136 URX000347 50 65 59 130
4A0250 60 77 74 162 URX000347 60 77 70 154
4A0296 60 77 75 165 URX000350 75 96 87 192
4A0362 75 96 93 205 URX000353 100 124 115 251
4A0414 100 124 122 267 URX000356 125 156 143 314
4A0515 100 124 125 275 URX000353 100 124 116 255
4A0675 125 156 157 345 Do Not Use 125 156 157 345
Output Capacity Single Phase Input Load Yaskawa Reactor Part Number Output Capacity Single Phase Input Load
Motor Power
(HP)
Motor FLA Power (kVA) Current (A) DC Type AC Type
URX000332 15 21 19 41
Do Not Use
AC Reactor
DC Reactor
Built-in
Motor Power
(HP)
15 21 20 43
Motor FLA Power (kVA) Current (A)
YAS KA WA TOEP YEASUP 03B Yaskawa AC Drive - A1000 & P1000 Manual Supplement 9
5 Supplemental Information - Specifications - Drive Derating
Table 7 480 V Single Phase Input (-5% to +10%), 400 V Three Phase Motor
Without Additional Impedance With Additional Impedance (use either DC type or AC type)
Drive Model
4A0002 0.33 0.88 1.1 2.4 URX000041 URX000295 0.5 1.26 0.98 2.1
4A0004 0.75 1.8 1.9 4.2 URX000041 URX000299 1 2.4 1.7 3.8
4A0005 1 2.4 2.3 5.1 05P00620-0110 URX000303 1.5 3.4 2.5 5.5
4A0007 1 2.4 2.5 5.6 05P00652-0213 URX000308 2 3.9 3 6.7
4A0009 2 3.9 4.6 10 URX000048 URX000312 3 5.5 4.3 9.5
4A0011 2 3.9 4.6 10 URX000053 URX000316 3 5.5 4.7 10
4A0018 2 3.9 4.4 9.7 URX000052 URX000316 3 5.5 4.6 10
4A0023 3 5.5 6.3 14 URX000052 URX000316 5 8.7 7 15
4A0031 5 8.7 10 22 URX000055 URX000324 7.5 12.7 9.9 22
4A0038 7.5 12.7 14 31 05P00620-0123 URX000327 10 16 14 31
4A0044 7.5 12.7 14 31 URX000061 URX000327 10 16 13 28
4A0058 10 16 14 30
4A0072 15 24 20 43 URX000336 20 31 24 52
4A0088 15 24 20 44 URX000336 20 31 24 52
4A0103 15 24 20 45 URX000335 20 31 25 54
4A0139 30 46 38 84 URX000341 30 46 36 80
4A0165 30 46 39 85 URX000341 30 46 37 81
4A0208 50 75 62 136 URX000347 50 75 59 130
4A0250 60 89 74 162 URX000347 60 89 70 154
4A0296 60 89 75 165 URX000350 75 110 87 192
4A0362 75 110 93 205 URX000353 100 143 115 251
4A0414 100 143 122 267 URX000356 125 179 143 314
4A0515 100 143 125 275 URX000353 100 143 116 255
4A0675 125 179 157 345 URX000360 150 207 169 371
Output Capacity Single Phase Input Load Yaskawa Reactor Part Number Output Capacity Single Phase Input Load
Motor Power
(HP)
Motor FLA Power (kVA) Current (A) DC Type AC Type
URX000332 15 24 19 41
DC Reactor
Built-in
Motor Power
(HP)
Motor FLA Power (kVA) Current (A)
Table 8 600 V Single Phase Input (-5% to +10%), 575 V Three Phase Motor
Without Additional Impedance With Additional Impedance (use either DC type or AC type)
Drive Model
5A0003 1 1.7 2 3.5 05P00620-0110 URX000303 1.5 2.4 2.6 4.6
5A0004 1.5 2.4 2.7 4.8 URX000044 URX000306 2 2.7 2.9 5
5A0006 2 2.7 4 7 05P00652-0213 URX000308 3 3.9 4.3 7.6
5A0009 3 3.9 5.4 9.5 URX000049 URX000313 5 6.1 6.5 11
5A0011 2 2.7 4.1 7.1 05P00652-0213 URX000308 3 3.9 4.4 7.7
5A0017 5 6.1 9.1 16 URX000048 URX000316 5 6.1 7.1 12
5A0022 5 6.1 9.2 16 URX000053 URX000320 7.5 9 10 18
5A0027 7.5 9 14 24 URX000055 URX000324 10 11 13 23
5A0032 7.5 9 14 24 URX000055 URX000324 10 11 13 23
5A0041 10 11 14 24
5A0052 15 17 19 34 URX000326 15 17 19 32
5A0062 20 22 27 47 URX000335 25 27 31 54
5A0077 25 27 32 57 URX000338 30 32 36 64
5A0099 30 32 38 66 URX000338 30 32 37 64
5A0125 40 41 49 86 URX000344 50 52 58 102
5A0145 40 41 49 86 URX000344 50 52 58 102
5A0192 60 62 74 130 URX000347 75 77 87 152
5A0242 75 77 91 159 URX000347 75 77 87 152
Output Capacity Single Phase Input Load Yaskawa Reactor Part Number Output Capacity Single Phase Input Load
Motor Power
(HP)
Motor FLA Power (kVA) Current (A) DC Type AC Type
URX000326 15 17 18 32
DC Reactor
Built-in
Motor Power
(HP)
Motor FLA Power (kVA) Current (A)
10 YAS KA WA TOEP YEASUP 03B Yaskawa AC Drive - A1000 & P1000 Manual Supplement
6 Supplemental Information - Flange Type Enclosure
No. Voltage Class
3-phase, 380-480 Vac
3-phase, 200-240 Vac
2
4
3-phase, 500-600 Vac 5
No.
Series
A1000 Drive
A
P
P1000 Drive
CIMR
-
A U 4 A 0675 U A A
Drive
No.
Enclosure
Type
Design Revision
Order
No.
Region
Code
U USA
Flange
Type
A Japan
T Asia
C Europe
D India
B China
No.
Environmental
Specification
K Gas-resistant
A
M
N
S
Standard
Humidity- and
dust-resistant
Oil-resistant
Vibration-resistant
<2>
U
<1>
No.
Customized
Specifications
A Standard model
Rating
A
B
C
D
D
6 Supplemental Information - Flange Type Enclosure
Flange Type Enclosure models for A1000 and P1000 have the same specifications as standard models except for the
mechanical data provided in this supplement section. Refer to the Quick Start Guide or Technical Manual of your drive
for all other technical specifications and product instructions.
Model Number and Nameplate Check - A1000 & P1000 Flange Type Enclosure
(NEMA 12 Backside)
<1> Provides method of mounting drive with backside (heatsink) external to enclosure, with NEMA 12 integrity.
<2> Drives with these specifications do not guarantee complete protection for the environmental conditions indicated.
Enclosure Components - A1000 & P1000 Flange Type Enclosure
(NEMA 12 Backside)
Figure 2
NOTICE: Remove the shipping package attachments before installing.
YAS KA WA TOEP YEASUP 03B Yaskawa AC Drive - A1000 & P1000 Manual Supplement 11
A – Installation hole
B – Flange Type Drive
(NEMA 12 Backside)
<1> Provides method of mounting drive with backside (heatsink) external to enclosure, with NEMA 12 integrity.

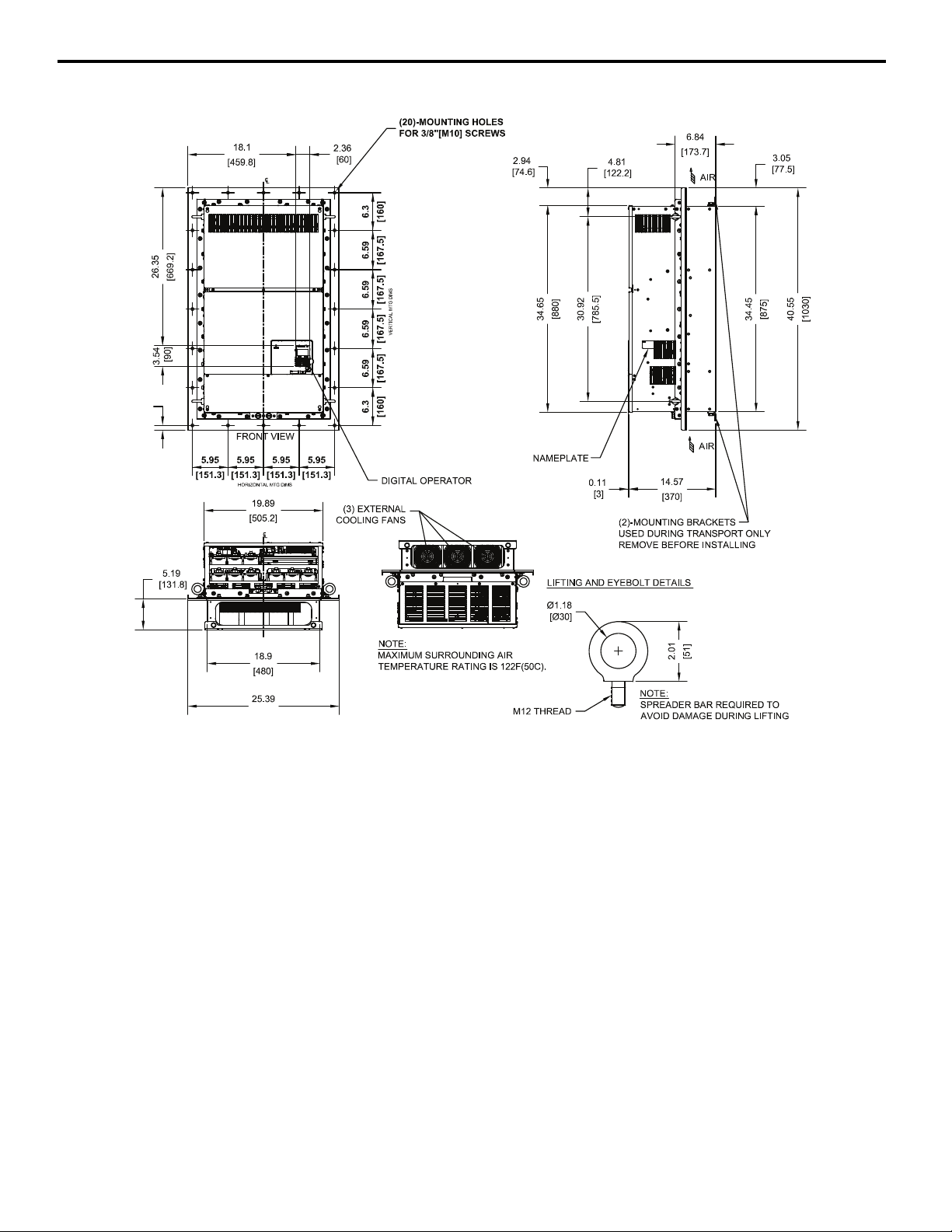

Figure 2 Flange Type Enclosure (Model 4A0675U)
C – Mounting flange <1>
D – Shipping package attachment
(remove before installation)
6 Supplemental Information - Flange Type Enclosure
Screws
Shipping Package
Attachmet
Shipping Package
Attachmet
Top Side
Screws
Bottom Side
Installation Environment - A1000 & P1000 Flange Type Enclosure
(NEMA 12 Backside)
Table 9 A1000 & P1000 Flange Type Enclosure Installation Environment
Environment Conditions
Installation Area Indoors
-10°C to +40°C (Flange Type Enclosure)
Drive reliability improves in environments without wide temperature fluctuations.
Ambient Temperature
Humidity 95% RH or less and free of condensation
Storage Temperature -20°C to +60°C
Surrounding Area
Altitude Up to 1000 m without derating, up to 3000 m with output current and voltage derating.
Vibration
Orientation Install the drive vertically to maintain maximum cooling effects.
When using the drive in an enclosure panel, install a cooling fan or air conditioner in the area to ensure that the air
temperature inside the enclosure does not exceed the specified levels.
Do not allow ice to develop on the drive.
Install the drive in an area free from:
• oil mist and dust
• metal shavings, oil, water, or other foreign materials
• radioactive materials
• combustible materials (e.g., wood)
• harmful gases and liquids
• excessive vibration
• chlorides
• direct sunlight.
2
10 Hz to 20 Hz at 9.8 m/s
20 Hz to 55 Hz at 5.9 m/s
2
(Models 4T0058 to 0165) or 2.0 m/s2 (Models 4T0208 to 0675)
Removing the Shipping Package Attachments
Remove the shipping package attachments before installation.
Note: The number of screws varies in accordance with the drive model.
Figure 3
Figure 3 Removing the Shipping Package Attachments (example: Model 4A0675U)
12 YAS KA WA TOEP YEASUP 03B Yaskawa AC Drive - A1000 & P1000 Manual Supplement

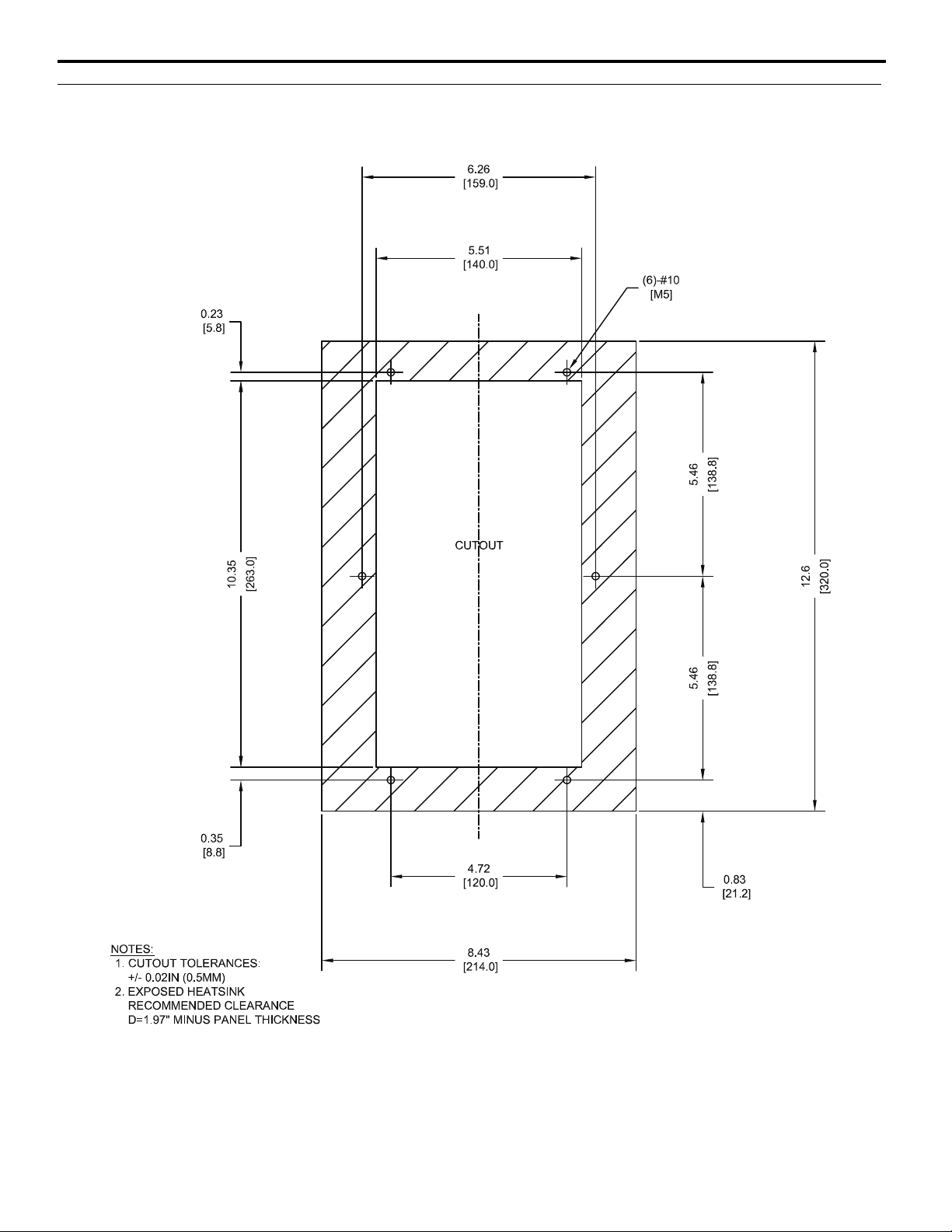

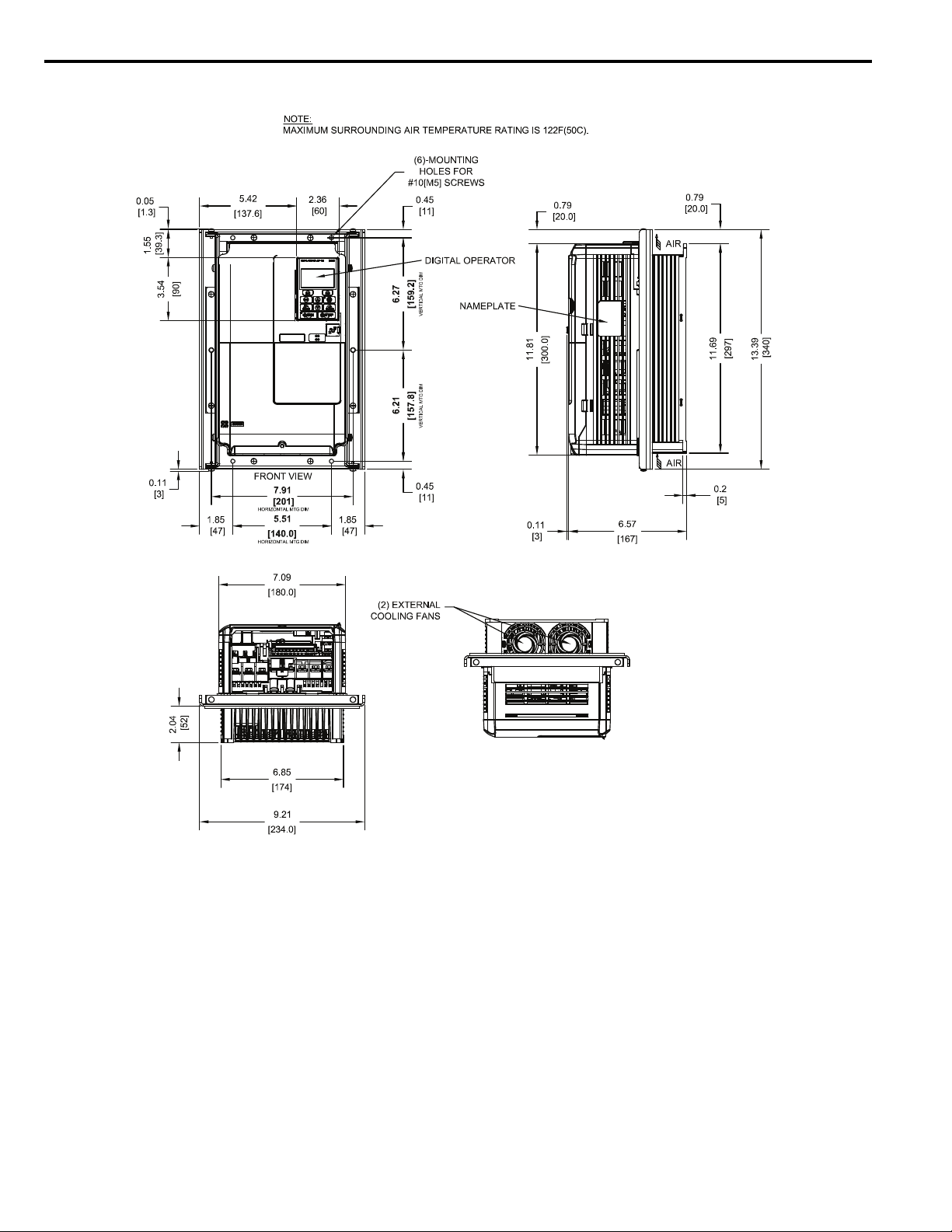

Loading...
