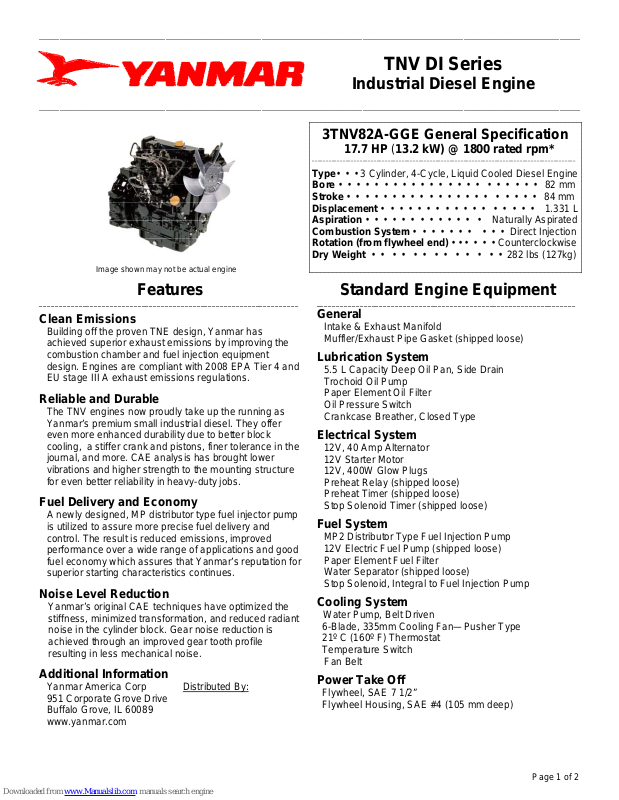

TNV DI Series
Industrial Diesel Engine
___________________________________________________________________________________________________________
3TNV82A-GGE General Specification
17.7 HP (13.2 kW) @ 1800 rated rpm*
______________________________________________________________________________________________
Type• • • 3 Cylinder, 4-Cycle, Liquid Cooled Diesel Engine
Bore • • • • • • • • • • • • • • • • • • • • • • 82 mm
Stroke • • • • • • • • • • • • • • • • • • • • • 84 mm
Displacement • • • • • • • • • • • • • • • • • 1.331 L
Aspiration • • • • • • • • • • • • • Naturally Aspirated
Combustion System • • • • • • • • • • Direct Injection
Rotation (from flywheel end) • • • • • • Counterclockwise
Dry Weight • • • • • • • • • • • • • 282 lbs (127kg)
Image shown may not be actual engine
__________________________________________________________________
Features
Clean Emissions
Building off the proven TNE design, Yanmar has
achieved superior exhaust emissions by improving the
combustion chamber and fuel injection equipment
design. Engines are compliant with 2008 EPA Tier 4 and
EU stage III A exhaust emissions regulations.
Reliable and Durable
The TNV engines now proudly take up the running as
Yanmar’s premium small industrial diesel. They offer
even more enhanced durability due to better block
cooling, a stiffer crank and pistons, finer tolerance in the
journal, and more. CAE analysis has brought lower
vibrations and higher strength to the mounting structure
for even better reliability in heavy-duty jobs.
Fuel Delivery and Economy
A newly designed, MP distributor type fuel injector pump
is utilized to assure more precise fuel delivery and
control. The result is reduced emissions, improved
performance over a wide range of applications and good
fuel economy which assures that Yanmar’s reputation for
superior starting characterist ics continues.
Noise Level Reduction
Yanmar’s original CAE techniques have optimized the
stiffness, minimized transformation, and reduced radiant
noise in the cylinder block. Gear noise reduction is
achieved through an improved gear tooth profile
resulting in less mechanical noise.
Additional Information
Yanmar America Corp Distributed By:
951 Corporate Grove Drive
Buffalo Grove, IL 60089
www.yanmar.com
Standard Engine Equipment
__________________________________________________________________
General
Intake & Exhaust Manifold
Muffler/Exhaust Pipe Gasket (shipped loose)
Lubrication System
5.5 L Capacity Deep Oil Pan, Side Drain
Trochoid Oil Pump
Paper Element Oil Filter
Oil Pressure Switch
Crankcase Breather, Closed Type
Electrical System
12V, 40 Amp Alternator
12V Starter Motor
12V, 400W Glow Plugs
Preheat Relay (shipped loose)
Preheat Timer (shipped loose)
Stop Solenoid Timer (shipped loose)
Fuel System
MP2 Distributor Type Fuel Injection Pump
12V Electric Fuel Pump (shipped loose)
Paper Element Fuel Filter
Water Separator (shipped loose)
Stop Solenoid, Integral to Fuel Injection Pump
Cooling System
Water Pump, Belt Driven
6-Blade, 335mm Cooling Fan—Pusher Type
21º C (160º F) Thermostat
Temperature Switch
Fan Belt
Power Take Off
Flywheel, SAE 7 1/2”
Flywheel Housing, SAE #4 (105 mm deep)
Page 1 of 2
3TNV82A-GGE
Industrial Diesel Engine
Performance Data
_______________________________________________
Please Contact Yanmar for Details
Dimensions
_________________________________________
Length 22.8 in (581 mm)
Width 19.4 in (493 mm)
Height 24.0 in (611 mm)
Note: Dimensions depend on final specifications.
kW to Hp conversion used is expressed as: HP = (kW value) x 1.34
Rated Speed (rpm) Net rated kW Net rated HP
1800 23.7 17.7
Ratings Definitions and Conditions
_____________________________________________________________________________________________________
*Rated power listed is NET engine output. The engine
operating environment and driven machine conditions
must be studied carefully when selecting an engine in
order to ensure correct engine selection, maximize
engine performance, extend engine service life and
improve machine capacity.
Consult the TNV Application Manual for additional engine ratings and engine application information.
_____________________________________________________________________________________________________
Materials and specifications herein are intended to serve as a guide in engine selection and subject to change without notice.
The International System of Units (SI) is used in this publication. Yanmar and its logos, as well as corporate identity used
herein, are trademarks of Yanmar and may not be used without permission.
Printed in USA © 11.19.09 Yanmar
All Rights Reserved
Application standards for Yanmar industrial engines: Inlet
air standard conditions with a total barometric pressure of
100kPa (29.5 in. Hg), with 30% relative humidity and 25°
C (77°F).
