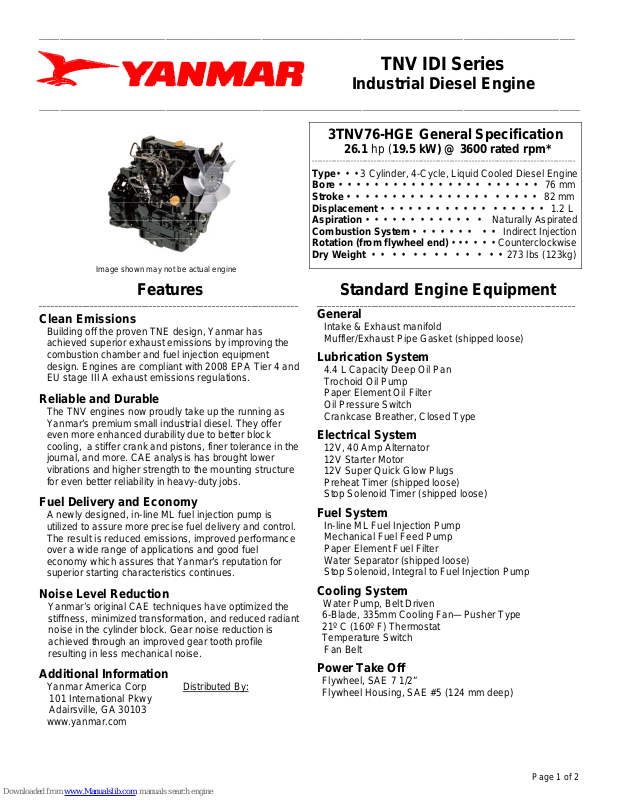

Yanmar 3TNV76-HGE General Specification
__________________________________________________________________________________________________________
TNV IDI Series
Industrial Diesel Engine
___________________________________________________________________________________________________________
3TNV76-HGE General Specification
26.1 hp (19.5 kW) @ 3600 rated rpm*
______________________________________________________________________________________________
Type• • • 3 Cylinder, 4-Cycle, Liquid Cooled Diesel Engine
Bore • • • • • • • • • • • • • • • • • • • • • • 76 mm
Stroke • • • • • • • • • • • • • • • • • • • • • 82 mm
Displacement • • • • • • • • • • • • • • • • • • 1.2 L
Aspiration • • • • • • • • • • • • • Naturally Aspirated
Combustion System • • • • • • • • • Indirect Injection
Rotation (from flywheel end) • • • • • • Counterclockwise
Dry Weight • • • • • • • • • • • • • 273 lbs (123kg)
Image shown may not be actual engine
__________________________________________________________________
Features
Clean Emissions
Building off the proven TNE design, Yanmar has
achieved superior exhaust emissions by improving the
combustion chamber and fuel injection equipment
design. Engines are compliant with 2008 EPA Tier 4 and
EU stage III A exhaust emissions regulations.
Reliable and Durable
The TNV engines now proudly take up the running as
Yanmar’s premium small industrial diesel. They offer
even more enhanced durability due to better block
cooling, a stiffer crank and pistons, finer tolerance in the
journal, and more. CAE analysis has brought lower
vibrations and higher strength to the mounting structure
for even better reliability in heavy-duty jobs.
Fuel Delivery and Economy
A newly designed, in-line ML fuel injection pump is
utilized to assure more precise fuel delivery and control.
The result is reduced emissions, improved performance
over a wide range of applications and good fuel
economy which assures that Yanmar’s reputation for
superior starting characteristics continues.
Noise Level Reduction
Yanmar’s original CAE techniques have optimized the
stiffness, minimized transformation, and reduced radiant
noise in the cylinder block. Gear noise reduction is
achieved through an improved gear tooth profile
resulting in less mechanical noise.
Additional Information
Yanmar America Corp Distributed By:
101 International Pkwy
Adairsville, GA 30103
www.yanmar.com
Standard Engine Equipment
Standard Engine Equipment
__________________________________________________________________
__________________________________________________________________
General
General
Intake & Exhaust manifold
Intake & Exhaust manifold
Muffler/Exhaust Manifold Gasket (shipped loose)
Muffler/Exhaust Pipe Gasket (shipped loose)
Lubrication System
Lubrication System
2.1 L Capacity Shallow Oil Pan
4.4 L Capacity Deep Oil Pan
Trochoid Oil Pump
Trochoid Oil Pump
Paper Element Oil Filter
Paper Element Oil Filter
Oil Pressure Switch
Oil Pressure Switch
Crankcase Breather, Closed Type
Crankcase Breather, Closed Type
Electrical System
Electrical System
12V, 40 Amp Alternator
12V, 40 Amp Alternator
12V Starter Motor
12V Starter Motor
12V Super Quick Glow Plugs
12V Super Quick Glow Plugs
Preheat Relay (shipped loose)
Preheat Timer (shipped loose)
Preheat Timer, 15 second (shipped loose)
Stop Solenoid Timer (shipped loose)
Stop Solenoid Timer, 1 second (shipped loose)
Fuel System
Fuel System
In-line ML Fuel Injection Pump
Mechanical Fuel Feed Pump
In-line ML Fuel Injection Pump
Paper Element Fuel Filter
12V Electric Fuel Pump (shipped loose)
Water Separator (shipped loose)
Paper Element Fuel Filter
Stop Solenoid, Integral to Fuel Injection Pump
Water Separator (shipped loose)
Stop Solenoid, Integral to Fuel Injection Pump (shipped
Cooling System
loose)
Water Pump, Belt Driven
Cooling System
6-Blade, 335mm Cooling Fan—Pusher Type
21º C (160º F) Thermostat
Water Pump, Belt Driven
Temperature Switch
6-Blade, 335mm Cooling Fan—Puller Type
70º F (21º C) Thermostat
Fan Belt
Temperature Switch
Power Take Off
Fan Belt
Flywheel, SAE 7 1/2”
Power Take Off
Flywheel Housing, SAE #5 (124 mm deep)
Flywheel, SAE 7 1/2”
Flywheel Housing, SAE #5
Page 1 of 2
3TNV76-HGE
Industrial Diesel Engine
Performance Data
_______________________________________________
Please Contact Yanmar for Details
Dimensions
_________________________________________
Length 22.3 in (567 mm)
Width 16.9 in (430 mm)
Height 23.6 in (601mm)
Note: Dimensions depend on final specifications.
kW to Hp conversion used is expressed as: hp = (kW value) x 1.34
Rated Speed (rpm) Net rated kW Net rated hp
3600 19.5 26.1
Ratings Definitions and Conditions
_____________________________________________________________________________________________________
*Rated power listed is NET engine output. The engine
operating environment and driven machine conditions
must be studied carefully when selecting an engine in
order to ensure correct engine selection, maximize
engine performance, extend engine service life and
improve machine capacity.
Consult the TNV Application Manual for additional engine ratings and engine application information.
_____________________________________________________________________________________________________
Materials and specifications herein are intended to serve as a guide in engine selection and subject to change without notice.
The International System of Units (SI) is used in this publication. Yanmar and its logos, as well as corporate identity used
herein, are trademarks of Yanmar and may not be used without permission.
Printed in USA © 3.8.09 Yanmar
All Rights Reserved
Application standards for Yanmar industrial engines: Inlet
air standard conditions with a total barometric pressure of
100kPa (29.5 in. Hg), with 30% relative humidity, and 25°
C (77°F).
