Yamaha YK180X, YK120X User Manual

YAMAHA MOTOR CO., LTD.

OWNER'S MANUAL

Before using the robot (Be sure to read the following notes.)

At this time, our thanks for your purchase of this YAMAHA YK-X series SCARA
robot.

(1) Please be sure to perform the following tasks before using the robot.

Note that the robot may operate abnormally (abnormal vibration or noise) if
the following work is not carried out.

Before the YK-X Series is shipped, the position shown in "Chapter 7, 1-2 Exter­nal view and dimensions" is adjusted as the origin position, and the standard
coordinates are provisionally set.

1. Absolute Reset

Absolute reset must be carried out just once before the YK-X Series robot can
be used.
Once absolute reset is completed, it does not need to be carried out again when
the power is turned ON the next time.
Refer to "Chapter 4, 3. Adjusting the origin" in this manual and "Absolute
Reset" in the "YAMAHA Robot Controller owner's manual" for details on
absolute reset.

2. Setting the standard coordinates

Set the standard coordinates while referring to instructions in "5. Setting the
Standard coordinates" in Chapter 4 of this manual and also to "Setting the
Standard coordinates" in the "YAMAHA robot controller owner's manual".
Robot malfunctions (vibration, noise) may occur if the standard coordinates
are not set correctly.

Even though there is no problem with the robot, the following error messages are
issued when the robot and controller are connected and power first turned on.
(Actual error messages may differ according to how the robot and controller are
connected.)

Error messages issued when robot & controller are connected (RCX142)

17.27 : D?.ABS. backup failed (CPU)

17.80 : D?.ABS. backup failed (DRIVER)

17.81 : D?.ABS.battery wire breakage

17.92 : D?.Resolver disconnected during power off

17.93 : D?.Position backup counter overflow

17.94 : D?.ABS.battery low voltage
etc

(2) Caution when turning off the robot controller

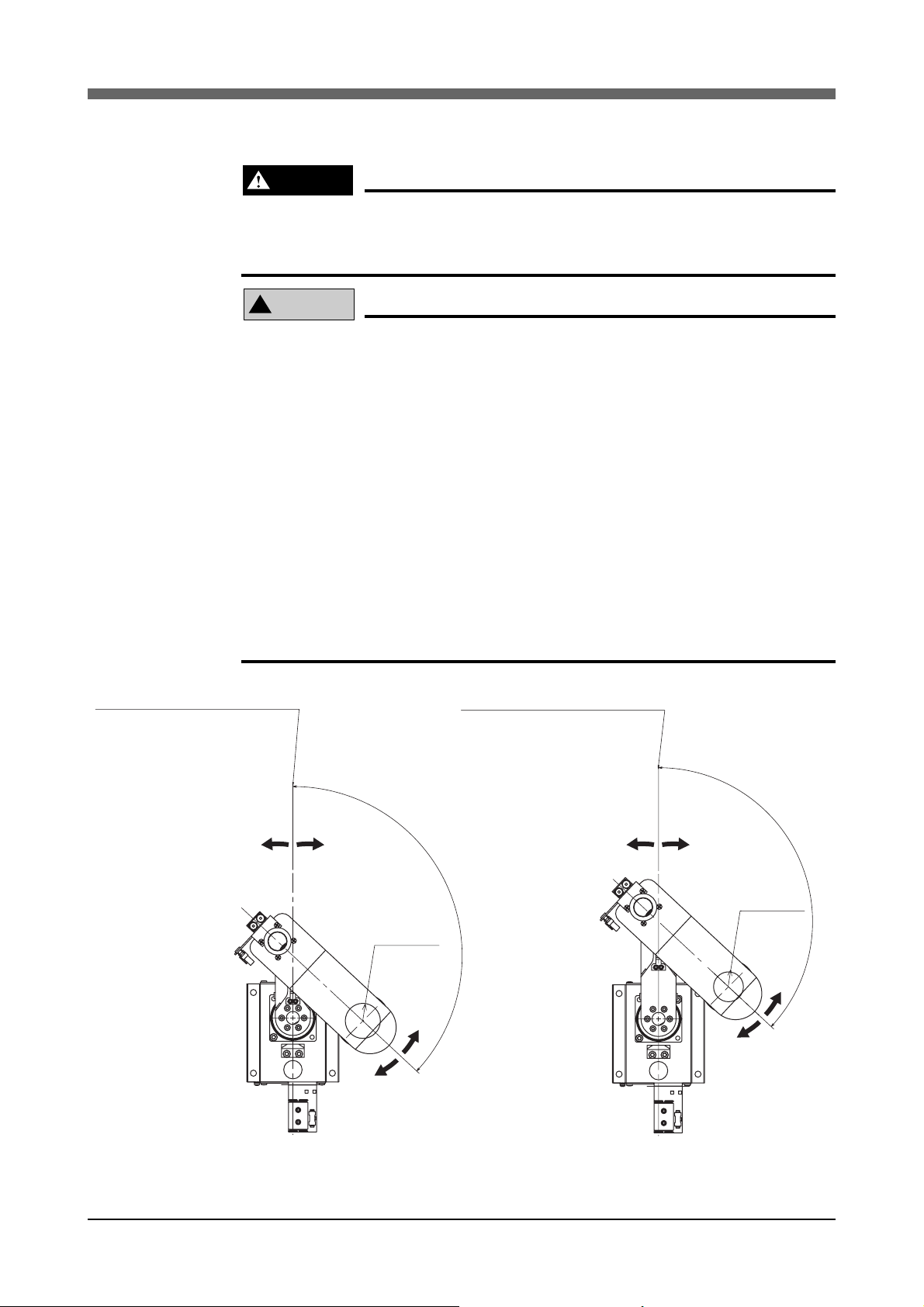

On the YK120X and YK180X series robots, the harness exerts a large reaction
force on the X and Y axis arms. When the power to the robot controller is
turned off, the arm positions might move slightly due to the harness reaction
force, depending on where the arms are positioned. If the arms moved a large
distance in this case, the correct position data may not be backed up. To avoid
this, before turning off the power to the robot controller, press the emergency
stop button and check that the robot arms have completely stopped.

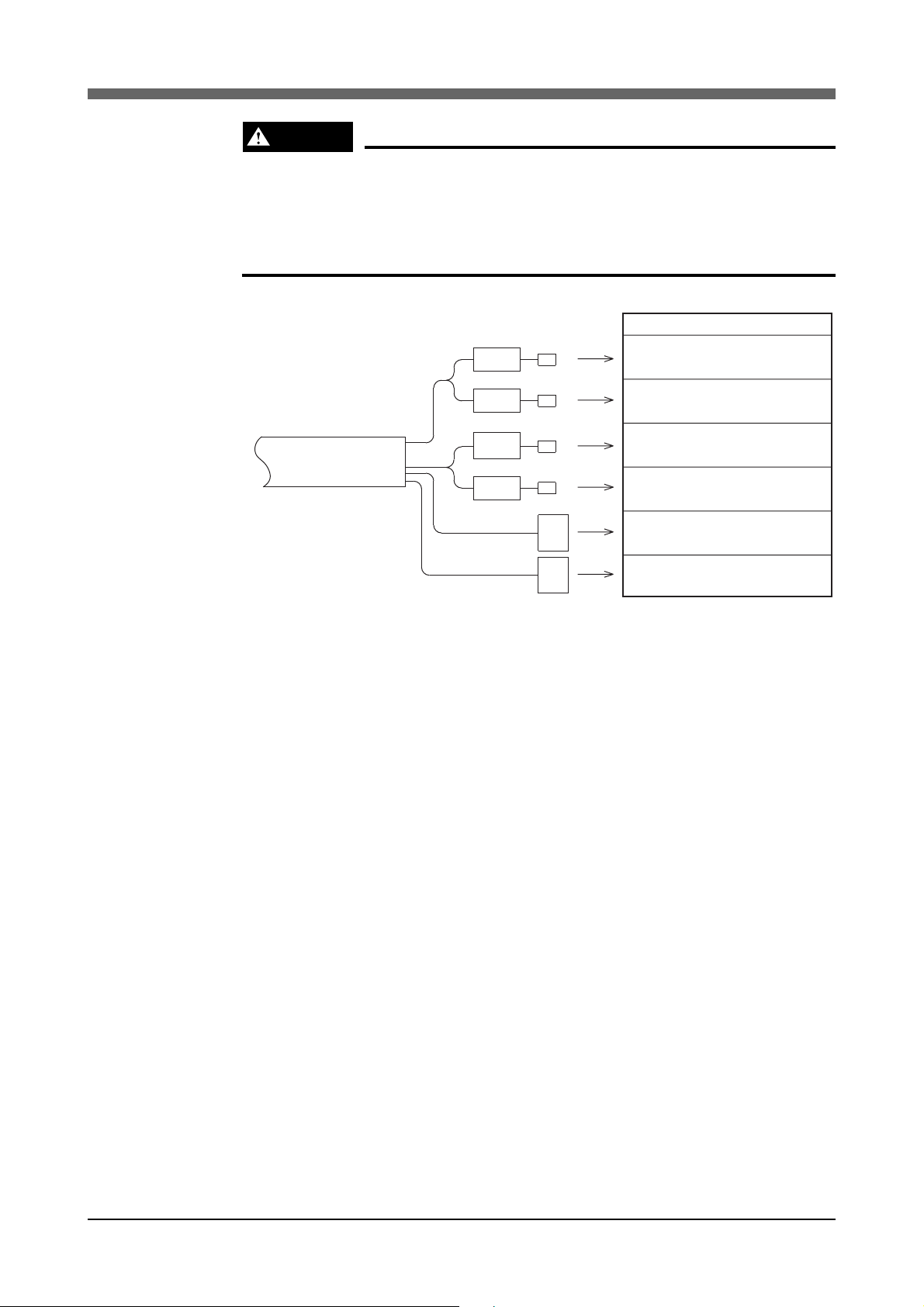

(3) Connection to the controller

The controller for the YK120X series robots (YK120X, YK150X) is designed
to provide 24V output and the model name "RCX142-T" is shown on the
serial number label (see Fig. 2-5). Do not connect other controllers to the
YK120X series robot. If operated from a controller other than the RCX142­T, the robot's motors may be damaged.

Introduction

The YAMAHA YK120X and YK180 series robots are SCARA type industrial
robots developed based on years of YAMAHA experience and achievements in
the automation field as well as efforts to streamline our in-house manufacturing
systems.
The SCARA robots have a two-joint manipulator consisting of an X-axis arm
and a Y-axis arm, and are further equipped with a vertical axis (Z-axis) and a
rotating axis (R-axis) at the tip of the manipulator. The YK120X and YK180
series robots can be used for a wide range of assembly applications such as
installation and insertion of various parts, application of sealant, and packing
operations.

This owner's manual describes the safety measures, handling, adjustment and
maintenance of YK120X series robots for correct, safe and effective use. Be sure
to read this manual carefully before installing the robot. Even after you have read
this manual, keep it in a safe and convenient place for future reference.
This owner's manual should be used with the robot and considered an integral
part of it. When the robot is moved, transferred or sold, send this manual to the
new user along with the robot. Be sure to explain to the new user the need to read
through this manual.

This owner's manual explains the YAMAHA industrial robots YK120X series
standard models (YK120X, YK150X), clean room models (YK120XC,
YK150XC), and YK180X series (YK180X, YK220X).
Some descriptions of YK120XC and YK150XC are not listed in this manual when
they are the same as standard models. Refer to the descriptions of standard models.
For information on difference between the clean room model and standard model,
refer to the description on the next page.
For details on specific operation and programming of the robot, refer to the separate
"YAMAHA robot controller owner's manual".

NOTES

•

The contents of this manual are subject to change without prior notice.

• Information furnished by YAMAHA in this manual is believed to be reliable.

However, if you find any part unclear or inaccurate in this manual, please
contact YAMAHA sales office or dealer.

YAMAHA MOTOR CO., LTD.
IM Company

Clean Room Models YK120XC, YK150XC

Compared to standard YX120X and YK150X, clean room models differ in the
following points.

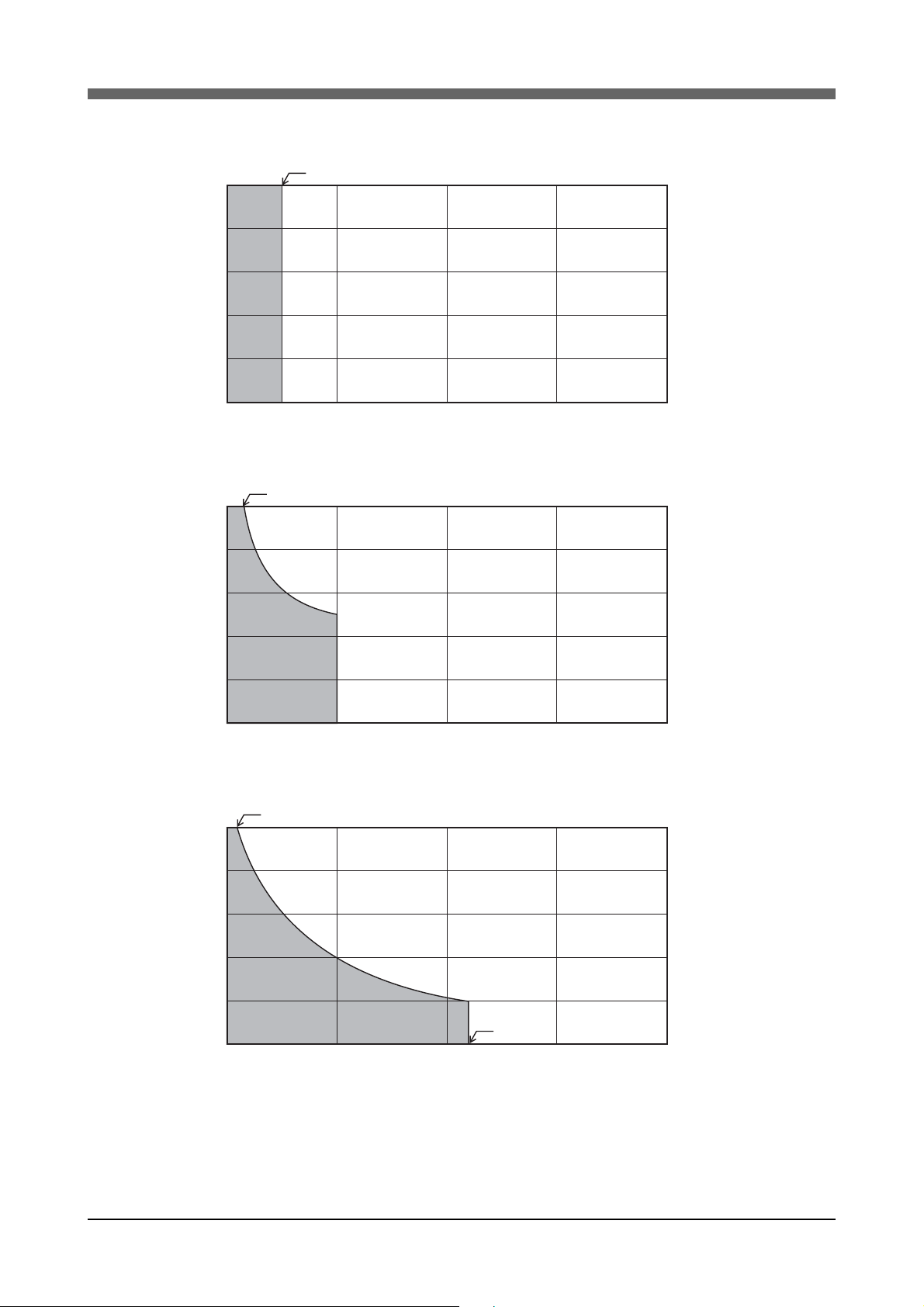

1. Robot parameter has been changed. (See section 4 in chapter 2.)

The Z-axis speed is lowered to maintain the degree of cleanliness and the
bellows durability. (This is preset prior to shipment.)

2. Suction couplers have been added. (See section 6 in chapter 3.)

For the suction amount versus degree of cleanliness, see "1-1 Basic
specifications" in chapter 7. For the location of the suction couplers, see "1­2 External view and dimensions" in chapter 7.
The suction amount for each suction coupler is very important to maintain
the degree of cleanliness and the bellows durability, so always comply with
the instruction.

3. R-axis machine reference adjustment is different.

(See section 3-4-1-2 in chapter 4.)

The structure around the R-axis origin sensor differs from standard
specifications, so the method for adjusting the machine reference is different.
Since the Z-axis bellows type suction tube is attached to the R-axis, care
must be taken when performing return-to-origin so that the suction tube will
not entangle around the R-axis.

4. Different grease is used for the Z-axis drive mechanism.

(See section 4 in chapter 5.)

LG2 grease (NSK) suitable for clean room is used for the Z-axis ball screw,
ball spline and linear bushing shaft.
Use the LG2 clean room grease for periodic maintenance.

5. Specifications and external appearance are somewhat changed.

(See sections 1-1 and 1-2 in chapter 7.)

The X- and Y-axis repeated positioning accuracy and Z-axis maximum speed
are different from standard specifications.
The external appearance and dimensions are different in that the Z-axis
bellows, flexible tube and suction couplers are added.
