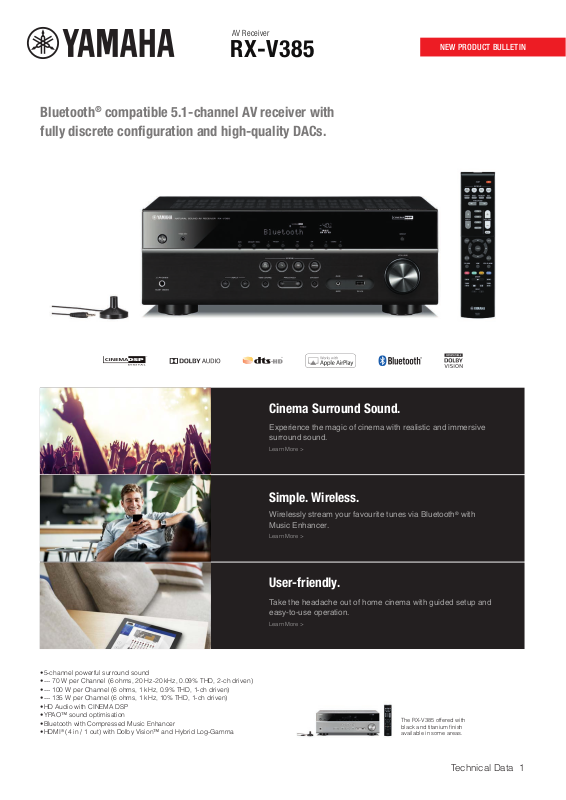

Page 1
AV Receiver
RX-V385
Bluetooth® compatible 5.1-channel AV receiver with
fully discrete configuration and high-quality DACs.
NEW PRODUCT BULLETIN
•5-channel powerful surround sound
•--- 70 W per Channel (6 ohms, 20 Hz-20 kHz, 0.09% THD, 2-ch driven)
•--- 100 W per Channel (6 ohms, 1 kHz, 0.9% THD, 1-ch driven)
•--- 135 W per Channel (6 ohms, 1 kHz, 10% THD, 1-ch driven)
•HD Audio with CINEMA DSP
•YPAO™ sound optimisation
•Bluetooth with Compressed Music Enhancer
®
(4 in / 1 out) with Dolby Vision™ and Hybrid Log-Gamma
•HDMI
Cinema Surround Sound.
Experience the magic of cinema with realistic and immersive
surround sound.
Learn More >
Simple. Wireless.
Wirelessly stream your favourite tunes via Bluetooth® with
Music Enhancer.
Learn More >
User-friendly.
Take the headache out of home cinema with guided setup and
easy-to-use operation.
Learn More >
The RX-V385 offered with
black and titanium finish
available in some areas.
Technical Data 1
Page 2
AV Receiver
RX-V385
NEW PRODUCT BULLETIN
Cinema Surround Sound.
Simple. Wireless.
Experience the Ambience
CINEMA DSP
Exclusive Yamaha CINEMA DSP
technology supports playback of HD
Audio (Dolby
Audio™, etc.), providing natural and
expansive sound imaging. CINEMA DSP
transforms the dynamics of the listening
environment, with acoustic reproduction
of famous venues such as the Bottom
Line, Roxy Theater, and European
cathedrals—letting you experience their
ambience right in your room.
®
TrueHD, DTS-HD Master
Easy Sound Optimisation
YPAO™
YPAO (Yamaha Parametric room Acoustic
Optimizer) analyses the room acoustics and
your system, then precisely adjusts various
audio parameters to provide the best sound
for your room. Simply by placing the
supplied microphone at your listening
position and switching YPAO on, the system
is automatically tuned for optimum
performance in your home theatre room.
Full Sound Enjoyment
Discrete Amp Configuration
The RX-V385 was designed with a
strong focus on achieving exceptionally
high clarity sound. It employs a discrete
amp configuration and a low-jitter PLL
circuit, which contributes to its excellent
audio performance.
Surround
Left
Presence (Front Line)
Dialogue Effect Music
Surround
Right
Dynamic Streaming Sound
Bluetooth® with Music Enhancer
Thanks to its built-in Bluetooth
functionality, this AV receiver lets you
enjoy easy wireless music playback
from smartphones and other devices.
The Compressed Music Enhancer from
Yamaha is now optimised for Bluetooth
audio transmissions to ensure that your
music will have vivid, dynamic sound
quality during wireless playback.
Full 4K Ultra HD Support
HDMI® Terminals
Providing complete compatibility with
the latest HDMI standards, this AV
receiver delivers transmission of 4K
video at 60 frames/second
pass-through. It also supports HDR
(high dynamic range) Video including
Dolby Vision™ and Hybrid Log-Gamma
which provides incredible contrast,
smooth tone and rich, bright colours—giving you full, high-definition
enjoyment with an exceptionally realistic and natural picture quality.
Even Higher Quality Sound
Bi-amp Connection
The RX-V385 features bi-amping
capability, driving the treble and bass
ranges of the front speakers (L, R) with
independent amplifiers. In addition to
providing greater power, it also prevents
interference between the high and low
sounds, further improving the sound of
the front speakers.
Technical Data 2
Page 3
AV Receiver
RX-V385
User-friendly.
High Definition, Comfortable Viewing
On-screen Display
This system features a high-precision
font, letting you view detailed
information of your music contents,
and has multi-lingual capability for
viewing in English, Japanese,
French, German, Spanish, Russian,
Italian, or Chinese.
NEW PRODUCT BULLETIN
Install with Ease
AV Setup Guide
No worries, no confusion. Use this
special app and get expert assistance
with cable connections between the
AV receiver and source devices. It
even guides you through various other
settings such as speaker connections,
TV and source device connections
and power amplifier assignments.
Other Features
• Eco Mode
When ECO Mode is turned on it can reduce power consumption by about 20
percent*, thanks to an advanced energy saving design. *Compared to power
consumption when ECO mode is off (Yamaha measurement).
Save Energy by 20%
Technical Data 3
Page 4
AV Receiver
RX-V385
NEW PRODUCT BULLETIN
Amplifier Section
Surround Sound
Processing
Audio Features
Video Features
Channel
Rated Output Power
(1kHz, 1ch driven)
Rated Output Power
(20Hz-20kHz, 2ch driven)
Maximum Effective Output Power
(1kHz, 1ch driven)(JEITA)
Dynamic Power per Channel
(8/6/4/2 ohms)
CINEMA DSP
DSP Programs
Dialog Level Adjustment
SILENT CINEMA / Virtual CINEMA DSP
Dolby TrueHD
Dolby Digital Plus
DTS-HD Master Audio
File Format
Compressed Music Enhancer Yes (incl. enhancer for Bluetooth®)
YPAO sound optimization Yes
Adaptive DRC (Dynamic Range Control) Yes
Initial Volume & Maximum Volume Setting Yes
Audio Delay Yes (0-500 ms)
DA Converter Burr-Brown 384 kHz / 32-bit DAC x 3
4K Ultra HD Pass-through and upscaling Yes (4K / 60p, 4:4:4)
HDMI 3D passthrough Yes
HDMI eARC Yes (via future firmware update)
HDMI Audio Return Channel Yes
HDMI upscaling Yes (HDMI® to HDMI)
5.1
100 W (6 ohms, 0.9% THD)
70 W (6 ohms, 0.09% THD)
135 W (6 ohms, 10% THD)
- / 110 / 130 / 150 W
Yes
17
Yes
Yes (Virtual CINEMA FRONT)
Yes
Yes
Yes
MP3 / WMA / MPEG-4 AAC / WAV: up to 48 kHz / 16-bit
Deep Color/x.v.Color/24Hz Refresh Rate /
Auto Lip-Sync
Yes
Technical Data 4
Page 5
AV Receiver
RX-V385
NEW PRODUCT BULLETIN
Connectivity
Tuner Section
User Interface
General
HDMI Input/Output
HDMI CEC
USB Input
Bluetooth
Front AV Input
Digital Audio Input/Output: Optical
Digital Audio Input/Output: Coaxial
Analog Audio Input/Output
Composite Video Input/Output
Preout
Headphone Output
FM/AM Tuner
On-screen display
SCENE
Remote Control Unit
Standby Power Consumption (IR only)
Auto Power Standby
ECO mode
Dimensions (W x H x D)
Weight
4 / 1
(HDCP2.2, HDR10 / Dolby Vision / HLG and BT.2020 compatible)
Yes
USB Memory, Portable Audio Player
Yes (SBC)
USB / Mini Jack
1 / 0
2 / 0
3 (front 1) / 0
3 / 1
SW
1
Yes
Yes (colour OSD)
SCENE (4 sets)
Yes
Yes
0.2W
Yes
Yes
435 x 161 x 315 mm; 17-1/8” x 6-3/8” x 12-3/8”
7.7 kg; 17.0 lbs.
Technical Data 5
