YAMAHA VX500DXF, VT500F PARTS CATALOGUE 01

VX500DXF

(8DT4)

U.S.A.,CANADA

VT500F

(8CY5)

2

A

U.S.A.,CANADA,EUROPE

218DT–100E1

VX500DXF

VT500F

A

3

FOREWORD

This Parts Catalogue isrelatedtotheparts forthemodel(s)inthebelowframe. When youare
ordering replacement parts, please refer to this Parts Catalogue an d quote both part numbers
and part names correctly.

VX500DXF(8DT4)/VT500F(8CY5)

1. Modifications or additions which have been made after issue of the Parts Catalogue
will be announced in the YamahaParts News.
It is advisable that you make necessary corrections to the Parts Catalogue according
to the YamahaParts News.

2. Abbreviations
The following abbreviations are used in this Parts Catalogue.

“UR” Use specified parts number.
“UN” Use as many as needed.
“AP” Alternate Parts
“LM” Local Made (Parts need to be ordered locally)
“F#” Frame No. (Applicable machine No.)

3. Parts, which are to be supplied in an assembly, are listed with a dot(.) in front of the
part name as shown below.

EXAMPLE

CARBURETOR ASSY
.JET, PILOT
.NOZZLE, MAIN

4. Number of component for assembly
The numeral appearing to the right of each component part indicates the quantity of
parts for each assembly unit.

EXAMPLE

PART NO. DESCRIPTION Q’TY REMARKS
2F5–83310–60 FRONT FLASHER LIGHT ASSY 2
115–83311–60 .BULB (6V–18W) 1

5. Applicable colors of graphics are represented in the “REMARKS” as shown below.
PART NO. DESCRIPTION Q’TY REMARKS

2F5–83310–60 FRONT FLASHER LIGHT ASSY 2
115–83311–60 .BULB (6V–18W) 1

6. Applicable Starting Serial No. and Color Code

Starting Serial NO.:
Starting Serial NO.:

Frame Serial No.

Color
Code

0660 8DT4 SILVER METALLIC 1 SM1 USA, CAN,
0752 8CY5 LIGHT YELLOWISH GRAY

7. Note that the illustration for reference in funding parts numbers, not to b e used for

assembling. When assembling, pleas use the applicable service manual.

8. The asterisk (*) before a reference number indicates modification items after the first

edition.

MODEL Color Name

8DT–003820
8CY–008030

METALLIC 9

Abbrevi-

ation

LYNM9 USA, CAN,

Country

(destination)

EUR

A

4

FIG. 1 CYLINDER HEAD

REF.
NO.

10 8A7–12412–01 SEAL, THERMOSTAT 1 1

11 82M–12413–00 COVER, THERMOSTAT 1 1
12 97007–06020 BOLT 3 3
13 92907–06600 WASHER, PLATE 3 3
14 95807–06012 BOLT, FLANGE 1 1
15 90430–06166 GASKET 1 1

PARTNO. DESCRIPTION REMARKS

1 8CJ–11111–11 HEAD, CYLINDER 1 1 1
2 8CH–12469–00 JOINT 1 1 1
3 8CJ–1111K–00 EMBLEM 1 1
4 94702–00188 PLUG, SPARK (NGK BR9ES) 2 2
5 8CJ–11181–00 GASKET, CYLINDER HEAD 1 1 1
6 95707–08500 NUT , FLANGE 12 12
7 8CC–85790–00 THERMOSENSOR ASSY 1 1
8 90201–12790 WASHER, PLATE 1 1
9 90201–345G2 WASHER, PLATE 1 1

8DT4

8CY5

B

16 90116–08392 BOLT, STUD 12 12
17 8CJ–11311–00 CYLINDER 1 2 2
18 90116–10574 BOLT, STUD 8 8
19 99530–14016 PIN, DOWEL 4 4
20 95707–10500 NUT , FLANGE 8 8
21 8CR–11351–00 GASKET, CYLINDER 1 1

2

FIG. 2 CRANKSHAFT. PISTON

REF.
NO.

10 82M–11442–00 .CRANK 4 1 1

11 82M–11651–00 .ROD, CONNECTING 2 2
12 82M–11681–00 .PIN, CRANK 1 1 1
13 93310–525S1 .BEARING 2 2
14 82M–11685–00 .WASHER, CRANK PIN 3 3
15 8R9–11685–00 .WASHER,CRANK PIN 1 1

PARTNO. DESCRIPTION REMARKS

1 8CJ–11631–00–A0 PISTON (STD) 2 2
2 8AB–11603–01 PISTON RING SET (STD) 2 2
3 8H8–11633–00 PIN, PISTON 2 2
4 93450–21053 CIRCLIP 4 4
5 93310–320G0 BEARING 2 2
6 8CR–11400–02 CRANKSHAFT ASSY 1 1
7 82M–11412–02 .CRANK 1 1 1
8 82M–11422–00 .CRANK 2 1 1
9 82M–11432–00 .CRANK 3 1 1

8DT4

8CY5

B

16 93399–99946 .BEARING 1 1
17 93306–30720 .BEARING 1 1
18 90201–357E4 .WASHER, PLATE 1 1
19 93306–20712 .BEARING 2 2
20 82M–11515–00 .SEAL, LABYRINTH 1 1 1
21 93399–99945 .BEARING 1 1
22 93440–80023 .CIRCLIP 2 2
23 8CR–11428–01 .BEARING 1 1 1
24 8CR–11429–00 .BEARING 2 1 1
25 93103–35176 OIL SEAL 1 1
26 93103–32153 OIL SEAL 1 1
27 90280–05033 KEY, WOODRUFF 1 1

3

FIG. 2 CRANKSHAFT. PISTON

REF.
NO.

28 90170–16425 NUT 1 1
29 92907–16600 WASHER 1 1

PARTNO. DESCRIPTION REMARKS

8DT4

8CY5

B

4

FIG. 3 WATERPUMP

REF.
NO.

10 8CR–12439–00 O–RING 1 1

11 98507–06035 SCREW, PAN HEAD 4 4
12 92907–06600 WASHER, PLATE 4 4
13 95817–08040 BOLT, FLANGE 4 4
14 82M–12444–00 BELT 1 1 1
15 8CR–12481–00 PIPE 1 1 1

PARTNO. DESCRIPTION REMARKS

1 8CR–12421–01 HOUSING, WATER PUMP 1 1
2 93306–20117 BEARING 1 1
3 82M–12438–00 SEAL, MECHANICAL 1 1
4 82M–12437–00 STOPPER 1 1
5 90201–08088 WASHER, PLATE 1 1
6 82M–12451–00 IMPELLER, WATER PUMP 1 1
7 8CR–12450–00 IMPELLER SHAFT ASSY 1 1
8 8CR–12422–10 COVER, HOUSING 1 1
9 8CH–12469–00 JOINT 1 1 1

8DT4

8CY5

B

16 90467–28046 CLIP 2 2
17 99530–10114 PIN, DOWEL 2 2

5

FIG. 4 RADIATOR. HOSE

REF.
NO.

10 90501–120K6 SPRING, COMPRESSION 1 1

11 90467–28046 CLIP 4 4
12 90467–23067 CLIP 8 8
13 8CR–1240E–03 HEAT EXCHANGER 1

PARTNO. DESCRIPTION REMARKS

1 8CR–12482–00 PIPE 2 1 1
2 22W–12462–00 CAP, RADIATOR 1 1
3 8CR–12591–00 SUPT, FILLER NECK 1 1
4 8CR–12483–00 PIPE 3 1 1
5 8CR–12491–00 CLAMP 1 1 1
6 95807–06014 BOLT, FLANGE 1 1
7 8CR–12484–00 PIPE 4 2

8CW–12484–00 PIPE 4 2
8 8CR–12485–00 PIPE 5 1 1
9 8CR–12476–00 PIPE 6 1 1

8CW–1240E–03 HEAT EXCHANGER 1

8DT4

8CY5

B

14 8CR–1240F–03 HEAT EXCHANGER 1

8CW–1240F–03 HEAT EXCHANGER 1

15 90267–47186 RIVET, BLIND 6 6
16 90267–47195 RIVET, BLIND 36

90267–47195 RIVET, BLIND 44

17 8CR–1241A–01 HEAT EXCHANGER ASSY 4 1 1
18 90210–06006 .WASHER, SEAL 1 1
19 95817–06016 .BOLT, FLANGE 1 1
20 90267–47195 RIVET, BLIND 4 4
21 8CR–1249A–01 COCK ASSY 1 1
22 8CH–24534–00 .SEAL, COCK 1 1
23 98907–06020 SCREW, BIND 2 2

6

FIG. 4 RADIATOR. HOSE

REF.
NO.

24 8CR–1243A–00 HOSE 1 2 2
25 8CR–1243E–00 HOSE 2 1 1
26 90467–11028 CLIP 6 6

PARTNO. DESCRIPTION REMARKS

8DT4

8CY5

B

7

FIG. 5 OIL PUMP

REF.
NO.

PARTNO. DESCRIPTION REMARKS

1 8AB–13100–03 OIL PUMP ASSY 1 1
2 89A–13185–00 .BOLT , BREATHER 1 1
3 89A–13187–00 .GASKET, BREATHER BOLT 1 1
4 8CR–26320–02 PUMP CABLE ASSY 1 1
5 95707–08300 NUT , FLANGE 1 1
6 91317–05016 BOLT 2 2
7 91A30–03033 TUBE, FLEXIBLE VINYL 1 1
8 90468–02025 CLIP 2 2
9 90464–23041 CLAMP 1 1

8DT4

8CY5

B

8

FIG. 6 INTAKE

REF.
NO.

10 95827–06020 BOLT, FLANGE 8 8

11 90462–08246 CLAMP 1 1
12 8CR–13581–00 CHAMBER, AIR 1 1
13 90467–24096 CLIP 2 2
14 8CR–14453–00 JOINT, AIR CLEANER 1 2 2
15 90460–68230 CLAMP, HOSE 4 4

PARTNO. DESCRIPTION REMARKS

1 4DA–13610–00 REED VAL VE ASSY 2 2
2 3SP–13613–00 .REED, VALVE 2 2
3 4DA–13616–00 .STOPPER, REED VALVE 2 2
4 98507–03008 .SCREW, PAN HEAD 6 6
5 92907–03100 .WASHER 6 6
6 4DA–13625–00 .SPACER, REED VAL VE 1 1
7 80L–13621–01 GASKET, VALVE SEAT 2 2
8 8CR–13555–00 MANIFOLD, INTAKE 2 2
9 86M–13575–00 BAND 2 2

8DT4

8CY5

B

16 8CR–14431–01 SILENCER, INTAKE 1 1 1
17 8CR–14441–01 SILENCER, INTAKE 2 1 1
18 8CR–14452–00 SEAL 1 1
19 8CR–14477–00 PLATE 1 1
20 90167–05043 SCREW, TAPPING 6 6
21 90465–08028 CLAMP 1 1
22 8CR–14450–00 ELEMENT ASSY, AIR CLEANER 1 1
23 90119–06182 BOLT, WITH WASHER 1 1
24 8CR–24410–01 FUEL PUMP ASSY 1 1
25 95707–06500 NUT , FLANGE 2 2
26 90445–11735 HOSE (L320) 1 1
27 90467–11032 CLIP 2 2

9

FIG. 6 INTAKE

REF.
NO.

28 90445–226J7 HOSE (L150) 1 1
29 90445–093K1 HOSE (L240) 2 2
30 90467–09026 CLIP 4 4

PARTNO. DESCRIPTION REMARKS

8DT4

8CY5

B

10

FIG. 7 CARBURETOR

REF.
NO.

PARTNO. DESCRIPTION REMARKS

1 8CJ–14100–10 CARBURETOR ASSY 1 1
2 8AY–14147–00 .O–RING 2 2
3 3H1–14142–45 .JET, PILOT (# 45) 2 2 STD

3H1–14142–50 .JET, PILOT (# 50) 2 2 AP
4 8CA–14116–A3 .NEEDLE 2 2
5 8AY–14141–56 .NOZZLE, MAIN 2 2
6 8CA–14194–00 .RING 2 2
7 3G2–1423E–60 .JET, MAIN (#151.3) 2 2 STD

3G2–14231–28 .JET, MAIN (#140) 2 2 AP

3G2–14231–29 .JET, MAIN (#145) 2 2 AP

3G2–14231–30 .JET, MAIN (#150) 2 2 AP

3G2–14231–31 .JET, MAIN (#155) 2 2 AP

3G2–1423A–79 .JET, MAIN (#142.5) 2 2 AP

3G2–1423A–81 .JET, MAIN (#152.5) 2 2 AP

3G2–1423A–80 .JET, MAIN (#147.5) 2 2 AP

8DT4

8CY5

B

3G2–1423E–55 .JET, MAIN (#138.8) 2 2 AP

3G2–1423E–56 .JET, MAIN (#141.3) 2 2 AP

3G2–1423E–57 .JET, MAIN (#143.8) 2 2 AP

3G2–1423E–58 .JET, MAIN (#146.3) 2 2 AP

3G2–1423E–59 .JET, MAIN (#148.8) 2 2 AP

3G2–1423E–61 .JET, MAIN (#153.8) 2 2 AP

3G2–1423E–62 .JET, MAIN (#156.3) 2 2 AP
8 500–14115–00 .PLUG, SCREW 2 2
9 558–14147–00 .O–RING 2 2

10 2LN–14565–00 .SCREW 2 2

11 8AY–14185–10 .FLOAT 2 2

12 537–14186–00 .PIN, FLOAT 2 2

11

FIG. 7 CARBURETOR

REF.
NO.

13 1AE–14190–15 .NEEDLE VALVE ASSY 2 2
14 8F2–14147–00 .O–RING 2 2
15 8CJ–14112–30 .VALVE, THROTTLE 1 2 2
16 8AB–14227–00 .WASHER (T=0.4MM) 2 2
17 256–14919–00 .CLIP 2 2
18 8CW–14905–00 .LEVER, STARTER 1 1
19 8AY–14243–00 .PLATE 2 2
20 8CD–14137–00 .CLIP 2 2
21 8CC–14918–00 .RING 4 4
22 3MA–14937–00 .CLIP 2 2
23 620–14198–00 .GASKET 2 2
24 3GF–14126–00 .GASKET 4 4
25 8CC–14216–00 .SCREW 4 4
26 8CD–14188–00 .CONNECTOR 2 2
27 8CW–14905–10 .LEVER, STARTER 1 1

PARTNO. DESCRIPTION REMARKS

8DT4

8CY5

B

28 98502–05010 .SCREW, PAN HEAD 2 2
29 3FV–14191–00 .PLUG, DRAIN 2 2
30 8CJ–14348–00 .PIPE 1 2 2
31 98502–04014 .SCREW, PAN HEAD 8 8
32 8CW–14171–00 .PLUNGER, STARTER 2 2
33 256–14135–00 .SPRING, PLUNGER 2 2
34 1FN–14174–00 .CAP, PLUNGER 2 2
35 302–14173–00 .COVER, PLUNGER CAP 2 2
36 3H1–14147–00 .O–RING 2 2
37 3H1–14962–00 .WASHER 2 2
38 5K7–14134–00 .SPRING, AIR ADJUSTING 2 2
39 89A–14565–00 .SCREW, PILOT ADJUSTING 2 2

12

FIG. 7 CARBURETOR

REF.
NO.

40 8AY–14265–00 .COLLAR 1 1
41 8AY–14199–00 .GASKET 2 2
42 98702–05018 .SCREW, FLAT HEAD 1 1
43 8AY–14918–00 .RING 1 1
44 97602–04108 .SCREW, PAN HEAD WITH WASHER 4 4
45 583–14264–00 .SPACER 2 2
46 97602–05116 .SCREW, PAN HEAD WITH WASHER 1 1
47 239–14172–08 .PILOT JET, AIR (0.8) 2 2 STD

48 8CJ–14275–00 .SPRING 1 1
49 8CC–14122–00 .SCREW, THROTTLE 1 1
50 2J2–14133–00 .SPRING, THROTTLE STOP 1 1
51 89A–14265–00 .COLLAR 1 1
52 22F–14117–00 .WASHER, PLUG SCREW 1 1
53 1UF–14952–00 .WASHER 1 1

PARTNO. DESCRIPTION REMARKS

239–14172–06 .PILOT JET, AIR (0.6) 2 2 AP

8DT4

8CY5

B

54 89A–14594–00 .NUT 1 1
55 89A–24529–00 .SPRING 1 1
56 87S–8259A–00 .SWITCH, CARBURETOR 1 1
57 98502–05014 .SCREW, PAN HEAD 8 8
58 35H–14139–00 .CLIP, PIPE 3 3
59 4N0–14251–00 .NIPPLE 2 2
60 8CH–14348–00 .PIPE 1 2 2
61 89A–14987–00 .HOSE 2 2
62 87M–14137–00 .CLIP 1 1
63 8CJ–14348–10 .PIPE 1 1 1
64 90467–10035 .CLIP 2 2
65 1J7–14994–00 .NET, FILTER 1 1

13

FIG. 8 EXHAUST

REF.
NO.

10 8A5–14728–02 PROTECTOR, MUFFLER 2 1 1

11 83R–14728–01 PROTECTOR, MUFFLER 2 1 1
12 8CR–14738–00 PROTECTER, MUFFLER 3 1 1
13 8CH–14633–00 RING 1 1
14 8CR–14728–00 PROTECTOR, MUFFLER 2 1 1
15 90506–20093 SPRING, TENSION 2 2

PARTNO. DESCRIPTION REMARKS

1 8CR–14610–00 EXHAUST PIPE ASSY 1 1 1
2 8CA–14714–00 GASKET, MUFFLER 1 1
3 8CR–14613–00 GASKET, EXHAUST PIPE 2 2
4 95817–08020 BOLT, FLANGE 4 4
5 8CR–14620–01 EXHAUST PIPE ASSY 2 1 1
6 8CR–14640–01 SECOND SILENCER, MUFFLER 1 1
7 90506–20272 SPRING, TENSION 4 4
8 90506–16335 SPRING, TENSION 1 1
9 90506–16504 SPRING, TENSION 1 1

8DT4

8CY5

B

16 90338–09265 PLUG 1 1

14

FIG. 9 CRANKCASE

REF.
NO.

10 93306–20117 BEARING 1 1

11 90461–12145 CLAMP 1 1
12 98507–06012 SCREW, PAN HEAD 2 2

PARTNO. DESCRIPTION REMARKS

1 8CR–15100–01 CRANKCASE ASSY 1 1
2 99530–12016 .PIN, DOWEL 2 2
3 90201–08087 WASHER, PLATE 2 2
4 95027–08016 BOLT, FLANGE 2 2
5 93604–07141 PIN, DOWEL 4 4
6 93603–10049 PIN, DOWEL 3 3
7 J38–11116–00 JOINT, BREATHER 1 1
8 95817–08080 BOLT, FLANGE 12 12
9 95817–08035 BOLT, FLANGE 3 3

8DT4

8CY5

B

15

FIG. 10 STARTER

REF.
NO.

10 92901–06100 .WASHER, SPRING 1 1

11 95301–06700 .NUT 1 1
12 8G5–15739–00 .WASHER, THRUST 1 1
13 8F3–15751–00 .WIRE, STARTER 1 1
14 8F3–15755–00 .HANDLE, STARTER 1 1
15 82M–15779–00 .COVER 1 1

PARTNO. DESCRIPTION REMARKS

1 84M–15710–01 STARTER ASSY 1 1
2 82M–15711–00 .CASE, STARTER 1 1
3 8F3–15714–01 .DRUM, SHEAVE 1 1
4 8F3–15741–01 .PAWL, DRIVE 1 1
5 8F3–15713–01 .SPRING, STARTER 1 1
6 8F3–15715–00 .SPRING, FRICTION 1 1
7 8F3–15739–01 .WASHER, THRUST 1 1
8 8F3–15734–00 .SPRING, RETURN 1 1
9 82M–15716–00 .PLATE,DRIVE 1 1

8DT4

8CY5

C

16 90387–063E9 COLLAR 4 4
17 90385–12036 BUSH 8 8
18 90119–06211 BOLT, WITH WASHER 4 4
19 8CA–12618–00 PULLEY 1 1 1
20 8CA–15723–00 PULLEY, STARTER 1 1
21 8CA–15721–00 SHIM (0.5MM) 1 1 UR UN

8CA–15722–00 SHIM (1.0MM) 1 1 UR UN
22 98707–06016 SCREW, FLAT HEAD 3 3
23 97027–08030 BOLT 3 3
24 92907–08600 WASHER, PLATE 3 3
25 8CR–15758–00 GUIDE, ROPE 1 1
26 95807–06012 BOLT, FLANGE 2 2

2

FIG. 11 PRIMARY SHEAVE

REF.
NO.

10 91609–50032 PIN, SPRING 3 3

11 90387–0514U COLLAR 3 3
12 90105–05644 BOLT, WASHER BASED 3 3
13 95607–05200 NUT, SELF–LOCKING 3 3
14 8BV–17630–10 PRIMARY SHEAVE CAP COMP. 1 1
15 90380–28237 .BUSH, SOLID 1 1

PARTNO. DESCRIPTION REMARKS

1 8CR–17611–01 SHEAVE, PRIMARY FIXED 1 1
2 8V0–17639–00 STOPPER 2 2
3 8BV–17620–03 PRIMARY SLIDING SHEAVE COMP. 1 1
4 90384–41242 .BUSH, BIMETAL FORMED 1 1
5 90387–0514T COLLAR 3 3
6 90105–05644 BOLT, WASHER BASED 3 3
7 95607–05200 NUT, SELF–LOCKING 3 3
8 8CA–17640–12 SPIDER COMPLETE 1 1
9 8BW–17653–00 SLIDER 6 6

8DT4

8CY5

C

16 97017–06030 BOLT 6 6
17 92907–06600 WASHER, PLATE 6 6
18 90202–09227 WASHER, PLATE 6 6
19 8CR–17624–10 ROLLER, COMP 3 3
20 90380–09245 .BUSH, SOLID 1 1
21 90202–08204 WASHER, PLATE 6 6
22 8CR–17605–10 WEIGHT COMP 3

8AB–17605–10 WEIGHT COMP 3 FOR USA/CAN

8CR–17605–10 WEIGHT COMP 3 FOR EUR
23 90380–08244 .BUSH, SOLID 1 1
24 90261–06028 RIVET, COUNTERSUNK (AL10.3MM) 3 (IN)

90261–06015 RIVET, COUNTERSUNK (ST10.3MM) 3 (IN) FOR USA/CAN

3

FIG. 11 PRIMARY SHEAVE

REF.
NO.

24 90261–06033 RIVET, COUNTERSUNK (ST17.2MM) 3 (IN) FOR EUR
25 90261–06034 RIVET, COUNTERSUNK (ST13.9MM) 3 (OUT)

26 90501–550J8 SPRING, COMPRESSION 1 (WH–P–WH)

PARTNO. DESCRIPTION REMARKS

90261–06028 RIVET, COUNTERSUNK (AL10.3MM) 3 (OUT) FOR EUR

8DT4

8CY5

90501–550J8 SPRING, COMPRESSION 1 FOR USA/CAN

90501–582J1 SPRING, COMPRESSION 1 FOR EUR (Y–P–Y)
27 8DM–1760A–19 GEAR 1 1 1
28 8DV–17617–10 BOLT CAP 6 6
29 8CJ–17641–00 V–BELT 1

8CH–17641–00 V–BELT 1
30 8V0–17647–00 BOLT (L=156.5MM) 1 1
31 92907–16100 WASHER 1 1

(WH–P–WH)

C

4

FIG. 12 SECONDARY SHEAVE

REF.
NO.

10 90179–08655 NUT 3 3

11 8BV–17604–31 SEAT SPRING SET 1 1
12 90384–38243 .BUSH, BIMETAL FORMED 1 1
13 90508–536A9 SPRING, TORSION 1 1
14 8CR–17681–10 SHAFT, SECONDARY 1 1

PARTNO. DESCRIPTION REMARKS

1 8CR–17660–20 SECONDARY FIXED SHEAVE COMP. 1 1
2 8AV–17688–10 .SHOE, RAMP 3 3
3 8BV–17656–00 STOPPER, HOLDER 1 1
4 90154–06062 SCREW, BINDING 3 3
5 8BU–17670–20 SECONDARY SLIDING SHEAVE 1 1
6 90384–38243 .BUSH, BIMETAL FORMED 1 1
7 95617–08630 .BOLT, STUD 3 3
8 90105–06734 BOLT, WASHER BASED 3 3
9 90201–06037 WASHER, PLATE (T=1.0) 3 3 UR UN

90201–061H1 WASHER, PLATE (T=0.5) 3 3 UR UN

8DT4

8CY5

C

15 8CR–47631–01 HOUSING, BEARING 1 1
16 93399–99943 BEARING 1 1
17 90113–06064 BOLT, SET 2 2
18 90109–083G2 BOLT 2 2
19 95707–08500 NUT , FLANGE 2 2
20 90201–222F0 WASHER, PLATE (T=0.5) 1 1 UR UN

90201–225A4 WASHER, PLATE (T=1.0) 1 1 UR UN
21 90387–1407L COLLAR 1 1
22 90201–141A3 WASHER, PLATE 1 1
23 90105–14766 BOLT, WASHER BASED 1 1

5

FIG. 13 ENGINE BRACKET

REF.
NO.

10 95707–10500 NUT , FLANGE 4 4

11 90201–10321 WASHER, PLATE 2 2
12 8CR–21416–00 BRACKET, FRONT UPPER 2 1 1
13 8CR–21417–00 BRACKET, FRONT LOWER 1 1 1
14 8CR–21486–00 DAMPER 2 1 1
15 95707–10500 NUT , FLANGE 2 2

PARTNO. DESCRIPTION REMARKS

1 8CR–21415–00 BRACKET, FRONT UPPER 1 1 1
2 8CR–21417–00 BRACKET, FRONT LOWER 1 1 1
3 8CR–21486–00 DAMPER 2 1 1
4 95707–10500 NUT , FLANGE 2 2
5 90105–083A2 BOLT, WASHER BASED 2 2
6 8CR–21425–00 BRACKET, REAR UPPER 1 2 2
7 90105–083A2 BOLT, WASHER BASED 4 4
8 8CR–21427–01 BRACKET, REAR LOWER 1 2 2
9 8CR–21486–00 DAMPER 2 2 2

8DT4

8CY5

C

16 90105–083A2 BOLT, WASHER BASED 2 2
17 95827–12030 BOLT, FLANGE 2 2
18 90201–120U9 WASHER, PLATE 2 2
19 95817–10025 BOLT, FLANGE 2 2
20 90201–10321 WASHER, PLATE 2 2

6

FIG. 14 OIL TANK

REF.
NO.

10 91A30–05085 TUBE, FLEXIBLE VINYL 1 1

11 90501–08430 SPRING, COMPRESSION 1 1
12 90501–08486 SPRING, COMPRESSION 1 1
13 91A30–05033 TUBE, FLEXIBLE VINYL 1 1
14 90501–083J8 SPRING, COMPRESSION 2 2
15 90445–084J2 HOSE (L500) 1 1

PARTNO. DESCRIPTION REMARKS

1 8CR–21751–10 TANK, OIL 1 1
2 863–21771–00 BODY, CAP 1 1
3 90430–31003 GASKET 1 1
4 89A–21815–00 CAP 1 1
5 90445–112E0 HOSE (L70) 1 1
6 90480–14101 GROMMET 2 2
7 90387–063G3 COLLAR 2 2
8 90462–08244 CLAMP 1 1
9 95827–06025 BOLT, FLANGE 2 2

8DT4

8CY5

C

16 90464–13073 CLAMP 1 1
17 90467–09026 CLIP 4 4

7

FIG. 15 FRAME

REF.
NO.

10 8CR–21943–01 .BRACKET, MAIN TRACK 1 2 2

11 8CR–21953–00 .BRACKET, MAIN TRACK 2 2 2

PARTNO. DESCRIPTION REMARKS

1 8CR–21940–05 FRONT FRAME COMP. 1 1
2 8CR–2191A–02 .BULKHEAD 1 1
3 8CR–12440–03 .HEAT EXCHANGER ASSY 1 1
4 90267–48176 .RIVET, BLIND 20 20 UN

90267–48177 .RIVET, BLIND 50 50 UN
90267–48015 .RIVET, BLIND 10 10 UN

5 8CJ–21950–09 REAR FRAME COMP. 1

8CY–21950–09 REAR FRAME COMP. 1

6 8CR–2198J–00 .COVER 3 1

8CY–2198J–00 .COVER 3 1
7 8CR–21960–08 FOOTREST COMP. 1 1 1
8 8CR–21970–08 FOOTREST COMP. 2 1 1
9 8CR–W2195–03 FRAME CONNECTION KIT 1 1

8DT4

8CY5

C

12 8CR–2196F–00 .BRACKET 3 1 1
13 8CR–21920–00 .HOUSING, REINF SUB–ASSY(L.H) 1 1
14 8CR–21939–00 .BRACKET, CHAIN HOUSING 3 3
15 8CR–21977–00 .CLAMP, FUEL PIPE 2 2
16 8CR–21917–00 .PANEL, SUB FRAME 6 1 1
17 8CR–21918–00 .PANEL, SUB–FRAME 7 1 1
18 90267–48176 .RIVET, BLIND 4 4
19 8CR–2194J–00 .STAY, MUFFLER 1 1
20 90267–47186 .RIVET, BLIND 1 1 UR UN(QTY:150)

90267–47197 .RIVET, BLIND 1 1 UR UN(QTY:10)

21 8CR–2198G–00 .COVER 2 1 1
22 90461–05003 .CLAMP 2 2

8

FIG. 15 FRAME

REF.
NO.

23 90461–06142 .CLAMP 1 1
24 90462–05059 .CLAMP 1 1
25 90461–10148 .CLAMP 1 1
26 8DF–21941–00 PIPE, PIVOT 1 1 1
27 8DF–21951–00 PIPE, PIVOT 2 1 1
28 90269–07080 RIVET 16 16
29 8CR–2198F–00 COVER 1 2 2
30 8CR–2195E–00 PLATE, STRG BRACKET 1 2 2
31 90267–48165 RIVET, BLIND 10 10
32 8CR–21912–01 PANEL, SUB FRAME 1 1 1
33 8CR–23788–11 PLATE, BACK UP 1 1
34 8CR–77128–00 STAY 4 1 1
35 8CR–2196A–02 FRAME UNDER 1 1 1
36 8CR–2196E–02 FRAME, UNDER 2 1 1
37 8CR–21972–00 BRACKET, GUARD FITTING 1 1

PARTNO. DESCRIPTION REMARKS

8DT4

8CY5

C

38 90267–48141 RIVET, BLIND 39 39
39 90201–05033 WASHER, PLATE 18 18
40 90267–47187 RIVET, BLIND 14 14
41 8CR–77512–00 BUMPER, FRONT 2 1 1
42 95807–08020 BOLT, FLANGE 4 4
43 8CR–21949–10 BRACKET, FRONT 1 1
44 8CR–21959–10 BRACKET, FRONT BUMPER 1 1
45 95607–08200 NUT, SELF–LOCKING 4 4
46 8CR–2196M–00 BRACKET, 5 2 2
47 95807–08040 BOLT, FLANGE 4 4
48 90387–0810F COLLAR 4 4
49 95707–08500 NUT , FLANGE 4 4

9

FIG. 15 FRAME

REF.
NO.

50 90465–08146 CLAMP 3 3
51 8CY–2198J–00 COVER 3 2
52 8CR–21923–02 REINEFORCEMENT, FRAME REAR 1 1 1
53 90267–47195 RIVET, BLIND 9

54 95027–08016 BOLT, FLANGE 4
55 95707–08500 NUT , FLANGE 4
56 90267–48141 RIVET, BLIND 8 8
57 8CR–21978–00 PROTECTOR, FRAME 1 1
58 8CR–2197B–00 PROTECTOR, FRAME 1 1
59 8CR–21973–00 HOOK 1 1
60 90267–48169 RIVET, BLIND 3 3
61 81K–2471F–00 BUTTON 6 6
62 90267–40069 RIVET, BLIND 6 6
63 8CR–21921–01 REINEFORCEMENT, FRAME REAR 1 1 1

PARTNO. DESCRIPTION REMARKS

90267–47195 RIVET, BLIND 7

8DT4

8CY5

C

64 90105–10617 BOLT, WASHER BASED 6 6
65 95827–10065 BOLT, FLANGE 1 1
66 95707–10500 NUT , FLANGE 1 1
67 92907–10200 WASHER, PLAIN 3 3
68 90201–05033 WASHER, PLATE 2 2
69 90267–48177 RIVET, BLIND 3 3
70 90267–47187 RIVET, BLIND 2 2
71 90338–44093 PLUG 3 3
72 90338–30256 PLUG 3 3
73 8DF–21998–00 SPACER 1 1
74 8CS–2197C–00 PROTECTOR, FRAME 3 1 1 AP
75 90267–48141 RIVET, BLIND 4 4 AP

10

FIG. 15 FRAME

REF.
NO.

76 8CR–77261–00 LINING, SHROUD 1 1 1
77 8CR–77262–00 LINING, SHROUD 2 1 1
78 8CR–77263–00 LINING, SHROUD 3 1 1
79 8CR–77264–00 LINING, SHROUD 4 1 1
80 8CR–77265–00 LINING, SHROUD 5 1 1
81 8CR–77266–00 LINING, SHROUD 6 1 1
82 8CR–77267–01 LINING, SHROUD 7 1 1
83 8CR–77268–00 LINING,SHROUD 8 1 1
84 8CR–77269–00 LINING,SHROUD 9 1 1
85 8CR–77271–00 DAMPER, NOISE 11 1 1
86 8CR–7717J–00 TAPE,5 1 1
87 8CR–77165–00 TRIM 1 1 1
88 8DS–7711G–00 GRAPHIC 7 1

89 8DS–7711H–00 GRAPHIC 8 1

PARTNO. DESCRIPTION REMARKS

8CY–7711G–01 GRAPHIC 7 1

8DT4

8CY5

C

8CY–7711H–01 GRAPHIC 8 1

90 90267–48177 RIVET, BLIND 6 6
91 90267–47186 RIVET, BLIND 2 2
92 8EA–2197E–00 PROTECTOR, FRAME 2 AP
93 90267–48176 RIVET, BLIND 6 AP
94 8DF–21978–00 PROTECTOR, FRAME 2 AP
95 8DF–21972–00 BRACKET, GUARD FITTING 2 AP
96 90267–47197 RIVET, BLIND 18 AP

11

FIG. 16 FRAME 2

REF.
NO.

10 8DX–77141–00 EMBLEM 1 1

11 8CY–77762–00 LABEL, WARNING 2 1

PARTNO. DESCRIPTION REMARKS

1 8CW–W2196–10 PANEL, SUB–FRAME KIT 1
2 8CW–21916–10 .PANEL, SUB FRAME 5 1
3 8CW–21943–00 .BRACKET, MAIN TRACK 1 2
4 8CW–21964–02 .PATCH 4 1
5 8CW–21965–02 .PATCH 5 1
6 90267–47186 .RIVET, BLIND 70 UN
7 8DM–27431–00 FOOTREST, REAR 1 1
8 8DM–27441–00 FOOTREST, REAR 2 1
9 97707–50020 SCREW, TAPPING 8

8DT4

8CY5

C

12

FIG. 17 SKI

REF.
NO.

10 90201–08784 WASHER, PLATE 8 8

11 90201–086P8 WASHER, PLATE 12 12
12 95707–08300 NUT , FLANGE 16 16
13 90105–10712 BOLT, WASHER BASED 2 2
14 95607–10200 NUT, SELF–LOCKING 2 2
15 90387–1012H COLLAR 2 2

PARTNO. DESCRIPTION REMARKS

1 8DM–23711–00 SKI 1 2 2
2 8DM–23712–00 REINFORCEMENT, HEAD 2 2
3 8DM–23766–00 SADDLE 1 2 2
4 8DM–23731–00 RUNNER 1 2 2
5 8DM–23751–00 BUSH, SKI 1 4 4
6 8DM–23751–10 BUSH, SKI 1 4 4
7 97027–08055 BOLT 2 2
8 97027–08100 BOLT 2 2
9 90108–08002 BOLT, SQUARE 4 4

8DT4

8CY5

C

16 91401–20020 PIN, COTTER 2 2
17 8CJ–2376A–00 ABSORBER ASSY 1 2

8CW–2376A–10 ABSORBER ASSY 1 2
18 8CR–2376B–00 BUSH 2 2
19 8CR–23743–10 STOPPER 1 2 2
20 90105–100A9 BOLT, WASHER BASED 4 4
21 95607–10200 NUT, SELF–LOCKING 4 4
22 8CR–23851–00 ARM, OUTSIDE 1 1 1
23 8CR–23852–00 ARM, OUTSIDE 2 1 1
24 95817–10055 BOLT, FLANGE 2 2
25 95607–10200 NUT, SELF–LOCKING 2 2
26 8DM–23803–00 COLUMN, SKI ASSY 2 2

13

FIG. 17 SKI

REF.
NO.

27 90384–16251 .BUSH, BIMETAL FORMED 2 2
28 90381–25115 BUSH, SOLID 4 4
29 90201–301G3 WASHER, PLATE 2 2
30 8CR–23741–10 CAP 1 2 2
31 8DM–2382E–10 ARM, FRONT 1 1

32 8DM–2382F–10 ARM, FRONT 2 1

33 93700–06004 NIPPLE, GREASE 2 2
34 8CR–2516A–00 DAMPER 2 2
35 90201–120T5 WASHER, PLATE 4 4
36 90101–12780 BOLT 2 2
37 8CR–2384E–20 ARM, CONTROL 1 1

38 8CR–23823–01 JOINT 2 1 1

PARTNO. DESCRIPTION REMARKS

8DM–2382E–20 ARM, FRONT 1 1

8DM–2382F–20 ARM, FRONT 2 1

8CR–2384E–A0–P0 ARM, CONTROL 1 1 LYNM9

8DT4

8CY5

C

39 95317–12600 NUT 1 1
40 8CR–2384F–20 ARM, CONTROL 2 1

8CR–2384F–A0–P0 ARM, CONTROL 2 1 LYNM9
41 8CR–23832–00 JOINT 3 1 1
42 95314–14600 NUT 1 1
43 8CR–2384E–20 ARM, CONTROL 1 1

8CR–2384E–A0–P0 ARM, CONTROL 1 1 LYNM9
44 8CR–23823–01 JOINT 2 1 1
45 95317–12600 NUT 1 1
46 8CR–2384F–20 ARM, CONTROL 2 1

8CR–2384F–A0–P0 ARM, CONTROL 2 1 LYNM9
47 8CR–23832–00 JOINT 3 1 1

14

FIG. 17 SKI

REF.
NO.

48 95314–14600 NUT 1 1
49 90381–17110 BUSH, SOLID 8 8
50 90387–1009K COLLAR 4 4
51 90105–100A9 BOLT, WASHER BASED 4 4
52 95607–10200 NUT, SELF–LOCKING 4 4
53 8DF–23779–00 WASHER 1 1
54 90267–48057 RIVET, BLIND 2 2
55 90105–121A8 BOLT, WASHER BASED 4 4
56 95607–12200 NUT, SELF–LOCKING 4 4
57 8CR–2386E–00 BAR, STABILIZER FRONT 1

58 8CR–2386H–00 COVER, STABILIZER FRONT 2 2
59 8CR–2386G–00 BUSH, STABILIZER FRONT 4

60 90267–47186 RIVET, BLIND 8 8

PARTNO. DESCRIPTION REMARKS

8CW–2386E–00 BAR, STABILIZER FRONT 1

8CW–2386G–00 BUSH, STABILIZER FRONT 4

8DT4

8CY5

C

61 8CR–2385L–00 JOINT, STABILIZER 1 2 2
62 90387–087L3 COLLAR 4 4
63 90105–08345 BOLT, WASHER BASED 4 4
64 95607–08200 NUT, SELF–LOCKING 4 4
65 8DS–77371–00 EMBLEM 15 1

8DS–77371–10 EMBLEM 15 1
66 8DS–77372–00 EMBLEM 16 1

8DS–77372–10 EMBLEM 16 1

15

FIG. 18 STEERING

REF.
NO.

10 8CJ–23872–00 HOLDER, BEARING 1 1

11 95707–08300 NUT, FLANGE 4 4
12 1UY–23894–01 WASHER, LOCK 1 2 2
13 8CR–23821–00 ROD, STEERING RELAY 1 1
14 8CR–23845–00 JOINT, UNIVERSAL 2 1 1
15 8CR–23847–00 JOINT, UNIVERSAL 3 1 1

PARTNO. DESCRIPTION REMARKS

1 8CR–23811–00 COLUMN, STEERING 1 1
2 8ED–23813–00 COLUMN, STEERING 2 1 1
3 8K1–23814–00 HOLDER, HANDLE 2 2
4 8G5–23814–00 HOLDER,HANDLE UNDER 1 1
5 97027–08055 BOLT 4 4
6 92907–08600 WASHER, PLATE 4 4
7 90387–090R0 COLLAR 4 4
8 8DF–23812–00 PLANE BEARING, STEERING 4 4
9 8CR–23872–00 HOLDER, BEARING 2 2

8DT4

8CY5

D

16 95307–10700 NUT 1 1
17 90170–10186 NUT 1 1 (L.H. THREAD)
18 8CR–23831–00 ROD, TIE 2 2
19 8CR–23845–00 JOINT, UNIVERSAL 2 2 2
20 87S–23847–00 JOINT, UNIVERSAL 3 2 2 (L.H. THREAD)
21 95307–10700 NUT 2 2
22 90170–10186 NUT 2 2 (L.H. THREAD)
23 95707–10500 NUT , FLANGE 4 4
24 95707–10300 NUT , FLANGE 2 2
25 91401–25020 PIN, COTTER 5 5
26 90468–12006 CLIP 1 1
27 90102–10044 BOLT, WITH HOLE 2 2

2

FIG. 18 STEERING

REF.
NO.

28 90201–08759 WASHER, PLATE 2 2
29 8DF–23826–10 ARM, IDLER 1 1
30 93317–41767 BEARING 2 2
31 90105–12006 BOLT, WASHER BASED 1 1
32 90201–121U3 WASHER, PLATE 2 2
33 8DF–2412G–00 COLLAR 1 1

PARTNO. DESCRIPTION REMARKS

8DT4

8CY5

D

3

FIG. 19 STEERING GATE

REF.
NO.

PARTNO. DESCRIPTION REMARKS

1 8CR–23870–10 STEERING GATE COMP. 1 1
2 95827–08016 BOLT, FLANGE 4 4
3 8DF–23867–00 HOLDER 2 1 1
4 90267–48095 RIVET, BLIND 2 2
5 8CR–23881–00 BRACKET 1 2 2
6 95827–06016 BOLT, FLANGE 8 8
7 8CR–23815–01 PAD, STEERING 1

8CR–23815–20 PAD, STEERING 1

8DT4

8CY5

D

4

FIG. 20 FUEL TANK

REF.
NO.

10 98907–05008 SCREW, BIND 4 4

11 90467–11032 CLIP 1 1
12 90105–060A6 BOLT, WASHER BASED 2 2
13 8CR–2418A–00 BREATHER COMP. 1 1
14 90149–06330 SCREW 2 2
15 8CR–24311–10 PIPE, FUEL 1 1 1

PARTNO. DESCRIPTION REMARKS

1 8CW–24111–10 TANK, FUEL 1 1
2 8CW–24610–00 CAP ASSY 1 1
3 8CW–24612–00 GASKET, CAP 1 1
4 8CR–24301–00 SUCTION PIPE COMP. 1 1 1
5 90468–04092 CLIP 1 1
6 8H5–24560–00 FILTER ASSY 1 1
7 8CR–24335–00 PIPE, SUCTION 1 1 1
8 8CW–85752–00 SENDER UNIT ASSY, FUEL METER 1 1
9 93210–41041 O–RING 1 1

8DT4

8CY5

D

16 90467–11032 CLIP 2 2
17 90501–08668 SPRING, COMPRESSION 1 1
18 91A20–05115 TUBE, FLEXIBLE VINYL 1 1
19 90501–084J0 SPRING, COMPRESSION 1 1
20 90468–02078 CLIP 1 1
21 90467–09026 CLIP 1 1
22 95707–08300 NUT , FLANGE 2 2
23 90201–08784 WASHER, PLATE 2 2
24 90464–13073 CLAMP 1 1

5

FIG. 21 SEAT

REF.
NO.

PARTNO. DESCRIPTION REMARKS

1 8DT–24710–20 SINGLE SEAT ASSY 1
2 8DT–2470F–20 .COVER, SEAT 1
3 95707–08300 NUT , FLANGE 2
4 90201–086A3 WASHER, PLATE 2
5 8CR–24734–00 BAND, SEAT 1
6 90154–06040 SCREW, BINDING 2

8DT4

8CY5

D

6

FIG. 22 SEAT 2

REF.
NO.

10 8CW–2479L–00 BRACKET, SEAT 1

11 8CW–2479H–00 BODY, SEAT LOCK 4
12 90201–083A8 WASHER, PLATE 2
13 8CW–24737–00 DAMPER, SEAT 4

PARTNO. DESCRIPTION REMARKS

1 8CY–24730–20 DOUBLE SEAT ASSY 1 FOR USA/CAN

8CW–24730–20 DOUBLE SEAT ASSY 1 FOR EUR

2 8CY–2470F–20 .COVER, SEAT 1 FOE USA/CAN

8CW–2470F–20 .COVER, SEAT 1 FOR EUR
3 95707–08300 NUT , FLANGE 2
4 90201–086A3 WASHER, PLATE 2
5 90464–13077 CLAMP 2
6 8CW–24790–10 SEAT BACK ASSY 1
7 8CW–2474H–01 BRACKET, ASSIST GRIP 1 1
8 8CW–2474J–01 BRACKET, ASSIST GRIP 2 1
9 8CW–24797–00 BRACKET, SEAT BACK 1

8DT4

8CY5

D

14 8CW–2474A–00 ASSIST, GRIP 2
15 8CW–2474B–00 ASSIST GRIP WARMER ASSY 1 1
16 8CW–2474C–00 ASSIST GRIP WARMER ASSY 2 1
17 90267–47187 RIVET, BLIND 8
18 90560–08251 SPACER 2
19 95807–08016 BOLT, FLANGE 2
20 95807–06040 BOLT, FLANGE 4
21 95307–06800 NUT 4
22 92907–06200 WASHER 4
23 97707–50016 SCREW, TAPPING 2
24 95807–08014 BOLT, FLANGE 4
25 90464–13077 CLAMP 2

7

FIG. 22 SEAT 2

REF.
NO.

26 8CR–24734–00 BAND, SEAT 1
27 90154–06040 SCREW, BINDING 2

PARTNO. DESCRIPTION REMARKS

8DT4

8CY5

D

8

FIG. 23 BRAKE

REF.
NO.

10 8CR–25924–00 .PIN, PAD 1 1

11 8CR–25926–00 .BOLT 1 1
12 8CR–W0048–00 .BLEED SCREW KIT 2 2
13 8DF–2582F–00 .RETAINER 2 2
14 8DF–25828–00 .SHIM, CALIPER 2 2
15 90105–10634 BOLT, WASHER BASED 2 2

PARTNO. DESCRIPTION REMARKS

1 8CR–2581T–00 DISC BRAKE ASSY 1 1
2 90281–07004 KEY, SLIDING 1 1
3 93410–27080 CIRCLIP 1 1
4 90201–270U5 WASHER, PLATE 1 1
5 8DF–2580T–01 CALIPER ASSY (LEFT) 1 1
6 8CR–W0057–00 .PISTON ASSY, CALIPER 1 1
7 8CR–W0047–00 ..CALIPER SEAL KIT 1 1
8 8DF–W0046–00 .BRAKE PADKIT 2 1 1
9 8CR–25919–00 .SUPPORT, PAD 1 1

8DT4

8CY5

D

16 8DF–W2587–00 MASTER CYLINDER SUB ASSY 1 1
17 8CR–W0041–00 .CYLINDER KIT, MASTER 1 1
18 8CR–W2585–00 .RESERVOIR CAP SET 1 1
19 55U–25854–00 .DIAPHRAGM, RESERVOIR 1 1
20 98706–04012 .SCREW, FLAT HEAD 2 2
21 8CR–2589F–00 BOLT, LEVER 1 1
22 8CR–83912–00 LEVER 1 1 1
23 8CR–82530–01 STOP SWITCH ASSY 1 1
24 8CR–8398X–00 WASHER, PLAIN 1 1
25 95707–05300 NUT , FLANGE 1 1
26 8CR–25867–00 HOLDER, MASTER CYLINDER 1 1
27 91316–06022 BOLT 2 2

9

FIG. 23 BRAKE

REF.
NO.

28 8K4–83950–01 BEAM SWITCHASSY 1 1
29 8CR–2589H–00 SCREW 1 1
30 3LC–25885–00 JOINT 1 1
31 90201–10118 WASHER, PLATE 1 1
32 8DF–25872–10 HOSE, BRAKE 1 1 1
33 90401–10159 BOLT, UNION 1 1
34 90201–10118 WASHER, PLATE 2 2
35 8CR–25730–00 CALIPER BODY COMP .1 1 1
36 8CR–25740–00 CALIPER BODY COMP . 2 1 1
37 90105–08094 BOLT, WASHER BASED 1 1
38 95707–08500 NUT , FLANGE 1 1
39 95307–08700 NUT 1 1
40 90387–084R5 COLLAR 2 2
41 90508–291B2 SPRING, TORSION 1 1
42 90508–291B1 SPRING, TORSION 1 1

PARTNO. DESCRIPTION REMARKS

8DT4

8CY5

D

43 90249–06009 PIN 1 1
44 90249–06012 PIN 1 1
45 91490–20015 PIN, COTTER 2 2
46 90101–06288 BOLT 1 1
47 95307–06700 NUT 1 1
48 8CR–26351–03 CABLE, BRAKE 1 1
49 8CR–83922–00 LEVER 2 1 1
50 90387–066M3 COLLAR 1 1
51 92017–06014 BOLT, BUTTON HEAD 1 1
52 90201–06050 WASHER, PLATE 1 1
53 90387–081M9 COLLAR 1 1
54 92017–08020 BOLT, BUTTON HEAD 1 1

10

FIG. 23 BRAKE

REF.
NO.

55 90201–08403 WASHER, PLATE 2 2
56 8CR–23496–00 TAG, CAUTION 1 1
57 8DF–25886–00 HOLDER, BRAKE HOSE 1 1
58 8DN–83912–00 LEVER 1 1 1 AP

PARTNO. DESCRIPTION REMARKS

8DT4

8CY5

D

11

FIG. 24 CONTROL CABLE

REF.
NO.

10 90387–22726 COLLAR 1 1

11 90387–224F9 COLLAR 1 1

PARTNO. DESCRIPTION REMARKS

1 8CR–26311–01 CABLE, THROTTLE 1 1 1
2 8M6–26391–01 CLIP, CABLE 1 1
3 8CR–26330–01 STARTER CABLE ASSY 1 1
4 8U9–26325–00 .KNOB, STARTER 1 1
5 91609–30010 .PIN, SPRING 1 1
6 8G8–26333–00 .NUT 1 1
7 90464–13073 CLAMP 1 1
8 88T–26240–00 GRIP ASSY 2 2
9 90267–40076 RIVET, BLIND 2 2

8DT4

8CY5

D

12

FIG. 25 TRACK SUSPENSION 1

REF.
NO.

PARTNO. DESCRIPTION REMARKS

1 8EA–47110–10 TRACK ASSY 1

8BN–47110–10 TRACK ASSY 1 FOR USA/CAN
8CC–47110–10 TRACK ASSY 1 FOR EUR

2 8EA–47113–00 .PLATE, REINFORCEMENT 48

8CR–47113–00 .PLATE, REINFORCEMENT 48 FOR USA/CAN
8CR–47113–00 .PLATE, REINFORCEMENT 54 FOR EUR

3 8EA–47115–30 .METAL, SLIDE 48

8CR–47115–00 .METAL, SLIDE 48 FOR USA/CAN

8CR–47115–00 .METAL, SLIDE 54 FOR EUR
4 8DF–47419–00 BRACKET 7 2 2
5 8DF–47419–10 BRACKET 7 2 2
6 90105–10392 BOLT, WASHER BASED 2 2
7 95817–10085 BOLT, FLANGE 2 2
8 90201–100S0 WASHER, PLATE 8 8
9 95607–10200 NUT, SELF–LOCKING 4 4

8DT4

8CY5

D

10 90387–10079 COLLAR 4 4

11 8CR–47310–10 SUSPENSION WHEEL ASSY 4 4
12 8CR–47341–00 SPACER 4 4
13 8CR–47341–10 SPACER 4 4
14 95607–08200 NUT, SELF–LOCKING 4 4
15 90101–08774 BOLT 4 4
16 8CR–47310–10 SUSPENSION WHEEL ASSY 2 2
17 99009–25400 CIRCLIP 2 2
18 90387–2004V COLLAR 2 2
19 99009–20400 CIRCLIP 2 2
20 8H8–47320–00 SUSPENSION WHEEL COMP. 2 2
21 93306–00444 BEARING 2 2

13

FIG. 25 TRACK SUSPENSION 1

REF.
NO.

22 99009–42500 CIRCLIP 2 2
23 8CR–47550–00 GUIDE WHEEL ASSY 2 2
24 8L8–47520–02 REAR AXLE COMP. 1 1
25 90387–2012E COLLAR 1 1
26 90387–2012C COLLAR 1 1
27 90387–2012D COLLAR 2 2
28 90201–205R6 WASHER, PLATE 4 4
29 8CR–47550–10 GUIDE WHEEL ASSY 1 1
30 8DF–47550–01 GUIDE WHEEL ASSY 2 2
31 95607–14200 NUT, SELF–LOCKING 1 1
32 91401–30025 PIN, COTTER 1 1

PARTNO. DESCRIPTION REMARKS

8DT4

8CY5

D

14

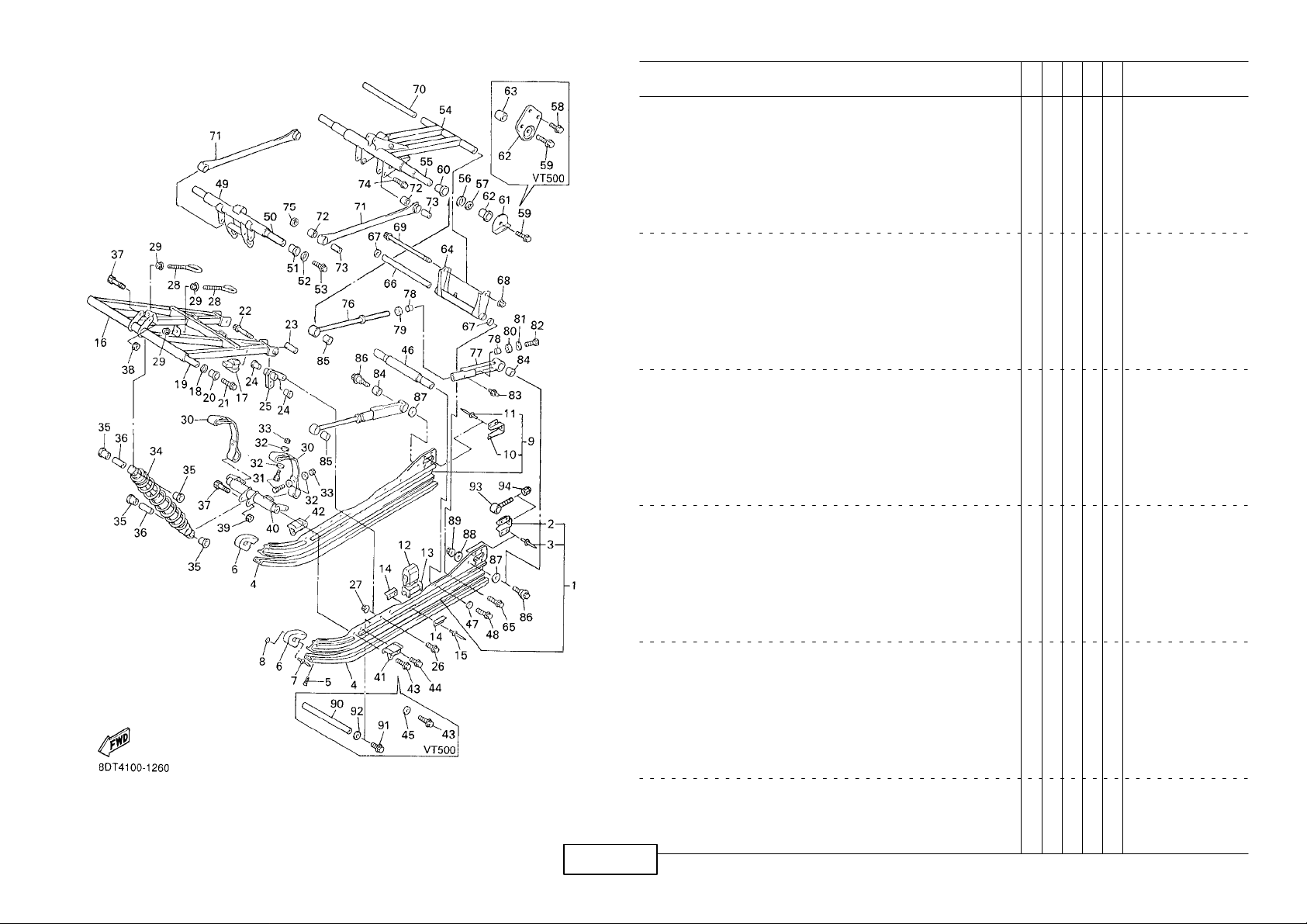

FIG. 26 TRACK SUSPENSION 2

REF.
NO.

10 8V0–4741B–00 .BRACKET 1 1

11 8V0–47468–00 .RIVET 4 4
12 8CM–47457–00 DAMPER 2 2 2

PARTNO. DESCRIPTION REMARKS

1 8EA–47411–00 FRAME, SLIDING 1 1

8EB–47411–00 FRAME, SLIDING 1 1
2 8V0–4741B–00 .BRACKET 1 1
3 8V0–47468–00 .RIVET 4 4
4 8CM–47421–40 RUNNER, SLIDING 1 2

8CW–47421–20 RUNNER, SLIDING 1 2
5 90151–06010 SCREW, COUNTERSUNK 2 2
6 8CM–47422–10 RUNNER, SLIDING 2 2 2
7 90267–48194 RIVET, BLIND 2 2
8 90201–047R8 WASHER, PLATE 2 2
9 8EA–47412–00 FRAME, SLIDING 2 1

8EB–47412–00 FRAME, SLIDING 2 1

8DT4

8CY5

D

13 8CM–47341–00 SPACER 2 2
14 8AX–47458–00 PLATE, DAMPER 4 4
15 90267–48199 RIVET, BLIND 4 4
16 8CV–47331–01 ARM, PIVOT 1 1 1
17 8DF–47456–10 DAMPER 1 2
18 90201–210U0 WASHER, PLATE 2 2
19 8CR–47465–00 SHAFT 1 1 1
20 90381–19111 BUSH, SOLID 2 2
21 90105–103A1 BOLT, WASHER BASED 2 2
22 90105–10769 BOLT, WASHER BASED 2 2
23 90387–1009T COLLAR 2 2
24 90381–15112 BUSH, SOLID 4 4

15

FIG. 26 TRACK SUSPENSION 2

REF.
NO.

25 8CR–47415–00 BRACKET 1 2 2
26 95817–10025 BOLT, FLANGE 2 2
27 95607–10200 NUT, SELF–LOCKING 2 2
28 8CR–47448–00 HOOK 3 2 2
29 95707–08500 NUT , FLANGE 4 4
30 8CR–47495–00 STOPPER 1 2 2
31 97007–06025 BOLT 4 4
32 90201–06747 WASHER, PLATE 8 8
33 95707–06300 NUT , FLANGE 4 4
34 8DG–47481–10 SHOCK ABSORBER 2 1

35 90387–145G7 COLLAR 4 4
36 90387–105G5 COLLAR 2 2
37 90101–10738 BOLT 2 2
38 90185–10110 NUT, SELF–LOCKING 1 1

PARTNO. DESCRIPTION REMARKS

8CW–47481–20 SHOCK ABSORBER 2 1

8DT4

8CY5

E

39 95607–10100 NUT, U 1 1
40 8EA–47418–00 BRACKET 4 1 1
41 8DF–47463–01 BRACKET 5 1
42 8DF–47464–01 BRACKET 6 1
43 90105–10433 BOLT, WASHER BASED 2 2
44 90105–08450 BOLT, WASHER BASED 2

95817–08020 BOLT, FLANGE 2

45 90201–105A2 WASHER, PLATE 2
46 8CR–47486–00 SHAFT 4 1 1
47 90201–100L3 WASHER, PLATE 2 2
48 90105–10433 BOLT, WASHER BASED 2 2
49 8CR–47416–10 BRACKET 2 1 1

2

FIG. 26 TRACK SUSPENSION 2

REF.
NO.

50 8CR–47488–00 SHAFT 6 1 1
51 90381–22099 BUSH, SOLID 2 2
52 90201–207J5 WASHER, PLATE 2 2
53 90105–103A1 BOLT, WASHER BASED 2 2
54 8CR–47332–10 ARM, PIVOT 2 1 1
55 8CR–47475–00 SHAFT 2 1

56 90201–251G8 WASHER, PLATE 2 2
57 90201–250T6 WASHER, PLATE 2 2
58 95817–08020 BOLT, FLANGE 6
59 90105–103A1 BOLT, WASHER BASED 2

60 90381–28108 BUSH, SOLID 2 2
61 8CR–47426–10 BRACKET, REAR 1 2
62 8CR–47425–00 BRACKET, REAR 2 2

PARTNO. DESCRIPTION REMARKS

8CY–47475–01 SHAFT 2 1

90105–10433 BOLT, WASHER BASED 2

8DT4

8CY5

E

8CW–47425–00 BRACKET, REAR 2 2

63 90387–2510A COLLAR 2
64 8CR–47417–01 BRACKET 3 1 1
65 90105–10433 BOLT, WASHER BASED 2 2
66 82M–47485–02 SHAFT 3 1 1
67 90201–10136 WASHER, PLATE 2 2
68 95607–08200 NUT, SELF–LOCKING 1 1
69 95827–08220 BOLT, FLANGE 1 1
70 90387–083G6 COLLAR 1 1
71 8CR–47494–01 ROD, RELAY 2 2
72 90381–14109 BUSH, SOLID 4 4
73 90387–100X3 COLLAR 4 4

3

FIG. 26 TRACK SUSPENSION 2

REF.
NO.

74 90105–10739 BOLT, WASHER BASED 2 2
75 90201–100U1 WASHER, PLATE 2 2
76 8CR–4745A–01 ROD, CONTROL 1 2 2
77 8CR–4745B–00 ROD, CONTROL 2 2 2
78 90384–16251 BUSH, BIMETAL FORMED 4 4
79 90202–16232 WASHER, PLATE 2 2
80 90202–16231 WASHER, PLATE 2

81 90201–106F2 WASHER, PLATE 2 2
82 97027–10025 BOLT 2 2
83 93700–06004 NIPPLE, GREASE 2 2
84 90380–22232 BUSH, SOLID 2 2
85 90380–28235 BUSH, SOLID 2 2
86 8DF–47367–00 SCREW, REAR PIVOT 2 2
87 90201–100S2 WASHER, PLATE 2 2

PARTNO. DESCRIPTION REMARKS

90202–16230 WASHER, PLATE 2

8DT4

8CY5

E

88 90201–101U2 WASHER, PLATE 2 2
89 95607–10200 NUT, SELF–LOCKING 2 2
90 82M–47485–02 SHAFT 3 1
91 90105–10433 BOLT, WASHER BASED 2
92 90201–10126 WASHER, PLATE 2
93 8K2–47479–01 COLLAR 3 2 2
94 95707–10300 NUT , FLANGE 2 2

4

FIG. 27 TRACK SUSPENSION 3

REF.
NO.

10 90105–10436 BOLT, WASHER BASED 2 2

11 90101–10738 BOLT 1 1

PARTNO. DESCRIPTION REMARKS

1 8CR–47480–01 SHOCK ABSORBER 1

8CW–47480–00 SHOCK ABSORBER 1 FORUSA/CAN

8CW–47480–10 SHOCK ABSORBER 1 FOREUR
2 8CR–47489–00 SPRING 1 (K=3.0–4.5) 1 AP

8CR–47489–10 SPRING 1 (K=3.5–5.3) 1 AP

8CW–47489–00 SPRING 1 (K=3.5–5.3) 1 AP
3 8AC–4631K–00 BOLT, ADJUSTING 1 1
4 90387–1009S COLLAR 1 1
5 90201–103U4 WASHER, PLATE 1 1
6 90201–100U1 WASHER, PLATE 3 3
7 90381–14101 BUSH, SOLID 4 4
8 90387–1404R COLLAR 2 2
9 95607–10100 NUT, U 2 2

8DT4

8CY5

E

12 90387–105G5 COLLAR 1 1

5

FIG. 28 TRACK DRIVE 1

REF.
NO.

PARTNO. DESCRIPTION REMARKS

1 8CR–W4751–01 AXLE, FRONT 1 1
2 8K4–47577–00 .CONNECTOR 1 1
3 8CM–47531–10 WHEEL, SPROCKET 1 2 2
4 8CM–47532–10 WHEEL, SPROCKET 2 2
5 93306–20589 BEARING 1 1
6 90113–06064 BOLT, SET 2 2
7 95707–08300 NUT , FLANGE 3 3

8DT4

8CY5

E

6

FIG. 29 TRACK DRIVE 2

REF.
NO.

10 93306–20402 BEARING (B6204JRC3) 1 1

11 95827–08030 BOLT, FLANGE 4 4
12 95827–10060 BOLT, FLANGE 3 3
13 90101–10357 BOLT 1 1
14 95307–10600 NUT 1 1
15 8CR–47613–00 HOLDER 1 1

PARTNO. DESCRIPTION REMARKS

1 8CR–47541–01 HOUSING, CHAIN 1 1
2 90179–10679 NUT 2 2
3 93306–20592 BEARING 2 2
4 93102–35473 OIL SEAL 1 1
5 93102–35318 OIL SEAL 1 1
6 99009–52500 CIRCLIP 2 2
7 8CR–47558–01 RING, HOUSING 1 1
8 8CW–47543–02 CAP, HOUSING 1 1
9 93606–20044 PIN, DOWEL 2 2

8DT4

8CY5

E

16 8CR–47612–00 WHEEL 1 1
17 93315–21227 BEARING 1 1
18 90201–127E1 WASHER, PLATE 2 2
19 90249–12227 PIN 1 1
20 99009–12400 CIRCLIP 2 2
21 8CR–47546–00 LEVEL, OIL 1 1
22 90387–2508D COLLAR 1 1
23 82M–17699–00 PLUG, OIL 1 1
24 89J–17682–20 SPROCKET, CHAIN DRIVE (22T) 1

89J–17682–10 SPROCKET, CHAIN DRIVE (21T) 1 FOR USA/CAN
89J–17682–91 SPROCKET, CHAIN DRIVE (19T) 1 FOR EUR

25 90208–22001 WASHER, CONICAL SPRING 1 1

7

FIG. 29 TRACK DRIVE 2

REF.
NO.

26 90170–22094 NUT 1 1
27 94860–02070 CHAIN (70L) 1

28 8CW–47587–90 SPROCKET, CHAIN DRIVEN (39T) 1 1
29 93317–33179 BEARING 1 1
30 90387–2008G COLLAR 1 1
31 90201–320S3 WASHER, PLATE 1 1
32 90105–100A7 BOLT, WASHER BASED 1 1
33 92907–10100 WASHER, SPRING 1 1
34 93210–25071 O–RING 2 2
35 90387–2508C COLLAR 1 1
36 90387–2511J COLLAR 1 1
37 97007–08014 BOLT 1 1
38 90210–08017 WASHER, SEAL 1 1
39 8CW–1761A–00 SHAFT , 1 1 1

PARTNO. DESCRIPTION REMARKS

94860–02068 CHAIN (68L) 1

8DT4

8CY5

E

40 8DM–17692–00 SPROCKET, DRIVE 1 1
41 90501–06022 SPRING, COMPRESSION 1 1
42 8CW–17143–00 GEAR, REVERSE PINION 1 1 1
43 93317–21578 BEARING 2 2
44 90201–16245 WASHER, PLATE 2 2
45 90105–060A6 BOLT, WASHER BASED 1 1
46 90210–06006 WASHER, SEAL 1 1
47 8CW–47571–00 JOURNAL 1 1 1
48 8CW–17243–00 GEAR, REVERSE WHEEL 1 1 1
49 8CW–17492–00 DOG, TRANSMISSION SHIFT 1 1
50 90501–066J5 SPRING, COMPRESSION 5 5
51 93440–39175 CIRCLIP 1 1

8

FIG. 29 TRACK DRIVE 2

REF.
NO.

52 90501–326J6 SPRING, COMPRESSION 1 1
53 8CW–47564–00 COLLAR 1 1
54 8CW–18511–00 FORK, SHIFT 1 2 2
55 8CW–18197–00 SHAFT 1 1
56 91609–50022 PIN, SPRING 2 2
57 93210–12131 O–RING 1 1
58 8CW–47591–00 PLATE 1 1
59 90105–060A6 BOLT, WASHER BASED 2 2
60 8CW–18112–01 ARM, SHIFT 1 1
61 8CW–18161–01 GUIDE, PLATE STOPPER 1 1
62 99009–12400 CIRCLIP 1 1
63 95607–06200 NUT, SELF U–FLANGE 1 1
64 95827–06035 BOLT, FLANGE 1 1
65 90387–06605 COLLAR 1 1
66 8CW–18152–10 LEVER, SHIFT 4 1 1

PARTNO. DESCRIPTION REMARKS

8DT4

8CY5

E

67 91701–06035 PIN, CLEVIS 1 1
68 90468–12007 CLIP 1 1
69 92907–06200 WASHER 2 2
70 8CW–1811A–00 PLATE, SHIFT ARM 1 1
71 8CW–18153–00 GUIDE, SHIFT RETURN SPRING 1 1
72 90506–14343 SPRING, TENSION 1 1
73 8CL–18174–00 KNOB, SHIFT LEVER 1 1
74 91609–40022 PIN, SPRING 1 1
75 J51–82817–00 SWITCH 1 1
76 98907–04016 SCREW, BIND 1 1
77 95607–04100 NUT, U 1 1
78 95827–06025 BOLT, FLANGE 2 2

9

FIG. 29 TRACK DRIVE 2

REF.
NO.

79 95827–06040 BOLT, FLANGE 1 1
80 8CW–18198–00 LEVER 1 1
81 90387–0608T COLLAR 1 1
82 90201–06071 WASHER, PLATE 2 2
83 90105–06601 BOLT, WASHER BASED 1 1
84 J45–23845–00 JOINT, UNIVERSAL 2 1 1
85 88T–18157–00 JOINT 2 2 2
86 90201–06778 WASHER, PLATE 1 1
87 95607–06200 NUT, SELF U–FLANGE 3 3
88 8CW–18156–00 JOINT 1 1 1
89 91701–06022 PIN, CLEVIS 1 1
90 90468–12007 CLIP 1 1
91 88T–18116–01 JOINT, ROD 1 1 1
92 26H–18115–00 ROD, SHIFT 1 1
93 95304–06600 NUT 2 2

PARTNO. DESCRIPTION REMARKS

8DT4

8CY5

E

94 90170–06289 NUT 2 2

10

FIG. 30 SHROUD

REF.
NO.

10 8CR–7717F–00 .TAPE 2 1 1

11 8CR–7717G–00 .TAPE 3 2 2
12 8CR–7717H–00 .TAPE 4 1 1
13 8CR–2199H–00 .SHIELD, HEAT 1 1
14 8V0–77171–00 BODY, LATCH 1 2 2

PARTNO. DESCRIPTION REMARKS

1 8DT–77111–10 SHROUD 1

8CY–77111–10 SHROUD 1
2 8CR–W7726–00 LINING SET 1 1
3 8CR–77272–00 .DAMPER, NOISE 12 1 1
4 8CR–77273–00 .DAMPER, NOISE 13 1 1
5 8CR–77274–00 .DAMPER, NOISE 14 1 1
6 8CR–77275–00 .DAMPER, NOISE 15 1 1
7 8CR–77276–00 .DAMPER, NOISE 16 1 1
8 8CR–77278–00 .DAMPER, NOISE 18 1 1
9 8CR–7717E–00 .TAPE 1 1 1

8DT4

8CY5

E

15 90387–06241 COLLAR 2 2
16 90201–06557 WASHER, PLATE 2 2
17 90154–06078 SCREW, BINDING 2 2
18 90176–06055 NUT, CROWN 2 2
19 8CS–7717J–00 TAPE,5 1 1
20 90387–062M9 COLLAR 2 2
21 8CR–77131–00 LOUVER 1 1 1
22 8CR–77132–00 LOUVER 2 1 1
23 8CR–77133–00 LOUVER 3 1 1
24 90267–48182 RIVET, BLIND 5 5
25 8CR–77134–00 LOUVER 4 1 1
26 90267–48059 RIVET, BLIND 2 2

11

FIG. 30 SHROUD

REF.
NO.

27 90465–08368 CLAMP 1 1
28 90464–13077 CLAMP 2 2
29 8CR–77118–00 STOPPER, SHROUD 1 1
30 90267–48141 RIVET, BLIND 2 2
31 89A–77159–00 CLAMP, ROD 1 1
32 8CR–77140–00 HINGE ASSY 1 1
33 8CR–7714A–00 HINGE ASSY 2 1 1
34 95707–06500 NUT , FLANGE 4 4
35 98907–06014 SCREW, BIND 4 4
36 8CR–77194–00 DUCT 1 1
37 8CR–77277–00 DAMPER, NOISE 17 1 1
38 8CR–77109–00 LOUVER 5 1 1
39 8CR–77185–00 PLATE 1 1 1
40 8CR–2196U–00 TRIM 2 1 1
41 90267–48182 RIVET, BLIND 10 10

PARTNO. DESCRIPTION REMARKS

8DT4

8CY5

E

12

FIG. 31 EMBLEM

REF.
NO.

PARTNO. DESCRIPTION REMARKS

1 8DS–7711A–00 GRAPHIC 1 1

8CY–7711A–01 GRAPHIC 1 1
2 8DS–7711E–00 GRAPHIC 5 1

8CY–7711J–01 GRAPHIC SET 1
3 8DS–7711B–00 GRAPHIC 2 1

8CY–7711C–01 GRAPHIC 3 1
4 8DS–7711C–00 GRAPHIC 3 1

8CY–7711D–01 GRAPHIC 4 1
5 8CJ–77141–10 EMBLEM 1 2

8CY–77141–41 EMBLEM 1 2
6 8CT–77142–30 EMBLEM 2 2

8CT–77142–40 EMBLEM 2 2
7 8EM–77143–00 EMBLEM 3 2
8 8DS–7711D–00 GRAPHIC 4 1
9 8AC–2414B–01 EMBLEM 1 1

8DT4

8CY5

E

10 4TV–2153A–00 EMBLEM, YAMAHA 1 1

11 4XV–2341B–00 EMBLEM 1 1

12 8DY–77761–00 LABEL, WARNING 1 1

8DM–77761–00 LABEL, WARNING 1 1 FOR USA/CAN

8DM–77761–30 LABEL, WARNING 1 1 FOR EUR

13 8DY–77763–00 LABEL, WARNING 3 1

8DY–77763–00 LABEL, WARNING 3 1 FOR USA/CAN

8DY–77763–10 LABEL, WARNING 3 1 FOR EUR

13

FIG. 32 WINDSHIELD

REF.
NO.

10 8CR–77210–00 WINDSHIELD COMP. 1 1 AP

11 8CR–77213–00 .TRIM, UPPER 1 1 AP
12 8CV–77210–00 WINDSHIELD COMP. 1 1 AP
13 8CV–77213–00 .TRIM, UPPER 1 1 AP

PARTNO. DESCRIPTION REMARKS

1 8DF–77251–01 COVER, HEADLIGHT 1 1
2 97707–50016 SCREW, TAPPING 8 8
3 8DM–77210–00 WINDSHIELD COMP. 1 1
4 8DM–77213–00 .TRIM, UPPER 1 1
5 90150–05024 SCREW, ROUND HEAD 2 2
6 90179–05523 NUT 2 2
7 82H–77223–00 FASTNER 4 4
8 8CR–77279–00 DAMPER, NOISE 19 1 1
9 8CR–2199J–00 SHIELD, NOISE 2 1 1

8DT4

8CY5

E

14

FIG. 33 REAR VIEW MIRROR

REF.
NO.

PARTNO. DESCRIPTION REMARKS

1 8CR–W2628–00 REAR VIEW MIRROR SET 1 1
2 4SV–26280–00 .REAR VIEW MIRROR ASSY(LEFT) 1 1
3 4SV–26290–00 .REAR VIEW MIRROR ASSY(RIGHT) 1 1
4 95607–06200 .NUT, SELF U–FLANGE 4 4
5 90201–06072 .WASHER, PLATE 4 4

8DT4

8CY5

E

15

FIG. 34 GUARD. LUGGAGE BOX

REF.
NO.

10 8CR–77378–00 PLUG HOLDER ASSY 1 1

11 90267–48060 RIVET , BLIND 2 2
12 90201–057H5 WASHER, PLATE 2 2
13 8CR–77319–00 DAMPER 1 1 1

PARTNO. DESCRIPTION REMARKS

1 8DF–28100–00 TOOL KIT 1 1
2 8CR–77311–10 GUARD, DRIVE 1 1
3 8CR–77315–00 BRACKET 1 1 1
4 8CR–77338–00 STAY, BELT 2 2
5 90267–48177 RIVET, BLIND 6 6
6 8BD–77762–00 LABEL, WARNING 2 1 1

8BD–77762–00 LABEL, WARNING 2 1 FOR USA/CAN

86D–77762–00 LABEL, WARNING2 1 FOR EUR
7 8CR–77384–00 PIN 1 1
8 91701–06082 PIN, CLEVIS 1 1
9 90468–18121 CLIP 1 1

8DT4

8CY5

F

14 8CJ–1417E–00 LABEL, CAUTION 1 1
15 8CW–47578–00 LABEL 1 1 1

2

FIG. 35 BUMPER

REF.
NO.

PARTNO. DESCRIPTION REMARKS

1 8CR–77511–00 BUMPER, FRONT 1 1 1
2 8DF–77541–00 BUMPER, REAR 1 1 1

8DF–77541–00 BUMPER, REAR 1 1 FOR USA

8EB–77541–00 BUMPER, REAR 1 1 FOR CAN/EUR
3 95027–08016 BOLT, FLANGE 4 4
4 95707–08500 NUT , FLANGE 4 4
5 8CR–77542–00 BUMPER, REAR 2 1

8CW–77542–00 BUMPER, REAR 2 1
6 95807–06016 BOLT, FLANGE 4

95807–06016 BOLT, FLANGE 6
7 90183–06053 NUT, SPRING 4

90183–06053 NUT, SPRING 6
8 8CR–77595–00 FLAP 1

8DM–77595–00 FLAP 1
9 90267–47187 RIVET, BLIND 4 4

8DT4

8CY5

F

10 8CW–77540–00 REAR BUMPER COMP . 1 FOR EUR

11 8CW–77554–00 PROTECTOR 4 1 FOR EUR
12 90105–08485 BOLT, WASHER BASED 4 FOR EUR
13 90267–47187 RIVET, BLIND 4 FOE EUR
14 89Y–24897–00 EMBLEM 1 FOR EUR

3

FIG. 36 INSTRUMENT PANEL

REF.
NO.

10 8CR–2196T–00 TRIM 1 2 2

PARTNO. DESCRIPTION REMARKS

1 8CR–77711–01 PANEL, INSTRUMENT 1 1
2 8CR–77741–10 INDICATOR 1 1 1
3 8CW–77742–00 INDICATOR 2 1 1
4 98907–06012 SCREW, BIND 4 4
5 90387–0611K COLLAR 4 4
6 8M6–77175–00 HOLDER, LATCH 2 2
7 90154–06077 SCREW, BINDING 2 2
8 90387–064W3 COLLAR 2 2
9 90201–06071 WASHER, PLATE 2 2

8DT4

8CY5

F

4

FIG. 37 GENERATOR

REF.
NO.

PARTNO. DESCRIPTION REMARKS

1 8CR–85510–01 STATOR ASSY 1 1
2 8CR–85550–01 ROTOR ASSY 1 1
3 98507–06025 SCREW, PAN HEAD 3 3
4 92907–06600 WASHER, PLATE 3 3
5 98507–05014 SCREW, PAN HEAD 2 2

8DT4

8CY5

F

5

FIG. 38 STARTING MOTOR

REF.
NO.

10 8CW–81812–00 ..BRUSH 2 1 1

11 8L6–81813–50 ..SPRING, BRUSH 2 2
12 4H7–81844–50 .O–RING 2 2
13 8L6–81834–50 .RING 1 1
14 3GD–81826–00 .BOLT, THROUGH 2 2
15 8L6–81847–50 .O–RING 2 2

PARTNO. DESCRIPTION REMARKS

1 8CW–81800–01 STARTING MOTOR ASSY 1 1
2 8CW–81850–00 .ARMATURE ASSY 1 1
3 8CW–81832–00 .CLUTCH, OVER RUN 1 1
4 8CW–81811–00 .BRUSH 1 1 1
5 73A–81829–50 .GROMMET 1 1
6 73A–81847–00 .O–RING 1 1
7 4H7–81872–00 .NUT, SPECIAL 1 1
8 73A–81829–00 .GROMMET 1 1
9 8CW–81840–00 .BRUSH HOLDER ASSY 1 1

8DT4

8CY5

F

16 8CW–81836–00 .SPRING, LEVER 1 1
17 4H7–81843–50 .WASHER1 2 2
18 8L6–81835–50 .WASHER 2 1 1
19 8CW–81833–00 .RING, STOP 1 1
20 8BB–8185A–00 .WASHER, PLATE 1 1
21 95307–06600 NUT 1 1
22 95027–08030 BOLT, FLANGE 2 2
23 95027–08080 BOLT, FLANGE 1 1
24 8CY–82116–00 WIRE, MINUS LEAD 1 1
25 8DY–82117–00 WIRE, LEAD 1 1

6

FIG. 39 METER

REF.
NO.

10 90201–06057 WASHER, PLATE 4 4

11 92907–06100 WASHER, SPRING 4 4
12 95307–06600 NUT 4 4
13 8CR–83550–00 SPEEDOMETER CABLE ASSY 1 1
14 8CR–47700–00 METER GEAR HOUSING COMP. 1 1

PARTNO. DESCRIPTION REMARKS

1 8DF–83510–40 SPEEDOMETER ASSY (MILE/H) 1 1

8DF–83510–20 SPEEDOMETER ASSY (KM/H) 1 1
2 8DF–83509–40 .SOCKET CORD ASSY 1 1
3 1YT–83517–00 .BULB (12V–1.7W, T10) 4 4
4 8DF–83578–00 .KNOB, TRIP METER 1 1
5 8CJ–83540–41 TACHOMETER ASSY 1 1
6 8CJ–83509–00 .SOCKET CORD ASSY 1 1
7 1YT–83517–00 .BULB (12V–1.7W, T10) 1 1
8 8DF–83519–40 BRACKET, METER 2 2
9 8DF–83523–40 DAMPER 2 2

8DT4

8CY5

F

15 8K4–47715–00 JOINT 1 1

7

FIG. 40 HEADLIGHT

REF.
NO.

10 8CH–84359–00 CORD, HEADLIGHT 1 1

PARTNO. DESCRIPTION REMARKS

1 8CR–84310–00 HEADLIGHT UNIT ASSY 1 1
2 8G9–84314–00 .BULB (12V–60/55W) 1 1 (H4)HALOGEN
3 8DN–84397–00 .COVER, SOCKET 1 1
4 90269–06046 RIVET 1 1
5 8K4–84374–00 CLIP 2 2
6 8A5–84331–00 SCREW, RIM ADJUSTING 2 2
7 90501–124L0 SPRING, COMPRESSION 2 2
8 90183–05024 NUT, SPRING 2 2
9 8CR–84366–00 DAMPER, HEADLIGHT 1 1 1

8DT4

8CY5

F

8

FIG. 41 TAILLIGHT

REF.
NO.

10 97007–06040 BOLT 2 2

11 90201–06072 WASHER, PLATE 2 2

12 95707–06500 NUT , FLANGE 2 2

PARTNO. DESCRIPTION REMARKS

1 82M–84710–00 T AILLIGHTUNIT ASSY 1 1
2 838–84714–01 .BULB (12V–23/8W) 1 1
3 8K4–84721–00 .LENS, TAILLIGHT 1 1
4 97701–40130 .SCREW, PANHEAD T APPING 4 4
5 82M–84711–00 .BASE, TAILLIGHT 1 1
6 87M–84723–00 .GASKET, TAIL LENS 1 1
7 8K4–84718–00 .GROMMET 1 1
8 90387–066N1 COLLAR 2 2
9 90201–06747 WASHER, PLATE 2 2

8DT4

8CY5

F

9

FIG. 42 HANDLE SWITCH. LEVER

REF.
NO.

10 8R6–8399F–00 .SHAFT 1 1

PARTNO. DESCRIPTION REMARKS

1 8AB–82720–00 LEVER HOLDER ASSY (RIGHT) 1 1
2 8AV–83963–00 .SWITCH, HANDLE 3 (RIGHT) 1 1
3 8AU–82575–09 ..ENGINE STOP SWITCH ASSY 1 1 WIRE/L=240MM
4 84M–83928–00 ..SCREW, ADJUSTING 1 1
5 8AB–82970–00 .THUMB WARMER ASSY 1 1
6 97707–30614 .SCREW, TAPPING 2 2
7 99001–04600 .CIRCLIP 1 1
8 85G–83663–00 .WASHER, SPECIAL 1 1
9 85G–83956–00 .CAP 1 2 2

8DT4

8CY5

F

10

FIG. 43 ELECTRICAL 1

REF.
NO.

10 95707–06500 NUT , FLANGE 1 1

11 8CJ–82590–10 WIRE HARNESS ASSY 1 1
12 95807–06010 BOLT, FLANGE 1 1
13 8CR–8471G–00 WIRE, LEAD 1 1
14 90464–20031 CLAMP 1 1
15 90464–15195 CLAMP 3 3

PARTNO. DESCRIPTION REMARKS

1 8AB–82310–00 IGNITION COIL ASSY 1 1
2 8V7–82318–00 WIRE, SUB–LEAD 1 1
3 97780–60125 SCREW, TAPPING 2 2
4 861–82361–00 CLAMP, CORD 2 2
5 8DG–82370–00 PLUG CAP ASSY 2 2
6 8CJ–85540–01 C.D.I. UNIT ASSY 1 1
7 97780–60125 SCREW, TAPPING 2 2
8 8CR–81960–00 RECTIFIER & REGULATOR ASSY 1 1
9 95807–06016 BOLT, FLANGE 1 1

8DT4

8CY5

F

16 90464–13073 CLAMP 6 6
17 90464–13077 CLAMP 2 2
18 90464–23041 CLAMP 1 1
19 8CR–85720–01 OIL LEVEL GAUGE ASSY 1 1
20 8AB–81910–00 VOLTAGE REGULATOR ASSY 1 1
21 95807–06016 BOLT, FLANGE 1 1
22 95707–06500 NUT , FLANGE 1 1
23 8AB–82510–00 MAIN SWITCH ASSY 1 1
24 526–82579–00 .CAP, KEY 2 2
25 8CR–87283–00 RESISTOR, VARIABLE 1 1
26 8AB–87284–00 KNOB, VARIABLE RESISTOR 1 1
27 8CY–82917–00 SWITCH 1

11

FIG. 43 ELECTRICAL 1

REF.
NO.

28 8CW–83383–00 BUZZER 1 1
29 97007–05020 BOLT 1 1
30 95707–05500 NUT , FLANGE 1 1

PARTNO. DESCRIPTION REMARKS

8DT4

8CY5

F

12

FIG. 44 ELECTRICAL 2

REF.
NO.

10 8CY–82131–00 BAND, BATTERY 1 1

11 8DY–82115–00 WIRE, PLUS LEAD 1 1
12 8DY–82509–00 WIRE, SUB LEAD 1 1
13 3EL–81940–00 STARTER RELAY ASSY 1 1
14 95027–06008 BOLT, FLANGE 2 2
15 8DX–82129–00 COVER, BATTERY 1 1

PARTNO. DESCRIPTION REMARKS

1 90465–10381 CLAMP 1 1
2 90464–15195 CLAMP 4 4
3 8CW–82176–00 DAMPER 1 1
4 8CW–8235W–01 PIPE 1 1
5 90467–08092 CLIP 1 1
6 8CW–2199G–00 BRACKET, BATTERY 1 1
7 95807–06014 BOLT, FLANGE 2 2
8 8CW–2199H–00 SHIELD, HEAT 1 1
9 84N–82122–00 SEA T, BATTERY 1 1

8DT4

8CY5

F

16 8CY–81952–00 HOLDER, RELAY 1 1
17 5E3–82110–81 BATTERY ASSY (YUASA YB16AL–A2) 1 1

13

FIG. 45 ELECTRICAL 3

REF.
NO.

PARTNO. DESCRIPTION REMARKS

1 86R–85110–00 REFLECTOR ASSY 2 2
2 90201–05036 WASHER, PLATE 4 4
3 95707–05300 NUT , FLANGE 4 4
4 3Y6–85130–02 REAR REFLECTOR ASSY 2 2
5 95707–05500 NUT , FLANGE 2 2

8DT4

8CY5

F

14

FIG. 46 ALTERNATE (BODY/RIG)

REF.
NO.

10 8CW–24797–00 .BRACKET, SEAT BACK 1

11 8CW–2479L–00 .BRACKET, SEAT 1
12 8CW–2479H–00 .BODY, SEAT LOCK 4
13 90201–083A8 .WASHER, PLATE 2
14 8CW–24737–00 .DAMPER, SEAT 4
15 8CW–2474A–00 .ASSIST, GRIP 2

PARTNO. DESCRIPTION REMARKS

1 8CY–W2473–20 SEMI–DOUBLE SEAT ASSY 1 AP
2 8CY–24730–20 .DOUBLE SEAT ASSY 1
3 8CY–2470F–20 ..COVER, SEAT 1
4 95707–08300 .NUT , FLANGE 2
5 90201–086A3 .WASHER, PLATE 2
6 90464–13073 .CLAMP 2
7 8CW–24790–10 .SEAT BACK ASSY 1
8 8CW–2474H–01 .BRACKET, ASSIST GRIP 1 1
9 8CW–2474J–01 .BRACKET, ASSIST GRIP 2 1

8DT4

8CY5

F

16 90267–47187 .RIVET, BLIND 8
17 90560–08066 .SPACER 2
18 95807–08016 .BOLT, FLANGE 2
19 95807–06040 .BOLT, FLANGE 4
20 95307–06800 .NUT 4
21 92907–06200 .WASHER 4
22 95807–08014 .BOLT, FLANGE 4
23 95707–08500 .NUT , FLANGE 4
24 8DM–27431–00 .FOOTREST, REAR 1 1
25 8DM–27441–00 .FOOTREST, REAR 2 1
26 97707–50020 .SCREW, TAPPING 8
27 8CW–2474B–00 .ASSIST GRIP WARMER ASSY 1 1

15

FIG. 46 ALTERNATE (BODY/RIG)

REF.
NO.

28 8CW–2474C–00 .ASSIST GRIP WARMER ASSY 2 1
29 97707–50016 .SCREW, TAPPING 2
30 8CY–82917–00 .SWITCH 1
31 90464–13073 .CLAMP 2

PARTNO. DESCRIPTION REMARKS

8DT4

8CY5

G

2

FIG. 47 ALTERNATE (BODY/RIG)

REF.
NO.

PARTNO. DESCRIPTION REMARKS

1 8CY–W247R–20 SEMI–DOUBLE SEAT ASSY (DX) 1

8CY–W247R–20 SEMI–DOUBLE SEAT ASSY (DX) 1 FOR USA/CAN
8CR–W247R–10 SEMI–DOUBLE SEAT ASSY (DX) 1 FOR EUR

2 8CY–24730–20 .DOUBLE SEAT ASSY 1

8CY–24730–20 .DOUBLE SEAT ASSY 1 FOR USA/CAN
8CW–24730–20 .DOUBLE SEAT ASSY 1 FOREUR

3 8CY–2470F–20 ..COVER, SEAT 1

8CY–2470F–20 ..COVER, SEAT 1 FOR USA/CAN

8CW–2470F–20 ..COVER, SEAT 1 FOE EUR
4 8DM–24790–00 .SEAT BACK ASSY 1 1
5 92017–10016 .BOLT, BUTTON HEAD 4 4
6 8DM–2474F–00 .STAY, FRONT 1 1 1
7 8DM–2474G–00 .STAY, FRONT 2 1 1
8 95807–08014 .BOLT, FLANGE 4 4
9 95707–08500 .NUT , FLANGE 4 4

8DT4

8CY5

G

10 90267–47187 .RIVET, BLIND 8 8

11 8DM–2477R–00 .ARM 2 1 1
12 90387–083Y8 .COLLAR 1 1
13 90202–12236 .WASHER, PLATE 2 2
14 95707–08500 .NUT , FLANGE 1 1
15 95307–08700 .NUT 1 1
16 8DM–24760–00 .SEAT LEVER ASSY 1 1
17 97027–10014 .BOLT 2 2
18 8DM–2474H–10 .BRACKET, ASSIST GRIP 1 1 1
19 8DM–2474J–10 .BRACKET, ASSIST GRIP 2 1 1
20 92017–10070 .BOLT, BUTTON HEAD 2 2
21 90201–10437 .WASHER, PLATE 2 2

3

FIG. 47 ALTERNATE (BODY/RIG)

REF.
NO.

22 90387–10090 .COLLAR 2 2
23 90387–145G7 .COLLAR 4 4
24 8DM–2477F–00 .LEVER, SEAT 1 1
25 97707–40008 .SCREW, TAPPING 1 1
26 8CW–2479H–00 .BODY, SEAT LOCK 2 2
27 8CW–24737–00 .DAMPER, SEAT 2 2
28 8DM–2474A–00 .ASSIST, GRIP 2 2
29 98907–06035 .SCREW, BIND 4 4
30 90176–06065 .NUT, CROWN 4 4
31 8DM–24796–00 .COVER 1 1
32 8DM–2475X–00 .COVER,2 1 1
33 97707–40012 .SCREW, TAPPING 4 4
34 8DM–2476U–00 .PROTECTOR,1 1 1
35 8DM–2476V–00 .PROTECTOR,2 1 1
36 90267–48051 .RIVET, BLIND 4 4

PARTNO. DESCRIPTION REMARKS

8DT4

8CY5

G

37 90201–051K1 .WASHER, PLATE 4 4
38 90464–13073 .CLAMP 2 2
39 8DM–27431–00 .FOOTREST, REAR 1 1 1
40 8DM–27441–00 .FOOTREST, REAR 2 1 1
41 97707–50020 .SCREW, TAPPING 8 8
42 8DM–2474B–00 .ASSIST GRIP WARMER ASSY 1 1 1
43 8DM–2474C–00 .ASSIST GRIP WARMER ASSY 2 1 1
44 97707–40016 .SCREW, TAPPING 2 2
45 8DM–82917–01 .SWITCH 1 1
46 8DM–85370–00 .RESISTOR ASSY 1 1
47 90154–06036 .SCREW, BINDING 1 1

4

FIG. 48 ALTERNATE (BODY/RIG)

REF.
NO.

PARTNO. DESCRIPTION REMARKS

1 8CT–24710–30 SINGLE SEAT ASSY 1 1 AP
2 8CT–2470F–30 .COVER, SEAT 1 1

8DT4

8CY5

G

5

FIG. 49 ALTERNATE (BODY/RIG)

REF.
NO.

PARTNO. DESCRIPTION REMARKS

1 8CW–W7754–00 REAR BUMPER SET 1 AP FOR USA/CAN
2 8CW–77540–00 .REAR BUMPER COMP. 1
3 8CW–77554–00 .PROTECTOR 4 1
4 95807–08016 .BOLT, FLANGE 4
5 90267–48169 .RIVET, BLIND 4
6 89X–24897–00 .EMBLEM 1

8DT4

8CY5

G

6

FIG. 50 ALTERNATE (DRIVE SETTING 1)

REF.
NO.

PARTNO. DESCRIPTION REMARKS

1 8DF–17605–10 WEIGHT COMP 3 3 UR

8CR–17605–10 WEIGHT COMP 3 3 UR
8CH–17605–10 WEIGHT COMP 3 3 UR
8DJ–17605–00 WEIGHT COMP 3 3 UR
8DG–17605–00 WEIGHT COMP 3 3 UR
8DN–17605–20 WEIGHT COMP 3 3 UR

2 8CR–17624–00 ROLLER, COMP 3 3 UR

8CR–17624–10 ROLLER, COMP 3 3 UR
8CR–17624–20 ROLLER, COMP 3 3 UR
8CR–17624–30 ROLLER, COMP 3 3 UR

3 90261–06015 RIVET, COUNTERSUNK (ST10.3MM) 3 3 UR

90261–06017 RIVET, COUNTERSUNK (ST11.3MM) 3 3 UR
90261–06019 RIVET, COUNTERSUNK (ST13.3MM) 3 3 UR
90261–06028 RIVET, COUNTERSUNK (AL10.3MM) 3 3 UR
90261–06033 RIVET, COUNTERSUNK (ST17.2MM) 3 3 UR

8DT4

8CY5

G

90261–06034 RIVET, COUNTERSUNK (ST13.9MM) 3 3 UR

4 90501–487G8 SPRING, COMPRESSION 1 1 UR (GOLD)

90501–507G7 SPRING, COMPRESSION 1 1 UR (R–GR–R)
90501–526G4 SPRING, COMPRESSION 1 1 UR (BL–GO–BL)
90501–557G6 SPRING, COMPRESSION 1 1 UR (WH–GO–WH)
90501–557G5 SPRING, COMPRESSION 1 1 UR (Y–GO–Y)
90501–607G4 SPRING, COMPRESSION 1 1 UR (GR–GO–GR)
90501–607G3 SPRING, COMPRESSION 1 1 UR (P–GO–P)
90501–481J1 SPRING, COMPRESSION 1 1 UR (SL–BL–SL)
90501–507G2 SPRING, COMPRESSION 1 1 UR (GO–BL–GO)
90501–527G1 SPRING, COMPRESSION 1 1 UR (R–BL–R)
90501–556G6 SPRING, COMPRESSION 1 1 UR (BLUE)

7

FIG. 50 ALTERNATE (DRIVE SETTING 1)

REF.
NO.

PARTNO. DESCRIPTION REMARKS

4 90501–556G5 SPRING, COMPRESSION 1 1 UR (WH–BL–WH)

90501–556G7 SPRING, COMPRESSION 1 1 UR (Y–BL–Y)
90501–607G0 SPRING, COMPRESSION 1 1 UR (GR–BL–GR)
90501–606G9 SPRING, COMPRESSION 1 1 UR (P–BL–P)
90501–524G5 SPRING, COMPRESSION 1 1 UR (GO–Y–GO)
90501–524G4 SPRING, COMPRESSION 1 1 UR (R–Y–R)
90501–553G0 SPRING, COMPRESSION 1 1 UR (BL–Y–BL)
90501–553G6 SPRING, COMPRESSION 1 1 UR (WH–Y–WH)
90501–581J7 SPRING, COMPRESSION 1 1 UR (YELLOW)
90501–605G7 SPRING, COMPRESSION 1 1 UR (GR–Y–GR)
90501–604G0 SPRING, COMPRESSION 1 1 UR (P–Y–P)
90501–521J6 SPRING, COMPRESSION 1 1 UR (GO–P–GO)
90501–526J9 SPRING, COMPRESSION 1 1 UR (R–P–R)
90501–525J8 SPRING, COMPRESSION 1 1 UR (BL–P–BL)
90501–550J8 SPRING, COMPRESSION 1 1 UR (WH–P–WH)

8DT4

8CY5

G

90501–582J1 SPRING, COMPRESSION 1 1 UR (Y–P–Y)
90501–585J3 SPRING, COMPRESSION 1 1 UR (GR–P–GR)
90501–602J0 SPRING, COMPRESSION 1 1 UR (PINK)
90501–605J5 SPRING, COMPRESSION 1 1 UR (OR–P–OR)
90501–555J9 SPRING, COMPRESSION 1 1 UR (WH–SL–WH)
90501–586J0 SPRING, COMPRESSION 1 1 UR (Y–SL–Y)

5 8BV–17604–11 SEAT SPRING SET 1 1 UR

8BV–17604–31 SEAT SPRING SET 1 1 UR
8BV–17604–51 SEAT SPRING SET 1 1 UR
8BV–17604–71 SEAT SPRING SET 1 1 UR
8BV–17604–91 SEAT SPRING SET 1 1 UR

6 90508–536A9 SPRING, TORSION 1 1 UR

8

FIG. 50 ALTERNATE (DRIVE SETTING 1)

REF.
NO.

10 90150–05040 SCREW, ROUND HEAD 6 6 UR

PARTNO. DESCRIPTION REMARKS

6 90508–556A2 SPRING, TORSION 1 1 UR

90508–556A7 SPRING, TORSION 1 1 UR

90508–500B1 SPRING, TORSION 1 1 UR
7 8CM–17665–00 PLATE 1 1 1 UR
8 90150–05040 SCREW, ROUND HEAD 6 6 UR
9 8CM–17675–00 PLATE 2 1 1 UR

8DT4

8CY5

G

9

FIG. 51 ALTERNATE (DRIVE SETTING 2)

REF.
NO.

PARTNO. DESCRIPTION REMARKS

1 89J–17682–80 SPROCKET, CHAIN DRIVE (18T) 1 1 UR

89J–17682–91 SPROCKET, CHAIN DRIVE (19T) 1 1 UR

89J–17682–00 SPROCKET, CHAIN DRIVE (20T) 1 1 UR

89J–17682–10 SPROCKET, CHAIN DRIVE (21T) 1 1 UR

89J–17682–20 SPROCKET, CHAIN DRIVE (22T) 1 1 UR

89J–17682–30 SPROCKET, CHAIN DRIVE (23T) 1 1 UR
2 94860–02068 CHAIN (68L) 1 1 UR

94860–02070 CHAIN (70L) 1 1 UR
3 8CW–47587–90 SPROCKET, CHAIN DRIVEN (39T) 1 1 UR

8DT4

8CY5

G

10

FIG. 52 ALTERNATE (DRIVE)

REF.
NO.

10 90387–0514U .COLLAR 3 3

11 8BV–17630–10 .PRIMARY SHEAVE CAP COMP. 1 1
12 97017–06030 .BOLT 6 6
13 92907–06600 .WASHER, PLATE 6 6
14 90202–08204 .WASHER, PLATE 6 6
15 8V0–17647–00 .BOLT (L=156.5MM) 1 1

PARTNO. DESCRIPTION REMARKS

1 8CJ–17601–09 CLUTCH REPAIR KIT 1 1 AP
2 8CR–17611–01 .SHEAVE, PRIMARY FIXED 1 1
3 8V0–17639–00 .STOPPER 2 2
4 8BV–17620–03 .PRIMARY SLIDING SHEAVE COMP. 1 1
5 90387–0514T .COLLAR 3 3
6 90105–05644 .BOLT, WASHER BASED 6 6
7 95607–05200 .NUT, SELF–LOCKING 6 6
8 8CA–17640–12 .SPIDER COMPLETE 1 1
9 8BW–17653–00 .SLIDER 6 6

8DT4

8CY5

G

16 92907–16100 .WASHER 1 1

11

FIG. 53 ALTERNATE (DRIVE)

REF.
NO.

PARTNO. DESCRIPTION REMARKS

1 8CJ–00000–52 CLUTCH TUNE–UP KIT 1 1 AP
2 90384–41242 .BUSH, BIMETAL FORMED 1 1
3 90387–0514U .COLLAR 3 3
4 90105–05644 .BOLT, WASHER BASED 3 3
5 95607–05200 .NUT, SELF–LOCKING 3 3
6 90380–28237 .BUSH, SOLID 1 1
7 90202–09227 .WASHER, PLATE 6 6
8 8CR–17624–10 .ROLLER, COMP 3 3

8DT4

8CY5

G

12

PARTNO.

GRID

NO.

PARTNO.

GRID

NO.

PARTNO.

NUMERICAL INDEX

GRID

NO.

PARTNO.

GRID

NO.

PARTNO.

GRID

NO.

PARTNO.

GRID

NO.

8CR–W0041–00 D – 9
8DF–W0046–00 D – 9
8CR–W0047–00 D – 9
8CR–W0048–00 D – 9
8CR–W0057–00 D – 9
8CR–W2195–03 C – 8
8CW–W2196–10 C – 12
8CR–W247R–10 G – 3
8CY–W247R–20 G – 3
8CY–W2473–20 F – 15
8CR–W2585–00 D – 9
8DF–W2587–00 D – 9
8CR–W2628–00 E – 15
8CR–W4751–01 E – 6
8CR–W7726–00 E – 11
8CW–W7754–00 G – 6
8CJ–00000–52 G – 12
8CJ–1111K–00 B – 2
8CJ–11111–11 B – 2
J38–11116–00 B – 15
8CJ–11181–00 B – 2
8CJ–11311–00 B – 2
8CR–11351–00 B – 2
8CR–11400–02 B – 3
82M–11412–02 B – 3
82M–11422–00 B – 3
8CR–11428–01 B – 3
8CR–11429–00 B – 3
82M–11432–00 B – 3
82M–11442–00 B – 3
82M–11515–00 B – 3
8AB–11603–01 B – 3
8CJ–11631–00–A0 B – 3
8H8–11633–00 B – 3
82M–11651–00 B – 3
82M–11681–00 B – 3
8R9–11685–00 B – 3
82M–11685–00 B – 3
8CR–1240E–03 B – 6
8CW–1240E–03 B – 6
8CR–1240F–03 B – 6
8CW–1240F–03 B – 6
8CR–1241A–01 B – 6
8A7–12412–01 B – 2
82M–12413–00 B – 2
8CR–12421–01 B – 5
8CR–12422–10 B – 5
8CR–1243A–00 B – 7

8CR–1243E–00 B – 7
82M–12437–00 B – 5
82M–12438–00 B – 5
8CR–12439–00 B – 5
8CR–12440–03 C – 8
82M–12444–00 B – 5
8CR–12450–00 B – 5
82M–12451–00 B – 5
22W–12462–00 B – 6
8CH–12469–00 B – 2

8CR–12476–00 B – 6
8CR–12481–00 B – 5
8CR–12482–00 B – 6
8CR–12483–00 B – 6
8CR–12484–00 B – 6
8CW–12484–00 B – 6
8CR–12485–00 B – 6
8CR–1249A–01 B – 6
8CR–12491–00 B – 6
8CR–12591–00 B – 6
8CA–12618–00 C – 2
8AB–13100–03 B – 8
89A–13185–00 B – 8
89A–13187–00 B – 8
8CR–13555–00 B – 9
86M–13575–00 B – 9
8CR–13581–00 B – 9
4DA–13610–00 B – 9
3SP–13613–00 B – 9
4DA–13616–00 B – 9
80L–13621–01 B – 9
4DA–13625–00 B – 9
8CJ–14100–10 B – 11
8CJ–14112–30 B – 12
500–14115–00 B – 11
8CA–14116–A3 B – 11
22F–14117–00 B – 13
8CC–14122–00 B – 13
3GF–14126–00 B – 12
2J2–14133–00 B – 13
5K7–14134–00 B – 12
256–14135–00 B – 12
8CD–14137–00 B – 12
87M–14137–00 B – 13
35H–14139–00 B – 13
8AY–14141–56 B – 11
3H1–14142–45 B – 11

B– 5

3H1–14142–50 B – 11
3H1–14147–00 B – 12
558–14147–00 B – 11
8AY–14147–00 B – 11
8F2–14147–00 B – 12
8CJ–1417E–00 F – 2
8CW–14171–00 B – 12
239–14172–06 B – 13
239–14172–08 B – 13
302–14173–00 B – 12
1FN–14174–00 B – 12
8AY–14185–10 B – 11
537–14186–00 B – 11
8CD–14188–00 B – 12
1AE–14190–15 B – 12
3FV–14191–00 B – 12
8CA–14194–00 B – 11
620–14198–00 B – 12
8AY–14199–00 B – 13
8CC–14216–00 B – 12
8AB–14227–00 B – 12
3G2–1423A–79 B – 11
3G2–1423A–80 B – 11
3G2–1423A–81 B – 11
3G2–1423E–55 B – 11
3G2–1423E–56 B – 11
3G2–1423E–57 B – 11
3G2–1423E–58 B – 11
3G2–1423E–59 B – 11
3G2–1423E–60 B – 11
3G2–1423E–61 B – 11
3G2–1423E–62 B – 11
3G2–14231–28 B – 11
3G2–14231–29 B – 11
3G2–14231–30 B – 11
3G2–14231–31 B – 11
8AY–14243–00 B – 12
4N0–14251–00 B – 13
583–14264–00 B – 13
8AY–14265–00 B – 13
89A–14265–00 B – 13
8CJ–14275–00 B – 13
8CH–14348–00 B – 13
8CJ–14348–00 B – 12
8CJ–14348–10 B – 13
8CR–14431–01 B – 9
8CR–14441–01 B – 9
8CR–14450–00 B – 9

8CR–14452–00 B – 9
8CR–14453–00 B – 9
8CR–14477–00 B – 9
2LN–14565–00 B – 11
89A–14565–00 B – 12
89A–14594–00 B – 13
8CR–14610–00 B – 14
8CR–14613–00 B – 14
8CR–14620–01 B – 14
8CH–14633–00 B – 14
8CR–14640–01 B – 14
8CA–14714–00 B – 14
8A5–14728–02 B – 14
8CR–14728–00 B – 14
83R–14728–01 B – 14
8CR–14738–00 B – 14
8CW–14905–00 B – 12
8CW–14905–10 B – 12
8AY–14918–00 B – 13
8CC–14918–00 B – 12
256–14919–00 B – 12
3MA–14937–00 B – 12
1UF–14952–00 B – 13
3H1–14962–00 B – 12
89A–14987–00 B – 13
1J7–14994–00 B – 13
8CR–15100–01 B – 15
84M–15710–01 C – 2
82M–15711–00 C – 2
8F3–15713–01 C – 2
8F3–15714–01 C – 2
8F3–15715–00 C – 2
82M–15716–00 C – 2
8CA–15721–00 C – 2
8CA–15722–00 C – 2
8CA–15723–00 C – 2
8F3–15734–00 C – 2
8F3–15739–01 C – 2
8G5–15739–00 C – 2
8F3–15741–01 C – 2
8F3–15751–00 C – 2
8F3–15755–00 C – 2
8CR–15758–00 C – 2
82M–15779–00 C – 2
8CW–17143–00 E – 8
8CW–17243–00 E – 8
8CW–17492–00 E – 8
8DM–1760A–19 C – 4

8CJ–17601–09 G – 11
8BV–17604–11 G – 8
8BV–17604–31 C – 5

8BV–17604–51 G – 8
8BV–17604–71 G – 8
8BV–17604–91 G – 8
8AB–17605–10 C – 3
8CH–17605–10 G – 7
8CR–17605–10 C – 3

8DF–17605–10 G – 7
8DG–17605–00 G – 7
8DJ–17605–00 G – 7
8DN–17605–20 G – 7
8CW–1761A–00 E – 8
8CR–17611–01 C – 3

8DV–17617–10 C – 4
8BV–17620–03 C – 3

8CR–17624–00 G – 7
8CR–17624–10 C – 3

8CR–17624–20 G – 7
8CR–17624–30 G – 7
8BV–17630–10 C – 3

8V0–17639–00 C – 3
8CA–17640–12 C – 3
8CH–17641–00 C – 4

8CJ–17641–00 C – 4
8V0–17647–00 C – 4

8BW–17653–00 C – 3
8BV–17656–00 C – 5

8CR–17660–20 C – 5
8CM–17665–00 G – 9
8BU–17670–20 C – 5
8CM–17675–00 G – 9
8CR–17681–10 C – 5
89J–17682–00 G – 10
89J–17682–10 E – 7

G– 8

G– 7

G–11

G–11

G– 7
G–12

G–11
G–11
G–11

G–11
G–11

G–10

89J–17682–20 E – 7
89J–17682–30 G – 10

89J–17682–80 G – 10
89J–17682–91 E – 7

8AV–17688–10 C – 5
8DM–17692–00 E – 8
82M–17699–00 E – 7
8CW–1811A–00 E – 9
8CW–18112–01 E – 9
26H–18115–00 E – 10
88T–18116–01 E – 10
8CW–18152–10 E – 9
8CW–18153–00 E – 9
8CW–18156–00 E – 10
88T–18157–00 E – 10
8CW–18161–01 E – 9
8CL–18174–00 E – 9
8CW–18197–00 E – 9
8CW–18198–00 E – 10
8CW–18511–00 E – 9
8CR–21415–00 C – 6
8CR–21416–00 C – 6
8CR–21417–00 C – 6
8CR–21425–00 C – 6
8CR–21427–01 C – 6
8CR–21486–00 C – 6
4TV–2153A–00 E – 13
8CR–21751–10 C – 7
863–21771–00 C – 7
89A–21815–00 C – 7
8CR–2191A–02 C – 8
8CR–21912–01 C – 9
8CW–21916–10 C – 12
8CR–21917–00 C – 8
8CR–21918–00 C – 8
8CR–21920–00 C – 8
8CR–21921–01 C – 10
8CR–21923–02 C – 10
8CR–21939–00 C – 8
8CR–2194J–00 C – 8
8CR–21940–05 C – 8
8DF–21941–00 C – 9
8CR–21943–01 C – 8
8CW–21943–00 C – 12
8CR–21949–10 C – 9
8CR–2195E–00 C – 9

G–10

G–10

M

1

PARTNO.

GRID

NO.

PARTNO.

GRID

NO.

PARTNO.

NUMERICAL INDEX

GRID

NO.

PARTNO.

GRID

NO.

PARTNO.

GRID

NO.

PARTNO.

GRID

NO.

8CJ–21950–09 C – 8
8CY–21950–09 C – 8
8DF–21951–00 C – 9
8CR–21953–00 C – 8
8CR–21959–10 C – 9
8CR–2196A–02 C – 9
8CR–2196E–02 C – 9
8CR–2196F–00 C – 8
8CR–2196M–00 C – 9
8CR–2196T–00 F – 4
8CR–2196U–00 E – 12
8CR–21960–08 C – 8
8CW–21964–02 C – 12
8CW–21965–02 C – 12
8CR–2197B–00 C – 10
8CS–2197C–00 C – 10
8EA–2197E–00 C – 11
8CR–21970–08 C – 8
8CR–21972–00 C – 9
8DF–21972–00 C – 11
8CR–21973–00 C – 10
8CR–21977–00 C – 8
8CR–21978–00 C – 10
8DF–21978–00 C – 11
8CR–2198F–00 C – 9
8CR–2198G–00 C – 8
8CR–2198J–00 C – 8
8CY–2198J–00 C – 8

8CW–2199G–00 F – 13
8CR–2199H–00 E – 11
8CW–2199H–00 F – 13
8CR–2199J–00 E – 14
8DF–21998–00 C – 10
4XV–2341B–00 E – 13
8CR–23496–00 D – 11
8DM–23711–00 C – 13
8DM–23712–00 C – 13
8DM–23731–00 C – 13
8CR–23741–10 C – 14
8CR–23743–10 C – 13
8DM–23751–00 C – 13
8DM–23751–10 C – 13
8CJ–2376A–00 C – 13
8CW–2376A–10 C – 13
8CR–2376B–00 C – 13
8DM–23766–00 C – 13
8DF–23779–00 C – 15

C–10

8CR–23788–11 C – 9
8DM–23803–00 C – 13
8CR–23811–00 D – 2
8DF–23812–00 D – 2
8ED–23813–00 D – 2
8G5–23814–00 D – 2
8K1–23814–00 D – 2
8CR–23815–01 D – 4
8CR–23815–20 D – 4
8DM–2382E–10 C – 14
8DM–2382E–20 C – 14
8DM–2382F–10 C – 14
8DM–2382F–20 C – 14
8CR–23821–00 D – 2
8CR–23823–01 C – 14
8DF–23826–10 D – 3
8CR–23831–00 D – 2
8CR–23832–00 C – 14
8CR–2384E–A0–P0 C – 14
8CR–2384E–20 C – 14
8CR–2384F–A0–P0 C – 14
8CR–2384F–20 C – 14
J45–23845–00 E – 10
8CR–23845–00 D – 2
8CR–23847–00 D – 2
87S–23847–00 D – 2
8CR–2385L–00 C – 15
8CR–23851–00 C – 13
8CR–23852–00 C – 13
8CR–2386E–00 C – 15
8CW–2386E–00 C – 15
8CR–2386G–00 C – 15
8CW–2386G–00 C – 15
8CR–2386H–00 C – 15
8DF–23867–00 D – 4
8CR–23870–10 D – 4
8CJ–23872–00 D – 2
8CR–23872–00 D – 2
8CR–23881–00 D – 4
1UY–23894–01 D – 2
8CW–24111–10 D – 5
8DF–2412G–00 D – 3
8AC–2414B–01 E – 13
8CR–2418A–00 D – 5
8CR–24301–00 D – 5
8CR–24311–10 D – 5
8CR–24335–00 D – 5
8CR–24410–01 B – 9

89A–24529–00 B – 13
8CH–24534–00 B – 6
8H5–24560–00 D – 5
8CW–24610–00 D – 5
8CW–24612–00 D – 5
8CT–2470F–30 G – 5
8CW–2470F–20 D – 7

8CY–2470F–20 D – 7

8DT–2470F–20 D – 6
81K–2471F–00 C – 10
8CT–24710–30 G – 5
8DT–24710–20 D – 6
8CW–24730–20 D – 7

8CY–24730–20 D – 7

8CR–24734–00 D – 6
8CW–24737–00 D – 7

8CW–2474A–00 D – 7
8DM–2474A–00 G – 4

8CW–2474B–00 D – 7
8DM–2474B–00 G – 4

8CW–2474C–00 D – 7
8DM–2474C–00 G – 4

8DM–2474F–00 G – 3
8DM–2474G–00 G – 3
8CW–2474H–01 D – 7

8DM–2474H–10 G – 3
8CW–2474J–01 D – 7

8DM–2474J–10 G – 3
8DM–2475X–00 G – 4
8DM–2476U–00 G – 4
8DM–2476V–00 G – 4
8DM–24760–00 G – 3
8DM–2477F–00 G – 4
8DM–2477R–00 G – 3

G– 3

F–15

G– 3

G– 3

F–15

G– 3

D– 8

F–15

G– 4

F–15

F–15

G– 2

F–15

F–15

8CW–2479H–00 D – 7

8CW–2479L–00 D – 7
8CW–24790–10 D – 7
8DM–24790–00 G – 3

8DM–24796–00 G – 4
8CW–24797–00 D – 7

89X–24897–00 G – 6
89Y–24897–00 F – 3
8CR–2516A–00 C – 14
8CR–25730–00 D – 10
8CR–25740–00 D – 10
8DF–2580T–01 D – 9
8CR–2581T–00 D – 9
8DF–2582F–00 D – 9
8DF–25828–00 D – 9
55U–25854–00 D – 9
8CR–25867–00 D – 9
8DF–25872–10 D – 10
3LC–25885–00 D – 10
8DF–25886–00 D – 11
8CR–2589F–00 D – 9
8CR–2589H–00 D – 10
8CR–25919–00 D – 9
8CR–25924–00 D – 9
8CR–25926–00 D – 9
88T–26240–00 D – 12
4SV–26280–00 E – 15
4SV–26290–00 E – 15
8CR–26311–01 D – 12
8CR–26320–02 B – 8
8U9–26325–00 D – 12
8CR–26330–01 D – 12
8G8–26333–00 D – 12
8CR–26351–03 D – 10
8M6–26391–01 D – 12
8DM–27431–00 C – 12

8DM–27441–00 C – 12

8DF–28100–00 F – 2
8AC–4631K–00 E – 5

F–15

G– 4

F–15
F–15

F–15

F–15

G– 4

F–15

G– 4

8BN–47110–10 D – 13
8CC–47110–10 D – 13
8EA–47110–10 D – 13
8CR–47113–00 D – 13
8EA–47113–00 D – 13
8CR–47115–00 D – 13
8EA–47115–30 D – 13
8CR–47310–10 D – 13
8H8–47320–00 D – 13
8CV–47331–01 D – 15
8CR–47332–10 E – 3
8CM–47341–00 D – 15
8CR–47341–00 D – 13
8CR–47341–10 D – 13
8DF–47367–00 E – 4
8V0–4741B–00 D – 15
8EA–47411–00 D – 15
8EB–47411–00 D – 15
8EA–47412–00 D – 15
8EB–47412–00 D – 15
8CR–47415–00 E – 2
8CR–47416–10 E – 2
8CR–47417–01 E – 3
8EA–47418–00 E – 2
8DF–47419–00 D – 13
8DF–47419–10 D – 13
8CM–47421–40 D – 15
8CW–47421–20 D – 15
8CM–47422–10 D – 15
8CR–47425–00 E – 3
8CW–47425–00 E – 3
8CR–47426–10 E – 3
8CR–47448–00 E – 2
8CR–4745A–01 E – 4
8CR–4745B–00 E – 4
8DF–47456–10 D – 15
8CM–47457–00 D – 15
8AX–47458–00 D – 15
8DF–47463–01 E – 2
8DF–47464–01 E – 2
8CR–47465–00 D – 15
8V0–47468–00 D – 15
8CR–47475–00 E – 3
8CY–47475–01 E – 3
8K2–47479–01 E – 4
8CR–47480–01 E – 5
8CW–47480–00 E – 5
8CW–47480–10 E – 5

8CW–47481–20 E – 2
8DG–47481–10 E – 2
82M–47485–02 E – 3

8CR–47486–00 E – 2
8CR–47488–00 E – 3
8CR–47489–00 E – 5
8CR–47489–10 E – 5
8CW–47489–00 E – 5
8CR–47494–01 E – 3
8CR–47495–00 E – 2
8L8–47520–02 D – 14
8CM–47531–10 E – 6
8CM–47532–10 E – 6
8CR–47541–01 E – 7
8CW–47543–02 E – 7
8CR–47546–00 E – 7
8CR–47550–00 D – 14
8CR–47550–10 D – 14
8DF–47550–01 D – 14
8CR–47558–01 E – 7
8CW–47564–00 E – 9
8CW–47571–00 E – 8
8K4–47577–00 E – 6
8CW–47578–00 F – 2
8CW–47587–90 E – 8

8CW–47591–00 E – 9
8CR–47612–00 E – 7
8CR–47613–00 E – 7
8CR–47631–01 C – 5
8CR–47700–00 F – 7
8K4–47715–00 F – 7
8CR–77109–00 E – 12
8CY–7711A–01 E – 13
8DS–7711A–00 E – 13
8DS–7711B–00 E – 13
8CY–7711C–01 E – 13
8DS–7711C–00 E – 13
8CY–7711D–01 E – 13
8DS–7711D–00 E – 13
8DS–7711E–00 E – 13
8CY–7711G–01 C – 11
8DS–7711G–00 C – 11
8CY–7711H–01 C – 11
8DS–7711H–00 C – 11
8CY–7711J–01 E – 13
8CY–77111–10 E – 11

E– 4

G–10

M

2

PARTNO.

GRID

NO.

PARTNO.

GRID

NO.

PARTNO.

NUMERICAL INDEX

GRID

NO.

PARTNO.

GRID

NO.

PARTNO.

GRID

NO.

PARTNO.

GRID

NO.

8DT–77111–10 E – 11
8CR–77118–00 E – 12
8CR–77128–00 C – 9
8CR–77131–00 E – 11
8CR–77132–00 E – 11
8CR–77133–00 E – 11
8CR–77134–00 E – 11
8CR–7714A–00 E – 12
8CR–77140–00 E – 12
8CJ–77141–10 E – 13
8CY–77141–41 E – 13
8DX–77141–00 C – 12
8CT–77142–30 E – 13
8CT–77142–40 E – 13
8EM–77143–00 E – 13
89A–77159–00 E – 12
8CR–77165–00 C – 11
8CR–7717E–00 E – 11
8CR–7717F–00 E – 11
8CR–7717G–00 E – 11
8CR–7717H–00 E – 11
8CR–7717J–00 C – 11
8CS–7717J–00 E – 11
8V0–77171–00 E – 11
8M6–77175–00 F – 4
8CR–77185–00 E – 12
8CR–77194–00 E – 12
8CR–77210–00 E – 14
8CV–77210–00 E – 14
8DM–77210–00 E – 14
8CR–77213–00 E – 14
8CV–77213–00 E – 14
8DM–77213–00 E – 14
82H–77223–00 E – 14
8DF–77251–01 E – 14
8CR–77261–00 C – 11
8CR–77262–00 C – 11
8CR–77263–00 C – 11
8CR–77264–00 C – 11
8CR–77265–00 C – 11
8CR–77266–00 C – 11
8CR–77267–01 C – 11
8CR–77268–00 C – 11
8CR–77269–00 C – 11
8CR–77271–00 C – 11
8CR–77272–00 E – 11
8CR–77273–00 E – 11
8CR–77274–00 E – 11

8CR–77275–00 E – 11
8CR–77276–00 E – 11
8CR–77277–00 E – 12
8CR–77278–00 E – 11
8CR–77279–00 E – 14
8CR–77311–10 F – 2
8CR–77315–00 F – 2
8CR–77319–00 F – 2
8CR–77338–00 F – 2
8DS–77371–00 C – 15
8DS–77371–10 C – 15
8DS–77372–00 C – 15
8DS–77372–10 C – 15
8CR–77378–00 F – 2
8CR–77384–00 F – 2
8CR–77511–00 F – 3
8CR–77512–00 C – 9
8CW–77540–00 F – 3

8DF–77541–00 F – 3
8EB–77541–00 F – 3
8CR–77542–00 F – 3
8CW–77542–00 F – 3
8CW–77554–00 F – 3

8CR–77595–00 F – 3
8DM–77595–00 F – 3
8CR–77711–01 F – 4
8CR–77741–10 F – 4
8CW–77742–00 F – 4
8DM–77761–00 E – 13
8DM–77761–30 E – 13
8DY–77761–00 E – 13
8BD–77762–00 F – 2
8CY–77762–00 C – 12
86D–77762–00 F – 2
8DY–77763–00 E – 13
8DY–77763–10 E – 13
8CW–81800–01 F – 6
8CW–81811–00 F – 6
8CW–81812–00 F – 6
8L6–81813–50 F – 6
3GD–81826–00 F – 6
73A–81829–00 F – 6
73A–81829–50 F – 6
8CW–81832–00 F – 6
8CW–81833–00 F – 6
8L6–81834–50 F – 6

G– 6

G– 6

8L6–81835–50 F – 6
8CW–81836–00 F – 6
8CW–81840–00 F – 6
4H7–81843–50 F – 6
4H7–81844–50 F – 6
73A–81847–00 F – 6
8L6–81847–50 F – 6
8BB–8185A–00 F – 6
8CW–81850–00 F – 6
4H7–81872–00 F – 6
8AB–81910–00 F – 11
3EL–81940–00 F – 13
8CY–81952–00 F – 13
8CR–81960–00 F – 11
5E3–82110–81 F – 13
8DY–82115–00 F – 13
8CY–82116–00 F – 6
8DY–82117–00 F – 6
84N–82122–00 F – 13
8DX–82129–00 F – 13
8CY–82131–00 F – 13
8CW–82176–00 F – 13
8AB–82310–00 F – 11
8V7–82318–00 F – 11
8CW–8235W–01 F – 13
861–82361–00 F – 11
8DG–82370–00 F – 11
8DY–82509–00 F – 13
8AB–82510–00 F – 11
8CR–82530–01 D – 9
8AU–82575–09 F – 10
526–82579–00 F – 11
87S–8259A–00 B – 13
8CJ–82590–10 F – 11
8AB–82720–00 F – 10
J51–82817–00 E – 9
8CY–82917–00 F – 11

8DM–82917–01 G – 4
8AB–82970–00 F – 10
8CW–83383–00 F – 12
8CJ–83509–00 F – 7
8DF–83509–40 F – 7
8DF–83510–20 F – 7
8DF–83510–40 F – 7
1YT–83517–00 F – 7
8DF–83519–40 F – 7
8DF–83523–40 F – 7

G– 2

8CJ–83540–41 F – 7
8CR–83550–00 F – 7
8DF–83578–00 F – 7
85G–83663–00 F – 10
8CR–83912–00 D – 9
8DN–83912–00 D – 11
8CR–83922–00 D – 10
84M–83928–00 F – 10
8K4–83950–01 D – 10
85G–83956–00 F – 10
8AV–83963–00 F – 10
8CR–8398X–00 D – 9
8R6–8399F–00 F – 10
8CR–84310–00 F – 8
8G9–84314–00 F – 8
8A5–84331–00 F – 8
8CH–84359–00 F – 8
8CR–84366–00 F – 8
8K4–84374–00 F – 8
8DN–84397–00 F – 8
8CR–8471G–00 F – 11
82M–84710–00 F – 9
82M–84711–00 F – 9
838–84714–01 F – 9
8K4–84718–00 F – 9
8K4–84721–00 F – 9
87M–84723–00 F – 9
86R–85110–00 F – 14
3Y6–85130–02 F – 14
8DM–85370–00 G – 4
8CR–85510–01 F – 5
8CJ–85540–01 F – 11
8CR–85550–01 F – 5
8CR–85720–01 F – 11
8CW–85752–00 D – 5
8CC–85790–00 B – 2
8CR–87283–00 F – 11
8AB–87284–00 F – 11
90101–06288 D – 10
90101–08774 D – 13
90101–10357 E – 7
90101–10738 E – 2

90101–12780 C – 14
90102–10044 D – 2
90105–05644 C – 3

E– 5

G–11
G–12

90105–060A6 D – 5

90105–06601 E – 10
90105–06734 C – 5
90105–08094 D – 10
90105–083A2 C – 6
90105–08345 C – 15
90105–08450 E – 2
90105–08485 F – 3
90105–100A7 E – 8
90105–100A9 C – 13

90105–103A1 D – 15
90105–10392 D – 13

90105–10433 E – 2

90105–10436 E – 5
90105–10617 C – 10
90105–10634 D – 9
90105–10712 C – 13
90105–10739 E – 4
90105–10769 D – 15
90105–12006 D – 3
90105–121A8 C – 15
90105–14766 C – 5
90108–08002 C – 13
90109–083G2 C – 5
90113–06064 C – 5

90116–08392 B – 2
90116–10574 B – 2
90119–06182 B – 9
90119–06211 C – 2
90149–06330 D – 5
90150–05024 E – 14
90150–05040 G – 9
90151–06010 D – 15
90154–06036 G – 4
90154–06040 D – 6

90154–06062 C – 5
90154–06077 F – 4
90154–06078 E – 11
90167–05043 B – 9
90170–06289 E – 10

E– 8
E– 9

C–15

E– 3

E– 3
E– 4

E– 6

D– 8

90170–10186 D – 2
90170–16425 B – 4
90170–22094 E – 8
90176–06055 E – 11
90176–06065 G – 4
90179–05523 E – 14
90179–08655 C – 5
90179–10679 E – 7
90183–05024 F – 8
90183–06053 F – 3
90185–10110 E – 2
90201–047R8 D – 15
90201–05033 C – 9

90201–05036 F – 14
90201–051K1 G – 4
90201–057H5 F – 2
90201–06037 C – 5
90201–06050 D – 10
90201–06057 F – 7
90201–06071 E – 10

90201–06072 E – 15
90201–061H1 C – 5

90201–06557 E – 11
90201–06747 E – 2

90201–06778 E – 10
90201–08087 B – 15
90201–08088 B – 5
90201–083A8 D – 7

90201–08403 D – 11
90201–086A3 D – 6

90201–086P8 C – 13
90201–08759 D – 3
90201–08784 C – 13

90201–100L3 E – 2
90201–100S0 D – 13
90201–100S2 E – 4
90201–100U1 E – 4

90201–101U2 E – 4
90201–10118 D – 10

C–10

F– 4
F– 9

F– 9

F–15

D– 7

F–15

D– 5

E– 5

M

3

PARTNO.

GRID

NO.

PARTNO.

GRID

NO.

PARTNO.

NUMERICAL INDEX

GRID

NO.

PARTNO.

GRID

NO.

PARTNO.

GRID

NO.

PARTNO.

GRID

NO.

90201–10126 E – 4
90201–10136 E – 3
90201–103U4 E – 5
90201–10321 C – 6
90201–10437 G – 3
90201–105A2 E – 2
90201–106F2 E – 4
90201–120T5 C – 14
90201–120U9 C – 6
90201–121U3 D – 3
90201–127E1 E – 7
90201–12790 B – 2
90201–141A3 C – 5
90201–16245 E – 8
90201–205R6 D – 14
90201–207J5 E – 3
90201–210U0 D – 15
90201–222F0 C – 5
90201–225A4 C – 5
90201–250T6 E – 3
90201–251G8 E – 3
90201–270U5 D – 9
90201–301G3 C – 14
90201–320S3 E – 8
90201–345G2 B – 2
90201–357E4 B – 3
90202–08204 C – 3

90202–09227 C – 3
90202–12236 G – 3

90202–16230 E – 4
90202–16231 E – 4
90202–16232 E – 4
90208–22001 E – 7
90210–06006 B – 6

90210–08017 E – 8
90249–06009 D – 10
90249–06012 D – 10
90249–12227 E – 7
90261–06015 C – 3

90261–06017 G – 7
90261–06019 G – 7
90261–06028 C – 3

G–11
G–12

E– 8

G– 7

C– 4
G– 7

90261–06033 C – 4
90261–06034 C – 4
90267–40069 C – 10

90267–40076 D – 12
90267–47186 B – 6

90267–47187 C – 9

90267–47195 B – 6
90267–47197 C – 8
90267–48015 C – 8

90267–48051 G – 4
90267–48057 C – 15
90267–48059 E – 11
90267–48060 F – 2
90267–48095 D – 4
90267–48141 C – 9

90267–48165 C – 9
90267–48169 C – 10

90267–48176 C – 8
90267–48177 C – 8

90267–48182 E – 11
90267–48194 D – 15

90267–48199 D – 15
90269–06046 F – 8
90269–07080 C – 9
90280–05033 B – 3
90281–07004 D – 9
90338–09265 B – 14

G– 7
G– 7

C– 8
C–11
C–12
C–15

C–10
D– 7

F– 3
F–15

G– 3
C–10
C–11

C–10

E–12

G– 6
C–11
C–10

C–11

F– 2
E–12

90338–30256 C – 10
90338–44093 C – 10
90380–08244 C – 3
90380–09245 C – 3
90380–22232 E – 4
90380–28235 E – 4
90380–28237 C – 3

90381–14101 E – 5
90381–14109 E – 3
90381–15112 D – 15
90381–17110 C – 15
90381–19111 D – 15
90381–22099 E – 3
90381–25115 C – 14
90381–28108 E – 3
90384–16251 C – 14

90384–38243 C – 5
90384–41242 C – 3

90385–12036 C – 2
90387–0514T C – 3

90387–0514U C – 3

90387–0608T E – 10
90387–0611K F – 4
90387–062M9 E – 11
90387–06241 E – 11
90387–063E9 C – 2
90387–063G3 C – 7
90387–064W3 F – 4
90387–066M3 D – 10
90387–066N1 F – 9
90387–06605 E – 9
90387–081M9 D – 10
90387–0810F C – 9
90387–083G6 E – 3
90387–083Y8 G – 3
90387–084R5 D – 10
90387–087L3 C – 15
90387–090R0 D – 2
90387–100X3 E – 3
90387–10079 D – 13
90387–1009K C – 15
90387–1009S E – 5

G–12

E– 4

G–12

G–11
G–11

G–12

90387–1009T D – 15
90387–10090 G – 4
90387–1012H C – 13
90387–105G5 E – 2

90387–1404R E – 5
90387–1407L C – 5
90387–145G7 E – 2

90387–2004V D – 13
90387–2008G E – 8
90387–2012C D – 14
90387–2012D D – 14
90387–2012E D – 14
90387–224F9 D – 12
90387–22726 D – 12
90387–2508C E – 8
90387–2508D E – 7
90387–2510A E – 3
90387–2511J E – 8
90401–10159 D – 10
90430–06166 B – 2
90430–31003 C – 7
90445–084J2 C – 7
90445–093K1 B – 10
90445–112E0 C – 7
90445–11735 B – 9
90445–226J7 B – 10
90460–68230 B – 9
90461–05003 C – 8
90461–06142 C – 9
90461–10148 C – 9
90461–12145 B – 15
90462–05059 C – 9
90462–08244 C – 7
90462–08246 B – 9
90464–13073 C – 7

90464–13077 D – 7

90464–15195 F – 11

E– 5

G– 4

D– 5
D–12

F–11

F–15
G– 2
G– 4

E–12

F–11

F–13

90464–20031 F – 11
90464–23041 B – 8

90465–08028 B – 9
90465–08146 C – 10
90465–08368 E – 12
90465–10381 F – 13
90467–08092 F – 13
90467–09026 B – 10

90467–10035 B – 13
90467–11028 B – 7
90467–11032 B – 9

90467–23067 B – 6
90467–24096 B – 9
90467–28046 B – 5

90468–02025 B – 8
90468–02078 D – 5
90468–04092 D – 5
90468–12006 D – 2
90468–12007 E – 9

90468–18121 F – 2
90480–14101 C – 7
90501–06022 E – 8
90501–066J5 E – 8
90501–083J8 C – 7
90501–084J0 D – 5
90501–08430 C – 7
90501–08486 C – 7
90501–08668 D – 5
90501–120K6 B – 6
90501–124L0 F – 8
90501–326J6 E – 9
90501–481J1 G – 7
90501–487G8 G – 7
90501–507G2 G – 7
90501–507G7 G – 7
90501–521J6 G – 8
90501–524G4 G – 8
90501–524G5 G – 8
90501–525J8 G – 8
90501–526G4 G – 7
90501–526J9 G – 8
90501–527G1 G – 7

F–11

C– 7
D– 5

D– 5

B– 6

E–10

90501–550J8 C – 4
90501–553G0 G – 8

90501–553G6 G – 8
90501–555J9 G – 8
90501–556G5 G – 8
90501–556G6 G – 7
90501–556G7 G – 8
90501–557G5 G – 7
90501–557G6 G – 7
90501–581J7 G – 8
90501–582J1 C – 4

90501–585J3 G – 8
90501–586J0 G – 8
90501–602J0 G – 8
90501–604G0 G – 8
90501–605G7 G – 8
90501–605J5 G – 8
90501–606G9 G – 8
90501–607G0 G – 8
90501–607G3 G – 7
90501–607G4 G – 7
90506–14343 E – 9
90506–16335 B – 14
90506–16504 B – 14
90506–20093 B – 14
90506–20272 B – 14
90508–291B1 D – 10
90508–291B2 D – 10
90508–500B1 G – 9
90508–536A9 C – 5

90508–556A2 G – 9
90508–556A7 G – 9
90560–08066 F – 15
90560–08251 D – 7
91A20–05115 D – 5
91A30–03033 B – 8
91A30–05033 C – 7
91A30–05085 C – 7
91316–06022 D – 9
91317–05016 B – 8
91401–20020 C – 13
91401–25020 D – 2
91401–30025 D – 14
91490–20015 D – 10
91609–30010 D – 12

G– 8

G– 8

G– 8

M

4

PARTNO.

GRID

NO.

PARTNO.

GRID

NO.

PARTNO.

NUMERICAL INDEX

GRID

NO.

PARTNO.

GRID

NO.

PARTNO.

GRID

NO.

PARTNO.

GRID

NO.

91609–40022 E – 9
91609–50022 E – 9
91609–50032 C – 3
91701–06022 E – 10
91701–06035 E – 9
91701–06082 F – 2
92017–06014 D – 10
92017–08020 D – 10
92017–10016 G – 3
92017–10070 G – 3
92901–06100 C – 2
92907–03100 B – 9
92907–06100 F – 7
92907–06200 D – 7

92907–06600 B – 2

92907–08600 C – 2
92907–10100 E – 8

92907–10200 C – 10
92907–16100 C – 4

92907–16600 B – 4
93102–35318 E – 7
93102–35473 E – 7
93103–32153 B – 3
93103–35176 B – 3
93210–12131 E – 9
93210–25071 E – 8
93210–41041 D – 5
93306–00444 D – 13
93306–20117 B – 5

93306–20402 E – 7
93306–20589 E – 6
93306–20592 E – 7
93306–20712 B – 3
93306–30720 B – 3
93310–320G0 B – 3
93310–525S1 B – 3
93315–21227 E – 7
93317–21578 E – 8
93317–33179 E – 8

E– 9

F–15

B– 5
C– 3

F– 5

G–11
D– 2

G–11

B–15

93317–41767 D – 3
93399–99943 C – 5
93399–99945 B – 3
93399–99946 B – 3
93410–27080 D – 9
93440–39175 E – 8
93440–80023 B – 3
93450–21053 B – 3
93603–10049 B – 15
93604–07141 B – 15
93606–20044 E – 7
93700–06004 C – 14

94702–00188 B – 2
94860–02068 E – 8

94860–02070 E – 8
95027–06008 F – 13

95027–08016 B – 15

95027–08030 F – 6
95027–08080 F – 6
95301–06700 C – 2
95304–06600 E – 10
95307–06600 F – 6

95307–06700 D – 10
95307–06800 D – 7

95307–08700 D – 10
95307–10600 E – 7

95307–10700 D – 2
95314–14600 C – 14

95317–12600 C – 14
95607–04100 E – 9
95607–05200 C – 3

95607–06200 E – 9

95607–08200 C – 9

E– 4

G–10
G–10

C–10

F– 3

F– 7

F–15

G– 3

C–15

G–11
G–12

E–10
E–15

C–15
D–13

95607–08200 E – 3
95607–10100 E – 2

95607–10200 C – 13

95607–12200 C – 15
95607–14200 D – 14
95617–08630 C – 5
95707–05300 D – 9

95707–05500 F – 12
95707–06300 E – 2

95707–06500 B – 9

95707–08300 B – 8

95707–08500 B – 2

95707–10300 D – 2
95707–10500 B – 2

95807–06010 F – 11
95807–06012 B – 2

95807–06014 B – 6

E– 5
C–15

D–13
E– 2
E– 4

F–14
F–14

E–12

F– 9
F–11

C–13
D– 2
D– 5
D– 6
D– 7
E– 6

F–15

C– 5
C– 9
C–10
D–10
E– 2

F– 3
F–15

G– 3

E– 4
C– 6

C–10
D– 2

C– 2

F–13

95807–06016 F – 3
95807–06040 D – 7
95807–08014 D – 7

95807–08016 D – 7

95807–08020 C – 9
95807–08040 C – 9
95817–06016 B – 6
95817–08020 B – 14

95817–08035 B – 15
95817–08040 B – 5
95817–08080 B – 15
95817–10025 C – 6

95817–10055 C – 13
95817–10085 D – 13
95827–06016 D – 4
95827–06020 B – 9
95827–06025 C – 7

95827–06035 E – 9
95827–06040 E – 10
95827–08016 D – 4
95827–08030 E – 7
95827–08220 E – 3
95827–10060 E – 7
95827–10065 C – 10
95827–12030 C – 6
97007–05020 F – 12
97007–06020 B – 2
97007–06025 E – 2
97007–06040 F – 9
97007–08014 E – 8
97017–06030 C – 3

97027–08030 C – 2
97027–08055 C – 13

97027–08100 C – 13
97027–10014 G – 3
97027–10025 E – 4

F–11

F–15

F–15
G– 3

F–15
G– 6

E– 2

E– 3

E– 2

E– 9

G–11

D– 2

97602–04108 B – 13
97602–05116 B – 13
97701–40130 F – 9
97707–30614 F – 10
97707–40008 G – 4
97707–40012 G – 4
97707–40016 G – 4
97707–50016 D – 7

97707–50020 C – 12

97780–60125 F – 11
98502–04014 B – 12
98502–05010 B – 12
98502–05014 B – 13
98507–03008 B – 9
98507–05014 F – 5
98507–06012 B – 15
98507–06025 F – 5
98507–06035 B – 5
98702–05018 B – 13
98706–04012 D – 9
98707–06016 C – 2
98907–04016 E – 9
98907–05008 D – 5
98907–06012 F – 4
98907–06014 E – 12
98907–06020 B – 6
98907–06035 G – 4
99001–04600 F – 10
99009–12400 E – 7

99009–20400 D – 13
99009–25400 D – 13
99009–42500 D – 14
99009–52500 E – 7
99530–10114 B – 5
99530–12016 B – 15
99530–14016 B – 2

E–14

G– 2

F–15

G– 4

E– 9

M

5

ENGINE

CYLINDER HEAD B2...................................

CRANKSHAFT. PISTON B3..............................

WATER PUMP B5......................................

RADIATOR. HOSE B6...................................

OIL PUMP B8..........................................

INTAKE B9............................................

CARBURETOR B11.....................................

EXHAUST B14..........................................

CRANKCASE B15.......................................

STARTER C2..........................................

DRIVE

PRIMARY SHEAVE C3..................................

SECONDARY SHEAVE C5..............................

BODY

ENGINE BRACKET C6..................................

OIL TANK C7..........................................

FRAME C8............................................

FRAME 2 C12...........................................

SKI C13................................................

STEERING D2.........................................

STEERING GATE D4...................................

FUEL TANK D5........................................

SEAT D6..............................................

SEAT 2 D7............................................

BRAKE D9............................................

CONTROL CABLE D12..................................

TRACK SUSPENSION 1 D13.............................

TRACK SUSPENSION 2 D15.............................

TRACK SUSPENSION 3 E5.............................

TRACK DRIVE 1 E6....................................

TRACK DRIVE 2 E7....................................

CONTENTS

SHROUD E11...........................................

EMBLEM E13...........................................

WINDSHIELD E14.......................................

REAR VIEW MIRROR E15................................

GUARD. LUGGAGE BOX F2.............................

BUMPER F3...........................................

INSTRUMENT PANEL F4...............................

ELECTRICAL

GENERATOR F5.......................................

STARTING MOTOR F6..................................

METER F7............................................

HEADLIGHT F8........................................

TAILLIGHT F9.........................................

HANDLE SWITCH. LEVER F10...........................

ELECTRICAL 1 F11.....................................

ELECTRICAL 2 F13.....................................

ELECTRICAL 3 F14.....................................

ALTERNATE(BODY/RIG) F15............................

ALTERNATE(BODY/RIG) G3............................

ALTERNATE(BODY/RIG) G5............................

ALTERNATE(BODY/RIG) G6............................

ALTERNATE(DRIVE SETTING 1) G7.....................

ALTERNATE(DRIVE SETTING 2) G10.....................

ALTERNATE(DRIVE) G11................................

ALTERNATE(DRIVE) G12................................

INDEX

NUMERICAL INDEX M1.................................
