Yamaha UW10 User Manual

USB-AUDIO INTERFACE

USB-AUDIO INTERFACE

Owner's Manual

Bedienungsanleitung

Mode d'emploi

EnglishDeutschFrançais

SPECIAL MESSAGE SECTION

This product utilizes an external power supply
(adapter). DO NOT connect this product to any
power supply or adapter other than one
described in the manual, on the name plate, or
specifically recommended by Yamaha.

WARNING:

position where anyone could walk on, trip over,
or roll anything over power or connecting cords
of any kind. The use of an extension cord is not
recommended! If you must use an extension
cord, the minimum wire size for a 25' cord (or
less) is 18 AWG. NOTE: The smaller the AWG
number, the larger the current handling capacity.
For longer extension cords, consult a local
electrician.
This product should be used only with the
components supplied or; a cart, rack, or stand
that is recommended by Yamaha. If a cart, etc.,
is used, please observe all safety markings and
instructions that accompany the accessory
product.

Do not place this product in a

SPECIFICATIONS SUBJECT TO
CHANGE:

The information contained in this manual is
believed to be correct at the time of printing.
However, Yamaha reserves the right to change
or modify any of the specifications without notice
or obligation to update existing units.

Do not attempt to service this product beyond
that described in the user-maintenance
instructions. All other servicing should be
referred to qualified service personnel.

This product, either alone or in combination with
an amplifier and headphones or speaker/s, may
be capable of producing sound levels that could
cause permanent hearing loss. DO NOT operate
for long periods of time at a high volume level or
at a level that is uncomfortable. If you
experience any hearing loss or ringing in the
ears, you should consult an audiologist.
IMPORTANT: The louder the sound, the shorter
the time period before damage occurs.

Some Yamaha products may have benches and/
or accessory mounting fixtures that are either
supplied with the product or as optional
accessories. Some of these items are designed
to be dealer assembled or installed. Please
make sure that benches are stable and any
optional fixtures (where applicable) are well
secured BEFORE using. Benches supplied by
Yamaha are designed for seating only. No other
uses are recommended.

NOTICE:

Service charges incurred due to a lack of
knowledge relating to how a function or effect
works (when the unit is operating as designed)
are not covered by the manufacturer's warranty,
and are therefore the owners responsibility.
Please study this manual carefully and consult
your dealer before requesting service.

ENVIRONMENTAL ISSUES:

Yamaha strives to produce products that are
both user safe and environmentally friendly. We
sincerely believe that our products and the
production methods used to produce them, meet
these goals. In keeping with both the letter and
the spirit of the law, we want you to be aware of
the following:

Disposal Notice:

Should this product become damaged beyond
repair, or for some reason its useful life is
considered to be at an end, please observe all
local, state, and federal regulations that relate to
the disposal of products that contain lead,
batteries, plastics, etc. If your dealer is unable to
assist you, please contact Yamaha directly.

NAME PLATE LOCATION:

The name plate is located on the bottom of the
product. The model number, serial number,
power requirements, etc., are located on this
plate. You should record the model number,
serial number, and the date of purchase in the
spaces provided below and retain this manual as
a permanent record of your purchase.

Model

Serial No.

Purchase Date

PLEASE KEEP THIS MANUAL

93-DC

* Please make a note of the model number, the serial number and the purchase date.

PRECAUTIONS

PLEASE READ CAREFULLY BEFORE PROCEEDING

* Please keep this manual in a safe place for future reference.

WARNING

Always follow the basic precautions listed below to avoid the possibility of serious injury or even death
from electrical shock, short-circuiting, damages, fire or other hazards. These precautions include, but are
not limited to, the following:

Cables

• Check the USB connector periodically and remove any
dirt or dust which may have accumulated on it.

• Do not place the cable near heat sources such as heat­ers or radiators, and do not excessively bend or other­wise damage the cable, place heavy objects on it, or
place it in a position where anyone could walk on, trip
over, or roll anything over it.

Do not open

• Do not open the instrument or attempt to disassemble the
internal parts or modify them in any way. The instrument
contains no user-serviceable parts. If it should appear to
be malfunctioning, discontinue use immediately and have
it inspected by qualified Yamaha service personnel.

CAUTION

Always follow the basic precautions listed below to avoid the possibility of physical injury to you or others, or
damage to the instrument or other property. These precautions include, but are not limited to, the following:

Location

• Do not expose the instrument to excessive dust or vibra­tions, or extreme cold or heat (such as in direct sunlight,
near a heater, or in a car during the day) to prevent the
possibility of panel disfiguration or damage to the inter­nal components.

• Do not use the instrument in the vicinity of a TV, radio, ste­reo equipment, mobile phone, or other electric devices.
Otherwise, the instrument, TV, or radio may generate noise.

• Do not place the instrument in an unstable position
where it might accidentally fall over.

• Before moving the instrument, remove all connected
cables.

Connections

• Before connecting the instrument to other electronic
components, turn off the power for all components.
Before turning the power on or off for all components, set
all volume levels to minimum. Also, be sure to set the
volumes of all components at their minimum levels and
gradually raise the volume controls while playing the
instrument to set the desired listening level.

1

(3)-7

Water warning

• Do not expose the instrument to rain, use it near water or
in damp or wet conditions, or place containers on it con­taining liquids which might spill into any openings.

•Never insert or remove cables with wet hands.

Fire warning

• Do not put burning items, such as candles, on the unit.
A burning item may fall over and cause a fire.

If you notice any abnormality

• If the USB cable becomes frayed or damaged, or if there is a
sudden loss of sound during use of the instrument, or if any
unusual smells or smoke should appear to be caused by it,
immediately disconnect the USB connector, and have the
instrument inspected by qualified Yamaha service personnel.

Maintenance

• When cleaning the instrument, use a soft, dry cloth. Do
not use paint thinners, solvents, cleaning fluids, or chem­ical-impregnated wiping cloths.

Handling caution

• Do not insert a finger or hand in any gaps on the instrument.

•Never insert or drop paper, metallic, or other objects into
the gaps on the panel. If this happens, disconnect the
USB cable. Then have the instrument inspected by qual­ified Yamaha service personnel.

• Do not place vinyl, plastic or rubber objects on the instru­ment, since this might discolor the panel or keyboard.

• Do not rest your weight on, or place heavy objects on the
instrument, and do not use excessive force on the but­tons, switches or connectors.

UW10 Owner’s Manua

l

English

3

• Do not operate the instrument for a long period of time at
a high or uncomfortable volume level, since this can
cause permanent hearing loss. If you experience any
hearing loss or ringing in the ears, consult a physician.

Yamaha cannot be held responsible for damage
caused by improper use or modifications to the
instrument, or data that is lost or destroyed.

English

(3)-7

4

UW10 Owner’s Manual

2

Welcome to the UW10

Thank you for choosing the Yamaha UW10 USB-Audio Interface. The UW10 is a
USB interface that enables simultaneous transfer of audio data. Connect the
UW10 to a computer that has a USB connector and enjoy the powerful features of
digital audio.
Please read this Owner’s Manual thoroughly to make the best use of the UW10.
After you read this manual, please keep it in a safe place for future reference.

Table of contents

UW10 Features................................................................................. 6

Notes on USB ......................................................................... 6

Notes on musical copyrights ................................................... 7

Package Contents............................................................................. 8

About the included software ................................................... 8

System Requirements ..................................................................... 10

Parts and Functions ........................................................................ 10

Signal Flow ...........................................................................12

Connections................................................................................... 13

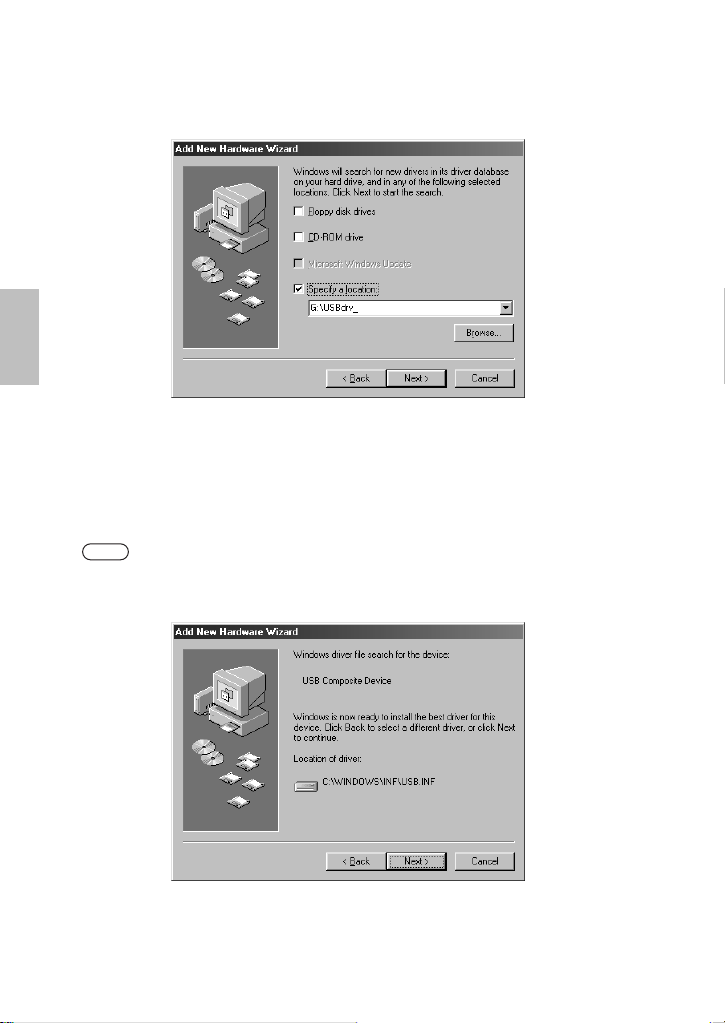

Installing the driver ........................................................................ 16

Installing the driver ............................................................... 16

Setting up the included software .......................................... 24

Using the UW10............................................................................. 26

Recording the data from vinyl records

or cassette tapes to a computer ............................................ 26

Creating a single song file from a digital recording ............... 27

Recording MIDI data as digital audio data ............................ 27

Storing digital recordings on a music CD .............................. 28

Specifications .................................................................................29

Troubleshooting (FAQ)................................................................... 29

English

The screen displays and illustrations in this Owner’s Manual are for instructional purposes, and
may appear somewhat different from the screens that appear on your computer or in the
specifications for your unit.

• Before installing the software, be sure to read the software license agreement included at the end
of this document. Opening the CD-ROM package indicates your consent to the license agreement.

• The company names and product names in this Owner’s Manual are the trademarks or registered
trademarks of their respective companies.

®

• OMS

and are trademarks of Opcode Systems, Inc.

• MPEG Layer-3 audio compression technology licensed by Fraunhofer IIS and THOMSON
Multimedia.

• “SoftSynthesizer” is a trademark of Yamaha Corporation.

5

3

UW10 Owner’s Manua

l

UW10 Features

●

Digital and analog interface

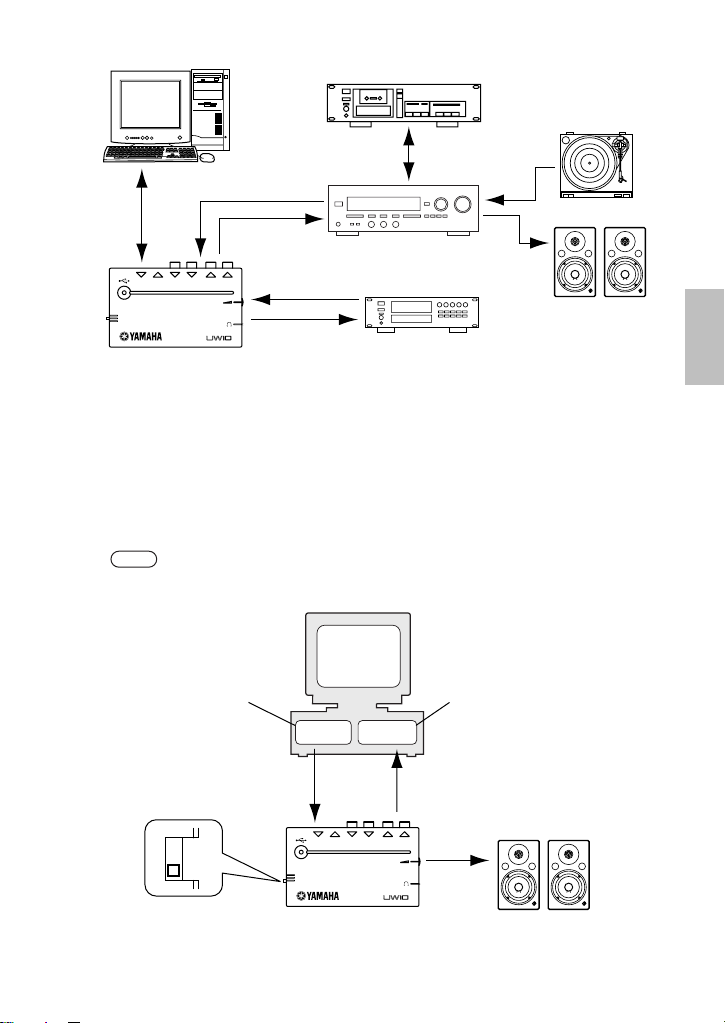

The UW10 functions as an interface that enables you to digitally record MDs and
cassette tapes to a computer, or create music using an audio/MIDI sequencer and
MIDI tone generators (MOTIF-RACK etc.). The analog inputs on the UW10
convert incoming analog signals into digital. This prevents audio deterioration
due to computer noise and enables you to perform clean, clear sound recordings.

●

Easy Hot Swap Connection

You can connect and disconnect a USB cable while the power to the computer is
turned on. The power is provided through the USB bus power supply. For this
reason, the UW10 does not require a power adapter.

English

●

Versatile software programs

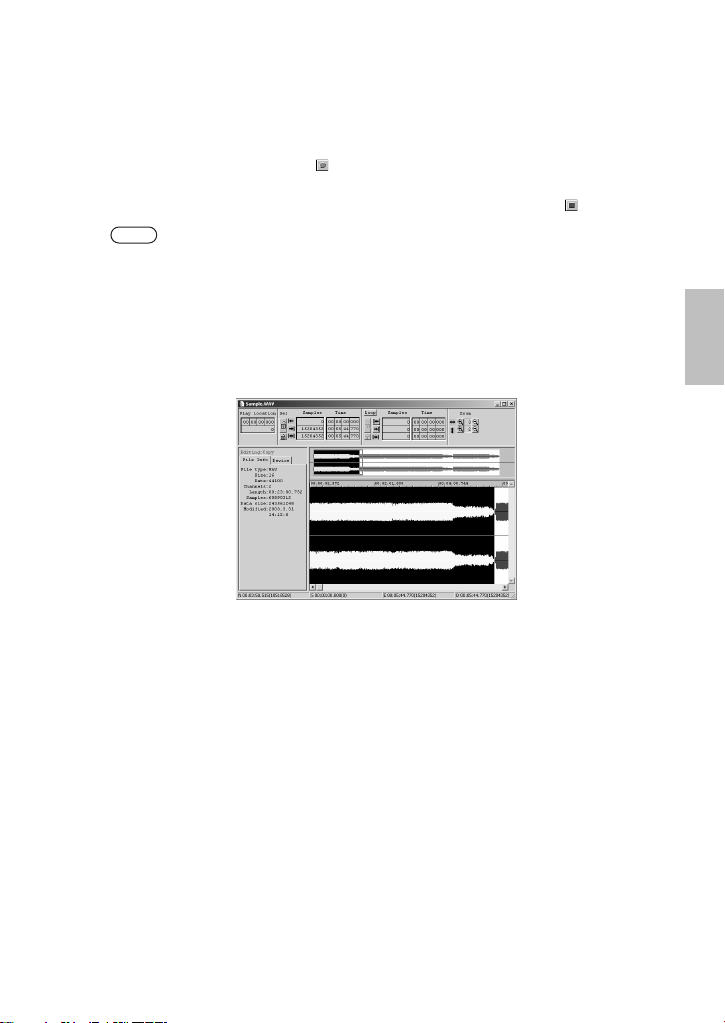

An included software program, called TWEplus Wave Editor, enables you to record
via the UW10 and edit various wave files (MP3, WAV, AIFF). Another program, the S­YXG50 SoftSynthesizer, enables you to play MIDI data on the computer, record it,
then convert it into a wave file in TWEplus, with the UW10 set in Track Down mode.

●

Supports Windows

The UW10 supports Windows 98/Me/2000/XP.

Notes on USB

Do not connect or disconnect a USB cable under any of the following
circumstances. Otherwise, the computer may lock up or the UW10 functions may
be disabled:

•

The computer is checking the device or loading the driver.

•

The computer is starting or quitting the OS.

•

The computer is in Save Energy (Sleep) mode or is canceling the mode.

•

An audio/MIDI application is active.

In addition, do not perform any of the following operations. Otherwise, the
computer may lock up or the UW10 functions may be disabled:

•

Frequently connecting and disconnecting the cables

•

Placing the computer in Save Energy (Sleep) mode or cancelling the mode dur­ing audio data transfer

•

Connecting or disconnecting the cables, restarting or shutting down the com­puter, or installing or uninstalling the driver while a large amount of data is
being transferred

6

UW10 Owner’s Manual

4

Notes on musical copyrights

The UW10 supports SCMS (Serial Copy Management System) to protect
copyrights associated with music software. When you copy data from CDs, or
other music media purchased from stores, to your own media (such as MDs)
using a digital connection, information regarding the digital recording generation
is also recorded. If you route the recorded data to a DIGITAL IN jack, you will be
unable to record the data on a computer. In this case, use the UW10’s analog
inputs (INPUT jacks) to record data on the computer.

digital

CD

digital analog

CD

digital

MD

MD

IN OUT L R L R

DIGITAL INPUT OUTPUT

SOURCE SELECT
DIGITAL
INPUT
TRACK DOWN

UW10

IN OUT L R L R

DIGITAL INPUT OUTPUT

SOURCE SELECT
DIGITAL
INPUT
TRACK DOWN

UW10

USB-AUDIO INTERFACE

USB-AUDIO INTERFACE

You cannot
record.

You can
record.

computer

computer

It is prohibited to use copyrighted songs and sound data (that can be
recorded via the UW10) for commercial purposes. It is also prohibited to
reproduce, transfer, or distribute the data, or play the data for a commercial
audience without permission from the owners of the copyright, except for
personal use or applications that do not infringe the copyright. If you wish to
use such data for occasions other than personal use, consult a copyright
expert. Yamaha is not responsible for any data created, reproduced, or edited
using the UW10, nor for any reproduction or use of such data.

English

7

5

UW10 Owner’s Manua

l

Package Contents

The UW10 package contains the following items. Check the contents for missing
items.

•

UW10 main unit

•

CD-ROM

•

USB cable (approx. 2 meters)

•

Owner’s Manual (this book)

About the included software

The included CD-ROM contains the following software programs.
The “English” folder on the included CD-ROM contains the following software
programs.

English

TWEplus Wave Editor

TWEplus Wave Editor enables you to record, play, and edit Wave files. It supports
various file formats, such as MP3, WAV, and AIFF, and can convert these file
formats from one into another. Double-click “Setup.exe” in the “TWEplus_”
folder to start the installer. Follow the instruction on screen to install the software.
After you finish the installation, start the application by selecting from the “Start”
menu [Programs | YAMAHA TWEplus | Wave Editor TWEplus]. For more
information on using the software, refer to the on-line manual.

Each program’s operating environment may be different from the UW10’s operating

NOTE

environment (page 10). For more information, refer to the software on-line manuals.

SoftSynthesizer (S-YXG50)

The S-YXG50 is XG tone generator software that produces voices using the
computer’s CPU power. By installing SoftSynthesizer, you can enjoy high tonal
quality from MIDI data without connecting an external MIDI tone generator.
To start the installer, double-click “Setup.exe” in the “Syxg50_” folder. Install
SoftSynthesizer following the instructions on screen.

8

UW10 Owner’s Manual

6

For more information on using the software, after you finish the installation,
refer to the “S-YXG50 Help” file by selecting from the “Start” menu [Programs
| YAMAHA SoftSynthesizer S-YXG50 | S-YXG50 Help].

Windows 2000/XP Users:

NOTE

If you hear sound skips from the S-YXG50 on the Windows 2000/XP platform, you
may be able to resolve the problem by following the steps below:

1. From the “Start” menu, select [Programs | YAMAHA XG SoftSynthesizer S-YXG50 |
S-YXG50 Settings] to display the “Settings” window.

2. Click the “Information” tab. If the window indicates “Ver.4.01.xx Legacy” (xx is a
version number) for the S-YXG50 version, proceed to Step 3.

3. Log on to Windows as Administrator, then open the “Syxg50_” folder on the
included CD-ROM.

4. Right-click “Turbo.inf” or “Normal.inf” in the folder to display the pop-up menu, then
select “Install” from the menu.

Nomal.inf: The sound might skip occasionally, but most sound cards will output sound.

Turbo.inf: The sound will not skip, but some sound cards may not output sound.

5. Restart the computer.

XGplayer

You can use XGplayer to play MIDI data, which you can output via
SoftSynthesizer, then record it as a wave file in TWEplus with the UW10 in
Track Down mode.
This application is automatically installed when you install the S-YXG50
SoftSynthesizer. To start XGplayer after you finish the installation from the
“Start” menu, select [Programs | YAMAHA SoftSynthesizer S-YXG50 | XGplayer].

Acrobat Reader

The Acrobat Reader allows you to view an electronic version of the Owner’s
Manual saved in PDF format.
To start the installer, open the “English” folder in the “Acroread_” folder, then
double-click “ar500enu.exe.” Install the software according to the instructions
on screen.

English

MidRadio Player

MidRadio Player receives and plays MIDI and Sound VQ data, sort of like a
radio channel. You can listen to pieces of music continuously by connecting to
the Internet and selecting your favorite channel. You can also purchase song
data on the Internet.
To install MidRadio Player, double-click “mr4221E.exe” in the “Midradio_”
folder to start the installer, then follow the instruction on screen.

9

7

UW10 Owner’s Manua

l

ASIO driver

This driver software is required if you wish to use applications that support
ASIO. Refer to the “ReadMe.html” in “English” folder in the “ASIOdrv_” folder
for information on how to install the driver.

TWEplus does not support ASIO.

NOTE

System Requirements

Computer: IBM PC/AT or compatible computer that features a

USB connector

CPU: Intel® Pentium® or Celeron® processor with

500MHz or faster
(Windows XP: Intel® Pentium® or Celeron®

English

processor, 750MHz or faster)

Memory: 64MB or more (128MB or more recommended)

Available hard disk space: 10MB or more

(excluding the space required for Acrobat Reader
and MidRadio Player)

Operating System: Windows 98/98SE/2000/Me/XP

Some operating systems may require a superior environment than that specified above.

NOTE

Parts and Functions

2

1 Power LED

The LED lights up when the USB
connector is connected and the
power is being supplied from the
computer to the unit.

10

UW10 Owner’s Manual

35467

1

IN OUT L R

DIGITAL INPUT

SOURCE SELECT
DIGITAL

INPUT
TRACK DOWN

LR

OUTPUT

USB-AUDIO INTERFACE

2 SOURCE SELECT switch

Use this switch to select the INPUT
jacks or the DIGITAL IN jack. If you
select “TRACK DOWN,” an audio
signal input from the computer to
the UW10 is returned to the
computer unmodified (page 15).

8

9

8

In this case, the INPUT and DIGITAL

CAUTION

IN jacks are disabled.

With some application programs, input
audio signals may be output unmodified. In
this case, do not set the SOURCE SELECT
switch to “TRACK DOWN.” Otherwise,
audio signals may oscillate, causing hearing
loss or damage to the playback device.

3 USB connector

Connect this connector to a
computer’s USB connector using a
USB cable.
You do not have to turn off the
power to the computer when you
connect this

connector

.

4 DIGITAL IN jack

A digital signal is input here from
an MD or CD player via an optical
digital cable (with square plugs).
Set the SOURCE SELECT switch on
the side panel to “DIGITAL.”

5 DIGITAL OUT jack

This jack is used to record a digital
signal from the computer to a
digital recorder, such as an MD
recorder. Use an optical digital
cable (with square plugs) to make
the connection.

Signals input at INPUT and

NOTE

DIGITAL IN cannot be routed
directly to the DIGITAL OUT jack.

6 INPUT L/R jacks

Connect an audio device, such as a
CD player, here using RCA pin
cables. You can record an audio
signal input here to a computer.
Set the SOURCE SELECT switch on
the side panel to “INPUT.”

7 OUTPUT L/R jacks

These jacks are used to connect
powered speakers or a recording
device, such as a tape recorder. Use
RCA pin-plug cables for the L and R
connections.

8 Volume Dial

The Volume Dial adjusts the level of
signals output from the headphone
jack and OUTPUT jacks. Use the
Volume Dial to adjust the output level.

9 Headphone jack

Connect a headphone stereo mini­plug here. Use the Volume Dial to
adjust the headphone volume.

English

9

UW10 Owner’s Manual 11

Signal Flow

Depending on the SOURCE SELECT switch setting, the audio signal flow varies as
follows:

When the switch is set to “INPUT”:

Audio signals input at the INPUT jacks can be recorded to a computer via the USB
connection.

DIGITALUSB

ININ OUTOUT

INPUT OUTPUT

LR

LR

VOLUME

Headphone

English

When the switch is set to “DIGITAL”:

Audio signals input at the DIGITAL IN jack can be recorded to a computer via the
USB connection.

DIGITALUSB

ININ OUTOUT

When the switch is set to “TRACK DOWN”:

Audio signals played on the computer can be returned via the USB connection to
the computer for recording (page 15).

DIGITALUSB

ININ OUTOUT

INPUT OUTPUT

LR

INPUT OUTPUT

LR

LR

VOLUME

LR

VOLUME

Headphone

Headphone

12 UW10 Owner’s Manual

10

Connections

Combining the UW10 with other devices allows for versatile applications as
follows:

● High-quality music production system using digital connections

Using the UW10 along with a tone generator, such as MOTIF-RACK, enables high­quality recording.
Connect the UW10, the MOTIF-RACK and a computer using USB cables. Connect
the MOTIF-RACK to the UW10’s DIGITAL IN jack, and set the UW10’s SOURCE
SELECT switch to “DIGITAL.”
Since the signal is sent from the UW10 or MOTIF-RACK to a mixer via an analog
connection, you will be monitoring an analog signal through powered speakers or
headphones. On the other hand, the signal is recorded via a digital connection
from the UW10’s DIGITAL OUT jack to a connected MD recorder. This
configuration enables you to make high-quality digital recordings.

PC + Sequence Software

MOTIF-RACK etc.

DIGITAL

OUT

INPUT

Mixer, etc

DIGITAL

OUT

OUTPUT

Set the SOURCE
SELECT switch
to “DIGIT AL.”

USB
(audio data)

IN OUT L R L R

DIGITAL INPUT OUTPUT

SOURCE SELECT
DIGITAL
INPUT
TRACK DOWN

UW10

USB (MIDI data)

DIGITAL IN

USB-AUDIO INTERFACE

DIGITAL OUT

OUTPUT

English

MD Recorder,etc

powered speakers

When you are using the connections illustrated above, set the Echo Back setting of

NOTE

your sequence software to “Off.”
Refer to the Owner’s Manual for the sequence software for detailed information on
setting the Echo Back parameter.

11

UW10 Owner’s Manual 13

●Music production system using a guitar or microphone via

analog connections

Analog audio signals input from a guitar or microphone are converted to digital
for recording.
Patch the analog input from the guitar or microphone to the UW10’s INPUT jacks via
an effects unit or other equivalent device. In this case, set the UW10’s SOURCE SELECT
switch to “INPUT,” and connect powered speakers or headphones to the UW10.

MD recorder

guitar

microphone

English

computer

Set the SOURCE
SELECT switch
to “INPUT .”

USB

SOURCE SELECT
DIGITAL
INPUT
TRACK DOWN

UW10

DIGITAL
OUT

IN OUT L R L R

DIGITAL INPUT OUTPUT

USB-AUDIO INTERFACE

effects unit or
other equivalent device

mixer

INPUT

OUTPUT

powered speakers

●Connecting audio devices

Digital or analog input from an audio device can be converted to wave files on a
computer. You can also edit the wave files on the computer, then record them to
an audio device.
Patch a digital signal from an MD player to the UW10’s DIGITAL IN jack. Patch an
analog signal from a casette tape player or turntable to the UW10’s INPUT jacks.
Set the UW10’s SOURCE SELECT switch to “DIGITAL” or “INPUT” depending on
the jacks you are using. Connect an AV amplifier and mixer as necessary.

If you cannot adjust the output level of the audio device, some high volume sound sources

NOTE

may distort your recordings, or low volume sound sources may create recordings that are
not inaudible. In this case, adjust the sound source level using the following measures:

• Connect the PHONE jack of the audio device to the UW10, then adjust the PHONE
level on the audio device.

• Connect a mixer or other device that enables you to adjust the volume level
between the audio device and the UW10.

If you try to record from a digital audio device (such as an MD or CD player) that has
an optical digital output, use an optional optical digital cable (with square plugs) to
connect the UW10. In this case, you do not have to adjust the level, since the
recording level will be the same as the sound source level.

14 UW10 Owner’s Manual

12

computer

cassette tape deck

USB

IN OUT L R L R

DIGITAL INPUT OUTPUT

SOURCE SELECT
DIGITAL
INPUT
TRACK DOWN

UW10

INPUT OUTPUT

DIGITAL IN

USB-AUDIO INTERFACE

DIGITAL OUT

AV amplifier and mixer

MD recorder

turntable

speakers

●Track down on the computer

You can track down multiple wave files or SoftSynthesizer audio signals into a
single wave file, which can then be converted to an MP3 file using the included
TWEplus wave editor.
Connect the computer and the UW10, and set the UW10’s SOURCE SELECT switch
to “TRACK DOWN.” While playing MIDI or audio data on the computer, record it
using an audio editing application, such as TWEplus, to track down the data.

If you want to track down an external MIDI tone generator’s sound along with the data

NOTE

on the computer, you will first need to convert the playback data into wave files.

computer

XG Player

+
SoftSynthesizer
S-YXG50

playback recording

TWEplus

English

USB USB

IN OUT L R L R

DIGITAL INPUT OUTPUT

SOURCE SELECT
DIGITAL

Set the SOURCE
SELECT switch

INPUT
TRACK DOWN

UW10

USB-AUDIO INTERFACE

OUTPUT

powered speakers

to “TRACK DOWN.”

13

UW10 Owner’s Manual 15

Installing the driver

Before you can use the UW10, you need to install the driver on the computer.
The USB audio driver enables you to transfer audio signals between an audio
application on the computer and the UW10 via a USB cable.

computer

audio

application

driver

English

The UW10 does not work with a USB hub that is powered by the USB bus power

NOTE

supply.

Installing the driver

Follow the instructions below to install the USB audio driver included in the
Windows system, and set up Windows as needed.

Close all applications and windows on the computer, and disconnect the computer

NOTE

from the network and the Internet.
Disconnect all devices that are connected to the UW10’s jacks, except for the USB

NOTE

connector.
Disconnect all USB devices, except for the UW10, from the computer. Connect the

NOTE

UW10 directly to the computer’s USB connector, not via a USB hub.
Check the drive name (D:, E:, Q:, etc.) of your CD-ROM drive, which is listed below the

NOTE

CD-ROM icon in My Computer.
If the driver for another USB audio device has already been installed, you can use that

NOTE

driver for the UW10.
You need the ASIO driver software to use applications that support ASIO. Refer to the

NOTE

“ReadMe.html” file located in the “English” folder in the “ASIOdrv_” folder for
information on installing the driver software.

Windows 98/98SE users→page 17
Windows Me users→page 20
Windows 2000/XP users→page 20

USB cable

audio data

IN OUT LR LR

DIGITAL INPUT OUTPUT

SOURCE SELECT
DIGITAL
INPUT
TRACK DOWN

UW10

USB-AUDIO INTERFACE

16 UW10 Owner’s Manual

14

●Installing the driver on a Windows 98/98SE system

1. Start the computer.

2. Use the included USB cable to connect the UW10 to the computer’s USB con-

nector. The UW10 is powered on and the system automatically displays the
“Add New Hardware Wizard.”

3. Click [Next].
The system displays a screen that enables you to select a search method.

English

15

UW10 Owner’s Manual 17

4. Check the radio button to the left of “Search for the best driver for your device.
(Recommended).” Click [Next].
The system displays a screen that enables you to select a location in which to
install the driver.

English

5. Uncheck all items, then click [Next].

6. When the system detects the driver and is ready for installation, it displays the

following screen.
Make sure that the “USB Composite Device” is listed, then click [Next]. The
system starts the installation.

The system may ask you to insert a Windows CD-ROM while it checks for the driver.

NOTE

Insert the Windows CD-ROM in the CD-ROM drive, specify the root folder of the CD­ROM drive (such as D:\Win98\) and continue the installation. Drive and root folder
names vary depending on the computer.

18 UW10 Owner’s Manual

16

7. When the installation is complete, the following screen appears.
Click [Finish].

Some computers may take about ten seconds to display this screen after installation is

NOTE

complete.

8. After a few seconds, the “Add New Hardware Wizard” is displayed again.
Install “USB Audio Device” in the same manner as steps 3-7 described above.

English

The driver has been installed.

17

UW10 Owner’s Manual 19

●Installing the driver on a Windows 2000/XP system

1. Start the computer.

2. Use the included USB cable to connect the UW10 to the computer’s USB connector.

The system displays the message “Found New Hardware” and automatically
detects and installs the driver.

The window closes and the driver is installed.

●Installing the driver on a Windows Me system

1. Start the computer.

2. Use the included USB cable to connect the UW10 to the computer’s USB connector.

The UW10 is powered on and the system automatically displays the “Add New
Hardware Wizard.”

3. Check the radio button to the left of “Automatic search for a better driver (Rec-

English

ommended).” Click [Next].

4. When the system finishes detecting and installing the driver, it displays the fol­lowing message: “Windows has finished installing the new hardware device.”
Click [Finish].

The driver has been installed.

●Verifying the installation

You can verify whether the driver has been installed correctly by following the
steps below:

1. Double-click [My Computer | Control Panel | System].

If the System folder does not appear in the Control Panel on the Windows Me system,

NOTE

click “view all Control Panel options.”
For Windows XP users: Click “Switch to Classic View” to change the Control Panel to

NOTE

Classic View mode.

20 UW10 Owner’s Manual

18

2. Click the “Device Manager” tab. “USB Audio Device” should be listed under
“Sound, Video and Game Controllers.”

On a Windows 2000/XP system, click the “Hardware” tab, then click the “Device

NOTE

Manager” tab.

●Specifying the output destination of audio signals

This section explains how to set up Windows to use the UW10. For information on
setting up your sequence software, refer to the owner’s manual for the
corresponding software.

Setup for audio playback and recording

Windows 98 Windows Me

English

1. Double-click [My Computer | Control Panel | (Sounds and) Multimedia].

2. Click the “Audio” tab.

3. Click the “Preferred device” box and select “USB Audio Device” in “Playback”

and “Recording” respectively.

“USB Audio Device (1)” may appear, depending on the computer. If two or more USB

NOTE

audio devices are connected, the corresponding number appears in parentheses.

4. Click the “Use only preferred devices” checkbox.

5. On the Windows Me system, click the “Audio” tab and select “USB Audio

Device” in “Sound Playback” and “Sound Recording” respectively.

If you are using a voice recognition system or Internet Phone with another audio

NOTE

device, you may need to set the output destination to suit the environment. For more
information, refer to the documentation for the audio device.

6. Click [OK].

19

UW10 Owner’s Manual 21

Setup for music CDs

Follow the steps below to play a music CD in the computer’s CD-ROM drive and
output the sound digitally from the UW10.

Setup on a Windows 98 system

English

1. Double-click [My Computer | Control Panel | Multimedia].

2. Click the “CD Music” tab.

3. Make sure that the CD-ROM drive (e.g., “D:”) is selected correctly.

4. Check the “Enable digital CD audio for this CD-ROM device” checkbox and

click [OK].

Setup on a Windows Me/2000/XP system

22 UW10 Owner’s Manual

20

1. Double-click [My Computer | Control Panel | System].

2. Select “Device Manager,” “CD-ROM” (the listed item with a “+” mark), then

the CD-ROM drive name, then click “Properties.”

On a Windows 2000/XP system, click the “Hardware” tab, then click “Device Manager.”

NOTE

3. Click the “Properties” tab.

4. Check the “Enable digital CD audio for this CD-ROM device” checkbox and

click [OK].

Setup for Volume Control

1. From the “Start” menu, select [Programs | Accessories | Entertainment | Volume
Control] to open the “Volume Control” window.

2. Move the slider to adjust the volume level.

●Checking wave file playback

Follow the steps below to check to see whether you can hear a wave file play back
from the UW10.

Windows 98 Windows Me

1. Select [My Computer | Control Panel | (Sounds and Multimedia) | Sounds].

2. Select an item with a speaker icon, then click the Play button to make sure that

the playback sound is output from the headphones or speakers connected to
the UW10.

English

21

UW10 Owner’s Manual 23

Setting up the included software

Before using the included software with the UW10, follow the procedure below to
set up the application.

• TWEplus Wave Editor

From the menu bar, select [Options], then [Windows Sound Device
Configuration], and set as shown below:

• S-YXG50 SoftSynthesizer and XGplayer

From the “Start” menu, select [Programs | YAMAHA SoftSynthesizer S-YXG50 |

English

SYXG50], then set parameters as shown below:

24 UW10 Owner’s Manual

22

Sampling frequencies available for different OS and input jacks

Sampling frequencies available for recording in TWEplus vary depending on the
operating system and the type of input jacks.

OS

Windows98

Windows98SE/

Me/2000/XP

SOURCE SELECT

switch setting

(Inputs being

used)

DIGITAL X X O O O

INPUT X X O O O

DIGITAL X X O O O

INPUT O O O O O

Sampling frequency in the software

11.025
kHz

22.05
kHz

32

kHz

44.1
kHz

48

kHz

Sampling frequencies supported for playback on different operating systems

When you play data in TWEplus or using the S-YXG50, the frequency of the
signals output from the DIGITAL OUT jack varies depending on the computer’s
operating system, as follows:
Make sure that the audio recording device (such as an MD recorder) connected to
the DIGITAL OUT jack supports these sampling frequencies.

The data output from the analog OUTPUT jacks will play correctly using any of the

NOTE

sampling frequencies listed in the table.

OS

Windows98 44.1kHz 44.1kHz 32kHz 44.1kHz 48kHz

Windows98SE/

Me/2000/XP

11.025kHz 22.05kHz 32kHz 44.1kHz 48kHz

48kHz 48kHz 32kHz 44.1kHz 48kHz

Sampling frequencies for software playback

English

23

UW10 Owner’s Manual 25

Using the UW10

Work Flow

Recording the data

from vinyl records or

cassette tapes to a

computer (page 26)

Recording MIDI data

as digital audio data

(page 27)

English

Creating a single song

file from a digital

recording

(page 27)

Make sure that the hard disk has enough free space. If there is insufficient space, you

NOTE

may be unable to record successfully.

Storing digital

recordings on a

music CD

(page28)

Recording the data from vinyl records or cas­sette tapes to a computer

1 Setting up the UW10

1-1 Connect the UW10 to a computer.
1-2 Use an audio cable to connect the UW10’s INPUT jacks to the output jacks

of the AV device that plays the recording source.

The output jacks on the AV device could be AUX OUT jacks, external output jacks, or a

NOTE

headphone jack. If you connect it to the headphone jack, you can raise the recording level.

1-3 Set the UW10’s SOURCE SELECT switch to “INPUT.”

2 Starting TWEplus

2-1 Start TWEplus on the computer.

The “Browse for Folder” window opens.

2-2 Select a recording destination folder on the hard disk, then click [OK].

You can usually select the default folder.

NOTE

3 Setting up a new file

3-1 From the [File] menu, select [New...].

The “New” window opens.

3-2 Select a file format.

Generally, select “WAVE 44100Hz 16bit stereo” for music CDs. This is the
default setting.

3-3 Specify a “In Time” value for the “Length” parameter.

Specify the duration that is slightly longer than that of one side of the vinyl
record or cassette tape you wish to record. For example, if the recording source
is a 60-minute cassette tape, specify something like “32 min 0 sec 0 msec.”

26 UW10 Owner’s Manual

24

3-4 Click the [New] button. The “New” window closes.

4 Digital recording

4-1 From the [Options] menu, select [Windows Sound Device Configuration...],

then select “YAMAHA UW10” or “USB Audio Device” for “Input” and
“Output”.

4-2 Click the Record button in TWEplus, then immediately start playing the

vinyl or cassette tape.

4-3 When the playback of one side finishes, click the Stop button in TWEplus.

If the recording level is low, record the output from the AV device’s headphone jack, or

NOTE

raise the recorded level using the Normalize function.

Creating a single song file from a digital
recording

1 Select a single song from the waveform of the recorded data by

using the arrow tool.

2 From the [Edit] menu, select [Selection to New].

The selected region opens as a new single file.

3 From the [File] menu, select [Save As...] to save the song to a

specified location on the hard disk.

A single song is stored as a file in the computer.
Repeat this procedure to create more song files.

Recording MIDI data as digital audio data

1 Setting up the UW10

1-1 Connect the UW10 to the computer.
1-2 Set the UW10’s SOURCE SELECT switch to “TRACK DOWN.”

English

25

UW10 Owner’s Manual 27

2 Starting the S-YXG50 SoftSynthesizer

2-1 Start the S-YXG50 SoftSynthesizer

To start the S-YXG50 SoftSynthesizer, from the “Start” menu select [Programs |

NOTE

YAMAHA XG SoftSynthesizer S-YXG50 | XGplayer].

2-2 Click the [Set] in XGplayer.
2-3 Select “YAMAHA SXG Driver,” then click [OK].
2-4 Click the Song Select button in the XG Player’s Player window to select

MIDI data that you wish to add to the play list and convert to audio data.

Play the selected MIDI data to make sure that the UW10 outputs the sound correctly.

NOTE

3 Starting TWEplus

3-1 Start TWEplus on the computer.

The “Browse for Folder” window opens.

3-2 Select a recording destination folder on the hard disk, then click [OK].

You can usually select the default folder.

English

NOTE

4 Setting up a new file

4-1 From the [File] menu, select [New...].

The “New” window opens.

4-2 Select a file format.

Generally, select “WAVE 44100Hz 16bit stereo” for music CDs. This is the
default setting.

4-3 Specify a “In Time” value for the “Length” parameter.

Specify the duration that is slightly longer than that of the selected MIDI
data. For example, if the data consists of three five-minute songs, specify
something like “16 min 0 sec 0 msec.”

4-4 Click the [New] button. The “New” window closes.

5 Digital recording

5-1 From the [Options] menu, select [Windows Sound Device Configuration...],

then select “YAMAHA UW10” or “USB Audio Device” for “Input” and
“Output”.

5-2 Click the Record button in TWEplus, then immediately activate the

XGPlayer window and click the Play button.

5-3 When the playback in XGPlayer finishes, click the Stop button in

TWEplus.

Storing digital recordings on a music CD

1 Start your CD writer software. 2 Save each song file on a music CD.

For more information on storing data on a music CD, refer to the
documentation for your CD writer software.

28 UW10 Owner’s Manual

26

Specifications

Audio Capability: One stereo-line recording

One stereo-line playback

Sampling Frequencies Input:32 kHz, 44.1 kHz, 48 kHz

Output:32 kHz, 44.1 kHz, 48 kHz

Jacks and connectors: Digital in jack (optical)

Digital out jack (optical)
Line in jacks (RCA pin, L/R)
Line out jacks (RCA pin, L/R)
USB connector
Headphone jack (stereo mini)

Power Supply: USB bus power supply

Dimensions: 111(W) ×××× 65(D) ×××× 31(H) [mm]

Weight: 95g

Option: Optical digital cable (with optical plugs)

Specifications and descriptions in this Owner’s Manual are provided for
information purposes only. Yamaha Corporation reserves the right to change or
modify products or specifications at any time without prior notice. Since
specifications, equipment or options may not be the same in every locale, please
check with your Yamaha dealer.

Troubleshooting (FAQ)

English

●The driver cannot be installed.

• Is the USB cable connected correctly?

→ Check the USB cable connection. (page 13)
→ Disconnect the USB cable, then re-connect it.

• Is the USB function enabled on your computer?

→ When you connect the UW10 to the computer for the first time, if the “Add New

Hardware Wizard” (page 16) does not appear, the USB function on the computer
may be disabled. Perform the following steps.

1. Select [Control Panel | System | (Hardware) | Device Manager].

2. Make sure that “Universal Serial Bus Controller” and “USB Route Hub” are
not marked with “!” or “x.” If one of these items is marked with “!” or “x,”
you cannot use USB connections. For more information, refer to the docu­mentation that came with your computer.

27

UW10 Owner’s Manual 29

• Is any device recognized as an unknown device?

→ If driver installation fails, the UW10 will be recognized as an “Unknown device,”

and you will not be able to install the driver. Delete the “Unknown device” by fol­lowing the steps below.

1. Select [Control Panel | System | (Hardware) | Device Manager].

2. Check the “View devices by type” radio button (for Windows Me users), or
select “Devices by type” from the “View” menu (for Windows 2000/XP),
then check whether there are any “Other devices.”

3. If an “Other devices” is listed, double-click it. If there is “Unknown device”
listed below it, select the “Unknown device”, then click the [Delete] button.

4. Remove the USB cable from the UW10, then re-connect it.

5. Try to install the driver again.

• Are you using a USB hub?

→ If the UW10 is connected to a USB hub that is powered by the USB bus power

English

supply, the UW10 will not operate.

→ Connect the UW10 directly to the computer, then try to install the driver again. If

the computer has multiple USB connectors, try to connect the UW10 to another
USB connector.

• Is another USB device connected to the computer?

→ The driver may not be installed correctly if another USB device is active. Discon-

nect your printer, scanner, or other USB device, then try to install the driver again.

→ If the driver for another USB audio device has already been installed, you can use

that driver for the UW10.

●The UW10 does not operate correctly, or no sound is heard.

• Did you install the driver? (page 16)

• Are the USB cable, MIDI cables, and audio cables connected correctly?

(page 13)

• Is the volume setting of the tone generator, playback device, and applica­tion program set to the appropriate level?

• Have you selected an appropriate device for your audio application?

• Is the sampling frequency set correctly?

→ Refer to the table on page 25.

• Are there wave files for which the sampling frequency and bit resolution
settings vary?

→ Some audio applications may not simultaneously play wave files with different

sampling frequencies and bit resolutions.

• (You cannot play a music CD)

→ Check the “Enable digital CD audio for this CD-ROM device” checkbox (page 22).

30 UW10 Owner’s Manual

28

• (You do not hear any sound digitally input from a connected MD or CD player.)

→ Is the SOURCE SELECT switch set correctly? (page 13.)
→ Is the input signal copyright protected? (page 7.)

●The sound is interrupted or distorted.

• Does your computer satisfy the system requirements? (page 10)

• Is any other application or device driver running?

→ Quit all unnecessary application programs.

• Are you playing multiple wave files?

→ Depending on the computer’s performance, playing multiple wave files may

cause skipping sound or interrupted playback.

• Have you tried to record or play several minutes of audio data?

→

The processing performance of some computers may decline depending on various fac­tors, such as the processing speed of audio data, access to an external storage device,
etc. You may be able to improve the performance by changing the settings as follows:
Select [Control Panel | (Sounds and) Multimedia | Audio | Detailed Properties].

Set “Hardware accelerator” to Maximum.
Set “Quality of sampling rate conversion” to Standard.

Select [Control Panel | System | (Hardware) | Device Manager | Disk Drive (or
Hard Disk Controller)].

Select high-speed mode (e.g., DMA mode On).
Upgrade to a higher-speed driver.

For more information on upgrading the driver, visit the web site of the hard disk

NOTE

manufacturer.

Select [Control Panel | System | (Details) | Performance].

Yamaha recommends that only users with advanced knowledge about computers

NOTE

change this setting.

Make sure that the file system is correctly set. If the computer has enough
free memory space (more than 128MB) and the size of the wave file to be
recorded or played back is not large, you may be able to improve the
performance by changing the setting for the virtual memory.
Some computers may need updated device drivers (such as a hard disk
controller) or BIOS. For more information, contact the customer support
department or visit the home page of the computer manufacturer.

English

29

UW10 Owner’s Manual 31

●Cannot place the computer in Save Energy (Sleep) mode (or

cancel the mode).

• Is the computer placed in Sleep mode while the audio application is operating?

• Some computers do not feature Sleep mode. In this case, disconnect the

USB cable, then connect it again.

●The recorded level is very low.

• Is the volume level of the computer low?

→ Set the computer’s “Volume Control” to maximum. (page 23.)

• To raise the recording level, record the output from the headphone jack of
an AV device that plays the recording source, and raise the output level as
needed. Alternatively, use the Normalize function after recording.

English

32 UW10 Owner’s Manual

30

SOFTWARE LICENSING AGREEMENT

The following is a legal agreement between you, the end user, and Yamaha Corporation
(“Yamaha”). The enclosed Yamaha software program(s) is licensed by Yamaha to the original
purchaser for use only on the terms set forth herein. Please read this licensing agreement with
care. Opening this package indicates that you accept all terms outlined herein. If you do not
agree to the terms, return this package unopened to Yamaha for a full refund.

1. GRANT OF LICENSE AND COPYRIGHT

Yamaha grants you, the original purchaser,
the right to use one copy of the enclosed
software program(s) and data
(“SOFTWARE”) on a single-user computer
system. You may not use it on more than
one computer or computer terminal. The
SOFTWARE is owned by Yamaha and
Yamaha’s licenser(s), and is protected by
Japanese copyright laws and all applicable
international treaty provisions. You are
entitled to claim ownership of the media in
which the SOFTWARE is included.
Therefore, you must treat the SOFTWARE
like any other copyrighted materials.
The SOFTWARE includes a software
program called MidRadio. The MidRadio
involves the TwinVQ technology therein,
the copyright and intellectual property of
which belongs to Nippon Telegraph and
Telephone Corpopation (“NTT”). If the
licensing agreement of the TwinVQ
technology between YAMAHA and NTT
terminates, the ownership of the
MidRadio Player will be assigned from
YAMAHA to NTT.

2. RESTRICTIONS

The SOFTWARE is copyrighted. You may
not engage in reverse engineering or
reproduction of the SOFTWARE by other
conceivable methods. You may not
reproduce, modify, change, rent, lease,
resell, or distribute the SOFTWARE in
whole or in part, or create derivative
works from the SOFTWARE. You may not
transmit or network the SOFTWARE with
other computers. You may transfer
ownership of the SOFTWARE and the
accompanying written materials on a
permanent basis provided that you retain
no copies and the recipient agrees to the
terms of the licensing agreement.

Copyrighted songs obtained by means of
the MidRadio Player are subject to the
following restrictions which you must
observe. Data received by means of the
MidRadio Player may not be used for
commercial purposes. Data received by
means of the MidRadio Player may not be
duplicated, transferred, or distributed, or
played back or performed for an
indeterminate number of listeners without
permission from the copyright owner. The
encryption of data received by means of the
MidRadio Player may not be removed nor
may the electronic watermark be modified
without permission from the copyright
owner. The MidRadio Player may not be
used to distribute illegal data or data that
would violate public ethical standards, nor
may you initiate services based on the use
of the MidRadio Player without permission
from Yamaha Corporation.

3. TERMINATION

The licensing condition of the software
program becomes effective on the day that
you receive the SOFTWARE. If any one of
the copyright laws or clauses of the
licensing conditions is violated, the
licensing agreement shall be terminated
automatically without notice from Yamaha.
In this case, you must destroy the licensed
SOFTWARE and its copies immediately.

4. PRODUCT WARRANTY

Yamaha warrants to the original purchaser
that if the SOFTWARE, when used in normal
conditions, will not perform the functions
described in the manual provided by
Yamaha, the sole remedy will be that
Yamaha will replace any media which
proves defective in materials or
workmanship on an exchange basis without
charge. Except as expressly set forth above,
the SOFTWARE is provided “as is,” and no
other warranties, either expressed or

93

implied, are made with respect to this
software, including, without limitation the
implied warranties of merchantability and
fitness for a particular purpose.

5. LIMITED LIABILITY

Your sole remedies and Yamaha’s entire
liability are as set forth above. In no event
will Yamaha be liable to you or any other
person for any damages, including
without limitation any incidental or
consequential damages, expenses, lost

profits, lost savings or other damages
arising out of the use or inability to use
such SOFTWARE even if Yamaha or an
authorized dealer has been advised of the
possibility of such damages, or for any
claim by any other party.

6. GENERAL

This license agreement shall be
interpreted according to and governed
by Japanese laws.

SOFTWARE-LIZENZVEREINBARUNG
