Yamaha PM1D User Manual
PM1D Manager V2
for Windows
Owner’s Manual
About the specifications of this software
Specifications of this software and the material given in this manual are subject to change without notice.
Copyright
Copying or distributing this software and/or this manual in part or in whole using any method without the written permission of Yamaha Corporation is prohibited.
Tr a de marks
Windows is a registered trademark of Microsoft Corporation in the United States and other countries.
Pentium II is a registered trademark of Intel Corporation.
Compact Flash™ is a trademark of SanDisk Corporation.
Other company names and product names are trademarks and registered trademarks of their respective owners. Symbols
such as ® and TM are not explicitly given in this document.
The illustrations and LCD screens as shown in this owner’s manual are for instructional purposes only, and may
appear somewhat different from those on your instrument.
EN
PM1D Manager V2 for Windows Owner’s Manual
About the “PM1D Manager V2 for Windows Owner’s Manual” . . . . . . . . . . . . . . . . . . . . . 3
Conventions in the “PM1D Manager V2 for Windows Owner’s Manual”. . . . . . . . . . . . . . 3
System requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Installing PM1D Manager . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Uninstalling PM1D Manager. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Using the application . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Starting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Exiting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Basic operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Initialization procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Contents
Screens unique to PM1D Manager . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Upper part of the display (common to all screens) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Lower part of the display (common to all screens). . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Lower part of the function menu. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Option popup window . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
REMOTE CONTROL SETUP popup window . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Communication between PM1D Manager and the console/engine . . . . . . . . . . . . . . . . . 10
System connection examples . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Data communication method . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Online operating procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Offline operating procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Cautions regarding data communication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Remote Control functionality . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Setup procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Remote control parameter list . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Special considerations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
USB MIDI Driver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
Windows 2000 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Windows XP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
2
•
•
•
•
•
•
•
•
•
•
•
•
About the “PM1D Manager V2 for Windows Owner’s Manual”
About the “PM1D Manager V2 for Windows Owner’s Manual”
PM1D Manager V2 for Windows (subsequently referred
to as “PM1D Manager”) is an application program that
runs on a computer running Microsoft Windows (subsequently referred to as the “PC”), providing the same
operating environment as the software of the CS1D
(subsequently referred to as the “console”).
By using PM1D Manager, you can create various types of
settings even when you are away from the console, and
use a memory card (*) or other means to load settings
into the console at a later time. In addition, you can connect the console/engine (DSP1D-EX {DSP1D}) to your
PC, and use it to control the entire system in the same
way as from the console.
This manual explains only items that are specific to
PM1D Manager; how to install the program, how to
connect your PC to the console/engine, and functional
limitations of operations from the PC.
For details on basic operation in each screen, please refer
to the “CS1D Reference Manual (Software)” contained
in the CS1D Owner’s Manual.
For details on terminology and basic operation for Windows, please refer to the manual or Help files included
with Windows.
*For details on the memory cards that can be used, refer to
“CS1D Operation Manual (Basic Operation)” p.144, and
“CS1D Reference Manual (Hardware)” p.80 contained in
the CS1D Owner’s Manual.
Conventions in the “PM1D Manager V2 for Windows Owner’s Manual”
Distinguishing between the controls of the console
and the knobs/buttons of the software
The names of controls on the console (switches,
encoders) are enclosed in square brackets [ ] in order
to distinguish them from the knobs and buttons that
are displayed by the software.
Example: This is the same function as the DIRECT
RECALL [1]–[12] switches in the SCENE MEMORY block of the console.
Va r ious icons
Hint
The left icon is used to indicate tips and reference pages.
Particularly important items or operations
you must use with care are marked by the
left icon.
System requirements
The following system is required in order to start up PM1D Manager.
An IBM PC/AT compatible computer with at least a
Pentium II 233 Mhz or equivalent CPU (Pentium II
350 Mhz or faster is recommended)
64 MB or more memory (128 MB or more is recommended)
Supported operating systems:
Microsoft Windows 2000 / Microsoft Windows XP
Home Edition / Microsoft Windows XP Professional
Internet Explorer 4.0 or later must be installed
A display system with resolution of at least 800 x 600
pixels and 16 bit color (SVGA, High Color)
Hard disk free area of 10 MB or more
Mouse or other pointing device
CD-ROM drive
Serial port or USB port
*You will need an RS-232-C cable (cross-wired)
not exceeding 5 meters, or a USB cable not
exceeding 3 meters.
An ATA compatible PC CARD slot / CF (Compact
Flash) slot, or a PC CARD / CF card reader
Depending on your system and OS, a higher level of performance may be required. A higher level of performance may
also be required if you are using a notebook PC.
For the latest version of the software and driver, and for
details on operating requirements, please refer to the following URL.
http://www.yamahaproaudio.com/
3
PM1D Manager V2 for Windows Owner’s Manual
Installing PM1D Manager
This section explains how to install the PM1D Manager program.
Before you install the software, you must read the license agreement (licence_e.txt) found on the
“PM1D SYSTEM SOFTWARE” CD-ROM. You may use the software on the CD-ROM only if you
accept the terms of this license agreement.
If an older version of PM1D Manager is already
installed, you must first uninstall it. (For the uninstallation procedure, refer to p.5.)
Before you begin the installation, you must exit all applications and memory-resident programs.
1. Insert the “PM1D SYSTEM SOFTWARE” CD-ROM
into your CD-ROM drive, and open the CD-ROM
drive from “My Computer.”
2. Inside the “WIN” folder, double-click the
“Setup.exe” icon.
The opening screen of the installer will appear.
Depending on your PC system, you may be asked to restart
the system during the installation process. If so, installation
will continue automatically after you restart.
3. As directed by the instructions on the screen, click
the “Next” button as needed to proceed to the next
step.
4. When the “Select Installation Folder” screen
appears, click the Browse button if necessary, specify the installation folder, and proceed to the next
step.
Continue following the on-screen instructions, and
installation will be completed.
When installation is complete, a shortcut icon will be
added to the Start menu and to the desktop.
4
■
■
1
2
Uninstalling PM1D Manager
There are two ways to uninstall PM1D Manager.
1
2
3
4
5
Uninstalling PM1D Manager
Using “Add or Remove Programs”
1. From the Windows “Start” menu, select “Start”-
(“Settings”)-“Control Panel.”
2. When the Control Panel opens, double-click the
“A dd or Remove Programs” icon.
3. Select the “PM1D Manager” item, and click
“Remove (Change/Remove).”
PM1D Manager and related files will be deleted from
the hard disk. (For details on the procedure, refer to
your Windows manual.)
Using Setup.exe
1. Perform steps 1–3 of “Installing PM1D Manager.”
A screen will appear asking you to select either
“Repair PM1D Manager” or “Remove PM1D Manager.”
2. Check the “Remove PM1D Manager,” and click the
“Finish” button.
The software will be uninstalled.
If you selected Repair PM1D Manager, the software will not
be removed.
Using the application
This section explains how to start and exit PM1D Manager, and how to perform basic operations.
Starting
You can use either of the following methods to start up
PM1D Manager.
From the Windows “Start” menu, select “Start”“Programs”-“YAMAHA PM1D System”-“PM1D
Manager”
Double-click the PM1D Manager icon that was created during the installation.
It is not possible for multiple instances of PM1D Manager to
be running simultaneously.
Hint
Yo u may find it convenient to set your screen display resolution to 800 x 600, since PM1D Manager can start up in fullscreen display mode. However in this case, the menu bar will
not be displayed.
Exiting
You can use any of the following methods to exit PM1D
Manager.
In the lower left of the Function menu screen, click
the EXIT button.
Open the “File” menu and select “Exit.”
Click the “Close” button of the window.
Select “Close” from the “PM1D Manager” button in
the task bar.
Press Alt+F4 from the keyboard.
A popup window will ask you to confirm that you want to
exit. To exit the application, click the OK button.
If you are using PM1D Manager with an 800 × 600 pixel
display, methods 2 – 4 cannot be used.
Hint
The next time PM1D Manager is started up, the state in
which you exited will automatically be restored.
5
PM1D Manager V2 for Windows Owner’s Manual
Basic operation
Operation in each screen is the same as on the console
itself. Refer to “CS1D Reference Manual (Software)”
contained in the CS1D Owner’s Manual. Mention of the
console’s track pad should be read as referring to the
mouse/pointing device of your PC.
Initialization procedure
•
•
If you want to initialize all current settings of the PM1D
Manager and its scene memories and libraries, you can
use the following procedure to restore the factory-set
condition.

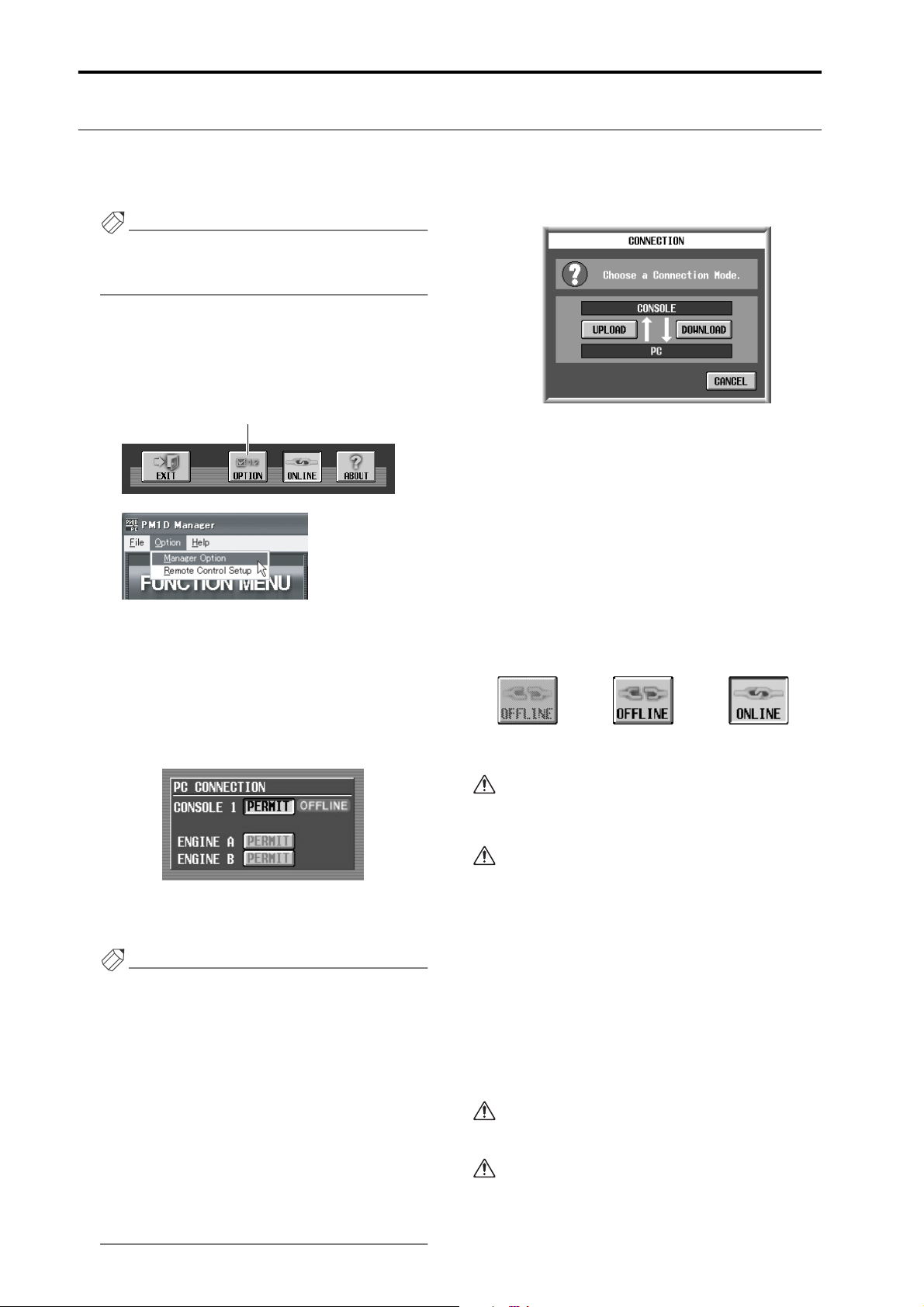

1. In the Function menu screen, click the OPTION
button.
The Option settings popup window will appear.
2. According to the content that you want to initialize,
click either the “Initialize All Memories” button or
the “Initialize Current Memories” button.
When you press either of these buttons, a dialog box
will appear, asking you to confirm the initialization.
3. To execute the initialization, click the OK button.
Memories that have been initialized cannot be recovered.
Please use great care when performing this operation.
Memory initialization can be performed only when offline.
Hint
For details on the Option popup window, refer to the explanation on p.8.
If you click the “Initialize All Memories” button
The current settings of the PM1D Manager, as well as
the scene memories and the various libraries will be
initialized to the factory-set condition.
If you click the “Initialize Current Memories” button
The current settings of the PM1D Manager will be
initialized. However, scene memories and the various
libraries will not be affected.
6
1
•
•
•
2
1
•
•
2
Screens unique to PM1D Manager
Screens unique to PM1D Manager
This section explains the screens that differ from the console and are unique to PM1D Manager.
Upper part of the display (common to all screens)
21
Connection status
This area of the PM1D Manager screen will indicate
the status of the connection between the PC and console or engine.
...........Indicates that a cable is con-
nected between the console/
engine and the PC, but
communication has not
been established.
Connection destination / connection method
The connector (COM port name or USB port name)
that is selected in the Communication Port (Option
menu) of Communication Setup.
...........Indicates that a cable is con-
nected between the console/
engine and the PC, and that
communication has been
established. In this state, the
PM1D system can be controlled from the PC.
...........Indicates that either the
cable is not connected, or
that the other device is not
powered-on.
Lower part of the display (common to all screens)
RECALL button / MUTE button
Select the function of the DIRECT RECALL/MUTE
MASTER 1–12 buttons ( 2 ) from the following two
choices.
DIRECT RECALL
You can use the DIRECT RECALL/MUTE MASTER 1–12 buttons to directly recall the scenes
assigned to direct recall numbers 1–12. For details
on how to assign a scene to a direct recall number,
refer to “CS1D Reference Manual (Software)” contained in the CS1D Owner’s Manual.
MUTE MASTER
You can use the DIRECT RECALL/MUTE MASTER 1–12 buttons to turn muting on/off for mute
groups 1–12.
Hint
These two buttons have the same function as the MODE button in the MUTE GROUP ASSIGN screen of the IN DCA/
MUTE function and OUT DCA/MUTE function, and the
MODE button in the DIRECT RECALL screen of the SCENE
function.
DIRECT RECALL/MUTE MASTER 1–12 buttons
Depending on the setting of the RECALL button /
MUTE button ( 1 ), these buttons function either as
direct recall or mute master buttons.
These have the same function as the DIRECT
RECALL [1]–[12] switches in the SCENE MEMORY
block of the console.
21
7
PM1D Manager V2 for Windows Owner’s Manual
Lower part of the function menu
1 2 3 4 5
1
2
3
4
5
1
•
2
•
•
3
•
•
•
EXIT button
This button exits the PM1D Manager application.
This button has the same result as selecting “Exit”
from the “File” menu in the menu bar, or clicking the
“Close” button in the upper right of the PM1D Manager window.
OPTION button
This button is used to make communication-related
settings or to initialize the memory. When you click
this button, the Option popup window will appear.
ONLINE/OFFLINE button
This button initiates or terminates communication.
When the button is on, PM1D Manager is online.
When the button is off, PM1D Manager is offline.
If the console/engine and the PC are not connected
by a cable, or if communication is not possible
Option popup window
To open the Option popup window, click the
OPTION button located at the lower left of the function menu screen, or choose [Manager] from the
[Option] menu of the menu bar.
1
4
5
because the communication settings are inappropriate, the button will be grayed, and cannot be clicked.
ABOUT button
This button accesses a popup window that displays
the PM1D Manager version number and other information about the software.
REMOTE ONLINE/OFFLINE button
This button switches the Remote Control function
on/off. The button indicates ONLINE when PM1D
Manager is synchronized with the remote controller,
and OFFLINE when it is off.
If the remote controller is not connected to the PC
via USB cable, or if communication is not possible
because the communication settings are inappropriate, this button is grayed-out and cannot be clicked.
•Please be aware that if Meter Request is turned ON, the
communication load will be higher.
•Depending on the PC system you are using and on the
frequency of operations on the console, the load may
exceed the allowable limit, causing communication with
the PC to be terminated for safety’s sake, and placing
PM1D Manager offline. If this occurs, turning Meter
Request OFF may solve the problem.
•If you do not require meter display, we recommend that
you turn Meter Request OFF.
2
3
Communication Setup
Communication Port
From the pulldown menu, select the port that will
be used for communication. Only COM ports 1–9
are supported.
Meter Request
Select whether the meter movements displayed in
various screens of the console will also be displayed
in PM1D Manager. If this is turned ON, the console’s meter movements can also be viewed in
PM1D Manager.
8
Remote Control Setup
Out Port
In Port
Here you can select the USB input port (IN PORT)
and output port (OUT PORT) used for communication with the remote controller.
Memory Setup
Here you can reset the current PM1D Manager settings and memories/libraries to the condition in
which they were immediately following installation.
Each button has the following function.
Initialize All Memories button
When you click this button, the current settings of
the PM1D Manager as well as the scene memories
and the various libraries will all be initialized to the
factory-set condition.
Initialize Current Memories button
When you click this button, the current settings of
the PM1D Manager will be initialized. (However,
the scene memories and the various libraries will
Loading...
