MIC LINE AMPLIFIER

3

ENGLISH

Introduction

Thank you for choosing the Yamaha MLA8 mic line amplifier. The MLA8 is an eight-channel
mic/line amplifier. The input section features balanced XLR connectors, high-quality mic
preamps, +48V phantom power per channel, and support for both mic and line-level inputs.
The output section features Euroblock connectors and a D-sub 25-pin connector for
compatibility with a wide variety of installations and applications, including connection to
the Yamaha DM2000 Digital Mixer.

In order to get the most out of your new MLA8 and its sophisticated functions, we suggest
you read through this manual thoroughly. Also keep it in a safe, convenient place so that you
can regularly refer to it when necessary.

Table of contents

Controls and Connectors . . . . . . . . . . . . . . 5

Connection Example . . . . . . . . . . . . . . . . . . 6

Specifications . . . . . . . . . . . . . . . . . . . . . . 19

Dimensions . . . . . . . . . . . . . . . . . . . . . . . . 21

• Illustrations in this manual are for explanatory purposes only, and may not match the actual appearance of the product during operation.

• Company names and product names used in this Owner’s Manual are trademarks or registered trademarks of their respective owners.

• Yamaha Pro Audio global web site:
http://www.yamahaproaudio.com/

MIC LINE AMPLIFIER

4

Controls and Connectors

Front Panel

80

26dB

OFF ON

+48V

PEAK

SIGNAL

-16

+10 -34

GAIN

5

6

7

-60

2

3

4

ENGLISH

8080

1

PEAK

SIGNAL

OFF ON

-16

+48V

+10 -34

GAIN

1

POWER switch and indicator

PEAK

SIGNAL

OFF ON

-16

-60
+48V

+10 -34

80

23

PEAK

SIGNAL

OFF ON

-60
+48V

GAIN

-16

+10 -34

GAIN

OFF ON

-60

This switch turns the power on or off. Press the switch
in to turn it on (the Power indicator lights).

To avoid loud noise from the speakers, first
turn on the power to the connected devices
that are closest to the sound source.

Example: Sound source
amplifier

➞

MLA8

Mixer

➞

➞

To turn off the power to the system, reverse
the order described above.

2 [ ] buttons

80

This button switches the high pass filter (HPF) on or
off for each channel, cutting frequencies below 80Hz.
Press the button in to turn HPF on.

3 [26dB] buttons

Pressing this button turns on the attenuator for each
channel, attenuating the input signal level by 26dB.

4 [+48V] switches

This switch supplies phantom power to pins 2 and 3 of
the XLR-type input connectors on each channel. Turn this
switch on if you are using condenser microphones
requiring external +48V power with the INPUT
(XLR) connector.

• To avoid damage to speakers, be sure to
turn off any connected amplifier (or
powered speakers) before turning these
switches on or off.

• Be sure to leave these switches off if you do
not need phantom power. If you connect to
an unbalanced device or to an ungrounded
transformer while these switches are on, it
may result in humming noise or even
damage.

+48V

80

PEAK

SIGNAL

-16

+10 -34

80

4567 8

PEAK

SIGNAL

OFF ON

-16

-60
+48V

GAIN

+10 -34

80

PEAK

SIGNAL

OFF ON

-16

-60
+48V

GAIN

+10 -34

80

PEAK

26dB 26dB26dB26dB26dB26dB26dB26dB

SIGNAL

OFF ON

-16

-60
+48V

GAIN

+10 -34

80

OFF ON

-60
+48V

GAIN

5 PEAK indicators

Light up in red when the signal level via the channel’s
GAIN control comes within 3dB of the clipping level.

6 SIGNAL indicators

Light up in green when the signal level via the

Power

channel’s GAIN control reaches within 10dB of the
nominal (rated) level.

7 GAIN controls

Adjust the gain applied to the input signal level.
If level is low (e.g., mic input) turn the [26dB] button
off, and adjust the input levels from -60dBu to -16dBu.
If the signal level is high (e.g., line input), turn the
[26dB] button on, and adjust the input levels from

-34dBu to +10dBu.

n To get the best balance between the S/N ratio

and the dynamic range, adjust the gain so that
the Peak indicator comes on just as the signal
approaches its maximum level.

Security cover

This device has two holes for installing the
protective cover on each side of the front panel
(size: M3, distance between holes: 423mm). To
prevent operation errors and inadvertent changes,
you can attach a user-made cover to the front
panel. Yamaha, however, does not make a security
cover for the device.
If you attach such a cover yourself, make sure that
the securing screws do not protrude inside the front
panel by more than 15mm. To avoid the cover
touching the knob, be sure to leave a space of
about 20mm between the front panel and the cover.

PEAK

SIGNAL

-16

+10 -34

MIC LINE AMPLIFIER

POWER

-60

GAIN

ON / OFF

1

MIC LINE AMPLIFIER

5

ENGLISH

Rear Panel

)

AC IN

8

OUTPUT +4dBu

ANALOG
OUTPUT

+4dBu

4567

8

8 AC IN connector

Connect the included power cord here. First, connect the
power cord to the MLA8, then insert the power cord plug
into the AC outlet.

Be sure to use the included power cord.
Use of other cords may result in
malfunction, heat generation, or fire.

9 INPUT 1–8 connectors

These balanced XLR-3-31-type connectors are used to
input analog signals to the corresponding channels.

GG

123

5678

INPUT

9

) OUTPUT connectors

There are two types of balanced output connectors:
Euroblock connectors and D-sub 25-pin connector.

●Euroblock connectors

The device has four Euroblock connectors with six pins.
These dual channel connectors consist of three pins:
hot, cold, ground on each channel. The supplied
Euroblock plugs should be wired as shown. Tighten the
screws to secure the wires.

G

–

+

1234

Connection Example

Connecting to the DM2000

You can connect the device to Yamaha digital audio
equipment using the D-sub 25-pin connector.
For connection to the DM2000, you will need the optional
I/O card (MY8-AD96).

●D-sub 25pin connector

Using the optional I/O card (MY8-AD96), you can
connect to the Yamaha DM2000 Digital Mixer.

D-sub 25-pin cable

Optional I/O card MY8-AD96

MIC LINE AMPLIFIER

6

Digital mixer DM2000

MLA8

MIC LINE AMPLIFIER

AC IN

MODEL MAL8

MADE IN INDONESIA

8

4567

OUTPUT +4dBu

OUT PUT

ANALOG
OUTPUT

+4dBu

5678

GG

123

1234

INPUT

Specifications

Electrical Characteristics

Conditions MIN TYP MAX UNIT

20 Hz - 20 k Hz @ +14 dBu, 10 k ohms,

Total Harmonic Distortion (THD+N)

Frequency Response

Hum & Noise (20 Hz - 20 k Hz)

Rs=150 ohms

Hum & Noise are measured with a 6 dB/octave
filter @12.7 k Hz; equivalent to a 20 k Hz filter
with infinite dB/octave attenuation.

Maximum Voltage Gain CH IN to CH OUT 64 dB

Adjacent Inputs @ 1 k Hz –90 dB

Crosstalk

CH INPUT GAIN control variable 44 dB

CH INPUT PAD switch 26 dB

0 dBu is referenced to 0.775 V rms.

PAD ON,
GAIN Minimum

GAIN Maximum

20 Hz - 20 k Hz @ +14 dBu, 10 k ohms,
GAIN Minimum

20 Hz - 20 k Hz @ +4 dBu, 10 k ohms,
GAIN Maximum

20 Hz - 20 k Hz @ +4 dBu, 10 k ohms,
GAIN Minimum

PAD OFF, GAIN Maximum
( Sensitivity = –60 dBu )

PAD ON , GAIN Maximum
( Sensitivity = –34 dBu )

PAD OFF, GAIN Minimum
( Sensitivity = –16 dBu )

PAD ON , GAIN Minimum
( Sensitivity = +10 dBu )

@ 10 k Hz

–

1

–

0.5

0.1 %

0.01 %

0 0.5 dB

0 0.5 dB

–

128

(68 dB S/N)

–

99

(65 dB S/N)

–

108

(92 dB S/N)

–

82

(92 dB S/N)

–

70

ENGLISH

DEUTSCH

dBu

dBu

FRANÇAIS

dBu

dBu

ESPAÑOL

dB

General Specifications

CH High Pass Filter

Phantom Power

CH PEAK LED

CH SIGNAL LED

Included Accessories

Power Consumption 25 W

Dimensions (W x H x D) 480 mm x 44 mm x 375.5 mm

Weight 4.7 kg

80 Hz, 12 dB/octave
Turn over /roll-off frequency of shelving : 3 dB below maximum variable level.

+48 V DC is applied to balanced inputs for powering condenser microphones via 6.8 k ohms
current-limiting/isolation resistors.

One red LED per channel. Comes on when post – GAIN signal level reaches +17 dBu.

One green LED per channel. Comes on when post – GAIN signal level reaches -10 dBu.

Power Supply Cord, Euroblock Connectors ( 3P x 8 ), Rubber Feet ( x 4 ), Owner's Manual

MIC LINE AMPLIFIER

19

ENGLISH DEUTSCH FRANÇAIS ESPAÑOL

Iuput Characteristics

PA D Gain

0

–

60

26

0

–

16

26

*1: 0 dBu is referenced to 0.775 Vrms.

Actual Load

Impedance

3 k ohms

Output Characteristics

Actual Source

Impedance

150 ohms 10 k ohms Lines

*1: 0 dBu is referenced to 0.775 Vrms.

For Use With

Nominal

D-sub 25pin Assignment Table

For Use With

Nominal

50 – 600 ohms Mics

600 ohms Lines

Input Level *1

Nominal Max. before Clip

–

60 dBu

(0.775 mV)

–

34 dBu

(15.5 mV)

–

16 dBu

(123 mV)

+

10 dBu

(2.45 V)

Output Level *1

Nominal Max. before Clip

+4 dBu

(1.23 V)

–

40 dBu

(7.75 mV)

–

14 dBu

(155 mV)

+4 dBu

(1.23 V)

+

30 dBu

(24.5 V)

+24 dBu
(12.3 V)

Connector In

Amplifier unit

XLR-3-31type

(balanced)

Connector In

Amplifier unit

Euroblock connectors

(balanced)

D-SUB 25P

female connector

(balanced)

Signal

Pin

Specifications and descriptions in this owner’s manual are for information purposes only. Yamaha Corp. reserves the right to change or modify products or
specifications at any time without prior notice. Since specifications, equipment or options may not be the same in every locale, please check with your
Yamaha dealer.

Die technischen Daten und Beschreibungen in dieser Bedienungsanleitung dienen nur der Information. Yamaha Corp. behält sich das Recht vor, Produkte
oder deren technische Daten jederzeit ohne vorherige Ankündigung zu verändern oder zu modifizieren. Da die technischen Daten, das Gerät selbst oder
Sonderzubehör nicht in jedem Land gleich sind, setzen Sie sich im Zweifel bitte mit Ihrem Yamaha-Händler in Verbindung.

Les caractéristiques techniques et les descriptions du mode d’femploi ne sont données que pour information. Yamaha Corp. se réserve le droit de changer ou
modifier les produits et leurs caractéristiques techniques à tout moment sans aucun avis. Du fait que les caractéristiques techniques, les équipements et les
options peuvent différer d’fun pays à l’fautre, adressez-vous au distributeur Yamaha le plus proche.

Las especificaciones y descripciones de este manual del propietario tienen sólo el propósito de servir como información. Yamaha Corp. se reserva el derecho a
efectuar cambios o modificaciones en los productos o especificaciones en cualquier momento sin previo aviso. Puesto que las especificaciones, equipos u
opciones pueden no ser las mismas en todos los mercados, solicite información a su distribuidor Yamaha.

Hot 24 10217184151

Cold 12 23 9 20 6 17 3 14

12345678

Output Ch

Open GND

13

2, 5, 8, 11 ,16,

19, 22, 25

13

25

1

14

20

MIC LINE AMPLIFIER

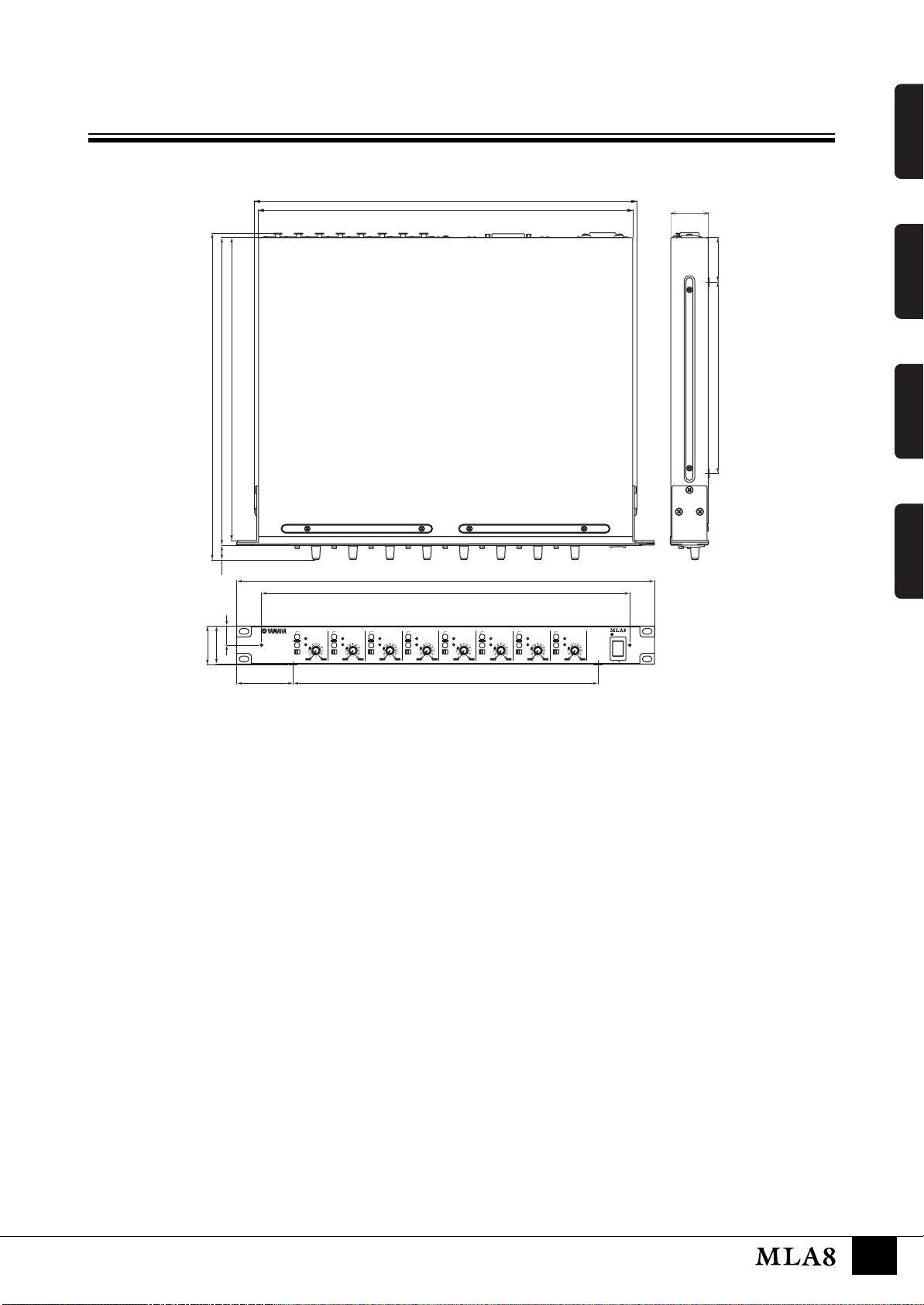

Dimensions

348

375.5

353.5

439
430

ENGLISH

43

51

DEUTSCH

220

FRANÇAIS

17

480
423

8080

80

80

80

80

22

*

44

45

PEAK

SIGNAL

OFF ON

OFF ON

-16

-60

+48V

+10 -34

GAIN

PEAK

SIGNAL

SIGNAL

OFF ON

-16

-16

-60

+48V

+48V

+10 -34

+10 -34

GAIN

23

1

PEAK

65

4567 8

PEAK

PEAK

SIGNAL

OFF ON

-60

GAIN

SIGNAL

OFF ON

-16

-16

-60

+48V

+10 -34

GAIN

-60

+48V

+10 -34

GAIN

350

80

PEAK

PEAK

26dB 26dB26dB26dB26dB26dB26dB26dB

SIGNAL

SIGNAL

OFF ON

OFF ON

-16

-16

-60

+48V

+48V

+10 -34

+10 -34

GAIN

GAIN

MIC LINE AMPLIFIER

80

PEAK

SIGNAL

OFF ON

-16

-60
+48V

+10 -34

POWER

-60

GAIN

ON / OFF

Unit: mm

*When the included rubber feet are attached
*Wenn die mitgelieferten Gummifüße angebracht wurden
*Lorsque les pieds en caoutchouc fournis sont fixés
*Cuando se colocan los apoyos de goma incluidos

If you do not intend to rack-mount the MLA8, attach the included rubber feet to the bottom surface of the device.
Attach the rubber feet in the positions marked by small circles on the bottom.

Wenn Sie keine Rack-Montage des MLA8 beabsichtigen, befestigen Sie die mitgelieferten Gummifüße an der Geräteunterseite.
Befestigen Sie die Gummifüße an den Positionen an der Unterseite, die durch kleine Kreise markiert sind.

Si vous n'avez pas l'intention de monter le MLA8 en bâti, fixez les pieds en caoutchouc fournis sur la partie inférieure de l'appareil.
Fixez les pieds en caoutchouc aux positions marquées par des petits cercles sur la partie inférieure.

Si no va a montar el MLA8 en un bastidor, coloque en la superficie inferior del aparato los apoyos de goma que se incluyen.
Coloque los apoyos de goma en las posiciones marcadas con pequeños círculos en la parte inferior del aparato.

ESPAÑOL

MIC LINE AMPLIFIER

21

For details of products, please contact your nearest Yamaha
representative or the authorized distributor listed below.

Pour plus de détails sur les produits, veuillez-vous adresser à Yamaha ou
au distributeur le plus proche de vous figurant dans la liste suivante.

Die Einzelheiten zu Produkten sind bei Ihrer unten aufgeführten
Niederlassung und bei Yamaha Vertragshändlern in den jeweiligen
Bestimmungsländern erhältlich.

Para detalles sobre productos, contacte su tienda Yamaha más cercana
o el distribuidor autorizado que se lista debajo.

NORTH AMERICA

CANADA

Yamaha Canada Music Ltd.

135 Milner Avenue, Scarborough, Ontario,
M1S 3R1, Canada
Tel: [phone]

U.S.A.

Yamaha Corporation of America

6600 Orangethorpe Ave., Buena Park, Calif. 90620,
U.S.A.
Tel: [phone]

CENTRAL & SOUTH AMERICA

MEXICO

Yamaha de Mexico S.A. De C.V.,
Departamento de ventas

Javier Rojo Gomez No.1149, Col. Gpe Del
Moral, Deleg. Iztapalapa, 09300 Mexico, D.F.
Tel: [phone]

BRAZIL

Yamaha Musical do Brasil LTDA.

Av. Rebouças 2636, São Paulo, Brasil
Tel: [phone]

ARGENTINA

Yamaha Music Latin America, S.A.
Sucursal de Argentina

Viamonte 1145 Piso2-B 1053,
Buenos Aires, Argentina
Tel: [phone]

PAN AMA AND OTHER LATIN
AMERICAN COUNTRIES/
CARIBBEAN COUNTRIES

Yamaha Music Latin America, S.A.

Torre Banco General, Piso 7, Urbanización Marbella,

Calle 47 y Aquilino de la Guardia,
Ciudad de Panamá, Panamá
Tel: [phone]

EUROPE

THE UNITED KINGDOM

Yamaha-Kemble Music (U.K.) Ltd.

Sherbourne Drive, Tilbrook, Milton Keynes,
MK7 8BL, England
Tel: [phone]

GERMANY

Yamaha Music Central Europe GmbH

Siemensstraße 22-34, 25462 Rellingen, Germany
Tel: [phone]

SWITZERLAND/LIECHTENSTEIN

Yamaha Music Central Europe GmbH,
Branch Switzerland

Seefeldstrasse 94, 8008 Zürich, Switzerland
Tel: [phone]

AUSTRIA

Yamaha Music Central Europe GmbH,
Branch Austria

Schleiergasse 20, A-1100 Wien, Austria
Tel: [phone]

THE NETHERLANDS

Yamaha Music Central Europe,
Branch Nederland

Clarissenhof 5-b, 4133 AB Vianen, The Netherlands
Tel: [phone]

BELGIUM/LUXEMBOURG

Yamaha Music Central Europe GmbH,
Branch Belgium

Rue de Geneve (Genevastraat) 10, 1140 - Brussels,
Belgium
Tel: [phone]

FRANCE

Yamaha Musique France

BP 70-77312 Marne-la-Vallée Cedex 2, France
Tel: [phone]

ITALY

Yamaha Musica Italia S.P.A.
Combo Division

Viale Italia 88, 20020 Lainate (Milano), Italy
Tel: [phone]

SPAIN/PORTUGAL

Yamaha-Hazen Música, S.A.

Ctra. de la Coruna km. 17, 200, 28230
Las Rozas (Madrid), Spain
Tel: [phone]

SWEDEN

Yamaha Scandinavia AB

J. A. Wettergrens Gata 1
Box 30053
S-400 43 Göteborg, Sweden
Tel: [phone]

DENMARK

YS Copenhagen Liaison Office

Generatorvej 8B
DK-2730 Herlev, Denmark
Tel: [phone]

NORWAY

Norsk filial av Yamaha Scandinavia AB

Grini Næringspark 1
N-1345 Østerås, Norway
Tel: [phone]

OTHER EUROPEAN COUNTRIES

Yamaha Music Central Europe GmbH

Siemensstraße 22-34, 25462 Rellingen, Germany
Tel: [phone]

AFRICA

Yamaha Corporation,
Asia-Pacific Music Marketing Group

Nakazawa-cho 10-1, Hamamatsu, Japan 430-8650
Tel: [phone]

MIDDLE EAST

TURKEY/CYPRUS

Yamaha Music Central Europe GmbH

Siemensstraße 22-34, 25462 Rellingen, Germany
Tel: [phone]

OTHER COUNTRIES

Yamaha Music Gulf FZE

LB21-128 Jebel Ali Freezone
P.O.Box 17328, Dubai, U.A.E.
Tel: [phone]

ASIA

THE PEOPLE’S REPUBLIC OF CHINA

Yamaha Music & Electronics (China) Co.,Ltd.

25/F., United Plaza, 1468 Nanjing Road (West),
Jingan, Shanghai, China
Tel: [phone]

INDONESIA

PT. Yamaha Music Indonesia (Distributor)
PT. Nusantik

Gedung Yamaha Music Center, Jalan Jend. Gatot
Subroto Kav. 4, Jakarta 12930, Indonesia
Tel: [phone]

KOREA

Yamaha Music Korea Ltd.

Tong-Yang Securities Bldg. 16F 23-8 Yoido-dong,
Youngdungpo-ku, Seoul, Korea
Tel: [phone]

MALAYSIA

Yamaha Music Malaysia, Sdn., Bhd.

Lot 8, Jalan Perbandaran, 47301 Kelana Jaya,
Petaling Jaya, Selangor, Malaysia
Tel: [phone]

SINGAPORE

Yamaha Music Asia Pte., Ltd.

No.11 Ubi Road 1, No.06-02,
Meiban Industrial Building, Singapore
Tel: [phone]

TAIWAN

Yamaha KHS Music Co., Ltd.

3F, #6, Sec.2, Nan Jing E. Rd. Taipei.
Taiwan 104, R.O.C.
Tel: [phone]

THAILAND

Siam Music Yamaha Co., Ltd.

891/1 Siam Motors Building, 15-16 floor
Rama 1 road, Wangmai, Pathumwan
Bangkok 10330, Thailand
Tel: [phone]

OTHER ASIAN COUNTRIES

Yamaha Corporation,
Asia-Pacific Music Marketing Group

Nakazawa-cho 10-1, Hamamatsu, Japan 430-8650
Tel: [phone]

OCEANIA

AUSTRALIA

Yamaha Music Australia Pty. Ltd.

Level 1, 99 Queensbridge Street, Southbank,
Victoria 3006, Australia
Tel: [phone]

COUNTRIES AND TRUST
TERRITORIES IN PACIFIC OCEAN

Yamaha Corporation,
Asia-Pacific Music Marketing Group

Nakazawa-cho 10-1, Hamamatsu, Japan 430-8650
Tel: [phone]

PA09

HEAD OFFICE Yamaha Corporation, Pro Audio & Digital Musical Instrument Division

Nakazawa-cho 10-1, Hamamatsu, Japan 430-8650
Tel: [phone]

Yamaha Manual Library

http://www2.yamaha.co.jp/manual/english/

U.R.G., Pro Audio & Digital Musical Instrument Division, Yamaha Corporation

© 2004 Yamaha Corporation

WD03290 402MWZC1.3-01A0

Printed in Indonesia
