WARNING
READ THIS MANUAL CAREFULLY!
It contains important safety information.
OWNER’S MANUAL
YFM80GW
This A
This ATV should not be ridden by anyone under 12 years of age.
LIT-11626-20-06
2D3-28199-13
EBU17091
EBU17170
INTRODUCTION
EBU17240
Congratulations on your purchase of the Yamaha YFM80GW. This ATV represents the result of many years
of Yamaha experience in the production of fine sporting, touring, and pacesetting racing machines. With the
purchase of this Yamaha, you can now appreciate the high degree of craftsmanship and reliability that have
made Yamaha a leader in these fields.
This manual will provide you with a good basic understanding of the features and operation of this ATV.
This manual includes important safety information. It provides information about special techniques and skills necessary to ride the ATV.
dures. If you have any questions regarding the operation or maintenance of your ATV, please consult a
Yamaha dealer.
AN IMPORTANT SAFETY MESSAGE:
●
READ THIS MANUAL TOGETHER WITH TIPS FOR THE ATV RIDER CAREFULLY AND COMPLETELY BEFORE OPERATING YOUR ATV. MAKE SURE YOU UNDERSTAND ALL INSTRUCTIONS.
●
PAY CLOSE ATTENTION TO THE WARNING AND CAUTION LABELS ON THE ATV.
●
NEVER OPERATE AN ATV WITHOUT PROPER TRAINING OR INSTRUCTION. FREE TRAINING IS
AVAILABLE TO ANYONE WHO BUYS A NEW ATV. CALL 1-800-887-2887 FOR MORE INFORMATION.
●
THIS ATV, AND ANY OTHER ATV OVER 70 cc, SHOULD NOT BE OPERATED BY A CHILD UNDER
12 YEARS OF AGE.
It also includes basic maintenance and inspection proce-
AN IMPORTANT NOTE TO PARENTS:
This ATV is not a toy. Before you let your child ride this ATV, you should understand the instructions and
warnings in this Owner’s Manual. Then be sure your child understands and will follow them. Children differ
in skills, physical abilities and judgment. Some children may not be able to operate an ATV safely. Parents
should supervise their child’s use of the ATV at all times. Parents should permit continued use only if they
determine that the child has the ability to operate the ATV safely.
Your ATV was delivered with an adjustable speed limiter and also with an air intake restrictor plate. Yamaha
recommends that all beginners start off with the speed limiter screw turned in and the air intake restrictor
plate installed to limit the amount of speed available while they learn. The limiter screw may be gradually
turned out to increase maximum speed as the beginner becomes more familiar with operating the ATV. Parents should decide when to adjust the ATV for more power as their youngster’s riding skills improve. Once
the ATV rider can operate with skill at the top speed permitted by adjusting the speed limiter alone, the air
intake restrictor plate can be removed. Since removal of this plate will result in a significant increase in power, turn the speed limiter back in again; adjust it out in stages as you did before.
If your child is a beginner or is inexperienced, he or she should take a training course. See the previous
page for information about the free training available to purchasers of new ATVs.
EBU17330
WARNING
CAUTION:
NOTE:
IMPORTANT MANUAL INFORMATION
EBU17341
FAILURE TO FOLLOW THE WARNINGS CONTAINED IN THIS MANUAL CAN RESULT IN SERIOUS INJURY OR DEATH.
Particularly important information is distinguished in this manual by the following notations:
The Safety Alert Symbol means ATTENTION! BECOME ALERT! YOUR
SAFETY IS INVOLVED!
Failure to follow WARNING instructions could result in severe injury
or death to the ATV operator, a bystander, or a person inspecting or
repairing the ATV.
A CAUTION indicates special precautions that must be taken to avoid
damage to the ATV.
A NOTE provides key information to make procedures easier or clearer.
* Product and specifications are subject to change without notice.
EBU17350
IMPORTANT NOTICE
EBU17360
Welcome to the Yamaha world of motor sports!
This ATV is designed and manufactured for OFF-ROAD use only. It is illegal and unsafe to operate this ATV
on any public street, road or highway.
This ATV complies with all applicable OFF-ROAD noise level and spark arrester laws and regulations in
effect at the time of manufacture.
Please check your local riding laws and regulations before operating this ATV.
EBU17381
YFM80GW
OWNER’S MANUAL
©2006 by Yamaha Motor Corporation, U.S.A.
AFFIX DEALER
LABEL HERE
1st edition, February 2006
All rights reserved.
Any reprinting or unauthorized use
without the written permission of
Yamaha Motor Corporation, U.S.A.
is expressly prohibited.
Printed in Japan.
P/N LIT-11626-20-06
EWB00010
WARNING
Indicates a potential hazard that could result
in serious injury or death.
EBU17420
TABLE OF CONTENTS
SAFETY INFORMATION .............................. 1-1
Speed limiter and air intake restrictor
plate ..........................................................4-4
Front brake lever ........................................ 4-5
Brake pedal and rear brake lever .............. 4-5
Parking brake ............................................. 4-6
Shift pedal .................................................. 4-7
Fuel tank cap ............................................. 4-8
Fuel ............................................................ 4-8
Fuel cock ................................................. 4-10
Choke ...................................................... 4-11
Seat ......................................................... 4-12
Carrier ...................................................... 4-13
LOCATION OF THE WARNING AND
SPECIFICATION LABELS ............................ 2-1
DESCRIPTION .............................................. 3-1
Left view ..................................................... 3-1
Right view................................................... 3-1
Controls and instruments ........................... 3-2
INSTRUMENT AND CONTROL
FUNCTIONS ..................................................4-1
Main switch ............................................... 4-1
Indicator light ............................................. 4-2
Handlebar switches ................................... 4-2
Throttle lever ............................................. 4-3
PRE-OPERATION CHECKS ..........................5-1
Pre-operation check list ............................. 5-1
Fuel ............................................................ 5-3
Engine oil ................................................... 5-3
Final gear oil .............................................. 5-3
Front and rear brakes ................................ 5-3
Throttle lever .............................................. 5-4
Tires ........................................................... 5-5
Measuring the tire pressure ....................... 5-6
Tire wear limit ............................................ 5-7
Chassis fasteners ...................................... 5-7
Instruments, lights and switches ................ 5-7
Battery ....................................................... 5-7
OPERATION...................................................6-1
Starting a cold engine ................................ 6-1
Starting a warm engine ............................. 6-3
Shifting ...................................................... 6-3
Engine break-in ......................................... 6-5
Parking ...................................................... 6-6
Parking on a slope .................................... 6-6
Accessories and loading ........................... 6-7
RIDING YOUR ATV ......................................7-1
GETTING TO KNOW YOUR ATV............. 7-2
RIDE WITH CARE AND GOOD
JUDGEMENT ........................................... 7-2
BE CAREFUL WHERE YOU RIDE.......... 7-13
TURNING YOUR ATV ............................. 7-17
CLIMBING UPHILL .................................. 7-19
RIDING DOWNHILL................................. 7-22
CROSSING A SLOPE.............................. 7-23
CROSSING THROUGH SHALLOW
WATER .................................................. 7-24
RIDING OVER ROUGH TERRAIN .......... 7-26
SLIDING AND SKIDDING........................ 7-27
WHAT TO DO IF... ................................... 7-28
WHAT TO DO... ....................................... 7-28
PERIODIC MAINTENANCE AND MINOR
REPAIR.......................................................... 8-1
Owner’s manual and tool kit ...................... 8-1
Periodic maintenance chart for the emission
control system ......................................... 8-3
General maintenance and lubrication
chart .........................................................8-5
Checking the spark plug ............................ 8-8
Engine oil ................................................. 8-10
Final gear oil ............................................ 8-13
Cleaning the air filter element .................. 8-14

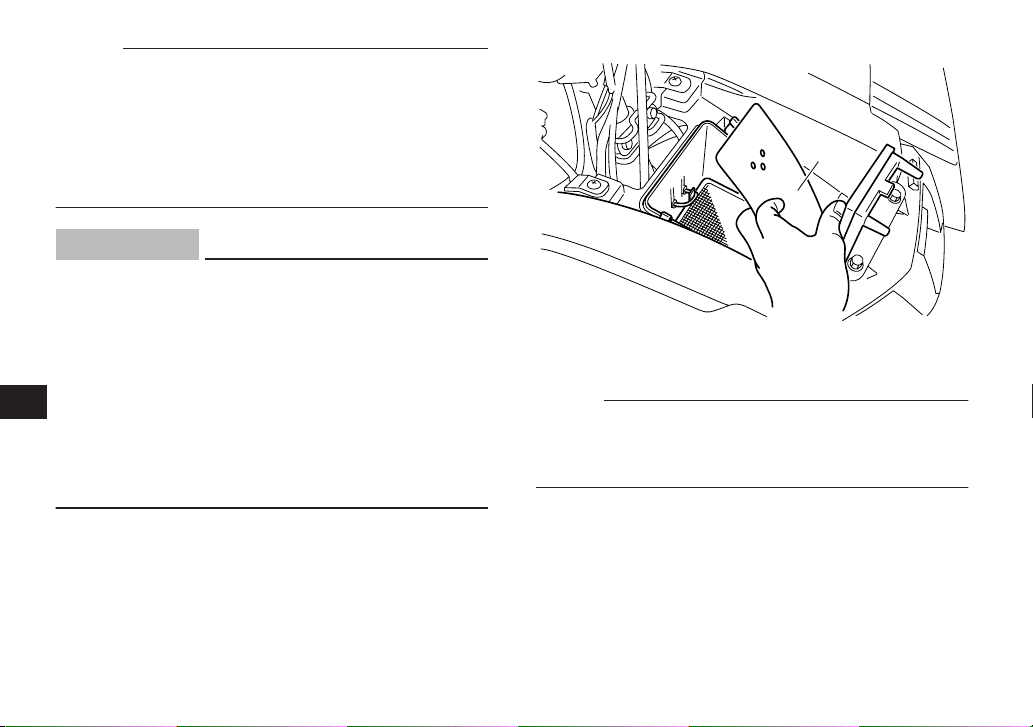

Removing the air intake restrictor plate ... 8-18
Cleaning the spark arrester ..................... 8-18
Adjusting the carburetor ........................... 8-20
Adjusting the engine idling speed ............ 8-20
Checking the throttle cable free play ....... 8-21
Timing chain ............................................ 8-22
Valve clearance ....................................... 8-22
Checking the front and rear brake
shoes .....................................................8-22
Adjusting the front brake lever free play .. 8-23
Adjusting the rear brake lever and brake
pedal free play .......................................8-25
Adjusting the clutch free play ................... 8-28
Checking and lubricating the cables ........ 8-29
Checking and lubricating the front and
rear brake levers ....................................8-30
Checking and lubricating the brake and
shift pedals .............................................8-31
Checking the wheel bearings ................... 8-31
Lubricating the knuckle shafts ................. 8-31
Lubricating the steering shaft ................... 8-31
Battery ..................................................... 8-32
Replacing the fuse ................................... 8-35
Removing a wheel ................................... 8-36
Installing a wheel ..................................... 8-36
Troubleshooting ...................................... 8-37
Troubleshooting chart ............................. 8-38
CLEANING AND STORAGE.......................... 9-1
Cleaning .................................................... 9-1
Storage ...................................................... 9-2
SPECIFICATIONS ...................................... 10-1
CONSUMER INFORMATION ...................... 11-1
Identification numbers ............................. 11-1
Noise regulation ...................................... 11-3
Maintenance record ................................ 11-4
YAMAHA MOTOR CORPORATION,
U.S.A. ATV LIMITED WARRANTY ....... 11-5
YAMAHA EXTENDED SERVICE
(Y.E.S.) .................................................. 11-7
EBU17430
1
2
EBU17601
3
AN ATV IS NOT A TOY AND CAN BE HAZARD-
4
OUS TO OPERATE.
from other vehicles, including motorcycles and
5
An ATV handles differently
SAFETY INFORMATION
cars. A collision or rollover can occur quickly, even
6
during routine maneuvers such as turning and
riding on hills or over obstacles, if you fail to take
7
proper precautions.
SEVERE INJURY OR DEATH can result if you do
8
not follow these instructions:
●
Read this manual and all labels carefully and fol-
9
low the operating procedures described.
●
10
11
Never operate an ATV without proper training or
instruction.
Take a Training Course.
should receive training from a certified instructor. Contact an authorized ATV dealer or call 1800-887-2887 to find out about the training
courses nearest you.
●
Always follow the age recommendation:
– A child under 12 years old should never oper-
Beginners
ate an ATV with engine size greater than 70 cc.
– A child under 16 years old should never operate an ATV with engine size greater than 90 cc.
●
Never allow a child under age 16 to operate an
ATV without adult supervision, and never allow
continued use of an ATV by a child if he or she
does not have the abilities to operate it safely.
●
Never carry a passenger on an ATV.
●
Always avoid operating an ATV on any paved
surfaces, including sidewalks, driveways, parking lots and streets.
●
Never operate an ATV on any public street, road
or highway, even a dirt or gravel one.
●
Never operate an ATV without wearing an approved motorcycle helmet that fits properly. You
should also wear eye protection (goggles or face
shield), gloves, boots, a long-sleeved shirt or a
jacket, and long pants.
●
Never consume alcohol or drugs before or while
operating this ATV.
●
Never operate at speeds too fast for your skills
1-1
or the riding conditions. Always go at a speed
that is proper for the terrain, visibility, operating
conditions, and your experience.
●
Never attempt wheelies, jumps, or other stunts.
●
Always inspect your ATV each time you use it to
make sure it is in safe operating condition. Always follow the inspection and maintenance
procedures and schedules described in this
manual.
●
Always keep both hands on the handlebars and
both feet on the footrests of the ATV during operation.
●
Always go slowly and be extra careful when operating on unfamiliar terrain. Always be alert to
changing terrain conditions when operating the
ATV.
●
Never operate on excessively rough, slippery or
loose terrain until you have learned and practiced the skills necessary to control the ATV on
such terrain. Always be especially cautious on
these kinds of terrain.
●
Always follow proper procedures for turning as
described in this manual. Practice turning at low
speeds before attempting to turn at faster
speeds and never turn at excessive speeds.
●
Never operate the ATV on hills too steep for the
ATV or for your abilities. Practice on smaller hills
before attempting larger hills.
●
Always follow proper procedures for climbing
hills as described in this manual. Check the terrain carefully before you start up any hill. Never
climb hills with excessively slippery or loose surfaces. Shift your weight forward. Never open the
throttle suddenly or make sudden gear changes.
Never go over the top of a hill at high speed.
●
Always follow proper procedures for going down
hills and for braking on hills as described in this
manual. Check the terrain carefully before you
start down any hill. Shift your weight backward.
Never go down a hill at high speed. Avoid going
down a hill at an angle that would cause the vehicle to lean sharply to one side. Go straight
down the hill where possible.
●
Always follow proper procedures for crossing
the side of a hill as described in this manual.
Avoid hills with excessively slippery or loose surfaces. Shift your weight to the uphill side of the
ATV. Never attempt to turn the ATV around on
any hill until you have mastered the turning technique described in this manual on level ground.
Avoid crossing the side of a steep hill if possible.
●
Always use proper procedures if you stall or roll
1
2
3
4
5
6
7
8
9
10
11
1-2
10
11
backwards when climbing a hill. To avoid stalling, use the proper gear and maintain a steady
1
speed when climbing a hill. If you stall or roll
backwards, follow the special procedure for
2
braking described in this manual. Dismount on
the uphill side or to a side if pointed straight up-
3
hill. Turn the ATV around and remount, following
the procedure described in this manual.
4
●
Always check for obstacles before operating in a
new area.
5
●
Never attempt to operate over large obstacles,
such as large rocks or fallen trees. Always follow
6
proper procedures when operating over obstacles as described in this manual.
7
●
Always be careful when skidding or sliding.
Learn to safely control skidding or sliding by
8
practicing at low speeds and on level, smooth
9
terrain. On extremely slippery surfaces, such as
ice, go slowly and be very cautious in order to reduce the chance of skidding or sliding out of control.
●
Never operate an ATV in fast flowing water or in
water deeper than that recommended in this
manual. Remember that wet brakes may have
reduced stopping ability. Test your brakes after
leaving water. If necessary, apply them several
times to let friction dry out the linings.
●
Always use the size and type of tires specified in
this manual.
●
Always maintain proper tire pressure as described in this manual.
●
Never modify an ATV through improper installation or use of accessories.
●
Never exceed the stated load capacity for an
ATV. Cargo should be properly distributed and
securely attached. Reduce speed and follow instructions in this manual for carrying cargo or
pulling a trailer. Allow greater distance for braking.
FOR MORE INFORMATION ABOUT ATV SAFETY,
call the Consumer Products Safety Commission at 1-800-638-2772, or the ATV Distributor’s
Safety Hotline at 1-800-852-5344.
EWB00021
WARNING
POTENTIAL HAZARD
Improper handling of gasoline.
WHAT CAN HAPPEN
Gasoline can catch fire and you could be
burned.
1-3
HOW TO AVOID THE HAZARD
Always turn off the engine when refueling.
Do not refuel right after the engine has been
running and is still very hot.
Do not spill gasoline on the engine or exhaust pipe/muffler when refueling.
Never refuel while smoking, or in the vicinity
of sparks, open flames, or other sources of
ignition such as the pilot lights of water heaters and clothes dryers.
When transporting the ATV in another vehicle, be sure it is kept upright and that the fuel
cock is in the “OFF” position. Otherwise, fuel
may leak out of the carburetor or fuel tank.
WHAT CAN HAPPEN
Gasoline is poisonous and can cause injuries.
HOW TO AVOID THE HAZARD
If you should swallow some gasoline or inhale a lot of gasoline vapor, or get some gasoline in your eyes, seek medical help
immediately. If gasoline spills on your skin,
wash with soap and water. If gasoline spills
on your clothing, change your clothes.
EWB00030
WARNING
POTENTIAL HAZARD
Starting or running the engine in a closed area.
WHAT CAN HAPPEN
Exhaust fumes are poisonous and may
cause loss of consciousness and death within a short time.
HOW TO AVOID THE HAZARD
Always operate your ATV in an area with adequate ventilation.
1
2
3
4
5
6
7
8
9
10
11
1-4
1
2
EBU17660
LOCATION OF THE WARNING AND SPECIFICATION LABELS
10
11
3
4
5
6
7
8
9
1
2
3
4
5
2-1
6
EBU17670
Read and understand all of the labels on your ATV. These labels contain important information for safe and
proper operation.
Never remove any labels from your ATV. If a label becomes difficult to read or comes off, request a replacement label from your Yamaha dealer.
12
WARNING
Improper ATV use can result in SEVERE
INJURY or DEATH.
WARNING
UNDER
12
12
16
NEVER
!"#$%!
12
ALWAYS USE
AN APPROVED ON PUBLIC PASSENGERS WITH DRUGS
HELMET AND ROADS
PROTECTIVE
NEVER
without proper training or instruction.
at speeds too fast for your skills or
the conditions.
on public roads-a collision can occur
with another vehicle.
with a passenger-passengers affect balance
and steering and increase risk
of losing control.
ALWAYS :
use proper riding techniques to avoid
vehicle overturns on hills and rough terrain
and it turns.
avoid paved surfaces-pavement may
seriously affect handling and control.
FOLLOW ALL INSTRUCTIONS AND WARNINGS.
(For replacement manual, call 1-800-532-1558)
NEVER USE
GEAR
operate :
LOCATE AND READ OWNER'S MANUAL.
NEVER CARRY NEVER USE
OR ALCOHOL
&' !&"()!
1
2
3
4
5
6
7
8
9
10
11
2-2
1
3
2
3
WARNING
NEVER ride as a
passenger.
Passengers can cause
4
a loss of control,
resulting in SEVERE
5
6
7
8
INJURY or DEATH.
5FE-2151H-01
4
IMPROPER TIRE PRESSURE OR OVERLOADING CAN
CAUSE LOSS OF CONTROL.
LOSS OF CONTROL CAN RESULT IN SEVERE
INJURY OR DEATH.
OPERATING TIRE PRESSURE: Set with tires cold
Recommended
Minimum
Never set tire pressure below minimum.
It could cause the tire to dislodge from the rim.
LOADING
Maximum Vehicle Load
Includes weight of operator, cargo and accessories.
WARNING
:
FRONT
: 20 kPa,
: 20 kPa,
REAR
:
FRONT
: 17 kPa,
: 17 kPa,
REAR
:
95 kg,
4EM-21696-11
{
0.20
{
0.20
{
0.17
{
0.17
(209 lbs).
kgf/cm
kgf/cm
kgf/cm
kgf/cm
2
}
2
}
2
}
2
}
2.9 psi
2.9 psi
2.5 psi
2.5 psi
10
11
9
56
5kg 11lbs
3LD-24877-A0
sit here.NEVER
3MX-24875-A0
2-3
EBU17680
EBU17690
Left view
7
1. Fuel cock
2. Rear carrier
3. Rear wheel
4. Footboard
5. Shift pedal
6. Choke
7. Front wheel
DESCRIPTION
EBU17700
Right view
1
6
5
3
4
2
1
1. Spark arrester
2. Seat
3. Panel
4. Brake pedal
5. Footboard
2
4
5
3
1
2
3
4
5
6
7
8
9
10
11
3-1
EBU17712
Controls and instruments
1
1
2
3
4
5
6
7
8
1. Rear brake lever
2. Parking brake
9
3. Neutral indicator light
4. Front brake lever
10
5. Throttle lever
6. Main switch
11
7. Fuel tank cap
8. Handlebar switches
2
8
from the figures shown in this manual.
3
6
7
5
4
NOTE:
The ATV you have purchased may differ slightly
3-2
EBU17720
INSTRUMENT AND CONTROL FUNCTIONS
EWB00010
WARNING
Indicates a potential hazard that could result in
serious injury or death.
EBU17740
Main switch
The positions of the main switch are as follows:
OFF ON
1
2
1
3
4
5
ON
All electrical systems are supplied with power, and
the engine can be started. The key cannot be removed.
OFF
All electrical systems are off. The key can be removed.
6
7
1. Main switch
8
9
10
11
4-1
EBU17780
Indicator light
1
2
3
4
EBU18060
Handlebar switches
5
6
7
1. Neutral indicator light “N”
8
EBU17860
1
Neutral indicator light “ ”
9
This indicator light comes on when the transmission is in the neutral position.
10
11
1
2
1. Engine stop switch “ENG. STOP”
2. Start switch “START”
EBU18070
Engine stop switch “ENG. STOP”
Set this switch to “RUN” before starting the engine.
The engine stop switch controls the ignition and
stops the engine when it is running. Use this switch
to stop the engine in an emergency situation. The
engine will not start or run when this switch is set
to “OFF”.
4-2
EBU18090
Start switch “START”
Push this switch to crank the engine with the starter.
ECB00050
CAUTION:
See the starting instructions on page 6-1 prior
to starting the engine.
EBU18270
Throttle lever
Once the engine is running, movement of the throttle lever will increase the engine speed.
Regulate the speed of the ATV by varying the
throttle position. Because the throttle is springloaded, the ATV will decelerate, and the engine will
return to an idle any time the hand is removed from
the throttle lever.
1
1. Throttle lever
Before starting the engine, check the throttle to be
sure it is operating smoothly. Make sure it returns
to the idle position as soon as the lever is released.
1
2
3
4
5
6
7
8
9
10
11
4-3
EWB00200
WARNING
1
POTENTIAL HAZARD
Malfunction of throttle.
2
WHAT CAN HAPPEN
The throttle could be hard to operate, making
3
it difficult to speed up or slow down when
you need to. This could cause an accident.
4
HOW TO AVOID THE HAZARD
Check the operation of the throttle lever be-
5
fore you start the engine. If it does not work
smoothly, check for the cause. Correct the
6
problem before riding the ATV. Consult a
Yamaha dealer if you can’t find or solve the
7
problem yourself.
8
EBU18331
Speed limiter and air intake restrictor
9
plate
10
Your ATV was delivered with an adjustable speed
limiter and an air intake restrictor plate. Yamaha
11
recommends that all beginning riders start off with
the speed limiter adjusting screw fully turned in and
the air intake restrictor plate installed to limit the
amount of speed available while they learn.
The speed limiter keeps the throttle from fully
opening, even when the throttle lever is pushed to
the maximum. The adjusting screw may be gradually turned out as the beginner becomes more familiar with operating the ATV. Parents should
decide when to adjust the ATV for more power as
their youngster’s riding skills improve. Once the
ATV rider can operate with skill at the top speed
permitted by adjusting the speed limiter alone, the
air intake restrictor plate can be removed. Since removal of this plate will result in a significant increase in power, turn the adjusting screw
completely back in again; adjust it out in stages as
done previously.
1. Loosen the locknut.
2. To increase the maximum engine power available and the maximum speed of the ATV, turn
the adjusting screw in direction (a). To decrease the maximum engine power available
and the maximum speed of the ATV, turn the
adjusting screw in direction (b).
NOTE:
Adjusting for maximum throttle lever movement
without removing the air intake restrictor plate will
cause the engine to run roughly at higher speeds.
(See page 8-18.)
4-4
HOW TO AVOID THE HAZARD
Do not turn the adjusting screw out more
than 20 mm (0.8 in).
1
3
(b)
1
2
1. Locknut
2. Adjusting screw
3. No more than 20 mm (0.8 in)
3. Tighten the locknut.
EWB00180
(a)
WARNING
POTENTIAL HAZARD
Improper adjustment of the speed limiter and
throttle.
WHAT CAN HAPPEN
The throttle cable could be damaged. Improper throttle operation could result. The
child could lose control, have an accident or
be injured.
EBU18391
Front brake lever
The front brake lever is located on the right handlebar. To apply the front brake, pull the brake lever
toward the handlebar grip.
1
1. Front brake lever
EBU18442
Brake pedal and rear brake lever
The brake pedal is located on the right side of the
ATV and the rear brake lever is located on the left
4-5
2
3
4
5
6
7
8
9
10
11
handlebar. To apply the rear brake, push down on
the brake pedal or pull the brake lever toward the
1
handlebar grip.
2
3
4
5
1
6
7
1. Brake pedal
8
9
10
11
1
1. Rear brake lever
EBU18450
Parking brake
Use the parking brake before starting the engine or
parking the ATV, especially on a slope. Apply the
rear brake lever and push down the lock plate to
apply the parking brake. Squeeze the rear brake
lever to release the parking brake.
4-6
1
1. Parking brake lock plate
EWB00170
WARNING
POTENTIAL HAZARD
Improper use of the parking brake.
WHAT CAN HAPPEN
The ATV could start moving unexpectedly if
the parking brake is not applied before starting the engine. This could cause loss of control or a collision.
The brake could overheat if you ride the ATV
without releasing the parking brake. You
could lose braking performance which could
cause an accident. You could also wear out
the brakes prematurely.
HOW TO AVOID THE HAZARD
Always set the parking brake before starting
the engine.
Always be sure you have released the parking brake before you begin to ride.
EBU18550
Shift pedal
This ATV is equipped with a constant-mesh 3speed transmission. The shift pedal is located on
the left side of the engine. Neutral is at the bottom
position.
1
2
3
4
5
6
7
8
9
10
11
4-7
1
2
1
3
4
5
6
1. Shift pedal
2. Neutral position
7
EBU18720
8
Fuel tank cap
Remove the fuel tank cap by turning it counter-
9
clockwise.
10
11
3
2
1
1
N
2
1. Fuel tank cap
EBU18730
Fuel
Make sure that there is sufficient fuel in the tank.
Fill the fuel tank to the bottom of the filler tube as
shown.
4-8
rings, as well as to the exhaust system.
2
1
1. Filler tube
2. Fuel level
Recommended fuel:
UNLEADED GASOLINE ONLY
Fuel tank capacity:
6.8 L (1.80 US gal) (1.50 Imp.gal)
Fuel reserve amount:
0.9 L (0.24 US gal) (0.20 Imp.gal)
ECB00070
CAUTION:
Use only unleaded gasoline. The use of leaded
gasoline will cause severe damage to internal
engine parts, such as the valves and piston
Your Yamaha engine has been designed to use
regular unleaded gasoline with a pump octane
number [(R+M)/2] of 86 or higher, or a research octane number of 91 or higher. If knocking or pinging
occurs, use a different brand of gasoline or premium unleaded fuel. Unleaded fuel will give you longer spark plug life and reduced maintenance cost.
Gasohol
There are two types of gasohol: gasohol containing ethanol and that containing methanol. Gasohol
containing ethanol can be used if the ethanol content does not exceed 10%. Gasohol containing
methanol is not recommended by Yamaha because it can cause damage to the fuel system or
ATV performance problems.
4-9
1
2
3
4
5
6
7
8
9
10
11
EWB00270
WARNING
1
POTENTIAL HAZARD
Improper care when refueling.
2
WHAT CAN HAPPEN
Fuel can spill, which can cause a fire and se-
3
vere injury.
Fuel expands when it heats up. If the fuel
4
tank is overfilled, fuel could spill out due to
heat from the engine or the sun.
5
HOW TO AVOID THE HAZARD
Do not overfill the fuel tank. Be careful not to
6
spill fuel, especially on the engine or exhaust
pipe. Wipe up any spilled fuel immediately.
7
Be sure the fuel tank cap is closed securely.
8
Do not refuel right after the engine has been
running and is still very hot.
9
EBU18820
10
Fuel cock
The fuel cock supplies fuel from the tank to the car-
11
buretor while also filtering it.
The fuel cock lever positions are explained as follows and shown in the illustrations.
OFF
1
RES
OFF
FUEL
ON
1. Arrow mark positioned over “OFF”
With the fuel cock lever in this position, fuel will not
flow. Always turn the fuel cock lever to this position
when the engine is not running.
4-10
ON
RES
RES
OFF
FUEL
ON
1
ON
1. Arrow mark positioned over “ON”
With the fuel cock lever in this position, fuel flows
to the carburetor. Turn the fuel cock lever to this
position when starting the engine and riding.
RES
OFF
RES
ON
FUEL
1
1. Arrow mark positioned over “RES”
This indicates reserve. With the fuel cock lever in
this position, the fuel reserve is made available.
Turn the fuel cock lever to this position if you run
out of fuel while riding. When this occurs, refuel as
soon as possible and be sure to turn the fuel cock
lever back to “ON”!
EBU18860
Choke
The choke is used to start a cold engine.
Move the choke in direction (a) to turn on the
choke.
1
2
3
4
5
6
7
8
9
10
11
4-11
Move the choke in direction (b) to turn off the
choke.
1
See the “Starting a cold engine” section on page 61 for proper operation.
2
3
4
4
5
1
6
7
8
9
10
11
(a)
1
2
3
1. Fully open “ON”
2. Half open (warming up position)
3. Closed “OFF”
4. Choke
EBU18870
Seat
(b)
To remove the seat
Pull the seat lock lever upward and pull up the seat
at the rear.
1. Seat lock lever
To install the seat
Insert the projection on the front of the seat into the
seat holder and push down on the seat at the rear.
NOTE:
Make sure that the seat is securely fitted.
4-12
1
1
2
1. Projection
2. Seat holder
EBU18950
Carrier
●
Do not exceed the load limit of 5.0 kg (11 lb) for
the carrier.
●
Do not exceed the maximum load of 95.0 kg
(209 lb) for the ATV.
EWB00010
WARNING
Indicates a potential hazard that could result in
serious injury or death.
2
3
4
5
6
7
8
9
10
11
4-13
EBU19200
PRE-OPERATION CHECKS
1
EBU19210
Pre-operation check list
2
Before operating this ATV, be sure to check the items listed in the following table.
3
NOTE:
The maintenance of some items in the table has to be performed by a Yamaha dealer. Refer to the “Periodic
4
maintenance and lubrication chart” on page 8-3 to determine which service should be performed by a
Yamaha dealer.
5
6
7
8
9
10
11
ITEM ROUTINE PAGE
Fuel
Engine oil
Final gear oil
Front brake
Rear brake
Throttle lever
Control cables
●
Check fuel level in fuel tank, and add recommended fuel if necessary.
●
Check fuel line for leakage. Correct if necessary.
●
Check oil level in engine, and add recommended oil to specified
level if necessary.
●
Check ATV for oil leakage. Correct if necessary.
●
Check ATV for oil leakage. Correct if necessary. 5-3, 8-13
●
Check operation, and correct if necessary.
●
Lubricate cable if necessary.
●
Check lever free play, and adjust if necessary.
●
Check operation, and correct if necessary.
●
Lubricate cable if necessary.
●
Check lever and pedal free play, and adjust if necessary.
●
Make sure that operation is smooth, and check cable free play.
●
Lubricate cable and lever housing if necessary.
●
Make sure that operation is smooth. Lubricate if necessary. 8-29
4-8, 5-3
5-3, 8-10
5-3, 8-22, 8-23
5-3, 8-22, 8-25
5-4, 8-21
5-1
ITEM ROUTINE PAGE
●
Wheels and tires
Brake and shift pedals
Brake levers
Chassis fasteners
Check wheel condition, and replace if damaged.
●
Check tire condition and tread depth. Replace if necessary.
●
Check air pressure. Correct if necessary.
●
Make sure that operation is smooth. Lubricate pedal pivoting points
5-5, 5-6, 5-7
if necessary.
●
Make sure that operation is smooth. Lubricate lever pivoting points
if necessary.
●
Make sure that all nuts, bolts and screws are properly tightened. 5-7
8-31
8-30
Instruments and switches●Check operation, and correct if necessary. 5-7
Battery
●
Check electrolyte level. Fill with distilled water if necessary. 5-7, 8-32
1
2
3
4
5
EWB00470
WARNING
POTENTIAL HAZARD
Failure to inspect the ATV before operating.
Failure to properly maintain the ATV.
WHAT CAN HAPPEN
Increases the possibility of an accident or equipment damage.
HOW TO AVOID THE HAZARD
Always inspect your ATV each time you use it to make sure it is in safe operating condition.
Always follow the inspection and maintenance procedures and schedules described in the Owner’s Manual.
5-2
6
7
8
9
10
11
EBU19530
Fuel
1
Make sure that there is sufficient fuel in the tank.
(See page 4-8.)
EWB00500
2
WARNING
3
POTENTIAL HAZARD
Improper care when refueling.
4
WHAT CAN HAPPEN
Fuel can spill, which can cause a fire and se-
5
vere injury.
Fuel expands when it heats up. If the fuel
6
tank is overfilled, fuel could spill out due to
heat from the engine or the sun.
7
HOW TO AVOID THE HAZARD
Do not overfill the fuel tank. Be careful not to
8
spill fuel, especially on the engine or exhaust
pipe. Wipe up any spilled fuel immediately.
9
Be sure the fuel tank cap is closed securely.
10
Do not refuel right after the engine has been
running and is still very hot.
11
EBU19560
Engine oil
Make sure that the engine oil is at the specified level. Add oil as necessary. (See page 8-10.)
EBU19590
Final gear oil
Make sure that the final gear oil is at the specified
level. Add oil as necessary. (See page 8-13.)
EBU19660
Front and rear brakes
Brake levers and brake pedal
●
Check for correct free play in the brake levers
and brake pedal. If the free play is incorrect, adjust it. (See pages 8-23 and 8-25.)
●
Check operation of the brake levers and brake
pedal. They should move smoothly and there
should be a firm feeling when the brakes are applied. If not, have the ATV checked by a Yamaha
dealer.
Brake operation
Test the brakes at slow speed after starting out to
make sure they are working properly. If the brakes
do not provide proper braking performance, check
the brake linings for wear. (See page 8-22.)
5-3
EWB00530
WARNING
POTENTIAL HAZARD
Riding with improperly operating brakes.
WHAT CAN HAPPEN
You could lose braking ability, which could
lead to an accident.
HOW TO AVOID THE HAZARD
Always check the brakes at the start of every
ride. Do not ride the ATV if you find any problem with the brakes. If a problem cannot be
corrected by the adjustment procedures provided in this manual, have the ATV checked
by a Yamaha dealer.
1
2
3
4
5
6
7
EBU19761
Throttle lever
Check the operation of the throttle lever. It must
open smoothly and spring back to the idle position
when released. Have a Yamaha dealer correct if
necessary.
8
9
10
11
5-4
EBU19781
Tires
EWB00561
1
WARNING
2
POTENTIAL HAZARD
Operating this ATV with improper tires, or
3
with improper or uneven tire pressure.
WHAT CAN HAPPEN
4
Use of improper tires on this ATV, or operation of this ATV with improper or uneven tire
5
pressure, may cause loss of control, increasing your risk of accident.
6
HOW TO AVOID THE HAZARD
The tires listed below have been approved
●
7
8
9
10
11
by Yamaha Motor Co., Ltd. for this model.
Other tire combinations are not recommended.
Front:
Manufacturer/model:
DUNLOP/KT586
Size:
AT18 x 7-7
Type:
Tubeless
Rear:
Manufacturer/model:
DUNLOP/KT587
Size:
AT18 x 8-7
Type:
Tubeless
●
The tires should be set to the recommended pressure:
Recommended tire pressure:
Front:
20 kPa (2.9 psi) (0.20 kgf/cm2)
Rear:
20 kPa (2.9 psi) (0.20 kgf/cm2)
●
Check and adjust tire pressures when
the tires are cold.
●
Tire pressures must be equal on both
sides.
5-5
●
Tire pressure below the minimum specified could cause the tire to dislodge from
the rim under severe riding conditions.
Minimum tire pressure:
Front:
17 kPa (2.5 psi) (0.17 kgf/cm
2
)
Rear:
17 kPa (2.5 psi) (0.17 kgf/cm2)
●
Use no more than the following pressures
when seating the tire beads.
●
Maximum tire seating pressure:
Front:
250 kPa (36 psi) (2.5 kgf/cm2)
Rear:
250 kPa (36 psi) (2.5 kgf/cm2)
Higher pressures and fast inflation may
cause a tire to burst. Inflate the tires very
slowly and carefully.
dirt in the gauge could cause the first reading to be
incorrect.
1
1. Low-pressure tire gauge
Set the tire pressure when the tires are cold. Set
1
2
3
4
5
6
7
8
9
EBU19820
Measuring the tire pressure
Use the low-pressure tire gauge.
NOTE:
The low-pressure tire gauge is included as standard equipment. Make two measurements of the
tire pressure and use the second reading. Dust or
10
11
5-6
the tire pressures to the following specifications:
Recommended pressure:
1
Front
2
20 kPa (2.9 psi) (0.20 kgf/cm2)
Rear
3
20 kPa (2.9 psi) (0.20 kgf/cm2)
Minimum:
4
5
6
7
8
Front
17 kPa (2.5 psi) (0.17 kgf/cm2)
Rear
17 kPa (2.5 psi) (0.17 kgf/cm2)
Maximum:
Front
23 kPa (3.3 psi) (0.23 kgf/cm2)
Rear
23 kPa (3.3 psi) (0.23 kgf/cm2)
9
EBU19830
Tire wear limit
10
Replace the tire when the tire groove decreases to
11
3 mm (0.12 in).
1. Tire wear limit
EBU19840
Chassis fasteners
Make sure that all nuts, bolts and screws are properly tightened.
EBU19850
Instruments, lights and switches
Check that all instruments, lights and switches are
working properly. Correct if necessary.
EBU19860
Battery
Check the fluid level in the battery. Fill with distilled
water if necessary. (See page 8-32.)
5-7
EBU19870
OPERATION
EWB00010
WARNING
Indicates a potential hazard that could result in
serious injury or death.
EBU19890
EWB00610
WARNING
POTENTIAL HAZARD
Operating ATV without being familiar with all
controls.
WHAT CAN HAPPEN
Loss of control, which could cause an accident or injury.
HOW TO AVOID THE HAZARD
Read the Owner’s Manual carefully. If there is
a control or function you do not understand,
ask your Yamaha dealer.
EBU20211
Starting a cold engine
EWB00620
WARNING
POTENTIAL HAZARD
Frozen control cables in cold weather.
WHAT CAN HAPPEN
You could be unable to control the ATV,
which could lead to an accident or collision.
HOW TO AVOID THE HAZARD
When riding in cold weather, always make
sure all control cables work smoothly before
you begin riding.
ECB00150
CAUTION:
See the “Engine break-in” section on page 6-5
prior to operating the engine for the first time.
1. Set the parking brake.
2. Turn the fuel cock to “ON”.
3. Turn the main switch to “ON” and the engine
stop switch to “RUN”.
4. Shift the transmission into neutral. The neutral
indicator light should come on. If the indicator
6-1
1
2
3
4
5
6
7
8
9
10
11
light does not come on, have a Yamaha dealer check the electrical circuit.
1
NOTE:
This model is equipped with an ignition circuit cut-
2
off system. The engine can be started under the
3
following conditions.
The transmission is in neutral.
●
4
The rear brake lever is applied with the transmis-
●
sion in any gear. However, it is recommended to
5
shift into neutral before starting the engine.
5. Use the choke in reference to the figure:
6
Position (1):
7
●
Cold engine start with ambient temperature below 30 °C (90 °F).
8
Position (2):
9
●
Warming up position.
10
Position (3):
●
11
Cold engine start with ambient temperature
above 25 °C (80 °F).
Ambient temp./choke position
0°
10° 20° 30°
1
30°
50° 70° 90°°F
°C
3
4
OFF
3
ON
1
1. Fully open “ON”
2. Half open (warming up position)
3. Closed “OFF”
4. Choke
2
6. Completely close the throttle lever and start
the engine by pushing the start switch.
NOTE:
If the engine fails to start, release the start switch,
then push it again. Pause a few seconds before
the next attempt. Each cranking should be as short
as possible to preserve battery energy. Do not
6-2
crank the engine more than 10 seconds on each
attempt.
7. If the engine is started with the choke in position (1), the choke should be returned to position (2) to warm up the engine. If the engine is
started with the choke in position (2), keep the
choke in this position to warm up the engine.
ECB00160
CAUTION:
For maximum engine life, always warm the engine up before starting off. Never accelerate
hard when the engine is cold!
EBU20550
Shifting
This ATV has a 3-speed forward transmission with
a centrifugal, automatic clutch. The transmission
allows you to control the amount of power you
have available at a given speed or for starting accelerating, climbing, etc.
To shift into neutral, return the throttle lever to the
closed position and repeatedly depress the shift
pedal until it stops.
1
2
3
4
5
6
8. Continue warming up the engine until it idles
smoothly, then return the choke to position (3)
before riding.
NOTE:
The engine is warm when it responds normally to
the throttle with the choke turned off.
EBU20301
Starting a warm engine
Follow the same procedure as for starting a cold
engine, with the exception that the choke is not required when the engine is warm. Instead, start the
engine with the throttle slightly open.
1. Shift pedal
2. Neutral position
6-3
7
3
2
1
1
8
9
N
10
2
11
EBU20600
To start out and accelerate
1. Release the throttle lever.
1
ECB00200
CAUTION:
2
Always close the throttle before shifting gears,
3
otherwise damage to the engine and drive train
may result.
4
2. Shift into first gear and release the shift pedal.
3. Open the throttle gradually.
5
4. Once the ATV has attained adequate speed,
6
release the throttle lever.
5. Shift into second gear and release the shift
7
pedal.
6. Open the throttle gradually.
8
7. Follow the same procedure when shifting to
the next higher gear.
EWB00690
9
WARNING
10
POTENTIAL HAZARD
Opening the throttle before releasing the
11
shift pedal.
WHAT CAN HAPPEN
The ATV could wheelie. This would increase
the chance of an accident, including overturn.
HOW TO AVOID THE HAZARD
Release the shift pedal before opening the
throttle. Open the throttle gradually.
EBU20640
To decelerate
When slowing down or stopping, release the throttle and apply the brakes smoothly and evenly. As
you slow down, shift to a lower gear. Be sure that
the engine has sufficiently slowed before engaging
a lower gear. Improper use of the brakes or shifting
can cause the tires to lose traction, reducing control and increasing the possibility of an accident.
6-4
EWB00650
WARNING
POTENTIAL HAZARD
Engaging a lower gear when the engine
speed is too high.
WHAT CAN HAPPEN
The wheels could stop rotating and lose traction. This could cause loss of control, an accident and injury. It could also cause engine
or drive train damage.
HOW TO AVOID THE HAZARD
Make sure the engine has sufficiently slowed
before shifting to a lower gear.
ECB00190
CAUTION:
Even with the transmission in the neutral position, do not coast for long periods of time with
the engine off, and do not tow the ATV for long
distances. The transmission is properly lubricated only when the engine is running. Inadequate lubrication may damage the
transmission.
EBU20670
Engine break-in
There is never a more important period in the life of
your engine than the first 20 hours of riding. For
this reason, you should read the following material
carefully.
Since the engine is brand new, do not put an excessive load on it for the first 20 hours. The various
parts in the engine wear and polish themselves to
the correct operating clearances. During this period, prolonged full-throttle operation or any condition that might result in engine overheating must
be avoided.
0–10 hours
Avoid prolonged operation above 1/2 throttle. Vary
the speed of the ATV regularly. Do not operate it at
one set throttle position.
10–20 hours
Avoid prolonged operation above 3/4 throttle. Rev
the engine through the gears freely, but do not use
full throttle at any time.
1
2
3
4
5
6
7
8
9
10
11
6-5
20 hours and beyond
The ATV can now be operated normally.
ECB00220
1
CAUTION:
2
If any engine trouble should occur during the
engine break-in period, immediately have a
3
Yamaha dealer check the ATV.
4
EBU20721
Parking
5
When parking the ATV, stop the engine, shift into
first gear, apply the parking brake, and then turn
6
the fuel cock to “OFF”.
7
1
8
9
10
11
1
1. Locked position
EBU20830
Parking on a slope
EWB00790
WARNING
POTENTIAL HAZARD
Parking on a hill or other incline.
WHAT CAN HAPPEN
The ATV could roll out of control, increasing
the chance of an accident.
1. Parking brake lock plate
6-6
HOW TO AVOID THE HAZARD
Avoid parking on hills or other inclines. If you
must park on an incline, place the ATV transversely across the incline, shift into first
gear, stop the engine, apply the parking
brake, and then block the front and rear
wheels with rocks or other objects.
Do not park the ATV at all on hills that are so
steep you could not walk up them easily.
1. Bring the ATV to a stop by applying the brakes
in first gear.
2. Stop the engine.
3. With the rear brake lever and brake pedal applied, apply the parking brake and slowly release the brake pedal.
EBU20910
Accessories and loading
EBU20920
Accessories
Accessories can affect the handling and control of
your ATV. Keep the following in mind when considering an accessory or operating an ATV which has
accessories.
●
Choose only accessories designed for your
ATV. Your Yamaha dealer has a variety of genuine Yamaha accessories. Other accessories
may also be available on the market. However,
it is not possible for Yamaha to test all nonYamaha accessories, nor control over their quality or suitability. Choose a genuine Yamaha accessory, or one that is equivalent in design and
quality.
●
Accessories should be rigidly and securely
mounted. An accessory which can shift position
or come off while you are riding could affect your
ability to control the ATV.
●
Do not mount an accessory where it could interfere with your ability to control the ATV. Examples include (but are not limited to) a heavy or
bulky object attached to the handlebars which
could make steering difficult, an accessory that
1
2
3
4
5
6
7
8
9
10
11
6-7
limits your ability to move around on the seat, or
one that limits your view.
1
●
Use extra caution when riding an ATV with accessories. The ATV may handle differently than
2
it does without accessories.
3
EBU21110
Loading
As originally equipped, this ATV is not designed to
4
tow a trailer. If you choose to add accessories so
5
that you can tow a trailer, you must use common
sense and good judgment as the stability and han-
6
dling of an ATV can be changed. When adding accessories, keep the following points in mind:
7
●
Never exceed the weight limits shown. An overloaded ATV can be unstable.
8
MAXIMUM LOADING LIMIT
9
10
11
ATV loading limit (total weight of rider, cargo,
accessories, and tongue):
95.0 kg (209 lb)
Carrier:
5.0 kg (11 lb)
●
If you are carrying cargo and towing a trailer, include the tongue weight in the maximum ATV
load limit.
●
Load cargo on the carrier as close to the center
of the ATV as possible. Put cargo at the front of
the carrier and center it.
●
Tie down cargo securely to the carrier. Make
sure cargo in the trailer cannot move around. A
shifting load can cause an accident.
●
Make sure the load does not interfere with controls or your ability to see where you are going.
●
Ride more slowly than you would without a load.
The more weight you carry, the slower you
should go. Although conditions vary, it is good
practice not to exceed 2nd gear whenever you
are carrying heavier loads or when towing a trailer.
●
Allow more braking distance. A heavier ATV
takes longer to stop.
●
Avoid making sharp turns unless at very slow
speeds.
●
Avoid hills and rough terrain. Choose terrain
carefully. Added weight affects the stability and
6-8
handling of the ATV.
EWB00750
WARNING
POTENTIAL HAZARD
Overloading this ATV or carrying or towing
cargo improperly.
WHAT CAN HAPPEN
Could cause changes in ATV handling which
could lead to an accident.
HOW TO AVOID THE HAZARD
Never exceed the stated load capacity for
this ATV.
Cargo should be properly distributed and securely attached.
Reduce speed when carrying cargo or pulling a trailer. Allow greater distance for braking.
EWB00010
WARNING
Indicates a potential hazard that could result in
serious injury or death.
1
2
3
4
5
6
7
8
9
10
11
6-9
10
11
EBU21131
RIDING YOUR ATV
1
2
3
4
5
6
7
8
9
7-1
EWB00010
WARNING
Indicates a potential hazard that could result in
serious injury or death.
EBU21562
GETTING TO KNOW YOUR ATV
This ATV is for recreation use. This section, Riding
your ATV, provides general ATV riding instructions
for recreational riding. The skills and techniques
described in this section, however, are appropriate
for all types of riding. Riding your ATV requires
special skills acquired through practice over a period of time. Take the time to learn the basic techniques well before attempting more difficult
maneuvers.
Riding your new ATV can be a very enjoyable activity, providing you with hours of pleasure. But it is
essential to familiarize yourself with the operation
of the ATV to achieve the skill necessary to enjoy
riding safely. Before you begin to ride, be sure you
have read this Owner’s Manual completely and understand the operation of the controls. Pay particular attention to the safety information on pages
1-1–1-4. Please also read all caution and warning
labels on your ATV.
RIDE WITH CARE AND GOOD JUDGEMENT
Get training if you are inexperienced.
Beginners should get training from a certified instructor.
Become familiar with this ATV at slow speeds first,
even if you are an experienced operator. Do not attempt to operate at maximum performance until
you are totally familiar with the ATV’s handling and
performance characteristics.
1
2
3
4
5
6
7
8
9
10
11
7-2
EWB01280
WARNING
1
POTENTIAL HAZARD
Operating this ATV without proper instruc-
2
tion.
WHAT CAN HAPPEN
3
The risk of an accident is greatly increased if
the operator does not know how to operate
4
the ATV properly in different situations and
on different types of terrain.
5
HOW TO AVOID THE HAZARD
Beginning and inexperienced operators
6
should complete the certified training course
offered by Yamaha. They should then regu-
7
larly practice the skills learned in the course
8
and the operating techniques described in
this Owner’s Manual. For more information
9
about the training course, contact an authorized ATV dealer or call 1-800-887-2887.
10
Riding your ATV requires skills acquired
11
through practice over a period of time.
Take the time to learn the basic techniques well
before attempting more difficult maneuvers.
of age.
EWB01210
WARNING
POTENTIAL HAZARD
Failure to follow the age recommendations
for this ATV.
WHAT CAN HAPPEN
Use by children of ATVs that are not recommended for their age can lead to severe injury or death of the child.
HOW TO AVOID THE HAZARD
A child under 12 should never operate an
ATV with engine size greater than 70 cc.
Not recommended for children under 12 years
7-3
HOW TO AVOID THE HAZARD
Never carry a passenger. The long seat is to
allow the operator to shift position as needed
during operation. It is not for carrying passengers.
1
2
3
4
5
6
7
This ATV is designed to carry operator and
cargo only – passengers prohibited.
EWB00910
WARNING
POTENTIAL HAZARD
Carrying a passenger on this ATV.
WHAT CAN HAPPEN
Greatly reduces your ability to balance and
control this ATV. Could cause an accident,
resulting in harm to you and/or your passenger.
8
9
10
11
7-4
10
11
Apparel
EWB00920
1
2
3
4
5
POTENTIAL HAZARD
Operating this ATV without wearing an approved motorcycle helmet, eye protection
and protective clothing.
WHAT CAN HAPPEN
Operating without an approved motorcycle
helmet increases your chances of a severe
WARNING
head injury or death in the event of an acci-
6
dent.
Operating without eye protection can result
7
in an accident and increases your chances of
a severe injury in the event of an accident.
8
Operating without protective clothing increases your chances of severe injury in the
9
event of an accident.
7-5
HOW TO AVOID THE HAZARD
Always wear an approved motorcycle helmet
that fits properly.
You should also wear:
●
eye protection (goggles or face shield)
●
gloves
●
boots
●
long-sleeved shirt or jacket
●
long pants
Do not operate after consuming alcohol or
drugs.
The operator’s performance capability is reduced
by the influence of alcohol or drugs.
1
2
3
4
5
6
7
8
9
10
1. Protective clothing
2. Goggles
3. Gloves
4. Boots
5. Helmet
11
7-6
EWB00930
WARNING
1
POTENTIAL HAZARD
Operating this ATV after consuming alcohol
2
or drugs.
WHAT CAN HAPPEN
3
Could seriously affect your judgment.
Could cause you to react more slowly.
4
Could affect your balance and perception.
Could result in an accident.
5
HOW TO AVOID THE HAZARD
Never consume alcohol or drugs before or
6
while driving this ATV.
7
Pre-operation checks
8
Always perform the pre-operation checks listed on
page 5-1 before riding for proper care of the ATV
9
and to ensure safety.
EWB00940
10
POTENTIAL HAZARD
11
Failure to inspect the ATV before operating.
Failure to properly maintain the ATV.
WHAT CAN HAPPEN
Increases the possibility of an accident or
equipment damage.
WARNING
HOW TO AVOID THE HAZARD
Always inspect your ATV each time you use
it to make sure the ATV is in safe operating
condition.
Always follow the inspection and maintenance procedures and schedules described
in the Owner’s Manual.
EWB00950
WARNING
POTENTIAL HAZARD
Operating this ATV with improper tires, or
with improper or uneven tire pressure.
WHAT CAN HAPPEN
Use of improper tires on this ATV, or operation of this ATV with improper or uneven tire
pressure, may cause loss of control, increasing your risk of an accident.
HOW TO AVOID THE HAZARD
Always use the size and type tires specified
in the Owner’s Manual for this ATV on page
5-5.
Always maintain proper tire pressure as described in the Owner’s Manual on page 5-6.
7-7
EWB00010
WARNING
Indicates a potential hazard that could result in
serious injury or death.
Do not operate at speeds too fast for your
skills or the conditions.
EWB00960
WARNING
POTENTIAL HAZARD
Operating this ATV at speeds too fast for
your skills or the conditions.
WHAT CAN HAPPEN
Increases your chances of losing control of
the ATV, which can result in an accident.
HOW TO AVOID THE HAZARD
Always go at a speed that is proper for the
terrain, visibility and operating conditions,
and your experience.
Speed limiter
For riders less experienced with this model, the
throttle lever housing is equipped with a speed limiter. The speed limiter keeps the throttle from fully
opening, even when the throttle lever is pushed to
the maximum. Turning in the adjusting screw limits
the maximum engine power available and decreases the maximum speed of the ATV. Turning
in the adjusting screw decreases top speed, and
turning it out increases top speed. (See page 4-4.)
This model also has an air intake restrictor plate to
limit the amount of engine power available.
Yamaha recommends that all beginning riders
start off with the speed limiter turned in and the air
intake restrictor plate installed to limit the amount
of speed available while they learn. The limiter may
be gradually adjusted to increase maximum speed
as the beginner becomes more familiar with operating the ATV. Parents should decide when to adjust the ATV for more power as their youngster’s
riding skills improve. Once the ATV rider can operate with skill at the top speed permitted by adjusting the speed limiter alone, the air intake restrictor
plate can be removed. Since removal of this plate
will result in a significant increase in power, turn
the speed limiter back in again; adjust it out in stages as you did before.
Adjusting for maximum throttle lever movement
without removing the air intake restrictor plate will
cause the engine to run roughly at higher speeds.
For air intake restrictor plate removal instructions,
1
2
3
4
5
6
7
8
9
10
11
7-8
see page 8-18.
duce your speed when adding additional loads.
1
2
3
4
5
1
6
1. Locknut
7
2. Adjusting screw
8
Loading and accessories
Use extra caution when riding the ATV with addi-
9
tional loads, such as accessories or cargo. The
ATV’s handling may be adversely affected. Re-
10
11
2
MAXIMUM LOADING LIMIT
ATV loading limit (total weight of cargo, rider,
accessories, and tongue):
95.0 kg (209 lb)
Carrier:
5.0 kg (11 lb)
EWB00970
WARNING
POTENTIAL HAZARD
Overloading this ATV or carrying or towing
cargo improperly.
WHAT CAN HAPPEN
Could cause changes in ATV handling which
could lead to an accident.
7-9
HOW TO AVOID THE HAZARD
Never exceed the stated load capacity for
this ATV.
Cargo should be properly distributed and securely attached.
Reduce speed when carrying cargo or pulling a trailer. Allow greater distance for braking.
Always follow the instructions in your Owner’s Manual for carrying cargo or pulling a
trailer.
During operation
Always keep your feet on the footboards during operation, otherwise they may contact the rear
wheels.
1
2
3
4
5
6
7
8
9
10
11
7-10
EWB00980
WARNING
1
POTENTIAL HAZARD
Removing hands from handlebars or feet
2
from footboards during operation.
WHAT CAN HAPPEN
3
Removing even one hand or foot can reduce
your ability to control the ATV or could cause
4
you to lose your balance and fall off of the
ATV. If you remove a foot from a footboard,
5
your foot or leg may come into contact with
the rear wheels, which could injure you or
6
cause an accident.
HOW TO AVOID THE HAZARD
7
Always keep both hands on the handlebars
8
and both feet on the footboards of your ATV
during operation.
9
Avoid wheelies and jumping. You may lose control
10
of the ATV or overturn.
EWB00990
11
POTENTIAL HAZARD
Attempting wheelies, jumps, and other
stunts.
WARNING
WHAT CAN HAPPEN
Increases the chance of an accident, including an overturn.
HOW TO AVOID THE HAZARD
Never attempt stunts, such as wheelies or
jumps. Don’t try to show off.
Modifications
EWB01000
WARNING
POTENTIAL HAZARD
Operating this ATV with improper modifications.
7-11
WHAT CAN HAPPEN
Improper installation of accessories or modification of this ATV may cause changes in
handling which in some situations could lead
to an accident.
HOW TO AVOID THE HAZARD
Never modify this ATV through improper installation or use of accessories. All parts and
accessories added to this ATV should be
genuine Yamaha or equivalent components
designed for use on this ATV and should be
installed and used according to instructions.
If you have questions, consult an authorized
ATV dealer.
WHAT CAN HAPPEN
Dry grass or brush or other combustible material accumulated around the engine area
could catch fire.
Someone touching the exhaust system during or after operation could be burned.
HOW TO AVOID THE HAZARD
Do not operate, idle, or park the ATV in dry
grass or other dry ground cover.
Keep the engine area free of dry grass,
brush, or other combustible material.
Do not touch the hot exhaust system.
Do not park the ATV in a place where others
might be likely to touch it.
1
2
3
4
5
6
7

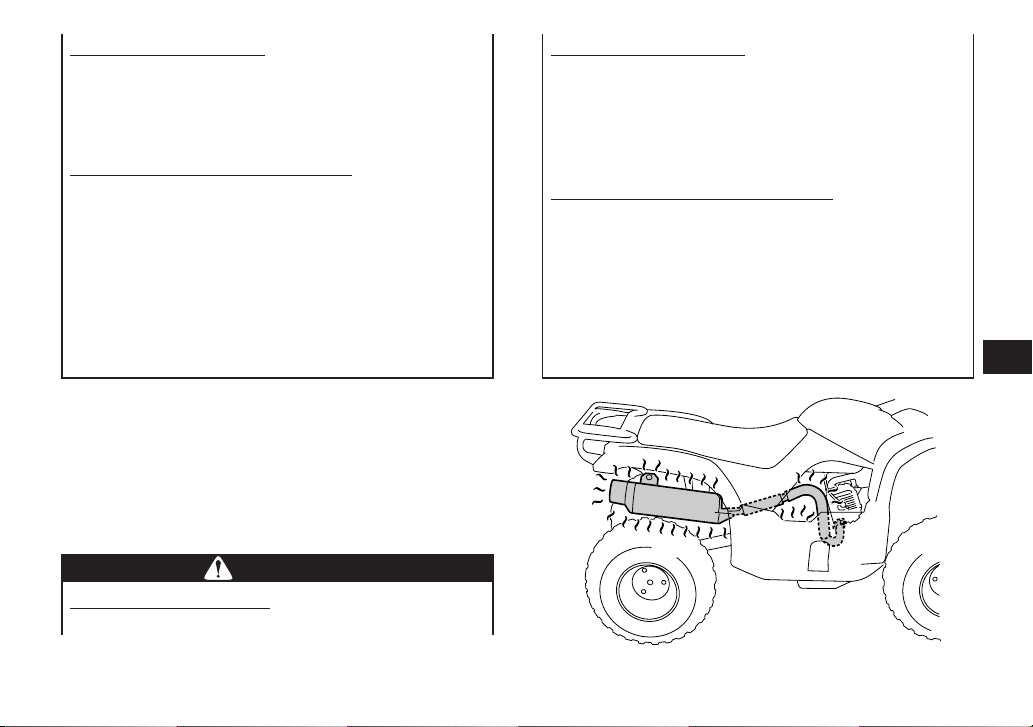

Exhaust system
The exhaust system on the ATV is very hot during
and following operation. To prevent burns, avoid
touching the exhaust system. Park the ATV in a
place where pedestrians or children are not likely
to touch it.
EWB01010
WARNING
POTENTIAL HAZARD
Hot exhaust system.
8
9
10
11
7-12
BE CAREFUL WHERE YOU RIDE
This ATV is designed for off-road use only. Riding
1
on paved surfaces can cause loss of control.
EWB01020
2
POTENTIAL HAZARD
3
Operating this ATV on paved surfaces.
WHAT CAN HAPPEN
4
ATVs are designed for off-road use only.
Paved surfaces may seriously affect han-
5
WARNING
dling and control of the ATV, and may cause
the ATV to go out of control.
6
HOW TO AVOID THE HAZARD
Always avoid paved surfaces, including side-
7
walks, driveways, parking lots and streets.
8
9
10
11
Do not ride on any public road, street, or highway.
Riding on public roads can result in collisions with
other vehicles.
EWB01030
WARNING
POTENTIAL HAZARD
Operating this ATV on public streets, roads
or highways.
WHAT CAN HAPPEN
You can collide with another vehicle.
7-13
HOW TO AVOID THE HAZARD
Never operate this ATV on any public street,
road or highway, even a dirt or gravel one. In
many states it is illegal to operate ATVs on
public streets, roads and highways.
which may cause the ATV to upset.
EWB01040
WARNING
POTENTIAL HAZARD
Failure to use extra care when operating this
ATV on unfamiliar terrain.
WHAT CAN HAPPEN
You can come upon hidden rocks, bumps, or
holes, without enough time to react. Could
result in the ATV overturning or going out of
control.
HOW TO AVOID THE HAZARD
Go slowly and be extra careful when operating on unfamiliar terrain. Always be alert to
changing terrain conditions when operating
the ATV.
1
2
3
4
5
6
7
8
9
Know the terrain where you ride. Ride cautiously in
unfamiliar areas. Stay alert for
roots
in the terrain, and
holes, rocks, or
other hidden hazards
10
11
7-14
1
2
3
4
5
6
7
8
EWB01050
9
POTENTIAL HAZARD
10
Failure to use extra care when operating on
excessively rough, slippery or loose terrain.
11
WHAT CAN HAPPEN
WARNING
Could cause loss of traction or ATV control,
which could result in an accident, including
an overturn.
HOW TO AVOID THE HAZARD
Do not operate on excessively rough, slippery or loose terrain until you have learned
and practiced the skills necessary to control
the ATV on such terrain. Always be especially cautious on these kinds of terrain.
When riding in an area where you might not easily
be seen, such as desert terrain, mount a caution
flag on the ATV. DO NOT use the flag pole bracket
as a trailer hitch.
7-15
Do not ride in areas posted “no trespassing”.
Do not ride on private property without getting permission.
1
2
3
4
5
6
EWB01060
WARNING
POTENTIAL HAZARD
Operating in areas where you might not be
seen by other off-road vehicles.
WHAT CAN HAPPEN
You could be in a collision. You could be injured.
HOW TO AVOID THE HAZARD
Always mount a caution flag on the ATV to
make you more visible. Watch carefully for
other vehicles.
Select a large, flat area off-road to become familiar
with your ATV. Make sure that this area is free of
obstacles and other riders. You should practice
control of the throttle, brakes, shifting procedures,
and turning techniques in this area before trying
more difficult terrain. Always avoid riding on paved
surfaces: the ATV is designed for off-road use
only, and handling maneuvers are more difficult to
perform on pavement.
Set the parking brake and follow the instruction on
page 6-1 to start the engine. Once it has warmed
up you are ready to begin riding your ATV. As you
get on the ATV, be sure not to accidentally move
7-16
7
8
9
10
11
the shift pedal. Remember that the engine and exhaust pipe will be hot when riding and afterwards;
1
do not allow skin or clothing to come in contact with
these components.
2
With the engine idling, lift the shift pedal to the 1st
gear position and then release the parking brake.
3
Apply the throttle slowly and smoothly. The centrifugal clutch will engage and you will start to accel-
4
erate. Once the ATV has attained adequate
speed, release the throttle and lift the shift pedal to
5
the 2nd gear position. Release the shift pedal and
apply the throttle smoothly. Use this same proce-
6
dure as you move into the higher gears. Be sure to
coordinate the use of the throttle and shift pedal
7
properly. If the throttle is applied too abruptly or if
the throttle is not released during shifting, or if the
8
shift pedal is not released before applying the
9
throttle, the front wheels may lift off the ground, resulting in a loss of directional control. Avoid higher
10
speeds until you are thoroughly familiar with the
operation of your ATV.
11
ECB00230
CAUTION:
Do not shift gears without releasing the throttle. Damage to the engine or drive train may occur.
When slowing down or stopping, release the throttle and apply the brakes smoothly and evenly. As
you slow down, shift to a lower gear. Be sure that
the engine has sufficiently slowed before engaging
a lower gear. Improper use of the brakes or shifting
can cause the tires to lose traction, reducing control and increasing the possibility of an accident.
EWB01070
WARNING
POTENTIAL HAZARD
Engaging a lower gear when the engine
speed is too high.
WHAT CAN HAPPEN
The wheels could stop rotating. This could
cause loss of control, an accident and injury.
It could also cause engine or drive train damage.
HOW TO AVOID THE HAZARD
Make sure the engine has sufficiently slowed
before shifting to a lower gear.
TURNING YOUR ATV
To achieve maximum traction while riding off-road,
the two rear wheels are mounted solidly on one
axle and turn together at the same speed. Therefore, unless the wheel on the inside of the turn is al-
7-17
lowed to slip or lose some traction, the ATV will
resist turning. A special turning technique must be
used to allow the ATV to make turns quickly and
easily. It is essential that this skill be learned first at
low speed.
EWB01220
WARNING
POTENTIAL HAZARD
Turning improperly.
WHAT CAN HAPPEN
The ATV could go out of control, causing a
collision or overturn.
HOW TO AVOID THE HAZARD
Always follow proper procedures for turning
as described in this Owner’s Manual. Practice turning at low speeds before attempting
to turn at faster speeds. Do not turn at
speeds too fast for your skills or the conditions.
As you approach a curve, slow down and begin to
turn the handlebars in the desired direction. As you
do so, put your weight on the footboard to the outside of the turn (opposite your desired direction)
and lean your upper body into the turn. Use the
throttle to maintain an even speed through the
turn. This maneuver will let the wheel on the inside
of the turn slip slightly, allowing the ATV to make
the turn properly.
1
2
1. Lean towards inside of turn.
2. Support your weight on the outer footboard.
This procedure should be practiced at slow speed
many times in a large off-road area with no obstacles. If an incorrect technique is used, your ATV
may continue to go straight. If the ATV doesn’t
turn, come to a stop and then practice the procedure again. If the riding surface is slippery or loose,
it may help to position more of your weight over the
front wheels by moving forward on the seat.
7-18
1
2
3
4
5
6
7
8
9
10
11
Once you have learned this technique, you should
be able to perform it at higher speeds or in tighter
1
curves.
Improper riding procedures such as abrupt throttle
2
changes, excessive braking, incorrect body movements, or too much speed for the sharpness of the
3
turn may cause the ATV to tip. If the ATV begins to
tip over to the outside while negotiating a turn, lean
4
more to the inside. It may also be necessary to
gradually let off on the throttle and steer to the out-
5
side of the turn to avoid tipping over.
Remember: Avoid higher speeds until you are
6
thoroughly familiar with the operation of your ATV.
7
CLIMBING UPHILL
Use proper riding techniques to avoid ATV over-
8
turns on hills. Be sure that you can maneuver your
ATV well on flat ground before attempting any in-
9
cline and then practice riding first on gentle slopes.
10
Try more difficult climbs only after you have developed your skill. In all cases avoid inclines with slip-
11
pery or loose surfaces, or obstacles that might
cause you to lose control.
EWB01090
WARNING
POTENTIAL HAZARD
Operating on excessively steep hills.
WHAT CAN HAPPEN
The ATV can overturn more easily on extremely steep hills than on level surfaces or
small hills.
HOW TO AVOID THE HAZARD
Never operate the ATV on hills too steep for
the ATV or for your abilities. Practice on
smaller hills before attempting large hills.
It is important when climbing a hill to make sure
that your weight is transferred forward on the ATV.
This can be accomplished by leaning forward and,
on steeper inclines, standing on the footboards
and leaning forward over the handlebars.
EWB01100
WARNING
POTENTIAL HAZARD
Climbing hills improperly.
WHAT CAN HAPPEN
Could cause loss of control or cause the ATV
to overturn.
7-19
HOW TO AVOID THE HAZARD
Always follow proper procedures for climbing hills as described in this Owner’s Manual.
Always check the terrain carefully before you
start up any hill.
Never climb hills with excessively slippery or
loose surfaces.
Shift your weight forward.
Never open the throttle suddenly or make
sudden gear changes. The ATV could flip
over backwards.
Never go over the top of any hill at high
speed. An obstacle, a sharp drop, or another
vehicle or person could be on the other side
of the hill.
If you are climbing a hill and you find that you have
not properly judged your ability to make it to the
top, you should turn the ATV around while you still
have forward motion (provided you have the room
to do so) and go down the hill.
1
2
3
4
5
6
7
8
9
10
11
7-20
EWB01190
WARNING
1
POTENTIAL HAZARD
Improperly crossing hills or turning on hills.
2
WHAT CAN HAPPEN
Could cause loss of control or cause the ATV
3
to overturn.
HOW TO AVOID THE HAZARD
4
Never attempt to turn the ATV around on any
hill until you have mastered the turning tech-
5
nique as described in the Owner’s Manual on
level ground. Be very careful when turning
6
on any hill.
Avoid crossing the side of a steep hill if pos-
7
sible.
8
When crossing the side of a hill:
Always follow proper procedures as de-
9
scribed in the Owner’s Manual.
Avoid hills with excessively slippery or loose
10
surfaces.
Shift your weight to the uphill side of the
11
ATV.
If your ATV has stalled or stopped and you believe
you can continue up the hill, restart carefully to
make sure you do not lift the front wheels which
could cause you to lose control. If you are unable
to continue up the hill, dismount the ATV on the uphill side. Physically turn the ATV around and then
descend the hill.
If you start to roll backwards, DO NOT apply the
rear brake to stop or try to put the ATV in gear. The
ATV could easily tip over backwards. Instead, apply the front brake gradually, or dismount the ATV
7-21
immediately on the uphill side.
EWB01231
WARNING
POTENTIAL HAZARD
Stalling, rolling backwards or improperly dismounting while climbing a hill.
WHAT CAN HAPPEN
Could result in the ATV overturning.
HOW TO AVOID THE HAZARD
Use the proper gear and maintain a steady
speed when climbing a hill.
If you lose all forward speed:
Keep weight uphill.
●
Apply the brakes.
●
●
Lock the parking brake after you are
stopped.
If you begin rolling backwards:
●
Keep weight uphill.
●
Never apply the rear brake while rolling
backwards. Apply the front brake.
When fully stopped, apply the rear brake
●
as well, and then lock the parking brake.
Dismount on uphill side or to a side if pointed
straight uphill. Turn the ATV around and remount, following the procedure described in
the Owner’s Manual.
RIDING DOWNHILL
When riding your ATV downhill, shift your weight
as far to the rear and uphill side of the ATV as possible. Move back on the seat and sit with your arms
straight. Choose a low gear which will allow the engine compression to do most of the braking for
you. Improper braking may cause a loss of traction.
Use caution while descending a hill with loose or
slippery surfaces. Braking ability and traction may
be adversely affected by these surfaces. Improper
braking may also cause a loss of traction.
Whenever possible, ride your ATV straight downhill. Avoid sharp angles which could allow the ATV
7-22
1
2
3
4
5
6
7
8
9
10
11
to tip or roll over. Carefully choose your path and
ride no faster than you will be able to react to ob-
1
stacles which may appear.
EWB01130
2
POTENTIAL HAZARD
3
Going down a hill improperly.
WHAT CAN HAPPEN
4
Could cause loss of control or cause the ATV
to overturn.
5
WARNING
HOW TO AVOID THE HAZARD
Always follow proper procedures for going
6
down hills as described in this Owner’s Manual.
7
Note: a special technique is required when
8
braking as you go down a hill.
Always check the terrain carefully before you
9
start down any hill.
Shift your weight backward.
10
Never go down a hill at high speed.
Avoid going down a hill at an angle that
11
would cause the ATV to lean sharply to one
side. Go straight down the hill where possible.
CROSSING A SLOPE
Traversing a sloping surface on your ATV requires
you to properly position your weight to maintain
proper balance. Be sure that you have learned the
basic riding skills on flat ground before attempting
to cross a sloping surface. Avoid slopes with slippery surfaces or rough terrain that may upset your
balance.
As you travel across a slope, lean your body in the
uphill direction. It may be necessary to correct the
steering when riding on loose surfaces by pointing
7-23
the front wheels slightly uphill. When riding on
slopes, be sure not to make sharp turns either up
or down hill.
If your ATV does begin to tip over, gradually steer
in the downhill direction if there are no obstacles in
your path. As you regain proper balance, gradually
steer again in the direction you wish to travel.
EWB01141
WARNING
POTENTIAL HAZARD
Improperly crossing hills or turning on hills.
WHAT CAN HAPPEN
Could cause loss of control or cause the ATV
to overturn.
HOW TO AVOID THE HAZARD
Never attempt to turn the ATV around on any
hill until you have mastered the turning technique as described in the Owner’s Manual on
level ground. Be very careful when turning
on any hill. Avoid crossing the side of a steep
hill if possible.
When crossing the side of a hill:
Always follow proper procedures as described in the Owner’s Manual.
Avoid hills with excessively slippery or loose
surfaces.
Shift your weight to the uphill side of the
ATV.
CROSSING THROUGH SHALLOW WATER
The ATV can be used to cross slow moving, shallow water of up to a maximum of 20 cm (8 in) in
depth. Before entering the water, choose your path
7-24
1
2
3
4
5
6
7
8
9
10
11
carefully. Enter where there is no sharp drop off,
and avoid rocks or other obstacles which may be
1
slippery or upset the ATV. Drive slowly and carefully.
2
EWB01150
WARNING
3
POTENTIAL HAZARD
Operating this ATV through deep or fast
4
flowing water.
WHAT CAN HAPPEN
5
Tires may float, causing loss of traction and
loss of control, which could lead to an acci-
6
dent.
HOW TO AVOID THE HAZARD
7
Never operate this ATV in fast flowing water
8
or in water deeper than that specified in your
Owner’s Manual.
9
Remember that wet brakes may have reduced stopping ability. Test your brakes af-
10
ter leaving water. If necessary, apply them
several times to let friction dry out the lin-
11
ings.
Test your brakes after leaving the water. Do not
continue to ride your ATV without verifying that you
have regained proper braking ability.
7-25
1
2
ECB00240
CAUTION:
After riding your ATV in water, be sure to drain
the trapped water by removing the check hose
at the bottom of the air filter case. Wash the
ATV in fresh water if it has been operated in
salt water or muddy conditions.
1. Air filter case check hose
RIDING OVER ROUGH TERRAIN
Riding over rough terrain should be done with caution. Look out for obstacles which could cause
damage to the ATV or could lead to an upset or accident. Be sure to keep your feet firmly mounted on
the footboards at all times. Avoid jumping the ATV
as loss of control and damage to the ATV may result.
7-26
1
3
4
5
6
7
8
9
10
11
EWB01160
WARNING
1
POTENTIAL HAZARD
Improperly operating over obstacles.
2
WHAT CAN HAPPEN
Could cause loss of control or a collision.
3
Could cause the ATV to overturn.
HOW TO AVOID THE HAZARD
4
Before operating in a new area, check for obstacles.
5
Never attempt to ride over large obstacles,
such as large rocks or fallen trees. When you
6
go over obstacles, always follow proper procedures as described in the Owner’s Manual.
7
8
SLIDING AND SKIDDING
Care should be used when riding on loose or slip-
9
pery surfaces since the ATV may slide. If unexpected and uncorrected, sliding could lead to an
10
accident.
To reduce the tendency for the front wheels to slide
11
in loose or slippery conditions, positioning your
weight over the front wheels will sometimes help.
If the rear wheels of your ATV start to slide sideways, control can usually be regained (if there is
room to do so) by steering in the direction of the
slide. Applying the brakes or accelerating is not
recommended until you have corrected the slide.
7-27
WHAT CAN HAPPEN
You may lose control of this ATV. You may
also regain traction unexpectedly, which
may cause the ATV to overturn.
HOW TO AVOID THE HAZARD
Learn to safely control skidding or sliding by
practicing at low speeds and on level,
smooth terrain.
On extremely slippery surfaces, such as ice,
go slowly and be very cautious in order to reduce the chance of skidding or sliding out of
control.
1
2
3
4
5
6
With practice, over a period of time, skill at controlled sliding can be developed. The terrain
should be chosen carefully before attempting such
maneuvers, since both stability and control are reduced. Bear in mind that sliding maneuvers should
always be avoided on extremely slippery surfaces
such as ice, since all control may be lost.
EWB01170
WARNING
POTENTIAL HAZARD
Skidding or sliding improperly.
WHAT TO DO IF...
This section is designed to be a reference guide
only. Be sure to read each section on riding techniques completely.
WHAT TO DO...
●
If your ATV doesn’t turn when you want it to:
Bring the ATV to a stop and practice the turning
maneuvers again. Be sure you are putting your
weight on the footboard to the outside of the
turn. Position your weight over the front wheels
for better control. (See page 7-17.)
●
If your ATV begins to tip while turning:
7-28
7
8
9
10
11
10
11
Lean more into the turn to regain balance. If necessary, gradually let off the throttle and/or steer
1
to the outside of the turn. (See page 7-17.)
●
If your ATV starts to slide sideways:
2
Steer in the direction of the slide if you have the
room. Applying the brakes or accelerating is not
3
recommended until you have corrected the
slide. (See page 7-27.)
4
●
If your ATV can’t make it up a hill you are trying
to climb:
5
Turn the ATV around if you still have forward
speed. If not, stop, dismount on the uphill side of
6
the ATV and physically turn the ATV around. If
the ATV starts to slip backwards, DO NOT USE
7
THE REAR BRAKE – the ATV may tip over on
top of you. Instead, apply the front brake or dis-
8
mount the ATV on the uphill side. (See
9
page 7-19.)
●
If your ATV is traversing a sloping surface:
Be sure to ride with your weight positioned towards the uphill side of the ATV to maintain
proper balance. If the ATV starts to tip, steer
down the hill (if there are no obstacles in your
way) to regain balance. If you discover that the
ATV is going to tip over, dismount on the uphill
side. (See page 7-19.)
●
If your ATV encounters shallow water:
Ride slowly and carefully through slow moving
water, watching for obstacles. Be sure to let water drain from the ATV and CHECK YOUR
BRAKES FOR PROPER OPERATION when
you come out of the water. Do not continue to
ride your ATV until you have regained adequate
braking ability. (See page 7-24.)
EWB00010
WARNING
Indicates a potential hazard that could result in
serious injury or death.
7-29
EBU21640
PERIODIC MAINTENANCE AND MINOR REPAIR
EBU21660
Safety is an obligation of the owner. Periodic inspection, adjustment and lubrication will keep your
ATV in the safest and best operating condition
possible. The most important points of inspection,
adjustment, and lubrication are explained on the
following pages.
The intervals given in the periodic maintenance
and lubrication chart should be considered as a
general guide under normal riding conditions.
However, DEPENDING ON THE WEATHER,
TERRAIN, GEOGRAPHICAL LOCATION, AND
INDIVIDUAL USE, THE MAINTENANCE INTERVALS MAY NEED TO BE SHORTENED.
EWB01820
WARNING
POTENTIAL HAZARD
Servicing an engine while it is running.
WHAT CAN HAPPEN
Moving parts can catch clothing or parts of
the body, causing injury.
Electrical components can cause shocks or
start fires.
HOW TO AVOID THE HAZARD
Turn off the engine when performing maintenance unless otherwise specified. Have a
Yamaha dealer perform the service if you are
not familiar with maintenance work.
EBU27100
Owner’s manual and tool kit
Be sure to put this owner’s manual in the plastic
bag and to always carry it as well as the owner’s
tool kit and the low-pressure tire gauge in their respective compartments under the seat.
1
2
3
4
5
6
7
8
9
10
11
8-1
3
1
2
3
4
5
6
1. Owner’s manual
2. Low-pressure tire gauge
7
3. Owner’s tool kit
8
The service information included in this manual
and the tools provided in the owner’s tool kit are in-
9
tended to assist you in the performance of preventive maintenance and minor repairs. However,
10
additional tools such as a torque wrench may be
necessary to perform certain maintenance work
11
2
correctly.
NOTE:
If you do not have the tools or experience required
for a particular job, have a Yamaha dealer perform
it for you.
EWB01830
WARNING
POTENTIAL HAZARD
Operating this ATV with improper modifications.
1
WHAT CAN HAPPEN
Improper installation of accessories or modification of this ATV may cause changes in
handling which in some situations could lead
to an accident.
HOW TO AVOID THE HAZARD
Never modify this ATV through improper installation or use of accessories. All parts and
accessories added to this ATV should be
genuine Yamaha or equivalent components
designed for use on this ATV and should be
installed and used according to instructions.
If you have questions, consult an authorized
Yamaha ATV dealer.
8-2
EBU21741
Periodic maintenance chart for the emission control system
NOTE:
●
For ATVs not equipped with an odometer or an hour meter, follow the month maintenance intervals.
●
For ATVs equipped with an odometer or an hour meter, follow the km (mi) or hours maintenance intervals. However, keep in mind that if the ATV isn’t used for a long period of time, the month maintenance
intervals should be followed.
Items marked with an asterisk should be performed by a Yamaha dealer as they require special tools,
●
data and technical skills.
INITIAL EVERY
month 1 3 6 6 12
km
320
(mi)
(200)
hours 20 80 160 160 320
1300
(800)
2500
(1600)
2500
(1600)
√√√
√√√√√
√ √√√
√√√√
√√√
NO. ITEM
1
*
Fuel line
2 Spark plug
3
*
Valves
4
*
Carburetor
Crankcase breather
5
*
system
CHECK OR MAINTENANCE
●
Check fuel hoses for cracks or other damage, and
JOB
Whichev-
er comes
first
replace if necessary.
●
Check condition and clean, regap, or replace if
necessary.
●
Check valve clearance and adjust if necessary.
●
Check choke operation and correct if necessary.
●
Check engine idling speed and adjust if necessary.
●
Check breather hose for cracks or other damage,
and replace if necessary.
5000
(3200)
1
2
3
4
5
6
7
8
9
10
11
8-3
1
NO. ITEM
2
3
6
4
5
*
7 Spark arrester
6
7
8
9
10
11
Exhaust system
CHECK OR MAINTENANCE
JOB
Whichever comes
first
month 136612
hours 20 80 160 160 320
●
Check for leakage and replace gasket(s) if necessary.
●
Check for looseness and tighten all screw clamps
and joints if necessary.
●
Clean.
km
(mi)
INITIAL EVERY
320
(200)
1300
(800)
2500
(1600)
√√√
√√√
2500
(1600)
5000
(3200)
8-4
EBU21862
General maintenance and lubrication chart
NO. ITEM
1
*
Timing chain
2 Air filter element
3
*
Clutch
4
*
Front brake
5
*
Rear brake
6
*
Wheels
7
*
Tires
8
*
Wheel bearings
Drive shaft univer-
9
*
sal joint
CHECK OR MAINTENANCE
JOB
●
Check chain tension.
●
Adjust if necessary.
●
Clean and replace if necessary.
●
Check operation and adjust if necessary.
●
Check operation and correct if necessary.
●
Check brake lever free play and adjust if necessary.
●
Replace brake shoes. Whenever worn to the limit
●
Check operation and correct if necessary.
●
Check brake lever and pedal free play, and adjust
if necessary.
●
Replace brake shoes. Whenever worn to the limit
●
Check runout and for damage, and replace if necessary.
●
Check tread depth and for damage, and replace if
necessary.
●
Check air pressure and balance, and correct if
necessary.
●
Check for looseness or damage, and replace if
necessary.
●
Lubricate with lithium-soap-based grease.
Whichev-
er comes
8-5
first
INITIAL EVERY
month 1 3 6 6 12
km
320
(mi)
(200)
1300
(800)
2500
(1600)
2500
(1600)
5000
(3200)
hours 20 80 160 160 320
√ √√√
Every 20–40 hours (more often in wet or
dusty areas)
√ √√√
√√√√√
√√√√√
√ √√√
√ √√√
√ √√√
√√√
1
2
3
4
5
6
7
8
9
10
11
1
NO. ITEM
2
3
10
*
4
11
*
12
5
6
7
*
13
*
14
*
15 Engine oil
8
16 Final gear oil
9
17
*
10
18
19
*
*
11
Chassis fasteners
Shock absorber
assemblies
Knuckle shafts
Steering shaft
Steering system
Moving parts and
cables
Throttle lever housing and cable
Front and rear brake
switches
CHECK OR MAINTENANCE
JOB
Whichever comes
first
month 136612
hours 20 80 160 160 320
●
Make sure that all nuts, bolts, and screws are
properly tightened.
●
Check operation and correct if necessary.
●
Check for oil leakage and replace if necessary.
●
Lubricate with lithium-soap-based grease.
●
Lubricate with lithium-soap-based grease.
●
Check operation and repair or replace if damaged.
●
Check toe-in and adjust if necessary.
●
Change.
●
Check ATV for oil leakage, and correct if necessary.
●
Change.
●
Check ATV for oil leakage, and correct if necessary.
●
Lubricate.
●
Check operation and correct if necessary.
●
Check throttle cable free play and have a Yamaha
dealer adjust if necessary.
●
Lubricate throttle lever housing and cable.
●
Check operation and correct if necessary.
km
(mi)
INITIAL EVERY
320
(200)
1300
(800)
2500
(1600)
2500
(1600)
5000
(3200)
√√√√√
√√√
√√√
√√√
√√√√√
√ √√√
√√
√√√√
√√√√√
√√√√√
8-6
NO. ITEM
20
*
Battery
EBU23060
CHECK OR MAINTENANCE
●
Check electrolyte level and specific gravity, and
JOB
Whichev-
er comes
first
correct if necessary.
●
Make sure that the breather hose is properly
routed.
INITIAL EVERY
month 1 3 6 6 12
km
320
(mi)
(200)
hours 20 80 160 160 320
1300
(800)
2500
(1600)
2500
(1600)
5000
(3200)
√√√√√
1
2
3
4
5
NOTE:
The air filter needs more frequent service if you are riding in unusually wet or dusty areas.
8-7
6
7
8
9
10
11
EWB00010
WARNING
1
Indicates a potential hazard that could result in
serious injury or death.
2
EBU23210
3
Checking the spark plug
The spark plug is an important engine component,
4
which is easy to check. Since heat and deposits
will cause any spark plug to slowly erode, the spark
5
plug should be removed and checked in accordance with the periodic maintenance and lubrica-
6
tion chart. In addition, the condition of the spark
plug can reveal the condition of the engine.
7
To remove the spark plug
8
1. Remove the spark plug cap.
9
10
11
1
1. Spark plug cap
2. Remove the spark plug as shown, with the
spark plug wrench included in the owner’s tool
kit.
8-8
replace it if necessary.
1
1. Spark plug wrench
To check the spark plug
1. Check that the porcelain insulator around the
center electrode of the spark plug is a medium-to-light tan (the ideal color when the ATV
is ridden normally).
NOTE:
If the spark plug shows a distinctly different color,
the engine could be defective. Do not attempt to diagnose such problems yourself. Instead, have a
Yamaha dealer check the ATV.
2. Check the spark plug for electrode erosion
and excessive carbon or other deposits, and
Specified spark plug:
NGK/CR7HSA
To install the spark plug
1. Measure the spark plug gap with a wire thickness gauge and, if necessary, adjust the gap
to specification.
Spark plug gap:
0.6–0.7 mm (0.024–0.028 in)
1. Spark plug gap
2. Clean the surface of the spark plug gasket
8-9
1
2
3
4
5
6
7
8
9
10
11
and its mating surface, and then wipe off any
grime from the spark plug threads.
1
3. Install the spark plug with the spark plug
wrench, and then tighten it to the specified
2
3
torque.
Tightening torque:
Spark plug:
4
5
6
7
8
9
10
12.5 Nm (1.3 m·kgf, 9.0 ft·lbf)
NOTE:
If a torque wrench is not available when installing
a spark plug, a good estimate of the correct torque
is 1/4–1/2 turn past finger tight. However, the spark
plug should be tightened to the specified torque as
soon as possible.
4. Install the spark plug cap.
EBU23251
Engine oil
The engine oil level should be checked before
11
each ride. In addition, the oil must be changed at
the intervals specified in the periodic maintenance
and lubrication chart.
2. Start the engine, warm it up for several minutes, and then turn it off.
3. Wait a few minutes until the oil settles before
checking.
4. Remove the engine oil filler cap, and then
wipe the dipstick off with a clean rag.
1
1. Dipstick
5. Insert the dipstick into the filler hole (without
screwing it in), and then remove it again to
check the oil level.
To check the engine oil level
1. Place the ATV on a level surface.
8-10
2. Start the engine, warm it up for several min-
1
2
3
utes, and then turn it off.
3. Place an oil pan under the engine to collect
the used oil.
4. Remove the engine oil filler cap, and then remove the engine oil drain bolt to drain the oil
from the crankcase.
1
2
3
4
5
1. Dipstick
2. Maximum level mark
3. Minimum level mark
NOTE:
The engine oil should be between the minimum
and maximum level marks.
6. If the engine oil is at or below the minimum
level mark, add sufficient oil of the recommended type to raise it to the correct level.
7. Insert the dipstick into the oil filler hole, and
then tighten the engine oil filler cap.
To change the engine oil
1. Place the ATV on a level surface.
1
1. Engine oil drain bolt
5. Check the O-ring for damage and replace it if
necessary.
6. Install the engine oil drain bolt, and then tight-
8-11
6
7
8
9
10
11
en it to the specified torque.
Tightening torque:
1
Engine oil drain bolt:
2
3
20 Nm (2.0 m·kgf, 14.5 ft·lbf)
7. Add the specified amount of the recommended engine oil, and then install and tighten the
4
5
engine oil filler cap.
Recommended oil:
See page 10-1.
6
Oil quantity:
0.80 L (0.85 US qt) (0.70 Imp.qt)
7
ECB00300
8
CAUTION:
●
In order to prevent clutch slippage (since the
9
engine oil also lubricates the clutch), do not
10
11
mix any chemical additives. Do not use oils
with a diesel specification of “CD” or oils of
a higher quality than specified. In addition,
do not use oils labeled “ENERGY CONSERVING II” or higher.
●
Make sure that no foreign material enters the
crankcase.
minutes while checking it for oil leakage. If oil
is leaking, immediately turn the engine off and
check for the cause.
9. Turn the engine off, and then check the oil level and correct it if necessary.
8. Start the engine, and then let it idle for several
8-12
EBU23403
Final gear oil
The final gear case must be checked for oil leakage before each ride. If any leakage is found, have
a Yamaha dealer check and repair the ATV. In addition, the final gear oil level must be checked and
the oil changed as follows at the intervals specified
in the periodic maintenance and lubrication chart.
To check the final gear oil level
1. Place the ATV on a level surface.
2
3
1
1
2
3
4
5
NOTE:
The final gear oil level must be checked on a cold
engine.
2. Remove the final gear oil filler cap, wipe the
dipstick off with a clean rag, insert it back into
the oil filler hole (without screwing it in), and
then remove it again to check the oil level.
NOTE:
The final gear oil should be between the minimum
and maximum level marks.
3. If the oil is at or below the minimum level mark,
add sufficient oil of the recommended type to
raise it to the correct level.
1. Dipstick
2. Maximum level mark
3. Minimum level mark
4. Insert the dipstick into the oil filler hole, and
then tighten the oil filler cap.
To change the final gear oil
1. Place the ATV on a level surface.
2. Place an oil pan under the final gear case to
collect the used oil.
3. Remove the final gear oil filler cap and the final gear oil drain bolt to drain the oil from the
final gear case.
8-13
6
7
8
9
10
11
ed final gear oil, and then check the oil level.
1
2
3
4
5
6
1. Final gear oil drain bolt
7
4. Install the drain bolt, and then tighten it to the
8
9
10
11
specified torque.
Tightening torque:
Final gear oil drain bolt:
23 Nm (2.3 m·kgf, 16.6 ft·lbf)
5. Add the specified amount of the recommend-
1
Recommended final gear oil:
See page 10-1.
Oil quantity:
0.12 L (0.13 US qt) (0.11 Imp.qt)
ECB00420
CAUTION:
Be sure no foreign material enters the final
gear case.
6. Install and tighten the oil filler cap.
7. Check the final gear case for oil leakage. If oil
is leaking, check for the cause.
EBU27170
Cleaning the air filter element
The air filter element should be cleaned at the intervals specified in the periodic maintenance and
lubrication chart. Clean the air filter element more
frequently if you are riding in unusually wet or dusty
areas.
NOTE:
There is a check hose at the bottom of the air filter
case. If dust or water collects in this hose, empty
the hose and clean the air filter element and air fil-
8-14
ter case.
1
1
1
2
3
1. Air filter case check hose
1. Remove the quick fasteners.
1
1. Quick fastener
2. Remove the panel by sliding it forward and
pulling it off as shown.
8-15
4
5
6
7
8
9
10
11
1
2
3
4
1
2
2
1
5
1
6
1. Panel
7
3. Remove the air filter case cover by unhooking
8
9
10
11
the holders.
1. Air filter case cover
2. Air filter case holder
4. Unhook the holder holding the air filter element, and then pull out the sponge material
from the air filter element.
8-16
2
1
1. Unhook.
2. Sponge material
5. Wash the sponge material gently but thoroughly in solvent.
EWB01900
WARNING
POTENTIAL HAZARD
Using low-flash-point solvents or gasoline to
clean the sponge material.
WHAT CAN HAPPEN
Low-flash-point solvents or gasoline can
catch fire or explode.
HOW TO AVOID THE HAZARD
Use parts cleaning solvent to clean the
sponge material.
6. Squeeze the excess solvent out of the sponge
material and let it dry.
ECB00440
CAUTION:
Do not twist the sponge material when squeezing it.
7. Check the sponge material and replace it if
damaged.
8. Apply Yamaha foam air filter oil or other quality foam air filter oil to the sponge material.
NOTE:
The sponge material should be wet but not dripping.
9. Install the sponge material into the air filter element.
10. Place the air filter element in the original position, and then hook the holder.
11. Install the air filter case cover by hooking the
holders onto the air filter case.
12. Place the panel in the original position, and
then install the quick fasteners.
1
2
3
4
5
6
7
8
9
10
11
8-17
NOTE:
The air filter element should be cleaned every 20–
1
40 hours. It should be cleaned and lubricated more
often if the ATV is operated in extremely dusty ar-
2
eas. Each time the air filter element maintenance
is performed, check the air inlet of the air filter case
3
for obstructions.
ECB00460
4
CAUTION:
5
●
Make sure that the air filter element is properly seated in the air filter case.
6
●
Never operate the engine with the air filter element removed. This will allow unfiltered air
7
to enter the engine, causing rapid engine
wear and possible engine damage. Addition-
8
ally, operation without the air filter element
will affect carburetor jetting with subsequent
9
poor performance and possible engine over-
10
11
heating.
EBU23850
Removing the air intake restrictor plate
To obtain full engine performance capability, removing the air intake restrictor plate is required.
1. Remove the air filter element. (See
page 8-14.)
2. Remove the air intake restrictor plate.
1
1. Air intake restrictor plate
NOTE:
Store the air intake restrictor plate with the owner’s
manual so that it is readily available whenever you
want to reduce the top speed.
3. Install the air filter element.
EBU23891
Cleaning the spark arrester
Be sure the exhaust pipe and muffler are cool before cleaning the spark arrester.
1. Remove the screws.
8-18
3
1
1
2
2
1
1. Screw
2. Remove the tailpipe by pulling it out of the
muffler.
3. Tap the tailpipe lightly, and then use a wire
brush to remove any carbon deposits from the
spark arrester portion of the tailpipe and inside
of the tailpipe housing.
1. Tailpipe
2. Spark arrester
3. Screw
4. Insert the tailpipe into the muffler and align the
screw holes.
5. Install the screws and tighten them.
8-19
3
4
5
6
7
8
9
10
11
EWB01910
WARNING
1
POTENTIAL HAZARD
Improper cleaning of the spark arrester.
2
Hot exhaust system.
WHAT CAN HAPPEN
3
Could injure the eyes.
Could cause burns.
4
Could cause carbon monoxide poisoning,
possibly leading to death.
5
Could start a fire.
HOW TO AVOID THE HAZARD
6
When cleaning the spark arrester:
Always let the exhaust system cool prior to
7
touching exhaust components.
8
Do not start the engine when cleaning the exhaust system.
9
EBU23940
10
Adjusting the carburetor
The carburetor should be checked and, if neces-
11
sary, adjusted at the intervals specified in the periodic maintenance and lubrication chart. The
carburetor is an important part of the engine and
requires very sophisticated adjustment. Therefore,
most carburetor adjustments should be left to a
Yamaha dealer, who has the necessary professional knowledge and experience. The adjustment
described in the following section, however, may
be performed by the owner as part of routine maintenance.
ECB00480
CAUTION:
The carburetor has been set and extensively
tested at the Yamaha factory. Changing these
settings without sufficient technical knowledge may result in poor performance of or
damage to the engine.
EBU24000
Adjusting the engine idling speed
The engine idling speed must be checked and, if
necessary, adjusted as follows at the intervals
specified in the periodic maintenance and lubrication chart.
NOTE:
A diagnostic tachometer is needed to make this
adjustment.
1. Start the engine and warm it up.
8-20
NOTE:
The engine is warm when it quickly responds to the
throttle.
2. Attach the tachometer to the spark plug lead.
3. Check the engine idling speed and, if necessary, adjust it to specification by turning the
throttle stop screw at the carburetor. To increase the engine idling speed, turn the throttle stop screw in direction (a), and to decrease
it, turn the screw in direction (b).
(b)
(a)
1
1. Throttle stop screw
NOTE:
If the specified idling speed cannot be obtained as
described above, have a Yamaha dealer make the
adjustment.
EBU27070
Checking the throttle cable free play
The throttle cable free play should be checked at
the intervals specified in the periodic maintenance
and lubrication chart.
The throttle cable free play can be checked by
measuring the throttle lever free play 1.0–3.0 mm
(0.04–0.12 in) as shown. Periodically check the
throttle cable free play and, if necessary, have a
Yamaha dealer adjust it.
1
2
3
4
5
6
7
8
9
10
11
Engine idling speed:
1750–1850 r/min
8-21
1
2
3
4
5
6
1. Throttle lever free play
7
EBU24050
1
Timing chain
8
The timing chain stretches with use, resulting in improper valve timing and engine noise. To prevent
9
this from occurring, the timing chain tensioner
must be adjusted by a Yamaha dealer at the inter-
10
vals specified in the periodic maintenance and lubrication chart.
11
EBU24060
Valve clearance
The valve clearance changes with use, resulting in
improper air-fuel mixture and/or engine noise. To
prevent this from occurring, the valve clearance
must be adjusted by a Yamaha dealer at the intervals specified in the periodic maintenance and lubrication chart.
EBU24090
Checking the front and rear brake
shoes
The front and rear brake shoes must be checked
for wear at the intervals specified in the periodic
maintenance and lubrication chart. Each brake is
provided with a wear indicator, which allows you to
check the brake shoe wear without having to disassemble the brake. To check the brake shoe
wear, check the position of the wear indicator while
applying the brake. If a brake shoe has worn to the
point that the wear indicator reaches the wear limit
line or mark, have a Yamaha dealer replace the
brake shoes as a set.
8-22
Front brake Rear brake
1
1. Wear limit line
2. Wear indicator
1
2
1
1. Wear limit mark
2. Wear indicator
EBU24320
2
2
3
4
5
6
7
8
Adjusting the front brake lever free
play
The brake lever free play must be checked and, if
necessary, adjusted at the intervals specified in
the periodic maintenance and lubrication chart.
NOTE:
Before adjusting the brake lever free play, check
the front brake shoes for wear.
The brake lever free play should measure 10.0–
8-23
9
10
11
12.0 mm (0.39–0.47 in) as shown. If the free play
is incorrect, adjust it as follows.
1
1
2
1
2
(a)
3
4
5
6
7
1. Brake lever free play
8
1. Loosen the upper locknut and fully turn in the
9
10
upper adjusting bolt.
2. Loosen the lower locknut.
3. Turn the lower adjusting bolt in direction (a) to
increase the free play, and in direction (b) to
11
decrease it.
(b)
4
3
1. Upper locknut
2. Upper adjusting bolt
3. Lower locknut
4. Lower adjusting bolt
4. Tighten the lower locknut.
5. While applying the front brake, turn out the upper adjusting bolt until the upper and lower cable lengths are equal. The cable joint will
become vertical.
8-24
