YAMAHA F200AET’09, F225AET’09, FL200AET’09, FL225AET’09 PARTS CATALOGUE 09

F200AET’09 (60L8) F225AET’09 (69J8) FL200AET’09 (60M8) FL225AET’09 (69K8)

2008/8/27

NEWS NO. DATE COMMENT

PE0-OM-080061 Aug.,27,2008 MOD:FIG.14 FUEL 1 P/No. REVISION

1H60L-200S1

()

F200AET/F225AET FL200AET/FL225AET PARTS CATALOGUE

1st edition, July 2008

Any reprinting or unauthorized use

without the written permission of

Yamaha Motor Co., Ltd.

is expressly prohibited.

Printed in Japan.

F200AET/F225AET

FL200AET/FL225AET

CATALOGO DE REPUESTOS

1ª edición, julio 2008

Toda reproducción o uso no autorizado

sin el consentimiento escrito de

Yamaha Motor Co., Ltd.

quedan expresamente prohibidos

Impreso en Japón.

FOREWORD

This Parts Catalogue is related to the parts for the model(s) on the cover page. When you are ordering replacement parts, please refer to this Parts Catalogue and quote both part numbers and part names correctly.

1. Modifications or additions which have been made after the issue of the Parts Catalogue will be announced in the Parts News. It is advisable that you make the necessary corrections to the Parts Catalogue according to the Parts News.

2. Abbreviations The following abbreviations are used in this Parts Catalogue.

“UR” Use specified parts number. “UN” Use as many as needed. “AP” Alternate Parts “LM” Locally Made (Parts need to be ordered locally) “F#” Frame No. (Applicable machine No.) “O/S” Over Size

3. The number of components for assembly

• Parts, which are to be supplied in an assembly, are listed with a dot (.) in front of the part name as shown below.

• The numeral appearing to the right of each component part indicates the quantity of parts for each assembly unit.

PART NO. DESCRIPTION Q’TY REMARKS

2F5–83310–60 FRONT FLASHER LIGHT ASSY 2

115–83311–60 .BULB (6V–18W) 1

4. Applicable colours of graphics are represented in the “REMARKS” as shown below.

PART NO. DESCRIPTION Q’TY REMARKS

2N4–24110–00–X5 FUEL TANK COMP. 2 MXR

3J1–24240–10 .GRAPHIC, FUEL TANK 1 FOR MXR

5. Note that the illustrations for reference in finding parts numbers are not to be used for assembling. When assembling, please use the applicable service manual.

6. The asterisk (*) before a reference number indicates modified items after the first edition.

7. Applicable Serial No.

Engine Serial No.

8. Applicable Engine Starting Serial No.

Model Serial No. Model Serial No.

F200A 60L-1011400 F225A 69J-1030933

FL200A 60M-1001655 FL225A 69K-1009161

9. Applicable Colour Code

Abbreviation Colour Name Colour Code

DBN1 DARK BLUISH GRAY 1 008D

10. Quantity Column Information

Column No. Name Of Q’ty Column Applicable Model

1 69J8 F225AET

2 60L8 F200AET

3 69K8 FL225AET

4 60M8 FL200AET

PROLOGO

Este catálogo de repuestos corresponde a las piezas para el o los modelos que figuran en la página de portada. Al formular el pedido de repuestos, se ruega citar este catálogo y especificar correctamente el número y el nombre de las piezas.

1. Las modificaciones y agregados que se hayan realizado después de la edición de este Catálogo de Repuestos, serán anunciados en las Informaciones de Recambios. Es recomendable que se hagan las correcciones necesarias en el Catálogo de Repuestos de acuerdo con las Informaciones de Recambios.

2. Abreviaciones En este. Catálogo de Repuestos se emplean las siguientes abreviaciones.

“UR” Usar el número de partes especificado “UN” Usar la cantidad necesaria “AP” Piezas sustitutivas “LM” Fabricación local (Hay que pedir los repuestos en las cercanías) “F#” Nº de bastidor (Nº aplicable a la máquina) “O/S” Sobredimensionado

3. La cantidad de componentes para el montaje

• Los componentes, suministrados como conjunto, se describen con un punto (.) que precede al nombre del parte como se indica a continuación.

• La numeración que aparece a la derecha de cada descripción indica la cantidad de partes por cada unidad de conjunto.

CODIGO Nº DESCRIPCION CANT. OBSERVACIONES

2F5–83310–60 ENSAMBLAJE DE LA LUZ 2

115–83311–60 .BOMBILLA (6V–18W) 1

6. EL asterisco (*) antes del número de referencia indica los elementos modificados después de la primera edición.

7. Números de serie

Nº de Serie del motor

8. Números de serie del motor

Modelo Nº de serie Modelo Nº de serie

F200A 60L-1011400 F225A 69J-1030933

FL200A 60M-1001655 FL225A 69K-1009161

9. Códigos de color aplicables

4. Los colores de los componentes se indican como sigue en la columna de “OBSERVACIONES”.

CODIGO Nº DESCRIPCION CANT. OBSERVACIONES

2N4–24110–00–X5 COMP. DEL TANQUE 2 MXR

3J1–24240–10 .GRAFICO, DEL TANQUE 1 PARA MXR

5. Debe tenerse en cuenta que las ilustraciones sirven como guia para la búsqueda de los números de partes y no deben usarse para el montaje. Durante el montaje, se recomienda usar el manual de taller correspondiente.

Abreviatura Nombre de color Código de color

DBN1 DARK BLUISH GRAY 1 008D

10. Informacion para la columna de cantidades

Columna Nº

1 69J8 F225AET

2 60L8 F200AET

3 69K8 FL225AET

4 60M8 FL200AET

Nombre de la columna de

cantidades

Modelo aplicable

CONTENTS

TOP COWLING .....................................................................1

CYLINDER & CRANKCASE 1 ..............................................3

CRANKSHAFT & PISTON ....................................................6

CYLINDER & CRANKCASE 2 ..............................................7

CYLINDER & CRANKCASE 3 ..............................................9

VALVE ...................................................................................10

INTAKE 1 ..............................................................................13

INTAKE 2 ..............................................................................15

THROTTLE BODY ASSY 1 ................................................... 17

THROTTLE BODY ASSY 2 ................................................... 20

THROTTLE BODY ASSY 3 ................................................... 22

FUEL INJECTION PUMP 1 ...................................................24

FUEL INJECTION PUMP 2 ...................................................26

FUEL 1 ..................................................................................28

FUEL 2 ..................................................................................29

GENERATOR ........................................................................30

ELECTRICAL 1 .....................................................................32

ELECTRICAL 2 .....................................................................34

ELECTRICAL 3 .....................................................................36

STARTING MOTOR ..............................................................37

BOTTOM COWLING 1 ..........................................................39

BOTTOM COWLING 2 ..........................................................42

CONTROL 1 ..........................................................................43

CONTROL 2 ..........................................................................45

CONTROL 3 ..........................................................................47

BRACKET 1 ..........................................................................48

BRACKET 2 ..........................................................................50

POWER TRIM & TILT ASSY 1 .............................................. 52

POWER TRIM & TILT ASSY 2 .............................................. 55

UPPER CASING ...................................................................56

OIL PAN ................................................................................58

LOWER CASING & DRIVE 1 ................................................59

LOWER CASING & DRIVE 2 ................................................63

LOWER CASING & DRIVE 3 ................................................65

LOWER CASING & DRIVE 4 ................................................69

FUEL TANK ...........................................................................71

STEERING GUIDE ................................................................72

REMOTE CONTROL BOX ....................................................73

REMOTE CONTROL ASSY 1 ...............................................74

REMOTE CONTROL ASSY 2 ...............................................77

REMOTE CONTROL ASSY 3 ...............................................80

METER ................................................................................. 83

SWITCH & PANEL 1 ............................................................. 85

SWITCH & PANEL 2 ............................................................. 86

REPAIR KIT 1 ....................................................................... 87

REPAIR KIT 2 ....................................................................... 88

INDEX

NUMERICAL INDEX ............................................................. 90

CONTENIDO

SOPORTE SUPERIOR ......................................................... 1

CILINDRO & CARTER 1 ....................................................... 3

CIGUENAL & PISTON ..........................................................6

CILINDRO & CARTER 2 ....................................................... 7

CILINDRO & CARTER 3 ....................................................... 9

VALVULA ..............................................................................10

ADMISION 1 ..........................................................................13

ADMISION 2 ..........................................................................15

CAJA DE ACELERADOR COMPL 1 .....................................17

CAJA DE ACELERADOR COMPL 2 .....................................20

CAJA DE ACELERADOR COMPL 3 .....................................22

BOMBA DE INYECTOR 1 .....................................................24

BOMBA DE INYECTOR 2 .....................................................26

COMBUSTIBLE 1 ..................................................................28

COMBUSTIBLE 2 ..................................................................29

GENERADOR ....................................................................... 30

EQUIPO ELECTRICO 1 ........................................................32

EQUIPO ELECTRICO 2 ........................................................34

EQUIPO ELECTRICO 3 ........................................................36

MOTOR DE ARRANQUE ......................................................37

CUBIERTA INFERIOR 1 .......................................................39

CUBIERTA INFERIOR 2 .......................................................42

CONTROL 1 ..........................................................................43

CONTROL 2 ..........................................................................45

CONTROL 3 ..........................................................................47

SOPORTE 1 ..........................................................................48

SOPORTE 2 ..........................................................................50

COMPONER Y PODER VARILLA 1 .....................................52

COMPONER Y PODER VARILLA 2 .....................................55

FUNDA SUPERIOR ..............................................................56

OIL PAN ................................................................................58

IMPULSOR E INFERIOR 1 ................................................... 59

IMPULSOR E INFERIOR 2 ................................................... 63

IMPULSOR E INFERIOR 3 ................................................... 65

IMPULSOR E INFERIOR 4 ................................................... 69

DEPOSITO DE COMBUSTIBLE ...........................................71

DIRECCIONGUIAR ...............................................................72

CONTROL REMOTO COMPLETO .......................................73

CONTROL REMOTO COMPL 1 ........................................... 74

CONTROL REMOTO COMPL 2 ........................................... 77

CONTROL REMOTO COMPL 3 ........................................... 80

MEDIDOR ............................................................................. 83

PANEL DE INTERRUPTOR 1 .............................................. 85

PANEL DE INTERRUPTOR 2 .............................................. 86

ESTUCHE REPARATION 1 ................................................. 87

ESTUCHE REPARATION 2 ................................................. 88

INDICE

INDICE NUMERICO ............................................................. 90

FIG. 1 TOP COWLING SOPORTE SUPERIOR

REF. NO.

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

PART N O. CODIGO Nº

69J–42610–01–8D

60L–42610–01–8D

69J–42613–00

90179–06M28

68F–42647–01–94

69J–42647–00–94

69J–42663–00

92990–06100

95380–06600

68F–42651–00

97095–06016

92995–06600

68F–42663–00

68F–42648–01–94

67F–42652–00

67F–13448–00

69J–42678–00

60L–42678–00

69J–W0070–00

69J–42677–00

60L–42677–00

69J–42681–00

69J–42682–00

69J–24378–00

90445–11020

90445–11021

69J–42617–01

DESCRIPTION DESCRIPCION

TOP COWLING ASSY SOPORTE SUPERIOR COMPL.

.MOLDING, AIR DUCT .MOLDURA CONDUCTO AIRE

.NUT .TUERCA

.HOLDER, CLAMP BAND .MORDAZA DE ABRAZADERA

.DAMPER .AMORTIGUADOR 2

.WASHER, SPRING .ARANDELA PLANA

.NUT, HEXAGON .TUERCA

.HOOK .GANCHO

.BOLT .PERNO

.WASHER .ARANDELA

.DAMPER .AMORTIGUADOR 2

.HOLDER, CLAMP BAND .MORDAZA DE ABRAZADERA

.HOOK .GANCHO

.CAP .TAPA

.GRAPHIC, REAR .CALCAMONIA TRASERA

.GRAPHIC SET .JUEGO DE EMBLEMA

.GRAPHIC, FRONT .CALCAMONIA FRONTAL

.MARK, COWLING .MARCA DE CUBIERTA

.PIPE, JOINT 3 .TUBO DE UNION 3

.HOSE (L400) .TUBO (L400)

.HOSE (L310) .TUBO (L310)

.DAMPER, FORM .HULE DE FORMA

69J8

60L8

11

1111

9999

1111

6666

2222

6666

2222

1111

3333

11

1111

11

1111

2222

1111

REMARKS

69K8

OBSERVACIONES

60M8

1

FIG. 1 TOP COWLING SOPORTE SUPERIOR

REF. NO.

25

PART N O. CODIGO Nº

67F–13434–10

DESCRIPTION DESCRIPCION

LABEL, CAUTION ETIQUETA DE PRECAUCION

69J8

60L8

1111

REMARKS

69K8

OBSERVACIONES

60M8

2

FIG. 2 CYLINDER & CRANKCASE 1 CILINDRO & CARTER 1

REF. NO.

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

PART N O. CODIGO Nº

69J–W009B–05–9S

69J–15100–11–9S

93606–12019

91814–18001

69J–15123–00

69J–15187–00

69J–15481–00

69J–15482–00

95707–06500

90119–08M66

69J–15411–00–9S

69J–15451–00

93606–12019

90119–08009

69J–11168–00

98507–04008

92907–04600

69J–11119–00

90119–06MA2

69J–1131C–01–9S

6S1–1131B–00

90119–06MA4

67F–12411–01

67F–12412–00

6P2–1240H–00–9S

90109–06M80

6P3–11325–00

DESCRIPTION DESCRIPCION

CYLINDER BLOCK ASSY CYLINDRO BLOQUE COMPLETO

CRANKCASE ASSY CARTER COMPLETO

.PIN, DOWEL .PASADOR DE CLAVIJA

PLATE, BAFFLE 1 PLACA DEFLECTORA 1

BOLT PERNO

BOLT 1 PERNO 1

BOLT 2 PERNO 2

NUT, FLANGE TUERCA DE BRIDA

BOLT, WITH WASHER TORNILLO CON ARANDELA

COVER, CRANKCASE 1 CUBIERTA DE CARTER 1

GASKET, CRANKCASE COVER 1 EMPAQ DE CUBIERTA DE CARTER

PIN, DOWEL PASADOR DE CLAVIJA

BOLT, WITH WASHER TORNILLO CON ARANDELA

COVER, BREATHER CUBIERTA RESPIRADERO

SCREW, PAN HEAD TORNILLO DE CABEZA CON PLANA

WASHER ARANDELA

HANGER, ENGINE SOPORTE DEL MOTOR

BOLT, WITH WASHER TORNILLO CON ARANDELA

COVER, JOINT CUBIERTA DE UNION

GASKET, COVER EMPAQUE DE CUBIERTA

BOLT, WITH WASHER TORNILLO CON ARANDELA

THERMOSTAT TERMOSTAT

.SEAL, THERMOSTAT .SELLO TERMOSTATO

ANODE ASSY ANODO COMPLET

.BOLT .PERNO

.ANODE .ANODO

69J8

60L8

69K8

1111

8888

1111

8888

2222

6666

13 13 13 13

1111

2222

17 17 17 17

1111

14 14 14 14

1111

2222

1111

13 13 13 13

2222

1111

2222

1111

REMARKS OBSERVACIONES

60M8

3

FIG. 2 CYLINDER & CRANKCASE 1 CILINDRO & CARTER 1

REF. NO.

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

51

52

53

54

PART N O. CODIGO Nº

90105–05012

90430–05002

6P3–1240H–00–9S

90109–06M80

6P3–11325–00

90105–05012

90430–05002

90340–14M06

90430–14115

97095–06025

92995–06600

69J–1243A–00

69J–1243E–00

90465–11M10

69J–11351–11

67F–42761–01–94

68F–44533–01

97095–06025

92995–06600

93210–25552

93210–19MJ1

69J–11313–00–94

93210–25647

97095–06020

92995–06600

69J–14664–00

69J–13440–01

DESCRIPTION DESCRIPCION

.BOLT, FLANGE .TORNILLO

.GASKET .JUNTA

ANODE ASSY ANODO COMPLET

.BOLT .PERNO

.ANODE .ANODO

.BOLT, FLANGE .TORNILLO

.GASKET .JUNTA

PLUG, STRAIGHT SCREW TORNILLO, DE DRENAJE

GASKET JUNTA

BOLT PERNO

WASHER ARANDELA

HOSE 1 TUBO 1

HOSE 2 TUBO 2

CLAMP BRIDA

GASKET, CYLINDER JUNTA, DE CILINDRO

STOPPER RETEN 1

DAMPER, UPPER MOUNT RUBBER AMORTIGUADOR SUPERIOR

BOLT PERNO

WASHER ARANDELA

O-RING ANILLO O

PLUG, BLIND TAPON CIEGO

O-RING ANILLO O

BOLT PERNO

WASHER ARANDELA

GROMMET, WATER SHUT TAPON

ELEMENT ASSY, OIL CLEANER ELEMENTO FILTRO DE ACEITE

69J8

60L8

69K8

1111

2222

1111

4444

1111

4444

1111

2222

4444

1111

2222

1111

2222

1111

REMARKS OBSERVACIONES

60M8

4

FIG. 2 CYLINDER & CRANKCASE 1 CILINDRO & CARTER 1

REF. NO.

55

56

57

58

59

60

61

62

63

64

65

66

67

68

69

70

71

72

73

74

PART N O. CODIGO Nº

69J–12858–00

69J–13446–00–9S

69J–13477–00

97095–06045

92995–06600

69J–13447–00

97095–06040

92995–06600

6G8–15363–00

93210–24M79

69J–15319–00–9S

69J–15364–A0

97095–06045

92995–06600

6P2–82560–01

90465–11M10

6E9–82588–00

6AW–83651–00

6E5–11325–00

98780–04015

DESCRIPTION DESCRIPCION

BOLT, UNION PERNO DE UNION

CONNECTOR CONECTOR

GASKET EMPAQUE

BOLT PERNO

WASHER ARANDELA

COVER, OIL ELEMENT TAPA DEL ELEMENTO

BOLT PERNO

WASHER ARANDELA

PLUG, OIL TAPON DE ACEITE

O-RING ANILLO O

JOINT CONECTOR

GASKET, OIL PLUG EMPAQUE TAPON DE ACEITE

BOLT PERNO

WASHER ARANDELA

THERMO SWITCH ASSY INTER. DE TERMO

CLAMP BRIDA

PLATE PLACA

SENDER, OIL PRESSURE TRASMISOR DE PRESION DE ACEITE

ANODE ANODO

SCREW, FLAT HEAD TORNILLO CABEZA PLANA

69J8

60L8

69K8

1111

3333

1111

2222

1111

4444

REMARKS OBSERVACIONES

60M8

5

FIG. 3 CRANKSHAFT & PISTON CIGUENAL & PISTON

REF. NO.

1

2

3

4

5

6

7

8

9

10

11

12

13

14

PART N O. CODIGO Nº

69J–11410–00

69J–11478–00

93102–63004

69J–11416–01

69J–11416–11

69J–11416–21

69J–11417–01

69J–11417–11

69J–11417–21

69J–11426–01

69J–11426–11

69J–11426–21

69J–11427–00

69J–W1165–01

69J–11654–00

69J–11656–00

69J–11656–10

69J–11656–20

69J–11631–02–B0

69J–11635–00

63P–11603–01

63P–11604–00

69J–11633–00

69J–11634–01

DESCRIPTION DESCRIPCION

CRANKSHAFT CIGUENAL

.COLLAR .COLLAR

OIL SEAL SELLO ACEITE

PLANE BEARING, CRANKSHAFT 1 COJINETE PLANO 1

PLANE BEARING, CRANKSHAFT 2 COJINETE PLANO 2

PLANE BEARING, CRANKSHAFT 1 COJINETE COMUN CIGUENAL 1

PLANE BEARING, CRANKSHAFT 2 COJINETE COMUN CIGUENAL 2

CONNECTING ROD ASSY BIELA COMPLETA

.BOLT, CONNECTING ROD .TORNILLO DE BIELA

PLANE BEARING, CONNECTING ROD COJINETE PLANO

PISTON (STD) PISTON (NORMA)

PISTON (0.25MM O/S) PISTON (0.25MM O/S)

PISTON RING SET (STD) JUEGO DE ANILLOS (NORMA)

PISTON RING SET (0.25MM O/S) JUEGO DE ANILLOS (0.25MM O/S)

PIN, PISTON PASADOR, PISTON

CLIP, PISTON PIN PRESILLA, BULON DE PISTON

69J8

60L8

1111

4444 UR #1

4444 UR #2

4444 UR #3

3333 UR #1

3333 UR #2

3333 UR #3

1111 UR #1

1111 UR #2

1111 UR #3

2222

6666

2222

12 12 12 12 UR YELLOW

12 12 12 12 UR GREEN

12 12 12 12 UR BLUE

6666

6666 AP

6666

6666 AP

6666

12 12 12 12

REMARKS

69K8

OBSERVACIONES

60M8

UR #1

UR #2

UR #3

UR #1

UR #2

UR #3

UR #1

UR #2

UR #3

UR YELLOW

UR GREEN

UR BLUE

AP

6

FIG. 4 CYLINDER & CRANKCASE 2 CILINDRO & CARTER 2

REF. NO.

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

PART N O. CODIGO Nº

69J–W009A–05–9S

69J–11110–01–9S

69J–11133–10

90344–51019

91809–08006

90119–07235

90119–07234

69J–W009C–05–9S

69J–11120–01–9S

69J–11133–10

90344–51019

91809–08006

90119–07235

90119–07234

69J–11301–10

68V–11325–02

67F–11328–00

90105–06M07

90430–06M03

97575–08540

69J–11181–03

90387–10M08

90155–10001

90119–08M91

90119–08021

69J–11182–03

90387–10M08

DESCRIPTION DESCRIPCION

CYLINDER HEAD ASSY CILINDRD CULATA COMPLETO

CYLINDER HEAD ASSY CULATA DE CILINDRO COMPLETA

.GUIDE, VALVE 1 .GUIA DE VALVULA 1

.PLUG, TAPER SCREW .TAPON DE TORNILLO AHUSADO

.PIN, DOWEL .PASADOR DE CLAVIJA

.BOLT/WASHER-CAM CAPS .TORNILLO CON ARANDELA

.BOLT, WITH WASHER .TORNILLO CON ARANDELA

CYLINDER HEAD ASSY 2 CULATA DE CILINDRO COMPL. 2

.GUIDE, VALVE 1 .GUIA DE VALVULA 1

.PLUG, TAPER SCREW .TAPON DE TORNILLO AHUSADO

.PIN, DOWEL .PASADOR DE CLAVIJA

.BOLT/WASHER-CAM CAPS .TORNILLO CON ARANDELA

.BOLT, WITH WASHER .TORNILLO CON ARANDELA

ANODE COVER ASSY CONJUNTO CUBIERTA DE ANODO

.ANODE .ANODO

.GROMMET, ANODE .TAPON

.BOLT, FLANGE .TORNILLO

.GASKET .JUNTA

BOLT, WITH WASHER PERNO CON ARANDELA

GASKET, CYLINDER HEAD 1 JUNTA, DE CULATA 1

COLLAR ESPACIADOR

SCREW, FLAT FILLISTER TORNILLO CABEZA PLANA RAN.

BOLT, WITH WASHER TORNILLO CON ARANDELA

GASKET, CYLINDER HEAD 2 EMPAQUE CULATA DE CILINDRO 2

COLLAR ESPACIADOR

69J8

60L8

69K8

1111

12 12 12 12

5555

2222

18 18 18 18

1111

12 12 12 12

5555

2222

14 14 14 14

4444

1111

4444

1111

2222

8888

2222

1111

2222

REMARKS OBSERVACIONES

60M8

7

FIG. 4 CYLINDER & CRANKCASE 2 CILINDRO & CARTER 2

REF. NO.

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

PART N O. CODIGO Nº

90155–10001

90119–08M91

90119–08021

69J–11191–00–9S

69J–11135–00

98507–04008

92907–04600

69J–11193–01

97095–06030

92995–06600

69J–11192–00–9S

69J–11194–00

97095–06030

92995–06600

94702–00391

DESCRIPTION DESCRIPCION

SCREW, FLAT FILLISTER TORNILLO CABEZA PLANA RAN.

BOLT, WITH WASHER TORNILLO CON ARANDELA

COVER, CYLINDER HEAD 1 TAPA CULATA DE CILINDRO 1

PLATE, BREATHER 3 PLACA RESPIRADERO 3

SCREW, PAN HEAD TORNILLO DE CABEZA CON PLANA

WASHER ARANDELA

GASKET, HEAD COVER 1 EMPAQUE

BOLT PERNO

WASHER ARANDELA

COVER, CYLINDER HEAD 2 TAPA CULATA DE CILINDRO 2

GASKET, HEAD COVER 2 EMPAQUE DE TAPA DE CULATA 2

BOLT PERNO

WASHER ARANDELA

PLUG, SPARK (NGK LFR5A-11) BUJIA (NGK LFR5A-11)

69J8

60L8

69K8

8888

2222

1111

8888

1111

14 14 14 14

1111

14 14 14 14

6666

REMARKS OBSERVACIONES

60M8

8

FIG. 5 CYLINDER & CRANKCASE 3 CILINDRO & CARTER 3

REF. NO.

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

PART N O. CODIGO Nº

69J–41111–01–9S

69J–41121–01–9S

69J–41113–01–9S

69J–41123–01–9S

6P2–41112–00

6P2–41122–00

6P2–41114–00

6P2–11325–00

6E5–11325–00

98780–04015

90151–06M02

91690–40010

90119–06027

90119–06104

97095–08014

90430–08143

90340–18M09

90430–18130

6P2–11119–00

90119–06MA2

69J–1111M–00

90340–14M06

90430–14115

69J–2134V–00

DESCRIPTION DESCRIPCION

INNER COVER, EXHAUST CUBIERTA INTERIOR DE ESCAPE

INNER COVER,EXHAUST CUBIERTA INTERIOR DE ESCAPE

OUTER COVER, EXHAUST CUBOERTA EXTERIOR DE ESCAPE

GASKET, EXHAUST INNER COVER EMPAQUE

GASKET, EXHAUST OUTER COVER EMPAQUE

ANODE ANODO

SCREW, FLAT HEAD TORNILLO CABEZA PLANA

SCREW, COUNTERSUNK TORNILLO EMBUTIDO

PIN, SPRING PASADOR DE RESORTE

BOLT, WITH WASHER TORNILLO CON ARANDELA

BOLT PERNO

GASKET JUNTA

PLUG, STRAIGHT SCREW TORNILLO, DE DRENAJE

GASKET JUNTA

HANGER, ENGINE SOPORTE DEL MOTOR

BOLT, WITH WASHER TORNILLO CON ARANDELA

COVER 1 CUBIERTA 1

PLUG, STRAIGHT SCREW TORNILLO, DE DRENAJE

GASKET JUNTA

BRACKET SOPORTE

69J8

60L8

69K8

1111

2222

26 26 26 26

2222

4444

2222

4444

1111

REMARKS OBSERVACIONES

60M8

9

FIG. 6 VALVE VALVULA

REF. NO.

1

2

3

4

5

6

7

8

PART N O. CODIGO Nº

69J–12111–00

69J–12121–00

69J–12113–01

69J–12117–01

69J–12118–00

69J–12119–00

69J–12153–00

6S1–12168–00

6S1–12168–10

6S1–12168–20

6S1–12168–30

6S1–12168–40

6S1–12168–50

6S1–12168–60

6S1–12168–70

6S1–12168–80

6S1–12168–90

6S1–12168–A0

6S1–12168–B0

6S1–12168–C0

6S1–12168–D0

6S1–12168–E0

6S1–12168–F0

6S1–12168–G0

6S1–12168–H0

6S1–12168–J0

6S1–12168–K0

DESCRIPTION DESCRIPCION

VALVE, INTAKE VALVULA DE ADMISION

VALVE, EXHAUST VALVULA DE ESCAPE

SPRING, VALVE INNER RESORTE VALVULA INTERNA

RETAINER, VALVE SPRING RETEN RESORTE DE VALVULA

COTTER, VALVE SEGURO DE VALVULA

SEAL, VALVE STEM SELLO DE ACEITE VALVULA

LIFTER, VALVE LEVANTADOR DE VALVULA

PAD, ADJUSTING (2.320) COJIN,AJUSTADOR (2.320)

PAD, ADJUSTING (2.340) COJIN,AJUSTADOR (2.340)

PAD, ADJUSTING (2.360) COJIN,AJUSTADOR (2.360)

PAD, ADJUSTING (2.380) COJIN,AJUSTADOR (2.380)

PAD, ADJUSTING (2.400) COJIN,AJUSTADOR (2.400)

PAD, ADJUSTING (2.420) COJIN,AJUSTADOR (2.420)

PAD, ADJUSTING (2.440) COJIN,AJUSTADOR (2.440)

PAD, ADJUSTING (2.460) COJIN,AJUSTADOR (2.460)

PAD, ADJUSTING (2.480) COJIN,AJUSTADOR (2.480)

PAD, ADJUSTING (2.500) COJIN,AJUSTADOR (2.500)

PAD, ADJUSTING (2.520) COJIN,AJUSTADOR (2.520)

PAD, ADJUSTING (2.540) COJIN,AJUSTADOR (2.540)

PAD, ADJUSTING (2.560) COJIN,AJUSTADOR (2.560)

PAD, ADJUSTING (2.580) COJIN,AJUSTADOR (2.580)

PAD, ADJUSTING (2.600) COJIN,AJUSTADOR (2.600)

PAD, ADJUSTING (2.620) COJIN,AJUSTADOR (2.620)

PAD, ADJUSTING (2.640) COJIN,AJUSTADOR (2.640)

PAD, ADJUSTING (2.660) COJIN,AJUSTADOR (2.660)

PAD, ADJUSTING (2.680) COJIN,AJUSTADOR (2.680)

PAD, ADJUSTING (2.700) COJIN,AJUSTADOR (2.700)

69J8

60L8

69K8

12 12 12 12

24 24 24 24

48 48 48 48

24 24 24 24

24 24 24 24 UR

60M8

UR

REMARKS OBSERVACIONES

10

FIG. 6 VALVE VALVULA

REF. NO.

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

PART N O. CODIGO Nº

6S1–12168–L0

6S1–12168–M0

6S1–12168–N0

6S1–12168–P0

6S1–12168–R0

6S1–12168–S0

6S1–12168–T0

6S1–12168–U0

6S1–12168–V0

6S1–12168–W0

6S1–12168–X0

6S1–12168–Y0

6S1–12169–00

69J–12171–00

69J–12181–00

69J–12172–00

69J–12182–00

94581–99044

69J–12210–00

69J–12230–00

97013–06025

93605–10108

69J–11537–00

68V–12157–00

93102–38008

69J–46241–00

63P–11590–01

DESCRIPTION DESCRIPCION

PAD, ADJUSTING (2.720) COJIN,AJUSTADOR (2.720)

PAD, ADJUSTING (2.740) COJIN,AJUSTADOR (2.740)

PAD, ADJUSTING (2.760) COJIN,AJUSTADOR (2.760)

PAD, ADJUSTING (2.780) COJIN,AJUSTADOR (2.780)

PAD, ADJUSTING (2.800) COJIN,AJUSTADOR (2.800)

PAD, ADJUSTING (2.820) COJIN,AJUSTADOR (2.820)

PAD, ADJUSTING (2.840) COJIN,AJUSTADOR (2.840)

PAD, ADJUSTING (2.860) COJIN,AJUSTADOR (2.860)

PAD, ADJUSTING (2.880) COJIN,AJUSTADOR (2.880)

PAD, ADJUSTING (2.900) COJIN,AJUSTADOR (2.900)

PAD, ADJUSTING (2.920) COJIN,AJUSTADOR (2.920)

PAD, ADJUSTING (2.940) COJIN,AJUSTADOR (2.940)

PAD, ADJUSTING (2.960) COJIN,AJUSTADOR (2.960)

CAMSHAFT 1 ARBOL DE LEVAS 1

CAMSHAFT 2 ARBOL DE LEVAS 2

CAMSHAFT 3 ARBOL DE LEVAS 3

CAMSHAFT 4 ARBOL DE LEVAS 4

CHAIN CADENA

TENSIONER ASSY, CAM CHAIN TENSOR CADENA DE LEVA

TENSIONER ASSY, CAM CHAIN 2 TENSOR CADENA DE LEVA 2

BOLT PERNO

PIN, DOWEL PASADOR DE CLAVIJA

GEAR, DRIVEN ENGRANAJE TRACCION

BOLT PERNO

OIL SEAL SELLO ACEITE

V-BELT CORREA

TENSIONER ASSY TENSOR COMPLET

69J8

60L8

69K8

24 24 24 24 UR

1111

2222

1111

4444

2222

1111

60M8

UR

REMARKS OBSERVACIONES

11

FIG. 6 VALVE VALVULA

REF. NO.

23

24

25

PART N O. CODIGO Nº

69J–11536–00

90110–05010

90280–04008

DESCRIPTION DESCRIPCION

GEAR, DRIVE ENGRANAJE TRACCION

BOLT, HEXAGON SOCKET HEAD TORNILLO ALLEN

KEY, WOODRUFF CUNA WOODRUFF

69J8

60L8

69K8

1111

4444

1111

60M8

REMARKS OBSERVACIONES

12

FIG. 7 INTAKE 1 ADMISION 1

REF. NO.

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

PART N O. CODIGO Nº

69J–14146–11

69J–14162–00

68V–24519–00

90116–06032

90465–14M66

69J–1442A–00

69J–14409–00

97780–60620

69J–12483–00

90467–09M03

69J–13645–00

90119–08022

91690–50014

90101–06M75

90201–06068

69J–14440–00

90387–07005

69J–1444F–00

90387–07005

69J–14419–00

90465–11M52

69J–14457–00

90386–08001

90119–06036

90387–06038

90179–06M28

69J–15373–00

DESCRIPTION DESCRIPCION

PLATE PLACA SOPORTE

BOLT, HOLDING TORNILLO DE SOSTEN

CLIP PRESILLA

BOLT, STUD ESPARRAGO

CLAMP BRIDA

COVER, CLEANER CASE 3 CUBIERTA CAJA DE FILTRO 3

DAMPER AMORTIGUADOR

SCREW, TAPPING TORNILLO DE CABEZA DE CONO ACH

PIPE 3 TUBO 3

CLIP PRESILLA

GASKET, MANIFOLD 1 EMPAQUE

BOLT, WITH WASHER TORNILLO CON ARANDELA

PIN, SPRING PASADOR DE RESORTE

BOLT TORNILLO

WASHER, PLATE ARANDELA PLANA

SILENCER ASSY, INTAKE SILENCIADOR COMPL DE ADMISION

.COLLAR .ESPACIADOR

SILENCER ASSY, INTAKE 2 SILENCIADOR COMPL DE ADMISION

.COLLAR .ESPACIADOR

PIPE TUBO

CLAMP BRIDA

SEAL SELLO

BUSH BUJE

BOLT, WITH WASHER TORNILLO CON ARANDELA

COLLAR ESPACIADOR

NUT TUERCA

PIPE, BREATHER MANGUELA DE RESPIRADERO

69J8

60L8

69K8

1111

4444

1111

3333

1111

2222

18 18 18 18

4444

1111

2222

1111

2222

4444

6666

8888

4444

1111

REMARKS OBSERVACIONES

60M8

13

FIG. 7 INTAKE 1 ADMISION 1

REF. NO.

28

29

30

31

32

PART N O. CODIGO Nº

69J–15394–00

69J–15393–00

69J–11984–00

65L–85886–00

90464–15007

DESCRIPTION DESCRIPCION

PIPE, OIL VENT TUBO

PIPE, BREATHER 2 TUBO, RESPIRADERO2

CAP, RUBBER TA PA

THERMOSENSOR TERMICA SENSORIO

CLAMP BRIDA

69J8

60L8

69K8

1111

2222

1111

60M8

REMARKS OBSERVACIONES

14

FIG. 8 INTAKE 2 ADMISION 2

REF. NO.

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

PART N O. CODIGO Nº

60L–24315–01

90464–09M31

90464–23001

69J–24170–00

90464–11201

69J–2134X–10

90480–10M23

90387–06M60

90119–06M59

69J–2419A–00

97095–06016

92995–06600

69J–86120–00

95380–06600

90464–07011

90464–07259

6E5–24379–00

69J–24314–00

60L–24314–10

60L–24313–00

90448–12003

69J–24502–00

60L–24312–00

90448–12001

60L–24311–00

90448–10002

60L–24367–00

DESCRIPTION DESCRIPCION

PIPE 5 TUBO DE DESAGUE

CLAMP BRIDA

CANISTER ASSY FRANJA DE DEPOSITO DE COMBUST.

CLAMP BRIDA

BRACKET, CANISTER SOPORTE

GROMMET TAPON

COLLAR ESPACIADOR

BOLT, WITH WASHER TORNILLO CON ARANDELA

HOLDER SOSTEN

BOLT PERNO

WASHER ARANDELA

SOLENOID VALVE ASSY VALVULA SOLENOIDE CONJ.

NUT, HEXAGON TUERCA

CLAMP BRIDA

PIPE, JOINT 4 TUBO DE UNION 4

PIPE 4 TUBO 4

PIPE 3 TUBO 3

HOSE, WITH UNION MANGUERA CON UNION

FILTER, FUEL FIELTRO

PIPE 2 TUBO 2

HOSE, WITH UNION MANGUERA CON UNION

PIPE, FUEL 1 TUBO DE COMBUSTIBLE 1

HOSE, WITH UNION MANGUERA CON UNION

CLAMP, FUEL PIPE 2 GRAMPA DE TUBO DE COMBUST.2

69J8

60L8

69K8

1111

2222

1111

2222

1111

2222

1111

60M8

REMARKS OBSERVACIONES

15

FIG. 8 INTAKE 2 ADMISION 2

REF. NO.

28

29

PART N O. CODIGO Nº

60L–24366–00

90465–11M10

DESCRIPTION DESCRIPCION

CLAMP, FUEL PIPE 1 GRAMPA DE TUBO DE COMBUST.1

CLAMP BRIDA

69J8

60L8

69K8

1111

13 13 13 13

REMARKS OBSERVACIONES

60M8

16

FIG. 9 THROTTLE BODY ASSY 1 CAJA DE ACELERADOR COMPL 1

REF. NO.

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

PART N O. CODIGO Nº

69J–13750–02

69J–13750–12

60L–13750–02

69J–13751–01

69J–13751–12

60L–13751–01

3CF–14594–00

92990–08100

68V–14323–00

68V–14331–00

69J–13753–01

69J–13753–12

60L–13753–01

3CF–14594–00

92990–08100

69J–13755–01

69J–13755–12

60L–13755–01

3CF–14594–00

92990–08100

69J–13576–00

68V–81145–01

68V–14565–00

68V–14331–00

69J–14261–00

6S1–85885–00

69J–13160–00

DESCRIPTION DESCRIPCION

THROTTLE BODY ASSY CAJA DE ACELERADOR COMPL.

.BODY, THROTTLE 1 .CAJA 1

..NUT ..TUERCA

..WASHER, SPRING ..ARANDELA PLANA

..SCREW, AIR ADJUSTING ..TORNILLO DE AJUSTE DE AIRE

..SPRING, THROTTLE VALVE ..RESORTE VALVULA ACELERADOR

.BODY, THROTTLE 3 .CAJA 3

..NUT ..TUERCA

..WASHER, SPRING ..ARANDELA PLANA

.BODY, THROTTLE 5 .CAJA 5

..NUT ..TUERCA

..WASHER, SPRING ..ARANDELA PLANA

.SPACER .ESPACIADOR

.SCREW 1 .TORNILLO 1

.SCREW .TORNILLO

.SPRING, THROTTLE VALVE .RESORTE VALVULA ACELERADOR

.HOLDER .SOSTEN

.THROTTLE SENSOR ASSY .TERMICA SENSORIO

.DELIVERY PIPE ASSY 1 .TUBO DE LLEGADA CONJUNTO 1

REMARKS

69J8

60L8

69K8

1 1 FOR CAR

11 FOR BRA

1 1 FOR CAR,CHN

1 1 FOR CAR

11 FOR BRA

1 1 FOR CAR,CHN

1111

1 1 FOR CAR

11 FOR BRA

1 1 FOR CAR,CHN

1111

1 1 FOR CAR

11 FOR BRA

1 1 FOR CAR,CHN

1111

2222

4444

1111

1111 EXCEPT FOR BRA

OBSERVACIONES

60M8

FOR CAR

FOR BRA

FOR CAR,CHN

FOR CAR

FOR BRA

FOR CAR,CHN

FOR CAR

FOR BRA

FOR CAR,CHN

FOR CAR

FOR BRA

FOR CAR,CHN

EXCEPT FOR BRA

17

FIG. 9 THROTTLE BODY ASSY 1 CAJA DE ACELERADOR COMPL 1

REF. NO.

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

PART N O. CODIGO Nº

69J–13160–10

69J–14261–00

69J–14295–00

69J–14251–00

68V–14397–00

68V–14397–10

68V–81147–00

69J–13641–00

97095–06010

90430–06014

69J–13557–00

99530–10114

69J–14496–00

68V–14475–00

69J–13761–00

68V–1410B–00

68V–13766–00

68V–13766–10

68V–14264–00

68V–14428–00

69J–14321–00

69J–13973–10

68F–24300–00

69J–13972–10

69J–24381–00

69J–14286–00

60L–14286–00

DESCRIPTION DESCRIPCION

.DELIVERY PIPE ASSY 1 .TUBO DE LLEGADA CONJUNTO 1

..HOLDER ..SOSTEN

..PIPE, FUEL ..TUBO DE COMBUSTIBLE

..NIPPLE ..NIPLE

..O-RING ..ANILLO O

..SCREW 3 ..TORNILLO 3

.MANIFOLD 1 .MULTIPLE 1

.BOLT .PERNO

.GASKET .JUNTA

.GASKET .EMPAQUE

.PIN, DOWEL .PASADOR, DE ESPIGA

.BOLT .PERNO

.WASHER .ARANDELA

.INJECTOR .INYECTOR

..PACKING KIT ..JUEGO DE EMPAQUE

.RUBBER, INJECTOR .ANILLO PROTECTOR

.COLLAR .ESPACIADOR

.BOLT .TORNILLO

.SCREW, THROTTLE .TORNILLO DE OBTURADOR

.PIPE, FUEL 3 .TUBO, COMBUSTIBLE 3

.FUEL PIPE JOINT .CONECTOR MANGUERA COMBUSTIBLE

.PIPE, FUEL 2 .TUBO, COMBUSTIBLE 2

.SET BAR, FUEL JOINT .BARRA DE ENCAJE CONCCION COMBU

.SPRING .RESORTE

REMARKS

69J8

60L8

69K8

11 FOR BRA

1111

2222 EXCEPT FOR BRA

22 FOR BRA

4444

1111

3333

6666

9999

3333

1111

3333 EXCEPT FOR BRA

33 FOR BRA

3333

2222

1111

11

OBSERVACIONES

60M8

FOR BRA

EXCEPT FOR BRA

FOR BRA

EXCEPT FOR BRA

FOR BRA

18

FIG. 9 THROTTLE BODY ASSY 1 CAJA DE ACELERADOR COMPL 1

REF. NO.

43

44

45

PART N O. CODIGO Nº

68V–8182L–00

69J–14149–00

68V–13577–00

DESCRIPTION DESCRIPCION

.O-RING 1 .ANILLO EN O

.PIPE .TUBO

.CLIP .PRESILLA

69J8

60L8

69K8

1111

4444

60M8

REMARKS OBSERVACIONES

19

FIG. 10 THROTTLE BODY ASSY 2 CAJA DE ACELERADOR COMPL 2

REF. NO.

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

PART N O. CODIGO Nº

69J–1375A–12

69J–1375A–22

60L–1375A–12

69J–13752–00

69J–13752–11

60L–13752–00

3CF–14594–00

92990–08100

68V–14323–00

68V–14331–00

69J–13754–00

69J–13754–11

60L–13754–00

3CF–14594–00

92990–08100

69J–13756–00

69J–13756–11

60L–13756–00

3CF–14594–00

92990–08100

68V–14331–00

68V–81147–00

69J–14960–00

68V–13473–00

68V–1312A–00

68V–81146–01

68V–82380–00

DESCRIPTION DESCRIPCION

THROTTLE BODY ASSY 2 CAJA DE ACELERADOR COMPL. 2

BODY, THROTTLE 2 CAJA 2

.NUT .TUERCA

.WASHER, SPRING .ARANDELA PLANA

.SCREW, AIR ADJUSTING .TORNILLO DE AJUSTE DE AIRE

.SPRING, THROTTLE VALVE .RESORTE VALVULA ACELERADOR

BODY, THROTTLE 4 CAJA 4

.NUT .TUERCA

.WASHER, SPRING .ARANDELA PLANA

BODY, THROTTLE 6 CAJA 6

.NUT .TUERCA

.WASHER, SPRING .ARANDELA PLANA

SPRING, THROTTLE VALVE RESORTE VALVULA ACELERADOR

SCREW 3 TORNILLO 3

BODY ASSY CAJA COMPL.

O-RING ANILLO O

VALVE, CONTROL EMBLEMA, YAMAHA

SCREW 2 TORNILLO 2

SENSOR, PRESSURE SENSOR DE PRESION

REMARKS

69J8

60L8

69K8

1 1 FOR CAR

11 FOR BRA

1 1 FOR CAR,CHN

1 1 FOR CAR

11 FOR BRA

1 1 FOR CAR,CHN

2222

1111

1 1 FOR CAR

11 FOR BRA

1 1 FOR CAR,CHN

1111

1 1 FOR CAR

11 FOR BRA

1 1 FOR CAR,CHN

1111

4444

2222

1111

3333

1111

OBSERVACIONES

60M8

FOR CAR

FOR BRA

FOR CAR,CHN

FOR CAR

FOR BRA

FOR CAR,CHN

FOR CAR

FOR BRA

FOR CAR,CHN

FOR CAR

FOR BRA

FOR CAR,CHN

20

FIG. 10 THROTTLE BODY ASSY 2 CAJA DE ACELERADOR COMPL 2

REF. NO.

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

PART N O. CODIGO Nº

69J–13642–00

97095–06010

90430–06014

69J–13557–00

99530–10114

69J–14496–00

68V–14475–00

69J–13761–00

68V–1410B–00

68V–13766–00

68V–13766–10

69J–14321–00

69J–13573–00

69J–13574–00

69J–13547–00

69J–14159–00

69J–14255–00

DESCRIPTION DESCRIPCION

MANIFOLD 2 MULTIPLE 2

BOLT PERNO

GASKET JUNTA

GASKET EMPAQUE

PIN, DOWEL PASADOR, DE ESPIGA

BOLT PERNO

WASHER ARANDELA

INJECTOR INYECTOR

.PACKING KIT .JUEGO DE EMPAQUE

RUBBER, INJECTOR ANILLO PROTECTOR

SCREW, THROTTLE TORNILLO DE OBTURADOR

BOLT 1 PERNO 1

BOLT 2 PERNO 2

HOSE 3 SELLO

CLIP PRESILLA

PLATE PLACA

REMARKS

69J8

60L8

69K8

1111

3333

6666

3333

1111

3333 EXCEPT FOR BRA

33 FOR BRA

2222

1111

OBSERVACIONES

60M8

EXCEPT FOR BRA

FOR BRA

21

FIG. 11 THROTTLE BODY ASSY 3 CAJA DE ACELERADOR COMPL 3

REF. NO.

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

PART N O. CODIGO Nº

69J–13170–00

69J–13170–10

69J–13435–00

68V–14397–00

68V–14397–10

68V–81147–00

68V–14225–00

69J–13906–00

68V–14565–00

68V–14356–00

68V–14475–00

68V–14264–00

68V–14428–00

68F–24300–00

69J–13546–00

60L–24317–00

69J–13974–30

68V–13544–00

5JW–14349–00

69J–13542–00

69J–13532–00

69J–13533–01

68V–24377–00

69J–13595–00

69J–14139–00

69J–13975–00

69J–13975–10

DESCRIPTION DESCRIPCION

DELIVERY PIPE ASSY 2 TUBO DE LLEGADA CONJUNTO 2

.NIPPLE .NIPLE

.O-RING .ANILLO O

.SCREW 3 .TORNILLO 3

.CAP .TAPA

.REGULATOR, PRESSURE .REGULADOR

.SCREW .TORNILLO

.WASHER, SPRING .ARANDELA DE RESORTE

WASHER ARANDELA

COLLAR ESPACIADOR

BOLT TORNILLO

FUEL PIPE JOINT CONECTOR MANGUERA COMBUSTIBLE

HOSE 2 SELLO

PIPE 7 TUBO 7

PIPE, FUEL 4 TUBO, COMBUSTIBLE 4

HOSE, VACUUM SENSING 2 MANGUERA, DE VACIO 2

PIPE TUBO

HOSE, VACUUM SENSING 1 MANGUERA, DE VACIO 1

HOSE, VACUUM SENSING 3 MANGUERA, DE VACIO 3

HOSE, VACUUM SENSING 4 MANGUERA, DE VACIO 4

PIPE, JOINT 2 TUBO DE UNION 2

JOINT TOBERA

CLIP, PIPE PRESILLA TUBO

PIPE, FUEL 5 TUBO, COMBUSTIBLE 5

REMARKS

69J8

60L8

69K8

1111 EXCEPT FOR BRA

11 FOR BRA

1111

1111 EXCEPT FOR BRA

11 FOR BRA

2222

1111

2222

3333

1111

2222

1111

1111 EXCEPT FOR BRA

11 FOR BRA

OBSERVACIONES

60M8

EXCEPT FOR BRA

FOR BRA

EXCEPT FOR BRA

FOR BRA

EXCEPT FOR BRA

FOR BRA

22

FIG. 11 THROTTLE BODY ASSY 3 CAJA DE ACELERADOR COMPL 3

REF. NO.

25

26

27

28

PART N O. CODIGO Nº

68V–24519–00

69J–8259L–00

68V–13577–00

69J–2417H–00

DESCRIPTION DESCRIPCION

CLIP PRESILLA

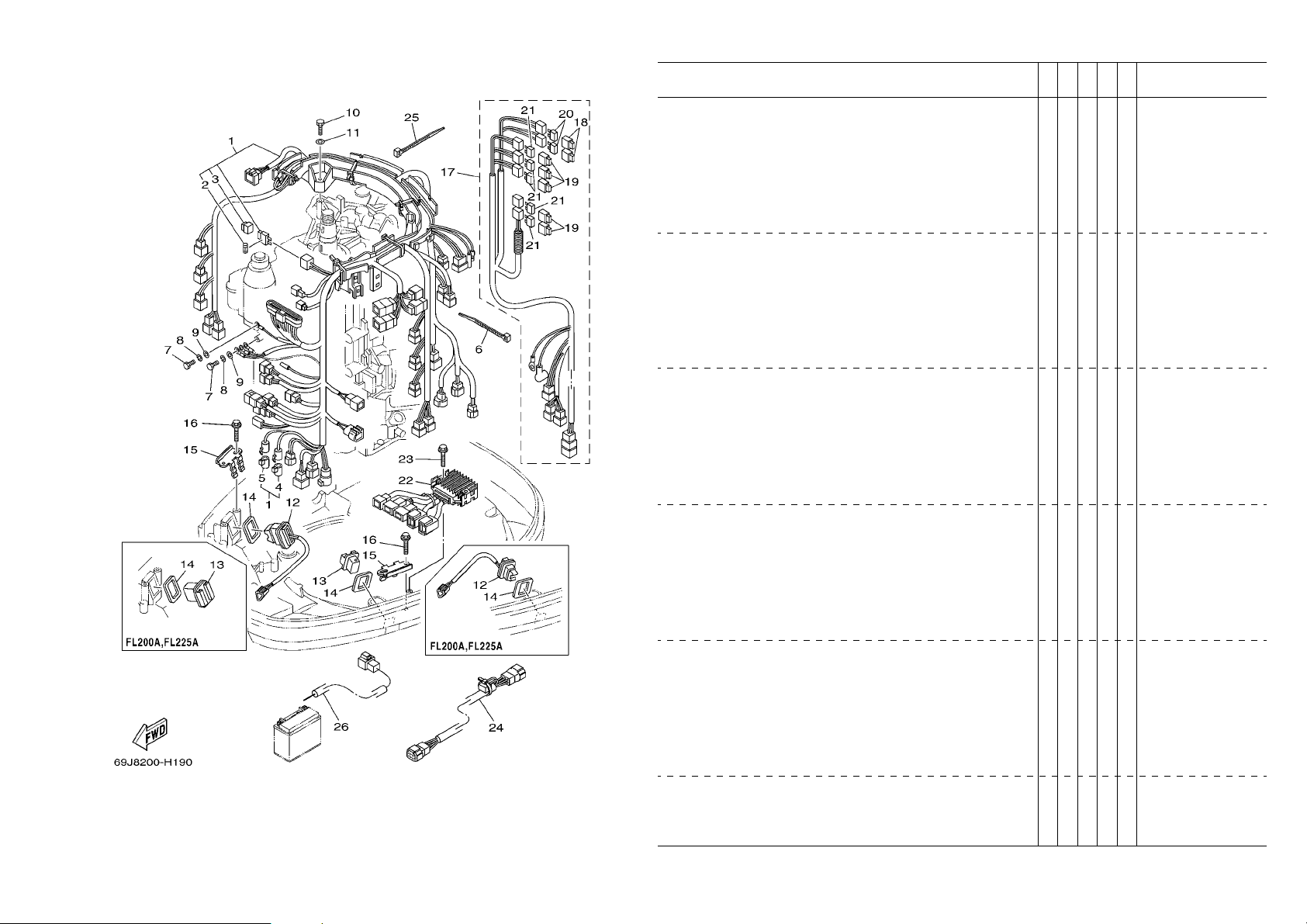

WIRE HARNESS ASSY 1 CONJUNTO DE CABLES 1

CLIP PRESILLA

CLAMP 1 GRAMPA 1

69J8

60L8

69K8

1111

2222

1111

60M8

REMARKS OBSERVACIONES

23

FIG. 12 FUEL INJECTION PUMP 1 BOMBA DE INYECTOR 1

REF. NO.

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

PART N O. CODIGO Nº

69J–14180–40

69J–14180–50

69J–14182–10

69J–14182–20

69J–2411R–00

69J–2411T–00

4SV–24453–00

69J–24453–00

69J–14181–00

69J–14181–10

6P2–14191–00

5UX–14251–00

69J–14985–00

68V–14386–00

69J–14546–00

69J–14546–10

68V–13769–00

68V–13769–10

68V–14255–00

68V–14255–10

98507–04008

68V–14592–10

68V–14357–00

68V–13781–10

69J–13907–03

69J–13907–11

68V–13915–00

DESCRIPTION DESCRIPCION

FLOAT CHAMBER ASSY CAMARA DE BOIA COMPLETE

COVER, FLOAT CHAMBER TAPA DE CAMARA DE BOIA

.PLATE 1 .PLACA 1

.PLATE 2 .PLACA 2

.SCREW .TORNILLO

BODY, FLOAT CHAMBER 1 CUERPO DE CAMARA DE BOIA

.PLUG, DRAIN .TORNILLO, DE DRENAJE

.NIPPLE .NIPLE

FLOAT BOIA

PIN, FLOAT PASADOR DE BOIA

VALVE, NEEDLE VALVULA DE AGUJA

.O-RING .ANILLO O

PLATE PLACA

SCREW, PAN HEAD TORNILLO DE CABEZA CON PLANA

SCREW TORNILLO

WASHER, PLAIN ARANDELA

DAMPER, PUMP AMORTIGUADOR DE BOMBA

FUEL PUMP COMP. BOMBA DE COMBUSTIBLE COMPLETA

FILTER FILTRO

69J8

60L8

69K8

1111 EXCEPT FOR BRA

11 FOR BRA

1111 EXCEPT FOR BRA

11 FOR BRA

1111

2222 EXCEPT FOR BRA

22 FOR BRA

1111 EXCEPT FOR BRA

11 FOR BRA

1111

1111 EXCEPT FOR BRA

11 FOR BRA

1111 EXCEPT FOR BRA

11 FOR BRA

1111 EXCEPT FOR BRA

11 FOR BRA

1111 EXCEPT FOR BRA

11 FOR BRA

2222

1111

1111 EXCEPT FOR BRA

11 FOR BRA

1111 EXCEPT FOR BRA

REMARKS OBSERVACIONES

60M8

EXCEPT FOR BRA

FOR BRA

EXCEPT FOR BRA

FOR BRA

EXCEPT FOR BRA

FOR BRA

EXCEPT FOR BRA

FOR BRA

EXCEPT FOR BRA

FOR BRA

EXCEPT FOR BRA

FOR BRA

EXCEPT FOR BRA

FOR BRA

EXCEPT FOR BRA

FOR BRA

EXCEPT FOR BRA

FOR BRA

EXCEPT FOR BRA

24
