YAMAHA F9.9C ’03, F13.5A’03, F15A ’03 PARTS CATALOGUE 03

F9.9C ’03

(66N2)

F13.5A ’03
F15A ’03

(69V3)

(66M2)

2B66M−300F1

A1

FOREWORD

This Parts Catalogue is related to the parts for the model(s) in the below frame. When you are ordering replace­ment parts, please refer to this Parts Catalogue and quote both part numbers and part names correctly.

F9.9C’03(66N2), F13.5A’03(69V3), F15A’03(66M2)

1. Modifications or additions which have been made after issue of the Parts Catalogue will
be announced in the Yamaha Parts News.
It is advisable that you make necessary corrections to the Parts Catalogue according to
the Yamaha Parts News.

2. Abbreviations
The Following abbreviations are used in this Parts Catalogue.

“UR” Use specified parts number.

“UN” Use as many as needed.

“AP” Alternate Parts

“LM” Local Made

(Parts need to be ordered locally)

“O/S” Over Size

3. Parts, which are to be supplied in an assembly, are listed with a dot(.) in front of the part
name as shown below.

EXAMPLE

CARBURETOR ASSY

.JET, PILOT

.NOZZLE, MAIN

4. Number of component for assembly
The numeral appearing to the right of each component part indicates the quantity of
parts for each assembly unit.

EXAMPLE

PART NO. DESCRIPTION REMARKS

6E0−85500−70 C.D.I. MAGNETO ASSY 1

6E0−85550−70 .ROTOR ASSY 1

6E0−15723−00−94..PULLY, STARTER 1

E

EHT

EH

5. Quantity Column Information

NAME for Q’TY COLUMN

MH F9.9CMH, F13.5AMH, F15AMH

EH F15AEH

E F9.9CE, F15AE

6. Applicable Starting Serial No. and Color Code

1) Engine Starting Sserial No.

F9.9CMH S/L 66N : 1000001
F9.9CE S/L 66N : 1000001
F13.5AMH S/L 69V : 1000001

2) Color Code

Color Code

004D DARK BLUISH GRAY METALLIC 2 DBNM2

7. Note that the illustrations for reference in finding parts numbers, not to be used for as­sembling. When assembling, please use the applicable service manual.

8. The asterisk (*) before a reference number indicates modification items after the first
edition.

Color Name Abbreviation

APPLICABLE MODEL

F15AMH S/L 66M : 1000001
F15AEH S/L 66M : 1000001
F15AE S/L 66M : 1000001

A2

CONTENTS

SHEET 1/2

TOP COWLING A4.....................................

CYLINDER. CRANKCASE 1 A5..........................

CRANKSHAFT. PISTON A7..............................

CYLINDER. CRANKCASE 2 B1..........................

VALVE B2.............................................

INTAKE B3............................................

CARBURETOR B5.....................................

OIL PUMP B7..........................................

FUEL C1..............................................

STARTER C3..........................................

GENERATOR C5.......................................

ELECTRICAL 1 C6.....................................

ELECTRICAL 2 D1.....................................

STARTING MOTOR D2..................................

BOTTOM COWLING D3.................................

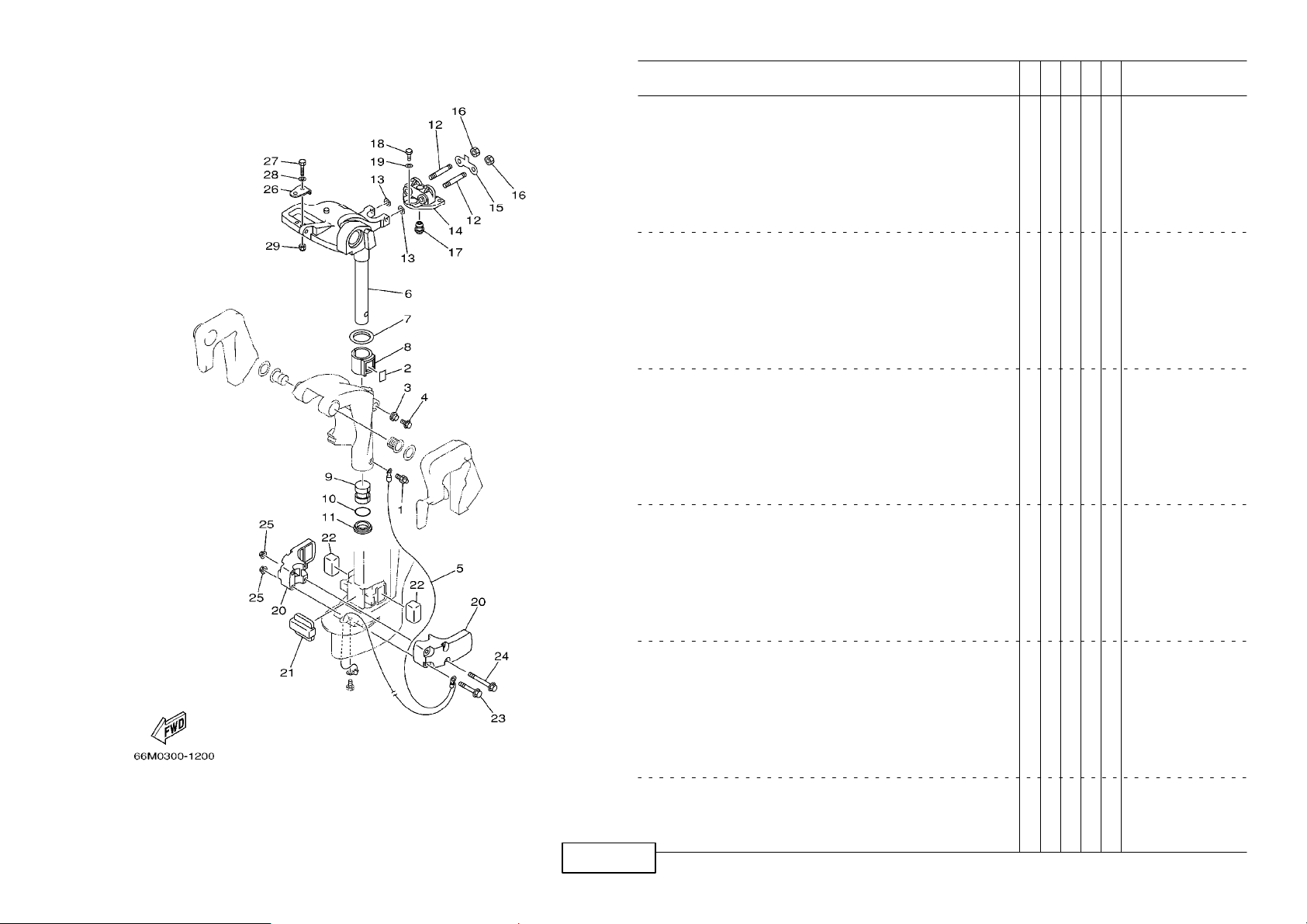

STEERING D5.........................................

CONTROL D7.........................................

REMOTE CONTROL ATTACHMENT E2...................

BRACKET 1 E3........................................

BRACKET 2 E5........................................

UPPER CASING E7....................................

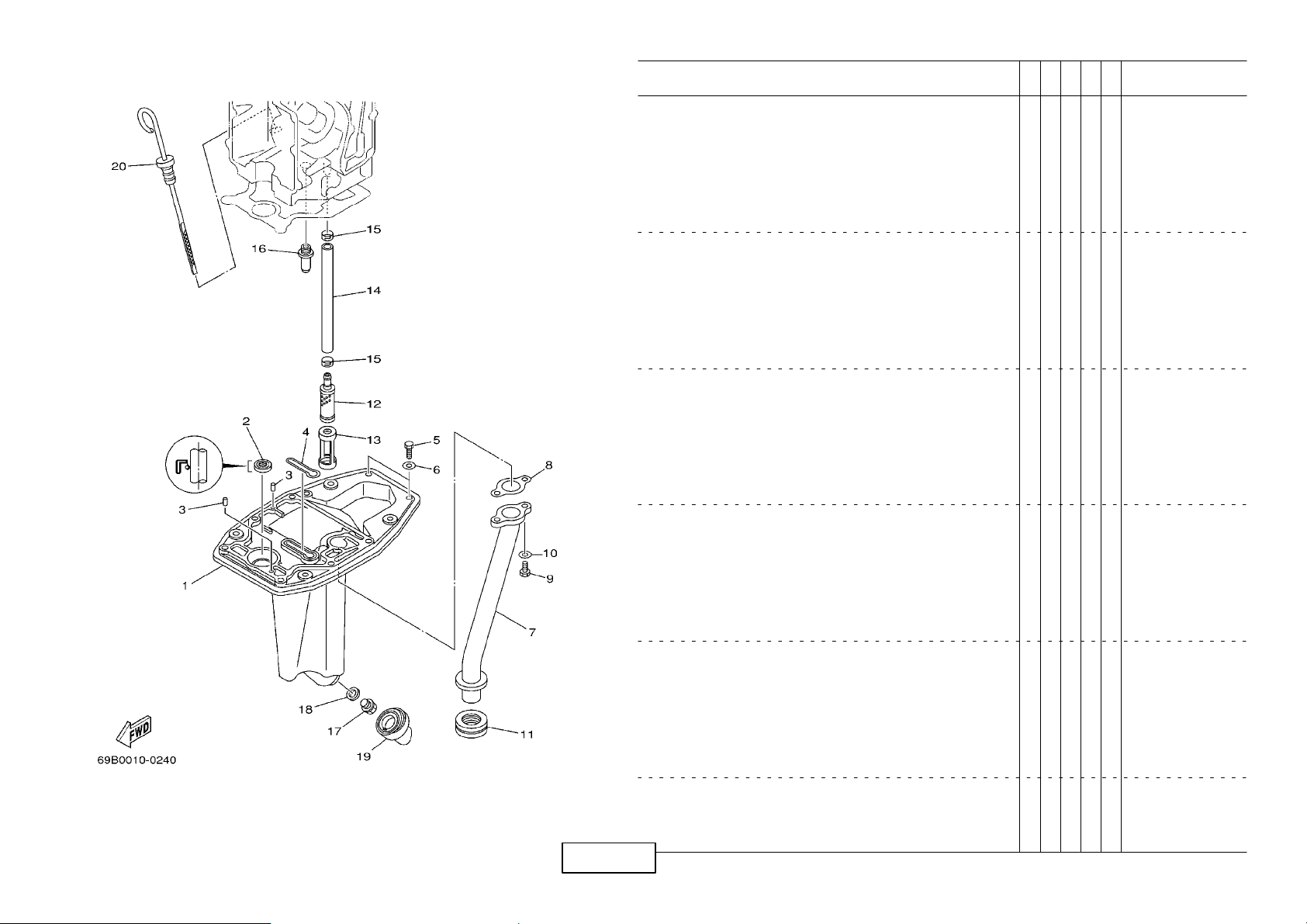

OIL PAN F1............................................

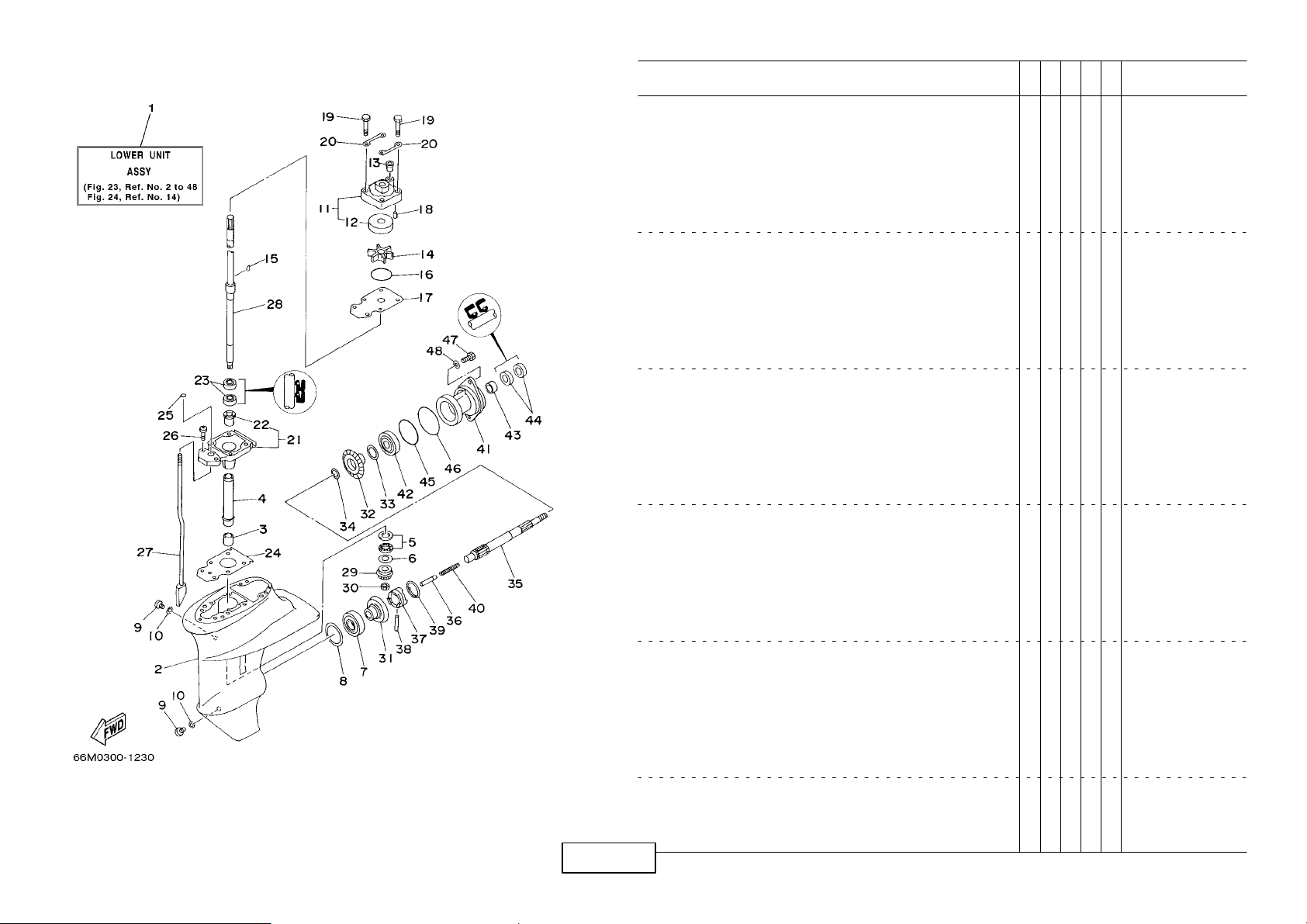

LOWER CASING. DRIVE 1 F2...........................

LOWER CASING. DRIVE 2 F5...........................

FUEL TANK 1 F7.......................................

SHEET

FUEL TANK 2 A4*.......................................

STEERING GUIDE A5*..................................

REMOTE CONTROL BOX A6*............................

REMOTE CONTROL ASSY A7*...........................

REPAIR KIT 1 B3*.......................................

REPAIR KIT 2 B4*.......................................

REPAIR KIT 3 B5*.......................................

2/2

INDEX

NUMERICAL INDEX G1*.................................

INDEX

NUMERICAL INDEX G1.................................

A3

FIG. 1 TOP COWLING CAPOT SUPERIEUR

REF. PART NO. DESCRIPTION REMARKS
NO. NO. PIECES DESCRIPTION REMARQUES

1 66M−42610−10−4D TOP COWLING ASSY 1 1 1 F15A

CAPOT (ENS.)

69V−42610−10−4D TOP COWLING ASSY 1 F13.5A

CAPOT (ENS.)

66N−42610−10−4D TOP COWLING ASSY 1 1 F9.9C

CAPOT (ENS.)

2 66M−42613−00 .MOLDING, AIR DUCT 1 1 1

.MANCHON A AIR

3 97780−60520 .SCREW, TAPPING 4 4 4

.VIS, TETE BOMBEE

4 6E0−42651−02 .HOOK 1 1 1

.CROCHET

5 90266−04M04 .RIVET 2 2 2

.RIVET

6 6E7−42652−00 .HOOK 1 1 1

.CROCHET

7 90266−04M04 .RIVET 2 2 2

.RIVET

8 66M−42615−00 .SEAL 1 1 1

.JOINT

9 66M−42678−20 .GRAPHIC, REAR 1 1 1 F15A

.ADHESIF, ARRIERE

69V−42678−20 .GRAPHIC, REAR 1 F13.5A

.ADHESIF, ARRIERE

66N−42678−20 .GRAPHIC, REAR 1 1 F9.9C

.ADHESIF, ARRIERE

10 66M−W0070−20 .GRAPHIC SET 1 1 1

.JEU DIEMBLEMES

11 66M−42677−00 .GRAPHIC, FRONT 1 1 1 F15A

.ADHESIF, AVANT

69V−42677−00 .GRAPHIC, FRONT 1 F13.5A

.ADHESIF, AVANT

66N−42677−00 .GRAPHIC, FRONT 1 1 F9.9C

.ADHESIF, AVANT

12 90202−05M38 .WASHER, PLATE 4 4 4

.RONDELLE, PLATE

13 67F−13434−02 LABEL, CAUTION 1 1 1

ETIQUETTE, ATTENTION

MHEHE

A4

FIG. 2 CYLINDER. CRANKCASE 1 CYLINDRE. CARTER 1

REF. PART NO. DESCRIPTION REMARKS
NO. NO. PIECES DESCRIPTION REMARQUES

1 66M−W009B−11−1S CYLINDER BLOCK ASSY 1 1 1 FOR FLUSHING KIT

CYLINDRE GROUPE (ENS.)

2 66M−15100−01−1S CRANKCASE ASSY 1 1 1

CARTER DE MOTEUR COMPLET

3 99510−10114 .PIN, DOWEL 2 2 2

.GOUJON, D’ASSEMBLAGE

4 90119−08M66 .BOLT, WITH WASHER 4 4 4

.BOULON, AVEC RONDELLE

5 90119−06M14 .BOLT, WITH WASHER 6 6 6

.BOULON, AVEC RONDELLE

6 6E5−24377−00 .PIPE, JOINT 3 1 1 1

.DURITE RACCORDEMENT 3

7 90445−10M46 HOSE (L65) 1 1 1

DURITE (L65)

8 66M−11325−00 ANODE 1 1 1

ANODE

9 66M−11327−00−94 COVER, ANODE 1 1 1

COUVERCLE

10 66M−11328−00 GROMMET, ANODE 1 1 1

PASSE−FIL

11 97095−06020 BOLT 1 1 1

BOULON

12 92995−06600 WASHER 1 1 1

RONDELLE

13 97095−05012 BOLT 1 1 1

BOULON

14 92995−05600 WASHER 1 1 1

RONDELLE

15 66M−12535−00 PLATE 1 1 1

PLAQUE

16 66M−11168−00−1S COVER, BREATHER 1 1 1

COUVERCLE, RENIFLARD

17 6E5−24377−00 .PIPE, JOINT 3 1 1 1

.DURITE RACCORDEMENT 3

18 66M−11357−00 SEAL, CYLINDER 3 1 1 1

JOINT, SPY CYLINDRE

19 97095−06020 BOLT 3 3 3

BOULON

20 92995−06600 WASHER 3 3 3

RONDELLE

21 66M−11351−00 GASKET, CYLINDER 1 1 1

JOINT, D’EMBASE

22 66M−12411−00 THERMOSTAT 1 1 1

THERMOSTAT

23 6H3−12413−00−1S COVER, THERMOSTAT 1 1 1

COUVERCLE, THERMOSTAT

24 62Y−12414−00 GASKET, COVER 1 1 1

JOINT, COUVERCLE

25 66M−41113−10−1S OUTER COVER, EXHAUST 1 1 1 FOR FLUSHING KIT

COUVERCLE, ECHAPPEMENT

26 676−11372−00 .NIPPLE, HOSE 1 1 1

.RACCORD, TUYAU

27 66M−41114−00 GASKET, EXHAUST OUTER COVER 1 1 1

JOINT, COUVERCLE D’ECHAPPEMENT

MHEHE

A5

FIG. 2 CYLINDER. CRANKCASE 1 CYLINDRE. CARTER 1

REF. PART NO. DESCRIPTION REMARKS
NO. NO. PIECES DESCRIPTION REMARQUES

28 90119−06MA4 BOLT, WITH WASHER 7 7 7

BOULON, AVEC RONDELLE

29 90445−09061 HOSE (L65) 1 1 1

DURITE (L65)

30 688−24378−00 PIPE, JOINT 4 1 1 1

DURITE RACCORDEMENT 4

31 90445−09086 HOSE (L170) 1 1 1

DURITE (L170)

32 90445−09105 HOSE (L300) 1 1 1

DURITE (L300)

33 5GH−13440−00 ELEMENT ASSY, OIL CLEANER 1 1 1

ELEMENT, FILTRE A HUILE

34 90401−20M00 BOLT, UNION 1 1 1

BOULON, RACCORD

MHEHE

A6

FIG. 3 CRANKSHAFT. PISTON VILEBREQUIN. PISTON

REF. PART NO. DESCRIPTION REMARKS
NO. NO. PIECES DESCRIPTION REMARQUES

1 93102−35M51 OIL SEAL 1 1 1

JOINT SPY

2 93102−25M52 OIL SEAL 1 1 1

JOINT SPY

3 66M−11411−00 CRANKSHAFT 1 1 1

VILEBREQUIN COMPLET

4 66M−11416−00 PLANE BEARING, CRANKSHAFT 1 4 4 4 UR BROWN

COUSSINET DE VILEBREQUIN 1

66M−11416−10 PLANE BEARING, CRANKSHAFT 1 4 4 4 UR BLACK

COUSSINET DE VILEBREQUIN 1

66M−11416−20 PLANE BEARING, CRANKSHAFT 1 4 4 4 UR BLUE

COUSSINET DE VILEBREQUIN 1

5 66M−11650−00 CONNECTING ROD ASSY 2 2 2

BIELLE COMPLETTE

6 66M−11654−00 .BOLT, CONNECTING ROD 2 2 2

.BOULON, BIELLE

7 90201−07M01 .WASHER, PLATE 2 2 2

.RONDELLE, PLATE

8 66M−11631−00−96 PISTON (STD) 2 2 2

PISTON (STD)

66M−11635−00 PISTON (0.25MM O/S) 2 2 2 AP

PISTON (0.25MM O/S)

66M−11636−00 PISTON (0.50MM O/S) 2 2 2 AP

PISTON (0.50MM O/S)

9 66M−11603−00 PISTON RING SET (STD) 2 2 2

JEU DE SEGMENTS (STD)

66M−11604−00 PISTON RING SET (0.25MM O/S) 2 2 2 AP

JUE DE SEGMENTS (0.25MM O/S)

66M−11605−00 PISTON RING SET (0.50MM O/S) 2 2 2 AP

JEU DE SEGMENTS (0.50MM O/S)

10 634−11633−00 PIN, PISTON 2 2 2

AXE, PISTON

11 93450−15023 CIRCLIP 4 4 4

CIRCLIP

MHEHE

A7

FIG. 4 CYLINDER. CRANKCASE 2 CYLINDRE. CARTER 2

REF. PART NO. DESCRIPTION REMARKS
NO. NO. PIECES DESCRIPTION REMARQUES

1 66M−W009A−02−1S CYLINDER HEAD ASSY 1 1 1 FOR STD

CULASSE (ENS.)

66M−W009A−12−1S CYLINDER HEAD ASSY 1 1 1 *ECM−”F15A ONLY”

CULASSE (ENS.)

2 66M−11111−01−1S HEAD, CYLINDER 1 1 1 1 FOR STD

CULASSE

66M−11111−11−1S HEAD, CYLINDER 1 1 1 1 *ECM−”F15A ONLY”

CULASSE

3 66M−11133−10 .GUIDE, INTAKE VALVE 4 4 4

.GUIDE, SOUP D’ADM

4 93450−09M01 .CIRCLIP 4 4 4

.CIRCLIP

5 66M−11181−00 GASKET, CYLINDER HEAD 1 1 1 1

JOINT, DE CULASSE 1

6 99510−10114 PIN, DOWEL 2 2 2

GOUJON, D’ASSEMBLAGE

7 90105−08M78 BOLT, FLANGE 6 6 6

BOULON

8 90119−06MA3 BOLT, WITH WASHER 3 3 3

BOULON, AVEC RONDELLE

9 66M−11191−00−1S COVER, CYLINDER HEAD 1 1 1 1

COUVERCLE, CULASSE 1

10 66M−11356−00 SEAL, CYLINDER 2 1 1 1

JOINT, SPY CYLINDRE

11 97095−06020 BOLT 4 4 4

BOULON

12 92995−06600 WASHER 4 4 4

RONDELLE

13 97095−08014 BOLT 2 2 2 *ECM−”F15A ONLY”

BOULON

14 90430−08143 GASKET 2 2 2 *ECM−”F15A ONLY”

JOINT

15 6G8−15363−00 PLUG, OIL 1 1 1

PLOT, HUILE

16 93210−24M79 O−RING 1 1 1

JOINT TORIQUE

17 66M−12138−60 MARK, CAUTION 1 1 1

MAKER

18 94701−00375 PLUG, SPARK (NGK DPR6EA−9) 2 2 2

BOUGIE D’ALLUMAGE(NGK DPR6EA−9)

MHEHE

B1

*

ECM: FOR EMISSION CONTROL MODEL.

*

ECM: POUR MODELE CONTROLE D’ EMISSIONS.

FIG. 5 VALVE SOUPAPE

REF. PART NO. DESCRIPTION REMARKS
NO. NO. PIECES DESCRIPTION REMARQUES

1 66M−12111−00 VALVE, INTAKE 2 2 2

SOUPAPE, ADMISSION

2 66M−12121−00 VALVE, EXHAUST 2 2 2

SOUPAPE, ECHAPPEMENT

3 66M−12116−00 SEAT, VALVE SPRING 4 4 4

SIEGE, RESSORT DE SOUPAPE

4 66M−12113−00 SPRING, VALVE INNER 4 4 4

RESSORT DE SOUPAPE, INTERNE

5 30X−12117−00 RETAINER, VALVE SPRING 4 4 4

BUTEE DE RESSORT DE SOUPAPA

6 30X−12118−00 COTTER, VALVE 8 8 8

FRAISE, SOUPAPE

7 51Y−12119−00 SEAL, VALVE STEM 4 4 4

JOINT, QUEUE DE SOUPAPE

8 66M−12146−00 SHAFT, ROCKER 2 2 2

AXE, CULBUTEUR

9 90387−13M56 COLLAR 1 1 1

COLLERETTE

10 90387−13001 COLLAR 1 1 1

COLLERETTE

11 90387−13002 COLLAR 1 1 1

COLLERETTE

12 90501−12M40 SPRING, COMPRESSION 3 3 3

RESSORT, COMPRESSION

13 90501−12M41 SPRING, COMPRESSION 1 1 1

RESSORT, COMPRESSION

14 66M−12151−10 ARM, VALVE ROCKER 4 4 4

CULBUTEUR

15 62Y−12159−00 SCREW, VALVE ADJUSTING 4 4 4

VIS, REGLAGE DE SOUPAPE

16 62Y−12158−00 NUT, LOCK 4 4 4

CONTRE−ECROU

MHEHE

B2

FIG. 6 INTAKE ADMISSION

REF. PART NO. DESCRIPTION REMARKS
NO. NO. PIECES DESCRIPTION REMARQUES

1 66M−13641−00−94 MANIFOLD 1 1 1 1

TUBULURE 1

2 66M−13645−00 GASKET, MANIFOLD 1 1 1 1

JOINT, TUBULURE 1

3 97095−06040 BOLT 4 4 4

BOULON

4 92995−06600 WASHER 4 4 4

RONDELLE

5 93606−12019 PIN, DOWEL 2 2 2

GOUPILLE

6 66M−13646−00 GASKET, MANIFOLD 2 2 2 2

JOINT, TUBULURE 2

7 66M−14271−00 INSULATOR 1 1 1 F9.9C,F15A

ISOLATEUR

69V−14271−00 INSULATOR 1 F13.5A

ISOLATEUR

8 66M−14440−00 SILENCER ASSY, INTAKE 1 1 1

SIENCIEUX D’ADMISSION

9 93210−35M86 O−RING 1 1 1

JOINT TORIQUE

10 90119−06M76 BOLT, WITH WASHER 2 2 2

BOULON, AVEC RONDELLE

11 90387−06M79 COLLAR 2 2 2

COLLERETTE

12 66M−14477−00 PLATE 1 1 1

PLAQUE

13 66M−41271−00 KNOB, CHOKE 1 1 1

BOUTON DE STARTER

14 689−41273−00 GROMMET 1 1 1

PASSE−FIL

15 66M−41292−00 BUSH 2 1 1 1

BAGUE 2

16 66M−41298−00 WASHER 2 1 1 1

RONDELLE 2

17 97780−50510 SCREW, TAPPING 1 1 1

VIS, TETE BOMBEE

18 66M−41252−00 LEVER, CHOKE 1 1 1 1

LEVIER 1

19 90240−05M20 PIN, CLEVIS 1 1 1

BOULON, A GOUPILLE

20 90206−05005 WASHER, WAVE 1 1 1

RONDELLE, ONDULEE

21 91690−20016 PIN, SPRING 1 1 1

AGRAFFE

22 90202−05088 WASHER, PLATE 2 2 2

RONDELLE, PLATE

23 6R5−41237−00 JOINT, LINK 1 1 1

RACCORD

24 66M−41256−00 ROD, CHOKE 1 1 1 1

TRINGLE 1, STARTER

25 66M−15373−00 PIPE, BREATHER 1 1 1

DURITE DE RENIFLARD

26 90465−08M82 CLAMP 1 1 1

BRIDE

MHEHE

B3

FIG. 6 INTAKE ADMISSION

REF. PART NO. DESCRIPTION REMARKS
NO. NO. PIECES DESCRIPTION REMARQUES

27 90465−08M83 CLAMP 1 1 1

BRIDE

MHEHE

B4

FIG. 7 CARBURETOR CARBURATEUR

REF. PART NO. DESCRIPTION REMARKS
NO. NO. PIECES DESCRIPTION REMARQUES

1 66M−14301−00 CARBURETOR ASSY 1 1 1 1 F13.5A,F15A−FOR STD

CARBURATEUR COMPLET 1

66M−14301−20 CARBURETOR ASSY 1 1 1 1 *ECM−”F15A ONLY”

CARBURATEUR COMPLET 1

66N−14301−00 CARBURETOR ASSY 1 1 1 F9.9C

CARBURATEUR COMPLET 1

2 66M−14381−02 .BODY, FLOAT CHAMBER 1 1 1 F13.5A,F15A

.CORPS, CUVE DE FLOTTEUR

66N−14381−00 .BODY, FLOAT CHAMBER 1 1 F9.9C

.CORPS, CUVE DE FLOTTEUR

3 62Y−14383−00 ..SCREW, DRAIN 1 1 1

..BOUCHON, PURGE

4 66M−14398−00 ..GASKET 1 1 1

..JOINT

5 677−14383−01 ..SCREW, DRAIN 1 1 1 F13.5A,F15A

..BOUCHON, PURGE

6 6L2−14398−00 ..GASKET 1 1 1 F13.5A,F15A

..JOINT

7 66M−14325−00 ..SCREW, PAN HEAD 3 3 3 F13.5A,F15A

..VIS TETE CONIQUE

8 66M−14377−00 ..STOPPER 1 1 1 F13.5A,F15A

..BUTEE

9 66M−14958−00 ..COVER, DIAPHRAGM 1 1 1 F13.5A,F15A

..COUVERCLE, DIAPHRAGME

10 66M−14368−01 ..DIAPHRAGM ASSY 1 1 1 1 F13.5A,F15A

..DIAPHRAGME 1

11 6G8−14275−02 ..SPRING 1 1 1 F13.5A,F15A

..RESSORT

12 66M−14239−00 ..SEAL 1 1 1 F13.5A,F15A

..JOINT

13 66M−14225−00 ..CAP 1 1 1 F13.5A,F15A

..COUVERCLE

14 66M−14384−00 .GASKET, FLOAT CHAMBER 1 1 1

.JOINT, CUVE DE FLOTTEUR

15 6L2−14385−00 .FLOAT 1 1 1

.FLOTTEUR

16 6E5−14386−01 .PIN, FLOAT 1 1 1

.AXE, FLOTTEUR

17 6L2−14392−00 .VALVE, NEEDLE 1 1 1

.POINTEAU

18 97980−04110 .SCREW, WITH WASHER 2 2 2

.VIS, AVEC RONDELLE

19 6L2−14157−00 .COVER, MIXING 1 1 1

.COUVERCLE DE CHAMBRE

20 62Y−14399−00 .GASKET 1 1 1

.JOINT

21 66M−14341−00 .NOZZLE, MAIN 1 1 1 F13.5A,F15A−FOR STD

.PUITS D’AIGUILLE

66M−14341−10 .NOZZLE, MAIN 1 1 1 *ECM−”F15A ONLY“

.PUITS D’AIGUILLE

MHEHE

B5

*

ECM: FOR EMISSION CONTROL MODEL.

*

ECM: POUR MODELE CONTROLE D’ EMISSIONS.

FIG. 7 CARBURETOR CARBURATEUR

REF. PART NO. DESCRIPTION REMARKS
NO. NO. PIECES DESCRIPTION REMARQUES

21 66N−14341−00 .NOZZLE, MAIN 1 1 F9.9C

.PUITS D’AIGUILLE

22 66M−14343−52 .JET, MAIN (#104) 1 1 1 F13.5A,F15A−FOR STD

.GICLEUR, PRINCIPAL (#104)

66M−14343−51 .JET, MAIN (#102) 1 1 1 *ECM−”F15A ONLY”

.GICLEUR, PRINCIPAL (#102)

66N−14343−34 .JET, MAIN (# 68) 1 1 F9.9C

.GICLEUR, PRINCIPAL (# 68)

23 66M−14342−23 .JET, PILOT (#45) 1 1 1

.GICLEUR, RALENTI (#45)

24 66M−14355−00 .PLUG 1 1 1 F13.5A,F15A

.PLOT

62Y−14355−00 .PLUG 1 1 F9.9C

.PLOT

25 5H0−14323−00 .SCREW, AIR ADJUSTING 1 1 1 FOR STD

.VIS DE DOSEUR D’AIR

62Y−14323−10 .SCREW, AIR ADJUSTING 1 1 1 FOR *ECM

.VIS DE DOSEUR D’AIR

26 30X−14334−00 .SPRING, AIR ADJUSTING 1 1 1

.RESSORT, VIS DE DOSEUR D’AIR

27 62Y−14321−00 .SCREW, THROTTLE 1 1 1

.VIS, ACCELERATEUR

28 97980−04112 .SCREW, WITH WASHER 4 4 4

.VIS, AVEC RONDELLE

29 62Y−14397−00 .O−RING 1 1 1

.JOINT TORIQUE

30 98980−04006 .SCREW, BIND 1 1 1

.VIS

31 646−14212−01 .SPRING, PILOT ADJUSTING 1 1 1

.RESSORT, VIS DE RALENTI

32 6F5−14397−00 .O−RING 1 1 1

.JOINT TORIQUE

33 66M−14272−00 .CHECK VALVE ASSY 1 1 1 F13.5A,F15A

.CLAPET (ENS.)

34 66M−14827−00 .FILTER 1 1 1

.FILTRE

35 97890−04005 .SCREW, PAN HEAD 1 1 1

.VIS, CRUCIFORME

36 66M−14157−00 .PLATE 1 1 1

.PLAQUE

37 98580−03005 .SCREW, PAN HEAD 1 1 1

.VIS

38 6G8−14457−00 SEAL 1 1 1 FOR *ECM

JOINT

MHEHE

B6

*

ECM: FOR EMISSION CONTROL MODEL.

*

ECM: POUR MODELE CONTROLE D’ EMISSIONS.

FIG. 8 OIL PUMP POMPE A HUILE

REF. PART NO. DESCRIPTION REMARKS
NO. NO. PIECES DESCRIPTION REMARQUES

1 93102−18M21 OIL SEAL 1 1 1

JOINT SPY

2 66M−12170−00 CAMSHAFT ASSY 1 1

ENS ARBRE A CAMES 1

66M−12171−10 CAMSHAFT 1 1 1

ARBRE A CAMES 1

3 66M−11537−00−94 GEAR, DRIVEN 1 1 1

PIGNON SECONDAIRE

4 97013−06016 BOLT 1 1 1

BOULON

5 90201−13201 WASHER, PLATE 1 1 1

RONDELLE, PLATE

6 90201−06M94 WASHER, PLATE 1 1 1

RONDELLE, PLATE

7 66M−11536−10 GEAR, DRIVE 1 1 1

ENGRENAGE, MENANT

8 66M−11557−00 WASHER 1 1 1 1

RONDELLE 1

9 90170−28M37 NUT 1 1 1

ECROU

10 90280−03M01 KEY, WOODRUFF 2 2 2

CLAVETTE, DEMI−LUNE

11 66M−46241−00 V−BELT 1 1 1

COURROIE TRAPEZOIDALE

12 66M−46297−00 COVER, DUST 1 1 1

COUVERCLE, POUSSIERE

13 90480−10M16 GROMMET 2 2 2

PASSE−FIL

14 90480−12072 GROMMET 1 1 1

PASSE−FIL

15 66M−13300−10 OIL PUMP ASSY 1 1 1

POMPE A HUILE COMPLET

16 66M−13329−10 GASKET, PUMP COVER 1 1 1

JOINT, COUVERCLE DE POMPE

17 97095−06035 BOLT 3 3 3

BOULON

18 92995−06600 WASHER 3 3 3

RONDELLE

MHEHE

B7

FIG. 9 FUEL CARBURANT

REF. PART NO. DESCRIPTION REMARKS
NO. NO. PIECES DESCRIPTION REMARQUES

1 6G1−24304−02 FUEL PIPE JOINT COMP. 1 1 1 1

DURITE RACCORDEMT. A ESSENCE

2 97095−06020 BOLT 1 1 1

BOULON

3 92995−06600 WASHER 1 1 1

RONDELLE

4 90445−10M40 HOSE (L330) 1 1 1

DURITE (L330)

5 65W−24251−00 STRAINER 1 1 1 1

FILTRE 1

6 90445−10M20 HOSE (L150) 1 1 1

DURITE (L150)

7 90467−09M03 CLIP 3 3 3

JONC

8 90465−11M10 CLAMP 1 1 1

BRIDE

9 66M−24410−10 FUEL PUMP ASSY 1 1 1

POMPE A ESSENCE

10 66M−24413−01 .BODY 2 1 1 1

.CORPS 2

11 6A0−24421−01 .VALVE, CHECK 2 2 2

.SOUPAPE, RETENUE

12 66M−24411−10 .DIAPHRAGM 1 1 1

.DIAPHRAGME

13 66M−24423−00 .SPRING, DIAPHRAGM 1 1 1

.RESSORT, DIAPHRAGME

14 66M−13131−10 .PLUNGER 1 1 1

.PLONGEUR

15 66M−24454−00 .SPRING 1 1 1

.RESSORT

16 66M−24444−00 .SCREW 4 4 4

.VIS

17 66M−24471−00 .DIAPHRAGM 1 1 1

.DIAPHRAGME

18 6E7−14325−00 .SCREW, PAN HEAD 2 2 2

.VIS TETE CONIQUE

19 95380−05600 .NUT 4 4 4

.ECROU

20 66M−24374−00 .PIN 1 1 1

.GOUPILLE

21 97880−06030 SCREW, PAN HEAD 2 2 2

VIS, TETE TRONCONIQUE

22 92990−06100 WASHER, SPRING 2 2 2

RONDELLE, GROWER

23 92990−06600 WASHER, PLATE 2 2 2

RONDELLE, PLATE

24 93210−20M65 O−RING 1 1 1

JOINT TORIQUE

25 90445−10M93 HOSE (L370) 1 1 1

DURITE (L370)

26 90467−09M03 CLIP 2 2 2

JONC

27 90465−06M86 CLAMP 1 1 1

BRIDE

MHEHE

C1

FIG. 9 FUEL CARBURANT

REF. PART NO. DESCRIPTION REMARKS
NO. NO. PIECES DESCRIPTION REMARQUES

28 90464−09M31 CLAMP 1 1 1

BRIDE

29 62Y−28100−00 TOOL KIT 1 1 1

TROUSSE A OUTILS

30 66M−28199−76−A0 MANUAL,OWNER’S 1 1 1 UR (E,F,S)

MANUEL D’UTILISATION

66M−28199−76−B0 MANUAL,OWNER’S 1 1 1 UR (D,NL,I)

MANUEL D’UTILISATION

31 66M−28199−86−A0 MANUAL,OWNER’S 1 1 1 UR (DK,P,GR)

MANUEL D’UTILISATION

66M−28199−86−B0 MANUAL,OWNER’S 1 1 1 UR (N,S,SS)

MANUEL D’UTILISATION

MHEHE

C2

FIG. 10 STARTER DEMARREUR

REF. PART NO. DESCRIPTION REMARKS
NO. NO. PIECES DESCRIPTION REMARQUES

1 66M−15710−01 STARTER ASSY 1

2 66M−15711−01 .CASE, STARTER 1

3 90387−06M05 .COLLAR 3

4 63V−15714−00 .DRUM, SHEAVE 1

5 63V−15741−00 .PAWL, DRIVE 1

6 63V−15713−00 .SPRING, STARTER 1

7 63V−15716−00 .PLATE, DRIVE 1

8 63V−15705−01 .SPRING, DRIVE PAWL 1

9 63V−15767−01 .SPRING 1

10 63V−15784−01 .SPRING, RETURN 1

11 63V−15744−00 .CIRCLIP 1

12 63V−15768−00 .BOLT 1

13 63V−15764−00 .COLLAR 1 1

14 * .WIRE, STARTER (L:1800MM) 1

15 66T−15794−00 .STOPPER 1

16 66T−15734−00 .SPRING, RETURN 1

17 66M−15770−00 CABLE COMP., STARTER STOP 1

18 90446−06M90 HOSE 1

19 66T−15731−00 SPRING, RETURN 1

20 6G1−15755−00 HANDLE, STARTER 1

21 6G1−15779−00 COVER 1

22 97095−06020 BOLT 3 3 3

23 92995−06600 WASHER 3 3 3

24 66M−15758−00 GUIDE, ROPE 1

66M−15758−10 GUIDE, ROPE 1 1

*

CUT FROM 50M ROLLS, PART NO. 90890−44373,
CUTTING LENGTH 1.8M

*

A PRELEVER SUR BOBINE 50M , REFERENCE 90890−44373,
LONGUEUR DE COUPE 1.8M

DEMARREUR COMPLET

.CARTER DE DEMARREUR

.COLLERETTE

.TAMBOUR, POULIE

.CLIQUET, ENTRAINEMENT

.RESSORT DE DEMARREUR

.PLAQUE, ENTRAINEMENT

.RESSORT DE CLIQUET

.RESSORT

.RESSORT, RAPPEL

.CIRCLIP

.BOULON

.COLLERETTE 1

.CABLE DE DEMARREUR (L:1800MM)

.BUTEE

.RESSORT, RAPPEL

CABLE, BUTEE DE DEMAR

DURITE

RESSORT, RAPPEL

POIGNEE, DE DEMARREUR

COUVERCLE

BOULON

RONDELLE

GUIDE DE CABLE

GUIDE DE CABLE

MHEHE

C3

FIG. 10 STARTER DEMARREUR

REF. PART NO. DESCRIPTION REMARKS
NO. NO. PIECES DESCRIPTION REMARQUES

25 90119−06M59 BOLT, WITH WASHER 2 2 2

BOULON, AVEC RONDELLE

26 97095−06090 BOLT 1 1 1

BOULON

27 92995−06100 WASHER, SPRING 1 1 1

RONDELLE, GROWER

28 90201−06M05 WASHER, PLATE 2 2 2

RONDELLE, PLATE

29 95380−06700 NUT 1 1 1

ECROU

30 66M−15762−00 SEAL, RUBBER 2 1 1 1

JOINT CAOUTCHOUC 2

31 66M−15774−00 STAY 4 1

SUPPORT 4

32 90109−06M86 BOLT 1

BOULON

33 66M−84342−00 SEAT, EMBLEM 1 1 1

SIEGE, EMBLEME

34 66M−15711−10 CASE, STARTER 1 1

CARTER DE DEMARREUR

35 6A1−83625−41 MARK 5 1 1 1

ETIQUETTE 5

36 6A1−83625−51 MARK 5 1 1 1

ETIQUETTE 5

37 66M−14427−60 LABEL, INSTRUCTION 1 1 1

ETIQUETTE, INSTRUCTION

38 6G8−13437−64 MARK, CAUTION 1 1 1

MAKER

MHEHE

C4

FIG. 11 GENERATOR GENERATRICE

REF. PART NO. DESCRIPTION REMARKS
NO. NO. PIECES DESCRIPTION REMARQUES

1 66M−85550−10 ROTOR ASSY 1 1 WITH RING GEAR

ROTOR CPLT

66M−85550−00 ROTOR ASSY 1 WITHOUT RING GEAR

ROTOR CPLT

2 66M−85520−00 COIL, CHARGE 1 1 1

BOBINE, CHARGE

3 66M−85580−00 COIL, PULSER 1 1 1

BOBINE, PULSEUR

4 66M−85533−00 COIL, LIGHTING 1 1 6A

BOBINE, ECLAIRAGE

66M−85533−10 COIL, LIGHTING 1 10A

BOBINE, ECLAIRAGE

5 97095−06025 BOLT 2 2 2

BOULON

6 92995−06100 WASHER, SPRING 2 2 2

RONDELLE, GROWER

7 92995−06600 WASHER 2 2 2

RONDELLE

8 97095−06016 BOLT 2 2 2

BOULON

9 92995−06600 WASHER 2 2 2

RONDELLE

10 97095−06030 BOLT 4 4

BOULON

97095−06040 BOLT 4

BOULON

11 92995−06600 WASHER 4 4 4

RONDELLE

12 90280−05013 KEY, WOODRUFF 1 1 1

CLAVETTE, DEMI−LUNE

13 90179−16M05 NUT 1 1 1

ECROU

14 90201−16M44 WASHER, PLATE 1 1 1

RONDELLE, PLATE

MHEHE

C5

FIG. 12 ELECTRICAL 1 PARTIE ELECTRIQUE 1

REF. PART NO. DESCRIPTION REMARKS
NO. NO. PIECES DESCRIPTION REMARQUES

1 66M−85540−10 C.D.I. UNIT ASSY 1 1 1 F15A

BLOC C.D.I.

66M−85540−01 C.D.I. UNIT ASSY 1 1 F9.9C,F13.5A

BLOC C.D.I.

2 97095−06020 BOLT 2 2 2

BOULON

3 92995−06600 WASHER 2 2 2

RONDELLE

4 66M−85570−00 IGNITION COIL ASSY 1 1 1

BOBINE D’ALLUMAGE (ENS.)

5 90480−25161 GROMMET 2 2 2

PASSE−FIL

6 97095−06020 BOLT 2 2 2

BOULON

7 92995−06600 WASHER 2 2 2

RONDELLE

8 6G8−82370−30 PLUG CAP ASSY 2 2 2

ANTIPARASITE

9 62Y−82504−10 OIL PRESSURE SWITCH ASSY 1 1 1

CONTACTEUR DE PRESSION D’HUILE

10 66M−82127−10 WIRE, LEAD 2 1 1 1

FIL 2

11 65W−85410−01 EMERGENCY SIGNAL LIGHT ASSY 1 1 1

FEU DE DETRESSE

12 6H1−83557−00 TUBE 1 1 1

TUBE

13 66M−85542−00 BRACKET 1 1

SUPPORT

66M−85542−10 BRACKET 1

SUPPORT

14 90387−06M05 COLLAR 4 4 4

COLLERETTE

15 90480−13M24 GROMMET 4 4 4

PASSE−FIL

16 95895−06020 BOLT, FLANGE 3 3 3

BOULON

17 90201−06M05 WASHER, PLATE 1 1 1

RONDELLE, PLATE

18 97095−06025 BOLT 1 1 1

BOULON

19 92995−06600 WASHER 1 1 1

RONDELLE

20 90464−09M13 CLAMP 2 2 2

BRIDE

21 6J8−81960−00 RECTIFIER & REGULATOR ASSY 1

REDRESSEUR REGULATEUR CPLT

6G1−81970−61 RECTIFIER ASSY 1

REDRESSEUR COMPLET

6G8−81960−A1 RECTIFIER & REGULATOR ASSY 1

REDRESSEUR REGULATEUR CPLT

22 6G1−82151−00 .FUSE 1 FOR 6G1−81970−61

.FUSIBLE

23 97095−06016 BOLT 2 2

BOULON

MHEHE

C6

FIG. 12 ELECTRICAL 1 PARTIE ELECTRIQUE 1

REF. PART NO. DESCRIPTION REMARKS
NO. NO. PIECES DESCRIPTION REMARQUES

23 97880−05025 SCREW, PAN HEAD 1

VIS, TETE TRONCONIQUE

24 92995−06600 WASHER 2 2

RONDELLE

92990−05600 WASHER, PLATE 1

RONDELLE, PLATE

25 6G8−82150−00 FUSE HOLDER ASSY 1

SUPPORT DE FUSIBLE

26 663−82151−00 .FUSE (12V−20A) 1

.FUSIBLE (12V−20A)

27 6G5−82152−00 HOLDER, FUSE 1 1

SUPPORT, FUSIBLE

MHEHE

C7

FIG. 13 ELECTRICAL 2 PARTIE ELECTRIQUE 2

REF. PART NO. DESCRIPTION REMARKS
NO. NO. PIECES DESCRIPTION REMARQUES

1 6G1−81941−10 STARTER RELAY ASSY 1 1

LANCEUR RELAIS (ENS.)

2 6G1−81952−00 HOLDER, RELAY 1 1

SUPPORT, RELAIS

3 66M−82117−00 WIRE, LEAD 1 1

FIL

4 65W−8182B−00 NUT, SPECIAL 1 1

ECROU, SPECIAL

5 66M−82105−00 WIRE HARNESS 1 1

FAISCEAU DE FILS

6 95380−08700 NUT 1 1

ECROU

7 92990−08600 WASHER, PLATE 1 1

RONDELLE, PLATE

8 65W−81870−00 STARTING SWITCH ASSY 1

CONTACT A CLEF

6G1−42725−00 GROMMET 1

PASSE−FIL

9 6H3−82540−00 NEUTRAL SWITCH ASSY 1

CONTACTEUR DE POINT−MORT

10 6J8−82554−00 STAY, NEUTRAL SWITCH 1

SUPPORT, CONT DE POINT−MORT

11 90109−06M86 BOLT 2

BOULON

12 66M−86111−00 COIL, SOLENOID 1

BOBINE

13 66M−86116−00 .WIRE, PULL 1

.CABLE, TENSION

14 66M−86112−00 STAY, SOLENOID 1

SUPPORT, SOLENOIDE

15 97880−05008 SCREW, PAN HEAD 2

VIS, TETE TRONCONIQUE

16 92990−05600 WASHER, PLATE 2

RONDELLE, PLATE

17 97095−06016 BOLT 2

BOULON

18 92995−06600 WASHER 2

RONDELLE

19 90480−10M13 GROMMET 1

PASSE−FIL

20 66M−86117−00 HOOK, WIRE PULL 1

CROCHET, TENSION DE CABLE

21 93210−03261 O−RING 1

JOINT TORIQUE

22 66M−82590−00 WIRE HARNESS ASSY 1

FAISCEAU DE FILS COMPLET

MHEHE

D1

FIG. 14 STARTING MOTOR DEMARREUR ELECTRIQUE

REF. PART NO. DESCRIPTION REMARKS
NO. NO. PIECES DESCRIPTION REMARQUES

1 66M−81800−01 STARTING MOTOR ASSY 1 1

DEMARREUR ELECTRIQUE COMPLET

2 65W−81826−00 .BOLT 2 2

.BOULON

3 65W−81857−01 .RETAINER 1 1

.ARRETOIR

4 66M−81830−00 .FRONT BRACKET ASSY 1 1

.SUPPORT AVANT

5 65W−81807−00 .GEAR ASSY, STARTING MOTOR 1 1

.PIGNON, DEMARREUR ELECTRIQUE

6 65W−81850−01 .ARMATURE ASSY 1 1

.INDUIT

7 66M−81820−00 .REAR BRACKET ASSY 1 1

.SUPPORT ARRIERE COMPLET

8 65W−81801−00 ..BRUSH SET 1 1

..CHARBON

9 65W−81840−00 ..BRUSH HOLDER ASSY 1 1

..SUPPORT DE CHARBON

10 65W−8182S−00 ..SCREW 2 2

..VIS

11 90119−08M39 BOLT, WITH WASHER 1 1

BOULON, AVEC RONDELLE

12 90109−08M78 BOLT 1 1

BOULON

13 90109−08M85 BOLT 1 1

BOULON

MHEHE

D2

FIG. 15 BOTTOM COWLING CAPOT INFERIEUR

REF. PART NO. DESCRIPTION REMARKS
NO. NO. PIECES DESCRIPTION REMARQUES

1 66M−42710−04−4D BOTTOM COWLING ASSY 1 1 1 WITH TAPPING BOLT

ENS. EMBASE

2 97095−06035 BOLT 2 2 2

BOULON

3 92995−06600 WASHER 2 2 2

RONDELLE

4 97095−06025 BOLT 2 2 2

BOULON

5 92995−06600 WASHER 2 2 2

RONDELLE

6 90480−15M31 GROMMET 4 4 4

PASSE−FIL

7 90387−06034 COLLAR 4 4 4

COLLERETTE

8 66M−42716−00 RUBBER, SEAL 1 1 1 1

JOINT EN CAOUTCHOUC 1

9 66M−42738−00−4D PLATE, FITTING 1 1 1

ETRIER

10 90109−06M82 BOLT 3 3 3

BOULON

11 66M−42725−00 GROMMET 1

PASSE−FIL

66M−42725−10 GROMMET 1

PASSE−FIL

66M−42725−20 GROMMET 1

PASSE−FIL

12 65W−42727−00 GROMMET 1 1

PASSE−FIL

62Y−42727−00 GROMMET 1

PASSE−FIL

13 66M−42815−00−4D LEVER, CLAMP 1 1 1

LEVIER, PRESSE

14 90386−12M37 BUSH 1 1 1

DOUILLE

15 90386−12MA2 BUSH 1 1 1

DOUILLE

16 90206−12052 WASHER, WAVE 1 1 1

RONDELLE, ONDULEE

17 6L2−42816−00 LEVER, CLAMP 1 1 1

LEVIER, PRESSE

18 97095−06012 BOLT 1 1 1

BOULON

19 66M−42766−00 BRACKET 2 1 1 1

SUPPORT 2

20 90109−06M86 BOLT 1 1 1

BOULON

21 6H3−44391−01 NIPPLE, HOSE 1 1 1

RACCORD D’ESSENCE

22 66M−26326−00 GROMMET 1 1

RONDELLE CAOUTCHOUC

65W−26326−10 GROMMET 1

RONDELLE CAOUTCHOUC

23 682−42727−00 GROMMET 1 1 1

PASSE−FIL

MHEHE

D3

FIG. 15 BOTTOM COWLING CAPOT INFERIEUR

REF. PART NO. DESCRIPTION REMARKS
NO. NO. PIECES DESCRIPTION REMARQUES

24 682−42724−00 GROMMET 1 1 1

PASSE−FIL

25 65W−42726−00 GROMMET 1 1

PASSE−FIL

65W−42726−10 GROMMET 1

PASSE−FIL

26 66M−42743−00 BRACKET 2 2 2

SUPPORT

27 90109−06M86 BOLT 2 2 2

BOULON

28 90465−25M57 CLAMP 1 1 1

BRIDE

29 90464−09M13 CLAMP 1 1 1

BRIDE

30 688−42726−10 GROMMET 1 1 1 FOR FLUSHING KIT

PASSE−FIL

31 68T−12572−00 ADAPTER 1 1 1 FLUSHING KIT

ADAPTATEUR

32 69W−12535−00 PLATE 1 1 1 FLUSHING KIT

PLAQUE

33 90167−06002 SCREW, TAPPING 2 2 2 FLUSHING KIT

VIS, TETE FRAISEE

34 90109−06M86 BOLT 1 1 1 FLUSHING KIT

BOULON

35 66M−12481−00 PIPE 1 1 1 1 FLUSHING KIT

DURITE 1

36 90465−11M10 CLAMP 2 2 2 FLUSHING KIT

BRIDE

37 6R3−12580−00 JOINT ASSY 1 1 1 FLUSHING KIT

ARTICULER (ENS.)

38 62Y−82377−00 LABEL 1 1 1

ETIQUETTE

39 6A1−28176−00 LABEL, CAUTION 1 1 1

ETIQUETTE, RECOMMANDATION

40 6E3−8257H−00 PLATE, MARK 1 1 1

PLAQUE, ADHESIF

41 6G8−13444−51 MARK 1 1 1

MAKER

MHEHE

D4

FIG. 16 STEERING DIRECTION

REF. PART NO. DESCRIPTION REMARKS
NO. NO. PIECES DESCRIPTION REMARQUES

1 66M−W0084−00−4D HANDLE STEERING ASSY 1 1

BARRE FRANCHE (ENS.)

2 65W−42101−01−4D HANDLE, STEERING 1 1

POIGNEE

3 90109−06M86 .BOLT 2 2

.BOULON

4 65W−42138−00 LEVER, THROTTLE 1 1

LEVIER, ACCELERATEUR

5 65W−42159−00 STAY 1 1

SUPPORT

6 6G1−42126−00 FRICTION, STEERING HANDLE GRIP 1 1

CUVETTE, POIGNEE DE DIRECTION

7 65W−42125−00 BOLT, FRICTION ADJUSTING 1 1

BOULON

8 91490−16010 PIN, COTTER 1 1

GOUPILLE

9 66M−42177−00 RUBBER, HANDLE 1 1

CAOUTCHOUC, POIGNEE

10 66M−42119−00 GRIP, STEERING HANDLE 1 1

POIGNEE, BARRE FRANCHE

11 689−42137−20 INDICATOR, THROTTLE 1 1

INDICATEUR, ACCELERATION

12 90269−02M09 RIVET 1 1

RIVET

13 90149−05M13 SCREW 1 1

VIS

14 92903−10600 WASHER, PLATE 1 1

RONDELLE, PLATE

15 90501−23215 SPRING, COMPRESSION 1 1

RESSORT, COMPRESSION

16 90386−08032 BUSH 1 1

DOUILLE

17 66M−26311−00 CABLE, THROTTLE 1 2 2

CABLE 1, ACCELERATEUR

18 90446−10M87 HOSE 2 2

DURITE

19 90386−40MA0 BUSH 1 1

DOUILLE

20 90201−43M00 WASHER, PLATE 2 2

RONDELLE, PLATE

21 90206−43M22 WASHER, WAVE 2 2

RONDELLE, ONDULEE

22 90202−43M57 WASHER, PLATE 1 1

RONDELLE, PLATE

23 90386−40M99 BUSH 1 1

DOUILLE

24 66M−42131−01 COVER, HANDLE STEERING 1 1

COUVERCLE

25 95780−10300 NUT, FLANGE 1 1

ECROU

26 95380−10700 NUT 1 1

ECROU

27 66M−44111−01 HANDLE, GEAR SHIFT 1 1

POIGNEE, LEVIER D’EMBRAYAGE

MHEHE

D5

FIG. 16 STEERING DIRECTION

REF. PART NO. DESCRIPTION REMARKS
NO. NO. PIECES DESCRIPTION REMARQUES

28 97095−06030 BOLT 1 1

BOULON

29 92995−06600 WASHER 1 1

RONDELLE

30 90206−10M04 WASHER, WAVE 1 1

RONDELLE, ONDULEE

31 90387−06M78 COLLAR 1 1

COLLERETTE

32 66M−44124−00 LINK, SHIFT ROD 1 1

BIELLETTE

33 92990−06200 WASHER, PLAIN 1 1

RONDELLE, PLATE

34 90468−18008 CLIP 1 1

JONC

35 6E0−44191−11 INDICATOR, SHIFT 1 1

ETIQUETTE, EMBRAYAGE

36 65W−44173−00 LEVER, SHIFT CONTROL 1 FOR NEWTRAL SW.

POIGNEE, INVERSION

37 90254−03M05 PIN, SPRING 1 FOR NEWTRAL SW.

RIVET, TETE TRONCONIQUE

38 65W−82575−01 ENGINE STOP SWITCH ASSY 1 1

COUPE CIRCUIT CPLT

39 682−82556−00 .STOPPER 1 1

.PLAQUETTE

40 689−8257Y−00 .CAP 1 1

.CHAPEAU

41 6E0−83627−41 LABEL, CAUTION 7 1 1

ETIQUETTE, RECOMMANDATION 7

42 6E0−83627−51 LABEL, CAUTION 7 1 1

ETIQUETTE, RECOMMANDATION 7

MHEHE

D6

FIG. 17 CONTROL COMMANDE

REF. PART NO. DESCRIPTION REMARKS
NO. NO. PIECES DESCRIPTION REMARQUES

1 65W−44121−00 LEVER, SHIFT ROD 1 1 1

LEVIER, TIGE D’INVERSION

2 66M−44122−00 BUSHING, SHIFT ROD LEVER 1 1 1

DOUILLE, LEVIER D’EMBRAYAGE

3 90254−03M05 PIN, SPRING 1 1 1

RIVET, TETE TRONCONIQUE

4 6F5−41662−00 BRACKET 2 2 2

SUPPORT

5 90109−06M81 BOLT 4 4 4

BOULON

6 65W−44116−00 SPRING 1 1 1

RESSORT

7 66R−44114−00 STOPPER 1 1 1

PLAQUETTE

8 90109−06M86 BOLT 1 1 1

BOULON

9 66M−44143−00 ROD, SHIFT 1 1 1 S

TIGE D’EMBRAYAGE

66M−44143−10 ROD, SHIFT 1 1 1 L

TIGE D’EMBRAYAGE

10 90170−06015 NUT 1 1 1

ECROU

11 95380−06700 NUT 1 1 1

ECROU

12 90468−18008 CLIP 1 1 1

JONC

13 65W−41638−00 PULLEY 1 1 1

POULIE

14 65W−41283−00 LEVER, FREE ACCEL. 1 1 1

LEVIER

15 661−41262−02 JOINT, CHOKE LEVER 1 1 1

RACCORD, LEVIER DE STARTER

16 90387−06M08 COLLAR 1 1 1

COLLERETTE

17 66M−41211−00 LINK, ACCEL. 1 1 1

BIELLETTE, ACCELERATION

18 65W−14497−01 STAY, THROTTLE WIRE 1 1 1

SUPPORT DE BOISSEAU

19 90201−06M31 WASHER, PLATE 1 1 1

RONDELLE, PLATE

20 97095−06055 BOLT 1 1 1

BOULON

21 92995−06600 WASHER 1 1 1

RONDELLE

22 97095−06010 BOLT 1 1 1

BOULON

23 663−48344−00 CABLE END, REMOTE CONTROL 2

CHAPE CABLE

24 90468−18008 CLIP 2

JONC

25 6H3−48538−00 CLAMP, CABLE 1 1

COLLIER

26 65W−44142−00 JOINT 1

AXE

MHEHE

D7

FIG. 17 CONTROL COMMANDE

REF. PART NO. DESCRIPTION REMARKS
NO. NO. PIECES DESCRIPTION REMARQUES

27 90254−03M05 PIN, SPRING 1

RIVET, TETE TRONCONIQUE

28 65W−44125−00 LEVER, SHIFT ROD 1

LEVIER, TIGE D’INVERSION

29 90387−06M29 COLLAR 1

COLLERETTE

30 90201−06M31 WASHER, PLATE 1

RONDELLE, PLATE

31 97095−06025 BOLT 1

BOULON

32 92995−06600 WASHER 1

RONDELLE

33 66M−44192−00 JOINT, ROD 1 1

RACCORD 1, BIELLETTE

34 90201−05M06 WASHER, PLATE 2

RONDELLE, PLATE

35 90468−10005 CLIP 1

JONC

36 90468−18008 CLIP 1

JONC

MHEHE

E1

FIG. 18 REMOTE CONTROL ATTACHMENT COMMANDE A DISTANCE

REF. PART NO. DESCRIPTION REMARKS
NO. NO. PIECES DESCRIPTION REMARQUES

1 66M−48501−00 REMOTE CONT. ATTACHMENT ASSY. 1 1 AP

COMMANDE A DISTANCE (KIT)

2 65W−44142−00 .JOINT 1 1

.AXE

3 90254−03M05 .PIN, SPRING 1 1

.RIVET, TETE TRONCONIQUE

4 65W−44125−00 .LEVER, SHIFT ROD 1 1

.LEVIER, TIGE D’INVERSION

5 90387−06M29 .COLLAR 1 1

.COLLERETTE

6 90201−06M31 .WASHER, PLATE 1 1

.RONDELLE, PLATE

7 97595−06525 .BOLT, WITH WASHER 1 1

.VIS HEXAGONAL AVC RONDELLE

8 66M−44192−00 .JOINT, ROD 1 1 1

.RACCORD 1, BIELLETTE

9 90201−05M06 .WASHER, PLATE 2 2

.RONDELLE, PLATE

10 90468−10005 .CLIP 1 1

.JONC

11 90468−18008 .CLIP 1 1

.JONC

12 663−48344−00 .CABLE END, REMOTE CONTROL 2 2

.CHAPE CABLE

13 90468−18008 .CLIP 2 2

.JONC

14 6H3−48538−00 .CLAMP, CABLE 1 1 1

.COLLIER

15 66M−42725−20 .GROMMET 1 1

.PASSE−FIL

16 62Y−42727−00 .GROMMET 1 1

.PASSE−FIL

17 65W−26326−10 .GROMMET 1 1

.RONDELLE CAOUTCHOUC

18 65W−42726−10 .GROMMET 1 1

.PASSE−FIL

19 63V−48511−01 .HOOK, STEERING 1 1

.ATTACHE, DIRECTION

20 97575−08535 .BOLT, WITH WASHER 1 1

.VIS HEXAGONAL AVC RONDELLE

21 90185−08057 .NUT, SELF−LOCKING 1 1

.ECROU, AUTO−BLOCANT

MHEHE

E2

FIG. 19 BRACKET 1 SUPPORT 1

REF. PART NO. DESCRIPTION REMARKS
NO. NO. PIECES DESCRIPTION REMARQUES

1 63V−43111−05−4D BRACKET, CLAMP 1 1 1

PRESSE

2 63V−43112−06−4D BRACKET, CLAMP 1 1 1

PRESSE

3 66M−82148−00 WIRE, LEAD 4 1 1 1

FIL 4

4 97885−06008 SCREW, PAN HEAD 1 1 1

VIS, A ENCOCHE

5 97885−08010 SCREW, PAN HEAD 2 2 2

VIS, A ENCOCHE

6 6E0−43118−01 HANDLE, TRANSOM CLAMP 2 2 2

POIGNEE DE VIS DE PRESSE

7 90243−04M01 PIN 2 2 2

GOUPILLE

8 6E7−43116−00 SCREW, TRANSOM CLAMP 2 2 2

VIS DE PRESSE

9 648−43114−01 PAD, TRANSOM CLAMP 2 2 2

RONDELLE D’APPUI

10 63W−43131−10 BOLT, CLAMP BRACKET 1 1 1 FOR RIDE GUIDE

BOULON, PRESSE

11 90202−22M54 WASHER, PLATE 2 2 2

RONDELLE, PLATE

12 90386−22M94 BUSH 1 1 1

DOUILLE

13 90386−22M94 BUSH 1 1 1

DOUILLE

14 66R−43113−00 PLATE, CLAMP BRACKET 1 1 1

PLAQUETTE, PRESSE

15 90185−22043 NUT, SELF−LOCKING 2 2 2

ECROU, AUTO−BLOCANT

16 90387−06M13 COLLAR 1 1 1

COLLERETTE

17 90101−06M29 BOLT 1 1 1

BOULON

18 92995−06600 WASHER 1 1 1

RONDELLE

19 95380−06700 NUT 1 1 1

ECROU

20 6L2−43160−00 TILT ROD ASSY 1 1 1

BROCHE D’INCLINAISON (ENS.)

21 63V−43311−03−4D BRACKET, SWIVEL 1 1 1 1 S

SUPPORT, PIVOT 1

66M−43311−10−4D BRACKET, SWIVEL 1 1 1 1 L

SUPPORT, PIVOT 1

22 66M−43630−01 TILT LEVER ASSY 1 1 1

LEVIER D’INCLINAISON

23 682−43318−01 COVER 1 1 1

CAPUCHON

24 63V−43191−00 SHAFT, STOPPER 1 1 1

AXE, BUTEE

25 90202−07M60 WASHER, PLATE 1 1 1

RONDELLE, PLATE

26 90387−07M07 COLLAR 1 1 1

COLLERETTE

MHEHE

E3

FIG. 19 BRACKET 1 SUPPORT 1

REF. PART NO. DESCRIPTION REMARKS
NO. NO. PIECES DESCRIPTION REMARQUES

27 90386−07M95 BUSH 1 1 1

DOUILLE

28 66M−43350−01 RECEIVER ASSY 1 1 1

RECEIVER ASSY

29 90507−20M00 SPRING, TENSION 1 1 1

RESSORT, TENSION

30 63V−43641−01 LEVER, TILT 1 1 1

LEVIER, INCLINAISON

31 90157−05014 SCREW, PAN HEAD 1 1 1

VIS, TETE TRONCONIQUE

32 99080−05600 CIRCLIP 2 2 2

CIRCLIP

33 63V−43614−10 PLATE, TILT LOCK 1 1 1

ETRIER, VERROUILLAGE MARCHE AR

34 90508−18M41 SPRING, TORSION 1 1 1

RESSORT, TORSION

35 66R−43615−00 PLATE, TILT LOCK 1 1 1

ETRIER, VERROUILLAGE MARCHE AR

36 66R−43611−00 SHAFT, TILT LOCK 1 1 1

AXE, VERROUILLAGE MARCHE AR

37 93430−04M03 CIRCLIP 1 1 1

CLIPS

38 63V−43659−00 SHAFT, REVERSE LOCK 1 1 1

AXE, VERROUILLAGE MARCHE AR

39 99080−05600 CIRCLIP 1 1 1

CIRCLIP

40 66R−43617−00 ROD, TILT LOCK 1 1 1

TIGE

41 63V−43656−00 SPRING, REVERSE LOCK 1 1 1 1

RESSORT

42 63V−43181−00 LEVER, TILT STOP 2 2 2

LEVIER, VERROUILLAGE RELEVAGE

43 90109−06M84 BOLT 4 4 4

BOULON

44 90206−10M24 WASHER, WAVE 2 2 2

RONDELLE, ONDULEE

MHEHE

E4

FIG. 20 BRACKET 2 SUPPORT 2

REF. PART NO. DESCRIPTION REMARKS
NO. NO. PIECES DESCRIPTION REMARQUES

1 93700−06M03 NIPPLE, GREASE 1 1 1

PION

2 63V−42528−00 PLATE, FRICTION 1 1 1

PLAQUE, FRICTION

3 689−43373−01 SEAL, DAMPER 1 1 1

JOINT

4 90105−06M07 BOLT, FLANGE 1 1 1

BOULON

5 66M−82127−00 WIRE, LEAD 2 1 1 1

FIL 2

6 66M−42511−01−4D BRACKET, STEERING 1 1 1 S

CADRE, DIRECTION

66M−42511−11−4D BRACKET, STEERING 1 1 1 L

CADRE, DIRECTION

7 90209−40008 WASHER 1 1 1

RONDELLE

8 65F−42537−00 BUSHING, PIVOT SHAFT 1 1 1

COUSSINET

9 90386−30048 BUSH 1 1 1

DOUILLE

10 93210−29M94 O−RING 1 1 1

JOINT TORIQUE

11 90386−30M60 BUSH 1 1 1

DOUILLE

12 90116−08M54 BOLT, STUD 2 2 2

GOUJON

13 90201−08M06 WASHER, PLATE 2 2 2

RONDELLE, PLATE

14 66M−44514−00−4D MOUNT DAMPER, UPPER SIDE 1 1 1

SILENT−BLOC, SUPERIEUR LATERAL

15 66M−44526−00 PLATE 1 1 1

PLAQUE

16 95380−08600 NUT 2 2 2

ECROU

17 66M−44366−00 DAMPER, WATER SEAL 1 1 1

JOINT, TUBE D’EAU

18 97075−06025 BOLT 3 3 3

BOULON

19 92995−06600 WASHER 3 3 3

RONDELLE

20 66M−44551−00−4D HOUSING, LOWER MOUNT RUBBER 2 2 2

BOITIER, SILENT−BLOC INFERIEUR

21 66M−44557−00 MOUNT DAMPER, LOWER FRONT 1 1 1

SILENT−BLOC, INFERIEUR AVANT

22 682−44555−30 MOUNT DAMPER, LOWER SIDE 2 2 2

SILENT−BLOC, INFERIEUR LATERAL

23 90119−08M45 BOLT, WITH WASHER 2 2 2

BOULON, AVEC RONDELLE

24 90119−08M46 BOLT, WITH WASHER 2 2 2

BOULON, AVEC RONDELLE

25 90179−08M34 NUT 4 4 4

ECROU

26 63V−48511−01 HOOK, STEERING 1

ATTACHE, DIRECTION

MHEHE

E5

FIG. 20 BRACKET 2 SUPPORT 2

REF. PART NO. DESCRIPTION REMARKS
NO. NO. PIECES DESCRIPTION REMARQUES

27 97075−08035 BOLT 1

BOULON

28 92995−08600 WASHER 1

RONDELLE

29 90185−08057 NUT, SELF−LOCKING 1

ECROU, AUTO−BLOCANT

MHEHE

E6

FIG. 21 UPPER CASING FOURREAU

REF. PART NO. DESCRIPTION REMARKS
NO. NO. PIECES DESCRIPTION REMARQUES

1 66M−45111−00−4D CASING, UPPER 1 1 1 S

FOURREAU

66M−45111−10−4D CASING, UPPER 1 1 1 L

FOURREAU

2 66M−45113−00 GASKET, UPPER CASING 1 1 1

JOINT, TUBE D’ARBRE

3 97575−08545 BOLT, WITH WASHER 6 6 6

VIS HEXAGONAL AVC RONDELLE

4 93606−12019 PIN, DOWEL 2 2 2

GOUPILLE

5 66M−45126−00 PLATE, SEAL DAMPER 1 1 1

PLAQUETTE

6 66M−45115−00 GASKET, UPPER CASING 1 1 1

JOINT, TUBE D’ARBRE

7 66M−45136−00 PIPE 1 1 1

DURITE

8 66M−45128−00 SEAL 2 1 1 1

JOINT 2

9 90157−06M06 SCREW, PAN HEAD 1 1 1

VIS, TETE TRONCONIQUE

MHEHE

E7

FIG. 22 OIL PAN VENTILATEUR D’HUILE

REF. PART NO. DESCRIPTION REMARKS
NO. NO. PIECES DESCRIPTION REMARQUES

1 66M−41137−00−5B GUIDE, EXHAUST 1 1 1

COLLECTEUR D’ECHAPPEMENT

2 93101−12M63 OIL SEAL 1 1 1

JOINT SPY

3 93606−12019 PIN, DOWEL 2 2 2

GOUPILLE

4 66M−11355−00 SEAL, CYLINDER 1 1 1 1

JOINT, SPY CYLINDRE

5 97095−06020 BOLT 2 2 2

BOULON

6 92995−06600 WASHER 2 2 2

RONDELLE

7 66M−41131−01−94 MANIFOLD, EXT. 1 1 1 1

PIPE D’ECHAPPEMENT

8 66M−41133−00 GASKET, EXHAUST MANIFOLD 1 1 1 1

JOINT, PIPE D’ECHAPPEMENT

9 97095−06016 BOLT 2 2 2

BOULON

10 92995−06600 WASHER 2 2 2

RONDELLE

11 66M−41138−00 SEAL, EXT. 1 1 1 1

JOINT DE GROUPE 1

12 66M−13421−00 STRAINER 2 1 1 1

FILTRE 2

13 66M−13417−00 COVER, STRAINER 1 1 1

COUVERCLE, FILTRE

14 66M−13416−00 PIPE, OIL 1 1 1 1

DURITE A HUILE

15 66M−24351−00 BAND 1 2 2 2

COLLIER 1

16 6G8−11575−00 RELIEF VALVE ASSY 1 1 1

SOUPAPE DE RENTREE D’AIR

17 90340−14M06 PLUG, STRAIGHT SCREW 1 1 1

PLOT, FILETE DROIT

18 90430−14M09 GASKET 1 1 1

JOINT

19 66M−15316−00 DAMPER, ENGINE MOUNT 1 1 1 1

AMORTISSEUR DE SUPPORT

20 66M−15362−00 PLUG, OIL LEVEL 1 1 1

PLOT, NIVEAU D’HUILE

MHEHE

F1

FIG. 23 LOWER CASING. DRIVE 1 BOITIER D’HELICE, TRANSMISSION 1

REF. PART NO. DESCRIPTION REMARKS
NO. NO. PIECES DESCRIPTION REMARQUES

1 66M−45300−01−4D LOWER UNIT ASSY 1 1 1 S

UNITE INFERIEURE (ENS.)

66M−45300−11−4D LOWER UNIT ASSY 1 1 1 L

UNITE INFERIEURE (ENS.)

2 66M−45311−00−4D CASING, LOWER 1 1 1 S

BOITIER D’HELICE

63V−45311−01−4D CASING, LOWER 1 1 1 L

BOITIER D’HELICE

3 93315−314V8 BEARING 1 1 1

ROULEMENT

4 63V−45536−00 SLEEVE, DRIVE SHAFT 1 1 1

MANCHON, ARBRE MOTEUR

5 93341−41414 BEARING 1 1 1

CERVEAUX DE DIRECTION

6 6E8−45587−10−13 SHIM (T:1.13MM) 1 1 1 UR

CALE (T:1.13MM)

6E8−45587−10−20 SHIM (T:1.20MM) 1 1 1 UR

CALE (T:1.20MM)

7 93332−00005 BEARING 1 1 1

ROULEMENT

8 664−45567−01−10 SHIM (T:0.10MM) 1 1 1 UR

CALE (T:0.10MM)

664−45567−01−12 SHIM (T:0.12MM) 1 1 1 UR

CALE (T:0.12MM)

664−45567−01−15 SHIM (T:0.15MM) 1 1 1 UR

CALE (T:0.15MM)

664−45567−01−18 SHIM (T:0.18MM) 1 1 1 UR

CALE (T:0.18MM)

664−45567−01−30 SHIM (T:0.30MM) 1 1 1 UR

CALE (T:0.30MM)

664−45567−01−40 SHIM (T:0.40MM) 1 1 1 UR

CALE (T:0.40MM)

664−45567−01−50 SHIM (T:0.50MM) 1 1 1 UR

CALE (T:0.50MM)

9 90340−08002 PLUG, STRAIGHT SCREW 2 2 2

PLOT, FILETE DROIT

10 90430−08020 GASKET 2 2 2

JOINT

11 63V−44301−00 WATER PUMP HOUSING COMP. 1 1 1

CARTER, POMPE A EAU (ENS)

12 63V−44322−00 .INSERT, CARTRIDGE 1 1 1

.CUVETTE

13 647−44366−00 DAMPER, WATER SEAL 1 1 1

JOINT, TUBE D’EAU

14 63V−44352−01 IMPELLER 1 1 1

TURBINE

15 664−44338−00 KEY , WOODRUFF 1 1 1

CLAVETTE, VOLANT

16 93210−44398 O−RING 1 1 1

JOINT TORIQUE

17 63V−44323−00 OUTER PLATE, CARTRIDGE 1 1 1

PLAQUE EXTERIEURE

18 93604−12M07 PIN, DOWEL 2 2 2

CLAVETTE

MHEHE

F2

FIG. 23 LOWER CASING. DRIVE 1 BOITIER D’HELICE, TRANSMISSION 1

REF. PART NO. DESCRIPTION REMARKS
NO. NO. PIECES DESCRIPTION REMARQUES

19 97080−08045 BOLT 4 4 4

BOULON

20 63V−44328−00 PLATE 2 2 2

PLAQUETTE

21 63V−45331−00−5B HOUSING, BEARING 1 1 1

FLASQUE, ROULEMENT

22 90381−14020 .BUSH, SOLID 1 1 1

.DOUILLE, SOLIDE

23 93101−20048 OIL SEAL 2 2 2

JOINT SPY

24 63V−45315−A0 PACKING, LOWER CASING 1 1 1

JOINT, BOITIER D’HELICE

25 93210−06ME6 O−RING 1 1 1

JOINT TORIQUE

26 97080−08025 BOLT 2 2 2

BOULON

27 63V−44150−00 SHIFT CAM ASSY 1 1 1 S

CAME D’INVERSION

66M−44150−10 SHIFT CAM ASSY 1 1 1 L

CAME D’INVERSION

28 63V−45510−01 DRIVE SHAFT ASSY 1 1 1 S

ARBRE MOTEUR (ENS.)

63V−45510−11 DRIVE SHAFT ASSY 1 1 1 L

ARBRE MOTEUR (ENS.)

29 63V−45551−00 PINION 1 1 1

PIGNON D’ATTAQUE

30 90179−08M06 NUT 1 1 1

ECROU

31 6E7−45560−01 GEAR 1 1 1

PIGNON

32 6E7−45571−00 GEAR 1 1 1

PIGNON

33 626−45577−00−01 SHIM (T:0.10MM) 1 1 1 UR

CALE (T:0.10MM)

626−45577−00−03 SHIM (T:0.30MM) 1 1 1 UR

CALE (T:0.30MM)

626−45577−00−05 SHIM (T:0.50MM) 1 1 1 UR

CALE (T:0.50MM)

34 90201−17682 WASHER, PLATE 1 1 1

RONDELLE, PLATE

35 683−45611−00 SHAFT, PROPELLER 1 1 1

ARBRE, HELICE

36 650−45635−00 PLUNGER, SHIFT 1 1 1

POUSSOIR D’EMBRAYAGE

37 682−45631−00 CLUTCH, DOG 1 1 1

CRABOT

38 90250−05010 PIN, STRAIGHT 1 1 1

GOUPILLE, DROITE

39 648−45633−00 RING, CROSS PIN 1 1 1

JONC, GOUPILLE CRABOT

40 90501−14M06 SPRING, COMPRESSION 1 1 1

RESSORT, COMPRESSION

41 683−45361−02−4D CAP, LOWER CASING 1 1 1

COUVERCLE, BOITIER D’HELICE

MHEHE

F3

FIG. 23 LOWER CASING. DRIVE 1 BOITIER D’HELICE, TRANSMISSION 1

REF. PART NO. DESCRIPTION REMARKS
NO. NO. PIECES DESCRIPTION REMARQUES

42 93306−00501 BEARING (B6005) 1 1 1

ROULEMENT (B6005)

43 93315−317U2 BEARING 1 1 1

ROULEMENT

44 93101−17054 OIL SEAL 2 2 2

JOINT SPY

45 93210−57M09 O−RING 1 1 1

JOINT TORIQUE

46 93210−56M80 O−RING 1 1 1

JOINT TORIQUE

47 97095−06020 BOLT 2 2 2

BOULON

48 92995−06600 WASHER 2 2 2

RONDELLE

MHEHE

F4

FIG. 24 LOWER CASING. DRIVE 2 BOITIER D’HELICE, TRANSMISSION 2

REF. PART NO. DESCRIPTION REMARKS
NO. NO. PIECES DESCRIPTION REMARQUES

1 66M−44361−00 TUBE, WATER 1 1 1 S

TUBE D’EAU

66M−44361−10 TUBE, WATER 1 1 1 L

TUBE D’EAU

2 63V−44365−10 DAMPER, WATER SEAL 1 1 1

JOINT, TUBE D’EAU

3 63V−44368−00 RUBBER, WATER SEAL 4 1 1 1

CAOUTCHOUC EAU JUNTA 4

4 93604−12M07 PIN, DOWEL 2 2 2

CLAVETTE

5 97075−08030 BOLT 4 4 4

BOULON

6 92995−08600 WASHER 4 4 4

RONDELLE

7 6G1−45214−00 COVER, WATER INLET 1 1 1

GRILLE, ENTREE D’EAU

8 63V−45215−00 COVER, WATER INLET 1 1 1

GRILLE, ENTREE D’EAU

9 90152−05M04 SCREW, COUNTERSUNK 1 1 1

VIS, TETE NOYEE

10 90185−05002 NUT, SELF−LOCKING 1 1 1

ECROU, AUTO−BLOCANT

11 61N−45251−01 ANODE 1 1 1

ANODE

12 95895−06030 BOLT, FLANGE 1 1 1

BOULON

13 92990−06300 WASHER, INTERNAL TOOTH 1 1 1

RONDELLE, DENTURE INTERNE

14 63V−45375−00 DAMPER, SEAL 1 1 1

BOURRELET, CAOUTCHOUC

15 6E7−45987−01 SPACER 1 1 1

ENTRETOISE

16 90201−10M01 WASHER, PLATE 1 1 1

RONDELLE, PLATE

17 90171−10M01 NUT, CASTLE 1 1 1

ECROU, CRENELE

18 91490−30020 PIN, COTTER 1 1 1

GOUPILLE

19 63V−45945−00−EL PROPELLER (3X9−1/4”X9”−J) 1 1 1 UR

HELICE (3X9−1/4”X9”−J)

63V−45947−00−EL PROPELLER (3X9−1/4”X8”−J) 1 1 1 UR

HELICE (3X9−1/4”X8”−J)

683−45941−00−EL PROPELLER (3X9−1/4”X12”−J) 1 1 1 UR

HELICE (3X9−1/4”X12”−J)

683−45943−00−EL PROPELLER (3X9−1/4”X10−1/2”−J) 1 1 1 UR

HELICE (3X9−1/4”X10−1/2”−J)

683−45945−00−EL PROPELLER (3X9−1/4”X9”−J) 1 1 1 UR

HELICE (3X9−1/4”X9”−J)

683−45952−00−EL PROPELLER (3X9−1/4”X9−3/4”−J) 1 1 1 UR

HELICE (3X9−1/4”X9−3/4”−J)

20 66M−45371−00 TAB−TRIM 1 1 1 S

ANODE DERIVE

21 97095−06016 BOLT 2 2 2 S

BOULON

MHEHE

F5

FIG. 24 LOWER CASING. DRIVE 2 BOITIER D’HELICE, TRANSMISSION 2

REF. PART NO. DESCRIPTION REMARKS
NO. NO. PIECES DESCRIPTION REMARQUES

22 92995−06600 WASHER 2 2 2 S

RONDELLE

MHEHE

F6

FIG. 25 FUEL TANK 1 RESERVOIR A CARBURANT 1

REF. PART NO. DESCRIPTION REMARKS
NO. NO. PIECES DESCRIPTION REMARQUES

1 6YL−24201−02 FUEL TANK ASSY (12L) 1 1 1 AP

RESERVOIR A ESSENCE (ENS.) 12L

2 6YL−24610−00 .CAP ASSY 1 1 1

.BOUCHON

3 6YL−24641−00 .GASKET, CAP 1 1 1 1

.JOINT 1, BOUCHON

4 6YL−24260−01 .FUEL METER ASSY 1 1 1

.INDICATEUR DE CARBURANT

5 90157−05M16 .SCREW, PAN HEAD 4 4 4

.VIS, TETE TRONCONIQUE

6 6YL−24329−00 .SEAL 4 4 4

.JOINT

7 6YL−24268−01 .GASKET, FUEL METER 1 1 1

.JOINT, JAUGE A CARBURANT

8 6YL−24306−52 FUEL PIPE COMP. 1 1 1 1 AP

DURITE A ESSENCE 1

MHEHE

F7

FIG. 26 FUEL TANK 2 RESERVOIR A CARBURANT 2

REF. PART NO. DESCRIPTION REMARKS
NO. NO. PIECES DESCRIPTION REMARQUES

1 6YK−24201−10 FUEL TANK ASSY (25L) 1 1 1 AP *ECM−”F15A ONLY”

2 6YL−24268−01 .GASKET, FUEL METER 1 1 1

3 6YK−24610−10 .CAP ASSY 1 1 1 WITHOUT INDICATOR

4 6YL−24641−00 .GASKET, CAP 1 1 1 1

5 6YK−24260−01 .FUEL METER ASSY 1 1 1

6 90157−05M16 .SCREW, PAN HEAD 4 4 4

7 6YL−24329−00 .SEAL 4 4 4

8 6YL−24306−52 FUEL PIPE COMP. 1 1 1 1 AP *ECM−”F15A ONLY”

*

ECM: FOR EMISSION CONTROL MODEL.

*

ECM: POUR MODELE CONTROLE D’ EMISSIONS.

RESERVOIR A ESSENCE (ENS.) 25L

.JOINT, JAUGE A CARBURANT

.BOUCHON

.JOINT 1, BOUCHON

.INDICATEUR DE CARBURANT

.VIS, TETE TRONCONIQUE

.JOINT

DURITE A ESSENCE 1

MHEHE

A4

FIG. 27 STEERING GUIDE FIXATION DE DIRECTION

REF. PART NO. DESCRIPTION REMARKS
NO. NO. PIECES DESCRIPTION REMARQUES

1 63V−61350−00 STEERING GUIDE ATTACHMENT KIT 1 AP

FIXATIONS DE DIRECTION

2 90201−10M20 .WASHER, PLATE 2

.RONDELLE, PLATE

3 90185−09M01 .NUT, SELF−LOCKING 2

.ECROU, AUTO−BLOCANT

4 90170−09M03 .NUT 1

.ECROU

5 90387−10M42 .COLLAR 1

.COLLERETTE

6 6E5−61355−00 .BOLT 1

.BOULON

7 90201−10M63 .WASHER, PLATE 1

.RONDELLE, PLATE

8 6E5−43145−01 .CAP, CLAMP BRACKET 1

.CAPUCHON, PRESSE

9 93210−16275 .O−RING 1

.JOINT TORIQUE

MHEHE

A5

FIG. 28 REMOTE CONTROL BOX BOITIER DE COMMANDE A DISTANCE

REF. PART NO. DESCRIPTION REMARKS
NO. NO. PIECES DESCRIPTION REMARQUES

1 703−48203−15 REMOTE CONTROL ASSY 1 AP

BOITIER DE COMMANDE A DISTANCE

2 701−48310−80 CABLE, REMOTE CONTROL L=10F 2 UR

CABLE, COMMANDE A DISTANCE:10F

701−48310−90 CABLE, REMOTE CONTROL L=11F 2 UR

CABLE, COMMANDE A DISTANCE:11F

701−48320−00 CABLE, REMOTE CONTROL L=12F 2 UR

CABLE, COMMANDE A DISTANCE:12F

MHEHE

A6

FIG. 29 REMOTE CONTROL ASSY BOITIER DE COMMANDE A DISTANCE

REF. PART NO. DESCRIPTION REMARKS
NO. NO. PIECES DESCRIPTION REMARQUES

1 703−48203−15 REMOTE CONTROL ASSY 1 AP

BOITIER DE COMMANDE A DISTANCE

2 703−48261−01 .ARM, THROTTLE 1

.BRAS, ACCELERATION

3 703−48153−00 .SHAFT, FREE ACCEL. 1

.AXE

4 703−48235−00 .BUSHING 1

.COUSSINET

5 703−48268−00 .SPACER 1

.ENTRETOISE

6 703−48264−00 .THROTTLE, FRICTION 1

.ACCELERATION

7 95380−05600 .NUT 1

.ECROU

8 97380−05025 .BOLT 1

.BOULON, HEXAGONAL

9 703−48265−00 .SHAFT, FRICTION 1

.AXE, COPILOTE

10 93430−06024 .CIRCLIP 3

.CLIPS

11 703−48245−00 .PLATE, LOCK 1

.PLAQUE, VERROU

12 703−48252−00 .ROLLER, CAM 1

.POULIE

13 701−48248−00 .ROLLER, FREE ACCEL. 1

.POULIE

14 703−48198−00 .WASHER, WAVE 1

.RONDELLE, ELASTIQUE ONDULEE

15 703−48243−00 .BUSHING 1

.COUSSINET

16 703−48236−00 .BUSHING 1 2

.POULIE

17 703−48189−00 .RETAINER 1

.FLASQUE

18 703−48234−00 .ROLLER, DETENT 1

.POULIE

19 703−48345−01 .CABLE END, REMOTE CONTROL 2 2

.CHAPE CABLE

20 703−48358−00 .ANCHOR, CABLE 1

.COLLIER

21 703−48244−00 .SPRING, FREE ACCEL. 1

.RESSORT

22 703−48238−00 .SPRING, DETENT 5

.RESSORT

23 703−48246−00 .SPACER 1

.ENTRETOISE

24 703−48227−00 .SPRING, NEUTRAL LOCK 1

.RESSORT

25 703−48226−00 .PLATE, STOPPER 1

.PLAQUETTE

26 703−48222−00 .GRIP, CONTROL LEVER 1 SINGLE

.POIGNEE, COMMANDE LEVIER

27 703−48223−00 .LOCK, NEUTRAL 1

.VERROU, NEUTRAL

MHEHE

A7

FIG. 29 REMOTE CONTROL ASSY BOITIER DE COMMANDE A DISTANCE

REF. PART NO. DESCRIPTION REMARKS
NO. NO. PIECES DESCRIPTION REMARQUES

28 703−48225−00 .COVER 1

.COUVERCLE

29 703−48219−00 .COVER, LEAD 1

.COUVERCLE

30 703−48281−00 .SCREW 2

.VIS

31 703−48282−00 .SCREW 7

.VIS

32 97380−08030 .BOLT 1

.BOULON, HEXAGONAL

33 92990−08600 .WASHER, PLATE 1

.RONDELLE, PLATE

34 98580−04010 .SCREW, PAN HEAD 3

.VIS

35 98580−04006 .SCREW, PAN HEAD 2

.VIS

36 98580−05010 .SCREW, PAN HEAD 1

.VIS

37 98580−03015 .SCREW, PAN HEAD 2

.VIS

38 703−48291−10 .SCREW (M6) 3

.VIS (M6)

39 95380−06600 .NUT, HEXAGON 3

.ECROU

40 703−48293−10 .SPACER, REMOTE CONTROL 1 SINGLE

.ENTRETOISE

41 701−48287−00 .WASHER 3

.RONDELLE

42 703−48215−00 .GRAPHIC 1

.ADHESIF

43 703−82510−33 .MAIN SWITCH ASSY 1

.CONTACTEUR A CLEF COMPLET

44 703−82577−00 ..CAP, KEY 1

..CABOCHON

45 703−82531−00 .WIRE, LEAD 1

.FIL

46 688−82575−01 .ENGINE STOP SWITCH ASSY 1

.COUPE CIRCUIT CPLT

47 682−82556−00 ..STOPPER 1

..PLAQUETTE

48 688−82586−21 .EXTENSION, WIRE HARNESS 1 L:5M (7P)

.EXTENSION, FAISCEAU DE FILS

49 703−82540−00 .NEUTRAL SWITCH ASSY 1

.CONTACTEUR DE POINT−MORT

50 703−83383−02 .BUZZER 1

.RONFLEUR

51 703−48284−00 .GROMMET 1

.PASSE−FIL

52 703−82591−00 .BAND 1

.COLLIER

53 703−82592−00 .BAND 1

.COLLIER

54 703−48224−00 .COVER, CONTROL LEVER 1 WITHOUT PT/T SW.

.COUVERCLE

MHEHE

B1

FIG. 29 REMOTE CONTROL ASSY BOITIER DE COMMANDE A DISTANCE

REF. PART NO. DESCRIPTION REMARKS
NO. NO. PIECES DESCRIPTION REMARQUES

55 703−48221−00 .LEVER, CONTROL 1

.LEVIER, COMMANDE

56 703−48152−00 .KNOB, FREE ACCEL. 1

.BOUTON

57 703−48212−00 .BACK PLATE 1 1

.PLAQUETTE 1

58 703−48213−00 .BACK PLATE 2 1

.PLAQUETTE 2

59 703−48271−00 .ARM, SHIFT 1

.BRAS

60 703−48211−01 .HOUSING,1 1

.CORPS

61 703−48232−00 .GEAR 1

.PIGNON

MHEHE

B2

FIG. 30 REPAIR KIT 1 KITS DE REPARATION 1

REF. PART NO. DESCRIPTION REMARKS
NO. NO. PIECES DESCRIPTION REMARQUES

1 66M−W0001−01 POWER HEAD GASKET KIT 1 1 1

POCHETTE DE JINTS TETE MOTRICE

2 66M−11357−00 .SEAL, CYLINDER 3 1 1 1

.JOINT, SPY CYLINDRE

3 66M−11351−00 .GASKET, CYLINDER 1 1 1

.JOINT, D’EMBASE

4 62Y−12414−00 .GASKET, COVER 1 1 1

.JOINT, COUVERCLE

5 66M−41114−00 .GASKET, EXHAUST OUTER COVER 1 1 1

.JOINT, COUVERCLE D’ECHAPPEMEN

6 66M−11181−00 .GASKET, CYLINDER HEAD 1 1 1 1

.JOINT, DE CULASSE 1

7 66M−11356−00 .SEAL, CYLINDER 2 1 1 1

.JOINT, SPY CYLINDRE

8 93210−24M79 .O−RING 1 1 1

.JOINT TORIQUE

9 93102−35M51 .OIL SEAL 1 1 1

.JOINT SPY

10 93102−25M52 .OIL SEAL 1 1 1

.JOINT SPY

11 66M−13645−00 .GASKET, MANIFOLD 1 1 1 1

.JOINT, TUBULURE 1

12 66M−13646−00 .GASKET, MANIFOLD 2 2 2 2

.JOINT, TUBULURE 2

13 93210−35M86 .O−RING 1 1 1

.JOINT TORIQUE

14 93102−18M21 .OIL SEAL 1 1 1

.JOINT SPY

15 90280−03M01 .KEY, WOODRUFF 1 1 1

.CLAVETTE, DEMI−LUNE

16 66M−13329−10 .GASKET, PUMP COVER 1 1 1

.JOINT, COUVERCLE DE POMPE

17 93210−20M65 .O−RING 1 1 1

.JOINT TORIQUE

MHEHE

B3

FIG. 31 REPAIR KIT 2 KITS DE REPARATION 2

REF. PART NO. DESCRIPTION REMARKS
NO. NO. PIECES DESCRIPTION REMARQUES

1 66M−W0093−01 CARBURETOR REPAIR KIT 1 1 1

KIT DE REPARATION CARBURATEUR

2 66M−14398−00 .GASKET 1 1 1

.JOINT

3 6L2−14398−00 .GASKET 1 1 1

.JOINT

4 66M−14377−00 .STOPPER 1 1 1

.BUTEE

5 66M−14384−00 .GASKET, FLOAT CHAMBER 1 1 1

.JOINT, CUVE DE FLOTTEUR

6 6L2−14385−00 .FLOAT 1 1 1

.FLOTTEUR

7 6E5−14386−01 .PIN, FLOAT 1 1 1

.AXE, FLOTTEUR

8 6L2−14392−00 .VALVE, NEEDLE 1 1 1

.POINTEAU

9 62Y−14399−00 .GASKET 1 1 1

.JOINT

10 5H0−14323−00 .SCREW, AIR ADJUSTING 1 1 1

.VIS DE DOSEUR D’AIR

11 97980−04112 .SCREW, WITH WASHER 4 4 4

.VIS, AVEC RONDELLE

12 62Y−14397−00 .O−RING 1 1 1

.JOINT TORIQUE

13 6F5−14397−00 .O−RING 1 1 1

.JOINT TORIQUE

14 66M−14827−00 .FILTER 1 1 1

.FILTRE

MHEHE

B4

FIG. 32 REPAIR KIT 3 KITS DE PEPARATION 3

REF. PART NO. DESCRIPTION REMARKS
NO. NO. PIECES DESCRIPTION REMARQUES

1 66M−W0001−20 LOWER UNIT GASKET KIT 1 1 1

POCHETTE DE JOINTS EMBASE

2 93101−12M63 .OIL SEAL 1 1 1

.JOINT SPY

3 66M−41133−00 .GASKET, EXHAUST MANIFOLD 1 1 1 1

.JOINT, PIPE D’ECHAPPEMENT

4 66M−41138−00 .SEAL, EXT. 1 1 1 1

.JOINT DE GROUPE 1

5 90430−14M09 .GASKET 1 1 1

.JOINT

6 66M−45113−00 .GASKET, UPPER CASING 1 1 1

.JOINT, TUBE D’ARBRE

7 66M−45115−00 .GASKET, UPPER CASING 1 1 1

.JOINT, TUBE D’ARBRE

8 66M−45128−00 .SEAL 2 1 1 1

.JOINT 2

9 90430−08020 .GASKET 2 2 2

.JOINT

10 63V−44322−00 .INSERT, CARTRIDGE 1 1 1

.CUVETTE

11 63V−44352−01 .IMPELLER 1 1 1

.TURBINE

12 93210−44398 .O−RING 1 1 1

.JOINT TORIQUE

13 63V−44323−00 .OUTER PLATE, CARTRIDGE 1 1 1

.PLAQUE EXTERIEURE

14 93101−20048 .OIL SEAL 2 2 2

.JOINT SPY

15 63V−45315−A0 .PACKING, LOWER CASING 1 1 1

.JOINT, BOITIER D’HELICE

16 93210−06ME6 .O−RING 1 1 1

.JOINT TORIQUE

17 93101−17054 .OIL SEAL 2 2 2

.JOINT SPY

18 93210−57M09 .O−RING 1 1 1

.JOINT TORIQUE

19 93210−56M80 .O−RING 1 1 1

.JOINT TORIQUE

20 63V−44365−10 .DAMPER, WATER SEAL 1 1 1

.JOINT, TUBE D’EAU

21 63V−44368−00 .RUBBER, WATER SEAL 4 1 1 1

.CAOUTCHOUC EAU JUNTA 4

22 63V−W0078−00 WATER PUMP REPAIR KIT 1 1 1

KIT DE REPARATION DE LA POMPE

23 647−44366−00 .DAMPER, WATER SEAL 1 1 1

.JOINT, TUBE D’EAU

24 97080−08045 .BOLT 4 4 4

.BOULON

25 63V−44322−00 .INSERT, CARTRIDGE 1 1 1

.CUVETTE

26 63V−44352−01 .IMPELLER 1 1 1

.TURBINE

27 63V−44323−00 .OUTER PLATE, CARTRIDGE 1 1 1

.PLAQUE EXTERIEURE

MHEHE

B5

FIG. 32 REPAIR KIT 3 KITS DE PEPARATION 3

REF. PART NO. DESCRIPTION REMARKS
NO. NO. PIECES DESCRIPTION REMARQUES

28 664−44338−00 .KEY, WOODRUFF 1 1 1

.CLAVETTE, VOLANT

MHEHE

B6

NUMERICAL INDEX
INDEX NUMERIQUE

PART NO.
NO. PIECES

66M−W0001−01 30 −1
66M−W0001−20 32 −1
66M−W0070−20 1− 10
63V−W0078−00 32 − 22
66M−W0084−00−4D16 −1
66M−W009A−02−1S4−1
66M−W009A−12−1S4−1
66M−W009B−11−1S2−1
66M−W0093−01 31− 1
66M−11111−01−1S4− 2
66M−11111−11−1S4− 2
66M−11133−104− 3
66M−11168−00−1S2−16
66M−11181−00 4 − 5

66M−11191−00−1S4− 9
66M−11325−00 2 − 8
66M−11327−00−94 2 − 9
66M−11328−00 2 −10
66M−11351−00 2 − 21

66M−11355−00 22− 4
66M−11356−00 4 −10

66M−11357−00 2 −18

676−11372−00 2 − 26
66M−11411−00 3 − 3
66M−11416−00 3 − 4
66M−11416−103− 4
66M−11416−20 3 − 4
66M−11536−108− 7
66M−11537−00−94 8 − 3
66M−11557−00 8 − 8
6G8−11575−00 22 −16
66M−11603−00 3 − 9
66M−11604−00 3 − 9
66M−11605−00 3 − 9
66M−11631−00−96 3 − 8
634−11633−00 3 −10
66M−11635−00 3 − 8
66M−11636−00 3 − 8
66M−11650−00 3 − 5
66M−11654−00 3 − 6
66M−12111−00 5 −1
66M−12113−00 5 − 4
66M−12116−00 5 − 3
30X−12117−00 5 − 5

REF.

NO.

30 − 6

30 − 3

30 − 7

30 − 2

PART NO.
NO. PIECES

30X−12118−00 5 − 6
51Y−12119−00 5 − 7
66M−12121−00 5 − 2
66M−12138−60 4 −17
66M−12146−00 5 − 8
66M−12151−105−14
62Y−12158−00 5 −16
62Y−12159−00 5 −15
66M−12170−00 8 − 2
66M−12171−108− 2
66M−12411−00 2 − 22
6H3−12413−00−1S2− 23
62Y−12414−00 2 − 24

66M−12481−00 15− 35
66M−12535−00 2 −15
69W−12535−00 15 − 32
68T−12572−00 15 − 31
6R3−12580−00 15 − 37
66M−13131−109−14
66M−13300−108−15
66M−13329−108−16

66M−13416−00 22−14
66M−13417−00 22−13
66M−13421−00 22−12
67F−13434−02 1− 13
6G8−13437−64 10 − 38
5GH−13440−00 2 − 33
6G8−13444−5115 − 41
66M−13641−00−94 6 −1
66M−13645−00 6 − 2

66M−13646−00 6 − 6

6L2−14157−00 7 −19
66M−14157−00 7 − 36
646−14212−01 7 − 31
66M−14225−00 7 −13
66M−14239−00 7 −12
66M−14271−00 6 − 7
69V−14271−00 6 − 7
66M−14272−00 7 − 33
6G8−14275−02 7 −11
66M−14301−00 7 −1
66M−14301−20 7 −1
66N−14301−00 7 −1
62Y−14321−00 7 − 27

REF.

NO.

30 − 4

30 −16

30 −11

30 −12

PART NO.
NO. PIECES

5H0−14323−00 7 − 25

62Y−14323−107− 25
6E7−14325−00 9 −18
66M−14325−00 7 − 7
30X−14334−00 7 − 26
66M−14341−00 7 − 21
66M−14341−107− 21
66N−14341−00 7 − 21
66M−14342−23 7 − 23
66M−14343−51 7 − 22
66M−14343−52 7 − 22
66N−14343−34 7 − 22
62Y−14355−00 7 − 24
66M−14355−00 7 − 24
66M−14368−01 7 −10
66M−14377−00 7 − 8

66M−14381−02 7 − 2
66N−14381−00 7 − 2
62Y−14383−00 7 − 3
677−14383−01 7 − 5
66M−14384−00 7 −14

6L2−14385−00 7 −15

6E5−14386−01 7 −16

6L2−14392−00 7 −17

6F5−14397−00 7 − 32

62Y−14397−00 7 − 29

6L2−14398−00 7 − 6

66M−14398−00 7 − 4

62Y−14399−00 7 − 20

66M−14427−60 10− 37
66M−14440−00 6 − 8
6G8−14457−00 7 − 38
66M−14477−00 6 −12
65W−14497−0117 −18
66M−14827−00 7 − 34

66M−14958−00 7 − 9

REF.

NO.

31− 10

31− 4

31− 5

31− 6

31− 7

31− 8

31− 13

31− 12

31− 3

31− 2

31− 9

31− 14

PART NO.
NO. PIECES

66M−15100−01−1S2− 2
66M−15316−00 22−19
66M−15362−00 22− 20
6G8−15363−00 4 −15
66M−15373−00 6 − 25
63V−15705−0110 − 8
66M−15710−0110 −1
66M−15711−0110 − 2
66M−15711−10 10− 34
63V−15713−00 10− 6
63V−15714−00 10− 4
63V−15716−00 10− 7
66T−15731−00 10 −19
66T−15734−00 10 −16
63V−15741−00 10− 5
63V−15744−00 10−11
6G1−15755−00 10 − 20
66M−15758−00 10− 24
66M−15758−10 10 − 24
66M−15762−00 10 − 30
63V−15764−00 10−13
63V−15767−0110 − 9
63V−15768−00 10−12
66M−15770−00 10 −17
66M−15774−00 10 − 31
6G1−15779−00 10 − 21
63V−15784−0110 −10
66T−15794−00 10 −15
6YK−24201−1026−1
6YL−24201−02 25 −1
65W−24251−00 9 − 5
6YK−24260−01 26 − 5
6YL−24260−01 25 − 4
6YL−24268−01 25 − 7

6G1−24304−02 9 −1
6YL−24306−52 25 − 8

6YL−24329−00 25 − 6

66M−24351−00 22 −15
66M−24374−00 9 − 20
6E5−24377−00 2 − 6

688−24378−00 2 − 30
66M−24410−109− 9
66M−24411−109−12
66M−24413−01 9 −10

REF.

NO.

26 − 2

26 − 8

26 − 7

2 −17

PART NO.
NO. PIECES

6A0−24421−01 9 −11
66M−24423−00 9 −13
66M−24444−00 9 −16
66M−24454−00 9 −15
66M−24471−00 9 −17
6YK−24610−1026− 3
6YL−24610−00 25 − 2
6YL−24641−00 25 − 3

66M−26311−00 16 −17
65W−26326−10 15 − 22

66M−26326−00 15 − 22
62Y−28100−00 9 − 29
6A1−28176−00 15 − 39
66M−28199−76−A0 9− 30
66M−28199−76−B0 9 − 30
66M−28199−86−A0 9− 31
66M−28199−86−B0 9 − 31
66M−41113−10−1S2− 25
66M−41114−00 2 − 27

66M−41131−01−94 22 − 7
66M−41133−00 22 − 8

66M−41137−00−5B 22 −1
66M−41138−00 22 −11

66M−41211−00 17 −17
6R5−41237−00 6 − 23
66M−41252−00 6 −18
66M−41256−00 6 − 24
661−41262−02 17 −15
66M−41271−00 6 −13
689−41273−00 6 −14
65W−41283−00 17 −14
66M−41292−00 6 −15
66M−41298−00 6 −16
65W−41638−00 17 −13
6F5−41662−00 17 − 4
65W−42101−01−4D 16 − 2
66M−42119−00 16 −10
65W−42125−00 16 − 7
6G1−42126−00 16 − 6
66M−42131−0116 − 24
689−42137−20 16 −11
65W−42138−00 16 − 4
65W−42159−00 16 − 5

REF.

NO.

26 − 4

18 −17

30 − 5

32 − 3

32 − 4

PART NO.
NO. PIECES

66M−42177−00 16 − 9
66M−42511−01−4D 20 − 6
66M−42511−11−4D 20 − 6
63V−42528−00 20 − 2
65F−42537−00 20 − 8
66M−42610−10−4D 1− 1
66N−42610−10−4D 1− 1
69V−42610−10−4D 1− 1
66M−42613−00 1− 2
66M−42615−00 1− 8
6E0−42651−02 1− 4
6E7−42652−00 1− 6
66M−42677−00 1− 11
66N−42677−00 1− 11
69V−42677−00 1− 11
66M−42678−20 1− 9
66N−42678−20 1− 9
69V−42678−20 1− 9
66M−42710−04−4D 15 −1
66M−42716−00 15 − 8
682−42724−00 15 − 24
6G1−42725−00 13 − 8
66M−42725−00 15 −11
66M−42725−10 15 −11
66M−42725−20 15 −11

65W−42726−00 15 − 25
65W−42726−10 15 − 25

688−42726−10 15 − 30
62Y−42727−00 15 −12

65W−42727−00 15 −12
682−42727−00 15 − 23
66M−42738−00−4D 15 − 9
66M−42743−00 15 − 26
66M−42766−00 15 −19
66M−42815−00−4D 15 −13
6L2−42816−00 15 −17
63V−43111−05−4D 19 −1
63V−43112−06−4D 19 − 2
66R−43113−00 19 −14
648−43114−0119 − 9
6E7−43116−00 19 − 8
6E0−43118−0119 − 6
63W−43131−10 19 −10
6E5−43145−01 27 − 8
6L2−43160−00 19 − 20

REF.

NO.

18 −15

18 −18

18 −16

G1

NUMERICAL INDEX
INDEX NUMERIQUE

PART NO.
NO. PIECES

63V−43181−00 19 − 42
63V−43191−00 19 − 24
63V−43311−03−4D 19 − 21
66M−43311−10−4D 19 − 21
682−43318−0119 − 23
66M−43350−0119 − 28
689−43373−01 20 − 3
66R−43611−00 19 − 36
63V−43614−10 19− 33
66R−43615−00 19 − 35
66R−43617−00 19 − 40
66M−43630−0119 − 22
63V−43641−0119 − 30
63V−43656−00 19 − 41
63V−43659−00 19 − 38
66M−44111−0116 − 27
66R−44114−00 17 − 7
65W−44116−00 17 − 6
65W−44121−00 17 −1
66M−44122−00 17 − 2
66M−44124−00 16 − 32
65W−44125−00 17 − 28

65W−44142−00 17 − 26

66M−44143−00 17 − 9
66M−44143−10 17 − 9
63V−44150−00 23 − 27
66M−44150−1023− 27
65W−44173−00 16 − 36
6E0−44191−11 16 − 35
66M−44192−00 17 − 33

63V−44301−00 23 −11
63V−44322−00 23 −12

63V−44323−00 23 −17

63V−44328−00 23 − 20
664−44338−00 23 −15

63V−44352−01 23 −14

66M−44361−00 24 −1
66M−44361−1024−1

REF.

NO.

18 − 4

18 − 2

18 − 8

32 −10
32 − 25

32 −13
32 − 27

32 − 28

32 −11
32 − 26

PART NO.
NO. PIECES

63V−44365−1024− 2

647−44366−00 23 −13

66M−44366−00 20 −17
63V−44368−00 24 − 3

6H3−44391−0115 − 21
66M−44514−00−4D 20 −14
66M−44526−00 20 −15
66M−44551−00−4D 20 − 20
682−44555−30 20 − 22
66M−44557−00 20 − 21
66M−45111−00−4D 21− 1
66M−45111−10−4D 21− 1
66M−45113−00 21− 2

66M−45115−00 21− 6

66M−45126−00 21− 5
66M−45128−00 21− 8

66M−45136−00 21− 7
6G1−45214−00 24 − 7
63V−45215−00 24 − 8
61N−45251−01 24 −11
66M−45300−01−4D 23 −1
66M−45300−11−4D 23 −1
63V−45311−01−4D 23 − 2
66M−45311−00−4D 23 − 2
63V−45315−A0 23 − 24

63V−45331−00−5B 23 − 21
683−45361−02−4D 23 − 41
66M−45371−00 24 − 20
63V−45375−00 24 −14
63V−45510−01 23 − 28
63V−45510−11 23 − 28
63V−45536−00 23 − 4
63V−45551−00 23 − 29
6E7−45560−01 23 − 31
664−45567−01−1023− 8
664−45567−01−1223− 8
664−45567−01−1523− 8
664−45567−01−1823− 8
664−45567−01−30 23− 8
664−45567−01−40 23− 8
664−45567−01−50 23− 8

REF.

NO.

32 − 20

32 − 23

32 − 21

32 − 6

32 − 7

32 − 8

32 −15

PART NO.
NO. PIECES

6E7−45571−00 23 − 32
626−45577−00−01 23− 33
626−45577−00−03 23− 33
626−45577−00−05 23− 33
6E8−45587−10−1323− 6
6E8−45587−10−20 23 − 6
683−45611−00 23 − 35
682−45631−00 23 − 37
648−45633−00 23 − 39
650−45635−00 23 − 36
683−45941−00−EL 24 −19
683−45943−00−EL 24 −19
63V−45945−00−EL 24 −19
683−45945−00−EL 24 −19
63V−45947−00−EL 24 −19
683−45952−00−EL 24 −19
6E7−45987−01 24 −15
66M−46241−00 8 −11
66M−46297−00 8 −12
703−48152−00 29 − 56
703−48153−00 29 − 3
703−48189−00 29 −17
703−48198−00 29 −14
703−48203−1528−1

703−48211−01 29 − 60
703−48212−00 29 − 57
703−48213−00 29 − 58
703−48215−00 29 − 42
703−48219−00 29 − 29
703−48221−00 29 − 55
703−48222−00 29 − 26
703−48223−00 29 − 27
703−48224−00 29 − 54
703−48225−00 29 − 28
703−48226−00 29 − 25
703−48227−00 29 − 24
703−48232−00 29 − 61
703−48234−00 29 −18
703−48235−00 29 − 4
703−48236−00 29 −16
703−48238−00 29 − 22
703−48243−00 29 −15
703−48244−00 29 − 21
703−48245−00 29 −11
703−48246−00 29 − 23
701−48248−00 29 −13
703−48252−00 29 −12

REF.

NO.

29 −1

PART NO.
NO. PIECES

703−48261−01 29 − 2
703−48264−00 29 − 6
703−48265−00 29 − 9
703−48268−00 29 − 5
703−48271−00 29 − 59
703−48281−00 29 − 30
703−48282−00 29 − 31
703−48284−00 29 − 51
701−48287−00 29 − 41
703−48291−1029− 38
703−48293−1029− 40
701−48310−80 28 − 2
701−48310−90 28 − 2
701−48320−00 28 − 2
663−48344−00 17 − 23

703−48345−01 29 −19
703−48358−00 29 − 20
66M−48501−00 18 −1
63V−48511−0118 −19

6H3−48538−00 17 − 25

63V−61350−00 27 −1
6E5−61355−00 27 − 6
66M−81800−0114 −1
65W−81801−00 14 − 8
65W−81807−00 14 − 5
65W−8182B−00 13 − 4
65W−8182S−00 14 −10
66M−81820−00 14 − 7
65W−81826−00 14 − 2
66M−81830−00 14 − 4
65W−81840−00 14 − 9
65W−81850−0114 − 6
65W−81857−0114 − 3
65W−81870−00 13 − 8
6G1−81941−10 13 −1
6G1−81952−00 13 − 2
6G8−81960−A112 − 21
6J8−81960−00 12 − 21
6G1−81970−6112 − 21
66M−82105−00 13 − 5
66M−82117−00 13 − 3
66M−82127−00 20 − 5
66M−82127−10 12 −10
66M−82148−00 19 − 3
6G8−82150−00 12 − 25

REF.

NO.

18 −12

20 − 26

18 −14

PART NO.
NO. PIECES

6G1−82151−00 12 − 22
663−82151−00 12 − 26
6G5−82152−00 12 − 27
6G8−82370−30 12 − 8
62Y−82377−00 15 − 38
62Y−82504−10 12− 9
703−82510−33 29 − 43
703−82531−00 29 − 45
6H3−82540−00 13 − 9
703−82540−00 29 − 49
6J8−82554−00 13 −10
682−82556−00 16 − 39

6E3−8257H−00 15 − 40
689−8257Y−00 16 − 40
65W−82575−0116 − 38
688−82575−01 29 − 46
703−82577−00 29 − 44
688−82586−21 29 − 48
66M−82590−00 13 − 22
703−82591−00 29 − 52
703−82592−00 29 − 53
703−83383−02 29 − 50
6H1−83557−00 12 −12
6A1−83625−4110 − 35
6A1−83625−5110 − 36
6E0−83627−4116 − 41
6E0−83627−5116 − 42
66M−84342−00 10 − 33
65W−85410−0112 −11
66M−85520−00 11 − 2
66M−85533−00 11 − 4
66M−85533−10 11 − 4
66M−85540−0112 −1
66M−85540−10 12 −1
66M−85542−00 12 −13
66M−85542−10 12 −13
66M−85550−00 11 − 1
66M−85550−10 11 − 1
66M−85570−00 12 − 4
66M−85580−00 11 − 3
66M−86111−00 13 −12
66M−86112−00 13 −14
66M−86116−00 13 −13
66M−86117−00 13 − 20
90101−06M29 19 −17
90105−06M07 20 − 4
90105−08M78 4 − 7

REF.

NO.

29 − 47

PART NO.
NO. PIECES

90109−06M8117 − 5
90109−06M82 15 −10
90109−06M84 19 − 43
90109−06M86 10 − 32

90109−08M78 14 −12
90109−08M85 14 −13
90116−08M54 20 −12
90119−06MA3 4 − 8
90119−06MA4 2 − 28
90119−06M142− 5
90119−06M59 10 − 25
90119−06M76 6 −10
90119−08M39 14 −11
90119−08M45 20 − 23
90119−08M46 20 − 24
90119−08M66 2 − 4
90149−05M13 16 −13
90152−05M04 24 − 9
90157−05M1625− 5

90157−05014 19 − 31
90157−06M06 21− 9
90167−06002 15 − 33
90170−06015 17 −10
90170−09M03 27 − 4
90170−28M37 8 − 9
90171−10M01 24 −17
90179−08M06 23 − 30
90179−08M34 20 − 25
90179−16M05 11 − 13
90185−05002 24 −10
90185−08057 18 − 21

90185−09M01 27 − 3
90185−22043 19 −15
90201−05M06 17 − 34

90201−06M05 10 − 28

90201−06M3117 −19

REF.

NO.

13 −11
15 − 20
15 − 27
15 − 34
16 − 3
17 − 8

26 − 6

20 − 29

18 − 9

12 −17

17 − 30
18 − 6

G2

NUMERICAL INDEX
INDEX NUMERIQUE

PART NO.
NO. PIECES

90201−06M94 8 − 6
90201−07M01 3 − 7
90201−08M06 20 −13
90201−10M01 24 −16
90201−10M20 27 − 2
90201−10M63 27 − 7
90201−13201 8 − 5
90201−16M44 11 − 14
90201−17682 23 − 34
90201−43M00 16 − 20
90202−05M38 1− 12
90202−05088 6 − 22
90202−07M60 19 − 25
90202−22M54 19 −11
90202−43M57 16 − 22
90206−05005 6 − 20
90206−10M04 16 − 30
90206−10M24 19 − 44
90206−12052 15 −16
90206−43M22 16 − 21
90209−40008 20 − 7
90240−05M20 6 −19
90243−04M0119 − 7
90250−0501023− 38
90254−03M05 16 − 37

90266−04M04 1− 5

90269−02M09 16 −12
90280−03M01 8 −10

90280−05013 11 − 12
90340−08002 23 − 9
90340−14M06 22 −17
90381−14020 23 − 22
90386−07M95 19 − 27
90386−08032 16 −16
90386−12MA2 15 −15
90386−12M37 15 −14
90386−22M94 19 −12

90386−30M60 20 −11
90386−30048 20 − 9
90386−40MA0 16 −19
90386−40M99 16 − 23
90387−06M05 10 − 3

REF.

NO.

17 − 3
17 − 27
18 − 3

1− 7

30 −15

19 −13

PART NO.
NO. PIECES

90387−06M05 12 −14
90387−06M08 17 −16
90387−06M13 19 −16
90387−06M29 17 − 29

90387−06M78 16 − 31
90387−06M79 6 −11
90387−06034 15 − 7
90387−07M07 19 − 26
90387−10M42 27 − 5
90387−13M56 5 − 9
90387−13001 5 −10
90387−13002 5 −11
90401−20M00 2 − 34
90430−08020 23 −10

90430−08143 4 −14
90430−14M09 22 −18

90445−09061 2 − 29
90445−09086 2 − 31
90445−09105 2 − 32
90445−10M20 9 − 6
90445−10M40 9 − 4
90445−10M46 2 − 7
90445−10M93 9 − 25
90446−06M90 10 −18
90446−10M87 16 −18
90464−09M13 12 − 20

90464−09M31 9 − 28
90465−06M86 9 − 27
90465−08M82 6 − 26
90465−08M83 6 − 27
90465−11M109− 8

90465−25M57 15 − 28
90467−09M03 9 − 7

90468−10005 17 − 35

90468−18008 16 − 34

90480−10M13 13 −19

REF.

NO.

18 − 5

32 − 9

32 − 5

15 − 29

15 − 36

9 − 26

18 −10

17 −12
17 − 24
17 − 36
18 −11
18 −13

PART NO.
NO. PIECES

90480−10M168−13
90480−12072 8 −14
90480−13M24 12 −15
90480−15M3115 − 6
90480−2516112 − 5
90501−12M40 5 −12
90501−12M41 5 −13
90501−14M06 23 − 40
90501−23215 16 −15
90507−20M00 19 − 29
90508−18M4119 − 34
91490−16010 16 − 8
91490−30020 24 −18
91690−200166− 21
92903−10600 16 −14
92990−05600 12 − 24

92990−06100 9 − 22
92990−06200 16 − 33
92990−06300 24 −13
92990−06600 9 − 23
92990−08600 13 − 7

92995−05600 2 −14
92995−06100 10 − 27

92995−06600 2 −12

REF.

NO.

13 −16

29 − 33

11 − 6

2 − 20
4 −12
6 − 4
8 −18
9 − 3

10 − 23
11 − 7
11 − 9
11 − 11
12 − 3
12 − 7
12 −19
12 − 24
13 −18
15 − 3
15 − 5
16 − 29
17 − 21
17 − 32
19 −18
20 −19

PART NO.
NO. PIECES

92995−06600 22 − 6

92995−08600 20 − 28

93101−12M63 22 − 2

93101−17054 23 − 44

93101−20048 23 − 23

93102−18M21 8 −1

93102−25M52 3 − 2

93102−35M51 3 −1

93210−0326113 − 21
93210−06ME6 23 − 25

93210−16275 27 − 9
93210−20M65 9 − 24

93210−24M79 4 −16

93210−29M94 20 −10
93210−35M86 6 − 9

93210−44398 23 −16

93210−56M80 23 − 46

93210−57M09 23 − 45

93306−00501 23 − 42
93315−314V8 23− 3
93315−317U2 23 − 43
93332−00005 23 − 7
93341−4141423− 5
93430−04M03 19 − 37
93430−06024 29 −10
93450−09M01 4 − 4
93450−15023 3 −11
93604−12M07 23 −18

93606−120196− 5

REF.

NO.

22 −10
23 − 48
24 − 22

24 − 6

32 − 2

32 −17

32 −14

30 −14

30 −10

30 − 9

32 −16

30 −17

30 − 8

30 −13

32 −12

32 −19

32 −18

24 − 4

21− 4

PART NO.
NO. PIECES

93606−1201922− 3
93700−06M03 20 −1
94701−00375 4 −18
95380−05600 9 −19

95380−06600 29 − 39
95380−06700 10 − 29

95380−08600 20 −16
95380−08700 13 − 6
95380−10700 16 − 26
95780−10300 16 − 25
95895−06020 12 −16
95895−06030 24 −12
97013−060168− 4
97075−06025 20 −18
97075−08030 24 − 5
97075−08035 20 − 27
97080−08025 23 − 26
97080−08045 23 −19

97095−050122−13
97095−06010 17 − 22
97095−06012 15 −18
97095−06016 11 − 8

97095−06020 2 −11

97095−06025 11 − 5

97095−06030 11 − 10

97095−06035 8 −17

97095−06040 6 − 3

REF.

NO.

29 − 7

17 −11
19 −19

32 − 24

12 − 23
13 −17

22 − 9
24 − 21

2 −19
4 −11
9 − 2

10 − 22
12 − 2
12 − 6

22 − 5
23 − 47

12 −18
15 − 4
17 − 31

16 − 28

15 − 2

PART NO.
NO. PIECES

97095−06040 11 − 10
97095−06055 17 − 20
97095−06090 10 − 26
97095−080144−13
97380−05025 29 − 8
97380−08030 29 − 32
97575−08535 18 − 20
97575−08545 21− 3
97595−06525 18 − 7
97780−505106−17
97780−60520 1− 3
97880−05008 13 −15
97880−05025 12 − 23
97880−06030 9 − 21
97885−06008 19 − 4
97885−08010 19 − 5
97890−04005 7 − 35
97980−041107−18
97980−041127− 28

98580−03005 7 − 37
98580−0301529− 37
98580−04006 29 − 35
98580−0401029− 34
98580−0501029− 36
98980−04006 7 − 30
99080−05600 19 − 32

99510−101142− 3

REF.

NO.

31− 11

19 − 39

4 − 6

G3

F9.9C/F13.5A/F15A

PARTS CATALOGUE

E2002 by Yamaha Motor Co., Ltd.

1st Edition, Jun. 2002

All rights reserved.

Any reprinting or unauthorized u se

without the written permission of

Yamaha Motor Co., Ltd.

is expressly prohibited.

F9.9C/F13.5A/F15A

CATALOGUE DE PIECES DETACHEES

E2002 Yamaha Motor Co., Ltd.

1ère Edition, Juin. 2002

Tous droits réservés.

Toute réimpression ou utilisation

sans la permission écrite de la

Yamaha Motor Co., Ltd.

est formellement interdite.

G7
