Thank you for purchasing a YAMAHA product. To obtain
maximum performance from your YAMAHA speaker sys­tem and ensure many years of trouble-free operation, we
recommend that you read this Owner’s Manual thoroughly
before use and keep it for future reference.

Contents

Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

Connection example. . . . . . . . . . . . . . . . . . . . . . . . .3

Hanging installation . . . . . . . . . . . . . . . . . . . . . . . . .4

Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Technical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . .32

Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36

■

Precautions

AVOID EXCESSIVE HEAT, HUMIDITY, DUST
AND VIBRA TION

When choosing a location for your speakers, avoid the
following:

• Direct sunlight, high temperatures (such as near heat­ers), or excessively low temperatures.

• High humidity.

• Areas subject to excessive dust accumulation and
vibration.

• Non-level or unstable surfaces.

HOW TO POWER UP YOUR SOUND SYSTEM

To avoid damage to your speakers and other parts of
your system, when you turn on your system, ALWAYS
turn the power amp on last! This will avoid loud, dam­aging pops that will annoy your audience, and blow
your speakers. When you power down, the amplifier
should ALWAYS be turned off first to avoid the same
problems.

To protect your speakers

When choosing a power amplifier to use with your
speakers, make sure that its power output matches the
speakers’ power capacity (refer to the “Specifica­tions” on page 5). Even if the amplifier’s power out­put is lower than the speakers’ PGM (program) power
capacity, the speak ers may be damaged when clipping
of a high input signal occurs.

The following may cause damage to speakers:

• Feedback caused when using a microphone.

• Continuous high sound pressure level produced by
electronic instruments.

• Continuous high-power output distorted signals.

• Popping noises caused by turning on equipment, or
by connecting or disconnecting system components
while the amplifier is turned on.

MAKE SURE THE POWER IS OFF BEFORE
MAKING OR REMOVING CONNECTIONS

Always turn the power switches of system components
OFF prior to connecting or disconnecting cables. Fail­ure to do so may result in damage to speakers as well as
to connected equipment.

DISCONNECT CABLES BEFORE MOVING THE SYSTEM

To prevent short circuits or breakage of cables, always
disconnect cables prior to moving system equipment.

MATCH CONNECTOR POLARITY

When using two or more speaker systems, be sure
match the polarity (+/–) of the speaker system connec­tors to those at the amplifier. If the polarities do not
match, the sounds produced by the speakers will inter­fere with each other, making it impossible to achieve a
well-balanced sound field.

KEEP THIS OWNER’S MANUAL IN A SAFE
PLACE FOR FUTURE REFERENCE

This product, when used in combination
with amplification and/or additional
loudspeakers, may be capable of produc­ing sound levels that could cause perma­nent hearing loss.

DO NOT operate at high volume le vels or
at a level that is uncomfortable. If you
experience any discomfort or ringing in
the ears, or suspect an hearing loss, you
should consult an audiologist.

SPEAKER HANDLES

The handles on your speakers are for transportation.
The F12M/F25/F28 models are not designed for sus­pension or hanging. Only the F12/F15 models are
designed for suspension. Please consult a qualified
engineer for proper hanging techniques.

Fly-Ware

Hang correctly according to the instructions on page 4.

2



Mixer

Full-range position

F12/F12M/
F15/F25

Mixer

Crossover

1.4 kHz (24 dB/oct., Gc=–3 dB)

Bi-amp position

F12/F12M/
F15/F25

HF

LF

Power amp

Polarity

Reversed

Normal

Power amp

Power amp

Crossover

80 Hz (18 dB/oct., Gc=–6 dB)

Polarity
Normal

Normal

Full-range position

F12/F15

F28

Mixer

HF

LF

Power amp

Power amp

Polarity

Reversed

Normal

Normal

F28

Power amp

Mixer

Crossover

LF/HF; 1.4 kHz (24 dB/oct., Gc=–3 dB)

SLF/LF; 80 Hz (18 dB/oct., Gc=–6 dB)

Bi-amp position

F12/F15

HF

LF

SLF

Power amp

Power amp

■

●

●

■

■

Connection example

Connections

Stand alone

1

Use as full-range
speaker system

2

Use as bi-amp
speaker system

Use combined with subwoofer

1

2-way crossover

• SPEAKER SYSTEMS: F12/F12M/F15/F25

• SUBWOOFER: F28

EnglishFrançaisDeutschEspañol日本語Additions

2

3-way crossover

Speaker system and Neutrik NL4FC connector connections

1+

1–

Neutrik NL4FC connector

Bi-amp drive

The F12/F12M/F15/F25 also support bi-amp drive.

FULL-RANGE BI-AMP

PIN

1±=INPUT
2±=N.C.

2–

2+

PIN

1±=L.F.
2±=H.F.

Full-range operation

1+
1–
2+
2–

For bi-amp drive, switch the mode switch from FULL-RANGE to BI-AMP with a
flat-bladed screwdriver.

Caution: • Do not switch the mode switch during operation.

+
–

Bi-amp operation

1+
1–
2+
2–

LF+
LF–
HF+
HF–

Subwoofer
1+
1–
2+
2–

+
–

3

■

■

Hanging installation

The F12/F15 can be installed hanging. Remove the four countersunk screws on the top or bottom of the speaker system,
screw in the four accessory eye bolts and hang with wire.

When hanging the speaker system, carry out the work under the guidance of an expert with a safe method appropri­ate to the actual installation and environment.

Countersunk screw

Warning: • Always use the accessory eye bolts.

• Always hang with four eye bolts on one surface.

• Do not use the handle to hang the speaker system.

Eye bolt (3/8")

Standards and use conditions for flying

1

Always hang from four points. (Figure 1)

2

Use the fittings for the F12/F15 with a total load no greater than 172 kg including the speakers, eye bolts, wires, etc.

3

Use with a hanging angle of no greater than 45 ° . (Figure 2)

4

When hanging in a vertical array, use no more than 4 levels of F12s or 3 levels of F15s.

5

Verify the strength of wire rope, ceiling fittings, and connection fittings.

*

1

–

5

above are reference values.

45° maximum

(Figure 1: Always hang from four points.) (Figure 2: Retraction angle 45 ° maximum)

Maintenance inspection

Parts can deteriorate due to wear, corrosion, etc. during use. For the sake of safe usage, inspect periodically.

4



■

■

✩

4 Ω

40 ° 60 °

60 ° 40 °

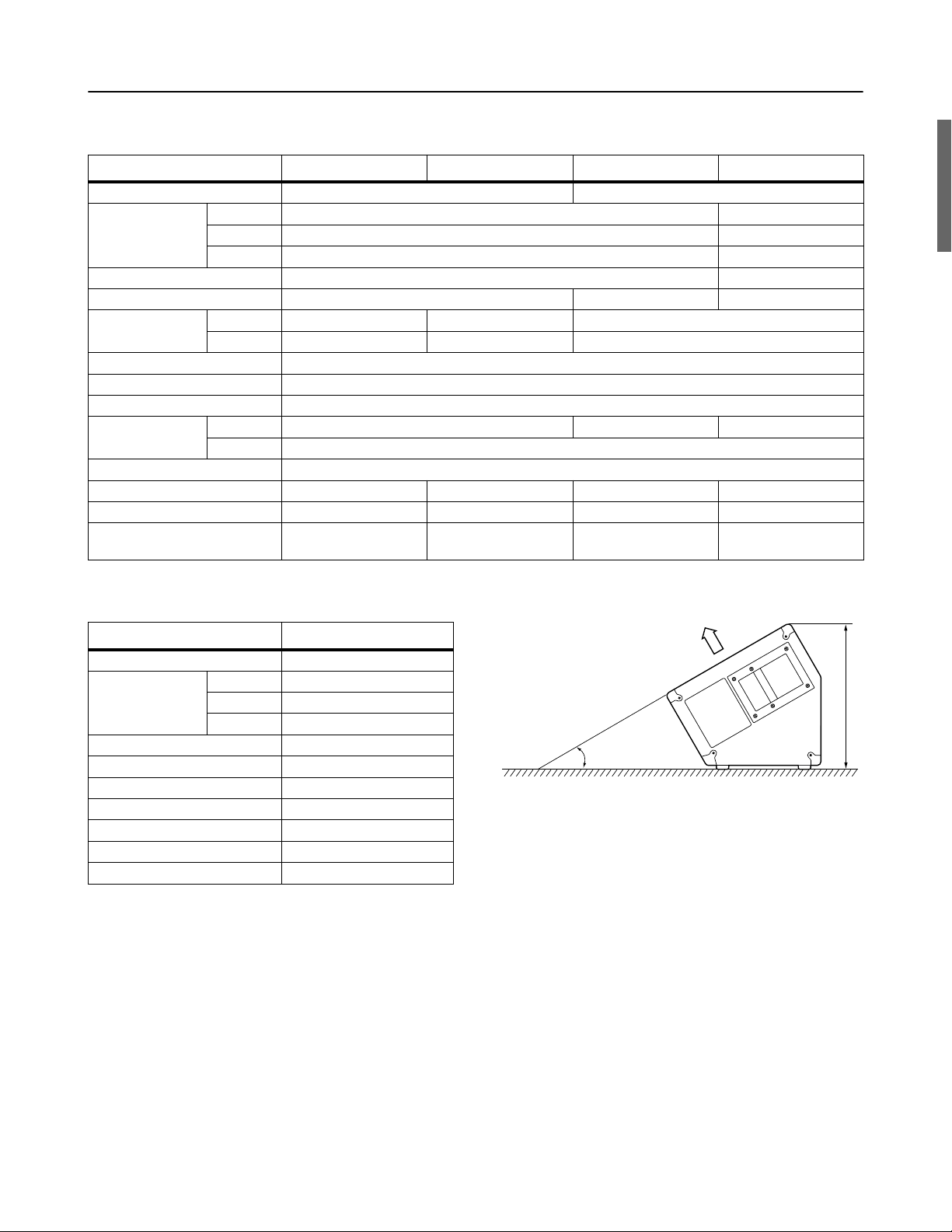

Specifications

SPEAKER SYSTEMS

Model F12 F12M F15 F25

Frequency Range 55 Hz to 20 kHz 45 Hz to 20 kHz
Power Capacity NOISE 350 W (EIA RS-426) 700 W (EIA RS-426)

PRGM 700 W 1400 W

MAX 1400 W 2800 W
Nominal Impedance 8 Ω
Sensitivity 98 dB (W, m) 99 dB (W, m) 98 dB (W, m)

Nominal
Dispersion

Crossover Frequency 1.5 kHz
Input Connectors NEUTRIK NL4MPR × 2
Mode Switch Full Range & Bi-Amp
Components LF 12" cone (JAY5130) 15" cone (JAY6150) 15" cone × 2 ( JAY6150 )

Enclosure Bass Reflex Type
Dimensions (W × H × D) 500 × 714 × 375 mm 705 × 465 × 447 mm 575 × 855 × 435 mm 575 × 1225 × 550 mm
Weight 34 kg 32.5 kg 40 kg 63 kg
Accessory 3/8" Shoulder Eye

Horizontal 60 °

Vertical 40 °

HF 3" Titanium diaphragm driver (JAY2120)

3/8" Shoulder Eye

Bolts × 4 pcs

Bolts × 4 pcs

—

—

EnglishFrançaisDeutschEspañol日本語Additions

SUBWOOFER

Model F28

Frequency Range 35 Hz to 2 kHz
Power Capacity NOISE 1000 W (EIA RS-426)

PRGM 2000 W

MAX 4000 W
Nominal Impedance 4 Ω
Sensitivity 98 dB (W, m)
Input Connectors NEUTRIK NL4MPR × 2
Components 18" cone × 2 (JAY7020)
Enclosure Bass Reflex Type
Dimensions (W × H × D) 1225 × 585 × 655 mm
Weight 72.5 kg

Specifications subject to change without notice.

F12M floor mounting angle

471

30°

5

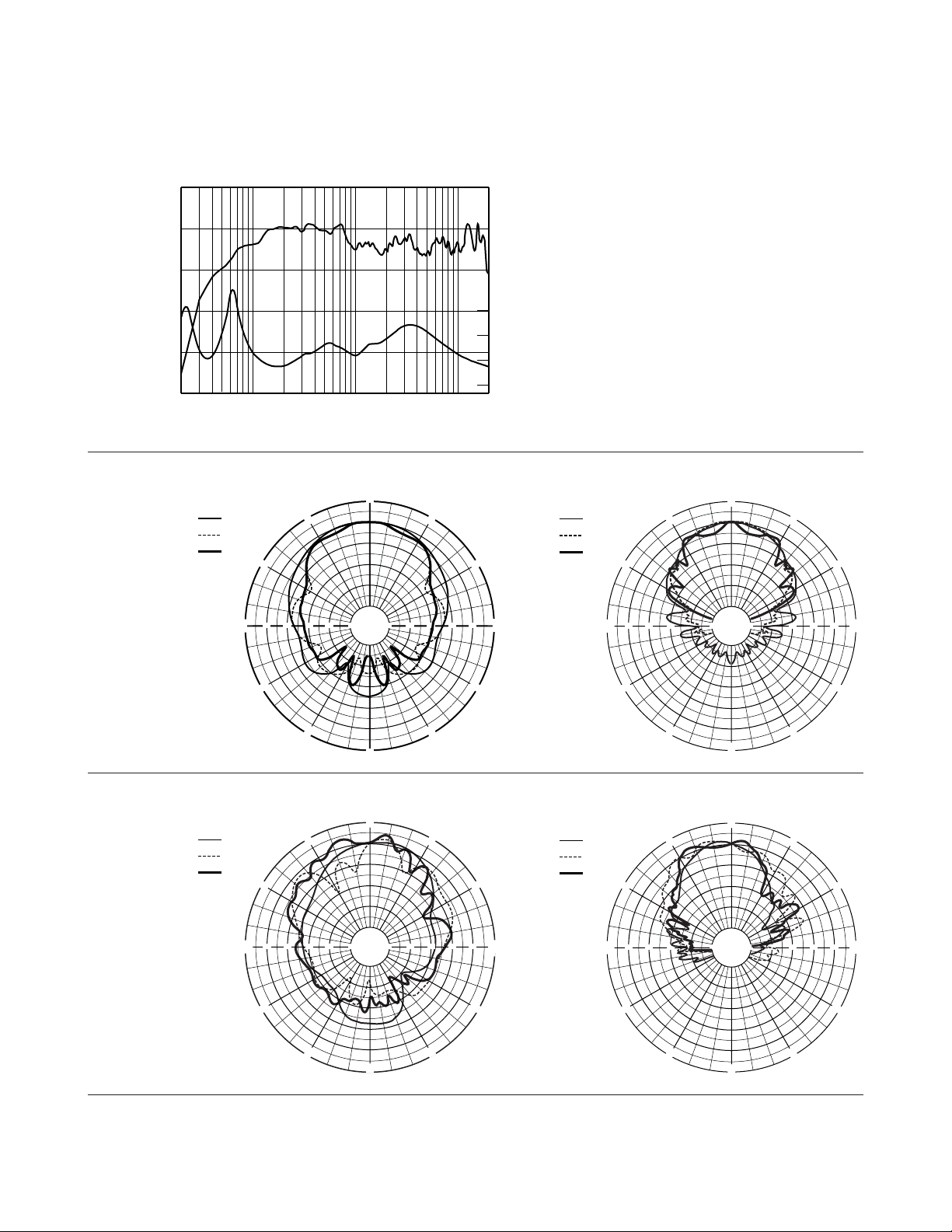

TechnicalData

■F12/F12M

FrequencyResponse/Impedance

110

100

）

dB

90

（

80

RESPONSE

70

60

20

FREQUENCY（Hz

F12; HorizontalDirectivity
F12M;VerticalDirectivity

• 500Hz

• 1kHz

• 2kHz

270°

300°

50

330°

40 40302010030 20 10 0

°

240

210°

16
8

4
2

10k1k100

）

0°

30°

• 4kHz

330°

• 8kHz

• 16kHz

60

°

90°

50

°

120

°

180

150°

300°

50

40 40302010030 20 10 0

270°

°

240

210°

0°

°

180

30

°

60

°

90°

50

°

120

°

150

F12; VerticalDirectivity
F12M;HorizontalDirectivity

• 500Hz

• 1kHz

• 2kHz

32

300°

50

40 40302010030 20 10 0

270°

°

240

330

°

0°

30°

• 4kHz

330

°

0°

30°

• 8kHz

• 16kHz

60°

90°

50

°

120

°

210

°

180

150°

300°

50

40 40302010030 20 10 0

270°

°

240

°

210

°

180

60°

90°

50

°

120

150°

■F15

0°

330

°

300°

270°

240

°

210

°

180

°

150°

120

°

90°

50

50

60

°

30°

40 40302010030 20 10 0

• 4kHz

• 8kHz

• 16kHz

0°

330

°

300°

270°

240

°

210

°

180

°

150°

120

°

90°

50

50

60

°

30°

40 40302010030 20 10 0

• 500Hz

• 1kHz

• 2kHz

FrequencyResponse/Impedance

110

100

）

dB

90

（

80

RESPONSE

70

60

20

HorizontalDirectivity

• 500Hz

• 1kHz

• 2kHz

270°

300°

50

240

FREQUENCY（Hz

330°

40 40302010030 20 10 0

°

210°

16
8

4
2

10k1k100

）

0°

30°

• 4kHz

330°

• 8kHz

• 16kHz

60

°

90°

50

°

120

°

180

150°

300°

50

40 40302010030 20 10 0

270°

°

240

210°

0°

°

180

30

°

60

°

90°

50

°

120

150°

VerticalDirectivity

日本語

Additions

33

■F25

0°

330°

300°

270°

2

4

0

°

210°

180

°

150

°

120°

90°

50

50

6

0°

30°

40 40302010030 20 10 0

• 500Hz

• 1kHz

• 2kHz

0°

330°

300°

270°

2

4

0

°

210°

180

°

150

°

120°

90°

50

50

6

0

°

30

°

40 40302010030 20 10 0

• 4kHz

• 8kHz

• 16kHz

0°

330°

300°

270°

240

°

210°

180

°

150°

120

°

90°

50

50

60

°

30

°

40 40302010030 20 10 0

• 4kHz

• 8kHz

• 16kHz

0°

330°

300°

270°

240

°

210°

180

°

150°

120

°

90°

50

50

60

°

30°

40 40302010030 20 10 0

• 500Hz

• 1kHz

• 2kHz

FrequencyResponse/Impedance

110

100

）

dB

90

（

80

RESPONSE

70

60

20

HorizontalDirectivity

FREQUENCY（Hz

16
8
4
2

10k1k100

）

VerticalDirectivity

34

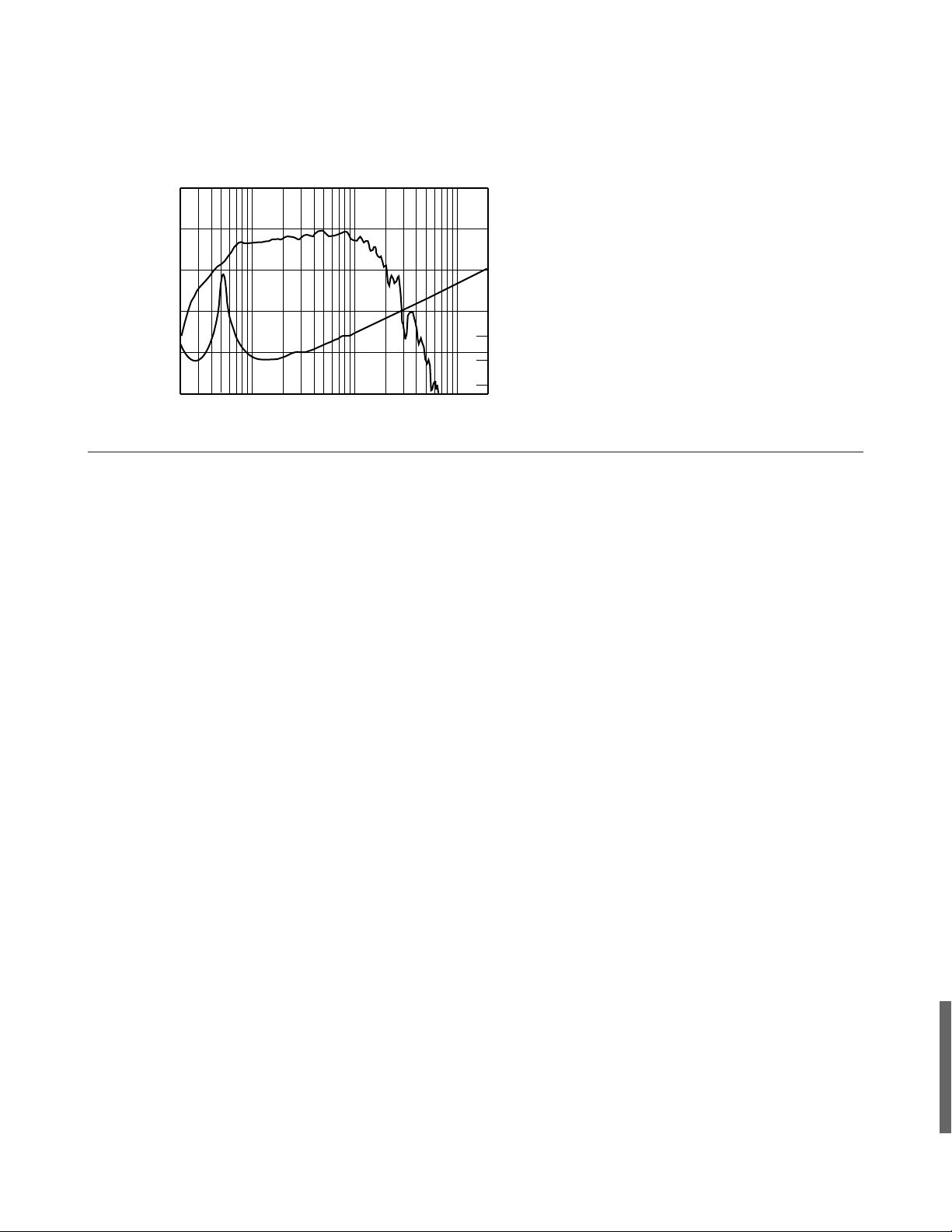

■F28

FrequencyResponse/Impedance

110

100

）

dB

90

（

80

RESPONSE

70

60

20

FREQUENCY（Hz

16
8

4
2

10k1k100

）

35

日本語

Additions

Dimensions

F12

242

75°

354.7

W:500

(59)

210

D:375

(106)

H:714

F12M

36

W:705

H:465

500

D:447

471

°

30

60°

F15

297

(85)

245

75°

428

W:575

D:435

(105)

H:855

F25

287

D:550

75°

W:575

日本語

H:1225

37

Additions

F28

H:585

W:1225

D:655

Unit：mm

38

CJY0328 R1 1 AP 40 Pro Audio Division, #18/3
