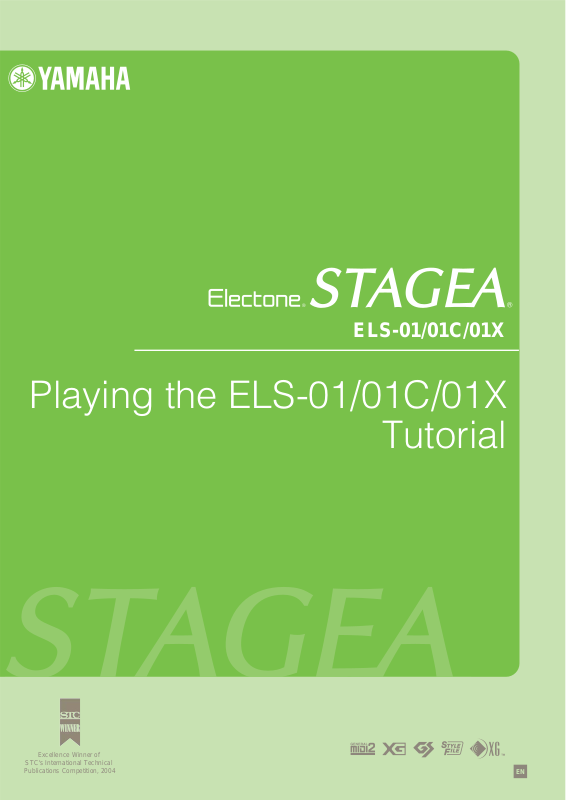

ELS-01/01C/01X

Playing the ELS-01/01C/01X

Tutorial

Excellence Winner of

STC's International Technical

Publications Competition, 2004

EN

Playing the ELS-01/01C/01X — Tutorial

2

About This Manual

(Read this first!)

This manual is made up of four chapters, each focusing on a single song

for you to practice. By playing and working on each song, you’ll build up

your knowledge and experience of using the ELS-01/01C/01X, and

increase your familiarity with the functions of the instrument naturally. If

you’re already familiar with the Electone or have experience playing one,

feel free to start somewhere in the middle of the book, rather than the

beginning. The point is to learn things about the Electone that you may

not have known before, and to use them effectively in your performance.

When you need more specific instructions or want to explore a feature or

function in greater detail, refer to the separate Owner’s Manual.

In addition, the Owner’s Manual contains basic information about the

ELS-01/01C/01X, such as the Panel Layout and Basic Operations (pages

8 – 21), helpful sections you should read before working through this

booklet.

Now, go to the next page and take a look at the brief overviews of each

chapter.

Playing the ELS-01/01C/01X — Tutorial

3

ACT 1

Page 6

Playing with the Registration Menus

Song: “Grandfather’s Clock”

Simply select the Registration from the Registration Menu and play the song. It’s not a
difficult piece to play, but if y ou’re unfamiliar with the score, try slowing down the rh ythm
and playing it at a more relaxed pace . Enjoy perf orming with the clear oboe melody and
the beautiful strings harmony.

ACT 2

Page 12

Editing a Registration and Storing it to Registration Memory

Song: “Dancing Queen”

Here, you’ll select a Registration from the Registration Menu, then slightly edit it and
save to Registration Memory. Three Registration Memories (M1, M2, and M3) are used
in this song. You’ll also save these Registrations to a SmartMedia card. Finally, play the
song and use the right footswitch to change the Registration Memory. The Lower
keyboard and Pedalboard parts are very simple, letting you master this piece quickly.

M 1
M 2
M 3

Creating a Simple Intro Sound based on the Registration Menu
Slightly Editing the Intro Sound
Enjoying the Original Sound of the Registration Menu

Playing the ELS-01/01C/01X — Tutorial

4

ACT 3

Page 24

Selecting and Editing Voices
Working with Rhythm Sequence and Registration Sequence

Song: “Change the World”

In this chapter, we’ll work on creating each Registration from scratch, instead of using
the Registration Menu. First, select the Voices for each Voice section and apply some
controls and effects. Then, program a Rhythm Sequence and Registration Sequence.
These allow you to play the song with all the necessary changes made automatically —
without your having to use the footswitch, switch Registrations or select different
rhythms. Finally, record the settings and your performance to a SmartMedia card.

Intro with Acoustic Guitar and Electric Piano
Classic Rock Organ
Sweet Harmonica Melody
Soft Harmony with Pad Sound on the Lower Keyboard
Mysterious Arpeggio with Delay
Electric Guitar Solo
Ending with Acoustic Guitar and Electric Piano

ACT 4

M 1
M 2
M 3
M 4
M 5
M 6
M 7

Page 60

Creating Various Organ Sounds (ELS-01C/01X)

Song: “Moldau”

The Organ Flutes function (not available on the ELS-01) lets you create various organ
sounds — such as those of a traditional pipe organ, gorgeous jazz organ, and more.
“Moldau” is a short song, yet it includes a very colorful organ sound. Enjoy all of the
sounds from your head down to your feet.

M 1
M 2
M 3
M 4
M 5
M 6

Classical Sound
Soft Jazz Sound
Tasty Jazz Sound
Colorful Jazz Sound
Percussive Rock Sound
Classical Sound (same as M1)

Playing the ELS-01/01C/01X — Tutorial

5

ACT

ACT

the Registration Menus

1

1

Playing with

Song:

“Grandfather’s Clock”

Playing the ELS-01/01C/01X — Tutorial

6

One of the most exciting aspects of the Electone is its abundance of realistic Voices and dynamic
rhythms. For details on exactly what Voices and rhythms are available, check the Voice List and
Rhythm List in the Owner’s Manual (pages 30 and 59). With all the hundreds of choices available, you
may have a difficult time finding which is best for a particular song. That’s where the Registration
Menu comes in handy.

Registration Menu contains 48 Registrations (60 on the ELS-01C/01X) in five main categories: (1) Kids,
(2) Pops & Rock, (3) Dance & Ballad, (4) Jazz & Latin, and (5) Symphony & World. Registration settings
in the Registration Menu include not only the Voices for each keyboard — Upper, Lower and Pedal —
but also the rhythm and Auto Bass Chord settings. This means you can enjoy playing the Electone
with appropriate settings for any style of music or song simply by selecting the desired Registration
from the Registration Menu.

About “Grandfather’s Clock”

This plaintive and poignant folk song was written by Henry Clay Work back in 1876, and was one of
the two most popular songs that year in the United States — the other being “I’ll Take You Home,
Kathleen.” Standing clocks like the one mentioned in the lyrics were a common fixture in homes across
the country, and the image of the clock, as well as the parallel lives of the clock and the old man,
captured the hearts of listeners as much as did the beautiful melody. The song has endured, renewing
its popularity every generation, and has even left us with the word “grandfather clock” — meaning a
standing, tallcase clock.

ACT 1ACT 2ACT 4 ACT 3

Playing the ELS-01/01C/01X — Tutorial

7

ACT 1 ACT 2 ACT 3 ACT 4

Grandfather’s Clock

Composed by Henry Clay Work
Arranged by Riko Morino

* Notes in parentheses can be ignored.

RHYTHM SYNCHRO START

( )

( )

Playing the ELS-01/01C/01X — Tutorial

8

( )

( )

( )

( )

( )

( )

( ) ( )

ACT 1ACT 2ACT 4 ACT 3

RHYTHM STOP (with right hand)

Playing the ELS-01/01C/01X — Tutorial

9

ACT 1 ACT 2 ACT 3 ACT 4

Selecting the Registration for “Grandfather’s Clock”
from the Registration Menu

The simple, warm sounds of the oboe and soft strings perfectly match this melodic song, with the rhythm gently
echoing the tick-tock sound of the clock.

Press the REGISTRATION MENU [1] button.

1

The Kids Menu appears.

REGISTRATION MENU

12345

Select [Simple 8Beat 2] in the Kids Menu.

2

Playing the ELS-01/01C/01X — Tutorial

10

Playing “Grandfather’ s Clock”

Press the [SYNCHRO START] button.

1

The lamp above the BAR/BEAT display flashes, indicating the rhythm is set to standby.

START

SYNCHRO

START

Play the song.

2

As soon as you play the first note, the rhythm starts. Try putting some expression into your playing by using
after touch (see page 39 of the Owner’s Manual).

When you come to the last measure, press the [SYNCHRO START] button with your

3

right hand to stop the rhythm.

BAR / BEAT

TEMPO

ACT 1ACT 2ACT 4 ACT 3

NOTE

NOTE

If you want to play the song at a slower tempo, turn the TEMPO dial counter-clockwise and decrease
the tempo to around 70 or so.

TEMPO

Decreasing

the tempo

BAR / BEAT

TEMPO

Notice the tied notes in the left hand. When changing chords, be careful not to break up the
continuous sound between the chords. The notes in parentheses are optional and can be left out,
especially if you have difficulty playing them.

Playing the ELS-01/01C/01X — Tutorial

11

ACT

ACT

Editing a Registration

Registration Memory

2

2

and Storing it to

Song:

Dancing Queen

M1
M2

M3

Creating a Simple Intro Sound
based on the Registration Menu

Slightly Editing the Intro Sound
Enjoying the Original Sound

of the Registration Menu

Playing the ELS-01/01C/01X — Tutorial

Playing the ELS-01/01C/01X — Tutorial

12

12

In this chapter, first select one of the Registration Menu buttons (as you did in ACT 1), then create
three new Registrations by changing the selected Registration. You can save the created
Registrations to the Registration Memory buttons first, then save them to a SmartMedia card.

Here is a brief rundown of the three Registrations you’ll be using in “Dancing Queen.” Registration M1
features a clear piano intertwined with warm strings and a distinctive wah guitar in the Lower
keyboard. In M2, the Synth Lead performs the melody. The last Registration, M3, is the gorgeous
sound of the original Registration Menu itself.

About “Dancing Queen”

The Disco craze of the mid 1970’s swept the entire world, resulting in a huge amount of hit songs and
many popular artists, such as Earth, Wind & Fire, KC & the Sunshine Band, and the Bee Gees. One of
the most successful Disco-flavored acts was ABBA, the Swedish male/female team of songwriters/
singers — and “Dancing Queen” was one of their most popular songs. As you’ll discover, the Electone
has a wide variety of highly danceable rhythms that are ideal for recreating the Disco sound.

ACT 1ACT 2ACT 4 ACT 3

Playing the ELS-01/01C/01X — Tutorial

13

ACT 1 ACT 2 ACT 3 ACT 4

Dancing Queen

Composed by Benny Andersson/Bjorn Ulvaeus/Stig Anderson
Arranged by Riko Morino

DANCING QUEEN
Words & Music by Benny Andersson/Björn Ulvaeus/Stig Anderson
© 1976 by UNIVERSAL MUSIC PUBLISHING A.B./UNION SONGS A.B.
All Rights Reserved. International Copyright Secured.
Prin rights for Japan controlled K.K. Music SALES

Softly

INTRO , RHYTHM SYNCHRO START

Playing the ELS-01/01C/01X — Tutorial

14

a

ACT 1ACT 2ACT 4 ACT 3

ENDING 1 (with left footswitch)

Playing the ELS-01/01C/01X — Tutorial

15

M1

Creating a Simple Intro Sound
based on the Registration Menu

The original Registration Menu we’ll use for “Dancing Queen” is full and rich — perfect for this song’s main
melody. However, it’s a bit too extravagant to use in the intro. So, we’ll make it a little more simple and sparse, by
canceling the Melody On Chord feature and muting the Lead Voice.

ACT 1 ACT 2 ACT 3 ACT 4

Press the REGISTRATION MENU [3] button.

1

REGISTRATION MENU

12345

Press the [2] button in the display to change the displayed menu page, then select

2

[Disco Queen].

Press the [A.B.C./M.O.C.] button to call up the Auto Bass Chord/Melody On Chord

3

display, then set Melody On Chord (M.O.C. MODE) to OFF.

DISPLAY SELECT

A.B.C.

VOICE

M.O.C.

DISPLAY

FOOT

UTILITY INTERNET

SWITCH

VOICE EDIT PATTERN SEQUENCE

U.ORGAN

L.ORGAN

FLUTES

FLUTES

Playing the ELS-01/01C/01X — Tutorial

16

RHYTHM

PROGRAM

ROTARY SP

MDR

SPEED

Press the [VOICE DISPLAY] button, to call up the Voice Display, then mute both Lead

4

Voice 1 and Lead Voice 2. (Press the buttons so they are grayed-out or “ghosted.”)

DISPLAY SELECT

A.B.C.

VOICE

DISPLAY

FOOT

SWITCH

VOICE EDIT PATTERN SEQUENCE

MDR

M.O.C.

UTILITY INTERNET

RHYTHM

PROGRAM

ACT 1ACT 2ACT 4 ACT 3

U.ORGAN

FLUTES

L.ORGAN

FLUTES

ROTARY SP

SPEED

This completes the settings for Registration Memory 1, so record these settings to the [1] button in the
Registration Memory section.

While holding down the [M.] (Memory) button in the Registration Memory section, press the [1] button.

1. While holding down [M.] button…

13 14 15 16 1 2 3 4 5 6 7 8 9 10 11 12 D.

13 14 15 16 1 2 3 4 5 6 7 8 9 10 11 12 D.

2. Press the numbered button.

When the Registration is being stored, the [1] button flashes momentarily.

Playing the ELS-01/01C/01X — Tutorial

17

ACT 1 ACT 2 ACT 3 ACT 4

M2

Slightly Editing the Intro Sound

Here, we’ll slightly change the Registration used in the intro (M1), by turning on the Lead Voice — to better
bring out the melody played on the Upper keyboard.

Press the (muted) Lead Voice 1 and Lead Voice 2 buttons in the Voice Display to turn them
back on.

DISPLAY SELECT

A.B.C.

VOICE

DISPLAY

FOOT

SWITCH

VOICE EDIT PATTERN SEQUENCE

MDR

M.O.C.

UTILITY INTERNET

RHYTHM

PROGRAM

U.ORGAN

FLUTES

L.ORGAN

FLUTES

ROTARY SP

SPEED

This completes the settings for Registration Memory 2, so record these settings to the [2] button in the
Registration Memory section.

While holding down the [M.] (Memory) button in the Registration Memory section, press the [2] button.

1. While holding down [M.] button…

13 14 15 16 1 2 3 4 5 6 7 8 9 10 11 12 D.

13 14 15 16 1 2 3 4 5 6 7 8 9 10 11 12 D.

2. Press the numbered button.

When the Registration is being stored, the [2] button flashes momentarily.

Playing the ELS-01/01C/01X — Tutorial

18

M3

Enjoying the Original Sound
of the Registration Menu

For the main melody, we’ll use original Registration Menu, with no editing. Melody On Chord is set to on for the
Registration Menu by default, automatically adding harmony notes to your performance.

Press the REGISTRATION MENU [3] button, then select the “Disco Queen” Registration.

REGISTRATION MENU

12345

ACT 1ACT 2ACT 4 ACT 3

Footswitch Settings

●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●

You can use the footswitches on the Electone to control different performance functions — without ever having to
take your hands from the keyboards! First, we’ll set the Left Footswitch function so that you can play the Ending 1
pattern with the left footswitch.

Press the [FOOT SWITCH] button to call up the Footswitch display, then press the [LEFT]
button at the top right of the display.

Set the Mode to [RHYTHM], then select [ENDING 1] in the RHYTHM CONTROL section in the display.

DISPLAY SELECT

A.B.C.

VOICE

DISPLAY

FOOT

SWITCH

VOICE EDIT PATTERN SEQUENCE

U.ORGAN

FLUTES

MDR

M.O.C.

UTILITY INTERNET

RHYTHM

PROGRAM

ROTARY SP

L.ORGAN

SPEED

FLUTES

Playing the ELS-01/01C/01X — Tutorial

19

ACT 1 ACT 2 ACT 3 ACT 4

Next, set the Right Footswitch function so that you can change the Registration with the right footswitch.

Press the [RIGHT] button at the top right of the display.

Select the [SHIFT] mode as shown below.

NOTE

This setting, Registration Shift, cannot be saved to the Registration Memory buttons.

This completes the settings for Registration Memory 3, so record these settings to the [3] button in the
Registration Memory section.

While holding down the [M.] (Memory) button in the Registration Memory section, press the [3] button.

1. While holding down [M.] button…

13 14 15 16 1 2 3 4 5 6 7 8 9 10 11 12 D.

13 14 15 16 1 2 3 4 5 6 7 8 9 10 11 12 D.

2. Press the numbered button.

When the Registration is being stored, the [3] button flashes momentarily.

Playing the ELS-01/01C/01X — Tutorial

20

Using the Music Data Recorder

In these instructions, you’ll learn how to save your new Registration Memory settings to a SmartMedia card.

Saving Registration Data to SmartMedia

●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●

Insert the SmartMedia card with the terminal (gold-plated) side face down into the card

1

slot, until it clicks into place.

ACT 1ACT 2ACT 4 ACT 3

Press the [MDR] button in the panel to call up the M.D.R. display, then select a

2

destination Song.

In the SONG SELECT Page of the display, select a blank Song to which the Registration data will be saved.

DISPLAY SELECT

A.B.C.

VOICE

DISPLAY

FOOT

SWITCH

VOICE EDIT PATTERN SEQUENCE

U.ORGAN

FLUTES

Press the [REGIST EDIT] button in the display.

3

MDR

M.O.C.

UTILITY INTERNET

RHYTHM

PROGRAM

ROTARY SP

L.ORGAN

SPEED

FLUTES

Playing the ELS-01/01C/01X — Tutorial

21

ACT 1 ACT 2 ACT 3 ACT 4

Press the [SAVE] button in the display to save the Registration data. A message

4

appears indicating the data is being saved.
After the message disappears, press the [CLOSE] button to close the Regist Edit
display.

Now, your Registration settings in Registration Memory buttons 1 – 3 have been saved to a SmartMedia card.

NOTE

To call up the saved Registration data, select the song in the SONG SELECT Page of the M.D.R. display then
press the [F] (Play) button.

You can change the Song name as desired (see page 104 in the Owner’s Manual).

Playing the ELS-01/01C/01X — Tutorial

22

Playing “Dancing Queen”

Using your three new Registrations (M1 – M3), try playing “Dancing Queen” now.

See the notation on pages 14 – 15. At the points in the score where M2 and M3 are indicated, press the right
footswitch to change the Registration Memory. At the second to the last measure, press the left footswitch to
switch to the Ending pattern and stop the rhythm. Using your foot to control these features may take some
practice, but mastering this technique will make your performance much more dynamic and professional.

Press the Registration Memory [1] button.

1

13 14 15 16 1 2 3 4 5 6 7 8 9 10 11 12 D.

Press the INTRO [2] button on the panel.

2

INTRO

123

Press the rhythm [SYNCHRO START] button. The lamp above the BAR/BEAT display

3

flashes, indicating the rhythm is set to standby.

START

SYNCHRO

START

BAR / BEAT

ACT 1ACT 2ACT 4 ACT 3

NOTE

NOTENOTE

Now, start playing — in rhythm!

In the intro section, play the right hand performance with a soft touch, as if you were adding
embellishments to the auto accompaniment. (If this part is difficult for you to play, feel free to ignore it.)

To better feel the disco rh ythm with your whole body, play the pedalboard with four quarter notes every
measure.

TEMPO

Playing the ELS-01/01C/01X — Tutorial

23

ACT

ACT

3

3

Selecting and Editing Voices

Working with Rhythm Sequence

and Registration Sequence

Song:

Change the World

M1
M2
M3
M4
M5
M6
M7

Intro with Acoustic Guitar
and Electric Piano

Classic Rock Organ
Sweet Harmonica Melody

Soft Harmony with Pad Sound
on the Lower Keyboard

Mysterious Arpeggio with Delay
Electric Guitar Solo

Ending with Acoustic Guitar
and Electric Piano

Playing the ELS-01/01C/01X — Tutorial

24

In Acts 1 and 2, you were able to enjoy playing the songs quickly using just the Registration Menu.
However, you may want to spice up your performance with more detailed Voice settings.
In this chapter, we’ll create custom song settings from the default settings. First, we’ll select the
necessary Voices and edit them with Voice controls and effects, then we’ll program a Rhythm
Sequence and Registration Sequence especially for the song.
After creating the song settings, try recording y our perf ormance to a SmartMedia card with the M.D.R.
function. The recorded song can be played back easily.
Since going through this chapter in v olves many diff erent operations, take y our time, master eac h step
in turn while you familiarize yourself with the convenient, sophisticated functions of the Electone.

Here is a brief rundown of the seven Registrations you’ ll be using in “Change the W orld.” The acoustic
guitar and electric piano accompaniment form the main part for M1, a rock organ for M2, a sweet
harmonica melody and pad harmony for M3 – M4, a mysterious arpeggio for M5, and an electric guitar
solo for M6. The final, ending Registration, M7, has the same settings as the intro.

About “Change the W orld”

This huge hit spent 13 weeks at #1 on both the Billboard and R&R charts in 1996 and captured three
major Grammy awards in 1997: Song of the Year, Record of the Year and Best Male Pop Vocal
Performance.
Though “Change the World” is closely identified with both Eric Clapton and Babyface, neither of those
artists wrote the song. Moreover, the three acclaimed songwriters who actually composed the tune,
wrote parts of it in turn and were not even in the same room together! The song was recorded first by
country superstar Wynonna, and eventually found its way to Eric Clapton and Babyface, who
performed and produced it for the soundtrack of the movie “Phenomenon.”

ACT 1ACT 2ACT 4 ACT 3

Playing the ELS-01/01C/01X — Tutorial

25

ACT 1 ACT 2 ACT 3 ACT 4

Change the World

Composed by Tommy Sims, Gordon Kennedy, Wayne Kirkpatrick
Arranged by Riko Morino

CHANGE THE WORLD
Words & Music by Tommy Sims/Gordon Kennedy/Wayne Kirkpatrick
© Copyright 1996 by UNIVERSAL-POLYGRAM INT'L PUBL. INC.,
UNIVERSAL-MCA MUSIC PUBLISHING, A DIVISION OF UNIVERSAL STUDIOS, INC.,
CAREERS-BMG MUSIC PUBLISHING, INC., and BASES LOADED MUSIC
All Rights Reserved. International Copyright Secured.
Print rights for Japan controlled K.K. MUSIC SALES

CHANGE THE WORLD
Gordon Kennedy / Wayne Kirkpatrick / Tommy Sims
© CAREERS-BMG MUSIC PUBLISHING, INC. / BASES LOADED MUSIC
Assigned for Japan to BMG Funhouse Music Publishing, Inc.

ROTARY SP On (with right hand)

with left hand

60’s 8Beat

Intro1

8Beat Light1 MainB

8Beat Light1 MainA

8Beat Light1 MainA

8Beat Light1 FillInB 16Beat 1 MainC

8Beat Light1 MainB

8Beat Light1 MainB

60’s 8Beat Break

Playing the ELS-01/01C/01X — Tutorial

26

16Beat 1 MainC 16Beat 1 MainD

a

16Beat 1 MainD

ROTARY SP On (with right hand)

Country Rock 2 MainB

Hard Rock 2 MainD

16Beat 1 FillInD

Country Rock 2 FillInC

*

16Beat 1 Break

8Beat Light1 MainA

(2nd time)

Hard Rock 2 MainD

Hard Rock 2 MainD

Country Rock 2 MainB

ACT 1ACT 2ACT 4 ACT 3

*

*

Hard Rock 2 MainD

For details on “H.Vib” and the asterisk mark (*), refer to page 57.

Hard Rock 2 FillInD

8Beat Light1 MainA

8Beat Light1 MainA

8Beat Light1 MainB

Folk Rock 1 Ending2

Playing the ELS-01/01C/01X — Tutorial

27

Initializing the Registration Memory

Before starting to create new song data, initialize the Registration Memory settings with the following procedure.
This will erase the settings you made in the last chapter, but if you don’t reset the Registrations, you won’t get the
intended results from the instructions that follow in this chapter.

ACT 1 ACT 2 ACT 3 ACT 4

Press the [UTILITY] button on the panel.

1

Press the INITIALIZE [EXECUTE] button in the Utility display, GLOBAL Page.

2

DISPLAY SELECT

A.B.C.

VOICE

DISPLAY

FOOT

SWITCH

VOICE EDIT PATTERN SEQUENCE

U.ORGAN

FLUTES

MDR

M.O.C.

UTILITY INTERNET

RHYTHM

PROGRAM

ROTARY SP

L.ORGAN

SPEED

FLUTES

A message prompting you to initialize the Registration data appears. Press [INITIALIZE] to go ahead and
initialize the data.

The display turns dark briefly, then starts up again automatically, indicating the initialization operation is
complete.

Creating the Registration Settings

How do go about creating the Registration? Where do you start? — the Voice settings for playing the melody, or
the rhythm settings that determine the groove? Actually, either is fine. In these instructions, we’ll first select the
Voices for each keyboard, Upper, Lower and Pedal, then make the rhythm settings.

Playing the ELS-01/01C/01X — Tutorial

28

M1

The main part of the Intro is the Acoustic Guitar and Electric Piano in the Lower Keyboard. In fact, the Electric
Piano for Lower Keyboard Voice 2 is used throughout the song, contained in Registrations M1 – M7.

Intro with Acoustic Guitar and Electric Piano

Adjusting the Reverb Settings

●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●

Press one of the REVERB buttons on the panel to call up the Reverb Display, and set

1

the Depth to 20.

REVERB

MAX

MIN

Press the [2] button at the top right of the display, then set the Type to [STAGE 1].

2

Pressing the TYPE button calls up the Effect Type list. Select [STAGE 1] from the list, then press the
[CLOSE] button to close the list.

ACT 1ACT 2ACT 4 ACT 3

This setting reproduces the intimate atmosphere of hearing a live performance on a small stage, instead of a
large hall.

NOTE

The sliders in Page 3 of the Reverb display are the same as the Reverb slider in the Voice Condition
display of each Voice section. In these instructions, we’ll adjust the reverb for each Voice section by
using the Reverb Slider in the Voice Condition display, not the Reverb display.

Playing the ELS-01/01C/01X — Tutorial

29

ACT 1 ACT 2 ACT 3 ACT 4

Press the [4] button at the top right of the display, then set the Type to [STAGE 1] and

3

the Accompaniment to 20, as shown below.

Helpful Hint

The reverb for this song should be relatively short and minimal, especially since a “dry” percussion
sound better suits the intimate nature of the song. If you want to play a brass sound, a short, tight
reverb is better, too. On the other hand, when playing strings, or an expressive solo instrument, make
the reverb settings deeper and longer to reproduce a larger hall atmosphere and bring out the subtle
nuances of the instrument.

Selecting and Editing the Upper Keyboard Voices

●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●

Press the [ORGAN] button in the UPPER KEYBOARD VOICE 1 section.

1

BRILLIANCE

BRILLIANT

MELLOW

VOLUME

MAX

MIN

UPPER KEYBOARD VOICE 1

STRINGS BRASS TUTTI PAD SYNTH

PIANO ORGAN GUITAR CHOIR WORLD

Select [Rock Organ 1] in the displayed Voice Menu, on display Page 4.

2

WOOD-

WIND

PERCUS-

SION

1

2

Playing the ELS-01/01C/01X — Tutorial

30

Set the BRILLIANCE button (at the right of the Voice buttons), to the third position from

3

the top.

BRILLIANCE

BRILLIANT

VOLUME

MAX

UPPER KEYBOARD VOICE 1

STRINGS BRASS TUTTI PAD SYNTH

WOOD-

WIND

1

PIANO ORGAN GUITAR CHOIR WORLD

PERCUS-

SION

2

MELLOW

MIN

Make the appropriate Voice Condition settings for Rock Organ 1.

4

Pressing the [ORGAN] button on the panel again calls up the Voice Condition display. On Page 1 of the
display, set After Touch in Touch Tone to 0, and Reverb to 16.

On Page 2 of the display, set Tune to +4. (Use the Data Control dial, if necessary.) This detunes the sound
slightly and gives it a bit of tension.

ACT 1ACT 2ACT 4 ACT 3

NOTE

NOTE

There are two ways to call up the Voice Condition display: pressing the same Voice button on the
panel again, or pressing the selected Voice button in the Voice Menu in the display. In these
instructions, we’ve used the first method.

The VOLUME buttons on the panel let you make broad settings to the volume, while the VOLUME
slider in the Voice Condition display lets you make fine adjustments.

Playing the ELS-01/01C/01X — Tutorial

31

ACT 1 ACT 2 ACT 3 ACT 4

On Page 3 of the display, select the Effect Category and Type.

5

Pressing the EFFECT1 button calls up the Effect Category list. Select [ROTARY SPEAKER] from the list,
then press [CLOSE] button to close the list.

Pressing the TYPE1 button calls up the Effect Category list. Select [ROTARY SP 5] from the list, then press
[CLOSE] button to close the list.

NOTE

Set the EQ High Gain to +7dB.

After you’ve changed the Effect Type, the effect parameters at the bottom half of the display
automatically change as well to reflect the switch. Feel free to adjust these effect parameters as you
want to get the desired sound.

Playing the ELS-01/01C/01X — Tutorial

32

Helpful Hint

Press the [ROTARY SP SPEED] button on the panel to turn the Rotary Speaker on/off at the respective
points indicated in the notation ( Aand D).
You can do this with your right hand, while you play. At the end of the glissando (the note F), keep
holding the note with your finger and replace it with your thumb. While you continue to hold the key,
press the [ROTARY SP SPEED] button with forefinger or middle finger.

On Page 4 of the display, change EFFECT 2 to THRU.

6

The Effect Type (TYPE 2) also changes to THRU automatically.

This completes the settings for UPPER KEYBOARD VOICE 1.
For the M1 Registration, UPPER KEYBOARD VOICE 2, LEAD VOICE 1 and LEAD VOICE 2 are not used.
Turn all their volume settings to 0.

ACT 1ACT 2ACT 4 ACT 3

Selecting and Editing the Lower Keyboard Voices

●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●

Press the [GUITAR] button in the LOWER KEYBOARD VOICE 1 section.

1

Select [Steel Guitar 1] in the displayed Voice Menu, on display Page 1.

2

Check that the BRILLIANCE button (at the right of the Voice buttons), is set to the

3

fourth position from the top.

Make the appropriate Voice Condition settings for Steel Guitar 1.

4

On Page 1 of the Voice Condition display, set After Touch in Touch Tone to 0, and Volume to 22.

You don’t need to make any changes in Pages 2 and 3 of the Voice Condition display.

Playing the ELS-01/01C/01X — Tutorial

33

ACT 1 ACT 2 ACT 3 ACT 4

On Page 4 of the display, change EFFECT 2 to THRU.

5

This completes the settings for LOWER KEYBOARD VOICE 1. Next, we’ll edit the LOWER KEYBOARD
VOICE 2 settings.

Press the [PIANO] button in the LOWER KEYBOARD VOICE 2 section.

6

Select [Stage E.Piano 1] in the displayed Voice Menu, on display Page 2.

7

Set the BRILLIANCE button (at the right of the Voice buttons), to the third position from

8

the top.

Make the appropriate Voice Condition settings for Stage E.Piano 1.

9

On Page 1 of the Voice Condition display, set Initial Touch in Touch Tone to 5, and After Touch to 0. Also,
set Volume to 22, and Pan to L1 (one step left of center).

This Pan setting places the Electric Piano on the left side of the stage.

You don’t need to make any changes in Page 2 of the Voice Condition display.

10

On Page 3 of the display, change EFFECT 1 to CHORUS and TYPE 1 to CELESTE 4.

You don’t need to make any changes in Page 4 of the Voice Condition display.

This completes the settings for the Lower Keyboard Voices.

Playing the ELS-01/01C/01X — Tutorial

34

Selecting and Editing the Pedal Voices

●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●

Press the [ELEC. BASS] button in the PEDAL VOICE 1 section.

1

Select [Fingered Bass 1] in the displayed Voice Menu, on display Page 1.

2

Set the BRILLIANCE button (at the right of the Voice buttons), to the second position

3

from the top.

1

LOWER

BRILLIANCE VOLUME

BRILLIANT

MELLOW

MAX

MIN

PEDAL VOICE 1

CONTRA

Make the appropriate Voice Condition settings for Fingered Bass 1.

4

On Page 1 of the Voice Condition display, set Initial Touch in Touch Tone to 4, and After Touch to 0.
(After Touch for the Pedal Voice is available only on the ELS-01C/01X). Also, set the Volume to 17.

ELEC.

BASS

BASS

TIMPANI TO

SYNTH

BASS

ACT 1ACT 2ACT 4 ACT 3

You don’t need to make any changes in Pages 2, 3 and 4 of the Voice Condition display.

This completes the settings for PEDAL VOICE 1. Next, we’ll edit the PEDAL VOICE 2 settings.

Press the [ELEC. BASS] button in the PEDAL VOICE 2 section.

5

Select [Fretless Bass 1] in the displayed Voice Menu, on display Page 2.

6

Set the BRILLIANCE button (at the right of the Voice buttons), to the third position from

7

the top. Also, set the VOLUME button to the third position from the bottom.

Playing the ELS-01/01C/01X — Tutorial

35

ACT 1 ACT 2 ACT 3 ACT 4

Make the appropriate Voice Condition settings for Fretless Bass 1.

8

On Page 1 of the Voice Condition display, set Initial Touch in Touch Tone to 5, and After Touch to 0.
(After Touch for the Pedal Voice is available only on the ELS-01C/01X).

You don’t need to make any changes in Page 2 of the Voice Condition display.

On Page 3 of the display, change the EFFECT 1 to [CHORUS] and TYPE 1 to [XG

9

CHORUS 1].

You don’t need to make any changes in Page 4 of the Voice Condition display.

This completes the settings for the Pedal Voice settings.

Editing the Rhythm Condition

●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●

Press the [POPS] button on the panel.

1

RHYTHM

MARCH

WALT Z POPS R & B

WORLD

MUSIC

SWING&

JAZZ

BALLAD ROCK

DANCE

SEQ.

SEQ.

1

2

SEQ.4SEQ.

3

Select the [60’s 8Beat] in the displayed Rhythm Menu, on display Page 1.

2

LATIN

VOLUME

MAX

1

2

MIN

Playing the ELS-01/01C/01X — Tutorial

36

Set the VOLUME button, (at the right of the Rhythm buttons), to the second position

3

from the top.

RHYTHM

MARCH

WALT Z POPS R & B

WORLD

MUSIC

SWING&

JAZZ

BALLAD ROCK

SEQ.

SEQ.

1

SEQ.4SEQ.

3

2

LATIN

Turn the TEMPO dial and set the Tempo to 106.

TEMPO

Increases
the tempo

NOTE

Decreases

the tempo

In this song, the rhythm patterns will automatically be changed with the Rhythm Sequence, so you
don’t need to save your rhythm pattern selections to Registration Memory. However, the Tempo and
Rhythm Condition settings must be saved to Registration Memory.

DANCE

BAR / BEAT

TEMPO

VOLUME

MAX

1

2

MIN

ACT 1ACT 2ACT 4 ACT 3

This completes the Rhythm Condition settings.

Now that the Registration Memory 1 settings are complete, record them to the [1] button in Registration
Memory section.

While holding down the [M.] (Memory) button in the Registration Memory section, press the
[1] button.

When the Registration is being stored, the [1] button flashes momentarily.

Working through the instructions above, you’ve probably become quite familiar with making settings for Voice
Condition and Rhythm Condition. Now try making settings on your own for the other Registration Memories
(M2 – M7), referring to the list of Voice Condition settings below.

Playing the ELS-01/01C/01X — Tutorial

37

M2

Using the M1 Registration as a basis, make M2 by changing the Lower Keyboard Voice setting.
The “Resonance Pad 5” Voice we’ll set here for Lower Keyboard Voice 1 is a unique sound that includes an
interval of a fifth, making chords played on the Lower Keyboard sound rich and mysterious.

Classic Rock Organ

ACT 1 ACT 2 ACT 3 ACT 4

Changing Lower Keyboard Voice 1

●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●

Select the [Resonance Pad 5] Voice for the Lower Keyboard Voice 1.

1

This Voice is included in the [PAD] button, display Page 2.

Make the appropriate Voice Condition settings for Resonance Pad 5.

2

Change the Voice Condition settings in display Pages 1 – 4 and the Brilliance setting according to the
following chart. Settings/values that should be changed are highlighted in color.

Voice Condition Settings

Page 1 Pan Center

Touch Tone Initial: 3 After: 12

Pitch Horizontal: 0 After: 0

Feet Preset (8')

Reverb 20

Volume 20

Page 2 Vibrato Preset

Touch Vibrato OFF

Transpose 0

Tune 0

Page 3 Effect 1 Chorus

Type 1 Celeste 2

Page 4 Effect 2 Thru

Type 2 Thru

BRILLIANCE 3rd from bottom

The After Touch setting allows you to change the volume and timbre of the sound, depending on how
strongly you press down on the keys after playing them.

After you’ve made all the necessary Voice Condition settings, press the [ROTARY SP SPEED] button to turn it
on.

Now that the Registration Memory 2 settings are complete, record these settings to the [2] button in Registration
Memory section.

Playing the ELS-01/01C/01X — Tutorial

38

M3

Sweet Harmonica Melody

Using the M1 Registration as the basis, set Harmonica for Lead Voice 1.

First, call up the M1 Registration by pressing the [1] button on the Registration Memory section, then set the
volume of the Upper Keyboard Voice 1 to 0.

Creating the Lead Voice 1 settings

●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●

Press User button [1] of Lead Voice 1, then select [Harmonica 2] from the Organ

1

category.

ACT 1ACT 2ACT 4 ACT 3

1

LOWER

BRILLIANCE VOLUME

BRILLIANT

MELLOW

MAX

MIN

LEAD VOICE 1

VIOLIN

SYNTH

FLUTE TO

TRUMPET

Make the appropriate Voice Condition settings for Harmonica 2.

2

Change the Voice Condition settings in display Pages 1 – 4 and the Brilliance setting according to the
following chart. Settings/values that should be changed are highlighted in color.

Voice Condition Settings

Page 1 Pan Center

Touch Tone Initial: 8 After: 8

Pitch Horizontal: 0 After: 0

Feet Preset (8')

Reverb 18

Volume 22

Page 2 Vibrato

Touch Vibrato OFF

Slide OFF Time: 0

Transpose 0

Tune

Page 3 Effect 1 Delay

Type 1 Echo

Page 4 Effect 2 Preset

Type 2 Thru

BRILLIANCE 4th from bottom

User Delay: 4, Depth: 2,

Speed: 3

+10

Playing the ELS-01/01C/01X — Tutorial

39

The “User” setting of Vibrato allows you to create your original vibrato by changing the vibrato delay,
depth and speed. The Tune setting, set higher than other Voices, makes the Harmonica stand out. The
Delay effect lends an echo to the sound as if the instrument is being played in a hall.

ACT 1 ACT 2 ACT 3 ACT 4

This completes the LEAD VOICE 1 settings.
LEAD VOICE 2 is not going to be used in this Registration, so check that its volume is set to 0.

Now that the Registration Memory 3 settings are complete, record these settings to the [3] button in Registration
Memory section.

Playing the ELS-01/01C/01X — Tutorial

40

M4

Soft Harmony with Pad Sound
on the Lower Keyboard

Using the M3 Registration as the basis, set Pop Lead for Lead Voice 2 and change the Lower Keyboard Voice 1 to
an ethereal pad sound like an angel singing. We’ll also change the Rhythm Condition here, setting some
accompaniment parts – including guitar backing – to on.

First call up the M3 Registration by pressing the [3] button on the Registration Memory section.

Helpful Hint

If you don’t want to program all of the Registration settings in one session, it is a good idea to save the
Registration settings you’ve created to a SmartMedia card, using the M.D.R. function. Saving your
settings periodically will also help prevent loss of data should you make any mistakes while
programming.
When you want to create a new Registration based on the previously created Registration, first call up
the created Registration (M3, in this case) then record it to the Registration memory number to be re­programmed (M4, in this case). This helps your programming and editing go more smoothly.

ACT 1ACT 2ACT 4 ACT 3

Creating the Lead Voice 2 settings

●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●

Press User button [1] of Lead Voice 2, then select [Pop Lead 6] from the Synth category,

1

display Page 2.

1

SOLO

(KNEE)

BRILLIANCE VOLUME

BRILLIANT

MELLOW

MAX

MIN

LEAD VOICE 2

VA VA

ACOUS-

TIC

VA VA

ELEC-

TRONIC

VIRTUAL

CUSTOM

Playing the ELS-01/01C/01X — Tutorial

41

ACT 1 ACT 2 ACT 3 ACT 4

Make the appropriate Voice Condition settings for Pop Lead 6.

Change the Voice Condition settings in display Pages 1 – 4 and the Brilliance setting according to the

2

following chart. Settings/values that should be changed are highlighted in color.

Voice Condition Settings

Page 1 Pan Center

Touch Tone Initial: 8 After: 8

Pitch Horizontal: 0 After: 0

Feet Preset (8')

Reverb 22

Volume 12

Priority Last

Page 2 Vibrato Preset

Touch Vibrato OFF

Slide OFF Time: 0

Transpose 0

Tune +10

Page 3 Effect 1 Delay

Type 1 Delay LR

Page 4 Effect 2 Thru

Type 2 Thru

BRILLIANCE 3rd from top

NOTE

The “Last” setting of the Priority parameter allows y ou to pla y the phrase with the Lead Voice while one
note is being held down — for example, in the fourth and seventh bars in C in the notation.

This completes the LEAD VOICE 2 settings.

Playing the ELS-01/01C/01X — Tutorial

42
