Yamaha CRW4001t User Manual

CRW4001t

SERIES

User Guide

Guide de I’utilisateur

Bedienungsanleitung

COMPLIANCE INFORMATION STATEMENT

(DECLARATION OF CONFORMITY PROCEDURE)

Responsible Party: Yamaha Systems Technology, Inc.

Address: 100 Century Center Court

San Jose, California 95112

Telephone: [phone]

FAX: [phone]

Type of Equipment: CD Recorder

Model Name: CRW4001t

CRW4001t-NB

This device complies with Part 15 of the FCC Rules.
Operation is subject to the following conditions:

1) this device may not cause harmful interference, and

2) this device must accept any interference received including interference that
may cause undesired operation.
See user manual instructions if interference to radio reception is suspected.

FCC INFORMATION (U.S.A.)

1. IMPORTANT NOTICE: DO NOT MODIFY THIS UNIT!
This product, when installed as indicated in the instructions contained in this manual, meets FCC requirements. Modifications not
expressly approved by Yamaha may void your authority, granted by the FCC, to use the product.

2. IMPORTANT: When connecting this product to accessories and/or another product use only high quality shielded cables. Cable/
s supplied with this product MUST be used. Follow all installation instructions. Failure to follow instructions could void your FCC
authorization to use this product in the USA.

3. NOTE: This product has been tested and found to comply with the requirements listed in FCC Regulations, Part 15 for Class “B”
digital devices. Compliance with these requirements provides a reasonable level of assurance that your use of this product in a
residential environment will not result in harmful interference with other electronic devices. This equipment generates/uses radio
frequencies and, if not installed and used according to the instructions found in the users manual, may cause interference harmful
to the operation of other electronic devices. Compliance with FCC regulations does not guarantee that interference will not occur
in all installations. If this product is found to be the source of interference, which can be determined by turning the product “OFF”
and “ON”, please try to eliminate the problem by using one of the following measures:
Relocate either this product or the device that is being affected by the interference.
Utilize power outlets that are on different branch (circuit breaker or fuse) circuits or install AC line filter/s.
In the case of radio or TV interference, relocate/reorient the antenna. If the antenna lead-in is 300 ohm ribbon lead, change the lead­in to coaxial type cable.
If these corrective measures do not produce satisfactory results, please contact the local retailer authorized to distribute this type
of product. If you can not locate the appropriate retailer, please contact Yamaha Systems Technology, Inc. 100 Century Center
Court, San Jose, CA95112, U.S.A.

• This manual applies to the CRW4001t and CRW4001t-NB.
The CRW4001t front panel displays the YAMAHA brand name.
The CRW4001t-NB front panel does not display a brand name.

Laser Diode Properties

Material : GaAlAs
Wavelength : 780-790 nm
Emission Duration : Continuous
Laser Output Power : Less than 44.6 µW*

*

This output is value measured at a

distance 200mm from the objective lens
surface on the optical pick-up block.
ANSI Class : Class 1

CLASS 1 LASER PRODUCT

LASER KLASSE 1 PRODUKT

VORSICHT : UNSICHTBARE LASERSTRAHLUNG WENN ABDECKUNG
GEOFFNET. NICHT DEM STRAHL AUSSETZEN.

VARNING : OSYNIIG LASERSTRÅLNING NÄR DENNA DEL ÄR ÖPPAND OCH
SPÄRREN ÄR URKOPPLAD. BETRAKTA EJ STRÅRLEN. STRALEN ÄR FARLING.

VARO! : AVATAESSA JA SUOJALUKITUS OHITETTAESSA OLET
ALTTINA NÄKYMÄTTÖMÄLLE LASERS TEILYLLE. ÄLÄ KATSO SÄTESSEN.

ADVARSEL : USYNLIG LASERSTRALNING VED ÅBNING NÄR SIKKERHETSAF­ BYDERE ER UDE AF FUNKTION. UNDGÅ UDSETTELS FOR STRÅLING.

CAUTION

Use of controls or adjustments or performance of
procedures other than those specified herein may
result in hazardous radiation exposure.

This compact disc player is
classified as a CLASS 1
LASER product.
The CLASS 1 LASER
PRODUCT label must be
located on the exterior.

Varningsanvisning för
laserstrålning.

❢

WARNING

W ARNING ❢

• The temperature where CRW4001t is located
should be between 5ºC and 40ºC (41ºF – 104ºF),
when used in a fan-cooled system.

• Do not disassemble the CRW4001t cover to
reduce the risk of electric shock.

• Always remove the disc before transporting
CRW4001t.

i

Important Precautions

Important Precautions

Please read the following precautions before attempt­ing to operate the CRW4001t.

• Before recording a disc, be sure to clean the disc
and tray using an air aerosol-type dust remover.
A dust particle on the disc may cause recording
to fail, producing an unusable disc.

• Always record in a dust-free environment. If the
disc must be removed from the CRW4001t before
recording is finished, store the disc in a clean,
dust-free environment.

• The CRW4001t contains no user serviceable parts.
Refer all servicing to qualified personnel.

• If any of the following should occur , the CRW4001t
should be serviced by qualified personnel:

Metal objects or liquids get inside the CRW4001t.
The CRW4001t does not operate normally or a

marked change in performance is noticed.

• Do not place heavy objects on the CD-RW discs.

• Do not subject the CRW4001t and computer to
impact or shock when in use, as this may impair
recording or playback.

• Yamaha is not responsible for any data or infor­mation losses resulting from the operation of the
CRW4001t.

ii

©199

All Righ

Table of Contents

Table of Contents

Introduction ............................................................................. 1

CRW4001t Features ...................................................... 1

Orange Book Compatible Recording ............................ 2

Chapter 1 - System Configuration ..................................... 3

Computer....................................................................... 3

Software......................................................................... 3

Tools.............................................................................. 3

Discs .............................................................................. 4

Chapter 2 - Installing the Yamaha CRW4001t Drive .......5

MASTER/SLAVE settings............................................ 5

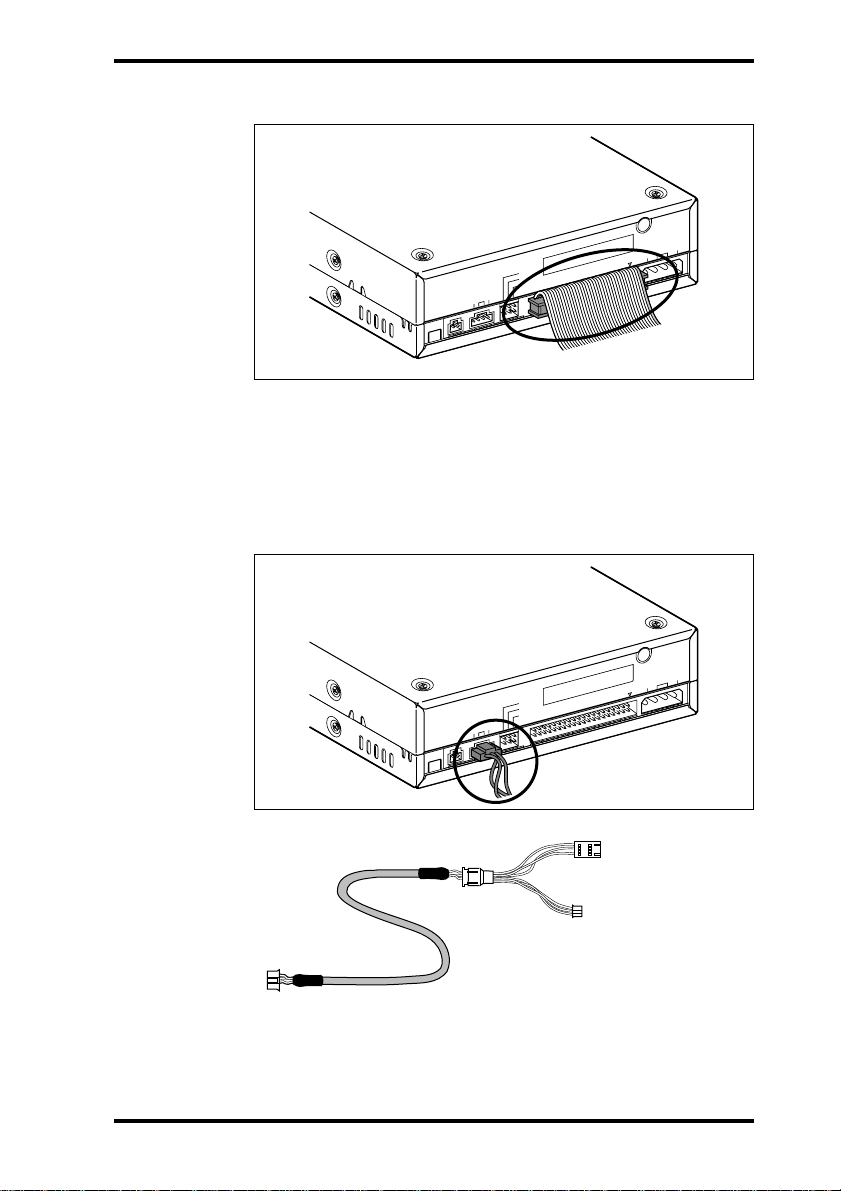

Installing the CRW4001t drive...................................... 7

Chapter 3 - Operation .......................................................... 12

Front Panel................................................................... 12

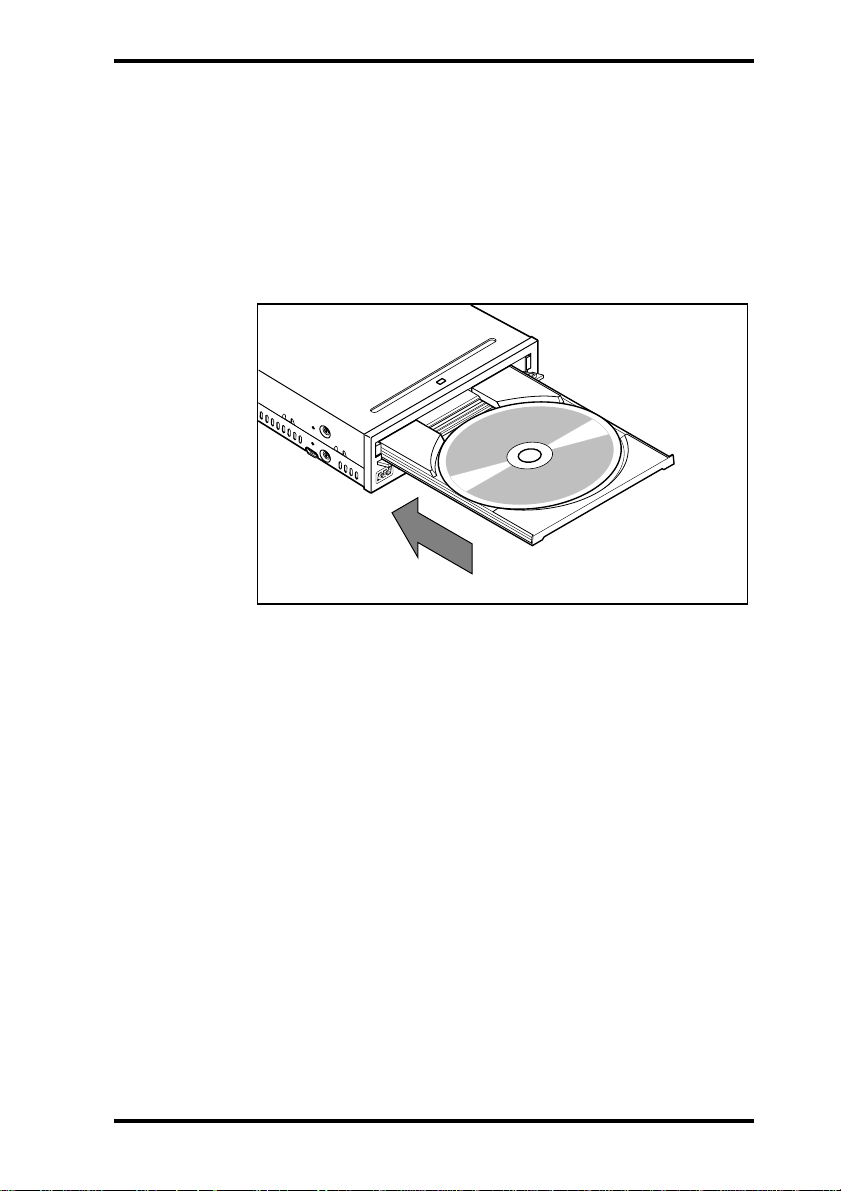

Loading a Disc............................................................. 13

Ejecting the Disc.......................................................... 14

Troubleshooting ................................................................... 15

Appendix ................................................................................. 16

Specifications............................................................... 16

Front Panel Indicator Key............................................ 17

7 Yamaha Corporation.
This document may not, in whole or in part, be copied, photocopied, reproduced,
translated, transmitted or reduced to any electronic medium of machine readable
form without prior consent in writing from Yamaha.
MS-DOS and Windows are registered trademarks of Microsoft, Inc.
Unix is a registered trademark of UNIX System Laboratories.
All other trademarks are the property of their respective companies.

iii

ts Reserved.

■

Introduction

Thank you for purchasing a Y amaha CRW4001t drive. Please read this
manual before using the drive in order to make the best use of the supe­rior CRW4001t functions.
After reading, please retain this manual for future reference.

CRW4001t Features

2xS Recording (Rewritable) - 4xS Recording (Recor dable) ­6xS Reading

The CRW4001t is able to write (ov erwrite) CD-RW discs at double speed,
and is able to write CD-R discs at quad speed, double speed, or normal
speed.
For both types of media, this drive is able to read at 6X speed, quad speed,
double speed, or normal speed, and any of these modes can be selected
as desired.

■

Compatible with Seven Different Formats

The CRW4001t can both record and read seven different formats:
CD-ROM, CD-R OM XA, CD-I, CD-D A, CD-Bridge (multisession), CD­Extra, and Video CD. The CRW4001t is also equipped with an analog
audio output terminal (headphones) for CD-DA.

Introduction

■

ATAPI for High-Volume, High-Speed Data Transfer

The CRW4001t features AT API/IDE interf ace for connecting computers
and peripheral devices. ATAPI provides high-speed transmission of large
quantities of data, which is especially important when working with image
data.

■

Orange Book Part 2, Part 3 Compatible 5-Mode Recording

The CRW4001t conforms to the five recording modes outlined in the
Orange Book Part 2 and Part 3: T rack at Once, Multisession, Disc at
Once, Session at Once and Packet Writing.

1

Introduction

Orange Book Compatible Recording

Track at Once

In this mode, data can be recorded to disc one track at a time. Discs
recorded in this mode cannot be played in CD players or CD-R OM dri ves
other than a CD-RW or CD-R drive until the session is closed.

Multisession

In this mode, data can be recorded to disc in stages (one session at a time).
Additional data can be written later.

Disc at Once

In this mode, data can be recorded to an entire disc in one pass.
It is not possible to write additional data later.

Session at Once

In this mode, data can be recorded to disc one session at a time. To use
this mode, your software must support Session at Once recording.
New sessions can be written later.

Packet Writing

This is useful for data back-up. Smaller units of data can be added to
tracks. To use this mode, your software must support Packet Writing.

2

hili

Chapter 1 - System Configuration

Chapter 1 - System Configuration

Before using the CRW4001t, make sure that you ha v e all of the items
on the list of included items.

In order to use the CRW4001t, you will require the following.

Computer

The following operating environment is required:

• An IBM/A T compatible computer with a 100 MHz or f aster Pentium
CPU (in order to write at 4x speed), or a 100 MHz or faster 486
CPU (in order to write at 2x speed)

• A vacant IDE interface connector

• A vacant half-height bay

• Windows 95

• Sufficient hard disk space

Note: You will need about twice as much space on your hard disk as that

required by the data you wish to write to CD-ROM.

Software

Tools

Use writing software or packet writing software which supports the
CRW4001t.

•P

This is used to remove the
cover of your computer,
and to install the Yamaha
CRW4001t drive.

• Long nose pliers

These are used to insert or
remove the jumper pin
when setting the MASTER/
SLAVE settings of the
Yamaha CRW4001t drive.

ps screwdriver

Philips screwdriver

Long nose pliers

3

Chapter 1 - System Configuration

Discs

On the CRW4001t, you can use conventional CD-RW and CD-R discs
that conform to the Recordable Compact Disc Systems Part 2 and Part
3 (Orange Book).
Yamaha recommends the following Y amaha CD-RW and CD-R discs:

CD-RW Discs

> CRWM74R (

CD-R Discs

> CDM12Y63 (
> CDM12Y74 (
> CDM12Y74M (
> CDM12Y74T (

Read-only Discs

You can use discs with the logo which conform to the Compact
Disc Read Only Memory standard (CD-ROM standard, Yellow Book).
If you wish to use the audio functions, use discs with the logo,
which conform to the Compact Disc Digital Audio standard (Red Book).

φ

120mm, 74 minutes)

φ

120mm, 63 minutes)

φ

120mm, 74 minutes)

φ

120mm, 74 minutes)

φ

120mm, 74 minutes)

4

Chapter 2 - Installing the Yamaha CRW4001t Drive

Chapter 2 - Installing the Yamaha CRW4001t Drive

MASTER/SLAVE settings

Before you install the CRW4001t in your computer , you must make the
MASTER/SLAVE setting.
This setting is set by inserting a jumper pin in the jumper switch located
on the rear panel of the CRW4001t dri v e.

Important:

When the unit is shipped from the factory , this setting is in the MASTER
position.

Note:

Use long-nose pliers to remove or insert the jumper pin.

Rear Panel

SER. NO.

AUDIO OUT

RGL

CSEL
SLAVE
MASTER

IDE INTERFACE CONNECTOR

1

DC INPUT

+5V G +12V

Important:

Jumper Switch

Enhanced IDE compatible computers normally have two IDE interface
connectors; a primary one and a secondary one.

Each IDE interface connector of the host computer allows up to two IDE
devices to be connected. This means that a total of up to four IDE devices
can be connected.

Normally, a hard disk is connected to the primary connector, and a CD­ROM drive is connected to the secondary connector.

Avoid connecting the CRW4001t or a CD-ROM drive to the same primary
connector as the hard disk drive.
In order to take full advantage of the system's performance, we recommend
that you connect the CRW4001t to the secondary connector by itself as
the MASTER.

5

Chapter 2 - Installing the Yamaha CRW4001t Drive

Setting the CRW4001t as the MASTER

As shown in the diagram at the right, insert the
jumper pin into the right edge of the jumper
switch.

Note: If only the CRW4001t will be connected to the

IDE interface connector , connect the CRW4001t
to the end of the connector.

Setting the CRW4001t as the SLAVE

As shown in the diagram at the right, insert the
jumper pin into the middle of the jumper switch.

CSEL (Cable SELect)

If you use the CSEL setting, the MASTER/SLAVE setting will be made
automatically depending on the hardware configuration.
For details refer to the manual of your computer.

♦

♦

♦

T

T

CSEL
SLAVE
MASTER

CSEL
SLAVE
MASTER

IDE INT

IDE INT

6

Chapter 2 - Installing the Yamaha CRW4001t Drive

Installing the CRW4001t drive

The following steps will differ slightly depending on the type of computer
you are using. For details on removing the cover from your computer,
and installing or removing internal devices, refer to the manual for your
computer.

1. Switch off your computer, and unplug it from the A C outlet.

If you fail to do this, there is a danger of electric shock and/or of causing
short circuits, which may damage the computer and/or CRW4001t dri v e.

OFF

PUSH

2. Remove the cover from your computer.

Be careful not to lose the screws that were removed.

3. Your hands or body may be holding a charge of static elec­tricity . Touc h a metallic portion of the chassis or power sup­ply to release any such charge.

7

Chapter 2 - Installing the Yamaha CRW4001t Drive

4. Remove the front cover of a vacant half-height drive bay.

For details refer to the manual of your computer.



5. Slide the CRW4001t drive into the drive bay from the front.

At this time, be careful not to apply excessive force to the dri v e itself.
Finger-tighten the four fastening screws, and check that there is enough
room to connect the power supply cable, IDE interface connector , and
AUDIO cables.



6. Connect the IDE interface connector.

Connect the 40-pin IDE interface connector to the IDE interface located
on the rear panel of the CRW4001t drive.
Position the connector so that the colored line is at pin 1 (your lower right).

8

Chapter 2 - Installing the Yamaha CRW4001t Drive

DC INPUT

+5V G +12V

SER. NO.

CSEL
SLAVE
MASTER

AUDIO OUT

RGL

IDE INTERFACE CONNECTOR

7. Connect the AUDIO cable.

Connect the single 4-pin connector (Sound Blaster compatible) to the
sound card. Connect the 4-pin connector at the other end of the cable (the
larger connector) to the AUDIO OUT connector on the CRW4001t drive.
The polarizing lug should be at the top.

1

SER. NO.

CSEL
SLAVE
MASTER

AUDIO OUT

RGL

IDE INTERFACE CONNECTOR

AUDIO Cable

To the Sound Card (Sond Blaster compatible)
4-pin connector (small)

DC INPUT

+5V G +12V

1

To the CRW4001t

4-pin connector (large)

To the CDR100/102
(3-pin connector)

* Simultaneous use with the

CRW4001t is not possible.

9

Chapter 2 - Installing the Yamaha CRW4001t Drive

8. Connect the power supply cable.

Connect the +12V and +5V 4-pin power cable to the power supply inter­face located on the rear panel of the CRW4001t drive.
The shape of the connector makes it impossible to reverse the connections.

SER. NO.

CSEL
SLAVE
MASTER

IDE INTERFACE CONNECTOR

①＋12VDC
②Ground(+12VDCRETURN)
③Ground(+5VDCRETURN)
④＋5VDC

DC INPUT I/F

4 3 2 1

+5V±5% G +12V±10%

DC INPUT

AUDIO OUT

RGL

1

DC INPUT

+5V G +12V

10

9. Tighten the four fastening screws securely.

Chapter 2 - Installing the Yamaha CRW4001t Drive

10.Attach the cover of your computer.



11. Connect the power cable to an AC outlet, and switch on your
computer.

Make sure that the LED located on the panel of the CRW4001t dri v e is lit.

ON

PUSH

12.Start up your operating system.

For the procedure, refer to the manual for your operation system.

13.Install the writing software.

For the installation procedure, refer to the manual for your writing soft­ware.

11

Chapter 3 - Operation

Chapter 3 - Operation

Front Panel

23 45

1 Disc tray

The disc is inserted and ejected here. Pressing the eject button will open
the tray.

2 Headphone jack

This stereo mini jack allows you to connect headphones and listen to
audio.

3 Headphone volume control

This control adjusts the volume level of the headphone output. Rotating
the control clockwise will increase the volume level.

4 ON/DISC LED

This indicator lights up in orange when the CRW4001t is po wered on,
and lights up in green when the CRW4001t contains a disc.

5 READ/WRITE LED

This indicator lights up in green when data is being read, and flashes
when data is being accessed. It also lights up in orange when data is
being recorded on a disc.

6 Eject button

This button is used to open or close the tray.

1

6

12

Loading a Disc

1. Press the eject button to open the tray.

2. Carefully place the disc, label-side up, on the disc tray.

3. Press the disc tray softly or press the eject button again to
close the disc tray.

Chapter 3 - Operation

READ/

WRITE
ON/
DISC

Recordable

VOL

13

Chapter 3 - Operation

Ejecting the Disc

If the CRW4001t is powered on:

Press the eject button to eject the disc.

Note: You cannot eject the disc if the A TAPI command prohibits the eject opera-

tion while the CRW4001t is reading data.

Caution: Be sure to remove the disc after it is completely ejected. (T rying to

remove the disc before it is completely ejected may cause the drive to
malfunction.)

Press the eject button

READ/

WRITE

ON/
DISC

Recordable

VOL

14

If the CRW4001t is not powered on:

Pressing the eject button will not eject the disc.

Troubleshooting

Troubleshooting

If CRW4001t is not performing as expected, look up the symptoms in the follo wing table,
and take the appropriate corrective action.

Symptoms Corrective action

The power to the CRW4001t is off • Check the DC power cable connection.
The CRW4001t is not recognized by

the computer

The disc tray will not open • Make sure that the power to the drive is turned on.
The disc ejects • Make sure that the disc is seated in the tray cor-

Incorrect operation • Make sure that the disc is seated in the tray cor-

• Check the IDE interface connector connection.

• Is the MASTER/SLAVE setting correct?

• If there is only one device connected to the IDE
interface connector, is it connected to the end of
the connector?

rectly.

rectly.

• Make sure that you are using the correct disc.

• Make sure that there is no dust, dirt, or conden­sation on the disc or tray.

15

Appendix

Specifications

Interface ATAPI/IDE
Data Capacity 1.2m/sec: 666MB

1.4m/sec: 540MB

Record/Read Speed Writing (CD-RW): 2X speed

Writing (CD-R): Normal speed, 2X speed, 4Xspeed
Reading: Normal speed, 2X speed, 4X speed, 6X speed

Data Transfer Rate 6xS: 900KB/sec

4xS: 600KB/sec
2xS: 300KB/sec

1xS: 150KB/sec
Burst Transfer Rate 5.5MB/sec
Buffer Size 2MB (500 sectors)
Access Speed 250ms
Installation Horizontal
Disc Loading Tray
Audio Out Frequency Response 20 - 20,000Hz (Line Out)
(normal speed) Output Level 1 Vrms (Line Out)
Power Consumption 11W (read/write)
Power Supply 5V ±5%, 12V ±10%
Environment Temperature: +5°C - +40°C (read/write, when used in

a fan-cooled system)

Humidity: 25 - 80%
Dimensions (WxHxD) 146 x 41.3 x 203 mm
Weight 1.3kg

Rear Panel Connector

IDE/Power Supply Non-shielded two-in-one, 40p + 4p
MASTER/SLAVE/CSEL Selector Short-pin 6p
Audio Out MOLEX 53532-04

Specifications are subject to change without prior notice.

16

Front Panel Indicator Key

● on: green ✦ flashing: green — off
❍ on: orange ✧ flashing: orange

Status ON/DISC Read/Write

Reset ❍ ➠ — ❍ ➠ —
Ready (no disc) ❍ —
Inserting disc ✧ ➠ ✦ —
Ejecting disc ✧ —
Ready (disc inserted) ● —
Seeking ●✦
Preparing to write ●✧
Writing ●❍
Writing (test mode) ●✧

Appendix

Playback ●●

17

English: If you have any questions, please contact
your dealer or one of the following companies.

French: Pour plus de détails sur les produits, veuillez
vous adresser à Yamaha ou au distributeur le plus
proche figurant dans la liste suivante :

German: Bei weiteren Fragen wenden Sie sich Sitte
an Ihren Händler oder eine der folgenden Firmen.

JAPAN

Yamaha Corporation
Electronic Systems Division
203 Matsunokijima, Toyooka-mura, Iwata-gun,
Shizuoka-ken, 438-01 JAPAN
TEL: [phone]
FAX: [phone]
Internet: www.yamaha.co.jp

GERMANY, SWITZERLAND,
AUSTRIA, EASTERN EUROPE and
RUSSIA

Yamaha Europa GmbH
Multi Media Division
Siemensstrasse 22-34,
D-25462 Rellingen, GERMANY
TEL: [phone]
FAX: [phone]
Internet: www.yamaha-europe.com

FRANCE

Yamaha Musique France S.A.
B.P. 70, 77312 Marne-la Vallée Cedex 2,
FRANCE
TEL: [phone]
FAX: [phone]

U.S.A

Yamaha Systems T echnology, Inc.
100 Century Center Court, San Jose, CA 95112
U.S.A
TEL: [phone]
FAX: [phone]
Internet: www.yamahayst.com

CANADA

Yamaha Canada Music Ltd.
135 Milner Avenue, Scarborough,
Ontario M1S 3R1, CANADA
TEL: [phone]
FAX: [phone]

UNITED KINGDOM, BENELUX,
PORTUGAL, SPAIN, GREECE,
CYPRUS, TURKEY and EGYPT

Yamaha-Kemble Music (U.K.) Ltd.
Media Technology Division
Sherbourne Drive, Tilbrook, Milton Keynes
MK7 8BL ENGLAND
TEL: [phone]
FAX: [phone]

VZ24450-1

ITALY

Yamaha Musica Italia s.p.a.
Keyboard & Multimedia Division
Viale Italia 88, 20020, Lainate (Milano) ITALY
TEL: [phone]
FAX: [phone]

SWEDEN and SCANDINAVIA

Yamaha Scandinavia AB
J A Wettergrens Gate 1, Box 300 53,
S-400 43 Gothenburg SWEDEN
TEL: [phone]
FAX: [phone]
Internet: www.yamaha.se

SINGAPORE, MALAYSIA, INDIA,
INDONESIA and PHILIPPINES

Yamaha Systems Technology, Singapore Pte Ltd.
138 Cecil Street, #03-01A Cecil Court,
SINGAPORE 069538
TEL: [phone]
FAX: [phone]

YAMAHA CORPORATION

Electronic Systems Division

Printed in Japan
