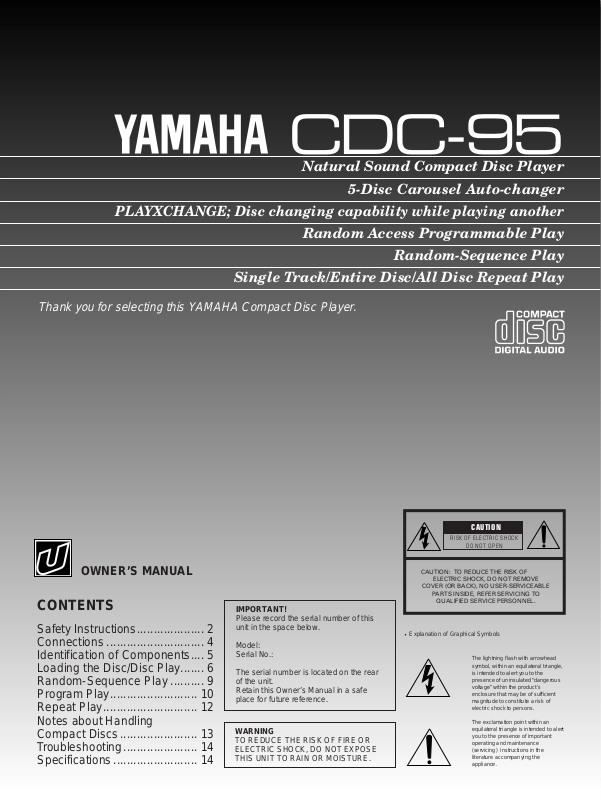

Yamaha CDC-95 User Manual

IMPORTANT!

Please record the serial number of this unit in the space below.

Model: Serial No.:

The serial number is located on the rear of the unit. Retain this Owner’s Manual in a safe place for future reference.

WARNING

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE.

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF

ELECTRIC SHOCK, DO NOT REMOVE

COVER (OR BACK), NO USER-SERVICEABLE

PARTS INSIDE, REFER SERVICING TO

QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert you to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert you to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

•

Explanation of Graphical Symbols

CAUTION

Natural Sound Compact Disc Player

5-Disc Carousel Auto-changer

PLAYXCHANGE; Disc changing capability while playing another

Random Access Programmable Play

Random-Sequence Play

Single Track/Entire Disc/All Disc Repeat Play

CDC-95

Thank you for selecting this YAMAHA Compact Disc Player.

OWNER’S MANUAL

CONTENTS

Safety Instructions.................... 2

Connections............................. 4

Identification of Components.... 5

Loading the Disc/Disc Play....... 6

Random-Sequence Play.......... 9

Program Play.......................... 10

Repeat Play............................ 12

Notes about Handling

Compact Discs....................... 13

Troubleshooting...................... 14

Specifications......................... 14

SAFETY INSTRUCTIONS

1 Read Instructions – All the safety and operating

instructions should be read before the unit is operated.

2 Retain Instructions – The safety and operating instructions

should be retained for future reference.

3 Heed Warnings – All warnings on the unit and in the

operating instructions should be adhered to.

4 Follow Instructions – All operating and other instructions

should be followed.

5 Water and Moisture – The unit should not be used near

water – for example, near a bathtub, washbowl, kitchen sink, laundry tub, in a wet basement, or near a swimming pool, etc.

6 Carts and Stands – The unit should be used only with a

cart or stand that is recommended by the manufacturer.

6A A unit and cart combination should be

moved with care. Quick stops, excessive force, and uneven surfaces may cause the unit and cart combination to overturn.

7 Wall or Ceiling Mounting – The unit should be mounted to

a wall or ceiling only as recommended by the manufacturer.

8 Ventilation – The unit should be situated so that its

location or position does not interfere with its proper ventilation. For example, the unit should not be situated on a bed, sofa, rug, or similar surface, that may block the ventilation openings; or placed in a built-in installation, such as a bookcase or cabinet that may impede the flow of air through the ventilation openings.

9 Heat – The unit should be situated away from heat

sources such as radiators, stoves, or other appliances that produce heat.

10 Power Sources – The unit should be connected to a

power supply only of the type described in the operating instructions or as marked on the unit.

11 Power-Cord Protection – Power-supply cords should be

routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the unit.

12 Cleaning – The unit should be cleaned only as

recommended by the manufacturer.

13 Nonuse Periods – The power cord of the unit should be

unplugged from the outlet when left unused for a long period of time.

14 Object and Liquid Entry – Care should be taken so that

objects do not fall into and liquids are not spilled into the inside of the unit.

15 Damage Requiring Service – The unit should be serviced

by qualified service personnel when:

A. The power-supply cord or the plug has been

damaged; or

B. Objects have fallen, or liquid has been spilled into the

unit; or

C. The unit has been exposed to rain; or D. The unit does not appear to operate normally or

exhibits a marked change in performance; or

E. The unit has been dropped, or the cabinet damaged.

16 Servicing – The user should not attempt to service the unit

beyond those means described in the operating instructions. All other servicing should be referred to qualified service personnel.

17 Power Lines – An outdoor antenna should be located

away from power lines.

18 Grounding or Polarization – Precautions should be taken

so that the grounding or polarization is not defeated.

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF

ELECTRIC SHOCK, DO NOT REMOVE

COVER (OR BACK). NO USER-SERVICEABLE

PARTS INSIDE. REFER SERVICING TO

QUALIFIED SERVICE PERSONNEL.

•

Explanation of Graphical Symbols

CAUTION

WARNING

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE.

IMPORTANT!

Please record the serial number of this unit in the space below.

Model: Serial No.:

The serial number is located on the rear of the unit. Retain this Owner’s Manual in a safe place for future reference

1 To ensure the finest performance, please read this manual

carefully. Keep it in a safe place for future reference.

2 Install your unit in a cool, dry, clean place – away from

windows, heat sources, and too much vibration, dust, moisture or cold. Avoid sources of hum (transformers, motors). To prevent fire or electrical shock, do not expose to rain and water.

3 Do not operate the unit upside-down. It may overheat,

possibly causing damage.

4 Never open the cabinet. If a foreign object drops into the

set, contact your dealer.

5 Do not use force on switches, knobs or cords. When

moving the set, first turn the unit off. Then gently disconnect the power plug and the cords connecting to other equipment. Never pull the cord itself.

6 Do not attempt to clean the unit with chemical solvents;

this might damage the finish. Use a clean, dry cloth.

7 Be sure to read the “TROUBLESHOOTING” section on

common operating errors before concluding that your unit is faulty.

8. Do not place another component on top of this unit,

because to do so will discolor or damage the surface of the unit.

9. To prevent damage by lightning, disconnect the power

cord from the household AC outlet during an electrical storm.

10. When disconnecting the power cord from the household

AC outlet, grasp the plug; do not pull the cord.

11. When moving the unit, be sure to first disconnect the

power cord from the household AC outlet, and disconnect cords connected to other equipment.

CAUTION FOR CARRYING THIS UNIT

Be sure not to carry or tip the unit with discs remaining in it.

CAUTION FOR MOVING THIS UNIT

When moving this unit, first remove all discs from the disc tray and close the tray by pressing the OPEN/CLOSE button, and then switch off the power after you confirm that the display indicates as follows.

Never switch off the power if the display is not pictured as above, otherwise the unit will get out of order during moving because the internal mechanism is not locked.

CAUTION: READ THIS BEFORE OPERATING YOUR UNIT

As the laser beam used in this compact disc player is harmful to the eyes, do not attempt to disassemble the cabinet. Refer servicing to qualified personel only.

To avoid electrical shock, do not open the unit. Refer servicing to qualified personnel only.

DANGER: The use of optical instrument with this product will increase eye hazard.

CAUTION

Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.

DANGER

Invisible laser radiation when open and interlock failed or defeated. Avoid direct exposure to beam.

The apparatus is not disconnected from the AC power source as long as it is connected to the wall outlet, even if the apparatus itself is turned off.

WARNING

YAMAHA and the Electronic Industries Association’s Consumer Electronics Group want you to get the most out of your equipment by playing it at a safe level. One that lets the sound come through loud and clear without annoying blaring or distortion – and, most importantly, without affecting your sensitive hearing. Since hearing damage from loud sounds is

often undetectable until it is too late, YAMAHA and the Electronic Industries Association’s Consumer Electronics Group recommend you to avoid prolonged exposure from excessive volume levels.

We Want You Listening For A Lifetime

Laser Diode Properties

• Material: GaAlAs

• Wavelength: 780nm

• Emission Duration: continuous

• Laser Output: max. 44.6µW* * This output is the value measured at a distance of about

200mm from the objective lens surface on the Optical Pickup Block.

CONNECTIONS

●

Before making any connections, switch OFF the power to the unit and the amplifier or other component.

●

Connect the “LINE OUT” terminals to the “CD” (or “AUX”) terminals of the amplifier. If the amplifier does not have such terminals, use the “TAPE PB” terminals. For additional details concerning these connections, refer to the operation instructions for the amplifier being used.

●

Be sure that the left (“L”) and right (“R”) LINE OUT terminals are connected to the corresponding (left and right) terminals of the amplifier or other component.

●

If the placement of this unit causes noise to other equipment, such as a tuner, separate them from each other.

To AC outlet

This unit

Amplifier

Connection cord (included)

IDENTIFICATION OF COMPONENTS

FRONT PANEL

* Remote control sensor

The remote control sensor receives the control signal from the remote control transmitter that belongs to the system amplifier.

ENGLISH

POWER

TIME

12345

SKIP

PROG

PLAYXCHANGE

OPEN/CLOSE

PLAY

STOP

DISC SKIP

CLEAR

REPEAT

RANDOM

DISC

MODE

DIMMER

PAUSE

OPEN/CLOSE

button

buttons

DISC SKIP

STOP

button

PLAYXCHANGE

button

PLAY

RANDOM button

REPEAT

button

PROG

button

SKIP

button

select button

TIME

display mode-

Display panel

*Remote control sensor

POWER

switch

DISC

-select buttons

select button

Disc play -

MODE

Disc tray

DIMMER button

button

PAUSE

button

CLEAR

+ 10 hidden pages
