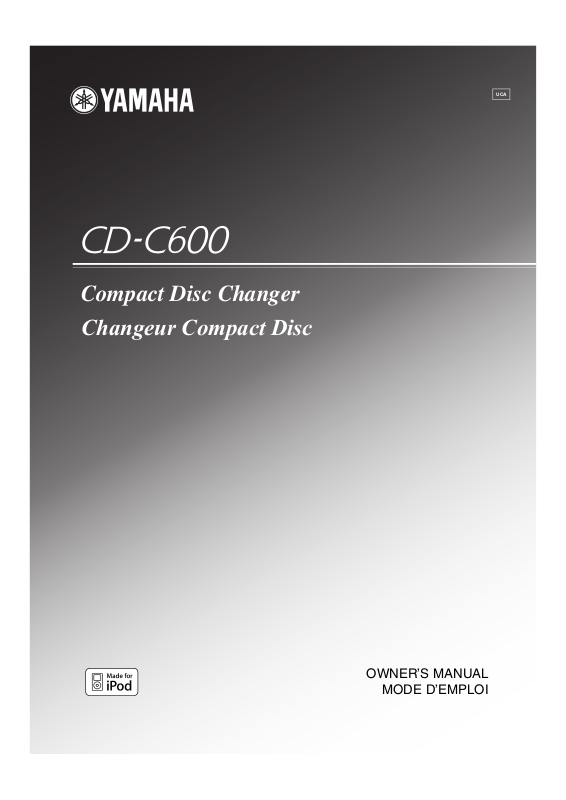

Yamaha CDC-600BL User Manual

Compact Disc Changer

Changeur Compact Disc

UCA

OWNER’S MANUAL

MODE D’EMPLOI

IMPORTANT SAFETY INSTRUCTIONS

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF

ELECTRIC SHOCK, DO NOT REMOVE

COVER (OR BACK). NO USER-SERVICEABLE

PARTS INSIDE. REFER SERVICING TO

QUALIFIED SERVICE PERSONNEL.

• Explanation of Graphical Symbols

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert you to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert you to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

IMPORTANT

Please record the serial number of this unit in the space below. MODEL: Serial No.: The serial number is located on the rear of the unit. Retain this Owner’s Manual in a safe place for future reference.

FOR CANADIAN CUSTOMERS

To prevent electric shock, match wide blade of plug to wide slot and fully insert. This Class B digital apparatus complies with Canadian ICES-003.

1 Read these instructions. 2 Keep these instructions. 3 Heed all warnings. 4 Follow all instructions. 5 Do not use this apparatus near water. 6 Clean only with dry cloth. 7 Do not block any ventilation openings. Install in accordance

with the manufacturer’s instructions.

8 Do not install near any heat sources such as radiators, heat

registers, stoves, or other apparatus (including amplifiers) that produce heat.

9 Do not defeat the safety purpose of the polarized or

grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10 Protect the power cord from being walked on or pinched

particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11 Only use attachments/accessories specified by the

manufacturer.

12 Use only with the cart, stand, tripod,

bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

13 Unplug this apparatus during lightning storms or when unused

for long periods of time.

14 Refer all servicing to qualified service personnel. Servicing is

required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

We Want You Listening For A Lifetime

Yamaha and the Electronic Industries Association’s Consumer Electronics Group want you to get the most out of your equipment by playing it at a safe level. One that lets the sound come through loud and clear without annoying blaring or distortion – and, most importantly, without affecting your sensitive hearing. Since hearing damage from loud sounds is often undetectable until it is too late, Yamaha and the Electronic Industries Association’s Consumer Electronics Group recommend you to avoid prolonged exposure from excessive volume levels.

i En

IMPORTANT SAFETY INSTRUCTIONS

FCC INFORMATION (for US customers)

1 IMPORTANT NOTICE: DO NOT MODIFY THIS

UNIT!

This product, when installed as indicated in the instructions contained in this manual, meets FCC requirements. Modifications not expressly approved by Yamaha may void your authority, granted by the FCC, to use the product.

2 IMPORTANT: When connecting this product to

accessories and/or another product use only high quality shielded cables. Cable/s supplied with this product MUST be used. Follow all installation instructions. Failure to follow instructions could void your FCC authorization to use this product in the USA.

3NOTE: This product has been tested and found to

comply with the requirements listed in FCC Regulations, Part 15 for Class “B” digital devices. Compliance with these requirements provides a reasonable level of assurance that your use of this product in a residential environment will not result in harmful interference with other electronic devices. This equipment generates/uses radio frequencies and, if not installed and used according to the instructions found in the users manual, may cause interference harmful to the operation of other electronic devices.

CAUTION

Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.

Compliance with FCC regulations does not guarantee that interference will not occur in all installations. If this product is found to be the source of interference, which can be determined by turning the unit “OFF” and “ON”, please try to eliminate the problem by using one of the following measures: Relocate either this product or the device that is being affected by the interference. Utilize power outlets that are on different branch (circuit breaker or fuse) circuits or install AC line filter/s. In the case of radio or TV interference, relocate/reorient the antenna. If the antenna lead-in is 300 ohm ribbon lead, change the lead-in to coaxial type cable. If these corrective measures do not produce satisfactory results, please contact the local retailer authorized to distribute this type of product. If you can not locate the appropriate retailer, please contact Yamaha Electronics Corp., U.S.A. 6660 Orangethorpe Ave., Buena Park, CA

90620. The above statements apply ONLY to those products distributed by Yamaha Corporation of America or its subsidiaries.

ii En

CAUTION: READ THIS BEFORE OPERATING YOUR UNIT.

1 To assure the finest performance, please read this manual

carefully. Keep it in a safe place for future reference.

2 Install this sound system in a well ventilated, cool, dry, clean

place – away from direct sunlight, heat sources, vibration, dust, moisture, and/or cold. For proper ventilation, allow the following minimum clearances. Top : 2.5 cm (1 inch) Rear: 2.5 cm (1 inch) Sides: 2.5 cm (1 inch)

3 Locate this unit away from other electrical appliances, motors,

or transformers to avoid humming sounds.

4 Do not expose this unit to sudden temperature changes from

cold to hot, and do not locate this unit in an environment with high humidity (i.e. a room with a humidifier) to prevent condensation inside this unit, which may cause an electrical shock, fire, damage to this unit, and/or personal injury.

5 Avoid installing this unit where foreign objects may fall onto

this unit and/or this unit may be exposed to liquid dripping or splashing. On the top of this unit, do not place: – Other components, as they may cause damage and/or

discoloration on the surface of this unit.

– Burning objects (i.e. candles), as they may cause fire,

damage to this unit, and/or personal injury.

– Containers with liquid in them, as they may fall and liquid

may cause electrical shock to the user and/or damage to this unit.

6 Do not cover this unit with a newspaper, tablecloth, curtain,

etc. in order not to obstruct heat radiation. If the temperature inside this unit rises, it may cause fire, damage to this unit, and/or personal injury.

7 Do not plug in this unit to a wall outlet until all connections

are complete.

8 Do not operate this unit upside-down. It may overheat,

possibly causing damage.

9 Do not use force on switches, knobs and/or cords. 10 When disconnecting the power cable from the wall outlet,

grasp the plug; do not pull the cable.

11 Do not clean this unit with chemical solvents; this might

damage the finish. Use a clean, dry cloth.

12 Only voltage specified on this unit must be used. Using this

unit with a higher voltage than specified is dangerous and may cause fire, damage to this unit, and/or personal injury. Yamaha will not be held responsible for any damage resulting from use of this unit with a voltage other than specified.

13 To prevent damage by lightning, keep the power cord

disconnected from a wall outlet or the unit during a lightning storm.

14 Do not attempt to modify or fix this unit. Contact qualified

Yamaha service personnel when any service is needed. The cabinet should never be opened for any reasons.

15 When not planning to use this unit for long periods of time

(i.e. vacation), disconnect the power cable from the wall outlet.

16 Install this unit near the wall outlet and where the power cable

can be reached easily.

17 Be sure to read the “TROUBLESHOOTING” section in this

manual on common operating errors before concluding that this unit is faulty.

18 Before moving this unit, press to turn off this unit and then

disconnect the power cable from the wall outlet.

19 The batteries shall not be exposed to excessive heat such as

sunshine, fire or like.

20 VOLTAGE SELECTOR (Asia and General models only)

The VOLTAGE SELECTOR on the rear panel of this unit must be set for your local main voltage BEFORE plugging into the wall outlet. Voltages are:

................................. AC 110/120/220/230–240 V, 50/60 Hz

Caution for moving this unit

• When moving this unit, first remove all discs from the disc tray and close the tray by pressing the OPEN/CLOSE button, and then switch off the power after you confirm that the front panel display indicates as follows.

NO DISC

Never switch off the power if the front panel display is not pictured as above, otherwise the unit will break down during moving because the internal mechanism is not locked.

As long as this unit is connected to the wall outlet, it is not disconnected from the AC power source even if you turn off this unit by .

WARNING

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE.

LASER SAFETY

This unit employs a laser. Due to possible eye injury, only a qualified service person should remove the cover or attempt to service this device.

DANGER

This unit emits visible laser radiation when open. Avoid direct eye exposure to beam. When this unit is plugged into the wall outlet, do not place your eyes close to the opening of the disc tray and other openings to look into inside.

The laser component in this product is capable of emitting radiation exceeding the limit for Class 1.

CAUTION – VISIBLE AND / OR INVISIBLE LASER RADIATION WHEN OPEN. AVOID EXPOSURE TO BEAM.

VARNING – SYNLIG OCH DEL ÄR ÖPPNAD. STRÅLEN ÄR FARLIG.

VARO ! AVATTAESSA OLET ALTTIINA NÄKYVÄLLE JA NÄKYMÄTÖMÄLLE LASERSÄTEILYLLE. ÄLÄ KATSO SÄTEESEEN.

VARNING – SYNLIG OCH ÄR ÖPPNAD. BETRAKTA EJ STRÅLEN.

VORSICHT ! SICHTBARE UND WENN ABDECKUNG GEÖFFNET. NICHT DEM STRAHL AUSSETZEN.

ATTENTION – RADIATION VISIBLE ET EST OUVERT. EVITEZ TOUTE EXPOSITION AU FAISCEAU.

ELLER OSYNLIG LASERSTRÅLNING NÄR DENNA

TAI

ELLER OSYNLIG LASERSTRÅLNING NÄR DENNA DEL

ODER UNSICHTBARE LASERSTRAHLUNG

OU INVISIBLE LORSQUE L’APPAREIL

AC IN

OUT

ALOG

R T N

C E T

M E R

2 3 2

R C 2

3 2

S R

L A C I

T P O

DIGITAL OUT

iii En

INTRODUCTION

CONTROLS AND FUNCTIONS ......................... 2

Front panel ................................................................. 2

Rear panel connections .............................................. 4

Remote control........................................................... 5

OPERATION

LOADING AND PLAYING DISCS ..................... 8

Program playback .................................. 8

PLAYXCHANGE ..................................................... 8

PLAYING BACK iPod/USB DEVICE ................. 9

Connecting iPod/USB devices................................... 9

Playing back iPod ...................................................... 9

Playing back USB devices......................................... 9

Disconnecting iPod/USB devices ............................ 10

Supported iPod/USB devices................................... 10

Audio CD

ADDITIONAL INFORMATION

PLAYABLE DISC AND FILE FORMAT .........11

USING THE ADVANCED SETUP .................... 13

TROUBLESHOOTING....................................... 14

SPECIFICATIONS .............................................. 15

CONTENTS

INTRODUCTION

OPERATION

INFORMATION

ADDITIONAL

■ Features

• 5-Discs Carousel Auto-changer

• Full Opening Disc Tray for Changing 5 Discs at a Time

• PLAYXCHANGE; Disc Changing Capability while Playing back Another

• Optical Digital Output

• CD-R, CD-RW Disc Playability (For details, refer to page 11.)

• MP3, WMA Disc Playability

• MP3, WMA File Playability Stored on USB Device (For details, refer to page 11.)

• iPod Playability

• Program Play (Audio CD only)

• Random-Sequence Play (except iPod)

• Single Track/File, Entire Disc/Folder/Whole device Repeat Play

• Repeat A-B Play (Audio CD only)

• Adjustable Display Information and Brightness

• PURE DIRECT Function

■ Supplied accessories

Please check that you have received all of the following parts.

• Power cable

• Remote control

• Batteries (AA, R6, UM-3) (×2)

• RCA stereo cable

■ About this manual

• y indicates a tip for your operation.

• In this manual, audio CDs are referred to as “Audio CD”, MP3/WMA discs as “Data Disc”, and MP3/WMA files stored on the USB device as “USB”.

• The , and icons indicate music data formats that can be used in the operation.

• This manual is printed prior to production. Design and specifications are subject to change in part as a result of

Audio CD Data Disc USB

improvements, etc. In case of differences between the manual and the product, the product has priority.

English

1 En

INTRODUCTION

Front panel

CONTROLS AND FUNCTIONS

1 Disc tray

Loads a disc.

2 (Open/Close)

Opens or closes the disc tray. For loading and unloading discs, see page 8.

3 (Power)

Press inward to the ON position to turn on the power.

• The power indicator above lights up when this unit is turned on.

• You can turn this unit to a standby status with STNDBY/ON on the remote control.

• This unit is equipped with the Auto standby function. By turning on the function, this unit turns to the standby mode automatically when disc playback is stopped for 30 minutes. For details, see page 13.

4 Power indicator

Lights up as follows: ON: Bright Standby mode: Dark OFF: Off

5 DISC (1-5)

Selects a desired disc and starts playback.

6 PURE DIRECT

Turns on or off the PURE DIRECT mode to improve audio quality.

• The PURE DIRECT indicator lights up.

• The digital output is turned off.

• The front panel display is turned off during playback and only the minimum required indicators and messages are displayed during in the operation.

Note

Connect using the ANALOG OUT terminals when you use PURE DIRECT mode (refer to page 4).

7 Remote control sensor

Receives signals from the remote control.

8 iPod/USB port

Connect your iPod or USB device. See page 9 for details.

9 iPod/USB indicator

Off: CD mode is selected. Orange: Connection ready. Green: iPod/USB is connected and playable files have

been detected (playback ready).

0 CD/USB

Switches between CD mode and iPod/USB mode. See page 9.

When the iPod/USB indicator is not lit, this unit is in the CD mode.

A / (Skip/Search backward),

/ (Skip/Search forward)

/ : Skips to the next track. / : Skips back to the beginning of the current

track.

/ (twice): Skips to the previous track. Press and hold / or / to search backward/forward.

B (Play) / (Pause)

Starts or pauses playback. Press / again to resume playback.

C (Stop)

Stops playback.

D PLAYXCHANGE

Opens the disc tray during playback without interrupting disc playback. See page 8 for details.

2 En
