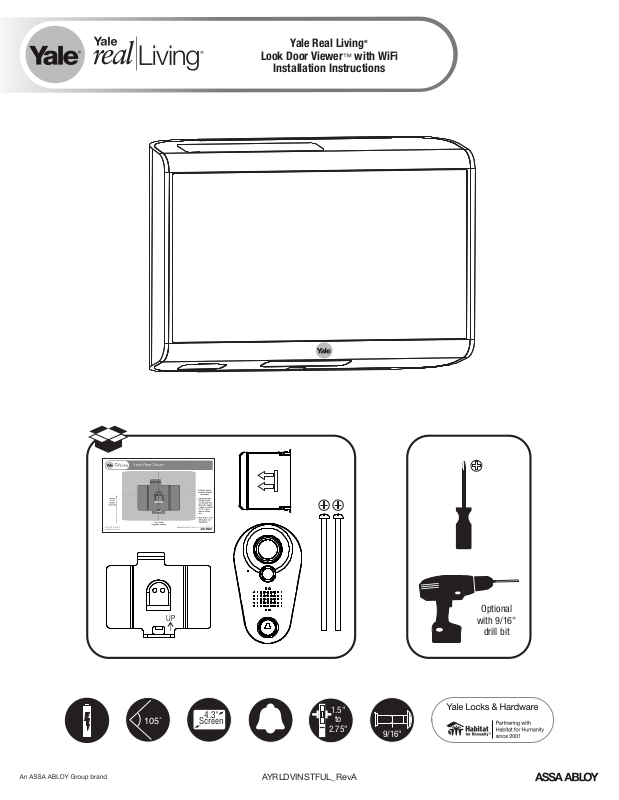

Yale YRV740WI-693 Installation Guide

Yale Real Living

®

Look Door Viewer™ with WiFi

Installation Instructions

105˚

UP

4.3"

Screen

1.5"
to

2.75"

1

AYRLDVINSTFUL_RevA

Optional

with 9/16"

drill bit

9/16"

Preparing Door

9/16"

Drill Bit

2

AYRLDVINSTFUL_RevA

1

Installing Camera

Outside of Door

2

Installing Mounting Bracket

Inside of Door

UP

3

AYRLDVINSTFUL_RevA

3

Connecting Camera to Viewer

4

Mounting Viewer

1

!

Tuck excess wire

into viewer cavity.

2

4

AYRLDVINSTFUL_RevA
