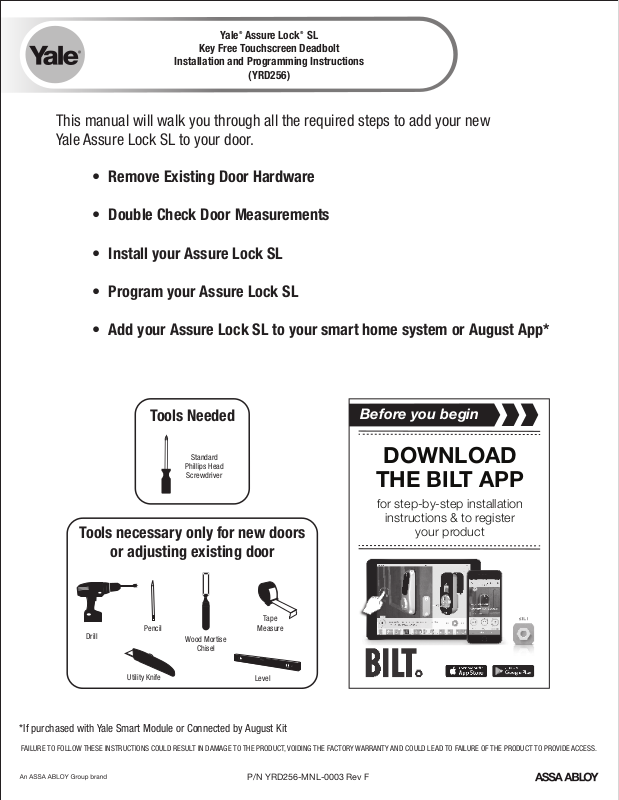

Yale YRD256-NR-BSP, YRD256-HA2-BSP Installation Instructions
® ®
Yale Assure Lock
SL
Key Free Touchscreen Deadbolt
Installation and Programming Instructions
(YRD256)
This manual will walk you through all the required steps to add your new
Yale Assure Lock SL to your door.
• Remove Existing Door Hardware
• Double Check Door Measurements
• Install your Assure Lock SL
• Program your Assure Lock SL
• Add your Assure Lock SL to your smart home system or August App*
Tools Needed
Standard
Phillips Head
Screwdriver
Before you begin
DOWNLOAD
THE BILT APP
for step-by-step installation
instructions & to register
Tools necessary only for new doors
or adjusting existing door
Tape
Drill
Pencil
Wood Mortise
Chisel
Measure
your product
Utility Knife
*If purchased with Yale Smart Module or Connected by August Kit
FAILURE TO FOLLOW THESE INSTRUCTIONS COULD RESULT IN DAMAGE TO THE PRODUCT, VOIDING THE FACTORY WARRANTY AND COULD LEAD TO FAILURE OF THE PRODUCT TO PROVIDE ACCESS.
Level
1
P/N YRD256-MNL-0003 Rev F
What's In The Box

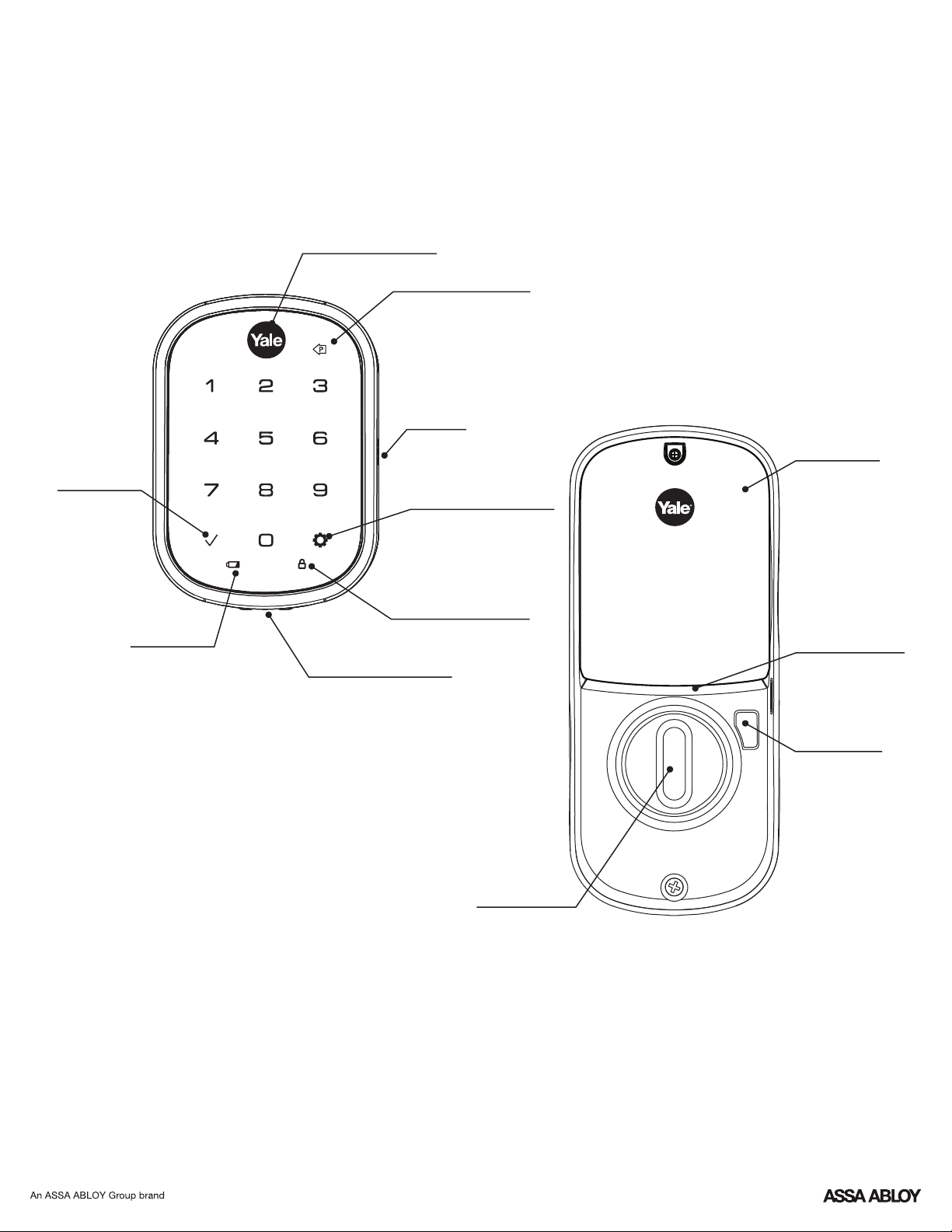

Key Free Touchscreen
Keypad

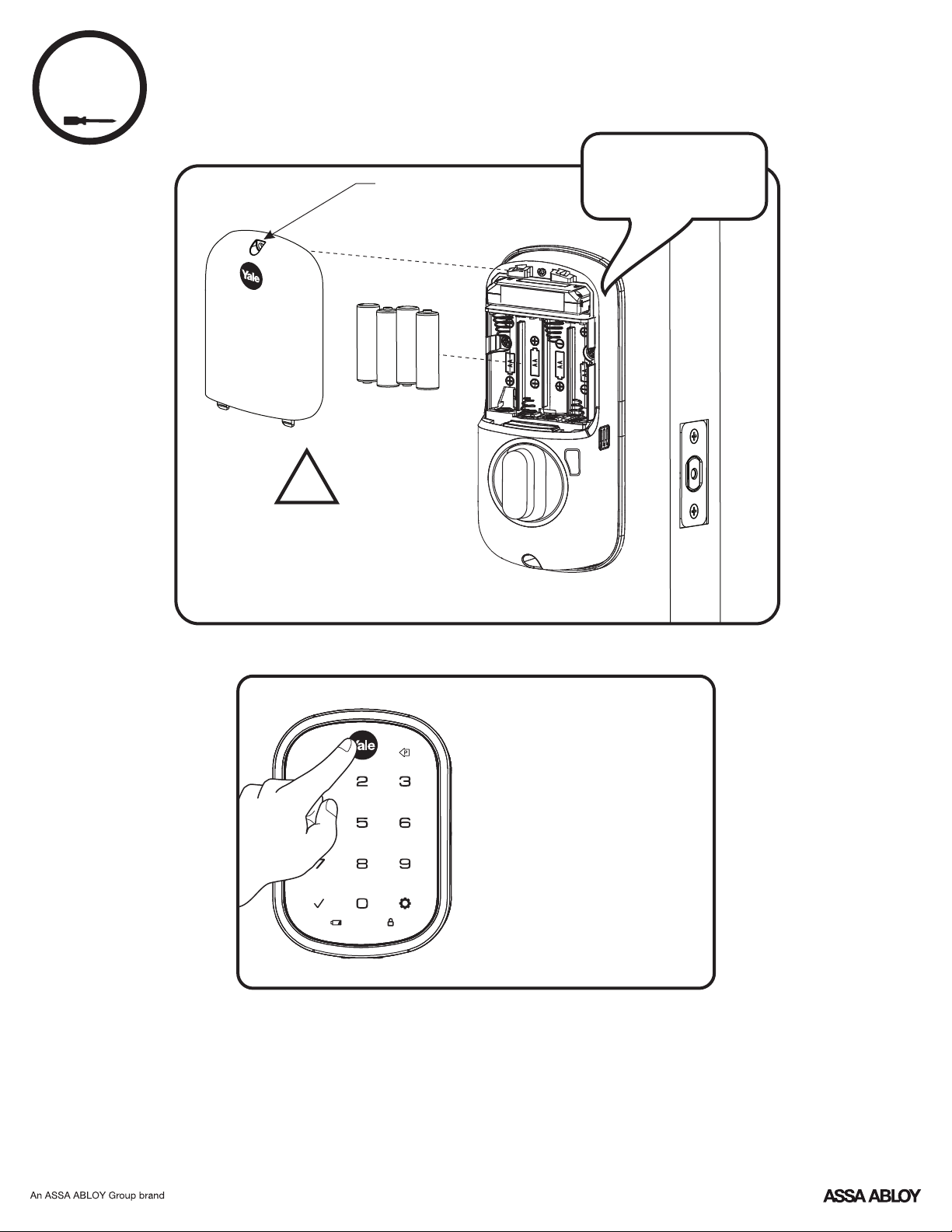

Battery Cover
Smart Module
Loosen screw to
remove cover
Optional Yale
Let's Get Started
Installation Guide Envelope
(Includes this manual and
door checker with template)
4 AA Batteries
Inside Lock Assembly
(Separates into 3 components)
Mounting Hardware
The mounting hardware box includes 16 components
Adjustable
Deadbolt
Strike Plate
Inside Lock
Screws
Strike Plate
and
Deadbolt Screws
P/N YRD256-MNL-0003 Rev F
Inside Lock Mounting Plate
OR OR
Optional
Security
Strike Plate
Screws
Screw Set B
Green
for
1-3/8"
Door Thickness
2
Screw Set C
Black
Standard for
1-3/4"
Door Thickness
Screw Set D
Silver
for
2 to 2-1/4"
Door Thickness
1
Removing Existing Door Hardware
Do not discard old lock hardware until Assure Lock SL has been successfully installed.
Frame
3
P/N YRD256-MNL-0003 Rev F
Check Door Measurements and
2
Make Adjustments If Needed
Door Checker
Use door checker from installation guide envelope to verify your door
measurements and make any needed adjustments.
Check
Your Door
Let's Get Started
Guide
New Door Marking Template
With door checker, use template from installation guide envelope to prep a new door
that has not been predrilled for hardware.
New Door
Marking
Let's Get Started
Template
4
P/N YRD256-MNL-0003 Rev F
3
x2
Actual Size
x2
Actual Size
Installing Latch & Strike Plate
*2-3/8" Backset
*Deadbolt latch position is based
*2-3/4" Backset
default
on backset. Choose position
appropriate for your door.
Reference Door Checker
measurements E and F.
x2
Actual Size
Choose
standard
strike plate
screws or
security
screws.
Bolt must be
in retracted
(unlocked)
position.
Bolt must be in retracted
(unlocked) position. Note horizontal
orientation of tailpiece slot and UP
orientation of deadbolt latch.
Press
O
optional
Pull
Backset
5
P/N YRD256-MNL-0003 Rev F
4
Installing Touchscreen Keypad
Inside of Door
Outside of Door
!
Bolt must be in retracted
(unlocked) position. Note
horizontal orientation of
tailpiece slot.
P/N YRD256-MNL-0003 Rev F
6
5
Installing Inside Mounting Plate
!
Choose through bolt appropriate for
your door thickness. Verify appropriate
through bolt with the door checker.
x2
x2
Actual Size
Screw Set D
Silver
for
2 to 2-1/4"
Door Thickness
x2
Actual Size
Screw Set C
Black
Standard for
1-3/4"
Door Thickness
Actual Size
Screw Set B
Green
for
1-3/8"
Door Thickness
Insert cable
through cable hole.
Make sure keypad
and mounting plate
are straight before
tightening screws.
Inside of Door
7
P/N YRD256-MNL-0003 Rev F
!
6
Attaching the Cable Assembly
Inside of Door
8
P/N YRD256-MNL-0003 Rev F
Ensure cable is
securely fastened
into adapter.
!

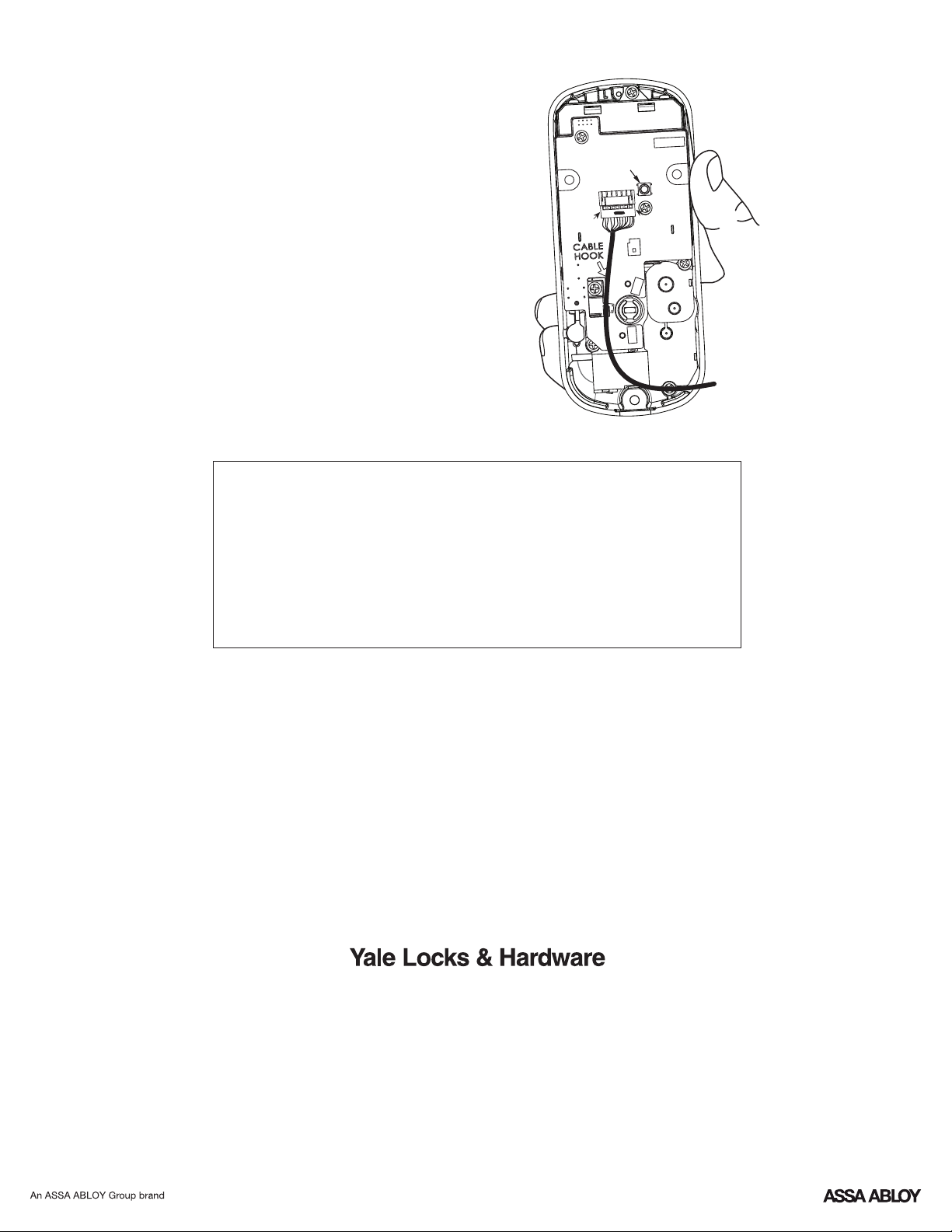

Use cable hooks to
ensure proper routing.
Do not pinch wire.
7

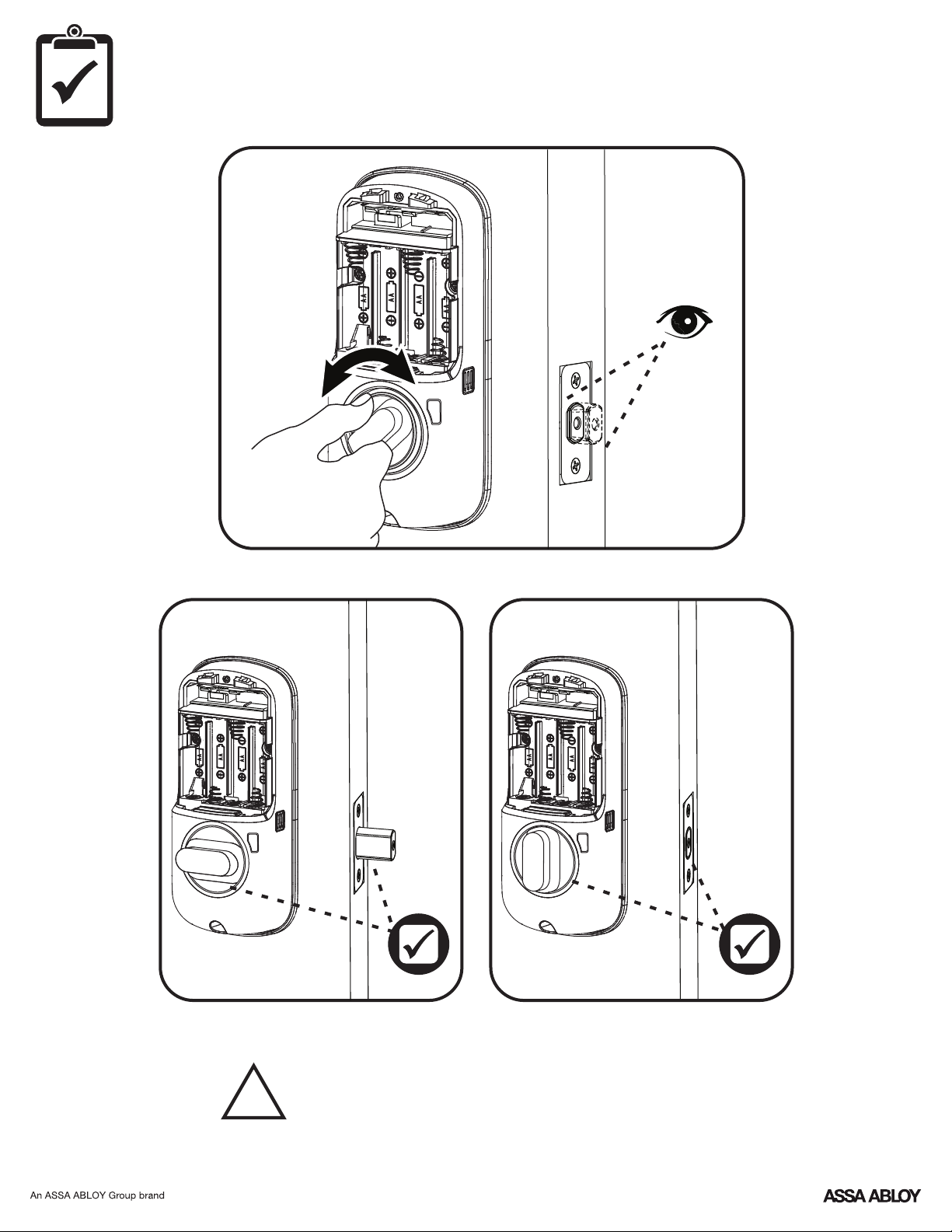

Installing Inside Lock
x3
Actual Size
is vertical. If the thumbturn
does not move freely, refer
Ensure thumbturn
to the hardware
troubleshooting steps.
Inside of Door
Horizontal
9
P/N YRD256-MNL-0003 Rev F
