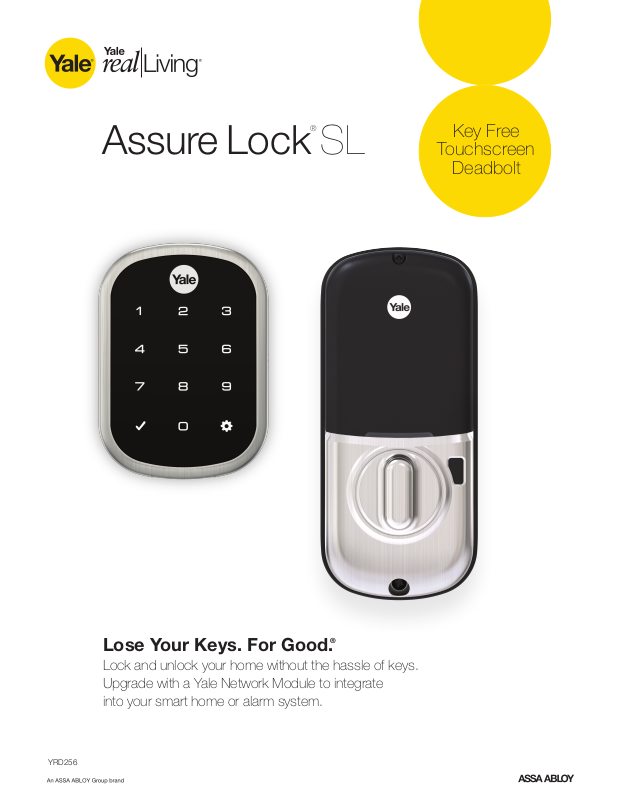

Yale YRD256 Datasheet

Assure Lock®SL

Key Free

Touchscreen

Deadbolt

YRD256

Lose Your Keys. For Good.

®

Lock and unlock your home without the hassle of keys.
Upgrade with a Yale Network Module to integrate
into your smart home or alarm system.

Assure Lock®SL

The Slimmest Smart Lock On The Market

Forget carrying around or lending out keys, lock and unlock
your home with your 4-8 digit pin code using the backlit
touchscreen keypad.

Simple Installation

Replaces your existing deadbolt
in minutes with just a screwdriver.

Touchscreen Keypad

Wakes with a touch and has
backlit numbers that won’t
wear off.

One-Touch Locking

Lock up without the hassle
of keys by tapping the keypad
with 3 fingers.

Inside The Box

• Yale Assure Lock SL

• BLE Module

• Mounting Screws and

Strike

• Door Template

• 4 AA Alkaline Batteries

• Installation Manual

Key Free

No cylinder means no lost keys
and no pick and bump break-ins.

Manage Access

Create and share up to 25
(250 with Network Module)
unique pin codes.

Motorized Deadbolt

Fully motorized, tapered
deadbolt accommodates
for misaligned doors.

Warranty

for the original owner, one year
warranty for electronics and lifetime
limited warranty or finish
and mechanical operation.

Product Measurements

Exterior 11/16" x 2 9/16" x 3 9/16"
Interior 2 1/8" x 3" x 6 7/8"

Batteries

4 AA Alkaline Batteries (Included)

Handing

Self-handing (Please hand while
in unlocked position)

Grade

Grade 2: A156.36 ANSI/BHMA

Download the free BILT app for 3D,
interactive installation tutorials.

Battery Back-Up

Never lose power, the lock can
be energized with a 9V battery.

Voice Assistance

The lock will guide you through
setup and menu options
in 3 languages.

Optional Settings

Customize auto re-lock, privacy
mode and tamper alarms within
the lock menu.

Face Bore 2 1/8"

Edge Bore 1"

Backset 2 3/8" or 2 3/4"

Door Thickness 1 3/4" to 2 1/4"

*1-3/8" requires special order thin door kit

Strike 1 1/8" x 2 3/4"

Add To Your Smart Home

Lock and unlock from anywhere, share access with others and see
who entered your home when you add a Yale Network Module*.

* Features may vary based on integration system. One module/communication protocol per lock.

Support: 800 YALE (9253) - UAE/ [phone] - International
[e-mail]

www.yale.ae

Satin Nickel

YRD-ASR-K1-SN

Oil Rubbed Bronze

YRD-ASR-K2-ORB

099606 9-17
