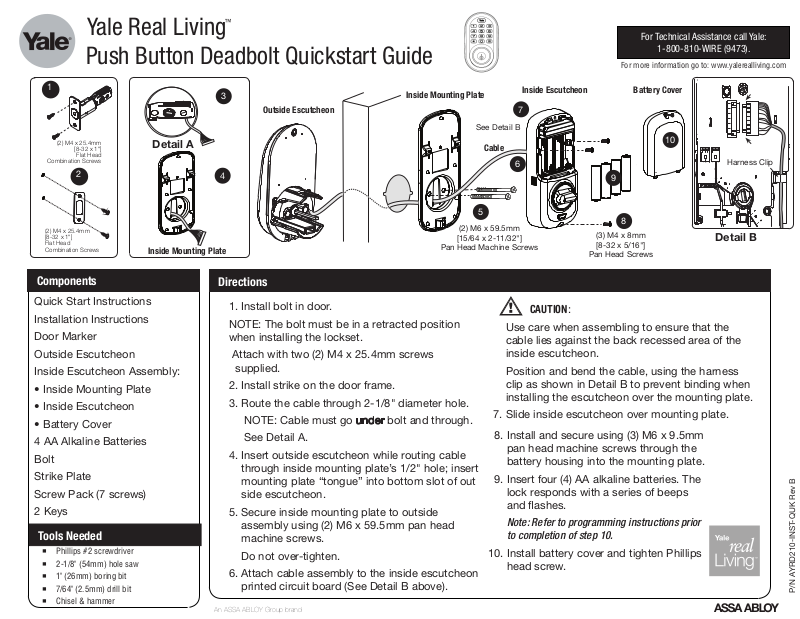

Yale YRD210ZW605, YRD210ZW0BP Quick Start Guide

™

Yale Real Living

Push Button Deadbolt Quickstart Guide

For Technical Assistance call Yale:

1-800-810-WIRE (9473).

For more information go to: www.yalerealliving.com

(2) M4 x 25.4mm

[8-32 x 1"]

Flat Head

Combination Screws

(2) M4 x 25.4mm [8-32 x 1"] Flat Head Combination Screws

Detail A

Inside Mounting Plate

Components

Quick Start Instructions

Installation Instructions

Door Marker

Outside Escutcheon

Inside Escutcheon Assembly:

• Inside Mounting Plate

• Inside Escutcheon

• Battery Cover

4 AA Alkaline Batteries

Bolt

Strike Plate

Screw Pack (7 screws)

2 Keys

Tools Needed

 Phillips #2 screwdriver  2-1/8" (54mm) hole saw  1" (26mm) boring bit  7/64" (2.5mm) drill bit  Chisel & hammer

Outside Escutcheon

Inside Mounting Plate

Pan Head Machine Screws

See Detail B

Cable

(2) M6 x 59.5mm

[15/64 x 2-11/32"]

Inside Escutcheon

(3) M4 x 8mm [8-32 x 5/16"]

Pan Head Screws

Battery Cover

Harness Clip

Detail B

Directions

1. Install bolt in door.

NOTE: The bolt must be in a retracted position when installing the lockset.

Attach with two (2) M4 x 25.4mm screws supplied.

2. Install strike on the door frame.

3. Route the cable through 2-1/8" diameter hole.

NOTE: Cable must go

under bolt and through.

See Detail A.

4. Insert outside escutcheon while routing cable through inside mounting plate’s 1/2" hole; insert mounting plate “tongue” into bottom slot of out side escutcheon.

5. Secure inside mounting plate to outside assembly using (2) M6 x 59.5mm pan head machine screws.

Do not over-tighten.

6. Attach cable assembly to the inside escutcheon printed circuit board (See Detail B above).

An ASSA ABLOY Group brand

CAUTION:

Use care when assembling to ensure that the cable lies against the back recessed area of the inside escutcheon.

Position and bend the cable, using the harness clip as shown in Detail B to prevent binding when installing the escutcheon over the mounting plate.

7. Slide inside escutcheon over mounting plate.

8. Install and secure using (3) M6 x 9.5mm pan head machine screws through the battery housing into the mounting plate.

9. Insert four (4) AA alkaline batteries. The lock responds with a series of beeps and ﬂashes.

Note: Refer to programming instructions prior to completion of step 10.

10. Install battery cover and tighten Phillips head screw.

P/N AYRD210-INST-QUK Rev B

Yale Real Living

™

For more information go to: www.yalerealliving.com

Open Door With PIN Code

Push Button Deadbolt Quickstart Guide

Programming

1. Enter the 4 - 8 digit Master PIN code* followed by the key.

2. Enter digit corresponding to the function to be performed followed by the

3. Press the

key to complete the process and conclude the programming session.

Note: If the lock is connected to a network controller, it is recommended that it is programmed through the centralized user interface (PC or hand-held device) to ensure communication between the lock and the controller unit.

User Number (UN)

 1~25 : without network module  1~250 : with network module

Continue

Complete

Continue

Complete

Features

1 2

Master PIN Setting

Delete User Code

key.

1. Enter PIN code.

2. Touch the

key to

conﬁrm the selection.

An ASSA ABLOY Group brand

Auto Relock

Silent Mode

All Code Lock-Out

*HCP Module Setting

*This function appears only with network module installed.

Enable

Disable

Enable

Disable

Enable

Disable

Delete

• *The Master PIN code must be

changed prior to programming the lock.

• PIN codes can be 4 to 8 digits in length.

• The

key is used to enter or

accept an entry, and also to conclude a programming session.

• The

key is used either to

enter or to continue additional steps in a programming sequence.

• The factory default Master PIN code is: 1 2 3 4 5 6 7 8.

*Default Master Pin Code must be changed prior to programming of lock.

3. Unlock.

For Technical Assistance call Yale:

1-800-810-WIRE (9473).

P/N AYRD210-INST-QUK Rev B
