Yale HSA6200 Quick Manual

_____________________________________________________________________

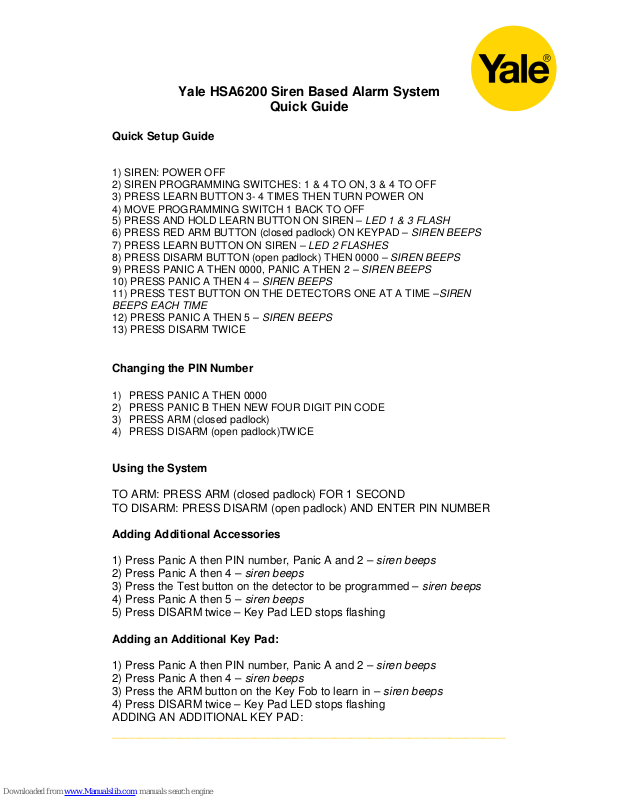

Yale HSA6200 Siren Based Alarm System

Quick Guide

Quick Setup Guide

1) SIREN: POWER OFF

2) SIREN PROGRAMMING SWITCHES: 1 & 4 TO ON, 3 & 4 TO OFF

3) PRESS LEARN BUTTON 3- 4 TIMES THEN TURN POWER ON

4) MOVE PROGRAMMING SWITCH 1 BACK TO OFF

5) PRESS AND HOLD LEARN BUTTON ON SIREN – LED 1 & 3 FLASH

6) PRESS RED ARM BUTTON (closed padlock) ON KEYPAD – SIREN BEEPS

7) PRESS LEARN BUTTON ON SIREN – LED 2 FLASHES

8) PRESS DISARM BUTTON (open padlock) THEN 0000 – SIREN BEEPS

9) PRESS PANIC A THEN 0000, PANIC A THEN 2 – SIREN BEEPS

10) PRESS PANIC A THEN 4 – SIREN BEEPS

11) PRESS TEST BUTTON ON THE DETECTORS ONE AT A TIME –SIREN

BEEPS EACH TIME

12) PRESS PANIC A THEN 5 – SIREN BEEPS

13) PRESS DISARM TWICE

Changing the PIN Number

1) PRESS PANIC A THEN 0000

2) PRESS PANIC B THEN NEW FOUR DIGIT PIN CODE

3) PRESS ARM (closed padlock)

4) PRESS DISARM (open padlock)TWICE

Using the System

TO ARM: PRESS ARM (closed padlock) FOR 1 SECOND
TO DISARM: PRESS DISARM (open padlock) AND ENTER PIN NUMBER

Adding Additional Accessories

1) Press Panic A then PIN number, Panic A and 2 – siren beeps

2) Press Panic A then 4 – siren beeps

3) Press the Test button on the detector to be programmed – siren beeps

4) Press Panic A then 5 – siren beeps

5) Press DISARM twice – Key Pad LED stops flashing

Adding an Additional Key Pad:

1) Press Panic A then PIN number, Panic A and 2 – siren beeps

2) Press Panic A then 4 – siren beeps

3) Press the ARM button on the Key Fob to learn in – siren beeps

4) Press DISARM twice – Key Pad LED stops flashing
ADDING AN ADDITIONAL KEY PAD:

_____________________________________________________________________

1) Press Panic A then PIN number, Panic A and 2 – siren beeps

2) Press Panic A then 4 – siren beeps

3) The new Key Pad press Panic A then 0000, Panic A and 1 – siren beeps

4) Press DISARM twice on both the Key pads

Changing PIN number on the Key Pad:

1) Press Panic A the PIN (0000 in case of new pad), Then press Panic B +
new 4 digit
PIN and press ARM to confirm. (this should be a continuous process)

2) Press DISARM twice to exit the programming mode

Resetting PIN number on the Key Pad Back to 0000:

1) Take the battery out from the Key Pad, Press and Hold 3 and insert the
battery back in whilst still holding 3 – the PIN number should be RESET to
0000

SOME QUICK FACTS :

1) Testing the PIN number is working: Press Panic A then the PIN number –
the
green LED should start flashing continuously (this indicates that the new PIN
number has been taken in). After the test Press DISARM twice to come out
of
the programming mode.

2) HOME ARM button not accessible with this system (the same Key Pad is
used
as an accessory with the other upgraded system).

3) PANIC A + PANIC B – sets the alarm off (Panic Alarm)

4) Battery Not Inserted Properly: If the Key Pad is not responding (no
flashing
light when buttons pressed) – make sure that the battery is inserted
properlythere
are two steel strips, make sure that the shorter sits below the battery and the
longer above.
