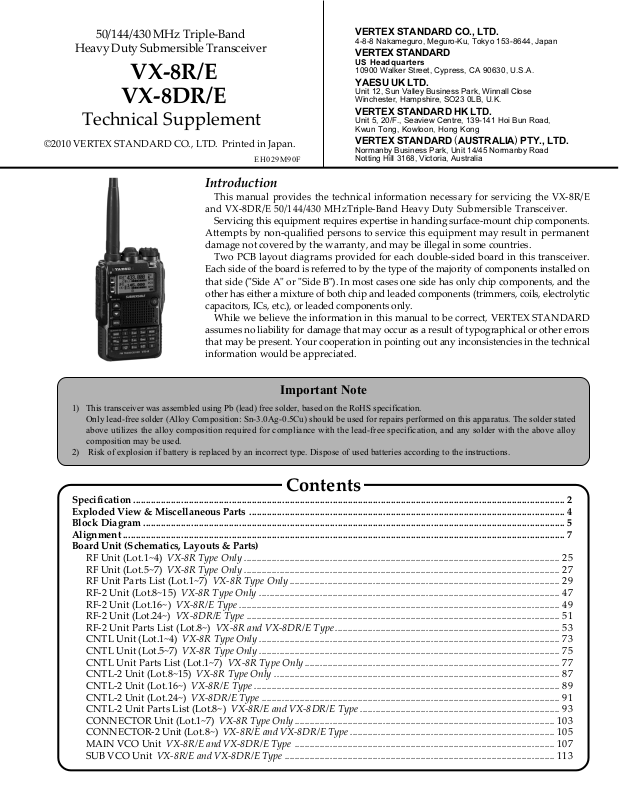

Page 1
50/144/430 MHz Triple-Band
Heavy Duty Submersible Transceiver
VX-8R/E
VX-8DR/E
Technical Supplement
©2010 VERTEX STANDARD CO., LTD. Printed in Japan.
EH029M90F
Introduction
This manual provides the technical information necessary for servicing the VX-8R/E
and VX-8DR/E 50/144/430 MHzTriple-Band Heavy Duty Submersible Transceiver.
Servicing this equipment requires expertise in handing surface-mount chip components.
Attempts by non-qualified persons to service this equipment may result in permanent
damage not covered by the warranty, and may be illegal in some countries.

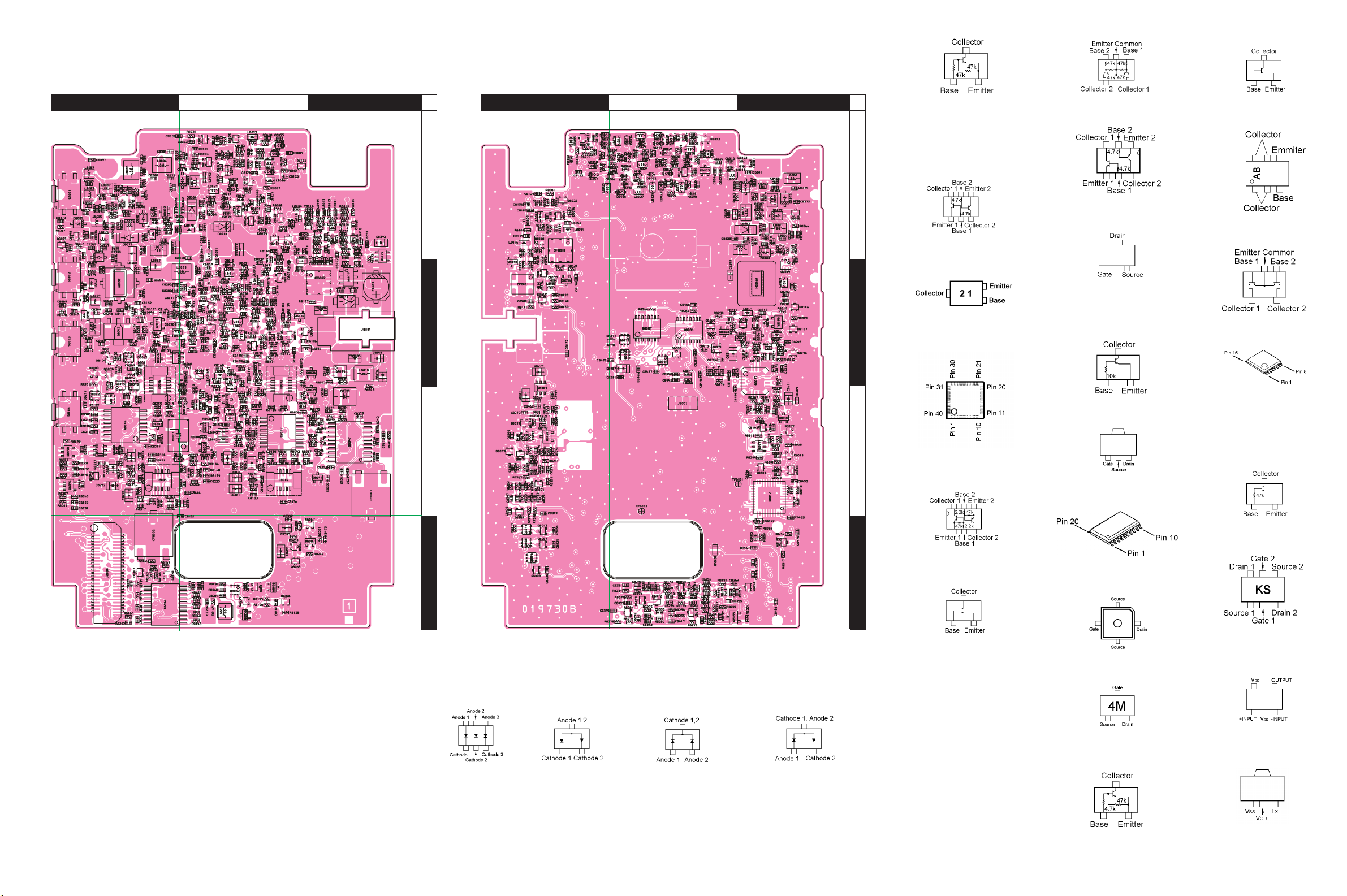

Two PCB layout diagrams provided for each double-sided board in this transceiver.
Each side of the board is referred to by the type of the majority of components installed on
that side ("Side A" or "Side B"). In most cases one side has only chip components, and the
other has either a mixture of both chip and leaded components (trimmers, coils, electrolytic
capacitors, ICs, etc.), or leaded components only.
While we believe the information in this manual to be correct, VERTEX STANDARD
assumes no liability for damage that may occur as a result of typographical or other errors
that may be present. Your cooperation in pointing out any inconsistencies in the technical
information would be appreciated.
VERTEX STANDARD CO., LTD.
4-8-8 Nakameguro, Meguro-Ku, Tokyo 153-8644, Japan
VERTEX STANDARD
US Headquarters
10900 Walker Street, Cypress, CA 90630, U.S.A.
YAESU UK LTD.
Unit 12, Sun Valley Business Park, Winnall Close
Winchester, Hampshire, SO23 0LB, U.K.
VERTEX STANDARD HK LTD.
Unit 5, 20/F., Seaview Centre, 139-141 Hoi Bun Road,
Kwun Tong, Kowloon, Hong Kong
VERTEX STANDARD (AUSTRALIA) PTY., LTD.
Normanby Business Park, Unit 14/45 Normanby Road
Notting Hill 3168, Victoria, Australia
Important Note
1) This transceiver was assembled using Pb (lead) free solder, based on the RoHS specification.
Only lead-free solder (Alloy Composition: Sn-3.0Ag-0.5Cu) should be used for repairs performed on this apparatus. The solder stated
above utilizes the alloy composition required for compliance with the lead-free specification, and any solder with the above alloy
composition may be used.
2) Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries according to the instructions.
Contents
Specification ........................................................................................................................................................................... 2
Exploded View & Miscellaneous Parts ............................................................................................................................. 4
Block Diagram ....................................................................................................................................................................... 5
Alignment ............................................................................................................................................................................... 7
Board Unit (Schematics, Layouts & Parts)
RF Unit (Lot.1~4) VX-8R Type Only ............................................................................................................................. 25
RF Unit (Lot.5~7) VX-8R Type Only ............................................................................................................................. 27
RF Unit Parts List (Lot.1~7) VX-8R Type Only ........................................................................................................... 29

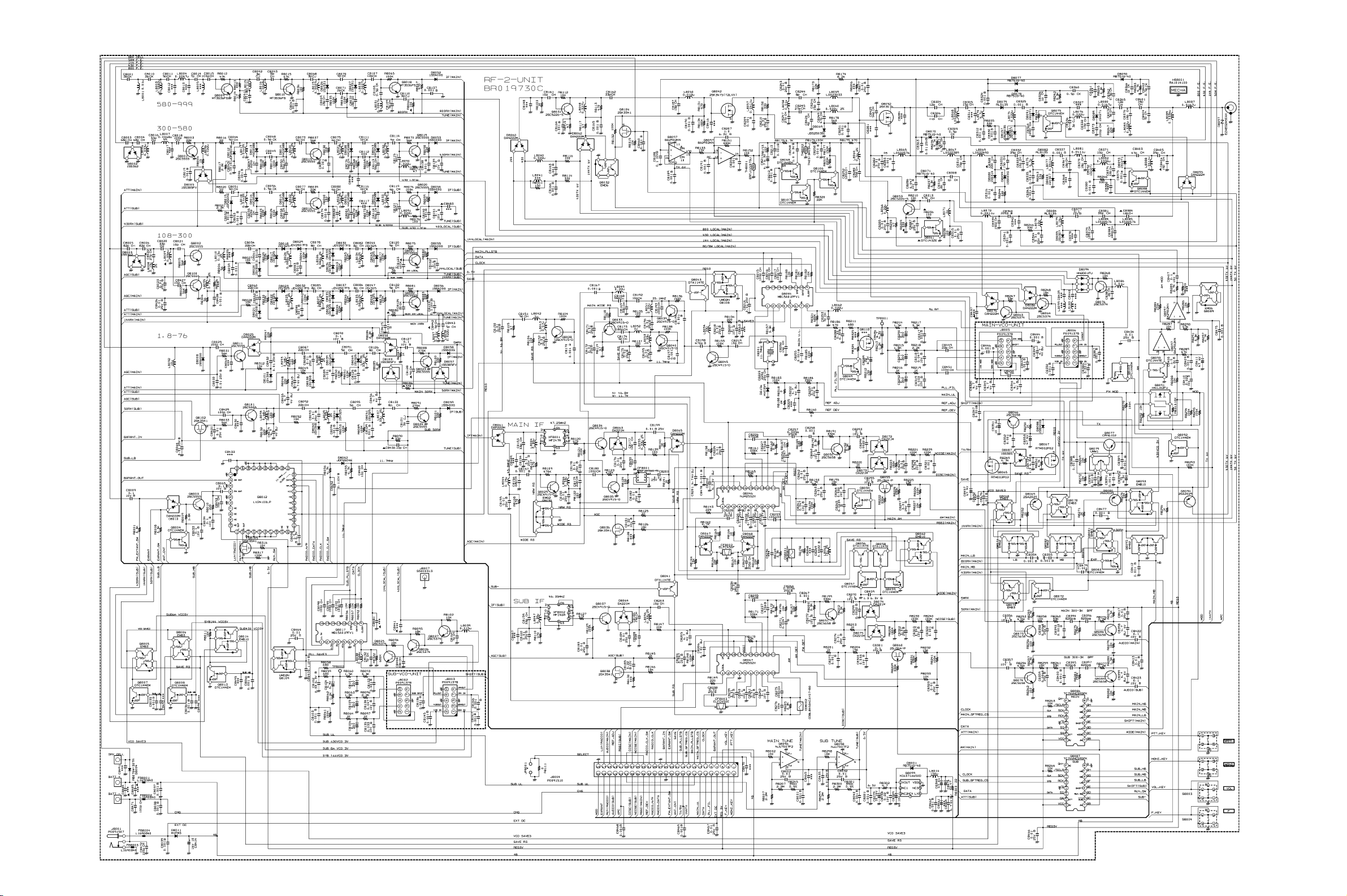

RF-2 Unit (Lot.8~15) VX-8R Type Only ....................................................................................................................... 47
RF-2 Unit (Lot.16~) VX-8R/E Type ............................................................................................................................... 49
RF-2 Unit (Lot.24~) VX-8DR/E Type ............................................................................................................................ 51
RF-2 Unit Parts List (Lot.8~) VX-8R and VX-8DR/E Type ......................................................................................... 53

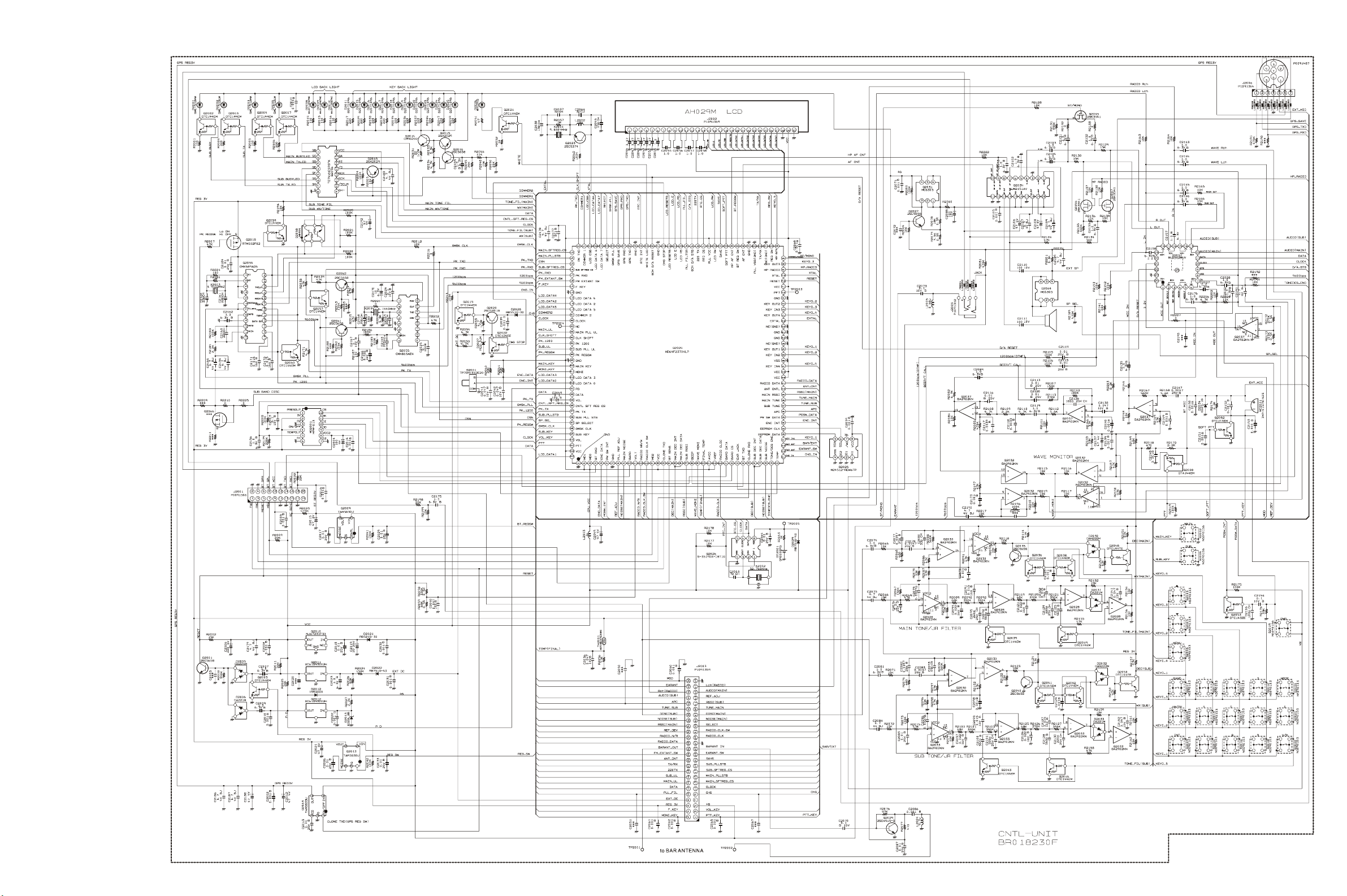

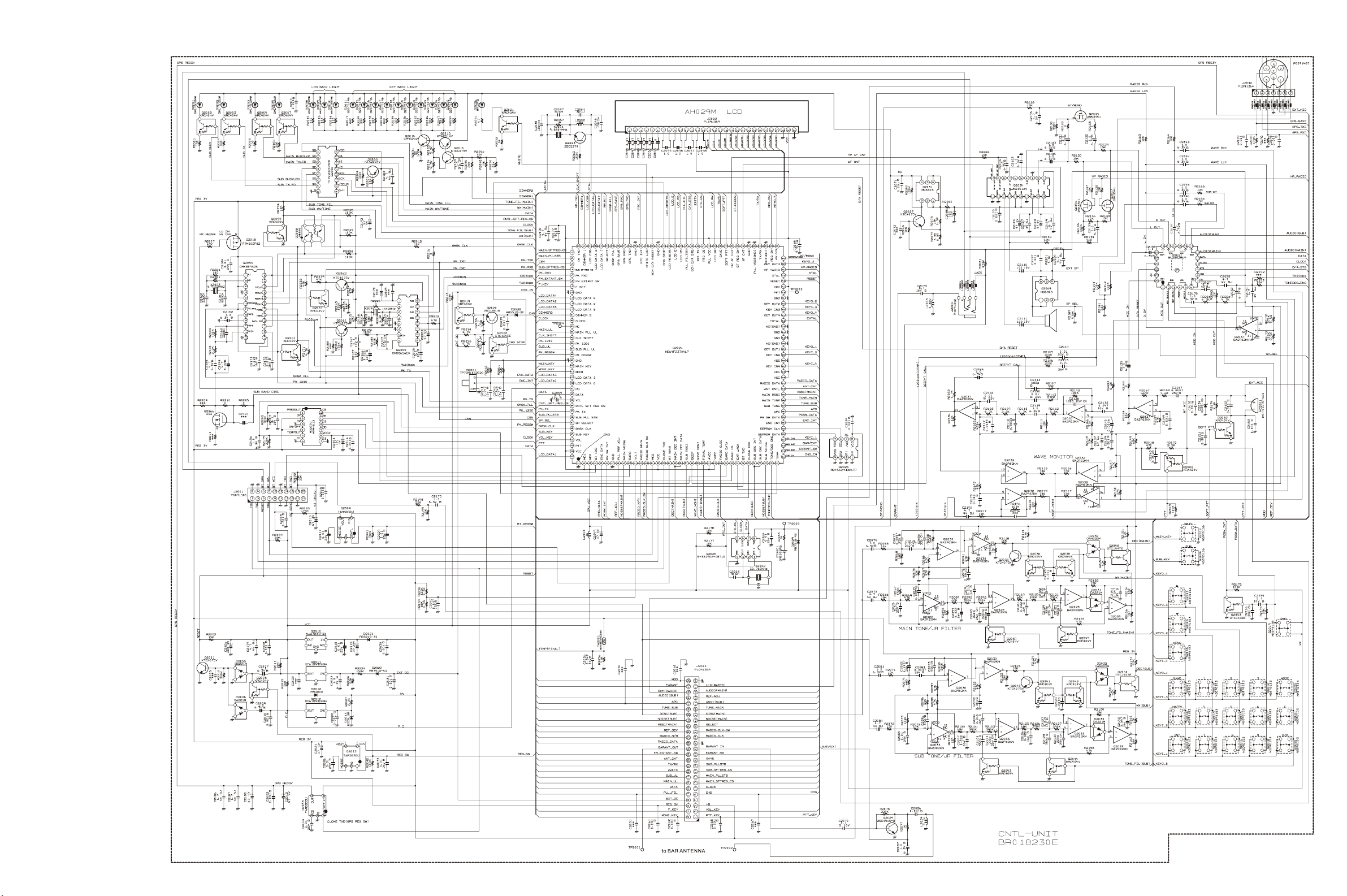

CNTL Unit (Lot.1~4) VX-8R Type Only ....................................................................................................................... 73

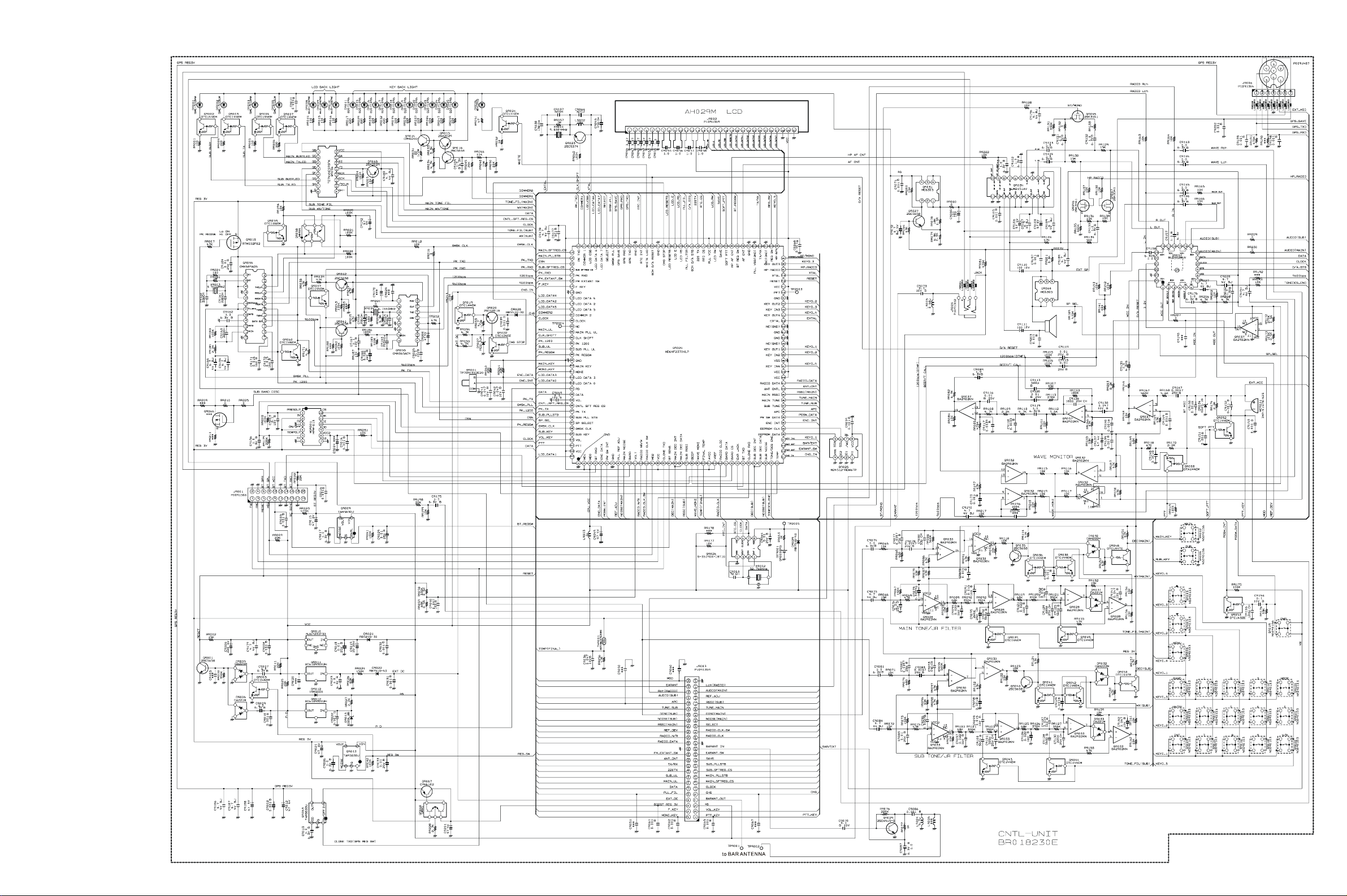

CNTL Unit (Lot.5~7) VX-8R Type Only ....................................................................................................................... 75
CNTL Unit Parts List (Lot.1~7) VX-8R Type Only ..................................................................................................... 77
CNTL-2 Unit (Lot.8~15) VX-8R Type Only ................................................................................................................. 87

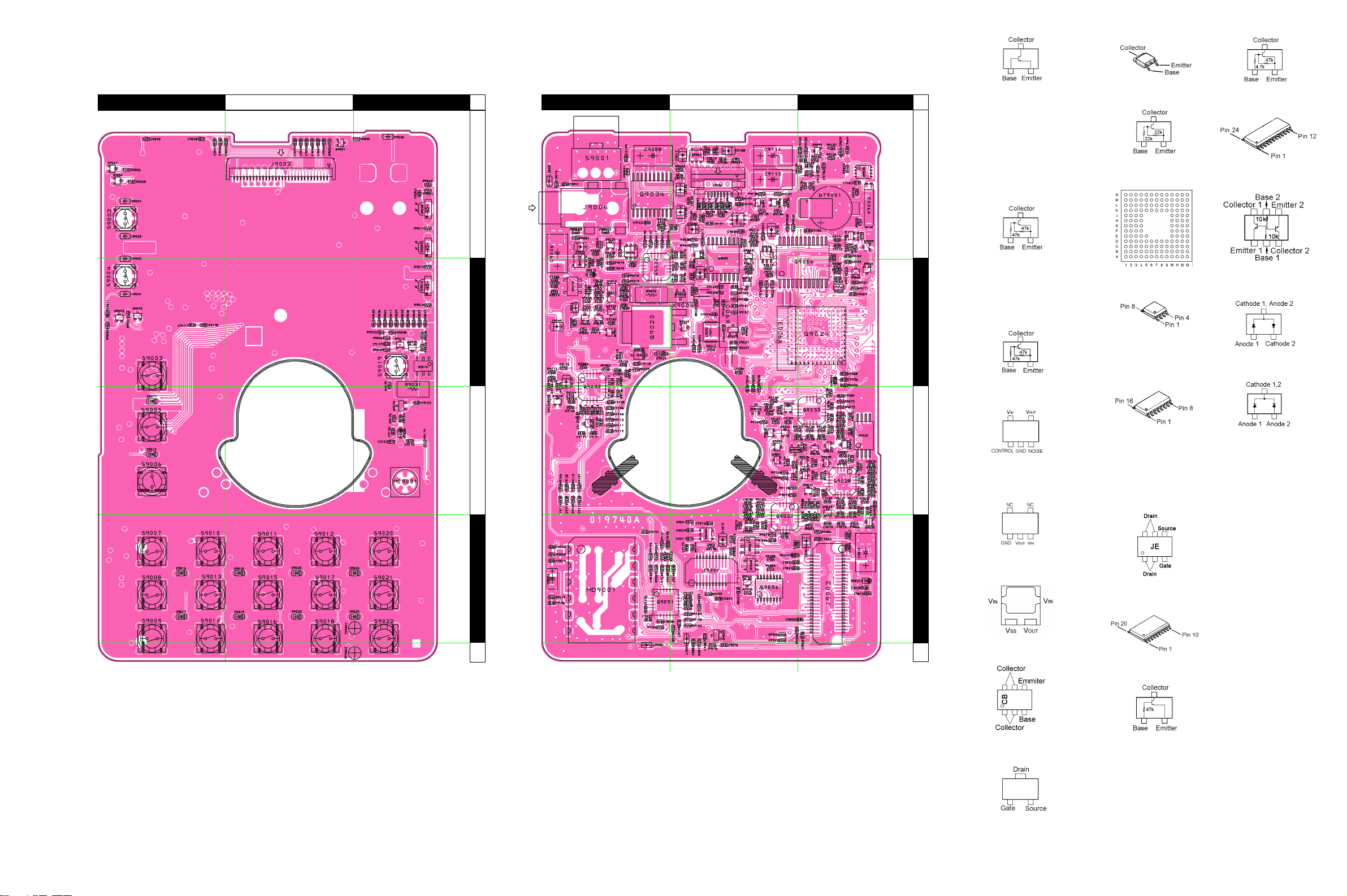

CNTL-2 Unit (Lot.16~) VX-8R/E Type ......................................................................................................................... 89

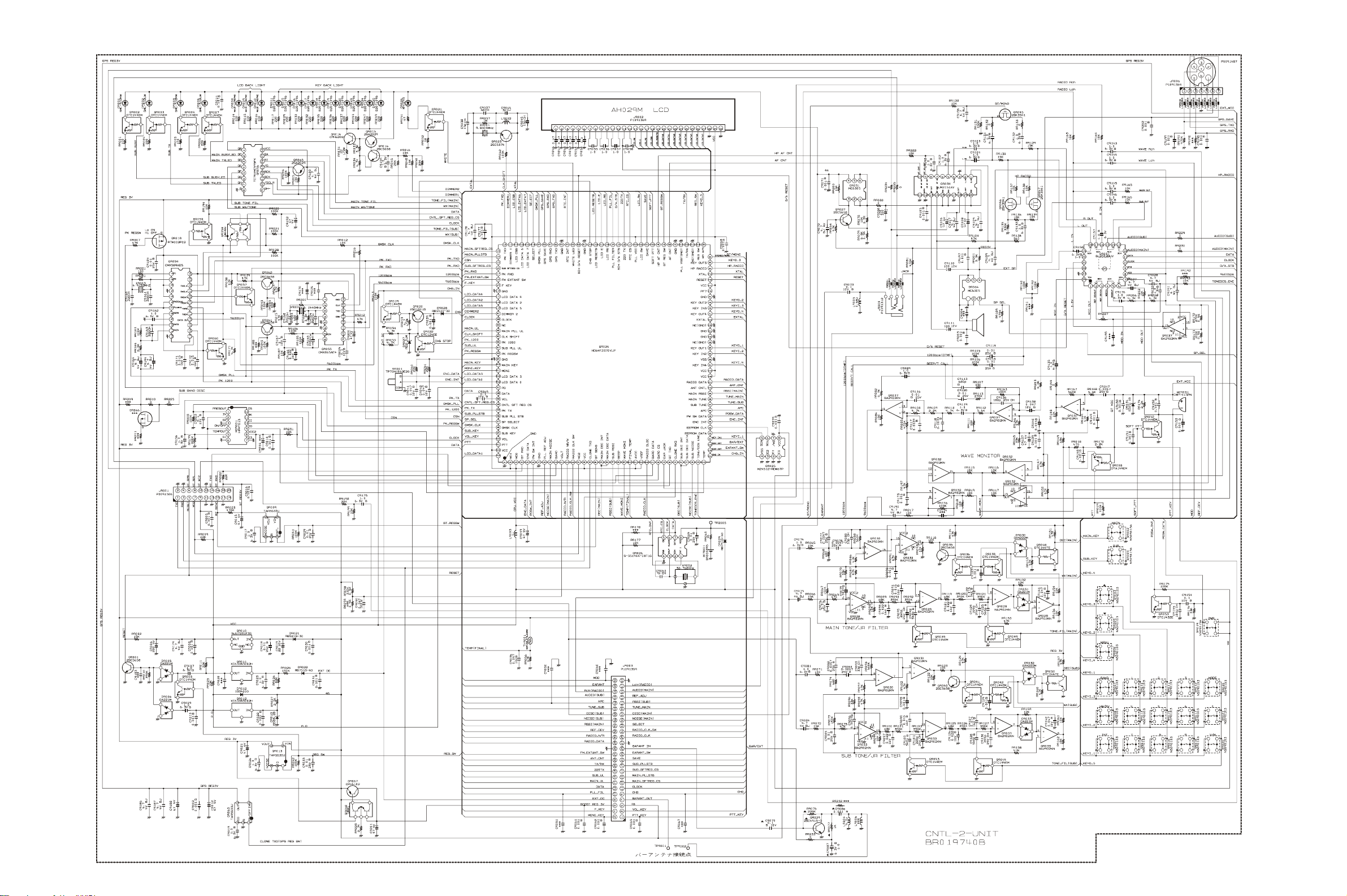

CNTL-2 Unit (Lot.24~) VX-8DR/E Type ...................................................................................................................... 91
CNTL-2 Unit Parts List (Lot.8~) VX-8R/E and VX-8DR/E Type ............................................................................... 93
CONNECTOR Unit (Lot.1~7) VX-8R Type Only....................................................................................................... 103
CONNECTOR-2 Unit (Lot.8~) VX-8R/E and VX-8DR/E Type ................................................................................. 105
MAIN VCO Unit VX-8R/E and VX-8DR/E Type ....................................................................................................... 107
SUB VCO Unit VX-8R/E and VX-8DR/E Type ........................................................................................................... 113
Page 2
Specifications
GENERAL
Frequency Ranges: A (Main) Band RX: 0.5-1.8 MHz (AM Radio)
1.8-30 MHz (SW Band)
30-76 (88*) MHz (50 MHz HAM)
76 (88*) - 108 MHz (FM Radio)
108 - 137 MHz (Air Band)
137-174 MHz (144 MHz HAM)
174 - 222 MHz (VHF-TV)
222 - 420 MHz (General 1)
420 - 470 MHz (430 MHz HAM)
470 - 774 MHz (UHF-TV)
774 - 999.90 MHz (General 2, Cellular Blocked)
B (Sub) Band RX: 30 - 76 (88*) MHz (50 MHz HAM)
108 - 137 MHz (Air Band)
137 - 174 MHz (144 MHz HAM)
174 - 222 MHz (VHF-TV)
222 - 420 MHz (General 1)
420 - 580 MHz (430 MHz HAM)
TX: 50 - 54 MHz or 50-52 MHz
144 - 146 MHz or 144-148 MHz
222 - 225 MHz (USA version only)
430 - 440 MHz or 430-450 MHz
Channel Steps: 5/6.25/8.33/9/10/12.5/15/20/25/50/100 kHz
Emission Type: F1D, F2A, F2D, F3E, A3E
Frequency Stability: ±5 ppm (–10 °C to +60 °C [+14 °F to +140 °F])
Repeater Shift: ±600 kHz (144 MHz), ±1.6 MHz (222 MHz), ±1.6/5.0/7.6 MHz (430 MHz)
Antenna Impedance: 50 Ohms
Supply Voltage: Nominal: 7.4 V DC (Negative Ground)
Operating: 4-14 V DC (Negative Ground, EXT DC jack)
Operating with Charging: 11-14 V DC (Negative Ground, EXT DC jack)
Current Consumption: 200 mA (Mono Band Receive)
(@7.4 VDC, approx.) 240 mA (Dual Band Receive)
85 mA (Mono Band Receive, Standby, Saver Off)
120 mA (Dual Band Receive, Standby, Saver Off)
35 mA (Mono Band Receive, Standby, Saver On “Save Ratio 1:5”)
42 mA (Dual Band Receive, Standby, Saver On “Save Ratio 1:5”)
300 µA (Auto Power Off)
1.6 A (50 MHz, 5 W TX)
1.7A (144 MHz, 5W TX)
1.2 A (222 MHz, 1.5 W TX)
1.9 A (430 MHz, 5W TX)
Operating Temperature
Case Size (W x H x D): 60 x 95 x 24.2 mm (2.4” x 3.7” x 0.9”) w/o knob & antenna
Weight (Approx.): 240 g (8.5 oz) with FNB-101LI & antenna
: –20 °C to +60 °C (–4 °F to +140 °F)
–25 °C to +55 °C*
–5 °C to +35 °C* (Battery Charging)
: VX-8E and VX8DE Type
*
2 VX-8R/E and VX-8DR/E Technical Supplement
Page 3
TRANSMITTER
RF Power Output: 50/144/430 MHz 1.0 W (@4.5 V: AA x 3)
5.0 W (@7.4 V or EXT DC)
50 MHz AM 1.0 W (Fixed)
222 MHz (USA only) 0.5 W (@4.5 V: AA x 3)
1.5 W (@7.4 V or EXT DC)
L3: 2.5 W, L2: 1 W, L1: 0.05 W (0.2 W*) (@7.4 V, 50/144/430 MHz)
L3: 1 W, L2: 0.5 W, L1: 0.05 W (@7.4 V, 222 MHz)
Modulation Type: F2E, F3E: Variable Reactance
A3E: Low Level Amplitude Modulation (50 MHz only)
Maximum Deviation: ±5 kHz (F2E/F3E)
Spurious Emission: At least 60 dB below (@ TX power HI/L3)
At least 50 dB below (@ TX power L2/L1)
Microphone Impedance:2k Ohms
RECEIVER
Circuit Type: NFM, AM: Double-Conversion Superheterodyne
WFM: Triple-Conversion Superheterodyne
AM/FM Radio: Single-Conversion Superheterodyne
IF: NFM, AM 1st: 47.25 MHz (A (Main) Band),
46.35 MHz (B (Sub) Band),
2nd: 450 kHz
WFM 1st: 45.8 MHz, 2nd: 10.7 MHz, 3rd: 1 MHz
AM/FM Radio: 130 kHz
Sensitivity: 3.0 µV for 10 dB S/N (0.5-30 MHz @AM)
(A (Main) Band) 0.35 µV (TYP) for 12 dB SINAD (30-54 MHz @NFM)
1.0 µV (TYP) for 12 dB SINAD (54-76 MHz @NFM)
1.0 µV (TYP) for 12 dB SINAD (54-59 MHz @NFM, USA Version)
0.5 µV (TYP) for 12 dB SINAD (76-88 MHz @NFM)*
1.5 µV (TYP) for 12 dB SINAD (76-108 MHz @WFM)
1.5 µV (TYP) for 12 dB SINAD (88-108 MHz @WFM)*
1.5 µV (TYP) for 12 dB SINAD (59-108 MHz @WFM, USA Version)
1.5 µV (TYP) for 10 dB SN (108-137 MHz @AM)
0.2 µV for 12 dB SINAD (137-140 MHz @NFM)
0.16 µV for 12 dB SINAD (140-150 MHz @NFM)
0.2 µV for 12 dB SINAD (150-174 MHz @NFM)
1.0 µV for 12 dB SINAD (174-222 MHz @WFM)
0.5 µV for 12 dB SINAD (300-350 MHz @NFM)
0.2 µV for 12 dB SINAD (350-400 MHz @NFM)
0.18 µV for 12 dB SINAD (400-470 MHz @NFM)
1.5 µV for 12 dB SINAD (470-540 MHz @WFM)
3.0 µV (TYP) for 12 dB SINAD (540-800 MHz @WFM)
1.5 µV (TYP) for 12 dB SINAD (800-999.90 MHz @NFM) (Cellular Blocked)
Sensitivity: 0.18 µV(TYP) for 12 dB SINAD (50-54 MHz @NFM)
(B (Sub) Band) 0.18 µV for 12 dB SINAD (144-148 MHz @NFM)
0.2 µV for 12 dB SINAD (430-450 MHz @NFM)
Selectivity: 12 kHz/35 kHz (–6dB/–60dB: NFM, AM)
200 kHz/300 kHz (–6dB/–20dB: WFM)
AF Output: 200 mW @ 8 Ohms for 10 % THD (@ 7.4 V DC)
400 mW @ 8 Ohms for 10 % THD (@ 13.8 V DC)
Specifications
Specifications are subject to change without notice, and are guaranteed within the 50/144/(222)/430 MHz amateur bands only.
Cellular Blocked per FCC rule Part 15.121, may not receive 900 MHz Amateur band.
The frequency ranges are different according to a transceiver version.
: VX-8E and VX-8DE Type
*
3VX-8R/E and VX-8DR/E Technical Supplement
Page 4
Exploded View & Miscellaneous Parts
RA1013300
RUBBER PACKING (LED)
RA1042800
RA0918600
SPECIAL SCREW (2.6X5X8)
RA1049000
ENCODER KNOB (2PRY)
RING NUT (WITCO)
RA1017200
CAP (TOP)
RA060450B
SPECIAL NUT (M)
RA1037500
O RING (6.5X2)
RA1061400
O RING (12.5X1)
CP9295001
CHASSIS ASSY
(w/ PACKING PAD, O RING,
SMA CONNECTOR)
RA0951900
NAME PLATE (YAESU)
RA1017000
PROTECTOR (R)
RA1057200
DOUBLE FACE (PAD-R)
RA1017300
CAP (SIDE)
RA1016400
LIGHT GUIDE (LED)
RA1014200
SHEET HOLDER (MIC)
RA101340B
RUBBER PACKING (SP)
M4090189
SPEAKER(0.5W/16-ohm)
RA1017400 (x2 pcs)
DOUBLE FACE (LCD)
RA0603200
O RIN G (0.7X3.7)
RA1092400
SHEET (SW)
RA1017600
RA0603600
O RING (1X4.2)
SHEET (LED)
P0091520
CONNECTOR
FR018900A
MIC-CONNECTOR Flat Cable
RA1012700
GASKET
RA1012900
SHEET (MIC)
RA1017500
SHEET (WIN)
RA101370B
SP HOLDER
RA101310A
RUBBER
KEY (POW)
RA1016800
SUPPORT (POW)
RA101300B (x2 pcs)
RUBBER KEY (ACS)
RA101670B (x2 pcs)
SUPPORT (ACS)
RA1053700 (x3 pcs)
COIL SPRING
RA106950A
SHEET (ACS)
RA101250A
KEY PAD
Q7000614
LCD MODULE
RA1013800
SHEET (LCD)
RA1016500
LCD HOLDER
RA1070500
LIGHT SHEET (LCD)
RA1092400 (x2 pcs)
SHEET (SW)
RA1080500
SHIELD SHEET
CONNECTOR Unit
RA1007400 (x2 pcs)
SHIELD CASE VCO
SUB VCO Unit
MAIN VCO Unit
RA1011800 (x2 pcs)
STUD
RA1016900
SUPPORT (PTT)
RA1066900
BLIND SHEET
RA1093500
MYLAR SHEET (ANT)
FR018660A
ANT Flat Cable
RA105780A
FRONT CASE
(W/ SP NET, WINDOW)
RA1057100
DOUBLE FACE (PAD-L)
RA1017100
PROTECTOR (L)
RA107300A
SPACER (PTT)
RA101320A
RUBBER KEY (PTT)
Removing the Rear Case Assy
1. Please order the screw M2.6X30 (P/N;
U00230001).
2. Remove the SPECIAL SCREW (A) and
ENCODER KNOB (B).
3. Remove the MIC/SP CAP (C) and RING
NUT (D).
4. Remove the two screws (E).
5. Turn the M2.6x30 screw several times to
affix the screw to the bottom right corner.
6. Press the top of the screw toward to a panel
top to remove the rear case Assy from the
front panel.
CNTL Unit
(C)
RF Unit
Non-designated parts are available only as part of a
designated assembly.
RUBBER ANTENNA YHA-64
RUBBER ANTENNA YHA-65 (USA)
AC-DC ADAPTOR NC-86B (USA)
AC-DC ADAPTOR NC-86C (EXP)
RA1013500
RUBBER PACKING (ANT)
RA1013900
DOUBLE FACE (ANT-A)
Q9000881
BAR ANTENNA
(D)
(B)
(A)
RA1016600
HOLDER (ANT)
CP9296002 (USA)
CP9296003 (EXP)
CP9296004 (EU)
CP9296005 (AUS)
FRONT CASE ASSY
(E)
screw M2.6X30
Q3000183
Q3000185
Q9500149
Q9500150
(E)
RA0337300
SHEET (C012)
AAG10X001
FNB-101LI
RA1054200
CAP (BATT)
RA1053600
BELT CLIP
U9900240
U9900239
U9900241
U07230102
U24310020
U9900242
U9900243
U9900181
PAN HEAD TAPTITE-B 1.4X3NI #3
PAN HEAD TAPTITE-B 2X3NI #3
PAN HEAD TAPTITE-B 2X10SUS #3
PAN HEAD SCREW M2X3NI #1
BIND HEAD TAPTITE-B M3X10SUS
TAPPING SCREW 2X2.5NI
TAPPING SCREW M2X3NI
TAPTITE SCREW 2X3.5(CAP)
2
11
2
1
2
4
2
1
4 VX-8R/E and VX-8DR/E Technical Supplement
Page 5
Block Diagram
5VX-8R/E and VX-8DR/E Technical Supplement
Page 6
Block Diagram
Note
6 VX-8R/E and VX-8DR/E Technical Supplement
Page 7
Alignment
Introduction and Precautions
The and has been carefully aligned
at the factory for the specified performance across the
specified amateur bands. Realignment should therefore
not be necessary except in the event of a component fail-
ure. All component replacement and service should be
performed only by an authorized VERTEX STANDARD
representative, or the warranty policy may be voided.
The following procedures cover the sometimes critical
and tedious adjustments that are not normally required
once the transceiver has left the factory. However, if dam-
age occurs and some parts are replaced, realignment may
be required. If a sudden problem occurs during normal
operation, it is likely due to component failure; realign-
ment should not be done until after the faulty compo-
nent has been replaced.
We recommend that servicing be performed only by
authorized VERTEX STANDARD service technicians,
who are experienced with the circuitry and fully
equipped for repair and alignment. Therefore, if a fault
is suspected, contact the dealer from whom the trans-
ceiver was purchased for instructions regarding repair.
Authorized VERTEX STANDARD service technicians
realign all circuits and make complete performance
checks to ensure compliance with factory specifications
after replacing any faulty components.
Those who do undertake any of the following align-
ments are cautioned to proceed at their own risk. Prob-
lems caused by unauthorized attempts at realignment
are not covered by the warranty policy. Also, VERTEX
STANDARD must reserve the right to change circuits
and alignment procedures in the interest of improved
performance, without notifying owners.
Under no circumstances should any alignment be at-
tempted unless the normal function and operation of the
transceiver are clearly understood, the cause of the mal-
function has been clearly pinpointed and any faulty com-
ponents replaced, and the need for realignment deter-
mined to be absolutely necessary.
Required Test Equipment
H RF Signal Generator with calibrated output level at 500 MHz
H Deviation Meter (linear detector)
H In-line Wattmeter with 5% accuracy at 500 MHz
H 50-ohm, 10-W RF Dummy Load
H 8-ohm AF Dummy Load
H Regulated DC Power Supply adjustable from 8 to 16 V DC, 3A
H Frequency Counter: 0.2-ppm accuracy at 500 MHz
H AF Signal Generator
H AC Voltmeter
H DC Voltmeter: high impedance
H UHF Sampling Coupler
H SINAD Meter
Alignment Preparation & Precautions
A 10-W RF dummy load and in-line wattmeter must
be connected to the main antenna jack in all procedures
that call for transmission, alignment is not possible with
an antenna. After completing one step, read the next step
to see if the same test equipment is required. If not, re-
move the test equipment (except dummy load and watt-
meter, if connected) before proceeding.
Correct alignment requires that the ambient tempera-
ture be the same as that of the transceiver and test equip-
ment, and that this temperature be held constant between
68~86°F (20~30°C). When the transceiver is brought into
the shop from hot or cold air, it should be allowed some
time to come to room temperature before alignment.
Whenever possible, alignments should be made with os-
cillator shields and circuit boards firmly affixed in place.
Also, the test equipment must be thoroughly warmed
up before beginning.
Note: Signal levels in dB referred to in the alignment proce-
dure are based on 0 dBµ=0.5 µV (closed circuit).
7VX-8R/E and VX-8DR/E Technical Supplement
Page 8
Alignment
Internal System Alignment Routine
This uses a programmed routine in the transceiver
which simplifies many previously complex discrete com-
ponent settings and adjustments with digitally-con-
trolled settings via front panel buttons and LCD indica-
tions.
1. To begin, set the transceiver to the VFO mode on the
"A-Band" in the "Mono" band mode.
2. Program a password for the Alignment (AH029M) ac-
cording to the following procedure:
1) Press and hold the [
enter the Set mode.
2) Rotate the DIAL knob to select Set Mode Item 21:
CW ID.
3) Press the [
of this Set Mode Item.
4) Rotate the
5) Press the [
[
HM/RV
entry.
6) Program the password "AH029M" using the DIAL
knob (select the character), and [
key (move the cursor).
7) When you have completed the password, press the
[
MENU
exit to normal operation.
Remember to delete the password "AH029M"from the
Set Mode Item 21: CW ID when the alignment adjust-
ments are finished by pressing and holding in the [
] key for two seconds (as in step 5 above).
RV
3. Press the [PWR] switch for two seconds to turn the
transceiver "off".
4. Press and hold in the [
the transceiver "on" again. The transceiver will enter
the adjustment mode, and the display will show the
first alignment setting. Thereafter, the frequencies used
during alignment will automatically be set without
action by the technician.
] key for two seconds to clear any previous
] key briefly, then press the PTT switch to
] key briefly to enable adjustment
MENU
DIAL knob to select "ON".
] key, then press and hold in the
MODE
] key for one second to
MENU
BAND
HM/RV
] key while powering
]/[
MODE
HM/
As each transceiver is individually optimized at the
factory, the precise settings for the transceiver on your
bench may be slightly different.
PLL Reference Frequency Adjustment (PLL REF)
Ì Connect the test equipment as shown in Figure 1: TX
Alignment Setup.
Ì Rotate the DIAL knob to select the Alignment Menu
"PLL REF".
Ì Press the [V/M] button (the "" icon will appear on the
display).
Ì Press the PTT switch to transmit and rotate the DIAL
knob so that the frequency counter setting is 440.000
MHz (±100 Hz).
Ì Release the PTT switch, then press the [
(the "" icon will disappear from the display).
50-ohm RF
Dummy Load
]
In-Line
Wattmeter
Deviation
Meter
Frequency
Counter
RF Signal
Generator
Sampling
Coupler
Figure 1: TX Alignment Setup
8-ohm
AF Load
SINAD
Meter
V/M
] button
DIAL
[V/M]
[V/M]
[
HM/RV
]
Figure 2: RX Alignment Setup
8 VX-8R/E and VX-8DR/E Technical Supplement
Page 9
A-Band 430 MHz Band Adjustment
Receiver Sensitivity Adjustment (TUNE DC)
Ì Connect the test equipment as shown in Figure 2: RX
Alignment Setup.
Ì Rotate the DIAL knob to select the Alignment Menu
"TUNE DC".
Ì Set the RF Signal Generator output to 435.100 MHz, at
a level of -10 dBµ, ±3.5 kHz deviation with a 1 kHz
audio tone.
Ì Press the [
display).
Ì Rotate the DIAL knob for maximum deflection on the
SINAD meter.
Ì Press the [
the display).
] button (the "" icon will appear on the
V/M
] button (the "" icon will disappear on
V/M
Alignment
FM S-Meter S-1 Adjustment (S1 LEVEL)
Ì Connect the test equipment as shown in Figure 2: RX
Alignment Setup.
Ì Rotate the DIAL knob to select the Alignment Menu
"S1 LEVEL" with "NFM" icon.
Ì Set the RF Signal Generator output to 435.100 MHz, at
a level of -7 dBµ, ±3.5 kHz deviation with a 1 kHz au-
dio tone.
Ì Press the [
display).
Ì Press the [
Full Scale level.
Ì Press the [
the display).
] button (the "" icon will appear on the
V/M
] key two times to store the FM SMeter
F/W
] button (the "" icon will disappear on
V/M
Squelch Hysteresis Confirmation (HIS SQL)
Ì Rotate the DIAL knob to select the Alignment Menu
"HIS SQL".
Ì Confirm that the alignment value is "0".
Squelch Threshold Adjustment (THLD SQL)
Ì Connect the test equipment as shown in Figure 2: RX
Alignment Setup.
Ì Rotate the DIAL knob to select the Alignment Menu
"THLD SQL".
Ì Set the RF Signal Generator output to 435.100 MHz, at a level
of -12 dBµ, ±3.5 kHz deviation with a 1 kHz audio tone.
Ì Press the [
display).
Ì Press the [
Full Scale level.
Ì Press the [
the display).
Tight Squelch Adjustment (TIGH SQL)
Ì Connect the test equipment as shown in Figure 2: RX
Alignment Setup.
Ì Rotate the DIAL knob to select the Alignment Menu
"TIGH SQL".
Ì Set the RF Signal Generator output to 435.100 MHz, at a level
of +4 dBµ, ±3.5 kHz deviation with a 1 kHz audio tone.
Ì Press the [
display).
Ì Press the [
Full Scale level.
Ì Press the [
the display).
] button (the "" icon will appear on the
V/M
] key two times to store the FM SMeter
F/W
] button (the "" icon will disappear on
V/M
] button (the "" icon will appear on the
V/M
] key two times to store the FM SMeter
F/W
] button (the "" icon will disappear on
V/M
FM S-Meter Full-Scale Adjustment (S9 LEVEL)
Ì Connect the test equipment as shown in Figure 2: RX
Alignment Setup.
Ì Rotate the DIAL knob to select the Alignment Menu
"S9 LEVEL" with "NFM" icon.
Ì Set the RF Signal Generator output to 435.100 MHz, at
a level of +20 dBµ, ±3.5 kHz deviation with a 1 kHz
audio tone.
Ì Press the [
display).
Ì Press the [
Full Scale level.
Ì Press the [
the display).
Wide FM S-Meter S-1 Adjustment (S1 LEVEL)
Ì Connect the test equipment as shown in Figure 2: RX
Alignment Setup.
Ì Rotate the DIAL knob to select the Alignment Menu
"S1 LEVEL" with "WFM" icon.
Ì Set the RF Signal Generator output to 435.100 MHz, at
a level of 0 dBµ, ±20 kHz deviation with a 1 kHz audio
tone.
Ì Press the [
display).
Ì Press the [
Full Scale level.
Ì Press the [
the display).
] button (the "" icon will appear on the
V/M
] key two times to store the FM SMeter
F/W
] button (the "" icon will disappear on
V/M
] button (the "" icon will appear on the
V/M
] key two times to store the FM SMeter
F/W
] button (the "" icon will disappear on
V/M
9VX-8R/E and VX-8DR/E Technical Supplement
Page 10
Alignment
Wide FM S-Meter Full-Scale Adjustment (S9 LEVEL)
Ì Connect the test equipment as shown in Figure 2: RX
Alignment Setup.
Ì Rotate the DIAL knob to select the Alignment Menu
"S9 LEVEL" with "WFM" icon.
Ì Set the RF Signal Generator output to 435.100 MHz, at
a level of +20 dBµ, ±20 kHz deviation with a 1 kHz
audio tone.
Ì Press the [
display).
Ì Press the [
Full Scale level.
Ì Press the [
the display).
TX Power (HI) Adjustment (HI POWER)
Ì Connect the test equipment as shown in Figure 1: TX
Alignment Setup.
Ì Rotate the DIAL knob to select the Alignment Menu
"HI POWER".
Ì Press the [
display).
Ì Press the PTT switch to transmit and rotate the DIAL
knob so that the Power Meter reading is 5.0 W (±0.1
W).
Ì Release the PTT switch, and then press the [
ton (the "" icon will disappear on the display).
TX Power (L3) Adjustment (L3 POWER)
Ì Connect the test equipment as shown in Figure 1: TX
Alignment Setup.
Ì Rotate the DIAL knob to select the Alignment Menu
"L3 POWER".
Ì Press the [
display).
Ì Press the PTT switch to transmit and rotate the DIAL
knob so that the Power Meter setting is 2.5 W (±0.1
W).
Ì Release the PTT switch, and then press the [
ton (the "" icon will disappear on the display).
] button (the "" icon will appear on the
V/M
] key two times to store the FM SMeter
F/W
] button (the "" icon will disappear on
V/M
] button (the "" icon will appear on the
V/M
] button (the "" icon will appear on the
V/M
V/M
V/M
] but-
] but-
TX Power (L2) Adjustment (L2 POWER)
Ì Connect the test equipment as shown in Figure 1: TX
Alignment Setup.
Ì Rotate the DIAL knob to select the Alignment Menu
"L2 POWER".
Ì Press the [
display).
Ì Press the PTT switch to transmit and rotate the DIAL
knob so that the Power Meter setting is 1.0 W (±0.1
W).
Ì Release the PTT switch, and then press the [
ton (the "" icon will disappear on the display).
TX Power (L1) Adjustment (L1 POWER)
Ì Connect the test equipment as shown in Figure 1: TX
Alignment Setup.
Ì Rotate the DIAL knob to select the Alignment Menu
"L1 POWER".
Ì Press the [
display).
Ì Press the PTT switch to transmit and rotate the DIAL
knob so that the Power Meter setting is 50 mW (+30
mW/ -20 mW) (VX-8E Type: 0.2W±0.05W).
Ì Release the PTT switch, and then press the [
ton (the "" icon will disappear on the display).
TX Deviation Adjustment (MAX DEV)
Ì Connect the test equipment as shown in Figure 1: TX
Alignment Setup.
Ì Rotate the DIAL knob to select the Alignment Menu
"MAX DEV".
Ì Set the AF Signal Generator output to 50 mVrms with
a 1 kHz audio tone.
Ì Press the [
display).
Ì Press the PTT switch to transmit and rotate the DIAL
knob so that the Deviation Meter setting is 4.2 kHz ±
0.2 kHz (USA version) or 4.5 kHz ± 0.2 kHz (EXP/EU
versions).
Ì Release the PTT switch, and then press the [
ton (the "" icon will disappear on the display).
] button (the "" icon will appear on the
V/M
] button (the "" icon will appear on the
V/M
] button (the "" icon will appear on the
V/M
V/M
V/M
V/M
] but-
] but-
] but-
10 VX-8R/E and VX-8DR/E Technical Supplement
Page 11
CTCSS TX Deviation Adjustment (100.0Hz)
Ì Connect the test equipment as shown in Figure 1: TX
Alignment Setup.
Ì Rotate the DIAL knob to select the Alignment Menu
"100.0Hz".
Ì Press the [
display).
Ì Press the PTT switch to transmit without the micro-
phone input and rotate the DIAL knob so that the De-
viation Meter setting is 0.65 kHz (±0.05 kHz).
Ì Release the PTT switch, and then press the [
ton (the "" icon will disappear on the display).
DCS TX Deviation Adjustment (DCS 023)
Ì Connect the test equipment as shown in Figure 1: TX
Alignment Setup.
Ì Rotate the DIAL knob to select the Alignment Menu
"DCS 023".
Ì Press the [
display).
Ì Press the PTT switch to transmit without the micro-
phone input and rotate the DIAL knob so that the De-
viation Meter setting is 0.65 kHz (±0.05 kHz).
Ì Release the PTT switch, and then press the [
ton (the "" icon will disappear on the display).
] button (the "" icon will appear on the
V/M
] button (the "" icon will appear on the
V/M
V/M
V/M
] but-
] but-
Alignment
A-Band 50 MHz Band Adjustment
Press the [
band.
Receiver Sensitivity Adjustment (TUNE DC)
Ì Connect the test equipment as shown in Figure 2: RX
Alignment Setup.
Ì Rotate the DIAL knob to select the Alignment Menu
"TUNE DC".
Ì Set the RF Signal Generator output to 52.100 MHz, at a
level of -10 dBµ, ±3.5 kHz deviation with a 1 kHz audio
tone.
Ì Press the [
display).
Ì Rotate the DIAL knob for maximum deflection on the
SINAD meter.
Ì Press the [
the display).
Squelch Hysteresis Confirmation (HIS SQL)
Ì Rotate the DIAL knob to select the Alignment Menu
"HIS SQL".
Ì Confirm that the alignment value is "0".
Squelch Threshold Adjustment (THLD SQL)
Ì Connect the test equipment as shown in Figure 2: RX
Alignment Setup.
Ì Rotate the DIAL knob to select the Alignment Menu
"THLD SQL".
Ì Set the RF Signal Generator output to 52.100 MHz, at a
level of -12 dBµ, ±3.5 kHz deviation with a 1 kHz audio
tone.
Ì Press the [
display).
Ì Press the [
Threshold level.
Ì Press the [
the display).
V/M
V/M
V/M
V/M
] key to select the 50 MHz Amateur
BAND
] button (the "" icon will appear on the
] button (the "" icon will disappear on
] button (the "" icon will appear on the
] key two times to read the Squelch
F/W
] button (the "" icon will disappear on
11VX-8R/E and VX-8DR/E Technical Supplement
Page 12
Alignment
Tight Squelch Adjustment (TIGH SQL)
Ì Connect the test equipment as shown in Figure 2: RX
Alignment Setup.
Ì Rotate the DIAL knob to select the Alignment Menu
"TIGH SQL".
Ì Set the RF Signal Generator output to 52.100 MHz, at a
level of +4 dBµ, ±3.5 kHz deviation with a 1 kHz audio
tone.
Ì Press the [
display).
Ì Press the [
level.
Ì Press the [
the display).
FM S-Meter S-1 Adjustment (S1 LEVEL)
Ì Connect the test equipment as shown in Figure 2: RX
Alignment Setup.
Ì Rotate the DIAL knob to select the Alignment Menu
"S1 LEVEL" with "NFM" icon.
Ì Set the RF Signal Generator output to 52.100 MHz, at a
level of -7 dBµ, ±3.5 kHz deviation with a 1 kHz audio
tone.
Ì Press the [
display).
Ì Press the [
S-1 level.
Press the [
the display).
FM S-Meter Full-Scale Adjustment (S9 LEVEL)
Ì Connect the test equipment as shown in Figure 2: RX
Alignment Setup.
Ì Rotate the DIAL knob to select the Alignment Menu
"S9 LEVEL" with "NFM" icon.
Ì Set the RF Signal Generator output to 52.100 MHz, at a
level of +20 dBµ, ±3.5 kHz deviation with a 1 kHz au-
dio tone.
Ì Press the [
display).
Ì Press the [
Full Scale level.
Ì Press the [
the display).
] button (the "" icon will appear on the
V/M
] key two times to read the Squelch Tight
F/W
] button (the "" icon will disappear on
V/M
] button (the "" icon will appear on the
V/M
] key two times to store the FM S-Meter
F/W
] button (the "" icon will disappear on
V/M
] button (the "" icon will appear on the
V/M
] key two times to store the FM S-Meter
F/W
] button (the "" icon will disappear on
V/M
Wide FM S-Meter S-1 Adjustment (S1 LEVEL)
Ì Connect the test equipment as shown in Figure 2: RX
Alignment Setup.
Ì Rotate the DIAL knob to select the Alignment Menu
"S1 LEVEL" with "WFM" icon.
Ì Set the RF Signal Generator output to 52.100 MHz, at a level
of 0 dBµ, ±20 kHz deviation with a 1 kHz audio tone.
Ì Press the [
display).
Ì Press the [
Meter S-1 level.
Ì Press the [
the display).
Wide FM S-Meter Full-Scale Adjustment (S9 LEVEL)
Ì Connect the test equipment as shown in Figure 2: RX
Alignment Setup.
Ì Rotate the DIAL knob to select the Alignment Menu
"S9 LEVEL" with "WFM" icon.
Ì Set the RF Signal Generator output to 52.100 MHz, at a
level of +20 dBµ, ±20 kHz deviation with a 1 kHz audio
tone.
Ì Press the [
display).
Ì Press the [
Meter Full Scale level.
Ì Press the [
the display).
TX Power (HI) Adjustment (HI POWER)
Ì Connect the test equipment as shown in Figure 1: TX
Alignment Setup.
Ì Rotate the DIAL knob to select the Alignment Menu
"HI POWER".
Ì Press the [
display).
Ì Press the PTT switch to transmit and rotate the DIAL
knob so that the Power Meter setting is 5.0 W (±0.1
W).
Ì Release the PTT switch, then press the [
(the "" icon will appear on the display).
] button (the "" icon will appear on the
V/M
] key two times to read the Wide FM S-
F/W
] button (the "" icon will disappear on
V/M
] button (the "" icon will appear on the
V/M
] key two times to read the Wide FM S-
F/W
] button (the "" icon will disappear on
V/M
] button (the "" icon will appear on the
V/M
V/M
] button
12 VX-8R/E and VX-8DR/E Technical Supplement
Page 13
Alignment
TX Power (L3) Adjustment (L3 POWER)
Ì Connect the test equipment as shown in Figure 1: TX
Alignment Setup.
Ì Rotate the DIAL knob to select the Alignment Menu
"L3 POWER".
Ì Press the [
display).
Ì Press the PTT switch to transmit and rotate the DIAL
knob so that the Power Meter setting is 2.5 W (±0.1
W).
Ì Release the PTT switch, then press the [
(the "" icon will disappear on the display).
TX Power (L2) Adjustment (L2 POWER)
Ì Connect the test equipment as shown in Figure 1: TX
Alignment Setup.
Ì Rotate the DIAL knob to select the Alignment Menu
"L2 POWER".
Ì Press the [
display).
Ì Press the PTT switch to transmit and rotate the DIAL
knob so that the Power Meter setting is 1.0 W (±0.1
W).
Ì Release the PTT switch, then press the [
(the "" icon will disappear on the display).
TX Power (L1) Adjustment (L1 POWER)
Ì Connect the test equipment as shown in Figure 1: TX
Alignment Setup.
Ì Rotate the DIAL knob to select the Alignment Menu
"L1 POWER".
Ì Press the [
display).
Ì Press the PTT switch to transmit and rotate the DIAL
knob so that the Power Meter setting is 50 mW (+30
mW/ -20 mW) (VX-8E Type: 0.2W±0.05W).
Ì Release the PTT switch, and then press the [
ton (the "" icon will disappear on the display).
] button (the "" icon will appear on the
V/M
V/M
] button (the "" icon will appear on the
V/M
V/M
] button (the "" icon will appear on the
V/M
] button
] button
] but-
V/M
TX Deviation Adjustment (MAX DEV)
Ì Connect the test equipment as shown in Figure 1: TX
Alignment Setup.
Ì Rotate the DIAL knob to select the Alignment Menu
"MAX DEV".
Ì Set the AF Signal Generator output to 50 mVrms with
a 1 kHz audio tone.
Ì Press the [
display).
Ì Press the PTT switch to transmit and rotate the DIAL
knob so that the Deviation Meter setting is 4.2 kHz ±
0.2 kHz (USA version) or 4.5 kHz ± 0.2 kHz (EXP/EU
versions).
Ì Release the PTT switch, and then press the [MENU]
key to change the operating mode to "AM" mode.
Ì Increase the AF Signal Generator output to 100 mVrms.
Ì Press the PTT switch to transmit and rotate the DIAL
knob for the 60 % (±10 %) modulation.
Ì Release the PTT switch, and then press the [
ton (the "" icon will disappear on the display).
CTCSS TX Deviation Adjustment (100.0Hz)
Ì Connect the test equipment as shown in Figure 1: TX
Alignment Setup.
Ì Rotate the DIAL knob to select the Alignment Menu
"100.0Hz".
Ì Press the [
display).
Ì Press the PTT switch to transmit without the micro-
phone input and rotate the DIAL knob so that the De-
viation Meter reading is 0.65 kHz (±0.05 kHz).
Ì Release the PTT switch, then press the [
(the "" icon will disappear on the display).
DCS TX Deviation Adjustment (DCS 023)
Ì Connect the test equipment as shown in Figure 1: TX
Alignment Setup.
Ì Rotate the DIAL knob to select the Alignment Menu
"DCS 023".
Ì Press the [
display).
Ì Press the PTT switch to transmit without the micro-
phone input and rotate the DIAL knob so that the De-
viation Meter setting is 0.65 kHz (±0.05 kHz).
Ì Release the PTT switch, and then press the [
ton (the "" icon will disappear on the display).
] button (the "" icon will appear on the
V/M
] button (the "" icon will appear on the
V/M
V/M
] button (the "" icon will appear on the
V/M
] but-
V/M
] button
] but-
V/M
13VX-8R/E and VX-8DR/E Technical Supplement
Page 14
Alignment
A-Band 144 MHz Band Adjustment
Press the [BAND] key to select the 144 MHz Amateur
band.
Receiver Sensitivity Adjustment (TUNE DC)
Ì Connect the test equipment as shown in Figure 2: RX
Alignment Setup.
Ì Rotate the DIAL knob to select the Alignment Menu
"TUNE DC".
Ì Set the RF Signal Generator output to 145.100 MHz, at
a level of -10 dBµ, ±3.5 kHz deviation with a 1 kHz
audio tone.
Ì Press the [
display).
Ì Rotate the DIAL knob for maximum deflection on the
SINAD meter.
Ì Press the [
the display).
Squelch Hysteresis Confirmation (HIS SQL)
Ì Rotate the DIAL knob to select the Alignment Menu
"HIS SQL".
Ì Confirm that the alignment value is "0".
Squelch Threshold Adjustment (THLD SQL)
Ì Connect the test equipment as shown in Figure 2: RX
Alignment Setup.
Ì Rotate the DIAL knob to select the Alignment Menu
"THLD SQL".
Ì Set the RF Signal Generator output to 145.100 MHz, at
a level of -12 dBµ, ±3.5 kHz deviation with a 1 kHz
audio tone.
Ì Press the [
display).
Ì Press the [
Threshold level.
Ì Press the [
the display).
] button (the "" icon will appear on the
V/M
] button (the "" icon will disappear on
V/M
] button (the "" icon will appear on the
V/M
] key two times to store the Squelch
F/W
] button (the "" icon will disappear on
V/M
Tight Squelch Adjustment (TIGH SQL)
Ì Connect the test equipment as shown in Figure 2: RX
Alignment Setup.
Ì Rotate the DIAL knob to select the Alignment Menu
"TIGH SQL".
Ì Set the RF Signal Generator output to 145.100 MHz, at
a level of +4 dBµ, ±3.5 kHz deviation with a 1 kHz
audio tone.
Ì Press the [
display).
Ì Press the [
Tight level.
Ì Press the [
the display).
FM S-Meter S-1 Adjustment (S1 LEVEL)
Ì Connect the test equipment as shown in Figure 2: RX
Alignment Setup.
Ì Rotate the DIAL knob to select the Alignment Menu
"S1 LEVEL" with "NFM" icon.
Ì Set the RF Signal Generator output to 145.100 MHz, at
a level of -7 dBµ, ±3.5 kHz deviation with a 1 kHz au-
dio tone.
Ì Press the [
display).
Ì Press the [
S-1 level.
Ì Press the [
the display).
FM S-Meter Full-Scale Adjustment (S9 LEVEL)
Ì Connect the test equipment as shown in Figure 2: RX
Alignment Setup.
Ì Rotate the DIAL knob to select the Alignment Menu
"S9 LEVEL" with "NFM" icon.
Ì Set the RF Signal Generator output to 145.100 MHz, at
a level of +20 dBµ, ±3.5 kHz deviation with a 1 kHz
audio tone.
Ì Press the [
display).
Ì Press the [
Full Scale level.
Ì Press the [
the display).
] button (the "" icon will appear on the
V/M
] key two times to store the Squelch
F/W
] button (the "" icon will disappear on
V/M
] button (the "" icon will appear on the
V/M
] key two times to store the FM S-Meter
F/W
] button (the "" icon will disappear on
V/M
] button (the "" icon will appear on the
V/M
] key two times to store the FM S-Meter
F/W
] button (the "" icon will disappear on
V/M
14 VX-8R/E and VX-8DR/E Technical Supplement
Page 15
Alignment
Wide FM S-Meter S-1 Adjustment (S1 LEVEL)
Ì Connect the test equipment as shown in Figure 2: RX
Alignment Setup.
Ì Rotate the DIAL knob to select the Alignment Menu
"S1 LEVEL" with "WFM" icon.
Ì Set the RF Signal Generator output to 145.100 MHz, at
a level of 0 dBµ, ±20 kHz deviation with a 1 kHz audio
tone.
Ì Press the [
display).
Ì Press the [
Meter S-1 level.
Ì Press the [
the display).
Wide FM S-Meter Full-Scale Adjustment (S9 LEVEL)
Ì Connect the test equipment as shown in Figure 2: RX
Alignment Setup.
Ì Rotate the DIAL knob to select the Alignment Menu
"S9 LEVEL" with "WFM" icon.
Ì Set the RF Signal Generator output to 145.100 MHz, at
a level of +20 dBµ, ±20 kHz deviation with a 1 kHz
audio tone.
Ì Press the [
display).
Ì Press the [
Meter Full Scale level.
Ì Press the [
the display).
TX Power (HI) Adjustment (HI POWER)
Ì Connect the test equipment as shown in Figure 1: TX
Alignment Setup.
Ì Rotate the DIAL knob to select the Alignment Menu
"HI POWER".
Ì Press the [
display).
Ì Press the PTT switch to transmit and rotate the DIAL
knob so that the Power Meter setting is 5.0 W (±0.1
W).
Ì Release the PTT switch, then press the [
(the "" icon will disappear on the display).
] button (the "" icon will appear on the
V/M
] key two times to store the Wide FM S-
F/W
] button (the "" icon will disappear on
V/M
] button (the "" icon will appear on the
V/M
] key two times to store the Wide FM S-
F/W
] button (the "" icon will disappear on
V/M
] button (the "" icon will appear on the
V/M
V/M
] button
TX Power (L3) Adjustment (L3 POWER)
Ì Connect the test equipment as shown in Figure 1: TX
Alignment Setup.
Ì Rotate the DIAL knob to select the Alignment Menu
"L3 POWER".
Ì Press the [
display).
Ì Press the PTT switch to transmit and rotate the DIAL
knob so that the Power Meter setting is 2.5 W (±0.1
W).
Ì Release the PTT switch, then press the [
(the "" icon will disappear on the display).
TX Power (L2) Adjustment (L2 POWER)
Ì Connect the test equipment as shown in Figure 1: TX
Alignment Setup.
Ì Rotate the DIAL knob to select the Alignment Menu
"L2 POWER".
Ì Press the [
display).
Ì Press the PTT switch to transmit and rotate the DIAL
knob so that the Power Meter setting is 1.0 W (±0.1
W).
Ì Release the PTT switch, then press the [
(the "" icon will disappear on the display).
TX Power (L1) Adjustment (L1 POWER)
Ì Connect the test equipment as shown in Figure 1: TX
Alignment Setup.
Ì Rotate the DIAL knob to select the Alignment Menu
"L1 POWER".
Press the [
the display).
Ì Press the PTT switch to transmit and rotate the DIAL
knob so that the Power Meter setting is 50 mW (+30
mW/ -20 mW) (VX-8E Type: 0.2W±0.05W).
Ì Release the PTT switch, then press the [
(the "" icon will disappear on the display).
] button (the "" icon will appear on the
V/M
V/M
] button (the "" icon will appear on the
V/M
V/M
] button (the "" icon will appear on
V/M
V/M
] button
] button
] button
15VX-8R/E and VX-8DR/E Technical Supplement
Page 16
Alignment
TX Deviation Adjustment (MAX DEV)
Ì Connect the test equipment as shown in Figure 1: TX
Alignment Setup.
Ì Rotate the DIAL knob to select the Alignment Menu
"MAX DEV".
Ì Set the AF Signal Generator output to 50 mVrms with
a 1 kHz audio tone.
Ì Press the [
display).
Ì Press the PTT switch to transmit and rotate the DIAL
knob so that the Deviation Meter setting is 4.2 kHz ±
0.2 kHz (USA version) or 4.5 kHz ± 0.2 kHz (EXP/EU
versions).
Ì Release the PTT switch, and then press the [
ton (the "" icon will disappear on the display).
CTCSS TX Deviation Adjustment (100.0Hz)
Ì Connect the test equipment as shown in Figure 1: TX
Alignment Setup.
Ì Rotate the DIAL knob to select the Alignment Menu
"100.0Hz".
Ì Press the [
display).
Ì Press the PTT switch to transmit without the micro-
phone input and rotate the DIAL knob so that the De-
viation Meter setting is 0.65 kHz (±0.05 kHz).
Ì Release the PTT switch, and then press the [
ton (the "" icon will disappear on the display).
DCS TX Deviation Adjustment (DCS 023)
Ì Connect the test equipment as shown in Figure 1: TX
Alignment Setup.
Ì Rotate the DIAL knob to select the Alignment Menu
"DCS 023".
Ì Press the [
display).
Ì Press the PTT switch to transmit without the micro-
phone input and rotate the DIAL knob so that the De-
viation Meter setting is 0.65 kHz (±0.05 kHz).
Ì Release the PTT switch, then press the [
(the "" icon will disappear on the display).
] button (the "" icon will appear on the
V/M
] button (the "" icon will appear on the
V/M
] button (the "" icon will appear on the
V/M
V/M
] but-
V/M
] but-
V/M
] button
A-Band 222 MHz Band Adjustment
Press the [BAND] key to select the 222 MHz Amateur
band.
Receiver Sensitivity Adjustment (TUNE DC)
Ì Connect the test equipment as shown in Figure 2: RX
Alignment Setup.
Ì Rotate the DIAL knob to select the Alignment Menu
"TUNE DC".
Ì Set the RF Signal Generator output to 222.100 MHz, at
a level of -3 dBµ, ±3.5 kHz deviation with a 1 kHz au-
dio tone.
Ì Press the [
display).
Ì Rotate the DIAL knob for maximum deflection on the
SINAD meter.
Ì Press the [
the display).
Squelch Hysteresis Confirmation (HIS SQL)
Ì Rotate the DIAL knob to select the Alignment Menu
"HIS SQL".
Ì Confirm that the alignment value is "0".
Squelch Threshold Adjustment (THLD SQL)
Ì Connect the test equipment as shown in Figure 2: RX
Alignment Setup.
Ì Rotate the DIAL knob to select the Alignment Menu
"THLD SQL".
Ì Set the RF Signal Generator output to 222.100 MHz, at
a level of -7 dBµ, ±3.5 kHz deviation with a 1 kHz au-
dio tone.
Ì Press the [
display).
Ì Press the [
old level.
Ì Press the [
the display).
] button (the "" icon will appear on the
V/M
] button (the "" icon will disappear on
V/M
] button (the "" icon will appear on the
V/M
] key two times to set the Squelch Thresh-
F/W
] button (the "" icon will disappear on
V/M
16 VX-8R/E and VX-8DR/E Technical Supplement
Page 17
Alignment
Tight Squelch Adjustment (TIGH SQL)
Ì Connect the test equipment as shown in Figure 2: RX
Alignment Setup.
Ì Rotate the DIAL knob to select the Alignment Menu
"TIGH SQL".
Ì Set the RF Signal Generator output to 222.100 MHz, at
a level of 0 dBµ, ±3.5 kHz deviation with a 1 kHz audio
tone.
Ì Press the [
the display).
Ì Press the [
level.
Ì Press the [
the display).
FM S-Meter S-1 Adjustment (S1 LEVEL)
Ì Connect the test equipment as shown in Figure 2: RX
Alignment Setup.
Ì Rotate the DIAL knob to select the Alignment Menu "S1
LEVEL" with "NFM" icon.
Ì Set the RF Signal Generator output to 222.100 MHz, at
a level of 0 dBµ, ±3.5 kHz deviation with a 1 kHz audio
tone.
Ì Press the [
display).
Ì Press the [
S-1 level.
Ì Press the [
the display).
FM S-Meter Full-Scale Adjustment (S9 LEVEL)
Ì Connect the test equipment as shown in Figure 2: RX
Alignment Setup.
Ì Rotate the DIAL knob to select the Alignment Menu
"S9 LEVEL" with "NFM" icon.
Ì Set the RF Signal Generator output to 222.100 MHz, at
a level of +20 dBµ, ±3.5 kHz deviation with a 1 kHz
audio tone.
Ì Press the [
display).
Ì Press the [
Full Scale level.
Ì Press the [
the display).
NOTICE: Do not touch the Alignment Menu "S1 LEVEL"
] button (the "" icon will appear on
V/M
] key two times to set the Tight Squelch
F/W
] button (the "" icon will disappear on
V/M
] button (the "" icon will appear on the
V/M
] key two times to store the FM S-Meter
F/W
] button (the "" icon will disappear on
V/M
] button (the "" icon will appear on the
V/M
] key two times to store the FM S-Meter
F/W
] button (the "" icon will disappear on
V/M
with "WFM" icon and "S9 LEVEL" with "WFM"
icon.
TX Power (HI) Adjustment (HI POWER)
Ì Connect the test equipment as shown in Figure 1: TX
Alignment Setup.
Ì Rotate the DIAL knob to select the Alignment Menu
"HI POWER".
Ì Press the [
display).
Ì Press the PTT switch to transmit and rotate the DIAL
knob so that the Power Meter setting is 1.5 W (±0.1 W).
Ì Release the PTT switch, and then press the [
ton (the "" icon will disappear on the display).
TX Power (L3) Adjustment (L3 POWER)
Ì Connect the test equipment as shown in Figure 1: TX
Alignment Setup.
Ì Rotate the DIAL knob to select the Alignment Menu
"L3 POWER".
Ì Press the [
display).
Ì Press the PTT switch to transmit and rotate the DIAL knob
so that the Power Meter setting is 1.0 W ( ±0.1 W).
Ì Release the PTT switch, and then press the [
ton (the "" icon will disappear on the display).
TX Power (L2) Adjustment (L2 POWER)
Ì Connect the test equipment as shown in Figure 1: TX
Alignment Setup.
Ì Rotate the DIAL knob to select the Alignment Menu
"L2 POWER".
Ì Press the [
the display).
Ì Press the PTT switch to transmit and rotate the DIAL
knob so that the Power Meter setting is 0.5 W (±0.1 W).
Ì Release the PTT switch, and then press the [
ton (the "" icon will disappear on the display).
TX Power (L1) Adjustment (L1 POWER)
Ì Connect the test equipment as shown in Figure 1: TX
Alignment Setup.
Ì Rotate the DIAL knob to select the Alignment Menu
"L1 POWER".
Ì Press the [
the display).
Ì Press the PTT switch to transmit and rotate the DIAL
knob so that the Power Meter setting is 50 mW (+30
mW/ -20 mW).
Ì Release the PTT switch, and then press the [
ton (the "" icon will disappear on the display).
] button (the "" icon will appear on the
V/M
] button (the "" icon will appear on the
V/M
] button (the "" icon will appear on
V/M
] button (the "" icon will appear on
V/M
V/M
V/M
V/M
V/M
] but-
] but-
] but-
] but-
17VX-8R/E and VX-8DR/E Technical Supplement
Page 18
Alignment
TX Deviation Adjustment (MAX DEV)
Ì Connect the test equipment as shown in Figure 1: TX
Alignment Setup.
Ì Rotate the DIAL knob to select the Alignment Menu
"MAX DEV".
Ì Set the AF Signal Generator output to 50 mVrms with
a 1 kHz audio tone.
Ì Press the [
display).
Ì Press the PTT switch to transmit and rotate the DIAL
knob so that the Deviation Meter setting is 4.2 kHz ±
0.2 kHz (USA version) or 4.5 kHz ± 0.2 kHz (EXP/EU
versions).
Ì Release the PTT switch, and then press the [
ton (the "" icon will disappear on the display).
CTCSS TX Deviation Adjustment (100.0Hz)
Ì Connect the test equipment as shown in Figure 1: TX
Alignment Setup.
Ì Rotate the DIAL knob to select the Alignment Menu
"100.0Hz".
Ì Press the [
display).
Ì Press the PTT switch to transmit without the micro-
phone input and rotate the DIAL knob so that the De-
viation Meter setting is 0.65 kHz (±0.05 kHz).
Ì Release the PTT switch, and then press the [
ton (the "" icon will disappear on the display).
DCS TX Deviation Adjustment (DCS 023)
Ì Connect the test equipment as shown in Figure 1: TX
Alignment Setup.
Ì Rotate the DIAL knob to select the Alignment Menu
"DCS 023".
Ì Press the [
the display).
Ì Press the PTT switch to transmit without the micro-
phone input and rotate the DIAL knob so that the De-
viation Meter setting is 0.65 kHz (±0.05 kHz).
Ì Release the PTT switch, and then press the [
ton (the "" icon will disappear on the display).
] button (the "" icon will appear on the
V/M
] button (the "" icon will appear on the
V/M
] button (the "" icon will appear on
V/M
V/M
V/M
V/M
] but-
] but-
] but-
B-Band 430 MHz Band Adjustment
Press and hold in the [B] key for two seconds to change
the operating band to the "B-Band".
Note: When the transceiver recalls Alignment Menu "PLL
REF", the [B] key operation is ignored. In this case, rotate
the DIAL knob to select an Alignment Menu other than
"PLL REF".
Receiver Sensitivity Adjustment (TUNE DC)
Ì Connect the test equipment as shown in Figure 2: RX
Alignment Setup.
Ì Rotate the DIAL knob to select the Alignment Menu
"TUNE DC".
Ì Set the RF Signal Generator output to 435.100 MHz, at
a level of -10 dBµ, ±3.5 kHz deviation with a 1 kHz
audio tone.
Ì Press the [
the display).
Ì Rotate the DIAL knob for maximum deflection on the
SINAD meter.
Ì Press the [
the display).
Squelch Hysteresis Confirmation (HIS SQL)
Ì Rotate the DIAL knob to select the Alignment Menu
"HIS SQL".
Ì Confirm that the alignment value is "0".
Squelch Threshold Adjustment (THLD SQL)
Ì Connect the test equipment as shown in Figure 2: RX
Alignment Setup.
Ì Rotate the DIAL knob to select the Alignment Menu
"THLD SQL".
Ì Set the RF Signal Generator output to 435.100 MHz, at
a level of -11 dBµ, ±3.5 kHz deviation with a 1 kHz
audio tone.
Ì Press the [
the display).
Ì Press the [
Threshold level.
Ì Press the [
the display).
] button (the "" icon will appear on
V/M
] button (the "" icon will disappear on
V/M
] button (the "" icon will appear on
V/M
] key two times to store the Squelch
F/W
] button (the "" icon will disappear on
V/M
18 VX-8R/E and VX-8DR/E Technical Supplement
Page 19
Alignment
Tight Squelch Adjustment (TIGH SQL)
Ì Connect the test equipment as shown in Figure 2: RX
Alignment Setup.
Ì Rotate the DIAL knob to select the Alignment Menu
"TIGH SQL".
Ì Set the RF Signal Generator output to 435.100 MHz, at
a level of +3 dBµ, ±3.5 kHz deviation with a 1 kHz
audio tone.
Ì Press the [
the display).
Ì Press the [
Tight level.
Ì Press the [
the display).
FM S-Meter S-1 Adjustment (S1 LEVEL)
Ì Connect the test equipment as shown in Figure 2: RX
Alignment Setup.
Ì Rotate the DIAL knob to select the Alignment Menu
"S1 LEVEL" with "NFM" icon.
Ì Set the RF Signal Generator output to 435.100 MHz, at
a level of -7 dBµ, ±3.5 kHz deviation with a 1 kHz au-
dio tone.
Ì Press the [
the display).
Ì Press the [
S-1 level.
Ì Press the [
the display).
] button (the "" icon will appear on
V/M
] key two times to store the Squelch
F/W
] button (the "" icon will disappear on
V/M
] button (the "" icon will appear on
V/M
] key two times to store the FM S-Meter
F/W
] button (the "" icon will disappear on
V/M
NOTICE: Do not touch the following Alignment Menus:
"PLL REF"
"S1 LEVEL" with "WFM" icon
"S9 LEVEL" with "WFM" icon.
"HI POWER"
"L3 POWER"
"L2 POWER"
"L1 POWER"
"MAX DEV"
"HI POWER"
"100.0Hz"
"DCS 023"
FM S-Meter Full-Scale Adjustment (S9 LEVEL)
Ì Connect the test equipment as shown in Figure 2: RX
Alignment Setup.
Ì Rotate the DIAL knob to select the Alignment Menu
"S9 LEVEL" with "NFM" icon.
Ì Set the RF Signal Generator output to 435.100 MHz, at
a level of +20 dBµ, ±3.5 kHz deviation with a 1 kHz
audio tone.
Ì Press the [
the display).
Ì Press the [
Full Scale level.
Ì Press the [
the display).
] button (the "" icon will appear on
V/M
] key two times to store the FM S-Meter
F/W
] button (the "" icon will disappear on
V/M
19VX-8R/E and VX-8DR/E Technical Supplement
Page 20
Alignment
B-Band 50 MHz Band Adjustment
Press the [BAND] key to select the 50 MHz Amateur band.
Receiver Sensitivity Adjustment (TUNE DC)
Ì Connect the test equipment as shown in Figure 2: RX
Alignment Setup.
Ì Rotate the DIAL knob to select the Alignment Menu
"TUNE DC".
Ì Set the RF Signal Generator output to 52.100 MHz, at a
level of -10 dBµ, ±3.5 kHz deviation with a 1 kHz audio
tone.
Ì Press the [
the display).
Ì Rotate the DIAL knob for maximum deflection on the
SINAD meter.
Ì Press the [
the display).
Squelch Hysteresis Confirmation (HIS SQL)
Ì Rotate the DIAL knob to select the Alignment Menu
"HIS SQL".
Confirm that the alignment value is "0".
Squelch Threshold Adjustment (THLD SQL)
Ì Connect the test equipment as shown in Figure 2: RX
Alignment Setup.
Ì Rotate the DIAL knob to select the Alignment Menu
"THLD SQL".
Ì Set the RF Signal Generator output to 52.100 MHz, at a
level of -11 dBµ, ±3.5 kHz deviation with a 1 kHz audio
tone.
Ì Press the [
the display).
Ì Press the [
Threshold level.
Ì Press the [
the display).
] button (the "" icon will appear on
V/M
] button (the "" icon will disappear on
V/M
] button (the "" icon will appear on
V/M
] key two times to store the Squelch
F/W
] button (the "" icon will disappear on
V/M
Tight Squelch Adjustment (TIGH SQL)
Ì Connect the test equipment as shown in Figure 2: RX
Alignment Setup.
Ì Rotate the DIAL knob to select the Alignment Menu
"TIGH SQL".
Ì Set the RF Signal Generator output to 52.100 MHz, at a level
of -3 dBµ, ±3.5 kHz deviation with a 1 kHz audio tone.
Ì Press the [
the display).
Ì Press the [
Tight level.
Ì Press the [
the display).
FM S-Meter S-1 Adjustment (S1 LEVEL)
Ì Connect the test equipment as shown in Figure 2: RX
Alignment Setup.
Ì Rotate the DIAL knob to select the Alignment Menu
"S1 LEVEL" with "NFM" icon.
Ì Set the RF Signal Generator output to 52.100 MHz, at a
level of -7 dBµ, ±3.5 kHz deviation with a 1 kHz audio
tone.
Ì Press the [
the display).
Ì Press the [
S-1 level.
Ì Press the [
the display).
FM S-Meter Full-Scale Adjustment (S9 LEVEL)
Ì Connect the test equipment as shown in Figure 2: RX
Alignment Setup.
Ì Rotate the DIAL knob to select the Alignment Menu
"S9 LEVEL" with "NFM" icon.
Ì Set the RF Signal Generator output to 52.100 MHz, at a
level of +20 dBµ, ±3.5 kHz deviation with a 1 kHz au-
dio tone.
Ì Press the [
the display).
Ì Press the [
Full Scale level.
Ì Press the [
the display).
] button (the "" icon will appear on
V/M
] key two times to store the Squelch
F/W
] button (the "" icon will disappear on
V/M
] button (the "" icon will appear on
V/M
] key two times to store the FM S-Meter
F/W
] button (the "" icon will disappear on
V/M
] button (the "" icon will appear on
V/M
] key two times to store the FM S-Meter
F/W
] button (the "" icon will disappear on
V/M
20 VX-8R/E and VX-8DR/E Technical Supplement
Page 21
NOTICE: Do not touch the following Alignment Menus:
"PLL REF"
"S1 LEVEL" with "WFM" icon
"S9 LEVEL" with "WFM" icon.
"HI POWER"
"L3 POWER"
"L2 POWER"
"L1 POWER"
"MAX DEV"
"HI POWER"
"100.0Hz"
"DCS 023"
Alignment
B-Band 144 MHz Band Adjustment
Press the [BAND] key to select the 144 MHz Amateur
band.
Receiver Sensitivity Adjustment (TUNE DC)
Ì Connect the test equipment as shown in Figure 2: RX
Alignment Setup.
Ì Rotate the DIAL knob to select the Alignment Menu
"TUNE DC".
Ì Set the RF Signal Generator output to 145.100 MHz, at
a level of -10 dBµ, ±3.5 kHz deviation with a 1 kHz
audio tone.
Ì Press the [
the display).
Ì Rotate the DIAL knob for maximum deflection on the
SINAD meter.
Ì Press the [
the display).
Squelch Hysteresis Confirmation (HIS SQL)
Ì Rotate the DIAL knob to select the Alignment Menu
"HIS SQL".
Ì Confirm that the alignment value is "0".
] button (the "" icon will appear on
V/M
] button (the "" icon will disappear on
V/M
Squelch Threshold Adjustment (THLD SQL)
Ì Connect the test equipment as shown in Figure 2: RX
Alignment Setup.
Ì Rotate the DIAL knob to select the Alignment Menu
"THLD SQL".
Ì Set the RF Signal Generator output to 145.100 MHz, at
a level of -11 dBµ, ±3.5 kHz deviation with a 1 kHz
audio tone.
Ì Press the [
the display).
Ì Press the [
Threshold level.
Ì Press the [
the display).
] button (the "" icon will appear on
V/M
] key two times to store the Squelch
F/W
] button (the "" icon will disappear on
V/M
21VX-8R/E and VX-8DR/E Technical Supplement
Page 22
Alignment
Tight Squelch Adjustment (TIGH SQL)
Ì Connect the test equipment as shown in Figure 2: RX
Alignment Setup.
Ì Rotate the DIAL knob to select the Alignment Menu
"TIGH SQL".
Ì Set the RF Signal Generator output to 145.100 MHz, at a
level of +3 dBµ, ±3.5 kHz deviation with a 1 kHz audio tone.
Ì Press the [
the display).
Ì Press the [
Tight level.
Ì Press the [
the display).
FM S-Meter S-1 Adjustment (S1 LEVEL)
Ì Connect the test equipment as shown in Figure 2: RX
Alignment Setup.
Ì Rotate the DIAL knob to select the Alignment Menu
"S1 LEVEL" with "NFM" icon.
Ì Set the RF Signal Generator output to 145.100 MHz, at
a level of -7 dBµ, ±3.5 kHz deviation with a 1 kHz au-
dio tone.
Ì Press the [
the display).
Ì Press the [
S-1 level.
Ì Press the [
the display).
] button (the "" icon will appear on
V/M
] key two times to store the Squelch
F/W
] button (the "" icon will disappear on
V/M
] button (the "" icon will appear on
V/M
] key two times to store the FM S-Meter
F/W
] button (the "" icon will disappear on
V/M
NOTICE: Do not touch the following Alignment Menus:
"PLL REF"
"S1 LEVEL" with "WFM" icon
"S9 LEVEL" with "WFM" icon.
"HI POWER"
"L3 POWER"
"L2 POWER"
"L1 POWER"
"MAX DEV"
"HI POWER"
"100.0Hz"
"DCS 023"
FM S-Meter Full-Scale Adjustment (S9 LEVEL)
Ì Connect the test equipment as shown in Figure 2: RX
Alignment Setup.
Ì Rotate the DIAL knob to select the Alignment Menu
" " with "NFM" icon.
Ì Set the RF Signal Generator output to 145.100 MHz, at
a level of +20 dBµ, ±3.5 kHz deviation with a 1 kHz
audio tone.
Ì Press the [
the display).
Ì Press the [
Full Scale level.
Ì Press the [
the displayy).
] button (the "" icon will appear on
V/M
] key two times to store the FM S-Meter
F/W
] button (the "" icon will disappear on
V/M
22 VX-8R/E and VX-8DR/E Technical Supplement
Page 23
B-Band 222 MHz Band Adjustment
Press the [BAND] key to select the 222 MHz Amateur
band.
Receiver Sensitivity Adjustment (TUNE DC)
Ì Connect the test equipment as shown in Figure 2: RX
Alignment Setup.
Ì Rotate the DIAL knob to select the Alignment Menu
"TUNE DC".
Ì Set the RF Signal Generator output to 222.100 MHz, at
a level of -3 dBµ, ±3.5 kHz deviation with a 1 kHz au-
dio tone.
Ì Press the [
the display).
Ì Rotate the DIAL knob for maximum deflection on the
SINAD meter.
Ì Press the [
the display).
Squelch Hysteresis Confirmation (HIS SQL)
Ì Rotate the DIAL knob to select the Alignment Menu
"HIS SQL".
Ì Confirm that the alignment value is "0".
Squelch Threshold Adjustment (THLD SQL)
Ì Connect the test equipment as shown in Figure 2: RX
Alignment Setup.
Ì Rotate the DIAL knob to select the Alignment Menu
"THLD SQL".
Ì Set the RF Signal Generator output to 222.100 MHz, at
a level of -7 dBµ, ±3.5 kHz deviation with a 1 kHz au-
dio tone.
Ì Press the [
the display).
Ì Press the [
Threshold level.
Ì Press the [
the display).
] button (the "" icon will appear on
V/M
] button (the "" icon will disappear on
V/M
] button (the "" icon will appear on
V/M
] key two times to store the Squelch
F/W
] button (the "" icon will disappear on
V/M
Alignment
Squelch Tight Adjustment (TIGH SQL)
Ì Connect the test equipment as shown in Figure 2: RX
Alignment Setup.
Ì Rotate the DIAL knob to select the Alignment Menu
"TIGH SQL".
Ì Set the RF Signal Generator output to 222.100 MHz, at
a level of 0 dBµ, ±3.5 kHz deviation with a 1 kHz audio
tone.
Ì Press the [
the display).
Ì Press the [
Tight level.
Ì Press the [
the display).
FM S-Meter S-1 Adjustment (S1 LEVEL)
Ì Connect the test equipment as shown in Figure 2: RX
Alignment Setup.
Ì Rotate the DIAL knob to select the Alignment Menu
"S1 LEVEL" with "NFM" icon.
Set the RF Signal Generator output to 222.100 MHz, at a
level of -2 dBµ, ±3.5 kHz deviation with a 1 kHz audio tone.
Ì Press the [
the display).
Ì Press the [
S-1 level.
Ì Press the [
the displayy).
FM S-Meter Full-Scale Adjustment (S9 LEVEL)
Ì Connect the test equipment as shown in Figure 2: RX
Alignment Setup.
Ì Rotate the DIAL knob to select the Alignment Menu
"S9 LEVEL" with "NFM" icon.
Ì Set the RF Signal Generator output to 222.100 MHz, at
a level of +25 dBµ, ±3.5 kHz deviation with a 1 kHz
audio tone.
Ì Press the [
the display).
Ì Press the [
Full Scale level.
Ì Press the [
the display).
] button (the "" icon will appear on
V/M
] key two times to store the Squelch
F/W
] button (the "" icon will disappear on
V/M
] button (the "" icon will appear on
V/M
] key two times to store the FM S-Meter
F/W
] button (the "" icon will disappear on
V/M
] button (the "" icon will appear on
V/M
] key two times to store the FM S-Meter
F/W
] button (the "" icon will disappear on
V/M
23VX-8R/E and VX-8DR/E Technical Supplement
Page 24
Alignment
NOTICE: Do not touch the following Alignment Menus:
"PLL REF"
"S1 LEVEL" with "WFM" icon
"S9 LEVEL" with "WFM" icon.
"HI POWER"
"L3 POWER"
"L2 POWER"
"L1 POWER"
"MAX DEV"
"HI POWER"
"100.0Hz"
"DCS 023"
This completes the internal alignment routine for all
bands. To save all settings and exit, press the [HM/RV]
button.
24 VX-8R/E and VX-8DR/E Technical Supplement
Page 25

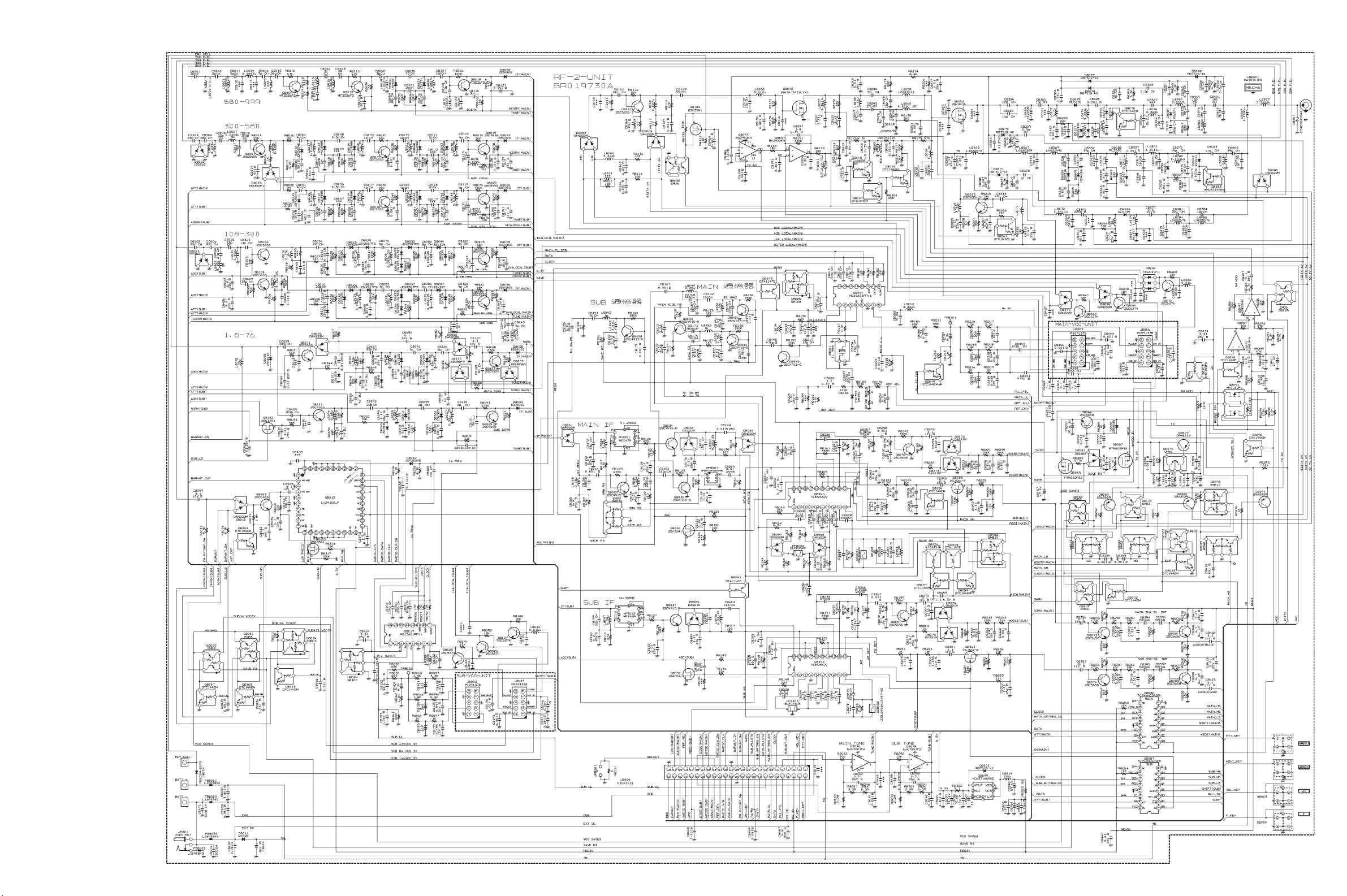

Circuit Diagram
RF Unit (Lot. 1~4)
VX-8R/E Technical Supplement
25
Page 26
RF Unit (Lot. 1~4)
Parts Layout
AC
B
acb
1
2
3
DTC144EM T2L
(Q1004, 1007, 1008
1013, 1048, 1049
1054, 1057, 1059
1072, 1075, 1083
1088, 1092, 1103
1106, 1107)
EMG2 (G2)
(Q1030, 1071, 1082, 1095)
2SA2029
(Q1069, 1080, 1094)
1
EMD6 (D6)
(Q1032, 1089)
EMB3 (B3)
(Q1005, 1006, 1068,
1070, 1078, 1081)
2SK3541
(Q 1036, 1038, 1102,
1104, 1105)
2
3
MT3S36FS (21)
(Q1009, 1010, 1018)
LV24100LP-TLM-E
(Q1012)
RTM002P02
(Q1065, 1067)
(Q1041, 1043,1056, 1058)
DTA114TE
2SK3475
(Q1042)
CPH6102-TL (AB)
(Q1077)
UMW1
(Q1079)
MB15A01PFV1-G-BND-EFE1
(Q1017, 1044)
TC74VHC595FK
(Q1086, 1087)
BA2902KN
(Q1097)
Side A
4
HN2D01FU (A1)
(D1094)
DAP222M (P)
(D1061)
DAN222M
(D1010, 1025, 1050,
1060, 1062, 1065,
1067, 1068, 1076,
1086, 1095)
1SS385 (09)
D 1087
Side B
1SS362 (C3)
(D1002, 1003)
DA221M
(D1063, 1064, 1072,
1073, 1074, 1075)
DTC144TE (96)
(Q1090)
EMB10 T2R
4
(Q1014, 1062, 1093)
2SC4915-O (QO)
(Q1028, 1029, 1033,
1034, 1035, 1037,
1039, 1040, 1045)
2SC5226 (R22)
(Q1031, 1053)
2SC5374 (NA)
(Q1025, 1026, 1027,
1063, 1064, 1076)
2SC5555ZD (ZD)
(Q1001, 1002, 1003,
1011, 1015, 1016,
1019, 1020, 1021,
1022, 1023, 1024,
1100, 1101)
2SC5658
(Q1050, 1051, 1066,
1073, 1074, 1084, 1085)
NJM2552V-TE1
(Q1046, 1047)
2SK3476
(Q1052)
2SJ364-P(4M)
(Q1055, 1060)
DTC143ZE (E23)
(Q1061)
HN1J02FU (KS)
(Q1091)
NJU7007F3-TE1
(Q1096, 1098)
XC6371A650DR
(Q1099)
26
VX-8R/E Technical Supplement
Page 27

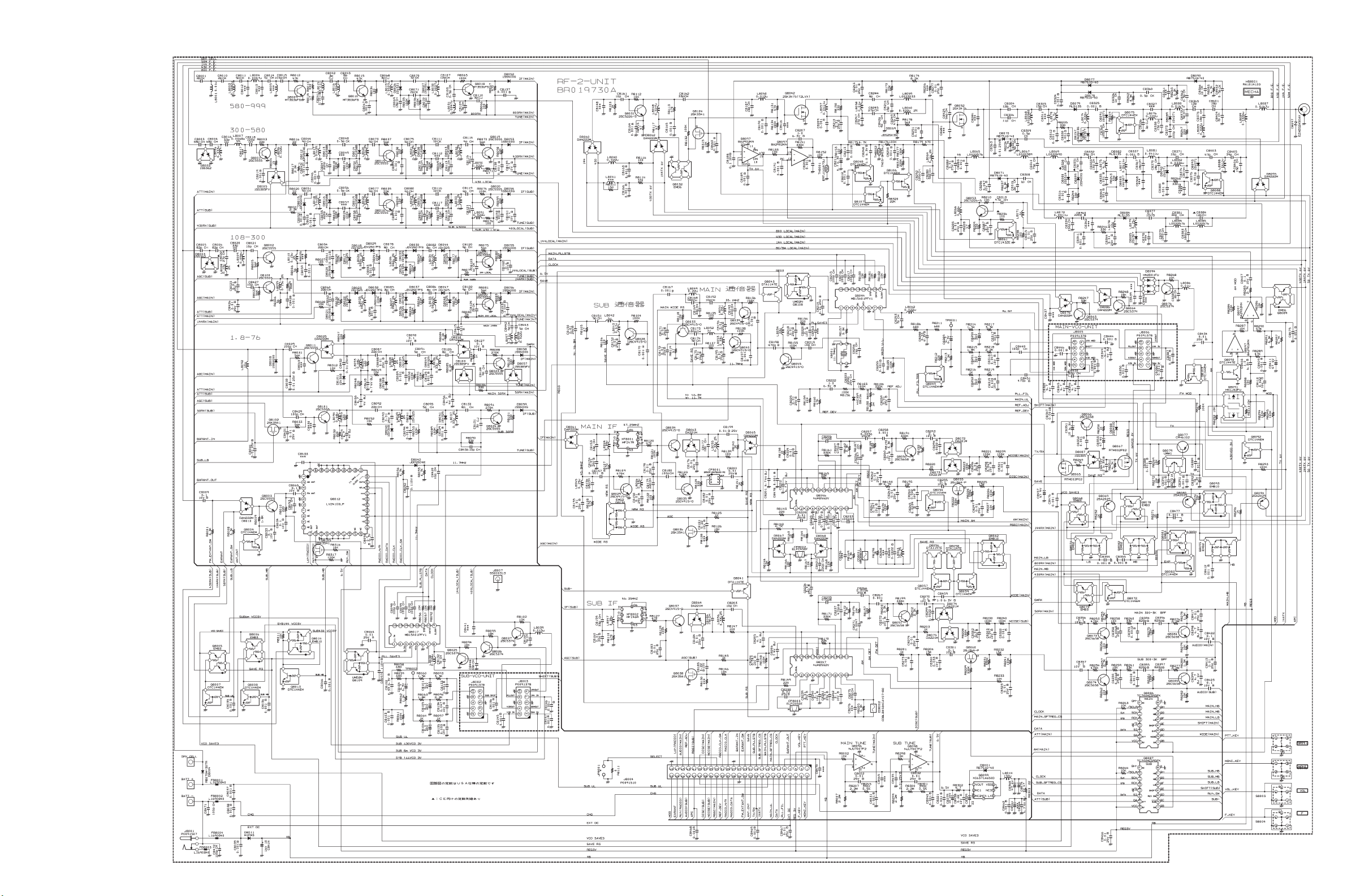

Circuit Diagram
RF Unit (Lot. 5~7)
VX-8R/E Technical Supplement
27
Page 28

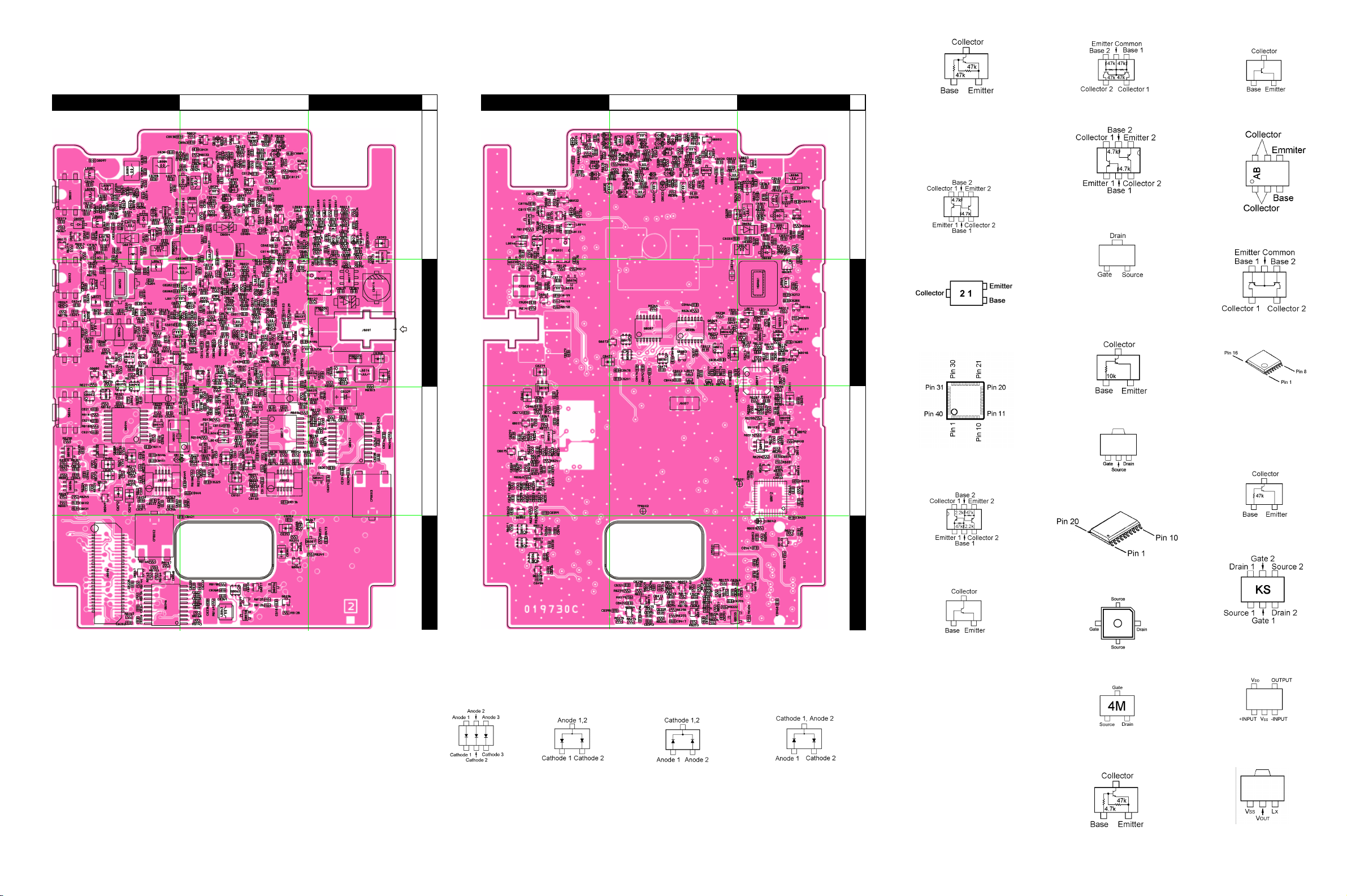

RF Unit (Lot. 5~7)
Parts Layout
AC
B
acb
1
2
3
DTC144EM T2L
(Q1004, 1007, 1008
1013, 1048, 1049
1054, 1057, 1059
1072, 1075, 1083
1088, 1092, 1103
1106, 1107)
EMG2 (G2)
(Q1030, 1071, 1082, 1095)
2SA2029
(Q1069, 1080, 1094)
1
EMD6 (D6)
(Q1032, 1089)
EMB3 (B3)
(Q1005, 1006, 1068,
1070, 1078, 1081)
2SK3541
(Q 1036, 1038, 1102,
1104, 1105)
2
3
MT3S36FS (21)
(Q1009, 1010, 1018)
LV24100LP-TLM-E
(Q1012)
RTM002P02
(Q1065, 1067)
(Q1041, 1043,1056, 1058)
DTA114TE
2SK3475
(Q1042)
CPH6102-TL (AB)
(Q1077)
UMW1
(Q1079)
MB15A01PFV1-G-BND-EFE1
(Q1017, 1044)
TC74VHC595FK
(Q1086, 1087)
BA2902KN
(Q1097)
Side A
4
HN2D01FU (A1)
(D1094)
DAP222M (P)
(D1061)
DAN222M
(D1010, 1025, 1050,
1060, 1062, 1065,
1067, 1068, 1076,
1086, 1095)
1SS385 (09)
D 1087
Side B
1SS362 (C3)
(D1002, 1003)
DA221M
(D1063, 1064, 1072,
1073, 1074, 1075)
DTC144TE (96)
(Q1090)
EMB10 T2R
4
(Q1014, 1062, 1093)
2SC4915-O (QO)
(Q1028, 1029, 1033,
1034, 1035, 1037,
1039, 1040, 1045)
2SC5226 (R22)
(Q1031, 1053)
2SC5374 (NA)
(Q1025, 1026, 1027,
1063, 1064, 1076)
2SC5555ZD (ZD)
(Q1001, 1002, 1003,
1011, 1015, 1016,
1019, 1020, 1021,
1022, 1023, 1024,
1100, 1101)
2SC5658
(Q1050, 1051, 1066,
1073, 1074, 1084, 1085)
NJM2552V-TE1
(Q1046, 1047)
2SK3476
(Q1052)
2SJ364-P(4M)
(Q1055, 1060)
DTC143ZE (E23)
(Q1061)
HN1J02FU (KS)
(Q1091)
NJU7007F3-TE1
(Q1096, 1098)
XC6371A650DR
(Q1099)
28
VX-8R/E Technical Supplement
Page 29
RF Unit (Lot. 1~7)
Parts List
REF.
C 1001 CHIP CAP. 2p F 50 V CK UMK105CK020CV-F K22178250 1 - B c1
C 1002 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 1- A A 3
C 1003 CHIP CAP. 68pF 50V CH UMK105CH680JV-F K22178278 1- A A1
C 1004 CHIP CAP. 68pF 50V CH UMK105CH680JV-F K22178278 1- A A1
C 1005 CHIP CAP. 82pF 50V CH GRM1552C1H820JD01D K22178234 1- B b1
C 1006 CHIP CAP. 82pF 50V CH GRM1552C1H820JD01D K22178234 1- B b1
C 1009 CHIP CAP. 0.1uF 10V B GRM155B11A104KA01D K22108802 1- B c3
C 1010 CHIP CAP. 2p F 50 V CK GRM1554C1H2R0CZ01D K22178204 1- B c1
C 1011 CHIP CAP. 5p F 50 V CH UMK105CH050CV-F K22178253 1- B b1
C 1014 CHIP CAP. 7p F 50 V CH UMK105CH070DV-F K22178255 1- A B1
C 1015 CHIP CAP. 100pF 50V CH UMK105CH101JV-F K22178282 1- A B1
C 1016 CHIP CAP. 33pF 50V CH UMK105CH330JV-F K22178270 1- A A1
C 1018 CHIP CAP. 100pF 50V CH UMK105CH101JV-F K22178282 1- A B2
C 1019 CHIP CAP. 0.001uF 50 V B GRM155B11H102KA01D K22178809 1- A B2
C 1020 CHIP CAP. 33pF 50V CH UMK105CH330JV-F K22178270 1- B b1
C 1021 CHIP CAP. 10pF 50V CH GRM1552C1H100JZ01D K22178212 1- B b1
C 1022 CHIP CAP. 27pF 50V CH GRM1552C1H270JZ01D K22178222 1- B b1
C 1023 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 1- B b1
C 1029 CHIP CAP. 100pF 50V CH GRM1552C1H101JD01D K22178236 1- A B1
C 1030 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 1- A A 1
C 1031 CHIP CAP. 0.001uF 50 V B GRM155B11H102KA01D K22178809 1- A A3
C 1032 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 1- A A 3
C 1033 CHIP CAP. 0.1uF 10V B GRM155B11A104KA01D K22108802 1- B c3
C 1034 CHIP CAP. 0.1uF 10V B GRM155B11A104KA01D K22108802 1- B c3
C 1035 CHIP CAP. 0.001uF 50 V B GRM155B11H102KA01D K22178809 1- A C3
C 1036 CHIP CAP. 0.001uF 50 V B GRM155B11H102KA01D K22178809 1- A C3
C 1037 CHIP CAP. 0.001uF 50 V B GRM155B11H102KA01D K22178809 1- A B2
C 1038 CHIP CAP. 0.001uF 50 V B GRM155B11H102KA01D K22178809 1- A B2
C 1039 CHIP CAP. 0.001uF 50 V B GRM155B11H102KA01D K22178809 1- A C2
C 1040 CHIP CAP. 0.001uF 50 V B GRM155B11H102KA01D K22178809 1- A A3
C 1041 CHIP CAP. 0.001uF 50 V B GRM155B11H102KA01D K22178809 1- A C1
C 1042 CHIP CAP. 3p F 50 V CJ UMK105CJ030CV-F K22178251 1- A C1
C 1043 CHIP CAP. 8p F 50 V CH GRM1552C1H8R0DZ01D K22178210 1- A C1
C 1044 CHIP CAP. 4p F 50 V CH UMK105CH040CV-F K22178252 1- A B2
C 1045 CHIP CAP. 0.001uF 50 V B GRM155B11H102KA01D K22178809 1- A B2
C 1046 CHIP CAP. 0.001uF 50 V B GRM155B11H102KA01D K22178809 1- A A2
C 1047 CHIP CAP. 220pF 50V CH GRM1552C1H221JA01D K22179713 1- A A2
C 1048 CHIP CAP. 0.5pF 50 V CK UMK105CK0R5CV-F K22178247 1 - A B2
C 1050 CHIP CAP. 56pF 50V CH UMK105CH560JV-F K22178276 1- A A2
C 1051 CHIP CAP. 4p F 50 V CH UMK105CH040CV-F K22178252 1- A B2
C 1052 CHIP CAP. 0.001uF 50 V B GRM155B11H102KA01D K22178809 1- A B2
C 1053 CHIP CAP. 0.001uF 50 V B GRM155B11H102KA01D K22178809 1- A B2
C 1054 CHIP CAP. 22pF 50 V CH UMK105CH220JV-F K22178266 1- B b1
C 1055 CHIP CAP. 220pF 50V CH GRM1552C1H221JA01D K22179713 1- A B2
C 1056 CHIP CAP. 0.5pF 50 V CK UMK105CK0R5CV-F K22178247 1 - A B2
C 1058 CHIP CAP. 56pF 50V CH UMK105CH560JV-F K22178276 1- A B2
C 1059 CHIP CAP. 0.001uF 50 V B GRM155B11H102KA01D K22178809 1- B b1
C 1060 CHIP CAP. 22pF 50V CH UMK105CH220JV-F K22178266 1- B b1
C 1061 CHIP CAP. 0.001uF 50 V B GRM155B11H102KA01D K22178809 1- B b1
C 1062 CHIP CAP. 0.001uF 50 V B GRM155B11H102KA01D K22178809 1- B b1
VX-8R/E Technical Supplement
DESCRIPTION
PCB with Components
(with RF UNIT, CNTL UNIT, CONNECTOR UNIT, MAIN VCO UNIT, SUB-VCO)
The RF Unit PCB is no longer available for lots 01 to 07.
The New RF-2Unit is not compatible for lots 01 to 07.
If the new RF-2 Unit is installed, CNTL-2 Unit and CONNECTOR-2 Unit must also be installed.
Printed Circuit Board FR018220D 1-
VALUE V/W TOL. VXSTD P/NMFR’S DESIG VERS.
FR018220E 5-
LOT.
SIDE
LAY ADR.
29
Page 30
RF Unit (Lot. 1~7)
REF.
C 1064 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 1- A B1
C 1065 CHIP CAP. 0.1uF 10V B GRM155B11A104KA01D K22108802 1- B c3
C 1066 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1 - A C3
C 1067 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1 - A C1
C 1068 CHIP CAP. 3pF 5 0V CJ UMK105CJ030CV-F K22178251 1- A C1
C 1069 CHIP CAP. 18pF 50V CH GRM1552C1H180JZ01D K22178218 1- A C1
C 1070 CHIP CAP. 1pF 5 0V CK UMK105CK010CV-F K22178248 1 - A C1
C 1071 CHIP CAP. 2pF 5 0V CK GRM1554C1H2R0CZ01D K22178204 1 - A C1
C 1072 CHIP CAP. 18pF 50V CH GRM1552C1H180JZ01D K22178218 1- A C1
C 1073 CHIP CAP. 4pF 5 0V CH UMK105CH040CV-F K22178252 1- A B2
C 1074 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1 - A B2
C 1075 CHIP CAP. 4pF 5 0V CH UMK105CH040CV-F K22178252 1- A B2
C 1076 CHIP CAP. 56pF 50V CH UMK105CH560JV-F K22178276 1- A B2
C 1077 CHIP CAP. 4pF 5 0V CH UMK105CH040CV-F K22178252 1- A B2
C 1078 CHIP CAP. 8pF 5 0V CH GRM1552C1H8R0DZ01D K22178210 1- B b1
C 1079 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1 - A B2
C 1080 CHIP CAP. 4pF 5 0V CH UMK105CH040CV-F K22178252 1- A B2
C 1081 CHIP CAP. 56pF 50V CH UMK105CH560JV-F K22178276 1- A B2
C 1082 CHIP CAP. 8pF 5 0V CH GRM1552C1H8R0DZ01D K22178210 1- B b1
C 1083 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1 - B b1
C 1084 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1 - B b1
C 1085 CHIP CAP. 8pF 5 0V CH GRM1552C1H8R0DZ01D K22178210 1- B b1
C 1086 CHIP CAP. 8pF 5 0V CH
C 1087 CHIP CAP. 22pF 50V CH UMK105CH220JV-F K22178266 1- A B1
C 1088 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 1- A B1
C 1089 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1 - A B1
C 1090 CHIP CAP. 0.1uF 10V B GRM155B11A104KA01D K22108802 1- A B1
C 1091 CHIP CAP. 5pF 5 0V CH UMK105CH050CV-F K22178253 1- A B1
C 1092 CHIP CAP. 22pF 50V CH UMK105CH220JV-F K22178266 1- A B1
C 1093 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 1- A B1
C 1094 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1 - A B1
C 1095 CHIP CAP. 5pF 5 0V CH UMK105CH050CV-F K22178253 1- A B1
C 1096 CHIP CAP. 1uF 6.3V B GRM155B30J105KE18D K22088803 1- B c3
C 1097 CHIP CAP. 0.1uF 10V B GRM155B11A104KA01D K22108802 1- A B3
C 1098 CHIP CAP. 100pF 50V CH GRM1552C1H101JD01D K22178236 1- A B3
C 1099 CHIP CAP. 100pF 50V CH GRM1552C1H101JD01D K22178236 1- A B3
C 1100 CHIP CAP. 100pF 50V CH GRM1552C1H101JD01D K22178236 1- A B3
C 1101 CHIP TA.CAP. 0.1uF 20V SKF-1D104M-RP K78130049 1- A B3
C 1102 CHIP CAP. 0.33uF 6.3V B GRM155B10J334KE01D K22088801 1- A B3
C 1103 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1 - A B3
C 1104 CHIP TA.CAP. 4.7uF 6.3V TEESVP0J475M8R K78080053 1 - A B3
C 1105 CHIP TA.CAP. 0.1uF 20V SKF-1D104M-RP K78130049 1- A B3
C 1106 CHIP TA.CAP. 0.1uF 20V SKF-1D104M-RP K78130049 1- A B3
C 1107 CHIP CAP. 12pF 50 V CH GRM1552C1H120JZ01D K22178214 1- A C1
C 1108 CHIP CAP. 0.5pF 50 V CK GRM1554C1HR50BZ01D K22178285 1- A C2
C 1109 CHIP CAP. 5pF 5 0V CH UMK105CH050CV-F K22178253 1- A C2
C 1110 CHIP CAP. 3pF 5 0V CJ UMK105CJ030CV-F K22178251 1- A C2
C 1111 CHIP CAP. 1pF 5 0V CK UMK105CK010CV-F K22178248 1 - A B2
C 1113 CHIP CAP. 56pF 50V CH UMK105CH560JV-F K22178276 1- A B2
C 1114 CHIP CAP. 4pF 5 0V CH UMK105CH040CV-F K22178252 1- A B2
C 1115 CHIP CAP. 3pF 5 0V CJ UMK105CJ030CV-F K22178251 1- A B2
C 1116 CHIP CAP. 1pF 5 0V CK UMK105CK010CV-F K22178248 1 - A B2
C 1118 CHIP CAP. 56pF 50V CH UMK105CH560JV-F K22178276 1- A B2
C 1119 CHIP CAP. 4pF 5 0V CH UMK105CH040CV-F K22178252 1- A B2
C 1120 CHIP CAP. 9pF 5 0V CH UMK105CH090DV-F K22178257 1- B a1
C 1121 CHIP CAP. 3pF 5 0V CJ UMK105CJ030CV-F K22178251 1- A B2
C 1122 CHIP CAP. 9pF 5 0V CH UMK105CH090DV-F K22178257 1- B a1
C 1123 CHIP CAP. 1pF 5 0V CK UMK105CK010CV-F K22178248 1 - B a1
C 1124 CHIP CAP. 2pF 5 0V CK UMK105CK020CV-F K22178250 1 - B a1
C 1125 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1 - A B1
30
DESCRIPTION
VALUE V/W TOL. VXSTD P/NMFR’S DESIG VERS.
GRM1552C1H8R0DZ01D K22178210 1- B b1
VX-8R/E Technical Supplement
LOT.
SIDE
LAY ADR.
Page 31
RF Unit (Lot. 1~7)
REF.
C 1126 CHIP CAP. 8pF 5 0V CH GRM1552C1H8R0DZ01D K22178210 1- A B1
C 1127 CHIP CAP. 0.1uF 10V B GRM155B11A104KA01D K22108802 1- A B1
C 1128 CHIP CAP. 4pF 5 0V CH UMK105CH040CV-F K22178252 1- A B1
C 1129 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1- A B1
C 1130 CHIP CAP. 8pF 5 0V CH GRM1552C1H8R0DZ01D K22178210 1- A B1
C 1131 CHIP CAP. 3pF 5 0V CJ UMK105CJ030CV-F K22178251 1- A B1
C 1132 CHIP CAP. 7pF 5 0V CH UMK105CH070DV-F K22178255 1- A B3
C 1133 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1- A B3
C 1134 CHIP CAP. 0.047uF 10V B GRM155B11A473KA01D K22108801 1- A B3
C 1135 CHIP CAP. 0.033uF 10V B GRM155B11A333KA01D K22108803 1- A B3
C 1136 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1- A B3
C 1137 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1- A C1
C 1138 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1- A B2
C 1139 CHIP CAP. 0.1uF 10V B GRM155B11A104KA01D K22108802 1- A B2
C 1140 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1- A B1
C 1141 CHIP CAP. 0.1uF 10V B GRM155B11A104KA01D K22108802 1- A B1
C 1142 CHIP CAP. 0.1uF 10V B GRM155B11A104KA01D K22108802 1- B a1
C 1143 CHIP CAP. 0.1uF 10V B GRM155B11A104KA01D K22108802 1- B a1
C 1144 CHIP CAP. 7pF 5 0V CH UMK105CH070DV-F K22178255 1- A B2
C 1145 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1- A B3
C 1146 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1- A B2
C 1147 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1- A B3
C 1150 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D
C 1151 CHIP CAP. 5pF 5 0V CH UMK105CH050CV-F K22178253 1- A B3
C 1152 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 1- A B3
C 1153 CHIP CAP. 33pF 50V CH UMK105CH330JV-F K22178270 1- B a1
C 1154 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 1- B a1
C 1155 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 1- B a1
C 1156 CHIP CAP. 68pF 50V CH UMK105CH680JV-F K22178278 1- B a1
C 1157 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1- B a1
C 1158 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 1- B a1
C 1159 CHIP CAP. 33pF 50V CH UMK105CH330JV-F K22178270 1- A B2
C 1160 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 1- A B1
C 1161 CHIP CAP. 10pF 50V CH GRM1552C1H100JZ01D K22178212 1- A A 2
C 1162 CHIP CAP. 33pF 50V CH UMK105CH330JV-F K22178270 1- A A2
C 1163 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1- A B2
C 1164 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1- A A2
C 1165 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1- A A2
C 1166 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1- A B2
C 1167 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1- A B2
C 1168 CHIP CAP. 56pF 50V CH UMK105CH560JV-F K22178276 1- A B2
C 1169 CHIP CAP. 33pF 50V CH UMK105CH330JV-F K22178270 1- A B2
C 1170 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1- A B3
C 1171 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 1- A B3
C 1172 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 1- A B3
C 1173 CHIP CAP. 180pF 50V CH GRM1552C1H181JA01D K22179711 1- A B3
C 1174 CHIP CAP. 5pF 5 0V CH UMK105CH050CV-F K22178253 1- A B3
C 1175 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 1- A B3
C 1176 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 1- B a2
C 1177 CHIP CAP. 12pF 50V CH GRM1552C1H120JZ01D K22178214 1- B a2
C 1178 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 1- B a2
C 1179 CHIP CAP. 22pF 50V CH UMK105CH220JV-F K22178266 1- B a1
C 1180 CHIP CAP. 100pF 50V CH UMK105CH101JV-F K22178282 1- B a1
C 1181 CHIP CAP. 0.22uF 10V B GRM155B31A224KE18D K22108808 1- A B4
C 1182 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 1- B a2
C 1183 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 1- A B2
C 1184 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 1- A B2
C 1185 CHIP CAP. 0.22uF 10V B GRM155B31A224KE18D K22108808 1- A B2
C 1186 CHIP CAP. 15pF 50V CH UMK105CH150JV-F K22178262 1- A B2
C 1187 CHIP CAP. 18pF 50V CH GRM1552C1H180JZ01D K22178218 1- A A 2
DESCRIPTION
VALUE V/W TOL. VXSTD P/NMFR’S DESIG VERS.
K22148834 1 - A B3
LOT.
SIDE
LAY ADR.
VX-8R/E Technical Supplement
31
Page 32
RF Unit (Lot. 1~7)
REF.
C 1188 CHIP CAP. 0.1uF 10V B GRM155B11A104KA01D K22108802 1- B b2
C 1189 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1 - B b3
C 1190 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1 - A A2
C 1191 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1 - B c2
C 1192 CHIP CAP. 10pF 50V CH UMK105CH100DV-F K22178258 1- A B2
C 1193 CHIP CAP. 100pF 50V CH UMK105CH101JV-F K22178282 1- A B2
C 1194 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1 - A B3
C 1195 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 1- A B3
C 1196 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 1- A B2
C 1197 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1 - A B3
C 1198 CHIP CAP. 470pF 50V B UMK105B471KW-F K22178825 1 - A B3
C 1199 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 1- B a2
C 1200 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 1- B a2
C 1201 CHIP CAP. 4.7uF 4V BJ AMK105BJ475MV-F K22068801 1- B b2
C 1202 CHIP CAP. 4.7uF 4V BJ AMK105BJ475MV-F K22068801 1- A A4
C 1203 CHIP CAP. 10pF 50V CH UMK105CH100DV-F K22178258 1- A C3
C 1204 CHIP CAP. 0.047uF 10V B GRM155B11A473KA01D K22108801 1- A C3
C 1205 CHIP CAP. 4.7uF 4V BJ AMK105BJ475MV-F K22068801 1- A C3
C 1206 CHIP CAP. 4.7uF 4V BJ AMK105BJ475MV-F K22068801 1- A C3
C 1207 CHIP CAP. 0.1uF 10V B GRM155B11A104KA01D K22108802 1- B c2
C 1208 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1 - B c2
C 1209 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D
C 1210 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 1- A A 2
C 1211 CHIP TA.CAP. 4.7uF 6.3V TEESVP0J475M8R K78080053 1 - B b2
C 1212 CHIP CAP. 0.001uF 50 V B GRM155B11H102KA01D K22178809 1 - B c2
C 1213 CHIP CAP. 0.001uF 50 V B GRM155B11H102KA01D K22178809 1 - B c2
C 1214 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 1- A A 3
C 1215 CHIP CAP. 100pF 50V CH GRM1552C1H101JD01D K22178236 1- A A3
C 1216 CHIP CAP. 100pF 50V CH GRM1552C1H101JD01D K22178236 1- A A3
C 1217 CHIP CAP. 100pF 50V CH GRM1552C1H101JD01D K22178236 1- A A3
C 1218 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 1- A B3
C 1219 CHIP CAP. 10pF 50V CH GRM1552C1H100JZ01D K22178212 1- A A3
C 1220 CHIP CAP. 0.1uF 10V B GRM155B11A104KA01D K22108802 1- A B3
C 1221 CHIP CAP. 0.001uF 50 V B GRM155B11H102KA01D K22178809 1 - A B3
C 1222 CHIP CAP. 1uF 6.3V B GRM155B30J105KE18D K22088803 1- A B3
C 1223 CHIP CAP. 220pF 25V CH TMK105CH221JV-F K22148246 1 - A B3
C 1224 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 1- A A 4
C 1225 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 1- A B3
C 1226 CHIP CAP. 470pF 50V B UMK105B471KW-F K22178825 1 - B b4
C 1227 CHIP CAP. 470pF 50V B UMK105B471KW-F K22178825 1 - B b4
C 1228 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 1- A A 4
C 1229 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 1- A B4
C 1230 CHIP CAP. 0.1uF 10V B GRM155B11A104KA01D K22108802 1- A B4
C 1231 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 1- A B4
C 1232 CHIP CAP. 0.1uF 10V B GRM155B11A104KA01D K22108802 1- A B4
C 1233 CHIP CAP. 100pF 50V CH GRM1552C1H101JD01D K22178236 1- A B4
C 1234 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 1- B c4
C 1235 CHIP CAP. 470pF 50V B UMK105B471KW-F K22178825 1 - A C3
C 1237 CHIP CAP. 470pF 50V B UMK105B471KW-F K22178825 1 - A C3
C 1238 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 1- A C3
C 1239 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 1- A C3
C 1240 CHIP CAP. 0.1uF 10V B GRM155B11A104KA01D K22108802 1- A C3
C 1241 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 1- A C3
C 1242 CHIP CAP. 0.1uF 10V B GRM155B11A104KA01D K22108802 1- A C3
C 1243 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 1- B b2
C 1244 CHIP CAP. 8pF 5 0V CH GRM1552C1H8R0DZ01D K22178210 1- A A 2
C 1245 CHIP CAP. 27pF 50V CH GRM1552C1H270JZ01D K22178222 1- A A2
C 1246 CHIP CAP. 15pF 50V CH UMK105CH150JV-F K22178262 1- A A2
C 1247 CHIP CAP. 27pF 50V CH GRM1552C1H270JZ01D K22178222 1- A A2
C 1248 CHIP CAP. 1uF 6.3V B GRM155B30J105KE18D K22088803 1- B c2
32
DESCRIPTION
VALUE V/W TOL. VXSTD P/NMFR’S DESIG VERS.
K22178809 1 - A A2
VX-8R/E Technical Supplement
LOT.
SIDE
LAY ADR.
Page 33
RF Unit (Lot. 1~7)
REF.
C 1249 CHIP CAP. 39pF 50V CH GRM1552C1H390JZ01D K22178226 1- A A 2
C 1249 CHIP CAP. 47pF 50V CH GRM1552C1H470JZ01D K22178228 3- A A 2
C 1250 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1- A A2
C 1251 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1- B c2
C 1252 CHIP CAP. 120pF 50V CH UMK105CH121JV-F K22178284 1- B c 2
C 1253 CHIP CAP. 7pF 5 0V CH UMK105CH070DV-F K22178255 1- A A 3
C 1254 CHIP CAP. 15pF 50V CH UMK105CH150JV-F K22178262 1- A A3
C 1255 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1- A A3
C 1256 CHIP CAP. 0.0047uF 5 0V B GRM155B11H472KA01D K22178838 1- B b4
C 1257 CHIP CAP. 0.0056uF 2 5V B GRM155B11E562KA01D K22148802 1- B b4
C 1258 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1- B b4
C 1259 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 1- A B3
C 1260 CHIP CAP. 0.1uF 10V B GRM155B11A104KA01D K22108802 1- B b4
C 1261 CHIP CAP. 0.047uF 10V B GRM155B11A473KA01D K22108801 1- A A 4
C 1262 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 1- B b4
C 1263 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 1- B b4
C 1264 CHIP CAP. 0.022uF 16V B EMK105B223KW-F K22128813 1 - B b4
C 1265 CHIP CAP. 0.0039uF 5 0V B UMK105B392KW-F K22178836 1 - B b4
C 1266 CHIP CAP. 0.0056uF 2 5V B GRM155B11E562KA01D K22148802 1- A C3
C 1267 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1- B a3
C 1269 CHIP CAP. 0.0022uF 5 0V B GRM155B11H222KA01D
C 1270 CHIP CAP. 0.1uF 10V B GRM155B11A104KA01D K22108802 1- B a3
C 1271 CHIP CAP. 0.0047uF 5 0V B GRM155B11H472KA01D K22178838 1- A C3
C 1272 CHIP CAP. 0.1uF 10V B GRM155B11A104KA01D K22108802 1- B a3
C 1273 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1- A C3
C 1274 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 1- B a3
C 1275 CHIP CAP. 100pF 50V CH GRM1552C1H101JD01D K22178236 1- A C3
C 1277 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 1- B b2
C 1279 CHIP TA.CAP. 10uF 10V TEESVP1A106M8R K78100074 1- A B3
C 1280 CHIP CAP. 56pF 50V CH UMK105CH560JV-F K22178276 1- B c2
C 1282 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 1- A A 2
C 1283 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1- A A2
C 1285 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 1- B c2
C 1286 CHIP CAP. 0.047uF 10V B GRM155B11A473KA01D K22108801 1- A A 1
C 1287 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 1- B c2
C 1288 CHIP CAP. 0.33uF 6.3V B GRM155B10J334KE01D K22088801 1- A A3
C 1289 CHIP TA.CAP. 4.7uF 6.3V TEESVP0J475M8R K78080053 1 - A A3
C 1290 CHIP TA.CAP. 0.1uF 20V SKF-1D104M-RP K78130049 1- A A3
C 1291 CHIP TA.CAP. 0.1uF 20V SKF-1D104M-RP K78130049 1- A A3
C 1292 CHIP TA.CAP. 0.1uF 20V SKF-1D104M-RP K78130049 1- A A3
C 1293 CHIP CAP. 0.1uF 10V B GRM155B11A104KA01D K22108802 1- B b4
C 1294 CHIP CAP. 0.0022uF 50V B UMK105B222KW-F K22178833 1- B b4
C 1295 CHIP CAP. 0.1uF 10V B GRM155B11A104KA01D K22108802 1- B b4
C 1296 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 1- B b4
C 1297 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 1- B b4
C 1298 CHIP CAP. 0.047uF 10V B GRM155B11A473KA01D K22108801 1- B b4
C 1299 CHIP CAP. 0.0022uF 5 0V B UMK105B222KW-F K22178833 1 - B a3
C 1300 CHIP CAP. 0.033uF 10V B GRM155B11A333KA01D K22108803 1- B a3
C 1301 CHIP CAP. 0.1uF 10V B GRM155B11A104KA01D K22108802 1- B a3
C 1302 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 1- B a3
C 1303 CHIP CAP. 0.047uF 10V B GRM155B11A473KA01D K22108801 1- B a3
C 1304 CHIP CAP. 12pF 50V CH GRM1552C1H120JZ01D K22178214 1- A A 2
C 1305 CHIP CAP. 15pF 50V CH UMK105CH150JV-F K22178262 1- A A1
C 1306 CHIP CAP. 11pF 50V CH UMK105CH110JV-F K22178259 1- A A2
C 1307 CHIP CAP. 1.5pF 50 V CK GRM1554C1H1R5BZ01D K22178288 1- B c1
C 1308 CHIP CAP. 1pF 5 0V CK GRM1554C1H1R0BZ01D K22178287 1 - A A1
C 1309 CHIP CAP. 0.5pF 50 V CK GRM1554C1HR50BZ01D K22178285 1- B c1
C 1310 CHIP CAP. 75pF 50V CH GRM1882C1H750JZ01D K22174232 1- B b2
C 1312 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1- A A1
C 1313 CHIP CAP. 47pF 50V CH GRM1552C1H470JZ01D K22178228 1- B c2
DESCRIPTION
VALUE V/W TOL. VXSTD P/NMFR’S DESIG VERS.
K22178813 1 - A B4
LOT.
SIDE
LAY ADR.
VX-8R/E Technical Supplement
33
Page 34
RF Unit (Lot. 1~7)
REF.
C 1314 CHIP CAP. 2pF 5 0V CK UMK105CK020CV-F K22178250 1 - A A1
C 1315 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 1- B b2
C 1316 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1 - B c1
C 1317 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1 - A A3
C 1318 CHIP CAP. 0.047uF 10V B GRM155B11A473KA01D K22108801 1- A A 3
C 1319 CHIP CAP. 0.033uF 10V B GRM155B11A333KA01D K22108803 1- A A 3
C 1320 CHIP CAP. 4.7uF 4V BJ AMK105BJ475MV-F K22068801 1- A A3
C 1321 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1 - B b4
C 1322 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1 - B a3
C 1323 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 1- B a3
C 1324 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1 - A A1
C 1325 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1 - A A1
C 1326 CHIP CAP. 1pF 5 0V CK UMK105CK010CV-F K22178248 1 - A A1
C 1328 CHIP CAP. 22pF 50V CH GRM1552C1H220JZ01D K22178220 1- B c1
C 1329 CHIP TA.CAP. 33uF 10V TEESVB21A336M8R K78100047 1 - A B4
C 1330 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1 - A A1
C 1331 CHIP CAP. 15pF 50V CH UMK105CH150JV-F K22178262 1- B c1
C 1332 CHIP CAP. 39pF 50V CH UMK105CH390JV-F K22178272 1- B c1
C 1333 CHIP CAP. 10pF 50V CH GRM1552C1H100JZ01D K22178212 1- B b1
C 1334 CHIP CAP. 4pF 5 0V CH UMK105CH040CV-F K22178252 1- A A 1
C 1335 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1 - B b1
C 1336 CHIP CAP. 3pF 5 0V CJ
C 1337 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1 - B c1
C 1338 CHIP CAP. 15pF 50V CH GRM1552C1H150JZ01D K22178216 1- A A1
C 1339 CHIP CAP. 150pF 50V CH GRM1552C1H151JA01D K22178240 1- A A1
C 1340 CHIP CAP. 220pF 50V B GRM155B11H221KA01D K22178801 1- A A1
C 1341 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1 - A B1
C 1343 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1 - A A1
C 1344 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 1- A B1
C 1345 CHIP CAP. 4.7uF 4V BJ AMK105BJ475MV-F K22068801 1- A A3
C 1346 CHIP CAP. 4.7uF 4V BJ AMK105BJ475MV-F K22068801 1- A A3
C 1347 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1 - A A3
C 1348 CHIP TA.CAP. 47uF 4 V TEESVP0G476M8R K78060050 1 - A B4
C 1349 CHIP CAP. 4.7uF 4V BJ AMK105BJ475MV-F K22068801 1- A B3
C 1350 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1 - A A3
C 1351 CHIP TA.CAP. 10uF 6.3V TEESVP0J106M8R K78080055 1- B a2
C 1352 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1 - B a2
C 1353 CHIP TA.CAP. 47uF 4 V TEESVP0G476M8R K78060050 1 - B a2
C 1354 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1 - B b2
C 1355 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1 - B b2
C 1356 CHIP CAP. 0.1uF 10V B GRM155B11A104KA01D K22108802 1- B b4
C 1357 CHIP CAP. 0.1uF 10V B GRM155B11A104KA01D K22108802 1- B a3
C 1358 CHIP CAP. 0.0068uF 2 5V B GRM155B11E682KA01D K22148803 1- B b4
C 1359 CHIP CAP. 0.0068uF 2 5V B GRM155B11E682KA01D K22148803 1- B a3
C 1360 CHIP CAP. 0.5pF 50 V CK GRM1554C1HR50BZ01D K22178285 1- A A1
C 1362 CHIP CAP. 0.5pF 50 V CK GRM1554C1HR50BZ01D K22178285 1- A A1
C 1363 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 1- B c1
C 1364 CHIP CAP. 4.7uF 4V BJ AMK105BJ475MV-F K22068801 1- A B4
C 1365 CHIP CAP. 12pF 50V CH GRM1552C1H120JZ01D K22178214 1- A A1
C 1366 CHIP CAP. 1pF 5 0V CK UMK105CK010CV-F K22178248 1 - A A1
C 1367 CHIP CAP. 18pF 50V CH GRM1552C1H180JZ01D K22178218 1- B c1
C 1369 CHIP CAP. 100pF 50V CH UMK105CH101JV-F K22178282 1- A A 1
C 1370 CHIP CAP. 18pF 50V CH GRM1552C1H180JZ01D K22178218 1- B c1
C 1371 CHIP CAP. 10pF 50V CH GRM1552C1H100JZ01D K22178212 1- B c1
C 1372 CHIP CAP. 5pF 5 0V CH GRM1552C1H5R0CZ01D K22178207 1- A A 1
C 1373 CHIP CAP. 100pF 50V CH UMK105CH101JV-F K22178282 1- A A 1
C 1374 CHIP CAP. 12pF 50V CH GRM1552C1H120JZ01D K22178214 1- B c1
C 1375 CHIP CAP. 0.001uF 50 V B GRM155B11H102KA01D K22178809 1 - B c1
C 1376 CHIP CAP. 18pF 50V CH GRM1552C1H180JZ01D K22178218 1- A A1
C 1377 CHIP CAP. 0.1uF 10V B GRM155B11A104KA01D K22108802 1- A A 1
34
DESCRIPTION
VALUE V/W TOL. VXSTD P/NMFR’S DESIG VERS.
UMK105CJ030CV-F K22178251 1- A A2
VX-8R/E Technical Supplement
LOT.
SIDE
LAY ADR.
Page 35
RF Unit (Lot. 1~7)
REF.
C 1379 CHIP CAP. 120pF 50V CH GRM1552C1H121JA01D K22178238 1- A A1
C 1380 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1- B c1
C 1381 CHIP CAP. 30pF 50V CH GRM1552C1H300JZ01D K22178223 1- A A 1
C 1383 CHIP CAP. 180pF 50V CH GRM1552C1H181JA01D K22179711 1- A A1
C 1384 CHIP CAP. 12pF 50V CH GRM1552C1H120JZ01D K22178214 1- A A 1
C 1385 CHIP CAP. 2pF 5 0V CK GRM1554C1H2R0CZ01D K22178204 1 - A A2
C 1386 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1- A B3
C 1387 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1- A B3
C 1388 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1- A C2
C 1389 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1- A C2
C 1390 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1- A C2
C 1391 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1- A C1
C 1392 CHIP TA.CAP. 10uF 6.3V TEESVP0J106M8R K78080055 1- A C1
C 1393 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1- B b4
C 1394 CHIP CAP. 820pF 50V B GRM155B11H821KA01D K22178808 1- B b4
C 1395 CHIP CAP. 820pF 50V B GRM155B11H821KA01D K22178808 1- B a3
C 1396 CHIP CAP. 820pF 50V B GRM155B11H821KA01D K22178808 1- B b4
C 1397 CHIP CAP. 820pF 50V B GRM155B11H821KA01D K22178808 1- B a3
C 1398 CHIP CAP. 4.7uF 4V BJ AMK105BJ475MV-F K22068801 1- B b4
C 1399 CHIP CAP. 4.7uF 4V BJ AMK105BJ475MV-F K22068801 1- B a3
C 1400 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1- B a3
C 1401 CHIP CAP.
C 1402 CHIP CAP. 0.5pF 50 V CK GRM1554C1HR50BZ01D K22178285 1- A A1
C 1403 CHIP CAP. 47pF 50V CH GRM1552C1H470JZ01D K22178228 1- B c1
C 1404 CHIP CAP. 7pF 5 0V CH UMK105CH070DV-F K22178255 1- A A 1
C 1405 CHIP CAP. 39pF 50V CH GRM1552C1H390JZ01D K22178226 1- B c1
C 1406 CHIP CAP. 15pF 50V CH UMK105CH150JV-F K22178262 1- A A1
C 1407 CHIP CAP. 0.1uF 10V B GRM155B11A104KA01D K22108802 1- B c3
C 1408 CHIP CAP. 1uF 6.3V B GRM155B30J105KE18D K22088803 1- B c3
C 1409 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1- B c3
C 1410 CHIP CAP. 0.022uF 16V B GRM155B11C223KA01D K22128806 1- B c3
C 1411 CHIP TA.CAP. 47uF 4 V TEESVP0G476M8R K78060050 1- B c3
C 1412 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1- B b2
C 1413 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 1- B a3
C 1414 AL.ELECTRO.CAP. 10uF 16V RV4-16V100MD46-RR2 K48120018 1- A C2
C 1415 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1- B b1
C 1417 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 1- B b4
C 1418 CHIP CAP. 4.7uF 4V BJ AMK105BJ475MV-F K22068801 1- A B1
C 1419 CHIP CAP. 4.7uF 4V BJ AMK105BJ475MV-F K22068801 1- A B1
C 1420 CHIP CAP. 10pF 50V CH GRM1552C1H100JZ01D K22178212 1- A B3
C 1421 CHIP CAP. 220pF 50V CH GRM1552C1H221JA01D K22179713 1- A A4
C 1422 CHIP CAP. 0.1uF 10V B GRM155B11A104KA01D K22108802 1- B b4
C 1423 CHIP CAP. 0.1uF 10V B GRM155B11A104KA01D K22108802 1- B a3
C 1424 CHIP CAP. 4pF 5 0V CH UMK105CH040CV-F K22178252 1- A A 2
C 1425 CHIP CAP. 22pF 50V CH GRM1552C1H220JZ01D K22178220 1- A A 2
C 1425 CHIP CAP. 56pF 50V CH GRM1552C1H560JD01D K22178230 3- A A2
C 1426 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 1- B b1
C 1427 CHIP CAP. 10pF 50V CH GRM1552C1H100JZ01D K22178212 1- B b1
C 1428 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1- B b1
C 1429 CHIP CAP. 100pF 50V CH GRM1552C1H101JD01D K22178236 1- A B1
C 1431 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 1- A B1
C 1432 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 1- A B1
C 1434 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 1- B c3
C 1435 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 1- A A 3
C 1436 CHIP CAP. 10pF 50V CH GRM1552C1H100JZ01D K22178212 1- A B1
C 1442 CHIP CAP. 5pF 5 0V CH GRM1552C1H5R0CZ01D K22178207 1- B b2
C 1443 CHIP CAP. 5pF 5 0V CH GRM1552C1H5R0CZ01D K22178207 1- B b2
C 1444 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1- A B3
C 1445 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1- A A3
C 1446 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1- A A3
DESCRIPTION
SIDE
VALUE V/W TOL. VXSTD P/NMFR’S DESIG VERS.
18pF 5 0V CH GRM1552C1H180JZ01D K22178218 1 - A A1
LOT.
LAY ADR.
VX-8R/E Technical Supplement
35
Page 36
RF Unit (Lot. 1~7)
REF.
C 1448 CHIP CAP. 33pF 50V CH UMK105CH330JV-F K22178270 1C 1449 CHIP CAP. 100pF 50V CH GRM1882C1H101JA01D K22174235 1C 1449 CHIP CAP. 100pF 50V CH GRM1552C1H101JD01D K22178236 5C 1450 CHIP CAP. 33pF 50V CH UMK105CH330JV-F K22178270 5C 1451 CHIP CAP. 470pF 50V B UMK105B471KW-F K22178825 5 C 1452 CHIP CAP. 0.1uF 10V B GRM155B11A104KA01D K22108802 5C 1453 CHIP CAP. 10pF 50V CH UMK105CH100DV-F K22178258 1C 1455 CHIP CAP. 4.7uF 4V BJ AMK105BJ475MV-F K22068801 1C 1456 CHIP CAP. 4.7uF 4V BJ AMK105BJ475MV-F K22068801 1C 1457 CHIP TA.CAP. 47uF 4 V TEESVP0G476M8R K78060050 1 C 1458 CHIP CAP. 0.22uF 10V B GRM188B11A224KA01D K22104801 1C 1459 CHIP CAP. 1uF 6.3V B GRM155B30J105KE18D K22088803 1C 1460 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1 CD1001 CERAMIC DISC CDBLB450KCAY07-B0 H7900930 1CD1002 CERAMIC DISC CDBLB450KCAY07-B0 H7900930 1CF1001 CERAMIC FILTER SFECF10M7GA00-R0 H3900577 1- B a2
CF1002 CERAMIC FILTER ELFC450F H3900552 1- A A 4
CF1003 CERAMIC FILTER ELFC450E H3900564 1- A C3
D 1001 DIODE RB751G-40T2R G2071066 1- A B4
D 1002 DIODE 1SS362(TE85R.F) G2070268 1- A A 1
D 1003 DIODE 1SS362(TE85R.F) G2070268 1- B b1
D 1004 DIODE RB070M-30TR G2071256 1- A B1
D 1005 DIODE 1SS385FV(TPL3.Z) G2071246 1- A B2
D 1008 DIODE 1SS400G T2R G2070934 1- A A 1
D 1010 DIODE DAN222M T2L G2070936 1- B c3
D 1011 DIODE M1FM3-6063 G2071090 1- A C2
D 1012 DIODE JDP2S04E(TAPE) G2071180 1- A B2
D 1013 DIODE HVD358B KRF-E G2070950 1- A B2
D 1014 DIODE HVD358B KRF-E G2070950 1- A B2
D 1015 DIODE JDP2S04E(TAPE) G2071180 1- A B2
D 1016 DIODE HVD358B KRF-E G2070950 1- A B2
D 1017 DIODE 1SV325(TPH3.F) G2070848 1- B b1
D 1018 DIODE 1SV325(TPH3.F) G2070848 1- B b1
D 1019 DIODE HVD358B KRF-E G2070950 1- A B2
D 1020 DIODE 1SV308(TAPE) G2071202 1- B b1
D 1021 DIODE 1SV308(TAPE) G2071202 1- B b1
D 1022 DIODE 1SV325(TPH3.F) G2070848 1- B b1
D 1023 DIODE 1SV325(TPH3.F) G2070848 1- B b1
D 1025 DIODE DAN222M T2L G2070936 1- A B1
D 1026 DIODE 1SV331(TPH3.F) G2071044 1- A C1
D 1027 DIODE 1SV331(TPH3.F) G2071044 1- A C1
D 1028 DIODE HVD358B KRF-E G2070950 1- A B2
D 1029 DIODE JDV2S07FS(TPL3.F) G2071242 1- B b1
D 1030 DIODE JDV2S07FS(TPL3.F) G2071242 1- B b1
D 1031 DIODE HVD358B KRF-E G2070950 1- A B2
D 1032 DIODE JDV2S07FS(TPL3.F) G2071242 1- B b1
D 1033 DIODE 1SV325(TPH3.F) G2070848 1- B b1
D 1034 DIODE 1SV325(TPH3.F) G2070848 1- B b1
D 1035 DIODE 1SV325(TPH3.F) G2070848 1- B b1
D 1036 DIODE 1SV325(TPH3.F) G2070848 1- B b1
D 1037 DIODE JDV2S07FS(TPL3.F) G2071242 1- B b1
D 1038 DIODE 1SV308(TAPE) G2071202 1- A B1
D 1039 DIODE 1SV325(TPH3.F) G2070848 1- A B1
D 1040 DIODE 1SV308(TAPE) G2071202 1- A B1
D 1041 DIODE 1SV325(TPH3.F) G2070848 1- A B1
D 1042 DIODE JDP2S04E(TAPE) G2071180 1- B c4
D 1043 DIODE HVD358B KRF-E G2070950 1- A B2
D 1044 DIODE 1SV325(TPH3.F) G2070848 1- B a1
D 1045 DIODE 1SV325(TPH3.F) G2070848 1- B a1
D 1046 DIODE HVD358B KRF-E G2070950 1- A B2
36
DESCRIPTION
VALUE V/W TOL. VXSTD P/NMFR’S DESIG VERS.
VX-8R/E Technical Supplement
LOT.
SIDE
LAY ADR.
Page 37
RF Unit (Lot. 1~7)
REF.
D 1047 DIODE 1SV325(TPH3.F) G2070848 1- B a1
D 1048 DIODE 1SV325(TPH3.F) G2070848 1- B a1
D 1049 DIODE 1SV325(TPH3.F) G2070848 1- A B1
D 1050 DIODE DAN222M T2L G2070936 1- A B1
D 1051 DIODE 1SV325(TPH3.F) G2070848 1- A B1
D 1052 DIODE 1SS400G T2R G2070934 1- A B1
D 1053 DIODE 1SS400G T2R G2070934 1- A B2
D 1054 DIODE 1SS400G T2R G2070934 1- A B2
D 1055 DIODE 1SS400G T2R G2070934 1- B a1
D 1056 DIODE 1SS400G T2R G2070934 1- B a1
D 1057 DIODE 1SS385FV(TPL3.Z) G2071246 1- A B1
D 1058 DIODE 1SS400G T2R G2070934 1- A B1
D 1059 DIODE 1SS400G T2R G2070934 1- A B1
D 1060 DIODE DAN222M T2L G2070936 1- A A 2
D 1061 DIODE DAP222M T2L G2070938 1- B a1
D 1062 DIODE DAN222M T2L G2070936 1- A A 2
D 1063 DIODE DA221M T2L G2070940 1- B a2
D 1064 DIODE DA221M T2L G2070940 1- A B2
D 1065 DIODE DAN222M T2L G2070936 1- B a2
D 1067 DIODE DAN222M T2L G2070936 1- A A 4
D 1068 DIODE DAN222M T2L G2070936 1- A A 4
D 1069 DIODE JDS2S03S(TPH3.F) G2071062 1- A A2
D 1070 DIODE RB751G-40T2R G2071066 1- B c1
D 1071 DIODE RB751G-40T2R G2071066 1- A A1
D 1072 DIODE DA221M T2L G2070940 1- B b4
D 1073 DIODE
D 1074 DIODE DA221M T2L G2070940 1- B a3
D 1075 DIODE DA221M T2L G2070940 1- B a3
D 1076 DIODE DAN222M T2L G2070936 1- B c2
D 1077 DIODE RB751G-40T2R G2071066 1- A A1
D 1078 DIODE RB751G-40T2R G2071066 1- A A1
D 1079 DIODE RLS135 TE-11 G2070128 1- A A 1
D 1080 DIODE 1SS314(TPH3.F) G2070122 1- B c 1
D 1081 DIODE 1SV307(TPH3.F) G2070638 1- A A1
D 1082 DIODE RLS135 TE-11 G2070128 1- B c1
D 1083 DIODE 1SV307(TPH3.F) G2070638 1- B c1
D 1084 DIODE RLS135 TE-11 G2070128 1- A B1
D 1085 DIODE 1SV307(TPH3.F) G2070638 1- A B1
D 1086 DIODE DAN222M T2L G2070936 1- A B2
D 1087 DIODE 1SS385(TE85L.F) G2070880 1- B a2
D 1088 DIODE 1SS400G T2R G2070934 1- B a2
D 1089 DIODE 1SV271(TPH3.F) G2070476 1- A A1
D 1090 DIODE RB751G-40T2R G2071066 1- A A1
D 1091 DIODE 1SV271(TPH3.F) G2070476 1- A A1
D 1092 DIODE 1SV271(TPH3.F) G2070476 1- B c1
D 1093 DIODE 1SV271(TPH3.F) G2070476 1- B c1
D 1094 DIODE HN2D01FU(TE85R.F) G2070348 1- A A 2
D 1095 DIODE DAN222M T2L G2070936 1- A A 1
D 1097 SURGE ABSORBER EZAEG2A50AX Q9000868 1- A A1
D 1099 DIODE 1SS400G T2R G2070934 1- B c1
D 1100 DIODE 1SS385FV(TPL3.Z) G2071246 1- A B1
D 1101 DIODE 1SV308(TAPE) G2071202 1- A B1
D 1156 DIODE HVC359 TRF-E G2070708 1FB1001 CHIP COIL BLM21PG300SN1D L1690840 1- A B1
FB1002 CHIP COIL BLM21PG300SN1D L1690840 1- A A1
FB1003 CHIP COIL BLM21PG300SN1D L1690840 1- A C2
FB1004 CHIP COIL BLM21PG300SN1D L1690840 1- A C2
HS1001 HEATSINK PLATE (H029) RA1014100 1- B c2
J 1001 CONNECTOR DC-340-001-00 P0091507 1- A C2
J 1002 CONNECTOR AXK6F10345YP P0091378 1- A B3
DESCRIPTION
VALUE V/W TOL. VXSTD P/NMFR’S DESIG VERS.
DA221M T2L G2070940 1- B b4
LOT.
SIDE
LAY ADR.
VX-8R/E Technical Supplement
37
Page 38
RF Unit (Lot. 1~7)
REF.
J 1003 CONNECTOR AXK6F10345YP P0091378 1- A B2
J 1004 CONNECTOR AXK6S50537YG P0091510 1- A A 4
J 1005 CONNECTOR AXK6F10345YP P0091378 1- A A 3
J 1006 CONNECTOR AXK6F10345YP P0091378 1- A A 2
L 1001 M.RFC 0.01uH TFL0510-10N L1690811 1- B c 1
L 1003 M.RFC 0.0082uH TFL0510-8N2 L1690810 1- B c1
L 1004 M.RFC 0.0047uH TFL0510-4N7 L1690807 1- A B1
L 1006 M.RFC 0.033uH 5% C1005C-33NJ-RF L1691554 1- A A 1
L 1007 M.RFC 0.0068uH 5% C1608CB-6N8J-RF L1691093 1- A B1
L 1008 M.RFC 0.15uH 2% C1608CB-R15G-RF L1691101 1- B b1
L 1009 M.RFC 0.056uH 5% C1005C-56NJ-RF L1691557 1- B b1
L 1010 M.RFC 0.15uH 2% C1608CB-R15G-RF L1691101 1- B b1
L 1014 M.RFC 150uH FLC32P-T-151K L1690661 1- A B4
L 1015 M.RFC 0.01uH TFL0510-10N L1690811 1- A C1
L 1016 M.RFC 0.0068uH TFL0510-6N8 L1690809 1- A C1
L 1017 M.RFC 0.01uH 2% C1608CB-10NG-RF L1691032 1- A A2
L 1018 M.RFC 0.01uH 2% C1608CB-10NG-RF L1691032 1- A B2
L 1019 M.RFC 0.0027uH 5% C1005C-2N7J-RF L1691338 1- A C1
L 1020 M.RFC 0.01uH 2% C1608CB-10NG-RF L1691032 1- A A2
L 1021 M.RFC 0.01uH 2% C1608CB-10NG-RF L1691032 1- A B2
L 1022 M.RFC 0.01uH 2% C1608CB-10NG-RF L1691032 1- A B2
L 1023 M.RFC 0.01uH 2% C1608CB-10NG-RF L1691032 1- A B2
L 1024 M.RFC 0.082uH 2% C1608CB-82NG-RF L1691044 1- B b1
L 1025 M.RFC 0.082uH 2% C1608CB-82NG-RF L1691044 1- B b1
L 1026 M.RFC 0.082uH 2% C1608CB-82NG-RF L1691044 1- B b1
L 1027 M.RFC 0.082uH 2% C1608CB-82NG-RF L1691044 1- B b1
L 1028 M.RFC 0.33uH 2% C1608CB-R33G-RF L1691106 1- A B1
L 1029 M.RFC 0.33uH 2% C1608CB-R33G-RF L1691106 1- A B1
L 1030 M.RFC 0.0027uH 5% C1005C-2N7J-RF L1691338 1- A C1
L 1031 M.RFC 0.0047uH TFL0510-4N7 L1690807 1- A C2
L 1032 M.RFC 0.01uH 2% C1608CB-10NG-RF L1691032 1- A B2
L 1033 M.RFC 0.01uH 2% C1608CB-10NG-RF L1691032 1- A B2
L 1034 M.RFC 0.082uH 2% C1608CB-82NG-RF L1691044 1- B b1
L 1035 M.RFC 0.082uH 2% C1608CB-82NG-RF L1691044 1- B a1
L 1036 M.RFC 0.33uH 2% C1608CB-R33G-RF L1691106 1- A B1
L 1037 M.RFC 0.33uH 2% C1608CB-R33G-RF L1691106 1- A B1
L 1038 M.RFC 0.022uH TFL0510-22N L1690815 1- A B3
L 1039 M.RFC 0.015uH TFL0510-15N L1690813 1- A B2
L 1040 M.RFC 0.022uH TFL0510-22N L1690815 1- A B2
L 1042 M.RFC 1uH LK1608 1R0K-T L1690687 1- A B3
L 1043 M.RFC 0.47uH LK1608 R47K-T L1690414 1- A B3
L 1044 M.RFC 0.39uH LK1608 R39K-T L1690413 1- B a1
L 1045 M.RFC 0.15uH LK1608 R15K-T L1690409 1- B a1
L 1046 M.RFC 0.33uH LK1608 R33K-T L1690412 1- B a1
L 1047 M.RFC 0.39uH LK1608 R39K-T L1690413 1- A B2
L 1048 M.RFC 0.027uH TFL0510-27N L1690816 1- A A2
L 1049 M.RFC 0.22uH LK1608 R22K-T L1690410 1- A B2
L 1050 M.RFC 0.012uH TFL0510-12N L1690812 1- A A2
L 1051 M.RFC 0.22uH LK1608 R22K-T L1690410 1- A B3
L 1052 M.RFC 1uH LK1608 1R0K-T L1690687 1- A B3
L 1053 M.RFC 0.33uH LK1608 R33K-T L1690412 1- A B3
L 1054 M.RFC 33uH LK1608 330M-T L1690690 1- A B3
L 1055 M.RFC 0.33uH 2% C1608CB-R33G-RF L1691106 1- B a2
L 1056 M.RFC 0.33uH 2% C1608CB-R33G-RF L1691106 1- A B2
L 1057 COIL 0.0411uH F2309C L0023028 1- A A 2
L 1058 M.RFC 0.01uH ELJ-RE10NJF2 L1690714 1- A A 2
L 1059 COIL E2 0.26-0.8-3T L0023033 1- A A 2
L 1060 CHIP COIL 0.022uH 2% LQW18AN22NG00D L1690884 1- A A 2
L 1062 M.RFC 0.022uH TFL0510-22N L1690815 1- A A3
L 1063 M.RFC 10uH 2% KQ1008TE100G L1691216 1- A B4
38
DESCRIPTION
VALUE V/W TOL. VXSTD P/NMFR’S DESIG VERS.
VX-8R/E Technical Supplement
LOT.
SIDE
LAY ADR.
Page 39
RF Unit (Lot. 1~7)
REF.
L 1064 M.RFC 0.1uH 2% C1608CB-R10G-RF L1691045 1- B c2
L 1065 COIL E2 0.25-1.85-8.5T-L L0022576 1- A B2
L 1066 M.RFC 0.22uH LK1608 R22K-T L1690410 1- B c2
L 1067 COIL E2 0.3-0.9-3T-R L0022389 1- A A2
L 1068 COIL E2 0.4-1.3-2T-L L0022580 1- A A1
L 1069 COIL E2 0.3-1.0-6T-L L0022490 1- B c1
L 1070 M.RFC 4.7uH LK1608 4R7K-T L1690688 1- A A 1
L 1071 M.RFC 1uH LK1608 1R0K-T L1690687 1- B c 2
L 1072 COIL 0.0411uH F2309C L0023028 1- A A 1
L 1074 COIL 0.022uH F2305C L0023024 1- A A 1
L 1075 M.RFC 4.7uH LK1608 4R7K-T L1690688 1- B b1
L 1076 COIL 0.022uH F2305C L0023024 1- A A 1
L 1077 COIL 0.0411uH F2309C L0023028 1- B c 1
L 1078 M.RFC 10uH LK1608 100K-T L1690689 1- A B1
L 1079 CHIP COIL 0.15uH LQW2BHNR15J03L L1690622 1- A B1
L 1080 COIL 0.0167uH F2304C L0023023 1- A A 1
L 1081 COIL 0.0411uH F2309C L0023028 1- B c 1
L 1082 COIL 0.0336uH F2307C L0023026 1- B c 1
L 1083 COIL 0.022uH F2305C L0023024 1- A A 1
L 1084 COIL E2 0.25-1.85-8.5T-L L0022576 1- A A 1
L 1085 COIL E2 0.25-1.85-8.5T-L L0022576 1- A A 1
L 1086 M.RFC 0.01uH TFL0510-10N L1690811 1- A A 2
L 1087 COIL
L 1088 COIL 0.0411uH F2309C L0023028 1- B c 1
L 1089 COIL 0.0336uH F2307C L0023026 1- A A 1
L 1090 M.RFC 0.022uH TFL0510-22N L1690815 1- A B2
L 1091 M.RFC 0.022uH TFL0510-22N L1690815 1- A B2
L 1092 M.RFC 10uH LK1608 100K-T L1690689 1- A B1
L 1093 M.RFC 0.68uH LK1608 R68K-T L1690416 1- A B1
L 1094 M.RFC 0.68uH LK1608 R68K-T L1690416 1- A B1
L 1095 M.RFC 0.15uH 2% C1608CB-R15G-RF L1691101 1- B b1
L 1096 M.RFC 0.022uH TFL0510-22N L1690815 1- A B2
L 1097 M.RFC 0.01uH TFL0510-10N L1690811 1- B b2
L 1098 M.RFC 0.022uH TFL0510-22N L1690815 1- B b2
P 1001 SPRING CONECTOR MS0038-40 S5000228 1P 1002 SPRING CONECTOR MS0038-40 S5000228 1P 1003 SPRING CONECTOR MS0038-40 S5000228 1Q 1001 TRANSISTOR 2SC5555ZD-TR G3355557 1- A B2
Q 1002 TRANSISTOR 2SC5555ZD-TR G3355557 1- B b1
Q 1003 TRANSISTOR 2SC5555ZD-TR G3355557 1- B c3
Q 1004 TRANSISTOR DTC144EM T2L G3070309 1- B c3
Q 1005 TRANSISTOR EMB3 T2R G3070303 1- A C2
Q 1006 TRANSISTOR EMB3 T2R G3070303 1- A C2
Q 1007 TRANSISTOR DTC144EM T2L G3070309 1- A C3
Q 1008 TRANSISTOR DTC144EM T2L G3070309 1- A C3
Q 1009 TRANSISTOR MT3S36FS(TE85L.F) G3070377 1- A B1
Q 1010 TRANSISTOR MT3S36FS(TE85L.F) G3070377 1- A C1
Q 1011 TRANSISTOR 2SC5555ZD-TR G3355557 1- A B1
Q 1012 IC LV24100LP-TLM-E G1094371 1- B c 3
Q 1013 TRANSISTOR DTC144EM T2L G3070309 1- A C3
Q 1014 TRANSISTOR EMB10 T2R G3070302 1- A C2
Q 1015 TRANSISTOR 2SC5555ZD-TR G3355557 1- A B2
Q 1016 TRANSISTOR 2SC5555ZD-TR G3355557 1- A B2
Q 1017 IC MB15A01PFV1-G-BND-EFE1 G1092545 1- A B3
Q 1018 TRANSISTOR MT3S36FS(TE85L.F) G3070377 1- A C1
Q 1019 TRANSISTOR 2SC5555ZD-TR G3355557 1- A B2
Q 1020 TRANSISTOR 2SC5555ZD-TR G3355557 1- A B2
Q 1021 TRANSISTOR 2SC5555ZD-TR G3355557 1- B a1
Q 1022 TRANSISTOR 2SC5555ZD-TR G3355557 1- B a1
Q 1023 TRANSISTOR 2SC5555ZD-TR G3355557 1- A B1
DESCRIPTION
SIDE
VALUE V/W TOL. VXSTD P/NMFR’S DESIG VERS.
0.0167uH F2304C L0023023 1- A A 1
LOT.
LAY ADR.
VX-8R/E Technical Supplement
39
Page 40
RF Unit (Lot. 1~7)
REF.
Q 1024 TRANSISTOR 2SC5555ZD-TR G3355557 1- A B1
Q 1025 TRANSISTOR 2SC5374-TL G3353748 1- A C3
Q 1026 TRANSISTOR 2SC5374-TL G3353748 1- A C2
Q 1027 TRANSISTOR 2SC5374-TL G3353748 1- A B2
Q 1028 TRANSISTOR 2SC4915-O(TE85L.F) G3349158O 1- A B3
Q 1029 TRANSISTOR 2SC4915-O(TE85L.F) G3349158O 1- B a1
Q 1030 TRANSISTOR EMG2 T2R G3070304 1- B a1
Q 1031 TRANSISTOR 2SC5226-5-TL G3352268E 1 - A A 2
Q 1032 TRANSISTOR EMD6-T2R G3070346 1- A A 2
Q 1033 TRANSISTOR 2SC4915-O(TE85L.F) G3349158O 1- A B3
Q 1034 TRANSISTOR 2SC4915-O(TE85L.F) G3349158O 1- B a2
Q 1035 TRANSISTOR 2SC4915-O(TE85L.F) G3349158O 1- B a2
Q 1036 FET 2SK3541 T2L G3835417 1- A B4
Q 1037 TRANSISTOR 2SC4915-O(TE85L.F) G3349158O 1- A B2
Q 1038 FET 2SK3541 T2L G3835417 1- A B2
Q 1039 TRANSISTOR 2SC4915-O(TE85L.F) G3349158O 1- A B3
Q 1040 TRANSISTOR 2SC4915-O(TE85L.F) G3349158O 1- A B3
Q 1041 TRANSISTOR DTA114TE TL G3070264 1- A C3
Q 1042 FET 2SK3475(T2LVX.F) G3070318 1- A A2
Q 1043 TRANSISTOR DTA114TE TL G3070264 1- A A3
Q 1044 IC MB15A01PFV1-G-BND-EFE1 G1092545 1- A A3
Q 1045 TRANSISTOR 2SC4915-O(TE85L.F) G3349158O 1- A B3
Q 1046 IC NJM2552V-TE1 G1094382 1- A A 4
Q 1047 IC NJM2552V-TE1 G1094382 1- A C3
Q 1048 TRANSISTOR DTC144EM T2L G3070309 1- B c2
Q 1049 TRANSISTOR DTC144EM T2L G3070309 1- A A3
Q 1050 TRANSISTOR 2SC5658 T2L Q/R G3356588 1- B b4
Q 1051 TRANSISTOR 2SC5658 T2L Q/R G3356588 1- B a3
Q 1052 FET 2SK3476(TE12L.Q) G3834768 1- A A2
Q 1053 TRANSISTOR 2SC5226-5-TL G3352268E 1 - B c 2
Q 1054 TRANSISTOR DTC144EM T2L G3070309 1- B c4
Q 1055 FET 2SJ364-P(TX) G3703648P 1 - B b4
Q 1056 TRANSISTOR DTA114TE TL G3070264 1- A B4
Q 1057 TRANSISTOR DTC144EM T2L G3070309 1- A B4
Q 1058 TRANSISTOR DTA114TE TL G3070264 1- A B4
Q 1059 TRANSISTOR DTC144EM T2L G3070309 1- A B4
Q 1060 FET 2SJ364-P(TX) G3703648P 1 - B a3
Q 1061 TRANSISTOR DTC143ZE TL G3070102 1- B c2
Q 1062 TRANSISTOR EMB10 T2R G3070302 1- A B4
Q 1063 TRANSISTOR 2SC5374-TL G3353748 1- B b2
Q 1064 TRANSISTOR 2SC5374-TL G3353748 1- A B2
Q 1065 FET RTM002P02(TAPE) G3070347 1- B a3
Q 1066 TRANSISTOR 2SC5658 T2L Q/R G3356588 1- B a2
Q 1067 FET RTM002P02(TAPE) G3070347 1- B a2
Q 1068 TRANSISTOR EMB3 T2R G3070303 1- B b2
Q 1069 TRANSISTOR 2SA2029 T2L Q/R G3120298 1- B b2
Q 1070 TRANSISTOR EMB3 T2R G3070303 1- B b2
Q 1071 TRANSISTOR EMG2 T2R G3070304 1- B b2
Q 1072 TRANSISTOR DTC144EM T2L G3070309 1- B b2
Q 1073 TRANSISTOR 2SC5658 T2L Q/R G3356588 1- B b4
Q 1074 TRANSISTOR 2SC5658 T2L Q/R G3356588 1- B a3
Q 1075 TRANSISTOR DTC144EM T2L G3070309 1- A A1
Q 1076 TRANSISTOR 2SC5374-TL G3353748 1- A A 2
Q 1077 TRANSISTOR CPH6102-TL G3070223 1- A C2
Q 1078 TRANSISTOR EMB3 T2R G3070303 1- A A 3
Q 1079 TRANSISTOR UMW1 TR G3070078 1- A C1
Q 1080 TRANSISTOR 2SA2029 T2L Q/R G3120298 1- A A2
Q 1081 TRANSISTOR EMB3 T2R G3070303 1- B b2
Q 1082 TRANSISTOR EMG2 T2R G3070304 1- A A 3
Q 1083 TRANSISTOR DTC144EM T2L G3070309 1- B b2
40
DESCRIPTION
VALUE V/W TOL. VXSTD P/NMFR’S DESIG VERS.
VX-8R/E Technical Supplement
LOT.
SIDE
LAY ADR.
Page 41
RF Unit (Lot. 1~7)
REF.
Q 1084 TRANSISTOR 2SC5658 T2L Q/R G3356588 1- B b4
Q 1085 TRANSISTOR 2SC5658 T2L Q/R G3356588 1- B a3
Q 1086 IC TC74VHC595FK(EL,K) G1094552 1 - B b2
Q 1087 IC TC74VHC595FK(EL,K) G1094552 1 - B b2
Q 1088 TRANSISTOR DTC144EM T2L G3070309 1- B c1
Q 1089 TRANSISTOR EMD6-T2R G3070346 1- B c2
Q 1090 TRANSISTOR DTC144TE-TL G3070280 1- B c3
Q 1091 FET HN1J02FU(TE85L.F) G3070221 1- B c3
Q 1092 TRANSISTOR DTC144EM T2L G3070309 1- B c3
Q 1093 TRANSISTOR EMB10 T2R G3070302 1- A A3
Q 1094 TRANSISTOR 2SA2029 T2L Q/R G3120298 1- A A2
Q 1095 TRANSISTOR EMG2 T2R G3070304 1- A A 2
Q 1096 IC NJU7007F3-TE1 G1093617 1- A A 3
Q 1097 IC BA2902KN G1094201 1- B c2
Q 1098 IC NJU7007F3-TE1 G1093617 1- A A 3
Q 1099 IC XC6371A650DR G1094584 1- A B4
Q 1100 TRANSISTOR 2SC5555ZD-TR G3355557 1- B b1
Q 1101 TRANSISTOR 2SC5555ZD-TR G3355557 1- A B1
Q 1102 FET 2SK3541 T2L G3835417 1- A B1
Q 1103 TRANSISTOR DTC144EM T2L G3070309 1- B c3
Q 1104 FET 2SK3541 T2L G3835417 1- A A 2
Q 1105 FET 2SK3541 T2L G3835417 1- B c4
Q 1106 TRANSISTOR DTC144EM T2L G3070309 1- B c2
Q 1107 TRANSISTOR DTC144EM T2L G3070309 1- B c2
R 1001 CHIP RES. 3.3k 1/16W 5% RMC1/16S 332JTH J24189031 1 - B c3
R 1002 CHIP RES. 10 k 1/16W 5% RMC1/16S 103JTH J24189037 1- A A 3
R 1003 CHIP RES. 22 k 1/16W 5% RMC1/16S 223JTH J24189041 1- A B2
R 1004 CHIP RES. 1 5 1/16W 5% RMC1/16S 150JTH J24189003 1- A B2
R 1005 CHIP RES. 56 k 1/16W 5% RMC1/16S 563JTH J24189046 1- B b1
R 1006 CHIP RES. 5 6 1/16W 5% RMC1/16S 560JTH J24189010 1- B b1
R 1007 CHIP RES. 2.2M 1/16W 5% RMC1/16S 225JTH J24189065 1- A A3
R 1008 CHIP RES. 3.3k 1/16W 5% RMC1/16S 332JTH J24189031 1 - B c3
R 1009 CHIP RES. 1.8k 1/16W 5% RMC1/16S 182JTH J24189028 1 - B c3
R 1010 CHIP RES. 2 20 1/16W 5% RMC1/16S 221JTH J24189017 1- B c3
R 1011 CHIP RES. 10 k 1/16W 5% RMC1/16S 103JTH J24189037 1- A C2
R 1012 CHIP RES. 47 k 1/16W 5% RMC1/16S 473JTH J24189045 1- A B1
R 1014 CHIP RES. 4 7 1/16W 5% RMC1/16S 470JTH J24189009 1- A C1
R 1015 CHIP RES. 47 k 1/16W 5% RMC1/16S 473JTH J24189045 1- A C1
R 1016 CHIP RES. 2 2 1/16W 5% RMC1/16S 220JTH J24189005 1- A B2
R 1017 CHIP RES. 2 20 1/16W 5% RMC1/16S 221JTH J24189017 1- A B2
R 1018 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- A A2
R 1019 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- A B2
R 1020 CHIP RES. 2 2 1/16W 5% RMC1/16S 220JTH J24189005 1- A B2
R 1021 CHIP RES. 2 20 1/16W 5% RMC1/16S 221JTH J24189017 1- A B2
R 1022 CHIP RES. 56 k 1/16W 5% RMC1/16S 563JTH J24189046 1- B b1
R 1023 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- A B2
R 1024 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- A B2
R 1027 CHIP RES. 2.2k 1/16W 5% RMC1/16S 222JTH J24189029 1 - B b1
R 1028 CHIP RES. 2.2k 1/16W 5% RMC1/16S 222JTH J24189029 1 - B b1
R 1029 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- B b1
R 1030 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- B b1
R 1031 CHIP RES. 56 k 1/16W 5% RMC1/16S 563JTH J24189046 1- A B1
R 1032 CHIP RES. 2 20 1/16W 5% RMC1/16S 221JTH J24189017 1- A B1
R 1033 CHIP RES. 56 k 1/16W 5% RMC1/16S 563JTH J24189046 1- A B1
R 1034 CHIP RES. 1 00 1/16W 5% RMC1/16S 101JTH J24189013 1- A C1
R 1035 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- A C1
R 1036 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- A C1
R 1037 CHIP RES. 56 k 1/16W 5% RMC1/16S 563JTH J24189046 1- A B2
R 1038 CHIP RES. 1 00 1/16W 5% RMC1/16S 101JTH J24189013 1- A B2
R 1039 CHIP RES. 22 k 1/16W 5% RMC1/16S 223JTH J24189041 1- A B2
DESCRIPTION
VALUE V/W TOL. VXSTD P/NMFR’S DESIG VERS.
LOT.
SIDE
LAY ADR.
VX-8R/E Technical Supplement
41
Page 42
RF Unit (Lot. 1~7)
REF.
R 1040 CHIP RES. 1 00 1/16W 5% RMC1/16S 101JTH J24189013 1- A B2
R 1041 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- B b1
R 1042 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- B b1
R 1043 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- B b1
R 1044 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- B b1
R 1045 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- B b1
R 1046 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- B b1
R 1047 CHIP RES. 2 20 1/16W 5% RMC1/16S 221JTH J24189017 1- A B1
R 1048 CHIP RES. 2 20 1/16W 5% RMC1/16S 221JTH J24189017 1- A B1
R 1049 CHIP RES. 2.2k 1/16W 5% RMC1/16S 222JTH J24189029 1 - A B1
R 1050 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- A B1
R 1051 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- A B1
R 1052 CHIP RES. 2.2k 1/16W 5% RMC1/16S 222JTH J24189029 1 - A B1
R 1053 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- A B1
R 1054 CHIP RES. 2.2k 1/16W 5% RMC1/16S 222JTH J24189029 1 - B c4
R 1055 CHIP RES. 4.7k 1/16W 5% RMC1/16S 472JTH J24189033 1 - B c4
R 1056 CHIP RES. 10 k 1/16W 5% RMC1/16S 103JTH J24189037 1- A B3
R 1057 CHIP RES. 10 k 1/16W 5% RMC1/16S 103JTH J24189037 1- A B3
R 1058 CHIP RES. 6 80 1/16W 5% RMC1/16S 681JTH J24189023 1- A B3
R 1059 CHIP RES. 6 80 1/16W 5% RMC1/16S 681JTH J24189023 1- A B3
R 1060
R 1061 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- A B3
R 1062 CHIP RES. 1.2k 1/16W 5% RMC1/16S 122JTH J24189026 1 - A B3
R 1063 CHIP RES. 1.8k 1/16W 5% RMC1/16S 182JTH J24189028 1 - A B3
R 1064 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- A B3
R 1065 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- A C1
R 1066 CHIP RES. 1 00 1/16W 5% RMC1/16S 101JTH J24189013 1- A C1
R 1067 CHIP RES. 4 70 1/16W 5% RMC1/16S 471JTH J24189021 1- A C1
R 1068 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- A B2
R 1069 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- A B2
R 1070 CHIP RES. 56 k 1/16W 5% RMC1/16S 563JTH J24189046 1- A B2
R 1071 CHIP RES. 4 7 1/16W 5% RMC1/16S 470JTH J24189009 1- A B2
R 1072 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- A B2
R 1073 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- A B2
R 1074 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- A B2
R 1075 CHIP RES. 56 k 1/16W 5% RMC1/16S 563JTH J24189046 1- B a1
R 1076 CHIP RES. 1 00 1/16W 5% RMC1/16S 101JTH J24189013 1- A B2
R 1077 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- B a1
R 1078 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- B a1
R 1079 CHIP RES. 1 00 1/16W 5% RMC1/16S 101JTH J24189013 1- B a1
R 1079 CHIP RES. 5 6 1/16W 5% RMC1/16S 560JTH J24189010 3- B a1
R 1080 CHIP RES. 1 00 1/16W 5% RMC1/16S 101JTH J24189013 1- B a1
R 1080 CHIP RES. 5 6 1/16W 5% RMC1/16S 560JTH J24189010 3- B a1
R 1081 CHIP RES. 56 k 1/16W 5% RMC1/16S 563JTH J24189046 1- B a1
R 1082 CHIP RES. 2 20 1/16W 5% RMC1/16S 221JTH J24189017 1- B a1
R 1083 CHIP RES. 2 20 1/16W 5% RMC1/16S 221JTH J24189017 1- B a1
R 1084 CHIP RES. 2.2k 1/16W 5% RMC1/16S 222JTH J24189029 1 - A B1
R 1085 CHIP RES. 2.2k 1/16W 5% RMC1/16S 222JTH J24189029 1 - A B1
R 1086 CHIP RES. 3 30 1/16W 5% RMC1/16S 331JTH J24189019 1- A B1
R 1087 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- A B1
R 1088 CHIP RES. 270k 1/16W 5% RMC1/16S 274JTH J24189054 1- A B1
R 1089 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- A B1
R 1090 CHIP RES. 3 30 1/16W 5% RMC1/16S 331JTH J24189019 1- A B1
R 1091 CHIP RES. 270k 1/16W 5% RMC1/16S 274JTH J24189054 1- A B1
R 1092 CHIP RES. 10 k 1/16W 5% RMC1/16S 103JTH J24189037 1- A B3
R 1093 CHIP RES. 3.3k 1/16W 5% RMC1/16S 332JTH J24189031 1 - A B3
R 1094 CHIP RES. 10 k 1/16W 5% RMC1/16S 103JTH J24189037 1- A B3
R 1095 CHIP RES. 18 k 1/16W 5% RMC1/16S 183JTH J24189040 1- A B2
R 1096 CHIP RES. 2.2k 1/16W 5% RMC1/16S 222JTH J24189029 1 - A B3
R 1097 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- A B3
42
DESCRIPTION
CHIP RES. 1.5k 1/16W 5% RMC1/16S 152JTH J24189027 1- A B3
VALUE V/W TOL. VXSTD P/NMFR’S DESIG VERS.
LOT.
SIDE
LAY ADR.
VX-8R/E Technical Supplement
Page 43
RF Unit (Lot. 1~7)
REF.
R 1098 CHIP RES. 2 20 1/16W 5% RMC1/16S 221JTH J24189017 1- A B2
R 1099 CHIP RES. 2 20 1/16W 5% RMC1/16S 221JTH J24189017 1- A B2
R 1100 CHIP RES. 3 30 1/16W 5% RMC1/16S 331JTH J24189019 1- A B1
R 1101 CHIP RES. 3 30 1/16W 5% RMC1/16S 331JTH J24189019 1- A B1
R 1102 CHIP RES. 10 k 1/16W 5% RMC1/16S 103JTH J24189037 1- A B2
R 1103 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- A A 2
R 1104 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- A B3
R 1105 CHIP RES. 4 7 1/16W 5% RMC1/16S 470JTH J24189009 1- A B3
R 1106 CHIP RES. 1 00 1/16W 5% RMC1/16S 101JTH J24189013 1- A B3
R 1107 CHIP RES. 4 70 1/16W 5% RMC1/16S 471JTH J24189021 1- B a1
R 1108 CHIP RES. 4 70 1/16W 5% RMC1/16S 471JTH J24189021 1- B a1
R 1109 CHIP RES. 470k 1/16W 5% RMC1/16S 474JTH J24189057 1- B a1
R 1110 CHIP RES. 4 70 1/16W 5% RMC1/16S 471JTH J24189021 1- A B1
R 1111 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 VER.A2 (USA) 1R 1111 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 VERSION A1 1R 1111 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 VERSION A2 1R 1112 CHIP RES. 10 k 1/16W 5% RMC1/16S 103JTH J24189037 1- A A 2
R 1113 CHIP RES. 4 70 1/16W 5% RMC1/16S 471JTH J24189021 1- A A2
R 1114 CHIP RES. 3 30 1/16W 5% RMC1/16S 331JTH J24189019 1- A A2
R 1115 CHIP RES. 4 7 1/16W 5%
R 1116 CHIP RES. 1 00 1/16W 5% RMC1/16S 101JTH J24189013 1- A A2
R 1117 CHIP RES. 4 7 1/16W 5% RMC1/16S 470JTH J24189009 1- A A 2
R 1118 CHIP RES. 10 k 1/16W 5% RMC1/16S 103JTH J24189037 1- A B3
R 1119 CHIP RES. 4 7 1/16W 5% RMC1/16S 470JTH J24189009 1- A B3
R 1120 CHIP RES. 4 70 1/16W 5% RMC1/16S 471JTH J24189021 1- B a2
R 1121 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- B a2
R 1122 CHIP RES. 1 00 1/16W 5% RMC1/16S 101JTH J24189013 1- B a1
R 1123 CHIP RES. 470k 1/16W 5% RMC1/16S 474JTH J24189057 1- B a2
R 1124 CHIP RES. 3 30 1/16W 5% RMC1/16S 331JTH J24189019 1- B a2
R 1125 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- A B4
R 1126 CHIP RES. 10 k 1/16W 5% RMC1/16S 103JTH J24189037 1- A B4
R 1127 CHIP RES. 4 70 1/16W 5% RMC1/16S 471JTH J24189021 1- A C2
R 1129 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- A B2
R 1131 CHIP RES. 4 70 1/16W 5% RMC1/16S 471JTH J24189021 1- A A2
R 1132 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- A A2
R 1133 CHIP RES. 10 k 1/16W 5% RMC1/16S 103JTH J24189037 1- B c 2
R 1134 CHIP RES. 180k 1/16W 5% RMC1/16S 184JTH J24189052 1- A A2
R 1135 CHIP RES. 1 00 1/16W 5% RMC1/16S 101JTH J24189013 1- A B2
R 1136 CHIP RES. 150k 1/16W 5% RMC1/16S 154JTH J24189051 1- A B3
R 1137 CHIP RES. 1 00 1/16W 5% RMC1/16S 101JTH J24189013 1- A B3
R 1138 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- A B3
R 1139 CHIP RES. 1 00 1/16W 5% RMC1/16S 101JTH J24189013 1- B a2
R 1140 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- B a2
R 1141 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- B a2
R 1142 CHIP RES. 4.7k 1/16W 5% RMC1/16S 472JTH J24189033 1 - A A4
R 1143 CHIP RES. 2 20 1/16W 5% RMC1/16S 221JTH J24189017 1- A B4
R 1144 CHIP RES. 10 k 1/16W 5% RMC1/16S 103JTH J24189037 1- A A 4
R 1145 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- A B2
R 1146 CHIP RES. 10 k 1/16W 5% RMC1/16S 103JTH J24189037 1- A B2
R 1147 CHIP RES. 1 00 1/16W 5% RMC1/16S 101JTH J24189013 1- A B2
R 1148 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- A C3
R 1149 CHIP RES. 2 20 1/16W 5% RMC1/16S 221JTH J24189017 1- A B3
R 1150 CHIP RES. 3 30 1/16W 5% RMC1/16S 331JTH J24189019 1- A A2
R 1151 CHIP RES. 330k 1/16W 5% RMC1/16S 334JTH J24189055 1- B c2
R 1152 CHIP RES. 1 00 1/16W 5% RMC1/16S 101JTH J24189013 1- B c2
R 1153 CHIP RES. 1 00 1/16W 5% RMC1/16S 101JTH J24189013 1- B c2
R 1154 CHIP RES. 2 20 1/16W 5% RMC1/16S 221JTH J24189017 1- A B3
R 1155 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- A B3
R 1156 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- A B3
R 1157 CHIP RES. 3.3k 1/16W 5% RMC1/16S 332JTH J24189031 1 - A A3
DESCRIPTION
VALUE V/W TOL. VXSTD P/NMFR’S DESIG VERS.
RMC1/16S 470JTH J24189009 1- A A 2
LOT.
SIDE
LAY ADR.
VX-8R/E Technical Supplement
43
Page 44
RF Unit (Lot. 1~7)
REF.
R 1158 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- B a2
R 1160 CHIP RES. 47 k 1/16W 5% RMC1/16S 473JTH J24189045 1- A B3
R 1161 CHIP RES. 330k 1/16W 5% RMC1/16S 334JTH J24189055 1- B b4
R 1162 CHIP RES. 3.3k 1/16W 5% RMC1/16S 332JTH J24189031 1 - B b4
R 1163 CHIP RES. 1 0 1/16W 5% RMC1/16S 100JTH J24189001 1- A A 4
R 1164 CHIP RES. 1 0 1/16W 5% RMC1/16S 100JTH J24189001 1- A A 4
R 1165 CHIP RES. 22 k 1/16W 5% RMC1/16S 223JTH J24189041 1- A A 4
R 1166 CHIP RES. 10 k 1/16W 5% RMC1/16S 103JTH J24189037 1- A A 4
R 1167 CHIP RES. 10 k 1/16W 5% RMC1/16S 103JTH J24189037 1- A A 4
R 1168 CHIP RES. 10 k 1/16W 5% RMC1/16S 103JTH J24189037 1- A B4
R 1169 CHIP RES. 3.3k 1/16W 5% RMC1/16S 332JTH J24189031 1 - A B4
R 1170 CHIP RES. 22 k 1/16W 5% RMC1/16S 223JTH J24189041 1- A C3
R 1171 CHIP RES. 330k 1/16W 5% RMC1/16S 334JTH J24189055 1- A C3
R 1172 CHIP RES. 3.3k 1/16W 5% RMC1/16S 332JTH J24189031 1 - A C3
R 1173 CHIP RES. 22 k 1/16W 5% RMC1/16S 223JTH J24189041 1- B b2
R 1174 CHIP RES. 8.2k 1/16W 5% RMC1/16S 822JTH J24189036 1 - B b2
R 1175 CHIP RES. 4.7k 1/16W 5% RMC1/16S 472JTH J24189033 1 - B c2
R 1176 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- B c2
R 1177 CHIP RES. 150k 1/16W 5% RMC1/16S 154JTH J24189051 1- A A1
R 1178 CHIP RES. 5 60 1/16W 5% RMC1/16S 561JTH J24189022 1- A A2
R 1179
R 1180 CHIP RES. 10 k 1/16W 5% RMC1/16S 103JTH J24189037 1- A A 3
R 1181 CHIP RES. 10 k 1/16W 5% RMC1/16S 103JTH J24189037 1- A A 3
R 1182 CHIP RES. 10 k 1/16W 5% RMC1/16S 103JTH J24189037 1- A A 3
R 1183 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- A B3
R 1184 CHIP RES. 330k 1/16W 5% RMC1/16S 334JTH J24189055 1- A B3
R 1185 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- A A3
R 1186 CHIP RES. 6 80 1/16W 5% RMC1/16S 681JTH J24189023 1- A A3
R 1187 CHIP RES. 10 k 1/16W 5% RMC1/16S 103JTH J24189037 1- B b4
R 1188 CHIP RES. 1M 1/16W 5% RMC1/16S 105JTH J24189061 1- A B3
R 1189 CHIP RES. 6 80 1/16W 5% RMC1/16S 681JTH J24189023 1- B b4
R 1190 CHIP RES. 3.3k 1/16W 5% RMC1/16S 332JTH J24189031 1 - B b4
R 1191 CHIP RES. 330k 1/16W 5% RMC1/16S 334JTH J24189055 1- B b4
R 1192 CHIP RES. 3.3k 1/16W 5% RMC1/16S 332JTH J24189031 1 - B b4
R 1193 CHIP RES. 4.7k 1/16W 5% RMC1/16S 472JTH J24189033 1 - B b4
R 1194 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- A A4
R 1195 CHIP RES. 10 k 1/16W 5% RMC1/16S 103JTH J24189037 1- B b4
R 1196 CHIP RES. 10 k 1/16W 5% RMC1/16S 103JTH J24189037 1- A C3
R 1197 CHIP RES. 6 80 1/16W 5% RMC1/16S 681JTH J24189023 1- B a3
R 1198 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- A B4
R 1199 CHIP RES. 330k 1/16W 5% RMC1/16S 334JTH J24189055 1- B a3
R 1200 CHIP RES. 3.3k 1/16W 5% RMC1/16S 332JTH J24189031 1 - B a3
R 1201 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- A C3
R 1202 CHIP RES. 3.3k 1/16W 5% RMC1/16S 332JTH J24189031 1 - B a3
R 1203 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- B a3
R 1204 CHIP RES. 15 k 1/16W 5% RMC1/16S 153JTH J24189039 1- B a3
R 1205 CHIP RES. 3.3k 1/16W 5% RMC1/16S 332JTH J24189031 1 - A C3
R 1207 CHIP RES. 2.2M 1/16W 5% RMC1/16S 225JTH J24189065 1- A A3
R 1208 CHIP RES. 4 7 1/16W 5% RMC1/16S 470JTH J24189009 1- B c 2
R 1209 CHIP RES. 3 30 1/16W 5% RMC1/16S 331JTH J24189019 1- B c2
R 1210 CHIP RES. 10 k 1/16W 5% RMC1/16S 103JTH J24189037 1- B c 2
R 1211 CHIP RES. 6 80 1/16W 5% RMC1/16S 681JTH J24189023 1- A A3
R 1212 CHIP RES. 2 20 1/16W 5% RMC1/16S 221JTH J24189017 1- A A3
R 1213 CHIP RES. 1.2k 1/16W 5% RMC1/16S 122JTH J24189026 1 - A A3
R 1214 CHIP RES. 1.5k 1/16W 5% RMC1/16S 152JTH J24189027 1 - A A3
R 1215 CHIP RES. 1.8k 1/16W 5% RMC1/16S 182JTH J24189028 1 - A A3
R 1216 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- A A 3
R 1217 CHIP RES. 3.3k 1/16W 5% RMC1/16S 332JTH J24189031 1 - A A3
R 1218 CHIP RES. 2.2k 1/16W 5% RMC1/16S 222JTH J24189029 1 - A A3
R 1219 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- A A 3
44
DESCRIPTION
CHIP RES. 47 0 1/16W 5% RMC1/16S 471JTH J24189021 1- A A 2
VALUE V/W TOL. VXSTD P/NMFR’S DESIG VERS.
LOT.
SIDE
LAY ADR.
VX-8R/E Technical Supplement
Page 45
RF Unit (Lot. 1~7)
REF.
R 1220 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- B b4
R 1221 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- B b4
R 1222 CHIP RES. 330k 1/16W 5% RMC1/16S 334JTH J24189055 1- B b4
R 1223 CHIP RES. 180k 1/16W 5% RMC1/16S 184JTH J24189052 1- B b4
R 1224 CHIP RES. 330k 1/16W 5% RMC1/16S 334JTH J24189055 1- B c4
R 1225 CHIP RES. 15 k 1/16W 5% RMC1/16S 153JTH J24189039 1- B b4
R 1226 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- B b4
R 1227 CHIP RES. 10 k 1/16W 5% RMC1/16S 103JTH J24189037 1- B b4
R 1228 CHIP RES. 180k 1/16W 5% RMC1/16S 184JTH J24189052 1- B a3
R 1229 CHIP RES. 330k 1/16W 5% RMC1/16S 334JTH J24189055 1- B a3
R 1230 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- B a3
R 1231 CHIP RES. 330k 1/16W 5% RMC1/16S 334JTH J24189055 1- B a3
R 1232 CHIP RES. 15 k 1/16W 5% RMC1/16S 153JTH J24189039 1- B a3
R 1233 CHIP RES. 10 k 1/16W 5% RMC1/16S 103JTH J24189037 1- B a3
R 1234 CHIP RES. 4.7k 1/16W 5% RMC1/16S 472JTH J24189033 1 - B c1
R 1235 CHIP RES. 3 30 1/16W 5% RMC1/16S 331JTH J24189019 1- A A1
R 1236 CHIP RES. 1 00 1/16W 5% RMC1/16S 101JTH J24189013 1- B c2
R 1237 CHIP RES. 3.3k 1/16W 5% RMC1/16S 332JTH J24189031 1 - A A1
R 1238 CHIP RES. 1 00 1/16W 5% RMC1/16S 101JTH J24189013 1- B b2
R 1239 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- B b4
R 1240
R 1241 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- B a3
R 1242 CHIP RES. 3.3k 1/16W 5% RMC1/16S 332JTH J24189031 1 - A A1
R 1243 CHIP RES. 3 30 1/16W 5% RMC1/16S 331JTH J24189019 1- B b1
R 1244 CHIP RES. 3 30 1/16W 5% RMC1/16S 331JTH J24189019 1- B c1
R 1245 CHIP RES. 390k 1/16W 0.5% MCR01MZPD3903 J24189331 1 - A A 3
R 1246 CHIP RES. 3 30 1/16W 5% RMC1/16S 331JTH J24189019 1- A B1
R 1247 CHIP RES. 33 k 1/16W 5% RMC1/16S 333JTH J24189043 1- B b2
R 1248 CHIP RES. 18 k 1/16W 5% RMC1/16S 183JTH J24189040 1- A B2
R 1249 CHIP RES. 4.7k 1/16W 5% RMC1/16S 472JTH J24189033 1 - B a3
R 1250 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- B a2
R 1251 CHIP RES. 4.7k 1/16W 5% RMC1/16S 472JTH J24189033 1 - B a2
R 1252 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- B b2
R 1253 CHIP RES. 470k 1/16W 5% RMC1/16S 474JTH J24189057 1- B b4
R 1254 CHIP RES. 470k 1/16W 5% RMC1/16S 474JTH J24189057 1- B a3
R 1255 CHIP RES. 2.7k 1/16W 5% RMC1/16S 272JTH J24189030 1 - B b4
R 1256 CHIP RES. 1 00 1/16W 5% RMC1/16S 101JTH J24189013 1- B b4
R 1257 CHIP RES. 2.7k 1/16W 5% RMC1/16S 272JTH J24189030 1 - B a3
R 1258 CHIP RES. 10 k 1/16W 5% RMC1/16S 103JTH J24189037 1- B b4
R 1259 CHIP RES. 10 k 1/16W 5% RMC1/16S 103JTH J24189037 1- B a3
R 1260 CHIP RES. 3 3k 1/16W 5% RMC1/16S 333JTH J24189043 1- B b4
R 1261 CHIP RES. 33 k 1/16W 5% RMC1/16S 333JTH J24189043 1- B a3
R 1262 CHIP RES. 1 00 1/16W 5% RMC1/16S 101JTH J24189013 1- B a3
R 1263 CHIP RES. 10 k 1/16W 5% RMC1/16S 103JTH J24189037 1- B b2
R 1264 CHIP RES. 10 k 1/16W 5% RMC1/16S 103JTH J24189037 1- B b2
R 1265 CHIP RES. 3.3k 1/16W 5% RMC1/16S 332JTH J24189031 1 - A A1
R 1266 CHIP RES. 3 30 1/16W 5% RMC1/16S 331JTH J24189019 1- B c1
R 1267 CHIP RES. 2 20 1/16W 5% RMC1/16S 221JTH J24189017 1- A A1
R 1268 CHIP RES. 10 k 1/16W 5% RMC1/16S 103JTH J24189037 1- A A 2
R 1269 CHIP RES. 10 k 1/16W 5% RMC1/16S 103JTH J24189037 1- A C2
R 1270 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- B c3
R 1271 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- A A 2
R 1272 CHIP RES. 10 k 1/16W 5% RMC1/16S 103JTH J24189037 1- A C2
R 1273 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- A C2
R 1274 CHIP RES. 10 k 1/16W 5% RMC1/16S 103JTH J24189037 1- A A 2
R 1275 CHIP RES. 150k 1/16W 5% RMC1/16S 154JTH J24189051 1- B b4
R 1276 CHIP RES. 2.2M 1/16W 5% RMC1/16S 225JTH J24189065 1- B b4
R 1277 CHIP RES. 2.2M 1/16W 5% RMC1/16S 225JTH J24189065 1- B a3
R 1278 CHIP RES. 1.5k 1/16W 5% RMC1/16S 152JTH J24189027 1 - B b4
R 1279 CHIP RES. 10 k 1/16W 5% RMC1/16S 103JTH J24189037 1- B b4
DESCRIPTION
CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- B a3
VALUE V/W TOL. VXSTD P/NMFR’S DESIG VERS.
LOT.
SIDE
LAY ADR.
VX-8R/E Technical Supplement
45
Page 46
RF Unit (Lot. 1~7)
REF.
R 1280 CHIP RES. 1.5k 1/16W 5% RMC1/16S 152JTH J24189027 1 - B a3
R 1281 CHIP RES. 150k 1/16W 5% RMC1/16S 154JTH J24189051 1- B a3
R 1282 CHIP RES. 10 k 1/16W 5% RMC1/16S 103JTH J24189037 1- B a3
R 1283 CHIP RES. 4.7k 1/16W 5% RMC1/16S 472JTH J24189033 1 - A A1
R 1284 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- B c3
R 1285 CHIP RES. 2.7k 1/16W 5% RMC1/16S 272JTH J24189030 1 - B c3
R 1286 CHIP RES. 10 k 1/16W 5% RMC1/16S 103JTH J24189037 1- B c 3
R 1287 CHIP RES. 10 k 1/16W 5% RMC1/16S 103JTH J24189037 1- B c 3
R 1288 CHIP RES. 10 k 1/16W 5% RMC1/16S 103JTH J24189037 1- B c 3
R 1289 CHIP RES. 47 k 1/16W 5% RMC1/16S 473JTH J24189045 1- B c 3
R 1290 CHIP RES. 47 k 1/16W 5% RMC1/16S 473JTH J24189045 1- B c 3
R 1291 CHIP RES. 3.3k 1/16W 5% RMC1/16S 332JTH J24189031 1 - B c3
R 1292 CHIP RES. 10 k 1/16W 5% RMC1/16S 103JTH J24189037 1- B c 3
R 1293 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- B c1
R 1294 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- B c3
R 1295 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- B c3
R 1296 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- A A 2
R 1297 CHIP RES. 4.7k 1/16W 5% RMC1/16S 472JTH J24189033 1 - B c2
R 1298 CHIP RES. 10 k 1/16W 5% RMC1/16S 103JTH J24189037 1- A A 3
R 1299 CHIP RES. 2.2M 1/16W 5% RMC1/16S 225JTH J24189065 1- A A3
R 1300 CHIP RES. 2.2M 1/16W 5% RMC1/16S 225JTH J24189065 1- A A3
R 1301 CHIP RES. 390k 1/16W 0.5% MCR01MZPD3903 J24189331 1 - A A 3
R 1302 CHIP RES. 4 .7 1/16W 5% RMC1/16S 4R7JTH J24189066 1- A B3
R 1303 CHIP RES. 2 2 1/16W 5% RMC1/16S 220JTH J24189005 1- A B4
R 1304 CHIP RES. 6 80 1/16W 5% RMC1/16S 681JTH J24189023 1- A B1
R 1305 CHIP RES. 6 80 1/16W 5% RMC1/16S 681JTH J24189023 1- A B1
R 1306 CHIP RES. 5 6 1/16W 5% RMC1/16S 560JTH J24189010 1- B b1
R 1311 CHIP RES. 1 00 1/16W 5% RMC1/16S 101JTH J24189013 1- A B2
R 1311 CHIP RES. 1 50 1/16W 5% RMC1/16S 151JTH J24189015 3- A B2
R 1312 CHIP RES. 2.2k 1/16W 5% RMC1/16S 222JTH J24189029 1 - A B1
R 1313 CHIP RES. 10 k 1/16W 5% RMC1/16S 103JTH J24189037 1- B c 3
R 1314 CHIP RES. 0 1/16W 5% RMC1/16S JPTH J24189070 1 - A A1
R 1315 CHIP RES. 10 k 1/16W 5% RMC1/16S 103JTH J24189037 1- A A 2
R 1316 CHIP RES. 10 k 1/16W 5% RMC1/16S 103JTH J24189037 1- B c 4
R 1317 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- B c4
R 1318 CHIP RES. 0 1/16W 5% RMC1/16S JPTH J24189070 1 - A B3
R 1319 CHIP RES. 220k 1/16W 5% RMC1/16S 224JTH J24189053 1- A A1
R 1320 CHIP RES. 22 k 1/16W 5% RMC1/16S 223JTH J24189041 1- B c 2
S 1001 TACT SWITCH PT-036-B2S-T N5090158 1- A A 1
S 1002 TACT SWITCH PT-036-B2S-T N5090158 1- A A 2
S 1003 TACT SWITCH PT-036-B2S-T N5090158 1- A A 2
S 1004 TACT SWITCH PT-036-B2S-T N5090158 1- A A 3
TH1001 THERMISTOR ERTJ1VV473J G9090122 1- B c2
TH1002 THERMISTOR TN05-3M154JR G9090171 1X 1001 XTAL XV00117 11.7MHz 11.7MHZ H0103330A 1- A A3
XF1001 XTAL FILTER MFI47R 47.25MHZ H1102447 1 - B a1
XF1002 XTAL FILTER MFI46R 46.35MHZ H1102448 1 - A C2
DESCRIPTION
INSULATOR SHEET RA0408300 1SHIELD SHEET (RF) RA1095800 1SHIELD SHEET (ANT) RA109330A 3SHEET (13X3.5) RA1100300 4-
VALUE V/W TOL. VXSTD P/NMFR’S DESIG VERS.
LOT.
SIDE
LAY ADR.
46
VX-8R/E Technical Supplement
Page 47

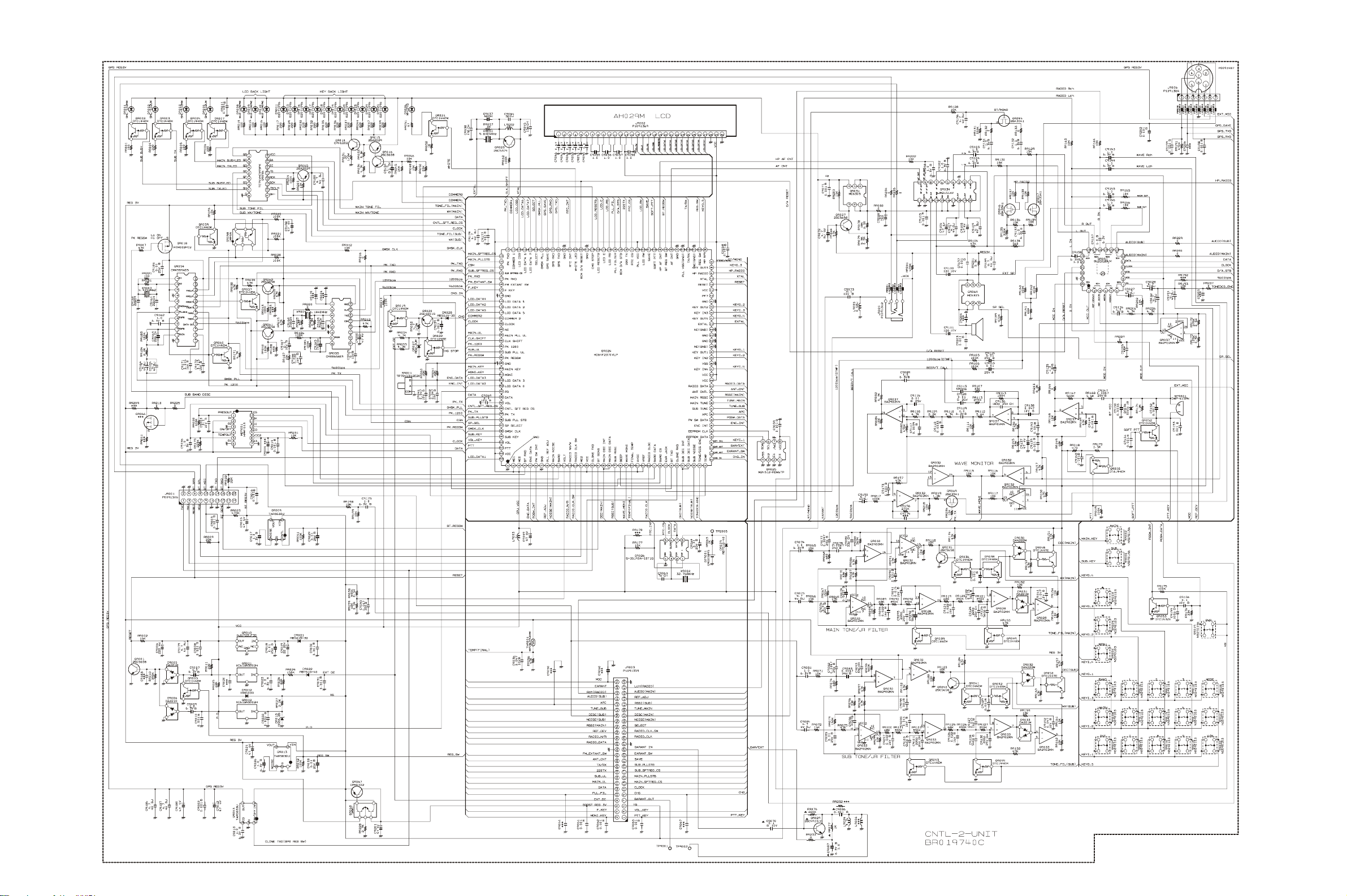

Circuit Diagram
RF-2 Unit (Lot.8~15)
VX-8R/E Technical Supplement
47
Page 48

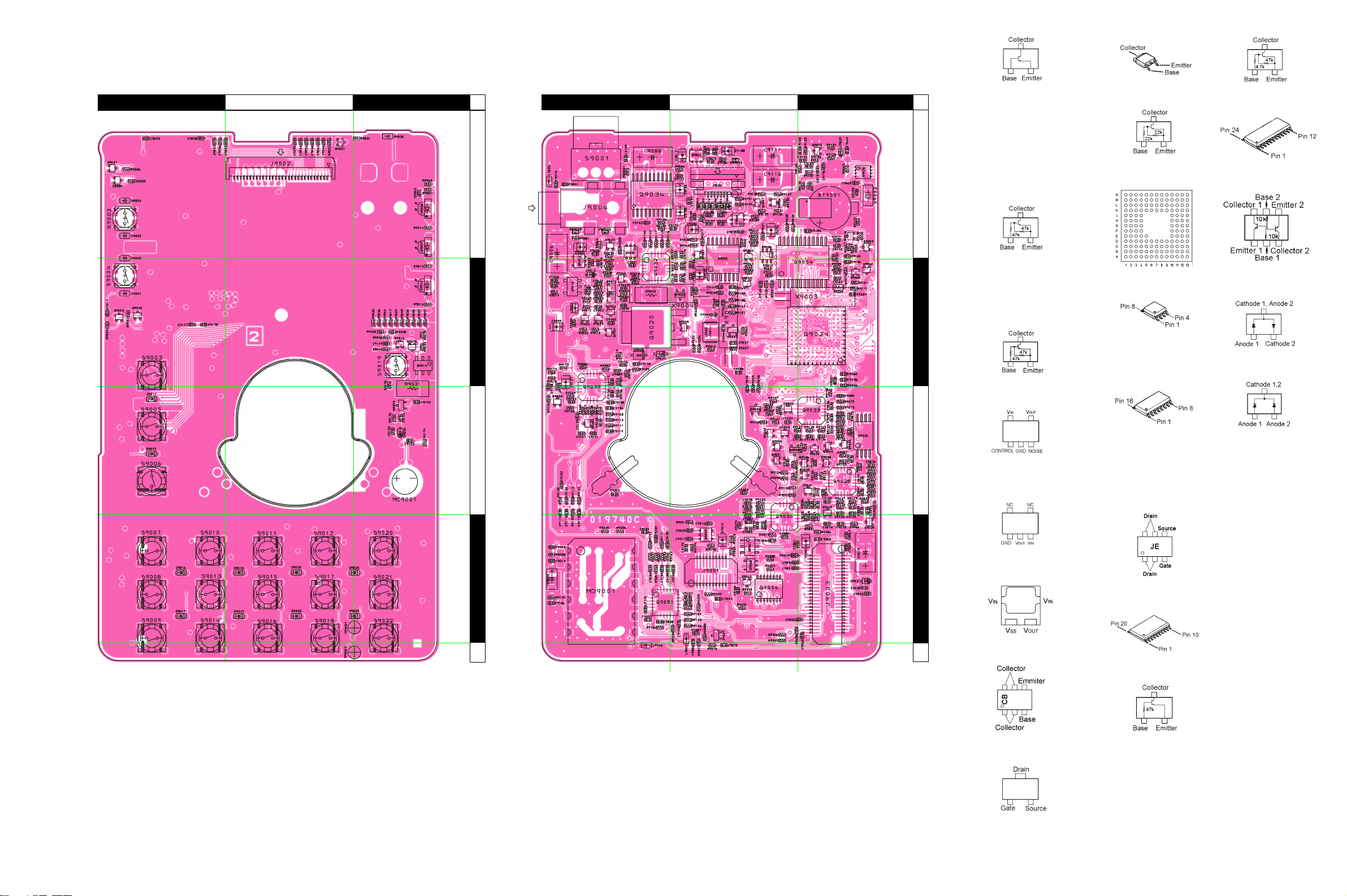

RF-2 Unit (Lot.8~15)
Parts Layout
AC
B
acb
1
2
3
DTC144EM T2L
(Q8004, 8007, 8008
8013, 8048, 8049
8054, 8057, 8059
8072, 8075, 8083
8088, 8092, 8103
8106, 8107)
EMG2 (G2)
(Q8030, 8071, 8082, 8095)
2SA2029
(Q8069, 8080, 8094)
1
EMD6 (D6)
(Q8032, 8089)
EMB3 (B3)
(Q8005, 8006, 8068,
8070, 8078, 8081)
2SK3541
(Q8036, 8038, 8102,
8104, 8105)
2
3
MT3S36FS (21)
(Q8009, 8010, 8018)
LV24100LP-TLM-E
(Q8012)
RTM002P02
(Q8065, 8067)
(Q8041, 8043,1056, 8058)
DTA114TE
2SK3475
(Q8042)
CPH6102-TL (AB)
(Q8077)
UMW1
(Q8079)
MB15A01PFV1-G-BND-EFE1
(Q8017, 8044)
TC74VHC595FK
(Q8086, 8087)
BA2902KN
(Q8097)
Side A
4
HN2D01FU (A1)
(D8094)
DAP222M (P)
(D8061)
DAN222M
(D8010, 8025, 8050,
8060, 8062, 8065,
8067, 8068, 8076,
8086, 8095)
1SS385 (09)
(D8087)
1SS385FV (09)
(D8005, 8057, 8100)
Side B
1SS362 (C3)
(D8002, 8003)
DA221M
(D8063, 8064, 8072,
8073, 8074, 8075)
DTC144TE (96)
(Q8090)
EMB10 T2R
4
(Q8014, 8062, 8093)
2SC4915-O (QO)
(Q8028, 8029, 8033,
8034, 8035, 8037,
8039, 8040, 8045)
2SC5226 (R22)
(Q8031, 8053)
2SC5374 (NA)
(Q8025, 8026, 8027,
8063, 8064, 8076)
2SC5555ZD (ZD)
(Q8001, 8002, 8003,
8011, 8015, 8016,
8019, 8020, 8021,
8022, 8023, 8024,
8100, 8101)
2SC5658
(Q8050, 8051, 8066,
8073, 8074, 8084, 8085)
NJM2552V-TE1
(Q8046, 8047)
2SK3476
(Q8052)
2SJ364-P(4M)
(Q8055, 8060)
DTC143ZE (E23)
(Q8061)
HN1J02FU (KS)
(Q8091)
NJU7007F3-TE1
(Q8096, 8098)
XC6371A650DR
(Q8099)
48
VX-8R/E Technical Supplement
Page 49
Circuit Diagram
RF-2 Unit (Lot.16~)
VX-8R/E Technical Supplement
49
Page 50
RF-2 Unit (Lot.16~)
Parts Layout
AC
B
acb
1
2
3
DTC144EM T2L
(Q8004, 8007, 8008
8013, 8048, 8049
8054, 8057, 8059
8072, 8075, 8083
8088, 8092, 8103
8106, 8107)
EMG2 (G2)
(Q8030, 8071, 8082, 8095)
2SA2029
(Q8069, 8080, 8094)
1
EMD6 (D6)
(Q8032, 8089)
EMB3 (B3)
(Q8005, 8006, 8068,
8070, 8078, 8081)
2SK3541
(Q8036, 8038, 8102,
8104, 8105)
2
3
MT3S36FS (21)
(Q8009, 8010, 8018)
LV24100LP-TLM-E
(Q8012)
RTM002P02
(Q8065, 8067)
(Q8041, 8043,1056, 8058)
DTA114TE
2SK3475
(Q8042)
CPH6102-TL (AB)
(Q8077)
UMW1
(Q8079)
MB15A01PFV1-G-BND-EFE1
(Q8017, 8044)
TC74VHC595FK
(Q8086, 8087)
BA2902KN
(Q8097)
Side A
4
HN2D01FU (A1)
(D8094)
DAP222M (P)
(D8061)
DAN222M
(D8010, 8025, 8050,
8060, 8062, 8065,
8067, 8068, 8076,
8086, 8095)
1SS385 (09)
(D8087)
1SS385FV (09)
(D8005, 8057, 8100)
Side B
1SS362 (C3)
(D8002, 8003)
DA221M
(D8063, 8064, 8072,
8073, 8074, 8075)
DTC144TE (96)
(Q8090)
EMB10 T2R
4
(Q8014, 8062, 8093)
2SC4915-O (QO)
(Q8028, 8029, 8033,
8034, 8035, 8037,
8039, 8040, 8045)
2SC5226 (R22)
(Q8031, 8053)
2SC5374 (NA)
(Q8025, 8026, 8027,
8063, 8064, 8076)
2SC5555ZD (ZD)
(Q8001, 8002, 8003,
8011, 8015, 8016,
8019, 8020, 8021,
8022, 8023, 8024,
8100, 8101)
2SC5658
(Q8050, 8051, 8066,
8073, 8074, 8084, 8085)
NJM2552V-TE1
(Q8046, 8047)
2SK3476
(Q8052)
2SJ364-P(4M)
(Q8055, 8060)
DTC143ZE (E23)
(Q8061)
HN1J02FU (KS)
(Q8091)
NJU7007F3-TE1
(Q8096, 8098)
XC6371A650DR
(Q8099)
50
VX-8R/E Technical Supplement
Page 51
Circuit Diagram
RF-2 Unit (Lot.24~)
VX-8R/E and VX-8DR Technical Supplement
51
Page 52
RF-2 Unit (Lot.24~)
Parts Layout
AC
B
acb
1
2
3
DTC144EM T2L
(Q8004, 8007, 8008
8013, 8048, 8049
8054, 8057, 8059
8072, 8075, 8083
8088, 8092, 8103
8106, 8107)
EMG2 (G2)
(Q8030, 8071, 8082, 8095)
2SA2029
(Q8069, 8080, 8094)
1
EMD6 (D6)
(Q8032, 8089)
EMB3 (B3)
(Q8005, 8006, 8068,
8070, 8078, 8081)
2SK3541
(Q8036, 8038, 8102,
8104, 8105)
2
3
MT3S36FS (21)
(Q8009, 8010, 8018)
LV24100LP-TLM-E
(Q8012)
RTM002P02
(Q8065, 8067)
(Q8041, 8043,1056, 8058)
DTA114TE
2SK3475
(Q8042)
CPH6102-TL (AB)
(Q8077)
UMW1
(Q8079)
MB15A01PFV1-G-BND-EFE1
(Q8017, 8044)
TC74VHC595FK
(Q8086, 8087)
BA2902KN
(Q8097)
Side A
4
HN2D01FU (A1)
(D8094)
DAP222M (P)
(D8061)
DAN222M
(D8010, 8025, 8050,
8060, 8062, 8065,
8067, 8068, 8076,
8086, 8095)
1SS385 (09)
(D8087)
1SS385FV (09)
(D8005, 8057, 8100)
Side B
1SS362 (C3)
(D8002, 8003)
DA221M
(D8063, 8064, 8072,
8073, 8074, 8075)
DTC144TE (96)
(Q8090)
EMB10 T2R
4
(Q8014, 8062, 8093)
2SC4915-O (QO)
(Q8028, 8029, 8033,
8034, 8035, 8037,
8039, 8040, 8045)
2SC5226 (R22)
(Q8031, 8053)
2SC5374 (NA)
(Q8025, 8026, 8027,
8063, 8064, 8076)
2SC5555ZD (ZD)
(Q8001, 8002, 8003,
8011, 8015, 8016,
8019, 8020, 8021,
8022, 8023, 8024,
8100, 8101)
2SC5658
(Q8050, 8051, 8066,
8073, 8074, 8084, 8085)
NJM2552V-TE1
(Q8046, 8047)
2SK3476
(Q8052)
2SJ364-P(4M)
(Q8055, 8060)
DTC143ZE (E23)
(Q8061)
HN1J02FU (KS)
(Q8091)
NJU7007F3-TE1
(Q8096, 8098)
XC6371A650DR
(Q8099)
52
VX-8R/E and VX-8DR Technical Supplement
Page 53
RF-2 Unit (Lot.8~)
Parts List
REF.
C 8001 CHIP CAP. 2p F 50 V CK UMK105CK020CV-F K22178250 8- B c1
C 8002 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 8- A A 3
C 8003 CHIP CAP. 68pF 50V CH UMK105CH680JV-F K22178278 8- A A 1
C 8004 CHIP CAP. 68pF 50V CH UMK105CH680JV-F K22178278 8- A A 1
C 8005 CHIP CAP. 82pF 50V CH GRM1552C1H820JD01D K22178234 8- B b1
C 8006 CHIP CAP. 82pF 50V CH GRM1552C1H820JD01D K22178234 8- B b1
C 8009 CHIP CAP. 0.1uF 10V B GRM155B11A104KA01D K22108802 8- B c 3
C 8010 CHIP CAP. 2p F 50 V CK GRM1554C1H2R0CZ01D K22178204 8- B c1
C 8011 CHIP CAP. 5p F 50 V CH UMK105CH050CV-F K22178253 8- B b1
C 8014 CHIP CAP. 7p F 50 V CH UMK105CH070DV-F K22178255 8- A B1
C 8015 CHIP CAP. 100pF 50V CH UMK105CH101JV-F K22178282 8- A B1
C 8016 CHIP CAP. 33pF 50V CH UMK105CH330JV-F K22178270 8- A A 1
C 8018 CHIP CAP. 100pF 50V CH UMK105CH101JV-F K22178282 8- A B2
C 8019 CHIP CAP. 0.001uF 50 V B GRM155B11H102KA01D K22178809 8- A B2
C 8020 CHIP CAP. 33pF 50V CH UMK105CH330JV-F K22178270 8- B b1
C 8021 CHIP CAP. 10pF 50V CH GRM1552C1H100JZ01D K22178212 8- B b1
C 8022 CHIP CAP. 68pF 50V CH GRM1552C1H680JZ01D K22178232 W/ CE LABEL 8- B b1
C 8022 CHIP CAP. 27pF 50V CH GRM1552C1H270JZ01D K22178222 W/O CE LABEL 8- B b1
C 8023 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 8- B b1
C 8029 CHIP CAP. 100pF 50V CH GRM1552C1H101JD01D K22178236 8- A B1
C 8030 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 8- A A 1
C 8031 CHIP CAP. 0.001uF 50 V B GRM155B11H102KA01D K22178809 8- A A3
C 8032 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 8- A A 3
C 8033 CHIP CAP. 0.1uF 10V B GRM155B11A104KA01D K22108802 8- B c 3
C 8034 CHIP CAP. 0.1uF 10V B GRM155B11A104KA01D K22108802 8- B c 3
C 8035 CHIP CAP. 0.001uF 50 V B GRM155B11H102KA01D K22178809 8- B a4
C 8036 CHIP CAP. 0.001uF 50 V B GRM155B11H102KA01D K22178809 8- B a4
C 8037 CHIP CAP. 0.001uF 50 V B GRM155B11H102KA01D K22178809 8- A B2
C 8038 CHIP CAP. 0.001uF 50 V B GRM155B11H102KA01D K22178809 8- A B2
C 8039 CHIP CAP. 0.001uF 50 V B GRM155B11H102KA01D K22178809 8- A C2
C 8040 CHIP CAP. 0.001uF 50 V B GRM155B11H102KA01D K22178809 8- A A3
C 8041 CHIP CAP. 0.001uF 50 V B GRM155B11H102KA01D K22178809 8- A C1
C 8042 CHIP CAP. 3p F 50 V CJ UMK105CJ030CV-F K22178251 8- A C1
C 8043 CHIP CAP. 8p F 50 V CH GRM1552C1H8R0DZ01D K22178210 8- A C1
C 8044 CHIP CAP. 4p F 50 V CH UMK105CH040CV-F K22178252 8- A B2
C 8045 CHIP CAP. 0.001uF 50 V B GRM155B11H102KA01D K22178809 8- A B2
C 8046 CHIP CAP. 0.001uF 50 V B GRM155B11H102KA01D K22178809 8- A A2
C 8047 CHIP CAP. 220pF 50V CH GRM1552C1H221JA01D K22179713 8 - A A2
C 8048 CHIP CAP. 0.5pF 50 V CK UMK105CK0R5CV-F K22178247 8- A B2
C 8050 CHIP CAP. 56pF 50V CH UMK105CH560JV-F K22178276 8- A A 2
C 8051 CHIP CAP. 4p F 50 V CH UMK105CH040CV-F K22178252 8- A B2
C 8052 CHIP CAP. 0.001uF 50 V B GRM155B11H102KA01D K22178809 8- A B2
C 8053 CHIP CAP. 0.001uF 50 V B GRM155B11H102KA01D K22178809 8- A B2
VX-8R/E and VX-8DR Technical Supplement
DESCRIPTION
PCB with Components CP9443002 TYP:A2U(USA)
(with RF UNIT, CNTL UNIT, CONNECTOR UNIT, MAIN VCO UNIT, SUB-VCO) CP9443003 TYP:A1(EXP)
Printed Circuit Board FR019730A 8-
VALUE V/W TOL. VXSTD P/NMFR’S DESIG VERS.
CP9443004 TYP:A2(EXP)
CP9443005 TYP:A3(EXP)
CP9443006 TYP:B1(EU)
CP9443007 TYP:B2(EU)
CP9443008 TYP:B3(EXP)
CP9443009 TYP:C1(EU)
CP9443010 TYP:C2(EU)
CP9443011 TYP:C3(EXP)
CP9443012 TYP:D1(EU)
CP9443013 TYP:D2(EU)
CP9443014 TYP:H1(AUS)
CP9443015 TYP:H2(AUS)
FR019730B 16FR019730C 24 -
LOT.
SIDE
LAY ADR.
53
Page 54
RF-2 Unit (Lot.8~)
REF.
C 8054 CHIP CAP. 22pF 50V CH UMK105CH220JV-F K22178266 8- B b1
C 8055 CHIP CAP. 220pF 50V CH GRM1552C1H221JA01D K22179713 8 - A B2
C 8056 CHIP CAP. 0.5pF 50 V CK UMK105CK0R5CV-F K22178247 8- A B2
C 8058 CHIP CAP. 56pF 50V CH UMK105CH560JV-F K22178276 8- A B2
C 8059 CHIP CAP. 0.001uF 50 V B GRM155B11H102KA01D K22178809 8- B b1
C 8060 CHIP CAP. 22pF 50V CH UMK105CH220JV-F K22178266 8- B b1
C 8061 CHIP CAP. 0.001uF 50 V B GRM155B11H102KA01D K22178809 8- B b1
C 8062 CHIP CAP. 0.001uF 50 V B GRM155B11H102KA01D K22178809 8- B b1
C 8064 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 8- A B1
C 8065 CHIP CAP. 0.1uF 10V B GRM155B11A104KA01D K22108802 8- B c 3
C 8066 CHIP CAP. 0.001uF 50 V B GRM155B11H102KA01D K22178809 8- B a4
C 8067 CHIP CAP. 0.001uF 50 V B GRM155B11H102KA01D K22178809 8- A C1
C 8068 CHIP CAP. 3p F 50 V CJ UMK105CJ030CV-F K22178251 8- A C1
C 8069 CHIP CAP. 18pF 50V CH GRM1552C1H180JZ01D K22178218 8- A C1
C 8070 CHIP CAP. 1p F 50 V CK UMK105CK010CV-F K22178248 8- A C1
C 8071 CHIP CAP. 2p F 50 V CK GRM1554C1H2R0CZ01D K22178204 8- A C1
C 8072 CHIP CAP. 18pF 50V CH GRM1552C1H180JZ01D K22178218 8- A C1
C 8073 CHIP CAP. 4p F 50 V CH UMK105CH040CV-F K22178252 8- A B2
C 8074 CHIP CAP. 0.001uF 50 V B GRM155B11H102KA01D K22178809 8- A B2
C 8075 CHIP CAP. 4p F 50 V CH UMK105CH040CV-F K22178252 8- A B2
C 8076 CHIP CAP. 56pF 50V CH UMK105CH560JV-F K22178276 8- A B2
C 8077 CHIP CAP. 4p F 50 V CH UMK105CH040CV-F K22178252 8- A B2
C 8078 CHIP CAP. 8p F 50 V CH GRM1552C1H8R0DZ01D K22178210 8- B b1
C 8079 CHIP CAP. 0.001uF 50 V B GRM155B11H102KA01D K22178809 8- A B2
C 8080 CHIP CAP. 4p F 50 V CH UMK105CH040CV-F K22178252 8- A B2
C 8081 CHIP CAP. 56pF 50V CH UMK105CH560JV-F K22178276 8- A B2
C 8082 CHIP CAP. 8p F 50 V CH GRM1552C1H8R0DZ01D K22178210 8- B b1
C 8083 CHIP CAP. 0.001uF 50 V B GRM155B11H102KA01D K22178809 8- B b1
C 8084 CHIP CAP. 0.001uF 50 V B GRM155B11H102KA01D K22178809 8- B b1
C 8085 CHIP CAP. 8p F 50 V CH GRM1552C1H8R0DZ01D K22178210 8- B b1
C 8086 CHIP CAP. 8p F 50 V CH GRM1552C1H8R0DZ01D K22178210 8- B b1
C 8087 CHIP CAP. 22pF 50V CH UMK105CH220JV-F K22178266 8- A B1
C 8088 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 8- A B1
C 8089 CHIP CAP. 0.001uF 50 V B GRM155B11H102KA01D K22178809 8- A B1
C 8090 CHIP CAP. 0.1uF 10V B GRM155B11A104KA01D K22108802 8- A B1
C 8091 CHIP CAP. 5p F 50 V CH UMK105CH050CV-F K22178253 8- A B1
C 8092 CHIP CAP. 22pF 50V CH UMK105CH220JV-F K22178266 8- A B1
C 8093 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 8- A B1
C 8094 CHIP CAP. 0.001uF 50 V B GRM155B11H102KA01D K22178809 8- A B1
C 8095 CHIP CAP. 5p F 50 V CH UMK105CH050CV-F K22178253 8- A B1
C 8096 CHIP CAP. 1u F 6.3V B GRM155B30J105KE18D K22088803 8- B c3
C 8097 CHIP CAP. 0.1uF 10V B GRM155B11A104KA01D K22108802 8- A B3
C 8098 CHIP CAP. 100pF 50V CH GRM1552C1H101JD01D K22178236 8- A B3
C 8099 CHIP CAP. 100pF 50V CH GRM1552C1H101JD01D K22178236 8- A B3
C 8100 CHIP CAP. 100pF 50V CH GRM1552C1H101JD01D K22178236 8- A B3
C 8101 CHIP TA.CAP. 0.1uF 20V SKF-1D104M-RP K78130049 8- A B3
C 8102 CHIP CAP. 0.33uF 6.3V B GRM155B10J334KE01D K22088801 8- A B3
C 8103 CHIP CAP. 0.001uF 50 V B GRM155B11H102KA01D K22178809 8- A B3
C 8104 CHIP TA.CAP. 4.7uF 6.3V TEESVP0J475M8R K78080053 8- A B3
C 8105 CHIP TA.CAP. 0.1uF 20V SKF-1D104M-RP K78130049 8- A B3
C 8106 CHIP TA.CAP. 0.1uF 20V SKF-1D104M-RP K78130049 8- A B3
C 8107 CHIP CAP. 12pF 50V CH GRM1552C1H120JZ01D K22178214 8- A C1
C 8108 CHIP CAP. 0.5pF 50 V CK GRM1554C1HR50BZ01D K22178285 8- A C2
C 8109 CHIP CAP. 5p F 50 V CH UMK105CH050CV-F K22178253 8- A C2
C 8110 CHIP CAP. 3p F 50 V CJ UMK105CJ030CV-F K22178251 8- A C2
C 8111 CHIP CAP. 1p F 50 V CK UMK105CK010CV-F K22178248 8- A B2
C 8113 CHIP CAP. 56pF 50V CH UMK105CH560JV-F K22178276 8- A B2
C 8114 CHIP CAP. 4p F 50 V CH UMK105CH040CV-F K22178252 8- A B2
C 8115 CHIP CAP. 3p F 50 V CJ UMK105CJ030CV-F K22178251 8- A B2
C 8116 CHIP CAP. 1p F 50 V CK UMK105CK010CV-F K22178248 8- A B2
54
DESCRIPTION
VALUE V/W TOL. VXSTD P/NMFR’S DESIG VERS.
VX-8R/E and VX-8DR Technical Supplement
LOT.
SIDE
LAY ADR.
Page 55
RF-2 Unit (Lot.8~)
REF.
C 8118 CHIP CAP. 56pF 50V CH UMK105CH560JV-F K22178276 8- A B2
C 8119 CHIP CAP. 4p F 50 V CH UMK105CH040CV-F K22178252 8- A B2
C 8120 CHIP CAP. 9p F 50 V CH UMK105CH090DV-F K22178257 8- B a1
C 8121 CHIP CAP. 3p F 50 V CJ UMK105CJ030CV-F K22178251 8- A B2
C 8122 CHIP CAP. 9p F 50 V CH UMK105CH090DV-F K22178257 8- B a1
C 8123 CHIP CAP. 1p F 50 V CK UMK105CK010CV-F K22178248 8-10 B a1
C 8123 CHIP CAP. 0.5pF 50 V CK GRM1554C1HR50BZ01D K22178285 W/ CE LABEL 11- B a1
C 8123 CHIP CAP. 1p F 50 V CK UMK105CK010CV-F K22178248 W/O CE LABEL 11- B a1
C 8124 CHIP CAP. 2p F 50 V CK UMK105CK020CV-F K22178250 8 B a1
C 8124 CHIP CAP. 1p F 50 V CK GRM1554C1H1R0BZ01D K22178287 W/ CE LABEL 9- B a1
C 8124 CHIP CAP. 2p F 50 V CK UMK105CK020CV-F K22178250 W/O CE LABEL 9- B a1
C 8125 CHIP CAP. 0.001uF 50 V B GRM155B11H102KA01D K22178809 8- A B1
C 8126 CHIP CAP. 8p F 50 V CH GRM1552C1H8R0DZ01D K22178210 8- A B1
C 8127 CHIP CAP. 0.1uF 10V B GRM155B11A104KA01D K22108802 8- A B1
C 8128 CHIP CAP. 4p F 50 V CH UMK105CH040CV-F K22178252 8 A B1
C 8128 CHIP CAP. 2p F 50 V CK UMK105CK020CV-F K22178250 W/ CE LABEL 9- A B1
C 8128 CHIP CAP. 4p F 50 V CH UMK105CH040CV-F K22178252 W/O CE LABEL 9- A B1
C 8129 CHIP CAP. 0.001uF 50 V B GRM155B11H102KA01D K22178809 8- A B1
C 8130 CHIP CAP. 8p F 50 V CH GRM1552C1H8R0DZ01D K22178210 8- A B1
C 8131 CHIP CAP. 3p F 50 V CJ UMK105CJ030CV-F K22178251 8- A B1
C 8132 CHIP CAP. 7p F 50 V CH UMK105CH070DV-F K22178255 8- A B3
C 8133 CHIP CAP. 0.001uF 50 V B GRM155B11H102KA01D K22178809 8- A B3
C 8134 CHIP CAP. 0.047uF 10 V B GRM155B11A473KA01D K22108801 8- A B3
C 8135 CHIP CAP. 0.033uF 10 V B GRM155B11A333KA01D K22108803 8- A B3
C 8136 CHIP CAP. 0.001uF 50 V B GRM155B11H102KA01D K22178809 8- A B3
C 8137 CHIP CAP. 0.001uF 50 V B GRM155B11H102KA01D K22178809 8- A C1
C 8138 CHIP CAP. 0.001uF 50 V B GRM155B11H102KA01D K22178809 8- A B2
C 8139 CHIP CAP. 0.1uF 10V B GRM155B11A104KA01D K22108802 8- A B2
C 8140 CHIP CAP. 0.001uF 50 V B GRM155B11H102KA01D K22178809 8- A B1
C 8141 CHIP CAP. 0.1uF 10V B GRM155B11A104KA01D K22108802 8- A B1
C 8142 CHIP CAP. 0.1uF 10V B GRM155B11A104KA01D K22108802 8- B a1
C 8143 CHIP CAP. 0.1uF 10V B GRM155B11A104KA01D K22108802 8- B a1
C 8144 CHIP CAP. 7p F 50 V CH UMK105CH070DV-F K22178255 8- A B2
C 8145 CHIP CAP. 0.001uF 50 V B GRM155B11H102KA01D K22178809 8- A B3
C 8146 CHIP CAP. 0.001uF 50 V B GRM155B11H102KA01D K22178809 8- A B2
C 8147 CHIP CAP. 0.001uF 50 V B GRM155B11H102KA01D K22178809 8- A B3
C 8150 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 8- A B3
C 8151 CHIP CAP. 5p F 50 V CH UMK105CH050CV-F K22178253 8- A B3
C 8152 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 8- A B3
C 8153 CHIP CAP. 33pF 50V CH UMK105CH330JV-F K22178270 8- B a1
C 8154 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 8- B a1
C 8155 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 8- B a1
C 8156 CHIP CAP. 68pF 50V CH UMK105CH680JV-F K22178278 8- B a1
C 8157 CHIP CAP. 0.001uF 50 V B GRM155B11H102KA01D K22178809 8- B a1
C 8158 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 8- B a1
C 8159 CHIP CAP. 33pF 50V CH UMK105CH330JV-F K22178270 8- A B2
C 8160 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 8- A B1
C 8161 CHIP CAP. 10pF 50V CH GRM1552C1H100JZ01D K22178212 8- A A 2
C 8162 CHIP CAP. 33pF 50V CH UMK105CH330JV-F K22178270 8- A A 2
C 8163 CHIP CAP. 0.001uF 50 V B GRM155B11H102KA01D K22178809 8- A B2
C 8164 CHIP CAP. 0.001uF 50 V B GRM155B11H102KA01D K22178809 8- A A2
C 8165 CHIP CAP. 0.001uF 50 V B GRM155B11H102KA01D K22178809 8- A A2
C 8166 CHIP CAP. 0.001uF 50 V B GRM155B11H102KA01D K22178809 8- A B2
C 8167 CHIP CAP. 0.001uF 50 V B GRM155B11H102KA01D K22178809 8- A B2
C 8168 CHIP CAP. 56pF 50V CH UMK105CH560JV-F K22178276 8- A B2
C 8169 CHIP CAP. 33pF 50V CH UMK105CH330JV-F K22178270 8- A B2
C 8170 CHIP CAP. 0.001uF 50 V B GRM155B11H102KA01D K22178809 8- A B3
C 8171 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 8- A B3
C 8172 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 8- A B3
C 8173 CHIP CAP. 180pF 50V CH GRM1552C1H181JA01D K22179711 8 - A B3
DESCRIPTION
VALUE V/W TOL. VXSTD P/NMFR’S DESIG VERS.
LOT.
SIDE
LAY ADR.
VX-8R/E and VX-8DR Technical Supplement
55
Page 56
RF-2 Unit (Lot.8~)
REF.
C 8174 CHIP CAP. 5p F 50 V CH UMK105CH050CV-F K22178253 8- A B3
C 8175 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 8- A B3
C 8176 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 8- B a2
C 8177 CHIP CAP. 12pF 50V CH GRM1552C1H120JZ01D K22178214 8- B a2
C 8178 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 8- B a2
C 8179 CHIP CAP. 22pF 50V CH UMK105CH220JV-F K22178266 8- B a1
C 8180 CHIP CAP. 100pF 50V CH UMK105CH101JV-F K22178282 8- B a1
C 8181 CHIP CAP. 0.22uF 10V B GRM155B31A224KE18D K22108808 8- A B4
C 8182 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 8- B a2
C 8183 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 8- A B2
C 8184 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 8- A B2
C 8185 CHIP CAP. 0.22uF 10V B GRM155B31A224KE18D K22108808 8- A B2
C 8186 CHIP CAP. 15pF 50V CH UMK105CH150JV-F K22178262 8- A B2
C 8187 CHIP CAP. 18pF 50V CH GRM1552C1H180JZ01D K22178218 8- A A 2
C 8188 CHIP CAP. 0.1uF 10V B GRM155B11A104KA01D K22108802 8- B b2
C 8189 CHIP CAP. 0.001uF 50 V B GRM155B11H102KA01D K22178809 8- B b3
C 8190 CHIP CAP. 0.001uF 50 V B GRM155B11H102KA01D K22178809 8- A A2
C 8191 CHIP CAP. 0.001uF 50 V B GRM155B11H102KA01D K22178809 8- B c2
C 8192 CHIP CAP. 10pF 50V CH UMK105CH100DV-F K22178258 8- A B2
C 8193 CHIP CAP. 100pF 50V CH UMK105CH101JV-F K22178282 8- A B2
C 8194 CHIP CAP. 0.001uF 50 V B GRM155B11H102KA01D K22178809 8- A B3
C 8195 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 8- A B3
C 8196 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 8- A B2
C 8197 CHIP CAP. 0.001uF 50 V B GRM155B11H102KA01D K22178809 8- A B3
C 8198 CHIP CAP. 470pF 50V B UMK105B471KW-F K22178825 8- A B3
C 8199 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 8- B a2
C 8200 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 8- B a2
C 8201 CHIP CAP. 4.7uF 4V BJ AMK105BJ475MV-F K22068801 8- B b2
C 8202 CHIP CAP. 4.7uF 4V BJ AMK105BJ475MV-F K22068801 8- A A4
C 8203 CHIP CAP. 10pF 50V CH UMK105CH100DV-F K22178258 8- A C3
C 8204 CHIP CAP. 0.047uF 10 V B GRM155B11A473KA01D K22108801 8- A C3
C 8205 CHIP CAP. 4.7uF 4V BJ AMK105BJ475MV-F K22068801 8- A C3
C 8206 CHIP CAP. 4.7uF 4V BJ AMK105BJ475MV-F K22068801 8- A C3
C 8207 CHIP CAP. 1u F 6.3V B GRM155B30J105KE18D K22088803 8- B c2
C 8208 CHIP CAP. 0.001uF 50 V B GRM155B11H102KA01D K22178809 8- B c2
C 8209 CHIP CAP. 0.001uF 50 V B GRM155B11H102KA01D K22178809 8- A A2
C 8210 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 8- A A 2
C 8211 CHIP TA.CAP. 4.7uF 6.3V TEESVP0J475M8R K78080053 8- B b2
C 8212 CHIP CAP. 0.001uF 50 V B GRM155B11H102KA01D K22178809 8- B c2
C 8213 CHIP CAP. 0.001uF 50 V B GRM155B11H102KA01D K22178809 8- B c2
C 8214 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 8- A A 3
C 8215 CHIP CAP. 100pF 50V CH GRM1552C1H101JD01D K22178236 8- A A 3
C 8216 CHIP CAP. 100pF 50V CH GRM1552C1H101JD01D K22178236 8- A A 3
C 8217 CHIP CAP. 100pF 50V CH GRM1552C1H101JD01D K22178236 8- A A 3
C 8218 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 8- A B3
C 8219 CHIP CAP. 10pF 50V CH GRM1552C1H100JZ01D K22178212 8- A A 3
C 8220 CHIP CAP. 0.1uF 10V B GRM155B11A104KA01D K22108802 8- A B3
C 8221 CHIP CAP. 0.001uF 50 V B GRM155B11H102KA01D K22178809 8- A C2
C 8222 CHIP CAP. 1u F 6.3V B GRM155B30J105KE18D K22088803 8- A B3
C 8222 CHIP CAP. 4.7uF 4V BJ AMK105BJ475MV-F K22068801 24- A B3
C 8223 CHIP CAP. 220pF 25V CH TMK105CH221JV-F K22148246 8- A B3
C 8224 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 8- A A 4
C 8225 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 8-23 A B3
C 8226 CHIP CAP. 470pF 50V B UMK105B471KW-F K22178825 8- B b4
C 8227 CHIP CAP. 470pF 50V B UMK105B471KW-F K22178825 8- B b4
C 8228 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 8- A A 4
C 8229 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 8- A B4
C 8230 CHIP CAP. 0.1uF 10V B GRM155B11A104KA01D K22108802 8- A B4
C 8231 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 8- A B4
C 8232 CHIP CAP. 0.1uF 10V B GRM155B11A104KA01D K22108802 8- A B4
56
DESCRIPTION
VALUE V/W TOL. VXSTD P/NMFR’S DESIG VERS.
VX-8R/E and VX-8DR Technical Supplement
LOT.
SIDE
LAY ADR.
Page 57
RF-2 Unit (Lot.8~)
REF.
C 8233 CHIP CAP. 100pF 50V CH GRM1552C1H101JD01D K22178236 8- A B4
C 8234 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 8- B c 4
C 8235 CHIP CAP. 470pF 50V B UMK105B471KW-F K22178825 8- A C3
C 8237 CHIP CAP. 470pF 50V B UMK105B471KW-F K22178825 8- A C3
C 8238 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 8- A C3
C 8239 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 8- A C3
C 8240 CHIP CAP. 0.1uF 10V B GRM155B11A104KA01D K22108802 8- A C3
C 8241 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 8- A C3
C 8242 CHIP CAP. 0.1uF 10V B GRM155B11A104KA01D K22108802 8- A C3
C 8243 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 8- B b2
C 8244 CHIP CAP. 8p F 50 V CH GRM1552C1H8R0DZ01D K22178210 8- A A 2
C 8245 CHIP CAP. 33pF 50V CH GRM1552C1H330JZ01D K22178224 AUSTRALIA 8- A A 2
C 8245 CHIP CAP. 33pF 50V CH GRM1552C1H330JZ01D K22178224 EUROPE 8- A A 2
C 8245 CHIP CAP. 33pF 50V CH GRM1552C1H330JZ01D K22178224 EXPORT 8 - A A 2
C 8245 CHIP CAP. 33pF 50V CH GRM1552C1H330JZ01D K22178224 USA 8- A A 2
C 8246 CHIP CAP. 15pF 50V CH UMK105CH150JV-F K22178262 8- A A 2
C 8247 CHIP CAP. 22pF 50V CH GRM1552C1H220JZ01D K22178220 AUSTRALIA 8- A A 2
C 8247 CHIP CAP. 22pF 50V CH GRM1552C1H220JZ01D K22178220 EUROPE 8- A A 2
C 8247 CHIP CAP. 22pF 50V CH GRM1552C1H220JZ01D K22178220 EXPORT 8 - A A 2
C 8247 CHIP CAP. 22pF 50V CH GRM1552C1H220JZ01D K22178220 USA 8- A A 2
C 8248 CHIP CAP. 1u F 6.3V B GRM155B30J105KE18D K22088803 8- B c2
C 8249 CHIP CAP. 47pF 50V CH GRM1552C1H470JZ01D K22178228 8- A A 2
C 8250 CHIP CAP. 0.001uF 50 V B GRM155B11H102KA01D K22178809 8- A A2
C 8251 CHIP CAP. 0.001uF 50 V B GRM155B11H102KA01D K22178809 8- B c2
C 8252 CHIP CAP. 120pF 50V CH UMK105CH121JV-F K22178284 8- B c 2
C 8253 CHIP CAP. 7p F 50 V CH UMK105CH070DV-F K22178255 8- A A 3
C 8254 CHIP CAP. 15pF 50V CH UMK105CH150JV-F K22178262 8- A A 3
C 8255 CHIP CAP. 0.001uF 50 V B GRM155B11H102KA01D K22178809 8- A A3
C 8256 CHIP CAP. 0.0047uF 5 0V B GRM155B11H472KA01D K22178838 8- B b4
C 8257 CHIP CAP. 0.0056uF 2 5V B GRM155B11E562KA01D K22148802 8- B b4
C 8258 CHIP CAP. 0.001uF 50 V B GRM155B11H102KA01D K22178809 8- B b4
C 8259 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 8- A B3
C 8260 CHIP CAP. 0.1uF 10V B GRM155B11A104KA01D K22108802 8- B b4
C 8261 CHIP CAP. 0.047uF 10 V B GRM155B11A473KA01D K22108801 8- A A 4
C 8262 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 8- B b4
C 8263 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 8- B b4
C 8264 CHIP CAP. 0.022uF 16 V B EMK105B223KW-F K22128813 8- B b4
C 8265 CHIP CAP. 0.0039uF 5 0V B UMK105B392KW-F K22178836 8- B b4
C 8266 CHIP CAP. 0.0056uF 2 5V B GRM155B11E562KA01D K22148802 8- A C3
C 8267 CHIP CAP. 0.001uF 50 V B GRM155B11H102KA01D K22178809 8- B a3
C 8269 CHIP CAP. 0.0022uF 5 0V B GRM155B11H222KA01D K22178813 8- A B4
C 8270 CHIP CAP. 0.1uF 10V B GRM155B11A104KA01D K22108802 8- B a3
C 8271 CHIP CAP. 0.0047uF 5 0V B GRM155B11H472KA01D K22178838 8- A C3
C 8272 CHIP CAP. 0.1uF 10V B GRM155B11A104KA01D K22108802 8- B a3
C 8273 CHIP CAP. 0.001uF 50 V B GRM155B11H102KA01D K22178809 8- A C3
C 8274 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 8- B a3
C 8275 CHIP CAP. 100pF 50V CH GRM1552C1H101JD01D K22178236 8- A C3
C 8277 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 8- B b2
C 8279 CHIP TA.CAP. 10uF 10V TEESVP1A106M8R K78100074 8- B a2
C 8280 CHIP CAP. 56pF 50V CH UMK105CH560JV-F K22178276 8- B c2
C 8282 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 8- A A 2
C 8283 CHIP CAP. 0.001uF 50 V B GRM155B11H102KA01D K22178809 8- A A2
C 8285 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 8- B c 2
C 8286 CHIP CAP. 0.047uF 10 V B GRM155B11A473KA01D K22108801 8- A A 1
C 8287 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 8- B c 2
C 8288 CHIP CAP. 0.33uF 6.3V B GRM155B10J334KE01D K22088801 8- A A 3
C 8289 CHIP TA.CAP. 22uF 6.3V TEESVP0J226M-8R K78080082 24- A A3
C 8290 CHIP TA.CAP. 0.1uF 20V SKF-1D104M-RP K78130049 8- A A3
C 8291 CHIP TA.CAP. 0.1uF 20V SKF-1D104M-RP K78130049 8- A A3
C 8292 CHIP TA.CAP. 0.1uF 20V SKF-1D104M-RP K78130049 8- A A3
DESCRIPTION
VALUE V/W TOL. VXSTD P/NMFR’S DESIG VERS.
LOT.
SIDE
LAY ADR.
VX-8R/E and VX-8DR Technical Supplement
57
Page 58
RF-2 Unit (Lot.8~)
REF.
C 8293 CHIP CAP. 0.1uF 10V B GRM155B11A104KA01D K22108802 8- B b4
C 8294 CHIP CAP. 0.0022uF 5 0V B UMK105B222KW-F K22178833 8- B b4
C 8295 CHIP CAP. 0.1uF 10V B GRM155B11A104KA01D K22108802 8- B b4
C 8296 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 8- B b4
C 8297 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 8- B b4
C 8298 CHIP CAP. 0.047uF 10 V B GRM155B11A473KA01D K22108801 8- B b4
C 8299 CHIP CAP. 0.0022uF 5 0V B UMK105B222KW-F K22178833 8- B a3
C 8300 CHIP CAP. 0.033uF 10 V B GRM155B11A333KA01D K22108803 8- B a3
C 8301 CHIP CAP. 0.1uF 10V B GRM155B11A104KA01D K22108802 8- B a3
C 8302 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 8- B a3
C 8303 CHIP CAP. 0.047uF 10 V B GRM155B11A473KA01D K22108801 8- B a3
C 8304 CHIP CAP. 12pF 50V CH GRM1552C1H120JZ01D K22178214 8- A A 2
C 8305 CHIP CAP. 15pF 50V CH UMK105CH150JV-F K22178262 8- A A 1
C 8306 CHIP CAP. 11pF 50V CH GRM1552C1H110JZ01D K22178213 8- A A 2
C 8307 CHIP CAP. 1.5pF 50 V CK GRM1554C1H1R5BZ01D K22178288 8- B c1
C 8308 CHIP CAP. 1p F 50 V CK GRM1554C1H1R0BZ01D K22178287 8- A A1
C 8309 CHIP CAP. 0.5pF 50 V CK GRM1554C1HR50BZ01D K22178285 8- B c1
C 8310 CHIP CAP. 75pF 50V CH GRM1882C1H750JZ01D K22174232 8- B b2
C 8312 CHIP CAP. 0.001uF 50 V B GRM155B11H102KA01D K22178809 8- A A1
C 8313 CHIP CAP. 47pF 50V CH GRM1552C1H470JZ01D K22178228 8- B c2
C 8314 CHIP CAP. 2p F 50 V CK UMK105CK020CV-F K22178250 8- A A1
C 8315 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 8- B b2
C 8316 CHIP CAP. 0.001uF 50 V B GRM155B11H102KA01D K22178809 8- B c1
C 8317 CHIP CAP. 0.001uF 50 V B GRM155B11H102KA01D K22178809 8- A A3
C 8318 CHIP CAP. 0.047uF 10 V B GRM155B11A473KA01D K22108801 8- A A 3
C 8319 CHIP CAP. 0.033uF 10 V B GRM155B11A333KA01D K22108803 8- A A 3
C 8320 CHIP CAP. 4.7uF 4V BJ AMK105BJ475MV-F K22068801 8- A A3
C 8321 CHIP CAP. 0.001uF 50 V B GRM155B11H102KA01D K22178809 8- B b4
C 8322 CHIP CAP. 0.001uF 50 V B GRM155B11H102KA01D K22178809 8- B a3
C 8323 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 8- B a3
C 8324 CHIP CAP. 0.001uF 50 V B GRM155B11H102KA01D K22178809 8- A A1
C 8325 CHIP CAP. 0.001uF 50 V B GRM155B11H102KA01D K22178809 8- A A1
C 8326 CHIP CAP. 1p F 50 V CK UMK105CK010CV-F K22178248 8- A A1
C 8328 CHIP CAP. 15pF 50V CH UMK105CH150JV-F K22178262 W/ CE LABEL 8 B c 1
C 8328 CHIP CAP. 12pF 50V CH GRM1552C1H120JZ01D K22178214 W/ CE LABEL 9- B c1
C 8328 CHIP CAP. 22pF 50V CH GRM1552C1H220JZ01D K22178220 W/O CE LABEL 8- B c 1
C 8329 CHIP TA.CAP. 68uF 10V TEESVB21A686M8R K78100090 13- A C3
C 8330 CHIP CAP. 0.001uF 50 V B GRM155B11H102KA01D K22178809 8- A A1
C 8331 CHIP CAP. 15pF 50V CH UMK105CH150JV-F K22178262 1-7 B c1
C 8331 CHIP CAP. 22pF 50V CH GRM1552C1H220JZ01D K22178220 W/ CE LABEL 8- B c1
C 8331 CHIP CAP. 15pF 50V CH UMK105CH150JV-F K22178262 W/O CE LABEL 8- B c 1
C 8332 CHIP CAP. 39pF 50V CH UMK105CH390JV-F K22178272 8- B c1
C 8333 CHIP CAP. 10pF 50V CH GRM1552C1H100JZ01D K22178212 8- B b1
C 8335 CHIP CAP. 0.001uF 50 V B GRM155B11H102KA01D K22178809 8- B b1
C 8336 CHIP CAP. 3p F 50 V CJ UMK105CJ030CV-F K22178251 8- A A2
C 8337 CHIP CAP. 0.001uF 50 V B GRM155B11H102KA01D K22178809 8- B c1
C 8338 CHIP CAP. 15pF 50V CH GRM1552C1H150JZ01D K22178216 8- A A 1
C 8339 CHIP CAP. 150pF 50V CH GRM1552C1H151JA01D K22178240 8 - A A1
C 8340 CHIP CAP. 220pF 50V B GRM155B11H221KA01D K22178801 8- A A 1
C 8341 CHIP CAP. 0.001uF 50 V B GRM155B11H102KA01D K22178809 8- A B1
C 8343 CHIP CAP. 0.001uF 50 V B GRM155B11H102KA01D K22178809 8- A A1
C 8344 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 8- A B1
C 8345 CHIP CAP. 4.7uF 4V BJ AMK105BJ475MV-F K22068801 8- A A3
C 8346 CHIP CAP. 4.7uF 4V BJ AMK105BJ475MV-F K22068801 8- A A3
C 8347 CHIP CAP. 0.001uF 50 V B GRM155B11H102KA01D K22178809 8- A B3
C 8348 CHIP TA.CAP. 47uF 4 V TEESVP0G476M8R K78060050 8 - A C2
C 8349 CHIP CAP. 4.7uF 4V BJ AMK105BJ475MV-F K22068801 8- A A3
C 8350 CHIP CAP. 0.001uF 50 V B GRM155B11H102KA01D K22178809 8- A A3
C 8351 CHIP TA.CAP. 10uF 6.3V TEESVP0J106M8R K78080055 8- A B4
C 8352 CHIP CAP. 0.001uF 50 V B GRM155B11H102KA01D K22178809 8- A B4
58
DESCRIPTION
VALUE V/W TOL. VXSTD P/NMFR’S DESIG VERS.
VX-8R/E and VX-8DR Technical Supplement
LOT.
SIDE
LAY ADR.
Page 59
RF-2 Unit (Lot.8~)
REF.
C 8353 CHIP TA.CAP. 47uF 4 V TEESVP0G476M8R K78060050 8 - A B4
C 8354 CHIP CAP. 0.001uF 50 V B GRM155B11H102KA01D K22178809 8- B b2
C 8355 CHIP CAP. 0.001uF 50 V B GRM155B11H102KA01D K22178809 8- B b2
C 8356 CHIP CAP. 0.1uF 10V B GRM155B11A104KA01D K22108802 8- B b4
C 8357 CHIP CAP. 0.1uF 10V B GRM155B11A104KA01D K22108802 8- B a3
C 8358 CHIP CAP. 0.0068uF 2 5V B GRM155B11E682KA01D K22148803 8- B b4
C 8359 CHIP CAP. 0.0068uF 2 5V B GRM155B11E682KA01D K22148803 8- B a3
C 8360 CHIP CAP. 0.5pF 50 V CK GRM1554C1HR50BZ01D K22178285 8- A A1
C 8362 CHIP CAP. 0.5pF 50 V CK GRM1554C1HR50BZ01D K22178285 8- A A1
C 8363 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 8- B c 1
C 8364 CHIP CAP. 4.7uF 4V BJ AMK105BJ475MV-F K22068801 8- B a3
C 8365 CHIP CAP. 12pF 50V CH GRM1552C1H120JZ01D K22178214 8- A A 1
C 8366 CHIP CAP. 1p F 50 V CK UMK105CK010CV-F K22178248 8- A A1
C 8367 CHIP CAP. 18pF 50V CH GRM1552C1H180JZ01D K22178218 8- B c1
C 8369 CHIP CAP. 100pF 50V CH UMK105CH101JV-F K22178282 8- A A 1
C 8370 CHIP CAP. 18pF 50V CH GRM1552C1H180JZ01D K22178218 8- B c1
C 8371 CHIP CAP. 10pF 50V CH GRM1552C1H100JZ01D K22178212 8- B c1
C 8372 CHIP CAP. 5p F 50 V CH GRM1552C1H5R0CZ01D K22178207 8- A A 1
C 8373 CHIP CAP. 100pF 50V CH UMK105CH101JV-F K22178282 8- A A 1
C 8374 CHIP CAP. 12pF 50V CH GRM1552C1H120JZ01D K22178214 8- B c1
C 8375 CHIP CAP. 0.001uF 50 V B GRM155B11H102KA01D K22178809 8- B c1
C 8376 CHIP CAP. 18pF 50V CH GRM1552C1H180JZ01D K22178218 8- A A 1
C 8377 CHIP CAP. 0.1uF 10V B GRM155B11A104KA01D K22108802 8- A A 1
C 8379 CHIP CAP. 120pF 50V CH GRM1552C1H121JA01D K22178238 8 - A A1
C 8380 CHIP CAP. 0.001uF 50 V B GRM155B11H102KA01D K22178809 8- B c1
C 8381 CHIP CAP. 30pF 50V CH GRM1552C1H300JZ01D K22178223 8- A A 1
C 8383 CHIP CAP. 180pF 50V CH GRM1552C1H181JA01D K22179711 8 - A A1
C 8384 CHIP CAP. 18pF 50V CH GRM1552C1H180JZ01D K22178218 W/ CE LABEL 8- A A 1
C 8384 CHIP CAP. 12pF 50V CH GRM1552C1H120JZ01D K22178214 W/O CE LABEL 8- A A 1
C 8385 CHIP CAP. 2p F 50 V CK GRM1554C1H2R0CZ01D K22178204 8- A A2
C 8386 CHIP CAP. 0.001uF 50 V B GRM155B11H102KA01D K22178809 8- A B3
C 8387 CHIP CAP. 0.001uF 50 V B GRM155B11H102KA01D K22178809 8- A B3
C 8388 CHIP CAP. 0.001uF 50 V B GRM155B11H102KA01D K22178809 8- A C2
C 8389 CHIP CAP. 0.001uF 50 V B GRM155B11H102KA01D K22178809 8- A C2
C 8390 CHIP CAP. 0.001uF 50 V B GRM155B11H102KA01D K22178809 8- A C2
C 8391 CHIP CAP. 0.001uF 50 V B GRM155B11H102KA01D K22178809 8- A C1
C 8392 CHIP TA.CAP. 10uF 6.3V TEESVP0J106M8R K78080055 8- A C1
C 8393 CHIP CAP. 0.0012uF 5 0V B GRM155B11H122KA01 K22178810 10- B b4
C 8394 CHIP CAP. 820pF 50V B GRM155B11H821KA01D K22178808 8- B b4
C 8395 CHIP CAP. 820pF 50V B GRM155B11H821KA01D K22178808 8- B a3
C 8396 CHIP CAP. 820pF 50V B GRM155B11H821KA01D K22178808 8- B b4
C 8397 CHIP CAP. 820pF 50V B GRM155B11H821KA01D K22178808 8- B a3
C 8398 CHIP CAP. 4.7uF 4V BJ AMK105BJ475MV-F K22068801 8- B b4
C 8399 CHIP CAP. 4.7uF 4V BJ AMK105BJ475MV-F K22068801 8- B a3
C 8400 CHIP CAP. 0.001uF 50 V B GRM155B11H102KA01D K22178809 8- B a3
C 8401 CHIP CAP. 18pF 50V CH GRM1552C1H180JZ01D K22178218 8- A A 1
C 8402 CHIP CAP. 0.5pF 50 V CK GRM1554C1HR50BZ01D K22178285 8- A A1
C 8403 CHIP CAP. 47pF 50V CH GRM1552C1H470JZ01D K22178228 8- B c1
C 8404 CHIP CAP. 7p F 50 V CH UMK105CH070DV-F K22178255 8- A A 1
C 8405 CHIP CAP. 39pF 50V CH GRM1552C1H390JZ01D K22178226 8- B c1
C 8406 CHIP CAP. 22pF 50V CH GRM1552C1H220JZ01D K22178220 W/ CE LABEL 8 A A 1
C 8406 CHIP CAP. 18pF 50V CH GRM1552C1H180JZ01D K22178218 W/ CE LABEL 9- A A 1
C 8406 CHIP CAP. 15pF 50V CH UMK105CH150JV-F K22178262 W/O CE LABEL 8- A A 1
C 8407 CHIP CAP. 0.1uF 10V B GRM155B11A104KA01D K22108802 8- B c 3
C 8408 CHIP CAP. 1u F 6.3V B GRM155B30J105KE18D K22088803 8- B c3
C 8409 CHIP CAP. 0.001uF 50 V B GRM155B11H102KA01D K22178809 8- B c3
C 8410 CHIP CAP. 0.022uF 16 V B GRM155B11C223KA01D K22128806 8- B c3
C 8411 CHIP TA.CAP. 47uF 4 V TEESVP0G476M8R K78060050 8 - B c3
C 8412 CHIP CAP. 0.001uF 50 V B GRM155B11H102KA01D K22178809 8- B b2
C 8413 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 8- B a3
DESCRIPTION
VALUE V/W TOL. VXSTD P/NMFR’S DESIG VERS.
LOT.
SIDE
LAY ADR.
VX-8R/E and VX-8DR Technical Supplement
59
Page 60
RF-2 Unit (Lot.8~)
REF.
C 8414 AL.ELECTRO.CAP. 10uF 16V RV4-16V100MD46-RR2 K48120018 8- A C2
C 8415 CHIP CAP. 0.001uF 50 V B GRM155B11H102KA01D K22178809 8- B b1
C 8416 CHIP CAP. 3p F 50 V CJ UMK105CJ030CV-F K22178251 AUSTRALIA 8- A A 2
C 8416 CHIP CAP. 3p F 50 V CJ UMK105CJ030CV-F K22178251 EUROPE 8 - A A 2
C 8416 CHIP CAP. 3p F 50 V CJ UMK105CJ030CV-F K22178251 EXPORT 8 - A A 2
C 8416 CHIP CAP. 3p F 50 V CJ UMK105CJ030CV-F K22178251 USA 8- A A2
C 8417 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 8- B b4
C 8418 CHIP CAP. 4.7uF 4V BJ AMK105BJ475MV-F K22068801 8- A B1
C 8419 CHIP CAP. 4.7uF 4V BJ AMK105BJ475MV-F K22068801 8- A B1
C 8420 CHIP CAP. 10pF 50V CH GRM1552C1H100JZ01D K22178212 8- A B3
C 8421 CHIP CAP. 220pF 50V CH GRM1552C1H221JA01D K22179713 8 - A A4
C 8422 CHIP CAP. 0.1uF 10V B GRM155B11A104KA01D K22108802 8- B b4
C 8423 CHIP CAP. 0.1uF 10V B GRM155B11A104KA01D K22108802 8- B a3
C 8424 CHIP CAP. 4p F 50 V CH UMK105CH040CV-F K22178252 8- A A 2
C 8425 CHIP CAP. 56pF 50V CH GRM1552C1H560JD01D K22178230 8- A A 2
C 8426 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 8- B b1
C 8427 CHIP CAP. 10pF 50V CH GRM1552C1H100JZ01D K22178212 8- B b1
C 8428 CHIP CAP. 0.001uF 50 V B GRM155B11H102KA01D K22178809 8- B b1
C 8429 CHIP CAP. 100pF 50V CH GRM1552C1H101JD01D K22178236 8- A B1
C 8431 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 8- A B1
C 8432 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 8- A B1
C 8434 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 8- B c 3
C 8435 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 8- A A 3
C 8436 CHIP CAP. 10pF 50V CH GRM1552C1H100JZ01D K22178212 8 A B1
C 8436 CHIP CAP. 5p F 50 V CH UMK105CH050CV-F K22178253 W/ CE LABEL 9 - A B1
C 8436 CHIP CAP. 10pF 50V CH GRM1552C1H100JZ01D K22178212 W/O CE LABEL 9- A B1
C 8437 CHIP CAP. 8p F 50 V CH GRM1552C1H8R0DZ01D K22178210 W/ CE LABEL 9 - B b2
C 8441 CHIP CAP. 15pF 50V CH UMK105CH150JV-F K22178262 W/ CE LABEL 9- A B2
C 8442 CHIP CAP. 5p F 50 V CH GRM1552C1H5R0CZ01D K22178207 8 B b2
C 8442 CHIP CAP. 7p F 50 V CH UMK105CH070DV-F K22178255 W/ CE LABEL 9 - B b2
C 8442 CHIP CAP. 5p F 50 V CH GRM1552C1H5R0CZ01D K22178207 W/O CE LABEL 9- B b2
C 8443 CHIP CAP. 5p F 50 V CH GRM1552C1H5R0CZ01D K22178207 8- B b2
C 8444 CHIP CAP. 0.001uF 50 V B GRM155B11H102KA01D K22178809 8- A B3
C 8445 CHIP CAP. 0.001uF 50 V B GRM155B11H102KA01D K22178809 8- A A3
C 8446 CHIP CAP. 0.001uF 50 V B GRM155B11H102KA01D K22178809 8- A A3
C 8448 CHIP CAP. 33pF 50V CH UMK105CH330JV-F K22178270 8- A C3
C 8449 CHIP CAP. 100pF 50V CH GRM1552C1H101JD01D K22178236 8- A B3
C 8449 CHIP CAP. 22pF 50V CH UMK105CH220JV-F K22178266 24- A B3
C 8450 CHIP CAP. 33pF 50V CH UMK105CH330JV-F K22178270 8- A A 3
C 8450 CHIP CAP. 3p F 50 V CJ UMK105CJ030CV-F K22178251 24- A A3
C 8451 CHIP CAP. 470pF 50V B UMK105B471KW-F K22178825 8- A A3
C 8451 CHIP CAP. 100pF 50V CH GRM1552C1H101JD01D K22178236 24- A A3
C 8452 CHIP CAP. 0.1uF 10V B GRM155B11A104KA01D K22108802 8- B c 4
C 8453 CHIP CAP. 10pF 50V CH UMK105CH100DV-F K22178258 8- B c3
C 8455 CHIP CAP. 4.7uF 4V BJ AMK105BJ475MV-F K22068801 8- A B1
C 8456 CHIP CAP. 4.7uF 4V BJ AMK105BJ475MV-F K22068801 8- A B1
C 8457 CHIP TA.CAP. 47uF 4 V TEESVP0G476M8R K78060050 8 - B a2
C 8458 CHIP CAP. 0.22uF 10V B GRM155B31A224KE18D K22108808 8- A C2
C 8459 CHIP CAP. 1u F 6.3V B GRM155B30J105KE18D K22088803 8- A B4
C 8460 CHIP CAP. 0.001uF 50 V B GRM155B11H102KA01D K22178809 8- A A2
C 8462 CHIP CAP. 0.001uF 50 V B GRM155B11H102KA01D K22178809 8- B a3
C 8464 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 8- B a3
C 8466 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 8- B b2
C 8467 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 8- B c 4
C 8468 CHIP CAP. 0.001uF 50 V B GRM155B11H102KA01D K22178809 8- B c4
C 8469 CHIP CAP. 0.001uF 50 V B GRM155B11H102KA01D K22178809 8- B c4
C 8471 CHIP CAP. 100pF 50V CH UMK105CH101JV-F K22178282 8- A B1
C 8471 CHIP CAP. 100pF 50V CH GRM1552C1H101JD01D K22178236 16- A B1
C 8472 CHIP CAP. 100pF 50V CH GRM1882C1H101JA01D K22174235 8 - B a2
C 8472 CHIP CAP. 100pF 50V CH GRM1552C1H101JD01D K22178236 16- B a2
60
DESCRIPTION
VALUE V/W TOL. VXSTD P/NMFR’S DESIG VERS.
VX-8R/E and VX-8DR Technical Supplement
LOT.
SIDE
LAY ADR.
Page 61
RF-2 Unit (Lot.8~)
REF.
C 8473 CHIP CAP. 1u F 6.3V B GRM155B30J105KE18D K22088803 8- A C4
C 8474 CHIP TA.CAP. 47uF 4 V TEESVP0G476M8R K78060050 16- A C2
C 8475 CHIP CAP. 0.001uF 50 V B GRM155B11H102KA01D K22178809 16- B c2
C 8476 CHIP CAP. 0.001uF 50 V B GRM155B11H102KA01D K22178809 16- B b2
C 8477 CHIP CAP. 0.001uF 50 V B GRM155B11H102KA01D K22178809 16- B b2
C 8478 CHIP CAP. 0.001uF 50 V B GRM155B11H102KA01D K22178809 16- B b2
C 8479 CHIP CAP. 0.001uF 50 V B GRM155B11H102KA01D K22178809 9- B b2
C 8481 CHIP CAP. 56pF 50V CH UMK105CH560JV-F K22178276 W/ CE LABEL 9- A C3
C 8482 CHIP CAP. 100pF 50V CH GRM1552C1H101JD01D K22178236 W/ CE LABEL 9 - A B2
C 8483 CHIP CAP. 68pF 50V CH UMK105CH680JV-F K22178278 W/ CE LABEL 9- A B1
C 8484 CHIP CAP. 0.001uF 50 V B GRM155B11H102KA01D K22178809 W/ CE LABEL 9- A B1
C 8485 CHIP CAP. 100pF 50V CH GRM1552C1H101JD01D K22178236 W/ CE LABEL 9 - A B2
C 8486 CHIP TA.CAP. 4.7uF 6.3V TEESVP0J475M8R K78080053 24- A A3
CD8001 CERAMIC DISC CDBLB450KCAY07-B0 H7900930 8CD8002 CERAMIC DISC CDBLB450KCAY07-B0 H7900930 8CF8001 CERAMIC FILTER SFECF10M7GA00-R0 H3900577 8- B a2
CF8002 CERAMIC FILTER ELFC450F H3900552 8 - A A4
CF8003 CERAMIC FILTER ELFC450E H3900564 8 - A C3
D 8001 DIODE RB751G-40T2R G2071066 8- A C2
D 8002 DIODE 1SS362(TE85R.F) G2070268 8- A A1
D 8003 DIODE 1SS362(TE85R.F) G2070268 8- B b1
D 8004 DIODE RB070M-30TR G2071256 8- A B1
D 8005 DIODE 1SS385FV(TPL3.Z) G2071246 8- A B2
D 8008 DIODE 1SS400G T2R G2070934 8- A A 1
D 8010 DIODE DAN222M T2L G2070936 8- B c 3
D 8011 DIODE M1FM3-6063 G2071090 8- A C2
D 8012 DIODE JDP2S04E(TAPE) G2071180 8- A B2
D 8013 DIODE HVD358B KRF-E G2070950 8- A B2
D 8014 DIODE HVD358B KRF-E G2070950 8- A B2
D 8015 DIODE JDP2S04E(TAPE) G2071180 8- A B2
D 8016 DIODE HVD358B KRF-E G2070950 8- A B2
D 8017 DIODE 1SV325(TPH3.F) G2070848 8- B b1
D 8018 DIODE 1SV325(TPH3.F) G2070848 8- B b1
D 8019 DIODE HVD358B KRF-E G2070950 8- A B2
D 8020 DIODE 1SV308(TAPE) G2071202 8- B b1
D 8021 DIODE 1SV308(TAPE) G2071202 8- B b1
D 8022 DIODE 1SV325(TPH3.F) G2070848 8- B b1
D 8023 DIODE 1SV325(TPH3.F) G2070848 8- B b1
D 8025 DIODE DAN222M T2L G2070936 8- A B1
D 8026 DIODE 1SV331(TPH3.F) G2071044 8- A C1
D 8027 DIODE 1SV331(TPH3.F) G2071044 8- A C1
D 8028 DIODE HVD358B KRF-E G2070950 8- A B2
D 8029 DIODE JDV2S07FS(TPL3.F) G2071242 8 - B b1
D 8030 DIODE JDV2S07FS(TPL3.F) G2071242 8 - B b1
D 8031 DIODE HVD358B KRF-E G2070950 8- A B2
D 8032 DIODE JDV2S07FS(TPL3.F) G2071242 8 - B b1
D 8033 DIODE 1SV325(TPH3.F) G2070848 8- B b1
D 8034 DIODE 1SV325(TPH3.F) G2070848 8- B b1
D 8035 DIODE 1SV325(TPH3.F) G2070848 8- B b1
D 8036 DIODE 1SV325(TPH3.F) G2070848 8- B b1
D 8037 DIODE JDV2S07FS(TPL3.F) G2071242 8 - B b1
D 8038 DIODE 1SV308(TAPE) G2071202 8- A B1
D 8039 DIODE 1SV325(TPH3.F) G2070848 8- A B1
D 8040 DIODE 1SV308(TAPE) G2071202 8- A B1
D 8041 DIODE 1SV325(TPH3.F) G2070848 8- A B1
D 8042 DIODE JDP2S04E(TAPE) G2071180 8- B c 4
D 8043 DIODE HVD358B KRF-E G2070950 8- A B2
D 8044 DIODE 1SV325(TPH3.F) G2070848 8- B a1
D 8045 DIODE 1SV325(TPH3.F) G2070848 8- B a1
D 8046 DIODE HVD358B KRF-E G2070950 8- A B2
DESCRIPTION
VALUE V/W TOL. VXSTD P/NMFR’S DESIG VERS.
LOT.
SIDE
LAY ADR.
VX-8R/E and VX-8DR Technical Supplement
61
Page 62
RF-2 Unit (Lot.8~)
REF.
D 8047 DIODE 1SV325(TPH3.F) G2070848 8- B a1
D 8048 DIODE 1SV325(TPH3.F) G2070848 8- B a1
D 8049 DIODE 1SV325(TPH3.F) G2070848 8- A B1
D 8050 DIODE DAN222M T2L G2070936 8- A B1
D 8051 DIODE 1SV325(TPH3.F) G2070848 8- A B1
D 8052 DIODE 1SS400G T2R G2070934 8- A B1
D 8053 DIODE 1SS400G T2R G2070934 8- A B2
D 8054 DIODE 1SS400G T2R G2070934 8- A B2
D 8055 DIODE 1SS400G T2R G2070934 8- B a1
D 8056 DIODE 1SS400G T2R G2070934 8- B a1
D 8057 DIODE 1SS385FV(TPL3.Z) G2071246 8- A B1
D 8058 DIODE 1SS400G T2R G2070934 8- A B1
D 8059 DIODE 1SS400G T2R G2070934 8- A B1
D 8060 DIODE DAN222M T2L G2070936 8- A A 2
D 8061 DIODE DAP222M T2L G2070938 8- B a1
D 8062 DIODE DAN222M T2L G2070936 8- A A 2
D 8063 DIODE DA221M T2L G2070940 8- B a2
D 8064 DIODE DA221M T2L G2070940 8- A B2
D 8065 DIODE DAN222M T2L G2070936 8- B a2
D 8067 DIODE DAN222M T2L G2070936 8- A A 4
D 8068 DIODE DAN222M T2L G2070936 8- A A 4
D 8069 DIODE JDS2S03S(TPH3.F) G2071062 8- A A2
D 8070 DIODE RB751G-40T2R G2071066 8- B c 1
D 8071 DIODE RB751G-40T2R G2071066 8- A A 1
D 8072 DIODE DA221M T2L G2070940 8- B b4
D 8073 DIODE DA221M T2L G2070940 8- B b4
D 8074 DIODE DA221M T2L G2070940 8- B a3
D 8075 DIODE DA221M T2L G2070940 8- B a3
D 8076 DIODE DAN222M T2L G2070936 8- B c 2
D 8077 DIODE RB751G-40T2R G2071066 8- A A 1
D 8078 DIODE RB751G-40T2R G2071066 8- A A 1
D 8079 DIODE RLS135 TE-11 G2070128 8- A A 1
D 8080 DIODE 1SS314(TPH3.F) G2070122 8- B c1
D 8081 DIODE 1SV307(TPH3.F) G2070638 8- A A 1
D 8082 DIODE RLS135 TE-11 G2070128 8- B c 1
D 8083 DIODE 1SV307(TPH3.F) G2070638 8- B c 1
D 8084 DIODE RLS135 TE-11 G2070128 8- A B1
D 8085 DIODE 1SV307(TPH3.F) G2070638 8- A B1
D 8086 DIODE DAN222M T2L G2070936 8- A B2
D 8087 DIODE 1SS385(TE85L.F) G2070880 8- A C4
D 8088 DIODE 1SS400G T2R G2070934 8- A B4
D 8089 DIODE 1SV271(TPH3.F) G2070476 8- A A 1
D 8090 DIODE RB751G-40T2R G2071066 8- A A 1
D 8091 DIODE 1SV271(TPH3.F) G2070476 8- A A 1
D 8092 DIODE 1SV271(TPH3.F) G2070476 8- B c 1
D 8093 DIODE 1SV271(TPH3.F) G2070476 8- B c 1
D 8094 DIODE HN2D01FU(TE85R.F) G2070348 8- A A 2
D 8095 DIODE DAN222M T2L G2070936 8- A A 1
D 8097 SURGE ABSORBER EZA EG2A50AX Q9000868 8- A A 1
D 8099 DIODE 1SS400G T2R G2070934 8- B c 1
D 8100 DIODE 1SS385FV(TPL3.Z) G2071246 8- A B1
D 8101 DIODE 1SV308(TAPE) G2071202 8- A B1
D 8156 DIODE HVC359 TRF-E G2070708 8- A A 3
D 8157 DIODE 1SS314(TPH3.F) G2070122 8- A A1
D 8157 DIODE JDS2S03S(TPH3.F) G2071062 8- A A1
FB8001 CHIP COIL BLM21PG300SN1D L1690840 8- A B1
FB8002 CHIP COIL BLM21PG300SN1D L1690840 8- A A 1
FB8003 CHIP COIL BLM21PG300SN1D L1690840 8- A C2
FB8004 CHIP COIL BLM21PG300SN1D L1690840 8- A C2
HS8001 HEATSINK PLATE (H029) RA1014100 8- B c2
62
DESCRIPTION
VALUE V/W TOL. VXSTD P/NMFR’S DESIG VERS.
VX-8R/E and VX-8DR Technical Supplement
LOT.
SIDE
LAY ADR.
Page 63
RF-2 Unit (Lot.8~)
REF.
J 8001 CONNECTOR DC-340-001-00 P0091507 8- A C2
J 8002 CONNECTOR AXK6F10345YP P0091378 8- A B3
J 8003 CONNECTOR AXK6F10345YP P0091378 8- A B2
J 8004 CONNECTOR AXK6S50537YG P0091510 8- A A4
J 8005 CONNECTOR AXK6F10345YP P0091378 8- A A 3
J 8006 CONNECTOR AXK6F10345YP P0091378 8- A A 2
J 8007 SHIELD FINGER OGP-4520 S5000313 16- B b3
L 8001 M.RFC 0.01uH TFL0510-10N L1690811 8- B c1
L 8003 M.RFC 0.0082uH TFL0510-8N2 L1690810 8- B c1
L 8004 M.RFC 0.0047uH TFL0510-4N7 L1690807 8- A B1
L 8006 M.RFC 0.033uH 5% C1005C-33NJ-RF L1691554 8- A A 1
L 8007 M.RFC 0.0068uH 5% C1608CB-6N8J-RF L1691093 8- A B1
L 8008 M.RFC 0.15uH 2% C1608CB-R15G-RF L1691101 8- B b1
L 8009 M.RFC 0.068uH 5% C1005C-68NJ-RF L1691558 W/ CE LABEL 8- B b1
L 8009 M.RFC 0.056uH 5% C1005C-56NJ-RF L1691557 W/O CE LABEL 8- B b1
L 8010 M.RFC 0.15uH 2% C1608CB-R15G-RF L1691101 8- B b1
L 8014 M.RFC 150uH FLC32P-T-151K L1690661 8- A C2
L 8015 M.RFC 0.01uH TFL0510-10N L1690811 8- A C1
L 8016 M.RFC 0.0068uH TFL0510-6N8 L1690809 8- A C1
L 8017 M.RFC 0.01uH 2% C1608CB-10NG-RF L1691032 8- A A 2
L 8018 M.RFC 0.01uH 2% C1608CB-10NG-RF L1691032 8- A B2
L 8019 M.RFC 0.0027uH 5% C1005C-2N7J-RF L1691338 8- A C1
L 8020 M.RFC 0.01uH 2% C1608CB-10NG-RF L1691032 8- A A 2
L 8021 M.RFC 0.01uH 2% C1608CB-10NG-RF L1691032 8- A B2
L 8022 M.RFC 0.01uH 2% C1608CB-10NG-RF L1691032 8- A B2
L 8023 M.RFC 0.01uH 2% C1608CB-10NG-RF L1691032 8- A B2
L 8024 M.RFC 0.082uH 2% C1608CB-82NG-RF L1691044 8- B b1
L 8025 M.RFC 0.082uH 2% C1608CB-82NG-RF L1691044 8- B b1
L 8026 M.RFC 0.082uH 2% C1608CB-82NG-RF L1691044 8- B b1
L 8027 M.RFC 0.082uH 2% C1608CB-82NG-RF L1691044 8- B b1
L 8028 M.RFC 0.33uH 2% C1608CB-R33G-RF L1691106 8- A B1
L 8029 M.RFC 0.33uH 2% C1608CB-R33G-RF L1691106 8- A B1
L 8030 M.RFC 0.0027uH 5% C1005C-2N7J-RF L1691338 8- A C1
L 8031 M.RFC 0.0047uH TFL0510-4N7 L1690807 8- A C2
L 8032 M.RFC 0.01uH 2% C1608CB-10NG-RF L1691032 8- A B2
L 8033 M.RFC 0.01uH 2% C1608CB-10NG-RF L1691032 8- A B2
L 8034 M.RFC 0.082uH 2% C1608CB-82NG-RF L1691044 8- B b1
L 8035 M.RFC 0.082uH 2% C1608CB-82NG-RF L1691044 8- B a1
L 8036 M.RFC 0.33uH 2% C1608CB-R33G-RF L1691106 8- A B1
L 8037 M.RFC 0.33uH 2% C1608CB-R33G-RF L1691106 8- A B1
L 8038 M.RFC 0.022uH TFL0510-22N L1690815 8- A B3
L 8039 M.RFC 0.015uH TFL0510-15N L1690813 8- A B2
L 8040 M.RFC 0.022uH TFL0510-22N L1690815 8- A B2
L 8042 M.RFC 1uH LK1608 1R0K-T L1690687 8- A B3
L 8043 M.RFC 0.47uH LK1608 R47K-T L1690414 8- A B3
L 8044 M.RFC 0.39uH LK1608 R39K-T L1690413 8- B a1
L 8045 M.RFC 0.15uH LK1608 R15K-T L1690409 8- B a1
L 8046 M.RFC 0.33uH LK1608 R33K-T L1690412 8- B a1
L 8047 M.RFC 0.39uH LK1608 R39K-T L1690413 8- A B2
L 8048 M.RFC 0.033uH TFL0510-33N L1690817 AUSTRALIA 8- A A 2
L 8048 M.RFC 0.033uH TFL0510-33N L1690817 EUROPE 8 - A A 2
L 8048 M.RFC 0.033uH TFL0510-33N L1690817 EXPORT 8- A A 2
L 8048 M.RFC 0.033uH TFL0510-33N L1690817 USA 8- A A2
L 8049 M.RFC 0.22uH LK1608 R22K-T L1690410 8- A B2
L 8050 M.RFC 0.012uH TFL0510-12N L1690812 8- A A2
L 8051 M.RFC 0.22uH LK1608 R22K-T L1690410 8- A B3
L 8052 M.RFC 1uH LK1608 1R0K-T L1690687 8- A B3
L 8053 M.RFC 0.33uH LK1608 R33K-T L1690412 8- A B3
L 8054 M.RFC 33uH LK1608 330M-T L1690690 8- A B3
L 8055 M.RFC 0.33uH 2% C1608CB-R33G-RF L1691106 8- B a2
DESCRIPTION
VALUE V/W TOL. VXSTD P/NMFR’S DESIG VERS.
LOT.
SIDE
LAY ADR.
VX-8R/E and VX-8DR Technical Supplement
63
Page 64
RF-2 Unit (Lot.8~)
REF.
L 8056 M.RFC 0.33uH 2% C1608CB-R33G-RF L1691106 8- A B2
L 8057 COIL 0.0336uH F2307C L0023026 AUSTRALIA 8- A A 2
L 8057 COIL 0.0336uH F2307C L0023026 EUROPE 8 - A A 2
L 8057 COIL 0.0336uH F2307C L0023026 EXPORT 8 - A A 2
L 8057 COIL 0.0336uH F2307C L0023026 USA 8- A A 2
L 8058 M.RFC 0.01uH ELJ-RE10NJF2 L1690714 8- A A 2
L 8059 COIL E2 0. 26 -0.8-3T L0023033 8- A A2
L 8060 CHIP COIL 0.022uH 2% LQW18AN22NG00D L1690884 8- A A2
L 8062 M.RFC 0.022uH TFL0510-22N L1690815 8- A A3
L 8063 M.RFC 10uH 2% KQ1008TE100G L1691216 8- A B4
L 8064 M.RFC 0.1uH 2% C1608CB-R10G-RF L1691045 8 - B c2
L 8065 COIL E2 0.25-1.85-8.5T-L L0022576 8- A B2
L 8066 M.RFC 0.22uH LK1608 R22K-T L1690410 8- B c2
L 8067 COIL E2 0.3-0.9-3T-R L0022389 8- A A 2
L 8068 COIL E2 0.4-1.3-2T-L L0022580 8- A A 1
L 8069 COIL E2 0.3-1.0-6T-L L0022490 8- B c1
L 8070 M.RFC 4.7uH LK1608 4R7K-T L1690688 8- A A 1
L 8071 M.RFC 1uH LK1608 1R0K-T L1690687 8- B c2
L 8072 COIL 0.0411uH F2309C L0023028 8- A A1
L 8074 COIL 0.022uH F2305C L0023024 8- A A1
L 8075 M.RFC 4.7uH LK1608 4R7K-T L1690688 8- B b1
L 8076 COIL 0.022uH F2305C L0023024 8- A A1
L 8077 COIL 0.0411uH F2309C L0023028 8- B c1
L 8078 M.RFC 10uH LK1608 100K-T L1690689 8- A B1
L 8079 CHIP COIL 0.15uH LQW2BHNR15J03L L1690622 8- A B1
L 8080 COIL 0.0167uH F2304C L0023023 8- A A1
L 8081 COIL 0.0411uH F2309C L0023028 8- B c1
L 8082 COIL 0.0336uH F2307C L0023026 8- B c1
L 8083 COIL 0.022uH F2305C L0023024 8- A A1
L 8084 COIL E2 0.25-1.85-8.5T-L L0022576 8- A A 1
L 8085 COIL E2 0.25-1.85-8.5T-L L0022576 8- A A 1
L 8086 M.RFC 0.01uH TFL0510-10N L1690811 8- A A2
L 8087 COIL 0.0167uH F2304C L0023023 8- A A1
L 8088 COIL 0.0411uH F2309C L0023028 8- B c1
L 8089 COIL 0.0336uH F2307C L0023026 8- A A1
L 8090 M.RFC 0.022uH TFL0510-22N L1690815 8- A B2
L 8091 M.RFC 0.022uH TFL0510-22N L1690815 8- A B2
L 8092 M.RFC 10uH LK1608 100K-T L1690689 8- A B1
L 8093 M.RFC 0.68uH LK1608 R68K-T L1690416 8- A B1
L 8094 M.RFC 0.68uH LK1608 R68K-T L1690416 8- A B1
L 8095 M.RFC 0.15uH 2% C1608CB-R15G-RF L1691101 8- B b1
L 8096 M.RFC 0.022uH TFL0510-22N L1690815 8- A B2
L 8097 M.RFC 0.01uH TFL0510-10N L1690811 8- B b2
L 8098 M.RFC 0.022uH TFL0510-22N L1690815 8- B b2
P 8001 SPRING CONECTOR MS0038-40 S5000228 8P 8002 SPRING CONECTOR MS0038-40 S5000228 8P 8003 SPRING CONECTOR MS0038-40 S5000228 8Q 8001 TRANSISTOR 2SC5555ZD-TR G3355557 8- A B2
Q 8002 TRANSISTOR 2SC5555ZD-TR G3355557 8- B b1
Q 8003 TRANSISTOR 2SC5555ZD-TR G3355557 8- B c 3
Q 8004 TRANSISTOR DTC144EM T2L G3070309 8- B c3
Q 8005 TRANSISTOR EMB3 T2R G3070303 8- B a4
Q 8006 TRANSISTOR EMB3 T2R G3070303 8- B a4
Q 8007 TRANSISTOR DTC144EM T2L G3070309 8- B a4
Q 8009 TRANSISTOR MT3S36FS(TE85L.F) G3070377 8- A B1
Q 8010 TRANSISTOR MT3S36FS(TE85L.F) G3070377 8- A C1
Q 8011 TRANSISTOR 2SC5555ZD-TR G3355557 8- A B1
Q 8012 IC LV24100LP-TLM-E G1094371 8- B c3
Q 8013 TRANSISTOR DTC144EM T2L G3070309 8- B a4
Q 8014 TRANSISTOR EMB10 T2R G3070302 8- B a4
64
DESCRIPTION
VALUE V/W TOL. VXSTD P/NMFR’S DESIG VERS.
VX-8R/E and VX-8DR Technical Supplement
LOT.
SIDE
LAY ADR.
Page 65
RF-2 Unit (Lot.8~)
REF.
Q 8015 TRANSISTOR 2SC5555ZD-TR G3355557 8- A B2
Q 8016 TRANSISTOR 2SC5555ZD-TR G3355557 8- A B2
Q 8017 IC MB15A01PFV1-G-BND-EFE1 G1092545 8- A B3
Q 8018 TRANSISTOR MT3S36FS(TE85L.F) G3070377 8- A C1
Q 8019 TRANSISTOR 2SC5555ZD-TR G3355557 8- A B2
Q 8020 TRANSISTOR 2SC5555ZD-TR G3355557 8- A B2
Q 8021 TRANSISTOR 2SC5555ZD-TR G3355557 8- B a1
Q 8022 TRANSISTOR 2SC5555ZD-TR G3355557 8- B a1
Q 8023 TRANSISTOR 2SC5555ZD-TR G3355557 8- A B1
Q 8024 TRANSISTOR 2SC5555ZD-TR G3355557 8- A B1
Q 8025 TRANSISTOR 2SC5374-TL G3353748 8- A C3
Q 8026 TRANSISTOR 2SC5374-TL G3353748 8- A C2
Q 8027 TRANSISTOR 2SC5374-TL G3353748 8- A B2
Q 8028 TRANSISTOR 2SC4915-O(TE85L.F) G3349158O 8- A B3
Q 8029 TRANSISTOR 2SC4915-O(TE85L.F) G3349158O 8- B a1
Q 8030 TRANSISTOR EMG2 T2R G3070304 8- B a1
Q 8031 TRANSISTOR 2SC5226-5-TL G3352268E 8- A A2
Q 8032 TRANSISTOR EMD6-T2R G3070346 8- A A2
Q 8033 TRANSISTOR 2SC4915-O(TE85L.F) G3349158O 8- A B3
Q 8034 TRANSISTOR 2SC4915-O(TE85L.F) G3349158O 8- B a2
Q 8035 TRANSISTOR 2SC4915-O(TE85L.F) G3349158O 8- B a2
Q 8036 FET 2SK3541 T2L G3835417 8- A B4
Q 8037 TRANSISTOR 2SC4915-O(TE85L.F) G3349158O 8- A B2
Q 8038 FET 2SK3541 T2L G3835417 8- A B2
Q 8039 TRANSISTOR 2SC4915-O(TE85L.F) G3349158O 8- A B3
Q 8040 TRANSISTOR 2SC4915-O(TE85L.F) G3349158O 8- A B3
Q 8041 TRANSISTOR DTA114TE TL G3070264 8- A C3
Q 8042 FET 2SK3475(T2LVX.F) G3070318 8- A A 2
Q 8043 TRANSISTOR DTA114TE TL G3070264 8- A A 3
Q 8044 IC MB15A01PFV1-G-BND-EFE1 G1092545 8- A A 3
Q 8045 TRANSISTOR 2SC4915-O(TE85L.F) G3349158O 8- A B3
Q 8046 IC NJM2552V-TE1 G1094382 8- A A4
Q 8047 IC NJM2552V-TE1 G1094382 8- A C3
Q 8048 TRANSISTOR DTC144EM T2L G3070309 8- B c2
Q 8049 TRANSISTOR DTC144EM T2L G3070309 8- A A3
Q 8050 TRANSISTOR 2SC5658 T2L Q/R G3356588 8- B b4
Q 8051 TRANSISTOR 2SC5658 T2L Q/R G3356588 8- B a3
Q 8052 FET 2SK3476(TE12L.Q) G3834768 8- A A 2
Q 8053 TRANSISTOR 2SC5226-5-TL G3352268E 8- B c2
Q 8054 TRANSISTOR DTC144EM T2L G3070309 8- B c4
Q 8055 FET 2SJ364-P(TX) G3703648P 8- B b4
Q 8056 TRANSISTOR DTA114TE TL G3070264 8- A B4
Q 8057 TRANSISTOR DTC144EM T2L G3070309 8- A B4
Q 8058 TRANSISTOR DTA114TE TL G3070264 8- A B4
Q 8059 TRANSISTOR DTC144EM T2L G3070309 8- A B4
Q 8060 FET 2SJ364-P(TX) G3703648P 8- B a3
Q 8061 TRANSISTOR DTC143ZE TL G3070102 8 B c2
Q 8061 TRANSISTOR DTC124EE TL G3070109 W/ CE LABEL 9- B c2
Q 8061 TRANSISTOR DTC143ZE TL G3070102 W/O CE LABEL 9- B c2
Q 8062 TRANSISTOR EMB10 T2R G3070302 8- A B4
Q 8063 TRANSISTOR 2SC5374-TL G3353748 8- B b2
Q 8064 TRANSISTOR 2SC5374-TL G3353748 8- A B2
Q 8065 FET RTM002P02(TAPE) G3070347 8- A B4
Q 8066 TRANSISTOR 2SC5658 T2L Q/R G3356588 8- A B4
Q 8067 FET RTM002P02(TAPE) G3070347 8- A C4
Q 8068 TRANSISTOR EMB3 T2R G3070303 8- B b2
Q 8069 TRANSISTOR 2SA2029 T2L Q/R G3120298 8- B b2
Q 8070 TRANSISTOR EMB3 T2R G3070303 8- B b2
Q 8071 TRANSISTOR EMG2 T2R G3070304 8- B b2
Q 8072 TRANSISTOR DTC144EM T2L G3070309 8- B b2
DESCRIPTION
VALUE V/W TOL. VXSTD P/NMFR’S DESIG VERS.
LOT.
SIDE
LAY ADR.
VX-8R/E and VX-8DR Technical Supplement
65
Page 66
RF-2 Unit (Lot.8~)
REF.
Q 8073 TRANSISTOR 2SC5658 T2L Q/R G3356588 8- B b4
Q 8074 TRANSISTOR 2SC5658 T2L Q/R G3356588 8- B a3
Q 8075 TRANSISTOR DTC144EM T2L G3070309 8- A A1
Q 8076 TRANSISTOR 2SC5374-TL G3353748 8- A A2
Q 8077 TRANSISTOR CPH6102-TL G3070223 8- A C2
Q 8078 TRANSISTOR EMB3 T2R G3070303 8- A A3
Q 8079 TRANSISTOR UMW1 TR G3070078 8- A C1
Q 8080 TRANSISTOR 2SA2029 T2L Q/R G3120298 8- A A 2
Q 8081 TRANSISTOR EMB3 T2R G3070303 8- B b2
Q 8082 TRANSISTOR EMG2 T2R G3070304 8- A A3
Q 8083 TRANSISTOR DTC144EM T2L G3070309 8- B b2
Q 8084 TRANSISTOR 2SC5658 T2L Q/R G3356588 8- B b4
Q 8085 TRANSISTOR 2SC5658 T2L Q/R G3356588 8- B a3
Q 8086 IC TC74VHC595FK(EL,K) G1094552 8- B b2
Q 8087 IC TC74VHC595FK(EL,K) G1094552 8- B b2
Q 8088 TRANSISTOR DTC144EM T2L G3070309 8- B c1
Q 8089 TRANSISTOR EMD6-T2R G3070346 8- B c2
Q 8090 TRANSISTOR DTC144TE-TL G3070280 8- B c 3
Q 8091 FET HN1J02FU(TE85L.F) G3070221 8- B c3
Q 8092 TRANSISTOR DTC144EM T2L G3070309 8- B c3
Q 8093 TRANSISTOR EMB10 T2R G3070302 8- A A3
Q 8094 TRANSISTOR 2SA2029 T2L Q/R G3120298 8- A A 2
Q 8095 TRANSISTOR EMG2 T2R G3070304 8- A A2
Q 8096 IC NJU7007F3-TE1 G1093617 8- A A3
Q 8097 IC BA2902KN G1094201 8- B c 2
Q 8098 IC NJU7007F3-TE1 G1093617 8- A A3
Q 8099 IC XC6371A650DR G1094584 8- A C2
Q 8100 TRANSISTOR 2SC5555ZD-TR G3355557 8- B b1
Q 8101 TRANSISTOR 2SC5555ZD-TR G3355557 8- A B1
Q 8102 FET 2SK3541 T2L G3835417 8- A B1
Q 8103 TRANSISTOR DTC144EM T2L G3070309 8- B c3
Q 8104 FET 2SK3541 T2L G3835417 8- A A 2
Q 8105 FET 2SK3541 T2L G3835417 8- B c 4
Q 8106 TRANSISTOR DTC144EM T2L G3070309 8- B c2
Q 8107 TRANSISTOR DTC144EM T2L G3070309 8- B c2
Q 8108 TRANSISTOR UMD2N TR G3070076 8- A A 3
Q 8109 TRANSISTOR UMD2N TR G3070076 8- B a3
Q 8110 FET SSM3J36FS G3070433 24- A A3
Q 8110 FET RZM002P02 G3070432 32- A A3
R 8001 CHIP RES. 3.3k 1/16W 5% RMC1/16S 332JTH J24189031 8- B c3
R 8002 CHIP RES. 10 k 1 /1 6W 5 % RMC1/16S 103JTH J24189037 8- A A3
R 8003 CHIP RES. 22 k 1 /1 6W 5 % RMC1/16S 223JTH J24189041 8- A B2
R 8004 CHIP RES. 1 5 1/ 1 6W 5 % RMC1/16S 150JTH J24189003 8- A B2
R 8005 CHIP RES. 56 k 1 /1 6W 5 % RMC1/16S 563JTH J24189046 8- B b1
R 8006 CHIP RES. 5 6 1/ 1 6W 5 % RMC1/16S 560JTH J24189010 8- B b1
R 8007 CHIP RES. 2.2M 1/16W 5% RMC1/16S 225JTH J24189065 8- A A 3
R 8008 CHIP RES. 3.3k 1/16W 5% RMC1/16S 332JTH J24189031 8- B c3
R 8009 CHIP RES. 1.8k 1/16W 5% RMC1/16S 182JTH J24189028 8- B c3
R 8010 CHIP RES. 2 20 1/ 16 W 5 % RMC1/16S 221JTH J24189017 8- B c 3
R 8011 CHIP RES. 10 k 1 /1 6W 5 % RMC1/16S 103JTH J24189037 8- B a4
R 8012 CHIP RES. 47 k 1 /1 6W 5 % RMC1/16S 473JTH J24189045 8- A B1
R 8014 CHIP RES. 4 7 1/ 1 6W 5 % RMC1/16S 470JTH J24189009 8- A C1
R 8015 CHIP RES. 47 k 1 /1 6W 5 % RMC1/16S 473JTH J24189045 8- A C1
R 8016 CHIP RES. 2 2 1/ 1 6W 5 % RMC1/16S 220JTH J24189005 8- A B2
R 8017 CHIP RES. 2.2k 1/16W 5% RMC1/16S 222JTH J24189029 8- A B2
R 8018 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 8- A A 2
R 8019 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 8- A B2
R 8020 CHIP RES. 2 2 1/ 1 6W 5 % RMC1/16S 220JTH J24189005 8- A B2
R 8021 CHIP RES. 2.2k 1/16W 5% RMC1/16S 222JTH J24189029 8- A B2
R 8022 CHIP RES. 56 k 1 /1 6W 5 % RMC1/16S 563JTH J24189046 8- B b1
66
DESCRIPTION
VALUE V/W TOL. VXSTD P/NMFR’S DESIG VERS.
VX-8R/E and VX-8DR Technical Supplement
LOT.
SIDE
LAY ADR.
Page 67
RF-2 Unit (Lot.8~)
REF.
R 8023 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 8- A B2
R 8024 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 8- A B2
R 8027 CHIP RES. 10 k 1 /1 6W 5 % RMC1/16S 103JTH J24189037 8- B b1
R 8028 CHIP RES. 10 k 1 /1 6W 5 % RMC1/16S 103JTH J24189037 8- B b1
R 8029 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 8- B b1
R 8030 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 8- B b1
R 8031 CHIP RES. 56 k 1 /1 6W 5 % RMC1/16S 563JTH J24189046 8- A B1
R 8032 CHIP RES. 2 20 1/ 16 W 5 % RMC1/16S 221JTH J24189017 8- A B1
R 8033 CHIP RES. 56 k 1 /1 6W 5 % RMC1/16S 563JTH J24189046 8- A B1
R 8034 CHIP RES. 1 00 1/ 16 W 5 % RMC1/16S 101JTH J24189013 8- A C1
R 8035 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 8- A C1
R 8036 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 8- A C1
R 8037 CHIP RES. 56 k 1 /1 6W 5 % RMC1/16S 563JTH J24189046 8- A B2
R 8038 CHIP RES. 1 00 1/ 16 W 5 % RMC1/16S 101JTH J24189013 8- A B2
R 8039 CHIP RES. 22 k 1 /1 6W 5 % RMC1/16S 223JTH J24189041 8- A B2
R 8040 CHIP RES. 1 00 1/ 16 W 5 % RMC1/16S 101JTH J24189013 8- A B2
R 8041 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 8- B b1
R 8042 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 8- B b1
R 8043 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 8- B b1
R 8044 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 8- B b1
R 8045 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 8- B b1
R 8046 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 8- B b1
R 8047 CHIP RES. 2 20 1/ 16 W 5 % RMC1/16S 221JTH J24189017 8- A B1
R 8048 CHIP RES. 2 20 1/ 16 W 5 % RMC1/16S 221JTH J24189017 8- A B1
R 8049 CHIP RES. 10 k 1 /1 6W 5 % RMC1/16S 103JTH J24189037 8- A B1
R 8050 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 8- A B1
R 8051 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 8- A B1
R 8052 CHIP RES. 10 k 1 /1 6W 5 % RMC1/16S 103JTH J24189037 8- A B1
R 8053 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 8- A B1
R 8054 CHIP RES. 4.7k 1/16W 5% RMC1/16S 472JTH J24189033 8- B c4
R 8055 CHIP RES. 4.7k 1/16W 5% RMC1/16S 472JTH J24189033 8- B c4
R 8056 CHIP RES. 10 k 1 /1 6W 5 % RMC1/16S 103JTH J24189037 8- A B3
R 8057 CHIP RES. 10 k 1 /1 6W 5 % RMC1/16S 103JTH J24189037 8- A B3
R 8058 CHIP RES. 6 80 1/ 16 W 5 % RMC1/16S 681JTH J24189023 8- A B3
R 8059 CHIP RES. 6 80 1/ 16 W 5 % RMC1/16S 681JTH J24189023 8- A B3
R 8060 CHIP RES. 1.5k 1/16W 5% RMC1/16S 152JTH J24189027 8- A B3
R 8061 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 8- A B3
R 8062 CHIP RES. 1.2k 1/16W 5% RMC1/16S 122JTH J24189026 8- A B3
R 8063 CHIP RES. 1.8k 1/16W 5% RMC1/16S 182JTH J24189028 8- A B3
R 8064 CHIP RES. 1k 1 /1 6W 5 % RMC1/16S 102JTH J24189025 8- A B3
R 8065 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 8- A C1
R 8066 CHIP RES. 1 00 1/ 16 W 5 % RMC1/16S 101JTH J24189013 8 A C1
R 8066 CHIP RES. 5 60 1/ 16 W 5 % RMC1/16S 561JTH J24189022 W/ CE LABEL 9- A C1
R 8066 CHIP RES. 1 00 1/ 16 W 5 % RMC1/16S 101JTH J24189013 W/O CE LABEL 9- A C1
R 8067 CHIP RES. 4 70 1/ 16 W 5 % RMC1/16S 471JTH J24189021 8- A C1
R 8068 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 8- A B2
R 8069 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 8- A B2
R 8070 CHIP RES. 56 k 1 /1 6W 5 % RMC1/16S 563JTH J24189046 8- A B2
R 8071 CHIP RES. 4 7 1/ 1 6W 5 % RMC1/16S 470JTH J24189009 8- A B2
R 8072 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 8- A B2
R 8073 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 8- A B2
R 8074 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 8- A B2
R 8075 CHIP RES. 56 k 1 /1 6W 5 % RMC1/16S 563JTH J24189046 8- B a1
R 8076 CHIP RES. 1 00 1/ 16 W 5 % RMC1/16S 101JTH J24189013 8- A B2
R 8077 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 8- B a1
R 8078 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 8- B a1
R 8079 CHIP RES. 5 6 1/ 1 6W 5 % RMC1/16S 560JTH J24189010 8- B a1
R 8080 CHIP RES. 5 6 1/ 1 6W 5 % RMC1/16S 560JTH J24189010 8 B a1
R 8080 CHIP RES. 1 00 1/ 16 W 5 % RMC1/16S 101JTH J24189013 W/ CE LABEL 9- B a1
R 8080 CHIP RES. 5 6 1/ 1 6W 5 % RMC1/16S 560JTH J24189010 W/O CE LABEL 9- B a1
DESCRIPTION
VALUE V/W TOL. VXSTD P/NMFR’S DESIG VERS.
LOT.
SIDE
LAY ADR.
VX-8R/E and VX-8DR Technical Supplement
67
Page 68
RF-2 Unit (Lot.8~)
REF.
R 8081 CHIP RES. 56 k 1 /1 6W 5 % RMC1/16S 563JTH J24189046 8- B a1
R 8082 CHIP RES. 2 20 1/ 16 W 5 % RMC1/16S 221JTH J24189017 8- B a1
R 8083 CHIP RES. 2 20 1/ 16 W 5 % RMC1/16S 221JTH J24189017 8- B a1
R 8084 CHIP RES. 2.2k 1/16W 5% RMC1/16S 222JTH J24189029 8- A B1
R 8085 CHIP RES. 2.2k 1/16W 5% RMC1/16S 222JTH J24189029 8- A B1
R 8086 CHIP RES. 3 30 1/ 16 W 5 % RMC1/16S 331JTH J24189019 8 A B1
R 8086 CHIP RES. 4 70 1/ 16 W 5 % RMC1/16S 471JTH J24189021 W/ CE LABEL 9- A B1
R 8086 CHIP RES. 3 30 1/ 16 W 5 % RMC1/16S 331JTH J24189019 W/O CE LABEL 9- A B1
R 8087 CHIP RES. 1k 1 /1 6W 5 % RMC1/16S 102JTH J24189025 8- A B1
R 8088 CHIP RES. 270k 1/16W 5% RMC1/16S 274JTH J24189054 8- A B1
R 8089 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 8- A B1
R 8090 CHIP RES. 3 30 1/ 16 W 5 % RMC1/16S 331JTH J24189019 8 A B1
R 8090 CHIP RES. 6 80 1/ 16 W 5 % RMC1/16S 681JTH J24189023 W/ CE LABEL 9- A B1
R 8090 CHIP RES. 3 30 1/ 16 W 5 % RMC1/16S 331JTH J24189019 W/O CE LABEL 9- A B1
R 8091 CHIP RES. 270k 1/16W 5% RMC1/16S 274JTH J24189054 8- A B1
R 8092 CHIP RES. 10 k 1 /1 6W 5 % RMC1/16S 103JTH J24189037 8- A B3
R 8093 CHIP RES. 3.3k 1/16W 5% RMC1/16S 332JTH J24189031 8- A B3
R 8094 CHIP RES. 10 k 1 /1 6W 5 % RMC1/16S 103JTH J24189037 8- A B3
R 8095 CHIP RES. 18 k 1 /1 6W 5 % RMC1/16S 183JTH J24189040 8- A B2
R 8096 CHIP RES. 2.2k 1/16W 5% RMC1/16S 222JTH J24189029 8- A B3
R 8097 CHIP RES. 1k 1 /1 6W 5 % RMC1/16S 102JTH J24189025 8- A B3
R 8098 CHIP RES. 2 20 1/ 16 W 5 % RMC1/16S 221JTH J24189017 8- A B2
R 8099 CHIP RES. 2 20 1/ 16 W 5 % RMC1/16S 221JTH J24189017 8- A B2
R 8100 CHIP RES. 3 30 1/ 16 W 5 % RMC1/16S 331JTH J24189019 8- A B1
R 8101 CHIP RES. 3 30 1/ 16 W 5 % RMC1/16S 331JTH J24189019 8- A B1
R 8102 CHIP RES. 10 k 1 /1 6W 5 % RMC1/16S 103JTH J24189037 8- A B2
R 8103 CHIP RES. 1k 1 /1 6W 5 % RMC1/16S 102JTH J24189025 8- A A2
R 8104 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 8- A B3
R 8105 CHIP RES. 4 7 1/ 1 6W 5 % RMC1/16S 470JTH J24189009 8- A B3
R 8106 CHIP RES. 1 00 1/ 16 W 5 % RMC1/16S 101JTH J24189013 8- A B3
R 8107 CHIP RES. 4 70 1/ 16 W 5 % RMC1/16S 471JTH J24189021 8- B a1
R 8108 CHIP RES. 4 70 1/ 16 W 5 % RMC1/16S 471JTH J24189021 8- B a1
R 8109 CHIP RES. 470k 1/16W 5% RMC1/16S 474JTH J24189057 8- B a1
R 8110 CHIP RES. 4 70 1/ 16 W 5 % RMC1/16S 471JTH J24189021 8- A B1
R 8111 CHIP RES. 0 1 /1 6W 5 % RMC1/16 000JATP J24185000 VER.A2 DST:USA 8R 8111 CHIP RES. 0 1 /1 6W 5 % RMC1/16 000JATP J24185000 VERSION A1 8R 8111 CHIP RES. 0 1 /1 6W 5 % RMC1/16 000JATP J24185000 VERSION A2 8R 8111 CHIP RES. 0 1 /1 6W 5 % RMC1/16 000JATP J24185000 VERSION B1 8 R 8111 CHIP RES. 0 1 /1 6W 5 % RMC1/16 000JATP J24185000 VERSION B2 8 R 8111 CHIP RES. 0 1 /1 6W 5 % RMC1/16 000JATP J24185000 VERSION C1 8 R 8111 CHIP RES. 0 1 /1 6W 5 % RMC1/16 000JATP J24185000 VERSION C2 8 R 8111 CHIP RES. 0 1 /1 6W 5 % RMC1/16 000JATP J24185000 VERSION D1 8 R 8111 CHIP RES. 0 1 /1 6W 5 % RMC1/16 000JATP J24185000 VERSION D2 8 R 8111 CHIP RES. 0 1 /1 6W 5 % RMC1/16 000JATP J24185000 VERSION H1 8 R 8111 CHIP RES. 0 1 /1 6W 5 % RMC1/16 000JATP J24185000 VERSION H2 8 R 8112 CHIP RES. 10 k 1 /1 6W 5 % RMC1/16S 103JTH J24189037 8- A A2
R 8113 CHIP RES. 4 70 1/ 16 W 5 % RMC1/16S 471JTH J24189021 8- A A 2
R 8114 CHIP RES. 3 30 1/ 16 W 5 % RMC1/16S 331JTH J24189019 8- A A 2
R 8115 CHIP RES. 4 7 1/ 1 6W 5 % RMC1/16S 470JTH J24189009 8- A A2
R 8116 CHIP RES. 1 00 1/ 16 W 5 % RMC1/16S 101JTH J24189013 8- A A 2
R 8117 CHIP RES. 4 7 1/ 1 6W 5 % RMC1/16S 470JTH J24189009 8- A A2
R 8118 CHIP RES. 10 k 1 /1 6W 5 % RMC1/16S 103JTH J24189037 8- A B3
R 8119 CHIP RES. 4 7 1/ 1 6W 5 % RMC1/16S 470JTH J24189009 8- A B3
R 8120 CHIP RES. 4 70 1/ 16 W 5 % RMC1/16S 471JTH J24189021 8- B a2
R 8121 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 8- B a2
R 8122 CHIP RES. 1 00 1/ 16 W 5 % RMC1/16S 101JTH J24189013 8- B a1
R 8123 CHIP RES. 470k 1/16W 5% RMC1/16S 474JTH J24189057 8- B a2
R 8124 CHIP RES. 3 30 1/ 16 W 5 % RMC1/16S 331JTH J24189019 8- B a2
R 8125 CHIP RES. 1k 1 /1 6W 5 % RMC1/16S 102JTH J24189025 8- A B4
R 8126 CHIP RES. 10 k 1 /1 6W 5 % RMC1/16S 103JTH J24189037 8- A B4
68
DESCRIPTION
VALUE V/W TOL. VXSTD P/NMFR’S DESIG VERS.
VX-8R/E and VX-8DR Technical Supplement
LOT.
SIDE
LAY ADR.
Page 69
RF-2 Unit (Lot.8~)
REF.
R 8127 CHIP RES. 4 70 1/ 16 W 5 % RMC1/16S 471JTH J24189021 8- A C2
R 8129 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 8- A B2
R 8131 CHIP RES. 4 70 1/ 16 W 5 % RMC1/16S 471JTH J24189021 8- A A 2
R 8132 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 8- A A 2
R 8133 CHIP RES. 10 k 1 /1 6W 5 % RMC1/16S 103JTH J24189037 8- B c2
R 8134 CHIP RES. 180k 1/16W 5% RMC1/16S 184JTH J24189052 8- A A 2
R 8135 CHIP RES. 1 00 1/ 16 W 5 % RMC1/16S 101JTH J24189013 8- A B2
R 8136 CHIP RES. 150k 1/16W 5% RMC1/16S 154JTH J24189051 8- A B3
R 8137 CHIP RES. 1 00 1/ 16 W 5 % RMC1/16S 101JTH J24189013 8- A B3
R 8138 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 8- A B3
R 8139 CHIP RES. 1 00 1/ 16 W 5 % RMC1/16S 101JTH J24189013 8- B a2
R 8140 CHIP RES. 1k 1 /1 6W 5 % RMC1/16S 102JTH J24189025 8- B a2
R 8141 CHIP RES. 1k 1 /1 6W 5 % RMC1/16S 102JTH J24189025 8- B a2
R 8142 CHIP RES. 4.7k 1/16W 5% RMC1/16S 472JTH J24189033 8- A A 4
R 8143 CHIP RES. 2 20 1/ 16 W 5 % RMC1/16S 221JTH J24189017 8- A B4
R 8144 CHIP RES. 10 k 1 /1 6W 5 % RMC1/16S 103JTH J24189037 8- A A4
R 8145 CHIP RES. 1k 1 /1 6W 5 % RMC1/16S 102JTH J24189025 8- A B2
R 8146 CHIP RES. 10 k 1 /1 6W 5 % RMC1/16S 103JTH J24189037 8- A B2
R 8147 CHIP RES. 1 00 1/ 16 W 5 % RMC1/16S 101JTH J24189013 8- A B2
R 8148 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 8- A C3
R 8149 CHIP RES. 2 20 1/ 16 W 5 % RMC1/16S 221JTH J24189017 8- A B3
R 8150 CHIP RES. 3 30 1/ 16 W 5 % RMC1/16S 331JTH J24189019 8- A A 2
R 8151 CHIP RES. 330k 1/16W 5% RMC1/16S 334JTH J24189055 8- B c 2
R 8152 CHIP RES. 1 00 1/ 16 W 5 % RMC1/16S 101JTH J24189013 8- B c 2
R 8153 CHIP RES. 1 00 1/ 16 W 5 % RMC1/16S 101JTH J24189013 8- B c 2
R 8154 CHIP RES. 2 20 1/ 16 W 5 % RMC1/16S 221JTH J24189017 8- A B3
R 8155 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 8- A B3
R 8156 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1-23
R 8157 CHIP RES. 3.3k 1/16W 5% RMC1/16S 332JTH J24189031 8- A A 3
R 8158 CHIP RES. 1k 1 /1 6W 5 % RMC1/16S 102JTH J24189025 8- B a2
R 8160 CHIP RES. 47 k 1 /1 6W 5 % RMC1/16S 473JTH J24189045 8- A B3
R 8160 CHIP RES. 0 1 /1 6W 5 % RMC1/16S JPTH J24189070 24- A B3
R 8161 CHIP RES. 330k 1/16W 5% RMC1/16S 334JTH J24189055 8- B b4
R 8162 CHIP RES. 3.3k 1/16W 5% RMC1/16S 332JTH J24189031 8- B b4
R 8163 CHIP RES. 1 0 1/ 1 6W 5 % RMC1/16S 100JTH J24189001 8- A A4
R 8164 CHIP RES. 1 0 1/ 1 6W 5 % RMC1/16S 100JTH J24189001 8- A A4
R 8165 CHIP RES. 22 k 1 /1 6W 5 % RMC1/16S 223JTH J24189041 8- A A4
R 8166 CHIP RES. 10 k 1 /1 6W 5 % RMC1/16S 103JTH J24189037 8- A A4
R 8167 CHIP RES. 10 k 1 /1 6W 5 % RMC1/16S 103JTH J24189037 8- A A4
R 8168 CHIP RES. 10 k 1 /1 6W 5 % RMC1/16S 103JTH J24189037 8- A B4
R 8169 CHIP RES. 3.3k 1/16W 5% RMC1/16S 332JTH J24189031 8- A B4
R 8170 CHIP RES. 22 k 1 /1 6W 5 % RMC1/16S 223JTH J24189041 8- A C3
R 8171 CHIP RES. 330k 1/16W 5% RMC1/16S 334JTH J24189055 8- A C3
R 8172 CHIP RES. 3.3k 1/16W 5% RMC1/16S 332JTH J24189031 8- A C3
R 8173 CHIP RES. 22 k 1 /1 6W 5 % RMC1/16S 223JTH J24189041 8- B b2
R 8174 CHIP RES. 8.2k 1/16W 5% RMC1/16S 822JTH J24189036 8- B b2
R 8175 CHIP RES. 4.7k 1/16W 5% RMC1/16S 472JTH J24189033 8- B c2
R 8176 CHIP RES. 120k 1/16W 5% RMC1/16S 124JTH J24189050 AUSTRALIA 8- B c2
R 8176 CHIP RES. 120k 1/16W 5% RMC1/16S 124JTH J24189050 EUROPE 8 - B c 2
R 8176 CHIP RES. 120k 1/16W 5% RMC1/16S 124JTH J24189050 EXPORT 8 - B c 2
R 8176 CHIP RES. 120k 1/16W 5% RMC1/16S 124JTH J24189050 USA 8 - B c2
R 8177 CHIP RES. 150k 1/16W 5% RMC1/16S 154JTH J24189051 8- A A 1
R 8178 CHIP RES. 5 60 1/ 16 W 5 % RMC1/16S 561JTH J24189022 8- A A 2
R 8179 CHIP RES. 4 70 1/ 16 W 5 % RMC1/16S 471JTH J24189021 8- A A 2
R 8180 CHIP RES. 10 k 1 /1 6W 5 % RMC1/16S 103JTH J24189037 8- A A3
R 8181 CHIP RES. 10 k 1 /1 6W 5 % RMC1/16S 103JTH J24189037 8- A A3
R 8182 CHIP RES. 10 k 1 /1 6W 5 % RMC1/16S 103JTH J24189037 8- A A3
R 8183 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 8- A B3
R 8184 CHIP RES. 330k 1/16W 5% RMC1/16S 334JTH J24189055 8- A B3
R 8185 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 8- A A 3
DESCRIPTION
VALUE V/W TOL. VXSTD P/NMFR’S DESIG VERS.
LOT.
SIDE
LAY ADR.
VX-8R/E and VX-8DR Technical Supplement
69
Page 70
RF-2 Unit (Lot.8~)
REF.
R 8186 CHIP RES. 6 80 1/ 16 W 5 % RMC1/16S 681JTH J24189023 8- A A 3
R 8186 CHIP RES. 4 70 1/ 16 W 5 % RMC1/16S 471JTH J24189021 24- A A3
R 8187 CHIP RES. 10 k 1 /1 6W 5 % RMC1/16S 103JTH J24189037 8- B b4
R 8188 CHIP RES. 1M 1 /1 6 W 5% RMC1/16S 105JTH J24189061 8- A B3
R 8189 CHIP RES. 6 80 1/ 16 W 5 % RMC1/16S 681JTH J24189023 8- B b4
R 8190 CHIP RES. 3.3k 1/16W 5% RMC1/16S 332JTH J24189031 8- B b4
R 8191 CHIP RES. 330k 1/16W 5% RMC1/16S 334JTH J24189055 8- B b4
R 8192 CHIP RES. 3.3k 1/16W 5% RMC1/16S 332JTH J24189031 8- B b4
R 8193 CHIP RES. 4.7k 1/16W 5% RMC1/16S 472JTH J24189033 8- B b4
R 8194 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 8- A A 4
R 8195 CHIP RES. 10 k 1 /1 6W 5 % RMC1/16S 103JTH J24189037 8- B b4
R 8196 CHIP RES. 10 k 1 /1 6W 5 % RMC1/16S 103JTH J24189037 8- A C3
R 8197 CHIP RES. 6 80 1/ 16 W 5 % RMC1/16S 681JTH J24189023 8- B a3
R 8198 CHIP RES. 1k 1 /1 6W 5 % RMC1/16S 102JTH J24189025 8- A B4
R 8199 CHIP RES. 330k 1/16W 5% RMC1/16S 334JTH J24189055 8- B a3
R 8200 CHIP RES. 3.3k 1/16W 5% RMC1/16S 332JTH J24189031 8- B a3
R 8201 CHIP RES. 1k 1 /1 6W 5 % RMC1/16S 102JTH J24189025 8- A C3
R 8202 CHIP RES. 3.3k 1/16W 5% RMC1/16S 332JTH J24189031 8- B a3
R 8203 CHIP RES. 1k 1 /1 6W 5 % RMC1/16S 102JTH J24189025 8- B a3
R 8204 CHIP RES. 15 k 1 /1 6W 5 % RMC1/16S 153JTH J24189039 8- B a3
R 8205 CHIP RES. 3.3k 1/16W 5% RMC1/16S 332JTH J24189031 8- A C3
R 8207 CHIP RES. 2.2M 1/16W 5% RMC1/16S 225JTH J24189065 8- A A 3
R 8208 CHIP RES. 4 7 1/ 1 6W 5 % RMC1/16S 470JTH J24189009 8- B c2
R 8209 CHIP RES. 3 30 1/ 16 W 5 % RMC1/16S 331JTH J24189019 8 B c2
R 8209 CHIP RES. 1.2k 1/16W 5% RMC1/16S 122JTH J24189026 W/ CE LABEL 9- B c2
R 8209 CHIP RES. 3 30 1/ 16 W 5 % RMC1/16S 331JTH J24189019 W/O CE LABEL 9- B c2
R 8210 CHIP RES. 10 k 1 /1 6W 5 % RMC1/16S 103JTH J24189037 8- B c2
R 8211 CHIP RES. 6 80 1/ 16 W 5 % RMC1/16S 681JTH J24189023 8- A A 3
R 8212 CHIP RES. 2 20 1/ 16 W 5 % RMC1/16S 221JTH J24189017 8- A A 3
R 8212 CHIP RES. 1 50 1/ 16 W 5 % RMC1/16S 151JTH J24189015 24- A A3
R 8213 CHIP RES. 1.2k 1/16W 5% RMC1/16S 122JTH J24189026 8- A A 3
R 8214 CHIP RES. 1.5k 1/16W 5% RMC1/16S 152JTH J24189027 8- A A 3
R 8215 CHIP RES. 1.8k 1/16W 5% RMC1/16S 182JTH J24189028 8- A A 3
R 8216 CHIP RES. 1k 1 /1 6W 5 % RMC1/16S 102JTH J24189025 8- A A3
R 8217 CHIP RES. 3.3k 1/16W 5% RMC1/16S 332JTH J24189031 8- A A 3
R 8218 CHIP RES. 2.2k 1/16W 5% RMC1/16S 222JTH J24189029 8- A A 3
R 8219 CHIP RES. 1k 1 /1 6W 5 % RMC1/16S 102JTH J24189025 8- A A3
R 8220 CHIP RES. 1k 1 /1 6W 5 % RMC1/16S 102JTH J24189025 8- B b4
R 8221 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 8- B b4
R 8222 CHIP RES. 330k 1/16W 5% RMC1/16S 334JTH J24189055 8- B b4
R 8223 CHIP RES. 180k 1/16W 5% RMC1/16S 184JTH J24189052 8- B b4
R 8224 CHIP RES. 330k 1/16W 5% RMC1/16S 334JTH J24189055 8- B c 4
R 8225 CHIP RES. 15 k 1 /1 6W 5 % RMC1/16S 153JTH J24189039 8- B b4
R 8226 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 8- B b4
R 8227 CHIP RES. 10 k 1 /1 6W 5 % RMC1/16S 103JTH J24189037 8- B b4
R 8228 CHIP RES. 180k 1/16W 5% RMC1/16S 184JTH J24189052 8- B a3
R 8229 CHIP RES. 330k 1/16W 5% RMC1/16S 334JTH J24189055 8- B a3
R 8230 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 8- B a3
R 8231 CHIP RES. 330k 1/16W 5% RMC1/16S 334JTH J24189055 8- B a3
R 8232 CHIP RES. 15 k 1 /1 6W 5 % RMC1/16S 153JTH J24189039 8- B a3
R 8233 CHIP RES. 10 k 1 /1 6W 5 % RMC1/16S 103JTH J24189037 8- B a3
R 8234 CHIP RES. 4.7k 1/16W 5% RMC1/16S 472JTH J24189033 8- B c1
R 8235 CHIP RES. 3 30 1/ 16 W 5 % RMC1/16S 331JTH J24189019 8- A A 1
R 8236 CHIP RES. 1 20 1/ 16 W 5 % RMC1/16S 121JTH J24189014 W/ CE LABEL 8 B c2
R 8236 CHIP RES. 8 2 1/ 1 6W 5 % RMC1/16S 820JTH J24189012 W/ CE LABEL 9 - B c 2
R 8236 CHIP RES. 1 00 1/ 16 W 5 % RMC1/16S 101JTH J24189013 W/O CE LABEL 8- B c2
R 8237 CHIP RES. 3.3k 1/16W 5% RMC1/16S 332JTH J24189031 8- A A 1
R 8238 CHIP RES. 1 00 1/ 16 W 5 % RMC1/16S 101JTH J24189013 8- B b2
R 8239 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 8- B b4
R 8240 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 8- B a3
70
DESCRIPTION
VALUE V/W TOL. VXSTD P/NMFR’S DESIG VERS.
VX-8R/E and VX-8DR Technical Supplement
LOT.
SIDE
LAY ADR.
Page 71
RF-2 Unit (Lot.8~)
REF.
R 8241 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 8- B a3
R 8242 CHIP RES. 3.3k 1/16W 5% RMC1/16S 332JTH J24189031 8- A A 1
R 8243 CHIP RES. 3 30 1/ 16 W 5 % RMC1/16S 331JTH J24189019 8- B b1
R 8244 CHIP RES. 3 30 1/ 16 W 5 % RMC1/16S 331JTH J24189019 8- B c 1
R 8245 CHIP RES. 390k 1/16W 0.5% MCR01MZPD3903 J24189331 8- A A3
R 8246 CHIP RES. 3 30 1/ 16 W 5 % RMC1/16S 331JTH J24189019 8- A B1
R 8247 CHIP RES. 33 k 1 /1 6W 5 % RMC1/16S 333JTH J24189043 8- B b2
R 8248 CHIP RES. 18 k 1 /1 6W 5 % RMC1/16S 183JTH J24189040 8- A B2
R 8249 CHIP RES. 4.7k 1/16W 5% RMC1/16S 472JTH J24189033 8- A C4
R 8250 CHIP RES. 1k 1 /1 6W 5 % RMC1/16S 102JTH J24189025 8- A B4
R 8251 CHIP RES. 4.7k 1/16W 5% RMC1/16S 472JTH J24189033 8- A C4
R 8252 CHIP RES. 1k 1 /1 6W 5 % RMC1/16S 102JTH J24189025 8- B b2
R 8253 CHIP RES. 470k 1/16W 5% RMC1/16S 474JTH J24189057 8- B b4
R 8254 CHIP RES. 470k 1/16W 5% RMC1/16S 474JTH J24189057 8- B a3
R 8255 CHIP RES. 2.7k 1/16W 5% RMC1/16S 272JTH J24189030 8- B b4
R 8256 CHIP RES. 1 00 1/ 16 W 5 % RMC1/16S 101JTH J24189013 8- B b4
R 8257 CHIP RES. 2.7k 1/16W 5% RMC1/16S 272JTH J24189030 8- B a3
R 8258 CHIP RES. 10 k 1 /1 6W 5 % RMC1/16S 103JTH J24189037 8- B b4
R 8259 CHIP RES. 10 k 1 /1 6W 5 % RMC1/16S 103JTH J24189037 8- B a3
R 8260 CHIP RES. 33 k 1 /1 6W 5 % RMC1/16S 333JTH J24189043 8- B b4
R 8261 CHIP RES. 33 k 1 /1 6W 5 % RMC1/16S 333JTH J24189043 8- B a3
R 8262 CHIP RES. 1 00 1/ 16 W 5 % RMC1/16S 101JTH J24189013 8- B a3
R 8263 CHIP RES. 10 k 1 /1 6W 5 % RMC1/16S 103JTH J24189037 8- B b2
R 8264 CHIP RES. 10 k 1 /1 6W 5 % RMC1/16S 103JTH J24189037 8- B b2
R 8265 CHIP RES. 3.3k 1/16W 5% RMC1/16S 332JTH J24189031 8- A A 1
R 8266 CHIP RES. 3 30 1/ 16 W 5 % RMC1/16S 331JTH J24189019 8- B c 1
R 8267 CHIP RES. 2 20 1/ 16 W 5 % RMC1/16S 221JTH J24189017 8- A A 1
R 8268 CHIP RES. 10 k 1 /1 6W 5 % RMC1/16S 103JTH J24189037 8- A A2
R 8269 CHIP RES. 10 k 1 /1 6W 5 % RMC1/16S 103JTH J24189037 8- A C2
R 8270 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 8- B c 3
R 8271 CHIP RES. 1k 1 /1 6W 5 % RMC1/16S 102JTH J24189025 8- A A2
R 8272 CHIP RES. 10 k 1 /1 6W 5 % RMC1/16S 103JTH J24189037 8- A C1
R 8273 CHIP RES. 1k 1 /1 6W 5 % RMC1/16S 102JTH J24189025 8- A C2
R 8274 CHIP RES. 10 k 1 /1 6W 5 % RMC1/16S 103JTH J24189037 8- A A2
R 8275 CHIP RES. 150k 1/16W 5% RMC1/16S 154JTH J24189051 8- B b4
R 8276 CHIP RES. 2.2M 1/16W 5% RMC1/16S 225JTH J24189065 8- B b4
R 8277 CHIP RES. 2.2M 1/16W 5% RMC1/16S 225JTH J24189065 8- B a3
R 8278 CHIP RES. 1.5k 1/16W 5% RMC1/16S 152JTH J24189027 8- B b4
R 8279 CHIP RES. 10 k 1 /1 6W 5 % RMC1/16S 103JTH J24189037 8- B b4
R 8280 CHIP RES. 1.5k 1/16W 5% RMC1/16S 152JTH J24189027 8- B a3
R 8281 CHIP RES. 150k 1/16W 5% RMC1/16S 154JTH J24189051 8- B a3
R 8282 CHIP RES. 10 k 1 /1 6W 5 % RMC1/16S 103JTH J24189037 8- B a3
R 8283 CHIP RES. 4.7k 1/16W 5% RMC1/16S 472JTH J24189033 8- A A 1
R 8284 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 8- B c 3
R 8285 CHIP RES. 2.7k 1/16W 5% RMC1/16S 272JTH J24189030 8- B c3
R 8286 CHIP RES. 10 k 1 /1 6W 5 % RMC1/16S 103JTH J24189037 8- B c3
R 8287 CHIP RES. 10 k 1 /1 6W 5 % RMC1/16S 103JTH J24189037 8- B c3
R 8288 CHIP RES. 10 k 1 /1 6W 5 % RMC1/16S 103JTH J24189037 8- B c3
R 8289 CHIP RES. 47 k 1 /1 6W 5 % RMC1/16S 473JTH J24189045 8- B c3
R 8290 CHIP RES. 47 k 1 /1 6W 5 % RMC1/16S 473JTH J24189045 8- B c3
R 8291 CHIP RES. 3.3k 1/16W 5% RMC1/16S 332JTH J24189031 8- B c3
R 8292 CHIP RES. 10 k 1 /1 6W 5 % RMC1/16S 103JTH J24189037 8- B c3
R 8293 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 8- B c 1
R 8294 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 8- B c 3
R 8295 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 8- B c 3
R 8296 CHIP RES. 1k 1 /1 6W 5 % RMC1/16S 102JTH J24189025 8- A A2
R 8297 CHIP RES. 4.7k 1/16W 5% RMC1/16S 472JTH J24189033 8- B c2
R 8298 CHIP RES. 10 k 1 /1 6W 5 % RMC1/16S 103JTH J24189037 8- A A3
R 8299 CHIP RES. 2.2M 1/16W 5% RMC1/16S 225JTH J24189065 8- A A 3
R 8300 CHIP RES. 2.2M 1/16W 5% RMC1/16S 225JTH J24189065 8- A A 3
DESCRIPTION
VALUE V/W TOL. VXSTD P/NMFR’S DESIG VERS.
LOT.
SIDE
LAY ADR.
VX-8R/E and VX-8DR Technical Supplement
71
Page 72
RF-2 Unit (Lot.8~)
REF.
R 8301 CHIP RES. 390k 1/16W 0.5% MCR01MZPD3903 J24189331 8- A A3
R 8302 CHIP RES. 4 .7 1/ 16 W 5 % RMC1/16S 4R7JTH J24189066 8 - A C2
R 8303 CHIP RES. 2 2 1/ 1 6W 5 % RMC1/16S 220JTH J24189005 8- A C3
R 8304 CHIP RES. 6 80 1/ 16 W 5 % RMC1/16S 681JTH J24189023 8- A B1
R 8305 CHIP RES. 6 80 1/ 16 W 5 % RMC1/16S 681JTH J24189023 8- A B1
R 8306 CHIP RES. 5 6 1/ 1 6W 5 % RMC1/16S 560JTH J24189010 8- B b1
R 8311 CHIP RES. 1 50 1/ 16 W 5 % RMC1/16S 151JTH J24189015 8- A B2
R 8312 CHIP RES. 10 k 1 /1 6W 5 % RMC1/16S 103JTH J24189037 8- A B1
R 8313 CHIP RES. 10 k 1 /1 6W 5 % RMC1/16S 103JTH J24189037 8- B c3
R 8314 CHIP RES. 0 1 /1 6W 5 % RMC1/16S JPTH J24189070 8- A A 1
R 8315 CHIP RES. 10 k 1 /1 6W 5 % RMC1/16S 103JTH J24189037 8- A A2
R 8316 CHIP RES. 10 k 1 /1 6W 5 % RMC1/16S 103JTH J24189037 8- B c4
R 8317 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 8- B c 4
R 8318 CHIP RES. 0 1 /1 6W 5 % RMC1/16S JPTH J24189070 8- A B3
R 8319 CHIP RES. 220k 1/16W 5% RMC1/16S 224JTH J24189053 8- A A 1
R 8320 CHIP RES. 22 k 1 /1 6W 5 % RMC1/16S 223JTH J24189041 8- B c2
R 8321 CHIP RES. 680k 1/16W 5% RMC1/16S 684JTH J24189059 16- A A3
R 8322 CHIP RES. 680k 1/16W 5% RMC1/16S 684JTH J24189059 16- A B3
R 8324 CHIP RES. 0 1 /1 6W 5 % RMC1/16S JPTH J24189070 24- A A3
R 8325 CHIP RES. 6.8M 1/16W 5% TSR16GJ685V J24189502 24-31 A A3
S 8001 TACT SWITCH PT-036-B2S-T N5090158 8- A A1
S 8002 TACT SWITCH PT-036-B2S-T N5090158 8- A A2
S 8003 TACT SWITCH PT-036-B2S-T N5090158 8- A A2
S 8004 TACT SWITCH PT-036-B2S-T N5090158 8- A A3
TH8001 THERMISTOR ERTJ1VV473J G9090122 8- B c2
TH8002 THERMISTOR TN05-3M154JR G9090171 8- B c 2
X 8001 XTAL XV00117 11.7MHz 11.7MHZ H0103330A 8- A A 3
XF8001 XTAL FILTER MFI47R 47.25MHZ H1102447 8- B a1
XF8002 XTAL FILTER MFI46R 46.35MHZ H1102448 8- A C2
DESCRIPTION
INSULATOR SHEET RA0408300 8-15
SHIELD SHEET (ANT) RA109330A 1CU TAPE (H029M) RA1121600 8-15
SHEET (10X9.5) RA1127600 8
SHEET (10X9.5) RA112760A 9-
VALUE V/W TOL. VXSTD P/NMFR’S DESIG VERS.
LOT.
SIDE
LAY ADR.
72
VX-8R/E and VX-8DR Technical Supplement
Page 73
Circuit Diagram
CNTL Unit (Lot. 1~4)
VX-8R/E Technical Supplement
73
Page 74
CNTL Unit (Lot. 1~4)
Parts Layout
B
C
ac
1
2
b
1
2
(Q2001, 2016, 2027, 2035,
(Q2002, 2003, 2004, 2005,
2SC5658
2040, 2061, 2062)
2SA2029 (F*)
(Q2015, 2065)
2SC5374 (NA)
(Q2023)
2SC4915 (QY)
(Q2029)
DTC144EM (26)
2007, 2019, 2021, 2036,
2038, 2039, 2041, 2042,
2043, 2044, 2049, 2052,
2057, 2059, 2060)
DTA144EM (16)
(Q2008)
2SD1801S
(Q2020)
DTC124EE (25)
(Q2022)
HD64F2370VLP34V
(Q2024)
M24512-RDW6TP
(Q2025)
S-35190A-I8T1G
(Q2026)
DTC143ZE (E23)
(Q2053)
CMX589AD5
(Q2054)
UMH4N
(Q2058)
DA221 (K)
(D2005, 2006, 203, 2033)
Side A
BA2902KN
(Q2028, 2030, 2032,
3
3
TAR5S30U (3V0)
(Q2009, 2013, 2063)
4
NJU7231F30-TE1
5
4
4
5
(Q2010)
XC61GN3002HR
(Q2011, 2012)
2033, 2037)
CMX865AE4
(Q2055)
TC74VHC595FK
(Q2056)
MCH6305-TL
(Q2031, 2064)
NJM2151AV
(Q2034)
DAN222 (N)
(D2030, 2032)
Side B
CPH6202-TL
(Q2014)
DTC144TE (96)
(Q2048, 2050)
74
RTM002P02
(Q2018)
2SK3541
(Q2045, 2046, 2047)
VX-8R/E Technical Supplement
Page 75
Circuit Diagram
CNTL Unit (Lot.5~7)
VX-8R/E Technical Supplement
75
Page 76
CNTL Unit (Lot.5~7)
Parts Layout
B
C
ac
1
2
b
1
2
(Q2001, 2016, 2027, 2035,
(Q2002, 2003, 2004, 2005,
2SC5658
2040, 2061, 2062)
2SA2029 (F*)
(Q2015, 2065)
2SC5374 (NA)
(Q2023)
2SC4915 (QY)
(Q2029)
DTC144EM (26)
2007, 2019, 2021, 2036,
2038, 2039, 2041, 2042,
2043, 2044, 2049, 2052,
2057, 2059, 2060)
DTA144EM (16)
(Q2008)
2SD1801S
(Q2020)
DTC124EE (25)
(Q2022)
HD64F2370VLP34V
(Q2024)
M24512-RDW6TP
(Q2025)
S-35190A-I8T1G
(Q2026)
DTC143ZE (E23)
(Q2053)
CMX589AD5
(Q2054)
UMH4N
(Q2058)
DA221 (K)
(D2005, 2006, 203, 2033)
Side A
BA2902KN
(Q2028, 2030, 2032,
3
3
TAR5S30U (3V0)
(Q2009, 2013, 2063)
4
NJU7231F30-TE1
5
4
4
5
(Q2010)
XC61GN3002HR
(Q2011, 2012)
2033, 2037)
CMX865AE4
(Q2055)
TC74VHC595FK
(Q2056)
MCH6305-TL
(Q2031, 2064)
NJM2151AV
(Q2034)
DAN222 (N)
(D2030, 2032)
Side B
CPH6202-TL
(Q2014)
DTC144TE (96)
(Q2048, 2050)
76
RTM002P02
(Q2018)
2SK3541
(Q2045, 2046, 2047)
VX-8R/E Technical Supplement
Page 77
CNTL Unit (Lot.1~7)
Parts List
REF.
BT2001 LI-ION BATTERY ML614R-TT31 Q9000895 1 - B c 1
C 2002 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1- B b1
C 2003 CHIP CAP. 0.1uF 1 0V B GRM155B11A104KA01D K22108802 1- B a4
C 2004 CHIP TA.CAP. 100uF 4 V TEESVA0G107M8R K78060051 1- B a4
C 2005 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1- B b4
C 2006 CHIP TA.CAP. 220uF 4 V TEESVC0G227M12R K78060053 1- B a1
C 2007 CHIP CAP. 1uF 6.3V B GRM155B30J105KE18D K22088803 1- B a2
C 2008 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1- B a2
C 2009 CHIP CAP. 1uF 6.3V B GRM155B30J105KE18D K22088803 1- B a2
C 2010 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1- B a2
C 2011 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1- A A 2
C 2012 CHIP TA.CAP. 47uF 4V TEESVP0G476M8R K78060050 1- B b1
C 2013 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 1- B b1
C 2014 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1- B a4
C 2015 CHIP TA.CAP. 47uF 4V TEESVP0G476M8R K78060050 1- B b4
C 2016 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1- B b4
C 2017 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 1- B b4
C 2018 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 1- B c4
C 2019 CHIP TA.CAP. 22uF 20 V TEMSVC1D226M12R K78130030 1- B c4
C 2021 CHIP TA.CAP. 47uF 4V TEESVP0G476M8R K78060050 1- B a1
C 2022 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1- B a2
C 2023 CHIP CAP. 1uF 6.3V B GRM155B30J105KE18D K22088803 1- B a2
C 2025 CHIP CAP. 0.1uF 1 0V B GRM155B11A104KA01D K22108802 1- B b1
C 2026 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 1- B a1
C 2027 CHIP CAP. 4.7uF 4 V BJ AMK105BJ475MV-F K22068801 1- B a4
C 2028 CHIP CAP. 4.7uF 4 V BJ AMK105BJ475MV-F K22068801 1- B a4
C 2029 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 1- B b4
C 2030 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1- B c4
C 2031 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1- B c4
C 2032 CHIP CAP. 1uF 6.3V B GRM155B30J105KE18D K22088803 1- B a4
C 2033 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 1- B a2
C 2036 CHIP CAP. 0.047uF 10V B GRM155B11A473KA01D K22108801 1- B c2
C 2037 CHIP CAP. 6pF 5 0 V CH UMK105CH060DV-F K22178254 1- B b2
C 2038 CHIP CAP. 15pF 5 0V CH GRM1552C1H150JZ01D K22178216 1 - B b2
C 2039 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1- B a2
C 2040 CHIP CAP. 0.047uF 10V B GRM155B11A473KA01D K22108801 1- B b3
C 2041 CHIP CAP. 0.047uF 10V B GRM155B11A473KA01D K22108801 1- B a1
C 2042 CHIP CAP. 0.047uF 10V B GRM155B11A473KA01D K22108801 1- A C1
C 2044 CHIP CAP. 3pF 5 0 V CJ UMK105CJ030CV-F K22178251 1- B b2
C 2045 CHIP CAP. 15pF 5 0V CH GRM1552C1H150JZ01D K22178216 1 - B b2
C 2046 CHIP CAP. 0.47uF 6.3V B GRM155B30J474KE18D K22088802 1 - A B1
C 2047 CHIP CAP. 0.47uF 6.3V B GRM155B30J474KE18D K22088802 1 - A B1
C 2048 CHIP CAP. 0.47uF 6.3V B GRM155B30J474KE18D K22088802 1 - A B1
C 2049 CHIP TA.CAP. 47uF 4V TEESVP0G476M8R K78060050 1- B a2
C 2052 CHIP CAP. 0.47uF 6.3V B GRM155B30J474KE18D K22088802 1 - A B1
C 2053 CHIP CAP. 0.47uF 6.3V B GRM155B30J474KE18D K22088802 1 - A B1
C 2054 CHIP CAP. 1uF 6.3V B GRM155B30J105KE18D K22088803 1- A B1
C 2055 CHIP CAP. 1uF 6.3V B GRM155B30J105KE18D K22088803 1- A A 1
C 2056 CHIP CAP. 1uF 6.3V B GRM155B30J105KE18D K22088803 1- A A 1
C 2057 CHIP CAP. 1uF 6.3V B GRM155B30J105KE18D K22088803 1- A A 1
VX-8R/E Technical Supplement
DESCRIPTION
PCB with Components
The CNTL Unit PCB is no longer available for lots 01 to 07.
The New CNTL-2 Unit is not compatible for lots 01 to 07.
If the new CNTL-2 Unit is installed, RF-2 Unit and CONNECTOR-2 Unit must also be installed.
Printed Circuit Board FR018230E 1- 4
VALUE V/W TOL. VXSTD P/NMFR’S DESIG VERS.
FR018230F 5-7
LOT.
SIDE
LAY ADR.
77
Page 78
CNTL Unit (Lot.1~7)
REF.
C 2058 CHIP CAP. 1uF 6.3V B GRM155B30J105KE18D K22088803 1- A A 1
C 2059 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1- A A 1
C 2061 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1- B c4
C 2062 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1- B c4
C 2063 CHIP CAP. 7pF 5 0 V CH GRM1552C1H7R0DZ01D K22178209 1- B c 1
C 2064 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 1- B c1
C 2065 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1- B c4
C 2068 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1- B c2
C 2069 CHIP CAP. 0.1uF 1 0V B GRM155B11A104KA01D K22108802 1- B c2
C 2070 CHIP CAP. 0.1uF 1 0V B GRM155B11A104KA01D K22108802 1- B b4
C 2071 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1- B a2
C 2073 CHIP CAP. 0.1uF 1 0V B GRM155B11A104KA01D K22108802 1- B a1
C 2074 CHIP CAP. 1uF 6.3V B GRM155B30J105KE18D K22088803 1- B c4
C 2075 CHIP CAP. 4.7uF 4 V BJ AMK105BJ475MV-F K22068801 1- B c 4
C 2076 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 1- B c3
C 2077 CHIP CAP. 0.0047uF 25V B TMK105B472KW-F K22148831 1- B c3
C 2078 CHIP CAP. 0.0047uF 25V B TMK105B472KW-F K22148831 1- B c4
C 2079 CHIP CAP. 0.0027uF 50V B UMK105B272KW-F K22178834 1- B c3
C 2080 CHIP CAP. 33pF 5 0V CH GRM1552C1H330JZ01D K22178224 1 - B c3
C 2081 CHIP CAP. 1uF 6.3V B GRM155B30J105KE18D K22088803 1- B b4
C 2082 CHIP CAP. 0.0047uF 25V B TMK105B472KW-F K22148831 1- B b4
C 2083 CHIP CAP. 0.0047uF 25V B TMK105B472KW-F K22148831 1- B b4
C 2084 CHIP CAP. 4.7uF 4 V BJ AMK105BJ475MV-F K22068801 1- B b4
C 2085 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 1- B c3
C 2086 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1- B b5
C 2087 CHIP CAP. 1uF 6.3V B GRM155B30J105KE18D K22088803 1- B b4
C 2088 CHIP TA.CAP. 100uF 10V TEESVC21A107M12R K78100079 1 - B a1
C 2089 CHIP CAP. 1uF 6.3V B GRM155B30J105KE18D K22088803 1- B a2
C 2090 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1- B c3
C 2091 CHIP CAP. 0.015uF 16V B GRM155B11C153KA01D K22128807 1- B c3
C 2092 CHIP CAP. 560pF 50 V B UMK105B561KW-F K22178826 1- B c3
C 2093 CHIP CAP. 33pF 5 0V CH GRM1552C1H330JZ01D K22178224 1 - B b4
C 2094 CHIP CAP. 0.022uF 16V B GRM155B11C223KA01D K22128806 1- B c3
C 2095 CHIP CAP. 220pF 25 V CH TMK105CH221JV-F K22148246 1- B c3
C 2096 CHIP CAP. 0.0027uF 50V B UMK105B272KW-F K22178834 1- B c3
C 2097 CHIP CAP. 0.022uF 16V B GRM155B11C223KA01D K22128806 1- B c3
C 2098 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1- B b3
C 2099 CHIP CAP. 0.015uF 16V B GRM155B11C153KA01D K22128807 1- B c3
C 2100 CHIP CAP. 560pF 50 V B UMK105B561KW-F K22178826 1- B c3
C 2101 CHIP CAP. 220pF 25 V CH TMK105CH221JV-F K22148246 1- B c3
C 2102 CHIP CAP. 1uF 6.3V B GRM155B30J105KE18D K22088803 1- B a1
C 2103 CHIP CAP. 1uF 6.3V B GRM155B30J105KE18D K22088803 1- B c1
C 2104 CHIP CAP. 1uF 6.3V B GRM155B30J105KE18D K22088803 1- B c1
C 2105 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1- B a1
C 2106 CHIP TA.CAP. 47uF 4V TEESVP0G476M8R K78060050 1- B b1
C 2107 CHIP CAP. 4.7uF 4 V BJ AMK105BJ475MV-F K22068801 1- B b1
C 2108 CHIP TA.CAP. 47uF 4V TEESVP0G476M8R K78060050 1- B b1
C 2109 CHIP CAP. 4.7uF 4 V BJ AMK105BJ475MV-F K22068801 1- B b1
C 2110 CHIP TA.CAP. 100uF 10V TEESVC21A107M12R K78100079 1 - B b1
C 2111 CHIP TA.CAP. 100uF 10V TEESVC21A107M12R K78100079 1 - B b1
C 2113 CHIP CAP. 680pF 50 V B GRM155B11H681KA01D K22178807 1- B a3
C 2114 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 1- B a3
C 2115 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 1- B a3
C 2116 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 1- B a2
C 2117 CHIP CAP. 0.0039uF 50V B UMK105B392KW-F K22178836 1- B a2
C 2118 CHIP CAP. 0.0033uF 50V B GRM155B11H332KA01D K22178815 1- B a2
C 2119 CHIP CAP. 1uF 6.3V B GRM155B30J105KE18D K22088803 1- B a3
C 2120 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 1- B a3
C 2121 CHIP CAP. 0.022uF 16V B GRM155B11C223KA01D K22128806 1- B c3
C 2122 CHIP CAP. 0.015uF 16V B GRM155B11C153KA01D K22128807 1- B c3
78
DESCRIPTION
VALUE V/W TOL. VXSTD P/NMFR’S DESIG VERS.
VX-8R/E Technical Supplement
LOT.
SIDE
LAY ADR.
Page 79
CNTL Unit (Lot.1~7)
REF.
C 2123 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1- B c3
C 2124 CHIP CAP. 220pF 25 V CH TMK105CH221JV-F K22148246 1- B c3
C 2125 CHIP CAP. 560pF 50 V B UMK105B561KW-F K22178826 1- B c3
C 2126 CHIP CAP. 0.022uF 16V B GRM155B11C223KA01D K22128806 1- B c3
C 2127 CHIP CAP. 0.015uF 16V B GRM155B11C153KA01D K22128807 1- B b3
C 2128 CHIP CAP. 560pF 50 V B UMK105B561KW-F K22178826 1- B c3
C 2129 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1- B b3
C 2130 CHIP CAP. 220pF 25 V CH TMK105CH221JV-F K22148246 1- B b3
C 2131 CHIP CAP. 1uF 6.3V B GRM155B30J105KE18D K22088803 1- B c1
C 2132 CHIP CAP. 1uF 6.3V B GRM155B30J105KE18D K22088803 1- B c1
C 2133 CHIP CAP. 1uF 6.3V B GRM155B30J105KE18D K22088803 1- B b1
C 2135 CHIP CAP. 1uF 6.3V B GRM155B30J105KE18D K22088803 1- B a3
C 2136 CHIP CAP. 180pF 25 V CH TMK105CH181JV-F K22148244 1- B a3
C 2137 CHIP TA.CAP. 47uF 4V TEESVP0G476M8R K78060050 1- B a2
C 2138 CHIP CAP. 0.047uF 10V B GRM155B11A473KA01D K22108801 1- B a3
C 2139 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1- B a3
C 2140 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1- B a3
C 2141 CHIP CAP. 0.047uF 10V B GRM155B11A473KA01D K22108801 1- B c3
C 2142 CHIP CAP. 0.047uF 10V B GRM155B11A473KA01D K22108801 1- B b3
C 2143 CHIP CAP. 1uF 6.3V B GRM155B30J105KE18D K22088803 1- B b4
C 2144 CHIP CAP. 1uF 6.3V B GRM155B30J105KE18D K22088803 1- B a4
C 2145 CHIP CAP. 1uF 6.3V B GRM155B30J105KE18D K22088803 1- B b4
C 2146 CHIP CAP. 1uF 6.3V B GRM155B30J105KE18D K22088803 1- B b4
C 2147 CHIP CAP. 0.0047uF 25V B TMK105B472KW-F K22148831 1- B a3
C 2148 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1- B a2
C 2149 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1- B a3
C 2150 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1- A C3
C 2151 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1- B a3
C 2152 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1- A C3
C 2153 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1- A C3
C 2154 CHIP CAP. 0.1uF 1 0V B GRM155B11A104KA01D K22108802 1- A C3
C 2155 CHIP CAP. 100pF 50 V CH GRM1552C1H101JD01D K22178236 1- A C3
C 2156 CHIP CAP. 1uF 6.3V B GRM155B30J105KE18D K22088803 1- B a4
C 2157 CHIP CAP. 1uF 6.3V B GRM155B30J105KE18D K22088803 1- B b4
C 2158 CHIP CAP. 1uF 6.3V B GRM155B30J105KE18D K22088803 1- B a4
C 2159 CHIP CAP. 1uF 6.3V B GRM155B30J105KE18D K22088803 1- A C2
C 2160 CHIP CAP. 22pF 5 0V CH GRM1552C1H220JZ01D K22178220 1 - B b2
C 2161 CHIP CAP. 22pF 5 0V CH GRM1552C1H220JZ01D K22178220 1 - B b2
C 2162 CHIP CAP. 1uF 6.3V B GRM155B30J105KE18D K22088803 1- B c1
C 2163 CHIP CAP. 22pF 5 0V CH GRM1552C1H220JZ01D K22178220 1 - B c2
C 2164 CHIP CAP. 4.7uF 6.3V B C1608JB0J475KT K22084804 1- B c 1
C 2164 CHIP CAP. 4.7uF 4 V BJ AMK105BJ475MV-F K22068801 5- B c 1
C 2165 CHIP CAP. 100pF 50 V CH GRM1552C1H101JD01D K22178236 1- B b2
C 2166 CHIP CAP. 0.022uF 16V B GRM155B11C223KA01D K22128806 1- B b2
C 2167 CHIP CAP. 0.1uF 1 0V B GRM155B11A104KA01D K22108802 1- B b2
C 2168 CHIP CAP. 22pF 5 0V CH GRM1552C1H220JZ01D K22178220 1 - B b2
C 2169 CHIP CAP. 22pF 5 0V CH GRM1552C1H220JZ01D K22178220 1 - B b2
C 2171 CHIP CAP. 0.015uF 16V B GRM155B11C153KA01D K22128807 1- B c1
C 2172 CHIP CAP. 0.015uF 16V B GRM155B11C153KA01D K22128807 1- B c1
C 2173 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1- B b1
C 2175 CHIP CAP. 1uF 6.3V B GRM155B30J105KE18D K22088803 1- B b4
C 2176 CHIP CAP. 1uF 6.3V B GRM155B30J105KE18D K22088803 1- B a4
C 2177 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1- A A 2
C 2178 CHIP CAP. 4.7uF 4 V BJ AMK105BJ475MV-F K22068801 1- A A 2
C 2179 CHIP CAP. 4.7uF 4 V BJ AMK105BJ475MV-F K22068801 1- B a2
C 2180 CHIP CAP. 4.7uF 4 V BJ AMK105BJ475MV-F K22068801 1- B b4
C 2184 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 1- B c1
C 2186 CHIP CAP. 4.7uF 4 V BJ AMK105BJ475MV-F K22068801 1- B b1
C 2187 CHIP CAP. 4.7uF 4 V BJ AMK105BJ475MV-F K22068801 1- B b1
C 2188 CHIP TA.CAP. 47uF 4V TEESVP0G476M8R K78060050 1- B b1
DESCRIPTION
VALUE V/W TOL. VXSTD P/NMFR’S DESIG VERS.
LOT.
SIDE
LAY ADR.
VX-8R/E Technical Supplement
79
Page 80
CNTL Unit (Lot.1~7)
REF.
C 2189 CHIP CAP. 4.7uF 4 V BJ AMK105BJ475MV-F K22068801 1- B b1
C 2190 CHIP CAP. 4.7uF 4 V BJ AMK105BJ475MV-F K22068801 1- B b2
C 2191 CHIP CAP. 4.7uF 4 V BJ AMK105BJ475MV-F K22068801 1- B a4
C 2192 CHIP TA.CAP. 47uF 4V TEESVP0G476M8R K78060050 1- B b1
C 2193 CHIP CAP. 1uF 6.3V B GRM155B30J105KE18D K22088803 1- B c1
C 2194 CHIP CAP. 4.7uF 6.3V B C1608JB0J475KT K22084804 1C 2194 CHIP CAP. 4.7uF 4 V BJ AMK105BJ475MV-F K22068801 5C 2196 CHIP CAP. 4.7uF 4 V BJ AMK105BJ475MV-F K22068801 1C 2196 CHIP CAP. 4.7uF 6.3V B C1608JB0J475KT K22084804 3C 2197 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1C 2198 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1C 2199 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1C 2200 CHIP TA.CAP. 47uF 4V TEESVP0G476M8R K78060050 1D 2001 LED SML-512MWT86 G2071228 1- A A 2
D 2002 LED SML-512UWT86 G2071230 1- A A 1
D 2003 LED SML-512MWT86 G2071228 1- A A 1
D 2004 LED SML-512UWT86 G2071230 1- A A 1
D 2005 DIODE DA221M T2L G2070940 1- B a2
D 2006 DIODE DA221M T2L G2070940 1- B a2
D 2008 LED MA10-1104Q7NC-WK G2070878 1- A C1
D 2009 LED MA10-1104Q7NC-WK G2070878 1- A C1
D 2010 LED MA10-1104Q7NC-WK G2070878 1- A C2
D 2011 LED 19-213/S2C-AN1P2B/3T G2071096 1- A A 3
D 2012 DIODE 1SS400G T2R G2070934 1- B a2
D 2013 DIODE EDZ TE-61 8.2B G2071188 1- B a2
D 2015 LED 19-213/S2C-AN1P2B/3T G2071096 1- A A 3
D 2016 LED 19-213/S2C-AN1P2B/3T G2071096 1- A A 4
D 2017 LED 19-213/S2C-AN1P2B/3T G2071096 1- A A 4
D 2018 LED 19-213/S2C-AN1P2B/3T G2071096 1- A B4
D 2019 LED 19-213/S2C-AN1P2B/3T G2071096 1- A B4
D 2020 LED 19-213/S2C-AN1P2B/3T G2071096 1- A B4
D 2021 DIODE RB521S-30 TE61 G2070642 1- B c4
D 2022 DIODE RB751G-40T2R G2071066 1- B b4
D 2023 LED 19-213/S2C-AN1P2B/3T G2071096 1- A B4
D 2024 LED 19-213/S2C-AN1P2B/3T G2071096 1- A B4
D 2025 LED 19-213/S2C-AN1P2B/3T G2071096 1- A B4
D 2026 LED WH104S(TAPE) G2071174 1- A C1
D 2027 DIODE RD2.0UM-T2 G2070190 1- B a2
D 2028 DIODE RB551V-30 TE-17 G2070892 1- B a2
D 2029 DIODE RB751G-40T2R G2071066 1- B c1
D 2030 DIODE DAN222M T2L G2070936 1- B c 3
D 2031 DIODE DA221M T2L G2070940 1- B c3
D 2032 DIODE DAN222M T2L G2070936 1- B b3
D 2033 DIODE DA221M T2L G2070940 1- B b3
D 2034 DIODE EDZ TE-61 5.1B G2070998 1- A C3
DS2001 LCD MODULE AH029M Q7000614 1FB2001 FERRITE BEADS BLM15AG121SN1D L1690843 1 - B a1
FB2002 FERRITE BEADS BLM15AG121SN1D L1690843 1 - B a1
FB2003 FERRITE BEADS BLM15AG121SN1D L1690843 1 - B a1
FB2004 FERRITE BEADS BLM15AG121SN1D L1690843 1 - B b1
FB2005 FERRITE BEADS BLM15AG121SN1D L1690843 1 - B b1
FB2006 FERRITE BEADS BLM15AG121SN1D L1690843 1 - B b1
FB2007 FERRITE BEADS BLM15AG121SN1D L1690843 1 - B b1
FB2008 FERRITE BEADS BLM15AG121SN1D L1690843 1 - B b1
FB2009 FERRITE BEADS BLM15AG121SN1D L1690843 1 - B b1
FB2010 FERRITE BEADS BLM15AG121SN1D L1690843 1 - B b1
J 2 001 CONNECTOR AXK620347YG P0091506 1- B b4
J 2 002 CONNECTOR XF2U-3015-3A P1091369 1 - A B1
J 2 003 CONNECTOR AXK5S50037YG P1091359 1- B c 4
J 2 004 CONNECTOR MJC-041-B1Z-3.5T P1091312 1- B a1
80
DESCRIPTION
VALUE V/W TOL. VXSTD P/NMFR’S DESIG VERS.
VX-8R/E Technical Supplement
LOT.
SIDE
LAY ADR.
Page 81
CNTL Unit (Lot.1~7)
REF.
J 2006 CONNECTOR XF2L-0725-1A P1091364 1- B b1
JP2001 WIRE ASSY GRN 20 (2)/(2) T57502002 1-4
L 2002 M.RFC 18uH FLC32T-180J L1690218 1- B b2
L 2003 M.RFC 1uH LK1608 1R0K-T L1690687 1- B a2
L 2004 M.RFC 4.7uH LK1608 4R7K-T L1690688 1- B a5
L 2005 M.RFC 0.68uH LK1608 R68K-T L1690416 1- B a1
MC2001 MICROPHONE ELEMENT IMP-415TN-423-R413EN M3290052 1- A C3
MD2001 MODULE HPM-013 Q7000612 1- B a4
Q 2001 TRANSISTOR 2SC5658 T2L Q/R G3356588 1- B a2
Q 2002 TRANSISTOR DTC144EM T2L G3070309 1 - A A 2
Q 2003 TRANSISTOR DTC144EM T2L G3070309 1 - A A 2
Q 2004 TRANSISTOR DTC144EM T2L G3070309 1 - A A 1
Q 2005 TRANSISTOR DTC144EM T2L G3070309 1 - B a2
Q 2007 TRANSISTOR DTC144EM T2L G3070309 1 - A A 1
Q 2008 TRANSISTOR DTA144EM T2L G3070310 1- B a3
Q 2009 IC TAR5S30U(TE85L.F) G1094596 1- B b4
Q 2010 IC NJU7231F30-TE1 G1093512 1- B a2
Q 2011 IC XC61GN3002HR G1094470 1- B a2
Q 2012 IC XC61GN3002HR G1094470 1- B a2
Q 2013 IC TAR5S30U(TE85L.F) G1094596 1- B a2
Q 2014 TRANSISTOR CPH6202-TL G3070265 1- A C2
Q 2015 TRANSISTOR 2SA2029 T2L Q/R G3120298 1- A C2
Q 2016 TRANSISTOR 2SC5658 T2L Q/R G3356588 1- A C2
Q 2018 FET RTM002P02(TAPE) G3070347 1 - B c 1
Q 2019 TRANSISTOR DTC144EM T2L G3070309 1 - B b2
Q 2020 TRANSISTOR 2SD1801S-TL G3418018S 1- B a2
Q 2021 TRANSISTOR DTC144EM T2L G3070309 1 - A B1
Q 2022 TRANSISTOR DTC124EE TL G3070109 1- B b2
Q 2023 TRANSISTOR 2SC5374-TL G3353748 1- B b2
Q 2024 IC HD64F2370VLP34V
Q 2025 IC M24512-RDW6TP G1094562 1- B c3
Q 2026 IC S-35190A-I8T1G G1094590 1- B c1
Q 2027 TRANSISTOR 2SC5658 T2L Q/R G3356588 1- B a1
Q 2028 IC BA2902KN G1094201 1- B c3
Q 2029 TRANSISTOR 2SC4915-O(TE85L.F) G3349158O 1- B b4
Q 2030 IC BA2902KN G1094201 1- B b3
Q 2031 FET MCH6305-TL G3070301 1- B a1
Q 2032 IC BA2902KN G1094201 1- B a2
Q 2033 IC BA2902KN G1094201 1- B c3
Q 2034 IC NJM2151AV(TAPE) G1094420 1 - B a1
Q 2035 TRANSISTOR 2SC5658 T2L Q/R G3356588 1- B c 3
Q 2036 TRANSISTOR DTC144EM T2L G3070309 1 - B c 3
Q 2037 IC BA2902KN G1094201 1- B a2
Q 2038 TRANSISTOR DTC144EM T2L G3070309 1 - B c 3
Q 2039 TRANSISTOR DTC144EM T2L G3070309 1 - B c 4
Q 2040 TRANSISTOR 2SC5658 T2L Q/R G3356588 1- B b3
Q 2041 TRANSISTOR DTC144EM T2L G3070309 1 - B b3
Q 2042 TRANSISTOR DTC144EM T2L G3070309 1 - B b3
Q 2043 TRANSISTOR DTC144EM T2L G3070309 1 - B c 3
Q 2044 TRANSISTOR DTC144EM T2L G3070309 1 - B c 3
Q 2045 FET 2SK3541 T2L G3835417 1- B c1
Q 2046 FET 2SK3541 T2L G3835417 1- B b1
Q 2047 FET 2SK3541 T2L G3835417 1- B b1
Q 2048 TRANSISTOR DTC144TE-TL G3070280 1- B b3
Q 2049 TRANSISTOR DTC144EM T2L G3070309 1 - B c 3
Q 2050 TRANSISTOR DTC144TE-TL G3070280 1- B b3
Q 2051 IC BU2502MUV G1094586 1- B a4
Q 2052 TRANSISTOR DTC144EM T2L G3070309 1 - B a3
Q 2053 TRANSISTOR DTC143ZE TL G3070102 1- A C3
Q 2054 IC CMX589AD5 G1094597 1 - B c 2
VX-8R/E Technical Supplement
DESCRIPTION
VALUE V/W TOL. VXSTD P/NMFR’S DESIG VERS.
:
Please contact VERTEX STANDARD
SIDE
LOT.
1- B c2
LAY ADR.
81
Page 82
CNTL Unit (Lot.1~7)
REF.
Q 2055 IC CMX865AE4 G1094617 1 - B b1
Q 2056 IC TC74VHC595FK(EL,K) G1094552 1- B b4
Q 2057 TRANSISTOR DTC144EM T2L G3070309 1 - B b2
Q 2058 TRANSISTOR UMH4N TN G3070399 1- B b1
Q 2059 TRANSISTOR DTC144EM T2L G3070309 1 - B c 1
Q 2060 TRANSISTOR DTC144EM T2L G3070309 1 - B c 2
Q 2061 TRANSISTOR 2SC5658 T2L Q/R G3356588 1- B b1
Q 2062 TRANSISTOR 2SC5658 T2L Q/R G3356588 1- B b1
Q 2063 IC TAR5S33U(TE85L.F) G1094549 1- B b1
Q 2064 FET MCH6305-TL G3070301 1- B b1
Q 2065 TRANSISTOR 2SA2029 T2L Q/R G3120298 1- B b4
R 2001 CHIP RES. 10 0 1 /1 6W 5 % RMC1/16S 101JTH J24189013 1- A A 2
R 2002 CHIP RES. 15k 1/1 6W 5 % RMC1/16S 153JTH J24189039 1- B a2
R 2004 CHIP RES. 22 0 1 /1 6W 5 % RMC1/16S 221JTH J24189017 1- A A 2
R 2005 CHIP RES. 10 0 1 /1 6W 5 % RMC1/16S 101JTH J24189013 1- A A 1
R 2006 CHIP RES. 22 0 1 /1 6W 5 % RMC1/16S 221JTH J24189017 1- A A 1
R 2007 CHIP RES. 47k 1/1 6W 5 % RMC1/16S 473JTH J24189045 1- B c1
R 2008 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- B a4
R 2009 CHIP RES. 22k 1/1 6W 5 % RMC1/16S 223JTH J24189041 1- B b4
R 2010 CHIP RES. 390k 1/16W 5% RMC1/16S 394JTH J24189056 1- B a2
R 2011 CHIP RES. 22k 1/1 6W 5 % RMC1/16S 223JTH J24189041 1- B a2
R 2012 CHIP RES. 10k 1/1 6W 5 % RMC1/16S 103JTH J24189037 1- B b2
R 2014 CHIP RES. 10 0 1 /1 6W 5 % RMC1/16S 101JTH J24189013 1- A C1
R 2015 CHIP RES. 10 0 1 /1 6W 5 % RMC1/16S 101JTH J24189013 1- A C2
R 2016 CHIP RES. 10 0 1 /1 6W 5 % RMC1/16S 101JTH J24189013 1- A C2
R 2017 CHIP RES. 22 0 1 /1 6W 5 % RMC1/16S 221JTH J24189017 1- A C2
R 2018 CHIP RES. 47 0 1 /1 6W 5 % RMC1/16S 471JTH J24189021 1- B a2
R 2019 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- B a2
R 2020 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- B b1
R 2021 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- B b1
R 2022 CHIP RES. 22k 1/1 6W 5 % RMC1/16S 223JTH J24189041 1- B b4
R 2023 CHIP RES. 470k 1/16W 5% RMC1/16S 474JTH J24189057 1- B b4
R 2024 CHIP RES. 150k 1/16W 5% RMC1/16S 154JTH J24189051 1- B a2
R 2025 CHIP RES. 22k 1/1 6W 5 % RMC1/16S 223JTH J24189041 1- B a2
R 2026 CHIP RES. 82k 1/1 6W 5 % RMC1/16S 823JTH J24189048 1- B a2
R 2027 CHIP RES. 2.2k 1/16W 5 % RMC1/16S 222JTH J24189029 1- B a2
R 2028 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- B b1
R 2029 CHIP RES. 22 0 1 /1 6W 5 % RMC1/16S 221JTH J24189017 1- A C2
R 2030 CHIP RES. 22 0 1 /1 6W 5 % RMC1/16S 221JTH J24189017 1- A C2
R 2031 CHIP RES. 22 1/2 W 5 % RMC1/2 220JCTP J24275220 1- A C3
R 2032 CHIP RES. 22 0 1 /1 6W 5 % RMC1/16S 221JTH J24189017 1- A C2
R 2033 CHIP RES. 3.3k 1/16W 5 % RMC1/16S 332JTH J24189031 1- A C2
R 2034 CHIP RES. 4.7k 1/16W 5 % RMC1/16S 472JTH J24189033 1- A C2
R 2035 CHIP RES. 22 0 1 /1 6W 5 % RMC1/16S 221JTH J24189017 1- A C2
R 2036 CHIP RES. 22 0 1 /1 6W 5 % RMC1/16S 221JTH J24189017 1- A C2
R 2037 CHIP RES. 22 0 1 /1 6W 5 % RMC1/16S 221JTH J24189017 1- A C2
R 2038 CHIP RES. 47k 1/1 6W 5 % RMC1/16S 473JTH J24189045 1- B b1
R 2039 CHIP RES. 47k 1/1 6W 5 % RMC1/16S 473JTH J24189045 1- B b1
R 2040 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- B b1
R 2041 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- B b4
R 2042 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- B a2
R 2043 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- B b2
R 2044 CHIP RES. 22 0 1 /1 6W 5 % RMC1/16S 221JTH J24189017 1- A C2
R 2045 CHIP RES. 20k 1/1 6W 5 % RMC1/16S 203JTH J24189455 1- A C2
R 2046 CHIP RES. 10k 1/1 6W 5 % RMC1/16S 103JTH J24189037 1- A C2
R 2047 CHIP RES. 22 0 1 /1 6W 5 % RMC1/16S 221JTH J24189017 1- A C2
R 2048 CHIP RES. 15k 1/1 6W 5 % RMC1/16S 153JTH J24189039 1- A C2
R 2049 CHIP RES. 22 0 1 /1 6W 5 % RMC1/16S 221JTH J24189017 1- A C2
R 2050 CHIP RES. 20k 1/1 6W 5 % RMC1/16S 203JTH J24189455 1- A C2
R 2051 CHIP RES. 47 1/1 6W 5 % RMC1/16S 470JTH J24189009 1- A C1
82
DESCRIPTION
VALUE V/W TOL. VXSTD P/NMFR’S DESIG VERS.
VX-8R/E Technical Supplement
LOT.
SIDE
LAY ADR.
Page 83
CNTL Unit (Lot.1~7)
REF.
R 2052 CHIP RES. 18 1/1 6W 5 % RMC1/16S 180JTH J24189004 1- A B1
R 2053 CHIP RES. 4. 7 1/2W 5 % RMC1/2 4R7JCTP J24275479 1- B a2
R 2054 CHIP RES. 4.7k 1/16W 5 % RMC1/16S 472JTH J24189033 1- B b2
R 2055 CHIP RES. 4.7k 1/16W 5 % RMC1/16S 472JTH J24189033 1- B b2
R 2056 CHIP RES. 47k 1/1 6W 5 % RMC1/16S 473JTH J24189045 1- B c2
R 2057 CHIP RES. 1M 1 /1 6W 5 % RMC1/16S 105JTH J24189061 1- B b2
R 2058 CHIP RES. 330k 1/16W 0.5% MCR01MZPD3303 J24189330 1- B b3
R 2059 CHIP RES. 68k 1/1 6W 0.5% MCR01MZPD6802 J24189384 1- B b3
R 2060 CHIP RES. 22k 1/1 6W 5 % RMC1/16S 223JTH J24189041 1- A C1
R 2061 CHIP RES. 22k 1/1 6W 5 % RMC1/16S 223JTH J24189041 1- A C1
R 2062 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- B b2
R 2063 CHIP RES. 1k 1/ 16 W 5 % RMC1/16S 102JTH J24189025 1- B c1
R 2064 CHIP RES. 10k 1/1 6W 5 % RMC1/16S 103JTH J24189037 1- B a1
R 2065 CHIP RES. 10k 1/1 6W 5 % RMC1/16S 103JTH J24189037 1- B c4
R 2066 CHIP RES. 15k 1/1 6W 5 % RMC1/16S 153JTH J24189039 1- B c4
R 2067 CHIP RES. 150k 1/16W 5% RMC1/16S 154JTH J24189051 1- B c3
R 2068 CHIP RES. 68 0 1 /1 6W 5 % RMC1/16S 681JTH J24189023 1- B c4
R 2069 CHIP RES. 47k 1/1 6W 5 % RMC1/16S 473JTH J24189045 1- B c3
R 2070 CHIP RES. 33k 1/1 6W 5 % RMC1/16S 333JTH J24189043 1- B c3
R 2071 CHIP RES. 10k 1/1 6W 5 % RMC1/16S 103JTH J24189037 1- B b4
R 2072 CHIP RES. 15k 1/1 6W 5 % RMC1/16S 153JTH J24189039 1- B c3
R 2073 CHIP RES. 150k 1/16W 5% RMC1/16S 154JTH J24189051 1- B c3
R 2074 CHIP RES. 68 0 1 /1 6W 5 % RMC1/16S 681JTH J24189023 1- B b4
R 2075 CHIP RES. 47k 1/1 6W 5 % RMC1/16S 473JTH J24189045 1- B c3
R 2076 CHIP RES. 220k 1/16W 5% RMC1/16S 224JTH J24189053 1- B b5
R 2077 CHIP RES. 1k 1/ 16 W 5 % RMC1/16S 102JTH J24189025 1- B b4
R 2078 CHIP RES. 18k 1/1 6W 0.5% MCR01MZPD1802 J24189377 1- B a1
R 2079 CHIP RES. 7.5k 1/16W 0.5% MCR01MZPD7501 J24189393 1- B a2
R 2080 CHIP RES. 0 1/ 16 W 5 % RMC1/16S JPTH J24189070 1- B b1
R 2081 CHIP RES. 470k 1/16W 5% RMC1/16S 474JTH J24189057 1- B a1
R 2082 CHIP RES. 4.7k 1/16W 5 % RMC1/16S 472JTH J24189033 1- B a2
R 2084 CHIP RES. 10k 1/1 6W 5 % RMC1/16S 103JTH J24189037 1- B a2
R 2085 CHIP RES. 470k 1/16W 5% RMC1/16S 474JTH J24189057 1- B a2
R 2086 CHIP RES. 47k 1/1 6W 5 % RMC1/16S 473JTH J24189045 1- B c4
R 2087 CHIP RES. 47k 1/1 6W 5 % RMC1/16S 473JTH J24189045 1- B c3
R 2088 CHIP RES. 560k 1/16W 5% RMC1/16S 564JTH J24189058 1- B c3
R 2089 CHIP RES. 68k 1/1 6W 5 % RMC1/16S 683JTH J24189047 1- B c3
R 2090 CHIP RES. 390k 1/16W 5% RMC1/16S 394JTH J24189056 1- B c3
R 2091 CHIP RES. 47k 1/1 6W 5 % RMC1/16S 473JTH J24189045 1- B c4
R 2092 CHIP RES. 390k 1/16W 5% RMC1/16S 394JTH J24189056 1- B c3
R 2093 CHIP RES. 10k 1/1 6W 5 % RMC1/16S 103JTH J24189037 1- B b3
R 2094 CHIP RES. 560k 1/16W 5% RMC1/16S 564JTH J24189058 1- B b4
R 2095 CHIP RES. 10k 1/1 6W 5 % RMC1/16S 103JTH J24189037 1- B c3
R 2096 CHIP RES. 33k 1/1 6W 5 % RMC1/16S 333JTH J24189043 1- B b3
R 2097 CHIP RES. 47k 1/1 6W 5 % RMC1/16S 473JTH J24189045 1- B b3
R 2098 CHIP RES. 47k 1/1 6W 5 % RMC1/16S 473JTH J24189045 1- B b3
R 2099 CHIP RES. 10k 1/1 6W 5 % RMC1/16S 103JTH J24189037 1- B c3
R 2100 CHIP RES. 68k 1/1 6W 5 % RMC1/16S 683JTH J24189047 1- B c3
R 2101 CHIP RES. 390k 1/16W 5% RMC1/16S 394JTH J24189056 1- B c3
R 2102 CHIP RES. 47k 1/1 6W 5 % RMC1/16S 473JTH J24189045 1- B b3
R 2103 CHIP RES. 390k 1/16W 5% RMC1/16S 394JTH J24189056 1- B c3
R 2104 CHIP RES. 47k 1/1 6W 5 % RMC1/16S 473JTH J24189045 1- B a1
R 2105 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- B a3
R 2106 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- B a3
R 2107 CHIP RES. 33k 1/1 6W 5 % RMC1/16S 333JTH J24189043 1- B a3
R 2108 CHIP RES. 4.7k 1/16W 5 % RMC1/16S 472JTH J24189033 1- B a2
R 2109 CHIP RES. 2.2k 1/16W 5 % RMC1/16S 222JTH J24189029 1- B a2
R 2110 CHIP RES. 4.7k 1/16W 5 % RMC1/16S 472JTH J24189033 1- B a2
R 2111 CHIP RES. 10k 1/1 6W 5 % RMC1/16S 103JTH J24189037 1- B a3
R 2112 CHIP RES. 5.6k 1/16W 5 % RMC1/16S 562JTH J24189034 1- B a3
DESCRIPTION
VALUE V/W TOL. VXSTD P/NMFR’S DESIG VERS.
LOT.
SIDE
LAY ADR.
VX-8R/E Technical Supplement
83
Page 84
CNTL Unit (Lot.1~7)
REF.
R 2113 CHIP RES. 270k 1/16W 5% RMC1/16S 274JTH J24189054 1- B a3
R 2114 CHIP RES. 47k 1/1 6W 5 % RMC1/16S 473JTH J24189045 1- B b3
R 2115 CHIP RES. 10k 1/1 6W 5 % RMC1/16S 103JTH J24189037 1- B a1
R 2116 CHIP RES. 10k 1/1 6W 5 % RMC1/16S 103JTH J24189037 1- B a1
R 2117 CHIP RES. 10k 1/1 6W 5 % RMC1/16S 103JTH J24189037 1- B a1
R 2118 CHIP RES. 10k 1/1 6W 5 % RMC1/16S 103JTH J24189037 1- B b3
R 2119 CHIP RES. 68k 1/1 6W 5 % RMC1/16S 683JTH J24189047 1- B c3
R 2120 CHIP RES. 390k 1/16W 5% RMC1/16S 394JTH J24189056 1- B c3
R 2121 CHIP RES. 390k 1/16W 5% RMC1/16S 394JTH J24189056 1- B c3
R 2122 CHIP RES. 10k 1/1 6W 5 % RMC1/16S 103JTH J24189037 1- B b3
R 2123 CHIP RES. 10k 1/1 6W 5 % RMC1/16S 103JTH J24189037 1- B b3
R 2124 CHIP RES. 47k 1/1 6W 5 % RMC1/16S 473JTH J24189045 1- B b3
R 2125 CHIP RES. 68k 1/1 6W 5 % RMC1/16S 683JTH J24189047 1- B c3
R 2126 CHIP RES. 390k 1/16W 5% RMC1/16S 394JTH J24189056 1- B c3
R 2127 CHIP RES. 390k 1/16W 5% RMC1/16S 394JTH J24189056 1- B b3
R 2128 CHIP RES. 10k 1/1 6W 5 % RMC1/16S 103JTH J24189037 1- B c1
R 2129 CHIP RES. 15k 1/1 6W 5 % RMC1/16S 153JTH J24189039 1- B c1
R 2130 CHIP RES. 15k 1/1 6W 5 % RMC1/16S 153JTH J24189039 1- B c1
R 2131 CHIP RES. 330k 1/16W 5% RMC1/16S 334JTH J24189055 1- B c1
R 2132 CHIP RES. 0 1/ 16 W 5 % RMC1/16S JPTH J24189070 1- B c 1
R 2133 CHIP RES. 0 1/ 16 W 5 % RMC1/16S JPTH J24189070 1- B c 1
R 2134 CHIP RES. 56 0 1 /1 6W 5 % RMC1/16S 561JTH J24189022 1- B a1
R 2135 CHIP RES. 330k 1/16W 5% RMC1/16S 334JTH J24189055 1- B b1
R 2136 CHIP RES. 10k 1/1 6W 5 % RMC1/16S 103JTH J24189037 1- B b1
R 2137 CHIP RES. 10k 1/1 6W 5 % RMC1/16S 103JTH J24189037 1- B b1
R 2138 CHIP RES. 10k 1/1 6W 5 % RMC1/16S 103JTH J24189037 1- B b1
R 2139 CHIP RES. 10k 1/1 6W 5 % RMC1/16S 103JTH J24189037 1- B b1
R 2140 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- B b4
R 2142 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- B a4
R 2143 CHIP RES. 180k 1/16W 5% RMC1/16S 184JTH J24189052 1- B a3
R 2144 CHIP RES. 0 1/ 16 W 5 % RMC1/16S JPTH J24189070 1- B a3
R 2145 CHIP RES. 33k 1/1 6W 5 % RMC1/16S 333JTH J24189043 1- B a3
R 2146 CHIP RES. 47k 1/1 6W 5 % RMC1/16S 473JTH J24189045 1- B a3
R 2147 CHIP RES. 47k 1/1 6W 5 % RMC1/16S 473JTH J24189045 1- B a1
R 2148 CHIP RES. 10k 1/1 6W 5 % RMC1/16S 103JTH J24189037 1- B a3
R 2149 CHIP RES. 68k 1/1 6W 5 % RMC1/16S 683JTH J24189047 1- B a2
R 2150 CHIP RES. 47k 1/1 6W 5 % RMC1/16S 473JTH J24189045 1- B a1
R 2151 CHIP RES. 47k 1/1 6W 5 % RMC1/16S 473JTH J24189045 1- B b3
R 2152 CHIP RES. 12k 1/1 6W 5 % RMC1/16S 123JTH J24189038 1- B c3
R 2153 CHIP RES. 47k 1/1 6W 5 % RMC1/16S 473JTH J24189045 1- B c3
R 2154 CHIP RES. 10k 1/1 6W 5 % RMC1/16S 103JTH J24189037 1- B c3
R 2155 CHIP RES. 47k 1/1 6W 5 % RMC1/16S 473JTH J24189045 1- B c3
R 2156 CHIP RES. 10k 1/1 6W 5 % RMC1/16S 103JTH J24189037 1- B c3
R 2157 CHIP RES. 47k 1/1 6W 5 % RMC1/16S 473JTH J24189045 1- B b3
R 2158 CHIP RES. 47k 1/1 6W 5 % RMC1/16S 473JTH J24189045 1- B c3
R 2159 CHIP RES. 12k 1/1 6W 5 % RMC1/16S 123JTH J24189038 1- B b3
R 2160 CHIP RES. 47k 1/1 6W 5 % RMC1/16S 473JTH J24189045 1- B b3
R 2161 CHIP RES. 10k 1/1 6W 5 % RMC1/16S 103JTH J24189037 1- B b3
R 2162 CHIP RES. 10k 1/1 6W 5 % RMC1/16S 103JTH J24189037 1- B b3
R 2163 CHIP RES. 10k 1/1 6W 5 % RMC1/16S 103JTH J24189037 1- B a4
R 2164 CHIP RES. 10k 1/1 6W 5 % RMC1/16S 103JTH J24189037 1- B b4
R 2165 CHIP RES. 10k 1/1 6W 5 % RMC1/16S 103JTH J24189037 1- B b4
R 2166 CHIP RES. 10k 1/1 6W 5 % RMC1/16S 103JTH J24189037 1- B b4
R 2167 CHIP RES. 560k 1/16W 5% RMC1/16S 564JTH J24189058 1- B a3
R 2168 CHIP RES. 5.6k 1/16W 5 % RMC1/16S 562JTH J24189034 1- B a3
R 2169 CHIP RES. 47k 1/1 6W 5 % RMC1/16S 473JTH J24189045 1- B a3
R 2170 CHIP RES. 2.2k 1/16W 5 % RMC1/16S 222JTH J24189029 1- B a3
R 2171 CHIP RES. 4.7k 1/16W 5 % RMC1/16S 472JTH J24189033 1- B c2
R 2172 CHIP RES. 270k 1/16W 0.5% MCR01MZPD2703 J24189329 1- B a2
R 2173 CHIP RES. 100k 1/16W 0.5% RR0510R-104-D J24189167 1- B a2
84
DESCRIPTION
VALUE V/W TOL. VXSTD P/NMFR’S DESIG VERS.
VX-8R/E Technical Supplement
LOT.
SIDE
LAY ADR.
Page 85
CNTL Unit (Lot.1~7)
REF.
R 2174 CHIP RES. 2.2k 1/16W 5 % RMC1/16S 222JTH J24189029 1- A C3
R 2175 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- A C2
R 2176 CHIP RES. 33k 1/1 6W 5 % RMC1/16S 333JTH J24189043 1- A C3
R 2177 CHIP RES. 10k 1/1 6W 5 % RMC1/16S 103JTH J24189037 1- B c1
R 2178 CHIP RES. 10k 1/1 6W 5 % RMC1/16S 103JTH J24189037 1- B c1
R 2179 CHIP RES. 220k 1/16W 5% RMC1/16S 224JTH J24189053 1- B a4
R 2181 CHIP RES. 1M 1 /1 6W 5 % RMC1/16S 105JTH J24189061 1- B b2
R 2183 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- B c2
R 2184 CHIP RES. 2.2k 1/16W 5 % RMC1/16S 222JTH J24189029 1- B c2
R 2185 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- B b2
R 2186 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- B b2
R 2187 CHIP RES. 10k 1/1 6W 5 % RMC1/16S 103JTH J24189037 1- B b2
R 2189 CHIP RES. 470k 1/16W 5% RMC1/16S 474JTH J24189057 1- B b1
R 2191 CHIP RES. 470k 1/16W 5% RMC1/16S 474JTH J24189057 1- B b1
R 2193 CHIP RES. 10k 1/1 6W 5 % RMC1/16S 103JTH J24189037 1- B a4
R 2194 CHIP RES. 10k 1/1 6W 5 % RMC1/16S 103JTH J24189037 1- B c1
R 2196 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- B b2
R 2197 CHIP RES. 47k 1/1 6W 5 % RMC1/16S 473JTH J24189045 1- B b1
R 2198 CHIP RES. 22k 1/1 6W 5 % RMC1/16S 223JTH J24189041 1- B b4
R 2199 CHIP RES. 10k 1/1 6W 5 % RMC1/16S 103JTH J24189037 1- B b4
R 2200 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- B a1
R 2201 CHIP RES. 3.3k 1/16W 5 % RMC1/16S 332JTH J24189031 1- B b1
R 2202 CHIP RES. 10k 1/1 6W 5 % RMC1/16S 103JTH J24189037 1- B b4
R 2203 CHIP RES. 8.2k 1/16W 5 % RMC1/16S 822JTH J24189036 1- B a4
R 2204 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- B b4
R 2205 CHIP RES. 10k 1/1 6W 5 % RMC1/16S 103JTH J24189037 1- B b4
R 2206 CHIP RES. 4.7k 1/16W 5 % RMC1/16S 472JTH J24189033 1- B b4
R 2210 CHIP RES. 0 1/ 16 W 5 % RMC1/16S JPTH J24189070 1- B c 2
R 2212 CHIP RES. 47k 1/1 6W 5 % RMC1/16S 473JTH J24189045 1- B b1
R 2213 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- B b2
R 2214 CHIP RES. 47k 1/1 6W 5 % RMC1/16S 473JTH J24189045 1- B b1
R 2215 CHIP RES. 47k 1/1 6W 5 % RMC1/16S 473JTH J24189045 1- B b1
R 2216 CHIP RES. 0 1/ 16 W 5 % RMC1/16S JPTH J24189070 1- B b1
R 2217 CHIP RES. 10k 1/1 6W 5 % RMC1/16S 103JTH J24189037 1- B b2
R 2218 CHIP RES. 10k 1/1 6W 5 % RMC1/16S 103JTH J24189037 1- B a2
R 2219 CHIP RES. 10k 1/1 6W 5 % RMC1/16S 103JTH J24189037 1- B a2
R 2220 CHIP RES. 0 1/ 16 W 5 % RMC1/16S JPTH J24189070 1- B b2
R 2221 CHIP RES. 10 0 1 /1 6W 5 % RMC1/16S 101JTH J24189013 1- B b2
R 2222 CHIP RES. 10k 1/1 6W 5 % RMC1/16S 103JTH J24189037 1- B c1
R 2223 CHIP RES. 68 0 1 /1 6W 5 % RMC1/16S 681JTH J24189023 1R 2224 CHIP RES. 3.3M 1/16W 5 % RMC1/16S 335JTH J24189324 1R 2225 CHIP RES. 0 1/ 16 W 5 % RMC1/16 000JATP J24185000 1R 2226 CHIP RES. 4.7k 1/16W 5 % RMC1/16 472JATP J24185472 1R 2226 CHIP RES. 4.7k 1/16W 5 % RMC1/16S 472JTH J24189033 5R 2227 CHIP RES. 0 1/ 16 W 5 % RMC1/16S JPTH J24189070 5S 2001 ROTARY ENCODER TP70N1062E20 RY-8540 Q9000896 1- B a1
S 2002 TACT SWITCH SKRWAEE030 N5090156 1- A A 1
S 2003 TACT SWITCH EVQPQHB55 N5090103 1- A A2
S 2004 TACT SWITCH SKRWAEE030 N5090156 1- A A 2
S 2005 TACT SWITCH EVQPQHB55 N5090103 1- A A3
S 2006 TACT SWITCH EVQPQHB55 N5090103 1- A A3
S 2007 TACT SWITCH EVQPQHB55 N5090103 1- A A4
S 2008 TACT SWITCH EVQPQHB55 N5090103 1- A A4
S 2009 TACT SWITCH EVQPQHB55 N5090103 1- A A4
S 2010 TACT SWITCH EVQPQHB55 N5090103 1- A A4
S 2011 TACT SWITCH EVQPQHB55 N5090103 1- A B4
S 2012 TACT SWITCH EVQPQHB55 N5090103 1- A B4
S 2013 TACT SWITCH EVQPQHB55 N5090103 1- A A4
S 2014 TACT SWITCH EVQPQHB55 N5090103 1- A A4
S 2015 TACT SWITCH EVQPQHB55 N5090103 1- A B4
DESCRIPTION
VALUE V/W TOL. VXSTD P/NMFR’S DESIG VERS.
LOT.
SIDE
LAY ADR.
VX-8R/E Technical Supplement
85
Page 86
CNTL Unit (Lot.1~7)
REF.
S 2016 TACT SWITCH EVQPQHB55 N5090103 1- A B4
S 2017 TACT SWITCH EVQPQHB55 N5090103 1- A B4
S 2018 TACT SWITCH EVQPQHB55 N5090103 1- A B4
S 2019 TACT SWITCH SKRWAEE030 N5090156 1- A C2
S 2020 TACT SWITCH EVQPQHB55 N5090103 1- A C4
S 2021 TACT SWITCH EVQPQHB55 N5090103 1- A C4
S 2022 TACT SWITCH EVQPQHB55 N5090103 1- A C4
TH2001 THERMISTOR NCP15WL473J03RC G9090175 1- B c 2
X 2001 XTAL AT-38 9.8304MHz 9.8304MHZ H0103383 1X 2002 XTAL SSP-T7-F 32.768kHz 32.768KHZ H0103327 1 - B c 1
X 2003 XTAL AT-38 4.9152MHz 4.9152MHZ H0103381 1X 2004 XTAL AT-38 6.144MHz 6.1440MHZ H0103384 1 -
DESCRIPTION
LCD HOLDER RA1016500 1CONTACT RA1013600 1CONTACT RA101360A 4SHEET (LCD) RA1013800 1DOUBLE FACE (LCD) RA1017400 1DOUBLE FACE (LCD) RA101740A 4SHIELD SHEET RA1080500 1-
VALUE V/W TOL. VXSTD P/NMFR’S DESIG VERS.
LOT.
SIDE
LAY ADR.
86
VX-8R/E Technical Supplement
Page 87
Circuit Diagram
CNTL-2 Unit (Lot.8~15)
VX-8R/E Technical Supplement
87
Page 88
CNTL-2 Unit (Lot.8~15)
Parts Layout
B
C
ac
1
2
b
1
2
(Q9001, 9016, 9027, 9035,
(Q9002, 9003, 9004, 9005,
2SC5658
9040, 9061, 9062)
2SA2029 (F*)
(Q9015, 9065)
2SC5374 (NA)
(Q9023)
2SC4915 (QY)
(Q9029)
DTC144EM (26)
9007, 9019, 9021, 9036,
9038, 9039, 9041, 9042,
9043, 9044, 9049, 9052,
9057, 9059, 9060)
DTA144EM (16)
(Q9008)
2SD1801S
(Q9020)
DTC124EE (25)
(Q9022)
HD64F2370VLP34V
(Q9024)
M24512-RDW6TP
(Q9025)
S-35190A-I8T1G
(Q9026)
DTC143ZE (E23)
(Q9053)
CMX589AD5
(Q9054)
UMH4N
(Q9058)
DA221 (K)
(D9005, 9006, 9031, 9033)
Side A
BA2902KN
(Q9028, 9030, 9032,
3
3
TAR5S30U (3V0)
(Q9009, 9013, 9063)
4
NJU7231F30-TE1
5
4
5
4
5
(Q9010)
XC61GN3002HR
(Q9011, 9012)
9033, 9037)
CMX865AE4
(Q9055)
TC74VHC595FK
(Q9056)
MCH6305-TL
(Q9031, 9064)
NJM2151AV
(Q9034)
DAN222 (N)
(D9030, 9032)
Side B
CPH6202-TL
(Q9014)
DTC144TE (96)
(Q9048, 9050)
88
RTM002P02
(Q2018)
2SK3541
(Q9045, 9046, 9047)
VX-8R/E Technical Supplement
Page 89
Circuit Diagram
CNTL-2 Unit (Lot.16~)
VX-8R/E Technical Supplement
89
Page 90
CNTL-2 Unit (Lot.16~)
Parts Layout
B
C
ac
1
2
b
1
2
(Q9001, 9016, 9027, 9035,
(Q9002, 9003, 9004, 9005,
2SC5658
9040, 9061, 9062)
2SA2029 (F*)
(Q9015, 9065)
2SC5374 (NA)
(Q9023)
2SC4915 (QY)
(Q9029)
DTC144EM (26)
9007, 9019, 9021, 9036,
9038, 9039, 9041, 9042,
9043, 9044, 9049, 9052,
9057, 9059, 9060)
DTA144EM (16)
(Q9008)
2SD1801S
(Q9020)
DTC124EE (25)
(Q9022)
HD64F2370VLP34V
(Q9024)
M24512-RDW6TP
(Q9025)
S-35190A-I8T1G
(Q9026)
DTC143ZE (E23)
(Q9053)
CMX589AD5
(Q9054)
UMH4N
(Q9058)
DA221 (K)
(D9005, 9006, 9031, 9033)
Side A
BA2902KN
(Q9028, 9030, 9032,
3
3
TAR5S30U (3V0)
(Q9009, 9013, 9063)
4
NJU7231F30-TE1
5
4
5
4
5
(Q9010)
XC61GN3002HR
(Q9011, 9012)
9033, 9037)
CMX865AE4
(Q9055)
TC74VHC595FK
(Q9056)
MCH6305-TL
(Q9031, 9064)
NJM2151AV
(Q9034)
DAN222 (N)
(D9030, 9032)
Side B
CPH6202-TL
(Q9014)
DTC144TE (96)
(Q9048, 9050)
90
RTM002P02
(Q2018)
2SK3541
(Q9045, 9046, 9047)
VX-8R/E Technical Supplement
Page 91
Circuit Diagram
CNTL-2 Unit (Lot.24~)
VX-8R/E and VX-8DR Technical Supplement
91
Page 92
CNTL-2 Unit (Lot.24~)
Parts Layout
B
C
ac
1
2
b
1
2
(Q9001, 9016, 9027, 9035,
(Q9002, 9003, 9004, 9005,
2SC5658
9040, 9061, 9062)
2SA2029 (F*)
(Q9015, 9065)
2SC5374 (NA)
(Q9023)
2SC4915 (QY)
(Q9029)
DTC144EM (26)
9007, 9019, 9021, 9036,
9038, 9039, 9041, 9042,
9043, 9044, 9049, 9052,
9057, 9059, 9060)
DTA144EM (16)
(Q9008)
2SD1801S
(Q9020)
DTC124EE (25)
(Q9022)
HD64F2370VLP34V
(Q9024)
M24512-RDW6TP
(Q9025)
S-35190A-I8T1G
(Q9026)
DTC143ZE (E23)
(Q9053)
CMX589AD5
(Q9054)
UMH4N
(Q9058)
DA221 (K)
(D9005, 9006, 9031, 9033)
Side A
BA2902KN
(Q9028, 9030, 9032,
3
3
TAR5S30U (3V0)
(Q9009, 9013, 9063)
4
NJU7231F30-TE1
5
4
5
4
5
(Q9010)
XC61GN3002HR
(Q9011, 9012)
9033, 9037)
CMX865AE4
(Q9055)
TC74VHC595FK
(Q9056)
MCH6305-TL
(Q9031, 9064)
NJM2151AV
(Q9034)
DAN222 (N)
(D9030, 9032)
Side B
CPH6202-TL
(Q9014)
DTC144TE (96)
(Q9048, 9050)
92
RTM002P02
(Q2018)
2SK3541
(Q9045, 9046, 9047)
VX-8R/E and VX-8DR Technical Supplement
Page 93
CNTL-2 Unit(Lot.8~)
Parts List
REF.
BT9001 LI-ION BATTERY ML614R-TT31 Q9000895 8- B c 1
C 9002 CHIP CAP. 0.001uF 50 V B GRM155B11H102KA01D K22178809 8- B b1
C 9003 CHIP CAP. 0.1uF 10V B GRM155B11A104KA01D K22108802 8- B a4
C 9005 CHIP CAP. 0.001uF 50 V B GRM155B11H102KA01D K22178809 8- B b4
C 9006 CHIP TA.CAP. 220uF 4V TEESVC0G227M12R K78060053 8- B a1
C 9007 CHIP CAP. 1u F 6.3V B GRM155B30J105KE18D K22088803 8- B a2
C 9008 CHIP CAP. 0.001uF 50 V B GRM155B11H102KA01D K22178809 8- B a2
C 9009 CHIP CAP. 1u F 6.3V B GRM155B30J105KE18D K22088803 8- B a2
C 9010 CHIP CAP. 0.001uF 50 V B GRM155B11H102KA01D K22178809 8- B a2
C 9011 CHIP CAP. 0.001uF 50 V B GRM155B11H102KA01D K22178809 8- A A 2
C 9012 CHIP TA.CAP. 47uF 4 V TEESVP0G476M8R K78060050 8- B b1
C 9013 CHIP CAP. 1u F 6.3V B GRM155B30J105KE18D K22088803 8- B b1
C 9014 CHIP CAP. 0.001uF 50 V B GRM155B11H102KA01D K22178809 8- B a4
C 9015 CHIP TA.CAP. 47uF 4 V TEESVP0G476M8R K78060050 8- B b4
C 9016 CHIP CAP. 0.001uF 50 V B GRM155B11H102KA01D K22178809 8- B b4
C 9017 CHIP CAP. 1u F 6.3V B GRM155B30J105KE18D K22088803 8- B b4
C 9018 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 8- B c4
C 9019 CHIP TA.CAP. 22uF 20V TEMSVC1D226M12R K78130030 8- B c 4
C 9021 CHIP TA.CAP. 47uF 4 V TEESVP0G476M8R K78060050 8- B a1
C 9022 CHIP CAP. 0.001uF 50 V B GRM155B11H102KA01D K22178809 8- B a2
C 9023 CHIP CAP. 1u F 6.3V B GRM155B30J105KE18D K22088803 8- B a2
C 9025 CHIP CAP. 0.1uF 10V B GRM155B11A104KA01D K22108802 8- B b1
C 9026 CHIP CAP. 1u F 6.3V B GRM155B30J105KE18D K22088803 8- B a1
C 9027 CHIP CAP. 4.7uF 4V BJ AMK105BJ475MV-F K22068801 8- B a4
C 9028 CHIP CAP. 4.7uF 4V BJ AMK105BJ475MV-F K22068801 8- B a4
C 9029 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 8- B b4
C 9030 CHIP CAP. 0.001uF 50 V B GRM155B11H102KA01D K22178809 8- B c4
C 9031 CHIP CAP. 0.001uF 50 V B GRM155B11H102KA01D K22178809 8- B b4
C 9032 CHIP CAP. 1u F 6.3V B GRM155B30J105KE18D K22088803 8- B a4
C 9032 CHIP CAP. 4.7uF 4V BJ AMK105BJ475MV-F K22068801 24- B a4
C 9033 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 8- B a2
C 9036 CHIP CAP. 0.047uF 10 V B GRM155B11A473KA01D K22108801 8- B c2
C 9037 CHIP CAP. 6p F 50 V CH UMK105CH060DV-F K22178254 8- B b2
C 9038 CHIP CAP. 15pF 50V CH GRM1552C1H150JZ01D K22178216 8 - B b2
C 9039 CHIP CAP. 0.001uF 50 V B GRM155B11H102KA01D K22178809 8- B a2
C 9040 CHIP CAP. 0.047uF 10 V B GRM155B11A473KA01D K22108801 8- B b3
C 9041 CHIP CAP. 0.047uF 10 V B GRM155B11A473KA01D K22108801 8- B a1
C 9042 CHIP CAP. 0.047uF 10 V B GRM155B11A473KA01D K22108801 8- A C1
C 9044 CHIP CAP. 3p F 50 V CJ UMK105CJ030CV-F K22178251 8- B b2
C 9045 CHIP CAP. 15pF 50V CH GRM1552C1H150JZ01D K22178216 8 - B b2
C 9046 CHIP CAP. 0.47uF 6.3V B GRM155B30J474KE18D K22088802 8- A B1
C 9047 CHIP CAP. 0.47uF 6.3V B GRM155B30J474KE18D K22088802 8- A B1
C 9048 CHIP CAP. 0.47uF 6.3V B GRM155B30J474KE18D K22088802 8- A B1
VX-8R/E and VX-8DR/E Technical Supplement
DESCRIPTION
PCB with Components CB4804002 TYP:A2U(USA)
Printed Circuit Board FR019740A 8-
VALUE V/W TOL. VXSTD P/NMFR’S DESIG VERS.
CB4804003 TYP:A1(EXP)
CB4804004 TYP:A2(EXP)
CB4804005 TYP:A3(EXP)
CB4804006 TYP:B1(EU)
CB4804007 TYP:B2(EU)
CB4804008 TYP:B3(EXP)
CB4804009 TYP:C1(EU)
CB4804010 TYP:C2(EU)
CB4804011 TYP:C3(EXP)
CB4804012 TYP:D1(EU)
CB4804013 TYP:D2(EU)
CB4804014 TYP:H1(AUS)
CB4804015 TYP:H2(AUS)
FR019740B 16FR019740C 24-
LOT.
SIDE
LAY ADR.
93
Page 94
CNTL-2 Unit (Lot.8~)
REF.
C 9049 CHIP TA.CAP. 47uF 4 V TEESVP0G476M8R K78060050 8- B a2
C 9052 CHIP CAP. 0.47uF 6.3V B GRM155B30J474KE18D K22088802 8- A B1
C 9053 CHIP CAP. 0.47uF 6.3V B GRM155B30J474KE18D K22088802 8- A B1
C 9054 CHIP CAP. 1u F 6.3V B GRM155B30J105KE18D K22088803 8- A B1
C 9055 CHIP CAP. 1u F 6.3V B GRM155B30J105KE18D K22088803 8- A A 1
C 9056 CHIP CAP. 1u F 6.3V B GRM155B30J105KE18D K22088803 8- A A 1
C 9057 CHIP CAP. 1u F 6.3V B GRM155B30J105KE18D K22088803 8- A A 1
C 9058 CHIP CAP. 1u F 6.3V B GRM155B30J105KE18D K22088803 8- A A 1
C 9059 CHIP CAP. 0.001uF 50 V B GRM155B11H102KA01D K22178809 8- A A 1
C 9061 CHIP CAP. 0.001uF 50 V B GRM155B11H102KA01D K22178809 8- B b4
C 9062 CHIP CAP. 0.001uF 50 V B GRM155B11H102KA01D K22178809 8- B c4
C 9063 CHIP CAP. 7p F 50 V CH GRM1552C1H7R0DZ01D K22178209 8- B c1
C 9064 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 8- B c1
C 9065 CHIP CAP. 0.001uF 50 V B GRM155B11H102KA01D K22178809 8- B c4
C 9068 CHIP CAP. 0.001uF 50 V B GRM155B11H102KA01D K22178809 8- B c2
C 9069 CHIP CAP. 0.1uF 10V B GRM155B11A104KA01D K22108802 8- B c2
C 9070 CHIP CAP. 470pF 50V B UMK105B471KW-F K22178825 W/ CE LABEL 8- B b5
C 9070 CHIP CAP. 0.1uF 10V B GRM155B11A104KA01D K22108802 W/O CE LABEL 8- B b5
C 9071 CHIP CAP. 0.001uF 50 V B GRM155B11H102KA01D K22178809 8- B a2
C 9072 CHIP CAP. 4.7uF 4V BJ AMK105BJ475MV-F K22068801 8- B a2
C 9073 CHIP CAP. 0.1uF 10V B GRM155B11A104KA01D K22108802 8- B a1
C 9074 CHIP CAP. 1u F 6.3V B GRM155B30J105KE18D K22088803 8- B c 4
C 9075 CHIP CAP. 4.7uF 4V BJ AMK105BJ475MV-F K22068801 8- B c4
C 9076 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 8- B c3
C 9077 CHIP CAP. 0.0047uF 2 5V B TMK105B472KW-F K22148831 8- B c 3
C 9078 CHIP CAP. 0.0047uF 2 5V B TMK105B472KW-F K22148831 8- B c 4
C 9079 CHIP CAP. 0.0027uF 5 0V B UMK105B272KW-F K22178834 8- B c3
C 9080 CHIP CAP. 33pF 50V CH GRM1552C1H330JZ01D K22178224 8 - B c3
C 9081 CHIP CAP. 1u F 6.3V B GRM155B30J105KE18D K22088803 8- B b4
C 9082 CHIP CAP. 0.0047uF 2 5V B TMK105B472KW-F K22148831 8- B b4
C 9083 CHIP CAP. 0.0047uF 2 5V B TMK105B472KW-F K22148831 8- B b4
C 9084 CHIP CAP. 4.7uF 4V BJ AMK105BJ475MV-F K22068801 8- B b4
C 9085 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 8- B c3
C 9086 CHIP CAP. 0.001uF 50 V B GRM155B11H102KA01D K22178809 W/O CE LABEL 8- B b4
C 9087 CHIP CAP. 1u F 6.3V B GRM155B30J105KE18D K22088803 W/O CE LABEL 8- B b4
C 9088 CHIP TA.CAP. 100uF 10V TEESVC21A107M12R K78100079 8- B a1
C 9088 CHIP TA.CAP. 100uF 16V TMCMC1C107MTRF K78120098 9- B a1
C 9089 CHIP CAP. 1u F 6.3V B GRM155B30J105KE18D K22088803 8- B a2
C 9090 CHIP CAP. 0.001uF 50 V B GRM155B11H102KA01D K22178809 8- B c3
C 9091 CHIP CAP. 0.015uF 16 V B GRM155B11C153KA01D K22128807 8- B c3
C 9092 CHIP CAP. 560pF 50V B UMK105B561KW-F K22178826 8- B c3
C 9093 CHIP CAP. 33pF 50V CH GRM1552C1H330JZ01D K22178224 8 - B b4
C 9094 CHIP CAP. 0.022uF 16 V B GRM155B11C223KA01D K22128806 8- B c3
C 9095 CHIP CAP. 220pF 25V CH TMK105CH221JV-F K22148246 8- B c3
C 9096 CHIP CAP. 0.0027uF 5 0V B UMK105B272KW-F K22178834 8- B c3
C 9097 CHIP CAP. 0.022uF 16 V B GRM155B11C223KA01D K22128806 8- B c3
C 9098 CHIP CAP. 0.001uF 50 V B GRM155B11H102KA01D K22178809 8- B b3
C 9099 CHIP CAP. 0.015uF 16 V B GRM155B11C153KA01D K22128807 8- B c3
C 9100 CHIP CAP. 560pF 50V B UMK105B561KW-F K22178826 8- B c3
C 9101 CHIP CAP. 220pF 25V CH TMK105CH221JV-F K22148246 8- B c3
C 9102 CHIP CAP. 1u F 6.3V B GRM155B30J105KE18D K22088803 8- B a1
C 9103 CHIP CAP. 1u F 6.3V B GRM155B30J105KE18D K22088803 8- B c 1
C 9104 CHIP CAP. 1u F 6.3V B GRM155B30J105KE18D K22088803 8- B c 1
C 9105 CHIP CAP. 0.001uF 50 V B GRM155B11H102KA01D K22178809 8- B a1
C 9106 CHIP TA.CAP. 47uF 4 V TEESVP0G476M8R K78060050 8- B b1
C 9107 CHIP CAP. 4.7uF 4V BJ AMK105BJ475MV-F K22068801 8- B b1
C 9108 CHIP TA.CAP. 47uF 4 V TEESVP0G476M8R K78060050 8- B b1
C 9109 CHIP CAP. 4.7uF 4V BJ AMK105BJ475MV-F K22068801 8- B b1
C 9110 CHIP TA.CAP. 100uF 10V TEESVC21A107M12R K78100079 8- B b1
C 9111 CHIP TA.CAP. 100uF 10V TEESVC21A107M12R K78100079 8- B b1
94
DESCRIPTION
VALUE V/W TOL. VXSTD P/NMFR’S DESIG VERS.
VX-8R/E and VX-8DR/E Technical Supplement
LOT.
SIDE
LAY ADR.
Page 95
CNTL-2 Unit(Lot.8~)
REF.
C 9113 CHIP CAP. 680pF 50V B GRM155B11H681KA01D K22178807 8 - B a3
C 9113 CHIP CAP. 560pF 50V B GRM155B11H561KD01 K22178806 24- B a3
C 9114 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 8- B a3
C 9115 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 8- B a3
C 9116 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 8- B a2
C 9117 CHIP CAP. 0.0039uF 5 0V B UMK105B392KW-F K22178836 8- B a2
C 9118 CHIP CAP. 0.0033uF 5 0V B GRM155B11H332KA01D K22178815 8- B a2
C 9119 CHIP CAP. 1u F 6.3V B GRM155B30J105KE18D K22088803 8- B a3
C 9120 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 8- B a3
C 9121 CHIP CAP. 0.022uF 16 V B GRM155B11C223KA01D K22128806 8- B c3
C 9122 CHIP CAP. 0.015uF 16 V B GRM155B11C153KA01D K22128807 8- B c3
C 9123 CHIP CAP. 0.001uF 50 V B GRM155B11H102KA01D K22178809 8- B c3
C 9124 CHIP CAP. 220pF 25V CH TMK105CH221JV-F K22148246 8- B c3
C 9125 CHIP CAP. 560pF 50V B UMK105B561KW-F K22178826 8- B c3
C 9126 CHIP CAP. 0.022uF 16 V B GRM155B11C223KA01D K22128806 8- B c3
C 9127 CHIP CAP. 0.015uF 16 V B GRM155B11C153KA01D K22128807 8- B b3
C 9128 CHIP CAP. 560pF 50V B UMK105B561KW-F K22178826 8- B c3
C 9129 CHIP CAP. 0.001uF 50 V B GRM155B11H102KA01D K22178809 8- B b3
C 9130 CHIP CAP. 220pF 25V CH TMK105CH221JV-F K22148246 8- B b3
C 9131 CHIP CAP. 1u F 6.3V B GRM155B30J105KE18D K22088803 8- B c 1
C 9132 CHIP CAP. 1u F 6.3V B GRM155B30J105KE18D K22088803 8- B c 1
C 9133 CHIP CAP. 1u F 6.3V B GRM155B30J105KE18D K22088803 8- B b1
C 9135 CHIP CAP. 1u F 6.3V B GRM155B30J105KE18D K22088803 8- B a3
C 9136 CHIP CAP. 180pF 25V CH TMK105CH181JV-F K22148244 8- B a3
C 9137 CHIP TA.CAP. 47uF 4 V TEESVP0G476M8R K78060050 8- B a2
C 9138 CHIP CAP. 0.047uF 10 V B GRM155B11A473KA01D K22108801 8- B a3
C 9139 CHIP CAP. 0.001uF 50 V B GRM155B11H102KA01D K22178809 8- B a3
C 9140 CHIP CAP. 0.001uF 50 V B GRM155B11H102KA01D K22178809 8- B a3
C 9141 CHIP CAP. 0.047uF 10 V B GRM155B11A473KA01D K22108801 8- B c3
C 9142 CHIP CAP. 0.047uF 10 V B GRM155B11A473KA01D K22108801 8- B b3
C 9143 CHIP CAP. 1u F 6.3V B GRM155B30J105KE18D K22088803 8- B b4
C 9144 CHIP CAP. 1u F 6.3V B GRM155B30J105KE18D K22088803 8- B a4
C 9145 CHIP CAP. 1u F 6.3V B GRM155B30J105KE18D K22088803 8- B b4
C 9146 CHIP CAP. 1u F 6.3V B GRM155B30J105KE18D K22088803 8- B b4
C 9147 CHIP CAP. 0.0047uF 2 5V B TMK105B472KW-F K22148831 8- B a3
C 9148 CHIP CAP. 0.001uF 50 V B GRM155B11H102KA01D K22178809 8- B a2
C 9149 CHIP CAP. 0.001uF 50 V B GRM155B11H102KA01D K22178809 8- B a3
C 9150 CHIP CAP. 0.001uF 50 V B GRM155B11H102KA01D K22178809 8- A C3
C 9151 CHIP CAP. 0.001uF 50 V B GRM155B11H102KA01D K22178809 8- B a3
C 9152 CHIP CAP. 0.001uF 50 V B GRM155B11H102KA01D K22178809 8- A C3
C 9153 CHIP CAP. 0.001uF 50 V B GRM155B11H102KA01D K22178809 8- B a3
C 9154 CHIP CAP. 0.1uF 10V B GRM155B11A104KA01D K22108802 8- A C3
C 9155 CHIP CAP. 100pF 50V CH GRM1552C1H101JD01D K22178236 8- A C3
C 9156 CHIP CAP. 1u F 6.3V B GRM155B30J105KE18D K22088803 8- B a4
C 9157 CHIP CAP. 1u F 6.3V B GRM155B30J105KE18D K22088803 8- B b4
C 9158 CHIP CAP. 1u F 6.3V B GRM155B30J105KE18D K22088803 8- B a4
C 9159 CHIP CAP. 1u F 6.3V B GRM155B30J105KE18D K22088803 8- A C2
C 9160 CHIP CAP. 22pF 50V CH GRM1552C1H220JZ01D K22178220 8 - B b2
C 9161 CHIP CAP. 22pF 50V CH GRM1552C1H220JZ01D K22178220 8 - B b2
C 9162 CHIP CAP. 1u F 6.3V B GRM155B30J105KE18D K22088803 8- B c 1
C 9163 CHIP CAP. 22pF 50V CH GRM1552C1H220JZ01D K22178220 8 - B c2
C 9164 CHIP CAP. 4.7uF 4V BJ AMK105BJ475MV-F K22068801 8- B c1
C 9165 CHIP CAP. 100pF 50V CH GRM1552C1H101JD01D K22178236 8- B b2
C 9166 CHIP CAP. 0.022uF 16 V B GRM155B11C223KA01D K22128806 8- B b2
C 9167 CHIP CAP. 0.1uF 10V B GRM155B11A104KA01D K22108802 8- B b2
C 9168 CHIP CAP. 22pF 50V CH GRM1552C1H220JZ01D K22178220 8 - B b2
C 9169 CHIP CAP. 22pF 50V CH GRM1552C1H220JZ01D K22178220 8 - B b2
C 9171 CHIP CAP. 0.015uF 16 V B GRM155B11C153KA01D K22128807 8- B c1
C 9172 CHIP CAP. 0.015uF 16 V B GRM155B11C153KA01D K22128807 8- B c1
C 9173 CHIP CAP. 0.001uF 50 V B GRM155B11H102KA01D K22178809 8- B b1
DESCRIPTION
VALUE V/W TOL. VXSTD P/NMFR’S DESIG VERS.
LOT.
SIDE
LAY ADR.
VX-8R/E and VX-8DR/E Technical Supplement
95
Page 96
CNTL-2 Unit (Lot.8~)
REF.
C 9175 CHIP CAP. 1u F 6.3V B GRM155B30J105KE18D K22088803 8- B b4
C 9176 CHIP CAP. 1u F 6.3V B GRM155B30J105KE18D K22088803 8- B a4
C 9177 CHIP CAP. 0.001uF 50 V B GRM155B11H102KA01D K22178809 8- A A 2
C 9178 CHIP CAP. 4.7uF 4V BJ AMK105BJ475MV-F K22068801 8- A A2
C 9179 CHIP CAP. 4.7uF 4V BJ AMK105BJ475MV-F K22068801 8- B a2
C 9180 CHIP CAP. 4.7uF 4V BJ AMK105BJ475MV-F K22068801 8- B b4
C 9184 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 8- B c1
C 9186 CHIP CAP. 4.7uF 4V BJ AMK105BJ475MV-F K22068801 8- B b1
C 9187 CHIP CAP. 4.7uF 4V BJ AMK105BJ475MV-F K22068801 8- B b1
C 9188 CHIP TA.CAP. 47uF 4 V TEESVP0G476M8R K78060050 8- B b1
C 9189 CHIP CAP. 4.7uF 4V BJ AMK105BJ475MV-F K22068801 8- B b1
C 9190 CHIP CAP. 4.7uF 4V BJ AMK105BJ475MV-F K22068801 8- B b2
C 9191 CHIP CAP. 4.7uF 4V BJ AMK105BJ475MV-F K22068801 8- B a4
C 9192 CHIP TA.CAP. 47uF 4 V TEESVP0G476M8R K78060050 8- B b1
C 9193 CHIP CAP. 1u F 6.3V B GRM155B30J105KE18D K22088803 8- B c 1
C 9194 CHIP CAP. 4.7uF 4V BJ AMK105BJ475MV-F K22068801 8- B c2
C 9196 CHIP CAP. 4.7uF 4V BJ AMK105BJ475MV-F K22068801 8- B c1
C 9197 CHIP CAP. 0.001uF 50 V B GRM155B11H102KA01D K22178809 8- B b1
C 9198 CHIP CAP. 0.001uF 50 V B GRM155B11H102KA01D K22178809 8- B b1
C 9199 CHIP CAP. 0.001uF 50 V B GRM155B11H102KA01D K22178809 8- B b1
C 9200 CHIP TA.CAP. 47uF 4 V TEESVP0G476M8R K78060050 8- B b1
C 9201 CHIP TA.CAP. 47uF 4 V TEESVP0G476M8R K78060050 8- B c 4
C 9202 CHIP CAP. 0.001uF 50 V B GRM155B11H102KA01D K22178809 8- B b1
C 9203 CHIP CAP. 0.001uF 50 V B GRM155B11H102KA01D K22178809 8- B b3
C 9205 CHIP CAP. 0.047uF 10 V B GRM155B11A473KA01D K22108801 24- B a4
D 9001 LED SML-512MWT86 G2071228 8- A A 2
D 9002 LED SML-512UWT86 G2071230 8- A A1
D 9003 LED SML-512MWT86 G2071228 8- A A 1
D 9004 LED SML-512UWT86 G2071230 8- A A1
D 9005 DIODE DA221M T2L G2070940 8- B a2
D 9006 DIODE DA221M T2L G2070940 8- B a2
D 9008 LED MA10-1104Q7NC-WK G2070878 8- A C1
D 9009 LED MA10-1104Q7NC-WK G2070878 8- A C1
D 9010 LED MA10-1104Q7NC-WK G2070878 8- A C2
D 9011 LED 19-213/S2C-AN1P2B/3T G2071096 8- A A 3
D 9012 DIODE 1SS400G T2R G2070934 8- B a2
D 9013 DIODE EDZ TE-61 8.2B G2071188 8- B a2
D 9015 LED 19-213/S2C-AN1P2B/3T G2071096 8- A A 3
D 9016 LED 19-213/S2C-AN1P2B/3T G2071096 8- A A 4
D 9017 LED 19-213/S2C-AN1P2B/3T G2071096 8- A A 4
D 9018 LED 19-213/S2C-AN1P2B/3T G2071096 8- A B4
D 9019 LED 19-213/S2C-AN1P2B/3T G2071096 8- A B4
D 9020 LED 19-213/S2C-AN1P2B/3T G2071096 8- A B4
D 9021 DIODE RB521S-30 TE61 G2070642 8- B c4
D 9022 DIODE RB751G-40T2R G2071066 8- B b4
D 9023 LED 19-213/S2C-AN1P2B/3T G2071096 8- A B4
D 9024 LED 19-213/S2C-AN1P2B/3T G2071096 8- A B4
D 9025 LED 19-213/S2C-AN1P2B/3T G2071096 8- A B4
D 9026 LED WH104S(TAPE) G2071174 8- A C1
D 9027 DIODE RD2.0UM-T2 G2070190 8- B a2
D 9028 DIODE RB551V-30 TE-17 G2070892 8- B a2
D 9029 DIODE RB751G-40T2R G2071066 8- B c1
D 9030 DIODE DAN222M T2L G2070936 8 - B c3
D 9031 DIODE DA221M T2L G2070940 8- B c 3
D 9032 DIODE DAN222M T2L G2070936 8 - B b3
D 9033 DIODE DA221M T2L G2070940 8- B b3
D 9034 DIODE EDZ TE-61 5.1B G2070998 8- A C3
DS9001 LCD MODULE AH029M Q7000614 8DS9001 LCD MODULE S70010FPNNUT00 Q7000614A 17FB9001 FERRITE BEADS BLM15AG121SN1D L1690843 8 - B a1
96
DESCRIPTION
VALUE V/W TOL. VXSTD P/NMFR’S DESIG VERS.
VX-8R/E and VX-8DR/E Technical Supplement
LOT.
SIDE
LAY ADR.
Page 97
CNTL-2 Unit(Lot.8~)
REF.
FB9002 FERRITE BEADS BLM15AG121SN1D L1690843 8 - B a1
FB9003 FERRITE BEADS BLM15AG121SN1D L1690843 8 - B a1
FB9004 FERRITE BEADS BLM15AG121SN1D L1690843 8 - B b1
FB9005 FERRITE BEADS BLM15AG121SN1D L1690843 8 - B b1
FB9006 FERRITE BEADS BLM15AG121SN1D L1690843 8 - B b1
FB9007 FERRITE BEADS BLM15AG121SN1D L1690843 8 - B b1
FB9008 FERRITE BEADS BLM15AG121SN1D L1690843 8 - B b1
FB9009 FERRITE BEADS BLM15AG121SN1D L1690843 8 - B b1
FB9010 FERRITE BEADS BLM15AG121SN1D L1690843 8 - B b1
J 9001 CONNECTOR AXK620347YG P0091506 8 - B b4
J 9002 CONNECTOR XF2U-3015-3A P1091369 8- A B1
J 9003 CONNECTOR AXK5S50037YG P1091359 8- B c 4
J 9004 CONNECTOR MJC-041-B1Z-3.5T P1091312 8- B a1
J 9006 CONNECTOR XF2L-0725-1A P1091364 8- B b1
L 9002 M.RFC 18uH FLC32T-180J L1690218 8- B b2
L 9003 M.RFC 1uH LK1608 1R0K-T L1690687 8- B a2
L 9004 M.RFC 4.7uH LK1608 4R7K-T L1690688 8- B b4
L 9005 M.RFC 0.68uH LK1608 R68K-T L1690416 8- B a1
MC9001 MICROPHONE ELEMENT IMP-415TN-423-R413EN M3290052 8 - A C3
MC9001 MICROPHONE ELEMENT IMP-415PN M3290054 16- A C3
MD9001 MODULE HPM-013 Q7000612 8- B a4
Q 9001 TRANSISTOR 2SC5658 T2L Q/R G3356588 8 - B a2
Q 9002 TRANSISTOR DTC144EM T2L G3070309 8- A A2
Q 9003 TRANSISTOR DTC144EM T2L G3070309 8- A A2
Q 9004 TRANSISTOR DTC144EM T2L G3070309 8- A A1
Q 9005 TRANSISTOR DTC144EM T2L G3070309 8- B a2
Q 9007 TRANSISTOR DTC144EM T2L G3070309 8- A A1
Q 9008 TRANSISTOR DTA144EM T2L G3070310 8- B a3
Q 9009 IC TAR5S30U(TE85L.F) G1094596 8- B b4
Q 9010 IC NJU7231F30-TE1 G1093512 8- B a2
Q 9011 IC XC61GN3002HR G1094470 8- B a2
Q 9012 IC XC61GN3002HR G1094470 8- B a2
Q 9013 IC TAR5S30U(TE85L.F) G1094596 8- B a2
Q 9014 TRANSISTOR CPH6202-TL G3070265 8- A C2
Q 9015 TRANSISTOR 2SA2029 T2L Q/R G3120298 8- A C2
Q 9016 TRANSISTOR 2SC5658 T2L Q/R G3356588 8 - A C2
Q 9018 FET RTM002P02(TAPE) G3070347 8- B c 1
Q 9019 TRANSISTOR DTC144EM T2L G3070309 8- B b2
Q 9020 TRANSISTOR 2SD1801S-TL G3418018S 8- B a2
Q 9021 TRANSISTOR DTC144EM T2L G3070309 8- A B1
Q 9022 TRANSISTOR DTC124EE TL G3070109 8 - B b2
Q 9023 TRANSISTOR 2SC5374-TL G3353748 8- B b2
Q 9024 IC HD64F2370VLP34V
Q 9025 IC M24512-RDW6TP G1094562 8- B c 3
Q 9026 IC S-35190A-I8T1G G1094590 8- B c1
Q 9027 TRANSISTOR 2SC5658 T2L Q/R G3356588 8 - B a1
Q 9028 IC BA2902KN G1094201 8- B c3
Q 9029 TRANSISTOR 2SC4915-O(TE85L.F) G3349158O W/O CE LABEL 8- B b4
Q 9030 IC BA2902KN G1094201 8- B b3
Q 9031 FET MCH6305-TL G3070301 8- B a1
Q 9032 IC BA2902KN G1094201 8- B a2
Q 9033 IC BA2902KN G1094201 8- B c3
Q 9034 IC NJM2151AV(TAPE) G1094420 8 - B a1
Q 9035 TRANSISTOR 2SC5658 T2L Q/R G3356588 8 - B c3
Q 9036 TRANSISTOR DTC144EM T2L G3070309 8- B c3
Q 9037 IC BA2902KN G1094201 8- B a2
Q 9038 TRANSISTOR DTC144EM T2L G3070309 8- B c3
Q 9039 TRANSISTOR DTC144EM T2L G3070309 8- B c4
Q 9040 TRANSISTOR 2SC5658 T2L Q/R G3356588 8 - B b3
Q 9041 TRANSISTOR DTC144EM T2L G3070309 8- B b3
VX-8R/E and VX-8DR/E Technical Supplement
DESCRIPTION
VALUE V/W TOL. VXSTD P/NMFR’S DESIG VERS.
:
Please contact VERTEX STANDARD
SIDE
LOT.
8- B c2
LAY ADR.
97
Page 98
CNTL-2 Unit (Lot.8~)
REF.
Q 9042 TRANSISTOR DTC144EM T2L G3070309 8- B b3
Q 9043 TRANSISTOR DTC144EM T2L G3070309 8- B c3
Q 9044 TRANSISTOR DTC144EM T2L G3070309 8- B c3
Q 9045 FET 2SK3541 T2L G3835417 8- B c1
Q 9046 FET 2SK3541 T2L G3835417 8- B b1
Q 9047 FET 2SK3541 T2L G3835417 8- B b1
Q 9048 TRANSISTOR DTC144TE-TL G3070280 8- B b3
Q 9049 TRANSISTOR DTC144EM T2L G3070309 8- B c3
Q 9050 TRANSISTOR DTC144TE-TL G3070280 8- B b3
Q 9051 IC BU2502MUV G1094586 8- B a4
Q 9052 TRANSISTOR DTC144EM T2L G3070309 8- B a3
Q 9053 TRANSISTOR DTC143ZE TL G3070102 8- A C3
Q 9054 IC CMX589AD5 G1094597 8- B c 2
Q 9055 IC CMX865AE4 G1094617 8- B b1
Q 9056 IC TC74VHC595FK(EL,K) G1094552 8- B b4
Q 9057 TRANSISTOR DTC144EM T2L G3070309 8- B b2
Q 9058 TRANSISTOR UMH4N TN G3070399 8- B b1
Q 9059 TRANSISTOR DTC144EM T2L G3070309 8- B c1
Q 9060 TRANSISTOR DTC144EM T2L G3070309 8- B c2
Q 9061 TRANSISTOR 2SC5658 T2L Q/R G3356588 8 - B b1
Q 9062 TRANSISTOR 2SC5658 T2L Q/R G3356588 8 - B b1
Q 9063 IC TAR5S33U(TE85L.F) G1094549 8- B b1
Q 9064 FET MCH6305-TL G3070301 8- B b1
Q 9065 TRANSISTOR 2SA2029 T2L Q/R G3120298 8- B b4
Q 9067 TRANSISTOR CPH6102-TL G3070223 8- B b4
Q 9068 TRANSISTOR UMW1 TR G3070078 8- B b4
Q 9069 FET 2SK3541 T2L G3835417 24- B a2
R 9001 CHIP RES. 1 00 1/ 16 W 5% RMC1/16S 101JTH J24189013 1- A A2
R 9002 CHIP RES. 15 k 1 /1 6W 5 % RMC1/16S 153JTH J24189039 8- B a2
R 9004 CHIP RES. 2 20 1/ 16 W 5% RMC1/16S 221JTH J24189017 8- A A2
R 9005 CHIP RES. 1 00 1/ 16 W 5% RMC1/16S 101JTH J24189013 8- A A1
R 9006 CHIP RES. 2 20 1/ 16 W 5% RMC1/16S 221JTH J24189017 8- A A1
R 9007 CHIP RES. 47 k 1 /1 6W 5 % RMC1/16S 473JTH J24189045 8- B c 1
R 9008 CHIP RES. 100k 1/16W 5 % RMC1/16S 104JTH J24189049 8- B a4
R 9009 CHIP RES. 22 k 1 /1 6W 5 % RMC1/16S 223JTH J24189041 8- B b4
R 9010 CHIP RES. 390k 1/16W 5 % RMC1/16S 394JTH J24189056 8- B a2
R 9011 CHIP RES. 22 k 1 /1 6W 5 % RMC1/16S 223JTH J24189041 8- B a2
R 9012 CHIP RES. 10 k 1 /1 6W 5 % RMC1/16S 103JTH J24189037 8- B b2
R 9014 CHIP RES. 1 00 1/ 16 W 5% RMC1/16S 101JTH J24189013 8- A C1
R 9015 CHIP RES. 1 00 1/ 16 W 5% RMC1/16S 101JTH J24189013 8- A C2
R 9016 CHIP RES. 1 00 1/ 16 W 5% RMC1/16S 101JTH J24189013 8- A C2
R 9017 CHIP RES. 2 20 1/ 16 W 5% RMC1/16S 221JTH J24189017 8- A C2
R 9018 CHIP RES. 4 70 1/ 16 W 5% RMC1/16S 471JTH J24189021 8- B a2
R 9019 CHIP RES. 100k 1/16W 5 % RMC1/16S 104JTH J24189049 8- B a2
R 9020 CHIP RES. 100k 1/16W 5 % RMC1/16S 104JTH J24189049 8- B b1
R 9021 CHIP RES. 100k 1/16W 5 % RMC1/16S 104JTH J24189049 8- B b1
R 9022 CHIP RES. 22 k 1 /1 6W 5 % RMC1/16S 223JTH J24189041 8- B b4
R 9023 CHIP RES. 470k 1/16W 5 % RMC1/16S 474JTH J24189057 8- B b4
R 9024 CHIP RES. 150k 1/16W 5 % RMC1/16S 154JTH J24189051 8- B a2
R 9025 CHIP RES. 22 k 1 /1 6W 5 % RMC1/16S 223JTH J24189041 8- B a2
R 9026 CHIP RES. 82 k 1 /1 6W 5 % RMC1/16S 823JTH J24189048 8- B a2
R 9027 CHIP RES. 2.2k 1/16W 5 % RMC1/16S 222JTH J24189029 8- B a2
R 9028 CHIP RES. 100k 1/16W 5 % RMC1/16S 104JTH J24189049 8- B b1
R 9029 CHIP RES. 2 20 1/ 16 W 5% RMC1/16S 221JTH J24189017 8- A C2
R 9030 CHIP RES. 2 20 1/ 16 W 5% RMC1/16S 221JTH J24189017 8- A C2
R 9031 CHIP RES. 2 2 1/ 2W 5 % RMC1/2 220JCTP J24275220 8- A C3
R 9032 CHIP RES. 2 20 1/ 16 W 5% RMC1/16S 221JTH J24189017 8- A C2
R 9033 CHIP RES. 3.3k 1/16W 5 % RMC1/16S 332JTH J24189031 8- A C2
R 9034 CHIP RES. 4.7k 1/16W 5 % RMC1/16S 472JTH J24189033 8- A C2
R 9035 CHIP RES. 2 20 1/ 16 W 5% RMC1/16S 221JTH J24189017 8- A C2
98
DESCRIPTION
VALUE V/W TOL. VXSTD P/NMFR’S DESIG VERS.
VX-8R/E and VX-8DR/E Technical Supplement
LOT.
SIDE
LAY ADR.
Page 99
CNTL-2 Unit(Lot.8~)
REF.
R 9036 CHIP RES. 2 20 1/ 16 W 5% RMC1/16S 221JTH J24189017 8- A C2
R 9037 CHIP RES. 2 20 1/ 16 W 5% RMC1/16S 221JTH J24189017 8- A C2
R 9038 CHIP RES. 47 k 1 /1 6W 5 % RMC1/16S 473JTH J24189045 8- B b1
R 9039 CHIP RES. 47 k 1 /1 6W 5 % RMC1/16S 473JTH J24189045 8- B b1
R 9040 CHIP RES. 100k 1/16W 5 % RMC1/16S 104JTH J24189049 8- B b1
R 9041 CHIP RES. 100k 1/16W 5 % RMC1/16S 104JTH J24189049 8- B b4
R 9042 CHIP RES. 100k 1/16W 5 % RMC1/16S 104JTH J24189049 8- B a2
R 9043 CHIP RES. 100k 1/16W 5 % RMC1/16S 104JTH J24189049 8- B b2
R 9044 CHIP RES. 2 20 1/ 16 W 5% RMC1/16S 221JTH J24189017 8- A C2
R 9045 CHIP RES. 20 k 1 /1 6W 5 % RMC1/16S 203JTH J24189455 8- A C2
R 9046 CHIP RES. 10 k 1 /1 6W 5 % RMC1/16S 103JTH J24189037 8- A C2
R 9047 CHIP RES. 2 20 1/ 16 W 5% RMC1/16S 221JTH J24189017 8- A C2
R 9048 CHIP RES. 15 k 1 /1 6W 5 % RMC1/16S 153JTH J24189039 8- A C2
R 9049 CHIP RES. 2 20 1/ 16 W 5% RMC1/16S 221JTH J24189017 8- A C2
R 9050 CHIP RES. 20 k 1 /1 6W 5 % RMC1/16S 203JTH J24189455 8- A C2
R 9051 CHIP RES. 4 7 1/ 1 6W 5% RMC1/16S 470JTH J24189009 8- A C1
R 9052 CHIP RES. 1 8 1/ 1 6W 5% RMC1/16S 180JTH J24189004 8- A B1
R 9053 CHIP RES. 4 .7 1/2W 5% RMC1/2 4R7JCTP J24275479 8- B a2
R 9054 CHIP RES. 4.7k 1/16W 5 % RMC1/16S 472JTH J24189033 8- B b2
R 9055 CHIP RES. 4.7k 1/16W 5 % RMC1/16S 472JTH J24189033 8- B b2
R 9056 CHIP RES. 47 k 1 /1 6W 5 % RMC1/16S 473JTH J24189045 8- B c 2
R 9057 CHIP RES. 1M 1 /1 6 W 5 % RMC1/16S 105JTH J24189061 8- B b2
R 9058 CHIP RES. 330k 1/16W 0.5% MCR01MZPD3303 J24189330 8- B b3
R 9059 CHIP RES. 68 k 1 /1 6W 0.5% MCR01MZPD6802 J24189384 8- B b3
R 9060 CHIP RES. 22 k 1 /1 6W 5 % RMC1/16S 223JTH J24189041 8- A C1
R 9061 CHIP RES. 22 k 1 /1 6W 5 % RMC1/16S 223JTH J24189041 8- A C1
R 9062 CHIP RES. 100k 1/16W 5 % RMC1/16S 104JTH J24189049 8- B b2
R 9063 CHIP RES. 1k 1 /1 6W 5 % RMC1/16S 102JTH J24189025 8- B c1
R 9064 CHIP RES. 47 k 1 /1 6W 5 % RMC1/16S 473JTH J24189045 8- B a1
R 9065 CHIP RES. 10 k 1 /1 6W 5 % RMC1/16S 103JTH J24189037 8- B c 4
R 9066 CHIP RES. 15 k 1 /1 6W 5 % RMC1/16S 153JTH J24189039 8- B c 4
R 9067 CHIP RES. 150k 1/16W 5 % RMC1/16S 154JTH J24189051 8- B c3
R 9068 CHIP RES. 6 80 1/ 16 W 5% RMC1/16S 681JTH J24189023 8- B c4
R 9069 CHIP RES. 47 k 1 /1 6W 5 % RMC1/16S 473JTH J24189045 8- B c 3
R 9070 CHIP RES. 33 k 1 /1 6W 5 % RMC1/16S 333JTH J24189043 8- B c 3
R 9071 CHIP RES. 10 k 1 /1 6W 5 % RMC1/16S 103JTH J24189037 8- B b4
R 9072 CHIP RES. 15 k 1 /1 6W 5 % RMC1/16S 153JTH J24189039 8- B c 3
R 9073 CHIP RES. 150k 1/16W 5 % RMC1/16S 154JTH J24189051 8- B c3
R 9074 CHIP RES. 6 80 1/ 16 W 5% RMC1/16S 681JTH J24189023 8- B b4
R 9075 CHIP RES. 47 k 1 /1 6W 5 % RMC1/16S 473JTH J24189045 8- B c 3
R 9076 CHIP RES. 0 1 /1 6W 5 % RMC1/16S JPTH J24189070 W/ CE LABEL 8- B b5
R 9076 CHIP RES. 220k 1/16W 5 % RMC1/16S 224JTH J24189053 W/O CE LABEL 8- B b5
R 9077 CHIP RES. 1k 1 /1 6W 5 % RMC1/16S 102JTH J24189025 W/O CE LABEL 8- B b4
R 9078 CHIP RES. 18 k 1 /1 6W 0.5% MCR01MZPD1802 J24189377 8- B a1
R 9079 CHIP RES. 6.8k 1/16W 0.5% MCR01MZPD6801 J24189372 8- B a2
R 9080 CHIP RES. 0 1 /1 6W 5 % RMC1/16S JPTH J24189070 8- B b1
R 9081 CHIP RES. 470k 1/16W 5 % RMC1/16S 474JTH J24189057 8- B a1
R 9082 CHIP RES. 4.7k 1/16W 5 % RMC1/16S 472JTH J24189033 8- B a2
R 9084 CHIP RES. 10 k 1 /1 6W 5 % RMC1/16S 103JTH J24189037 8- B a2
R 9085 CHIP RES. 470k 1/16W 5 % RMC1/16S 474JTH J24189057 8- B a2
R 9086 CHIP RES. 47 k 1 /1 6W 5 % RMC1/16S 473JTH J24189045 8- B c 4
R 9087 CHIP RES. 47 k 1 /1 6W 5 % RMC1/16S 473JTH J24189045 8- B c 3
R 9088 CHIP RES. 560k 1/16W 5 % RMC1/16S 564JTH J24189058 8- B c3
R 9089 CHIP RES. 68 k 1 /1 6W 5 % RMC1/16S 683JTH J24189047 8- B c 3
R 9090 CHIP RES. 390k 1/16W 5 % RMC1/16S 394JTH J24189056 8- B c3
R 9091 CHIP RES. 47 k 1 /1 6W 5 % RMC1/16S 473JTH J24189045 8- B c 4
R 9092 CHIP RES. 390k 1/16W 5 % RMC1/16S 394JTH J24189056 8- B c3
R 9093 CHIP RES. 10 k 1 /1 6W 5 % RMC1/16S 103JTH J24189037 8- B b3
R 9094 CHIP RES. 560k 1/16W 5 % RMC1/16S 564JTH J24189058 8- B b4
R 9095 CHIP RES. 10 k 1 /1 6W 5 % RMC1/16S 103JTH J24189037 8- B c 3
DESCRIPTION
VALUE V/W TOL. VXSTD P/NMFR’S DESIG VERS.
LOT.
SIDE
LAY ADR.
VX-8R/E and VX-8DR/E Technical Supplement
99
Page 100
CNTL-2 Unit (Lot.8~)
REF.
R 9096 CHIP RES. 33 k 1 /1 6W 5 % RMC1/16S 333JTH J24189043 8- B b3
R 9097 CHIP RES. 47 k 1 /1 6W 5 % RMC1/16S 473JTH J24189045 8- B b3
R 9098 CHIP RES. 47 k 1 /1 6W 5 % RMC1/16S 473JTH J24189045 8- B b3
R 9099 CHIP RES. 10 k 1 /1 6W 5 % RMC1/16S 103JTH J24189037 8- B c 3
R 9100 CHIP RES. 68 k 1 /1 6W 5 % RMC1/16S 683JTH J24189047 8- B c 3
R 9101 CHIP RES. 390k 1/16W 5 % RMC1/16S 394JTH J24189056 8- B c3
R 9102 CHIP RES. 47 k 1 /1 6W 5 % RMC1/16S 473JTH J24189045 8- B b3
R 9103 CHIP RES. 390k 1/16W 5 % RMC1/16S 394JTH J24189056 8- B c3
R 9104 CHIP RES. 47 k 1 /1 6W 5 % RMC1/16S 473JTH J24189045 8- B a1
R 9105 CHIP RES. 100k 1/16W 5 % RMC1/16S 104JTH J24189049 8- B a3
R 9106 CHIP RES. 100k 1/16W 5 % RMC1/16S 104JTH J24189049 8- B a3
R 9107 CHIP RES. 33 k 1 /1 6W 5 % RMC1/16S 333JTH J24189043 8- B a3
R 9108 CHIP RES. 4.7k 1/16W 5 % RMC1/16S 472JTH J24189033 8- B a2
R 9109 CHIP RES. 2.2k 1/16W 5 % RMC1/16S 222JTH J24189029 8- B a2
R 9110 CHIP RES. 4.7k 1/16W 5 % RMC1/16S 472JTH J24189033 8- B a2
R 9111 CHIP RES. 10 k 1 /1 6W 5 % RMC1/16S 103JTH J24189037 8- B a3
R 9112 CHIP RES. 5.6k 1/16W 5 % RMC1/16S 562JTH J24189034 8- B a3
R 9112 CHIP RES. 2.2k 1/16W 5 % RMC1/16S 222JTH J24189029 24- B a3
R 9113 CHIP RES. 270k 1/16W 5 % RMC1/16S 274JTH J24189054 8- B a3
R 9114 CHIP RES. 47 k 1 /1 6W 5 % RMC1/16S 473JTH J24189045 8- B b3
R 9115 CHIP RES. 10 k 1 /1 6W 5 % RMC1/16S 103JTH J24189037 8- B a1
R 9116 CHIP RES. 10 k 1 /1 6W 5 % RMC1/16S 103JTH J24189037 8- B a1
R 9117 CHIP RES. 10 k 1 /1 6W 5 % RMC1/16S 103JTH J24189037 8- B a1
R 9118 CHIP RES. 10 k 1 /1 6W 5 % RMC1/16S 103JTH J24189037 8- B b3
R 9119 CHIP RES. 68 k 1 /1 6W 5 % RMC1/16S 683JTH J24189047 8- B c 3
R 9120 CHIP RES. 390k 1/16W 5 % RMC1/16S 394JTH J24189056 8- B c3
R 9121 CHIP RES. 390k 1/16W 5 % RMC1/16S 394JTH J24189056 8- B c3
R 9122 CHIP RES. 10 k 1 /1 6W 5 % RMC1/16S 103JTH J24189037 8- B b3
R 9123 CHIP RES. 10 k 1 /1 6W 5 % RMC1/16S 103JTH J24189037 8- B b3
R 9124 CHIP RES. 47 k 1 /1 6W 5 % RMC1/16S 473JTH J24189045 8- B b3
R 9125 CHIP RES. 68 k 1 /1 6W 5 % RMC1/16S 683JTH J24189047 8- B c 3
R 9126 CHIP RES. 390k 1/16W 5 % RMC1/16S 394JTH J24189056 8- B c3
R 9127 CHIP RES. 390k 1/16W 5 % RMC1/16S 394JTH J24189056 8- B b3
R 9128 CHIP RES. 10 k 1 /1 6W 5 % RMC1/16S 103JTH J24189037 8- B c 1
R 9129 CHIP RES. 15 k 1 /1 6W 5 % RMC1/16S 153JTH J24189039 8- B c 1
R 9130 CHIP RES. 15 k 1 /1 6W 5 % RMC1/16S 153JTH J24189039 8- B c 1
R 9131 CHIP RES. 330k 1/16W 5 % RMC1/16S 334JTH J24189055 8- B c1
R 9132 CHIP RES. 0 1 /1 6W 5 % RMC1/16S JPTH J24189070 8- B c 1
R 9133 CHIP RES. 0 1 /1 6W 5 % RMC1/16S JPTH J24189070 8- B c 1
R 9134 CHIP RES. 5 60 1/ 16 W 5% RMC1/16S 561JTH J24189022 8- B a1
R 9135 CHIP RES. 330k 1/16W 5 % RMC1/16S 334JTH J24189055 8- B b1
R 9136 CHIP RES. 10 k 1 /1 6W 5 % RMC1/16S 103JTH J24189037 8- B b1
R 9137 CHIP RES. 10 k 1 /1 6W 5 % RMC1/16S 103JTH J24189037 8- B b1
R 9138 CHIP RES. 10 k 1 /1 6W 5 % RMC1/16S 103JTH J24189037 8- B b1
R 9139 CHIP RES. 10 k 1 /1 6W 5 % RMC1/16S 103JTH J24189037 8- B b1
R 9140 CHIP RES. 100k 1/16W 5 % RMC1/16S 104JTH J24189049 8- B b4
R 9142 CHIP RES. 100k 1/16W 5 % RMC1/16S 104JTH J24189049 8- B a4
R 9143 CHIP RES. 180k 1/16W 5 % RMC1/16S 184JTH J24189052 8- B a3
R 9144 CHIP RES. 0 1 /1 6W 5 % RMC1/16S JPTH J24189070 8- B a3
R 9145 CHIP RES. 33 k 1 /1 6W 5 % RMC1/16S 333JTH J24189043 8- B a3
R 9146 CHIP RES. 47 k 1 /1 6W 5 % RMC1/16S 473JTH J24189045 8- B a3
R 9147 CHIP RES. 47 k 1 /1 6W 5 % RMC1/16S 473JTH J24189045 8- B a1
R 9148 CHIP RES. 10 k 1 /1 6W 5 % RMC1/16S 103JTH J24189037 8- B a3
R 9149 CHIP RES. 68 k 1 /1 6W 5 % RMC1/16S 683JTH J24189047 8- B a2
R 9150 CHIP RES. 47 k 1 /1 6W 5 % RMC1/16S 473JTH J24189045 8- B a1
R 9151 CHIP RES. 47 k 1 /1 6W 5 % RMC1/16S 473JTH J24189045 8- B b3
R 9152 CHIP RES. 12 k 1 /1 6W 5 % RMC1/16S 123JTH J24189038 8- B c 3
R 9153 CHIP RES. 47 k 1 /1 6W 5 % RMC1/16S 473JTH J24189045 8- B c 3
R 9154 CHIP RES. 10 k 1 /1 6W 5 % RMC1/16S 103JTH J24189037 8- B c 3
R 9155 CHIP RES. 47 k 1 /1 6W 5 % RMC1/16S 473JTH J24189045 8- B c 3
100
DESCRIPTION
VALUE V/W TOL. VXSTD P/NMFR’S DESIG VERS.
VX-8R/E and VX-8DR/E Technical Supplement
LOT.
SIDE
LAY ADR.
Loading...
