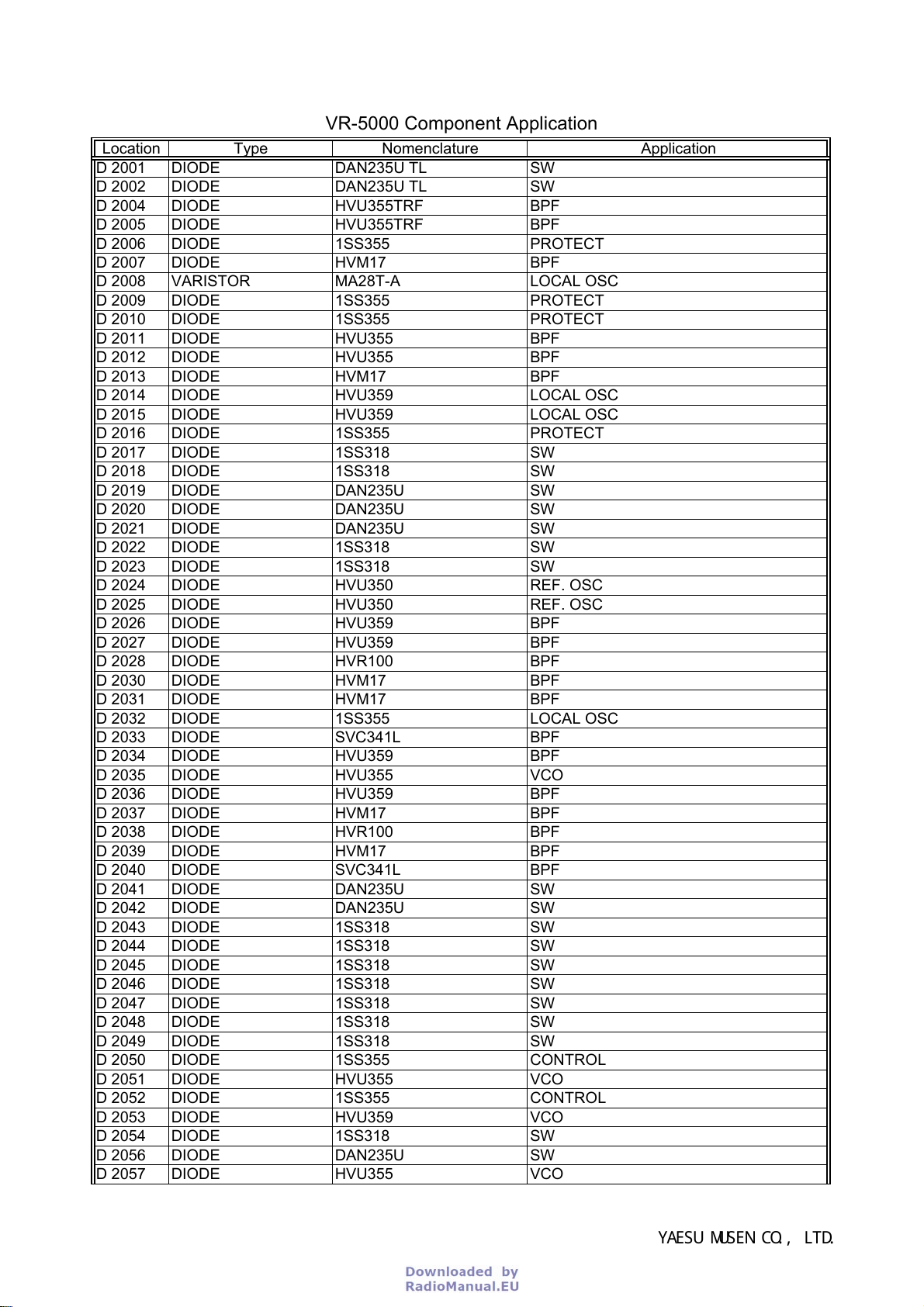

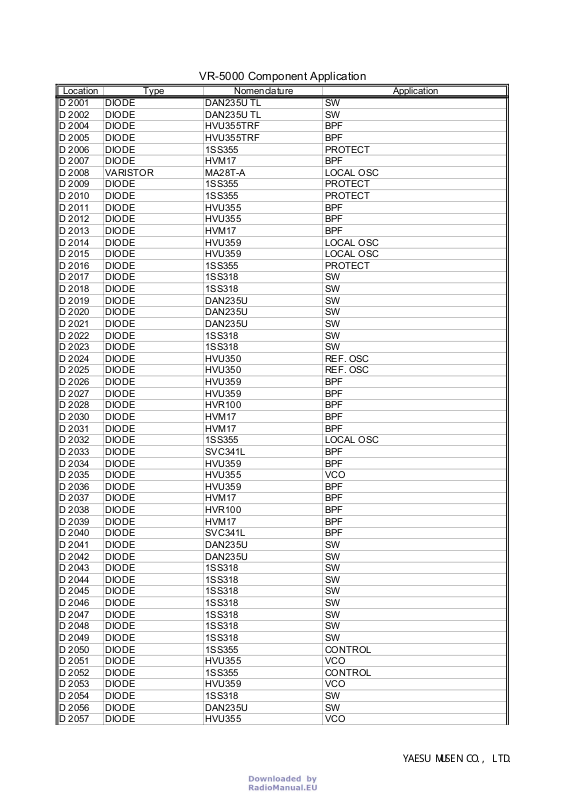

Page 1
VR-5000 Component Application
Location Type Nomenclature Application
D 2001 DIODE DAN235U TL SW
D 2002 DIODE DAN235U TL SW
D 2004 DIODE HVU355TRF BPF
D 2005 DIODE HVU355TRF BPF
D 2006 DIODE 1SS355 PROTECT
D 2007 DIODE HVM17 BPF
D 2008 VARISTOR MA28T-A LOCAL OSC
D 2009 DIODE 1SS355 PROTECT
D 2010 DIODE 1SS355 PROTECT
D 2011 DIODE HVU355 BPF
D 2012 DIODE HVU355 BPF
D 2013 DIODE HVM17 BPF
D 2014 DIODE HVU359 LOCAL OSC
D 2015 DIODE HVU359 LOCAL OSC
D 2016 DIODE 1SS355 PROTECT
D 2017 DIODE 1SS318 SW
D 2018 DIODE 1SS318 SW
D 2019 DIODE DAN235U SW
D 2020 DIODE DAN235U SW
D 2021 DIODE DAN235U SW
D 2022 DIODE 1SS318 SW
D 2023 DIODE 1SS318 SW
D 2024 DIODE HVU350 REF. OSC
D 2025 DIODE HVU350 REF. OSC
D 2026 DIODE HVU359 BPF
D 2027 DIODE HVU359 BPF
D 2028 DIODE HVR100 BPF
D 2030 DIODE HVM17 BPF
D 2031 DIODE HVM17 BPF
D 2032 DIODE 1SS355 LOCAL OSC
D 2033 DIODE SVC341L BPF
D 2034 DIODE HVU359 BPF
D 2035 DIODE HVU355 VCO
D 2036 DIODE HVU359 BPF
D 2037 DIODE HVM17 BPF
D 2038 DIODE HVR100 BPF
D 2039 DIODE HVM17 BPF
D 2040 DIODE SVC341L BPF
D 2041 DIODE DAN235U SW
D 2042 DIODE DAN235U SW
D 2043 DIODE 1SS318 SW
D 2044 DIODE 1SS318 SW
D 2045 DIODE 1SS318 SW
D 2046 DIODE 1SS318 SW
D 2047 DIODE 1SS318 SW
D 2048 DIODE 1SS318 SW
D 2049 DIODE 1SS318 SW
D 2050 DIODE 1SS355 CONTROL
D 2051 DIODE HVU355 VCO
D 2052 DIODE 1SS355 CONTROL
D 2053 DIODE HVU359 VCO
D 2054 DIODE 1SS318 SW
D 2056 DIODE DAN235U SW
D 2057 DIODE HVU355 VCO
YAESUMUSENCO. , LTD.

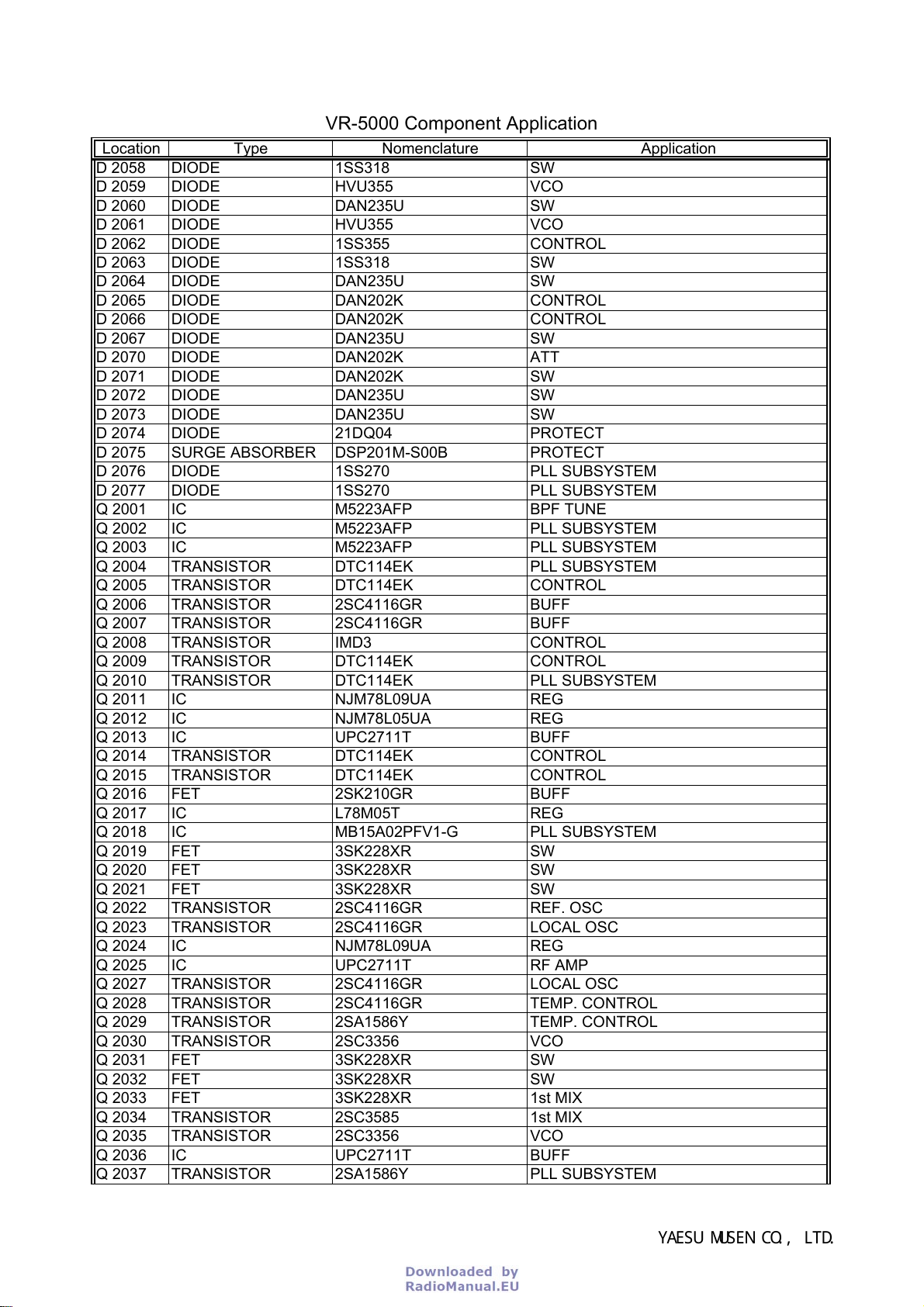

Page 2
VR-5000 Component Application
Location Type Nomenclature Application
D 2058 DIODE 1SS318 SW
D 2059 DIODE HVU355 VCO
D 2060 DIODE DAN235U SW
D 2061 DIODE HVU355 VCO
D 2062 DIODE 1SS355 CONTROL
D 2063 DIODE 1SS318 SW
D 2064 DIODE DAN235U SW
D 2065 DIODE DAN202K CONTROL
D 2066 DIODE DAN202K CONTROL
D 2067 DIODE DAN235U SW
D 2070 DIODE DAN202K ATT
D 2071 DIODE DAN202K SW
D 2072 DIODE DAN235U SW
D 2073 DIODE DAN235U SW
D 2074 DIODE 21DQ04 PROTECT
D 2075 SURGE ABSORBER DSP201M-S00B PROTECT
D 2076 DIODE 1SS270 PLL SUBSYSTEM
D 2077 DIODE 1SS270 PLL SUBSYSTEM
Q 2001 IC M5223AFP BPF TUNE
Q 2002 IC M5223AFP PLL SUBSYSTEM
Q 2003 IC M5223AFP PLL SUBSYSTEM
Q 2004 TRANSISTOR DTC114EK PLL SUBSYSTEM
Q 2005 TRANSISTOR DTC114EK CONTROL
Q 2006 TRANSISTOR 2SC4116GR BUFF
Q 2007 TRANSISTOR 2SC4116GR BUFF
Q 2008 TRANSISTOR IMD3 CONTROL
Q 2009 TRANSISTOR DTC114EK CONTROL
Q 2010 TRANSISTOR DTC114EK PLL SUBSYSTEM
Q 2011 IC NJM78L09UA REG
Q 2012 IC NJM78L05UA REG
Q 2013 IC UPC2711T BUFF
Q 2014 TRANSISTOR DTC114EK CONTROL
Q 2015 TRANSISTOR DTC114EK CONTROL
Q 2016 FET 2SK210GR BUFF
Q 2017 IC L78M05T REG
Q 2018 IC MB15A02PFV1-G PLL SUBSYSTEM
Q 2019 FET 3SK228XR SW
Q 2020 FET 3SK228XR SW
Q 2021 FET 3SK228XR SW
Q 2022 TRANSISTOR 2SC4116GR REF. OSC
Q 2023 TRANSISTOR 2SC4116GR LOCAL OSC
Q 2024 IC NJM78L09UA REG
Q 2025 IC UPC2711T RF AMP
Q 2027 TRANSISTOR 2SC4116GR LOCAL OSC
Q 2028 TRANSISTOR 2SC4116GR TEMP. CONTROL
Q 2029 TRANSISTOR 2SA1586Y TEMP. CONTROL
Q 2030 TRANSISTOR 2SC3356 VCO
Q 2031 FET 3SK228XR SW
Q 2032 FET 3SK228XR SW
Q 2033 FET 3SK228XR 1st MIX
Q 2034 TRANSISTOR 2SC3585 1st MIX
Q 2035 TRANSISTOR 2SC3356 VCO
Q 2036 IC UPC2711T BUFF
Q 2037 TRANSISTOR 2SA1586Y PLL SUBSYSTEM
YAESUMUSENCO. , LTD.

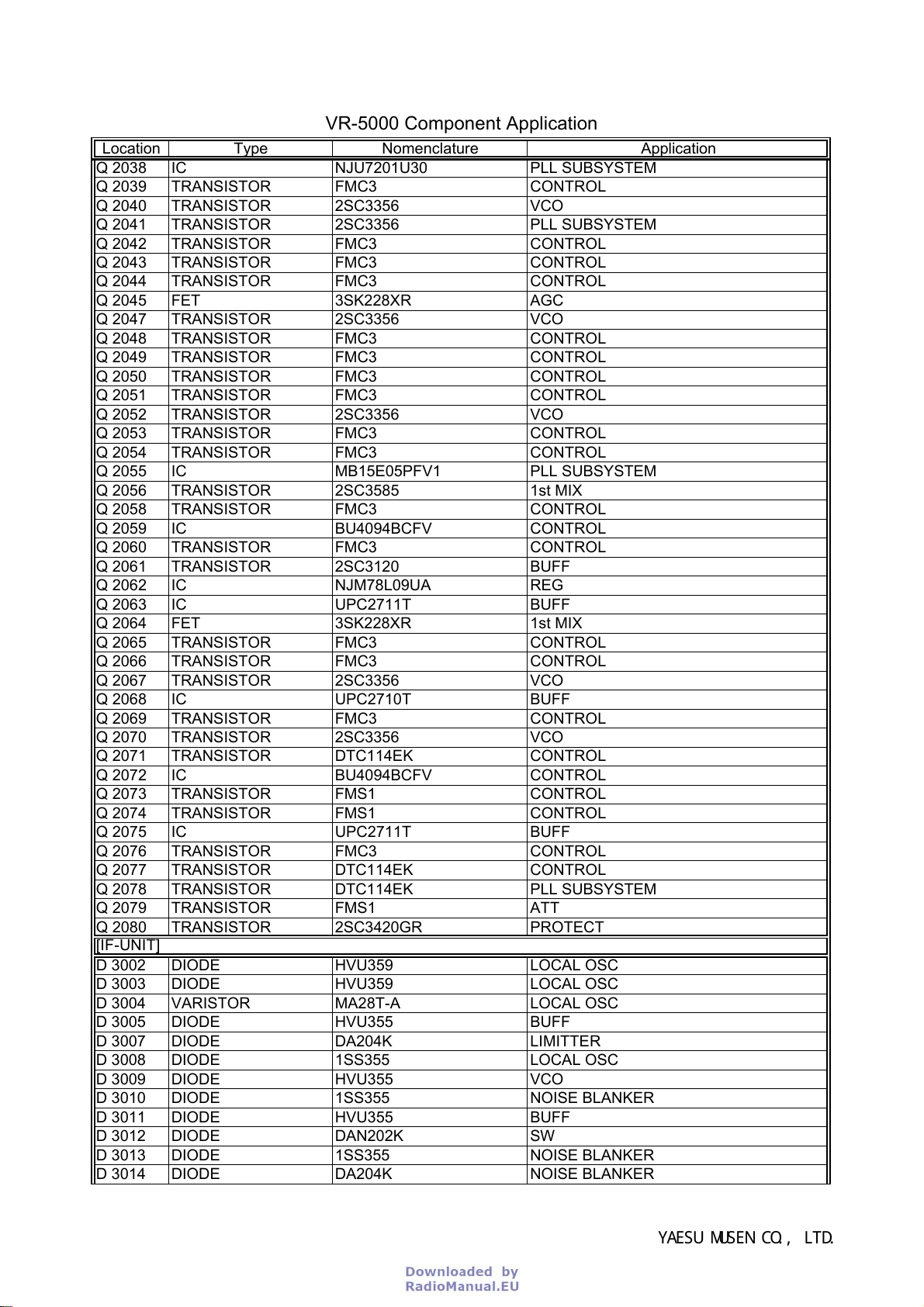

Page 3
VR-5000 Component Application
[IF-UNIT]
Location Type Nomenclature Application
Q 2038 IC NJU7201U30 PLL SUBSYSTEM
Q 2039 TRANSISTOR FMC3 CONTROL
Q 2040 TRANSISTOR 2SC3356 VCO
Q 2041 TRANSISTOR 2SC3356 PLL SUBSYSTEM
Q 2042 TRANSISTOR FMC3 CONTROL
Q 2043 TRANSISTOR FMC3 CONTROL
Q 2044 TRANSISTOR FMC3 CONTROL
Q 2045 FET 3SK228XR AGC
Q 2047 TRANSISTOR 2SC3356 VCO
Q 2048 TRANSISTOR FMC3 CONTROL
Q 2049 TRANSISTOR FMC3 CONTROL
Q 2050 TRANSISTOR FMC3 CONTROL
Q 2051 TRANSISTOR FMC3 CONTROL
Q 2052 TRANSISTOR 2SC3356 VCO
Q 2053 TRANSISTOR FMC3 CONTROL
Q 2054 TRANSISTOR FMC3 CONTROL
Q 2055 IC MB15E05PFV1 PLL SUBSYSTEM
Q 2056 TRANSISTOR 2SC3585 1st MIX
Q 2058 TRANSISTOR FMC3 CONTROL
Q 2059 IC BU4094BCFV CONTROL
Q 2060 TRANSISTOR FMC3 CONTROL
Q 2061 TRANSISTOR 2SC3120 BUFF
Q 2062 IC NJM78L09UA REG
Q 2063 IC UPC2711T BUFF
Q 2064 FET 3SK228XR 1st MIX
Q 2065 TRANSISTOR FMC3 CONTROL
Q 2066 TRANSISTOR FMC3 CONTROL
Q 2067 TRANSISTOR 2SC3356 VCO
Q 2068 IC UPC2710T BUFF
Q 2069 TRANSISTOR FMC3 CONTROL
Q 2070 TRANSISTOR 2SC3356 VCO
Q 2071 TRANSISTOR DTC114EK CONTROL
Q 2072 IC BU4094BCFV CONTROL
Q 2073 TRANSISTOR FMS1 CONTROL
Q 2074 TRANSISTOR FMS1 CONTROL
Q 2075 IC UPC2711T BUFF
Q 2076 TRANSISTOR FMC3 CONTROL
Q 2077 TRANSISTOR DTC114EK CONTROL
Q 2078 TRANSISTOR DTC114EK PLL SUBSYSTEM
Q 2079 TRANSISTOR FMS1 ATT
Q 2080 TRANSISTOR 2SC3420GR PROTECT
D 3002 DIODE HVU359 LOCAL OSC
D 3003 DIODE HVU359 LOCAL OSC
D 3004 VARISTOR MA28T-A LOCAL OSC
D 3005 DIODE HVU355 BUFF
D 3007 DIODE DA204K LIMITTER
D 3008 DIODE 1SS355 LOCAL OSC
D 3009 DIODE HVU355 VCO
D 3010 DIODE 1SS355 NOISE BLANKER
D 3011 DIODE HVU355 BUFF
D 3012 DIODE DAN202K SW
D 3013 DIODE 1SS355 NOISE BLANKER
D 3014 DIODE DA204K NOISE BLANKER
YAESUMUSENCO. , LTD.

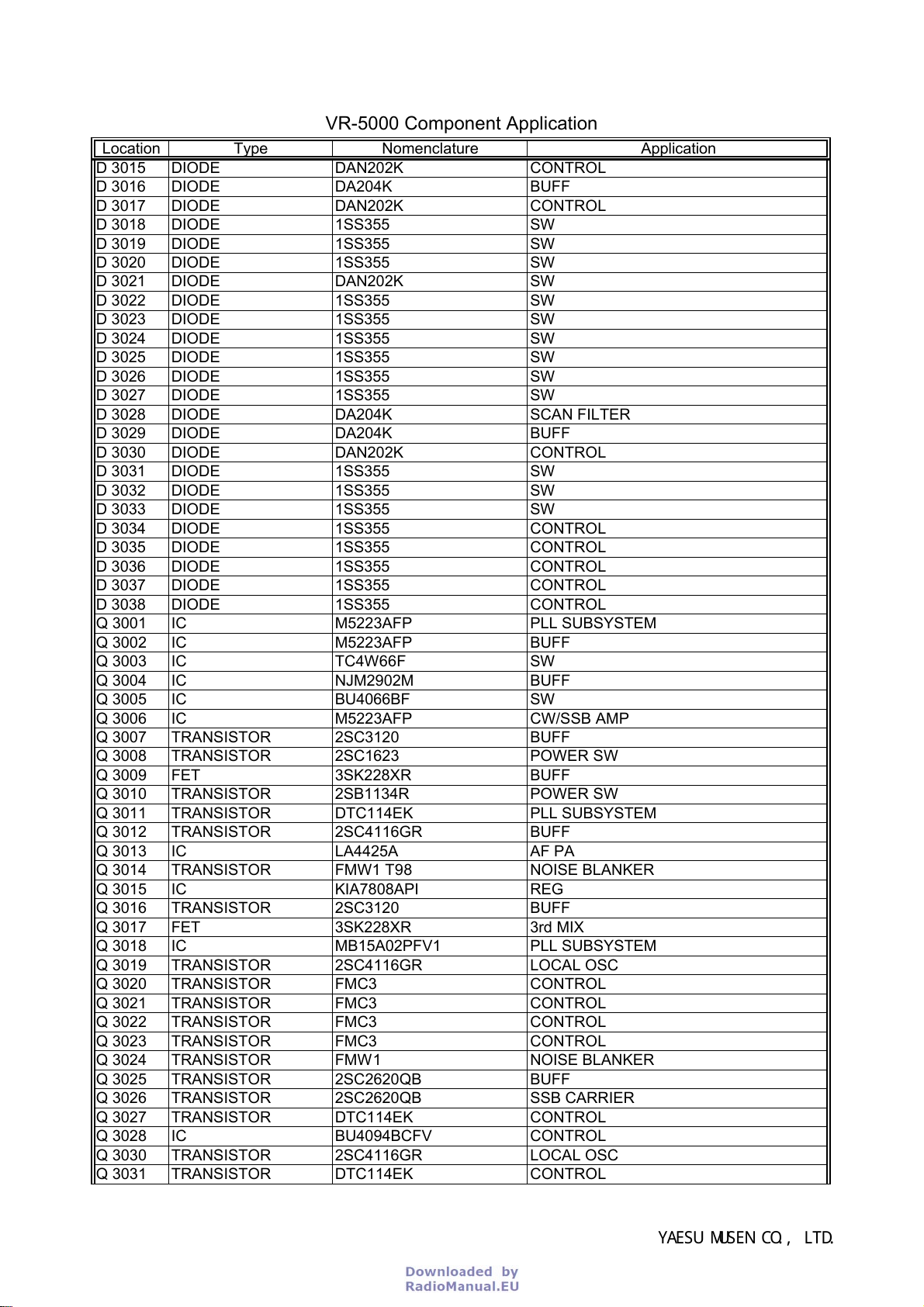

Page 4
VR-5000 Component Application
Location Type Nomenclature Application
D 3015 DIODE DAN202K CONTROL
D 3016 DIODE DA204K BUFF
D 3017 DIODE DAN202K CONTROL
D 3018 DIODE 1SS355 SW
D 3019 DIODE 1SS355 SW
D 3020 DIODE 1SS355 SW
D 3021 DIODE DAN202K SW
D 3022 DIODE 1SS355 SW
D 3023 DIODE 1SS355 SW
D 3024 DIODE 1SS355 SW
D 3025 DIODE 1SS355 SW
D 3026 DIODE 1SS355 SW
D 3027 DIODE 1SS355 SW
D 3028 DIODE DA204K SCAN FILTER
D 3029 DIODE DA204K BUFF
D 3030 DIODE DAN202K CONTROL
D 3031 DIODE 1SS355 SW
D 3032 DIODE 1SS355 SW
D 3033 DIODE 1SS355 SW
D 3034 DIODE 1SS355 CONTROL
D 3035 DIODE 1SS355 CONTROL
D 3036 DIODE 1SS355 CONTROL
D 3037 DIODE 1SS355 CONTROL
D 3038 DIODE 1SS355 CONTROL
Q 3001 IC M5223AFP PLL SUBSYSTEM
Q 3002 IC M5223AFP BUFF
Q 3003 IC TC4W66F SW
Q 3004 IC NJM2902M BUFF
Q 3005 IC BU4066BF SW
Q 3006 IC M5223AFP CW/SSB AMP
Q 3007 TRANSISTOR 2SC3120 BUFF
Q 3008 TRANSISTOR 2SC1623 POWER SW
Q 3009 FET 3SK228XR BUFF
Q 3010 TRANSISTOR 2SB1134R POWER SW
Q 3011 TRANSISTOR DTC114EK PLL SUBSYSTEM
Q 3012 TRANSISTOR 2SC4116GR BUFF
Q 3013 IC LA4425A AF PA
Q 3014 TRANSISTOR FMW1 T98 NOISE BLANKER
Q 3015 IC KIA7808API REG
Q 3016 TRANSISTOR 2SC3120 BUFF
Q 3017 FET 3SK228XR 3rd MIX
Q 3018 IC MB15A02PFV1 PLL SUBSYSTEM
Q 3019 TRANSISTOR 2SC4116GR LOCAL OSC
Q 3020 TRANSISTOR FMC3 CONTROL
Q 3021 TRANSISTOR FMC3 CONTROL
Q 3022 TRANSISTOR FMC3 CONTROL
Q 3023 TRANSISTOR FMC3 CONTROL
Q 3024 TRANSISTOR FMW1 NOISE BLANKER
Q 3025 TRANSISTOR 2SC2620QB BUFF
Q 3026 TRANSISTOR 2SC2620QB SSB CARRIER
Q 3027 TRANSISTOR DTC114EK CONTROL
Q 3028 IC BU4094BCFV CONTROL
Q 3030 TRANSISTOR 2SC4116GR LOCAL OSC
Q 3031 TRANSISTOR DTC114EK CONTROL
YAESUMUSENCO. , LTD.

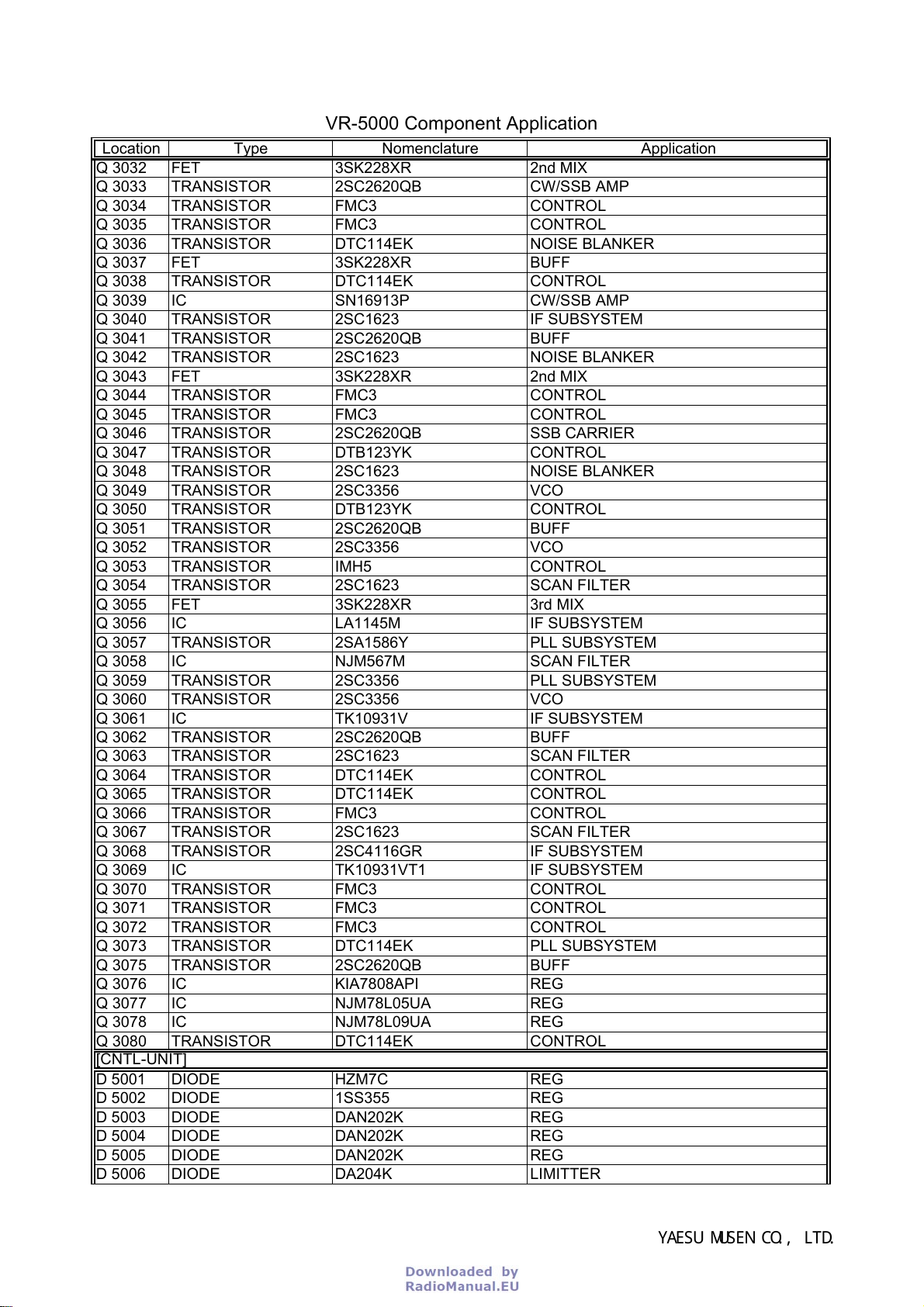

Page 5
VR-5000 Component Application
[CNTL-UNIT]
Location Type Nomenclature Application
Q 3032 FET 3SK228XR 2nd MIX
Q 3033 TRANSISTOR 2SC2620QB CW/SSB AMP
Q 3034 TRANSISTOR FMC3 CONTROL
Q 3035 TRANSISTOR FMC3 CONTROL
Q 3036 TRANSISTOR DTC114EK NOISE BLANKER
Q 3037 FET 3SK228XR BUFF
Q 3038 TRANSISTOR DTC114EK CONTROL
Q 3039 IC SN16913P CW/SSB AMP
Q 3040 TRANSISTOR 2SC1623 IF SUBSYSTEM
Q 3041 TRANSISTOR 2SC2620QB BUFF
Q 3042 TRANSISTOR 2SC1623 NOISE BLANKER
Q 3043 FET 3SK228XR 2nd MIX
Q 3044 TRANSISTOR FMC3 CONTROL
Q 3045 TRANSISTOR FMC3 CONTROL
Q 3046 TRANSISTOR 2SC2620QB SSB CARRIER
Q 3047 TRANSISTOR DTB123YK CONTROL
Q 3048 TRANSISTOR 2SC1623 NOISE BLANKER
Q 3049 TRANSISTOR 2SC3356 VCO
Q 3050 TRANSISTOR DTB123YK CONTROL
Q 3051 TRANSISTOR 2SC2620QB BUFF
Q 3052 TRANSISTOR 2SC3356 VCO
Q 3053 TRANSISTOR IMH5 CONTROL
Q 3054 TRANSISTOR 2SC1623 SCAN FILTER
Q 3055 FET 3SK228XR 3rd MIX
Q 3056 IC LA1145M IF SUBSYSTEM
Q 3057 TRANSISTOR 2SA1586Y PLL SUBSYSTEM
Q 3058 IC NJM567M SCAN FILTER
Q 3059 TRANSISTOR 2SC3356 PLL SUBSYSTEM
Q 3060 TRANSISTOR 2SC3356 VCO
Q 3061 IC TK10931V IF SUBSYSTEM
Q 3062 TRANSISTOR 2SC2620QB BUFF
Q 3063 TRANSISTOR 2SC1623 SCAN FILTER
Q 3064 TRANSISTOR DTC114EK CONTROL
Q 3065 TRANSISTOR DTC114EK CONTROL
Q 3066 TRANSISTOR FMC3 CONTROL
Q 3067 TRANSISTOR 2SC1623 SCAN FILTER
Q 3068 TRANSISTOR 2SC4116GR IF SUBSYSTEM
Q 3069 IC TK10931VT1 IF SUBSYSTEM
Q 3070 TRANSISTOR FMC3 CONTROL
Q 3071 TRANSISTOR FMC3 CONTROL
Q 3072 TRANSISTOR FMC3 CONTROL
Q 3073 TRANSISTOR DTC114EK PLL SUBSYSTEM
Q 3075 TRANSISTOR 2SC2620QB BUFF
Q 3076 IC KIA7808API REG
Q 3077 IC NJM78L05UA REG
Q 3078 IC NJM78L09UA REG
Q 3080 TRANSISTOR DTC114EK CONTROL
D 5001 DIODE HZM7C REG
D 5002 DIODE 1SS355 REG
D 5003 DIODE DAN202K REG
D 5004 DIODE DAN202K REG
D 5005 DIODE DAN202K REG
D 5006 DIODE DA204K LIMITTER
YAESUMUSENCO. , LTD.

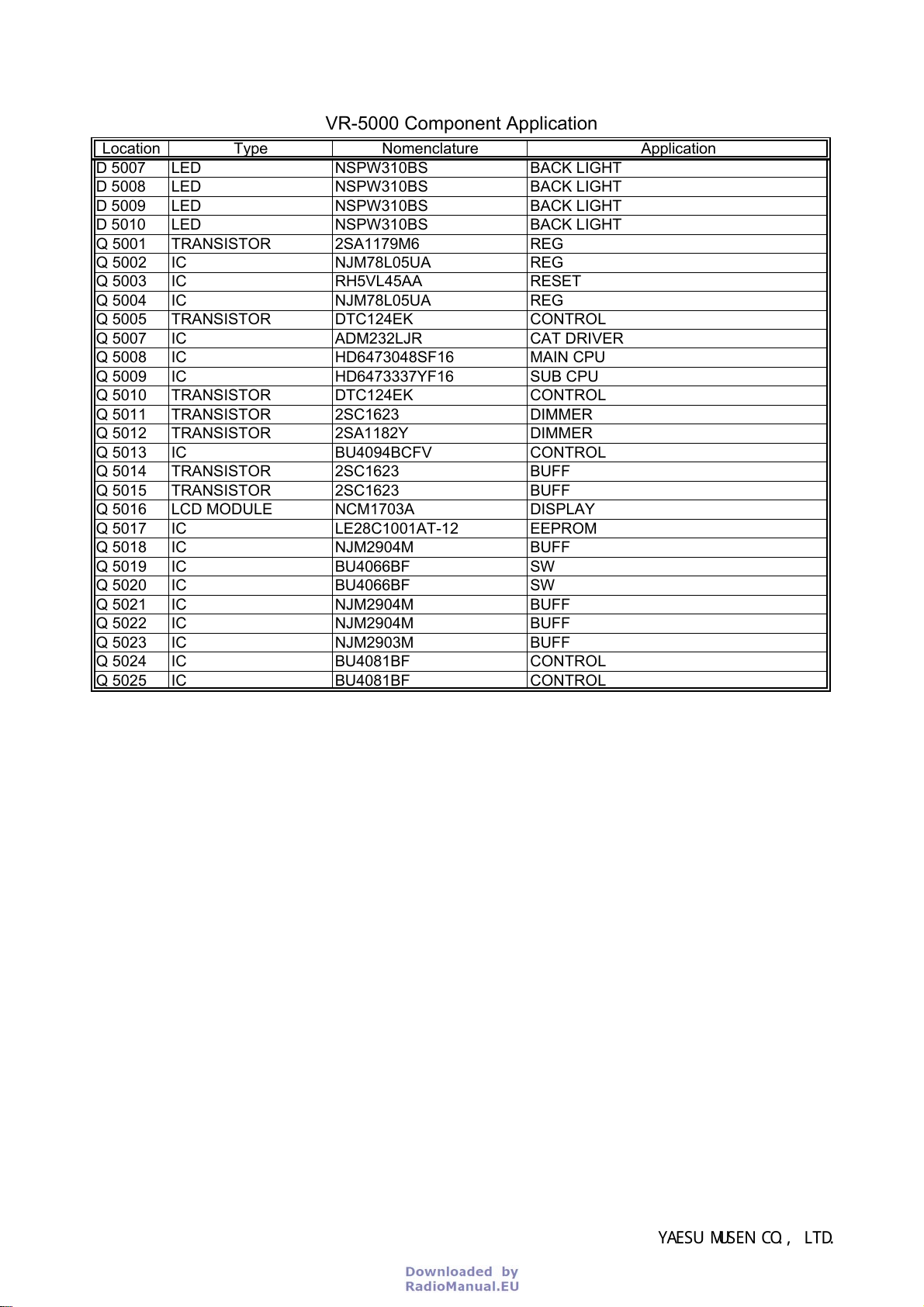

Page 6
VR-5000 Component Application
Location Type Nomenclature Application
D 5007 LED NSPW310BS BACK LIGHT
D 5008 LED NSPW310BS BACK LIGHT
D 5009 LED NSPW310BS BACK LIGHT
D 5010 LED NSPW310BS BACK LIGHT
Q 5001 TRANSISTOR 2SA1179M6 REG
Q 5002 IC NJM78L05UA REG
Q 5003 IC RH5VL45AA RESET
Q 5004 IC NJM78L05UA REG
Q 5005 TRANSISTOR DTC124EK CONTROL
Q 5007 IC ADM232LJR CAT DRIVER
Q 5008 IC HD6473048SF16 MAIN CPU
Q 5009 IC HD6473337YF16 SUB CPU
Q 5010 TRANSISTOR DTC124EK CONTROL
Q 5011 TRANSISTOR 2SC1623 DIMMER
Q 5012 TRANSISTOR 2SA1182Y DIMMER
Q 5013 IC BU4094BCFV CONTROL
Q 5014 TRANSISTOR 2SC1623 BUFF
Q 5015 TRANSISTOR 2SC1623 BUFF
Q 5016 LCD MODULE NCM1703A DISPLAY
Q 5017 IC LE28C1001AT-12 EEPROM
Q 5018 IC NJM2904M BUFF
Q 5019 IC BU4066BF SW
Q 5020 IC BU4066BF SW
Q 5021 IC NJM2904M BUFF
Q 5022 IC NJM2904M BUFF
Q 5023 IC NJM2903M BUFF
Q 5024 IC BU4081BF CONTROL
Q 5025 IC BU4081BF CONTROL
YAESUMUSENCO. , LTD.
