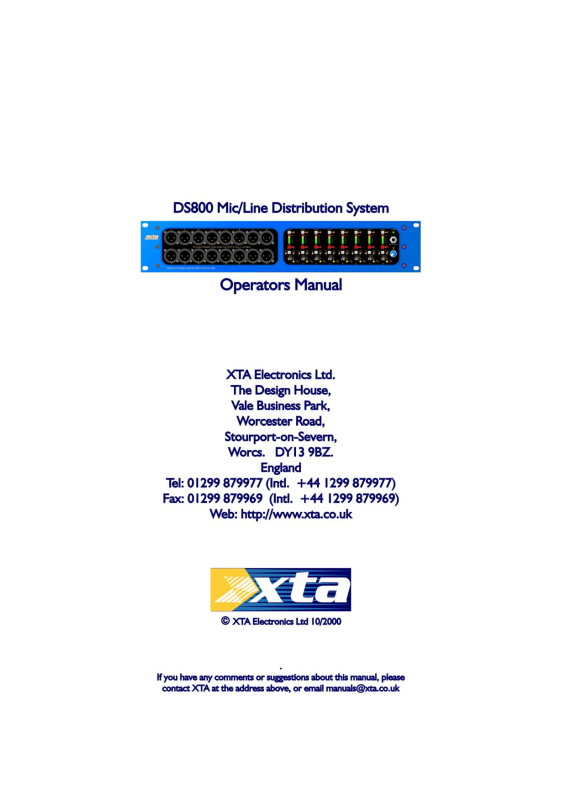

Xta DS800 User Manual

Contents

Important Safety Information ......................................................................................................2

Thanks ........................................................................................................................................3

Unpacking the DS800.................................................................................................................3

Introduction .................................................................................................................................4

Front Panel Functions ................................................................................................................5

Rear Panel Functions .................................................................................................................6

Block Diagram ............................................................................................................................7

Grounding ...................................................................................................................................8

Cooling........................................................................................................................................8

System Wiring.............................................................................................................................9

Bussing Option ...........................................................................................................................9

Specifications............................................................................................................................11

Warranty ...................................................................................................................................12

An example of this equipment has been tested and found to comply
with the following European and international Standards for
Electromagnetic Compatibility and Electrical Safety:

Radiated Emissions (EU): EN55013-1 (1996)

RF Immunity (EU): EN55103-2 (1996) RF Immunity, ESD, Burst Transient, Surge, Dips &Dwels

Electrical Safety (EU): EN60065 (1993)

Important Safety Information

Do not remove Covers. No user serviceable parts inside, refer servicing to
qualified service personnel.

This equipment must be earthed.

RISK OF ELECTRIC SHOCK

DO NOT EXPOSE TO RAIN OR MOISTURE

RISQUE DE CHOC ELECTRIQUE

CAUTION

DO NOT OPEN

ATTENTION

NE PAS ENLEVER

NE PAS EXPOSER A LA PLUIE NI A L’HUMITE

It should not be necessary to remove any protective earth or signal cable
shield connections.

Do not defeat the purpose of the polarized or grounding-type plug. A
polarized plug has two blades with one wider than the other. A grounding
type plug has two blades and a third grounding prong. The wider blade and
the third prong are provided for your safety. When the provided plug does not
fit into your outlet, consult an electrician for replacement of the obsolete
outlet.

Only use this equipment with an appropriate mains cord.

In the USA the cord should comply with the requirements contained in the
Standard for Cord Sets and Power Supply Cords, UL 817, be marked VW-1,
and have an ampacity rating not less than the marked rating of the apparatus.

DS800 Page 2

Thanks

Thank you for choosing the XTA DS800 for your application. Please spare a little
time to read this manual, so that you obtain the best possible performance from this
unit.

All XTA products are carefully engineered for world class performance and
reliability.

If you would like further information about this or any other XTA product, please
contact us.

We look forward to helping you in the near future.

XTA Electronics Ltd.

Unpacking the DS800

After unpacking the unit please check carefully for damage. If damage is found,
please notify the carrier concerned at once. You, the consignee, must instigate any
claim. Please retain all packaging in case of future re-shipment.

DS800 Page 3
