Xta D2 User Manual

D2 Quick Reference

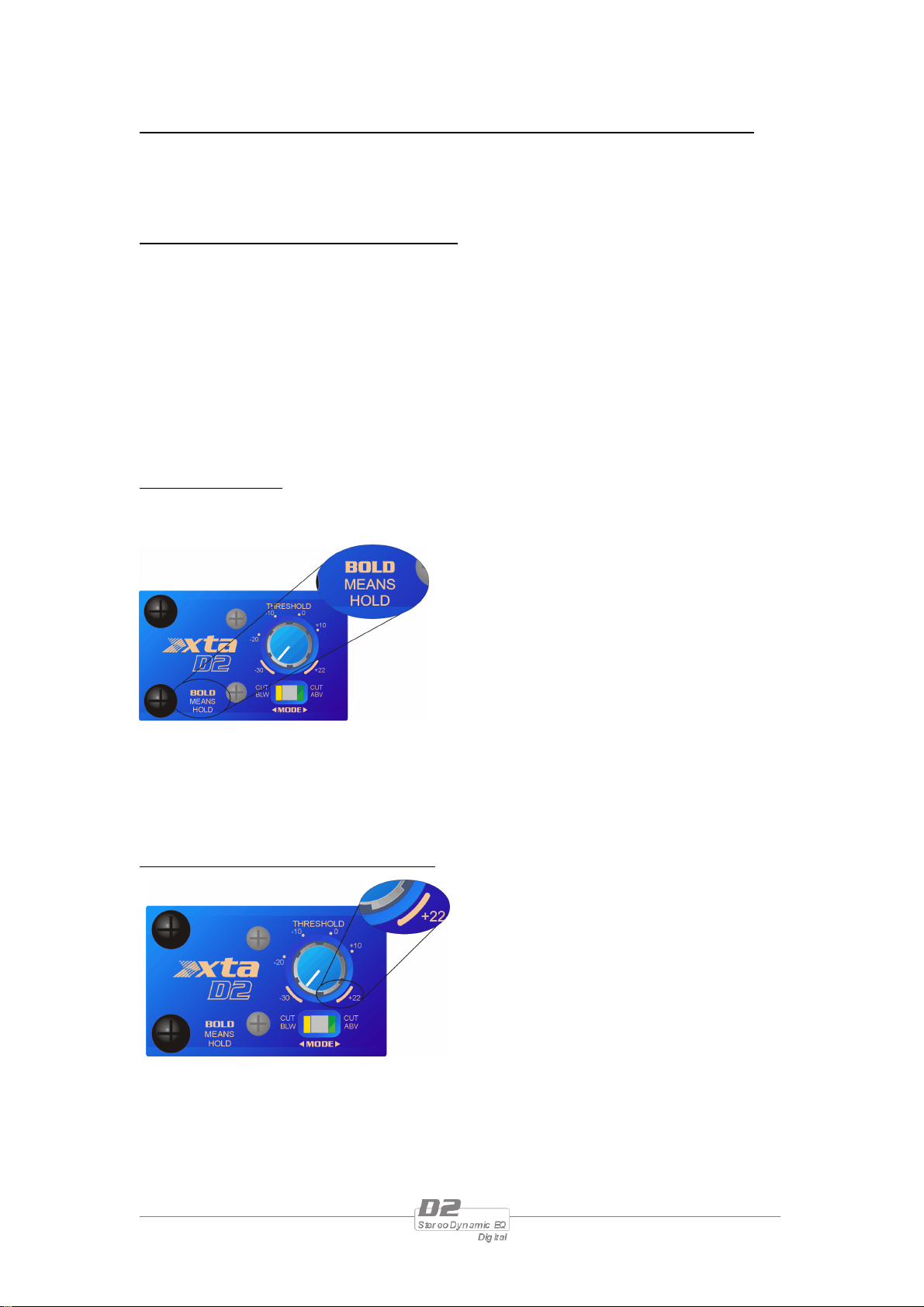

THINGS YOU NEED TO KNOW…

ü BOLD MEANS HOLD!
Any functions that would produce possible
unexpected level changes at the outputs are
protected by a ‘press and hold’ action and
printed in BOLD on the panel. These
functions are:
Changing MODE between ‘cut below’ and
‘cut above’;
Switching middle band into FULL RANGE
mode;
Enabling the sidechain LISTEN function on
any band.

ü The meters show level, in dB, from the

clipping point of the unit – when the
METER switch is set to ‘IN’ the meters
show level, in dB, from clipping the
input converter. Set to ‘OUT’ they
show headroom available at the output
– the DAC.

ü When in Shelf mode, the outer bands

only become full range when the Freq
is set to 20k and 20Hz respectively.

ü Make-up gain is automatically bypassed

when the Master switch is off.

ü Only one Listen can be active at any

time – selecting another band cancels
the last one.

ü The Listen LED always flashes when

any Listen switch is enabled. Listen is
not automatically turned off if the unit
is switched off and on.

ü When the unit is bypassed, all its

metering and status LEDs will dim. All
metering will continue to function.

Page 2 D2 Operators Manual

Contents

D2 Quick Reference 2
Important Safety Information 4
Thanks 5
Unpacking the D2 5
Introduction 6

Features 6

Front Panel Familiarisation 7
Rear Panel Connections 9
Operating the D2 10

Switching the unit on and start-up procedure 10
Press-and-hold Keys 10
Minimum and maximum control positions 10

What is Dynamic EQ? 11
Setting the Attack and Release times 13
Operating Notes 14

Operating Level 14
Grounding 14

Specifications 15
Warranty 16
Options and Accessories 16

D2 Operators Manual Page 3

An example of this equipment has been tested and found to comply with
the following European and international Standards for Electromagnetic
Compatibility and Electrical Safety:

Radiated Emissions (EU): EN55013-1 (1996)
RF Immunity (EU): EN55103-2 (1996) RF Immunity, ESD, Burst Transient,

Surge, Dips &Dwells

Electrical Safety (EU): EN60065 (1993)

Important Safety Information

Do not remove Covers.
No user serviceable parts inside, refer servicing to qualified service personnel.
This equipment must be earthed.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

DO NOT EXPOSE TO RAIN OR MOISTURE

ATTENTION

RISQUE DE CHOC ELECTRIQUE

NE PAS ENLEVER

NE PAS EXPOSER A LA PLUIE NI A L’HUMITE

It should not be necessary to remove any protective earth or signal cable shield connections.
Do not defeat the purpose of the polarized or grounding-type plug. A polarized plug has two
blades with one wider than the other. A grounding type plug has two blades and a third
grounding prong. The wider blade and the third prong are provided for your safety. When the
provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete
outlet.
Only use this equipment with an appropriate mains cord.
In the USA the cord should comply with the requirements contained in the Standard for Cord
Sets and Power Supply Cords, UL 817, be marked VW-1, and have an ampacity rating not less
than the marked rating of the apparatus.

Page 4 D2 Operators Manual

Thanks

Thank you for choosing the XTA D2 Stereo Dynamic EQ for your application.
Please spend a little time reading through this manual, so that you obtain the best
possible performance from the unit.
All XTA products are carefully designed and engineered for cutting-edge
performance and world-class reliability. If you would like further information about
this or any other XTA product, please contact us.
We look forward to hearing from you in the near future.

Unpacking the D2

After unpacking the unit, please check it carefully for any damage. If any is found,
immediately notify the carrier concerned - you, the consignee, must instigate any
claim. Please retain all packaging in case of future re-shipment.
