Table of Contents
Federal Communications Commission (FCC) Statement ....................3
Important Safety Instructions .................................................................4
1 Introduction
Features ........................................................................................................7
Package Contents .........................................................................................8
Front View and Controls ................................................................................ 9
Installing Your LCD Monitor ......................................................................... 10
2 Installation
Connecting Your LCD Monitor to a Computer ............................................11
Method 1: Analog (D-SUB) Connection .................................................. 11
Method 2: Digital(DVI) Connection .........................................................12
Using Your LCD Monitor .............................................................................. 13
3 OSD MENU

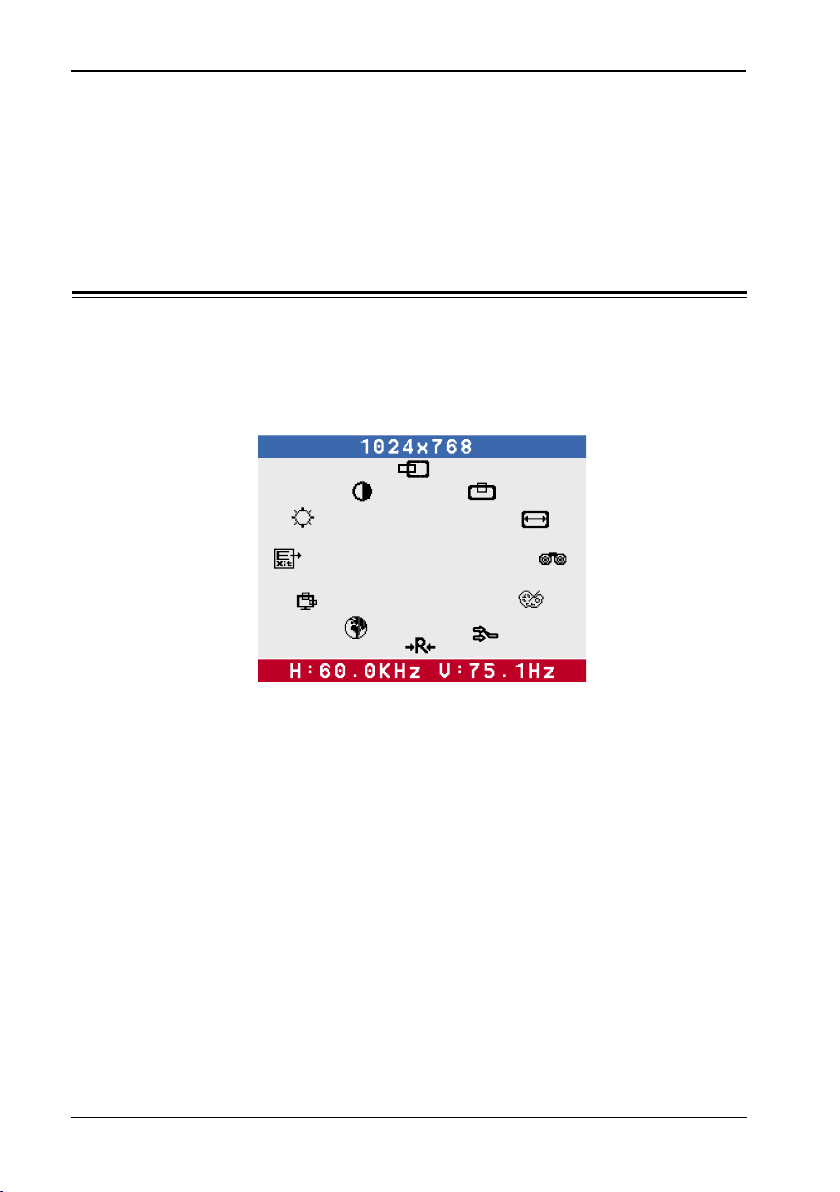

Using the OSD Menu ..................................................................................14

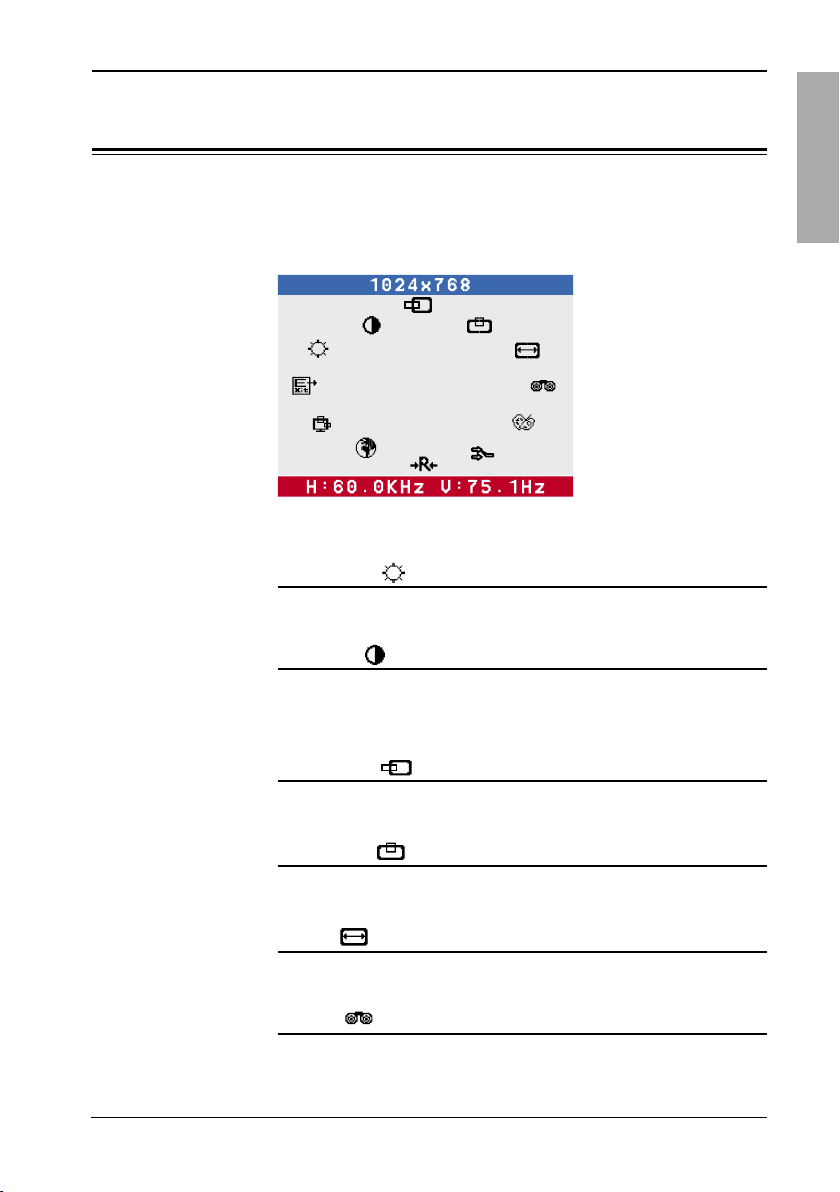

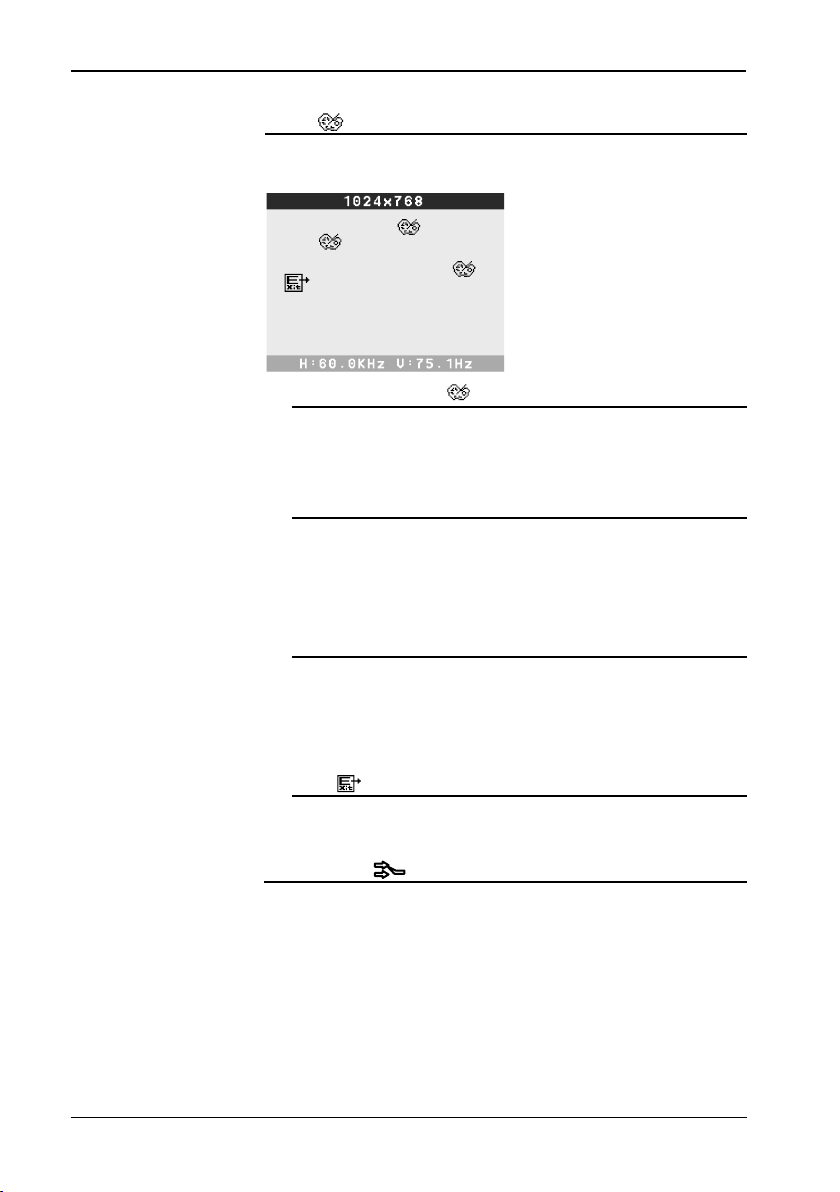

The OSD Options ........................................................................................15
4 Technical Information
Preset Mode Timing Chart ...........................................................................18

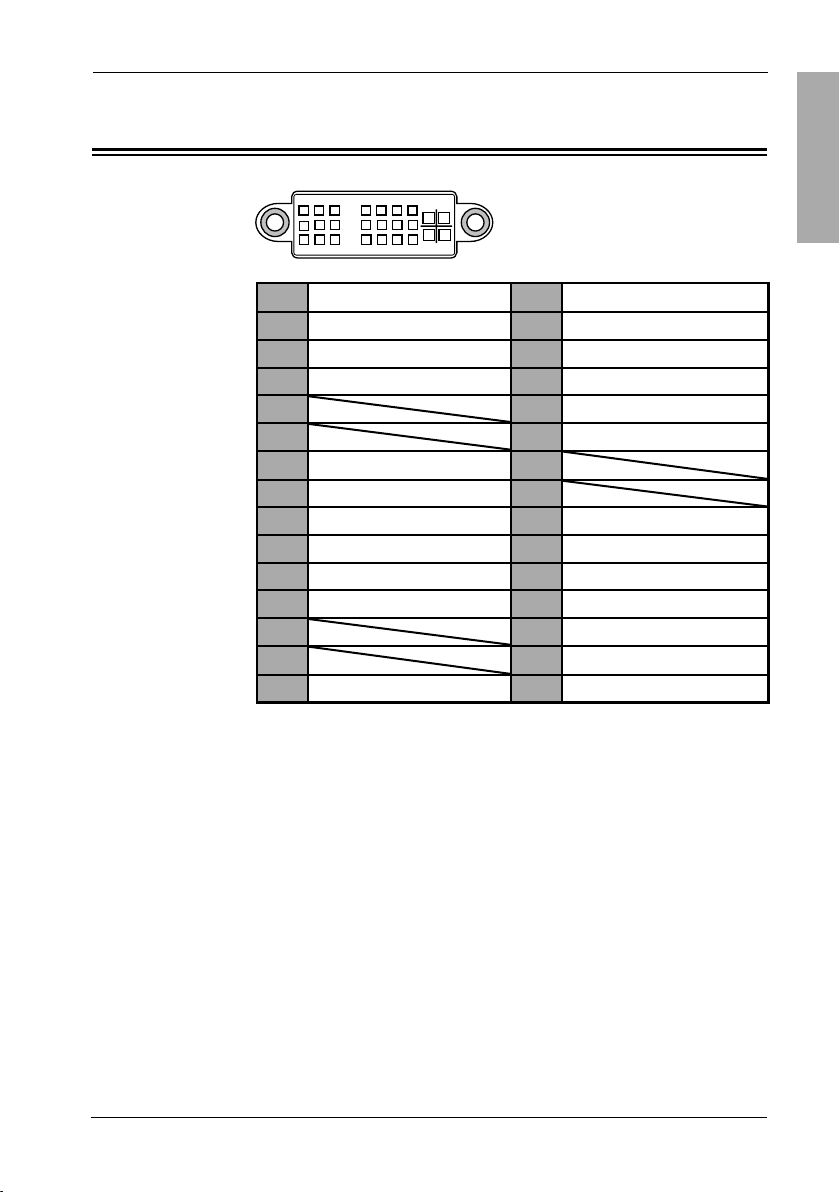

DVI Connector PIN Assignment ..................................................................19

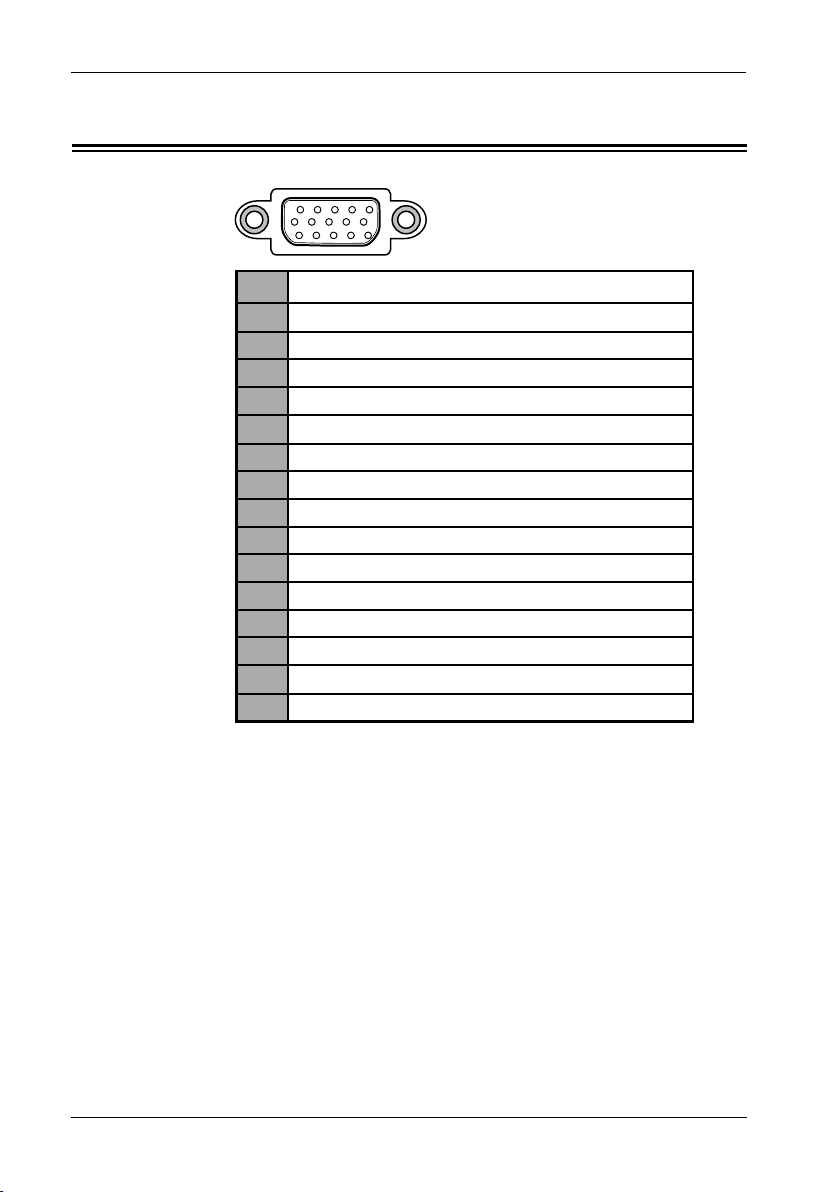

D-SUB Connector PIN Assignment ............................................................. 20
Plug and Play ..............................................................................................21
Visual Inspection .........................................................................................21
Troubleshooting ...........................................................................................22
2
Xerox© LCD Monitor User’s Manual
FCC
Federal Communications
Commission (FCC) Statement
This equipment has been tested and found to comply with the limits
of a class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if
not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
1. Reorient/Relocate the receiving antenna.
2. Increase the separation between the equipment
and receiver.
ENGLISH
3. Connect the equipment into an outlet on a circuit which is
different from what the receiver is connected to.
4. Consult the dealer or an experienced radio/TV technician
for help.
CAUTION:
Changes or modifications not expressly approved by the
manufacturer responsible for compliance could void the user
authority to operate the equipment.
3Xerox© LCD Monitor User’s Manual
Important Safety Instructions
Important Safety Instructions
To prevent any injuries, the following safety precautions should
be observed in the installation, use, servicing and maintenance
of this equipment.
Before operating this equipment, please read this manual
completely, and keep it nearby for future reference.
Warnings
• Do not place the equipment on any uneven or unstable
• Use only a cart or stand recommended by the manufacturer.
carts, stands, tables, shelves etc. The equipment may fall,
causing serious injury to children or adults and serious
damage to the equipment itself.
This equipment and recommended cart or stand should be
handled with care. Quick stops, excessive force, and uneven
surfaces may cause the equipment and cart/stand to
overturn.
• Do not disable the 3-wire grounding type plug. The
grounding pin on the 3-prong plug is an important feature.
Removing the grounding pin will increase the risk of
damaging the equipment. If you can not fit the plug into the
electrical outlet, contact an electrician to install a grounding
outlet.
• Always operate this equipment from the type of power
source indicated on the rear of the serial/model plate.
• Never overload wall outlets and extensions.
• Use and handle the power cord with care.
• Do not place any heavy objects on the AC power cord.
• Do not pull the AC power cord. Do not handle the AC power
cord with a wet hand.
4
Xerox© LCD Monitor User’s Manual
Important Safety Instructions
• Do not touch the power cord and antenna cable during
lightning.
• Remove the plug from the wall outlet if the equipment will
not be used for a long period of time.
• Do not place, use or handle this equipment near water.
• Never expose the equipment to liquid, rain, or moisture.
Seek qualified service if any of the above is spilled into the
equipment.
• Do not attempt to service the equipment yourself.
• Opening and removing the covers may expose you to
dangerous voltage or other hazards and may void your
warranty. Refer service to qualified personnel.
• Always remove the power cord from the outlet before
cleaning the equipment.
• Never use liquid or aerosol cleaners on the equipment.
Clean only with a soft dry cloth.
• Do not expose the equipment to extreme temperature or to
direct sunlight, as the equipment may heat up and suffer
damage.
ENGLISH
• Do not install the equipment near any heat sources such as
radiators, heat registers, stoves, or any other apparatus that
might produce heat.
• Do not block any ventilating openings. Leave an open space
around the equipment.
• Never place the equipment :on a bed, sofa, rug, or any other
similar surfaces; too close to drapes/curtains/walls, in a
bookcase, built-in cabinet, or any other similar places that
may cause poor ventilation.
(continued on next page)
5Xerox© LCD Monitor User’s Manual
Important Safety Instructions
• If any of the following conditions occur, unplug the power
a. The power cord or plug is damaged.
b. Liquid is spilled into the product .
c. An object falls onto or into the product.
d. The product has been dropped or damaged.
e. The product’s display is abnormal.
cord from the outlet and request service from qualified
personnel.
6
Xerox© LCD Monitor User’s Manual
Features
Introduction
ENGLISH
1 Introduction
• Analog Input: Multi-scanning at horizontal frequencies of
30kHz to 80kHz and vertical frequencies of 60 Hz to 75 Hz.
• Digital Input: Multi-scanning at horizontal frequencies of
30kHz to 64kHz and vertical frequencies of 60 Hz to 75 Hz.
• Microprocessor based with OSD (On Screen Display) control.
• Compatible with standard IBM VGA, extended VGA, super
VGA, IBM XGA modes, as well as VESA resolution
standards.
• Universal power supply.
• Microsoft© Windows 9x/2000/XP compatible and VESA
Display Data Channel(DDC)1/2B compatible.
7Xerox© LCD Monitor User’s Manual
Introduction

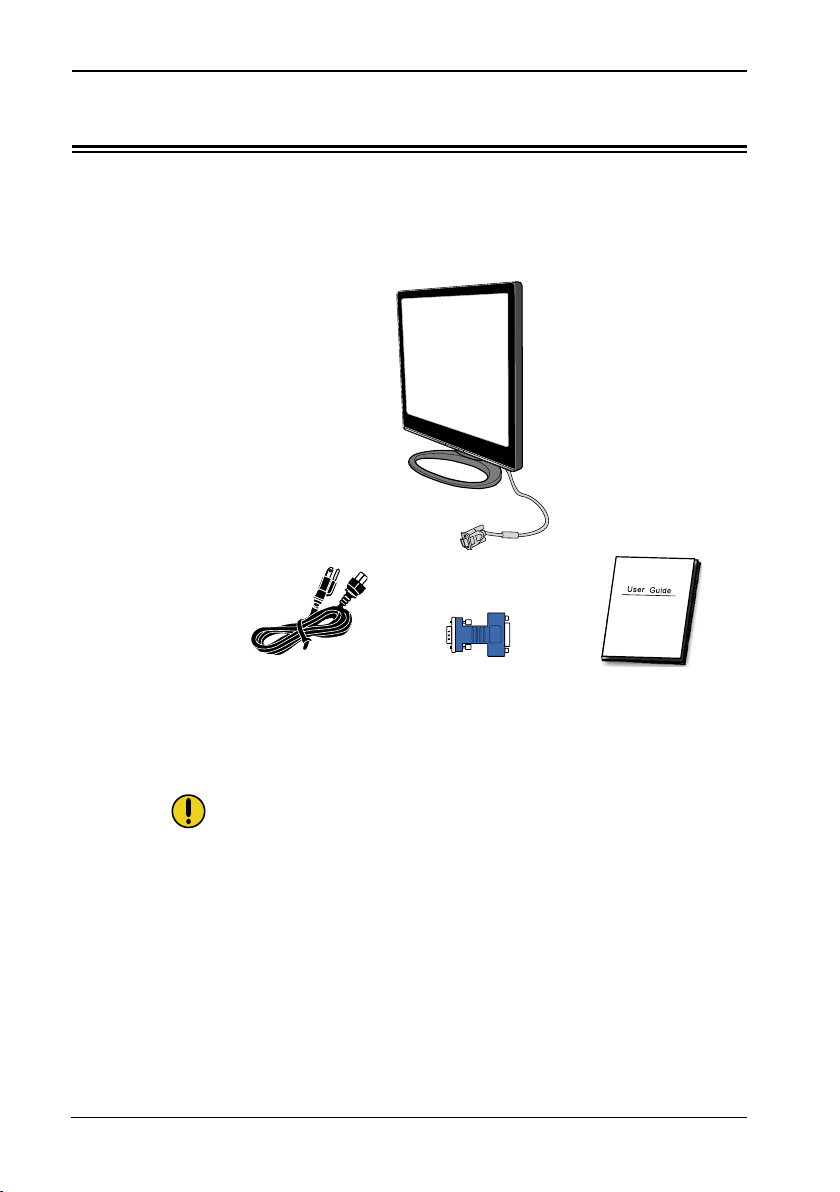

Package Contents
Make sure all of the following contents are included in the box.
If any items are missing, please return this product to the
original place of purchase.
LCD Monitor
Power Cord* DVI-I to D-SUB
Adapter
* Power cord specification : H05 VV-F 3G 0.75mm
User Guide
2
CAUTION:
Be sure to save original box and all packing material for future
transport of monitor.
8
Xerox© LCD Monitor User’s Manual
Introduction

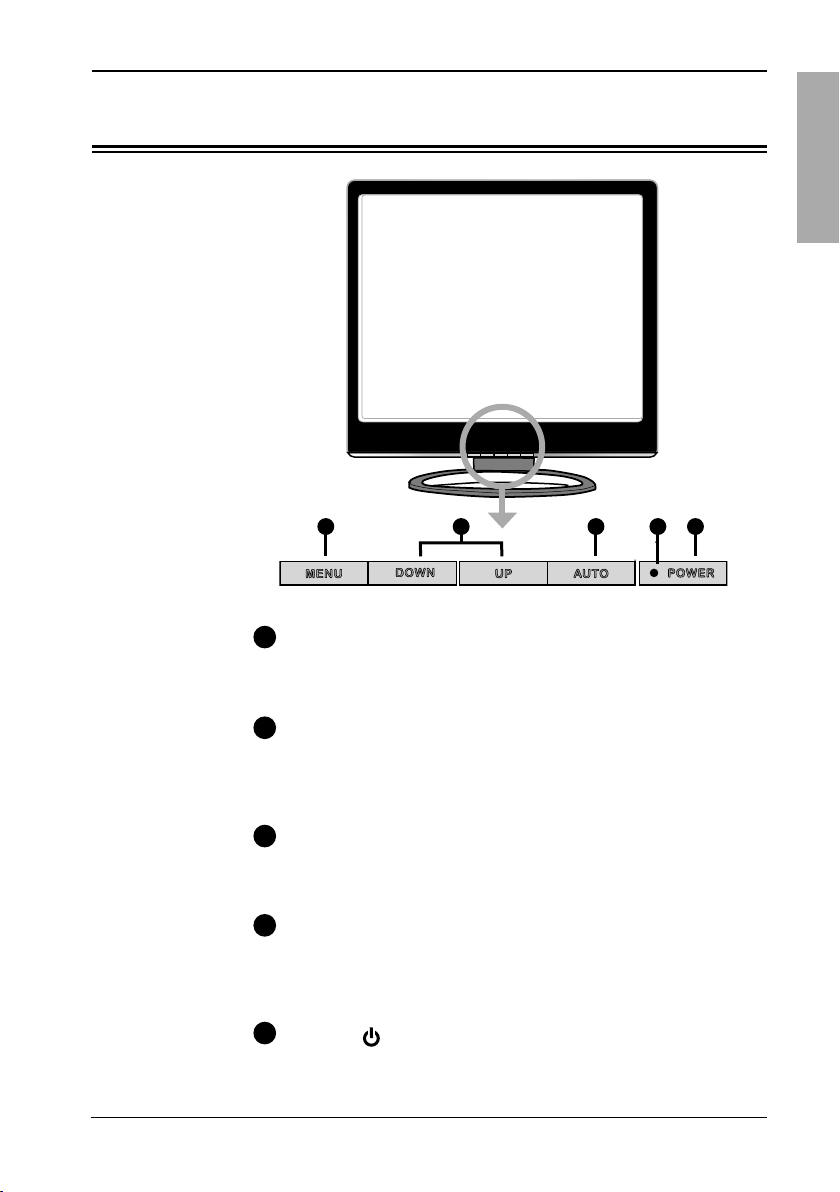

Front View and Controls
1 2 3 4 5
1
MENU
Press once to display the OSD (on screen display). And
press to activate the items you highlight .
ENGLISH
DOWN/UP
2
In OSD mode, press the DOWN/UP buttons to move the
selection highlight to the next menu item counterclockwise
or clockwise, respectively.
3
AUTO
Press to automatically adjust the display settings to optimize
performance based on the VGA signal.
4
LED
The LED light indicates when the LCD monitor is activated
(blue light indicates power on and blue flash indicates power
saving).
5
POWER/
Turns the LCD monitor on and off.
9Xerox© LCD Monitor User’s Manual
Introduction

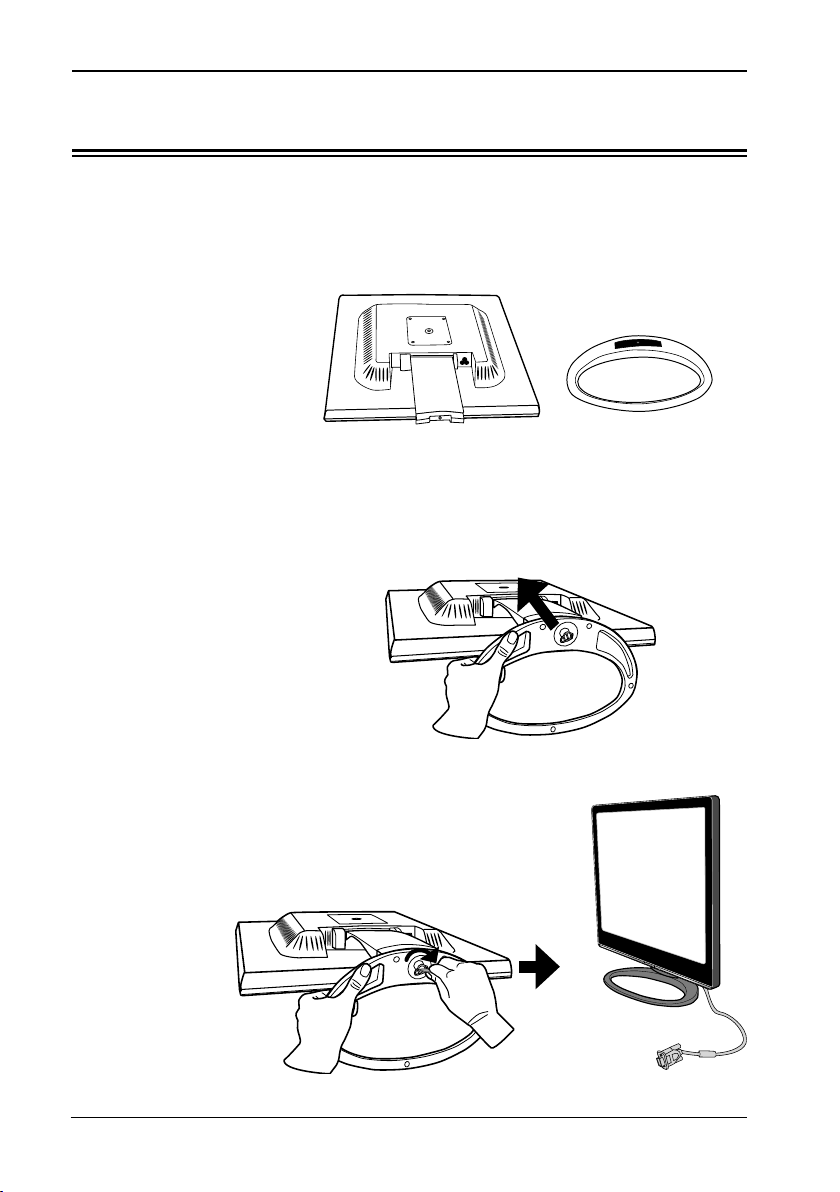

Installing Your LCD Monitor
Follow the instructions below to set up and install the monitor.
1 The package contains:
1. Display unit
2. Stand
2 Cover an even stable surface with a soft cloth. Place the
unit face-down on the cloth. Fit the stand onto the bottom
of the display unit as shown.
STANDDISPLAY UNIT
10
3 Use a coin to tighten the screw on
the bottom of the stand until the
screw is firmly fixed in place.
Xerox© LCD Monitor User’s Manual
4
2 Installation
Refer to the owner’s manual of the computer for connections.
In the process of connecting external equipment, do not connect
any AC power cords to wall outlets until all other connections
are completed.
Connecting Your LCD Monitor to a Computer

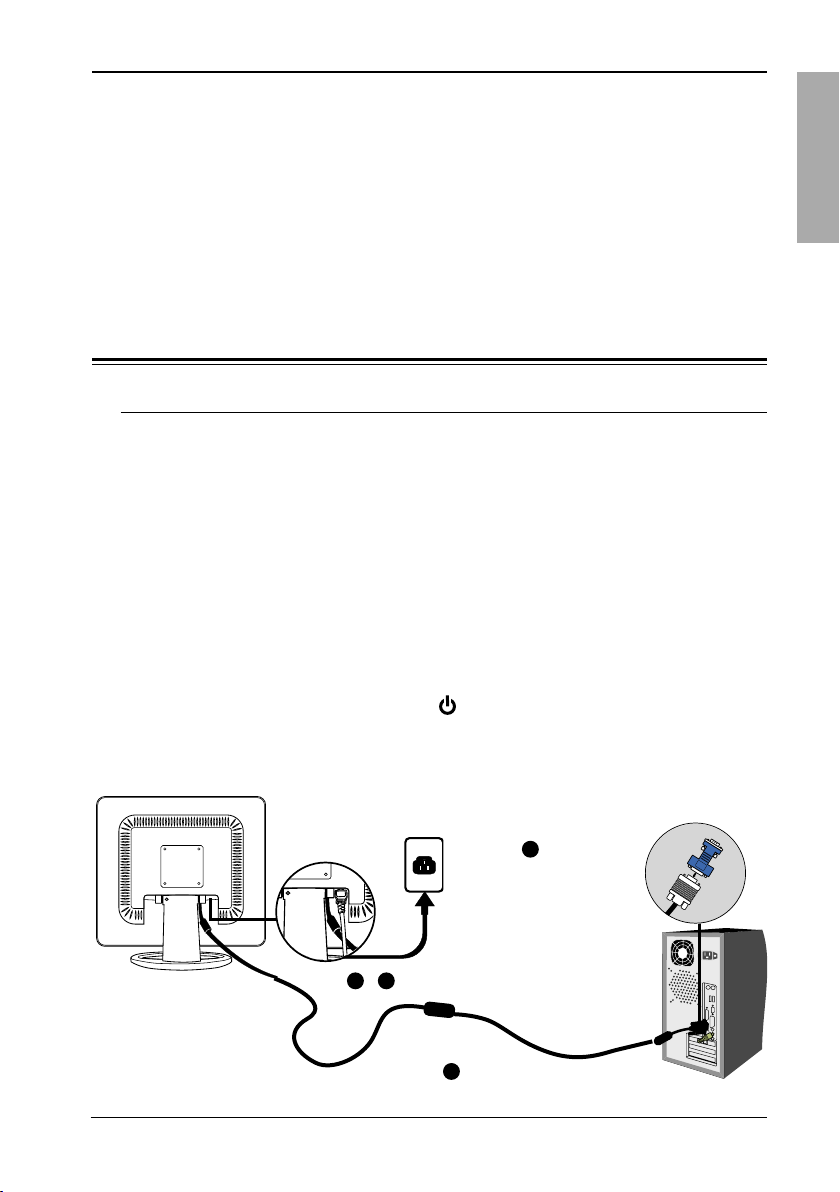

Method 1: Analog (D-SUB) Connection
1 Turn off the computer and unplug the power cable.
2 Fit the DVI-I to D-SUB adapter onto the signal cable of the
LCD monitor.
3 Connect the signal cable to the D-SUB port on the back of
the computer.
4 Connect the AC power cable to the power socket on the
back of the monitor.
5 Plug the computer and monitor power cables into a nearby
outlet.
6 Press the POWER/ button on the front panel of the LCD
monitor to turn the monitor on, then turn the computer on. If
the monitor displays an image, the monitor is successfully
installed. If no image is displayed, check all connections.
Installation
ENGLISH
4
Connect to
5
wall outlet
Attach the
2
DVI-I to
D-SUB
adapter
3
Connect to the D-SUB port
11Xerox© LCD Monitor User’s Manual
Installation
1
2
1
2
DIGITAL INPUT

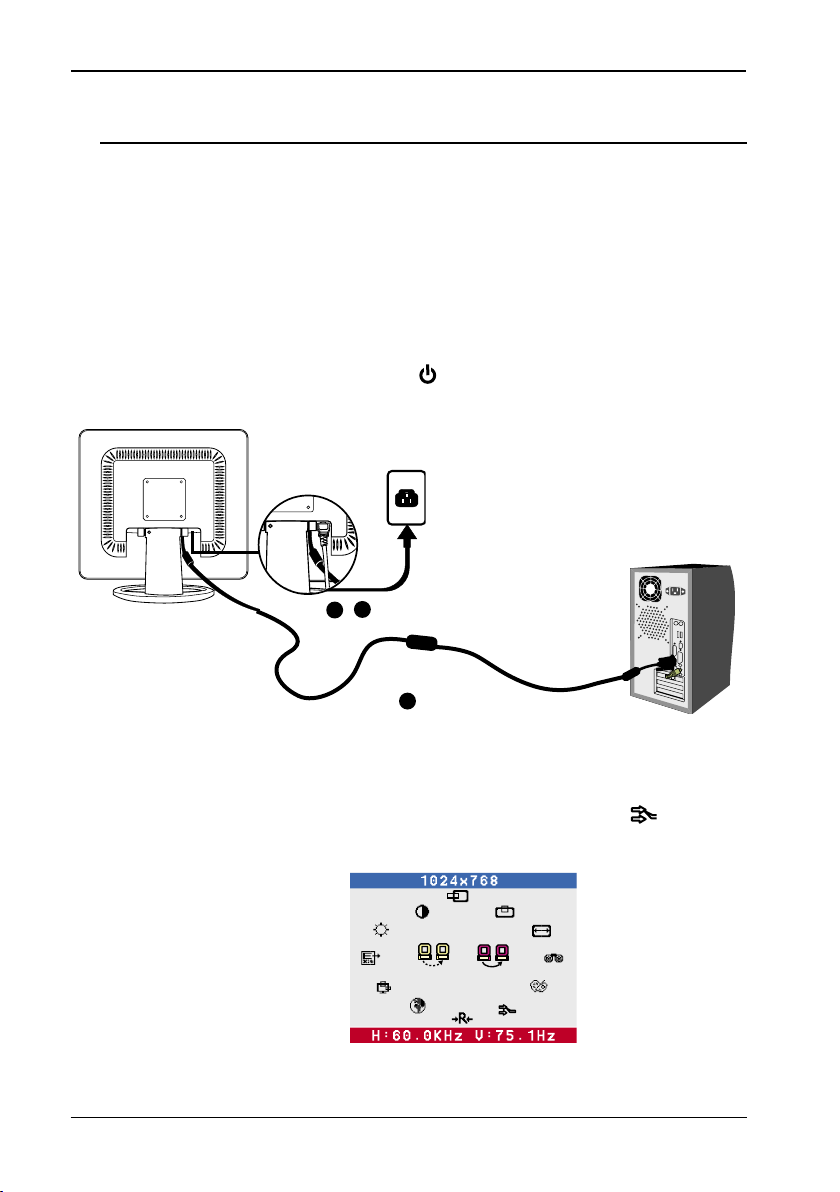

Method 2: Digital(DVI) Connection
1 Turn off the computer and unplug the power cable.
2 Connect the signal cable (DVI-I) to the DVI port on the back
of the computer.
3 Connect the AC power cable to the power socket on the
back of the monitor.
4 Plug the computer and monitor power cables into a nearby
outlet.
5 Press the POWER/ button on the front panel of the LCD
monitor to turn the monitor on, then turn the computer on. If
the monitor displays an image, the monitor is successfully
installed. If no image is displayed, check all connections.
3
Connect to
4
wall outlet
12
2
Connect to the DVI port
If the screen displays “out of range”, please follow the
instructions below to set up:
• Press the MENU button to display the OSD.
• Press the UP or DOWN button to highight the (INPUT
SELECT) icon, then press the MENU button. The OSD
displays:
• Press the UP or DOWN button to select DIGITAL INPUT.
Xerox© LCD Monitor User’s Manual
Installation

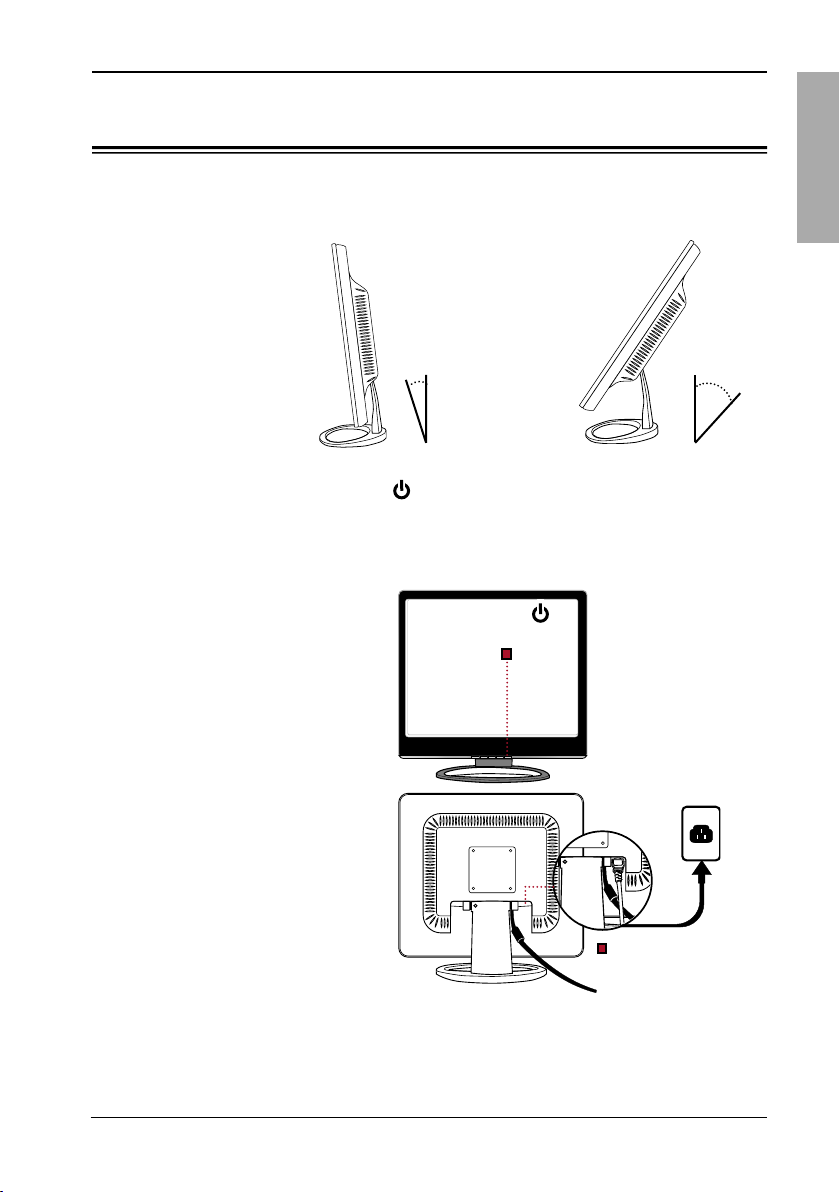

Using Your LCD Monitor
1 The angle of the LCD monitor may be adjusted
approximately 25 degrees.
2 The POWER/ button is used for switching the LCD
monitor on and off, it does not disconnect the device from
the main voltage. To completely disconnect the main voltage,
please remove the power plug from the socket.
-5
o
POWER/
button
20
ENGLISH
o
Remove from
wall outlet
3 The LED indicator is blue when the monitor operates
normally and will flash when in power saving mode. When
the monitor is off, the LED turns dark.
13Xerox© LCD Monitor User’s Manual
OSD Menu
3 OSD MENU
Using the OSD Menu
The OSD (On Screen Display) Menu allows the user to adjust
various settings and options by following the steps below.
1 Press the MENU button to display the OSD.
EXIT
14
2 Press the UP or DOWN button to highlight the desired icon.
3 Press the MENU button to activate the highlighted icon.
4 Press the UP or DOWN button to change the value of the
selected item.
5 Select the EXIT icon to exit the OSD.
6 Repeat steps 1 through 5 to make further adjustments. All
changes are stored immediately.
Xerox© LCD Monitor User’s Manual
OSD Menu
The OSD Options
1 Press the MENU button to display the OSD. The OSD main
2 The OSD menu includes the following options:
ON DESCRIPTION
Brightness
Controls the overall brightness.
Contrast
Controls the difference between the brightest and darkest
ENGLISH
menu provides an overview of the selection of controls
available. To make an adjustment to the highlighted setting,
press and release the MENU button.
EXIT
regions of the picture.
H. Position
Adjust the position of the picture left and right in the window.
V. Position
Adjust the position of the picture up and down in the window.
H.Size
Adjusts the width of the picture.
Phase
Adjusts signal phase, which can improve focus clarity and
image stability.
15Xerox© LCD Monitor User’s Manual
OSD Menu
Color
Allows selection of the general color tint:
Select User Mode, WARM, or COOL.
RED
WARMCOOL
Select User Mode
Allows the user to adjust red, green and blue color
component levels independently.
COOL
Inclines colors toward the blue end of the spectrum.
Fixes the red, green and blue component levels at
factory settings; they cannot be independently adjusted.
16
WARM
Inclines colors toward the red end of the spectrum.
Fixes the red, green and blue component levels at
factory settings; they cannot be independently adjusted.
EXIT
Exits the OSD menu.
Input Select
Allows selection of ANALOG INPUT or DIGITAL INPUT
depending on the type of input signal currently in use.
Xerox© LCD Monitor User’s Manual
OSD Menu
Reset
Restores all options to the factory settings.
Language
Controls which language is used on all the on-screen menus.
OSD
Changes the position of the OSD.
H. Position
Moves the OSD left and right in the window.
V. Position
Moves the OSD up and down in the window.
EXIT
Exits the OSD menu.
EXIT
Exits the OSD.
ENGLISH
17Xerox© LCD Monitor User’s Manual
Technical Information
4 Technical Information
Preset Mode Timing Chart
The screen image has been optimized during manufacture for
the display modes listed below.
Video signal: (IBM PC/AT)
Dot X Line
720 x 400 31.47 70.00
640 x 480 31.47 60.00
800 x 600 35.16 56.25
1024 x 768 48.36 60.00
1280 x 1024 63.98 60
Horizontal
Frequency(kHz)
37.86 72.80
37.50 75.00
37.88 60.30
48.08 72.20
46.87 75.00
56.48 70.10
60.02 75.00
79.98 75
Vertical
Frequency(Hz)
18
Xerox© LCD Monitor User’s Manual
Technical Information
1 8
169
17 24
C1 C2
C3 C4
DVI Connector PIN Assignment
PIN DESCRIPTION PIN DESCRIPTION
1 TMDS Data 2- 15 GND
2 TMDS Data 2+ 16 Hot Plug Detect
3 TMDS Data 2/4 shield 17 TMDS Data 0-
4 18 TMDS Data 0+
5 19 TMDS Data 0/5 shield
6 DDC Clock 20
7 DDC Data 21
8 Analog Vertical Sync 22 Clock shield
9 TMDS Data 1- 23 Clock +
10 TMDS Data 1+ 24 Clock -
11 TMDS Data 1/3 shield C1 Analog red
12 C2 Analog green
13 C3 Analog blue
14 +5V Power C4 Analog
ENGLISH
19Xerox© LCD Monitor User’s Manual
Technical Information
1 5
6
11
5
10
1
D-SUB Connector PIN Assignment
PIN DESCRIPTION
1 Red
2 Green
3 Blue
4 Ground
5 Self Test
6 Red Ground
7 Green Ground
8 Blue Ground
9 5 VDC
10 Ground
11 Ground
12 SDA (FOR DDC)
13 H. Sync
14 V. Sync
15 SCL (FOR DDC)
20
Xerox© LCD Monitor User’s Manual
Technical Information
Plug and Play
This monitor conforms to the VESA DDC (Display Data
Channel) standard, which means that when it is used with a
DDC compatible video card, the monitor is easier to set up.
With VESA DDC 1/2B, when the monitor is turned on, it will
automatically notify a windows 9X/2000/XP host computer of its
scanning frequencies, capabilities and characteristics. Windows
9X/2000/XP will automatically recognize the presence of the
monitor and select the appropriate display resolution.
Visual Inspection
Permanently unlit or lit pixels
The standard of production techniques today cannot guarantee
an absolutely fault free LCD display. A few isolated permanently
lit or unlit pixels may be present. The maximum permitted
number of pixel faults is stipulated in the stringent international
standard ISO 13406-2 (Class II).
ENGLISH
Example:
A 17” flat-screen monitor with a resolution of 1280 x 1024
has 1280 x 1024 = 1310720 pixels. Each pixel consists of
three subpixels (red, green and blue), so there are about 4
million dots in total.
According to ISO 13406-2 (Class II), a maximum of 6 pixels and
7 subpixels may be defective, i. e. a total of 25 faulted dots. This
corresponds to approx. 0.002 % of the entire screen surface.
21Xerox© LCD Monitor User’s Manual
Technical Information
Troubleshooting
Before consulting service personnel, check the following
chart for a possible cause and solution to the trouble you are
experiencing.
Monitor will not turn on
No picture
Poor picture or abnormal picture
• Make sure the power cord is plugged in.
• Make sure the power cord is plugged in.
• Check the signal cable connecting the LCD monitor
and the computer (refer to page 11).
• Press the POWER/ button on the front panel of the
monitor.
• Check the DVI cable connecting the LCD monitor and
the computer (refer to page 11).
• Press the MENU button to adjust the Brightness
Contrast option in the OSD.
• Adjust the Color Select option in the OSD.
• Press the AUTO button on the front panel of the
monitor, to automatically adjust the display mode.
22
Out of range message appears
• Press the MENU button. Highlight the INPUT SELECT
icon, then press the MENU button. Press the UP or
DOWN button to select DIGITAL INPUT
(refer to page 12).
• If using Windows 9X/2000/XP, wait a few seconds;
once Windows detects the problem, a dialog will
appear allowing you to manually set up the video
mode according to the preset mode timing chart
(refer to page 18).
Xerox© LCD Monitor User’s Manual
Loading...
