Xerox Pro 575 User Manual

XEROX

WorkCentre Pro 555/575

User ’s Guide

708P84301

Xerox Limited, Global knowledge and Language Services, Enterprise Centre, Bessemer Road, WELWYN GARDEN CITY, AL7 1HL United Kingdom

publication are trademarks of Xerox Corporation and Xerox Limited. Products and trademarks of other companies are also acknowledged. Copyright protection claimed includes all forms and matters of

copyrightable material and information now allowed by statutory or judicial law or hereinafter granted, including without limitation, material generated from the software programs which are displayed on the screen such as icons, screen display looks, etc.

Changes are periodically made to the document. Revisions, changes, any technical inaccuracies, and typographical errors will be corrected in any subsequent editions

Chapter 1 How to Use This Manual.........................................................1-1

Finding Information in the User’s Guide.....................................................1-1

Information provided by the Advanced Features Guide (AFG) ..................1-2

Document Conventions..............................................................................1-3

Notes, Cautions, and Warnings.......................... ..... .... ............................ ...1-4

Chapter 2 Introduction.............................................................................2-1

System Overview........................................................................................2-1

System Features ........................................................................................2-2

Hardware Features.....................................................................................2-4

System Requirements................................................................................2-6

Space Requirements..........................................................................2-7

Control Panel..............................................................................................2-8

Control Panel Components and Function Keys..................................2-9

Direct Access Function Keys............................................................2-13

Tones................................................................................................2-14

Operation Modes................................................ ..... .... ..... ........................2-15

Standby Mode ..................................................................................2-15

Communication Mode.......................................................................2-15

Copy Mode.......................................................................................2-16

Menu Mode.......................................................................................2-16

PC Printing Mode ......................... ..... .... ............................ ..... ..... .... .2-16

WorkCentre Pro 555/575 i

Chapter 3 Getting Started........................................................................3-1

Printing a Menu Map...................... .... ..... ............................ ..... .... ..... .3-1

Setting the Machine Language...................................................................3-2

Setting the Date and Time..................................... ..... ........................3-3

Setting your Machine ID*............................................................................ 3 -6

Setting the Dial Mode*............................ .... ............................ ..... ..... .... ......3-8

Setting the Send Header............................................................................3-9

Setting the Receive Footer.......................................................................3-10

Loading Paper..........................................................................................3-11

Bypass Tray: ....................................................................... ..... .... ....3-11

Paper Tray:.......................................................................................3-13

Setting the paper size....................................................................... 3-16

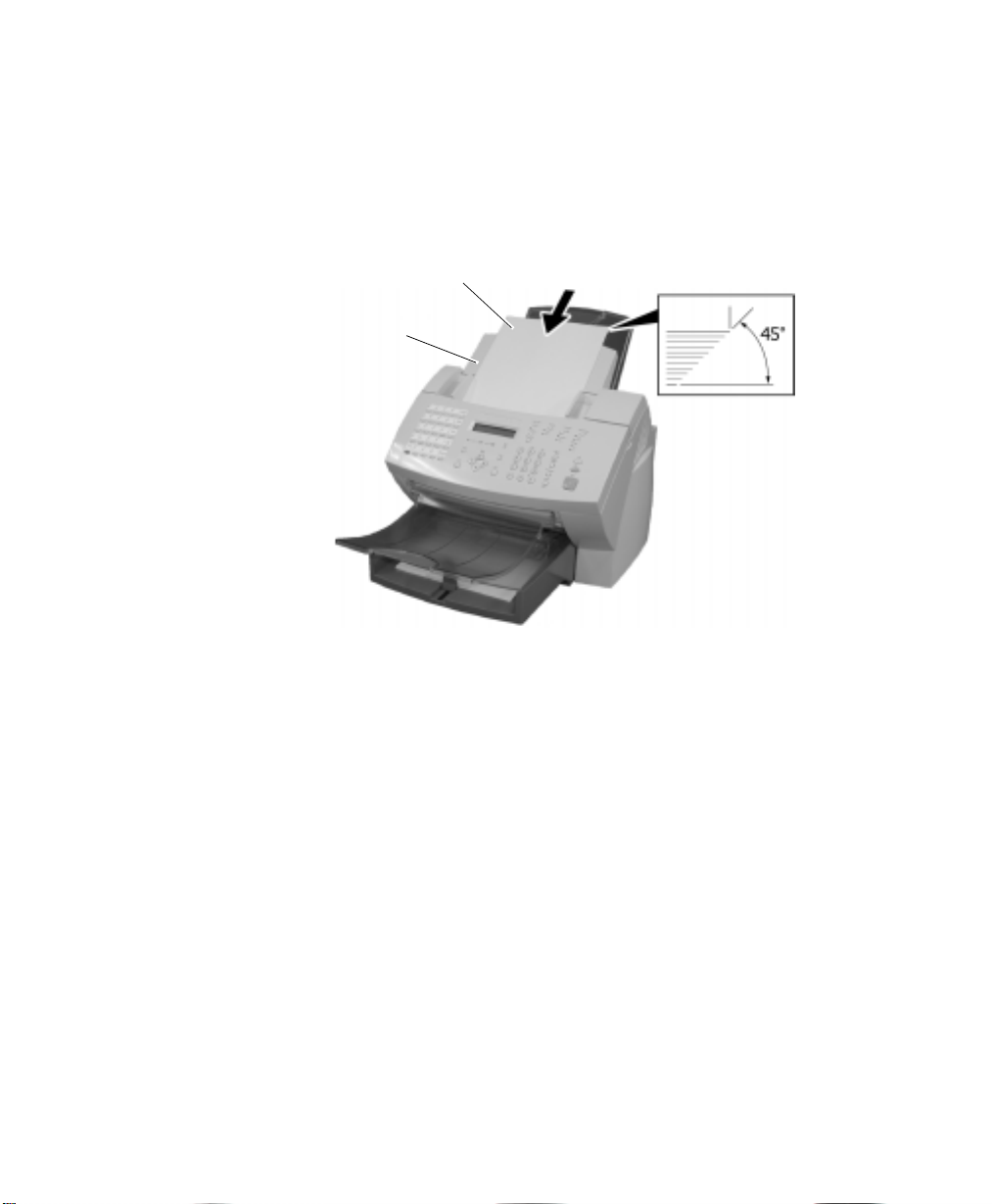

Loading Documents .................................................................................3-17

Document Specifications..................................................................3-17

Selecting the Scan Resolution.........................................................3-19

Selecting the Scan Contrast.............................................................3-20

Quick Start................................................................................................3-21

To Receive.......................................................................................3-21

To Send............................................................................................3-21

To Copy ...........................................................................................3-21

To Print.............................................................................................3-21

Phonebook Reports..........................................................................3-22

Speed Dial Phonebook............................................................3-23

One Touch Phonebook........................................... ..... .............3-24

Group Phonebook.................................................. ..... ..... .... ....3-25

Alphabetical Phonebook..........................................................3-26

Chapter 4 Basic Troubleshooting...........................................................4-1

ii WorkCentre Pro 555/575

Paper Jam..................................................................................................4-1

Document Jam .........................................................................................4-12

Appendix A Safety Certification and Environmental Compliance......A-1

Laser Safety Information...................................................................A-3

Third Party Certification.....................................................................A-4

Radio Frequency Emissions USA .....................................................A-4

European Certification............................................................................... A-6

Approvals and Certification................................................................A-6

UK Electricity at Work Regulation...................................................... A-7

Environmental Compliance...................................... ............................ ....A-10

ENERGY STAR® ............................................................................A-10

Environmental ChoiceM ........................................... ..... .... ..... .........A-10

SWISS ENERGY 2000....................................................................A-11

Recycled Paper...............................................................................A-11

Telecommunications Requirements........................................................A-12

Fax Approvals and Certification.......................................................A-12

FCC Regulations............................................................................. A-13

Send Header Requirements....................................................A-13

Data Coupler Information........................................................A-13

Canadian Certification.................. ..... ............................ .... ..... ..... ....A-15

* Not available in all markets.

WorkCentre Pro 555/575 iii

iv WorkCentre Pro 555/575

1 How to Use This Manual

Thank you for purchasing the Xerox WorkCentre Pro. The WorkCentre is designed for ease of use, but to use your machine to its fullest potential, take some time to read the User Documentation.

You will be ready to send and receive faxes and make copies with your machine as soon as you have read chapters 1 through 3. You can then refer to topics in the remaining documentation as needed.

Finding Information in the User’s Guide

The User’s Guide contains the following sections:

Table of Contents

Use the Table of Contents to find topics easily.

How to Use This Manual - Chapter 1

How to Use This Manual

Describes the information in this User’s Guide and Advanced Features Guide.

Introduction - Chapter 2

Describes the system and hardware features of the machine and provides an overview of how the machine operates. Each key on the Control Panel is described.

Getting Started - Chapter 3

Includes the procedures for setting up the basic machine information such as date, time, language, machine ID, send header and receive footer. Simple instructions to send, receive, print, and copy are also provided.

WorkCentre Pro 555, 575 1-1

How to Use This Manual

Basic Troubleshooting - Chapter 4

Guides the user through problem solving, and recommended corrective actions.

Environment Specifications - A

Provides the safety, data coupler, and Canadian certification information.

Index

Refer to the Index to locate specific information.

Information provided by the Advanced Features Guide (AFG)

- Programming the Machine

- Receiving Documents

- Dialling Methods

- Transmitting Documents

- Cancelling Jobs

- Polling

- Mailbox Communications

- Reports

- Printing Functionality

- Control Centre/PC Interfac e Gu id e

1-2 WorkCentre Pro 555, 575

Document Conventions

A document convention is simply a way of presenting information. This section explains the conventions used in the WorkCentre Pro

User’s Guide. Many procedures require you to press a key to perform a function;

these keys appear in boldface type.

For example:

When you use the Menu Mode, you may have to press a series of keys before arriving at the desired menu. The resulting screen message for each step appears next to the series of keys pressed.

For example:

appear as follows:

To enable the send header:

1. Press:

How to Use This Manual

Press

The procedure to enable the Send Header would

Start

to send a fax.

Send header

1.Inside

2.Outside

3.Off

2. Select where you want the fax header to be printed: To print the header in the document area, press .

To print the header above the document area, press . To not print a header, press .

3. The menu selection screen redisplays. Press to return to the Standby Mode.

WorkCentre Pro 555, 575 1-3

Exit

( ) or

Stop

How to Use This Manual

Notes, Cautions, and Warnings

This manual uses notes, cautions, and warnings to emphasize information the reader needs. Notes contain information that supplements the text. Notes are emphasized with italics. The following is an example of a note:

Note: Notes are provided as additional information.

The following are examples of a caution and a warning:

CAUTION

Do not touch the green drum surface. Touching the drum could reduce the print quality.

WARNING Used to alert users to risk of personal injury.

1-4 WorkCentre Pro 555, 575

2 Introduction

This chapter provides an overview of the WorkCentre’s hardware features and operation. The Control Panel is discussed and each key is defined.

System Overview

The WorkCentre allows the user to send, receive, copy, and print documents. The ControlCentre software allows you to program the Fax settings on a PC and write the settings to the WorkCentre.

When you switch on the power and the system has warmed up, the machine is in the standby, or idle mode and is ready to use. When an action completes successfully, the machine returns to the Standby Mode and displays the following information:

Introduction

Jan-31 Mon02:23p100% Auto answer

Through the Menu mode, you can configure the standard machine settings or customize your machine. Refer to Chapter 3 “Getting Started” for basic programming instructions and procedures for setting the standard machine settings.

For optimum performance, the machine should be left on 24 hours a day. While the machine is powered on, the internal batteries are charged. (for 575 only)

The primary battery retains the programmed data for up to 5 years if the machine loses power.

Document data stored in a machine with standard memory is retained for up to 72 hours during a power failure or power off, where the image battery is fully charged for more than 8 hours prior to power off. (for 575 only)

WorkCentre Pro 555, 575 2-1

Introduction

System Features

Feature Description

Copying on Plain Paper Plain paper is used for printer output thereby allowing the use

The following table describes many of the WorkCentre features. Refer to the Table of Contents or Index to locate detailed information.

of standard forms, labels, etc.

Alpha Dialing

555: 145 Numbers 575: 238 Numbers

One Touch Dialing

555: 20 Keys 575: 38 Keys

Speed Dialing

555: 100 Numbers 575: 150 Numbers

Direct Access Function Keys (5 Keys)

Multi Access Communications Utilizing the built-in memory, as many as 100 operations can

High Resolution With a maximum resolution of 406 dots/inch x 392 dots/inch

Dial the desired location by searching for the name in the Speed Dial, One Touch, and Group phonebooks.

With one key stroke, the number of the assigned location(s) is dialed and the document is sent.

In addition to the 20/38 One Touch keys, 100/150 3-digit speed dial numbers can be assigned to frequently called locations.

Five of the most frequently used functions are assigned to keys located on the Access Panel.

be programmed for maximum equipment ut ilization and efficiency. For example, you can store a document to memory while the machine is receiving a document.

(16 dots/mm x 15.4 lines/mm) and 64 levels of halftone expression, precision drawings, small-size characters, or photographs are copied, sent, and received clearly.

Enriched System Functions Various types of communications are available through

enriched system functions such as Relay, Group, and

Mailbox Communications. Mailbox Systems Features ITU-T industry standards mailbox communications. Group Communications

555: 25 Groups 575: 50 Groups

This feature allows the transmission of a document to as

many as 120/188 different remote locations with one

operation sequence.

2-2 WorkCentre Pro 555, 575

Introduction

Feature Description

Manual Group This feature allows the user to send a document to multiple

remote machines by simply pressing the Manual Group key and entering the telephone numbers.

Batching This feature automatically performs transmissions of multiple

documents going to the same phone number. Documents sent to the sa me loc ation are transm itted with one ph one cal l, thus saving time and call connecting costs.

Refuse Junk mail With this feature selected, your WorkCentre only receives

from those remote units with phone numbers assigned to your Speed Dial or One Touch phonebooks.

Receive to Memory Automatically stores up to 100 received documents to

available memory if the paper runs out or if a paper jam occurs.

Collated Fax With this feature selected, incoming documents are received

to memory and then printed “last page first”. This feature stacks the document with page 1 on top.

Super Power-Saver Mode This feature turns off areas of the machine, which have a

high power consumption.

Printer Power Saver Mode This feature turns off the printer fuser unit to reduce the

power consumption.

Optional Accessories The WorkCentre can be optioned with an additional paper

cassette, and a handset*.

ControlCentre

PC Printing With the Windows Printer Driver installed on your PC and

* Not available in all markets.

ControlCentre is software package that can be loaded on a PC. The ControlCentre s oftware al lows y ou to pro gram m ost of the machine settings using the PC, then write the settings to the WorkCentre.

the parallel print cable attached to the parallel p ort, the WorkCentre can be used to print from the PC.

WorkCentre Pro 555, 575 2-3

Introduction

Hardware Features

Feature Description

Document Output Tray Collects the document pages following a

Control Panel Contains the keys to program system features or

Document Guides Guides the document pages into the scanner. Document Support Supports the documents to be copied or transmitted. Handset Connector* Provides a jack for connecting the optional handset. Telephone Connector* Provides a standard modular jack for connecting a

Line Connector A standard modular jack for connecting the phone

Top Cover Open Button Releases the Top Cover for accessing consumables

Paper Tray Supplies t he cut sheet paper to the WorkCentre.

transmission or copy operation. Contains an extension to support legal documents.

operate the machine.

telephone.

line for fax communications.

or clearing a paper jam.

Copy Output Tray Collects printed documents. Power Switch Switches the WorkCentre power On/Off. Power Cord Supplies power to the machine. Bi-directional Parallel

Connector (IEEE 1284 compliant)

* Not available in all markets.

Connects the WorkCentre to a PC.

2-4 WorkCentre Pro 555, 575

WorkCentre Hardware Features

Introduction

Control Panel

Document Output Tray

Document Guide

Paper Tray

Copy Output Tray

Document Support

Top Cover Open Button

Bi-directional Parallel Connector

Power Cord

Power Switch

Connector

* Not available in all markets.

WorkCentre Pro 555, 575 2-5

Introduction

System Requirements

When choosing an installation location, follow these guidelines:

• Avoid dusty locations, extreme heat, humidity, direct sunlight, or

• Avoid areas where interference from other electrical devices may

• Avoid using an AC outlet that shares the same circuit as an

• Locate the machine within reach of a telephone outlet. Use a

• Place the machine on a level surface. An uneven surface can

areas subject to heavy vibration.

be present.

electrical device, which may create interference.

dedicated single line telephone connection.

cause performance problems such as poor copy quality and paper jams.

2-6 WorkCentre Pro 555, 575

Introduction

Space Requirements

Adequate space is required for ventilation, ease of operation, maintenance, and replacement of consumables. Provide the minimum space as shown in the following figure.

16.73 inches (425 mm)

30.03 inches (763 mm)

Width (with Handset): 19.43 inches (493.5 mm) Height: 17.13 inches (435 mm) Height (with Optional Paper Cassette): 22.28 inches (566 mm)

WorkCentre Pro 555, 575 2-7

Introduction

Control Panel

2 3

18 17

78910111213

14 15

2-8 WorkCentre Pro 555, 575

Introduction

Menu or *

Delete or *

Control Panel Components and Function Keys

The Control Panel is used to program the features and to initiate communications. The following figures and tables illustrate the Control Panel and describe each compon ent.

Item Description Function

1 Display Displays the machine status and messages. The display provides

information about the current operation mode. The machine has the following operating modes: Standby Mode, Communication Mode,

Menu Mode, Copy Mode, PC Printing Mode, (see “Operation Modes” later in this Chapter).

2 PC LED Illuminates when a PC communication is in progress. 3 Line LED Illuminates when a fax communication is in progress. 4 The

5 Deletes the character at the position of the cursor.

6 Used to

Exit or *

key is used to access menu items listed in the menu map which are not available from the direct access keys. The Menu key is also used as a navigation key for scrolling up a menu list.

Exit

a menu list.

Left

or Back navigation key used for going back to a previous menu list. Also used for positioning the cursor for character delete or insert when you enter names.

Down

navigation key used for scrolling down a menu list.

Right

navigation key used fo r going to the next l evel o f menu s of the highlighted item. Also used when you enter names for positioning the cursor for character delete or insert.

* Symbol used on International machines.

WorkCentre Pro 555, 575 2-9

Introduction

Item Description Function

10 Used to select the dis playe d menu it em, to st art

Enter or *

a communication, or to accept name and number entries.

*Used on International machines.

11 Sets the insert mode allowing a character to be

Insert or *

inserted at the position of the cursor instead of overwriting the char acter in the curren t posit ion.

*Used on International machines.

12 Alarm LED * Illuminates when an error occurs, or when the

machine is out of paper, toner or drum.

13 Numeric

Keypad

Used for numeric, alphabetical or special character input for direct dialing, directory dialing, and menu item input.

14 During on-hook or off-hook dialing, this key is

Redial

used to redial the last number dialed. Pressing

Redial/Pause displays the jobs waiting to be

Pause

redialed. Pressing the

Enter

key forces an

immediate redial. When entering a telephone number, pressing

this key enters a pause in the telephone number sequence.

15 Used to access programmed Speed Dial,

Phonebook

Alpha, and/or Groups. Pressing this key ini tially displays the phonebook menu.

16 Starts a job that is ready for transmitting,

17 Stops a Direct Send job and ejects the

Start

Stop

scanning, or copying.

document from the scanner. Also used to clear an error mess age displayed on the displ ay.

* Used on International machines.

2-10 WorkCentre Pro 555, 575

Item Description Function

Reduce Copies

Introduction

18 Used to create a one time group of phone

Manual

Group

numbers, for Group Sending or Polling. Speed dial and one touch numbers can be used.

19 Used to copy documents.

Copy

Manual

Dial

Used for interactive dialing. Digits are dialed as the key is pressed. The line monitor automatically turns on.

21 Used to set the copy reduction. The following

settings are availabl e: 100%, Auto Fit, 86%, 75%, 50%

22 Used to set the resolution for copying,

Resolution

scanning, or faxing. The following settings are available: Standard (no LED lit, fax only), Fine, Superfine, Photo.

23 Sets the contrast of the printout to Normal (no

Contrast

LED lit), Li ghten, or Darken. This is a scanner setting affecting send and copy.

24 Deletes pending and active jobs. You must

Cancel

Job

select the appropriate job type to display the desired job for cancellation. Once the job is displayed, pressing Cancel Job again displays the Cancel Job Confirmation screen.

When used in conjunction with the Job Status key, active jobs can be canceled quickly by pressing this key then confirming the cancellati on.

25 This feature turns power off to minimize power

Power Save

consumption, if the machine has not been used for a period of time.

WorkCentre Pro 555, 575 2-11

Introduction

Item Description Function

26 Displays the active job if a communica tion is in

27 One Touch

28 Shift Key

Job Status

Keys

(for 575 only)

progress. If there are no communications in progress, a summary of the Pending Jobs is displayed.

Used to select phone numbers that have been stored in memory.

Used to select one touc h numbers form 2 0 to 38 and for case character changes on the letter keyboard.

2-12 WorkCentre Pro 555, 575

Introduction

Direct Access Function Keys

The following table lists the WorkCentre’s Direct Access Function Keys which are located in the left of the Control Panel. The Direct Access Function Keys automate 5 of the most frequently used WorkCentre features.

Direct Access Function Keys

Refer to the Table of Contents to locate specific function information.

Description Function

Activity Report

Charge

Code

Prints a list of Transmission Communications, Receive Communications, or both.

Allows entry of a Charge Code at the time of dial ing or during phonebook programming. Digits entered after this selection are concealed.

Direct

Send

Map

Phonebook

Report

Transmits the document directly from the scanner instead of scanning it into memory first.

Prints out a menu listing with the menu address numbers.

Prints a lis t of telephone/facsim ile numbers stored in memory. Available reports include Alphabet, Speed Dialing, One Touch, and Group Dialing numbers.

WorkCentre Pro 555, 575 2-13

Introduction

Tones

The WorkCentre generates tones to indicate the operational status of the machine.

• Single short tone — A confirmation tone. A short tone sounds

when a key is pressed or when an action completes successfully.

• Extended tone — Signifies an unsuccessful operation. An

extended tone (two to five seconds) occurs when a transaction does not complete normally. The user must perform an action to continue a process. Refer to the display messages in the Advanced Features Guide.

2-14 WorkCentre Pro 555, 575

Operation Modes

Introduction

Standby Mode

When the machine is in the Standby Mode, the display indicates the machine status, a prompt for the next operation, or an error message. The following information is displa yed:

• Date and time — The month, day and time (hour and minute) are

displayed. Use the Menu Mode to set the date display sequence and the time format.

• Standby Mode Status — The Standby Mode Status indicates

the Reception Mode (“Auto Answer”, “Manual Answer”, “TEL/FAX”, “FAX/TAD”). If “Reception Mode” is displayed, the machine has completed the previous task and is ready to fax or copy. If the Paper Tray becomes empty or open, the Standby Mode Status is replaced with the Paper Tray status (Error Message). Enter Depart. code — if dept. code feature is enabled.

• Free Memory — The percentage of remaining memory available

for storing documents is displayed. If no memory is used, 100% is displayed.

Communication Mode

• Memory Send — Memory send communications are performed

in the background.

• Direct Send — The status of a Direct Send operation is

displayed.

• Communication results — Results of a communication can be

printed. (Refer to the Advanced Features Guide.)

• Communication error code — The result of an error in a

communication. (Refer to the Advanced Features Guide.)

WorkCentre Pro 555, 575 2-15

Introduction

Copy Mode

When the machine is in the Copy Mode, the display informs about the machine status as the machine prints single or multiple copies of the document. When in the copy mode, the following information is displayed. The display changes in the following order each time you

press .

• The displays indicates Copying.

• Collate Feature — Collate On/Off

• Paper tray — 1st/Bypass/2nd*

• Copies

* Optional Paper Cassette

Menu Mode

When the machine is in the Menu Mode, the display indic at es each programmable feature, and the settings selected. As you scroll through the menu, the machine prompts you for the information necessary to program each feature.

Several of the features accessed through the Direct Access Function Keys also use menu access.

For a complete overview of the programmable features, refer to the Menu Flow Map in the Advanced Features Guide on your CD-ROM.

PC Printing Mode

Using the ControlCentre software and appropriate printer drivers, the WorkCentre can communicate with your PC to allow PC printing and programming of features.

2-16 WorkCentre Pro 555, 575

3 Getting Started

This chapter contains step-by-step procedures to program the basic machine settings and set up the most commonly used facsimile features. T o get you started quickly, basic steps to send, receive, and copy a document are also provided.

For additional setup functions, refer to the appropriate Advanced Features Guide chapter.

Printing a Menu Map

The Menu Map is a list of all machine features in a flow chart format. Refer to Advanced Features Guide. To print the Menu Map:

1. Press:

Getting Started

Map

2. The Menu Map prints, then the machine returns to the Standby mode.

WorkCentre Pro 555, 575 3-1

Getting Started

Setting the Machine Language

The WorkCentre is capable of displaying and printing in various languages.

Note: Available Languages may vary depending on your

location. If not available, “Not Allowed Now” will display.

To change the machine language:

1. Press:

Language

01.Espanol

02.English

03.Portugues

04.Francais

2. Use the Numeric Keypad to select the desired language, then press

Enter

The menu selectio n screen redi splays. Pr ess

Standby Mode.

3-2 WorkCentre Pro 555, 575

Stop

to return to the

Getting Started

Setting the Date and Time

The WorkCentre shows the date and time in the display when in the Standby Mode. The date and time information is used by the internal clock to start delayed jobs and record data on faxes and reports. In addition, you can program the WorkCentre to print the date and time on documents that you send and receive.

For more information on printing the date and time on your

documents see “Setting the Send Header” and “Setting the Receive Footer” later in this chapter.

To set the Date & Time:

1. Press:

Date [01-31-2000]

2. Using the Numeric Keypad and the arrow keys, enter the date, then press

Enter

Date format

1.MM-DD-YYYY

2.DD-MM-YYYY

3.YYYY-MM-DD

WorkCentre Pro 555, 575 3-3

Getting Started

3. Select the Date format. To display the date in the order of Month/Day/Year (4-digit), press .

To display the date in the order of Day/Month/Year (4-digit), press .

To display the date in the order of Year (4-digit)/Month/Day, press .

Month format

1.Numeric

2.Name

4. Select the Month format. To display the Month number, press .

To display the abbreviated Month name, press .

Time f ormat?

1.24 hour

2.12 hour

3-4 WorkCentre Pro 555, 575

Getting Started

5. Select the Time format: To select 24 hour format, press .

To select 12 hour format, press .

Time [10:30 pm]

Time [22:30 pm]

6. Using the Numeric Keypad and arrow keys, enter the time, (if necessary, use the arrow key to set AM/PM), then press

Enter

The menu selection screen redisplays. Press return to the standby mode.

Exit

Stop

WorkCentre Pro 555, 575 3-5

Getting Started

Setting your Machine ID*

The Machine ID identifies your machine to the remote machine when they communicate. The Machine ID must identify the person or company that sends the documents and appear on each transmitted page.

Note: For assistance entering alpha or Special Characters, refer

Note: U.S. Regulations require that your fax transmittals include

To set your Machine ID:

1. Press:

to the Advanced Features Guide.

your name (business or individual), telephone number, date, and time.

Name (40 max) [_ ]

2. Using the Numeric Keypad and the Character Code Table in Chapter 3, enter your identification name and press

Country code

1.Yes

2.No

Enter

Note: If 1 is selected, the “+” symbol is automatically displayed

at the beginning of the fax telephone number indicating a Country Code can be entered. If 2 is selected, international communication can be entered manually when dialing.

* In some markets, this feature must be set by your Xerox service representative.

3-6 WorkCentre Pro 555, 575

Getting Started

3. Select the Country Code option: To enter a Country Code, press . To skip entering a Country Code, press .

Fax number (20 max) [_ ]

4. Using the Numeric Keypad, enter the machine telephone number

Enter

then press

Note: Press the Right arrow key to insert a space.

The menu selection screen redisplays. Press return to the Standby Mode.

Exit or Stop

WorkCentre Pro 555, 575 3-7

Getting Started

Setting the Dial Mode*

Your machine must be set to the dialing mode compatible with your telephone line requirements. The Dial Modes supported are tone and pulse. Pulse is sometimes referred to as rotary dial.

If your machine is connected to a PBX system, you may need to enter a number to access the outside telephone line.

To set the Dial Mode:

1. Press:

2. Select the Dial Mode.

Dial mode

1.Tone

2.Pulse

To select tone, press .

To select pulse, press .

Call number (10 max) [_ ]

3. Enter the number required to access an outside line, then press

Enter.

The menu selection screen redisplays. Press

(If no number is required, press

Enter

Exit or Stop

return to the Standby Mode.

* This feature not allowed in a ll markets.

3-8 WorkCentre Pro 555, 575

Setting the Send Header

With this feature enabled, your Send Header information is printed at the top of each page you send. When enabling the Send Header

feature, you can specify where the header is to be printed “inside” or “outside” the document data area. If “Inside” is selected and sending data exists near the top edge of the paper, the header information and data may overlap. If “Outside” is selected, the header information is printed at the top of the page and the document is printed below to avoid overlapping.

The following information is printed on the Send Header:

• Date

• Start Time

• Transmitting Station ID (department, name & telephone number)

• Transmission Serial Number - The machine automatically

assigns a three digit number. This number is used on confirmation reports or error reports.

• Page Number/Total Number of Pages

• Job or File Number

To enable the Send Header:

1. Press:

Getting Started

Send header

1.Inside

2.Outside

3.Off

WorkCentre Pro 555, 575 3-9

Getting Started

2. Select where you want the fax header to be printed. To print the header in the document area, press .

To print the header above the document area, press . To not print a header, press . The menu selection screen redisplays. Press

return to the Standby Mode.

Setting the Receive Footer

A Receive Footer option is available which enables the WorkCentre to print a receive footer on each received page.

The Receive Footer displays the following information:

• Footer Message

• Date

• Start Time

• Transmitting Station ID

• Receiving Station ID

• Page Number

To enable the Receive Footer:

1. Press:

Receive footer

1.On

Exit or Stop

2.Off

2. Select the Receive Footer option: To enable the Receive Footer, press .

To disable the Receive Footer, press .

The menu selection screen redisplays. Press the Standby Mode.

3-10 WorkCentre Pro 555, 575

Exit or Stop

to return to

Loading Paper

Getting Started

Load paper into the WorkCentre paper trays using the following procedures:

Bypass Tray:

1. Raise the Document Output Tray and open the Paper Guide.

Document Output Tray

Paper Guides

2. Insert one sheet of paper into the Bypass Tray.

Paper

WorkCentre Pro 555, 575 3-11

Getting Started

CAUTION

Do not insert more than one sheet of paper into the Bypass Tray. It will cause a paper jam.

3. Adjust the Paper Guides so that both sides of the paper are secure.

4. Lower the Document Output Tray.

Document Output Tray

Paper Guides

3-12 WorkCentre Pro 555, 575

Getting Started

Paper Tray:

1. Raise the Document Output Tray and remove the Bypass Tray.

Document Output Tray

Bypass Tray

2. Open the Paper Guides.

Paper Guide

Paper Guides

WorkCentre Pro 555, 575 3-13

Getting Started

3. Do not fan the paper. Make sure that the corners of the paper are neatly aligned.

4. Insert up to 250 sheets into the Paper Tray. Secure the stack by adjusting the Paper Guides.

Paper Guides

Paper Guide

Paper

3-14 WorkCentre Pro 555, 575

Getting Started

CAUTION

To avoid paper jams, do not exceed the upper limit line on the Paper Guides.

Paper Guide

Upper Limit Line

Replace the Bypass Tray and lower the Document Output Tray.

Document Output Tray

Bypass Tray

WorkCentre Pro 555, 575 3-15

Getting Started

Setting the paper size

1. Press:

Paper size (Tray1)

1.LT

2.A4

3.LG

2. Select the paper size: To select Letter size paper, press .

To select A4 size paper, press .

To select Legal size paper, press .

3. The menu selection screen re-displays. Press return to the Standby Mode.

Exit

Stop

Note: When the Optional Paper Tray is installed, the following

screen appears after selecting the paper size Step 2.

Paper size (Tray2)

1.LT

2.A4

To select Letter size paper, press .

To select A4 size paper, press .

Then go the Step 3.

3-16 WorkCentre Pro 555, 575

Loading Documents

Getting Started

The Document Support holds up to 30 documents for transmitting or copying. Refer to the following size specifications for the range of documents that can reliably scan through the machine. If a document does not meet these specifications, make a copy on a copier using an accepted paper size, then insert the copied image in the Document Tray.

Document Specifications

The following table lists the sizes, types, and quantities of paper that can be loaded into the Document Feeder for copying or faxing.

Single Sheet Multiple Sheets

Max. Document Size

Min. Document Size

Effective Scanning Width

Max. capacity of the Document Feeder

Weight of Paper Stock

8.5 in. (W) x 14 in. (L)

[216mm (W) x 356mm (L)]

5.8 in. (W) x 3.9 in. (L)

[148mm (W) x 100mm (L)]

8.5 inches [216 mm]

N/A 30 sheets

52.6 g/m

to 120 g/m

(14 lbs to 32 lbs)

Same as Single Sheet

8.5 in. (W) x 14 in. (L)

[216mm (W) x 356mm (L)]

(Letter/A4 size, 20 lbs)

15 sheets

(Legal size, 20 lbs)

60 g/m

to 100 g/m

(16 lbs to 28 lbs)

Avoid the following types of documents which can cause jams:

• Torn, wrinkled, curled, or folded sheets

• Sheets with punched holes

• Transparencies

• Sheets with paper notes attached

• Coated or shiny sheets

• Carbon or carbon backed sheets

• Envelopes

WorkCentre Pro 555, 575 3-17

Getting Started

To load documents: Load the document face down in the document support. Adjust the

document guide to fit the width of the document. Angle the stack to optimize feeding performance. To cancel a document in the ADF,

Stop

press

Documents

Document Support

3-18 WorkCentre Pro 555, 575

Getting Started

Selecting the Scan Resolution

The

Resolution

or storing a document in memory. The scan resolution can be set to one of five settings based on the type of image you are scanning.

To select the Scan Resolution: Press the

indicated by the Resolution LED.

Note: When the resolution LED is not illuminated, the Resolution

The default resolution setting is standard only on the base machine. The machine returns to the default setting after each transaction.

Refer to the default setting for resolution.

The following table describes the available resolution selections:

Resolution selection Description

Standard Use for sending normal text and graphics.

key selects the scan mode for copying, transmitting,

Resolution

key until the required resolution mode is

setting is Standard.

System Administrator’s Guide for details about changing the

Selected when the Resolution LEDs are off.

Fine Use for documents with small characters

(newspaper print, etc.). Superfine Use for documents containing very detai led print. Photo Use for documents containing photographic

images.

If you choose a resolution and the receiving machine does not have an equivalent, the WorkCentre chooses the next highest resolution compatible with the remote machine. If you do not know the remote machines resolution capability, it is recommended that you use the Direct Send mode when Superfine Photo is selected. In Direct Send mode, the WorkCentre determines the receive resolution prior to scanning the document. The document is then scanned at the compatible receiver resolution resulting in better print quality.

WorkCentre Pro 555, 575 3-19

Getting Started

Selecting the Scan Contrast

To select the Scan Contrast:

Press the by a Contrast LED

Note: When a Contrast LED is not illuminated, the Contrast

The Contrast setting adjusts the print darkness of the copy or transmitted document. The default contrast setting is normal on base machine. The machine returns to the default setting after each transmission.

Refer to the default setting for contrast.

Contrast selection Description

Normal For documents printed with ordinary image density.

Contrast

key until the required contrast mode is indicated

setting is Normal.

System Administrator’s Guide for details about changing the

Selected when the Contrast LED is off.

Lighten For documents with dark print that need to be

adjusted to print lighter.

Darken For documents with light or faint prin t that nee d to be

adjusted to print darker.

3-20 WorkCentre Pro 555, 575

Quick St a rt

Getting Started

To Receive

The default answer mode is Auto answer. When the remote party calls to send you a document, your WorkCentre automatically receives and prints the document.

To Send

1. Load a document face down in the Document Tray.

2. Using the Numeric Keypad, enter the telephone number of the remote fax.

3. Press

Start

To Copy

1. Load a document face down in the Document Tray.

2. Press

3. Enter the number of copies.

4. Press

Copy

Start

To Print

1. Install the print drivers supplied with your WorkCentre following the instructions on the CD.

2. To print from your application select

3. Select the printer name you have given to the WorkCentre print queue.

4. Select any printing options you require.

5. Select OK to send you documents to the WorkCentre

For further information about all the features of the WorkCentre please refer to the Advanced Features Guide.

from you

File

menu.

WorkCentre Pro 555, 575 3-21

Getting Started

Phonebook Reports

Individual phonebook reports can be printed for Alphabet, Speed Dial, One Touch and Group stored in the WorkCentre. You can also print all four of the Phonebook Reports in a single operation.

Note: Refer to the individual report printing procedures for the

report contents tables.

To print all four Phonebook Reports:

1. Press:

Phonebook

Report

Phonebook

1. All reports

2. Speed dials

3. One touch keys

4. Groups

5. Alphabetical

The Phonebook Report prints, then the machine returns to the Standby Mode.

3-22 WorkCentre Pro 555, 575

Getting Started

Speed Dial Phonebook

The Speed Dial Phonebook Report prints a list of all Remote Station dialing numbers assigned to Speed Dial numbers.

The following information is printed on the Speed Dial Phonebook Report.

Item Description

S.D. nbr Speed Dial number. Name Remote ID. Fax Number The number of the remote unit (

number. SUB, SEP, PWD indicates a type of sub address). Time Delay Start time. MON Line monitoring On/Off status. BPS Communication speed (x 1000). Report Confirmation report On/Off status.

“u” indicates an alterna te

To print the Speed Dial Phonebook Report:

1. Press:

Phonebook

Report

The Speed Dial Phonebook Report prints, then the machine returns to the Standby Mode.

WorkCentre Pro 555, 575 3-23

Getting Started

One Touch Phonebook

The One Touch Phonebook Report prints a list of all Remote Station dialing numbers assigned to One Touch Keys.

The following information is printed on the One Touch Phonebook Report.

Item Description

One Touch number

Name/ Operation

Speed Dial/ Group/ Fax number

Time Delay Start time. MON Line monitoring On/Off status. BPS Communication speed (x 1000). Report Confirmation report On/Off status.

One Touch key num be r.

The remote name, or the Spee d Dial o r Gr oup nam e assigned to a One Touch Key.

Speed Dial/Group or Fax number ass igned to a O ne Touch key ( SEP, or PWD indicates type of sub address).

“u” indicates an alternate number. SUB,

To print the One Touch Phonebook Report:

1. Press:

Phonebook

Report

The One Touch Phonebook Report prints, then the machine returns to the Standby Mode.

3-24 WorkCentre Pro 555, 575

Getting Started

Group Phonebook

The Group Phonebook Report prints a list of all One Touch or Speed dial numbers registered as Group Numbers.

The following information is printed on the Group Phonebook Report.

Item Description

Group number

Name Group name. One Touch/

Speed Dial Number

Group number.

One Touch or Speed Dial numbers assigned to the group.

OT – One Touch Keys

SD – Speed Dial numbers

To print the Group Phonebook Report:

1. Press:

Phonebook

Report

The Group Phonebook Report prints, then the machine returns to the Standby Mode.

For more information on other reports available, please refer to your Advanced Features Guide.

WorkCentre Pro 555, 575 3-25

Getting Started

Alphabetical Phonebook

The Alphabetical Phonebook Reports prints a list of all Remote Station names assigned to Speed Dial numbers, One Touch Keys, and Groups in alphabetical order.

The following information is printed on the Alphabetical Phonebook Report.

Item Description

Name Names assigned to Speed Dial numbers, One Touch

Keys, or Groups.

Location Numbers of Speed Dial numbers, One Touch Keys,

or Groups.

Fax Number

Fax numbers assigned to Speed Dial numbers, One

Touch Keys, or Groups. (“u” indicates an alternate number, SUB, SEP, PWD indicates a type of sub address).

To print the Alphabetical Phonebook Report:

1. Press:

Phonebook

The Alphabetical Phonebook Report: prints then the machine returns to the Standby Mode.

3-26 WorkCentre Pro 555, 575

4 Basic Troubleshootin g

Paper Jam

If a paper jam occurs during a rec eption or copying operation, the

message “PAPER JAM XX” is displayed. If this occurs, follow the procedure below.

The code number "XX" indicates the location of the paper jam as shown in the table below.

Code Location

10 In the Paper Tray or Bypass Tray 20 In the Optional Paper Tray

Basic Troubleshooting

80 At the paper feed area 90 At the paper exit area

If a paper j a m occu r s du ri ng a re ce pt i on , t he re ce iv ed d oc um ents are automatically stored in memory. Once the paper jam is corrected, the machine automatically prints the contents that were in memory.

See Chapter 3, “Loading Documents” for document specifications and recommendations which can help avoid paper jams.

Note: The power can be left ON when clearing a paper jam.

WorkCentre Pro 555, 575 4-1

Basic Troubleshooting

1. Remove any documents from the Document Support and Copy Output Tray.

Remove Documents

Copy Output Tray

Document Support

4-2 WorkCentre Pro 555, 575

Basic Troubleshooting

2a. Bypass Tray

Pull up the Document Output Tray and pull the jammed paper straight out of the machine.

Document Output Tray

Bypass Tray

Note: When the jammed paper does not come out of the

machine easily, try to remove the jammed paper from the inside of the machine. (See Step 8.)

WorkCentre Pro 555, 575 4-3

Basic Troubleshooting

2b. Main Paper Tray

Remove the Bypass Tray and pull the jammed paper straight out of the machine.

Document Output Tray

Bypass Tray

Note: When the jammed paper does not come out of the

machine easily, try to remove the jammed paper from the inside of the machine. (See Step 8.)

4-4 WorkCentre Pro 555, 575

Basic Troubleshooting

2c. Optional Paper Cassette

Remove the Optional Paper Cassette Cover and pull out Paper Cassette. Press down on the stack of paper until the paper lifting plate locks.

Optional Paper Cassette Cover

Remove the stack of paper from the Optional Paper Cassette and pull the jammed paper straight out of the machine.

WorkCentre Pro 555, 575 4-5

Basic Troubleshooting

3. Push the Top Cover Open Button to the Top Cover and open the Top Cover.

Top Cover

Top Cover Open Button

4-6 WorkCentre Pro 555, 575

Basic Troubleshooting

4. Remove the Toner Cartridge and the Drum Cartridge.

Toner Cartridge

Drum Cartridge

Handle

Note: Immediately wrap the drum cartridge with a cloth to protect

it against overexposure to light.

CAUTION

Always hold the Drum Cartridge and Toner Cartridge by the green handles. Do not expose the green drum to light for more than 3 minutes. Neve r expose it to direct sunlight or touch the green dru m. Damage or poor print quality may result.

WorkCentre Pro 555, 575 4-7

Basic Troubleshooting

5. Pull up the Paper Guide and remove the jammed paper while pressing the Paper Holder to the rear side. Avoid tearing the paper.

Paper Holder

Paper Guide

CAUTION

Do not touch the Image Transfer Roller.

WARNING

The black colored fuser housing may be hot if the machine was in use prior to this paper jam.

6. If the paper is jammed partway through the Fuser Unit (black colored housing), remove the jammed paper in the direction of the arrow. Avoid tearing paper.

Fuser Unit

4-8 WorkCentre Pro 555, 575

Basic Troubleshooting

7. If the paper is jammed partway through the Paper Exit Guide, open the Paper Exit Guide and remove the jammed paper.

Paper Exit Guide

Hook

8. Install the drum cartridge into the machine, aligning the guides of the cartridge with the grooves inside the machine.

Color coordinated “1” labels have been affixed to the drum cartridge and to the inside of the machine. Install the drum cartridge by aligning these labels.

Book

Make sure the drum cartridge is inserted inside the machine as far as it will go.

WorkCentre Pro 555, 575 4-9

Basic Troubleshooting

9. Holding onto the toner cartridge’s handle, lower it into the

machine. Make sure that the four pins (two on each side) fit into the grooves inside the machine. Color coordinated “2” labels have been affixed to the toner cartridge and to the inside of the machine. Install the toner cartridge by aligning these labels.

The cartridge will click into place when it is completely installed.

25 26

4-10 WorkCentre Pro 555, 575

Basic Troubleshooting

10. Replace the Paper Exit Guide, Paper and Bypass Tray.

11. Press down on the T op Cover until a “Click” is heard to ensure the

latches engage.

Top Cover

12. Verify the display has returned to the Standby Mode.

WorkCentre Pro 555, 575 4-11

Basic Troubleshooting

Document Jam

If a document jam occurs during a transmission, the message

“DOCUMENT JAM” is displayed. If this occurs, follow the procedure below.

It is recommended that a duplicate from a copier, of the jammed document be used to reduce the chance of a jam when resending the document.

See Chapter 3, “Loading Documents” for document specifications and recommendations which may help avoid paper jams.

Note: The power can be left ON when clearing a paper jam.

Typical Causes of Document Jams

The document is fed at an angle.

The document p aper is to o thin or too thick.

Document has tape or pieces of paper taped to it.

The Control Panel Cover is not fully closed.

The document is stapled. Remove the staple(s), or make a duplicate using a

Recommended Procedure

Adjust the Document Guides to the edges of the document.

Make a duplicate using a copier and use the copy as the sending document.

Remove the tape or make a duplicate using a copier and use the copy as the sending document.

Close the Control Panel Cover fully.

copier and use the copy as the sending document.

4-12 WorkCentre Pro 555, 575

Basic Troubleshooting

1. Remove all documents from the Document Support.

Remove Documents

2. Open the Control Panel Cover.

Document Support

Handle

Control Panel Cover

WorkCentre Pro 555, 575 4-13

Basic Troubleshooting

3. Remove the document jam. Remove any pieces of paper, paper

4. Close the Control Panel Cover.

clips, or staples that may have caused the jam.

Control Panel Cover

Push hear to close the Control Panel Cover.

5. Verify the display has returned to the Standby Mode.

4-14 WorkCentre Pro 555, 575

A Safety Certification and Environmental Compliance

Your Xerox product and supplies have been designed and tested to meet strict safety requirements. These include safety agency examination and approval, and compliance to established environmental standards. Please read the following instructions carefully before operating the equipment and refer to them as needed to ensure the continued safe operation of your machine. The safety

testing and performance of this product have been verified using Xerox materials only.

Follow all warnings and instructions marked on or supplied with the product.

* Symbology: = General warning alerts user to the risk of

= Warning Heated Surface

personal damage. Example of specific warning

Unplug this equipment from the wall outlet before cleaning. Always use materials specifically designated for this product. Use of other materials may result in poor performance and could create a hazardous situation.

Do not use aerosol cleaners. Follow the instructions in this User Guide for proper cleaning methods.

Never use supplies or cleaning materials for purposes other than what they were intended. Keep all supplies and materials out of reach of children.

Do not use this product near water, wet locations, or outdoors. Do not place this product on an unstable cart, stand or table. The

product may fall, causing personal injury or serious damage to the copier

WorkCentre Pro 555/575 A-1

WARNING This product must be earthed

This product is equipped with a 3-wire grounding type plug (e.g., a

plug having a third grounding pin). This plug will fit only into a grounding-type power outlet. This is a safety feature. To avoid risk of electric shock, contact your electrician to replace the receptacle if you are unable to insert the plug into the outlet. Never us a grounding adapter plug to connect the copier to a power source receptacle that lacks a ground connection terminal.

This product should be operated from the type of power source indicated on the marking label. If you are not sure of the type of power available, consult your local power company.

Do not allow anything to rest on the power cord. Do not locate the product where persons will step on the cord.

Your equipment is equipped with an energy saving device to conserve power when the machine is not in use. The machine may be left on continuously.

Slots and Openings in the cabinet and in the back and sides of the product are provided for ventilation. To ensure reliable operation of the product and to protect it from overheating, these openings must not be blocked or covered. The product should never be located near or over a radiator or heat register. This product should not be placed in a built-in installation unless proper ventilation is provided.

Never push objects of any kind into the slots of the product as they may touch dangerous voltage points or short out parts which could result in a fire or electric shock.

Never spill liquid of any kind on the product. Never remove covers or guards that require a tool for removal, unless

directed to do so in a Xerox approved maintenance kit. Never defeat interlock switches. Machines are designed to restrict

operator access to unsafe areas. Covers, guards and interlock switches are provided to ensure that the machine will not operate with covers opened.

Use of an extension cord with this product is not recommended or authorized. Users should check building codes and insurance

requirements if a properly earthed extension cord is to be used. Ensure that the total ampere ratings of the products plugged into the

A-2 WorkCentre Pro 555/575

extension cord do not exceed the extension cord ampere rating. Also, make sure that the total amperage of all products plugged into the wall outlets does not exceed the outlet rating.

Do not put your hands into the fuser area, located just inside the exit tray area, as you may be burned.

Ozone: This product produces ozone during normal operation. The ozone produced is dependent on copy volume and is heavier than air. Providing the correct environmental parameter, as specified in the Xerox installation procedures, ensure that concentration levels meet safe limits.

If you need additional safety information concerning the copier or Xerox supplied materials you may c all the foll owing number:

Europe: +44 (0)1707 353434 USA: 1800 928 6571

Laser Safety Information

This equipment is certified as a Class 1 laser product under the U.S. Department of Health and Human Services (DHHS) Radiation Performance Standard according to the Radiation Control for Health and Safety Act of 1968. This means that the facsimile does not produce hazardous laser radiation.

All laser light emitted inside the facsimile is completely confined within protective housings when any part of the facsimile is opened. This means that the facsimile is safe to use during normal operation and maintenance.

WARNING Adjustment or performance of procedures other

than those specified herein may result in hazardous laser exposure. Only trained and qualified personnel may open covers or remove parts that are not explicitly shown and described

in the WorkCentre Pro 555/575 User’s Guide as being accessible to the operator.

The Center for Devices and Radiological Health (CDRH) of the U.S. Food and Drug Administration implemented regulations for laser products in 1976. These regulations apply to laser products

WorkCentre Pro 555/575 A-3

manufactured from August 1, 1976. Compliance is mandatory for products marketed in the United States. The WorkCentre Pro is in compliance with the CDRH regulation.

The equipment also complies with laser product performance standards set by governmental, national and international agencies as a Class 1 Laser Product.

Third Party Certification

The Xerox WorkCentre Pro 555/575 is certified by various bodies in compliance with national and international safety standards.

120v 60Hz Nominal Markets:

Underwriter Laboratories Inc., UL 1950, Third Party Edition, within reciprocity agreements which include requirements for Canada.

230v, 50 Hz Nominal Markets:

IEC950: 1991 including A1, A2, A3 and A4. The Xerox WorkCentre Pro 555/575 is manufactured under an ISO

9002 quality registration scheme.

Radio Frequency Emissions USA

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off an on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and the receiver.

• Connect the equipment into an outlet on a circuit different from

that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for

help.

A-4 WorkCentre Pro 555/575

Changes or modifications to this equipment not specifically approved by the Xerox Corporation may void the users authority to operate this equipment.

WARNING Shielded cables must be used with this equipment to

maintain compliance with FCC regulations

WorkCentre Pro 555/575 A-5

European Certification

Approvals and Certification

The CE marking applied to this product symbolizes Xerox Limited Declaration of Conformity with the following applicable Directives of the European Union as of the dates indicated:

January 1, 1995: Council Directive 73/23/EEC amended by Council Directive 93/68/EEC, approximation of the laws of the member states related to low voltage equipment.

January 1, 1996: Council Directive 89/336/EEC, approximation of the laws of the member states related to electromagnetic compatibility.

March 9, 1999: Council Directive 99/5/EEC approximation of the laws of the member states related to R&TTE.

A full declaration, defining the relevant directives and referenced standards can be obtained from your Xerox Limited representative or by contacting:

Xerox Limited Environmental Health and Safety, Xerox Limited Technical Centre, PO Box 17, Bessemer Road, Welwyn Garden City, Herts AL7 1HE, England

Telephone: +44(0)1707 353434

WARNING This product is certified manufactured and tested in

compliance with strict safety and radio frequency interference regulations. Any unauthorized alteration which includes the addition of new functions or the connection of external devices may impact this certification. Please contact your local Xerox Limited representative for a list of approved accessories.

A-6 WorkCentre Pro 555/575

WARNING In order to allow this product to operate in proximity to

industrial, Scientific and medical (ISM) equipment, the external radiation from the ISM equipment may have to be limited or special mitigation measures taken.

WARNING Shielded cables must be used with this equipment to

maintain compliance with Council Directive 89/336/EEC.

UK Electricity at Work Regulation

The Electricity at Work Regulation 1989 came into force in England and Wales on the 1 April 1990. This 1989 Regulation places a duty on all employers and self-employed persons to ensure the electrical system in their premises are constructed, maintained and operated in such a manner as to prevent, so far as reasonably practical, danger. This includes ensuring all electrical equipment connected to such electrical systems are sa fel y con struc te d, main tained and ope ra ted.

All Xerox equipment have been designed to exacting safety standards. They have all undergone a variety of stringent safety tests including earth bond, insulation resistance and electrical strength tests. Xerox Limited manufacturing plants have been awarded ISO 9000 quality certification and are subject to regular audits by the British Standards Institution or equivalent national standards body.

Xerox equipment which has been properly and regularly serviced and maintained should not have to undergo additional specific safety tests pursuant to the 1989 Regulation. Customers wishing to complete safety testing should contact Xerox Limited Technical Centre (see page 1) for advice prior to any test implementation.

Xerox equipment should, however, be properly and regularly serviced and maintained at all times.

QUESTION: What is the Electricity at Work Regulation? ANSWER: The Electricity at Work Regulation 1989 came into force in

England and Wales on the 1 April 1990. This 1989 Regulation places a duty on all employers and self-employed persons to ensure the electrical systems in their premises are constructed, maintained and operated in such a manner as to prevent, so far as reasonably

WorkCentre Pro 555/575 A-7

practicable, danger. This includes ensuring all electrical products connected to such electrical systems are safely constructed, maintained and operated.

QUESTION: Does Xerox Limited comply with the Electricity at Work Regulation?

ANSWER: The regulation places a duty on all employers and

self-employed persons to ensure the electrical systems in their premises are, effectively safe.

The regulation does not impose on, amongst others, manufacturers or suppliers of such electrical systems. However, rest assured that all Xerox equipment which Xerox Limited and its authorized distributors supplies to customers, conform with all the relevant safety legislation and standards.

QUESTION: Is Xerox equipment safe? ANSWER: All Xerox equipment supplied by Xerox Limited and their

authorized distributors conform to all relevant safety legislation and standards.

QUESTION: Is the Xerox equipment in my premises safe? ANSWER: All Xerox equipment supplied by Xerox Limited and their

authorized distributors conform to all relevant safety legislation and standards. However, like all electrical equipment, they have to be regularly serviced and maintained by competent persons.

Xerox Limited Customer Service Engineers ensure Xerox equipment is serviced and maintained to exacting Xerox safety standards. If you would like your Xerox equipment to be serviced and maintained to such high standards, please contact your local Xerox Limited Customer Service Organization. They will be pleased to assist you.

QUESTION: Does the Xerox equipment in my premises comply with the Electricity at Work Regulations?

ANSWER: All employers and self-employed persons must ensure

that the electrical systems in their premises are safe. This will include ensuring Xerox equipment in such premises is safe.

Xerox Limited’s Product Safety function has prepared a guide which contains a list of tests which may be completed by your Xerox Limited Customer Service Organization. THESE TESTS MUST BE

CARRIED OUT ONLY BY PERSONS WHO POSSESS THE RELEVANT SKILL, KNOWLEDGE AND EXPERIENCE TO CARRY OUT SUCH TESTS.

Please contact the Xerox Limited Customer Service Organization for further information.

A-8 WorkCentre Pro 555/575

THE USE OF INAPPROPRIATE TEST PROCEDURES AND TEST EQUIPMENT MAY PROVIDE MISLEADING RESULTS AND MAY CAUSE DEATH, PERSONAL INJURY AND/OR DAMAGE TO PROPERTY.

QUESTION: I would like to carry out my own safety tests on the Xerox equipment in my premises.

ANSWER: Y ou may, of course, request such tests as you deem

necessary to satisfy yourself that your Xerox equipment is safe. Your Xerox Limited Customer Support will be pleased to advise you on such testing.

QUESTION: I require records of all tests ANSWER: After safety testing, your Xerox Limited Customer Service

Engineer will provide you with a certificate which details the results of all tests completed.

In the event of any defect being noted, the Xerox equipment will be switched off and disconnected from the supply until the defect has been corrected. You will be advised of such action to enable such defects to be corrected.

PLEASE NOTE: YOU MUST ENSURE THAT YOUR XEROX EQUIPMENT IS SAFE AT ALL TIMES

Please contact us if you have any queries regarding the information provided in this document.

Xerox Limited Environmental Health and Safety, Xerox Limited Technical Centre, PO Box 17, Bessemer Road, Welwyn Garden City, Herts AL7 1HE, England

WorkCentre Pro 555/575 A-9

Environmental Compliance

ENERGY STAR

Xerox Corporation designed this product to comply with the guidelines of the ENERGY ST AR program of the Environmental Protection Agency. As an EN ERGY STAR Partner, Xerox has determined that this copier model meets the ENERGY STAR guidelines for energy efficiency.

Low Power and Sleep Mode The Workcentre Pro 555/575 switch to a

standby mode of operation when each task has been completed.

In this mode of operation the power

consumption is less than the ’Sleep Mode’ energy efficiency limit required to satisfy energy start requirements.

The machine recovers from standby mode when any task is initiated within 20 seconds.

Environmental ChoiceM

120v, 60Hz products for Canada.

Terra Choice Environmental Services Inc, of Canada has verified that this Xerox product conforms to all applicable Environmental Choice EcoLogo requirements for minimized impact on the environment.

A-10 WorkCentre Pro 555/575

SWISS ENERGY 2000

Xerox Corporation has designed and tested this product to meet the energy restrictions required by Swiss Energy 2000 compliance has been notified to the registration authorities.

Recycled Paper

The WorkCentre Pro 555/575 has established performance with the use of recycled paper with its consequent benefits to the environment. Xerox recommends part numbers:

3R94565, A4 stock, 80g/m 3R6296, 8.5 x 11 inch stock, 80 g/m

The paper contains 50% post consumer content and can be obtained through Xerox and many other office suppliers.

500 sheets

WorkCentre Pro 555/575 A-11

Telecommunications Requirements

European Fax Approvals and Certification

This Xerox product has been self-certified by Xerox for pan-European single terminal connection to the analogue public switched telephone network (PSTN) in accordance with Directive 1999/5/EC.

The product has been designed to work with the national PSTNs and compatible PBXs of the following countries:

Austria Germany Luxembourg Sweden Belgium Greece Netherlands Switzerland Denmark Iceland Norway United Kingdom France Ireland Portugal Finland Italy Spain In the event of problems, you should contact your local Xerox

representative in the first instance . The product has been tested against TBR21. To assist in the use and

application of terminal equipment which complies with this standard, the European Telecommunication Standards Institute (ETSI) has issued an advisory document (EG 201 121) which contains notes and additional requirements to ensure network compatibility of TBR21 terminals. The product has been designed against, and is fully compliant with, all of the relevant advisory notes contained in this document.

The product may be configured to be compatible with other country networks. Please contact your Xerox representative if it needs to be reconnected to another country’s network. There are no user-adjustable settings in the product.

NOTE: Although this product can use either loop disconnect (pulse) or DTMF (tone) signalling it is recommended that it is set to use DTMF signalling. DTMF signalling provides reliable and faster call set-up.

Modification, connection to external control software or to external control apparatus not authorised by Xerox, will invalidate its certification.

A-12 WorkCentre Pro 555/575

FCC Regulations

Send Header Requirements

Federal Communications Commission (FCC) regulations require all persons within the United States who send any message via a facsimile machine to include an identifying message in the transmission. The message must clearly contain an identifier and telephone number for the entity (business or individual) sending the message.

This facsimile machine provides the local ID and name features required for the FCC regulation. To satisfy the FCC regulation, the telephone number and name must be included with the printed document. To comply with the FCC rules, carefully read and follow the instructions listed in this document to program the local ID and name.

Data Coupler Information

This Xerox WorkCentre Pro 555/575 machine contains an internal data coupler. Its use is restricted by the FCC (Federal Communications Commission). To comply with the FCC rules, you must carefully read and follow the instructi ons listed bel ow.

This equipment complies with Part 68 of the FCC rules. On the rear of this equipment is a label that contains, among other inf ormati on , the FCC registration number and Ringer Equivalence Number (REN). If requested, provide this information to your telephone company.

The REN is useful to determine the quantity of devices you may connect to your telephone line and still have all of those devices ring when your number is called. In most, but not all areas, the sum of the RENs of all devices should not exceed five (5.0). To be certain of the number of devices you may connect to your line, as determined by the REN, you should call your local telephone company to determine the maximum REN for your calling area.

WARNING Ask your local telephone company for the modular jack type

installed on your line. Connecting this machine to an unauthorized jack can severely damage telephone company equipment. You, not Xerox, assume all responsibility and/or liability for any damage caused by the connection of this machine to an unauthorized jack.

WorkCentre Pro 555/575 A-13

You may safely connect the machine to the following standard modular jack: USOC RJ-11C. Use the standard line cord (with modular plugs) provided with the installation kit to connect it.

An FCC compliant telephone cord and modular plug is provided with this equipment. This equipment is designed to be connected to the telephone network or premises wiring using a compatible modular jack which is Part 68 compliant.

Do not connect this machine to a party or coin operated phone line. Repairs to the machine should be made only by a Xerox

representative or an authorized Xerox service agency. This applies at any time during or after the service warranty period. If unauthorized repair is performed, the remainder of the warranty period is null and void.

If you find the telephone line is damaged or the telephone company notifies you that your machine is causing damage, disconnect the machine from the telephone line and call for service. Do not reconnect the machine until necessary repairs are made.

The telephone company will, where practical, notify you when they need to temporarily disconnect service. However, if action is reasonable and necessary, but prior notice is not practical, they may still temporarily disconnect your service. In such cases they must:

Immediately notify you of their temporary action. Reconnect service when the source of damage is removed. Inform you of your rights to bring a complaint to the FCC under FCC

rules. The telephone company may make changes to its communications

facilities, equipment, operations, or procedures. Such action must be reasonable, required in the operation of their business, and consistent with FCC rules. They must give you prior written notification if the changes can:

Make your machine incompatible with their equipment. Require modification or alteration of the machine. Otherwise physically affect performance of the machine.

A-14 WorkCentre Pro 555/575

WARNING When programming emergency numbers and/or making test

calls to emergency numbers: Remain on the line and briefly explain to the dispatcher the

reason for the call before hanging up. Perform such activities in the off-peak hours, such as early

morning hours or late evenings.

Canadian Certification

Notice: The Industry Canada Label on the machine identifies certified

equipment. This certification means that the equipment meets certain telecommunications networks protective, operational and safety requirements. Industry Canada does not guarantee the equipment will operate to the user’s satisfaction.

Before installing this equipment, users should ensure that it is permissible to be connected to the facilities of the local telecommunications company. The equipment must also be installed using an acceptable method of connection. In some cases, the company’s inside wiring associated with a single line individual service may be extended by means of a certified connector assembly (telephone extensio n cord) .

The customer should be aware that compliance with the above conditions may not prevent degradation of service in some situations.

Repairs to certified equipment should be made by an authorized Canadian maintenance facility designated by the supplier. Any repairs or alterations made by the user to this equipment, or equipment malfunctions, may give the telecommunications company cause to request the user to disconnect the equipment.

Users should ensure for their own protection the electrical ground connections of the power utility, telephone lines and internal metallic water pipe system, if present, are connected together. This precaution may be particularly important in rural areas.

CAUTION

Users should not attempt to make s uch connections themselves, but should contact the appropriate electric inspection authority or electrician, as appropriate.

WorkCentre Pro 555/575 A-15

Notice: The Ringer Equivalence Number (REN) assigned to each terminal device provides an indication of the maximum number of terminals allowed to be connected to a telephone interface. The termination on an interface may consist of any combination of devices subject only to the requirement that the sum of the Ringer Equivalence Numbers of all the devices does not exceed 5.

This digital apparatus does not exceed the Class A limits for radio noise emissions from digital apparatus set out in the Radio Interference Regulations of Industry Canada.

Cet appareil numérique est conforme aux limites d'émission de bruits radioélectriques pour les appareils de classe A stipulées dans le Règlement sur le brouillage radioélectrique du ministère des Industries du Canada.

A-16 WorkCentre Pro 555/575

Index

Activity Key

described

ADF

see also

document size document specifications 3-17 loading documents 3-17–3-20

alarms

lights, described

alpha dialing

key

alphabet

Alphabet Phonebook phonebook 3-26

Alphabet Phonebook 3-26 automatic document feeder

see also

document size document specifications 3-17 loading documents 3-17–3-20

avoiding document jams 4-12

batching

described

battery 2-1

calendar

setting the date and time

Cancel Job Key

described

cassette

2-13

document feeder

3-17

2-10

3-26

document feeder

3-17

2-3

2-11

3-3

see

paper tray causes of document jams Charge Code Key

described

clearing

document jams paper jams 4-1

communication lights

described

communication mode 2-15 communications

communication lights communication modes 2-15 group dialing, described 2-2

components

control panel, listed

confirmation tone 2-14 consumables

paper

contrast

see also

changing

Contrast Key

described

control panel 2-8–2-13

components, listed 2-9 described 2-4 direct access function keys, described

2-13

2-9

3-11

resolution

3-20

2-11

4-12

2-9

2-13

document jams 4-12 function keys, described 2-9–2-13 illustrated 2-8

Copy Key

described

copy mode 2-16 copying 3-21

2-11

WorkCentre Pro 555/575 INDEX-1

preventing document jams

darken contrast 3-20 date

setting

3-3

Delete Key

described

dial directory

see also

dial mode

setting

Direct Access Function Keys

described

Direct Send Key

described

disabling

receive footer send header 3-9

display

see also

document feeder

document specifications

document guides

described

document jams 4-12

causes 4-12 clearing 4-12 paper types to avoid 3-17

document out tray

described

document size 3-17 document tray

loading documents maximum documents 3-17

documents

document jams loading 3-17–3-20 specifications 3-17 types to avoid 3-17

Down Arrow Key

described

2-9

one touch phonebook

3-8

2-13 2-13

3-10

LCD

2-4

3-17

4-12

2-9

4-12

3-17

enabling

receive footer send header 3-9

enriched system functions

described

Enter Key

described

environmental compliance A-1–A-16

ENERGY STAR A-10 Environmental Choice A-10 SWISS ENERGY 2000 A-11

extended tone 2-14

3-10

2-2 2-10

fax communications

see

receiving documents, retrieving doc-

uments, transmitting

fax headers

setting

features

hardware features, listed system features, listed 2-2–2-3

fine resolution 3-19 footer

enabling

function keys

described

3-9

2-4

3-10

2-9–2-13

group dialing

described group phonebook 3-25 Manual Group Key 2-11

Group Phonebook 3-25

2-2

halftone

see

photo, resolution

hardware features

listed

2-4

header

INDEX-2 WorkCentre Pro 555/575

enabling

3-9

setting the machine ID

idle mode 2-1

see also

Insert Key

described

installation instructions

space requirements system requirements 2-6

standby mode

2-10

3-6

2-7

Job Status Key

described

junk mail

described

2-12 2-3

keys

direct access function keys function keys 2-9–2-13

2-13

language

setting

3-2

laser safety A-3 LCD

communication mode described 2-9 menu mode 2-16 standby mode 2-15

LEDs

alarm lights, described communications lights, described 2-9

Left Arrow Key

described

lighten contrast 3-20 lists

see also

group numbers

2-9

reports

2-15

2-10

3-25

phonebook reports 3-22–3-25

loading documents 3-17–3-20

machine

hardware features overview 2-1 system features 2-2–2-3 tones 2-14

machine ID

setting

3-6

machine language

setting

3-2

mail

refuse junk mail, described

mailbox communications

described

maintaining the machine

paper, replacing

Manual Dial Key

described

Manual Group Key

described

maximum document size 3-17 memory

paper jams

Menu Key

described

menu mode 2-1, 2-16 menus

see also

minimum document size modes of operation 2-15–2-16

communication modes 2-15 copy mode 2-16 menu mode 2-16 PC printing mode 2-16 standby mode 2-15

multi access

described

2-2

2-11 2-11

4-1

2-9

menu mode

2-2

2-4–2-5

3-11

3-17

2-3

WorkCentre Pro 555/575 INDEX-3

normal contrast 3-20 Numeric Keypad

described

2-10

one touch dialing

see also

described One Touch Phonebook 3-24

one touch keys

see also

described

One Touch Phonebook 3-24 operation modes 2-15–2-16

communication mode 2-15 copy mode 2-16 menu mode 2-16 standby mode 2-15

operator control panel 2-8–2-13

see also

output tray

document out tray, described

one touch keys

2-2

speed dialing

2-12

control panel

2-4

phonebook reports 3-22–3-25

alphabet 3-26 group 3-25 one touch 3-24 speed dial 3-23

Photo 3-19 power saver mode

described

print darkness

setting the contrast

printing

from a PC phonebook reports 3-22–3-25

programming

date and time dial mode 3-8 language 3-2 machine ID 3-6

pulse dial mode 3-8

see also

2-3

3-20

2-1

3-3

dial mode

quick start 3-21

page numbers

receive footer send header 3-9

paper

document specifications paper jams 4-1–4-11 replacing 3-11

paper jams 4-1–4-11 paper quality

avoiding document jams

paper tray

replacing paper

Pause Key 2-10 PC printing mode 2-16 Phonebook Key

described used 3-22

INDEX-4 WorkCentre Pro 555/575

3-10

3-17

4-12

3-13

2-13

receive footer

enabling

receiving documents 3-21

paper jams 4-1

recording

on plain paper

Redial/Pause Key

described

refuse junk mail

described

reports

Alphabet Phonebook Group Phonebook 3-25 One Touch Phonebook 3-24 Speed Dial Phonebook 3-23

requirements

space

3-10

2-2 2-10 2-3

2-7

3-26

system

resolution

see also

changing high resolution, described 2-2 for scanning 3-19 selections 3-19

Resolution Key

described selecting the scan resolution 3-19

Right Arrow Key

described

2-6

contrast

3-19

2-11

2-9

safety certification A-1–A-16

Canada A-15 CE marking A-6 European certification A-6 fax approvals A-12 FCC regulations A-13

safety requirements

ampere ratings building codes A-2 cleaning A-1 covers A-2 data coupler A-13 earthing A-2 energy saving A-2 extension cord A-2 fuser area A-3 grounding A-2 guards A-2 insurance requirements A-2 interlock switches A-2 laser safety A-3 location A-2 ozone A-3 power source A-2 radio frequency emissions A-4 send header A-13 telecommunications requirements

A-12–A-16

UK electricity at work regulation A-7

A-2

ventilation A-2 warnings A-1

scan resolution

changing

scanning

setting the contrast setting the resolution 3-19

send header

enabling

sending documents 3-21 sequential transmiss io ns

see

setting

contrast date and time 3-3 dial mode 3-8 language 3-2 machine ID 3-6 receive footer 3-10 resolution 3-19

send header 3-9 single tone 2-14 space requirements 2-7 specifications

documents speed dial keys

see

speed dial numbers

phonebook Speed Dial Phonebook 3-23 Speed Dial/Alpha/Group Key

described speed dialing

described

Speed Dial Phonebook 3-23 standard resolution 3-19 standby mode 2-1, 2-15 Start Key

described Stop Key

described super fine resolution 3-19 system features

3-19

3-20

3-9

batching

3-20

3-17

speed dial numbers

3-23

2-10 2-2

2-10 2-10

WorkCentre Pro 555/575 INDEX-5

2-2–2-3

listed requirements 2-6

system menu

system password

3-6

time

setting

3-3

tone dial mode 3-8 tones 2-14 tray

described

troubleshooting 4-1–4-14

document jams 4-12 paper jams 4-1–4-11

2-4

WorkCentre Pro 745

hardware features overview 2-1 system features 2-2–2-3 tones 2-14

2-4

INDEX-6 WorkCentre Pro 555/575

Xerox Pro 575 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

XEROX

Table of Contents

1 How to Use This Manual

Finding Information in the User’s Guide

Information provided by the Advanced Features Guide (AFG)

Document Conventions

1. Press:

2. Select where you want the fax header to be printed: To print the header in the document area, press .

Notes, Cautions, and Warnings

2 Introduction

System Overview

System Features

Hardware Features

System Requirements

Space Requirements

Control Panel

Control Panel Components and Function Keys

Direct Access Function Keys

Tones

Operation Modes

Standby Mode

Communication Mode

Copy Mode

Menu Mode

PC Printing Mode

3 Getting Started

Printing a Menu Map

1. Press:

2. The Menu Map prints, then the machine returns to the Standby mode.

Setting the Machine Language

1. Press:

Setting the Date and Time

1. Press:

3. Select the Date format. To display the date in the order of Month/Day/Year (4-digit), press .

4. Select the Month format. To display the Month number, press .

5. Select the Time format: To select 24 hour format, press .

Setting your Machine ID*

1. Press:

3. Select the Country Code option: To enter a Country Code, press . To skip entering a Country Code, press .

Setting the Dial Mode*

1. Press:

2. Select the Dial Mode.

Setting the Send Header

1. Press:

2. Select where you want the fax header to be printed. To print the header in the document area, press .

Setting the Receive Footer

1. Press:

2. Select the Receive Footer option: To enable the Receive Footer, press .

Loading Paper

Bypass Tray:

1. Raise the Document Output Tray and open the Paper Guide.

2. Insert one sheet of paper into the Bypass Tray.

3. Adjust the Paper Guides so that both sides of the paper are secure.

4. Lower the Document Output Tray.

Paper Tray:

1. Raise the Document Output Tray and remove the Bypass Tray.

2. Open the Paper Guides.

3. Do not fan the paper. Make sure that the corners of the paper are neatly aligned.

4. Insert up to 250 sheets into the Paper Tray. Secure the stack by adjusting the Paper Guides.

Setting the paper size

1. Press:

2. Select the paper size: To select Letter size paper, press .

Loading Documents

Document Specifications

Selecting the Scan Resolution

Selecting the Scan Contrast

Quick St a rt

To Receive

To Send

1. Load a document face down in the Document Tray.

2. Using the Numeric Keypad, enter the telephone number of the remote fax.

To Copy

1. Load a document face down in the Document Tray.

3. Enter the number of copies.

To Print

1. Install the print drivers supplied with your WorkCentre following the instructions on the CD.
