Xerox 92C IPS User Manual 2

Xerox DocuPri n t 92C IPS Guide to Configuring and Managing the System

Version 7.1 August 2000 721P89180

Xerox Corporation Printing Systems Documentation and Education 701 South Aviation Boulevard, ESM1-058 El Segundo, CA 90245

copyrightable material and information now allowed by statutory or judicial law or hereinafter granted, including without limitation, material generated from the software programs which are displayed on the screen, such as icons, screen displays, looks, etc.

Printed in the United States of America. Publication number: 721P89180 Xerox® and all Xerox products mentioned in this publication are

trademarks of Xerox Corporation. Products and trademarks of other companies are also acknowledged.

Changes are periodically made to this document. Changes, technical inaccuracies, and typographic errors will be corrected in subsequent editions.

Laser safe ty

Warning: Adjustments, use of controls, or performance of

procedures other than those specified herein may result in hazardous light exposure.

The Xerox DocuPrint printers are certified to comply with the performance standards of the U.S. Department of Health, Education, and Welfare for Class 1 laser products. Class 1 laser products do not emit hazardous radiation. The DocuPrint printers do not emit hazardous radiation because the laser beam is completely enclosed during all modes of customer operation.

The laser danger labels on the system are for Xerox service representatives and are on or near panels or shields that must be remo ved with a to ol. DO NOT REMOVE LABELED PANELS OR

PANELS NEAR LABELS. ONLY XEROX SERVICE REPRESENTATIVES HAVE ACCESS TO THESE PANELS.

Ozone information

This product produces ozone during normal operation. The amount of ozone produced depends on copy volume. Ozone is heavier than air. The environmental parameters specified in the Xerox installation instructions ensure that concentration levels are within safe limits. If you need additional information concerning ozone, call 1-800-8286571 to request the Xerox publication 600P83222, OZONE.

XEROX DOCUPRINT 92C IPS GUIDE TO CONFIGURING AND MANAGING THE SYSTEM iii

Operation safety

Your Xerox equipment and supplies have been designed and tested to meet strict safety requirements. They have been approved by safety agencies, and they comply with environmental standards. Please observe the following precautions to ensure your continued safety.

• Always connect equipment to a properly grounded electrical

outlet. If in doubt, have the outlet checked by a qualified electrician.

Warning: Improper connection of the equipment grounding

conductor may result in risk of electrical shock.

• Never use a ground adapter plug to connect equipment to an

electrical outlet that lacks a ground connection terminal.

• Always place equipment on a solid support surface with

adequate strength for its weight.

• Always use materials and supplies specifically designed for

your Xerox equipment. Use of unsuitable materials may result in poor performance and may create a hazardous situation.

• Never move either the printer or the Printer Controller without

first contacting Xerox for approval.

• Never attempt any maintenance that is not specifically

described in this documentation.

• Never remove any covers or guards that are fastened with

screws. There are no operator-serviceable areas within these covers.

• Never override electrical or mechanical interlocks.

• Never use supplies or cleaning materials for other than their

intended purposes. Keep all materials out of the reach of children.

• Never operate the equipment if you notice unusual noises or

odors. Disconnect the power cord from the electrical outlet and call service to correct the problem.

If you need any additional safety information concerning the equipment or materials Xerox supplies, call Xerox Product Safety at the following toll-free number in the United States:

1-800-828-6571

For customers outside the United States contact your local Xerox representative or operating company.

iv XEROX DOCUPRINT 92C IPS GUIDE TO CONFIGURING AND MANAGING THE SYSTEM

Table of contents

Laser safety iii Ozone information iii Ope rati on safety iv

Introduction ix

About this guide ix

Contents ix Conventions x

Related publications xi

1. Introduction to the graphical user interface 1-1

The graphical user interface screen 1-1 Using the user interface screens 1-3

Pull-down menus 1-3 Buttons 1-5 Moving a window or icon 1-6 Reducing a window 1-6 Entering in text 1-7 Exiting a window 1-8

IPS main window 1-9

Menus 1-10

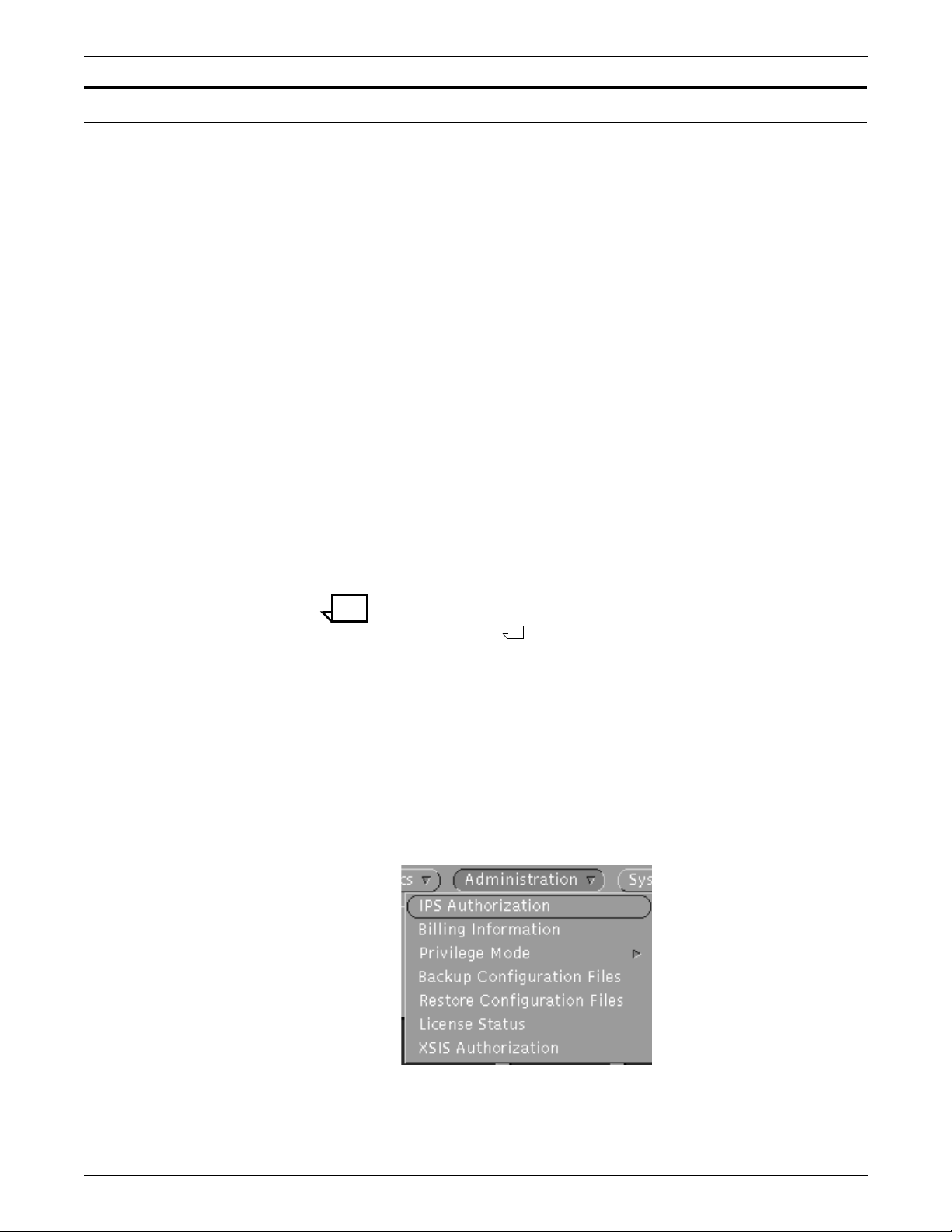

Configuration menu 1-10 Diagnostics menu 1-12 Administration menu 1-13

System Options menu 1-14 Input Configuration section 1-15 Output Configuration section 1-16 Setup and status information 1-18 Host Job Control section 1-20 Subwindow buttons 1-21

2. Starting and stopping the system 2-1

Powering on the IPS system 2-1 Powering off the IPS system 2-3

In routine operation 2-4 After a power outage 2-5

Communicating with the host computer 2-5

Placing the IPS online 2-5

XEROX DOCUPRINT 92C IPS GUIDE TO CONFIGURING AND MANAGING THE SYSTEM v

TABLE OF CONTENTS

Taking the IPS offline 2-5 Printer status 2-6

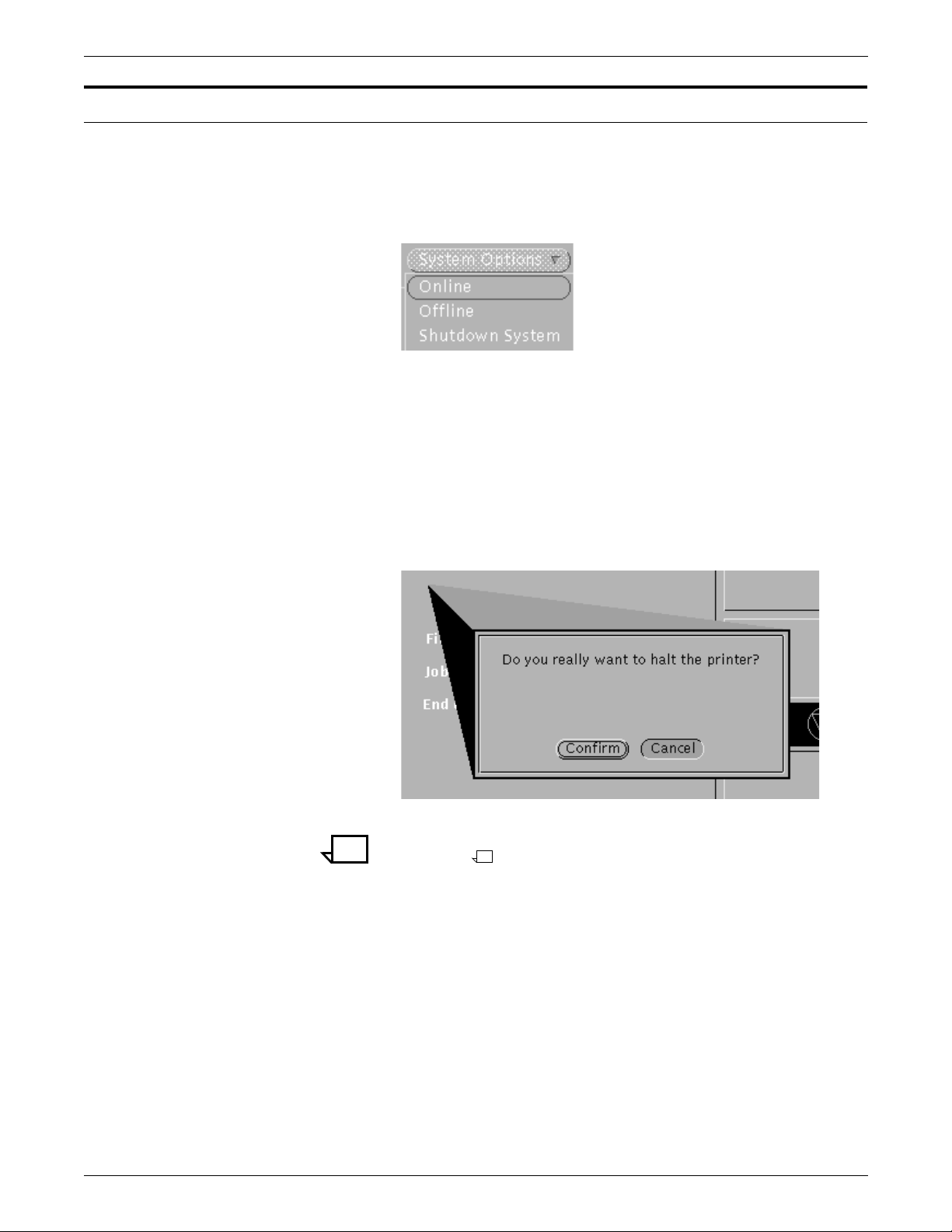

Starting a print job 2-6 Stopping the printer 2-6 Resuming printing 2-7 Automatic print j o b recove ry 2-7 Rebooting the Printer Controller 2-7 Exiting power saver mode 2-7 Removing media from the processor 2-8

3. Setting up the Printer Controller 3-1

Selecting a language 3-2 Specifying the system interface 3-3

Selecting channel interface 3-4 Selecting TCP/IP i n terface 3-5

Enabling or disabling the modem 3-6 Allocating memory for resources 3-7 Displaying and adding resident fonts 3-8

Displaying resident fonts 3-8 Adding resident fonts 3-9

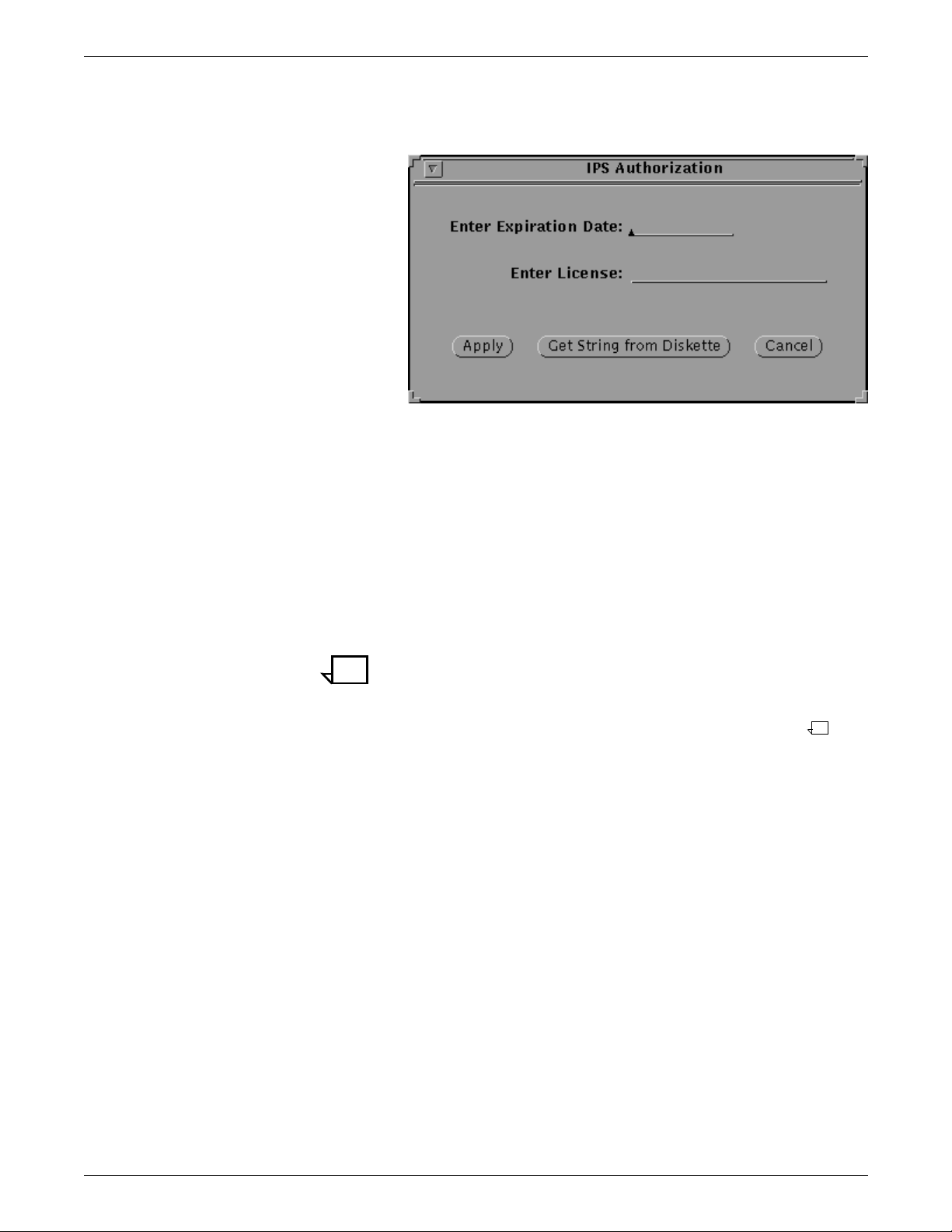

Loading the IPS software license text string 3-11 Switching modes (Dual Mode) 3-13

4. Setting the system configuration 4-1

Privilege Modes 4-2

Changing the Privilege Mode 4-3 Changing the password for a Privilege Mode 4-4

Accessing configuration tasks 4-5 Configuration menu tasks 4-5

Indicating the input resolution 4-6 Specifying the maximum simplex value 4-7 Specifying the extraction color for highlight color printing 4-8 Printing the IPS color samples 4-12 Rotating the page origin 4-13 Specifying the media units 4-15 Set ting optional processi ng para meters 4-16

Diagnostics menu tasks 4-18

Printing samples 4-18 Capturing and executing a trace 4-23

Capturing a trace 4-23

Executing a captured trace 4-25 Printing a trace file 4-26

vi XEROX DOCUPRINT 92C IPS GUIDE TO CONFIGURING AND MANAGING THE SYSTEM

TABLE OF CONTENTS

Setting of the debug level 4-27 Updating the software using a CD or a diskette 4-28 Updating the software remotely 4-29

System Options menu tasks 4-30 Specifying the input configuration 4-31

Example of an input configuration 4-32 Selecting simplex or duplex printing 4-33 Setting up margin values 4-34 Setting up the Media Library 4-35

Creating a media icon 4-36

Changing a media icon 4-41

Deleting a media icon 4-41

Editing the media defaults 4-41 Adding a new input configuration 4-43 Changing an input configuration file 4 -4 9 Deleting an input configuration file 4-50 Correcting a feeder tray mismatch error 4-51

Specifying the output configuration 4-52

Example of an output configuration 4-53 Creating a new output configuration 4-54 Changing an output configuration 4-61 Deleting an output configuration 4-62 Adding a DFA profile 4-62 Changing a DFA profile 4-66 Deleting a DFA profile 4-66

Backing up and restoring configuration files 4-67

Saving configuration files to diskette 4-68 Restoring configuration files from diskette 4-69

Index INDEX-1

XEROX DOCUPRINT 92C IPS GUIDE TO CONFIGURING AND MANAGING THE SYSTEM vii

TABLE OF CONTENTS

viii XEROX DOCUPRINT 92C IPS GUIDE TO CONFIGURING AND MANAGING THE SYSTEM

About this guide

Introduction

This Xerox DocuPrint 92C Guide to Configuring and Managing the System provides information on how to perform DocuPrint system

administration tasks for the DocuPrint 92C IPS.

This guide is intended for system administrators who are responsible for setting up and maintaining DocuPrint printers.

Users should have an understanding of Printer Controller operations and be familiar with SunOS and basic UNIX commands.

Some of the procedures described in this guide may be performed by the printer operator. For more information on printer operator tasks, refer to the other documents listed in the Related publications section.

Contents

Before using this guide, bec om e familiar with its contents and conventions.

This section lists the contents of this guide:

• Chapter 1, “Introduction to the graphical user interface,” gives

an overview of IPS windows and menus, and provides instructions on interacting with the screens.

• Chapter 2, “Starting and stopping the system,” describes how

to power on and off the system, how to start and stop job processing, and how to stop and restart the system.

• Chapter 3, “Setting up the Printer Controller,” provides

information on how to use the user interface to set up the Printer Controller to print your jobs.

• Chapter 4, “Setting the system configuration,” provides

information on how to use the user interface to configure various features of your IPS, including input and output trays.

An index is provided at the back of the guide.

XEROX DOCUPRINT 92C IPS GUIDE TO CONFIGURING AND MANAGING THE SYSTEM ix

INTRODUCTION

Conventions

This guide uses the following conventions:

• All caps and angle brackets — Within procedures, the names of

keys are shown in all caps within angle brackets (for example, press <ENTER>).

• Bold — Within procedures, text and numbers that you enter are

shown in bold (for example, enter cmd tool).

• “Enter” — Within procedures, the two-step process of keying in

data and pressing <RETURN> (for example, enter y).

• Italics — Document and library names are shown in italics (for

example, the Xerox DocuPrint 92C IPS Guide to Configuring and Managing the System).

• Capitalization of graphical user interface (GUI) window titles

matches the titles as they appear on the screen. In cases where a window does not have a title, it is referenced using all lower case. For example:

— At the graphical user interface, use the Output

Configuration window to group the trays.

— The main window displays the current system status.

Note: Notes are hints that help you perform a task or understand the text.

Caution: Cautions alert you to an action that could damage hardware or software.

Warning: Warnings alert you to conditions that could affect the

safety of people.

x XEROX DOCUPRINT 92C IPS GUIDE TO CONFIGURING AND MANAGING THE SYSTEM

Related publicat ion s

Xerox documen ts Following is a list of all Xerox DocuPrint IPS documents. For a

INTRODUCTION

This document is part of the Xerox DocuPrint IPS publication set.

complete list and description of available Xerox documentation, refer to the Xerox Customer Documentation Catalog (publication number 610P17517), or call your service representative.

Application Programmer/System Administrator Quick Reference Card

Customer Information Quick Reference Card Generic MICR Fundamentals Guide Glossary Guide to Configuring and Managing the System Guide to Performing Routine Maintenance Helpful Facts About Paper Installation Planning Guide Master Index Messages Guide Solutions Gu ide System Overview Gui d e Troubleshooting Guide Xerox Standard Font Library Font User Guide

The documentation set also includes an electronic version, the DocuPrint IPS Interactive Customer Documentation CD.

IBM documents Following are related IBM documents. Contact your local IBM

representative for ordering instructions for IBM AFP/PSF manuals that might be useful for your specific installation.

IBM 3825 Page Printer Product Description IBM Intelligent Printer Data Stream Reference IBM Advanced Function Presentation Printer Summary IBM ITSC Distributing AFP Printing from a Host System IBM Advanced Function Printing Data Stream Reference IBM Data Stream and Object Architectures: Mixed Object Document

Content Architecture Reference Guide to Advanced Function Presentation

XEROX DOCUPRINT 92C IPS GUIDE TO CONFIGURING AND MANAGING THE SYSTEM xi

INTRODUCTION

xii XEROX DOCUPRINT 92C IPS GUIDE TO CONFIGURING AND MANAGING THE SYSTEM

1. 1Introduction to the graphical

This chapter gives an overview of the graphical user interface (GUI) and provides instructions on how to use it to interact with the system.

With the user interface you perform operator and system administration tasks through a dynamic set of windows. Either a mouse or certain keyboard combinations are used to move between windows and select options. You enter commands through windows on the display screen.

The graphical user interface screen

After you power on the Host Channel Unit (HCU), if appropriate, and the Sun workstation, the Printer Controller monitor displays three windows:

user interface

• IPS main window

• IPS Console window

• IPS Print Engine Monitor window.

The I PS main window is the largest window on the screen. The main window displays the curr ent system setup, the current syst em status, and any jobs that are running. This window also provides access to menus and subwindows from which you can configure and operate your system.

The IPS Con sol e wi ndow displays messages that warn you of Printer Controller problems. The window also indicates the host job name as it is started and received by the system. This window initially displays below the IPS main window on the left, but it can be moved where desired.

Note: High frequency service indicator (HFSI) messages may appear occasionally in this window. These messages do not indicate any problem, merely that you should advise your service representative to check the indicated areas during the next service call.

The IPS P rin t Engine Monitor wi ndow shows printer error messages, indicates the printer status and displays printer and DFA messages. (This window initially displays below the IPS main window on the right, but it can be moved where desired.)

Figure 1-1 shows these windows on the screen of the Printer Controller monitor.

XEROX DOCUPRINT 92C IPS GUIDE TO CONFIGURING AND MANAGING THE SYSTEM 1-1

INTRODUCTION TO THE GRAPHICAL USER INTERFACE

Figure 1-1. Prin t e r C ontrol le r moni t o r with IPS main window,

IPS Console window, and IPS Print Engine Monitor window

1-2 XEROX DOCUPRINT 92C IPS GUIDE TO CONFIGURING AND MANAGING THE SYSTEM

Using the user interface screens

The graphical user interface screens contain various combinations of pull-down menus and dropdown lists, selection buttons, incremental spin boxes, and text fields by which you ca n interact with the system. The following describes how to use these screen features.

Pull-down menus

A pull-down menu or list is indicated by an inverted triangle within the menu title box or oval, to the right of the menu name.

Figure 1-2. Example of a pull-down menu title button from the

Types of pull-down menus You w ill encount er two t ype s of pull-down menus on the IPS

windows:

INTRODUCTION TO THE GRAPHICAL USER INTERFACE

IPS m a in window

• File pull-down men us . These menus contain options that are

actually files. When you select an option, the system retrieves that file. The top line of a file pull-down menu displays the directory path the system takes to retrieve the file you select.

Examples of this type of pull-down menu include Input and Output Group Name menus and DFA Profile menus.

Figure 1-3. Example of a file pull-down menu

• Standard pull-down menus display the options to be selected.

Figure 1-4. Example of a standard pull-down menu

XEROX DOCUPRINT 92C IPS GUIDE TO CONFIGURING AND MANAGING THE SYSTEM 1-3

INTRODUCTION TO THE GRAPHICAL USER INTERFACE

Selectin g f rom a pul l-down menu There are two methods of accessing items from a pull-down menu:

• Click method:

1. Position the cursor over the menu box or oval and click the right mouse button. The menu options display.

2. With either mouse button, click the option you want. The menu disappears and the screen for your selection is displayed.

• Drag method:

1. Position the cursor over the menu box or oval and hold down the right mouse button. The menu options display.

2. Continue to hold down the right mouse button while you drag the cursor to the option you want.

3. Release the mouse button when the cursor is on your selection. The menu disappears and the screen for your selection is displayed.

Notes on pul l-down menu s Here are a few things to remember about pull-down menus:

• Clicking a pull-down menu with the left mouse button selects

the first option on the menu/list. (Clicking with the right button displays the entire menu.)

• Only one menu item window can be displayed at a time.

Therefore, close a currently open window before opening a new one.

• On so me o f th e IP S su b wi n do w s , t h e se l ec t i on y o u ma k e f r om a

pull-down menu is displayed in the lower-right cor ner of the window. It remains until you close the window or enter a selection/value elsewhere on that same window.

Figure 1-5. Window dis pl aying the selectio n m ade fr om a pull-

down me nu (lower-righ t corner )

1-4 XEROX DOCUPRINT 92C IPS GUIDE TO CONFIGURING AND MANAGING THE SYSTEM

Buttons

INTRODUCTION TO THE GRAPHICAL USER INTERFACE

A selection button displays as an oval or box (except for the Stop and Continue buttons) containing a function name, but no inverted triangle.

Figure 1-6. Example of a selection button from the IPS main

window

Cancel Job

To use a button:

1. With the cursor positioned over the button, click the left mouse button.

2. If the selection button is a toggle (turning a selection on/off), you can alternately select and deselect it by repeatedly clicking it with the left mouse button.

Incremental spin buttons An incremental spin button consists of a line displaying a numeric

value, with buttons next to it containing arrows.

Figure 1-7. Example of incremental spin buttons

To select an item that has incremental spin buttons:

1. Position the cursor on the triangle (up arrow) button to increase the value displayed, or on the inverted triangle (down arrow) to decrease the value.

2. Repeatedly click or hold down the left mouse button until your desired value is displayed.

Note: You can also enter the values on the line next to the spin butto ns. Refer to “Entering text,” later in this chapter.

Note: On some windows, the value you enter or select is displayed in the lower-left or -right corner of the window. It remains until you close the window or enter a selection/value elsewhere on that same window.

XEROX DOCUPRINT 92C IPS GUIDE TO CONFIGURING AND MANAGING THE SYSTEM 1-5

INTRODUCTION TO THE GRAPHICAL USER INTERFACE

Moving a window or icon

Windows and icons may be moved and repositioned where you want them on the screen. You may need to do this when a window you display covers all or part of another window you also need to see.

Drag and drop procedure To move an item on the screen:

This procedure is often referred to as “drag and drop.”

Uncovering a window Clicking with the l eft mouse button on a window’s title bar places that

window in front (or on top) of any icons or windows that are overlapping it. You would do this if you want to view an entire window that is partially covered by other windows or icons you do not want to close.

1. Position the cursor on the icon or on the title bar of the window you want to move.

2. Hold down the left mouse button while moving the cursor to the desired location. The window or icon moves with the cursor as long as you hold down the mouse button.

3. Release the mouse button when the item is where you want it.

Reducing a window

If the title bar of the window you want is completely covered, use the “Front” key on the keyboard, or drag and drop the other windows away to expose enough of the title bar to click on. (Refer to “Drag and drop procedure,” above.)

There are two ways to “shrink” a window on the screen, that is, to get it out of your way without closing it:

• Resizing from the corner: Position the cursor on one of the

window’s corners and hold down the left mouse button. A small, target-shaped icon displays at the point of the cursor. Drag the corner of the window in the desired direction to shrink or expand the window. (You are not able to resize the window if the

“target” icon is not displayed.)

• Reducing to an icon: If a window has a button containing an

inverted triangle in the upper left corner on the title bar, you can reduce the window to an icon on the screen background by single-clicking the triangle button. To restore the window to its original size, double-click that icon with the left mouse button.

Note: Reducing a window to an icon does not in any way interfere with any ongoing process that was initiated from that window. It does not close the window.

1-6 XEROX DOCUPRINT 92C IPS GUIDE TO CONFIGURING AND MANAGING THE SYSTEM

Entering in text

INTRODUCTION TO THE GRAPHICAL USER INTERFACE

Some windows contain lines on which you can enter text such as file names or numeric values. At the beginning of a text field, there is a small icon. This icon displays as a dark triangle when the cursor is positioned anywhere in the window containing the text field. When the cursor is outside the window, the icon on the line becomes a grayed-out diamond shape, and you canno t enter text in the field.

Here are some rules for entering text on a window:

• If a window contains more than one text field, click the left

mouse button on the text field you want t o use, before beginning to type.

• You can enter text only when the line displays the dark triangle

icon. Text that you enter displays in front of the triangle.

• To highlight or select text in a text field:

1. Position the cursor at the beginning or the end of the text you are selecting.

2. Holding down the left mouse button, drag the cursor to the right or left until the desired text is highlighted.

3. Release the mouse button.

• To delete text in a text field, do either of the following:

— Position the cursor to the right of the text to be deleted and

press either <DELETE> or <BACKSPACE>. This erases the character to the left of the cursor. If you hold down either of these keys, characters continue to be deleted to the left until you release the key or all characters are erased.

— Highlight the text you want to delete, then press

<DELETE> or <BACKSPACE>.

• To move text:

1. Highlight the text to be moved.

2. Position the cursor on the highlighted text.

3. Holding down the left mouse button, drag the highlighted text to the right or left on the same line, or to another line on the same window, and release the mouse button.

Note: You cannot drag text from one window to another.

XEROX DOCUPRINT 92C IPS GUIDE TO CONFIGURING AND MANAGING THE SYSTEM 1-7

INTRODUCTION TO THE GRAPHICAL USER INTERFACE

Exiting a window

You can exit most IPS windows by clicking the left mouse button on a Quit, Done, or Cancel button. Sometimes an Apply button closes the window after applying what has been specified or selected.

Pin buttons In addition, on certain windows, there is a small button in the shape

of a push-pin in the upper-left corner on the title bar (illustrated in the fol lowing ex amples).

• If the pin is “out:”

Figure 1-8. Window wit h pi n bu t t on “out”

— You can exit the window by double-clic king the pin button. — The window automatically closes after you make a

selection from it.

— To change the pin to the “in” position, single-click the pin

button.

• If the pin is “in:”

Figure 1-9. Upper-lef t port io n of a wind ow wi t h pi n butt on “in”

— You can exit the window by single-clicking the pin button. — The window remains open after you make selections from

it.

1-8 XEROX DOCUPRINT 92C IPS GUIDE TO CONFIGURING AND MANAGING THE SYSTEM

IPS main window

INTRODUCTION TO THE GRAPHICAL USER INTERFACE

To configure your system, use the IPS main window to provide access to the Configuration, Diagnostics, Administration, and System Options menus, and to the Input and Output Configuration subwindows. You return to this window from each of the subwindows after you have made your selections.

Caution: When you are using the mouse on the IPS main window, it is possible to delete the window by selecting Quit from the pulldown menu on the title bar. Should this occur, you must reboot the Sun workstation. (Refer to the “Starting and stopping the system” chapter for the rebooting procedure.)

Figure 1-10. IPS m a in window

XEROX DOCUPRINT 92C IPS GUIDE TO CONFIGURING AND MANAGING THE SYSTEM 1-9

INTRODUCTION TO THE GRAPHICAL USER INTERFACE

Menus

The IPS main window displays the following pull-down menus:

• Configuration

• Diagnostics

• Administration

• System Options.

Note: Clicking or pressing the right mouse button with the cursor on the title bar of a window displays a title bar pull-down menu. This menu contains options having to do with displaying the window (for example, the Refresh option redisplays or redraws the window).

The title b ar pull- down menu is ge nerated by the Windows syst em on your Sun workstation and does not apply to the IPS software. You should not have occasion to use it.

Configuration menu

Use the Configuration pull-down menu on the IPS main window to set up various options in the Printer Controller. The figure below illustrates the items available from the Configuration pull-down menu, followed by an explanation of each item.

Note: Items in the Configuration pull-down menu that appear “grayed out” on the screen ar e unavailable f or use with your system’s configuration.

Figure 1-11. Configuration pull-down menu

1-10 XEROX DOCUPRINT 92C IPS GUIDE TO CONFIGURING AND MANAGING THE SYSTEM

INTRODUCTION TO THE GRAPHICAL USER INTERFACE

The Configuration pull-down menu contains the following items:

• Language — Allows you to select the language in which GUI

messages will display.

Note: The printer status and fault messages are not part of this feature.

• Interface — Allows you to specify the current interface and the

interface options you want to use.

• Resolution — Allows you to specify the resolution of the fonts

and other resources in the incoming job (240 or 300). This resolution must match the font resolution in the PSF start-up procedure (PROC) for MVS, or the font resolution set up by the PSFCFG command for AS400.

Note: When you change the resolution, you must reboot the system.

• Modem Enable/Disable — Enables or disables the modem if it

is installed by your servic e representative for diagnostic purposes. This modem is used for dial-in servicing and diagnostics when needed by your service representative.

• Maximum Simplex — For jobs containing both duplex and

simplex pages; the Maximum Simplex option allows you to specify the maximum number of sim plex pages that will print in duplex mode before the system clears the paper path and switches to simplex mode.

• Slumb er Mode Timer — Not supported on the 92C IPS.

• MICR Mode — Not supported on the 92C IPS.

• Extraction Color — Allows you to specify how the solid-color,

shaded, and tinted areas specified in the job sent from the host will actually appear when printed by the IPS.

• Continuous Form Emulation — Rotates the page origin 90

degrees. This allows the IPS to print on cut sheets the jobs designed for a continuous forms printer.

• Resource Limits — Enables you to allocate additional memory

for resources such as forms, fonts, and page segments.

• Media U nits — Allows you to specify the units of measurement

to use for weight and size.

• Optional Processing Parameters — Allows you to set

processing parameters such as the model number repor ted to the host.

• Reside nt Fonts — Allows you to display current resident fonts

on your system, and to add new resident fonts.

XEROX DOCUPRINT 92C IPS GUIDE TO CONFIGURING AND MANAGING THE SYSTEM 1-11

INTRODUCTION TO THE GRAPHICAL USER INTERFACE

Diagnostics menu

Use the Diagnostics menu to print samples and specify trace mode options. (It is also used by your service representative to access system diagnostic functions.)

Figure 1-12. Diagnostics pull-down menu

The Diagnostics pull-down menu contains the following items:

• Sample Prints — Allows you to print samp le files (test

patterns), to exercise the print engine, and to perform a manual print quality adjustment (PQA).

• Trace Options — Allows you to capture and execute a

diagnostic trace of your system. This function is available to Administrator and Service privilege mod e users only.

• Service Mo de — Accessed by your service representative;

This function is available to Service pri vilege mode us ers only.

• Debug Level — Displays different levels of debug messages to

be stored in log message files. This function is available to Administrator and Service privilege mod e users only.

Note: Operating at a Debug Level other than 0 could reduce throughput speed.

• Null Modem Connection — Accessed by your service

representative; This function is available to Service privilege mode users only.

• Log Ser vice Call — Accessed by your service representative;

This function is available to Service pri vilege mode us ers only.

• Update from CDROM — Allows you to update your software

using a CD. This function is available to Administrator and Service privilege mode us ers only.

• Update from Floppy — Allows you to update your software

using a diskette. This function is available to Administrator and Service privilege mode us ers only.

• Install Remote Update — Allows you to update your software

remotely . This function is avai lab le to Administrator and Service privilege mode users only .

1-12 XEROX DOCUPRINT 92C IPS GUIDE TO CONFIGURING AND MANAGING THE SYSTEM

Administration menu

INTRODUCTION TO THE GRAPHICAL USER INTERFACE

Use the Administration pull-down menu to access windows for performing administrative tasks, such as billing reporting.

Figure 1-13. Administration pull-down menu

The Administration pull-down menu contains the following items:

• IPS Authorization — Enables entry of your IPS operating

system software license text string, provided by Xerox, which authorizes you to use the IPS software. The IPS cannot receive data from the host until this license is enabled. (This is usually done by your service representative.)

• Billing Information — Displays the meter readings for the

system.

• Privilege Mode — Enables changing of:

— The privilege mode — The password for a selected privilege mode (Operator or

Administrator).

• Backup Configuration Files — En ables backing up of:

— System configuration files — Input group configuration files — Input DFA Profiles — Media library files — Output group configuration files — Output DFA Profiles.

• Restore Configuration Files — Enables restoring of files

backed up on diskettes.

• License Status — Displays the license status for your system.

• XSIS Authorization — (DFA systems only) Enables entry of

your XSIS Authorization license text string, which enables the Enhanced Set Recovery option for your system, resulting in reprinted DFA output sets.

XEROX DOCUPRINT 92C IPS GUIDE TO CONFIGURING AND MANAGING THE SYSTEM 1-13

INTRODUCTION TO THE GRAPHICAL USER INTERFACE

System Options menu

Use the System Options pull-down menu to take the IPS online and offline, and shut down the system.

Figure 1-14. System Opti ons pull-dow n m e nu

The System Options pull-down menu contains the following items:

• Online — Places the system online.

• Offline — Takes the system offline.

• Shutdown System — Shuts down the system. This opt ion

stops all processes running on the Printer Controller, stops the printer, and returns to the boot prompt of the operating system.

1-14 XEROX DOCUPRINT 92C IPS GUIDE TO CONFIGURING AND MANAGING THE SYSTEM

Input Configuration section

INTRODUCTION TO THE GRAPHICAL USER INTERFACE

The Input Configuration section of the main window provides access to the windows that enable you to configure the printer input trays to feed the stocks you want to be used in the print job. It also displays the current configuration of the feeder trays.

Figure 1-15. Input Configuration section of IPDS main window

The Input Configuration section—the upper part of the larger left column—contains the following fields:

• Input Configur a tion pull-down menu — Allows you to select

an Input Configuration window. Once you select an Input Configuration window, y ou will be able to modify margin settings from that window, and to create or change Input Configurations, DFA personality profiles, and media icons.

• IPDS Trays — Graphically shows the stocks that the current

configuration has associated with the input trays that are called out in the job (IPDS data stream).

This field consists of a row of eight boxes called “tray cells,” each of which represents an input tray that a job might specify. The number above each tray cell is the tray’s identification number. The number(s) below each tr ay cell indicate the printer trays to which the IPDS tray has been mapped.

Any IPDS tray for which a particular stock has been identified displays a media icon in its tray cell. A media icon graphically represents a stock, showing its weight, color, size, and form type (3-hole, etc.).

Note: You map an IPDS tray to a printer tray by placing a media icon for the same stock in the cells for both trays.

The mapping of IPDS trays determines the use of system memory for handling media of different sizes. It is recommended that media that are not used in a particular job is not placed in an IPDS cell.

XEROX DOCUPRINT 92C IPS GUIDE TO CONFIGURING AND MANAGING THE SYSTEM 1-15

INTRODUCTION TO THE GRAPHICAL USER INTERFACE

• Printer Trays — Graphically shows the stocks that should be

Output Configuratio n section

The Output Configuration section of the IPS main window provides access to the windows that enable you to configure the printer stacker trays to ensure printed output is delivered to the desired output tray or bin. It also displays the current configuration of the stacker trays.

Figure 1-16. Output Con f ig uration section of IPS main window

loaded in the physical feeder trays for the current input configuration.

The Printer T rays field consists of a row of tray cell boxes, each of which represents one of the printer’s f eeder trays. (The number of cells in this field is the number of input trays your IPS printer supports.) Tr ay cells for feeder trays in which stocks will be loaded contain media icons representing those stocks.

This section—the lower part of the larger left column—c ontain s the following fields:

• Output Configuration pull-down menu — Allows you to select

an Output Configuration window. Once you select an Output Configuration window, you will be able to create or change Output Configurations and DFA personality profiles.

• Printer Bi ns — Graphically shows how IPDS output destination

bins have been mapped to the physical printer bins. In the Output Configuration section of the main window, the

horizontal rows of icons represent the IPDS bins specified in the job as the output destination. The vertical columns represent the actual printer bins to which output will be delivered.

When a bin has been selected as part of the configuration, it displays bolded on the screen. By looking at the printer bin number at the top of the column above each bolded icon, and at the IPDS bin number at the beginning of the row beside the same bolded icon, you can see which IPDS bins have been mapped to which printer bins.

1-16 XEROX DOCUPRINT 92C IPS GUIDE TO CONFIGURING AND MANAGING THE SYSTEM

INTRODUCTION TO THE GRAPHICAL USER INTERFACE

Note: IPDS bin 1 is coded in the software to be mapped to the sample tray. The IPDS row 1 contains only a sample tray icon, which always displays bolded; there are no other printer bins available to select. You are not able to change this part of the output configuration. If “Allow Host Control” is selected, all parts of any print job in which the data stream calls for IPDS bin 1 are delivered to the sample tray.

Note: If yo ur system has a stitch er/ stacker instead of the dual stacker, your output configuration display shows only one stacker bin icon, which has a diagram of a staple above it.

Figure 1-17. Output Configuration Bins field, stitcher/stacker

configuration

• Finishing — Displa ys “Enabled” if the system is confi gured with

a bypass transport or a stitcher/stacker, and “Finishing” or “Stitching” is selected from the Output Configuration window. For information on specifying finishing attributes, refer to the section “Creating a new output configuration” in the chapter “Setting the system configuration.

If the system has no bypass transport or stitcher/stacker, this field is grayed-out and displays “Disabled.”

• Page Order Within Set — Displays the current setting for the

order in which pages are placed in the output bin, from 1 to N (ascending) or N to 1 (descending). If your system does not have a bypass transport, or if the Finishing field displays

“Disabled,” this field is grayed out and always displays “N to 1 . ”

• End of Se t — If your DocuPrint 92C IPS is configured with the

stitcher/stacker, or a bypass transport is installed on your DocuPrint 92C IPS, this field displays the criterion (MARKFORM or Offset Stacker) that was selected from the Job Attributes window to indicate the end of a set or segment within a job.

If your system does not have the stitcher/stacker configuration or a bypass transport, or if the Finishing field displays

“Disabled, this field displays grayed-out and always displays “Offset.”

XEROX DOCUPRINT 92C IPS GUIDE TO CONFIGURING AND MANAGING THE SYSTEM 1-17

INTRODUCTION TO THE GRAPHICAL USER INTERFACE

Setup and status information

The following system setup and status information is displayed in the right column of the IPS main window:

Control Unit Configuration section Displays the current configuration of the system. Items that appear

here include:

Figure 1-18. Control Unit Configuration section of main window

• Highlight Color — Displays the color dry ink installed in the

printer.

• Resolution — Shows the resolution in dpi of the fonts used in

the current or most recent job sent to the IPS. This field reflects the value entered on the Resolution window , accessib le through the Configuration pull-down menu.

• Rotation — Indicates whether Continuous Forms Emulation is

enabled.

• Privilege Mode — Indicates the current Priv ilege Mode

(Service, Administrator, Operator, or User).

Note: When a remote Shell is activated, “R e mote Sh e l l Active” displays on the window.

When a remote Shell is activated and a service representative dials in remotely, “Remote Session Active” displays on the window.

For information on activating a remote shell, refer to the “Setting up the printer controller” chapter, “Enabling or disabling the modem” section.

1-18 XEROX DOCUPRINT 92C IPS GUIDE TO CONFIGURING AND MANAGING THE SYSTEM

INTRODUCTION TO THE GRAPHICAL USER INTERFACE

Status section The following items appear in the Status (middle) section of the right

column on the main window. They indicate what the printer is doing.

Figure 1-19. Status section of main window

• Control Unit — Indicates whether the system is Receiving,

Processing, Printing, Idle, Stopped, or Not Ready, or has an error condition (Not Ready, Error, and F ault appear in red). In case of a Fault, reboot the system.

Note: The Control Unit status remains Not Ready if any submenu items under a pull-down menu are activated and then canceled. To display the correct status, access the item(s) that were previously activated and canceled, and select only the

“Cancel” button.

• Trace — Indicates whether a trace is currently being captured

or executed.

• Pa ges Out stand in g — Displays the number of pages that have

been received by the system but have not yet been printed.

Note: N-Up jobs are processed in logical pages, not physical pages. The number of logical pages per physical page varies based on characteristics of each job. The Pages Outstanding counter increments in logical pages, not physical pages.

Main window footer Messages appear in the lower-left corner of the footer space, which

extends across the bottom of the IPS main window. These messages let you know the system status, and include “Offline” or “Online.”

XEROX DOCUPRINT 92C IPS GUIDE TO CONFIGURING AND MANAGING THE SYSTEM 1-19

INTRODUCTION TO THE GRAPHICAL USER INTERFACE

Host Job Control section

The Host Job Control section, located in the lower-right corner of the IPS main window contains three buttons:

• Stop

• Continue

• Cancel Job.

Figure 1-20. Host Job Control section of main window

Stop and Continue buttons Use the Stop and Continue buttons to perform the same functions as

actual buttons on the printer:

• Stop — Allows you to interrupt job processing. You must also

click this button before you can click the Cancel Job button to cancel printing.

• Continue — Allows you to resume job processing.

Note: If you use the screen Stop button to stop a job, you must use the screen Continue button to resume printing. You cannot use the printer buttons interchangeably with the screen buttons.

Cancel Job button Use the Cancel Job button to cancel the current print job and allow

the printer to proceed with the next job in the host queue. You must click the Stop button before you click the Cancel Job button.

If no job is being processed, this button is grayed out and cannot be selected. If a job is in progress, this button remains grayed out until you click the Stop button and the printer has stopped.

1-20 XEROX DOCUPRINT 92C IPS GUIDE TO CONFIGURING AND MANAGING THE SYSTEM

Subwindow buttons

INTRODUCTION TO THE GRAPHICAL USER INTERFACE

This section describes some of the buttons that appear on subwindows accessed through the main window pull-down menus and the Input and Output Configuration section.

Add Saves new input/output configurations and media icons you create,

and displays the Ask for File Name window, where you are prompted to give the new file a name. On the Create and Edit a Media Icon windows, adds a new form type to the list.

Add Profile Saves new DFA personality profiles you create, and displays the Ask

for File Name window, where you are prompted to give the new file a name.

Apply & Update Saves changes you make to an input or output configuration file and

puts the changed configuration into effect (followed by confirmation prompt).

Delete Erases the file you select from one of the pull-down menus (followed

by a confirmation prompt).

Quit a nd Apply bu t tons Use the Quit and Apply buttons on the IPS main window and on other

windows throughout the system to apply and cancel your system settings.

• Quit — Closes the current window but does not undo any

selections or text entries you have made on the screen. However , your changes are not saved unless you first click Save or Update.

• Apply Now — Puts a new or revised DFA profile into effect for

an input or output configuration. Apply and Save — Puts a new or revised DFA profile into effect

for an output configuration.

• Apply — Puts a new or revised selection, setting, media icon,

or input/output configuration into effect.

XEROX DOCUPRINT 92C IPS GUIDE TO CONFIGURING AND MANAGING THE SYSTEM 1-21

INTRODUCTION TO THE GRAPHICAL USER INTERFACE

The figure below shows one of the windows that contain the Quit and Apply buttons.

Figure 1-21. Window with Quit and Apply bu tto ns

Reset On t he Create a new Media Type and Edit a Media Type windows,

restores the attribute settings displayed on the window to the system defaults.

If selected after you have input changes to a previously saved media icon, restores the icon’s original saved attributes .

Clear On t he Output DFA windows , signals the printer to disable the

selected DFA profile name. Resets all profile parameters in printer memory to zero. You would use this button, for example, if you were going to remove or take offline your third-party feeding or finishing equipment.

Save Saves changes you make to an existing file, such as an output

configuration. Also saves new configuration and DFA personality profile files you create, after you type the new file name in the Ask For File Name window.

Update Saves changes made to an input or output configuration file, but does

not put that configuration into effect (followed by a confirmation prompt).

1-22 XEROX DOCUPRINT 92C IPS GUIDE TO CONFIGURING AND MANAGING THE SYSTEM

Powering on the IPS system

Before powering on Before powering on the system, make sure the following has been

2. 2Starting and stopping the system

This chapter describes how to start and stop your printing system. It addresses the proper methods of powering the system on and off, starting and stopping print jobs, shutting down the system, and dealing with power failures.

When you power on the IPS, it is important to perform all procedures in the correct order, including some tasks required before powering on.

done:

• The Printer Controller and monitor are connected to dedicated

power receptacles.

• The printer cable is connected securely to the connector on the

back of the Printer Controller. If the cable is not connected, make sure the printer and Printer Controller are powered off. Then connect the cable.

Caution: Do not connect the printer cable to the Printer Controller when either the Printer Controller or the printer is powered on; you could destroy the interface card in the Printer Controller.

• Press the Power switch on the printer to the On position so that

the printer powers on automatically when the Printer Controller is powered on. The Printer Controller automatically boots the IPS software when it is powered on.

• Make sure all feeder trays are in Ready position: closed, with

adequate paper loaded. Otherwise the IPS cannot initialize, and it reports “Not ready” to the host.

If this occurs, correct the tray condition, then reboot the workstation. (Refer to “Rebooting the Printer Controller,” later in this chapter.)

• Always allow at least ten seconds between powering off the

printer and powering it back on again. This pause prevents possible damage to the sensitive components in the processor.

XEROX DOCUPRINT 92C IPS GUIDE TO CONFIGURING AND MANAGING THE SYSTEM 2-1

STARTING AND STOPPING THE SYSTEM

Powering on procedure Power on the IPS system in the following sequence:

1. Power on all peripherals, such as the optional tape drive and display monitor.

2. If your system is channel-attached, power on the Host Channel Unit (HCU). When the HCU is ready (offline) the code 2 displays in its LED window. You can now power on the remaining components.

Note: The HCU displays a 2. When the Sun workstation is completely booted, the display shows 0.

See “HCU Messages” in the Xerox Docu Prin t IPS Messages Guide for a list and explanation of HCU codes.

3. Power on the printer, if necessary.

4. Po wer on the Sun workstation processor. The operating system for the Printer Controller and the IPS application software are automatically loaded.

5. If the printer is not warmed up by the time the Controller has booted, the window containing the message DocuPrint IPS Initializing, “Waiting for Printer Configuration” remains on the screen. Either:

• Wait for the printer to warm up and the message to

disappear (which takes a varying amount of time), or,

• Use the following procedure to reduce the amount of boot

time: a. With the cursor on the blue screen background, click

the right mouse button to display the workspace pulldown menu.

b. Select Restart from the workspace menu, then Confirm

from the confirmation prompt that displays. The Printer Controller reboots.

c. After the Controller boots, a window displays with the

message “Media Definition Conflict” (because no default input configuration has been applied). Click OK to display the Input Configuration window.

d. Make sure the paper loaded in the feeder trays

matches the stock specified in the Printer Trays cells on the Input Configuration window. If it does not, make any necessary changes to the paper in the trays or to the media icons in the tray cells. (Refer to “Specifying the input configuration” in the “Setting the system configuration” chapter.)

e. Click Apply & Update on the Input Configuration

window.

f. On the confirmation prompt window that displays, click

Apply.

g. Click Quit on the Input Configuration window. The IPS

main window displays.

2-2 XEROX DOCUPRINT 92C IPS GUIDE TO CONFIGURING AND MANAGING THE SYSTEM

Powering off the IPS system

STARTING AND STOPPING THE SYSTEM

Do not power off the system until it has stopped printing. Note: Powering off the system at the end of the day is not

necessary. However, doing so does not damage the system. Always power off the system before you do any of the following:

• Remove or install a processor part

• Remove or install an external drive unit or monitor

• Unplug the processor power cord

• Recover from a system that does not respond to the keyboard

or the mouse

• Prepare for an expected power outage

• Physically relocate the system.

Note: When a power outage occurs, turn off the power switches on all your equipment. This protects your equipment from possible power surge damage when power is restored.

XEROX DOCUPRINT 92C IPS GUIDE TO CONFIGURING AND MANAGING THE SYSTEM 2-3

STARTING AND STOPPING THE SYSTEM

In routine operation

When powering off the system, follow this sequence:

1. Make sure no print jobs are running. Take the IPS offline from the host by selecting Offline from the System Options menu on the IPS main window.

2. Use one of the two methods below to shut down the Printer Controller. Both methods immediately stop all processes running on the Printer Controller and on the printer, and return to the Boot prompt for the operating system.

• With the pointer in the desktop background area of the

screen (not in a window or on an icon), press the right mouse button. On the workspace menu that displays, select Shutdown.

• With the pointer in the IPS main window, select Shutdown

System from the System Options me nu.

3. In the System Shutdown Confirmation window, click Confirm.

Figure 2-1. System Sh utdown Confirm at i on wi nd ow

Caution: Shut down the Printer Controller only when no print jobs are running and the IPS is offline from the host.

4. Power off the display monitor.

5. Power off the printer. Note: Unless the IPS will remain powered off for an extended

period, or is to be moved, it is not necessary to power off the printer. Powering off the processor also powers off the printer.

6. Power off the Sun workstation processor.

7. Power off the HCU (if operating in channel-attached mode).

2-4 XEROX DOCUPRINT 92C IPS GUIDE TO CONFIGURING AND MANAGING THE SYSTEM

After a power outage

If an unexpected power failure occurs, switch off the printer and all components of the Printer Controller. Switch the components back on only after power is restored. Take the printer offline as soon as possible.

Caution: If you do not switch off all indicated components, a power surge may damage them when power is restored.

If the power fails during printing, the print job is interrupted but not lost. Although data is not lost, you should take the printer offline as soon as possible to prevent data being sent before the printer is ready to receive it.

To restart the system after an unexpected power failure, restart the system as described in the “Powering on the IPS system” section above.

Communicating with the host computer

An IPS is either channel-attached to a host computer or receiving data via TCP/IP over Ethernet or Token Ring. It receives data from the host in online mode. Before data can be sent to the printer, the host operator must issue commands to place the IPS online to the host.

STARTING AND STOPPING THE SYSTEM

Placing the IPS online

Taking the IPS offline

The IPS is placed online when the IPS software is loaded. This software is automatically loaded when the Printer Controller is powered on.

If the printer has been taken offline, select Online from the System Options menu on the IPS main window.

If the printer does not go online after the system has been booted, contact your service representative.

Select Offline from the System Options menu on the IPS main window.

The printer continues to print the pages that remain in the buffer. If you want to resume printing, select Online from the System Options

menu on the IPS main window.

XEROX DOCUPRINT 92C IPS GUIDE TO CONFIGURING AND MANAGING THE SYSTEM 2-5

STARTING AND STOPPING THE SYSTEM

Printer status

Starting a print job

The default printer status is online and ready to print. The current status is displayed in the Control Unit Status field on the IPS main window.

The IPS Print Engine Monitor window displays messages on the condition of the printer.

Once the channel or communications system is enabled, the paper is loaded, trays are selected, and the printer is ready, the IPS system can receive print jobs. The host application can also release any queued jobs for printing.

Caution: Be sure the IPS main window is displayed while printing from the host. Otherwise, the results are unpredictable.

Follow these steps to start printing a job that has been sent from the host:

1. Verify that the system is set up as required for the print job.

Stopping the printer

2. Make any changes necessary to the system configuration using the procedures contained in this chapter.

Jobs are printed in the order they are sent. Note: If you are printing samples, you must exit the Sample

Printing window before you can print from the host.

At times, you may need to stop the printer while it is printing—for example, to check output or cancel a job. In addition to stopping a print job from the application at the host, you can stop printing in three ways:

• Pressing the red Stop button on the printer control console. This

is the preferred method and stops the printing immediately.

• Clicking the red Stop button on the IPS main window.

The printer continues to print the pages that remain in the buffer. Caution: If you select Offline during a duplex printing job, you

might interrupt the job just after the front side of a duplex sheet is printed. Should this occur, the printer finishes with a blank reverse side. After the printing resumes, the corresponding back of the duplex page prints as a simplex sheet.

2-6 XEROX DOCUPRINT 92C IPS GUIDE TO CONFIGURING AND MANAGING THE SYSTEM

Resuming printing

Automatic print job recovery

STARTING AND STOPPING THE SYSTEM

You must always resume printing an interrupted job in the same way you stopped it:

• If you pressed the red Stop button on the printer control

console, you must use the Continue button on the printer control console.

• If you clicked the red Stop button on the IPS main window, you

must click the green Continue button on the IPS main window.

When a jam occurs, the Printer Controller performs a job recovery. In more severe conditions, the printer reinitiates a system status check.

If HCU errors occur while printing over a channel, reboot the Sun workstation and the HCU. Job recovery restarts and resumes at the last checkpoint held by the host.

Rebooting the Printer Contr o ller

To reboot your Printer Controller without powering it off, follow these steps:

Exiting power saver mode

If your IPS is left idle for a predetermined amount of time (set by your service representative at installation), the system goes into power saver mode and a screen-saver icon is displayed on an otherwise blank screen.

• Press any key to redisplay the monitor screen.

• Press the Continue button on the printer control console before

1. With the pointer in the desktop background area of the monitor screen (not in a window or on an icon), press the right mouse button to display the workspace pull-down menu.

2. Select Restart.

sending jobs from the host. This notifies PSF that the printer is in the Ready state.

XEROX DOCUPRINT 92C IPS GUIDE TO CONFIGURING AND MANAGING THE SYSTEM 2-7

STARTING AND STOPPING THE SYSTEM

Removing media from the processor

This section explains how to eject a diskette from the diskette drive, and how to remove a CD from the CD-ROM drive.

Ejecting a diskette To eje ct a diskette, follow these steps:

1. Place the cursor in the screen background area and press the right mouse button. The workspace menu displays.

2. Do one of the following:

• Select Eject disk from the workspace menu, or

• Open a command t ool and enter the eject command:

a. Place the cursor on the blue background of the user

interface screen, and click or hold down the right mouse button to display the workspace menu.

b. Select Command Tool from the workspace pull-down

menu. A command tool window opens. c. Enter eject on the command tool window. d. Close the command tool window by selecting Quit from

the window’s title bar pull-down menu.

Removing a CD To remove a CD from the CD-ROM drive, press the eject button.

2-8 XEROX DOCUPRINT 92C IPS GUIDE TO CONFIGURING AND MANAGING THE SYSTEM

3. 3Setting up the Printer Controller

This chapter describes the procedures that are required to set up your Printer Controller to receive and process the types of print jobs you will be running.

Tasks requiring a Controller reboot Several of the tasks accessed from pull-down menus on the IPS

main window require the Printer Controller to be rebooted to put the new settings into effect. (The procedure for rebooting the Printer Controller is in the “Starting and stopping the system” chapter.) You will need to reboot after performing the tasks associated with these selections:

Note: You can change one or more of these settings at a time before rebooting.

Configuration menu:

• Language (chapter 3)

• Resolution (chapter 4)

• Optional Processing Parameters (chapter 4).

For an illustration of the Configuration menu, refer to the “Introduction to the graphical user interface” chapter.

XEROX DOCUPRINT 92C IPS GUIDE TO CONFIGURING AND MANAGING THE SYSTEM 3-1

SETTING UP THE PRINTER CONTROLLER

Selecting a language

You can select the language in which the GUI panel and labels will display.

1. From the Configuration pull-down menu, select Language. The Language window displays.

2. From the pull-down menu, select the language of your choice.

Figure 3-1. Language wi ndow

3. After you have made the selection, reboot the system to put your selection into effect.

3-2 XEROX DOCUPRINT 92C IPS GUIDE TO CONFIGURING AND MANAGING THE SYSTEM

Specifying t h e system interface

SETTING UP THE PRINTER CONTROLLER

This section describes the procedure for specifying the network or channel interface for your system. Your options are Channel and TCP/IP.

Note: You can have a bus and tag channel connection plus multiple TCP/IP connections (Token Ring and Ethernet) installed at the same time. Your TCP/IP selection is made at installation and enabled by your service representative. You cannot switch printing between channel and TCP/IP without performing the following procedure.

1. From the Configuration pull-down menu, select Interface. The Interface window displays.

2. From the Select Interface pull-down menu, use the right mouse button to select the interface you want. Your selection displays in the lower-right corner of the window.

Figure 3-2. Interface window displaying the Select Interface

pull-dow n m enu

3. Make the appropriate selections and entries on the Channel Options or the TCP/IP Interface window. (Refer to the “Selecting channel interface” or the “Selecting TCP/IP interface” section later in this chapter.)

Caution: Selecting the wrong interface for your equipment— that is, selecting TCP/IP for a system with an HCU enabled, or selecting Channel for a system without an HCU—can cause the parser to shut down, making the system unable to print. If this happens, you must reboot the Printer Controller, then change your interface selection.

XEROX DOCUPRINT 92C IPS GUIDE TO CONFIGURING AND MANAGING THE SYSTEM 3-3

SETTING UP THE PRINTER CONTROLLER

Selecting channel interface

To specify your interface as a bus and tag channel (parallel channel interface), follow these steps:

1. Select Channel from the I nterface window pull-down menu. T he Channel Options window displays.

Figure 3-3. Channel Op tions window

2. On the Channel Address (HEX) keypad, click the alphanumeric characters to specify the last two digits of the hexadecimal channel address of your host.

3. From the Channel Mode pull-down menu, select the channel mode for your system. The channel modes specify the operation of the channel signals, determine the data speed, and specify whether the channel interface mode is interlock or data stream.

• Sing le Tag — Single-tag interlock mode. This is the basic

channel transfer mode. It is the slowest method of data transfer. Select this mode when no other transfer mode is available on the host.

• High Speed — High-speed tran sfer mode. Although it

maintains a single-tag interlock mode, this mode provides a higher speed of data transfer than the single-tag mode.

• 1.25 Mb D ata St reami ng — Data streaming at 1.25 MB per

second. This mode is faster than either of the two single-tag interlock modes.

• 2.5 Mb Data Streaming — Data streaming at 2.50 MB per

second. This mode provides the fastest data transfer.

4. Click Apply.

5. In the Interface window, clic k Apply.

3-4 XEROX DOCUPRINT 92C IPS GUIDE TO CONFIGURING AND MANAGING THE SYSTEM

Selecting TCP/IP interface

SETTING UP THE PRINTER CONTROLLER

Note: When the system is sending a resource-intensive job using TCP/IP, the job will take considerably longer to load via the network.

To specify the TCP/IP port number, follow these steps:

1. Select TCP/IP from the Interface window pull-down menu. The TCP/IP Interface window displays, displaying the default port number that PSF is already using for your system.

Figure 3-4. TCP/IP interface window

2. Enter or use the incremental spin buttons to display the new port number.

Note: This number must match the port number that your host uses to connect to the printer. 5001 is the default for PSF.

3. Click Apply to confirm your selection. You are returned to the IPS main window.

XEROX DOCUPRINT 92C IPS GUIDE TO CONFIGURING AND MANAGING THE SYSTEM 3-5

SETTING UP THE PRINTER CONTROLLER

Enablin g or disa bl in g th e mo de m

Your service representative may install a modem in your system for diagnostic purposes. This modem is used for dial-in servicing and diagnostics when needed by your service representative.

To enable or disable the modem, follow these steps:

1. Select Modem Enable/Disable from the Configuration pull-down

Figure 3-5. Modem Enable/Disable window

menu. The Modem Enable/Disable window displays.

2. Click Enabled or Disabled, as appropriate.

3. To allow Shell access to a service representative , mark the “Remote Shell Access” checkbox.

4. Click Apply. The Modem Enable window displays, prompting you for a password.

5. Enter the root password.

Note: The modem will automatically be disabled after rebooting the system.

3-6 XEROX DOCUPRINT 92C IPS GUIDE TO CONFIGURING AND MANAGING THE SYSTEM

Allocating memory for resources

The Resource Limits option allows you to specify additional memory to be used for resources such as fonts and overlays.

Note: Whatever memory you add to your resource allocation will no longer be available for system operation.

If you wish to change the memory allocation to provide more memory for resources, follow these steps:

1. Select Resource Limits from the Configuration pull-down menu.

Figure 3-6. System Resource Limits window

SETTING UP THE PRINTER CONTROLLER

The System Resource Limits window displays.

2. Enter the amount of memory you want allocated to resources, or click the arrows in the incremental spin box to select the value. The range of values is 16-128 megabytes; the default is

16.

3. Click Apply.

XEROX DOCUPRINT 92C IPS GUIDE TO CONFIGURING AND MANAGING THE SYSTEM 3-7

SETTING UP THE PRINTER CONTROLLER

Displaying and adding resident fonts

You can display the resident fonts currently loaded on your system, or add resident fonts as needed.

Displaying resident fonts

To display the currently loaded resident fonts, select Resident Fonts from the Configuration pull-down menu.

The Resident Fonts User Interface window displays.

Figure 3-7. Resident Fonts User I nterface window

3-8 XEROX DOCUPRINT 92C IPS GUIDE TO CONFIGURING AND MANAGING THE SYSTEM

Adding resident fonts

SETTING UP THE PRINTER CONTROLLER

You can add resident fonts from various media including CD-ROM, diskette (floppy), or your network. To add resident fonts to your system, follow these steps:

1. If the fonts you want to add reside on a CD or a diskette, skip this step. Otherwise, copy the fonts to the following location:

/var/db/fonts/input

2. Display t h e Resident Fonts User Interface window. (Refer to the section “Displaying resident fonts” above.)

3. Click Add. The Resident Outline Fonts User Interface window displays.

Figure 3-8. Resident Outline Fonts User Interface window

4. If using a CD-ROM or a diskette (floppy) as the source for the additional fonts, insert the CD-ROM or the diskette into the appropriate drive.

XEROX DOCUPRINT 92C IPS GUIDE TO CONFIGURING AND MANAGING THE SYSTEM 3-9

SETTING UP THE PRINTER CONTROLLER

5. From the Input Media pull-down menu, select the medium you want to use as the source for the additional fonts. The fonts available on the selected medium display.

Figure 3-9. Input Medi a pull-down menu

6. From the displayed list of fonts, either select individual fonts to add, or click Select All to select all listed fonts.

7. Click Apply.

8. When loading of the new fonts is completed (that is, the Apply button is no longer grayed out), click Quit.

9. (Optional) Specify the default code page: a. S el ect a font to use as the default code page for Human

Readable Information (HRI), then click the Default for HRI button on the top portion of the screen.

b. Select a font to use as the default code page for Text, then

click the Default for Text button on the top portion of the screen.

10. (Optional) Specify the default character set size: a. Select a font to use as the default character set for HRI, then

click the Default for Text button on the bottom portion of the screen.

b. S el ect a font to use as the default character set for Text,

then click the Default for Text button on the bottom portion of the screen.

3-10 XEROX DOCUPRINT 92C IPS GUIDE TO CONFIGURING AND MANAGING THE SYSTEM

Loading the IPS software license text string

When an IPS system is purchased, the new owners must have a license authorizing them to use the IPS operating system software. Your license is obtained for you by your Xerox service representative, and must be enabled on the Printer Controller for your IPS to receive data from the host.

For you to obtain authorization to use the IPS software, a licensed text string of 20 characters, provided by Xerox, must be entered at the Printer Controller. Initially, your license may be for 90 days. At the end of this period, you receive a “permanent” license .

To obtain the license string from Xerox, follow the steps below to find out the host ID on the Sun.

1. Open a Unix command tool, using this procedure: a. Click the right mouse button on the blue user interface

screen background to display the workspace pull-down

menu. b. S elect Command To ol from the workspace menu. c. When the comm and tool window opens, click inside it with

the left mouse button.

SETTING UP THE PRINTER CONTROLLER

2. Enter hostid to display your host ID.

3. Contact Xerox with the host ID, and follow further instructions.

Note: The license string entry procedure is performed only once, unless you receive a new license string, or load a new version of the IPS software.

Any time you start the system before yo ur softwa re lice n se is enabled, the Printer Controller boots up in Disabled mode. This means the IPS cannot receive data from the host and therefore cannot print. To enable printing, you must enter your license text string via windows accessed from the Administration pull-down menu.

1. From the Administration pull-down menu, select IPS Authorization.

Figure 3-10. Administration pull-down menu

XEROX DOCUPRINT 92C IPS GUIDE TO CONFIGURING AND MANAGING THE SYSTEM 3-11

SETTING UP THE PRINTER CONTROLLER

The IPS Authorization window displays.

Figure 3-11. IPS Authorization window

2. On the Enter Expiration Date line, enter the license expiration date provided by your service representative. Make sure to enter the date exactly the way your service representative gives it to you (same number of characters, same letters in lower case, etc.) Any differences will cause your entry to be rejected.

3. On the Enter License line, enter the 20-character license text string provided by your service representative (in upper case). Here is an example of a license string:

CB1ED0F1D80EEE534335

4. Click Apply when finished.

Note: If a message pops up, indicating that an invalid license was entered, your license string text entry was not accepted. Repeat steps 1 through 4, making sure you are entering the string correctly—all uppercase letters, etc. If your license string is rejected again, consult your service representative.

If your license string entry was valid, a message displays in the IPS Console window, indicating that the license was loaded. Your system will become authorized in about 30 seconds.

Alternatively, you may load the license string from a diskette:

1. Click the Get String from Diskette button. Make sure that the diskette containing the string is loaded in the diskette drive.

2. Follow the screen prompts to load the license string.

3-12 XEROX DOCUPRINT 92C IPS GUIDE TO CONFIGURING AND MANAGING THE SYSTEM

Switching modes (Dual Mode)

IPS mode to NPS mode To switch from IPS mode to NPS mode:

SETTING UP THE PRINTER CONTROLLER

The Dual Mode printing option lets you switch back and forth between IPS and NPS modes on your Printer Controller. This allows your printer to accept IPDS, PostScript, and PCL data streams.

When you are in IPS mode, you can spool PostScript and PCL data streams in the background; however, you can print these jobs only when you switch to NPS mode. When you are in NPS mode you cannot spool IPDS data streams in the background; you can print them only when you are in IPS mode.

1. Check the Control Unit Status field on the IPS main window to verify that the printer is Idle (not printing or receiving data).

2. Drain the printer at the host (this stops the host from sending jobs from the queue). Follow procedures for your own host system.

3. At the host, take the printer offline.

4. Place the pointer on the background area of the screen (not in a window or on an icon) and click the right mouse button.

5. From the menu that displays, select Start Network Printing. After a few minu te s th e Pri n ter Cont roller sw i tc hes to NP S mode.

Caution: Do not select Restart and do not turn the Printer Controller or the printer off and on.

NPS mode to IPS mode To switch from NPS mode to IPS mode:

1. While the printer is idle, enter the command list document s at the >PS prompt and verify that no print jobs are pending or being received.

2. Place the pointer on the background area of the screen (not in a window or on an icon) and click the right mouse button.

3. From the menu that displays, select Start IPS Printing.

Caution: Do not select Restart and do not turn the Printer Controller or the printer off and on.

4. Put the printer online at the host.

5. Start the printer at the host.

XEROX DOCUPRINT 92C IPS GUIDE TO CONFIGURING AND MANAGING THE SYSTEM 3-13

SETTING UP THE PRINTER CONTROLLER

3-14 XEROX DOCUPRINT 92C IPS GUIDE TO CONFIGURING AND MANAGING THE SYSTEM

4. 4Setting the system configuration

This chapter describes the procedures for configuring your system. You access those procedures through the pull-down menus on the IPS main window. The procedures are described in sequence as they appear on each menu.

Note: During an upgrade to the system, all data on the system disks is deleted. Therefore, it is important to save the following system configurations:

• Channel settings

• Resolution

• Channel address

• Channel mode

• Printer firmwa r e revis ion

• Pages between updates

• Customer profile file.

For informati on on saving system c onfigurations, refer to “Backing up and restoring configuration files,” later in t h i s ch apter.

XEROX DOCUPRINT 92C IPS GUIDE TO CONFIGURING AND MANAGING THE SYSTEM 4-1

SETTING THE SYSTEM CONFIGURATION

Privileg e Mode s

The IPS allows access to various functions based on a user’s privilege level. The following Privilege Modes are available:

• User Mode — This is the default and the lowest privilege mode

at which the IPS operates. In this mode, the Configuration menu, service-related options on the Diagnostics menu, as well as the Trace, Service, and Debug Level options on the Diagnostics menu are not accessible.

• Operator Mode — In this mode, service-related options on the

Configuration and Diagnostic menus, as well as the Trace and Debug Level options on the Diagnostics menu are not accessible.

• Administrator Mode — In this mode, service-related options

on the Configuration and Diagnostic menus are not accessible.

• Service Mo de — In this mode, all functions are accessible.

A user’s current Privilege Mode displays on the Control Unit Configuration section of the main window.

Figure 4-1. Control Unit Configuration section of main window

4-2 XEROX DOCUPRINT 92C IPS GUIDE TO CONFIGURING AND MANAGING THE SYSTEM

Changing the Privilege Mode

SETTING THE SYSTEM CONFIGURATION

Changing your current privilege level to an Operator Mode, Administrator Mode, or Service Mode requires a password.

To change the Privilege Mode:

1. From the Administration menu, select Privilege Mode, then Change Privilege Mode.

The Change Privilege Mode window displays.

2. From the Privilege Mode pull-down list, select the Privilege Mode of your choice.

3. In the Enter Password field, enter your password.

4. Click Apply.

XEROX DOCUPRINT 92C IPS GUIDE TO CONFIGURING AND MANAGING THE SYSTEM 4-3

SETTING THE SYSTEM CONFIGURATION

Changing the password for a Privilege Mode

To change the password for a Privilege Mode (Operator or Administrator):

1. From the Administration menu, select Privilege Mode, then Change Operator Password. The Change Operator Password window displays.

2. In the Old Password field, enter your old password.

3. In the New Password field, enter your new password. A password may consist of digits, letters, punctuation and special characters. It may not use control characters.

4. In the Confirm Password field, reenter your new password.

5. Click Apply.

Note: If the old password or the confirmed password is invalid, a notice window will display.

4-4 XEROX DOCUPRINT 92C IPS GUIDE TO CONFIGURING AND MANAGING THE SYSTEM

Acces sin g co nf i g ur at ion tasks

SETTING THE SYSTEM CONFIGURATION

From the IPS main window, configure your system by selecting from the Configuration, Diagnostics, Administration, and System Options menus, and from the input and output configuration subwindows. Return to the IPS main window from each of the submenus or subwindows after you have made your selections.

For an illustration of the menus and subwindow s ava ilabl e from the IPS main window, refer to the “Introduction to the graphical user interface” chapter.

Note: Access to certain menus and selections within a menu depend on the user’s privilege level. Refer to the section “Privilege Modes” for more information.

Caution: When you are using the mouse on the IPS main window, it is possible to delete the window by selecting Quit from the pulldown menu on the title bar. If thi s occurs, reboot the Sun workstation (refer to the “Starting and stopping the system” chapter for the rebooting procedure).

Configuration menu tasks

The following procedures can be accessed from the Configuration pull-down menu.

• Indicating the input resolution

• Specifying the maximum simplex value

• Specifying the extraction color for highlight color printing

• Rotating the page origin

• Specifying the media units

• Setting optional processing parameters.

Other Configuration menu items are discussed in the “Setting up the Printer Controller” chapter.

XEROX DOCUPRINT 92C IPS GUIDE TO CONFIGURING AND MANAGING THE SYSTEM 4-5

SETTING THE SYSTEM CONFIGURATION

Indicating the input resolution

This section describes the procedure for communicating the resolution of the fonts used in the incoming job to the IPS. The IPS then reports this information to PSF.

Caution: The resolution you indicate on this window must match the font resolution in your host input data stream. Conflicts between the input font resolution and the IPS configuration may result in inability to p r int the job , or in b lank output pa g es .

To indicate the resolution of fonts and other input resources:

1. From the Configuration menu, select Resolution. The Resolution window displays.

Figure 4-2. Resolution window

2. Click the resolution of the input resources.

3. (Optional) Select the “Disable hardware scaling” checkbox to enable scaling.

When this checkbox is not selected, 240 and 300 dpi jobs are imaged at 240 or 300 dpi by the IPS Printer Controller and are scaled to 600 dpi by the printer. When the checkbox is selected, 240 and 300 dpi jobs are imaged (and thus scaled) by the IPS Printer Controller.

Note: Hardware scaling by the printer is faster than software scaling by the Printer Controller, although the performance gain will not be noticeable on all jobs. Software scaling can produce better results for applications that use resolution-independent resources such as outline fonts, GOCA, and percent shading.

4. (Optional) Select the “Use alternate shading” checkbo x to use an alternate set of shading patterns, orig inally developed for 300 dpi printing.

5. Click Apply.

6. Drain the printer at the host. (Follow procedures for your host system.)

4-6 XEROX DOCUPRINT 92C IPS GUIDE TO CONFIGURING AND MANAGING THE SYSTEM

7. Reboot the Printer Controller .

8. Restart the PSF printer session, or the Functional Sub System.

Specifying the maximum simplex value

This section describes the procedure for specifying the number of simplex pages that the system prints in duplex mode before clearing the paper path and switching to simplex mode. This capability allows you to switch between duplex and simplex mode within a single job, with less degradation to the throughput speed.

When the IPS is printing in duplex mode and encounters a simplex page, the system may need to clear the paper path of all duplex sheets before changing to simplex mode. This clearing process may delay throughput. You can postpone this clearing process by printing simplex pages in duplex mode and specifying the number of pages, after which the system changes to simplex mode. Until the number of simplex pages you specify is sent, any simplex pages are printed in duplex mode with a blank page on the back, thus providing the appearance of simplex.

Note: When you print simulated simplex, the blank back pages are counted as billable pages by the billing meter.

SETTING THE SYSTEM CONFIGURATION

Note: The print engine also performs simulated simplex independent of the IPS system controller. Blank back pages created by the print engine are not counted as billable pages by the billing meter. The print engine performs simulated simplex when the job changes plex every six pages or less.

To specify the maximum number of simplex pages to be printed in duplex mode:

1. From the Configuration menu, select Maximum Simplex. The Maximum Simplex window displays.

Figure 4-3. Maximum Simplex window

XEROX DOCUPRINT 92C IPS GUIDE TO CONFIGURING AND MANAGING THE SYSTEM 4-7

SETTING THE SYSTEM CONFIGURATION

2. Enter the value for the maximum number of simplex pages you want printed in duplex mode and press <ENTER>, or click the arrows to select the value. The range of values is 0 to 20 pages. The default is 10; the recommended value is 10.

For jobs that contain such high frequency of plex changes, it is recommended that the Maximum Simplex value be set to 0. This allows the print engine to perform simulated simplex without charging for the blank pages.

Note: Ideally, this value should be set to the number of dead cycles required to clear the printer’s paper path.

3. Click Apply.

Specifying the extraction color for highlight color printing

When the DocuPrint 92C IPS receives a color job, it prints it in whatever color of ink is loaded in the printer, using solid color and a variety of shades (color plus black) and tints (color plus white).

Extraction color specifies how the existing color of text, shading, or graphics contained in a job will print on your DocuPrint 92C IPS printer, and which color will print in the solid highlight ink color. All colors other than the highlight (printer ink) color print in a shade or tint of the color loaded in the printer.

The IPDS data stream allows eight colors to be specified in a job:

1. Red

2. Green

3. Blue

4. Cyan

5. Magenta

6. Yellow

7. Brown

8. Black.

However, the DocuPrint 92C IPS printer has available a different set of ten highlight color inks plus black that can be selected for loading in the printer: red, green, blue, cyan, magenta, royal (blue), ruby, cardinal (red), violet, and brown. Therefore, a job may specify a color for which the DocuPrint 92C IPS does not have a corresponding ink; or you may wish to print the job in an ink different from what is specified.

Note: Solid black is not affected by the extraction color selection; if specified in the job, it always prints as solid black.

Note: The system requires extra processing to apply shading to data, when the data uses a color other than the one set as the extraction color. Therefore, jobs that use a large amount of these colors may cause performance degradation. For example, a job that uses a large amount of green will print faster when the extraction color is set to Green (or “Printer Color” with green ink is loaded in the printer), than when the extraction color is set to Red.

4-8 XEROX DOCUPRINT 92C IPS GUIDE TO CONFIGURING AND MANAGING THE SYSTEM

SETTING THE SYSTEM CONFIGURATION

Extraction C ol or wi nd ow The Extraction Color window contains the following options:

• Color pull-down menu — Lists the eight colors allowed by the

IPDS data stream, from which you select the extraction color. — The Printer Color option selects whatever color ink is

loaded in the printer as the extraction color.

— Executive Black selects black as the extraction color; that

is, all colors specified in the job print as black or shades of black.

• Exact Color Only — If you click this option, only the extraction

color prints as the solid or “pure” highlight color. All other colors in the job print as black.

Figure 4-4. Extraction Color for Highlight Printing window

XEROX DOCUPRINT 92C IPS GUIDE TO CONFIGURING AND MANAGING THE SYSTEM 4-9

SETTING THE SYSTEM CONFIGURATION

Rules for extraction color Here are some general rules for extraction highlight color on the IPS:

• The highlight color ink loaded in the printer always determines

the final output color—it is impossible, for example, to obtain red text from green ink.

• Executive Black prints all non-black colors as black.

• Colors in the job that are different from the extr action color print

as black when Exact Color Only is specified.

The following table summarizes the extraction color principles, using red, green, and blue as examples:

Color specified in job Extraction color

selected

Red Red Yes Printer ink c olo r ( solid) All non-red (except

black)

Red Red No Printer ink color

Any non- red Red No Shade/tint of printer ink color Red Green (or any non-red) Yes Black Red Green No Shade/tint of printer ink color Any Executive black Yes or no Black Red Printer Co lo r (re d) Yes Printer ink c olo r ( solid) Red Printer Color (red) No Printer ink color Blue Printer Color (red) Yes Black Blue Printer Color (red) No Shade/tint of printer ink color

Color samples The “Extraction color samples” appendix in the Xerox DocuPrint 92C

Red Yes Black

IPS Syst em Overvi ew G uide shows extractions for the inks available for your system. It shows approximately what shades, tints, and solids will be produced by the possible combinations of the printer inks, the job-specified colors, and the extraction colors.

Exact Color selected?

Printed col or (output)

Caution: These appendix pages show an approximation of the

colors that your printer will produce; they are included to give you an idea of what to expect. However, the actual printed colors can vary from printer to printer. You should always run test prints to see exactly how your printer prints these colors.

4-10 XEROX DOCUPRINT 92C IPS GUIDE TO CONFIGURING AND MANAGING THE SYSTEM

Procedure To spec ify the extraction color:

1. From the Configuration menu, select Extraction Color. The Extraction Color for Highlight Printing window displays.

2. From the color pull-down menu, select your desired extraction color.

Figure 4-5. Extraction Color window with color pull-down

SETTING THE SYSTEM CONFIGURATION

3. Select Exact Color Only if you want only the extraction color to print in the solid color of the ink loaded in the printer.

4. Click Apply.

XEROX DOCUPRINT 92C IPS GUIDE TO CONFIGURING AND MANAGING THE SYSTEM 4-11

SETTING THE SYSTEM CONFIGURATION

Printing the IPS color samples

Extraction color palettes

Your IPS has two sets of color palette trace files, stored in the /var/db directory on the Printer Controller. Each set contains one

palette for each color of dry ink available for the IPS. Appendix B of your System Overview Guide contains samples of both sets of printed palettes for each color ink.

Note: Each color file is applicable only to the corresponding color of dry ink that is installed in the printer.

By printing the following palette files, you can see how the different color extractions affect the appearance of colored areas printed with each color of ink.

• blue_palette.trace

• brown_palette.trace

• cardinal_palette.trace

• cyan_palette.trace

• green_palette.trace

• magenta_palette.trace

• red_palette.trace

• royal_palette.trace

• ruby_palette.trace

• violet_palette.trace

Shades and tints palettes

The following palettes show the range of shades and tints that can be printed with each of the highlight color inks, and gives the percentages of color, black, and/or white that make up each one.

• blue2_palette.trace

• brown2_palette.trace

• cardinal2_palette.trace

• cyan2_palette.trace

• green2_palette.trace

• pink2_palette.trace (prints magenta)

• red2_palette.trace

• royal2_palette.trace

• ruby2_palette.trace

• violet2_palette.trace

Procedure for printi ng the palettes

You can print out these palette files, which are actually captured trace files, to find out how your particular IPS printer produces the various shades and tints of the color ink that is loaded. Use the procedure for executing a captured trace, as follows.

1. Make sure that the specified extraction color is the same as the color ink that is loaded in the printer. For palettes of colors that are not listed on the Extraction menu, substitute extraction colors as directed in “Setting the extraction color,” earlier in this chapter.

2. Select Trace Options from the Diagnostics pull-down menu on the IPS main window.

3. On the Trace Options window, click Offline.

4-12 XEROX DOCUPRINT 92C IPS GUIDE TO CONFIGURING AND MANAGING THE SYSTEM

Rotating the page origin

SETTING THE SYSTEM CONFIGURATION

4. From the Trace Mode pull-down menu, select Execute Trace. The Default Trace File Name prompt window displays.

5. On the Default Trace File Name window, enter the following path:

/var/db/palettename

where palettename is the file name of the palette you want to print (such as royal2_palette.trace).

6. Click Apply. The system pr ints ten copies of the specified palette.

7. After printing has completed, select Normal Operation from the Trace Options window.

If you want to print a job that was designed for a continuous forms printer, you can enable the job to print on the cut-sheet IPS printer by rotating its page origin 90 degrees. When you do this, the IPS emulates a continuous forms printer while printing on cut sheets.

Example: Suppose you wanted to print a continuous forms job designed for 17 by 11-inch (or possibly A3) paper on your IPS, which uses cut sheets.

• The page or text origin is always in the upper-left corner of the

printed page.

• For continuous forms printing, the longest edge (17 inches)

is the top edge. (See the illustration below.)

For cut-sheet printing, the short edge (11 inches) is the top edge. (See the illustration below.)

XEROX DOCUPRINT 92C IPS GUIDE TO CONFIGURING AND MANAGING THE SYSTEM 4-13

SETTING THE SYSTEM CONFIGURATION

For the page to print correctly in portrait orientation on the IPS cut sheets, its text origin must be rotated 90

, via the Continuous Forms

Emulation window.

4-14 XEROX DOCUPRINT 92C IPS GUIDE TO CONFIGURING AND MANAGING THE SYSTEM

SETTING THE SYSTEM CONFIGURATION

Follow these steps:

1. Select Continuous Forms Emulation from the Configuration pull-down menu.

2. On the Continuous Form Selection window, click Enabled.

Figure 4-6. Continuous Form Selection window

3. Click Apply.

XEROX DOCUPRINT 92C IPS GUIDE TO CONFIGURING AND MANAGING THE SYSTEM 4-15

SETTING THE SYSTEM CONFIGURATION

Specifying the media units

This section describes the procedure for specifying the media units you want to use for weight and size. The specified units are used on the IPS main window.

To specify the weight and/or size units:

1. From the Configuration menu, select Media Units. The Media Units window displays.

Figure 4-7. Media Units window

2. For weight, select g/m

or lb as the desired units.

3. For size, select mm or in as the desired units.

4. Click Apply. A confirmation wind ow displays.

5. Click OK to confirm your selections.

4-16 XEROX DOCUPRINT 92C IPS GUIDE TO CONFIGURING AND MANAGING THE SYSTEM

Setting optional processing parameters

You can set processing parame te rs fo r your syst e m as follows:

1. Select Optional Processing Parameters from the Configuration

2. On the Optional Processing Parameters screen (refer to the

SETTING THE SYSTEM CONFIGURATION

pull-down menu.

next page for an illustration), identify the parameters you want to set.

• Number of i mage rs — Specifies how many imagers to run.

An imager should be added for each CPU on the system.

• Trace drawing commands — Enables or disables tracing

of the IPDS commands sent from PSF. These comman ds result in drawing commands for the imagers.

Checking this option will degrade performance.

• Ignore black areas — Enables or disables the WCB option.

This option removes large areas of black from IM images to save printer consumables.

• Use replicate and trim — Enables or disables the

Replicate and Trim option. This option is used to image large areas by using a small area pattern supplied by the host, and replicate the pattern to fill the large area in a tiling manner. Enabling this option reduces the transmission time for image data from PSF to the IPS printer. By default, this parameter should be enabled.

• Use alternate printer mo del numb er — Specif ies the

printer model sent by the IPS printer to PSF during a Sense Type and Model (STM) response. The model number must consist of four numeric characters.

• Alternate Mar kform — Enables or disables the Alternate

Markform option. This option prints a printer specific mark on the end banner sheets. Enabling this option results in a Xerox logo. By default, this parameter is set to print a black bar on the end banner sheets.

• Appl y da rkening — Not supported on the 92C IPS.

3. For each parameter, select the checkbox and enter the information on the right, if applicable.

4. When all parameters are set, click Apply.

XEROX DOCUPRINT 92C IPS GUIDE TO CONFIGURING AND MANAGING THE SYSTEM 4-17

SETTING THE SYSTEM CONFIGURATION

Figure 4-8. Optional Processing Parameters window

5. Reboot the syst em to put you r se ttings into effe ct (except for “Alternate markform,” which does not require a reboot.)

4-18 XEROX DOCUPRINT 92C IPS GUIDE TO CONFIGURING AND MANAGING THE SYSTEM

Diagnostics menu tasks

Printi ng sampl es

SETTING THE SYSTEM CONFIGURATION

The following procedures can be accessed from the Diagnostics pulldown menu.

• Printing samples

• Capturing a trace

• Executing a captured trace

• Printing a trace file

• Setting the debug level

• Updating the software using a diskette or a CD

• Updating the software remotely .

This section describes the procedure for setting up and printing samp l e files (te st patte r n s ).

To set up and print sample files:

1. From the Diagnostics menu, select Sample Prints. The Sample Prints window displays.

Figure 4-9. Sample Prints window

2. Specify the test pattern and the criteria you want to use to print the sample file.

XEROX DOCUPRINT 92C IPS GUIDE TO CONFIGURING AND MANAGING THE SYSTEM 4-19

SETTING THE SYSTEM CONFIGURATION

Note: If your DocuPrint 92C IPS has DFA, the Sample Prints window contains two additional fields: Number of Sets and Finishin g Function.

Figure 4-10. Sample Prints window for the a system with DFA

(shown is a DocuPrint 4635 IPS)

• Sample File — Specifies the sample file you want to print.

When you select this field, the Testdocs menu displays, allowing you to click the file you want to print.

4-20 XEROX DOCUPRINT 92C IPS GUIDE TO CONFIGURING AND MANAGING THE SYSTEM

SETTING THE SYSTEM CONFIGURATION

Note: T he following screen shows a sampling of the files that are available. Your system may have different sample files, or you may choose to have some added or deleted.

Figure 4-11. Portion of Testdocs list of samples to print

XEROX DOCUPRINT 92C IPS GUIDE TO CONFIGURING AND MANAGING THE SYSTEM 4-21

SETTING THE SYSTEM CONFIGURATION

• Number of Sheets — Specifies the number of pages you

want to print from the sample file. The range is 0 to 500 sheets. The default is 10 sheets.

• Number of Sets (DFA systems only) — Specifies the

number sets to create, each containing the number of sheets specified.

• Finishing Function Option (DFA systems only) —

Enables you to specify finishing functions 1 or 2 for a thirdparty finishing device, if desired.

• Mode — Specifies whether the sample is printed in simplex

or duplex mode. Simplex is the default. If you select duplex, the same sample is printed on both sides of each sheet.

• Printer Tray — Specifies the input tray grouping from which

paper will be fed. (Refer to the “Specifying the input configuration” section later in this chapter.)

• Bin Group — Specifies the output bin grouping to which the

printed samples are sent. (Refer to the “Specifying the output configuration” section later in this chapter.)

Note: If Bin 1 (sample tray) is not selected, the printed sheets are offset every six sheets.

3. Click Print Samples to initiate printing. Your samples are delivered to the bin group selected on the Sample Printing window.

4-22 XEROX DOCUPRINT 92C IPS GUIDE TO CONFIGURING AND MANAGING THE SYSTEM

SETTING THE SYSTEM CONFIGURATION

Manual P QA button When you click this button, the system prints a one-page sample.

This initiates an automatic print quality adjustment if needed. While the PQA is in progress, a PQA status window displays, giving

status messages on the adjustment. When the PQA is complete, the window disappears.

Figure 4-12. PQA status window example

Note: Setting the extraction color to a color other than black will help the printer to initialize the “adjus t ing c olo r” process during a PQA.

XEROX DOCUPRINT 92C IPS GUIDE TO CONFIGURING AND MANAGING THE SYSTEM 4-23

SETTING THE SYSTEM CONFIGURATION

Capturing and executing a tr ace

Capturi ng a t rac e

This section describes the procedures you use to initiate a trace to perform system diagnostics and to execute a trace. In general, the service representative performs this function. However, you may be asked to perform this task in preparation for a service call. Your service representative will provide a password, because this function is password-protected.

To capture a trace in preparation for a service call:

1. Drain the printer at the host. (Follow procedures for your host system.)

2. Restart the Printer Controller by selecting Restart from the Sun workstation background menu. (Refer to the “Rebooting the Printer Controller” section in the “Star ting and stoppi ng the system” chapter for this procedure.)

3. From the Diagnostics menu, select Trace Options (available to Administrator and Service privilege mod e users only). The Trace window displays.

Figure 4-13. Trace window with Online Trace Mode Op tions

menu displayed (for a system with TCP/IP interface)

Figure 4-14. Trace window with Offline Trace Mode Options

menu displayed

4-24 XEROX DOCUPRINT 92C IPS GUIDE TO CONFIGURING AND MANAGING THE SYSTEM

SETTING THE SYSTEM CONFIGURATION

The Trace window contains the following options and field:

• Online — Enables the interface after you execute the trace.

• Offline — Disables the interface so that you can execute

the trace.

• Trace Mode Options pull-down menu — Specifies how

you want to perform the trace. You use the pull-down menu to specify the trace options you want to use. The selections are a s follows:

— Normal Operation — Specifies no trace options are in

effect.

— IPDS and Channel — Specifies that the trace will

capture the channel command words (exchanged between the host and the printer and the IPDS data stream) into the trace file.

Note: This option displays only if “Channel” was selected from the Interface window. (Refer to the

“Setting up the Printer Controller” chapter.)

— IPDS & TCP/IP — Specifies that the trace will capture

the TCP\IP commands (exchanged among the host and the printer and the IPDS data stream) into the trace file.

Note: This option displays only if “TCP/IP” was selected from the Interface window. (Refer to the

“Setting up the Printer Controller” chapter.)

— IPDS O n ly—Specifies that the trace will capture only

the IPDS data stream into the trace file.

— Execute Trace — Specifies that the job will print as

though it was received across the channel or the TCP/ IP interface.

4. From the Trace Mode Options pull-down menu, select IPDS & Channel, IPDS only, or IPDS & TCP/IP. Your selection is displayed in the lower right corner of the Trace Mode Options window, and the Trace Mode Options window displays.

Figure 4-15. Trace Mode Options window

XEROX DOCUPRINT 92C IPS GUIDE TO CONFIGURING AND MANAGING THE SYSTEM 4-25

SETTING THE SYSTEM CONFIGURATION

5. Enter a name for the trace file. You can enter the full directory path along with the file name to save the trace file directly to a desired location. If no file name or file path is specified, the file is saved as Trace and stored in the /var/db directory.

Note: It is recommended that the trace file name start with trace_, followed by the name of the trace, all in lower case characters. For example, if the trace name is test, enter the following as the file name:

trace_test

Note: The trace file is a large file and can quickly fill up a

directory. For that reason, the default /var/db directory is the recommended place to store trace files.

6. Click OK to start the trace.

7. Start the printer at the host.

8. Send a job to the IPS. The trace runs on this job. (The throughput speed of the job when running in Trace Mode is slower than in normal operation.)

9. Select Normal Operation from the Trace Options pull-down menu.

10. Click Quit.

Executing a captured trace

To execute a trace to assist with system diagnostics:

1. Capture the trace, following the steps described in the section “Capturing a trace” above.

2. Select Trace Options from the Diagnostics pull-down menu on the main window.

3. Click Offline to disable the interface.

4. From the Trace Mode pull-down menu, select Execute Trace. The Default Trace File Name prompt window displays.

5. If you have already given the trace file a name during the capturing process, that name is displayed on this screen.

If you were not capturing a trace file, or if you want to execute a trace file different from the one just captured, enter the name on the line provided in the Default Trace File Name window.

6. Click Apply. The job prints. After the job has completed, the system returns to normal operation.

7. After the job has completed, select Normal Operation.

8. Click Online to enable the interface.

9. Click Quit.

Note: After executing a trace file, make sure to cancel the FSS and restart IPS before submitting any jobs. Otherwise, the output of any submitted jobs may be missing all of the text data.

4-26 XEROX DOCUPRINT 92C IPS GUIDE TO CONFIGURING AND MANAGING THE SYSTEM

Printing a trace file

SETTING THE SYSTEM CONFIGURATION

You can print a trace file using the conprt utility as follows:

1. After capturing the trace and verifying its effects by using the “Execute trace” option from the Trace Mode pull-down list, open a Unix command tool.

2. Change the working directory by entering:

cd /var/db

3. Process the trace file using the ipdeb utility by entering:

ipdeb trace > trace_debug (for uncompressed files) or ipdeb trace.Z > trace_debug (for compressed files)

This creates the file trace_debug that will be an Englis h rendition of the hex data.

Note: The ipdeb utility supplies default values for those parameters that are not supplied. The defaults are:

• Paper size: USLetter (8.5 by 11-inch)

• Resolution: -r 300

• Directory: current directory.

To print a file from a directory other than the current directory, specify the directory as a separate field following the file name.

4. To print the trace file on a DocuPrint 92C IPS in duplex, enter:

conprt -d trace_debug [/var/db]

where /var/db is the directory, and is optional.

Note: The conprt utility determines whether to specify mono or hilite for the -c option.

Note: If you are using a paper size other than USLetter (8.5 by 11-inch), specify the dimensions of the paper in pels by using the

-x option. For example, for A4 paper on a DocuPrint 92C IPS enter:

conprt -d -x 3520x2480 trace_debug [/var/db]

Note: Do not use the co n pr t ut ilit y wi th la rg e files becaus e

each page of a text file requires about 1 MB of disk space.

XEROX DOCUPRINT 92C IPS GUIDE TO CONFIGURING AND MANAGING THE SYSTEM 4-27

SETTING THE SYSTEM CONFIGURATION

Setting of the debug level

You can set the level of debug messages to be stored in log message files. To set the debug level:

1. From the Diagnostics menu, select Debug Level. The Debug Level window displays.

2. Select the debug level of your choice.

3. Click Apply.

Note: Selecting a Debug Level other than 0 or selecting Save Pages to Disk For Viewing may degrade throughput speed.

4-28 XEROX DOCUPRINT 92C IPS GUIDE TO CONFIGURING AND MANAGING THE SYSTEM

Updating the software using a CD or a diskette

You can update the printing system software using a CD or a diskette, provided by your service representative. To upda te the software:

1. Insert the CD or the diskette containing the software update into your diskette drive.

2. From the Diagnostics menu, select Update from CDROM or Update from Floppy. The Update from CD or the Update from Floppy window displays.

SETTING THE SYSTEM CONFIGURATION

3. Enter the password provided by your service representative.

The software will automatically load from the CD or from the diskette onto your system.

XEROX DOCUPRINT 92C IPS GUIDE TO CONFIGURING AND MANAGING THE SYSTEM 4-29

SETTING THE SYSTEM CONFIGURATION

Updating the software remotely

You can update the printing system software remotely as follows:

1. From the Diagnostics menu, select Install Remote Update. The Install Remote Update window displays.

2. Enter the password provided by your service representative.

The software will automati ca l ly load onto your system.

4-30 XEROX DOCUPRINT 92C IPS GUIDE TO CONFIGURING AND MANAGING THE SYSTEM

System Options menu tasks

SETTING THE SYSTEM CONFIGURATION

From the System Options pull-down window, you can access windows to place the IPS online and offline, and shut down the system.

Figure 4-16. System Opti ons pull-dow n m e nu

• Online — Places the system online.

• Offline — Takes the system offline.

• Shutdown System — Shuts down the system. This opt ion

stops all processes running on the Printer Controller, stops the printer, and returns to the boot prompt of the operating system.

When selecting this option, you are asked to confirm your selection, as illustrated below.

Figure 4-17. Shutdown confirmation window

Note: The shutdown confirmation window displays in English only.

XEROX DOCUPRINT 92C IPS GUIDE TO CONFIGURING AND MANAGING THE SYSTEM 4-31

SETTING THE SYSTEM CONFIGURATION

Specifying the input configuration

This section describes the procedures for creating, changing, and deleting input tray configurations; selecting the feeder tray(s) for a job; and indicating the media (stock) that is loaded in each feeder tray. (For an explanation of the buttons on these windows, refer to the “Buttons” section in the “Introduction to the graphical user interface” chapter.)

When you specify the input configuration, you associate one or more feeder trays with each IPDS tray that is called for in a print job. The printer then feeds paper from all the printer trays specified for a given IPDS tray. It stops and requests more paper only when all those trays are empty.

You can create input config uratio ns by organizi ng the stocks y ou will use in a certain application or set of applications into unique groups with different paper trays. This allows the host to access different paper stock from each tray.

Note: When configuring feeder groups, the printer feeds from any of the feeder trays in the group, with no particular order to follow. In other wo rd s, the pr in t er w ill n ot n ec e s sa ri ly sta r t wit h the lo w est numbered tray in the group.

By placing media icons in the IPDS and Printer Tray cells on the Input Configuration window, you communicate to the printer which feeder trays to use for each IPDS tray the data stream specifies. At the same time, you are setting up the Main window input section to display the stock loaded in each printer tray.

4-32 XEROX DOCUPRINT 92C IPS GUIDE TO CONFIGURING AND MANAGING THE SYSTEM

Example of an input configuration

SETTING THE SYSTEM CONFIGURATION

Here is an example of a hypothetical input configuration you might create:

You have an application in which only IPDS trays 1 and 2 are called out, with most of the job calling for IPDS tray 1. The media you will be using are 20-pound white USLetter and 60-pound blue USLetter. You have a high-capacity feeder and would like to use all four available trays.

To accomplish this, you could create a configuration like this:

• In the IPDS Trays row, specify the 20-pound white stock in the

IPDS Tr ay 1 cell and the 60-pound blue in the IPDS Tray 2 cell.

• In the Printer T ra ys row, specify the 20-pound white paper in the

cells for Printer Trays 1, 3, and 4.

• Specify the 60-pound blue paper in the Printer Tray 2 cell only,

because a relatively small amount of that stock will be required.

The following figure shows the configuration described above.

Figure 4-18. Example of an input configuration, displayed on

the IPS main w indow

By invoking this confi gu ra t ion , you en s ur e y o ur jo b w ill pr in t as follows (be sure the physical printer trays actually contain the stock you specified):

• The IPS will feed from printer tray 1 for all parts of the job in

which IPDS tray 1 is specified in the data stream. These pages will be printed on the 20-pound white paper.

XEROX DOCUPRINT 92C IPS GUIDE TO CONFIGURING AND MANAGING THE SYSTEM 4-33

SETTING THE SYSTEM CONFIGURATION

Selecting simplex or duplex printing

• When tray 1 is empty, feeding will switch to tray 3, then tray 4,

without any intervention from the operator. Printing will not stop until trays 1, 3, and 4 are empty. (These pages will continue to be printed on the 20-pound white paper.)

• For those parts of the job in which IPDS tray 2 is specified,

feeding switches to printer tray 2. Those pages will be printed on the 60-pound blue card stock.

The 92C IPS allows you to switch from simplex to duplex printing (or vice versa) within and between print jobs.

Duplex or mixed plex jobs need to be printed from IPDS trays with duplex icons. Jobs that need to print in simplex only, such as label stock or transparencies, should be printed from IPDS trays with simplex icons. Refer to the section “Cr eati ng a media icon” later in this chapter for information on how to create simplex and duplex printing icons.

Note: For the 4050/4090, 4850/4890, and DP92C IPS, the systerm must clear the paper path before each plex change. (The 96/4635/ 180 IPS does not do this.) Performance is affected to some extent for all printers at each plex change. The degree to which performance is affected depends on whether or not the paper path is cleared and on the number of plex changes within the job.

To specify simplex or duplex printing, select an IPDS tray with the appropriate media icon, as shown below.

Figure 4-19. Single (simplex) media icon

Figure 4-20. Singl e or doub le (simplex or duplex) media icon

4-34 XEROX DOCUPRINT 92C IPS GUIDE TO CONFIGURING AND MANAGING THE SYSTEM

Setting up margin values

SETTING THE SYSTEM CONFIGURATION

The IPS software allows you to save multiple margin settings by making the margin values part of the attributes of the IPDS trays. Also, each IPDS tray can be defined with different margin values.

To set the margin values of an IPDS tray, follow these steps:

1. In the Input Configuration section of the main window , select the input configuration of your choice using the default pull-down menu.

Figure 4-21. default pull-down menu

The Input Configuration window displays.

Figure 4-22. Input Configuration window

2. Click the Modify Margin Settings button.

XEROX DOCUPRINT 92C IPS GUIDE TO CONFIGURING AND MANAGING THE SYSTEM 4-35

SETTING THE SYSTEM CONFIGURATION

3. From the Modify Margin Settings window, select one or more IPDS trays.

Note: The current margin values for the first IPDS tr ay selected displays.

Figure 4-23. Modify Margin Settings window

Setting up the Media Library

4. Change the margins to the desired values.

5. Click Apply.

6. Repeat steps 3 through 4 until all trays contain the desired values.

7. Click Quit.

8. From the Input Configuration window, click Apply and Save.

9. From the Input Configuration window, click Quit.

The Media Library is a virtual representation of the stocks (media) that you have available for loading in your IPS feeder trays. To create an input tray configuration, you copy (by dragging and dropping) media icons from this Library to the tray cells on the Input Configuration window. When you place icons for the same stock in an IPDS tray cell and a printer tray cell, the IPDS and printer trays are automatically mapped together.

When your IPS is first installed, your Xerox representative assists you in placing media icons in the Media Library for the stocks that you need for what will be your Default input configuration. If you will be using stocks in addition to those already in your Media Library, you must add them. You can create icons representing standard sizes, weights, form types (3-hole, etc.), and colors of stocks. In addition, you can create customized icons for non-standard media.

4-36 XEROX DOCUPRINT 92C IPS GUIDE TO CONFIGURING AND MANAGING THE SYSTEM

Creating a media icon

SETTING THE SYSTEM CONFIGURATION

To create new icons for your Media Library, follow these steps:

1. In the Input Configuration section of t he main window, using the default pull-down list, select the input configuration of your choice. The IPS Input Configuration window displays.

Note: The first time you see this window, it displays your Default input tray configuration, which your Xerox representative set up for you at installation. Subsequently, when you open this window it displays the current input configuration.

Figure 4-24. IPS Input Configuration window

2. Click the Show Media Library button, centered near the bottom of the window, below the row of Printer Trays cells. The Media Library window displays.

XEROX DOCUPRINT 92C IPS GUIDE TO CONFIGURING AND MANAGING THE SYSTEM 4-37

SETTING THE SYSTEM CONFIGURATION

Figure 4-25. Media Library window

The Media Library window contains the following elements:

• Buttons

— Add — Displays the Create a New Media Type

window, which enables you to add new media icons to the Library.

— Edit — Displays the Edit a Media Type window, which

allows you to change media icons in the Library.

— Delete — Deletes a media icon from the Library. — Edit Defaults — Displays the Edit the Media Defaults

window, which allows you to create or change the default media attributes (except for media size)

— Quit — Closes the Media Library window

• Media icons — Icons representing the different stocks that

you use in your IPS printer.

3. Click the left mouse button on the Add button. The Media Type window displays.

4-38 XEROX DOCUPRINT 92C IPS GUIDE TO CONFIGURING AND MANAGING THE SYSTEM

SETTING THE SYSTEM CONFIGURATION

Figure 4-26. Media Type window

4. On the Media Type window, make your selections in the following fields for the new media icon you are adding.

Note: The icon display box at the bottom of this window shows the media icon with which you are currently working. Each time you make a selection or change in any of the fields on this window, that change is reflected in the display box. By watching this box, you are able to continually monitor what you are creating without needing to apply or save your work first.

• Size — Lists all the standard sizes of stocks supported on

your IPS printer. To select a media size, highlight it by clicking it with the left mouse button.

XEROX DOCUPRINT 92C IPS GUIDE TO CONFIGURING AND MANAGING THE SYSTEM 4-39

SETTING THE SYSTEM CONFIGURATION

Note: T hi s list contains only standard stock sizes. You cannot create or specify paper sizes not contained in this list.

If you have a job that requires a size of paper that is not on this size list, add it using the Tools icon on the printer control console. (Refer to the “Printers” chapter in the Xerox DocuPrint 92C IPS System Overview Guide.) However, the size must be within the length/width range supported by your IPS printer. (Refer to the “Paper and other print media” cha p te r i n the Xerox DocuPrint 92 C IPS Sy ste m Overview Guide.)

• Plex Ca pability — Specifies whether the media will be

simplex or duplex, or simplex only.

• Form Type — Lists the types of stock you will use in your

IPS printer (e.g., standard, 3-hole, transparency, etc.). To select a form type from this list, highlight your selection by clicking it with the left mouse button.

You can create new stock types to add to this list by following these steps:

a. Click the Add button, located below the Form Type list

box. The following window displays:

Figure 4-27. Add a New Form Type window

b. With the cursor positioned on the Add a New Form

Type window, enter the name of the media type you want to add to the list (such as 2-hole, Reinforced, etc.).

c. Click Add on the Add a New Form Type window. Your

new stock type displays on the Form Type list.

To create a temporary form type: You may have occasion to create a media icon requiring a form type you know you will not need again for any other stock . You do not want to add this form type to the list of those you use frequently. For this, you can create a temporary form type that will be available only while you are creating your media icon.

a. On the Other Form Type line, located below the Add

and Delete buttons, click the left mouse button.

b. Enter a name for the new form type. The text you enter

displays in the media icon display box at the bottom of the screen as well as on the Other Form Type line. Do

not click the Add button.

4-40 XEROX DOCUPRINT 92C IPS GUIDE TO CONFIGURING AND MANAGING THE SYSTEM

SETTING THE SYSTEM CONFIGURATION

Note: After you complete all edits to your media icon, click Apply, and close the Create a new Media Icon window , yo ur temporary for m ty pe will b e de leted.

If you want to save the temporary form type t o the Form Type list, do the following before closing the window:

1. Click the Add button. The Add a New Form Type window displays with your temporary form name already displayed on the New Form Type Name line.

2. Click the Add button. Your formerly temporary form name will now appear in the Form Type list.

To dele te a na me fro m the Fo rm Type lis t : Cl ick the item to be deleted, then click the Delete button located below the Form Ty pe bo x.

• Wei ght ( lb s.) — Specifies in pounds the weight of the

media you are adding. Use the incremental spin buttons to display your desired paper weight. You can specify weights only within the range supported by your printer.

For information on changing the weight units, refer to the

“Specifying the media units” section earlier in this chapter.

• Color — Specifies the color of the stock represented by the

media icon you are creating. There are two ways to do this: — Select a standard stock color by clicking one of the

color boxes in this field.

— Specify another color by entering its name on the

Other Color line below the color boxes. The text you enter also displays in the media icon display box at the bottom of the screen.

• Icon display box — Displays the media icon you are

currently creating or changing, and reflects all changes as you make them.

5. Click Apply. Your new media icon displays in the Media Library window.

Note: If you want the Create a new Media Type window to remain open while you create multiple icons, be sure the pin button in the upper left corner of this window is “in” before you click Apply. Otherwise, the window closes when you click Apply, and you must reopen it to create another icon.

• To “push the pin in,” click once the pin button that is in the

“out” position.

• When you are finished creating icons, click once the pin

button (in the “in” position), or click the Cancel button to close the window.

6. Repeat steps 3–5 for any additional media icons you wish to create.

XEROX DOCUPRINT 92C IPS GUIDE TO CONFIGURING AND MANAGING THE SYSTEM 4-41

SETTING THE SYSTEM CONFIGURATION

Changing a media icon

Deleting a media icon

To change or edit a media icon in your Media Library, follow these steps:

1. Access the Media Library window. F or the procedure, refer to the “Creating a media icon” section earlier in this chapter.

2. On the Media Library window, do one of the following:

• Double-click the media icon you want to change, or

• Single-click the icon to be changed (a white box displays

around the selected icon), then click the Edit button.

3. On the Media Type window, make any desired changes to the selected icon’s parameter fields. The changes you make are reflected in the display box at the bottom of the Media Type window. For an illustration of the window and explanation of the fields on it, refer to the “Creating a media icon” section earlier in this chapter.

4. Click Apply to sav e your changes. The selected icon displays in the Media Library with the revisions you made.

To delete a media icon from the Media Library:

1. Access the Media Library window. F or the procedure, refer to the “Creating a media icon” section earlier in this chapter.

2. On the Media Library window, click the media icon you want to delete.

3. Click the Delete button at the top of the window. A confirmation window displays.

4. Click OK. The selected media icon is removed from the Media Library.

Editing the media defaults

A set of default media attributes (size, weight, form type, and color) is established at installation by you or your Xerox representative, based on your printing requirements.

These default media attributes serve two purposes:

• When you open the Media Type window, the default attribute

values (size, form type, weight, and color) appear in the various fields.

• If you load a stock that is not the size specified in the current

input configuration, the IPS detects this when it checks the feeder tray adjustment. It does not have a way to identify the other attributes (form type, weight, and color); therefore, it assumes the default values for these attributes.

A message window displays, stating that the configuration has changed. You m ay then either accept this assumed input configuration or manually change it.

You are able to edit the default media attributes in much the same way you would edit any media icon.

4-42 XEROX DOCUPRINT 92C IPS GUIDE TO CONFIGURING AND MANAGING THE SYSTEM

SETTING THE SYSTEM CONFIGURATION

1. Access the Media Library window. F or the procedure, refer to the “Creating a media icon” section earlier in this chapter.

2. Click the Edit Defaults button on the Media Library window . The Edit the Media Defaults window displays.

Figure 4-28. Media Defaults window

3. Make changes to all desired fields. (For an explanation of these fields and the procedures for changing them, refer to the “Creating a media icon” section earlier in this chapter.)

Note: The Media Size field cannot be edited. The default media size is always the current setting for physical feeder tray 1. This value is the only item displayed in the Media Size field.

XEROX DOCUPRINT 92C IPS GUIDE TO CONFIGURING AND MANAGING THE SYSTEM 4-43

SETTING THE SYSTEM CONFIGURATION

Adding a new input configuration

To create a new input configuration:

1. From the Input Configuration pull-down menu, select any name to use as the base for building the n ew c on f igu r ation. (You will rename the new file, so the existing file you selected to build from will not be changed.)

Figure 4-29. Input Conf i guration pull- do w n m enu

If you wish, you can use whatever input configuration was already displayed when you opened the window, without selecting from the Input Configuration menu.

2. To access media icons for the stocks you want for this configuration, click the Show Media Library button to display the Media Library window. (If all the stocks you need are already displayed in tray cells on the IPS Input Configuration window, you can skip this step.)

4-44 XEROX DOCUPRINT 92C IPS GUIDE TO CONFIGURING AND MANAGING THE SYSTEM

Xerox 92C IPS User Manual 2

Specifications and Main Features

Frequently Asked Questions

User Manual
