Phaser

®

8510/8560MFP

Scanner Calibration Instructions

Perform the scanner calibration procedure if your scanner, document feeder, or document cover is
replaced. Scanner calibration adjusts the output quality of the front and back pages of 2-sided originals in
relation to each other. This procedure should not be performed as part of normal system operation.

Calibrate the scanner using the Scanner Calibration page that came with your
replacement scanner, document feeder, or document cover. After you begin the
calibration procedure at the control panel, calibrate the scanner using a two-step
process:

■ The first step scans the calibration page from the document glass. Follow the

steps in the Document Glass section. (For systems without a document
feeder, only use the steps in this section to calibrate the scanner.)

■ The second step scans the calibration page through the document feeder.

Follow the steps in the Document Feeder section.

Starting the Calibration Procedure

1. On the control panel, press the System button.

2. Select

3. Select

4. Select

5. Select

Document Glass

1. Place the Scanner Calibration page on the document glass, with the top edge of the page toward the

Information, and then press the OK button.

Troubleshooting, and then press the OK button.

Service Tools, and then press the OK button.

Calibrate Scanner, and then press the OK button. Continue with the Document Glass steps.

left.

Note: Make sure the calibration page is aligned correctly. If the page is misaligned, the calibration
procedure will fail.

Copyright © 2006, by Xerox Corporaton. All Rights Reserved. 1 of 2 075-1018-00 Rev A

www.xerox.com/office/8510_8560support

2. Close the document feeder.

3. On the control panel, select

Document Glass Step, and then press the OK button to scan the

calibration page.

4. Wait for the scan to be completed, and then select one of the following options:

■ If the control panel indicates Success, press the OK button, and then continue with Step 5.

■ If the control panel indicates Failure, press the OK button, and then repeat Steps 1–4.

5. Remove the Scanner Calibration page from the document glass.

■ If you have a document feeder, continue with the steps in the Document Feeder section.

■ If you have a document glass cover, you have completed scanner calibration.

Document Feeder

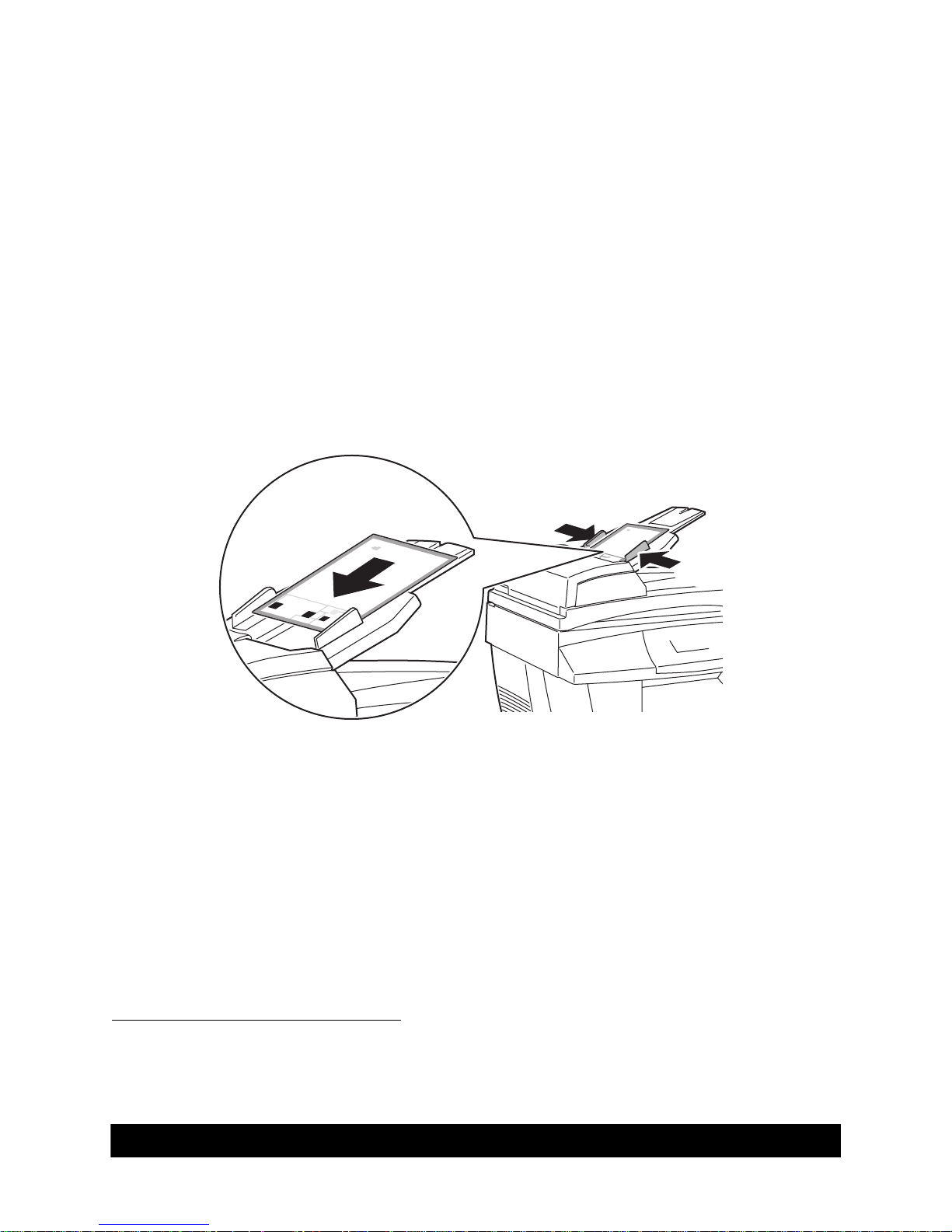

1. Place the Scanner Calibration page in the document feeder, so that the top edge of the page enters the

feeder first. Adjust the paper guides to fit against the page.

LTR/LGL

Note: Make sure the Scanner Calibration page is aligned correctly and the paper guides are adjusted to
fit against the paper. If the page is misaligned, the calibration procedure will fail.

2. On the control panel, select

Document Feeder Step, and then press the OK button to scan the

calibration page.

3. Wait for the scan to be completed, and then select one of the following options:

■ If the control panel indicates Success, press the OK button. The calibration procedure is

complete.

■ If the control panel indicates Failure, press the OK button, and then repeat Steps 1–3.

Note: For more information about calibrating the scanner, see the Knowledge Base at

www.xerox.com/office/8510_8560support

.

Copyright © 2006, by Xerox Corporaton. All Rights Reserved. 2 of 2 075-1018-00 Rev A

www.xerox.com/office/8510_8560support

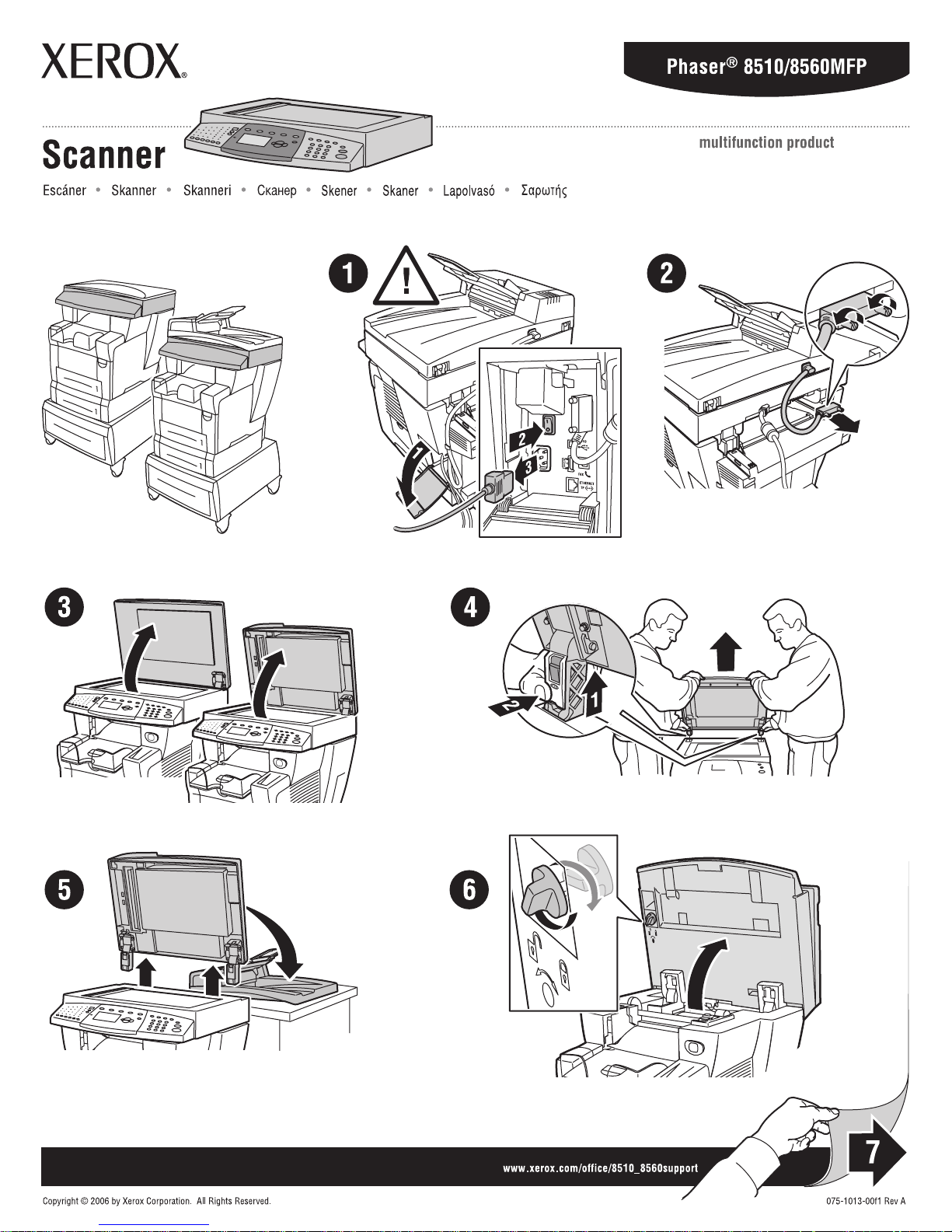

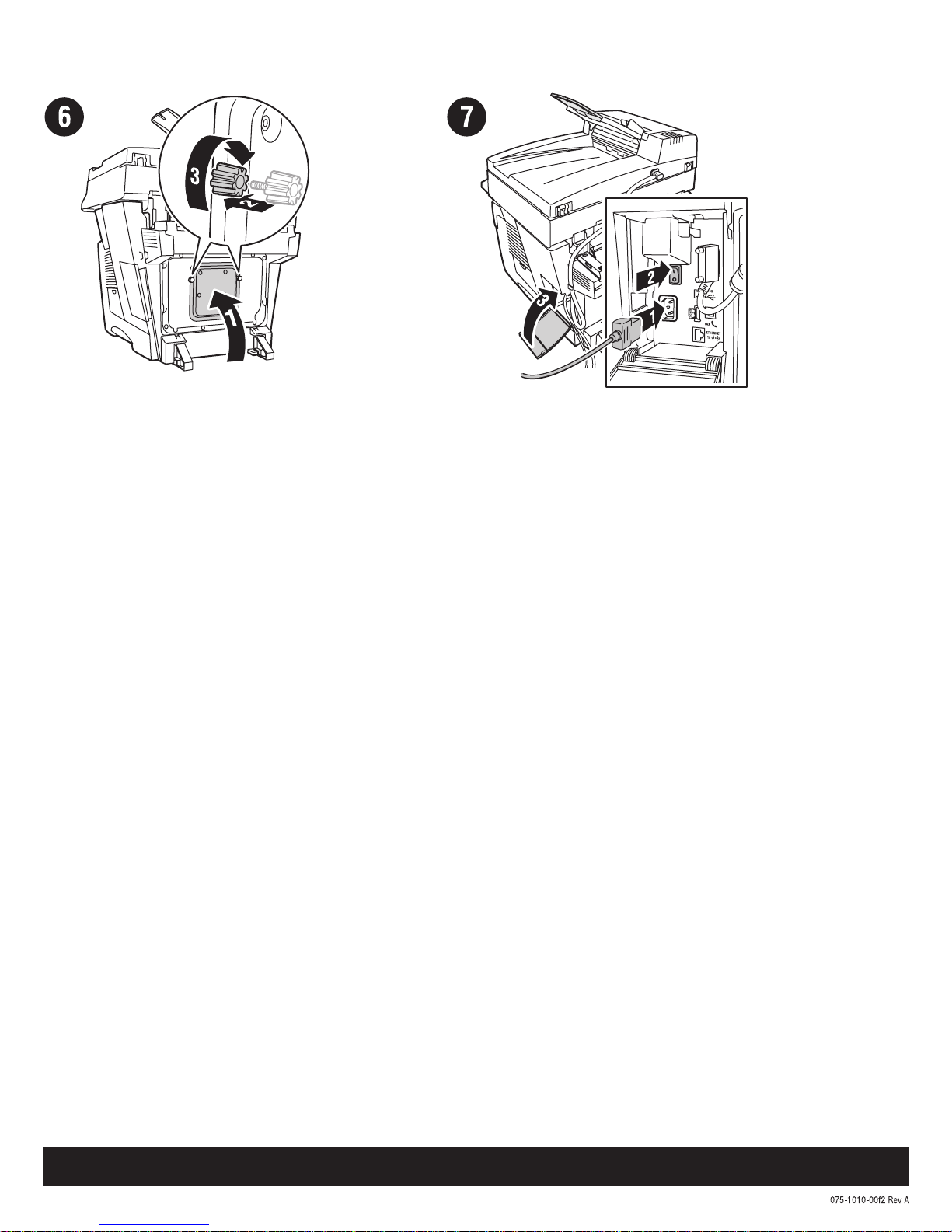

19

Calibrate Scanner For instructions see the Scanning chapter in the User Guide.

Étalonner le scanner
Calibrazione scanner
Scanner kalibrieren
Calibrar escáner
Ajustar scanner

Scanner kalibreren
Kalibrera skanner
Kalibrer skanner
Juster scanner
Skannerin kalibrointi

Калибровка сканера

Zkalibrujte skener
Skalibruj skaner
Lapolvasó kalibrálása

Βαθμονόμηση σαρωτή

Pour obtenir des instructions, consultez le chapitre Numérisation du Guide d'utilisation.
Per instruzioni, vedere il capitolo Scansione nella Guida dell'utente.
Anweisungen siehe das Kapitel Scannen im Benutzerhandbuch.
Para ver las instrucciones, consulte el capítulo Exploración de la Guía del usuario.
Para obter instruções, consulte o capítulo Digitalização no Guia do usuário.

Zie het hoofdstuk Scannen - Basis in de Gebruikershandleiding voor instructies.
För anvisningar, se kapitlet Skanna i Användarhandboken.
For instruktioner se kapitlet Scanning i Betjeningsvejledningen.
Hvis du vil ha instruksjoner, slår du opp på Scanning i User Guide.
Katso ohjeita User Guide -oppaan luvusta Scanning.

Инструкции см. в главе Сканирование в Руководстве пользователя

Pokyny viz kapitola Scanning v
Útmutatáshoz nézze meg a
Aby uzyskać instrukcje, zobacz rozdział

Για οδηγίες, δείτε κεφάλαιο Σάρωση στο Εγχειρίδιο χρήστη.

User Guide.

User Guide

útmutató Scanning fejezetét.

Scanning w dokumencie

.

User Guide.

075-1013-00f4 Rev A
