Xerox® WorkCentre® 7800/7800i Series Color Multifunction Printer

2016 Xerox

ConnectKey® Technology

User Guide

this publication may not be reproduced in any form without permission of Xerox Corporation.

Copyright protection claimed includes all forms of matters of copyrightable materials and information now allowed by statutory or

judicial law or hereinafter granted, including without limitation, material generated from the software programs which are displayed on

the screen such as styles, templates, icons, screen displays, looks, and so on.

Xerox

and Xerox and Design®, Phaser®, PhaserSMART®, PhaserMatch®, PhaserCal®, PhaserMeter™, CentreWare®, PagePack®, eClick®,

PrintingScout

Secure Access Unified ID System

Express Driver

Adobe

, Walk-Up®, WorkCentre®, FreeFlow®, SMARTsend®, Scan to PC Desktop®, MeterAssistant®, SuppliesAssistant®, Xerox

are trademarks of Xerox Corporation in the United States and/or other countries.

Reader®, Adobe® Type Manager®, ATM™, Flash®, Macromedia®, Photoshop®, and PostScript® are trademarks of Adobe Systems

, Xerox Extensible Interface Platform®, ColorQube®, ConnectKey®, Global Print Driver®, and Mobile

Incorporated in the United States and/or other countries.

Apple, Bonjour, EtherTalk, TrueType, iPad, iPhone, iPod, iPod touch, Mac and Mac OS are trademarks of Apple Inc., registered in the U.S.

and other countries. AirPrint and the AirPrint logo are trademarks of Apple Inc.

HP-GL

, HP-UX®, and PCL® are trademarks of Hewlett-Packard Corporation in the United States and/or other countries.

IBM

and AIX® are trademarks of International Business Machines Corporation in the United States and/or other countries.

™

Mopria

is a trademark of the Mopria Alliance.

Microsoft

, Windows Vista®, Windows®, and Windows Server® are trademarks of Microsoft Corporation in the United States and other

countries.

Novell

, NetWare®, NDPS®, NDS®, IPX™, and Novell Distributed Print Services™ are trademarks of Novell, Inc. in the United States and

other countries.

SGI

and IRIX® are trademarks of Silicon Graphics International Corp. or its subsidiaries in the United States and/or other countries.

Sun, Sun Microsystems, and Solaris are trademarks or registered trademarks of Oracle and/or its affiliates in the United States and

other countries.

McAfee

, ePolicy Orchestrator®, and McAfee ePO™ are trademarks or registered trademarks of McAfee, Inc. in the United States and

other countries.

UNIX

is a trademark in the United States and other countries, licensed exclusively through X/ Open Company Limited.

PANTONE

and other Pantone, Inc. trademarks are the property of Pantone, Inc.

Document version 1.3: February 2016

BR14436_en-us

Contents

1 Safety 11

Notices and Safety ........................................................................................................................................................... 12

General Guidelines ................................................................................................................................................... 12

Electrical Safety ................................................................................................................................................................. 13

Power Cord .................................................................................................................................................................. 13

Emergency Turn Off ................................................................................................................................................ 14

Telephone Line Cord ............................................................................................................................................... 14

Operational Safety ........................................................................................................................................................... 15

Printer Location ......................................................................................................................................................... 15

Operational Guidelines ........................................................................................................................................... 15

Printer Supplies .......................................................................................................................................................... 16

Ozone Release ............................................................................................................................................................ 16

Maintenance Safety ........................................................................................................................................................ 17

Printer Symbols .................................................................................................................................................................. 18

Environmental, Health, and Safety Contact Information ............................................................................... 19

2 Features 21

Parts of the Printer ........................................................................................................................................................... 22

Left Front View .......................................................................................................................................................... 22

Left Rear View ............................................................................................................................................................ 23

Internal Components .............................................................................................................................................. 24

Document Feeder ..................................................................................................................................................... 24

Control Panel .............................................................................................................................................................. 25

Integrated Office Finisher..................................................................................................................................... 26

Office Finisher LX ...................................................................................................................................................... 27

Professional Finisher ................................................................................................................................................ 28

Wireless Network Adapter .................................................................................................................................... 28

Information Pages ........................................................................................................................................................... 29

Printing the Configuration Report ..................................................................................................................... 29

Administration Features ................................................................................................................................................ 30

Accessing the Printer ............................................................................................................................................... 30

Xerox

Finding the IP Address of the Printer ............................................................................................................... 33

Automatic Data Collection ................................................................................................................................... 33

Billing and Usage Information ........................................................................................................................... 33

Xerox ConnectKey Apps ................................................................................................................................................. 34

More Information ............................................................................................................................................................. 35

Welcome Center ........................................................................................................................................................ 36

CentreWare® Internet Services ........................................................................................................... 32

3 Installation and Setup 37

Installation and Setup Overview ................................................................................................................................ 38

Xerox User Guide

WorkCentre® 7800/7800i Series Color Multifunction Printer 3

Contents

Physically Connecting the Printer to the Network ...................................................................................... 38

Connecting to a Telephone Line ........................................................................................................................ 38

Turning the Printer On and Off ........................................................................................................................... 39

Initial Printer Setup .................................................................................................................................................. 40

USB Cover .................................................................................................................................................................... 41

Optimizing Printer Performance ......................................................................................................................... 41

Modifying General Settings ......................................................................................................................................... 42

Setting Energy Saver Mode .................................................................................................................................. 43

Setting the Date and Time at the Control Panel ........................................................................................ 44

Installing the Software ................................................................................................................................................... 45

Operating System Requirements ....................................................................................................................... 45

Installing Drivers and Utilities for Windows .................................................................................................. 46

Installing Drivers and Utilities for Macintosh OS X Version 10.5 and Later .................................... 47

Installing Drivers and Utilities for UNIX and Linux .................................................................................... 48

Other Drivers ............................................................................................................................................................... 48

4 Paper and Media 49

Supported Paper ............................................................................................................................................................... 50

Recommended Media ............................................................................................................................................ 50

Ordering Paper ........................................................................................................................................................... 50

General Paper Loading Guidelines .................................................................................................................... 50

Paper That Can Damage Your Printer ............................................................................................................. 51

Paper Storage Guidelines ...................................................................................................................................... 51

Supported Paper Types and Weights ............................................................................................................... 52

Supported Standard Paper Sizes ........................................................................................................................ 53

Supported Paper Sizes and Weights for Automatic 2-Sided Printing................................................. 54

Supported Paper Sizes for the Envelope Tray ............................................................................................... 54

Supported Custom Paper Sizes ........................................................................................................................... 55

Loading Paper .................................................................................................................................................................... 56

Loading Paper in Trays 1–4 .................................................................................................................................. 56

Setting the Guide Locks in the 500-Sheet Adjustable Trays .................................................................. 59

Loading Paper in Trays 3 and 4 of the Tandem Tray Module .............................................................. 60

Loading Paper in Tray 5 ......................................................................................................................................... 62

Loading Paper in Tray 6 (High-Capacity Feeder) ........................................................................................ 64

Configuring Tray 6 in the High-Capacity Feeder ........................................................................................ 66

Changing Paper Size, Type, and Color ............................................................................................................. 67

Printing on Special Paper ............................................................................................................................................... 68

Envelopes ..................................................................................................................................................................... 68

Labels ............................................................................................................................................................................. 71

Glossy Cardstock ....................................................................................................................................................... 75

Transparencies ........................................................................................................................................................... 76

5 Printing 77

Printing Overview .............................................................................................................................................................. 78

Selecting Printing Options ............................................................................................................................................. 79

4 Xerox User Guide

WorkCentre® 7800/7800i Series Color Multifunction Printer

Print Driver Help ........................................................................................................................................................ 79

Windows Printing Options .................................................................................................................................... 80

Macintosh Printing Options .................................................................................................................................. 82

Managing Jobs................................................................................................................................................................... 83

Managing Jobs at the Control Panel ................................................................................................................ 83

Managing Secure and Held Print Jobs ............................................................................................................. 84

Managing Jobs in Xerox

CentreWare® Internet Services ..................................................................... 85

Printing Features ............................................................................................................................................................... 86

Printing on Both Sides of the Paper .................................................................................................................. 86

Selecting Paper Options for Printing ................................................................................................................ 87

Printing Multiple Pages to a Single Sheet ...................................................................................................... 87

Printing Booklets ....................................................................................................................................................... 88

Using Image Options .............................................................................................................................................. 89

Using Special Pages ................................................................................................................................................. 90

Scaling ........................................................................................................................................................................... 91

Printing Watermarks ............................................................................................................................................... 92

Printing Mirror Images ........................................................................................................................................... 93

Creating and Saving Custom Sizes .................................................................................................................... 93

Selecting Job Completion Notification for Windows ................................................................................ 94

Printing Special Job Types ............................................................................................................................................ 95

Secure Print ................................................................................................................................................................. 95

Sample Set ................................................................................................................................................................... 97

Delay Print ................................................................................................................................................................... 98

Saved Job .....................................................................................................................................................................

Held Print Jobs ................................................................................................................................................................. 101

Releasing Held Print Jobs .................................................................................................................................... 101

Print From ........................................................................................................................................................................... 102

Printing from a USB Flash Drive ....................................................................................................................... 102

Printing from Saved Jobs ..................................................................................................................................... 102

Printing from Mailbox ........................................................................................................................................... 103

Printing from Xerox

CentreWare® Internet Services ............................................................................ 103

Contents

6 Copying 105

Basic Copying ................................................................................................................................................................... 106

Document Glass ...................................................................................................................................................... 106

Document Feeder ................................................................................................................................................... 107

Selecting Copy Settings ............................................................................................................................................... 108

Basic Settings ........................................................................................................................................................... 109

Image Quality Settings ........................................................................................................................................ 114

Layout Settings ........................................................................................................................................................ 117

Output Format Settings ....................................................................................................................................... 120

ID Card Copying ...................................................................................................................................................... 129

Advanced Copying ................................................................................................................................................. 133

7 Scanning 135

Basic Scanning ................................................................................................................................................................. 136

Xerox User Guide

WorkCentre® 7800/7800i Series Color Multifunction Printer 5

Contents

Document Glass ...................................................................................................................................................... 137

Document Feeder ................................................................................................................................................... 137

Scanning to a Folder ...................................................................................................................................................... 138

Scanning to the Public Folder ............................................................................................................................ 138

Scanning to a Private Folder .............................................................................................................................. 139

Creating a Private Folder ..................................................................................................................................... 139

Retrieving Scan Files .............................................................................................................................................. 140

Scanning to Network File Repositories .................................................................................................................. 141

Scanning to a Predefined Network File Repository .................................................................................. 141

Adding a Scan Destination ................................................................................................................................. 142

Scanning to Your Home Directory ........................................................................................................................... 143

Setting Scan Options ..................................................................................................................................................... 144

Changing the Basic Scan Settings ................................................................................................................... 144

Selecting Advanced Settings ............................................................................................................................. 145

Selecting Layout Adjustments .......................................................................................................................... 147

Selecting Filing Options ....................................................................................................................................... 148

Building a Scan Job ................................................................................................................................................ 149

Scanning to a USB Flash Drive .................................................................................................................................. 150

Scanning to an Email Address ................................................................................................................................... 151

Sending a Scanned Image to an Email Address ....................................................................................... 152

Setting Email Options ........................................................................................................................................... 153

Scanning to a Destination .......................................................................................................................................... 156

Sending a Scanned Image to a Destination ............................................................................................... 157

8 Faxing 159

Configuring the Printer for Faxing ...........................................................................................................................

Basic Faxing ...................................................................................................................................................................... 161

Document Glass ...................................................................................................................................................... 161

Duplex Automatic Document Feeder ............................................................................................................ 162

Sending an Embedded Fax ......................................................................................................................................... 163

Basic Fax Settings ................................................................................................................................................... 164

Selecting Fax Options ........................................................................................................................................... 168

Sending a Server Fax ..................................................................................................................................................... 176

Basic Server Fax Settings ..................................................................................................................................... 177

Selecting Server Fax Options ............................................................................................................................. 179

Sending an Internet Fax .............................................................................................................................................. 182

Basic Internet Fax Settings ................................................................................................................................ 183

Selecting Internet Fax Options ......................................................................................................................... 185

Building a Fax Job .......................................................................................................................................................... 191

Sending a LAN Fax ......................................................................................................................................................... 192

Using the Address Book ............................................................................................................................................... 194

Adding an Individual Entry to the Device Address Book ....................................................................... 194

Editing an Individual Address Book Entry .................................................................................................... 194

Editing or Deleting Favorites in the Device Address Book .................................................................... 195

160

6 Xerox User Guide

WorkCentre® 7800/7800i Series Color Multifunction Printer

Contents

9 Maintenance 197

General Precautions ....................................................................................................................................................... 198

Cleaning the Printer ....................................................................................................................................................... 199

Cleaning the Document Glass and Document Cover .............................................................................. 199

Cleaning the Document Feed Rollers ............................................................................................................. 200

Cleaning the Second-Side Scanning Lens Assembly ................................................................................ 201

Cleaning the Printer Exterior .............................................................................................................................. 203

Cleaning the Printer Interior .............................................................................................................................. 204

Routine Maintenance ................................................................................................................................................... 206

Replacing the Toner Cartridges ........................................................................................................................ 207

Replacing the Waste Toner Container .......................................................................................................... 209

Replacing the Drum Cartridges ........................................................................................................................ 211

Replacing the Transfer Belt Cleaner ............................................................................................................... 213

Replacing the Second Bias Transfer Roller .................................................................................................. 216

Resetting Supply Life Counters ......................................................................................................................... 218

Replacing Staple Cartridges ............................................................................................................................... 219

Emptying the Hole Punch Waste Container ................................................................................................ 228

Billing and Usage Information ................................................................................................................................. 231

Ordering Supplies ............................................................................................................................................................ 232

Locating the Serial Number ............................................................................................................................... 232

Consumables ............................................................................................................................................................ 232

Routine Maintenance Items .............................................................................................................................. 232

Other Supplies .......................................................................................................................................................... 233

When to Order Supplies ....................................................................................................................................... 233

Viewing Printer Supply Status ........................................................................................................................... 233

Recycling Supplies .................................................................................................................................................. 234

Moving the Printer .......................................................................................................................................................... 235

10 Troubleshooting 237

General Troubleshooting ............................................................................................................................................. 238

Printer Has Two Power Switches ...................................................................................................................... 238

Restarting the Printer ............................................................................................................................................ 239

Printer Does Not Turn On .................................................................................................................................... 239

Printer Resets or Turns Off Frequently ........................................................................................................... 240

Printing Takes Too Long ...................................................................................................................................... 240

Document Fails to Print ....................................................................................................................................... 241

Document Prints from Wrong Tray ................................................................................................................. 242

Printer is Making Unusual Noises .................................................................................................................... 242

Automatic 2-Sided Printing Problems ............................................................................................................ 242

Date and Time Are Incorrect ............................................................................................................................. 243

Scanner Errors .......................................................................................................................................................... 243

Jams ...................................................................................................................................................................................... 244

Clearing Paper Jams .............................................................................................................................................. 245

Clearing Jams in the Office Finisher LX ......................................................................................................... 258

Clearing Jams in the Professional Finisher ................................................................................................... 260

Minimizing Paper Jams ........................................................................................................................................ 271

Xerox User Guide

WorkCentre® 7800/7800i Series Color Multifunction Printer 7

Contents

Troubleshooting Paper Jams ............................................................................................................................. 272

Clearing Staple Jams ............................................................................................................................................. 275

Clearing Hole Punch Jams ................................................................................................................................... 284

Print-Quality Problems .................................................................................................................................................. 285

Controlling Print Quality ...................................................................................................................................... 286

Troubleshooting Print-Quality Problems ....................................................................................................... 288

Copy and Scan Problems ............................................................................................................................................. 293

Fax Problems..................................................................................................................................................................... 294

Problems Sending Faxes ...................................................................................................................................... 295

Problems Receiving Faxes ................................................................................................................................... 296

Printing Fax Reports .............................................................................................................................................. 297

Getting Help ...................................................................................................................................................................... 298

Control Panel Messages ....................................................................................................................................... 298

Using the Integrated Troubleshooting Tools ............................................................................................. 299

More Information ................................................................................................................................................... 302

A Specifications 303

Printer Configurations and Options ........................................................................................................................ 304

Standard Features .................................................................................................................................................. 304

Available Configurations ..................................................................................................................................... 305

Options and Upgrades ......................................................................................................................................... 306

Physical Specifications.................................................................................................................................................. 307

Base Configuration ................................................................................................................................................ 307

Configuration with Integrated Finisher ........................................................................................................ 307

Configuration with Office Finisher LX and Booklet Maker .................................................................... 307

Configuration with Professional Finisher...................................................................................................... 307

Configuration with Professional Finisher and High-Capacity Feeder .............................................. 307

Clearance Requirements ...................................................................................................................................... 308

Environmental Specifications .................................................................................................................................... 311

Temperature ............................................................................................................................................................. 311

Relative Humidity ................................................................................................................................................... 311

Elevation ..................................................................................................................................................................... 311

Electrical Specifications ................................................................................................................................................ 312

ENERGY STAR Qualified Product ..................................................................................................................... 312

Germany - Blue Angel ........................................................................................................................................... 312

Recycling Supplies .................................................................................................................................................. 312

Performance Specifications ........................................................................................................................................ 313

Printing Resolution ................................................................................................................................................. 313

Print Speed ................................................................................................................................................................ 313

Environmental, Health, and Safety Contact Information ............................................................................. 314

B Regulatory Information 315

Basic Regulations ............................................................................................................................................................ 316

United States FCC Regulations ......................................................................................................................... 316

Canada ........................................................................................................................................................................ 316

8 Xerox User Guide

WorkCentre® 7800/7800i Series Color Multifunction Printer

European Union Radio Interference .............................................................................................................. 317

European Union Lot 4 Imaging Equipment Agreement Environmental Information .............. 317

Germany ..................................................................................................................................................................... 319

Turkey RoHS Regulation ...................................................................................................................................... 319

Regulatory Information for 2.4 GHz Wireless Network Adapter ........................................................ 319

Ozone Release .......................................................................................................................................................... 320

Copy Regulations ............................................................................................................................................................ 321

United States ............................................................................................................................................................ 321

Canada ........................................................................................................................................................................ 323

Other Countries ....................................................................................................................................................... 323

Fax Regulations ............................................................................................................................................................... 324

United States ............................................................................................................................................................ 324

Canada ........................................................................................................................................................................ 326

European Union ...................................................................................................................................................... 326

New Zealand ............................................................................................................................................................. 327

Product Safety Certification ....................................................................................................................................... 328

Material Safety Data Sheets...................................................................................................................................... 329

Contents

C Recycling and Disposal 331

All Countries ...................................................................................................................................................................... 332

North America .................................................................................................................................................................. 333

European Union ............................................................................................................................................................... 334

Domestic/Household Environment ................................................................................................................. 334

Professional/Business Environment ................................................................................................................ 334

Collection and Disposal of Equipment and Batteries .............................................................................. 335

Battery Symbol Note .............................................................................................................................................

Battery Removal ...................................................................................................................................................... 335

Other Countries................................................................................................................................................................ 336

335

Xerox User Guide

WorkCentre® 7800/7800i Series Color Multifunction Printer 9

Safety

This chapter includes:

• Notices and Safety .............................................................................................................................................................. 12

• Electrical Safety .................................................................................................................................................................... 13

• Operational Safety .............................................................................................................................................................. 15

• Maintenance Safety ........................................................................................................................................................... 17

• Printer Symbols ..................................................................................................................................................................... 18

• Environmental, Health, and Safety Contact Information .................................................................................. 19

Your printer and the recommended supplies have been designed and tested to meet strict safety requirements. Attention to the following information ensures the continued safe operation of your Xerox printer.

Xerox User Guide

WorkCentre® 7800/7800i Series Color Multifunction Printer 11

Safety

Notices and Safety

Read the following instructions carefully before operating your printer. Refer to these instructions to ensure the continued safe operation of your printer.

Your Xerox include safety agency evaluation and certification, and compliance with electromagnetic regulations and established environmental standards.

The safety and environment testing and performance of this product have been verified using Xerox materials only.

Note: Unauthorized alterations, which can include the addition of new functions or connection of

external devices, can affect the product certification. For more information, contact your Xerox representative.

printer and supplies are designed and tested to meet strict safety requirements. These

General Guidelines

WARNINGS:

• Do not push objects into slots or openings on the printer. Touching a voltage point or shorting out a part could result in fire or electric shock.

• Do not remove the covers or guards that are fastened with screws unless you are installing optional equipment and are instructed to do so. Turn off the printer when performing these installations. Disconnect the power cord when removing covers and guards for installing optional equipment. Except for user-installable options, there are no parts that you can maintain or

The following are hazards to your safety:

• The power cord is damaged or frayed.

• Liquid is spilled into the printer.

• The printer is exposed to water.

• The printer emits smoke, or the surface is unusually hot.

• The printer emits unusual noise or odors.

• The printer causes a circuit breaker, fuse, or other safety device to activate.

If any of these conditions occur, do the following:

1. Turn off the printer immediately.

2. Disconnect the power cord from the electrical outlet.

3. Call an authorized service representative.

service behind these covers.

12 Xerox User Guide

WorkCentre® 7800/7800i Series Color Multifunction Printer

Safety

Electrical Safety

Read the following instructions carefully before operating your printer. Refer to these instructions to ensure the continued safe operation of your printer.

Your Xerox include safety agency evaluation and certification, and compliance with electromagnetic regulations and established environmental standards.

The safety and environment testing and performance of this product have been verified using Xerox materials only.

Note: Unauthorized alterations, which can include the addition of new functions or connection of

external devices, can affect the product certification. For more information, contact your Xerox representative.

printer and supplies are designed and tested to meet strict safety requirements. These

Power Cord

• Use the power cord supplied with your printer.

• Plug the power cord directly into a properly grounded electrical outlet. Ensure that each end of the

cord is connected securely. If you do not know if an outlet is grounded, ask an electrician to check the outlet.

• Do not use a ground adapter plug to connect the printer to an electrical outlet that does not have a ground connection terminal.

WARNING: Avoid the potential of electrical shock by ensuring that the printer is grounded properly.

Electrical products can be hazardous if misused.

• Verify that the printer is plugged into an outlet that is providing the correct voltage and power. Review the electrical specification of the printer with an electrician if necessary.

• Do not place the printer in an area where people can step on the power cord.

• Do not place objects on the power cord.

• Replace the power cord if it becomes frayed or worn.

• Do not unplug or plug the power cord while the printer is turned on.

• To avoid electrical shock and damage to the cord, grasp the plug when unplugging the power cord.

• The electrical outlet must be near the printer and must be easily accessible.

The power cord is attached to the printer as a plug-in device on the back of the printer. If it is necessary to disconnect all electrical power from the printer, disconnect the power cord from the electrical outlet. For details, see Turning the Printer On and Off on page 39.

Xerox User Guide

WorkCentre® 7800/7800i Series Color Multifunction Printer 13

Safety

Emergency Turn Off

If any of the following conditions occur, turn off the printer immediately and disconnect the power cord from the electrical outlet. Contact an authorized Xerox service representative to correct the problem if:

• The equipment emits unusual odors or makes unusual noises.

• The power cable is damaged or frayed.

• A wall panel circuit breaker, fuse, or other safety device has been tripped.

• Liquid is spilled into the printer.

• The printer is exposed to water.

• Any part of the printer is damaged.

Telephone Line Cord

WARNING: To reduce the risk of fire, use only No. 26 American Wire Gauge (AWG) or larger

telecommunication line cord.

14 Xerox

WorkCentre® 7800/7800i Series Color Multifunction Printer

User Guide

Safety

Operational Safety

Your printer and supplies were designed and tested to meet strict safety requirements. These include safety agency examination, approval, and compliance with established environmental standards.

Your attention to the following safety guidelines helps to ensure the continued, safe operation of your printer.

Printer Location

• Place the printer on a level, solid, non-vibrating surface with adequate strength to hold the weight of the printer. To find the weight for your printer configuration, see Physical Specifications on page

307.

• Do not block or cover the slots or openings on the printer. These openings are provided for ventilation and to prevent overheating of the printer.

• Place the printer in an area where there is adequate space for operation and servicing.

• Place the printer in a dust-free area.

• Do not store or operate the printer in an extremely hot, cold, or humid environment.

• Do not place the printer near a heat source.

• Do not place the printer in direct sunlight to avoid exposure to light-sensitive components.

• Do not place the printer where it is directly exposed to the cold air flow from an air conditioning

system.

• Do not place the printer in locations susceptible to vibrations.

• For optimum performance, use the printer at elevations recommended in Elevation on page 311.

Operational Guidelines

• Do not remove the paper source tray that you selected using either the print driver or control panel while the printer is printing.

• Do not open the doors when the printer is printing.

• Do not move the printer when it is printing.

• Keep hands, hair, neckties, and so on, away from the exit and feed rollers.

• Covers, which require tools for removal, protect the hazard areas within the printer. Do not remove

the protective covers.

• Ensure that the rear right cover is attached. Open this cover when connecting an interface cable.

Xerox User Guide

WorkCentre® 7800/7800i Series Color Multifunction Printer 15

Safety

Printer Supplies

• Use the supplies designed for your printer. The use of unsuitable materials can cause poor performance and a possible safety hazard.

• Follow all warnings and instructions marked on, or supplied with, the product, options, and supplies.

• Store all supplies in accordance with the instructions given on the package or container.

• Keep all supplies away from the reach of children.

• Never burn supplies.

• When handling supplies, avoid skin or eye contact. Eye contact can cause irritation and

inflammation. Do not attempt to disassemble supplies, which can increase the risk of skin or eye contact.

CAUTION: Use of non-Xerox supplies is not recommended. The Xerox Warranty, Service Agreement,

and Total Satisfaction Guarantee do not cover damage, malfunction, or degradation of performance caused by use of non-Xerox supplies, or the use of Xerox supplies not specified for this printer. The Total Satisfaction Guarantee is available in the United States and Canada. Coverage could vary outside these areas. Please contact your Xerox representative for details.

Ozone Release

This printer produces ozone during normal operation. The amount of ozone produced is dependent on copy volume. Ozone is heavier than air and is not produced in amounts large enough to harm anyone. Install the printer in a well-ventilated room.

For more information in the United States and Canada, go to www.xerox.com/environment. In other markets, please contact your local Xerox representative or go to www.xerox.com/environment_europe.

16 Xerox

WorkCentre® 7800/7800i Series Color Multifunction Printer

User Guide

Safety

Maintenance Safety

• Do not attempt any maintenance procedure that is not specifically described in the documentation supplied with your printer.

• Do not use aerosol cleaners. Clean with a dry lint-free cloth only.

• Do not burn any consumables or routine maintenance items. For information on Xerox supplies

recycling programs, go to www.xerox.com/gwa.

Xerox User Guide

WorkCentre® 7800/7800i Series Color Multifunction Printer 17

Safety

Printer Symbols

Symbol Description

Warning or Caution: Ignoring this warning could cause serious injury or even death. Ignoring this caution could cause injury or damage to property.

Hot surface on or in the printer. Use caution to avoid personal injury.

Do not burn the waste toner container.

Do not expose the drum cartridge to light for more than 10 minutes.

Do not touch the drum cartridge.

Hot surface. Wait the indicated time before handling.

Warning: Moving parts. Use caution to avoid personal injury.

18 Xerox User Guide

WorkCentre® 7800/7800i Series Color Multifunction Printer

Safety

Europe:

+44 1707 353 434

Environmental, Health, and Safety Contact Information

For more information on Environment, Health, and Safety in relation to this Xerox product and supplies, contact the following customer help lines:

United States: 1-800 828-6571

Canada: 1-800 828-6571

For product safety information in the United States, go to www.xerox.com/environment.

For product safety information in Europe, go to www.xerox.com/environment_europe.

Xerox User Guide

WorkCentre® 7800/7800i Series Color Multifunction Printer 19

• More Information ................................................................................................................................................................ 35

Features

This chapter includes:

• Parts of the Printer............................................................................................................................................................... 22

• Information Pages .............................................................................................................................................................. 29

• Administration Features ................................................................................................................................................... 30

• Xerox ConnectKey Apps .................................................................................................................................................... 34

Xerox User Guide

WorkCentre® 7800/7800i Series Color Multifunction Printer 21

Features

• Wireless Network Adapter ................................................................................................................................................ 28

Parts of the Printer

This section includes:

• Left Front View ...................................................................................................................................................................... 22

• Left Rear View ....................................................................................................................................................................... 23

• Internal Components ......................................................................................................................................................... 24

• Document Feeder ................................................................................................................................................................ 24

• Control Panel.......................................................................................................................................................................... 25

• Integrated Office Finisher ................................................................................................................................................ 26

• Office Finisher LX ................................................................................................................................................................. 27

• Professional Finisher ........................................................................................................................................................... 28

Left Front View

1. Leveler Foot

2. Tray 5

3. Left Tray

4. USB Port

5. Document Cover

6. Document Glass

7. Control Panel

8. Center Output Tray

9. Center Bottom Tray

10. Secondary Power Switch

11. Front Door

12. Tray 1 and optional Trays 2–4

13. Locking Casters

22 Xerox User Guide

WorkCentre® 7800/7800i Series Color Multifunction Printer

Left Rear View

1. Circuit Breaker

2. Rear Right Cover

3. USB Memory Card Connections

4. USB Port, Type A

5. USB Port, Type B

6. Status Indicator

7. Side 2 Scan Cable

8. USB Memory Port, for service only

Notes:

Features

9. Ethernet Connection

10. Foreign Device Interface

11. Fax Connections (optional)

12. Door D Release Lever

13. Door A Release Lever

14. Door B Release Lever

15. Door C Release Lever

• The side 2 scan cable is present only on specific printer models.

• Ensure that the rear right cover is attached. Open this cover when connecting an interface

Xerox User Guide

cable.

WorkCentre® 7800/7800i Series Color Multifunction Printer 23

Features

Internal Components

1. Second Bias Transfer Roller

2. Fuser Assembly

3. Drum Cartridge Release Lever

4. Toner Cartridges

5. Main Power Switch

6. Transfer Belt Cleaner

7. Waste Container

8. Drum Cartridges

9. Drum Cartridge Cover

Document Feeder

1. Confirmation Indicator

2. Top Cover

3. Document Guides

4. Document Feeder Tray

5. Document Output Tray

6. CVT Glass

7. Document Glass

24 Xerox

WorkCentre® 7800/7800i Series Color Multifunction Printer

User Guide

Features

Control Panel

The control panel consists of the touch screen, USB port, and buttons you press to control the functions available on the printer. The control panel:

• Displays the current operating status of the printer.

• Provides access to copy, print, scan, and fax features.

• Provides access to information pages.

• Prompts you to load paper, replace supplies, and clear jams.

• Displays errors and warnings.

• Connects to a USB Flash drive for scan and print access.

1. Machine Status displays the status of the printer on the touch screen.

2. Job Status displays lists of the active or completed jobs on the touch screen.

3. Services returns to the active service from the Job Status or Machine Status screens, or to a preset service.

4. USB Port provides USB Flash drive connection for storage use in Scan to USB and Print from USB functions.

5. Services Home provides access to printer features, such as copy, scan, and fax, on the touch screen.

6. Touch Screen displays information, and provides access to printer functions.

7. Log In/Out provides access to password-protected features.

8. Help displays information about the current selection on the touch screen.

9. Language changes the touch screen language and keyboard settings.

10. Energy Saver enters and exits the low-power mode.

11. Interrupt Print pauses the current job to run a more urgent print, copy, or fax job.

12. Clear All clears previous and changed settings for the current selection. Press twice to reset all features to their default settings, and clear existing scans.

13. Stop temporarily stops the current job. Follow the onscreen instructions to cancel or resume your job.

14. Start starts the selected copy, scan, fax, or Print From job, such as Print from USB.

15. Alphanumeric keypad enters alphanumeric information.

16. C (clear) deletes numeric values or the last digit entered using the alphanumeric keys.

17. Dial Pause inserts a pause in a telephone number when transmitting a fax.

Xerox User Guide

WorkCentre® 7800/7800i Series Color Multifunction Printer 25

Features

Integrated Office Finisher

1. Staple Cartridge

2. Finisher Front Door

3. Finisher Top Cover

4. Center Tray

5. Integrated Office Finisher

26 Xerox

WorkCentre® 7800/7800i Series Color Multifunction Printer

User Guide

Office Finisher LX

Features

1. Front Transport Cover

2. Hole Punch Waste Container (optional)

3. Hole Punch Unit (optional)

4. Center Tray

5. Right Tray Attachment

6. Booklet Maker (optional)

7. Booklet Maker Side Cover (optional)

8. Booklet Maker Staple Cartridge (optional)

9. Finisher Top Cover

10. Right Tray

11. Creaser Unit (optional)

12. Staple Cartridge

13. Finisher Front Cover

14. Office Finisher LX

Xerox User Guide

WorkCentre® 7800/7800i Series Color Multifunction Printer 27

Features

5. Right Middle Tray

Professional Finisher

1. Center Tray

2. Finisher Front Cover

3. Right Top Tray

4. Exit Cover

6. Staple Cartridge

7. Booklet Maker Bin

8. Booklet Staple Unit

9. Booklet Maker Unit

Wireless Network Adapter

The wireless network adapter is a USB device that transfers data between the printer and a wireless local area network (LAN). The wireless network adapter supports common wireless security protocols, such as WEP, WPA, WPA2, and 802.1X standard port-based network access control.

The wireless network adapter allows multiple users on a wireless LAN to print to and scan from Xerox printers. The wireless network adapter also supports printers that include network scan and fax features.

28 Xerox User Guide

WorkCentre® 7800/7800i Series Color Multifunction Printer

Features

Information Pages

Your printer has a printable set of information pages stored on its internal hard drive. Information pages include configuration and font information, demonstration pages, and more.

1. At the printer control panel, press the Machine Status button.

2. On the Machine Information tab, touch Information Pages, then touch the desired information page.

3. Touch Print.

Note: Information pages can also be printed from Xerox® CentreWare® Internet Services.

Printing the Configuration Report

1. At the printer control panel, press the Machine Status button.

2. On the Machine Information tab, touch Information Pages > Configuration Report > Print.

3. Touch Close after the report prints.

Xerox User Guide

WorkCentre® 7800/7800i Series Color Multifunction Printer 29

Features

• Billing and Usage Information ....................................................................................................................................... 33

Administration Features

This section includes:

• Accessing the Printer .......................................................................................................................................................... 30

• Xerox

• Finding the IP Address of the Printer .......................................................................................................................... 33

• Automatic Data Collection .............................................................................................................................................. 33

For details, see the System Administrator Guide at www.xerox.com/office/WC780Xdocs.

Accessing the Printer

The system administrator can set access rights on the printer to ensure that unauthorized users cannot access the printer. If the system administrator configures authentication and authorization, users require a login and password to access some or all of the features of the printer. The administrator can also configure accounting to require an accounting code to access tracked features.

CentreWare® Internet Services ...................................................................................................................... 32

Authentication

Authentication is the process of confirming your identity. When the system administrator enables authentication, the printer compares the information that you provide to another source of information, such as an LDAP directory. The information can be a user name and password, or the information stored on a magnetic or proximity ID card. If the information is valid, you are considered an authenticated user.

The system administrator can set permissions so that authentication is required when accessing features at the control panel, in Xerox

If the administrator configures local or network authentication, you identify yourself by typing your user name and password at the control panel or in Xerox administrator configures card reader authentication, you identify yourself by swiping a magnetic or proximity card at the control panel and typing a passcode.

Note: The system administrator can allow you to type your user name and password when Smart

Card authentication is the primary authentication method. If the administrator configures an alternative authentication method, and you misplace your card, you can still access the printer.

CentreWare® Internet Services, or in the print driver.

CentreWare® Internet Services. If the

30 Xerox

WorkCentre® 7800/7800i Series Color Multifunction Printer

User Guide

Features

Authorization

Authorization is the function of specifying the features that you are allowed to access, and the process of approving or disapproving your access. The system administrator can configure the printer to allow you to access the printer, but restrict your access to certain features, tools, and services. For example, the printer can allow you access to copying but restrict your access to color printing. The system administrator can also control your access to features at specific times during the day. For example, the system administrator can restrict a group of users from printing during peak business hours. If you attempt to print using a restricted method or during a restricted time, the job does not print. Instead, the printer prints an error page and the job appears with an error message in the Job Status lists.

Where the system administrator stores the authorization information determines the authorization type.

• Local authorization stores the login information on the printer in the user Information Database.

• Network authorization stores the login information in an external database, such as an LDAP

directory.

The system administrator sets authorization permissions. To set or edit user permissions for access to printer features, you must log in as the administrator.

Accounting

Accounting monitors the print, copy, scan, and fax impressions produced and who produces them.

The system administrator must create user accounts and enable the accounting feature. When accounting is enabled, you must log in to the printer before accessing services. You must also provide your account details in the print driver before printing documents from a computer. The system administrator can set limits to restrict the total number of jobs by type that a user can produce. The administrator can also generate reports listing usage data for individual users and groups.

For details, see the System Administrator Guide at www.xerox.com/office/WC780Xdocs.

Logging In

Logging in is the process by which you identify yourself to the printer for authentication. If authentication is set, to access printer features, you log in with your user credentials.

Logging In at the Control Panel

1. At the control panel, either press Log In/Out or touch Guest.

2. If an administrator has configured more than one authentication server, select your domain, realm, or tree.

a. Touch Domain, Realm, or Tree.

b. From the list, touch your domain, realm, or tree. c. Touch Save.

3. Type your user name, then touch Next.

4. Type your password, then touch Done.

Xerox User Guide

WorkCentre® 7800/7800i Series Color Multifunction Printer 31

Features

Logging In to Xerox® CentreWare® Internet Services

1. At your computer, open a Web browser, in the address field, type the IP address of the printer, then press Enter or Return.

Note: If you do not know the IP address of your printer, see Finding the IP Address of Your Printer on

page 33.

2. At the top of the page, next to the lock and key icon, click Login.

3. Type the User ID in the space provided.

4. Type the password in the space provided.

5. Click Login.

Administrator Password

The administrator password is required when accessing locked settings in Xerox® CentreWare® Internet Services or at the control panel. Most printer models have a default configuration that restricts access to some settings. Access is restricted for settings on the Properties tab in Xerox Services, and settings on the Tools tab on the control panel touch screen.

CentreWare® Internet

Logging In as the System Administrator at the Control Panel

1. At the control panel, press Log In/Out.

2. Type admin, then touch Next.

3. Type your password, then touch Done.

Note: The system administrator user name is admin and the default password is 1111.

Xerox® CentreWare® Internet Services

Xerox® CentreWare® Internet Services is the administration and configuration software installed on the embedded Web server in the printer. It allows you to configure and administer the printer from a Web browser.

Xerox

• A TCP/IP connection between the printer and the network in Windows, Macintosh, UNIX, or Linux

• TCP/IP and HTTP enabled in the printer.

• A network-connected computer with a Web browser that supports JavaScript.

For details, see the Help in Xerox

CentreWare® Internet Services requires:

environments.

CentreWare® Internet Services or the System Administrator Guide.

Accessing Xerox® CentreWare® Internet Services

At your computer, open a Web browser, in the address field, type the IP address of the printer, then press Enter or Return.

32 Xerox User Guide

WorkCentre® 7800/7800i Series Color Multifunction Printer

Features

Finding the IP Address of the Printer

You can view the IP address of your printer on the control panel or on the Configuration Report. On the Configuration Report, IP address information is located in the Connectivity Protocols section.

To view the IP address of the printer on the control panel:

1. At the printer control panel, press the Machine Status button.

2. Touch the Machine Information tab.

− If the system administrator has set the Display Network Settings to show the IP address, it

appears in the center panel.

− If the IP address is not displayed, print the Configuration Report or contact your system

administrator.

To print a Configuration Report:

1. At the printer control panel, press the Machine Status button.

2. On the Machine Information tab, touch Information Pages > Configuration Report > Print.

3. Touch Close after the report prints.

Automatic Data Collection

This printer automatically collects data and transmits it to a secure offsite location. Xerox or a designated servicer uses this data to support and service the printer, or for billing, supplies replenishment, or product improvement. Automatically transmitted data can include product registration, meter read, supply level, printer configuration and settings, software version, and problem or fault code data. Xerox cannot read, view, or download the content of your documents residing on or passing through your printer or any of your information management systems.

To turn off automatic data collection:

On the Welcome page in Xerox automated services.

CentreWare® Internet Services, click the link in the note regarding

Billing and Usage Information

Billing and printer usage information appears on the Billing Information screen. The impression counts shown are used for billing.

For details, see Billing and Usage Information on page 231.

Xerox

WorkCentre® 7800/7800i Series Color Multifunction Printer 33

User Guide

Features

Xerox ConnectKey Apps

There are several Xerox® ConnectKey® Apps available for use with your ConnectKey device. ConnectKey® Apps extend the capabilities of your ConnectKey devices.

• Xerox QR Code: You can use this App to link your mobile applications with ConnectKey devices. You can also use the QR Code App to access information about related Xerox

• Xerox @PrintByXerox: You can use this App to print documents to ConnectKey-enabled devices using email submission from any location.

• Xerox App Gallery 1.0: You can use this App to access, login, browse, and download ConnectKey Apps from the Xerox App Gallery.

Mobile Apps.

For more information about Xerox

ConnectKey Apps, go to www.xerox.com/XeroxAppGallery.

Notes:

• The ConnectKey Apps available depend on your device model and software version.

• To use ConnectKey Apps, ensure that your device is connected to the Internet.

34 Xerox User Guide

WorkCentre® 7800/7800i Series Color Multifunction Printer

More Information

Resource Location

Features

Installation Guide

Welcome Center

If you need assistance during or after printer installation, visit the Xerox® website for online solutions and support at www.xerox.com/office/worldcontacts.

If you require further assistance, contact the Xerox at 1-800-835-6100.

If a local Xerox representative telephone number was provided during printer installation, record the telephone number in the following space.

#_________________________________

If you need additional help using your printer:

1. Refer to this user guide.

2. Contact the system administrator.

3. Visit the Xerox

website at www.xerox.com/office/WC780Xsupport.

To assist you, the Welcome Center needs the following information:

• The nature of the problem.

• The serial number of the printer.

• The fault code.

• The name and location of your company.

Welcome Center for the United States and Canada

Locating the Serial Number

To contact Xerox for assistance, you need the printer serial number. The serial number is behind door A, toward the rear of the printer on a metal plate.

To view the serial number at the printer control panel, press the Machine Status button, then touch the Machine Information tab.

36 Xerox User Guide

WorkCentre® 7800/7800i Series Color Multifunction Printer

• Installing the Software ...................................................................................................................................................... 45

System Administrator Guide at www.xerox.com/office/WC780Xdocs.

Installation and Setup

This chapter includes:

• Installation and Setup Overview ................................................................................................................................... 38

• Modifying General Settings ............................................................................................................................................. 42

See also: Installation Guide packaged with your printer.

Xerox User Guide

WorkCentre® 7800/7800i Series Color Multifunction Printer 37

Installation and Setup

Installation and Setup Overview

Before printing, your computer and the printer must be plugged in, turned on, and connected. Configure the initial settings of the printer, then install the driver software and utilities on your computer.

You can connect to your printer directly from your computer using USB, or connect over a network using an Ethernet cable or wireless connection. Hardware and cabling requirements vary for the different connection methods. Routers, network hubs, network switches, modems, Ethernet cables, and USB cables are not included with your printer and must be purchased separately. Xerox recommends an Ethernet connection because it is typically faster than a USB connection, and it provides access to Xerox CentreWare

Internet Services. It also provides access to email, workflow scanning, and server fax

services.

For details on configuring the printer settings, see the System Administrator Guide at

www.xerox.com/office/WC780Xdocs.

Physically Connecting the Printer to the Network

Use a Category 5 or better Ethernet cable to connect the printer to the network. An Ethernet network is used for one or more computers and supports many printers and systems simultaneously. An Ethernet connection provides direct access to printer settings using Xerox

CentreWare® Internet Services.

To connect the printer:

1. Connect the power cord to the printer, and plug the cord into an electrical outlet.

2. Connect one end of a Category 5 or better Ethernet cable to the Ethernet port on the printer.

Connect the other end of the Ethernet cable to a correctly configured network port on a hub or router.

3. Turn on the printer.

Note: For details on configuring wireless network settings, see the System Administrator Guide at www.xerox.com/office/WC780Xdocs.

Connecting to a Telephone Line

1. Ensure that the printer is turned off.

2. Connect a standard RJ11 cable, No. 26 American Wire Gauge (AWG) or larger, to the Line port on

the back of the printer.

3. Connect the other end of the RJ11 cable to an operating telephone line.

4. Enable and configure the Fax functions.

For details, see Selecting Fax Options on page 168, Selecting Server Fax Options on page 179, or

Selecting Internet Fax Options on page 185.

38 Xerox User Guide

WorkCentre® 7800/7800i Series Color Multifunction Printer

Installation and Setup

Turning the Printer On and Off

The printer has two power switches. The main power switch, located behind the front door, controls the main power to the printer. The secondary power switch, located on the top of the printer, controls power to the printer electronic components, and when turned off, initiates a software-controlled shutdown. The preferred method to turn on and off the printer is to use the secondary power switch. To operate the printer, turn on both switches. First turn on the main power switch, then turn on the secondary power switch.

CAUTIONS:

• To prevent a printer malfunction or damage to the internal hard drive, turn off the secondary power switch first. Wait 10 seconds after the touch screen goes dark, then turn off the main power switch.

To turn on the printer:

1. Open the front door.

• Do not plug or unplug the power cord while the power switch is in the On position.

2. Turn on the main power switch.

Xerox User Guide

WorkCentre® 7800/7800i Series Color Multifunction Printer 39

Installation and Setup

3. Close the front door.

4. Turn on the secondary power switch.

Note: When the optional Office Finisher LX is installed, the secondary power switch is behind a clear

plastic door.

Secondary Power Switch Secondary Power Switch with Office Finisher LX

To connect a cable or move the printer, turn off both power switches.

To turn off the printer:

1. Ensure that there are no jobs in the queue.

2. Turn off the secondary power switch, then wait 10 seconds after the touch screen goes dark before proceeding.

Note: When the optional Office Finisher LX is installed, the secondary power switch is behind a clear

plastic door.

3. Open the front door.

4. Turn off the main power switch.

5. Close the front door.

Initial Printer Setup

Make sure that the printer is set up before installing the printer software. Setup includes enabling the optional features and assigning an IP address for the Ethernet network connection. If the printer has not been previously turned on and configured, see the System Administrator Guide at

www.xerox.com/office/WC780Xdocs.

40 Xerox

WorkCentre® 7800/7800i Series Color Multifunction Printer

User Guide

Installation and Setup

USB Cover

To prevent users from accessing the USB port on the front of the printer, install the USB cover. While the cover prevents physical access to the USB port, the port is still active. For details on enabling or disabling USB ports, see the System Administrator Guide at www.xerox.com/office/WC780Xdocs.

You can find the USB cover and installation instructions in the compartment inside of tray 1.

Optimizing Printer Performance

Several factors influence printer performance, including temperature, humidity, air pressure, and the chemical characteristics of the paper and coatings. The printer must form an electrostatic image on the paper, which depends on the ability of the air to hold and transfer electrical charges. The paper and coatings must hold an electrical charge in the areas where the toner must adhere.

To optimize the performance of your printer:

1. At the printer control panel, press the Machine Status button, then touch the Tools tab.

2. Touch Troubleshooting > Calibration > Print Calibration > Next.

3. Follow the onscreen instructions to run the Print Calibration procedure.

Xerox User Guide

WorkCentre® 7800/7800i Series Color Multifunction Printer 41

Installation and Setup

Modifying General Settings

You can modify printer settings such as the language, date and time, units of measurement, display brightness, and startup page from the control panel.

Note: If these settings do not appear, contact the system administrator or log in as a system

administrator. For details see Logging In as the System Administrator at the Control Panel on page

32.

1. At the printer control panel, press the Machine Status button, then touch the Tools tab.

2. Touch Device Settings > General, then touch the setting you want to change:

− Energy Saver: This option specifies when the printer goes into energy-saving mode.

− Date and Time: This option allows you to set the time zone, date, time, and display format.

− Language/Keyboard Selection: This option allows you to set the language and keyboard

layout.

− Custom Keyboard Button: This option allows you to assign text to the custom key on the

virtual keyboard.

3. Touch OK.

42 Xerox User Guide

WorkCentre® 7800/7800i Series Color Multifunction Printer

Installation and Setup

Setting Energy Saver Mode

You can set the time the printer spends idle in ready mode before the printer transitions to a lower power level.

To configure Energy Saver settings:

1. At the printer control panel, press the Machine Status button, then touch the Tools tab.

2. Touch Device Settings > General > Energy Saver.

Note: If this feature does not appear, log in as a system administrator. For details, see Logging In as the System Administrator at the Control Panel on page 32.

3. On the Energy Saver screen, select an option:

− Intelligent Ready: The printer wakes and sleeps based on previous usage.

− Job Activated: The printer wakes when it detects activity. To change the default Low-Power

and Sleep timeout periods, touch Energy Saver Timers.

• To set the delay before the printer enters Low-Power mode, touch the Minutes field, then to set the number, touch the arrows.

• To set the delay before the printer enters Sleep mode, touch the Minutes field, then to set a number, touch the arrows.

• Touch OK.

− Scheduled: The printer wakes and sleeps according to a schedule that you specify. To specify

the schedule, touch Scheduled Settings.

• Touch a day of the week in the list.

• To allow the printer to wake when it senses activity on that day, touch Activity.

• To wake the printer at a specific time, touch Time. To set the time that the printer wakes

up on the specified day, touch Warm Up Time, then to select the time, touch the arrows. Touch OK. To specify the time that the printer sleeps on the specified day, touch Energy Saver Time, then to select the time, touch the arrows. Touch OK.

• Touch OK.

4. Touch OK.

Xerox User Guide

WorkCentre® 7800/7800i Series Color Multifunction Printer 43

Installation and Setup

Setting the Date and Time at the Control Panel

1. At the printer control panel, press the Machine Status button, then touch the Tools tab.

2. Touch Device Settings > General > Date and Time.

Note: If this feature does not appear, log in as a system administrator. For details, see Logging In as the System Administrator at the Control Panel on page 32.

3. To set the time zone, touch Time Zone, touch the Geographic Region drop-down list, then touch your region. Use the Up or Down arrows to navigate and select your Time Zone.

Note: The date and time are set automatically through Network Time Protocol (NTP). To modify

these settings, go to the Properties tab in Xerox

CentreWare® Internet Services and change the

Date and Time Setup to Manual (NTP Disabled).

4. To set the date:

a. Touch Date. b. Touch Year field, then to set a number, use the arrows.

c. Touch Month field, then to set a number, use the arrows.

d. Touch Day field, then to set a number, use the arrows. e. Touch Format, touch the date format that you wish to use.

5. To set the time:

a. Touch Time. b. To specify the 12-hour or 24-hour format, touch Display 24 hour Clock.

c. Touch the Hours field, then to set a number, use the arrows.

d. Touch the Minutes field, then to set a number, use the arrows. e. If your printer is set to display the 12-hour clock, touch AM or PM.

6. Touch OK.

44 Xerox User Guide

WorkCentre® 7800/7800i Series Color Multifunction Printer

Installation and Setup

• Other Drivers .......................................................................................................................................................................... 48

Installing the Software

This section includes:

• Operating System Requirements .................................................................................................................................. 45

• Installing Drivers and Utilities for Windows ............................................................................................................. 46

• Installing Drivers and Utilities for Macintosh OS X Version 10.5 and Later ............................................... 47

• Installing Drivers and Utilities for UNIX and Linux ............................................................................................... 48

Before you install driver software, verify that the printer is plugged in, turned on, connected correctly, and has a valid IP address. If you cannot find the IP address, see Finding the IP Address of Your Printer on page 33.

If the Software and Documentation disc is not available, download the latest drivers from

www.xerox.com/office/WC780Xdrivers.

Operating System Requirements

• Windows XP SP3 and later; Windows Server 2003 and later

• Macintosh OS X version 10.5 and later

• Novell Netware 5.0 and later

• UNIX and Linux: Your printer supports connection to various UNIX platforms through the network

interface.

Xerox User Guide

WorkCentre® 7800/7800i Series Color Multifunction Printer 45

Installation and Setup

Installing Drivers and Utilities for Windows

To access all the features of your printer, install the Xerox® print driver and the Xerox® scan driver.

To install the print and scan driver software:

1. Insert the Software and Documentation disc into the appropriate drive on your computer. The installer starts automatically.

If the installer does not start automatically, navigate to the drive, and double-click the Setup.exe installer file.

2. To change the language, click Language.

3. Select your language, then click OK.

4. Click Install Drivers > Install Print and Scan Drivers.

5. To accept the license agreement, click I Agree.

6. From the list of discovered printers, select your printer, then click Next.

7. If your printer does not appear in the list of discovered printers, click Extended Search.

8. If your printer still does not appear in the list of discovered printers, and you know the IP address: a. Click the Network Printer icon at the top of the window.

b. Enter the IP address or the DNS name of the printer.

c. Click Search. d. From the list of discovered printers, select your printer, then click Next.

9. If the printer still does not appear in the list of discovered printers, and you do not know the IP address:

a. Click Advanced Search.

b. If you know the gateway address and subnet mask, click the top button and enter the

addresses into the Gateway and Subnet Mask fields.

c. If you know the address of another printer on the same subnet, click the middle button and

enter the address in the IP Address field.

d. Click Search. e. From the list of discovered printers, select your printer, then click Next.

Note: When the printer appears in the Discovered Printers window, it displays the IP address. Record

the IP address for future use.

10. Select the desired driver.

11. Click Install. If the installer prompts you for the IP address, enter the IP address of the printer. If the installer prompts you to restart your computer, click Restart to complete the installation of

the drivers.

12. To complete the installation, click Finish.

46 Xerox User Guide

WorkCentre® 7800/7800i Series Color Multifunction Printer

Installation and Setup

Installing Drivers and Utilities for Macintosh OS X Version 10.5 and Later

To access all the features of your printer, install the Xerox® print driver and the Xerox® scan driver.

To install the print and scan driver software:

1. Insert the Software and Documentation disc into the appropriate drive on your computer.

2. Open the Mac folder, then open the Mac OS 10.5+Universal PS folder.

3. Open Xerox

4. To run Xerox

5. When prompted, click Continue.

6. To accept the license agreement, click I Agree.

7. To accept the current installation location, click Install, or select another location for the installation files, then click Install.

8. Enter your password, then click OK.

9. From the list of discovered printers, select your printer, then click Next. If your printer does not appear in the list of discovered printers: a. Click the Network Printer Icon.

b. Type the IP address of your printer, then click Continue.

c. Select your printer in the list of discovered printers, then click Continue.

10. To accept the print queue message, click OK.

11. Select or clear the Set Printer as Default and Print a Test Page check boxes.

12. Click Continue, then click Close.

Print Drivers 2.xx.x.dmg/.pkg as needed for your printer.

Print Drivers 2.xx.x.dmg/.pkg, double-click the appropriate file name.

Note: The printer is automatically added to the printer queue in Macintosh OS X version 10.5 and

later.

To verify the installation of printer options with the print driver:

1. From the Apple menu, click System Preferences > Print.

2. Select the printer in the list, then click Options and Supplies.

3. Click Driver, then confirm that your printer is selected.

4. Confirm that all of the options installed on the printer appear correct.

5. If you change settings, click Apply Changes, close the window, and quit System Preferences.

Xerox User Guide

WorkCentre® 7800/7800i Series Color Multifunction Printer 47

Installation and Setup

www.xerox.com/office/WC780Xdocs.

Installing Drivers and Utilities for UNIX and Linux

Xerox® Services for UNIX Systems is a two part installation process. It requires the installation of a

Xerox UNIX Systems code package must be installed before installing the printer support package.

1. At the printer, do the following:

2. At your computer, do the following:

Services for UNIX Systems code package and a printer support package. The Xerox® Services for

Note: To install the UNIX print drivers on your computer, you require root or superuser privileges.

a. Verify that both the TCP/IP protocol and the proper connector are enabled.

b. On the printer control panel, do one of the following for the IP address:

• Allow the printer to set up a DHCP address.

• Enter the IP address manually.

c. Print the Configuration Report and keep it for reference. For details, see Configuration Report

on page 29.

a. Go to www.xerox.com/office/WC780Xdrivers and select your printer model. b. From the Operating System menu, select UNIX, then click Go.

c. Select the Xerox

Services for UNIX Systems package for the correct operating system. This

package is the core package and must be installed before the printer support package.

d. To begin downloading, click the Start button.

e. Repeat steps a and b, then click the printer package for use with the Xerox

Services for UNIX Systems package that you selected earlier. The second part of the driver package is ready for download.

f. To begin downloading, click the Start button.

g. In the notes below the driver package that you selected, click the link for the Installation

Guide, then follow the installation instructions.

Notes:

• To load Linux print drivers, perform the preceding procedures but select Linux as the operating system. Select Xerox

Services for Linux Systems driver or the Linux CUPS Printing Package. You

can also use the CUPS driver included in the Linux package.

• Supported Linux drivers are available at www.xerox.com/office/WC780Xdrivers.

• For details about UNIX and Linux drivers, see the System Administrator Guide at

Other Drivers

The following drivers are available for download at www.xerox.com/office/WC780Xdrivers.

• The Xerox made by other manufacturers. It configures itself for your individual printer upon installation.

• The Xerox standard PostScript. It configures itself for the printer you select every time you print. If you travel frequently to the same sites, you can save your favorite printers in that location and the driver saves your settings.

48 Xerox User Guide

Global Print Driver works with any printer on your network, including those printers

Mobile Express Driver works with any printer available to your computer that supports

WorkCentre® 7800/7800i Series Color Multifunction Printer

• Printing on Special Paper .................................................................................................................................................. 68

Paper and Media

This chapter includes:

• Supported Paper ................................................................................................................................................................... 50

• Loading Paper ........................................................................................................................................................................ 56

Xerox User Guide

WorkCentre® 7800/7800i Series Color Multifunction Printer 49

Paper and Media

• Supported Custom Paper Sizes ...................................................................................................................................... 55

Supported Paper

This section includes:

• Recommended Media ........................................................................................................................................................ 50

• Ordering Paper ...................................................................................................................................................................... 50

• General Paper Loading Guidelines................................................................................................................................ 50

• Paper That Can Damage Your Printer ........................................................................................................................ 51

• Paper Storage Guidelines ................................................................................................................................................. 51

• Supported Paper Types and Weights .......................................................................................................................... 52

• Supported Standard Paper Sizes ................................................................................................................................... 53

• Supported Paper Sizes and Weights for Automatic 2-Sided Printing ............................................................ 54

• Supported Paper Sizes for the Envelope Tray .......................................................................................................... 54

Your printer is designed to use various paper and other media types. To ensure the best print quality and to avoid jams, follow the guidelines in this section.

For best results, use Xerox paper and media recommended for your printer.

Recommended Media

A list of paper and media recommended for your printer is available at:

• www.xerox.com/rmlna Recommended Media List (United States)

• www.xerox.com/rmleu Recommended Media List (Europe)

Ordering Paper

To order paper, transparencies, or other media, contact your local reseller or go to

www.xerox.com/office/WC780Xsupplies.

General Paper Loading Guidelines

• Do not overfill the paper trays. Do not load paper above the maximum fill line in the tray.

• Adjust the paper guides to fit the paper size.

• Fan paper before loading it in the paper tray.

• If excessive jams occur, use paper or other approved media from a new package.

• Use only recommended Xerox

• Do not print on label media once a label has been removed from a sheet.

• Use only paper envelopes. Print envelopes 1-sided only.

transparencies. Print quality could vary with other transparencies.

50 Xerox User Guide

WorkCentre® 7800/7800i Series Color Multifunction Printer

Paper and Media

Paper That Can Damage Your Printer

Some paper and other media types can cause poor output quality, increased paper jams, or damage your printer. Do not use the following:

• Rough or porous paper

• Inkjet paper

• Non-laser glossy or coated paper

• Paper that has been photocopied

• Paper that has been folded or wrinkled

• Paper with cutouts or perforations

• Stapled paper

• Envelopes with windows, metal clasps, side seams, or adhesives with release strips

• Padded envelopes

• Plastic media

• Iron on transfer paper

CAUTION: The Xerox

not cover damage caused by using unsupported paper or special media. The Xerox Satisfaction Guarantee is available in the United States and Canada. Coverage could vary outside these areas. Contact your Xerox representative for details.

Warranty, Service Agreement, or Xerox® Total Satisfaction Guarantee does

Total

Paper Storage Guidelines

Storing your paper and other media properly contributes to optimum print quality.

• Store paper in dark, cool, relatively dry locations. Most paper is susceptible to damage from ultraviolet and visible light. Ultraviolet light, from the sun and fluorescent bulbs, is particularly damaging to paper.

• Reduce the exposure of paper to strong lights for long periods of time.

• Maintain constant temperatures and relative humidity.

• Avoid storing paper in attics, kitchens, garages, or basements. These spaces are more likely to collect

moisture.

• Store paper flat, either on pallets, cartons, shelves, or in cabinets.

• Avoid food or drinks in the area where paper is stored or handled.

• Do not open sealed packages of paper until you are ready to load them into the printer. Leave

stored paper in the original packaging. The paper wrapper protects the paper from moisture loss or gain.

• Some special media is packaged inside resealable plastic bags. Store the media inside the bag until you are ready to use it. Keep unused media in the bag and reseal it for protection.

Xerox User Guide

WorkCentre® 7800/7800i Series Color Multifunction Printer 51

Paper and Media

Supported Paper Types and Weights

Trays Types and Weights

Trays 1–5 Plain, Bond, Hole Punched, Letterhead, Pre-Printed, Recycled, Plain

Reloaded, and Custom (60–105 g/m²) Lightweight Cardstock, and Lightweight Cardstock Reloaded (106–169

g/m²) Cardstock, and Cardstock Reloaded (170–256 g/m²) Lightweight Glossy Cardstock, and Lightweight Glossy Card Reloaded

(106–169 g/m²) Glossy Cardstock, and Glossy Cardstock Reloaded (170–256 g/m²) Labels (106–169 g/m²) Transparency Envelope (75–90 g/m²) (Tray 1, only with Envelope Tray installed in the

slot)

Tray 5

Lightweight (55–59 g/m²) Heavyweight Cardstock, and Heavyweight Cardstock Reloaded

(257–280 g/m²) Heavyweight Glossy Cardstock, and Heavyweight Glossy Card Reloaded

(257–280 g/m²) Envelope (75–90 g/m²)

52 Xerox

WorkCentre® 7800/7800i Series Color Multifunction Printer

User Guide

Paper and Media

Supported Standard Paper Sizes

Tray Number European Standard Sizes North American Standard Sizes

Printer Tray 1 A5 (148 x 210 mm)

A4 (210 x 297 mm) A3 (297 x 420 mm) B5 (176 x 250 mm) B4 (250 x 353 mm) JIS B5 (182 x 257 mm) JIS B4 (257 x 364 mm)

Trays 2–4 of the 3-Tray Module

Tray 2 of the High-Capacity Tandem Tray Module

Tray 2 of the 1-Tray Module

A5 (148 x 210 mm) A4 (210 x 297 mm) A3 (297 x 420 mm) B5 (176 x 250 mm) B4 (250 x 353 mm) JIS B5 (182 x 257 mm) JIS B4 (257 x 364 mm) SRA3 (320 x 450 mm)

Trays 3 and 4 of the High-Capacity Tandem Tray Module

A4 (210 x 297 mm) JIS B5 (182 x 257 mm)

Tray 6 of the High-Capacity Feeder

Tray 5 only Postcard (100 x 148 mm)

Postcard (148 x 200 mm) A6 (105 x 148 mm) A5 (148 x 210 mm) A4 (210 x 297 mm) A4 Oversized (223 x 297 mm) A3 (297 x 420 mm) B6 (125 x 176 mm) B5 (176 x 250 mm) B4 (250 x 353 mm) JIS B6 (128 x 182 mm) JIS B5 (182 x 257 mm) 215 x 315 mm JIS B4 (257 x 364 mm) SRA3 (320 x 450 mm) DL envelope (110 x 220 mm) C4 envelope (229 x 324 mm) C5 envelope (162 x 229 mm)

Statement (5.5 x 8.5 in.) Executive (7.25 x 10.5 in.) Letter (8.5 x 11 in.) US Folio (8.5 x 13 in.) Legal (8.5 x 14 in.) Tabloid (11 x 17 in.)

Statement (5.5 x 8.5 in.) Executive (7.25 x 10.5 in.) Letter (8.5 x 11 in.)

8.5 x 13 in. Legal (8.5 x 14 in.) Tabloid (11 x 17 in.) 12 x 18 in.

Executive (7.25 x 10.5 in.) Letter (8.5 x 11 in.)

Postcard (3.5 x 5 in.) Postcard (4 x 6 in.) 5 x 7 in. Postcard (6 x 9 in.) Statement (5.5 x 8.5 in.) 8 x 10 in. Executive (7.25 x 10.5 in.) Letter (8.5 x 11 in.) 9 x 11 in.

8.5 x 13 in. Legal (8.5 x 14 in.) Tabloid (11 x 17 in.) 12 x 18 in. 12 x 19 in. Envelope (6 x 9 in.) Envelope (9 x 12 in.) Monarch Envelope (3.9 x 7.5 in.) No. 10 Envelope (4.1 x 9.5 in.)

Xerox

WorkCentre® 7800/7800i Series Color Multifunction Printer 53

User Guide

Paper and Media

Supported Paper Sizes and Weights for Automatic 2-Sided Printing

Standard European Sizes Standard North American Sizes

Postcard (148 x 200 mm) A5 (148 x 210 mm) A4 (210 x 297 mm) A4 Oversized (223 x 297 mm) A3 (297 x 420 mm) JIS B6 (128 x 182 mm) JIS B5 (182 x 257 mm) 215 x 315 mm JIS B4 (257 x 364 mm) SRA3 (320 x 450 mm)

Postcard (6 x 9 in.) Statement (5.5 x 8.5 in.) 8 x 10 in. Executive (7.25 x 10.5 in.) Letter (8.5 x 11 in.) 9 x 11 in. US Folio (8.5 x 13 in.) Legal (8.5 x 14 in.) Tabloid (11 x 17 in.) Tabloid Extra (12 x 18 in.) 12 x 19 in.

In addition to the standard sizes, you can use custom size paper within the following ranges for 2-sided printing:

• Minimum size 128 x 140 mm (5 x 5.5 in.)

• Maximum size 320 x 483 mm (12 x 19 in.)

Paper weights from 75 g/m² through 256 g/m² can be used for automatic 2-sided printing.

Note: Do not use transparencies, envelopes, labels, or reloaded paper for automatic 2-sided printing.

Supported Paper Sizes for the Envelope Tray

Standard Sizes Custom Sizes

C4 (229 x 324 mm, 9 x 12.75 in.) C5 (162 x 229 mm, 6.4 x 9.0 in.) DL (110 x 220 mm, 4.33 x 8.66 in.) 152 x 203 mm, 6 x 9 in. 229 x 305 mm, 9 x 12 in. Monarch (88 x 191 mm, 3.9 x 7.5 in.) Number 10 Commercial (241 x 105 mm, 9.5 x 4.125 in.)

54 Xerox

WorkCentre® 7800/7800i Series Color Multifunction Printer

User Guide

Minimum: 148 x 98 mm (5.8 x 3.9 in.) Maximum: 241 x 162 mm (9.5 x 6.4 in.)

Tray 5

Minimum: 89 x 98 mm (3.5 x 3.9 in.)

Supported Custom Paper Sizes

Tray Number Paper Sizes

Printer Tray 1 Minimum: 140 x 182 mm (5.5 x 7.2 in.)

Maximum: 297 x 432 mm (11.7 x 17 in.)

Trays 2–4 of the 3-Tray Module

Tray 2 of the High-Capacity Tandem Tray Module

Tray 2 of the 1-Tray Module

Envelope Tray

Minimum: 140 x 182 mm (5.5 x 7.2 in.) Maximum: 320 x 457 mm (12.6 x 18 in.)

Maximum: 320 x 483 mm (12.6 x 19 in.)

Width: 148–241 mm (5.8–9.5 in.) Length: 98–162 mm (3.9–6.4 in.)

Paper and Media

Xerox User Guide

WorkCentre® 7800/7800i Series Color Multifunction Printer 55

Paper and Media

• Changing Paper Size, Type, and Color ........................................................................................................................ 67

Loading Paper

This section includes:

• Loading Paper in Trays 1–4 ............................................................................................................................................. 56

• Setting the Guide Locks in the 500-Sheet Adjustable Trays ............................................................................. 59

• Loading Paper in Trays 3 and 4 of the Tandem Tray Module .......................................................................... 60

• Loading Paper in Tray 5 .................................................................................................................................................... 62

• Loading Paper in Tray 6 (High-Capacity Feeder) ................................................................................................... 64

• Configuring Tray 6 in the High-Capacity Feeder .................................................................................................... 66

• Changing Paper Size, Type, and Color ........................................................................................................................ 67

Loading Paper in Trays 1–4

1. Pull out the tray until it stops.

2. Ensure that the guide locks are set in the correct position for the standard or custom size paper that you are loading. For details, see Setting the Guide Locks in the 500-Sheet Adjustable Trays on page

59.

3. Remove any paper that is a different size or type.

4. To move the length and width guides out:

a. Pinch the guide lever on each guide.

b. Slide the guides outward until they stop.

c. Release the levers.

56 Xerox User Guide

WorkCentre® 7800/7800i Series Color Multifunction Printer

Paper and Media

5. Flex the sheets back and forth and fan them, then align the edges of the stack on a level surface. This procedure separates any sheets that are stuck together and reduces the possibility of jams.

Note: To avoid jams and misfeeds, do not remove paper from its packaging until you are ready to

use it.

6. Load paper in the main tray. Do one of the following:

− Load labels face up with the top edge toward the front of the tray.

− For clear or non-stripe transparencies, load face up.

− For striped transparencies, load with the stripe down on the right trailing edge.

− For long-edge feed, insert letterhead and pre-printed paper face down with the top edge

toward the front. Load hole punched paper with the holes to the left.

− For short-edge feed, insert letterhead and pre-printed paper face down with the top edge to

the left. Load hole punched paper with the holes toward the rear of the printer.

− Load labels face up with the top edge to the right.

Note: Do not load paper above the maximum fill line. Overfilling the tray can cause the printer to

jam.

Xerox User Guide

WorkCentre® 7800/7800i Series Color Multifunction Printer 57

Paper and Media

7. Adjust the length and width guides to fit the paper.

8. Close the tray.

9. Do one of the following:

− To confirm the paper size, type, and color when a tray is set to Fully Adjustable, touch Confirm.

− To select a new paper size, touch Size. To select a new paper type, touch Type. To select a new

paper color, touch Color. When finished, touch Confirm.

− To change the paper size, type, or color when the tray is set to Dedicated mode, press the

Machine Status button. Then touch Tools > Device Settings > Paper Management > Tray Settings

Configure the desired tray settings, for details see Configuring Tray Settings on page

67.

Note: If this feature does not appear, log in as a system administrator. For details, see Logging In as the System Administrator at the Control Panel on page 32.

58 Xerox

WorkCentre® 7800/7800i Series Color Multifunction Printer

User Guide

Paper and Media

Setting the Guide Locks in the 500-Sheet Adjustable Trays

You can adjust the guides in trays 1–4 to accommodate standard or custom paper sizes. In the standard position, the guides move into the supported standard paper settings. In the custom position, the guides move in 1 mm increments.

To move the guide locks from the standard to the custom paper size position:

1. Pull out the tray until it stops.

Note: For best results, remove any paper from the tray, pinch the guide levers, and slide the guides

inward.

2. Pry up the retainer with your fingertip, pulling the lower edge toward you.

3. To engage the fine-adjustment block, pinch the levers and slide the guide lock to the left as shown.

Xerox User Guide

WorkCentre® 7800/7800i Series Color Multifunction Printer 59

Paper and Media

4. Replace the retainer and snap it into place.

5. Load the custom-size paper in the tray. The tray guides move in increments of 1 mm.

Loading Paper in Trays 3 and 4 of the Tandem Tray Module

The tandem tray module holds larger amounts of paper for fewer printing interruptions. It contains three trays. Tray 2 holds paper sizes up to SRA3/12 x 18 in. Trays 3 and 4 hold A4/letter size paper only.

Note: Do not load custom size paper into tray 3 or tray 4 of the tandem tray module.

To load tray 2, see Loading Paper in Trays 1-4.

1. Pull tray 3 or tray 4 out until it stops.

2. Fan the edges of the paper before loading it into the paper trays. This procedure separates any sheets of paper that are stuck together and reduces the possibility of paper jams.

Note: To avoid paper jams and misfeeds, do not remove paper from its packaging until necessary.

60 Xerox

WorkCentre® 7800/7800i Series Color Multifunction Printer

User Guide

Paper and Media

3. Stack the paper against the left rear corner of the tray as shown.

4. Adjust the guides so that they touch the edges of the stack.

5. Close the tray.

6. Verify the size, type, and color of the paper. Change the selection for any incorrect setting.

7. On the printer touch screen, touch Confirm.

Xerox

WorkCentre® 7800/7800i Series Color Multifunction Printer 61

User Guide

Paper and Media

Loading Paper in Tray 5

1. Open tray 5, then pull out the extension tray for larger sizes. If already opened, remove any paper that is a different size or type.

2. Move the width guides to the edges of the tray.

3. Flex the sheets back and forth and fan them, then align the edges of the stack on a level surface. This procedure separates any sheets that are stuck together and reduces the possibility of jams.

Note: To avoid jams and misfeeds, do not remove paper from its packaging until you are ready to

use it.

62 Xerox User Guide

WorkCentre® 7800/7800i Series Color Multifunction Printer

Paper and Media

4. Load the paper in the tray. Do one of the following:

− For long-edge feed, insert letterhead and pre-printed paper face up with the top edge toward

the front of the tray. Load hole punched paper with the holes to the right.

− Load labels face down with the top edge toward the front of the tray.

− For clear or stripe-less transparencies, load face down with the long edge leading into the

printer. For striped transparencies, load face up with the non-stripe edge leading into the printer.

− For short-edge feed, insert letterhead and pre-printed paper face up with the top edge leading

into the printer.

− Load hole punched paper with the holes toward the rear of the printer.

− Load labels face down with the top edge to the left.

Note: Do not load paper above the maximum fill line. Overfilling the tray can cause the printer to

jam.

Xerox User Guide

WorkCentre® 7800/7800i Series Color Multifunction Printer 63

Paper and Media

5. Adjust the width guides until they touch the edges of the paper.

6. Do one of the following:

− To confirm the paper size, type, and color when a tray is set to Fully Adjustable, touch Confirm.

− To select a new paper size, touch Size. To select a new paper type, touch Type. To select a new

paper color, touch Color. When finished, touch Confirm.

Loading Paper in Tray 6 (High-Capacity Feeder)

1. Pull Tray 6 out of the feeder until it stops.

2. Open the side gate until it stops.

3. Fan the edges of the paper before loading it into the paper trays. This procedure separates any sheets of paper that are stuck together and reduces the possibility of paper jams.

Note: To avoid paper jams and misfeeds, do not remove paper from its packaging until necessary.

64 Xerox

WorkCentre® 7800/7800i Series Color Multifunction Printer

User Guide

4. Load the paper against the right side of the tray. For 1-sided printing:

− Place the print side face down.

− Place pre-punched paper with the holes toward the left side of the tray.

− Place letterhead or the top of the page toward the front of the tray.

Paper and Media

Note: Do not load paper above the maximum fill line. Overfilling can cause paper jams.

For 2-sided printing:

− Place the print side (page 1) face up.

− Place pre-punched paper with the holes toward the right side of the tray.

− Place letterhead or the top of the page toward the front of the tray.

5. Slide the guides so they touch the edges of the paper.

6. Close the tray.

7. Verify the size, type, and color of the paper. Change the selection for any incorrect setting.

8. On the printer touch screen, touch Confirm.

Xerox

WorkCentre® 7800/7800i Series Color Multifunction Printer 65

User Guide

Paper and Media

Configuring Tray 6 in the High-Capacity Feeder

Tray 6 is a dedicated high-capacity feeder. It must be configured to support the paper in use. If the tray has never been used, it must be configured for the desired paper size. If you are changing the paper size, you must reconfigure the tray for the new paper size. For details on supported paper sizes, see Supported

Paper on page 50.

Before changing the drawer configuration, always compare the paper size to the Tray 6 configuration. If the paper size matches, no adjustment is needed.

1. Remove the screw that holds the spacer plate at the back of the tray.

2. Lift the spacer plate to remove it.

3. Place the tabs at the bottom of the plate into the slots in the bottom of the drawer that correspond with the paper size.

4. Slide the top of the spacer plate to engage the peg on the back of the tray into the matching hole in the plate.

5. Install the screw to secure the spacer plate.

6. Repeat steps 1–5 for the spacer plate at the front of Tray 6.

7. Locate the pin at the top of the side gate.

8. Lift the pin and guide it to the desired paper size in the slot on top of the side gate.

9. Release the pin to lock it into place.

66 Xerox User Guide

WorkCentre® 7800/7800i Series Color Multifunction Printer

Paper and Media

Changing Paper Size, Type, and Color

When trays are set to Adjustable mode, you can change paper settings each time that you load the tray. When you close the tray, the control panel prompts you to set the paper size, type, and color of paper loaded.

When a paper tray is set to Dedicated mode, the control panel prompts you to load a specific paper size, type and color. If you move the guides to load a different paper size, the control panel displays an error message.

To configure the tray settings for Fully Adjustable or Dedicated trays see Configuring Tray Settings on page 67.

To set the paper size, type, or color for an adjustable tray:

1. Open the paper tray, then load the desired paper.

2. Close the tray. A message appears on the control panel.

3. Do one of the following:

− To confirm the paper size, type, and color when a tray is set to Fully Adjustable, touch Confirm.

− To select a new paper size, touch Size. To select a new paper type, touch Type. To select a new

paper color, touch Color. When finished, touch Confirm.

Changing Paper Size, Type, and Color

You can set paper trays to Adjustable or Dedicated mode. When trays are set to Adjustable mode, you can change paper settings each time that you load the tray. When a paper tray is set to Dedicated mode, the control panel prompts you to load a specific paper size, type, and color. You can use the Tray Settings option to configure or change the paper tray settings.

To configure the tray settings:

1. At the printer control panel, press the Machine Status button.

2. Touch the Tools tab, then touch Device Settings > Paper Management.

3. Touch Tray Settings, then select a tray.

− To set the Mode, touch Fully Adjustable or Dedicated. If you select Dedicated, to specify the

paper settings for a dedicated tray, touch Edit, then set the paper Size, Type, and Color. Touch OK.

− To configure the printer to select the tray automatically, for Auto Selection, touch Enabled.

− To set the priority for each tray, touch the number field. To enter a number, use the

alphanumeric keypad, or touch Plus (+) or Minus (-). The printer uses paper from the Priority 1 tray first. If that tray is empty, the printer uses paper from the Priority 2 tray.

4. Touch OK.

Note: To access the Paper Management menu, you can be required to log in as the system

administrator. For details, see the System Administrator Guide at

www.xerox.com/office/WC780Xdocs.

Xerox User Guide

WorkCentre® 7800/7800i Series Color Multifunction Printer 67

Paper and Media

• Transparencies ...................................................................................................................................................................... 76

www.xerox.com/rmleu Recommended Media List (Europe)

Printing on Special Paper

This section includes:

• Envelopes ................................................................................................................................................................................. 68

• Labels ........................................................................................................................................................................................ 71

• Glossy Cardstock................................................................................................................................................................... 75

To order paper, transparencies, or other media, contact your local reseller or go to

www.xerox.com/office/WC780Xsupplies.

Envelopes

Envelopes can be printed only from tray 5, or from tray 1 if the optional envelope tray is installed.

Guidelines for Printing Envelopes

• Print quality depends on the quality and construction of the envelopes. Try another envelope brand if you do not get desired results.

• Maintain constant temperatures and relative humidity.

• Store unused envelopes in their packaging to avoid excess moisture and dryness which can affect

print quality and cause wrinkling. Excessive moisture can cause the envelopes to seal before or during printing.

• Remove air bubbles from the envelopes before loading them into the tray by setting a heavy book on top of them.

• In the print driver software, select Envelope as the paper type.

• Do not use padded envelopes. Use envelopes that lie flat on a surface.

• Do not use envelopes with heat activated glue.

• Do not use envelopes with press and seal flaps.

• Use only paper envelopes.

• Do not use envelopes with windows or metal clasps.

68 Xerox User Guide

WorkCentre® 7800/7800i Series Color Multifunction Printer

Paper and Media

Loading Envelopes in Tray 5

1. Open tray 5 by rotating it outward.

2. Load envelopes in the tray with the flaps closed, flaps up, and flaps on the leading edge, toward the right.

3. Center the stack, then slide the guides until they lightly touch the edges of the stack.

4. Verify the size, type, and color of the envelope. Change the selection for any incorrect setting. Select the size before the type.

5. On the printer touch screen, touch Confirm.

Xerox

WorkCentre® 7800/7800i Series Color Multifunction Printer 69

User Guide

Paper and Media

Loading the Envelope Tray

1. Pull out the envelope tray until it stops.

2. Load the envelopes in the envelope tray with the flaps closed, flaps down, and on the leading edge, toward the left.

Notes:

• Maximum stack height of 43 mm (1.7 in.)

• The envelope tray accepts envelope weights from 75–90 g/m².

3. Adjust the paper guides so they rest lightly against the edges of the envelopes.

4. Close the tray. Set the paper size, type, and color at the control panel. For details, see Changing

Paper Size, Type, and Color on page 67.

70 Xerox User Guide

WorkCentre® 7800/7800i Series Color Multifunction Printer

Paper and Media

Labels

You can print labels from any tray.

Guidelines for Printing Labels

• Use labels designed for laser printing.

• Do not use vinyl labels.

• Do not feed a sheet of labels through the printer more than once.

• Do not use dry gum labels.

• Print only on one side of the sheet of labels. Use full sheet labels only.

• Store unused labels flat in their original packaging. Leave the sheets of labels inside the original

packaging until ready to use. Return any unused sheets of labels to the original packaging and reseal it.

• Do not store labels in extremely dry or humid conditions or extremely hot or cold conditions. Storing them in extreme conditions can cause print-quality problems or cause them to jam in the printer.

• Rotate stock frequently. Long periods of storage in extreme conditions can cause labels to curl and jam in the printer.

• In the print driver software, select Label as the paper type.

• Before loading labels, remove all other paper from the tray.

CAUTION: Do not use any sheet where labels are missing, curled, or pulled away from the backing

sheet. It could damage the printer.

Xerox

WorkCentre® 7800/7800i Series Color Multifunction Printer 71

User Guide

Paper and Media

Loading Labels in Trays 1–4

1. Pull out the tray until it stops.

2. Ensure that the guide locks are set in the correct position for the size labels you are loading. For details, see Setting the Guide Locks in the 500-Sheet Adjustable Trays on page 59.

Note: Trays 1–4 accept labels (106–169 g/m²).

− For long-edge feed, load labels face up with the top edge toward the front of the tray.

3. For short-edge feed, load labels face up with the top edge facing to the right.

4. Close the tray. Set the paper size, type, and color at the control panel. For details, see Changing

Paper Size, Type, and Color on page 67.

72 Xerox User Guide

WorkCentre® 7800/7800i Series Color Multifunction Printer

Paper and Media

Loading Labels in Tray 5

1. Open tray 5, then pull out the extension tray for larger sizes. If the extension tray is already opened, remove any paper that is a different size or type.

2. Move the width guides to the edges of the tray.

Xerox User Guide

WorkCentre® 7800/7800i Series Color Multifunction Printer 73

Paper and Media

3. Load the labels in the tray. Do one of the following:

− For long-edge feed, load labels face down with the top edge toward the front of the tray.

− For short-edge feed, load labels face down with the top edge to the left.

Notes:

• Do not load paper above the maximum fill line. Overfilling the tray can cause the printer to

jam.

• Do not print on label media once a label has been removed from a sheet.

• To avoid jams and misfeeds, do not remove paper from its packaging until you are ready to use

it.

74 Xerox User Guide

WorkCentre® 7800/7800i Series Color Multifunction Printer

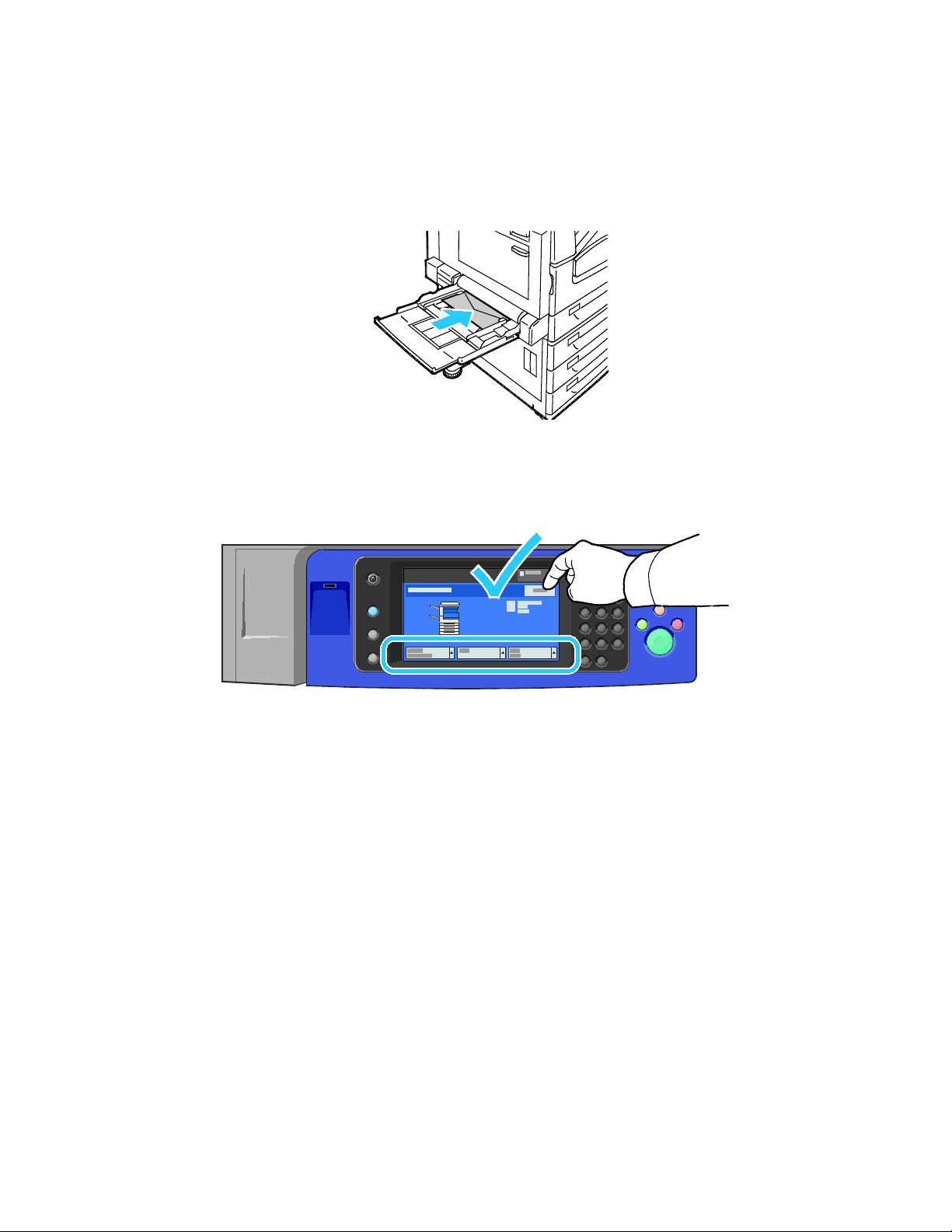

4. Adjust the width guides until they touch the edges of the paper.

5. When prompted, select an option:

− To confirm the paper type and size, touch Confirm.

− To select a new paper size, touch Size.

− To select a new paper type, touch Type.

− To select a new paper color, touch Color.

− When finished, touch Confirm.

Paper and Media

Glossy Cardstock

You can print Lightweight Glossy Cardstock and Glossy Cardstock from any tray. You can print Heavyweight Glossy Cardstock from tray 5 only.

Guidelines for Printing on Gloss Paper

• Do not open sealed packages of gloss paper until you are ready to load them into the printer.

• Leave gloss paper in the original wrapper, and leave the packages in the shipping carton until ready

to use.

• Remove all other paper from the tray before loading gloss paper.

• Load only the amount of gloss paper you are planning to use. Do not leave gloss paper in the tray

when you are finished printing. Reinsert unused paper in the original wrapper and seal.

• Rotate stock frequently. Long periods of storage in extreme conditions can cause gloss paper to curl and jam in the printer.

• In the print driver software, select the desired gloss paper type or select the tray loaded with the desired paper.

Xerox

WorkCentre® 7800/7800i Series Color Multifunction Printer 75

User Guide

Paper and Media

Loading Gloss Paper in Tray 5 (Bypass Tray)

1. Remove all other paper from the tray before loading gloss paper.

2. Load only the amount of paper you plan to use.

3. Load the paper with the glossy side or print side down.

4. Verify the size, type, and color of the paper. Change the selection for any incorrect setting.

5. On the printer touch screen, touch Confirm.

Transparencies

Transparencies can be printed from trays 1–5. For best results, use only recommended Xerox® transparencies.

CAUTION: The Xerox Warranty, Service Agreement, or Xerox Total Satisfaction Guarantee does not

cover damage caused by using unsupported paper or specialty media. The Xerox Total Satisfaction Guarantee is available in the United States and Canada. Coverage could vary outside these areas. Please contact your local representative for details.

Guidelines for Printing on Transparencies

• Before you load transparencies in the tray, remove all paper.

• Handle transparencies by the edges using both hands. Fingerprints or creases can cause poor print

quality.

• Do not load more than 20 transparencies. Overloading the tray can cause the printer to jam.

• Load Clear or non-strip transparencies face down into Tray 5 (bypass tray) and face up into trays

1-4.

• Do not fan transparencies.

• After you load transparencies, on the printer touch screen, change the paper type to Transparency.

• In the print driver software, for paper type, select Transparency.

• For Trays 1-4, load striped transparencies with the stripe down on the trailing edge (right).

• For Tray 5, load striped transparencies with the stripe up on the trailing edge (left).

76 Xerox

WorkCentre® 7800/7800i Series Color Multifunction Printer

User Guide

• Print From .............................................................................................................................................................................. 102

Printing

This chapter includes:

• Printing Overview ................................................................................................................................................................. 78

• Selecting Printing Options ................................................................................................................................................ 79

• Managing Jobs ...................................................................................................................................................................... 83

• Printing Features .................................................................................................................................................................. 86

• Printing Special Job Types ................................................................................................................................................ 95

• Held Print Jobs ..................................................................................................................................................................... 101

Xerox User Guide

WorkCentre® 7800/7800i Series Color Multifunction Printer 77

Printing

Printing on Special Paper on page 68

Printing Overview

Before printing, your computer and the printer must be plugged in, turned on, and connected to an active network. Make sure that you have the correct print driver software installed on your computer. For details, see Installing the Software on page 45.

1. Select the appropriate paper.

2. Load paper in the appropriate tray. On the printer control panel, specify the size, color, and type.

3. Access the print settings in your software application. For most software applications, press CTRL+P for Windows, or CMD+P for Macintosh.

4. Select your printer.

5. Access the print driver settings by selecting Properties or Preferences for Windows, or Xerox Features for Macintosh. The title of the button can vary depending on your application.

6. Modify the print driver settings as necessary, then click OK.

7. Click Print to send the job to the printer.

Selecting Printing Options

This section includes:

• Print Driver Help .................................................................................................................................................................... 79

• Windows Printing Options ................................................................................................................................................ 80

Printing options, also called print driver software options, are specified as Printing Preferences in Windows, and Xerox

Features in Macintosh. Printing options include settings for 2-sided printing, page layout, and print quality. Printing options that are set from Printers and Faxes Printing Preferences become the default setting. Printing options that are set from within the software application are temporary. The application and the computer do not save the settings after the application is closed.

Print Driver Help

Xerox® print driver software Help information is available from the Printing Preferences window. Click the Help (?) button in the bottom left corner of the Printing Preferences window to see the Help.

Information about Printing Preferences appears in the Help window on two tabs:

• Contents provides a list of the tabs at the top and the areas at the bottom of the Printing

Preferences window. Use the Contents tab to find explanations for each of the fields and areas in Printing Preferences.

• Search provides a field where you can enter the topic or function for which you need information.

Xerox User Guide

WorkCentre® 7800/7800i Series Color Multifunction Printer 79

Printing

Windows Printing Options

Setting Default Printing Options for Windows

When you print from any software application, the printer uses the print job settings specified in the Printing Preferences window. You can specify your most common printing options and save them so that you do not have to change them every time you print.

For example, if you want to print on both sides of the paper for most jobs, specify 2-sided printing in Printing Preferences.

To select default printing options:

1. Navigate to the list of printers on your computer:

− For Windows XP SP1 and later, click Start > Settings > Printers and Faxes.

− For Windows Vista, click Start > Control Panel > Hardware and Sound > Printers.

− For Windows Server 2003 and later, click Start > Settings > Printers.

− For Windows 7, click Start > Devices and Printers.

2. In the list, right-click the icon for your printer and click Printing Preferences.

3. In the Printing Preferences window, click a tab, select the options, then click OK to save.

Note: For more information about Windows print driver options, click the Help button (?) in the

Printing Preferences window.

Selecting Printing Options for an Individual Job for Windows

To use special printing options for a particular job, change the Printing Preferences from the application before sending the job to the printer. For example, if you want to use the Enhanced print-quality mode when printing a particular document, select Enhanced in Printing Preferences before printing the job.

1. With the document open in your software application, access the print settings. For most software

applications, click File > Print or press CTRL+P.

2. To open the Properties window, select your printer, then click the Properties or Preferences button.

The title of the button varies depending on your application.

3. Click a tab in the Properties window, then make selections.

4. To save your selections and close the Properties window, click OK.

5. To send the job to the printer, click OK.

80 Xerox User Guide

WorkCentre® 7800/7800i Series Color Multifunction Printer

Printing

Selecting Finishing Options for Windows

If your printer has a finisher installed, you can select finishing options in the Properties window of the print driver.

Note: Not all options listed are supported on all printers. Some options apply only to a specific

printer model, configuration, operating system, or driver type.

To select finishing options in the PostScript and PCL print drivers:

1. In the print driver, click the Printing Options tab.

2. To select a finishing option, to the right of the Finishing list, click the arrow.

Note: The print driver displays stapling positions on paper fed on the long edge. If paper feeds on

the short edge instead of the long edge, the finisher can insert the staple in the wrong location.

3. To select the output tray, click the arrow to the right of the Output Destination field, then select an

option:

− Automatically Select determines the output destination by the number of sets and the

stapling option selected. Multiple sets or stapled sets are sent to the finisher output tray.

− Top Tray selects the output tray on top of the printer.

− Stacker Tray selects the finisher output tray.

4. Do one of the following:

− To save the settings, click the arrow to the right of the Saved Settings field at the bottom of the

window, then click OK.

− To send the job to the printer, click OK.

Saving a Set of Commonly Used Printing Options for Windows

You can define and save a set of options, so that you can apply them to future print jobs.

To save a set of printing options:

1. With the document open in your application, click File > Print.

2. Select the printer, then click Properties. Click the tabs in the Properties window, then select the

desired settings.

3. To save the settings, click the arrow to the right of the Saved Settings field at the bottom of the

window, then click Save As.

4. Type a name for the set of printing options, then to save the set of options in the Saved Settings list,

click OK.

5. To print using these options, select the name from the list.

Xerox User Guide

WorkCentre® 7800/7800i Series Color Multifunction Printer 81

Printing

Macintosh Printing Options

Selecting Printing Options for Macintosh

To use specific printing options, change the settings before sending the job to the printer.

1. With the document open in your application, click File > Print.

2. Select your printer.

3. Select Xerox

4. Select the desired printing options from the drop-down lists.

5. Click Print to send the job to the printer.

Selecting Finishing Options for Macintosh

If your printer has a finisher installed, select finishing options in the Xerox® Features of the print driver.

To select finishing options in the Macintosh print driver:

1. In the print driver, click Copies & Pages, then select Xerox

2. To select stapling options, click the arrow to the right of the Finishing field, then select an option.

3. To select the output tray, click the arrow to the right of the Output Destination field, then select an

option:

− Automatically Select determines the output destination by the number of sets and the

stapling option selected. Multiple sets or stapled sets are sent to the finisher output tray.

− Top Tray selects the output tray on top of the printer.

− Stacker Tray selects the finisher output tray.

4. To send the job to the printer, click OK.

Features from the Copies & Pages menu.

Features.

Saving a Set of Commonly Used Printing Options for Macintosh

You can define and save a set of options, so that you can apply them to future print jobs.

To save a set of printing options:

1. With the document open in your application, click File > Print.

2. Select your printer from the Printers list.

3. Select the desired printing options from the drop-down lists in the Print dialog box.

4. Click Presets > Save As.

5. Type a name for the printing options, then click OK to save the set of options in the Presets list.

6. To print using these options, select the name from the Presets list.

82 Xerox User Guide

WorkCentre® 7800/7800i Series Color Multifunction Printer

Printing

• Managing Jobs in Xerox® CentreWare® Internet Services ................................................................................. 85

Managing Jobs

This section includes:

• Managing Jobs at the Control Panel ........................................................................................................................... 83

• Managing Secure and Held Print Jobs ........................................................................................................................ 84

Managing Jobs at the Control Panel

From the control panel Job Status, you can view lists of active jobs, secure jobs, or completed jobs. You can pause, delete, print, or view job progress or job details for a selected job. For details, see Printing

Special Job Types on page 95.

To pause printing:

1. At the control panel, press the Interrupt button. The printer continues to print while it determines

the best place to pause the spooled print job.

2. To resume printing, press the Interrupt button again.

To pause the print job with the option to delete it:

1. At the control panel, press the Interrupt button.

2. Touch the job required.

3. Do one of the following:

− To delete the print job, touch Delete.

− To resume the print job, touch Resume.

To view active, secure, or completed jobs:

1. At the control panel, press the Job Status button.

2. To see a list of specific job types, touch a tab.

− To view jobs that are in process or waiting to process, touch the Active Jobs tab.

− To view Secure Print jobs, touch the Secure Print Jobs, or My Secure Jobs tab. Touch the

folder, enter the passcode number using the keypad, then touch OK.

− To view completed jobs, touch the Completed Jobs tab.

3. To refine the list, use the drop-down menu.

4. To see details about a job, touch the job.

Xerox User Guide

WorkCentre® 7800/7800i Series Color Multifunction Printer 83

Printing

To delete a job:

1. At the control panel, press the Job Status button.

2. From any of the job type tabs, touch the job.

3. Touch Delete.

Notes:

• The system administrator can restrict users from deleting jobs. If a system administrator has restricted job deletion, you can view the jobs, but not delete them.

• Only the user that sent the job or the system administrator can delete a secure print job.

From the Print From menu, you can view lists of saved jobs, jobs stored on a USB Flash drive, or jobs stored in printer folders. You can select and print jobs from any of the lists. To print the job, see Printing

Special Job Types on page 95.

To view saved jobs:

1. Press the Services Home button, then touch Print From.

2. Touch Saved Jobs.

3. To view the saved jobs, touch a folder.

4. To see details about a job, touch the job.

Managing Secure and Held Print Jobs

When you send a secure print job, the job is held until you release it by typing a passcode at the control panel.

To view a list of secure print jobs:

1. At the printer control panel, press the Job Status button.

2. Touch Held Print Jobs or Secure Print Jobs, then select a folder. For details, see Secure Print on

page 95.

Note: Only the user that sent the job or the system administrator can delete a secure print job.

If the system administrator has configured the Hold All Jobs feature, any job sent to the printer is held until you release it. For details, see Releasing Held Print Jobs.

Unidentified jobs are jobs that are not associated with a user name. Unidentified jobs originate from a computer that does not require a user to log in. Examples are a job sent from a DOS or UNIX window using LPR, Port 9100, or from the Jobs tab in Xerox

To view a list of the unidentified jobs and release them:

1. Touch the Unidentified Print Jobs tab.

2. Do one of the following:

− To release a held job, touch the job, then touch Print.

− To release all held jobs, touch Print All.

CentreWare® Internet Services.

A print job can be held by the printer when it is unable to complete a print job. For example, it needs attention, paper, or supplies. When the condition is resolved, the printer automatically resumes printing.

84 Xerox User Guide

WorkCentre® 7800/7800i Series Color Multifunction Printer

Managing Jobs in Xerox® CentreWare® Internet Services

Printing

You can view a list of active jobs and delete print jobs from the Active Jobs list in Xerox® CentreWare® Internet Services. You can also print, copy, move, or delete saved jobs. For details, see the Help in Xerox CentreWare

Internet Services.

Xerox User Guide

WorkCentre® 7800/7800i Series Color Multifunction Printer 85

Printing

• Selecting Job Completion Notification for Windows ............................................................................................ 94

Printing Features

This section includes:

• Printing on Both Sides of the Paper ............................................................................................................................. 86

• Selecting Paper Options for Printing ............................................................................................................................ 87

• Printing Multiple Pages to a Single Sheet.................................................................................................................. 87

• Printing Booklets................................................................................................................................................................... 88

• Using Image Options ......................................................................................................................................................... 89

• Using Special Pages ............................................................................................................................................................ 90

• Scaling ...................................................................................................................................................................................... 91

• Printing Watermarks ........................................................................................................................................................... 92

• Printing Mirror Images ....................................................................................................................................................... 93

• Creating and Saving Custom Sizes ............................................................................................................................... 93

Printing on Both Sides of the Paper

Paper Types for Automatic 2-Sided Printing

The printer can print a 2-sided document automatically on supported paper. Before printing a 2-sided document, verify that the paper type and weight are supported. For details, see Supported Paper Types

and Weights for Automatic 2-Sided Printing on page 54.

Printing a 2-Sided Document

Options for Automatic 2-Sided Printing are specified in the print driver. The print driver uses the settings for portrait or landscape orientation from the application for printing the document.

86 Xerox User Guide

WorkCentre® 7800/7800i Series Color Multifunction Printer

2-Sided Page Layout Options

You can specify the page layout for 2-sided printing, which determines how the printed pages turn. These settings override the application page orientation settings.

Portrait Landscape

Printing

Portrait 2-Sided Print

Portrait 2-Sided Print, Flip on Short

Edge

Landscape 2-Sided Print

Landscape 2-Sided Print, Flip on Short

Edge

Selecting Paper Options for Printing

There are two ways to select the paper for your print job. You can let the printer select which paper to use based on the document size, paper type, and paper color you specify. You can also select a specific tray loaded with the desired paper.

Printing Multiple Pages to a Single Sheet

When printing a multiple-page document, you can print more than one page on a single sheet of paper. Print 1, 2, 4, 6, 9, or 16 pages per side by selecting Pages Per Sheet on the Page Layout tab. Page Layout is on the Document Options tab.

Xerox

WorkCentre® 7800/7800i Series Color Multifunction Printer 87

User Guide

Printing

Printing Booklets

With 2-sided printing, you can print a document in the form of a small booklet. Create booklets from any paper size that is supported for 2-sided printing. The driver automatically reduces each page image and prints four page images per sheet of paper, two page images on each side. The pages are printed in the correct order so that you can fold and staple the pages to create the booklet.

When you print booklets using the Windows PostScript or Macintosh driver, you can specify the gutter and creep.

• Gutter: Specifies the horizontal distance in points between the page images. A point is 0.35 mm

(1/72 in.).

• Creep: Specifies how much the page images shift outward in tenths of a point. Shifting

compensates for the thickness of the folded paper, which can cause the page images to shift outward slightly when folded. You can select a value from zero to 1 point.

Gutter Creep

88 Xerox

WorkCentre® 7800/7800i Series Color Multifunction Printer

User Guide

Printing

Using Image Options

The Image Options control the way the printer uses color to produce your document. The Windows PostScript and the Macintosh drivers provide the widest range of color controls and corrections. Each system has standard modes of color control for normal use and custom color options for the more advanced users. Image Options are on the Image Options tab of the Properties window. There, they are divided into Color Correction, Color By Words, and Color Adjustments tabs. For details on accessing the Properties window, see Printing Overview on page 78.

The Color Correction tab provides standard color modes.

Xerox Black and White: This feature converts all color in the document to black and white or shades of gray.

For best printing results of mixed text, graphics, and images on a range of supported paper, set the Color Correction to Xerox Automatic Color. To control the Color Corrections and Color Adjustments, follow these guidelines.

• For best results on most paper, ensure that the Color Correction in the print driver is set to Xerox Automatic Color.

• To produce more vivid results, select a mode of Color Correction. For example, when printing graphics in which the sky does not look blue enough, for a more vibrant blue sky, select Vivid Color.

• To match the color output to another output device, select a custom Color Correction.

• To apply different Color Corrections to Text and Graphics, and Images, select Custom Automatic

Color. This feature provides custom color corrections using color systems such as RGB Color, CMYK Color, Spot Color, or CIE Color.

• To adjust particular characteristics of the printed color, such as Lightness, Contrast, Saturation, and Color Casts, select More Adjustments.

The two remaining tabs provide additional ways of adjusting the colors for more specific color requirements.

The Color By Words tab provides a three-step process for defining custom color correction. By making a selection from each of the three fields, you create a sentence for controlling the color characteristics of the document. You can create several sentences to more precisely control the color content of the document. As you create a Color By Words sentence, it appears in the window below the selection fields.

There are three parts to the sentence structure.

• What Color to Change?: Provides a list to select a color or range of colors to adjust, such as All Foliage-Green Colors.

• How Much Change?: Lets you select how much effect to make to the selected color.

• What Type of Change?: Lets you select the type of change, such as Vivid, from a list.

The Color Adjustments tab provides a set of six sliders for adjusting the individual components of the selected colors. You can use the sliders to adjust the lightness, contrast, saturation, cyan, magenta, and yellow components of the color.

Xerox User Guide

WorkCentre® 7800/7800i Series Color Multifunction Printer 89

Printing

Using Special Pages

The Special Pages options control how covers, inserts, and exception pages are added to your printed document.

For details on accessing the Properties window, see Printing Overview on page 78.

Printing Cover Pages

A cover page is the first or last page of a document. You can select paper sources for the cover pages that are different from the source used for the body of a document. For example, you can use your company letterhead for the first page of a document. You can also use heavyweight paper for the first and last pages of a report. You can use any applicable paper tray as the source for printing cover pages.

Select one of these options for printing cover pages:

• No Covers does not print cover pages. No cover pages are added to the document.

• Front Only prints the first page on paper from the specified tray.

• Back Only prints the back page on paper from the specified tray.

• Front and Back: Same prints the front and back cover pages from the same tray.

• Front and Back: Different prints the front and back cover pages from different trays.

After making a selection for printing the cover pages, you can select the paper for the front and back covers by size, color, or type. You can also use blank or pre-printed paper, and you can print side one, side two, or both sides of the cover pages.

Printing Insert Pages

You can add blank or pre-printed insert pages before page one of each document or after designated pages within a document. Adding an insert after designated pages within a document separates sections, or acts as a marker or placeholder. Ensure that you specify the paper to use for the insert pages.

• Insert Options: Provides the options to place an insert After Page X, where X is the specified page, or Before Page 1.

• Quantity: Specifies the number of pages to insert at each location.

• Pages: Specifies the page or range of pages that use the exception page characteristics. Separate

individual pages or page ranges with commas. Specify pages within a range with a hyphen. For example, to specify pages 1, 6, 9, 10, and 11, type 1,6,9-11.

• Paper: Displays the default size, color, and type of paper selected in Use Job Settings. To specify a different paper size, color, or type, for Paper, click the arrow, then select an option.

• Job Setting: Displays the attributes of the paper for the remainder of the job.

90 Xerox User Guide

WorkCentre® 7800/7800i Series Color Multifunction Printer

Printing

Printing Exception Pages

Exception pages have different settings from the rest of the pages in the job. You can specify differences such as page size, page type, and page color. You can also change the side of the paper on which to print as your job requires. A print job can contain multiple exceptions.

For example, your print job contains 30 pages. You want five pages to print on only one side of a special paper, and the remainder of the pages printed 2-sided on regular paper. You can use exception pages to print the job.

In the Add Exceptions window, you can set the characteristics of the exception pages and select the alternate paper source:

• Pages: Specifies the page or range of pages that use the exception page characteristics. Separate individual pages or page ranges with commas. Specify pages within a range with a hyphen. For example, to specify pages 1, 6, 9, 10, and 11, type 1,6,9-11.

• Paper: Displays the default size, color, and type of paper selected in Use Job Settings.

• 2-Sided Printing allows you to select 2-sided printing options. Click the Down arrow to select an

option:

− 1-Sided Print prints the exception pages on one side only.

− 2-Sided Print prints the exception pages on both sides of the paper and flips the pages on the

long edge. The job then can be bound on the long edge of the pages.

− 2-Sided Print, Flip on Short Edge prints the exception pages on both sides of the paper and

flips the pages on the short edge. The job then can be bound on the short edge of the pages.

− Use Job Setting prints the job using the attributes shown in the Job Settings box.

• Job Setting: Displays the attributes of the paper for the remainder of the job.

Note: Some combinations of 2-sided printing with certain paper types and sizes can produce

unexpected results.

Scaling

You can reduce the image to as little as 25% of its original size or enlarge it as much as 400%. In Windows, you can find the Scale Options in the print driver on the Printing Options tab.

50% 100% 200%

Xerox User Guide

WorkCentre® 7800/7800i Series Color Multifunction Printer 91

Printing

1. To access Scaling Options, to the right of the Paper field, click the arrow, then select Other Size > Advanced Paper Size.

2. Select an option.

− No Scaling: You can use this option to retain the original image size.

− Automatically Scale: You can use this option to change the print from one standard paper size

to another. The Original Document Size is scaled to fit on the selected output paper size shown in the Output Paper Size field.

− Manually Scale: You can use this option to change the output print size by a specified

percentage.

Printing Watermarks

A watermark is special purpose text that can be printed across one or more pages. For example, you can add a word like Copy, Draft, or Confidential as a watermark instead of stamping it on a document before distribution.

Notes:

• Not all options listed are supported on all printers. Some options apply only to a specific printer

model, configuration, operating system, or driver type.

• Watermarks are not supported for some print drivers when booklet is selected or when more

than one page is printed on a sheet of paper.

Using the watermark options, you can do the following:

• Create a watermark or edit an existing watermark using the Watermark Editor:

− A Text Watermark uses the characters typed in the Text field as the watermark. You can create

a text watermark to print on a document. Select options such as font size, font type, font color, and angle.

− A Picture Watermark uses an image as the watermark. The picture file can be in .bmp, .gif, or

.jpg format. You can create a picture watermark to print on a document, and select options

including size and position on the page.

− A Time Stamp Watermark uses a time stamp as the watermark. You can create a time stamp

watermark to print on a document. Time stamp elements include the day, date, time, and time zone.

• Place a watermark on the first page or on every page in a document.

• Print a watermark in the foreground or background or blend it with the print job.

92 Xerox User Guide

WorkCentre® 7800/7800i Series Color Multifunction Printer

To print a watermark:

1. Click Document Options > Watermark.

2. From the Watermark menu, select the watermark.

3. Click Layering, then select how to print the watermark:

− Print in Background: This option prints the watermark behind the text and graphics in the

document.

− Blend: This option combines the watermark with the text and graphics in the document. A

blended watermark is translucent, so you can see both the watermark and the document content.

− Print in Foreground: This option prints the watermark over the text and graphics in the

document.

4. Click Pages, then select the pages on which to print the watermark:

− Print on Page 1 Only: This option prints the watermark only on the first page of the document.

− Print on All Pages: This option prints the watermark on all pages of your document.

5. Click OK.

Printing

Printing Mirror Images

If the PostScript driver is installed, you can print pages as a mirror image. Images mirror left to right when printed.

Creating and Saving Custom Sizes

You can print custom-size paper from Trays 1–4. Custom size paper settings are saved in the print driver and are available for you to select in all your applications. For details, see Supported Custom Paper Sizes on page 50.

To create and save custom sizes for Windows:

1. In the print driver, click the Printing Options tab.

2. For Paper, click the arrow, then select Other Size > Advanced Paper Size > Output Paper Size > New.

3. In the New Custom Paper Size window, enter the height and width of the new size.

4. To specify the units of measurement, at the bottom of the window, click the Measurements button, then select Inches or Millimeters.

5. To save, in the Name field, type a title for the new size, then click OK.

Xerox User Guide

WorkCentre® 7800/7800i Series Color Multifunction Printer 93

Printing

To create and save custom sizes for Macintosh:

1. In the application, click File > Page Setup.

2. Click Paper Sizes, then select Manage Custom Sizes.

3. To add a new size, in the Manage Paper Sizes window, click the plus sign (+).

4. At the top of the window, double-click My Custom Size, then type a name for the new custom size.

5. Enter the height and width of the new custom size.

6. Click Print Margins, then select the printer from the list. Or set the top, bottom, right, and left margins.

7. To save the settings, click OK.

Selecting Job Completion Notification for Windows

You can select to be notified when your job finishes printing. A message appears on your computer screen with the name of the job and the name of the printer where it was printed.

Note: This feature is available on a computer printing to a network printer.

To be notified when your print job completes:

1. In the print driver, click the Advanced tab.

2. Click Notification > Notify for Completed Jobs > Enabled.

3. Click OK.

94 Xerox User Guide

WorkCentre® 7800/7800i Series Color Multifunction Printer

Printing

• Saved Job ................................................................................................................................................................................ 99

Printing Special Job Types

This section includes:

• Secure Print ............................................................................................................................................................................. 95

• Sample Set .............................................................................................................................................................................. 97

• Delay Print ............................................................................................................................................................................... 98

Special job types allow you to send a print job from your computer, then print it from the printer control panel.

Select special job types in the print driver from the Printing Options tab.

Secure Print

Secure print allows you to associate a 4–10 digit passcode with a print job when sending it to the printer. The job is held at the printer until you enter the passcode at the control panel.

When printing a series of secure print jobs, you can assign a default passcode in the Printing Preferences of the print driver. Then you can use the default passcode for all print jobs sent from that computer. If you must use a different passcode, you can override it in the application print driver.

Xerox User Guide

WorkCentre® 7800/7800i Series Color Multifunction Printer 95

Printing

Sending a Secure Print Job

1. On the Printing Options tab, from the Job Type list, select Secure Print.

2. Type a 4–10 digit passcode for the Secure Print job.

3. In the Confirm Passcode field, type the passcode again.

Notes:

• If you do not supply a passcode, the printer assigns a passcode and displays it in the Passcode

Required window. You can use the passcode supplied by the printer, or you can type your own passcode to use in the Secure Print window.

• The passcode is associated with your user name. After you set a passcode, it becomes the

default passcode for any print job that requires a passcode on all Xerox the passcode at any time from any window that contains the passcode.

4. Click OK.

5. Verify that the paper is the correct size, type, and weight. If not, change the paper settings.

Note: To select the paper for your print job, click Paper > Select By Tray.

6. Select an option for 2-sided printing.

7. If your printer has a finisher installed, click the arrow to the right of Finishing, then select a stapling option. The image next to Stapling shows the staple position.

8. Select a print-quality mode.

9. Select an output destination.

10. Select another tab or click OK.

11. To send the job to the printer, in the Print window, select the number of copies to print, then click OK or Print.

printers. You can reset

Releasing a Secure Print

1. At the control panel, press the Job Status button.

2. Touch Held Print Jobs or Secure Print Jobs, then select a folder. For details, see Secure Print on page 95.

3. Use the keypad to enter the passcode that you assigned to the print job, then touch OK.

4. Touch the corresponding print job in the list, then touch Print.

Deleting a Secure Print

1. At the control panel, press the Job Status button.

2. Touch Held Print Jobs or Secure Print Jobs, then select a folder. For details, see Secure Print on page 95.

3. Use the keypad to enter the passcode that you assigned to the print job, then touch OK.

4. Touch the corresponding print job in the list, then touch Delete.

96 Xerox User Guide

WorkCentre® 7800/7800i Series Color Multifunction Printer

Printing

Sample Set

The Sample Set job type allows you to print a sample copy of a multiple-copy job and hold the remaining copies at the printer. After you review the sample copy, you can select the job name from the printer control panel to print the additional copies.

Sending a Sample Set Print Job

1. On the Printing Options tab, from the Job Type list, select Sample Set.

2. Verify that the paper is the correct size, type, and weight. If not, change the paper settings.

Note: To select the paper for your print job, click Paper > Select By Tray.

3. Select an option for 2-sided printing.

4. If your printer has a finisher installed, click the arrow to the right of Finishing, then select a stapling option. The image next to Stapling shows the staple position.

5. Select a print-quality mode.

6. Select an output destination.

7. Select another tab or click OK.

8. To send the job to the printer, in the Print window, select the number of copies to print, then click OK or Print.

A sample copy prints immediately. The sample copy is not counted as part of the print job.

9. After reviewing the copy, use the printer control panel to print or delete the remaining copies.

Note: You can use Sample Set as a part of the Earth Smart settings. In Earth Smart settings, set

Sample Set as your default Job Type.

10. To print the job, select it from the job list on the printer control panel.

11. Press OK.

Releasing the Remaining Prints After Printing a Sample Set

1. At the control panel, touch Job Status.

2. Touch Held Print Jobs or Active Jobs, then select a folder.

3. Touch the corresponding print job in the list.

4. Touch Print. The remainder of the job prints, then the printer deletes the job from the printer hard drive.

Xerox User Guide

WorkCentre® 7800/7800i Series Color Multifunction Printer 97

Printing

Delay Print

You can delay a print job for up to 24 hours from the original job submission time. Enter the time at which you would like the job to print. If the time you enter is earlier than the time that you submit the print job, it prints on the following day. The Delayed Print default time is midnight.

Sending a Delay Print Job

1. On the Printing Options tab, from the Job Type list, select Delay Print.

2. In the Delay Print window, select the Tab key to move from the hour section to the minutes section. To select the time to send the print job, click the arrow buttons.

− For a 12-hour time format, type the hour (1–12), minutes (00–59), then select A.M. or P.M. To

toggle between A.M. and P.M., click A.M. or P.M., then use the Up arrow or Down arrow buttons.

− For a 24-hour time format, type the hour (1–23) and the minutes (00–59).

Note: The regional settings on your computer determine the time format.

3. Click OK.

4. Select other desired printing options and click OK.

5. Click OK or Print.

Note: To print the job after you send it but before the scheduled time, release the job at the printer

control panel.

98 Xerox User Guide

WorkCentre® 7800/7800i Series Color Multifunction Printer

Printing

Saved Job

Saved Job or Store File in Folder stores a public or private job in the printer and prints the job as requested at the printer control panel. This option is useful for documents that you print frequently. You can assign a passcode to a private job to prevent unauthorized printing.

To print saved jobs, see Printing from Saved Jobs.

Sending a Public Saved Job

1. On the Printing Options tab, from the Job Type list, select Saved Job.

2. In the Saved Job window, for Job Name, do one of the following:

− Type a name for the job.

− Click the arrow to the right of the field and select a name from the list.

− Click the arrow to the right of the field and select Use Document Name to use the name of the

document.

Note: The print driver retains 10 names. When adding an 11th name, the name used least is deleted

automatically from the list. To remove names from the list other than the selected name, select Clear List.

3. In Save To or Folder Number, specify where you want the file saved on the printer. Do one of the following:

− Type the name of the destination folder.

− Click the arrow to the right of the field, then select a folder name from the list.

− Click the arrow to the right of the field, then select Default Public Folder.

4. To print the job now and also save the job, select the Print and Save check box.

5. Select Public.

6. Click OK.

7. Verify that the paper is the correct size, type, and weight. If not, change the paper settings.

8. Select options for the print job:

− Select an option for 2-sided printing.

− Select a print-quality mode.

− Select an output destination.

− If your printer has a finisher installed, click the arrow to the right of Finishing, then select a

stapling option. The image next to Stapling shows the staple position.

9. Select another tab or click OK.

10. To send the job to the printer, in the Print window, select the number of copies to print, then click OK or Print.

A sample copy prints immediately. The sample copy is not counted as part of the print job. After the job is saved, you can print it as needed. For details, see Printing from Saved Jobs.

Xerox User Guide

WorkCentre® 7800/7800i Series Color Multifunction Printer 99

Printing

Sending a Private Saved Job

1. On the Printing Options tab, from the Job Type list, select Saved Job.

2. In the Saved Job window, for Job Name, do one of the following:

− Type a name for the job.

− Click the arrow to the right of the field and select a name from the list.

− Click the arrow to the right of the field and select Use Document Name to use the name of the

document.

Note: The print driver retains 10 names. When adding an 11th name, the name used least is deleted

automatically from the list. To remove names from the list other than the selected name, select Clear List.

3. In Save To or Folder Number, specify where you want the file saved on the printer. Do one of the following:

− Type the name of the destination folder.

− Click the arrow to the right of the field, then select a folder name from the list.

− Click the arrow to the right of the field, then select Default Public Folder.

4. To print the job now and also save the job, select the Print and Save check box.

5. To store your job at the printer, select Private.

6. In the Passcode field, type a passcode. The passcode is associated with your user name. After you set a passcode, it becomes the default passcode for any print job that requires a passcode on all

Xerox passcode.

7. In the Confirm Passcode field, type the passcode again.

8. Click OK.

9. Verify that the paper is the correct size, type, and weight. If not, change the paper settings.

10. Select options for the print job:

− Select an option for 2-sided printing.

− Select a print-quality mode.

− Select an output destination.

− If your printer has a finisher installed, click the arrow to the right of Finishing, then select a

11. Select another tab or click OK.

12. To send the job to the printer, in the Print window, select the number of copies to print, then click OK or Print.

After the job is saved, you can print it as needed. For details, see Printing from Saved Jobs.

printers. You can reset the passcode at any time from any window that contains the

stapling option. The image next to Stapling shows the staple position.
