Phaser® 6130
Printer Tour
printer
Quick
Use
Guide
Supported Papers
Basic Printing
Troubleshooting
More Information
www.xerox.com/office/6130support
Printer drivers and utilities
•
User manuals and instructions
•
Online Support Assistant
•
Safety specifications (in User Guide)
•
www.xerox.com/msds (U.S./Canada)
www.xerox.com/environment_europe
Material Safety Data Sheets
-English- Rev B
Copyright © 2007 Xerox Corporation. All rights reserved.
www.xerox.com/office/
businessresourcecenter
Templates, tips, and tutorials
www.xerox.com/office/6130support
Ready
Phaser 6130
www.xerox.com/office/6130supplies
K
Y
M
C
Printer Tour
OKOK
Power Saver
wake up
Power Saver
wake up
Move within a menuMove within a menu
Activate menus on/offActivate menus on/off
Move between levels
in menu structure
Move between levels
in menu structure
CancelCancel
For ordering supplies, contact your local reseller,
or visit the Xerox Supplies website.
Imaging Unit
Toner Cartridges
Fuser
Manual Feed Slot
Tray
www.xerox.com/office/6130support
Ready
Phaser 6130
Mac
Manual Feed Slot Tray
LE
SE
PC
65-120 g/m
2
(17-32 lb. Bond)
100-163 g/m
2
(28 lb. Bond – 60 lb. Cover)
100-160 g/m
2
(28 lb. Bond – 60 lb. Cover)
160-220 g/m
2
(60-80 lb. Cover)
160-220 g/m
2
(60-80 lb. Cover)
Supported Papers
Letter............................8.5 x 11.0 in.
Legal ............................8.5 x 14.0 in.
Executive......................7.25 x 10.5 in.
Folio .............................8.5 x 13.0 in.
#10 Commercial........... 4.1 x 9.5 in.
Monarch .......................3.8 x 7.5 in.
A4 .................................210 x 297 mm
A5 .................................148 x 210 mm
DL ................................. 110 x 220 mm
C5 .................................162 x 229 mm
Letter............................8.5 x 11.0 in.
A4 .................................210 x 297 mm
Custom .........................(SE) x (LE)
SE: 76.2 – 216 mm (3.0 – 8.5 in.)
LE: 127 – 355.6 mm (5.0 – 14.0 in.)
B5 JIS ........................... 182 x 257 mm
65 – 220 g/m
2
(17 lb. Bond – 80 lb. Cover)
Letter............................8.5 x 11.0 in.
Legal ............................8.5 x 14.0 in.
Executive......................7.25 x 10.5 in.
Folio .............................8.5 x 13.0 in.
#10 Commercial........... 4.1 x 9.5 in.
Monarch .......................3.8 x 7.5 in.
A4 .................................210 x 297 mm
A5 .................................148 x 210 mm
DL ................................. 110 x 220 mm
C5 .................................162 x 229 mm
Letter............................8.5 x 11.0 in.
A4 .................................210 x 297 mm
Custom .........................(SE) x (LE)
SE: 76.2 – 216 mm (3.0 – 8.5 in.)
LE: 127 – 355.6 mm (5.0 – 14.0 in.)
B5 JIS ........................... 182 x 257 mm
65 – 220 g/m
2
(17 lb. Bond – 80 lb. Cover)

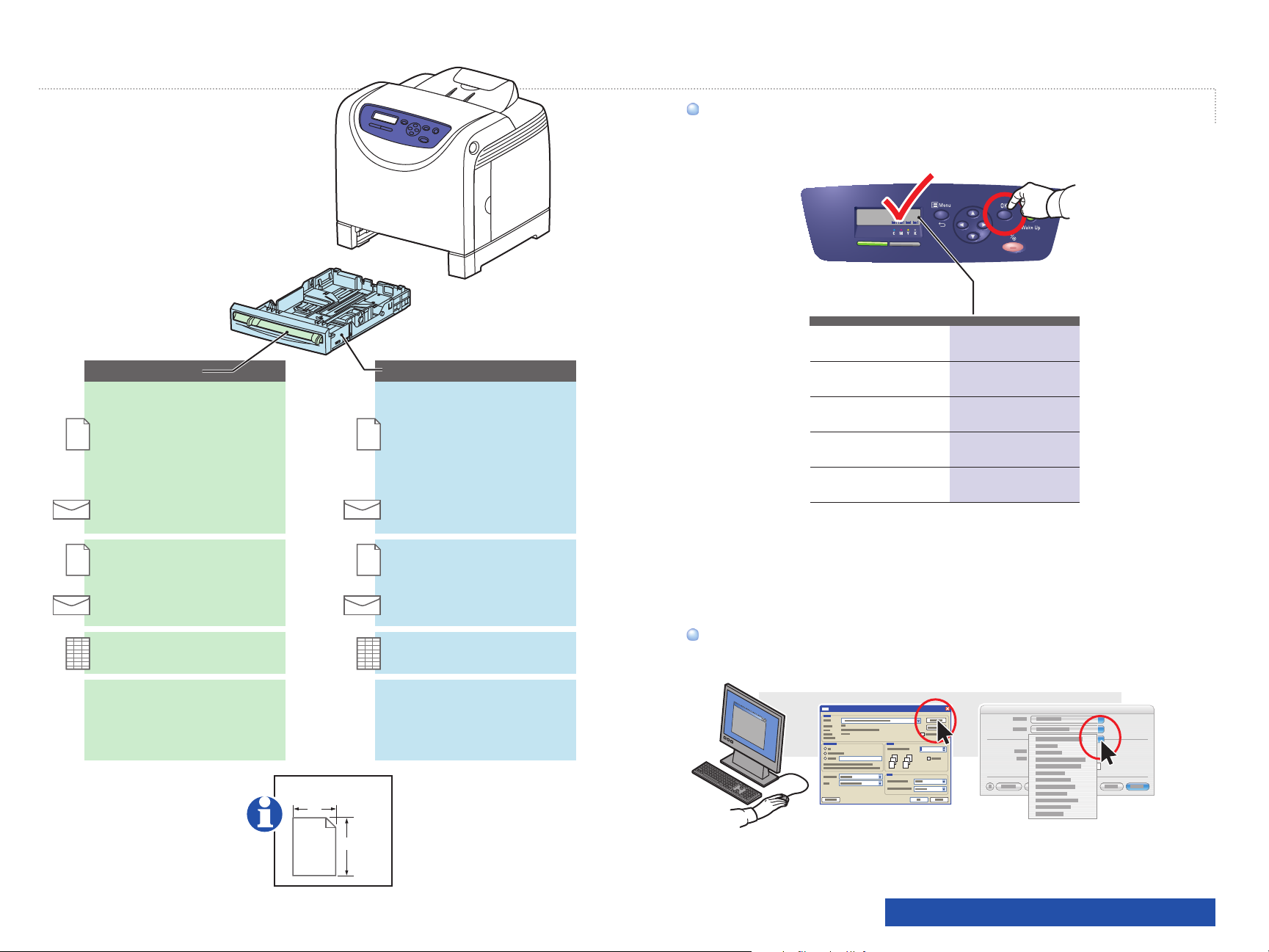

When Printing: Select properties. Use Xerox printer driver.When Printing: Select properties. Use Xerox printer driver.

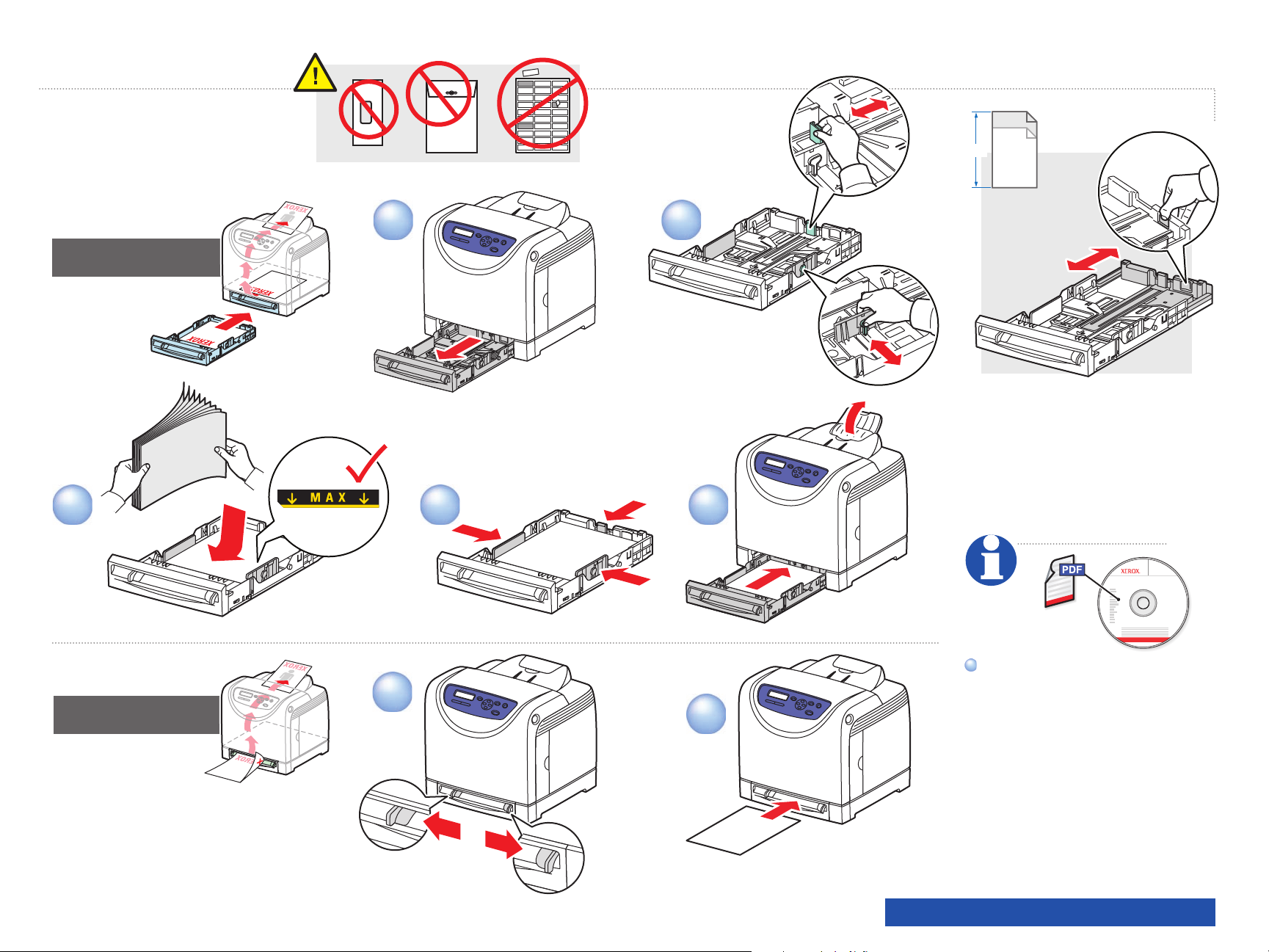

When loading paper: Select the correct type and size
on the control panel.
When loading paper: Select the correct type and size
on the control panel.
Custom (SE) x (LE)
Plain Paper
Thin Card Stock
Thick Card Stock
Glossy Paper
Thick Glossy Paper
www.xerox.com/office/6130support
Tray
Faceup
1
1
2
2
43 5
Manual Feed Slot
Facedown
LE> 297 mm (11.7 in.)
Custom
US Folio
Legal
LE
+
063-3500-00a
Phaser® 6180 Software and
Documentation CD-ROM
Printer Drivers
and Utilities
Installation Video
Windows®,
Mac OS
®
Basic Printing
See Printing Basics in the
User Guide for more information.
063-3500-00a
Phaser® 6130 Software and
Documentation CD-ROM
Printer Drivers
and Utilities
Installation Video
Windo ws®,
Mac O S
®
1
2
www.xerox.com/office/6130support
Troubleshooting
Paper Jams
Also see Print Quality and Troubleshooting chapters
in the User Guide for more information on:
•
Print-quality problems
•
Color registration
•
Error messages
